AD 6322 - Deep fryer ADLER - Free user manual and instructions

Product type	Air fryer
Capacity	5 L
Power supply	220-240 V ~ 50/60 Hz
Rated power	1500 W
Maximum power	2000 W
Standby power consumption	0.30 W
Main functions	12 preset programs, temperature and time adjustment, delayed start, program memory
Preset programs	Chicken wings, sausages, fries, egg tart, pizza, sweet potatoes, chicken thighs, shrimp, steak, fish, cake, peanuts
Temperature range	150 °C - 200 °C (depending on program)
Timer	Up to 60 minutes (adjustable)
Delayed start	From 10 minutes to 24 hours
Basket and container material	Non-stick
Care and cleaning	Grid and container hand washable with dish soap; do not put in dishwasher; wipe housing with a damp cloth
Safety	Automatic shutdown when container is removed; hot surfaces; do not immerse
Spare parts and repairability	Repairs by authorized service center only
General information	Household use; do not use with an external timer

Frequently Asked Questions - AD 6322 ADLER

How to clean the Adler AD 6322 air fryer?

Unplug the appliance and let it cool down. Wash the grid and container by hand with hot water and a little dish soap. Do not use abrasive sponges or scouring powders. Do not put the parts in the dishwasher. Clean the housing with a damp cloth then dry.

Can I put the basket or container in the dishwasher?

No, it is not recommended to wash the metal parts (grid and container) in the dishwasher, as harsh detergents can darken them and damage the non-stick coating. Wash them by hand.

What to do if the appliance does not turn on?

Check that the plug is properly connected to a 220-240 V grounded outlet. If the appliance does not start, ensure the container is correctly inserted into the housing. If the problem persists, contact an authorized service center.

Can I use oil in the fryer?

The fryer uses hot air to cook food. You can add a very small amount of oil (for example, a teaspoon) to improve crispiness, but it is not necessary. Do not pour large amounts of oil.

How to manually adjust the temperature and cooking time?

Select a program with the Function button, then press the temperature/time adjustment key (C). Use the + and - keys to adjust the temperature and duration. The appliance starts automatically after 4 seconds.

What types of food can I cook with this fryer?

You can cook chicken wings, sausages, frozen fries, egg tarts, pizza, sweet potatoes, chicken thighs, shrimp, steak, fish, cakes, peanuts. The appliance has 12 preset programs suitable for these foods.

How to use the delayed start function?

After selecting a program, press the Delay time button (D). Use the + and - keys to set the desired delay (from 10 minutes to 24 hours). After 5 seconds, the countdown begins. To cancel, press and hold the start/cancel button for 3 seconds.

Why does the appliance stop during cooking?

If you remove the container during operation, the appliance stops automatically for safety reasons. Replace the container to resume cooking. You can also press the start/cancel button once to pause, and again to resume.

Can I cook frozen fries?

Yes, the Chips program (No. 3) is specially designed for frozen fries. The appliance heats to 190°C for 13 minutes. You can adjust the time if necessary. Stir the fries halfway through for a more even result.

What to do if an indicator flashes or an error code appears?

The manual does not describe specific error codes. In case of malfunction, unplug the appliance and let it cool down. Check that the container is properly in place and that the appliance is not obstructed. If the problem persists, contact customer service.

USER MANUAL AD 6322 ADLER

AD 6322
EN	User Manual	3	PL	Instrukcja obsługi	123
DE	Bedienungsanleitung	10	IT	Manuale d'uso	131
FR	Mode d'emploi	18	SV	Bruksanvisning	139
ES	Manual de usuario	26	BG	Ръководство за употреба	146
PT	Manual de Instruções	33	DA	Brugsanvisning	154
LT	Naudojimo instrukcija	41	SK	Používatel'ská príručka	161
LV	Lietošanas instrukcija	48	BS	Korisnički priručnik	169
ET	Kasutusjuhend	55	MK	Упатство за употреба	176
HU	Használati útmutató	62	HR	Korisnički priručnik	184
RO	Manual de utilizare	70	UK	Керівництво користувача	191
CS	Návod k použití	77	SR	Упутство за употребу	199
RU	Руководство пользователя	84	AR	دليل المستخدم	207
EL	Еүхειρίδιο хрήσης	93	AZ	İstifadəçi təlimatı	212
NL	Gebruikershandleiding	101	SQ	Manuali i përdorimit	220
SL	Navodila za uporabo	109	KA	Liberia ۶۰۵۱۶۲۹۷۸۱۶۰۶	227
FI	Käyttöohje	116

Table 1

GENERAL SAFETY CONDITIONS. IMPORTANT SAFETY INSTRUCTIONS FOR USE. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. Before using the device, read the instruction manual and follow the instructions contained therein. The manufacturer is not responsible for damage caused by using the device contrary to its intended use or improper operation.
2. The device is for domestic use only. Do not use for other purposes, incompatible with its purpose.
3. Connect the device only to a grounded outlet 220-240V ~ 50/60 Hz.

In order to increase the safety of use, do not connect multiple electrical appliances to a single circuit at the same time.

1. Be especially careful when using the device when children are around. Do not allow children to play with the appliance; do not allow children or persons unfamiliar with the appliance to use it.
2. WARNING: This equipment may be used by children over 8 years of age and persons with limited physical, sensory or mental ability, or persons without experience or familiarity with the equipment, if it is done under the supervision of a person responsible for their safety or they have been given instructions on the safe use of the equipment and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and maintenance of the equipment should not be performed by children unless they are over 8 years of age and these activities are performed under supervision.
3. WARNING: do not leave the device plugged into an outlet

unattended.

1. WARNING: never carry the device when it is on or when it is hot.
2. WARNING: the temperature of the accessible surfaces of the operating equipment may be high when the equipment is operating.
3. WARNING: keep the equipment and its cord out of the reach of children under 8 years of age.
4. WARNING: Always remove the plug from the power outlet after use by holding the outlet with your hand. DO NOT pull on the power cord.
5. WARNING: Do not use the device near flammable materials.
6. WARNING: Do not place cardboard products, paper, plastics and other flammable and fusible items inside the unit.
7. Do not immerse the cable, plug and the entire device in water or other liquid. Do not expose the device to weather conditions (rain, sun, etc.) or use in high humidity conditions (bathrooms, humid camping houses).
8. Periodically check the condition of the power cord. If the power cord is damaged, the equipment must not be used. A damaged cord should be replaced by a specialized repair facility to avoid danger.
9. Do not use the equipment with a damaged power cord or if it has been dropped or damaged in any other way or is not working properly. Do not repair the device yourself, as there is a risk of electrocution. Return a damaged device to a competent service center for inspection or repair. All repairs may be made only by authorized service centers. Improper repair may cause serious danger to the user.
10. Place the appliance on a cool, stable, level surface, away from hot kitchen appliances such as electric stoves, gas burners, etc.
11. The power cord must not hang over the edge of the table or touch hot surfaces.
12. To provide additional protection, it is advisable to install in the electrical circuit a residual current device (RCD) with a rated residual current of not more than 30 mA. In this regard, consult a specialist electrician.
13. If it is necessary to use an extension cord, then use a model only with a grounding pin suitable for a current of at least 10 A. Extension cords that do not meet this requirement may overheat. Arrange the cable so as to avoid accidental pulls or tripping over it.
14. Do not allow the motor part of the device to get wet.
15. Place the device on a level, heat-resistant surface, away from flammable materials (curtains, drapes, wallpaper, etc.). To ensure proper air circulation, keep at least 10 cm of free space on each side of the device and at least 30 cm above it. Do not cover the ventilation holes of the device, as this may cause overheating and damage to the product.
16. Do not touch the hot surfaces of the appliance (door, top or bottom wall, and side panels). Use protective gloves to remove or touch any hot parts.
17. The power cord should not be laid over the appliance, and should not touch or lie near hot surfaces. Do not place the unit under an electrical outlet.
18. Do not put portions occupying the entire volume of the appliance, as this may cause fire and damage to the product.
19. After finishing baking or before cleaning the appliance, unplug the power cord from the outlet and leave it to cool down. Be sure to wait long enough, as a heated appliance cools down very slowly.
20. Clean the device after each use.
21. Do not use aggressive detergents in the form of emulsions, lotions, pastes, etc. to clean the housing, as they

may, among other things, remove applied informative graphic symbols such as graduations, markings, warning signs, etc.

1. Do not use metal wire cutters for cleaning. Broken fragments of wire cutters, may come into contact with electrical parts, posing a risk of electrical shock.
2. The equipment is not designed to operate with external timers or a separate remote control system.
3. Due to the high temperature, special care should be taken when removing baked food, removing hot fat or other hot liquids.
4. Do not place the unit under kitchen cabinets due to rising heat and steam.
5. Do not wash metal parts in dishwashers, as the aggressive agents used in these devices cause the above-mentioned parts to darken. It is recommended to wash them by hand, using traditional dishwashing liquids.
6. To avoid overheating of the device, do not cover the device.
7. Do not store anything in the device except accessories belonging to it.
8. Do not use the device with the container not closed.

CAUTION!

The device is equipped with a delayed start function, but it is recommended to use it only when the user is at home and the device is under supervision.

The grate (5) is equipped with 4 motor rubber bands which should not be removed, they are resistant to high temperatures.

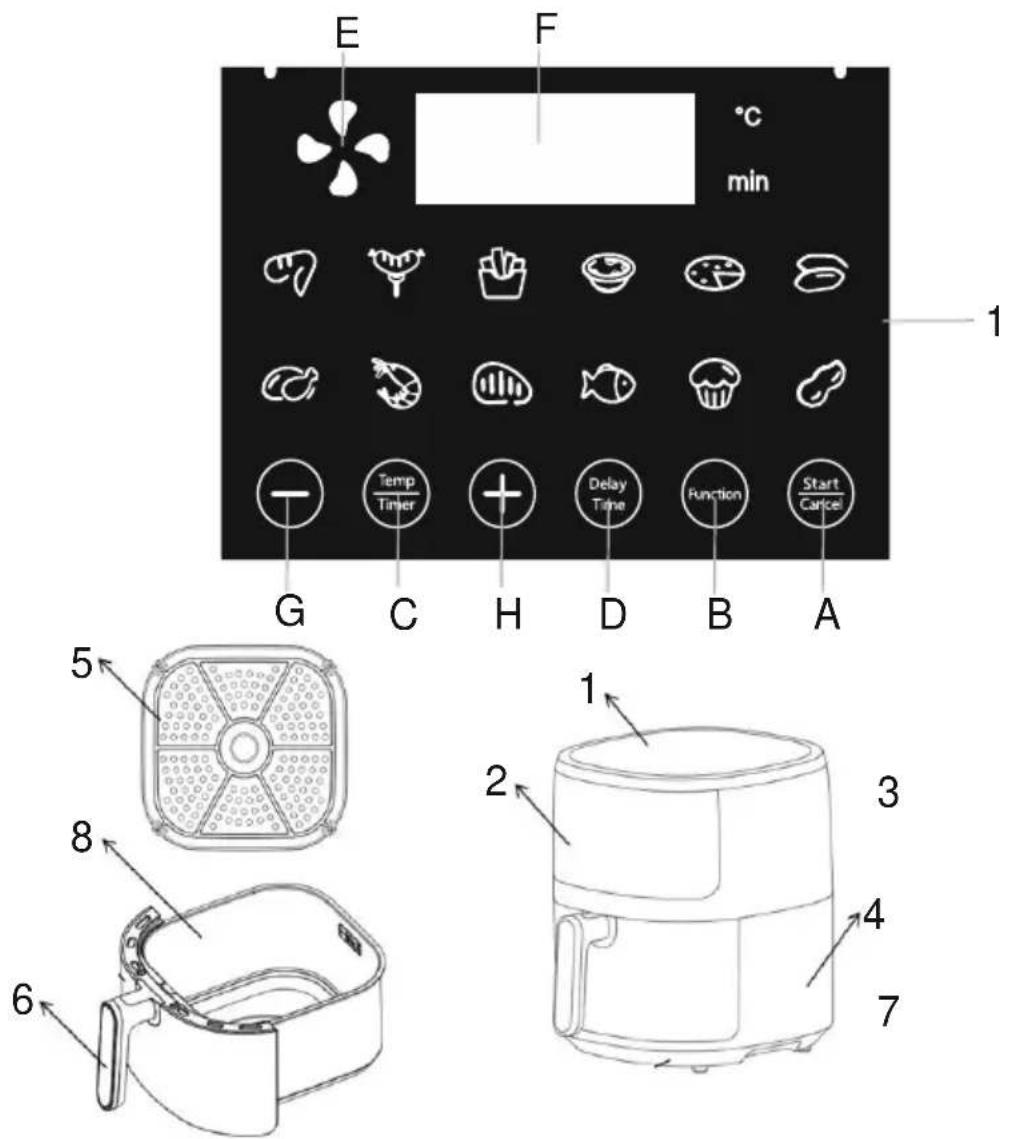

Description of the device:

1. Control panel
2. Transparent window
3. Air outlet
4. Housing
5. Grate
6. Handle
7. Power cord
8. Container

Control panel:

A: On/off button

B: Function selection button

C: Temperature/time adjustment buttons

D: Delayed start buttons

E: Fan operation indicator

F: Temperature and time display

G: "-" button

H. "+" button

Programs:

1. Chicken wings, 2. Sausage, 3. French fries, 4. Egg tart, 5. Pizza, 6. Sweet potatoes, 7. Chicken legs, 8. Shrimp, 9. Steak, 10. Fish, 11. Pie, 12. Peanuts

Before the first use

1. Remove the packaging and any stickers and accessories that are on the outside and inside of the machine.
2. Thoroughly clean the grate (5) and the container (8) with hot water with a small amount of dishwashing liquid and a sponge, and then wipe them with a clean, soft cloth

Do not clean the appliance with abrasive cloths or sponges, or use cleaning powders, as they may damage the smooth non-stick surface of the grate and container.

1. Place the appliance on a stable horizontal surface, plug in the power cord, and select the first program (see the appliance use section) to remove factory odors from the appliance.
2. When the program is finished, unplug the power cord and repeat step 2 to clean it again after it has cooled completely.

Do not wash the grill (5) and container (8) in the dishwasher.

Use of the appliance:

1. Holding the handle (6), pull the container (8) together with the grate (5) from the housing (4) and place it on a stable surface.
2. The grate (5) can be removed from the container (8).
3. Place the previously prepared products on the grate (5) located on the bottom of the container (8). Then insert the container (8) into the housing (4). When filling the container, do not exceed the MAX level placed inside the container.
4. Connect the closed device to a grounded power outlet.
5. The device will turn on and emit an audible alarm. If no program is selected, the device will go into standby mode after 1 minute. To turn the device on again, press button (A) "start / cancel".
6. Using the function selection button (B) "Function", select the desired program (Table 1). After selecting a program, you can change the temperature and time by pressing the temperature / time control selection button (C) and then the button G "+", H "-". It is recommended to add 3 minutes to the cooking time, relative to the programmed menu, if the device is cooled.
7. After selecting the appropriate program, the device will start automatically after 4 seconds or by pressing the button (A) "start / cancel". The (E) fan operation indicator light and (F) light inside the unit will illuminate.
8. When the operation is completed, a beep will sound 3 times.
9. To terminate the unit early, hold down the (A) "start / cancel" button for 3 seconds.

Tips:

Arrange the food pieces so that there is a free flow of hot air between them.

The appliance has a program memory. If you remove the container (6) during the program, the appliance will stop. When you put the container (6) back, it will continue working. The program can also be paused by pressing the button (A) "start/cancel" once; pressing it again will resume the work.

If the time or temperature is not enough, you can always adjust the time or temperature by pressing the time/temperature adjustment button (D), then followed by the button G "+" or H "-" to refine the food.

It is recommended to turn or stir the products at least once during the operation of the selected program.

!!WARNING!!! The inside of the device is very hot.

Delayed start function:

After selecting the appropriate program (see section using the appliance), press button (D) "Delay time".

A timer will appear on the display. Use the G "+" and H "-" buttons to set the desired delay time from 10 minutes to 24 hours.

After setting the time, the device will automatically enter the delayed start mode after 5 seconds. The clock on the display will start counting down the time until the device starts.

To stop the countdown, hold down the (A) "start/cancel" button for 3 seconds.

Programs:

Chicken wings (1): program used to prepare raw chicken meat (chicken wings).

The unit will automatically heat at 180°C for 20 minutes.

If the time or temperature is not enough, you can always change the time or temperature by pressing the time/temperature control button (C), then the (G) "-" or (H) "+" button to adjust the temperature and time.

Sausage (2): a program mainly used for preparing sausage.

The unit will automatically heat at 190°C for 10 minutes.

If the time or temperature is not sufficient, you can always adjust it by pressing the time/temperature adjustment button (C), then use the (G) "-" and (H) "+" buttons to change the temperature and time.

French fries (3): program mainly used for frozen French fries.

The machine will automatically heat at 190°C for 13 minutes.

If the time or temperature is not sufficient, you can always adjust it by pressing the time/temperature control button (C), then use the (G) "-" and (H) "+" buttons to change the temperature and time.

Egg tart (4): the program mainly used to prepare mini egg tarts.

The machine will automatically heat at 180°C for 10 minutes.

If the time or temperature is not sufficient, you can always adjust it by pressing the time/temperature adjustment button (C), then use the (G) "-" and (H) "+" buttons to change the temperature and time.

Pizza (5): the program most commonly used for frozen pizza.

The machine will automatically heat at 180°C for 10 minutes.

If the time or temperature is not sufficient, you can always adjust it by pressing the time/temperature adjustment button (C), then use the (G) "-" and (H) "+" buttons to change the temperature and time.

Sweet Potatoes (6): program mainly used to prepare sliced sweet potatoes (yams).

The unit will automatically heat at 190°C for 38 minutes.

If the time or temperature is not sufficient, you can always adjust it by pressing the time/temperature adjustment button (C), then use the (G) "-" and (H) "+" buttons to change the temperature and time.

Chicken thighs (7): The program used to prepare raw chicken meat (chicken thighs).

The unit will automatically heat at 190°C for 20 minutes.

If the time or temperature is not sufficient, you can adjust it by pressing the time/temperature control button (C), then using the (G) "-" and (H) "+" buttons to change the temperature and time.

Shrimp (8): Best for small seafood such as shrimp.

The unit will automatically heat at 170°C for 10 minutes.

If the time or temperature is not sufficient, you can adjust it by pressing the time/temperature control button (C), then using the (G) "-" and (H) "+" buttons to change the temperature and time.

Steak (9): A program used mainly for thicker cuts of white or red meat.

The unit will automatically heat at 180°C for 13 minutes.

If the time or temperature is not sufficient, you can adjust it by pressing the time/temperature control button (C), then using the (G) "-" and (H) "+" buttons to change the temperature and time.

Fish (10): The program most often used for frozen processed fish or fresh fish.

The unit will automatically heat at 200°C for 20 minutes.

If the time or temperature is not sufficient, you can adjust it by pressing the time/temperature adjustment button (C), then using the (G) "-" and (H) "+" buttons to change the temperature and time.

Cake (11): Program mainly used for baking cakes and muffins.

The machine will automatically heat at 150°C for 14 minutes.

If the time or temperature is not sufficient, you can adjust it by pressing the time/temperature adjustment button (C), then using the (G) "-" and (H) "+" buttons to change the temperature and time.

Peanuts (12): The program used to roast peanuts.

The machine will automatically heat at 190°C for 10 minutes.

If the time or temperature is not sufficient, you can adjust it by pressing the time/temperature adjustment button (C), then use the "-" (G) and "+" (H) buttons to modify the temperature and time.

CLEANING THE DEVICE

1. Before cleaning the device, unplug it from the power outlet and wait for it to cool down.
2. Clean with a damp cloth, then dry it with a dry cloth (or paper towel).
3. For stubborn residues, apply a small amount of edible oil, let it sit for a few minutes, then gently remove with a wooden spatula.
4. Do not use sharp or abrasive cloths, sponges, or scouring powders, as they may damage the smooth, non-stick coating of the basket and container.
5. Do not immerse the unit in water.

Technical data:

Capacity: 5L

Voltage: 220-240V ~ 50/60Hz

Nominal power: 1500W

Maximum power: 2000W

Standby power consumption: 0.30W

Note: Hot surface

The temperature of the accessible surfaces of the operating device may be high. Do not touch the hot surfaces of the unit.

For the sake of the environment. Information about waste electrical and electronic equipment. In accordance with Article 13(1) and (2) of the Law of September 11, 2015 on waste electrical and electronic equipment, we inform you about the proper handling of waste electrical and electronic equipment:

1. It is forbidden to place waste electrical and electronic equipment together with other waste - this is confirmed by marking in the form of a "crossed out basket", ordering selective collection of this type of waste.
2. Electrical and electronic equipment may contain hazardous substances, mixtures and components that, when released into the environment, can cause serious danger to the health and life of humans and living organisms. They can lead to numerous health ailments, such as vision, hearing and speech disorders, and can also damage the kidneys, liver and heart, and cause skin diseases. Harmful substances can also have adverse effects on the respiratory and reproductive systems and lead to cancerous changes. Consumption of plants growing on contaminated soils, and products made from them, can risk the aforementioned health effects.
3. Waste electrical and electronic equipment should be handed over only to authorized collection points, a list of which should be included on each Municipality's website.
4. The household plays an important role in contributing to the reuse and recovery, including recycling, of waste equipment. It also plays a key role in the waste electrical and electronic equipment management system due to the possibility of direct delivery to authorized collection points and the elimination of undesirable social habits resulting in leaving waste equipment in places not intended for it.

In addition, donate waste electrical and electronic equipment at the point of delivery. A distributor, when supplying equipment intended for households to a purchaser, is obliged to take back used household equipment free of charge at the place of delivery of such equipment, provided the used equipment is of the same type and performed the same functions as the supplied equipment.

Cardboard packaging and polyethylene (PE) bags should be placed in the appropriate containers for separate collection of municipal waste according to their description. If there are batteries in the equipment, remove them and separately dispose of them at a collection and storage facility.

Do not dispose of the device in the municipal waste container!!!

Service: If you wish to purchase spare parts or report any complaints, please contact directly the seller who issued the receipt.

CLEANING THE APPLIANCE

GENERAL SAFETY CONDITIONS

IMPORTANT SAFETY INSTRUCTIONS FOR USE. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. Before using the device, read the instructions for use and follow the instructions contained therein. The manufacturer is not responsible for any damage caused by use of the device contrary to its intended purpose or improper operation.
2. The appliance is for household use only. Do not use for purposes other than its intended purpose.
3. The device may only be connected to a grounded outlet of 220-240V ~ 50/60 Hz. To increase safety in operation, do not connect multiple electrical devices to one circuit at the same time.
4. Be especially careful when using the device when children are nearby. Do not allow children or persons unfamiliar with the device to play with it.
5. WARNING: This equipment can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities, or persons lacking experience or knowledge of the equipment, if they are supervised by a person responsible for their safety or have been given instructions on how to use the device safely and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and maintenance of the device must not be performed by children unless they are older than 8 years and such activities are carried out under supervision.
6. WARNING: Do not leave the device plugged in unattended.
7. WARNING: Never move the appliance while it is

plugged in or hot.

1. WARNING: The temperature of accessible surfaces of the device for control may be high when the equipment is operating.
2. WARNING: Keep the device and its cord out of reach of children younger than 8 years.
3. WARNING: Always unplug the plug from the outlet after use by holding the plug with your hand. DO NOT pull the power cord.
4. WARNING: Do not use the device near flammable materials.
5. WARNING: Do not place cardboard, paper, plastic or other flammable or meltable objects into the device.
6. Do not immerse the cable, plug or the entire device in water or any other liquid. Do not expose the device to weather conditions (rain, sun, etc.) nor use it in conditions of high humidity (bathrooms, damp campers).
7. Periodically check the condition of the power cord. If the power cord is damaged, the equipment must not be used. The damaged cord should be replaced in a specialized workshop to avoid danger.
8. Do not use the device with a damaged power cord, or if it has been dropped or damaged in any way, or if it is not working properly. Do not attempt to repair the device yourself as this may result in electric shock. Take the damaged device to an appropriate service center for inspection or repair. All repairs should only be carried out by authorized service personnel. Improper repair may pose a serious risk to the user.
9. Place the device on a cool, stable, flat surface, away from hot kitchen appliances such as electric stoves, gas burners, etc.
10. The power cord must not hang over the edge of the table or touch hot surfaces.
11. To ensure additional protection, it is recommended that

a residual current device (RCD) with a rated residual current not exceeding 30 mA be installed in the electrical circuit. In this regard, you should consult a qualified electrician.

1. If it is necessary to use an extension cord, use only a grounded model suitable for a current of at least 10 A. Extension cords that do not meet this requirement may overheat. The cord should be positioned so as to avoid accidental pulling or tripping over it.
2. Do not allow the motor part of the device to get wet.
3. The appliance should be placed on a flat, heat-resistant surface, away from flammable materials (curtains, drapes, wallpaper, etc.). To ensure proper air circulation, leave at least 10 cm of free space on all sides of the appliance and at least 30 cm above it. Do not cover the ventilation openings of the appliance as this may cause overheating and damage to the product.
4. Do not touch hot surfaces of the appliance (door, top or bottom wall, or side walls). Use protective gloves when removing or touching hot components.
5. The power cord must not be placed over the appliance and must not touch or lie near hot surfaces. Do not place the appliance under an electrical outlet.
6. Do not insert parts into the appliance that occupy the entire volume, as this may cause a fire and destruction of the product.
7. After baking or before cleaning the appliance, unplug the power cord from the outlet and let it cool down. You must wait long enough because the heated device cools very slowly.
8. The appliance should be cleaned after each use.
9. Do not use aggressive detergents in the form of emulsions, milk, paste, etc. to clean the housing, because they can, among other things, remove all graphic informational symbols such as scales, labels, warning signs, etc.
10. Do not use metal cleaners for cleaning. Broken
