Product Type	43" UHD LED TV
Brand	Haier
Model	H43Q81FUX
Screen Size	108 cm (43 inches)
Resolution	3840 x 2160 pixels (4K UHD)
Refresh Rate	60 Hz
Integrated TV System	PAL-B/G, SECAM-B/G
DTV Decoder	DVB-T, DVB-C, DVB-T2, DVB-S2
Audio Power	2 x 10 W RMS
HDMI Connectors	4 (including 1 eARC/ARC)
USB Ports	2 (5V, 500mA)
Other Connections	1 optical, 1 LAN (Ethernet), 1 composite video, 2 audio L/R, 2 RF (antenna/satellite), 1 headphone, 1 CI
Wireless Network	Wi-Fi IEEE 802.11a/b/g/n/ac (2.4/5 GHz), Bluetooth 5.1
Voice Assistant	Google Assistant built-in
TV Platform	Google TV (Android TV OS)
Dimensions with Stand (WxHxD)	957.2 x 607.4 x 240.7 mm
Dimensions without Stand (WxHxD)	957.2 x 566.7 x 86.6 mm
Weight with Stand	7.2 kg
Weight without Stand	6.8 kg
VESA Standard	300 x 300 mm
Standby Consumption	≤ 0.5 W
Power Supply	Mains (detachable power cord)
Supplied Accessories	1 remote control (2 AAA batteries), 6 screws, user manual, quick guide, warranty card
Care and Cleaning	Unplug and use a dry soft cloth; do not use chemical products
Safety	Double insulation, do not expose to water, do not open, ventilation required, stable fixation recommended

Frequently Asked Questions - H43Q81FUX HAIER

How to turn on the TV for the first time?

Plug in the power cord, insert batteries into the remote, and press the POWER button. Follow the setup wizard to choose language, Wi-Fi network, and connect your Google account.

How to connect the TV to the Internet?

Go to Settings > Network & Internet. Select your Wi-Fi network, enter the password, and confirm. You can also use an Ethernet cable plugged into the LAN port.

How to use voice control?

Set the voice switch to On (the indicator lights up). Make sure the TV is connected to the Internet and your Google account. Say "Ok Google" followed by your request. The indicator blinks during listening.

Can I mount the TV on the wall?

Yes, use a UL-approved wall mount. Remove the stand, then attach the mount to the back with 4 M6 x 12 mm screws (torque 12 kgf.cm). The VESA standard is 300 x 300 mm. Leave at least 60 mm clearance from the wall for cables.

How to search for channels automatically?

Go to Settings > Channels & Inputs > Channels. Select Antenna/Cable/Satellite and start the search. You can enable automatic channel update in standby.

What to do if the TV becomes unresponsive?

Try restarting via Settings > System > Restart. If that doesn't work, unplug the power cord, wait 60 seconds, then plug it back in.

How to adjust picture quality?

In Settings > Picture & Sound > Picture, you can choose a mode (Standard, Dynamic, Film, Game, etc.) and adjust backlight, brightness, contrast, saturation, and sharpness.

How to stream content from my smartphone to the TV?

Ensure both devices are on the same Wi-Fi network. Enable casting from your smartphone (Chromecast built-in). On the TV, the Cast option is available in Settings > System > Cast.

What file formats can I play via USB?

The TV supports USB flash drives formatted in FAT32. Via the Media Player app, you can play videos, photos, and music. Compatible formats include MPEG4, H.265, JPEG, MP3, etc.

How to perform a factory reset?

Go to Settings > System > About, then select Reset. Confirm the operation. Note: all personal data and settings will be erased.

USER MANUAL H43Q81FUX HAIER

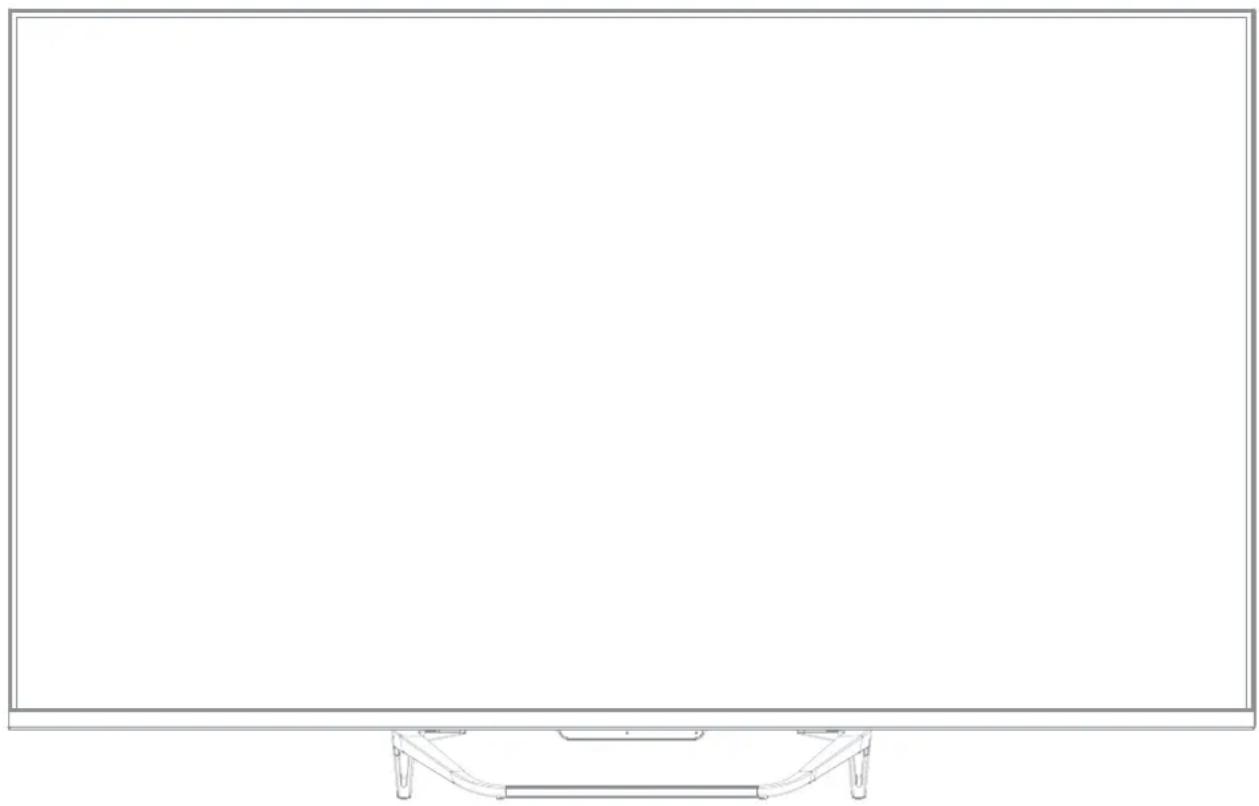

Blank whiteboard with a curved metal bracket at the bottom (no text or symbols)

Illustration in this guide are provided for reference only and may differ from actual product appearance. Product design and specification may be changed without notice.

TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS .... 1
2. PREPARATION 3
3. PERIPHERAL CONNECTION AND CONTROLS 4
4. MAKING CONNECTIONS....5
5. OPERATING INSTRUCTIONS 6
6. TROUBLESHOOTING 18
7. PRODUCT SPECIFICATION 19

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, install in accordance with the instructions.

8) Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protected the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Unplug this apparatus during lighting storms or when unused for long periods of time.

13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14) Mains plug is used as the disconnect device, the disconnect device shall remain readily operable.

15) The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloth, curtains, etc.

16) No naked flame sources, such as lighted candles, should be placed on the apparatus.

17) Attention should be drawn to the environmental aspects of battery disposal.

18) The use of apparatus in moderate climate.

19) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

20) warning: To avoid any injury caused by lean of the product, please always ensure the whole product was placed within the table surface in horizontal.

*Actual product may vary in appearance from above image*

Where a plug on the power supply cord is used as the disconnect device, the installation instructions shall state that for pluggable equipment, the socket-outlet shall be easily accessible.

The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.

The symbol indicates that there are important operating and maintenance instructions in the literaturaccompanying this unit.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

WARNING: The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Illustration of a computer monitor with a crossed-out cable and lightning bolts, no text or symbols present.

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.

Simple line drawing of a monitor with a cross symbol crossed out, next to a cloth and rope (no text or symbols)

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Simple line drawing of a computer monitor with a crossed X symbol and stars above (no text or labels)

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components.

Simple line drawing of a flat-screen monitor mounted on a stand with a black X mark (no text or symbols)

Do not trap the power supply cord under the television receiver.

If you are going to clean the product, Unplug the TV, use soft fabric, no water, never chemicals.

Cartoon illustration of a person holding a crossed-out monitor with a 'X' symbol, surrounded by boxing gloves (no text or symbols present)

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it falls.

Simple line drawing of a geometric object with intersecting lines and a rectangular block, no text or symbols present.

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it falls.

Illustration of a person running away from a computer screen with a magnifying glass (no text or symbols)

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Simple line drawing of a steaming lamp with a cross symbol, no text or labels present

Avoid exposing the television receiver to direct sunlight and other sources of heat. Do not stand the television receiver directly on other products which give off heat, e.g. video cassette players and audio amplifiers. Do not place naked flame sources, such as lighted candles on the television.

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

Note: the use of apparatus in moderate climates.

Caution:

A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the televisionset.
• ALWAYS use furniture that can safely support the television set.
• ALWAYS ensure the television set is not overhanging the edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture to reach the television set or its controls.
• ALWAYS route cords and cables connected to your television so they cannot be tripped over, pulled or grabbed.
• NEVER place a television set in an unstable location.
• NEVER place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• NEVER place the television set on cloth or other materials that may belocated between the television set and supporting furniture.
• NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.

If the existing television set is going to be retained and relocated, the same considerations as above should be applied.

IMPORTANT: Do not apply pressure to the screen display area which may compromise the integrity of the display. The manufacturer's warranty does not cover user abuse or improper installations.

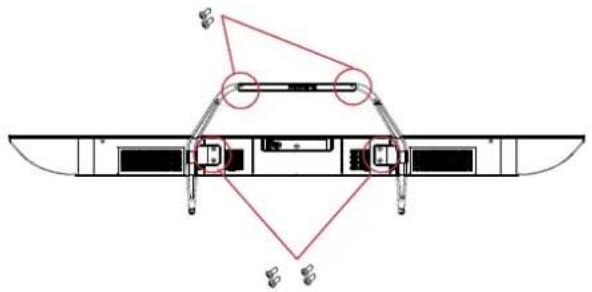

ATTACHING THE STAND

IMPORTANT: The stand of the TV must be assembled prior to usage.

1. Place TV unit face down on a soft and flat surface (blanket, foam, cloth, etc.) to Prevent any damage to the TV.

2. Fix the stand to the bottom of the TV with the 6 screws.

Technical diagram of a vehicle rear view showing structural components and airflow paths (no text or labels)

NOTE

The appearance of the product shall be in kind.

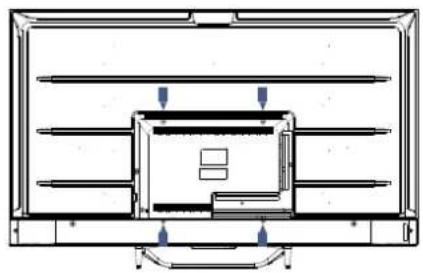

PREPARING YOUR LED TV FOR WALL MOUNTING

We suggest that you keep your TV at least 2.36 inches (60 mm) from the wall to prevent cable interference. Before mounting your TV on the wall, you need to remove the stand.

For your safety, please use only with a UL listed wall mount bracket with minimum weight of the TV without stand.

To attach a wall mount bracket to your TV:

1. Remove the screws holding your TV to the stand.
2. Remove the stand from your TV.
3. Secure the wall mount bracket to the back of your TV using four screws. Follow the instructions of the user manual that came with the wall mount bracket to install.

Architectural floor plan showing room layout with horizontal and vertical bars (no text or labels)

NOTE

The wall mount bracket are not included.

1. Fix the wall mount screws (M6x12mm/4pcs) into the rear side of the LEDTV, using the torque of 12kgf, cm.

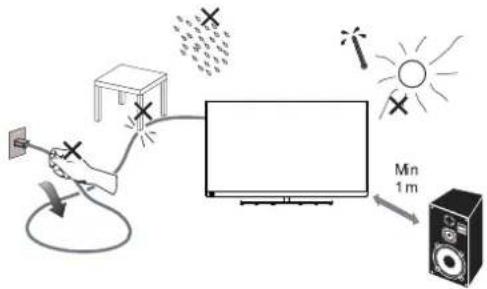

TURNING ON THE TV

1. Install the stand and place the TV on a solid surface.

NOTE

• Ensure that the TV is placed in a position to allow free flow of air. Do not cover the ventilation openings on the back cover.
  • To prevent any unsafe situations, no naked flame sources, such as lighted candles, should be placed on or in the vicinity.

• Avoid heat, direct sunlight and exposure to rain or water. The equipment shall not be exposed to dripping or splashing.

• Connect the antenna cable or cable TV cable to the ANT IN aerial socket on the back of the TV set.

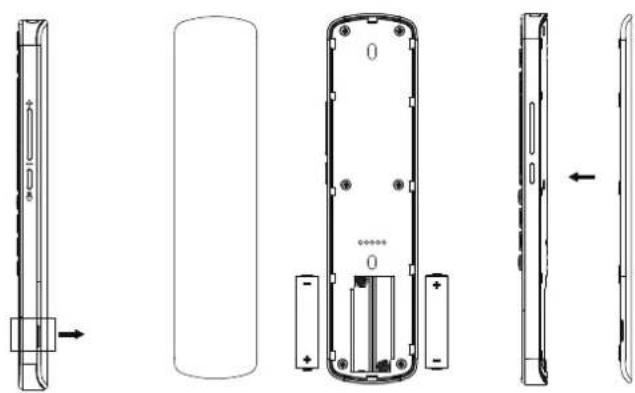

• Remote control:

Remove the cover of the battery compartment. Insert 2 batteries (Type AAA 1.5V).

CAUTION: Risk of fire explosion if the battery is replaced by an incorrect type.

Technical line drawings of a smartphone internal components, showing front, side, and top views with no visible text or symbols.

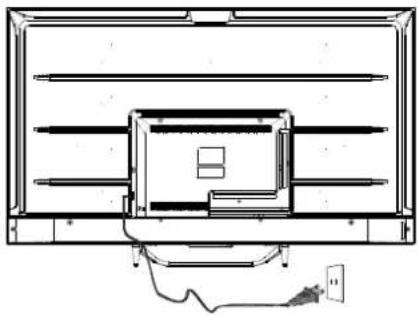

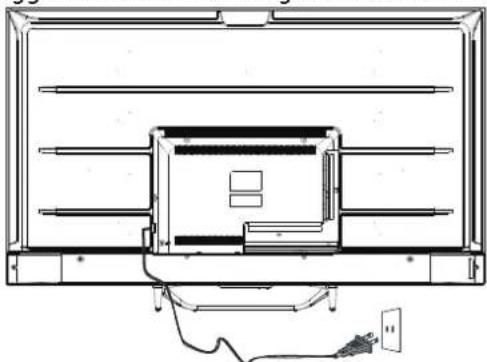

1. Power:

Plug the cord into a working power outlet.

Architectural line drawing of a room with horizontal beams and a central space, no text or symbols present

1. Turn the TV on:

Press ⏻ on the remote control or POWER button on the side control panel of the TV.

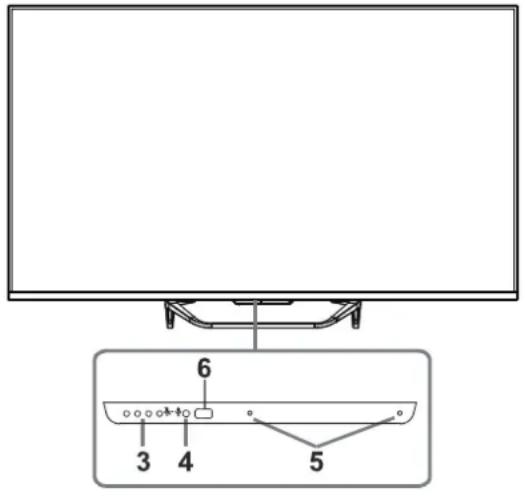

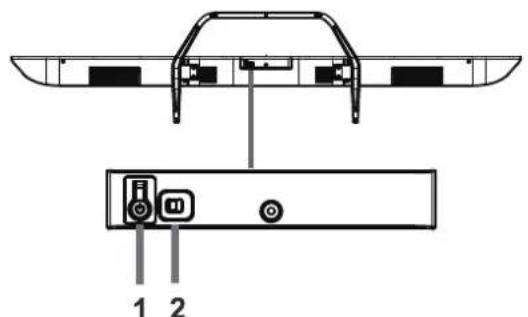

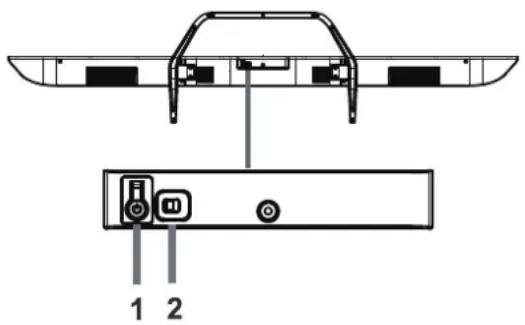

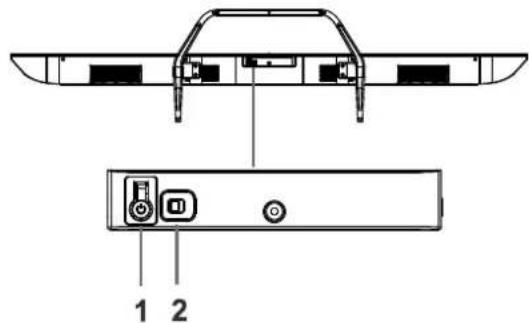

BUTTON CONTROL

1. Power On / Power Off
2. Voice On / Voice Off

Enable Far Field Assistant

Disable Far Field Assistant

Turn it right to set it On, the indicator light will lighting and then go off, the voice function has been initiated. you can say "Ok Google" to use voice function, and the indicator will lighting when the TV receives the voice, then directly say your request.

Turn it left to set it Off to exit voice function, indicator light will go to yellow.

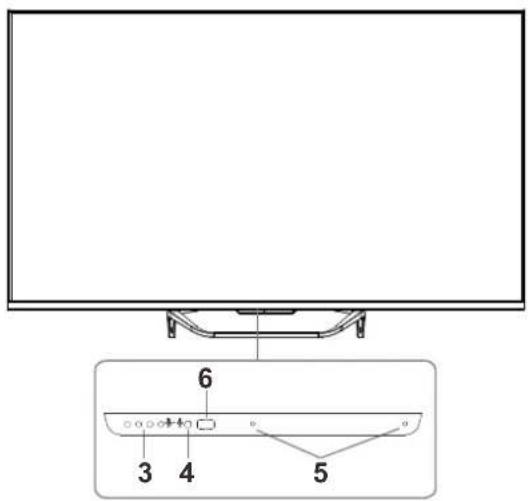

1. Far Field Assistant light
2. Remote control signal receiver
3. Voice signal receiver
4. Power LED

NOTE

Make sure the TV is connected to the Internet before using Voice.

Please set it to On before using Voice.

Please log in to your GOOGLE account before using Voice.

ACCESSORIES

Remote Control - 1pcs

User's Manual - 1pcs

Screws - 6 pcs

Quick Start Guide - 1pcs

Warranty Card - 1pcs

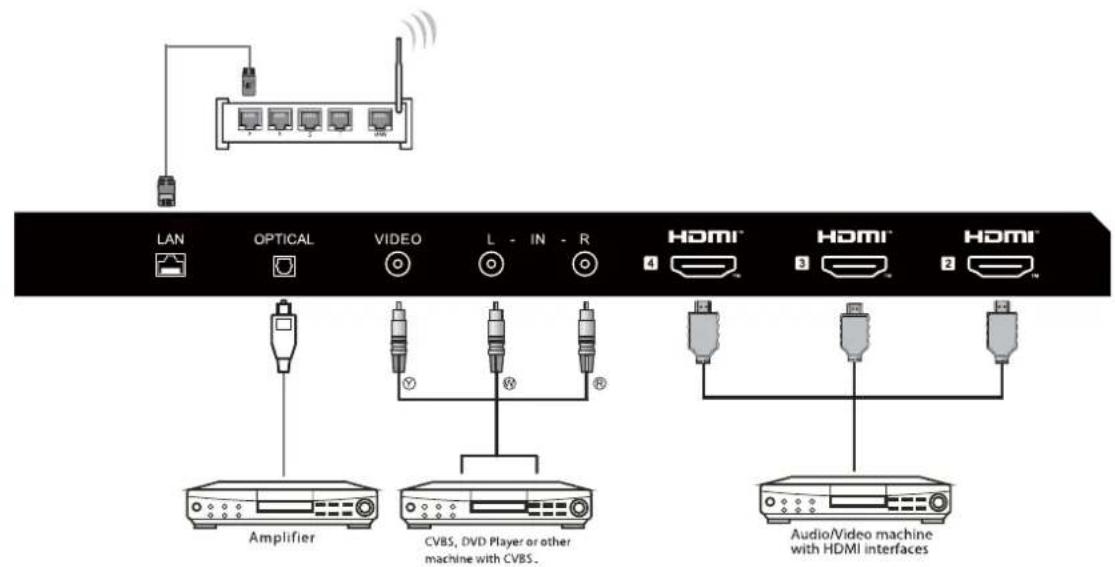

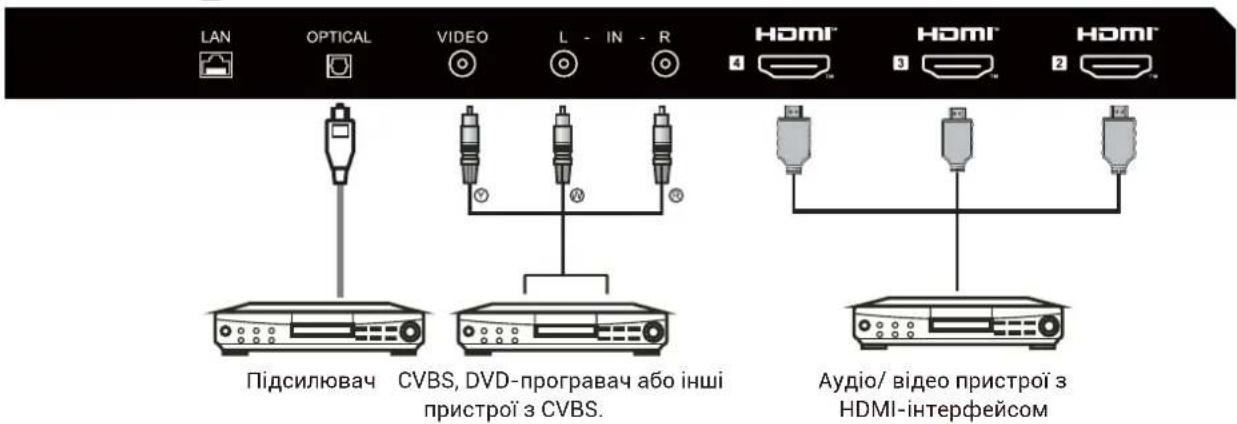

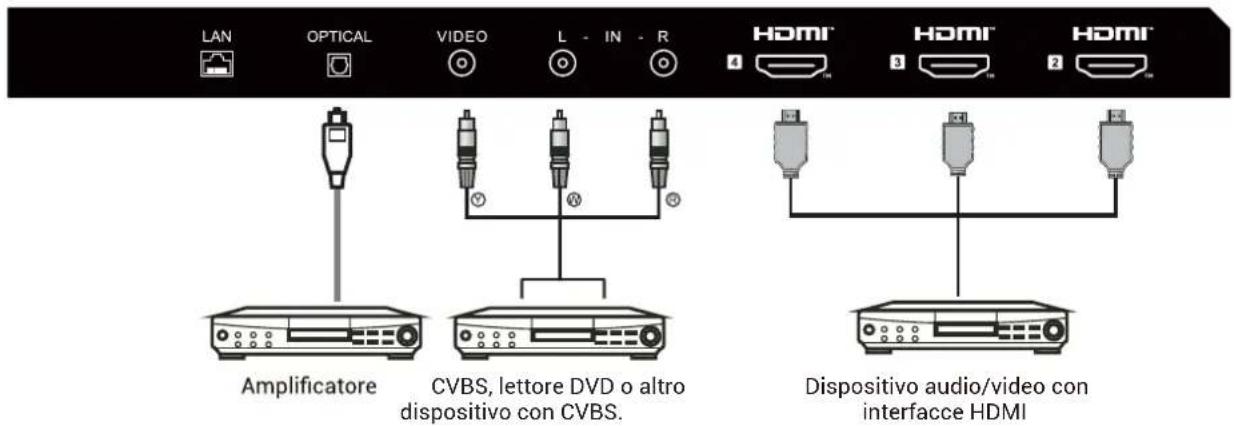

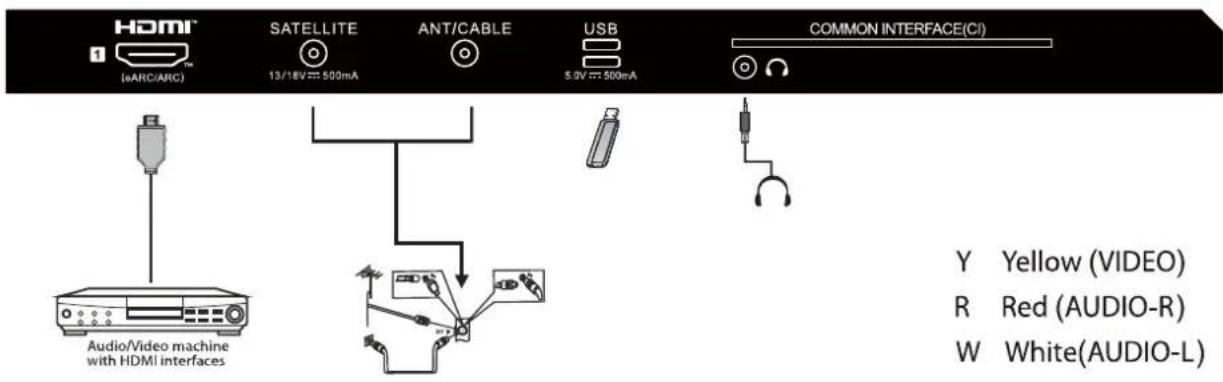

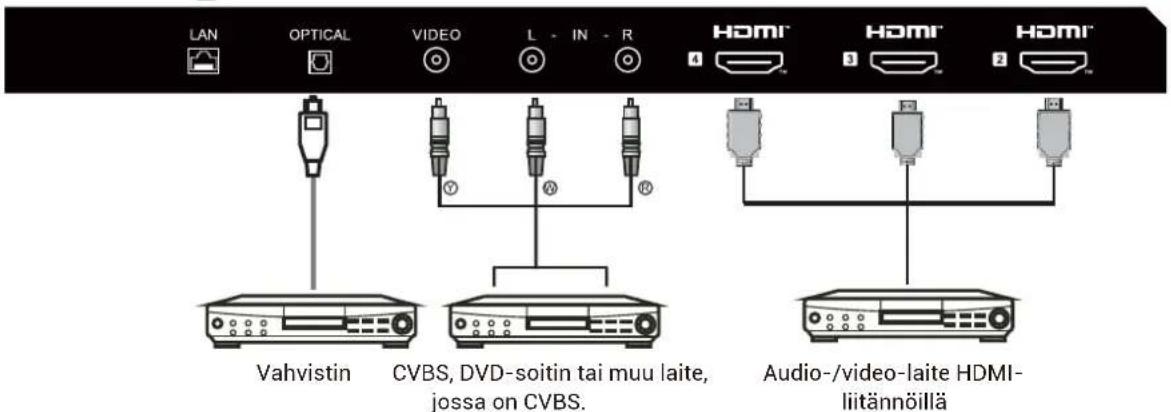

PERIPHERAL CONNECTION

All the terminals are(from left to right):

LAN, OPTICAL, VIDEO, L, R, HDMI4, HDMI3, HDMI2,

All the terminals are(from left to right):

HDMI1(eARC/ARC), LNB IN (SATELLITE), ANT IN (ANTENNA/CABLE), USB1, USB2, EARPHONE, CI.

AV EQUIPMENT

This TV provides one group of AV for convenient connection to VCR, DVD or other video equipment.

Please refer to the owner's manual of the equipment to be connected as well. You can use the input terminals on TV set rear as follows.

It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo system, etc.....

Note:

Sometimes it will not support in different device because the device supplies nonstandard signal.

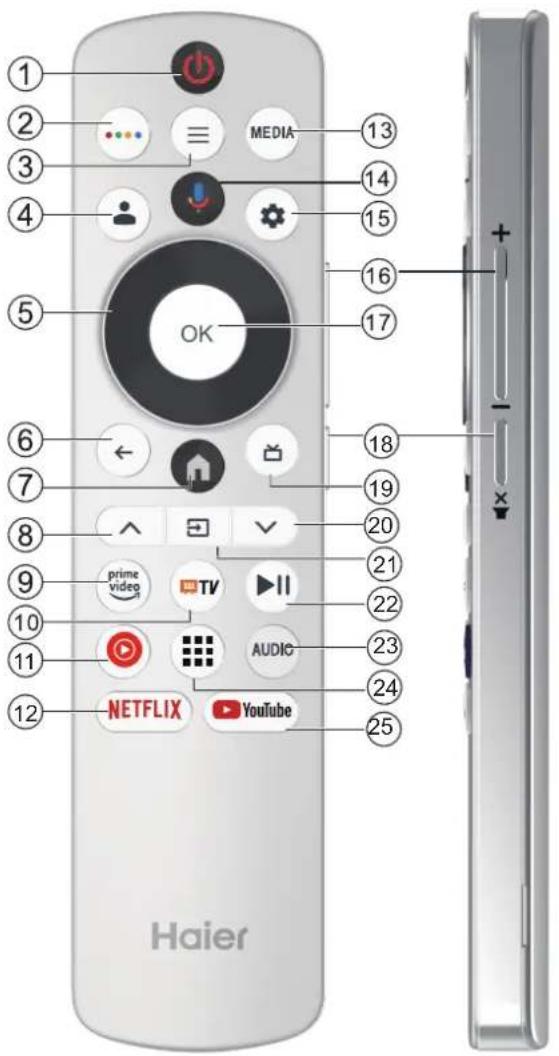

USING THE REMOTE CONTROL

#	Item	Descriptions
1	Power	Press to turn the TV on or off. When your TV is off, power still flows through it. To completely disconnect power, unplug the power cord
2		Press to open MAGIC BOARD.
3		Press to open or close the on-screen menu.
4		Press to Accounts&Sign-in to Google TV. (When setting up basic TV, this key has no effect)
5		Press to navigate the on-screen menu.
6		Return to the previous menu.

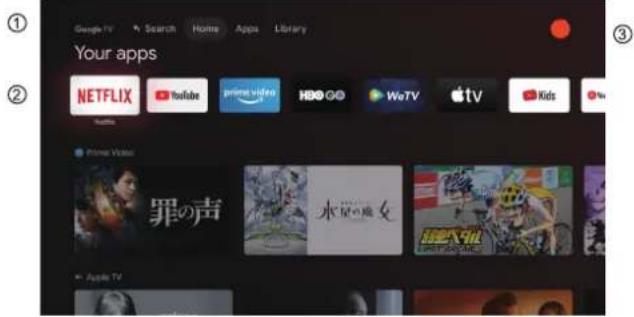

7		Press to open the Home Page.
8		Press to change TV channels.
9	prime video	Press to prime vido for viewing onlineTV shows and flms (internet connection required).
10		Press to open the Live TV.
11		Press to open the YouTube Music.
12	NETFLIX	Press to open the NETFLIX.
13	MEDIA	Press to open the Multi Media Player.
14		Press to open the Google Assistan or start voice search.
15		Press to open the settings menu.
16	VOL+/VOL-	Press VOL+or VOL- to adjust volume level.
17	OK	Enter the selected option or perform the selected operation.
18		Press to mute and un-mute the sound.
19		Press to display electronic programme guide in TV mode.
20		Press to change TV channels.
21		Press to open the input source list.
22		Press to play/pause in multimedia mode.
23	AUDIO	Press to switch audio tracks.
24		Press to open the apps.
25		Press to open the YouTube.

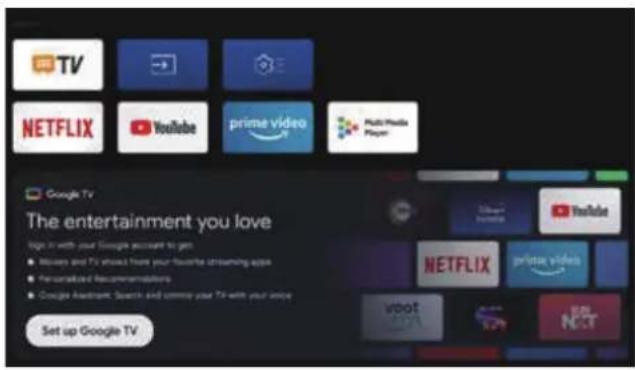

INITIAL SETUP

The first time you turn on your TV, the setup wizard will guide you through setting up basic settings. Please according to the Text Tip to First Time Setup.

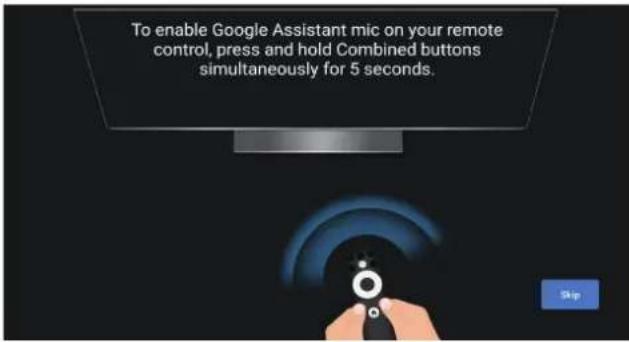

This function is used for the remote control pair code. After the code is successful, you can use the Bluetooth remote control to operate the TV.

Press ▲/▼ to select the system language and press OK to confirm the language.

Press ▲/▼ to select the region/country of your device and press OK to confirm.

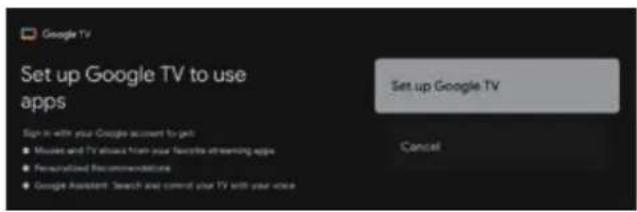

Press ▲/▼ to select the "Set up basic TV" of your device and press OK to complete the setup.

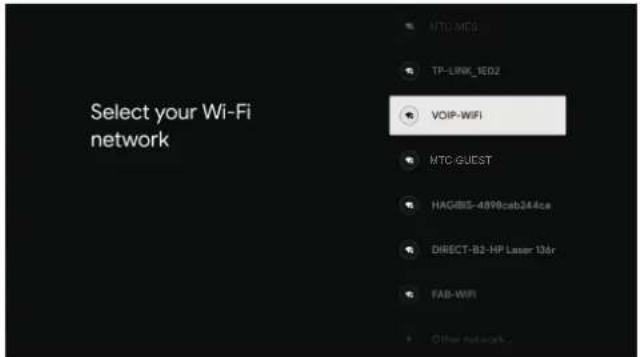

Press ▲/▼ to select the wifi to connect, press OK and enter the password to confirm the connection is successful.

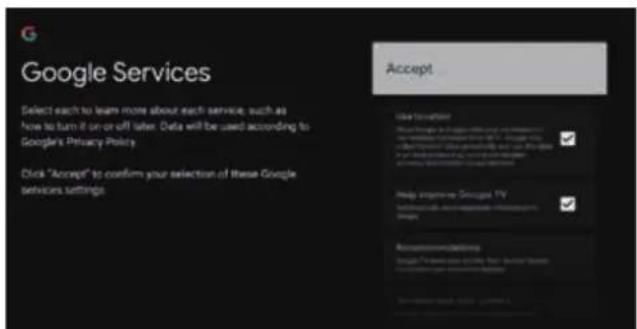

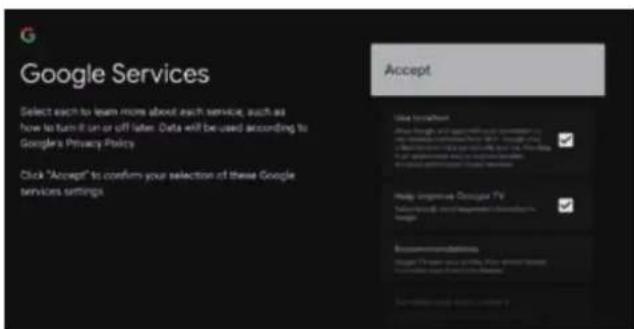

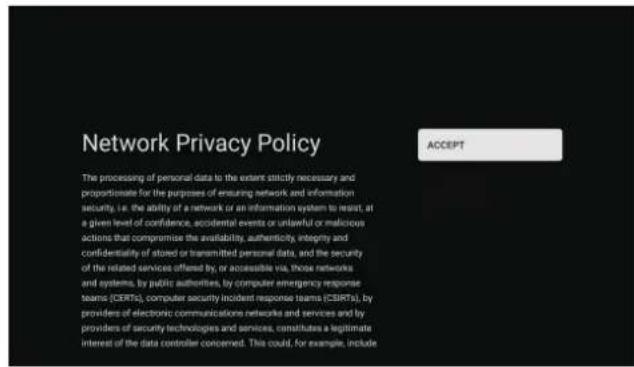

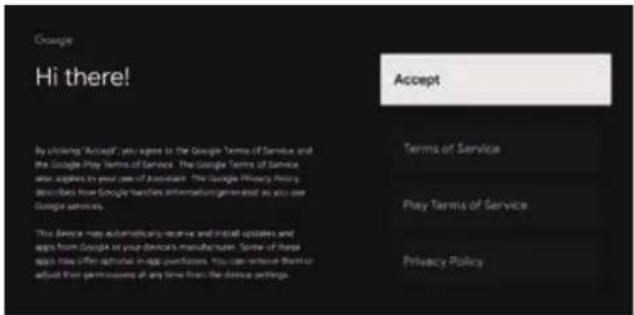

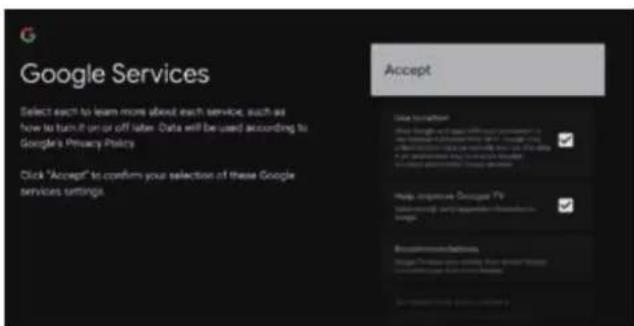

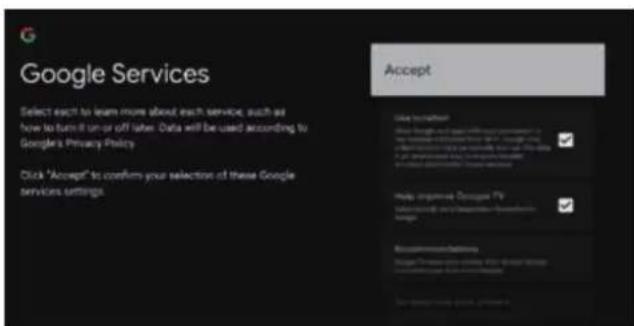

select "Accept" to accept this terms of the Network Privacy Policy.

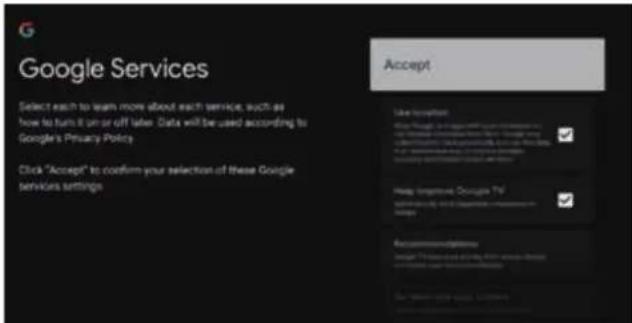

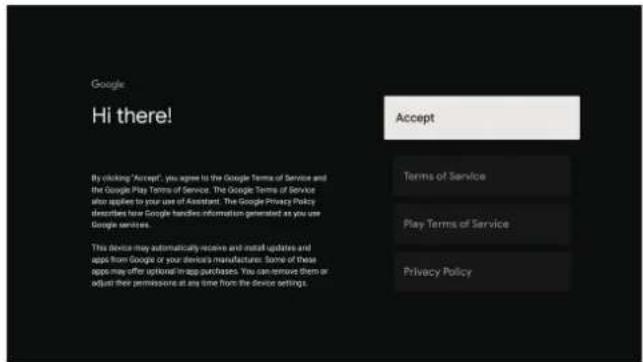

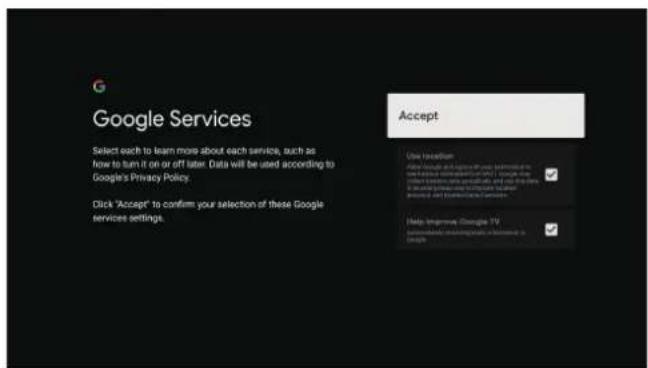

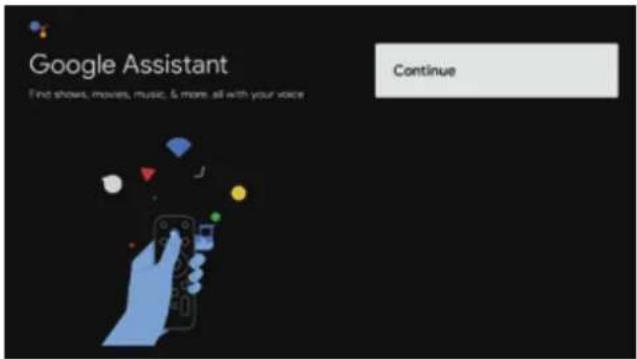

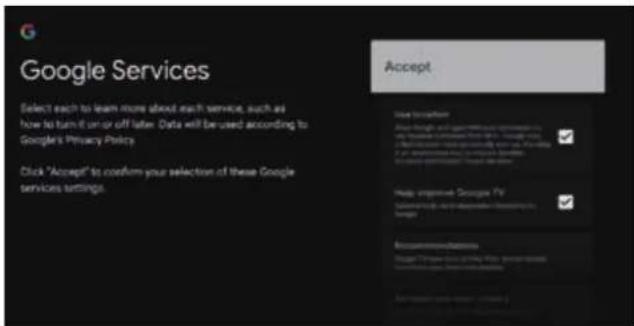

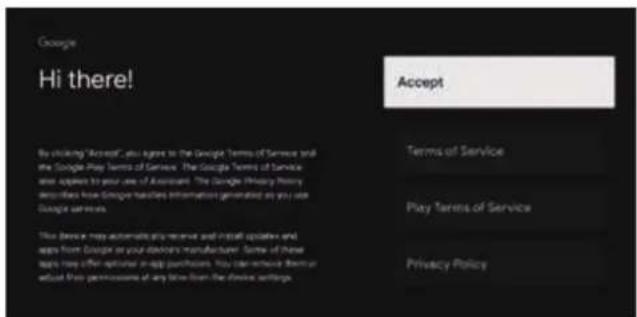

By accepting the Google Terms of Service to improve the product experience, select "Accept" to accept this condition.

By accepting the Google Services to improve the product experience, select "Accept" to accept this condition.

Used to set your device's password to ensure security and privacy.

Use the remote control/soft keyboard to enter the 4-digit password auto-matically jump to the next interface.

Confirm the password again and keep it consistent Use the remote control /soft keyboard to enter the password andcomplete the password.

For selecting the mode, press ▲/▼ key to select Home mode and press OK.

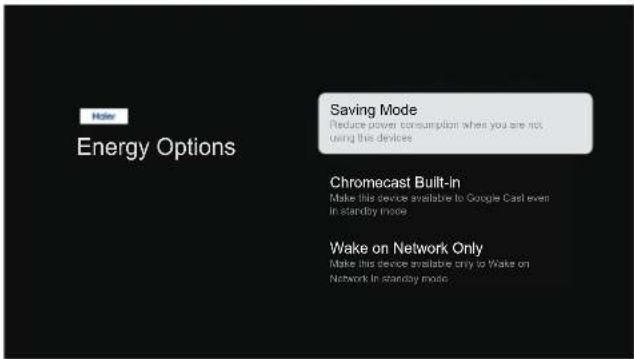

Select "Saving Mode" and proceed to the next step.

Select the Tuner mode for searching, press to select and press OK to confirm.

- Once in the user interface, you can switch from basic TV to Google TV settings.

Press ▲/▼ to select the "Set up Google TV" of your device and press OK to complete the setup.

Use your Google Account Sign in

By accepting the Google Terms of Service to improve the product experience, select "Accept" to accept this condition.

Press to select and press OK to continue.

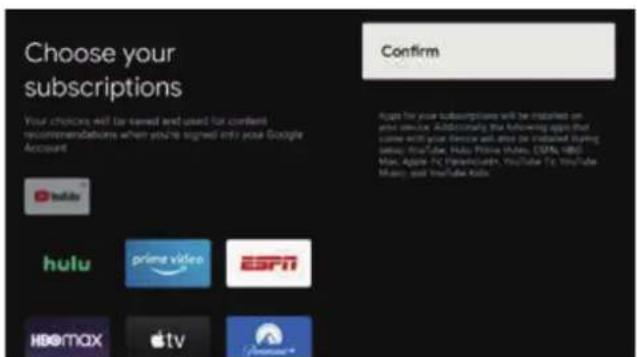

Press ▲/▼ to select the Choose your subscriptions and press OK.

Your Google TV experience is ready and press OK to Start exploring.

HOME SCREEN

After completing the wizard Settings, you can watch TV and go to the home screen.

① Search Open the google assistant or start a voice search.

Home Open your TV homepage.

Apps Open the list of apps you've installed and add your favorite apps.

Library View the content purchased and leased under the user account.

② A list of applications you've installed and push content you've installed programs.

③ Open your account information, settings, time, inputs, and picture.

Settings: Various settings can be configured here. For details on the settings, see the next explanation.

Inputs: Icon to select an input source.

Picture: The user can set the TV picture. See page 12 for detailed instructions on setup.

NAVIGATING THE ON-SCREEN MENU

There are two ways to enter. First, in live TV, press the menu button to display TV options, press ▲/▼ ◀/▶ to select the settings menu and press OK to confirm. Second, in the HOME interface, press the ▶ key to select the icon of the ⚙️ menu, press OK to confirm.

Press ▲/▼ button to select what you want set. Press OK to enter setting.

Press BACK to return to the previous menu. If the main menu is displayed, pressing BACK will close the onscreen menu.

CHANNELS

Menu->Settings->Channels & Inputs->Channels.

Analog/Antenna/Cable/Satellite - Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

Auto Channel Update - Press OK button to choose ON/OFF. When selecting ON, the system will automatically scan and update channels after 5 minutes of standby. Channel Update Message - Press OK button to choose ON/OFF. When selecting ON, the system will show you the update message.

Note: The available source might differ depending on the model.

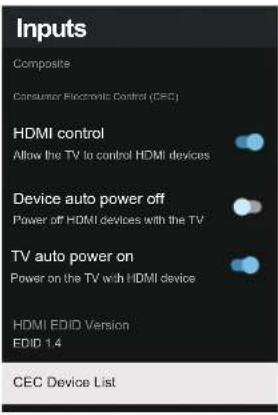

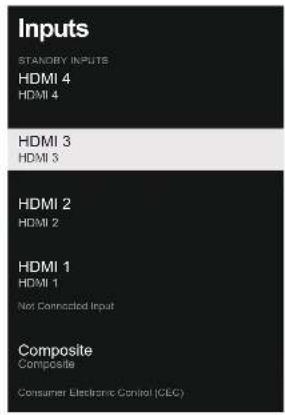

INPUTS

Menu->Settings->Channels & Inputs->Inputs

Inputs – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

HDMI control – Press ▲/▼ button to select the option then press OK button to choose ON/OFF.

Device auto power off – Press ▲/▼button to select the option then press OK button to choose ON/OFF.

TV auto power on – Press ▲/▼ button to select the option then press OK button to choose ON/OFF. HDMI EDID Version – show EDID version.

CEC Device List – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

DISPLAY & SOUND

Menu->Settings->Display & Sound

In this menu, you can set picture, sound and audio output of TV.

1. Press ▲/▼ button to select what you want set.
2. Press OK button to confirm.
3. After finishing your adjustment, Press BACK button to return to the previous menu.


Menu->Settings->Display & Sound->Picture.

Picture Mode – Press ▲/▼ button to select the option then press OK button to enter the sub-menu. (Optional: user, Standard, Vivid, Sport, Movie, Game, Energy saving).

Backlight/Brightness/Contrast/Saturation/HUE/Sharpness – Press ▲ /▼ button to select the option then press OK button to enter.

Press◀ to decrease the parameter. Press▶ to increase the parameter.

Advanced Settings - Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

Reset to Default – Reset all settings to the factory defaults.

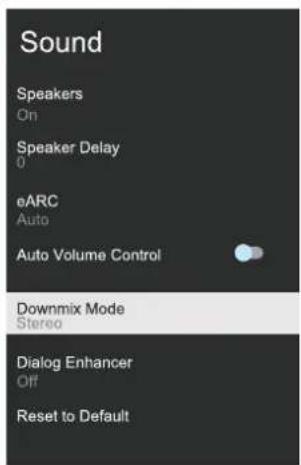

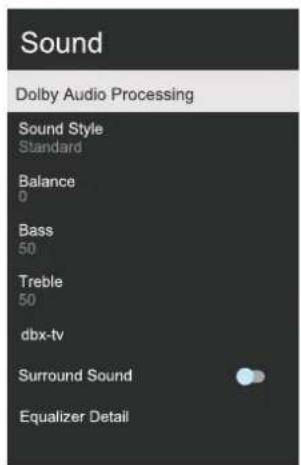

SOUND

Menu->Settings->Display & Sound->Sound.

Dolby Audio processing - Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

Sound style – Press ▲/▼ button to select the option then press OK button to enter the submenu. (Optional: user, Standard, Night, Sports, Movie, Music, News).

Balance/ Bass/ Treble - Press ▲/▼ button to select the option then press OK button to enter. Press ◀ to decrease the parameter. Press ▶ to increase the parameter.

dbx - tv - Press▲/▼button to select the option then press OK button to enter the sub-menu.

Surround Sound – Press ▲/▼ button to select the option then press OK button to choose ON/OFF.

Equalizer Detail – Press▲/▼button to select the option then press OK button to enter the sub-menu.

Speakers – Press ▲/▼button to select the option then press OK button to choose ON/OFF.

Speaker Delay—Press ▲ /▼ button to select the option then press OK button to enter.

Press◀ to decrease the parameter. Press▶ to increase the parameter.

eARC – Press ▲/▼button to select the option, then press OK button to choose Auto/OFF.

Auto Volume Control – Press ▲/▼ button to select the option then press OK button to choose ON/OFF.

Downmix Mode- Press ▲/▼ button to select the option then press OK button to enter the sub-menu. (Optional: Stereo, Surround).

Dialog Enhancer- Press ▲/▼ button to select the option then press OK button to enter the sub-menu. (Optional: Off, Low, Medium and High).

Reset to Default - Reset all settings to the factory defaults.

AUDIO OUTPUT

Menu->Settings->Display & Sound->Audio Output.

Digital Output - Press ▲/▼ button to select the option then press OK button to enter the sub-menu. (Optional:Auto,Bypass,PCM, Dolby Digital Plus and Dolby Audio-Dolby Digital).

Digital Output Delay -Press ▲/▼button to select the option then press OK button to enter.

Press ◀ to decrease the parameter.

Press ▶ to increase the parameter.

NETWORK

Menu->Settings->Network & Internet

1. Press ▲/▼button to select what you want set.
2. Press OK button to confirm.
3. After finishing your adjustment, Press OK button save and return to the pervious menu.

ACCOUNTS & SIGN IN

1. Menu->Settings->Accounts & sign-in.
2. In the HOME interface, press the ▲/▼ button to Select "Set up Google TV" and proceed to the next step.

Select "Set up Google TV" and proceed to the next step, enter your account and password. And follow the prompts to complete the relevant settings.

PRIVACY

Menu->Settings->Privacy.

In this menu, you can set location, usage & diagnostics, etc of TV.

1. Press ▲/▼ button to select what you want set.
2. Press OK button to confirm.
3. After finishing your adjustment, Press BACK button to return to the previous menu.

LOCATION

Menu->Settings->Privacy ->Location.

Location status – Press ▲/▼ button to select the option then press OK button to enter the sub-menu. (Optional: Use Wi-Fi to estimate location, Off)

Scanning always available – Press ▲/▼ button to select the option then press OK button to choose ON/OFF.

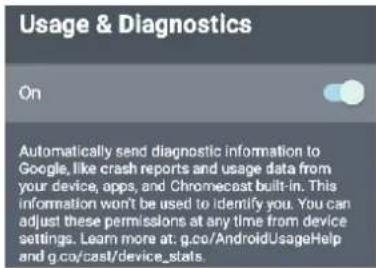

USAGE & DIAGNOSTICS

Menu->Settings->Privacy ->Usage & diagnostics.

Usage & diagnostics – Press ▲/▼ button to select the option then press OK button to choose ON/OFF.

APPS

Menu->Settings->Apps.

In this menu, you can set the APP permissions, and read the app lists

1. Press ▲/▼ button to select what you want set.
2. Press OK button to confirm.
3. After finishing your adjustment, press BACK button to return to the previous menu.

SYSTEM

Menu->Settings->System.

In this menu, you can read the information and settings of TV.

1. Press ▲/▼ button to select what you want set.
2. Press OK button to confirm.
3. After finishing your adjustment, Press BACK button to return to the previous menu.

System sounds – Press ▲/▼ button to select the option then press OK button to choose ON/OFF.

For details on the system, see the next explanation.

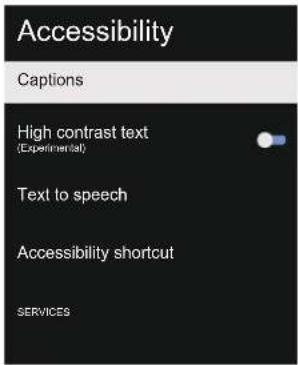

ACCESSIBILITY

Menu->Settings->System -> Accessibility.

Captions – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

High contrast text – Press ▲/▼ button to select the option then press OK button to choose ON/OFF.

Text to speech – Press ▲/▼ button to select the option then press OK button to enter sub-menu.

Accessibility shortcut – Press ▲/▼ button to select the option then press OK button to enter sub-menu.

ABOUT

Menu->Settings->System ->About.

In this menu, you can System update, Reset and read the information of TV.

1. Press ▲/▼ button to select what you wan
2. Press OK button to confirm.
3. After finishing your adjustment, Press BACK button to return to the previous menu.

DATE&TIME

Menu->Settings->System -> Date & Time.

Automatic date & time – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

(Optional: Use network-provided time, Off)

NOTE

- When the Automatic date & time to OFF, you can use Manually adjusting date & time.

Set date – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

Set time – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

Set time zone – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

Use 24-hour format – Press ▲/▼ button to select the option then press OK button to choose ON/OFF.

LANGUAGE

Menu->Settings->System->Language.

Language - Press ▲/▼ button to select the option then press OK button to enter the select language.

KEYBOARD

Menu->Settings->System->Keyboard.

Current keyboard - Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

Gboard Settings – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

Manage keyboards – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

STORAGE

Menu->Settings->System->Storage.

Internal shared storage – Press▲/▼ button to select the option then press OK button to enter the sub-menu.

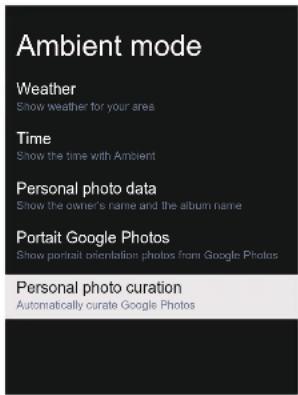

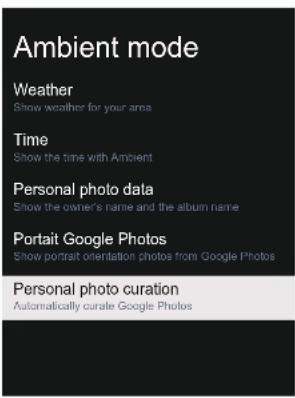

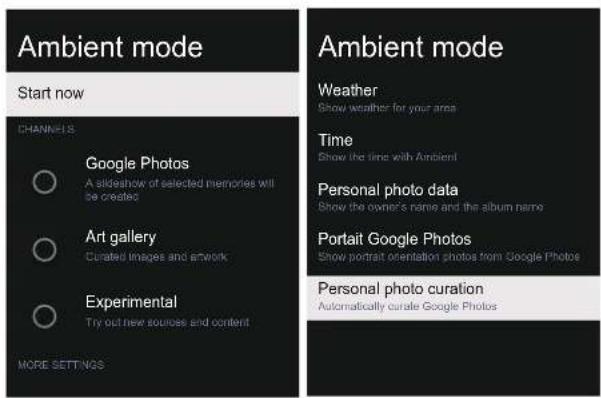

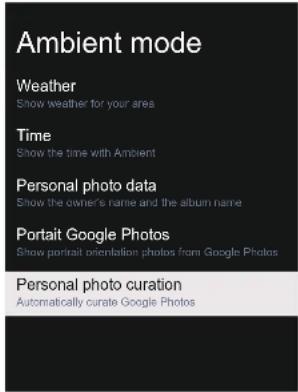

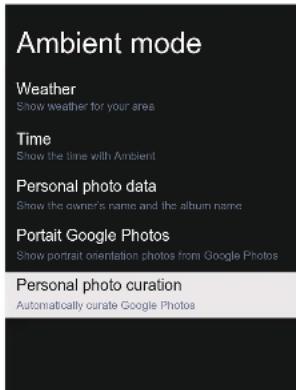

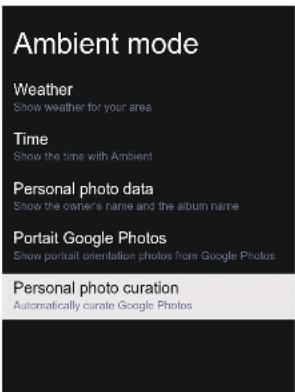

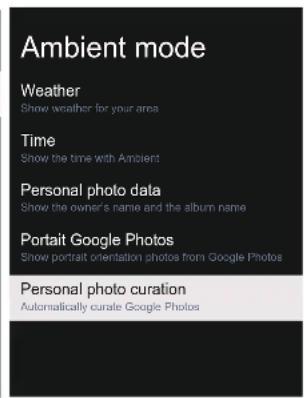

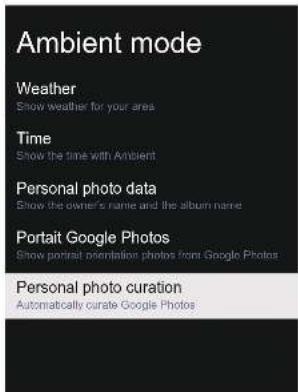

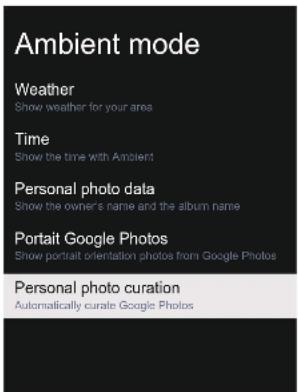

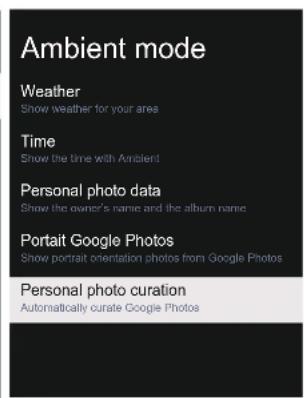

AMBIENT MODE

Menu->Settings->System->Ambient mode.

In this menu, you can set the ambient mode.

1. Press ▲/▼ button to select what you want set.
2. Press OK button to confirm.
3. After finishing your adjustment, Press BACK button to return to the previous menu.

POWER & ENERGY

Menu->Settings->System->Power & Energy.

In this menu, you can set the power & energy. (power on behavior, energy saver, power and timer)

1. Press ▲/▼ button to select what you want set.
2. Press OK button to confirm.
3. After finishing your adjustment, Press BACK button to return to the previous menu.

POWER ON BEHAVIOR

Menu->Settings->System->Power & Energy ->Power on behavior.

Press ▲/▼ button to select the option then press OK button to confirm.

ENERGY SAVER

Menu->Settings->System->Power & Energy ->Energy saver.

When inactive – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

(Optional:15 minutes,20 minutes,30 minutes, 1 hour,4 hours,8 hours, 12 hours, 24 hours, Never).

POWER

Menu->Settings->System-> Power & Energy ->Power.

Sleep Timer – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

(Optional:off, 10 minutes, 20 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, 90 minutes, 120 minutes)

Picture off—Press ▲/▼ button to select the option then press OK button to confirm.

Switch off timer—Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

(Optional:off,30 minutes,60 minutes,90 minutes, 120 minutes,150 minutes, 180 minutes, 210 minutes, 240 minutes)

Auto Sleep – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

(Optional: Never, 4 hours, 6 hours 8 hours)

TIMER

Menu->Settings->System->Power & Energy ->Timer.

Power On Time Type – Press ▲/▼ button to select the option then press OK button to choose OFF/ON/ONCE.

Auto Power On Time – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

Power Off Time Type – Press ▲/▼ button to select the option then press OK button to choose OFF/ON/ONCE.

Auto Power Off Time – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

CAST

Menu->Settings->System->Cast.

1. Press ▲/▼ button to select what you want set.
2. Press OK button to confirm.
3. Press BACK button to return to the previous menu.

RETAIL MODE

Menu->Settings->System->Retail Mode.

Retail mode – Press ▲/▼button to select the option then press OK button to choose ON/OFF.

Retail messaging - Press▲/▼button to select the option then press OK button to enter the sub-menu.( Note: Demo,e-POP,e-POP + Demo )

RESTART

Menu->Settings->System->Restart.

Press OK button to enter the sub-menu.

(Optional: restart and cancel)

REMOTES & ACCESSORIES

Menu->Settings->Remotes & Accessories.

In this menu, you can pair Bluetooth devices.

1. Press the "←" and "☐" buttons at the bottom of the remote control for 5 seconds.
2. When the LED starts to flash, release it. The remote controller will send the pairing signal to the TV and display the information of the remote control on the right side of the screen.
3. Press the OK button to display the pairing. If the paired is displayed, the connection is successful.
4. If the couldn't pair appears, the connection fails. Wait 30 seconds and then press the "←" and "☐" buttons at the bottom of the remote control for 5 seconds to repeat the previous steps.
5. Press " ← " button return to the previous menu.

USE OF MULTI MEDIA PLAYER

1. In the HOME or APPS interface, press ▲/▼◀/▶ to select the MultiMediaPlayer application

1. Select OK key to enter Multi Media Player and display Video, Photo, Audio. After inserting the usb flash drive, you can view the corresponding files in the usb flash drive (FAT32 Format).

NOTE

The menu may be different depending on when you purchased the TV.

Please make these simple checks before calling service. These tips may save you time and money since charges for receiver installation and adjustments of customer controls are not covered under your warranty.

Symptoms	Items to Check and Actions to Follow
"Ghost" or double image	This may be caused by obstruction to the antenna due to high rise buildings or hills. Using a highly directional antenna may improve the picture.
No power	Check if the TV's AC power cord is plugged into the outlet.Unplug the TV, wait for 60 seconds. Then reinsert plug into the outlet and turn on the TV again.
No picture	Check antenna connections at the rear of the TV to see if it is properly connected to the TV.Possible broadcast station trouble. Try another channel.Adjust the contrast and brightness settings.Check the Closed Captions control. Some TEXT modes could block the screen.
Good picture but no sound	Press the MUTE button on the remote control to ensure mute is off.
Good sound but poor color	Adjust the contrast, color and brightness settings.
Poor picture	Poor picture quality may occur when an activated S-VHS camera or camcorder is connected to your TV and other peripherals at the same time. Switch off one of the peripherals.
Snowy picture and noise	Check the antenna connection.
Horizontal dotted line	This may be caused by electrical interference (e.g. hair dryer, nearby neon lights, etc.) Turn off the equipment.
Television not responding to remote control	Check whether the batteries are working. Replace if necessary.Clean the remote control sensor lens on the TV.
Pixels (dots) that are always dark or always lit	Your TV is precision-manufactured using an extremely high level of technology. However, sometimes pixels may not display correctly. These types of occurrences are inherent to this type of product and do not constitute a defective product.

NOTE

- This product uses a panel consisting of sub pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

VISION·ATMOS

Dolby, Dolby Vision, Dolby Atmos, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright ©2012-2024 Dolby Laboratories. All rights reserved.

43" UHD LED TV

Television picture quality:	UHD Integrated digital. Screen Size: 108 cm Resolution 3840x2160 pixels 60Hz.
TV System:	PAL-B/G,SECAM-B/G
DTV Tuner Decoder	DVB-T, DVB-C, DVB-T2, DVB-S2 16/32/64/128/256 QAM modulation MPEG2,MPEG4,H.265
Connectivity:	1 Optical port 2 USB ports 1 LAN 4 HDMI sockets 1 VIDEO socket 1 L socket 1 R socket 2 RF sockets 1 EARPHONE port 1 CI slot Supported Systems:PAL+SECAM Storage channel number: 1000(DTV),100(ATV) TV (RF) :75 Ω Imbalance AV Video-Input:75 Ω ,1V-P,RCA AV Audio-Input:20KΩ ,500mV RMS HDMI Video Input: 480i, 480p, 720p, 1080i, 1080p,2160p WiFi: Standard: IEEE 802.11a/b/g/n/ac ,Frequency: 2.4GHz/5GHz Bluetooth:V5.1
Sound quality:	Stereo sound system. 2 x 10 watts RMS power output.
Standby Power consumption	≤0.5W
Digital features:	Digitally interactive. Digital text. Digital video broadcasting (DVB) subtitles available. Auto setup. Auto scan for new channels. Now and next programme guide. 7 day electronic programme guide (EPG). CI slot. Audio description compatible.
Additional features:	UHF/VHF tuner;Sleep timer;Parental Guidance;Picture and text Remote control batteries required 2 x AAA. VESA Mount Size: 300x300mm Package Size (WxHxD): 1075x652x142 mm Set Size (WxHxD) with Stand: 957.2x607.4x240.7 mm Set Size (WxHxD) without Stand: 957.2x566.7x86.6 mm Package weight: 10 kg Set weight with stand: 7.2kg Set weight without stand: 6.8kg

* The part specifications of this TV set provided here are for reference only.
Differences may occur as product technology is updated.
Design and specifications are subject to change without notice.

50 "UHD LED TV

Television picture quality:	UHD Integrated digital. Screen Size:126 cm Resolution 3840x2160 pixels 60Hz.
TV System:	PAL-B/G,SECAM-B/G
DTV Tuner Decoder	DVB-T, DVB-C, DVB-T2, DVB-S2 16/32/64/128/256 QAM modulation MPEG2,MPEG4,H.265
Connectivity:	1 Optical port 2 USB ports 1 LAN 4 HDMI sockets 1 VIDEO socket 1 L socket 1 R socket 2 RF sockets 1 EARPHONE port 1 CI slot Supported Systems:PAL+SECAM Storage channel number: 1000(DTV),100(ATV) TV (RF):75 Ω Imbalance AV Video-Input:75 Ω,1V-P,RCA AV Audio-Input:20KΩ,500mV RMS HDMI Video Input: 480i, 480p, 720p, 1080i, 1080p,2160p WiFi: Standard: IEEE 802.11a/b/g/n/ac ,Frequency: 2.4GHz/5GHz Bluetooth:V5.1
Sound quality:	Stereo sound system. 2 x 13.5 watts RMS power output.
Standby Power consumption	≤0.5W
Digital features:	Digitally interactive. Digital text. Digital video broadcasting (DVB) subtitles available. Auto setup. Auto scan for new channels. Now and next programme guide. 7 day electronic programme guide (EPG). CI slot. Audio description compatible.
Additional features:	UHF/VHF tuner;Sleep timer;Parental Guidance;Picture and text Remote control batteries required 2 x AAA. VESA Mount Size: 300x300mm Package Size (WxHxD): 1250x760x144 mm Set Size (WxHxD) with Stand: 1111.2x710.5x277.2 mm Set Size (WxHxD) without Stand: 1111.2x651.8x88 mm Package weight: 13.5kg Set weight with stand: 10kg Set weight without stand: 9.5kg

* The part specifications of this TV set provided here are for reference only.
Differences may occur as product technology is updated.
Design and specifications are subject to change without notice.

55" UHD LED TV

Television picture quality:	UHD Integrated digital. Screen Size: 139 cm Resolution 3840x2160 pixels 60Hz.
TV System:	PAL-B/G,SECAM-B/G
DTV Tuner Decoder	DVB-T, DVB-C, DVB-T2, DVB-S2 16/32/64/128/256 QAM modulation MPEG2,MPEG4,H.265
Connectivity:	1 Optical port 2 USB ports 1 LAN 4 HDMI sockets 1 VIDEO socket 1 L socket 1 R socket 2 RF sockets 1 EARPHONE port 1 CI slot Supported Systems:PAL+SECAM Storage channel number: 1000(DTV),100(ATV) TV (RF) :75 Ω Imbalance AVVideo-Input:75 Ω,1V-P,RCA AV Audio-Input:20KΩ,500mV RMS HDMI Video Input: 480i, 480p, 720p, 1080i, 1080p,2160p WiFi: Standard: IEEE 802.11a/b/g/n/ac ,Frequency: 2.4GHz/5GHz Bluetooth:V5.1
Sound quality:	Stereo sound system. 2 x 13.5 watts RMS power output.
Standby Power consumption	≤0.5W
Digital features:	Digitally interactive. Digital text. Digital video broadcasting (DVB) subtitles available. Auto setup. Auto scan for new channels. Now and next programme guide. 7 day electronic programme guide (EPG). CI slot. Audio description compatible.
Additional features:	UHF/VHF tuner;Sleep timer;Parental Guidance;Picture and text Remote control batteries required 2 x AAA. VESA Mount Size: 300x300mm Package Size (WxHxD): 1350x837x144mm Set Size (WxHxD) with Stand: 1225.8x777.3x277.2mm Set Size (WxHxD) without Stand: 1225.8x719.4x88.1mm Package weight :16.4 kg Set weight with stand: 11.9 kg Set weight without stand: 11.4 kg

* The part specifications of this TV set provided here are for reference only.
Differences may occur as product technology is updated.
Design and specifications are subject to change without notice.

65" UHD LED TV

Television picture quality:	UHD Integrated digital. Screen Size: 164cm Resolution 3840x2160 pixels 60Hz.
TV System:	PAL-B/G,SECAM-B/G
DTV Tuner Decoder	DVB-T, DVB-C, DVB-T2, DVB-S2 16/32/64/128/256 QAM modulation MPEG2,MPEG4,H.265
Connectivity:	1 Optical port 2 USB ports 1 LAN 4 HDMI sockets 1 VIDEO socket 1 L socket 1 R socket 2 RF sockets 1 EARPHONE port 1 CI slot Supported Systems:PAL+SECAM Storage channel number: 1000(DTV),100(ATV) TV (RF) :75 Ω Imbalance AV Video-Input:75 Ω ,1V-P,RCA AV Audio-Input:20K Ω ,500mV RMS HDMI Video Input: 480i, 480p, 720p, 1080i, 1080p,2160p WiFi : Standard: IEEE 802.11a/b/g/n/ac ,Frequency: 2.4GHz/5GHz Bluetooth:V5.1
Sound quality:	Stereo sound system. 2 x 13.5 watts RMS power output.
Standby Power consumption	≤0.5W
Digital features:	Digitally interactive. Digital text. Digital video broadcasting (DVB) subtitles available. Auto setup. Auto scan for new channels. Now and next programme guide. 7 day electronic programme guide (EPG). CI slot. Audio description compatible.
Additional features:	UHF/VHF tuner;Sleep timer;Parental Guidance;Picture and text Remote control batteries required 2 x AAA. VESA Mount Size: 400x300mm Package Size (WxHxD): 1600x960x164mm Set Size (WxHxD) with Stand: 1446.4x904.7x313.8mm Set Size (WxHxD) without Stand: 1446.4x841.3x85.1mm Package weight : 24 kg Set weight with stand: 17.2 kg Set weight without stand: 16.5 kg

* The part specifications of this TV set provided here are for reference only.
Differences may occur as product technology is updated.
Design and specifications are subject to change without notice.

Haier

Blank whiteboard with a simple metal frame at the bottom (no text or symbols)

Illustration of a computer monitor with a crossed-out hand and lightning bolts, no text or symbols present.

Simple line drawing of a monitor with a cross symbol crossed out, next to a rope tied to a bag (no text or symbols)

Simple line drawing of a computer monitor with a crossed X symbol and stars (no text or labels)

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a cross mark (no text or symbols)

Computer monitor displaying three circular icons with prohibition symbols (no readable text or labels)

Cartoon illustration of a person running away from a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a person running away from a computer monitor with a circular icon showing a photo (no text or symbols present)

Simple line drawing of a monitor with a crossed X and no text or symbols, accompanied by a small icon emitting smoke (no text or symbols present)

Technical diagram of a mechanical assembly with labeled components and connection points (no text or symbols)

ЗАБЕЛЕЖКА

Technical line drawing of a mechanical assembly with no visible text or symbols

ЗАБЕЛЕЖКА

Technical line drawings of a mobile phone rear panel showing internal components and exterior view (no text or symbols)

1. Захранване:

Technical line drawing of a mechanical assembly with no visible text or symbols

Blank whiteboard with a simple metal frame and support structure at the bottom (no text or symbols)

Illustration of a computer monitor with a crossed-out cable and lightning bolts, no text or symbols present

Simple line drawing of a monitor with a cross mark and a hanging cloth, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol crossed out, no text or symbols present.

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Computer monitor displaying three circular icons with prohibition symbols (no text or labels)

Cartoon illustration of a person on a computer screen with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a rectangular block, no text or symbols present.

Undlad at placere dit TV på et ustabilt rullebord, fod, hylde eller bord. Hvis TV'et falder ned, kan det medføre alvorlig personskade eller beskadige TV'et.

Illustration of a person running past a computer monitor and a circular object with a device (no text or symbols)

Simple line drawing of a monitor with a cross mark and a warning sign (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

BEMÆRK

Architectural floor plan showing room layout and structural elements (no text or labels)

BEMÆRK

Technical line drawings of a mobile phone rear panel showing internal components and exterior view (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Analog/Antenna/Cable/Satellite (Analog/Antenne/Kabel/Satellit) - Tryk på knappen ▲ for at vælge indstillingen, og tryk derefter på knappen OK for at åbne undermenuen.

Backlight/Brightness/Contrast/Saturation/HUE/Sharpness (Baggrundslys/Lysstyrke/Kontrast/

I denne menu kan du foretage indstillinger for omgivende tilstand.

I denne menu kan du foretage indstillinger for strøm og energi.

(power on behavior, energy saver, power and timer (Forhold ved opstart, Energibesparelse, Strøm og timer))

FJERNBETJENINGER OG TILBEH∅R

Menu->Settings->Remotes & Accessories (Menu->Indstillinger->Fjernbetjeninger og tilbehør).

I denne menu kan du parre Bluetooth-enheder.

Blank whiteboard with a simple metal frame and support structure at the bottom (no text or symbols)

Illustration of a computer monitor with an explosion symbol and a crossed-out line indicating no change or damage (no text or symbols present)

Simple line drawing of a window with a diagonal X mark and a hanging curtain (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol crossed out, no text or symbols present.

Simple line drawing of a computer monitor with a steaming roof (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Computer monitor displaying three prohibition symbols: a crossed-out circle, a broken circle with a document, and a broken circle with a globe (no text or labels visible)

Cartoon illustration of a person on a computer screen with a crossed-out X symbol, surrounded by boxing gloves (no text or symbols)

Simple line drawing of a geometric shape with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a person running away from a computer monitor with a circular icon showing a small square (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a lit fuse and a lamp (no text or symbols)

Technical diagram of a vehicle interior layout with no visible text or symbols

HINWEIS

Architectural floor plan showing room layout and structural elements (no text or labels)

HINWEIS

Technical line drawings of a mobile phone rear panel showing internal components and external casing (no text or symbols)

4. Strom:

Technical line drawing of a front-mounted device with internal components and wiring (no text or symbols)

PRIVACY (DATENSCHUTZ)

Usage & diagnostics (Verwendung & Diagnose)

Internal shared storage

Total space:24 GB

Internal shared storage (Interner gemeinsamer

A slideshow of selected memories will be created

Art gallery

Curated images and artwork

Experimental

Try out new sources and content

MORE SETTINGS

Ambient mode

Weather

Show weather for your area

Time

Show the time with Ambient

Personal photo data

Show the owner's name and the album name

Portrait Google Photos

Show portrait orientation photos from Google Photos

Personal photo curation

Automatically curate Google Photos

When TV turns on display:

Google TV home screen

Last used input

Remotes & accessories

Pair accessory

HaierTV-RC Connected

Blank whiteboard with a simple metal frame and a curved bracket at the bottom (no text or symbols)

Illustration of a computer monitor with a crossed-out cable and lightning bolts, no text or symbols present.

Simple line drawing of a monitor with a cross mark and a hanging bag, no text or symbols present

Simple line drawing of a computer monitor with a crossed X symbol and stars (no text or labels)

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Computer monitor displaying three prohibition symbols: no text, a document, and a map (no readable text or labels)

Cartoon illustration of a person holding a boxing ring on a computer monitor with a crossed X symbol (no text or symbols present)

Simple line drawing of a geometric shape and a rectangular block with motion lines (no text or symbols)

Illustration of a person running away from a computer monitor with a circular icon showing a photo (no text or symbols present)

Simple line drawing of a monitor with a cross symbol crossed out, and a warning light emitting smoke (no text or symbols)

NOTA

Technical line drawing of a mechanical assembly with no visible text or symbols

NOTA

Technical line drawings of a smartphone internal components, showing front, side, and top views with no visible text or symbols.

Technical line drawing of a front-mounted air conditioner unit with internal components and wiring (no text or symbols)

Backlight/Brightness/Contrast/Saturation/HUE/Sharpness (Luz de fondo/Brillo/Contraste/

Balance/ Bass/ Treble (Balance/Graves/Agudos):

USAGE & DIAGNOSTICS (USO Y DIAGNÓSTICO)

Internal shared storage

Total space:24 GB

A slideshow of selected memories will

be created

Art gallery

Curated images and artwork

Experimental

Try out new sources and content

MORE SETTINGS

Ambient mode

Weather

Show weather for your area

Time

Show the time with Ambient

Personal photo data

Show the owner's name and the album name

Portrait Google Photos

Show portrait orientation photos from Google Photos

Personal photo curation

Automatically curate Google Photos

Google TV home screen

Last used input

REMOTES & ACCESSORIES (MANDOS A DISTANCIA Y ACCESORIOS)

Blank whiteboard with a simple curved metal frame at the bottom (no text or symbols)

Illustration of a computer monitor with a crossed-out cable and lightning bolts, no text or symbols present

Simple line drawing of a monitor with a cross mark and a rope tied to it, no text or symbols present.

Simple line drawing of a computer monitor with a crossed X symbol and stars (no text or labels)

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Cartoon illustration of a person holding a badminton racket crossed out of a computer monitor, with no visible text or symbols.

Simple line drawing of a geometric shape with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a person running away from a computer monitor next to a circular object with a device (no text or symbols present)

Simple line drawing of a monitor with a cross symbol crossed out, next to a megaphone emitting sound waves (no text or symbols)

HUOMAA

Technical line drawing of a mechanical assembly with no visible text or symbols

HUOMAA

Technical line drawing of a mobile phone rear panel showing internal components and battery structure (no text or symbols)

1. Virta:

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a network switch with four ports and an Ethernet, showing connections to a power outlet (no text or labels)

Painamalla ▲/▼ valitset "Set up Google TV" (Google-television asetus) ja painamalla OK lopetat asetuksen.

HELPPPOKÄYTTÖTOIMINNOT

KAUKOSÄÄTIMET JA TARVIKKEET

Blank whiteboard with a simple metal frame and a curved bracket at the bottom (no text or symbols)

Illustration of a computer monitor with a crossed-out cable and lightning bolts, no text or symbols present.

Simple line drawing of a monitor with a cross mark and a hanging cloth, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol crossed out, no text or symbols present.

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen TV mounted on a stand (no text or symbols)

Computer monitor displaying three prohibition symbols: no text, a document, and a map (no readable text or labels)

Cartoon illustration of a person holding a crossed-out monitor with a crossed-out fist, surrounded by boxing gloves (no text or symbols)

Simple line drawing of a geometric shape with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a person running away from a computer screen next to a circular object with a small inset image (no text or symbols)

Simple line drawing of a monitor with a crosshair crossed out, and a warning light emitting smoke (no text or symbols)

Technical diagram of a mechanical or electronic assembly with no visible text, numbers, or symbols.

REMARQUE:

Architectural floor plan showing room layout and structural elements (no text or labels)

REMARQUE :

Technical line drawings of a smartphone internal components, showing front, side, and top views with no visible text or symbols.

Technical line drawing of a rectangular device with internal components and wiring (no text or symbols)

1. Allumer/Éteindre

2. Activation/Désactivation des commandes vocales

Activation de l'assistant vocal
Désactivation de l'assistant vocal

Analog/Antenna/Cable/Satellite (Analogique/

(Option : Stéréo, Surround)

When TV turns on display:

Google TV home screen

Last used input

TÉLÉCOMMANDES ET ACCESSOIRES

Remotes & accessories

Pair accessory

HaierTV-RC

Connected

Blank whiteboard with a simple metal frame and a curved bracket at the bottom (no text or symbols)

Illustration of a computer monitor with a crossed-out cable and lightning bolts, no text or symbols present

Simple line drawing of a monitor with a cross mark and a hanging garment (no text or symbols)

Simple line drawing of a computer monitor with a crossed X symbol and stars (no text or labels)

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen TV with a stand (no text or symbols)

Cartoon illustration of a person holding a crossed-out monitor with boxing gloves, no text or symbols present

Simple line drawing of a geometric shape with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a person running away from a computer monitor next to a circular object with a flame (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a warning light (no text or symbols)

NOTE

Technical line drawing of a mechanical assembly with no visible text or symbols

NOTE

Technical line drawings of a smartphone internal components, showing front, side, and top views with no visible text or symbols.

1. Alimentazione:

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a network device with five Ethernet ports and a wireless signal line (no text or labels)

Backlight/Brightness/Contrast/Saturation/HUE/

Dolby Audio processing (Elaborazione audio Dolby)

Internal shared storage (Memoria interna condivisa)

TELECOMANDI E ACCESSORI

Blank whiteboard with a simple metal frame and a curved bracket at the bottom (no text or symbols)

Illustration of a computer monitor with a crossed-out cable and lightning bolts, no text or symbols present.

Simple line drawing of a monitor with a cross mark and a hanging cloth, no text or symbols present

Simple line drawing of a computer monitor with a crossed X symbol and stars (no text or labels)

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Ikke klem strømledningen under TV-mottakeren.

Computer monitor displaying three circular icons with prohibition symbols: a crossed-out 'no' symbol, a document icon, and a checkmark (no text or labels visible)

Cartoon illustration of a person running away from a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a rectangular block, no text or symbols present.

Ikke plasser dette TV-en på en ustabil tralle, et stativ eller et bord. Alvorlig personskade og skade på TV-en kan oppstå hvis den faller ned.

Illustration of a person running away from a computer screen next to a circular object with a starburst symbol (no text or symbols present)

Simple line drawing of a monitor with a cross symbol crossed out, and a warning light emitting smoke (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

MERK

Produktets utseende skal være av type.

KLARGJ∅RING AV LED-TV-EN DIN FOR VEGGMONTERING

Vi anbefaler at du har TV-en minst 60 mm fra veggen for å forhindre kabelinterferens. Før du monterer TV-en på veggen, må du ta av stativet.

Architectural floor plan showing room layout and structural elements (no text or labels)

MERK

Technical line drawings of a mobile phone rear panel showing internal components and battery structure (no text or labels)

1. Strøm:

Plugg inn kabelen i en fungerende stikkontakt.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Slå på TV-en:

Trykk på å fjernkontrollen eller POWERknappen på sidekontrollpanelet på TV-en.

KNAPPEKONTROLL

Bruk pålogging med Google-konto

Backlight/Brightness/Contrast/Saturation/HUE/

Dolby Audio processing (Dolby Audio-prosessering)

Meny -> Innstillinger -> Personvern -> Plassering.

Meny -> Innstillinger -> Apper.

Meny -> Innstillinger -> System -> Lagring.

I denne menyen kan du stille inn ambientmodus.

Meny -> Innstillinger -> System -> Cast.

RETAIL MODE (FORHANDLERMODUS)

Meny -> Innstillinger -> System -> Forhandlermodus.

REMOTE & ACCESSORIES (FJERNKONTROLLER OG TILBEH∅R)

I denne menyen kan du pare Bluetooth-enheter.

Blank whiteboard with a simple metal frame and a curved bracket at the bottom (no text or symbols)

Illustration of a computer monitor with a crossed-out cable and lightning bolts, no text or symbols present

Simple line drawing of a monitor with a cross mark and a hanging curtain, no text or symbols present.

Simple line drawing of a computer monitor with a cross symbol crossed out, no text or symbols present.

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a cross mark (no text or symbols)

Cartoon illustration of a person on a computer screen with a crossed-out 'X' symbol, surrounded by boxing gloves (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a rectangular frame, no text or symbols present.

Illustration of a person running away from a computer screen next to a circular object with a starburst symbol (no text or symbols present)

Simple line drawing of a monitor with a 'X' crossed out and a warning light emitting smoke (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and red triangular annotations (no readable text or symbols)

NOTA

Technical line drawing of a mechanical assembly with no visible text or symbols

NOTA

Technical line drawings of a smartphone rear panel showing internal components and battery structure (no text or symbols)

Technical line drawing of a monitor layout with no visible text or symbols

Automatic date & time (Data e hora automáticas)

TELECOMANDOS E ACESSÓRIOS

Neste menu, pode emparelhar dispositivos Bluetooth.

Blank whiteboard with a simple metal frame at the bottom (no text or symbols)

Illustration of a computer monitor with a crossed-out cable and lightning bolts, no text or symbols present

Simple line drawing of a monitor with a cross mark and a hanging cloth, no text or symbols present

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a cross mark (no text or symbols)

Computer monitor displaying three prohibition symbols: no text, a document, and a map (no readable text or labels)

Cartoon illustration of a person standing on a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a person running away from a computer screen next to a circular object with a small symbol (no text or symbols present)

Simple line drawing of a monitor with a 'X' crossed out and a warning light emitting smoke (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and mounting points (no readable text or symbols)

NOTĂ

Architectural floor plan showing room layout and structural elements (no text or labels)

NOTĂ

Technical line drawings of a smartphone internal components, showing front, side, and top views with battery and switch (no text or symbols)

1. Pornire:

Technical line drawing of a monitor layout with cable and connector (no text or symbols)

Backlight/Brightness/Contrast/Saturation/HUE/

Surround Sound (Sunet surround) – Apăsați tasta

(Optional: Stereo, Surround).

(Optional: oprit, 10 minute, 20 minute, 30 minute, 40 minute, 50 minute, 60 minute, 90 minute, 120 minute)

(Optional: oprit, 30 minute, 60 minute, 90 minute, 120 minute, 150 minute, 180 minute, 210 minute, 240 minute)

TELECOMENZI ŞI ACCESORII

Technical line drawing of a mechanical support frame (no text or symbols)

Illustration of a computer monitor with a crossed-out black-and-white symbol (no text or labels)

Simple line drawing of a monitor with a cross mark and a rope, no text or symbols present

Simple line drawing of a computer monitor with a crossed X mark and stars (no text or symbols)

Simple line drawing of a computer monitor with a steaming roof (no text or symbols)

Simple line drawing of a flat-screen monitor with a stand (no text or symbols)

Computer monitor displaying three prohibition symbols: no text, document, and a map icon (no readable text or labels)

Cartoon illustration of a person holding a badminton racket crossed out of a computer monitor, with motion lines indicating speed (no text or symbols)

Simple line drawing of a geometric shape with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a person running away from a computer monitor and a circular object with a starburst symbol (no text or symbols present)

Simple line drawing of a computer monitor with a crossed-out X symbol and a warning light emitting smoke (no text or symbols)

Technical diagram of a mechanical or electronic component with no visible text, numbers, or symbols.

ПРИМЕЧАНИЕ

Technical line drawing of a mechanical assembly with no visible text or symbols

ПРИМЕЧАНИЕ

Diagram of a mobile phone casing with internal components and connectors (no text or symbols)

Diagram showing two views of a device with an arrow indicating direction (no text or symbols)

4. Питание.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a vehicle rear panel with internal components and a separate labeled component (no text or symbols)

Diagram of a wireless router with four ports and an external network connection (no text or labels)

LAN

OPTICAL

VIDEO

L

IN

HDMI

HOMI

HDMI

Line drawing of a portable electronic device with a vertical cable or connector (no text or symbols)

Усилитель

Diagram of a network connection setup with three connected devices and an external server (no text or symbols)

Diagram of three connected devices with a central device (no text or symbols)

УЖелтый (ВИДЕО)

RКрасный (АУДИО —

ПРАВЫЙ КАНАЛ)

WБелый (АУДИО —

ЛЕВЫЙ КАНАЛ)

КОНФИДЕНЦИАЛЬНОСТЬ

Gboard Settings (Настройки Gboard) —

Blank whiteboard with a simple curved metal frame at the bottom (no text or symbols)

INNEHÅLLSFÖRTECKNING

1. VIKTIGA SÄKERHETSANVISNINGAR .... 1
2. FÖRBEREDELSER....3
3. ANSLUTA KRINGUTRUSTNING OCH REGLAGE....4
4. ANSLUTNINGAR....5
5. BRUKSANVISNINGAR....6
6. FELSÖKNING....19
7. PRODUKTSPECIFIKATIONER....20

Illustration of a computer monitor with a crossed-out cable and lightning bolts, no text or symbols present

Simple line drawing of a monitor with a cross mark and a hanging cloth, no text or symbols present.

Simple line drawing of a computer monitor with a crossed X symbol and stars (no text or labels)

Simple line drawing of a computer monitor with steam rising from its side (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Computer monitor displaying three prohibition symbols: no text, a document, and a map (no readable text or labels)

Cartoon illustration of a person on a computer monitor with a crossed-out 'X' symbol, surrounded by motion lines (no text or symbols)

Simple line drawing of a geometric shape with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a person running away from a computer monitor next to a circular object with a small inset image (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol crossed out, and a warning sign with a lock (no text or symbols present)

Technical diagram of a mechanical assembly with no visible text or symbols

OBS!

FÖRBEREDA LED-TV-APPARATEN FÖR VÄGGMONTERING

Architectural floor plan showing room layout and structural elements (no text or labels)

OBS!

Technical line drawings of a mobile phone casing showing internal components and exterior view (no text or symbols)

1. Ström:

Technical line drawing of a mechanical assembly with no visible text or symbols

FJÄRRKONTROLLER OCH TILLBEHÖR

Blank whiteboard with a metal frame and support structure at the bottom (no text or symbols)

Illustration of a computer monitor with a crossed-out hand gesture (no text or symbols)

Simple line drawing of a monitor with a cross mark and a bag, no text or symbols present

Simple line drawing of a computer monitor with a crossed X symbol and stars (no text or labels)

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor with a stand (no text or symbols)

Computer monitor displaying three prohibition symbols: a crossed-out circle, a document icon, and a broken-out rectangle (no text or labels visible)

Simple line drawing of a geometric shape with intersecting lines and a rectangular frame, no text or symbols present.

Illustration of a person running away from a computer screen next to a circular object with a small symbol (no text or labels)

Simple line drawing of a monitor with a 'X' crossed out and a warning sign emitting sound waves (no text or symbols)

Technical diagram of a mechanical or electronic component with no visible text, numbers, or symbols.

ПРИМІТКА

Technical line drawing of a mechanical assembly with no visible text or symbols

ПРИМІТКА

Technical line drawings of a remote control panel showing internal components and casing (no text or symbols)

1. Потужність:

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a vehicle rear panel with internal components and a separate view of a device (no text or symbols)

1 2

Diagram of a network device with five Ethernet ports and a wireless signal line (no text or labels)
