USER MANUAL Studio PAR 4 G2 Cameo

LED PAR SPOTLIGHT WITH 12X RGBW 4-IN-1 LED CLPST4G2

STUDIO PAR 6 G2

LED PAR SPOTLIGHT WITH 12 X RGBAWUV 6-IN-1 LED CLPST6G2

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TRESC / CONTENO

ENGLISH

INFORMATION ON THIS USER MANUAL 6

INTENDED USE 6

DEFINITIONS AND SYMBOL EXPLANATIONS 6

SAFETYINSTRUCTIONS7

NOTES FOR MOBILE INDOOR DEVICES 10

INCLUDED 10

INTRODUCTION 11

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 12

OPERATION 14

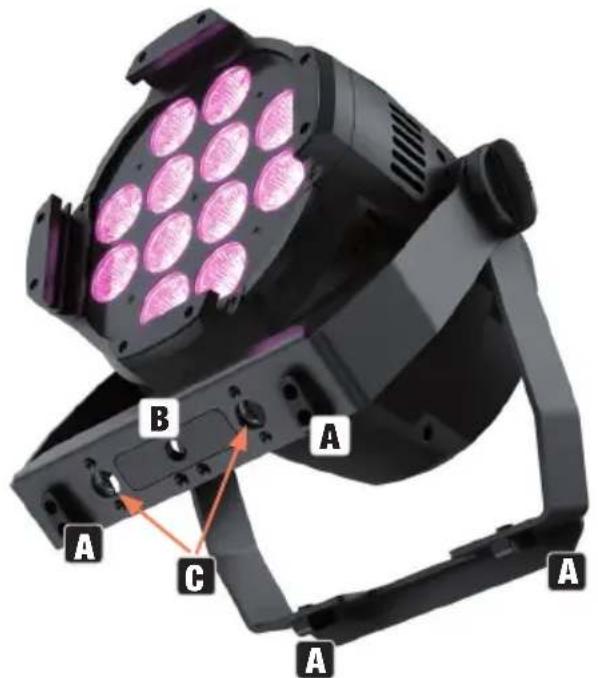

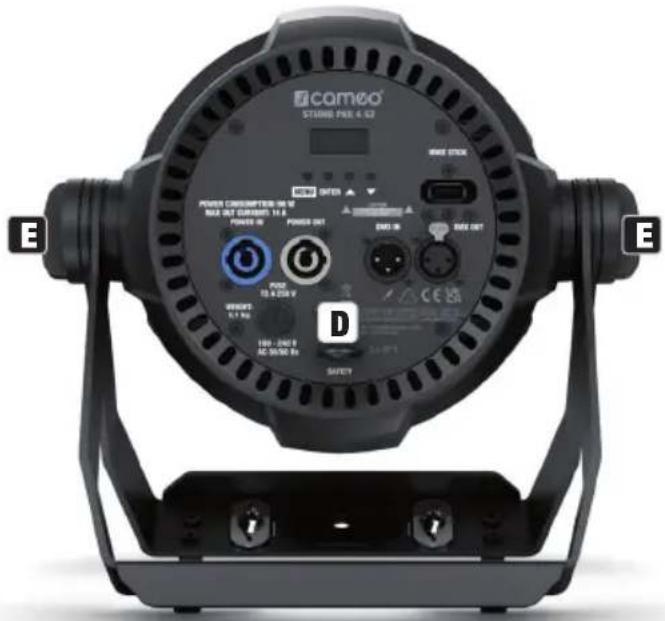

SETUP AND INSTALLATION 24

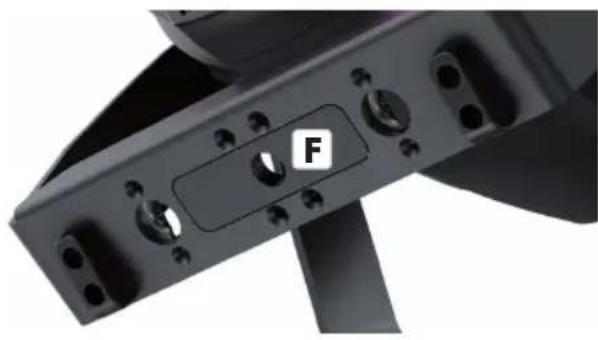

MOUNTING THE FILTER FRAME 25

CARE, MAINTENANCE AND REPAIR 26

TECHNICAL DATA 27

MINIMUM DISTANCE TO ILLUMINATED SURFACE 28

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 28

DISPOSAL 29

MANUFACTURER'S DECLARATIONS 29

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TRESC / CONTENO

DEUTSCH

This device has been developed and manufactured to the highest quality standards to ensure many years of problem-free operation. Please read this user manual carefully to be able to use your new Cameo product quickly and optimally. Further information about Cameo Light is available on our website CAMEOLIGHT.COM.

INFORMATION ON THIS USER MANUAL

• Carefully read the safety instructions and the entire manual before operating the device.
• Observe the warnings on the device and in the user manual.
  Always keep the user manual within reach.
• If you sell or pass on the device, it is important that you also include this user manual, as it is an integral part of the product.

INTENDED USE

The product is a device for event technology!

This product has been developed for professional use in the field of event technology and is not suitable for use as domestic lighting!

Furthermore, this product is only intended for qualified users with specialist knowledge of event technology!

Use of the product outside the specified technical data and operating conditions is considered inappropriate!

Liability for damage and third-party damage to persons and property due to inappropriate use is excluded!

The product is not suitable for:

• Use by persons (including children) with limited physical, sensory or mental abilities or lack of experience and knowledge.
  Children (children must be instructed not to play with the device).

DEFINITIONS AND SYMBOL EXPLANATIONS

1. HAZARD: The word HAZARD, possibly in combination with a symbol, indicates situations in which there is an immediate danger or risk of potentially fatal injury.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates situations in which there is an immediate danger or risk of potentially fatal injury.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or conditions that could result in injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, indicates situations or conditions that could result in damage to property and/or the environment.

This symbol identifies hazards that can cause electric shock.

This symbol identifies hazardous areas or hazardous situations.

This symbol indicates hazards caused by hot surfaces.

This symbol indicates hazards caused by intense light sources.

This symbol indicates a device in which there are no user-replaceable parts.

This symbol indicates additional information on the operation of the product.

SAFETY INSTRUCTIONS

HAZARD:

1. Do not open the device and do not perform any modifications.

2. If your device no longer functions properly, if liquids or objects get inside it or if it has been damaged in any other way, switch it off immediately and unplug it from the power source. The device may be repaired only by authorised repair technicians.

3. For devices of protection class 1, the protective conductor must be connected correctly. Never disconnect the protective conductor. Devices of protection class 2 do not have a protective conductor.

4. Ensure that live cables are not kinked or otherwise mechanically damaged.

5. Never bypass the device fuse.

WARNING:

1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the device's power cable is damaged, the device may not be used.
4. Permanently connected power cables may only be replaced by a qualified person.

ATTENTION:

1. Do not switch on the device if it has been exposed to extreme temperature fluctuations (for example, following transport). Moisture and condensation can damage the device. Switch on the device only when it has reached room temperature.
2. Ensure that the voltage and frequency of the mains supply match the values specified on the device. If the device has a voltage selector switch, do not connect the device until it has been set correctly. Use only suitable power cables.
3. To disconnect the device from the mains on all poles, it is not sufficient to press the on/off switch on the device.
4. Make sure that the fuse used corresponds to the type printed on the device.
5. Ensure that suitable measures have been taken against overvoltage (e.g. lightning strikes).
6. Observe the specified maximum output current on devices with a Power Out connection. Ensure that the total current consumption of all connected devices does not exceed the specified value.
7. Replace plug-in power cables with original cables only.

HAZARD:

1. Choking hazard! Plastic bags and small parts must be kept out of reach of persons (including children) with reduced physical, sensory or mental capabilities.
2. Risk of falling! Make sure that the device is securely installed and will not fall down. Only use suitable stands or mounts (particularly for fixed installations). Ensure that accessories are properly installed and secured. Ensure that applicable safety regulations are observed.

WARNING:

1. Use the device in the prescribed manner only.
2. Operate the device using only accessories of the type recommended and supplied by the manufacturer.
3. Observe safety regulations applicable in your country during installation.
4. After connecting the device, ensure that all cables are routed so as to avoid damage or accidents, such as from tripping.
5. Always observe the specified minimum distance to normally flammable materials! Unless explicitly stated, the minimum distance is 0.3m

CAUTION:

1. Moving components such as mounting brackets may become jammed.
2. In the case of devices with motor-driven components, there is a risk of injury due to the movement of the device. Sudden movement of the device can cause shock reactions.
3. The housing surface of the device can become very hot during regular operation. Ensure that accidental touching of the housing is not possible. Always allow the device to cool sufficiently before removal, maintenance work and charging etc.

ATTENTION:

1. Do not install or use the device in the vicinity of radiators, accumulators, stoves, or other heat sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat.
2. Do not place any ignition sources, such as burning candles, near the device.
3. Ventilation openings must not be covered and fans must not be blocked.
4. For transport, use the original packaging or packaging provided by the manufacturer.
5. Avoid any impacts to or shaking of the device.
6. Observe the IP rating and the ambient conditions such as temperature and humidity according to the specifications.
7. Devices can be continuously further developed. In the event of deviating information on operating conditions, performance or other device properties between the user manual and the device labelling, the information on the device always has priority.
8. The device is not suitable for tropical climate zones or for operation over 2,000 m above sea level.
9. Unless explicitly stated, the device is not suitable for operation under marine conditions.

PLEASE NOTE:

For conversion or retrofit sets or accessories provided by the manufacturer, it is essential to observe the instructions included.

CAUTION! IMPORTANT INFORMATION REGARDING LIGHTING PRODUCTS!

1. Never look directly into the beam of light, not even for a short period of time.
2. Never look into the beam of light using optical devices such as a magnifying glass.

1. Stroboscopic effects may cause epileptic seizures in susceptible individuals!
2. Permanently installed lamps are built into these lighting units. These may not be replaced by the user. The lamps contained in this lighting unit may only be replaced by the manufacturer, its service partner, or a similarly qualified person.

NOTES FOR MOBILE INDOOR DEVICES

1. Temporary operation! Event equipment is generally only designed for temporary operation.
2. Continuous operation or permanent installation can impair the functioning of the device and cause premature ageing.

INCLUDED

Remove the product from the packaging and remove all packaging material.

Please check the completeness and integrity of the delivery and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged.

Included with the CLPST4G2:

1x STUDIO PAR 4 G2 spotlight
1x filter frame (pre-assembled)
1x power cable
User manual

Included with the CLPST6G2:

1xSTUDIO PAR 6 G2 spotlight
1x filter frame (pre-assembled)
1x power cable
User manual

INTRODUCTION

CLPST4G2: 1-channel DIM UC, D3-channel macro, 4-channel RGBW, 4-channel strobe macro, D8-channel strobe macro, 10-channel macro control, D6-channel direct 8 bit, 10-channel direct 16 bit and 14-channel full access DMX control

CLPST6G2: 1-channel DIM UC, D3-channel macro, 4-channel strobe macro, 6-channel RGBWAUV, D10-channel strobe macro, 12-channel macro control, D9-channel direct 8 bit, 14-channel direct 16 bit, 18-channel full access DMX control

Master / slave operation

Standalone functions

W-DMX connection via optional iDMX stick

FEATURES:

3-pin DMX connections. Power Twist mains connections IN and OUT. OLED display.

PWM frequency adjustable. Connection for iDMX stick. Installation double bracket included. Operating voltage 100-240 V AC.

The spotlight features the RDM standard (Remote Device Management). Remote device management allows the user to view the status and configuration of RDM terminals via an RDM-capable controller.

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS

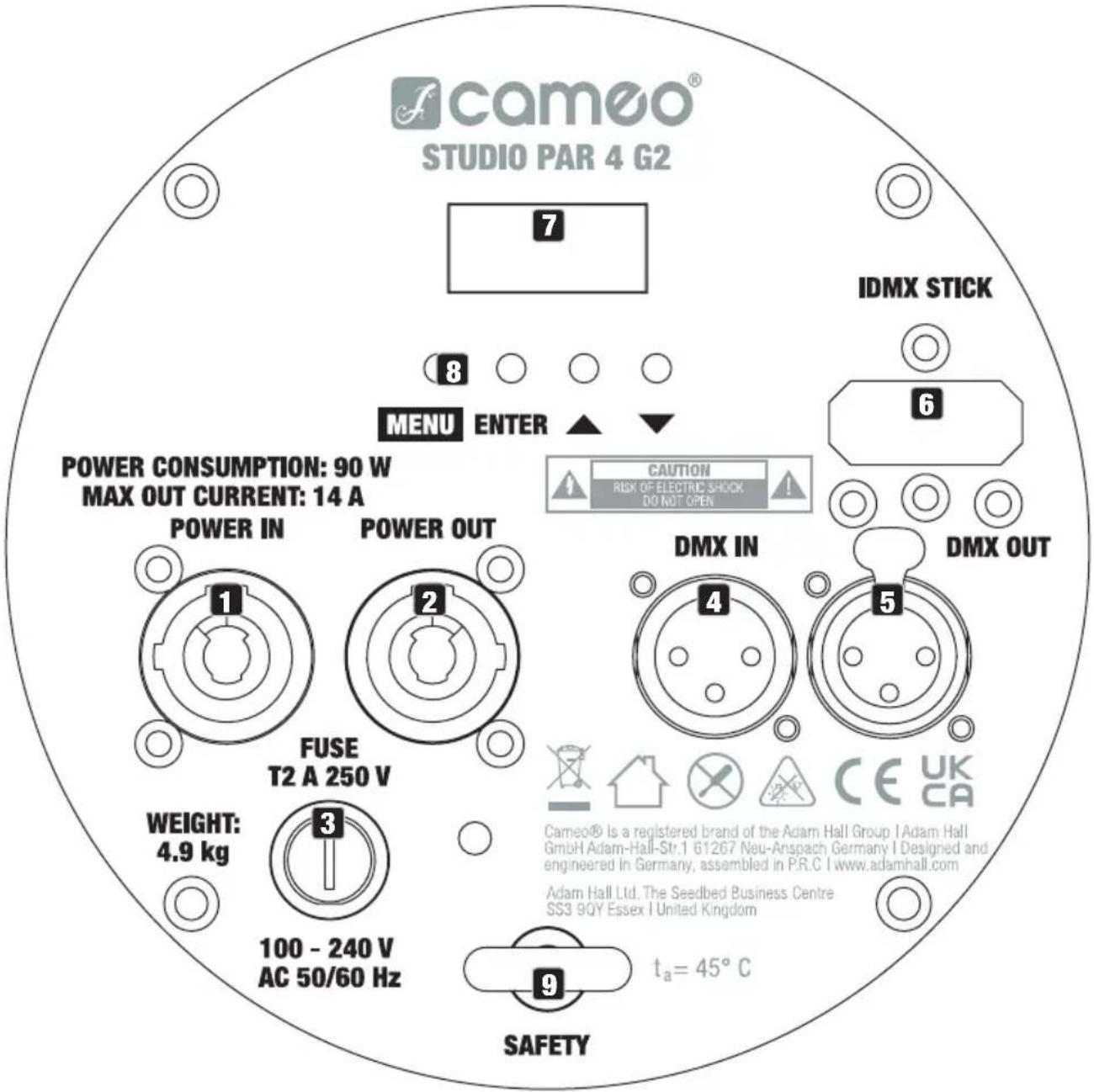

The STUDIO PAR 4 G2 and STUDIO PAR 6 G2 models feature identical connections, operating and display elements.

1 POWER IN

Blue Power Twist mains input socket. Operating voltage 100-240 V AC/50-60 Hz. A suitable power cable with Power Twist plug is included.

2 POWER OUT

White Power Twist mains output socket. Facilitates power supply to other CAMEO spotlights. Ensure that the total power consumption of all devices connected to the device does not exceed the given ampere (A) value.

3 FUSE

for 5 × 20 ~mm fuses. IMPORTANT: Replace the fuse only with a fuse of the same type and value. In the event of repeated fuse failure, please contact an authorised service centre.

4 DMX IN

Male 3-pin XLR socket for connection to a DMX control device (e.g. DMX console).

5 DMX OUT

Female 3-pin XLR socket for sending the DMX control signal.

6 IDMX STICK

Connection for the optional iDMX stick for W-DMXTM connection (plug in the iDMX stick with the antenna facing upwards).

7 OLED DISPLAY

The OLED display shows the currently activated mode (main display), the menu items in the menu and the numerical value or operational status in certain menu items. If there is no input for approx. 30 seconds, the display automatically returns to the main display. Note regarding the main display in operating modes with external control: As soon as the control signal is interrupted, the characters in the display begin to flash. When there is a control signal again, the flashing stops. Briefly pressing the button when in the main display rotates the display by 180^ .

8 CONTROL KEYS

MENU - Press MENU to access the main menu. Press again or repeatedly to return to the main display. Pressing MENU without confirming a value or status change with ENTER restores the previously confirmed value or status.

ENTER - press ENTER to access the menu levels, to make value changes, and to access the submenus. Confirm value or status changes by pressing ENTER.

and Select individual menu items in the main menu (DMX address, DMX mode etc.) and in the submenus. Allows you to change the value of a menu option, such as the DMX address, as desired (long press = quick value change).

9 SAFETY

Securing lug for attaching the spotlight.

OPERATION

NOTES

• As soon as the spotlight is correctly connected to the power supply, the following are displayed in succession: "Software Update Please Wait" (for service purposes only), "Welcome to Cameo," the model name and the software version. After this process, the spotlight is operational and the previously activated operating mode is launched.
• The main display is activated automatically if no input is made within approximately 30 seconds. To navigate one level up in the submenus, briefly press MENU.
• Briefly pressing▲ when in the main display rotates the display by 180^ .
• To quickly change a value (e.g. DMX start address), press and hold or

MAIN DISPLAY DMX OPERATING MODE

The display shows the DMX address and current DMX start address (in the example 001).

DMX Address 001

MAIN DISPLAY STANDALONE MODE

The display shows the currently activated standalone mode (Mode Auto, Mode Static, Mode Color Preset, Mode Loop).

Mode Auto

Mode Static

Mode Color Preset

Mode Loop

MAIN DISPLAY SLAVE MODE

The display shows Mode Slave.

Mode Slave

CONFIGURING DMX START ADDRESS (DMX Address)

Starting from the main display, press MENU to enter the main menu. Now use or to select the menu item DMX address and confirm with ENTER. Now use the or buttons to configure the desired DMX start address and press ENTER to confirm (highest value dependent upon activated DMX mode).

CONFIGURING DMX MODE (DMX Mode)

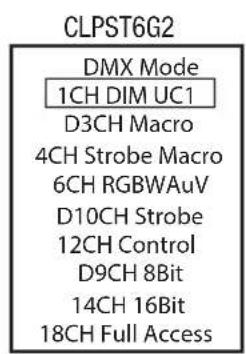

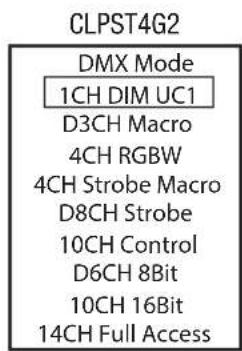

Starting from the main display, press MENU to enter the main menu. Now use or to select the menu item DMX Mode and confirm with ENTER. Again use or to select the desired DMX mode and confirm with ENTER (DMX modes with DMX delay channel are identified with "D"). Tables with the channel assignment of the different DMX modes can be found in these instructions under DMX CONTROL.

DMX DELAY

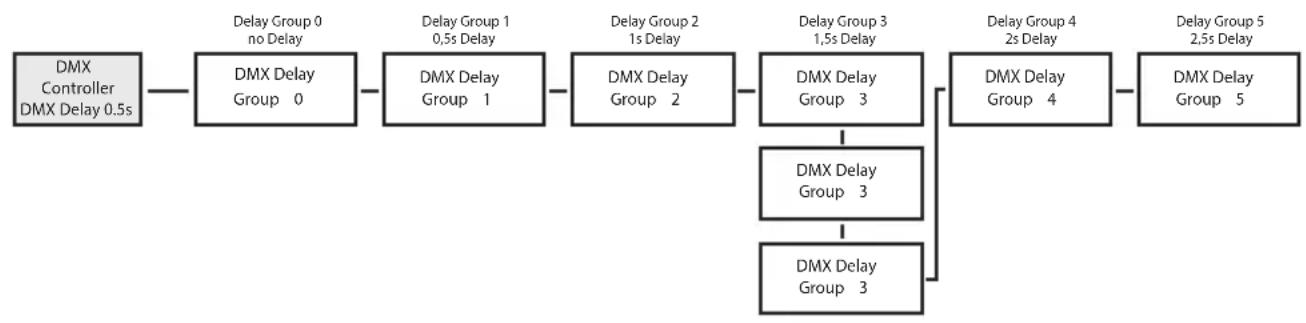

The DMX Delay function is a simple way to create a running light effect with a large number of spotlights that are all the same model and that are all running the same software version. This is otherwise only achievable with a suitable DMX controller and time-consuming programming. All the spotlights used (same models, same software version) are set to the same DMX operating mode with DMX delay channel and controlled via the same DMX start address.

Setting the DMX delay:

Starting from the main display, press MENU to enter the main menu. Now use or to select the menu item DMX Delay and confirm 2x with ENTER.

Assign the spotlights to one of up to 24 groups (plus Group 0) according to preference, whereby several spotlights can be assigned to one group. The group number is also the factor by which the set delay time set in the DMX controller is multiplied. Confirm each entry by pressing ENTER.

The delay time (delay time of the DMX signal) is set by means of a DMX controller in the separate DMX delay channel of the corresponding DMX mode (0.0s to 2.0s in 0.1s increments).

Setup example:

AUTO STANDALONE MODE

The 6 available auto programs partly comprise non-editable colour change sequences and partly random scenes. Brightness and running speed can be set separately for each program.

Starting from the main display, press MENU to enter the main menu. Using and select the menu item Stand Alone, confirm with ENTER, then select Static, confirm with ENTER, then select the desired program and confirm once again with ENTER.

This will take you to the menu for setting the menu items (see table, select with and , confirm with ENTER, change value with and , confirm with ENTER). The settings for each programme are made separately and are retained even after restarting the device.

Dimmer Sets	brightness 0-100
Speed Sets running speed 0-100
Delay Sets the delay time for slave units 0.0 - 2.0 s

STATIC STANDALONE MODE

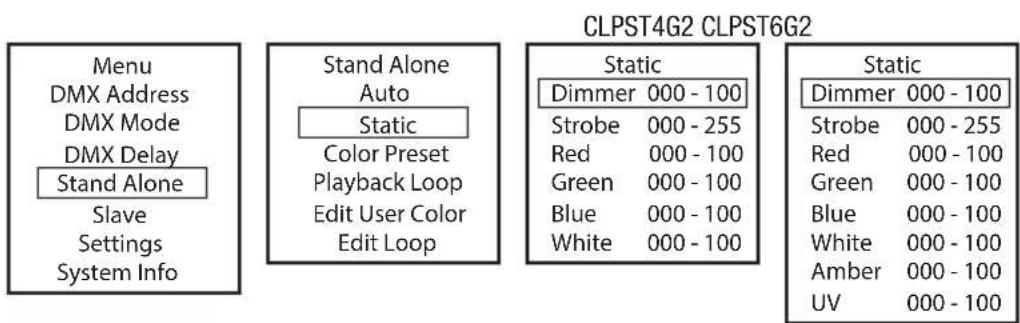

The standalone mode static allows the dimmer, strobe, R, G, B and W values (CLPST4G2) or the R, G, B, W, A and UV values (CLPST6G2) to be set directly on the device, in a similar way to with a DMX controller. In this way, an individual scene can be created without an additional DMX controller.

Starting from the main display, press MENU to enter the main menu. Using and select the menu item Stand Alone and confirm with ENTER, then select Static and confirm once again with ENTER. Using and view select the menu item that you wish to edit and confirm with ENTER. Use and set the desired value. Confirm all entries with ENTER.

COLOUR PRESET STANDALONE MODE

15 different colour presets plus 4 individually adjustable user presets are available. The brightness and a strobe effect can be set at a higher level.

Starting from the main display, press MENU to enter the main menu. Using and select the menu item Stand Alone and confirm with ENTER, then select Colour Preset and confirm once again with ENTER. Now use and select the menu option with the currently activated preset and confirm with ENTER. The desired preset can now be selected with and confirm the selection with ENTER. Now select the Dimmer or Strobe using and , confirm with ENTER and make the settings as desired. Confirm all entries with ENTER

Colour Preset

Red

I

Cold White

User Colour 1

I

User Colour 4

Dimmer 000-100

Strobe 000-255

PLAYBACK LOOP STANDALONE MODE

Starting from the main display, press MENU to enter the main menu. Using and select the menu item Stand Alone, confirm with ENTER, then select Playback Loop and confirm again with ENTER. Now use and to select Loop, confirm, then select one of the four available loops for playback and confirm again. All four loops can be edited individually (Main Menu -> Stand Alone -> Edit Loop). A delay time for slave units can also be set (Loop Delay).

Loop S	Selection of colour change programs	Loop 1
		1
		Loop 4
Loop Delay	Sets the delay time for slave units	0.0-2.0 s

EDITING USER PRESETS (Edit User Colour)

The four user presets available in the standalone mode Colour Preset can be edited individually. Starting from the main display, press MENU to enter the main menu. Using and select the menu item Stand Alone, confirm with ENTER, then select Static and confirm once again. Now use and select the desired preset and confirm with ENTER. You can now create an individual colour mix of Red, Green, Blue and White (CLPST4G2) or Red, Green, Blue, White, Amber and UV (CLPST6G2) with values ranging from 0 to 100 each (select colour with and confirm with ENTER, change value with and confirm with ENTER).

CLPST4G2 CLPST6G2

EDIT LOOP (Edit Loop)

Brightness, step duration and fade time can be set separately for all four loops. Starting from the main display, press MENU to enter the main menu. Using and select the menu item Stand Alone, confirm with ENTER, then select Edit Loop and confirm once again. Using and , now select the desired loop for editing and confirm with ENTER.

This will take you to the menu for setting the menu items (see table, select with and , confirm with ENTER, change value or status with and confirm with ENTER). The settings for each loop are made separately and are retained even after restarting the device.

Edit Loop (Loop 1 - Loop 4)
Dimmer Sets brightness 0-100
t-step Sets step time 0-255
t-fade Sets fade time 0-255
Step 1 15 colours	from Colour Preset Red-Cold White
	4 colours from User Colour User Color 1 – User Color 4
	Blackout Black
Step 2 ““
Step 3 15 colours	from Colour Preset Red-Cold White
	4 colours from User Colour User Color 1 – User Color 4
	Blackout Black
	Skip step Skip Step
Step 4 “ “
Step 5 “ “
Step 6 “ “
Step 7 “ “
Step 8 “ “

SLAVE MODE

Standard Slave mode: Starting from the main display, press MENU to enter the main menu. Now use and to select the menu item Slave, confirm with ENTER, select Slave Group 0 and again confirm with ENTER. Connect the slave and the master units (same model, same software version) using a DMX cable, and enable one of the standalone modes on the master unit (Auto, Static, Colour Preset, Play Loop). The slave unit will now follow the master unit.

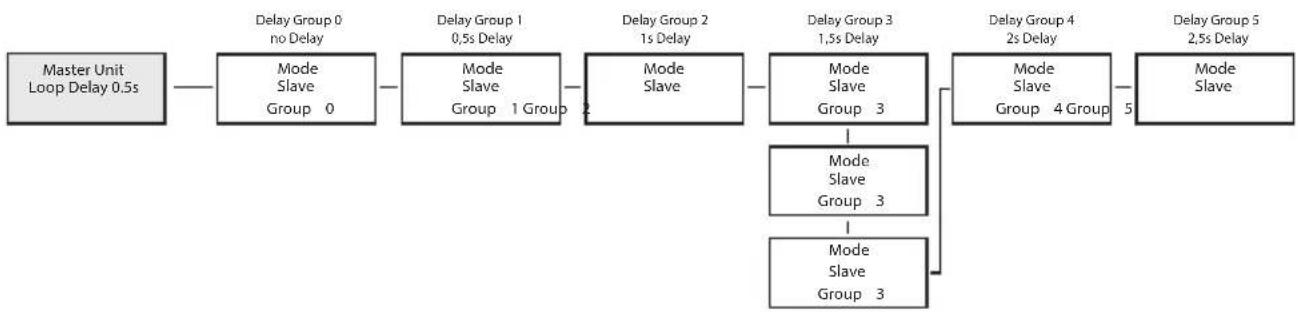

Advanced slave mode: If you wish to control the slave units in master/slave mode using one of the Auto or Playback Loop standalone modes, the control signal can be reproduced with a time delay of up to 24 steps. The delay is set in the submenu item Delay in the relevant standalone mode; the delay factor is set in the slave menu of the corresponding spotlight. This is a simple way to create a running light effect with a large number of spotlights that are all the same model and have the same software version. This is otherwise only possible using a suitable DMX controller and time-consuming programming.

Assign the spotlights to one of up to 24 groups (plus Group 0) according to preference, whereby several spotlights can be assigned to one group. The group number is also the factor by which the delay time set in the master unit is multiplied.

Setup example:

SYSTEM SETTINGS (Settings)

Starting from the main display, press MENU to enter the main menu. Using and select the menu item Settings and confirm with ENTER.

This will take you to the menu for setting the menu items (see table, select with and , confirm with ENTER, change value or status with and , confirm with ENTER).

Settings
Disp Rev = Rotate display Off No display rotation
				On Display is rotated by 180° (e.g. for over-head installation)
Display Off Timer = Display lighting Off after 20s				Deactivates after approximately 20 seconds of inactivity
				Always On On permanently
Signal Fail = Operational status with DMX signal fault				Hold Last command is retained
				Blackout Activates blackout
				Fade 10s fade to blackout
				User Colour 1 is activated
PWM = LED PWM frequency 650Hz, 1530Hz, 3600Hz, 12000Hz, 18900Hz, 25000Hz				Select LED PWM frequency

Dimmer Curve	= Dimmer curve Linear Light intensity increase intensity increase linearity with DMX value
	Exp (Exponential)	Light intensity can be finely adjusted at lower DMX values and broadly adjusted at higher DMX values
	Logarithmic	Light intensity can be broadly adjusted at lower DMX values and finely adjusted at higher DMX values
	S-curve Light intensity can be finely adjusted at lower and higher DMX values and broadly adjusted at medium DMX values
Dimmer Response	= Dimmer response LED Lamp responds abruptly to changes in DMX value
	Halogen Light behaves like a halogen spotlight with slight brightness changes
Calibration	= Colour calibration User Calibration	Individual colour calibration. Cross-mode brightness setting of R, G, B and W (CLP-ST4G2) or R, G, B, W, A and UV (CLPST6G2) with values from 0-255
	RAW CLPST4G2: R, G, B and W with maximum value 255 CLPST6G2: R, G, B, W, A and UV with maximum value 255
Fan Mode	= Fan control Auto Fan Automatic fan speed control
	Fan Off	Deactivated fan with greatly reduced brightness
	Silent Fan	Constantly low fan speed with reduced brightness, if necessary
Load Default	= Reset settings Factory	Reset to factory settings: Perform reset with ENTER, cancel with MENU
	Preset A	Reset to Preset A: Perform reset with ENTER, cancel with MENU
	Preset B	Reset to Preset B: Perform reset with ENTER, cancel with MENU
	Preset C	Reset to Preset C: Perform reset with ENTER, cancel with MENU
Edit Default	= Store all system settings in 3 individual resets	Preset A	Store with ENTER
		Preset B	Store with ENTER
		Preset C	Store with ENTER

SYSTEM INFORMATION (System Info)

Starting from the main display, press MODE to enter the main menu. Now use and to select the menu item System Info and confirm with ENTER.

This will take you to the submenu for accessing the system information (see table, selection with and confirm with ENTER, change status with and , confirm with ENTER).

System Info
Firmware = Displays device firmware Software
V1.xx
Temperature = Displays temperature of LED unit			Temperature xxx °C / xxx °F
			Temperature unit	°C (= display in degrees Celsius)
				°F (= display in degrees Fahrenheit)
Op Hours = Displays operating time Op Hours			xxxx:xxh	Displays total operating time in hours and minutes

SETUP AND INSTALLATION

HAZARD: Overhead mounting requires extensive experience, including the calculation of the load limit values of the installation material and regular safety inspection of all installation materials and spotlights. If you do not have these qualifications, do not attempt to perform an installation yourself. Refer instead to a qualified professional. There is a risk that devices that are incorrectly mounted and secured may come loose and fall down. This can cause serious injury or death.

Thanks to its convenient double bracket, the spotlight can be positioned in a suitable location on a level surface. Rubber feet prevent scratching of surfaces and ensure stability (A). Installation on a truss is possible with a suitable truss clamp, which is attached to the mounting bracket (B). An optional Omega bracket can be attached to the U-bracket for truss mounting (C). Suitable truss clamps are optionally available. Ensure firm connections and secure the spotlight by attaching a suitable safety cable to the securing lug on the back of the spotlight (D). Loosen the two handle screws on the sides of the spotlight (E) to adjust the beam direction in the vertical plane and tighten the two handle screws again after adjustment.

The optionally available, tool-free, fold-out 16mm TV spigot CLZSPIN16 can be mounted on the U-bracket instead of the mounting plate with mounting hole (F).

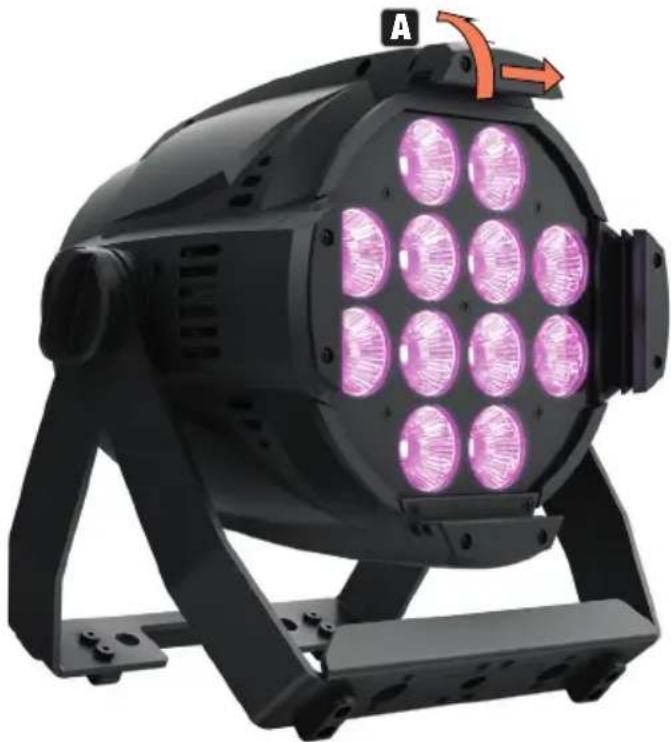

MOUNTING THE FILTER FRAME

To mount the filter frame (or the optionally available barndoor), first move the spring-loaded fuse holder on the top of the spotlight to the right to unlock it, and then flip it up (Figure A). Insert the filter frame (or the optionally available barndoor) into the grooves of the lateral and bottom holders from above.

Now fold the spring-loaded fuse holder on the top of the spotlight down again, making sure that it engages properly.

CARE, MAINTENANCE AND REPAIR

In order to ensure the long-term, proper functioning of the device, it must be regularly cleaned and, if necessary, maintained. The maintenance requirement depends on the intensity of use and the environment in which it is used.

We generally recommend a visual inspection before each operation. Furthermore, we recommend carrying out all the applicable maintenance measures specified below once every 500 operating hours or, in the case of a lower intensity of use, at the latest after one year. Warranty claims may be limited in the event of defects resulting from inadequate maintenance.

CARE (carried out by user)

WARNING! Before carrying out any maintenance work, the power supply and, if possible, all device connections must be unplugged.

PLEASE NOTE! Improper care can lead to impairment of the device or even destruction.

1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can penetrate the device.
2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, make sure that damage to the device is prevented (e.g. fans must be blocked in this case).
3. Lines and plug contacts must be cleaned regularly and dust and dirt must be removed.
4. In general, no cleaning agents or abrasive agents may be used, otherwise the surface finish may be damaged.
5. Devices must generally be stored dry and protected from dust and dirt.

MAINTENANCE AND REPAIR (by qualified personnel only)

HAZARD! There are live components in the device. Even after disconnecting the mains connection, there may still be residual voltage in the device, e.g. due to charged capacitors.

PLEASE NOTE! There are no user-serviceable components in the device.

PLEASE NOTE! Maintenance and repair work may only be carried out by qualified specialist personnel authorised by the manufacturer. If in doubt, consult the manufacturer.

PLEASE NOTE! Improperly performed maintenance work may affect warranty claims.

TECHNICAL DATA

Item number CLPST4G2 CLPST6G2

Product category Static LED light Static LED light

Type Studio PAR Studio PAR

Light source 12 x 4in1 RGBW 8W SMD LED 12 x 6in1 RGBAWuV 12W SMD LED

Luminous flux 4620lm @ Full On 4675lm @ Full On

Lense / optic 12 x Acryl Lense 12 x Acryl Lense

PWM frequency 650 Hz; 1530 Hz; 3600 Hz; 12000 Hz; 18900 Hz; 25000 Hz 650 Hz; 1530 Hz; 3600 Hz; 12000 Hz; 18900 Hz; 25000 Hz

Dimmer Reso- 16 Bit 16 Bit lution

CRI >72 >74

Beam angle / 15^ / 29^ 21^ / 35^ field angle

Color spectrum R: 630nm; G: 519nm; B: 458nm; W: R: 630nm; G: 523nm; B: 461nm; 6980K White: 7115K; A: 595nm; UV: 400nm

Color control Direct (RGBW); Color Presets Direct (RGBAWuV); Color Presets modes

Control options DMX; RDM; Wireless-DMX - Ready DMX; RDM; Wireless-DMX - Ready (iDMX-Stick optionally available); (iDMX-Stick optionally available); Stand Alone; Master-Slave Stand Alone; Master-Slave

Physical data XLR 3-Pin In/Out; iDMX-Stick-Slot XLR 3-Pin In/Out; iDMX-Stick-Slot connectors

DMX modes 1 CH; 3 CH; 4 CH; 4 CH; 6 CH; 8 CH; 1 CH; 3 CH; 4 CH; 6 CH; 9 CH; 10 CH; 10 CH; 14 CH 10 CH; 12 CH; 14 CH; 18CH

DMX functions Dimmer; Strobe; R; G; B; W; Color Dimmer; Strobe; R; G; B; A; W; UV; Presets; Settings; EZ-Chase Color-Presents; Settings; EZ-Chase

Stand alone Auto; Static; Preset; Loop Auto; Static; Preset; Loop

System settings Display; Signal Fail; Dimmer Curve; Display; Signal Fail; Dimmer Curve; Dimmer Response; PWM; Calibration; Dimmer Response; PWM; Calibration; Fan Mode; Default; Fan Mode; Default

User interface 4-button: MENU; ENTER; UP; DOWN 4-button: MENU; ENTER; UP; DOWN

Display 2-row OLED 2-row OLED

IP rating IP 20 indoor use IP 20 indoor use

Ambient tempe- 10^ - 40^ -10^ - 40^

This symbol with distance specification in metres (m) indicates the minimum distance between the light head and the illuminated surface. In this example, the distance is 0.5m . The value applicable for this unit can be found in the technical data in this manual and the imprint on the unit housing!

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS

---D 0.5 m This symbol with distance specification in metres (m) indicates the minimum distance between the light head and normally flammable materials. In this example, the distance is 0.5m . The value applicable for this unit can be found in the technical data in this manual!

DISPOSAL

Packaging:

1. Packaging can be fed into the reusable material cycle using the usual disposal methods.
2. Please separate the packaging in accordance with the disposal laws and recycling regulations in your country.

Device:

1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment, as amended. WEEE Directive Waste Electrical and Electronic Equipment. Old appliances do not belong in household waste. The old device must be disposed of via an approved disposal company or a municipal disposal facility. Please observe the applicable regulations in your country!
2. Observe all disposal laws and regulations applicable in your country.
3. As a private customer, you can obtain information on environmentally-friendly disposal options from the seller of the product or the appropriate regional authorities.

MANUFACTURER'S DECLARATIONS

MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY

Adam Hall GmbH, Adam-Hall-Str. 1, 61267 Neu Anspach, Germany / E-mail [e-mail] / +49 (0)6081 / 9419-0.

Our current warranty conditions and limitation of liability can be found at:

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO DE EN ES FR.pdf.

Contact your distribution partner for service.

UKCA- CONFORMITY

Hereby, Adam Hall Ltd. declares that this product meets the following guidelines (where applicable)

Electrical Equipment (Safety) Regulations 2016

Electromagnetic Compatibility Regulations 2016 (SI 2016/1091)

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation 2012 (SI 2012/3032)

Radio Equipment Regulations 2017(SI 2016/2015)

UKCA-DECLARATION OF CONFORMITY

Products that are subject to Electrical Equipment(Safety)Regulation 2016, EMC Regulation 2016 or RoHS Regulation can be requested at [e-mail].

Products that are subject to the Radio Equipments Regulations 2017 (SI2017/1206) can be downloaded from www.adamhall.com/compliance/

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RF EXPOSURE INFORMATION

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

SUBJECT TO MISPRINTS AND ERRORS, AS WELL AS TECHNICAL OR OTHER MODIFICATIONS!

DEUTSCH

Directive CEM (2014/30/UE)

RoHS (2011/65/UE)

RED (2014/53/UE)

Déclaration de CONFORMITE CE

www.adamhall.com/compliance/

SOUS RÉSERVE DE FAUTES D'IMPRESSION ET D'ERREURS, AINSI QUE DE MODIFICATIONS TECHNIQUES OU AUTRES!

ESPANOL

ENHORABUENA POR SU ELECCION.

EDITOR LOOP (Edit Loop)

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO DE EN ES FR.pdf.

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf.

www.adamhall.com/compliance/.

CON RISERVA DI ERRORI DI STAMPA E REFUSI NONCHÉ DI MODIFICHE TECNICHE O DI ALTRO TIPO.

DMX CONTROL / DMX STEUERUNG / PILOTAGE DMX / CONTROL DMX / STEROWANIE DMX / CONTROLLO DMX

CLP ST4 G2
1 CH Dim (User Color 1)	Function Values
1 Dimmer 000 -	255 0% to 100%

CLP ST4 G2
4 CH RGBW	10 Ch Direct 16Bit	Function Values
	1 Dimmer 000 - 255 0% to 100%
	2 Dimmer fine 000 - 255 0% to 100%
1	3 Red 000 - 255 0% to 100%
	4 Red fine 000 - 255 0% to 100%
2	5 Green	000 - 255 0% to 100%
	6	Green fine	000 - 255 0% to 100%
3	7	Blue	000 - 255 0% to 100%
	8	Blue fine	000 - 255 0% to 100%
4	9	White	000 - 255 0% to 100%
	10	White fine	000 - 255 0% to 100%

CLP ST4 G2
4 CH Strobe Macro	Function	Values
1	Dimmer	000 - 255	0% to 100%
2	Multifunctional Strobe	000 - 005	Strobe open
		006 - 010	Strobe closed
		011 - 022	Ramp up/down, slow -> fast
		023 - 033	Ramp up/down random, slow->fast
		034 - 045 Ramp up, slow -> fast
		046 - 056	Ramp up random, slow -> fast
		057 - 068	Ramp down, slow -> fast
		069 - 079	Ramp down random, slow -> fast

2	Multifunctional Strobe	080 - 102 Random Strobe effect, slow -> fast
		103 - 127 Strobe Break effect, 5s......1s (short burst with break)
		128 - 250 Strobe slow -> fast <1Hz - 20Hz
		251 - 255 Strobe open
3 Color Preset	000 - 005 Color off
	006 - 013 Red
	014 - 021 Amber
	022 - 029 Yellow warm
	030 - 037 Yellow
	038 - 045 Green
	046 - 053 Turquoise
	054 - 061 Cyan
	062 - 069 Blue
	070 - 077 Lavender
	078 - 085 Mauve
	086 - 093 Magenta
	094 - 101 Pink
	102 - 109 Warm White
	110 - 117 White
	118 - 125 Cold White
	126 - 127 Color Jumping Stop
	128 - 164 Color Jumping Speed slow -> fast / Color 1 -> 12
	165 - 201 Color Fading Speed slow -> fast / Color 1 -> 12
	202 - 207 User Color_1
	208 - 213 User Color_2
	214 - 219 User Color_3
	220 - 225 User Color_4
	226 - 255 No function
4	Color Preset Crossfade	000 - 005 0s
		006 - 105 0,1s - 10s (0,1s Steps)
		106 - 214 11s - 119s (1s Steps)
		215 - 232 2m - 4m50s (10s Steps)
		233 - 255 5m - 27m (1m Steps)
CLP ST4 G2
10 CH Macro Control	14 Ch Full Access	Function Values
1 1 Dimmer 000 - 255	0% to 100%
2 2 Dimmer fine 000 -	255 0% to 100%
3	3	Multifunctional Strobe	000 - 005 Strobe open
			006 - 010 Strobe closed
			011 - 022 Ramp up/down, slow -> fast
			023 - 033			Ramp up/down random, slow->fast
			034 - 045 Ramp up, slow -> fast
			046 - 056 Ramp up random, slow -> fast
			057 - 068			Ramp down, slow -> fast
			069 - 079			Ramp down random, slow -> fast
			080 - 102			Random Strobe effect, slow -> fast
			103 - 127			Strobe Break effect, 5s......1s(short burst with break)
			128 - 250			Strobe slow -> fast <1Hz -20Hz
			251 - 255 Strobe open
4 4	Red	000 - 255 0% to 100%
	5 Red fine	000 - 255 0% to 100%
5 6	Green	000 - 255 0% to 100%
	7	Green fine	000 - 255 0% to 100%
6 8	Blue	000 - 255 0% to 100%
	9	Blue fine	000 - 255 0% to 100%
7	10 White	000 - 255 0% to 100%
	11	White fine	000 - 255 0% to 100%
8	12	Color Preset(override RGBW)	000 - 005			Color off
			006 - 013			Red
			014 - 021			Amber
			022 - 029			Yellow warm
			030 - 037			Yellow
8	12	Color Preset(override RGBW)	038 - 045 Green
			046 - 053 Turquoise
			054 - 061 Cyan
			062 - 069 Blue
			070 - 077 Lavender
			078 - 085 Mauve
			086 - 093 Magenta
			094 - 101 Pink
			102 - 109 Warm White
			110 - 117 White
			118 - 125 Cold White
			126 - 127 Color Jumping Stop
			128 - 164 Color Jumping Speed slow -> fast / Color 1 -> 12
			165 - 201 Color Fading Speed slow -> fast / Color 1 -> 12
			202 - 207 User Color_1
			208 - 213 User Color_2
			214 - 219 User Color_3
			220 - 225 User Color_4
			226 - 255 No function
9	13	Color PresetCrossfade	000 - 005 0s
			006 - 105 0,1s - 10s (0,1s Steps)
			106 - 214 11s - 119s (1s Steps)
			215 - 232 2m - 4m50s (10s Steps)
			233 - 255 5m - 27m (1m Steps)
10 14	Device Settings		000 - 023 No function
			024 - 025 Record User Color 1 (hold 3s)
			026 - 027 Record User Color 2 (hold 3s)
			028 - 029 Record User Color 3 (hold 3s)
			030 - 031 Record User Color 4 (hold 3s)
			032 - 073 No function
			074 - 075 Dimmer Response LED (hold 1,5s)
			076 - 077 Dimmer Response Halogen (hold 1,5s)
078 - 097 No function
098 - 099 Silent Fan (hold 3s)
100 - 101 Auto Fan (hold 3s)
102 - 103 Fan Off (hold 3s)
104 - 119 No function
120 - 121 PWM 1 (650 Hz) (hold 3s)
122 - 123 PWM 2 (1530 Hz) (hold 3s)
124 - 125 PWM 3 (3600 Hz) (hold 3s)
126 - 127 PWM 4 (12000 Hz) (hold 3s)
128 - 129 PWM 5 (18900 Hz) (hold 3s)
130 - 131 PWM 6 (25000 Hz) (hold 3s)
132 - 133 RAW (hold 3s)
134 - 135 Use Calibrated (hold 3s)
136 - 139 No function
140 - 141 Display on (hold 3s)
142 - 143 Display off (hold 3s)
144 - 145 Dimmer Curve Linear (hold 3s)
146 - 147 Dimmer Curve Exponential
166 - 167 (hold 3s)
168 - 169 Dimmer Curve Logarithmic
170 - 171 Dimmer Curve S-Curve (hold 3s)
172 - 239 No function
Factory Default set (exceptDMX-Address, DMX-Mode)(hold 3s)
244 - 245 Default A-User set (exceptDMX-Address, DMX-Mode)(hold 3s)
242 - 243 No function

10 14 Device Settings		248	-	249	Default C-User set (except DMX-Address, DMX-Mode) (hold 3s)
		250	-	255 No function

CLP ST4 G2
D3 CH Macro	D8 CH Strobe Macro	D6 CH Direct 8Bit	Function Values
1 1 1 Dimmer 000 -	255 0% to 100%
	2		Multifunctional Strobe	000 + 005 Strobe open
				006 + 010 Strobe closed
				011 + 022			Ramp up/down, slow -> fast
				023 + 033			Ramp up/down ran-dom, slow->fast
				034 + 045 Ramp up, slow -> fast
				046 + 056			Ramp up random, slow -> fast
				057 + 068			Ramp down, slow -> fast
				069 + 079			Ramp down random, slow -> fast
				080 + 102			Random Strobe effect, slow -> fast
				103 + 127			Strobe Break effect, 5s......1s (short burst with break)
				128 + 250			Strobe slow -> fast <1Hz - 20Hz
				251 + 255 Strobe open
	3 2 Red 000 - 255 0% to 100%
	4 3 Green 000 - 255 0% to 100%
	5 4 Blue 000 - 255 0% to 100%
	6 5 White 000 - 255 0% to 100%
2	7		Color Preset (override RGBW)	000 + 005			Color off
				006 + 013			Red
				014 + 021			Amber

2	7		Color Preset(override RGBW)		022 - 029 Yellow warm
					030 - 037 Yellow
					038 - 045 Green
					046 - 053 Turquoise
					054 - 061 Cyan
					062 - 069 Blue
					070 - 077 Lavender
					078 - 085 Mauve
					086 - 093 Magenta
					094 - 101 Pink
					102 - 109 Warm White
					110 - 117 White
					118 - 125 Cold White
					126 - 127 Color Jumping Stop
					128 - 164 Color Jumping Speed slow -> fast / Color 1 -> 12
					165 - 201 Color Fading Speed slow -> fast / Color 1 -> 12
					202 - 207 User Color_1
					208 - 213 User Color_2
					214 - 219 User Color_3
					220 - 225 User Color_4
					226 - 255 No function
386	DMX	Delay			000 - 005 No Delay
					006 - 255 0,1s - 2,0s

CLP ST6 G2
1 CH Dim (User Color 1)	Function	Values
1	Dimmer	000 + 255 0% to 100%

CLP ST6 G2
4 CH Strobe Macro	Function Values
1 Dimmer 000 - 255 0% to 100%
2	Multifunctional Strobe	000 - 005 Strobe open
		006 - 010 Strobe closed
		011 - 022 Ramp up/down, slow -> fast
		023 - 033 Ramp up/down random, slow->fast
		034 - 045 Ramp up, slow -> fast
		046 - 056 Ramp up random, slow -> fast
		057 - 068 Ramp down, slow -> fast
		069 - 079 Ramp down random, slow -> fast
		080 - 102		Random Strobe effect, slow -> fast
		103 - 127		Strobe Break effect, 5s......1s (short burst with break)
		128 - 250		Strobe slow -> fast <1Hz - 20Hz
		251 - 255 Strobe open
3	Color Preset	000 - 005		Color off
		006 - 013		Red
		014 - 021		Amber
		022 - 029		Yellow warm
		030 - 037		Yellow
		038 - 045		Green
		046 - 053		Turquoise
		054 - 061		Cyan
		062 - 069		Blue
		070 - 077		Lavender
		078 - 085		Mauve
		086 - 093		Magenta
		094 - 101		Pink
		102 - 109 Warm White
		110 - 117		White
		118 - 125		Cold White
		126 - 127		Color Jumping Stop
3 Color Preset	128 - 164			Color Jumping Speed slow -> fast / Color 1 -> 12
	165 - 201			Color Fading Speed slow -> fast / Color 1 -> 12
	202 - 207 User			Color_1
	208 - 213 User			Color_2
	214 - 219 User			Color_3
	220 - 225 User			Color_4
	226 - 255 no function
4	Color Preset Crossfade	000 - 005 0s
		006 - 105 0,1s		- 10s (0,1s Steps)
		106 - 214 11s		- 119s (1s Steps)
		215 - 232 2m		- 4m50s (10s Steps)
		233 - 255 5m		- 27m (1m Steps)

CLP ST6 G2
6 CH RGBWAUV	14 Ch Direct 16Bit	Function Values
	1 Dimmer 000 - 255 0% to 100%
	2 Dimmer fine 000 - 255 0% to 100%
1	3	Red	000 - 255 0% to 100%
	4 Red fine 000 - 255 0% to 100%
2	5	Green	000 - 255 0% to 100%
	6	Green fine	000 - 255 0% to 100%
3	7	Blue	000 - 255 0% to 100%
	8	Blue fine	000 - 255 0% to 100%
4	9	White	000 - 255 0% to 100%
	10	White fine	000 - 255 0% to 100%
5	11 Amber 000 - 255 0% to 100%
	12 Amber fine 000 - 255 0% to 100%
6	13	UV	000 - 255 0% to 100%
	14 UV fine 000 - 255 0% to 100%

CLP ST6 G2

12 CH Macro Control

18 Ch Full Access

Function Values

1 1 Dimmer 000 - 255

0% to 100%

2 2 Dimmer fine 000 -

255 0% to 100%

3

3

Multifunctional Strobe

000 - 005 Strobe open

006 - 010 Strobe closed

011 - 022 Ramp up/down, slow -> fast

023 - 033

Ramp up/down random, slow->fast

034 - 045 Ramp up, slow -> fast

046 - 056 Ramp up random, slow -> fast

057 - 068

Ramp down, slow -> fast

069 - 079

Ramp down random, slow -> fast

080 - 102

Random Strobe effect, slow -> fast

103 - 127

Strobe Break effect, 5s.....1s(short burst with break)

128 - 250

Strobe slow -> fast <1Hz -20Hz

251 - 255 Strobe open

4 4

Red

000 - 255 0% to 100%

5 Red fine

000 - 255 0% to 100%

5 6

Green

000 - 255 0% to 100%

7

Green fine

000 - 255 0% to 100%

6 8

Blue

000 - 255 0% to 100%

9

Blue fine

000 - 255 0% to 100%

7

10

White

000 - 255 0% to 100%

11

White fine

000 - 255 0% to 100%

8

12 Amber

000 - 255 0% to 100%

13 Amber fine

000 - 255 0% to 100%

9

14

UV

000 - 255 0% to 100%

15 UV fine

000 - 255 0% to 100%

1218

Device Settings

1117

1016

1117

Color Preset

106-214

115-119s (1s Steps)

215-232

2m-4m50s (10s Steps)

226-255

No function

000-005

05

0.1s-10s (0.1s Steps)

006-105

0.1s-10s (0.1s Steps)

006-105

0.1s-10s (0.1s Steps)

006-105

0.1s-10s (0.1s Steps)

006-105

0.1s-10s (0.1s Steps)

006-105

1117

118-125 Cold White

128+164

Color Jumping Speed slow->

fast/ Color 1->12

165-201

fast/ Color 1->12

fast/ Color 1->12

fast/ Color 1->12

fast/ Color 1->12

fast/ Color 1->12

fast/ Color 1->12

fast/ Color 1->12

fast/ Color 1->12

fast/ Color 1->12

fast/ Color 1->12

fast/ Color 1->12

fast/ Color 1->12

12 18 Device Settings			030 - 031 Record User Color 4 (hold 3s)
			032 - 073 No function
			074 - 075 Dimmer Response LED(hold 1,5s)
			076 077 Dimmer Response Halogen(hold 1,5s)
			078 - 097 No function
			098 - 099 Silent Fan (hold 3s)
			100 - 101 Auto Fan (hold 3s)
			102 - 103 Fan Off (hold 3s)
			104 - 119 No function
			120 - 121 PWM 1 (650 Hz) (hold 3s)
			122 - 123 PWM 2 (1530 Hz)(hold 3s)
			124 - 125 PWM 3 (3600 Hz)(hold 3s)
			126 - 127 PWM 4 (12000 Hz)(hold 3s)
			128 - 129 PWM 5 (18900 Hz)(hold 3s)
			130 - 131 PWM 6 (25000 Hz)(hold 3s)
			132 - 133 RAW (hold 3s)
			134 - 135 User Calibrated (hold 3s)
			136 - 139 No function
			140 - 141 Display on (hold 3s)
			142 - 143 Display off (hold 3s)
			144 - 163 No function
			164 - 165 Dimmer Curve Linear (hold 3s)
			166 - 167 Dimmer Curve Exponential(hold 3s)
			168 - 169 Dimmer Curve Logarithmic(hold 3s)
			170 - 171 Dimmer Curve S-Curve(hold 3s)
			172 - 239 No function
			240 - 241 Factory Default set (exceptDMX-Address, DMX-Mode)(hold 3s)
			242 - 243 No function

12 18 Device Settings		244	245	Default A-User set (except DMX-Address, DMX-Mode) (hold 3s)
		246	247	Default B-User set (except DMX-Address, DMX-Mode) (hold 3s)
		248	249	Default C-User set (except DMX-Address, DMX-Mode) (hold 3s)
		250	255 No function

CLP ST6 G2
D3 CH Macro	D10 CH Strobe Macro	D9 CH Direct 8Bit	Function Values
1 1 1 Dimmer 000 -	255 0% to 100%
	2	2	Multifunctional Strobe	000 + 005 Strobe open
				006 + 010 Strobe closed
				011 + 022			Ramp up/down, slow -> fast
				023 + 033			Ramp up/down ran-dom, slow->fast
				034 + 045 Ramp up, slow -> fast
				046 + 056			Ramp up random, slow -> fast
				057 + 068			Ramp down, slow -> fast
				069 + 079			Ramp down random, slow -> fast
				080 + 102			Random Strobe effect, slow -> fast
				103 + 127			Strobe Break effect, 5s....1s (short burst with break)
				128 + 250			Strobe slow -> fast <1Hz - 20Hz
				251 + 255 Strobe open
	3 3 Red 000 - 255 0% to 100%
	4 4 Green 000 - 255 0% to 100%
	5 5 Blue 000 - 255 0% to 100%
	6 6 White 000 - 255 0% to 100%
	7 7 Amber 000 - 255 0% to 100%
	8 8 UV 000 - 255 0% to 100%
2	9		Color Preset(override RGBAWuV)		000 - 005 Color off
					006 - 013 Red
					014 - 021 Amber
					022 - 029 Yellow warm
					030 - 037		Yellow
					038 - 045		Green
					046 - 053		Turquoise
					054 - 061		Cyan
					062 - 069		Blue
					070 - 077		Lavender
					078 - 085 Mauve
					086 - 093		Magenta
					094 - 101		Pink
					102 - 109 Warm White
					110 - 117		White
					118 - 125		Cold White
					126 - 127		Color Jumping Stop
					128 - 164		Color Jumping Speed slow -> fast / Color 1 -> 12
					165 - 201		Color Fading Speed slow -> fast / Color 1 -> 12
					202 - 207		User Color_1
					208 - 213		User Color_2
					214 - 219		User Color_3
					220 - 225		User Color_4
					226 - 255		No function
3	10	9	DMX Delay	000 - 005			No Delay
				006 - 255			0,1s - 2,0s
