USER MANUAL ISOFIX Go Boost Iso Chipolino

Line drawing of a mechanical device with a base and handle (no text or symbols)

Chipolino

продуктов номер / item number / cikkszám/ número de artículo / codice articolo / artikelnummer / numéro d'article / broj proizvoda / αριθμός προϊόντος / numărul produsului / número de produto / productnummer / číslo produktu/36mmφγγβηλ δmδγθη:

SDKGBI02xxxxx

UN Regulation No129/04

ФИГУРИ/ FIGURES/ ÁBRÁK/ CIFRAS/ FIGURE/ FIGUREN/ LES FIGURES/ ОБЛИЦИ/ ОБЛИЦИ/ FORMA/ FIGURE/ ФІГОΥΡΕΣ/ FIGURILE/ FIGURAS/ FIGUREN/ OBRÁZKY / ๑๒๓๔๗๘๐

1 2-1 ① ② ③

OK NO NO

2-2

3-1

OK A NO A 1)

B 2)

Medical illustration showing a person performing a laparoscopic procedure with labeled components and directional arrow

4) Click

ФИГУРИ/ FIGURES/ ÁBRÁK/ CIFRAS/ FIGURE/ FIGUREN/ LES FIGURES/ ОБЛИЦИ/ ОБЛИЦИ/ FORMA/ FIGURE/ ФІГОYPEΣ/ FIGURILE/ FIGURAS/ FIGUREN/ OBRÁZKY / ۶۲۵۰۷۳۱۶۰

3-2

Illustration of a person seated in a car with a green belt and red arrow indicating pressure or stress (no text or symbols)

Illustration of a person seated in a car seat with a green belt and 'Click' label (no other text or symbols)

Diagram illustrating two steps of a green band bending technique with check and cross symbols indicating selection or confirmation.

4

PRESS

Diagram showing a device with labeled components and directional arrow, likely illustrating a mechanical or electrical component.

Warning sign with red triangle and black exclamation mark symbol

Diagram showing car seatbelt with checkmark and cross symbols indicating status

ВНИМАНИЕ!

Diagram of a car with numbered lanes and checkmarks indicating status or failure, likely for inspection or testing purposes.

Правилно монтиране.

TO ASSURE SAFE USAGE OF THIS PRODUCT FOLLOW ALL WARNINGS, INSTRUCTIONS AND RECOMMENDATIONS GIVEN IN THIS USER MANUAL!

NOTEfor an enhanced child restraint system, child height: 125–150 cmThis is an enhanced child restraint system of the category “Universal booster seat”. It is approved in accordance with Regulation No. 129 for use primarily in i-Size compatible and universal seating positions in vehicles, as indicated by the vehicle manufacturer in the vehicle owner’s manual.In case of doubt, consult the manufacturer or retailer of the child restraint system .
	NO SYSTEM CAN GUARANTEE ABSOLUTE PROTECTION AGAINSTINJURY IN THE EVENT OF A COLLISION OR ACCIDENT!DRIVE WITH EXTRA CAUTION, ESPECIALLYWHEN A CHILD IS IN THE VEHICLE!
	TO ENSURE THE SAFE USE OF THIS PRODUCT, FOLLOW THE WARNINGS,INSTRUCTIONS, AND RECOMMENDATIONS IN THIS MANUAL!
	IMPROPER USE OF THE SEAT WILL REDUCE ITSPROTECTIVE AND SAFETY FUNCTIONS!FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUALINCREASES THE RISK OF SERIOUS INJURY OR DEATH!
WARNING!
INSTALL THE SEAT ONLY IN THE “FORWARD-FACING” POSITION!
	WARNING!This seat is suitable for installation only in vehicles equipped with APPROVED THREE-POINT RETRACTABLE SEAT BELTS that meet the requirements of UN ECE Regulation No. 16!1 Diagonal belt of the car seat2 Lap belt of the car seat

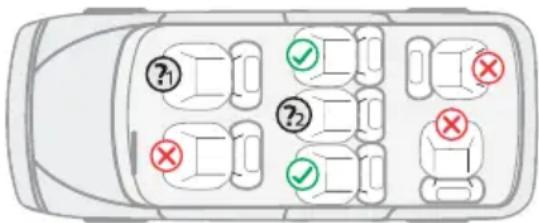

SEATING POSITIONS IN THE VEHICLE
		√	Correct installation.
		×	Incorrect installation.
		?1	Do not install the seat on a front seat with an active airbag.
		?2	Install on this seat only if it is equipped with a three-point seat belt.

WARNING! SAFETY INSTRUCTIONS!

✿ WARNING! NEVER LEAVE THE CHILD UNATTENDED.
✿ WARNING! DO NOT USE ANY SUPPORT CONTACT POINTS OTHER THAN THOSE DESCRIBED IN THE INSTRUCTIONS AND MARKED ON THE CAR SEAT.
✿ WARNING! THIS SEAT MUST BE INSTALLED ONLY IN THE FORWARD-FACING POSITION.
✿ WARNING! THE VEHICLE SEAT BELTS THAT HOLD THE CHILD AND THE CAR SEAT TO THE VEHICLE SEAT MUST BE TIGHTENED AND SECURED.
✿ WARNING! THE LAP BELT MUST BE POSITIONED LOW, AND ANY IMPACT SHIELD MUST BE INSTALLED PROPERLY TO HOLD THE CHILD'S PELVIS FIRMLY WITHOUT APPLYING EXCESSIVE PRESSURE.
✿ WARNING! DO NOT MAKE ANY CHANGES, ADDITIONS, OR MODIFICATIONS TO THE CAR SEAT WITHOUT THE APPROVAL OF THE NOTIFIED BODY. FAILURE TO FOLLOW THE MANUFACTURER'S INSTRUCTIONS MAY BE DANGEROUS.
✿ WARNING! DO NOT INSTALL THE CAR SEAT IN POSITIONS EQUIPPED WITH AN ACTIVE AIRBAG.
✿ WARNING! KEEP AWAY FROM FIRE.
The installation of the product on the car seat and the securing of the child must only be done by an adult.
- Hard parts and components made of plastic must be positioned and installed in a way that prevents them from being trapped by a sliding seat or a door of the vehicle during normal operation.
If you detect any looseness or malfunction in the structure, locking mechanisms, or ISOFIX devices, stop using the product until the defective parts are repaired or replaced.
❖ Replace the car seat with a new one if it has been subjected to crash forces in an accident.
Do not use a second-hand car seat, as you cannot know the extent of previous stress or damage.
Do not use the car seat without its original upholstery, and do not replace it with a non-original one. The cover is an integral part of the child restraint system.
✿ Any luggage or other objects that may cause injury in a crash must be securely fastened. Remove or fix them at a safe distance from the child and the car seat.
Always check that the car seat is securely fastened to the vehicle seat, even when no child is placed in it. An unsecured seat can cause injury in the event of a collision.
Do not place additional padding in the car seat unless provided or approved by the manufacturer.
Do not use spare parts or components that are not supplied by the manufacturer. The manufacturer is not responsible for safety if unauthorized parts are used.
- Keep the user manual in the compartment provided in the seat or in the vehicle where the seat is used.
Do not expose the car seat to direct sunlight to avoid the risk of burns, deformation of the seat, and damage to plastic parts.
Do not attach cords or strings to the product, to prevent the risk of strangulation.
✿ Never place the car seat on beds, sofas, or other soft surfaces.
Do not allow children to play with the product.
Do not remove the labels and warnings attached to the car seat. They are important for anyone using the seat.
- Keep the plastic packaging away from children to avoid the risk of suffocation!

INSTRUCTIONS FOR USING THE RESTRAINT SYSTEM

This child restraint seat, classified as a “Universal booster seat”, is approved according to Regulation R129/04. It is suitable for children with a height between 125–150 cm.

Child's Height	Installation Direction	Installation Method Approved Type
100-150 cm	FORWARD-FACING	3-point vehicle seat belt + ISOFIX anchorage
100-150 cm	FORWARD-FACING	3-point vehicle seat belt

IMPORTANT! Follow precisely the instructions and the installation sequence provided in the text and illustrations of this manual. Check the security of the fastening after completing each step! ALWAYS CHECK THE SECURITY OF THE BELT FASTENING! After each installation, make sure the vehicle seat belts are not twisted and are in the correct position.

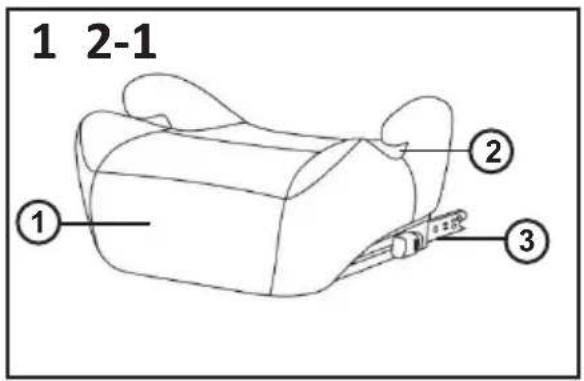

1. MAIN COMPONENTS

1. Base
2. Vehicle seat belt guides
3. ISOFIX connectors

2. TIPS FOR INSTALLING THE CAR SEAT

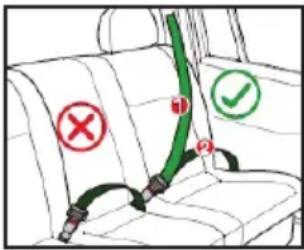

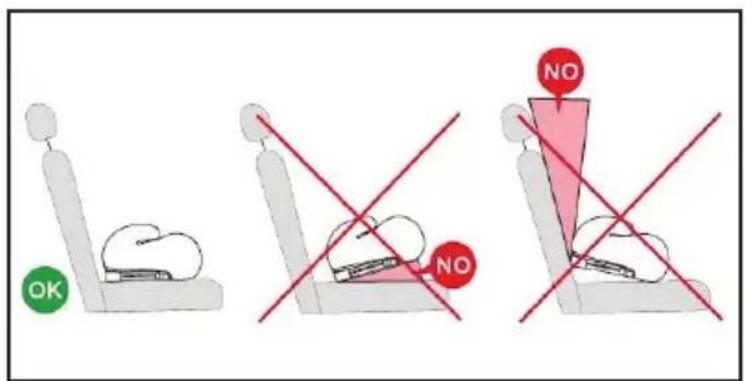

2-1. Always check whether the seat is installed correctly. Installation should follow the instructions provided on the stickers located on both sides of the seat or in the user manual.

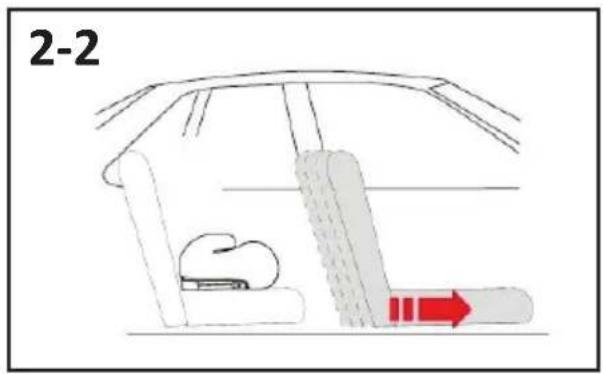

2-2. Move the front passenger seat as far forward as possible to provide sufficient legroom for the child.

IMPORTANT! Before installing the car seat on the vehicle seat, read the vehicle's user manual and locate the ISOFIX anchorage points to ensure you install the seat in the correct position.

3. INSTALLING THE SEAT ON THE VEHICLE SEAT

3-1. ISOFIX attachment + 3-point vehicle seat belt

IMPORTANT! Before installing the seat onto the vehicle seat, read the user manual of the vehicle and locate the ISOFIX anchorage points in your car to make sure you are installing the seat in the correct place!

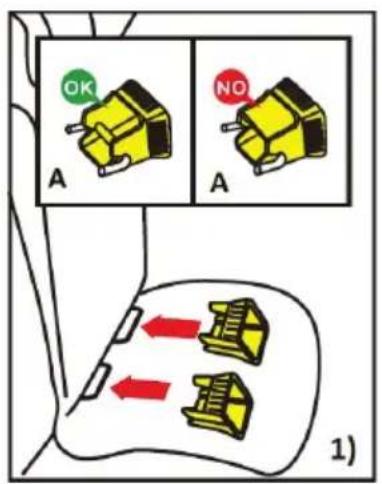

1) Insert the connectors (A) into the ISOFIX anchorage points in the vehicle.

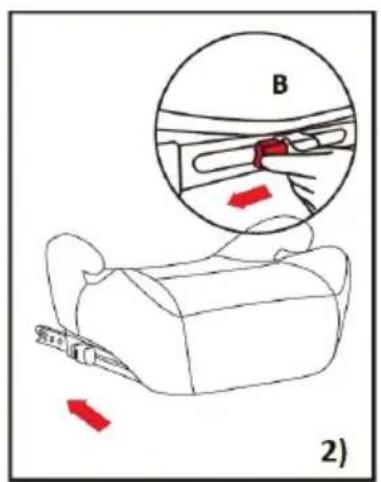

2) Press and hold buttons (B) to release the ISOFIX connectors, and at the same time extend the ISOFIX connector as far outward as possible.

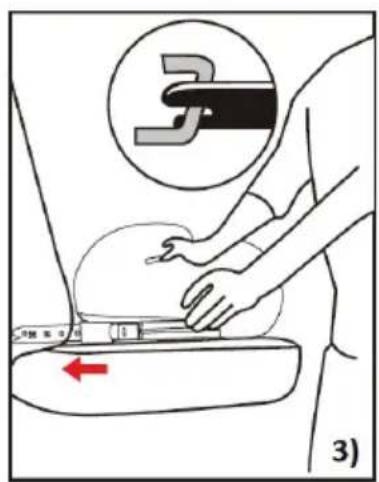

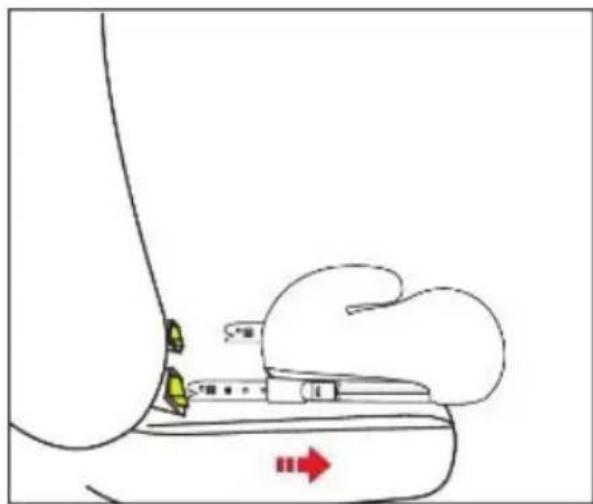

3) Insert the ISOFIX connectors of the seat into the ISOFIX anchorage points in the vehicle. Push the seat backward until you hear a "click" sound and the seat locks into place.

WARNING! The ISOFIX connectors are locked only when both indicators are completely green.

Note: If the indicators are red, repeat the installation steps exactly as described above.

Shake the installed seat. If it feels unstable or any of the ISOFIX connectors is released, reinstall the seat.

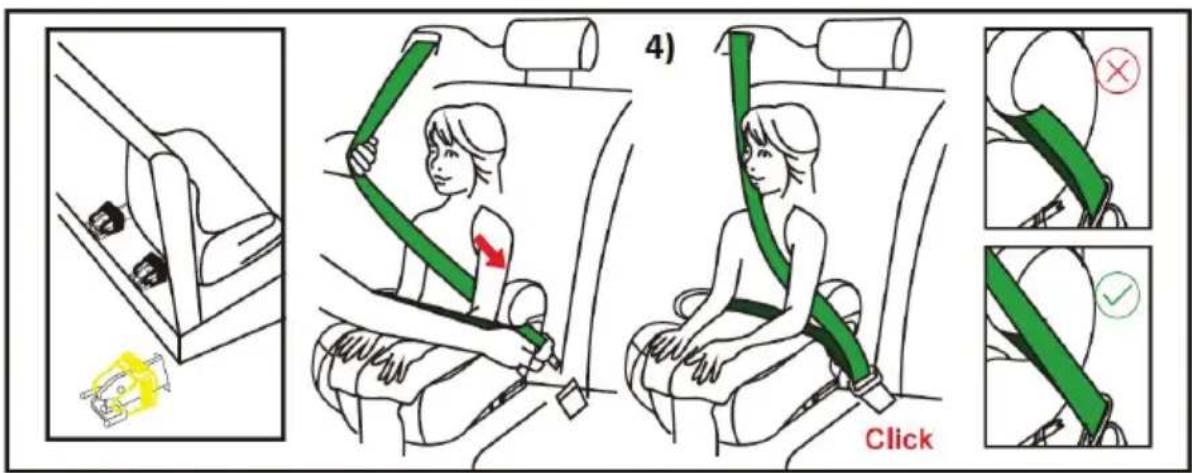

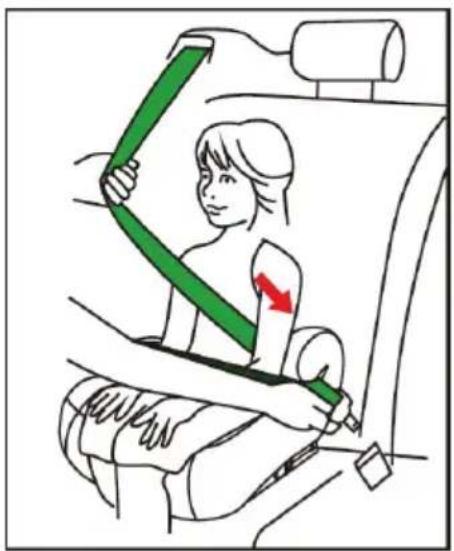

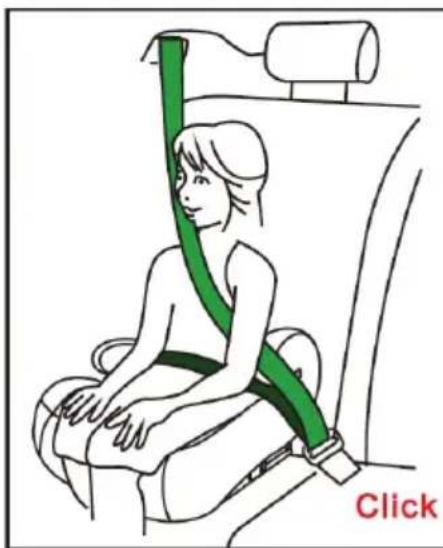

4) Place the child in the car seat. Pull out the 3-point vehicle seat belt. Route the diagonal belt over the child's shoulder and the top of the armrest, and the lap belt through the guides on both sides of the seat. Then fasten the 3-point vehicle seat belt into the vehicle's seat belt buckle until you hear a "click". Make sure the belt is locked into the buckle by gently pulling on it.

Pull the diagonal part of the seat belt upward to ensure there is no slack and that the child is securely restrained in the seat.

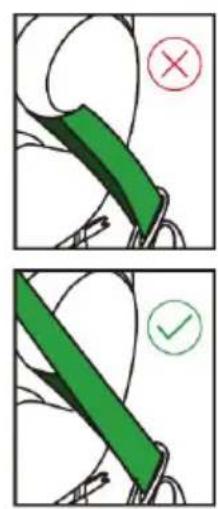

WARNING! Make sure the belt lies properly over the child's pelvis and does not touch the child's neck as it passes over the shoulders! The belt must not be twisted, and the upholstery must not

interfere with the child's movement or the correct installation of the 3-point seat belt.

3-2. Installation using the vehicle's 3-point seat belt

Make sure the ISOFIX connectors are fully retracted. To retract them, press the ISOFIX release buttons (B) and slide the ISOFIX connectors inward.

Place the child in the car seat. Pull out the vehicle's 3-point seat belt. Pass the diagonal belt over the child's shoulder and the top of the armrest, and the lap belt through the guides on both sides of the seat. Then buckle the 3-point seat belt into the vehicle's seat belt buckle until you hear a "click". Make sure the belt is locked in the buckle by gently pulling on it.

Pull the diagonal belt upward to ensure there is no slack and the child is securely fastened in the seat.

WARNING! Make sure the belt fits snugly across the child's pelvis and does not touch the child's neck when it passes over the shoulders.

The belt must not be twisted, and the upholstery must not interfere with the child's movement or with proper seat belt installation.

4. REMOVING THE SEAT FROM THE VEHICLE SEAT

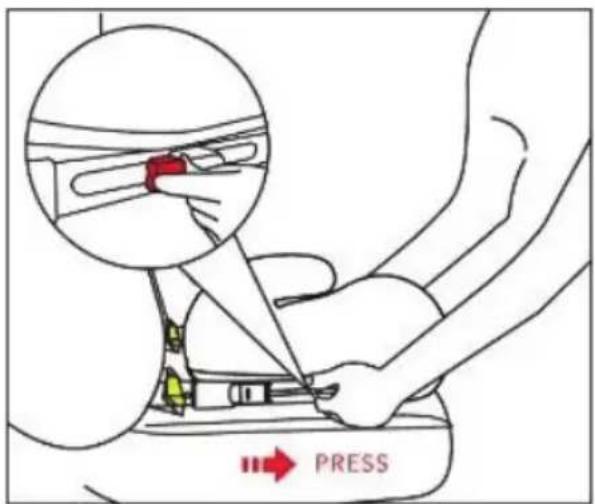

1) Simultaneously press and hold the ISOFIX release buttons on both sides. At this moment, the ISOFIX locking indicators will turn red, indicating that the connectors have been released.
2) Pull the seat outward to remove it from the vehicle seat.

MAINTENANCE AND CARE INSTRUCTIONS

• Clean dirty plastic or metal parts with a soft cotton cloth or sponge, moistened with water or mild detergent.
• Hand wash the fabric cover and soft padding at 30°C using a mild detergent.
  Do not bleach! Do not spin-dry! Do not tumble dry! Do not iron!

Do not use aggressive cleaners containing abrasives, ammonia, bleach, or alcohol.
✿ After cleaning, allow the seat to dry completely before use or storage.
- Clean the harness straps only on the surface using mild soap and a damp cloth.
Do not wet or remove the labels! They contain important information.
- Store the product in a clean, dry place. Do not expose it to direct environmental conditions such as sunlight, rain, moisture, or sudden temperature changes.
In case of issues related to regular use, please contact authorized service centers for consultation or repair.
