USER MANUAL EES 1400-3 Eibenstock

Exterior view of a black and green power tool with dual slots, labeled 'CHENSTOCK Germany' (no additional text or symbols visible)

EES 1400-3

DEUTSCH

Wichtige Hinweise

Close-up of a metallic vehicle's side panel with a textured grille and an arrow pointing to the bottom-left corner (no text or symbols visible)

Close-up of a black electrical plug with a highlighted internal component and white arrows indicating direction (no text or symbols)

Close-up of a dark cylindrical object with three vertical sections and textured base, possibly a mechanical or electronic component (no visible text or symbols)

Close-up of a green plastic component with a black square and a white arrow pointing to a small circular feature (no text or symbols visible)

Close-up of a hand using a tool to adjust or install a three-dot mechanical component (no visible text or symbols)

Enerstict A

Close-up of a black mechanical component with a white textured side, showing a directional arrow pointing to its edge (no text or symbols visible)

Close-up of a green and black industrial tool with a red label showing 'TUBAUSTOCK CEMILIA' (no other text or symbols visible)

Close-up of a green and black electric shaver with directional arrows indicating motion (no text or symbols)

Pflege und Wartung

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or recycling (no text or labels)

Nur für EU-Länder

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

Eibenstock, 17.08.2023

Handwritten signature or scribble on white background

Frank Markert

Head of Engineering

Important Safety Instructions

Important instructions and warning notices are allegorized on the machine by means of symbols:

Before you start working, read the operating instructions of the machine.

Work concentrated and carefully. Keep your work-place clean and avoid dangerous situations.

In order to protect the user, take precautions.

During work you should wear ear protectors, goggles, dust mask, protective gloves and sturdy work clothes!

Use ear protection

Wear safety goggles

Wear a dust mask

Wear protective gloves

Warning notices

Warning of general danger

Warning of dangerous voltage

Warning of hot surface

Danger of being ripped or cut

Technical Data

Corner grinder EES 1400-3

Power input: 1400 W
Rated voltage: 230 V ~
Rated current: 6,5 A
Frequency: 50/60 Hz
Rated speed: 4 500 - 13 000 rpm
Max. disc diameter: 3x44mm
Spindle connection: special
Weight: 3,3 kg
Protection class: II
Degree of protection: IP 20
Interference suppression: EN 55014 and 61000
Order no.: 0620T000

Available special accessories:

Item		Order no.
Type	Colour
Diamond Grinding Wheel set of 3
Concrete gold 37134000
Screed yellow	37133000
Carbide grinding disc set of 3
Coatings	silver	37132000
Brush rim		...
Industrial Vacuum Cleaner DSS 25 M		09917000
Industrial Vacuum Cleaner ESS 35 MP		09931000

For further information about our products and our wide range of accessories please see: www.eibenstock.com

Content of Delivery

Corner grinder with 3 concrete grinding wheels, tool kit and operating instructions in a case.

Intended Use

The Corner grinder is indented for professional use.

With an appropriate grinding wheel, the tool may be used for smoothing rough concrete, removing mould seams, residual mud, joint fillers and tile adhesives especially on small surfaces, in corners and in areas that are difficult to access.

The machine may be used exclusively in conjunction with a diamond

cup wheel and a vacuum cleaner of dust category M.

Only use grinding wheels recommended by the manufacturer.

These have a small weight and a high concentricity. Using other grinding wheels can cause an overload of the machine or damage of the bearings and danger to the user.

Safety Instructions

Safe work with the machine is only possible if you read this operating instruction completely and follow the instructions contained strictly. Additionally, the general safety instructions of the leaflet supplied with the tool must be observed. Prior to the first use, the user should absolve a practical training. Save all warnings and instructions for future reference.

If the mains cable gets damaged or cut during the use, do not touch it, but instantly pull the plug out of the socket. Never use the tool with damaged mains cable.

The tool must neither be wet nor used in humid environment.

• Do not use the tool in an environment with danger of explosion.
• Do not drill into asbestos-containing materials.
  ■ Modifications of the tool are prohibited.
  ■ Never use the machine without dust guard.

Use machine with partly removed dust guard in corners only.

For other applications the dust guard must always be closed.

- Always check the tool, cable and plug before use and plug before use. Have damages only repaired by specialists.

Insert the plug into the socket only when the tool switch is off.

• When you work outside, the machine has to be used with a fault-current circuit breaker with max. 30 mA.
• The machine should only work under supervision of somebody.

Plug and switch the machine off if it is not under supervision, in case of putting up and stripping down the machine, in case of voltage drop or when fixing or mounting an accessory.

• Switch the machine off if it stops for whatever reason. You avoid that it starts suddenly and not under supervision.
• Don't use the machine if a part of the housing is damaged or in case of damages on the switch, the cable or plug.
• Pay attention that the speed indicated on the grinding wheel meets or is higher than the max. speed indicated on the machine.

• Grinding wheels have to be stored and used carefully according to the instructions of the producer.

• Check the accessories before use. Do not use any products which are broken, cracked or damaged in another way.
  ■ Before use, make sure that the tool is correctly fixed and fastened.

Let it run idle for about 30 seconds in a safe position. If considerable vibrations occur or if other defects are recognised, switch off immediately.

• Always lead the mains and extension cable as well as the extraction hose to the back away from the machine.
  ■ Power tools have to be inspected by a specialist in regular intervals.
• Never carry the machine at its cable.
• Do not touch rotating parts.
• Persons under 16 years of age are not allowed to use the tool.
• During use, the operator and other persons standing nearby have to wear suitable ear protectors, a dust mask and protection goggles.

■ Make sure that persons in the work space are not endangered by particles flying around.
- Keep the handles dry, clean and free of oil and grease.
- During operation, always hold the tool with both hands.
- Attention! The tool still runs for a little while after the machine was switched off.

For further safety instructions, please refer to the enclosure!

Electrical Connection

Before starting the machine check the correspondence between voltage and frequency according to the data mentioned on the identification plate.

Voltage differences from + 6 % and - 10 % are allowed.

The grinder is made in protection class II.

Only use extension cables with a sufficient cross-section. A cross-section which is too small could cause a considerable drop in performance and an overheating of machine and cable.

Recommended minimum cross sections and maximum cable lengths

Mains voltage	Cross section in sq. mm
	1.5	2.5
110V	-	40 m
230V	50 m	80 m

Switching on and off

Short-Time Operation

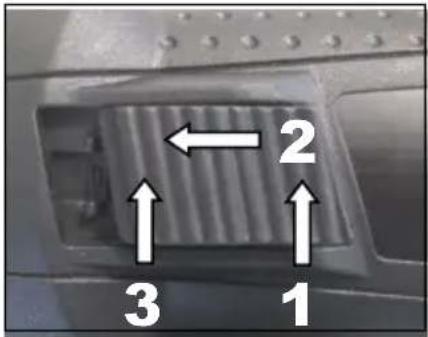

Switching-on: Depress switch rocker at back (1), then push forwards (2) and hold.

Switching-off: Release the switch rocker.

Permanent Operation

Switching-on: Depress switch rocker at back (1), then press forwards (2) and engage by pressing on the front end (3).

Switching-off: To switch off the power tool, release the switch rocker by pressing the rear end (4).

2 3 1

Close-up of a car air vent with a gridded grille and an arrow pointing to the grille (no text or symbols visible)

Close-up of a black cylindrical device with a red-orange internal component and an arrow pointing to it, no visible text or symbols.

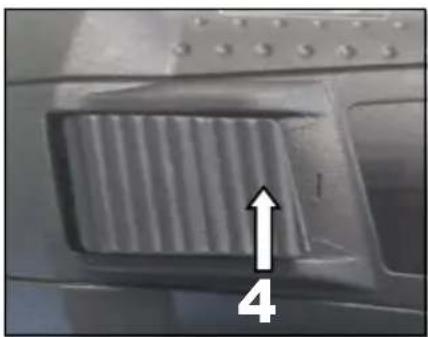

The EES 1400-3 is equipped with an adjusting wheel in order to allow a continuously variable control of the speed from 4.500 to 13.000 rpm.

This is located on the back of the machine.

Dust Extraction

Dust which occurs during your work is hazardous to health. That is why the EES 1400-3 R must be used with a vacuum cleaner, and a dust mask has to be worn. The suitable Wet/Dry Vacuum Cleaner (dust category M) is available as accessory. It can directly be attached to the connection on the dust hood.

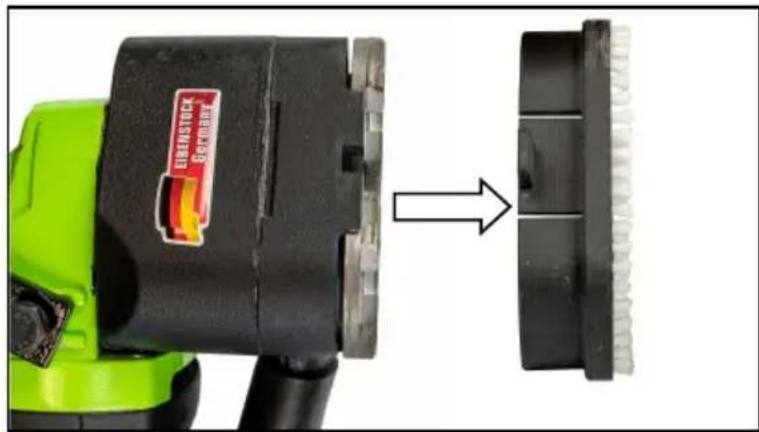

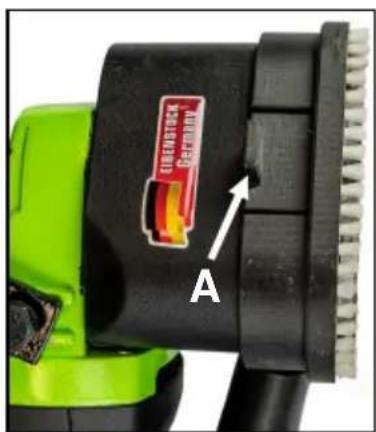

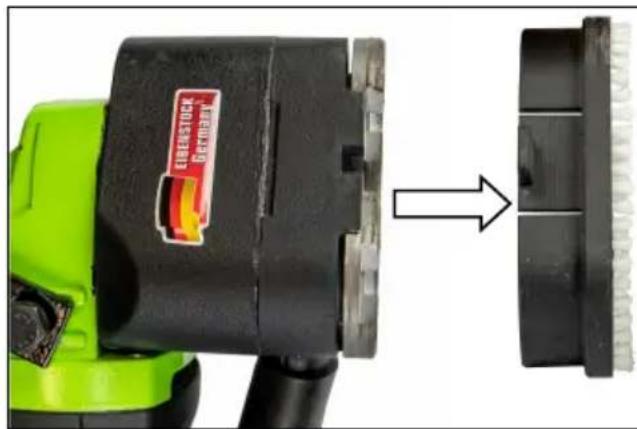

Changing the brush rim

Close-up of a dark, curved object with three vertical sections and textured base (no visible text or symbols)

If the length of the brushes is – due to wear - smaller than 5mm (extreme formation of dust during grinding), the brush rim has to be replaced completely. Pull out the worn brush rim and replace it by a new one.

Changing the Diamond Grinding Wheel

Attention!

The grinding wheel might heat up enormously during operation. You could burn your hands or get cut or ripped by the segments. Therefore, always use protective gloves when changing the grinding wheel.

Before any work on the tool, disconnect the plug from the mains!

Close-up of a green plastic component with a black square and a white arrow pointing to it (no text or symbols visible)

Close-up of a hand adjusting a three-dot mechanical gear mechanism (no text or symbols visible)

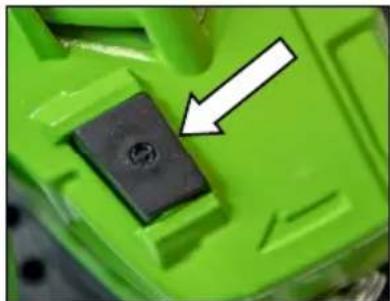

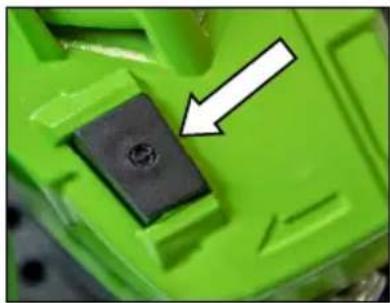

Actuate the spindle stop and keep it pressed.

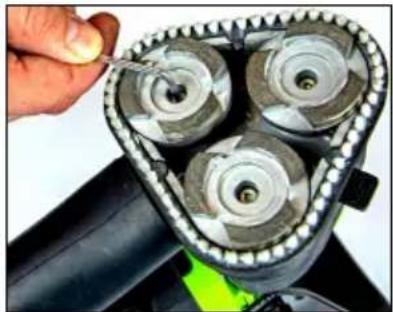

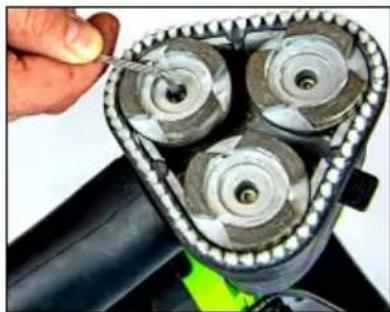

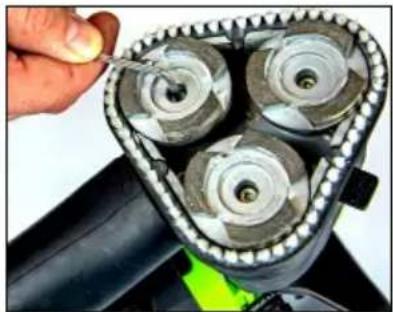

The fastening screws of the diamond grinding wheels can be loosened with the SW3 hex wrench.

Then remove the mounted grinding wheels respectively mount the new one.

Clean the grinding wheel holders and all parts to be mounted beforehand.

Let the machine run for a short period of time and in a safe position. If the machine does not run easily, stop working immediately.

Use only original accessory!

Instruction for Use

Switch the machine on and put it carefully on the surface you want to work on. Hold the tool with both hands and work with circular or linear movements. For best working results: Don't put too much pressure on the surface you want to work on.

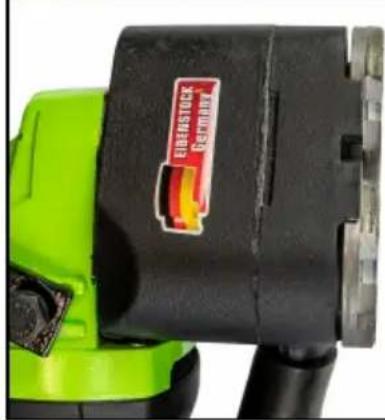

Grinding on edges and in corners:

In order to grind as close as possible to the edge and in corners, the brush rim can be removed by lightly pressing the lugs (A) (see pictures).

Attention!

In this case, an increased amount of dust is possible.

All other grinding works have to be done with the complete dust guard.

Close-up of a green and black electric shaver with a red internal component labeled 'A' (no text or symbols beyond label)

Close-up of a green electric shaver with a black plastic component being processed, showing a close-up view of the final gear (no text or symbols visible)

Close-up of a green and black handheld device with a black lever mechanism, no visible text or symbols

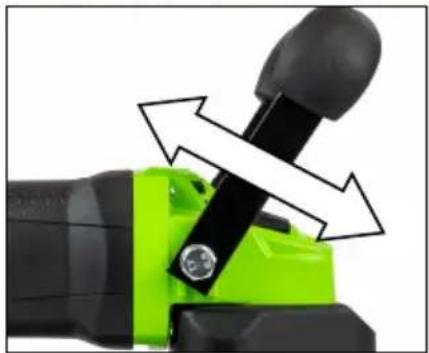

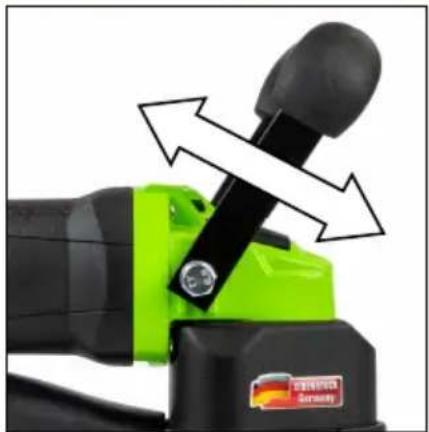

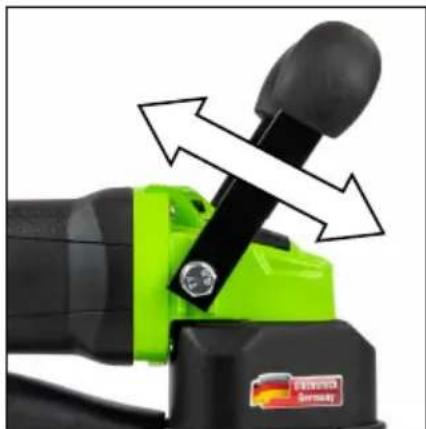

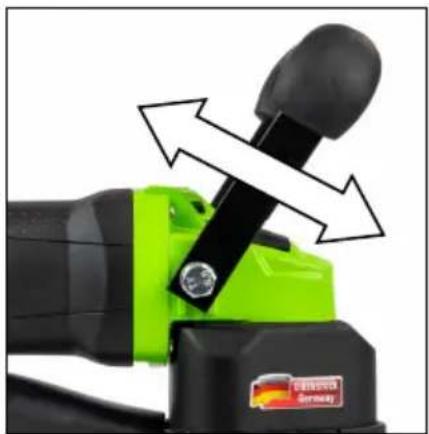

The position of the handle can also be changed when working in places that are difficult to access.

To do this, loosen the fastening screws with an open-end spanner SW13.

Swivel the handle to the desired position and retighten the screws.

Care and Maintenance

Before the beginning of the maintenance- or repair works you have to disconnect the plug from the mains.

Repairs may be executed only by appropriately qualified and experienced personnel. After every repair the machine has to be inspected by an electric specialist. Due to its design, the power tool needs a minimum of care and maintenance. The following works have to be carried out or rather the component parts have to be inspected:

■ Always keep the power tool and the ventilation slots clean.
- During work, please pay attention that no particles get inside the machine.
- In case of failure, a repair has to be carried out by an authorised service workshop.

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts.

EIBENSTOCK's application service team will gladly answer questions concerning our products and their accessories.

Environmental Protection

Raw Material Recycling Instead of Waste Disposal

To avoid damages on transportation, the power tool has to be delivered in a sturdy packing. Packaging as well as unit and accessories are made of recyclable materials and can be disposed accordingly.

The tool's plastic components are marked according to their material, which makes it possible to remove environmental friendly and differentiated because of available collection facilities.

Only for EU countries

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or recycling (no text present)

Do not dispose of electric tools together with household waste material!

In observance of the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

Noise Emission/ Vibration

The indication of noise emission is measured according to EN 62841. The level of acoustic pressure on the work place could exceed 85 dB (A); in this case protection measures must be taken.

Wear ear protectors!

The typical hand-arm vibration is below 2.5 m/s ^4 .

Measured values determined according to EN 62841.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Dust protection

Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful. Contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders. Certain kinds of dust are classified as carcinogenic such as oak and beech dust especially in conjunction with additives for wood conditioning (chromate, wood preservative). Material containing asbestos must only be treated by specialists.

- Where the use of a dust extraction device is possible it shall be used.

• To achieve a high level of dust collection, use industrial vacuum cleaner (dust category M) for wood and/or minerals together with this tool.
  ■ The work place must be well ventilated.
• The use of a dust mask of filter class P2 is recommended.

Warranty

According to our general terms of delivery for business dealings, suppliers have to provide to companies a warranty period of 12 months for redhibitory defects (to be documented by invoice or delivery note).

Damages due to natural wear, overstressing or improper handling are excluded from this warranty.

Damages due to material defects or production faults shall be eliminated free of charge by either repair or replacement.

Complaints will be accepted only if the tool is returned in non-dismantled condition to the manufacturer or an authorized Eibenstock service centre.

EU Declaration of Conformity

We declare under our sole responsibility that the product described under “Technical Data” is in conformity with all relevant provisions of the directives 2011/65/EU, 2014/30/EU, 2006/42/EC

including their amendments and complies with the following standards:

EN 62841-1:2023-03

EN 62841-2-3:2022-08

EN IEC 55014-1:2022-12

EN IEC 55014-2:2022-10

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

Eibenstock, 17.08.2023

Handwritten signature or scribble on a wavy line, possibly from a document or form

Frank Markert

Head of Engineering

GB - Declaration of Conformity

We declare as the manufacturer under our sole responsibility that the product described under “Technical Data” fulfi lls all the relevant provisions of the following Regulations S.I. 2008/1597 (as amended), S.I. 2017/1206 (as amended), S.I. 2012/3032 (as amended) and that the following designated standards have been used:

BS EN 62841-1:2023-03

BS EN 62841-2-3:2022-08

BS EN IEC 55014-1:2022-12

BS EN IEC 55014-2:2022-10

Technical file (S.I. 2008/1597) at:

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

Eibenstock, 17.08.2023

Handwritten signature or scribble on a line, possibly from a document or form

Frank Markert

Head of Engineering

Subject to change without notice.

Close-up of a mechanical component with a textured grip and an arrow labeled '4' pointing upward (no readable text or symbols beyond the number)

Close-up of a black cylindrical device with a red-orange internal component and an arrow pointing to it, no visible text or symbols.

Close-up of a dark, textured surface with three vertical panels and a small object on the right (no visible text or symbols)

Close-up of a green plastic component with a black square and a white arrow pointing to it (no text or symbols visible)

Close-up of a hand adjusting a three-dot electric motor drive mechanism (no text or symbols visible)

Close-up of a green and black electric shaver with a red internal component labeled 'A' (no text or symbols beyond label)

Close-up of a green handheld power supply unit with a black cover and a close-up of its black plastic component (no visible text or symbols)

Close-up of a green and black electric shaver with directional arrows indicating motion (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or recycling (no text present)

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

Eibenstock, 17.08.2023

Handwritten signature or scribble on white background

Frank Markert

Head of Engineering

Close-up of a metallic vehicle's side panel with a ribbed grille and an arrow pointing to the number 4 (no text or symbols on the panel itself)

Close-up of a black cylindrical device with an orange internal component and a white arrow pointing to it, no visible text or symbols.

Close-up of a dark, textured surface with three vertical ridges and a flat top (no text or symbols visible)

Close-up of a green plastic component with a black square and a white arrow pointing to it (no text or symbols visible)

Close-up of a hand using a tool to adjust three electric motors inside a battery pack (no text or symbols visible)

Close-up of a green and black power tool with a red internal component labeled 'A', showing mesh texture and a white arrow pointing to a section (no text or symbols beyond label)

Close-up of a green electric shaver with a black plastic component being processed, showing a close-up view (no text or symbols visible)

Close-up of a green and black electric shaver with directional arrows indicating motion (no text or symbols)

Symbol of a trash bin with no text or labels

Solo per Paesi UE

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

Handwritten signature or scribble on a white background

Frank Markert

Head of Engineering

Eibenstock, 17.08.2023

Close-up of a metallic vehicle's side panel with a textured handle and a numbered arrow pointing to the side (no text or symbols on the object itself)

Close-up of a black electronic device with a red LED and white arrow pointing to a button (no text or symbols visible)

Close-up of a dark, textured surface with three vertical panels and a textured base (no visible text or symbols)

Before any work on the tool, disconnect the plug from the mains!

Close-up of a green plastic component with a black square and a white arrow pointing to it (no text or symbols visible)

Close-up of a hand using a tool to adjust three circular gears inside a battery pack (no text or symbols visible)

Close-up of a green electric shaver with a red sensor labeled 'A' pointing to a textured surface (no text or symbols beyond label)

Close-up of a green power tool with a black plastic component being processed, showing a close-up of its edge (no text or symbols visible)

Close-up of a green and black electric shaver with directional arrows indicating motion (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

Eibenstock, 17.08.2023

Handwritten signature or scribble in cursive script

Frank Markert

Head of Engineering

Close-up of a car air vent with a gridded grille and an arrow pointing to the grille (no text or symbols visible)

Close-up of a black cylindrical electronic component with a highlighted internal section and an arrow pointing to a small hole (no text or symbols visible)

Close-up of a dark, textured object with three vertical sections and a horizontal base (no visible text or symbols)

Close-up of a green electronic component with a black square and a white arrow pointing to it (no text or symbols visible)

Close-up of a hand holding a three-dot mechanical gear component (no text or symbols visible)

Close-up of a green electric shaver with a red label, showing a close-up of its black plastic component (no text or symbols visible)

Close-up of a green and black electric shaver with directional arrows indicating motion (no text or symbols)

Symbol of a trash bin with no text or labels

Kun for EU lande

Handwritten signature or scribble with a period, likely from a document or form

Lothar Lässig

General Manager

Eibenstock, 17.08.2023

Handwritten signature or scribble in cursive script

Frank Markert

Head of Engineering

Fachhändler

Your distributor
