Dear Customer,
Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS
Technical Data 19
Safety Instructions 20
Installation 22
Operation 27
Cleaning and Maintenance 28
Product Data Sheet 29
Disposal Considerations 31
Manufacturer & Importer (UK) 31
TECHNICAL DATA
| Article number 10046497 | 10046498 | |
| Power supply 230 V ~ 50 Hz | ||
| Light power Main lightning | 2x2 W | |
| Motor power 110 W | ||
| Total Power 114 W | ||
| Motir 1 | ||
| Diameter of outlet adaptor | 150 mm | |
| Measurements 598×503×37 | 0-620 mm 898×503×370-620 mm | |
SAFETY INSTRUCTIONS
- Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
- The installation work must be carried out by a qualified electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.
- The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
Children under the age of 8 must not use the cooker hood. - The appliance is not intended for commercial use, but only for household and similar environments.
- The cooker hood and its filter mesh should be cleaned regularly in order to keep it in good working order.
- Before cleaning, switch the power off at the main supply.
- Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
- Prohibit putting the cooker hood by fire.
- If the appliance does not function normally, contact the manufacturer or a specialist company.
- This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.
- Do not flambé under the range hood. Accessible parts may become hot when used with cooking appliances.
Important hints on installation
- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
- Regulations concerning the discharge of air have to be fulfilled.
Important notes about the extraction mode

WARNING
Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open flue appliance when there is not adequate airflow guaranteed.
Open flue combustion equipment (for example, gas, oil, wood or coal-fired
heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms - without sufficient air intake this creates a vacuum. Toxic gases from the chimney or extraction flue can thereby be sucked back into the living spaces.
- Always ensure that a sufficient supply of fresh air is guaranteed and that the air can circulate.
An air supply / extractor box alone does not ensure compliance with the limit value.
Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can flow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a qualified chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation.
If the hood is used exclusively in the recirculation mode, unrestricted operation is possible.
Important note on disassembly of the device
- Disassembly is similar to installation/assembly in reverse order.
Take a second person to help you during disassembly to avoid injuries.
INSTALLATION
Installation (Vent outside)
Note: When the range hood and appliance supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must be not exceed 4Pa (4× 10^-5Bar)
Installation (Vent inside)
If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section "Installation (Vent outside)".

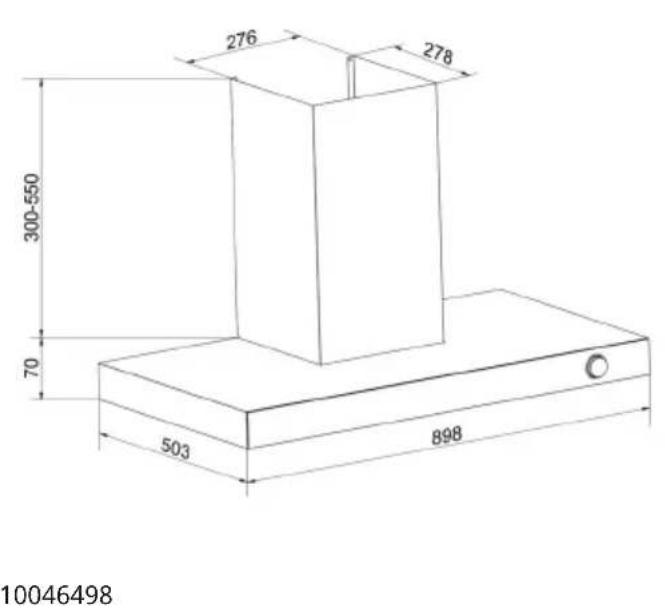

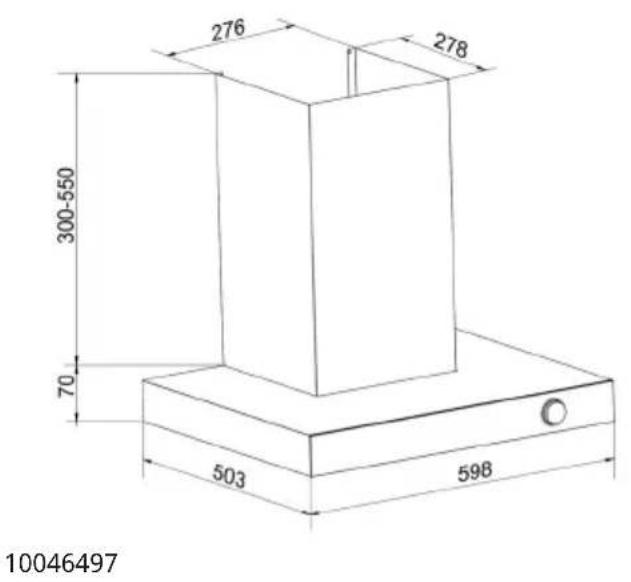

Important Information for the Installation of Exhaust Air Ducts
The following rules must be strictly observed to ensure optimum air extraction. Failure to follow these instructions will reduce performance and increase the noise level of the cooker hood.
- Lay the exhaust pipe as short and straight as possible.
- Do not use a smaller exhaust duct and do not confine it.
- If flexible ducts are used, the duct must always be mounted tightly in order to minimise pressure loss.
- All installation work may only be carried out by a qualified electrician or a qualified person.
- Do not connect the exhaust duct of the cooker hood to an existing ventilation system used for another appliance, such as a chimney.
- The angle of the exhaust pipe bend should not be less than 120^ . Align the pipe horizontally. Alternatively, the duct should go up from the starting point and be led to an outer wall.
- After installation, make sure that the cooker hood is level to prevent grease from accumulating on one side.
- Make sure that the exhaust duct selected for the installation complies with the relevant standards and is fire-resistant.
The minimum distance is 750mm from the range hood to a gas hob, and is 650mm to an electric hob. If the installation instructions for gas hobs specify a greater distance, this must be taken into account.
Note: Two or more persons are required to install or move this appliance. Failure to do so can cause physical injuries.

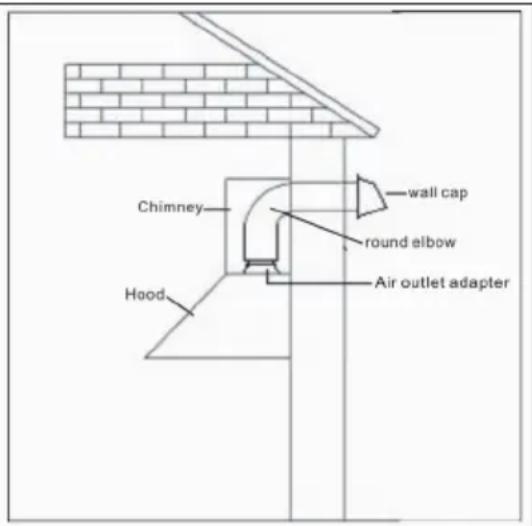

WARNING Risk of fire
To reduce the risk of fire, use metal ductwork is preferred.
- Decide where the ductwork will run between the hood and the outside.
- A straight, short duct run will allow the hood to perform most efficiently.
- Long duct runs, elbows, and transitions will reduce the performance of the hood. Use as few of them as possible. Larger ducting may be required for best performance with longer duct runs.
- The air must not be discharge into a flue that is used for exhausting fumes from appliances burning gas or other fuels" "Regulations concerning the discharge of air have to be fulfilled.
- Install wall cap. Connect round metal ductwork to cap and work back towards hood location. Use duct tape to seal the joints between ductwork sections.

Electrical installation
Electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards. This range hood must be properly grounded. Turn off electrical power at service entrance before wiring. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Install the hood
Minimum hood distance above cooker must not be less than 650~mm . A maximum of 750mm above the cooker is highly recommended for best capture of cooking impurities.
Distance over 750~mm above the cooker are at the installer's and user's discretion - providing that ceiling height and flue length permit.
- Drill 3 holes in the wall and put 3 plastic tube ( 10 × 45 ) on, use (3) ST5x50 screw to fix hood body top.
- Fix the discharge ducting into the air outlet adapter and use (2)ST2.9x8 to fasten if you have an exhaust pipe.
-
Hang on the appliance by using hood mounting bracket.
-

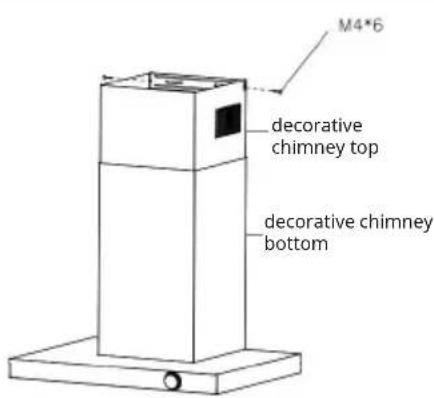

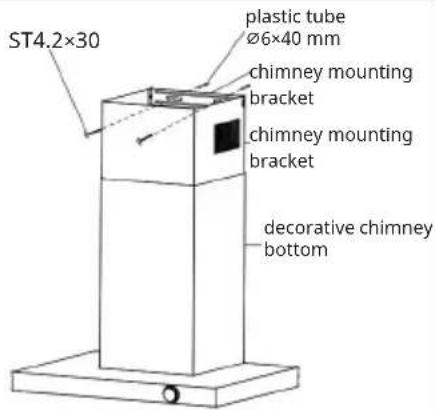

Carefully place the decorative chimney bottom into the recessed area of the hood body top. Drill 2 hole in the wall and put 2 plastic tube(ø7x27) on. Use (2) ST2.9x14 fix in chimney cover I place above.
- Carefully slide the decorative chimney top down inside the decorative chimney bottom. Drill 2 hole in the wall and put 2 plastic tube (Ø6x40) on. Secure the chimney mounting bracket to the wall by using (2)ST4.2X30 screw.
- Level the hood and secure the chimney with 2 chimney bracket screws (2) M4x6.

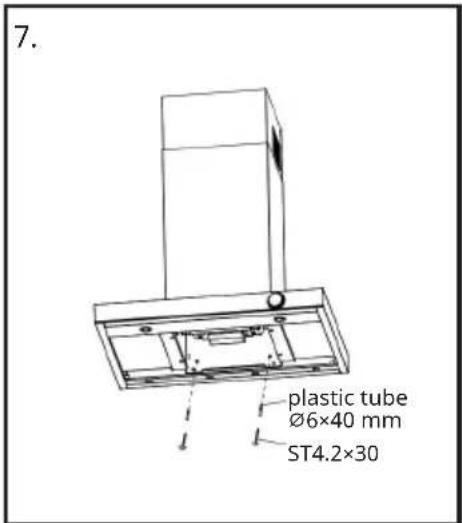

- Drill 2 hole in the wall and fix hood body bottom by using 2 plastic tube ( 6× 40) and 2 ST4.2*30 to prevent the appliance from moving.

1.

2.

3.
4.


5.
6.


Install filters (recirculation mode)

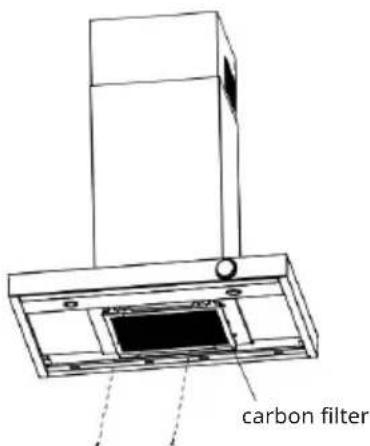

- Put the charcoal filter to the extractor body and fix it by using 2 M4*10 screws.

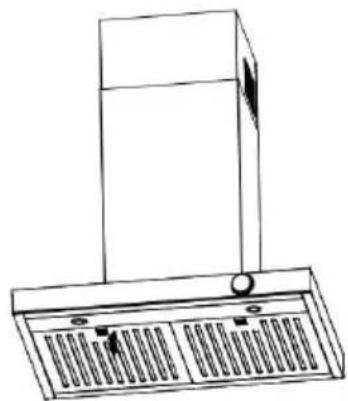

- Install grease filter after charcoal filter is installed.

(2) M4 × 10

OPERATION

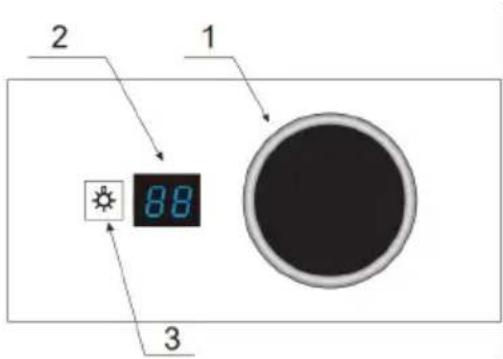

Control panel

- Knob
- Display
-
Lighting indicator
-
When the unit is switched on, it emits beeps and all indicators light up for 1 second, then go out. The screen displays F0.
- The control panel is equipped with a knob, turn the knob clockwise to increase the fan speed from F1 to F4. Turn the knob counterclockwise to decrease the fan speed. Select one of the following fan speeds:
| Display message Fan speed | Application | |
| F1 Low speed Use this speed | speed when | cooking a little food with hardly any fumes. |
| F2 Medium speed Use this speed | speed when | cooking multiple dishes at the same time with moderate amount of fumes. |
| F3 | ||
| F4 High speed Use this speed | speed when | frying or grilling, with large amount of fumes. |
- Press the knob to turn on the light and LED indicator, press the knob again to turn off the light and LED indicator.
- Press and hold the knob for 3 seconds to turn off the fan.
CLEANING AND MAINTENANCE
Turn off the cooker hood before cleaning and maintenance and unplug the appliance from the wall outlet. The exterior surfaces are susceptible to scratches and stains. Therefore, do not use abrasive cleaners and wipe away any alkaline or acidic residue (lemon juice, vinegar) immediately after cleaning.
Stainless Steel Surfaces
The stainless steel must be cleaned regularly to ensure a long service life. Use stainless steel cleaner. Always wipe along the grain of the stainless steel to prevent scratching.
Control Panel
The control panel can be cleaned with a damp cloth and a mild dishwashing detergent. Before cleaning, make sure the cloth is clean and well wrung. Use a dry, soft cloth to remove excess moisture after cleaning.
Monthly Cleaning for Grease Filter
Clean the filter every month can prevent any risk of fire. The filter collects grease, smoke and dust, so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

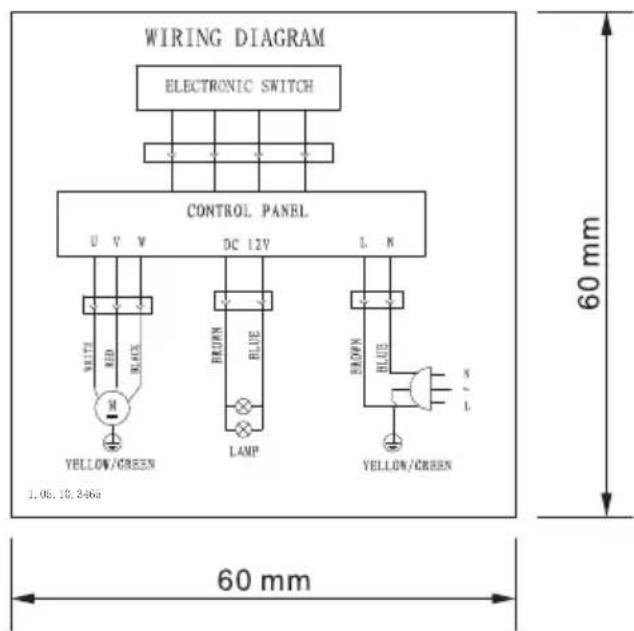

Wiring diagram

PRODUCT DATA SHEET
| Product fiche Delegated Regulation (EU) 65/2014 | |
| Supplier name or trademark Klarstein | |
| Model identifier 10046497 | |
| Annual Energy Consumption 23,3 kWh/annum | |
| Energy Efficiency Class A++ | |
| Fluid Dynamic Efficiency 38,1 | |
| Fluid Dynamic Efficiency class A | |
| Lighting Efficiency 69,0 Lux/W | |
| Lighting Efficiency class A | |
| Grease Filtering Efficiency 69,9 % | |
| Grease Filtering Efficiency class D | |
| Air flow (min speed normal use) 312 m³/h | |
| Air flow (max speed normal use) 614 m³/h | |
| Airborne acoustical A-weighted sound power emissions (min speed normal use) | 53 dB |
| Airborne acoustical A-weighted sound power emissions (max speed normal use) | 68 dB |
| Power consumption in off mode (W) 0,25 W | |
Model placed on the Union market from 01/09/2024.

EPREL registration number: 2111407
https://eprel.ec.europa.eu/qr/2111407
Supplier: Chal-Tec GmbH (Authorised representative)
Website:
Customer care service:
Name: Customer service
Website: https://www.elektronik-star.de/Info/Impressum/
Email: info@electronic-star.de
Phone: +49303001385500
Address:
Wallstraße 16
10179 berlin
Germany
| Product fiche Delegated Regulation (EU) 65/2014 | |
| Supplier name or trademark Klarstein | |
| Model identifier 10046498 | |
| Annual Energy Consumption 22,4 kWh/annum | |
| Energy Efficiency Class A++ | |
| Fluid Dynamic Efficiency 38,7 | |
| Fluid Dynamic Efficiency class A | |
| Lighting Efficiency 50,0 Lux/W | |
| Lighting Efficiency class A | |
| Grease Filtering Efficiency 70,8 % | |
| Grease Filtering Efficiency class D | |
| Air flow (min speed normal use) 321 m³/h | |
| Air flow (max speed normal use) 628 m³/h | |
| Airborne acoustical A-weighted sound power emissions (min speed normal use) | 53 dB |
| Airborne acoustical A-weighted sound power emissions (max speed normal use) | 69 dB |
| Power consumption in off mode (W) 0,25 W | |
Model placed on the Union market from 01/09/2024.

EPREL registration number: 2111490
https://eprel.ec.europa.eu/qr/2111490
Supplier: Chal-Tec GmbH (Authorised representative)
Website:
Customer care service:
Name: Customer service
nfo/Impressum/
Email: info@electronic-star.de
Phone: +49303001385500
Address:
Wallstraße 16
10179Berlin
Germany
DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
MANUFACTURER & IMPORTER (UK)
Manufacturer:
Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
Importer for Great Britain:
Berlin Brands Group UK Limited
PO Box 42
272 Kensington High Street
London, W8 6ND
United Kingdom


KLARSTEIN
Chere cliente, cher client,
Nom: Customer service
Nom: Customer service
Courriel: info@electronic-star.de
Telephone: +49303001385500
Adresse:
Wallstraße 16
10179 berlin
Allemagne
INFORMATIONS SUR LE RECYCLAGE

Berlin Brands Group UK Limited
PO Box 42
272 Kensington High Street
London, W8 6ND
United Kingdom
Estimado cliente:
Berlin Brands Group UK Limited
PO Box 42
272 Kensington High Street
London, W8 6ND
United Kingdom
Gentile clientele,
Nome: Customer service
Sito web: https://www.elektronik-star.de/Info/Impressum/
E-mail: info@electronic-star.de
Name: Customer service
Sito web: https://www.elektronik-star.de/Info/Impressum/
E-mail: info@electronic-star.de
Berlin Brands Group UK Limited
PO Box 42
272 Kensington High Street
London, W8 6ND
United Kingdom

KLARSTEIN
