USER MANUAL BF 990 WIFI BEURER

EN Diagnostic bathroom scale

Instructions for use. 10

FR Pese-personne impedancemetre

Mode d'emploi 16

ES Báscula diagnóstica

EN Fold out page 3 before reading the instructions for use.

RU IpepeIyTeHHeM INHCTpyKcInn No npIMeHHeHIO pa3NoXKeTcTpaHcy 3.

"beurer HealthManager Pro" App

Read these instructions for use carefully. Follow the warnings and safety notes. Keep these instructions for use for future reference. Make the instructions for use accessible to other users. If the device is passed on, provide the instructions for use to the next user as well.

Contents

1. Included in delivery 10
2. Signs and symbols 10
   3.Warnings and safety notes.. 11
3. Device description 11
4. Usage 12

5.1 Using the device 12
5.2 Deleting scale users 13
5.3 Changing the weight unit 13

6.What if there are problems? 13

6.1 Messages 13
6.2 WIFI/Bluetooth connection problems 14

1. Cleaning and maintenance. 14
   8.Disposal. 14
2. Technical data 15
   10.Guarantee 15

1. INCLUDED IN DELIVERY

Check that the device packaging has not been tampered with and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address.

1 diagnostic bathroom scale
- 3 type-AAA batteries, 1.5V
- 1 copy of these instructions for use

2. SIGNS AND SYMBOLS

The following symbols are used on the device, in these instructions for use, on the packaging and on the type plate for the device:

WARNING Indicates a potentially impending danger. If it is not avoided, there is a risk of death or serious injury.

CAUTION Indicates a potentially impending danger. If it is not avoided, slight or minor injuries may result.

NOTICE Indicates a potentially harmful situation. If it is not avoided, the system or something in its vicinity may be damaged.

Product information Note on important information

The device may not be used by people with medical implants (e.g. pacemakers), as this may affect their functionality.

i	Observe the instructions for use
	The electronic device must not be disposed of with household waste
B A	Marking to identify the packaging material. A = material abbreviation, B = material number: 1-7 = plastics, 20-22 = paper and cardboard
CE	CE labelling This product satisfies the requirements of the applicable European and national directives.
UK CA	United Kingdom Conformity Assessed Mark
EAC	The products demonstrably meet the requirements of the Technical Regulations of the EAEU
	Manufacturer
NECYCLE	Separate the product and packaging elements and dispose of them in accordance with local regulations.
	Importer

3. WARNINGS AND SAFETY NOTES

WARNING

Intended purpose

The device is only intended for weighing humans and for recording your personal fitness data. The device is only intended for private use and not for medical or commercial purposes. The device must only be used for the purpose for which it was designed and in the manner specified in these instructions for use.

WARNING

The device may not be used by people with medical implants (e.g. pacemakers), as this may affect their functionality.
- Do not use the device during pregnancy.
- Danger of tipping! Never place the scale on an uneven surface (see figure A). Never step

onto the outer edge of the scale on just one side (see figure B).

• Danger of slipping! Do not step onto the scale with wet feet (see figure B). Do not step onto the scale when the surface is wet. Do not step onto the scale wearing socks.
• Repairs may only be carried out by Beurer Customer Services or authorised retailers. Never open the scale yourself.

Safety notes on handling batteries

WARNING

• Always insert the batteries correctly, taking into account the polarity (+/−). Keep batteries clean and dry and away from water. Always select the correct battery type.
• Never short-circuit batteries and battery compartment contacts.
• Never charge, forcibly discharge, heat, disassemble, deform, encapsulate or modify batteries.
• Never weld or solder on batteries.
• Never mix batteries of different manufacturers, capacities (new and used), size and type within a device.
• Risk of explosion! Failure to comply with the points mentioned above can result in personal injury, overheating, leakage, venting, breakage, explosion or fire.
• If a battery has leaked, put on protective gloves and clean the battery compartment with a dry cloth.
• If your skin or eyes come into contact with battery fluid, rinse the affected areas with water and seek medical assistance.
• Choking hazard! Keep batteries out of the reach of children. Seek medical attention immediately if swallowed. Swallowing them may cause severe internal burns and death.
• Never allow children to replace batteries without adult supervision.

CAUTION

• Store batteries away from metal objects in a well-ventilated, dry and cool place.
• Never expose batteries to direct sunlight or rain.
• Exposure of batteries to an environment with extremely high temperatures or a low air pressure may result in explosion or leakage of flammable liquids and gases.
• Remove batteries from the device if it is not going to be used for a long period of time. Do not use the product if the battery compartment lid no longer closes properly.
• Dispose of discharged batteries immediately and properly. Never dispose of batteries in fire or hot ovens.

System-related information

The scales can be used from a minimum age of 10 years. The scale can only be used to its full extent with the "beurer HealthManager Pro" app and an online account.

4. DEVICE DESCRIPTION

The associated illustrations are on page 3.

Diagnostic bathroom scale

1 Hand-held unit
2 Hand-held unit electrodes
3 Display
4 Foot electrodes with ITO coating (indium tin oxide)
5 Hand-held unit cable
6 Battery compartment

Display

7 Measured value
Measurement unit
9 Heart rate/pulse in bpm
10 Muscle percentage in %
11 Body water content in %
12 Body fat percentage in % (BF = body fat)
13 Body mass index
14 Unknown user during measurement
15 Scale connected to WIFI
Measurement data transfer
17 Scale connected to Bluetooth
18 Scale connected to cloud/server

5. USAGE

5.1 Using the device

STEP 1: Inserting the batteries

• Insert the three 1.5 V AAA batteries included in delivery into the battery compartment 6 on the underside of the scale. When inserting the batteries, ensure that the correct polarity (+/-) is observed.

STEP 2: Scale location selection

• Place the scale on a flat and stable surface. Do not place the scale on carpet!

STEP 3: Creating scale users in the "beurer HealthManager Pro" app with an online account

The "beurer HealthManager Pro" app is required for data transfer of the measured values and to display additional values.

The scale has 8 scale users, enabling you to save the various members of your family, for example. You can use the "beurer HealthManager Pro" app to conveniently set up the individual app users and their corresponding scale user via your smartphone. To do so, proceed as follows:

• Download the free "beurer HealthManager Pro" app from the Apple App Store (iOS) or from Google Play (Android™).

Scan here to access the

"beurer HealthManager Pro" app

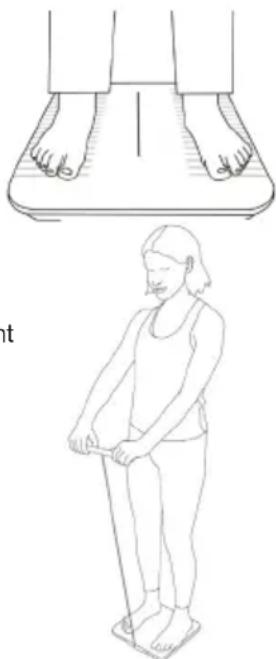

STEP 4: Starting weighing

An analytical measurement is only possible barefoot and while using the hand-held unit. Otherwise, only a weight measurement will be performed, which will be assigned to a scale user.

1. Step onto the scale barefoot. Stand still on the foot electrodes with both legs, making sure to distribute your weight evenly. The scale switches on automatically.
2. Hold the hand-held unit at hip height with stretched out arms 1

1. Place both thumbs on the two oval hand-held unit electrodes 2.Use your remaining fingers to grasp the elongated rear of the electrodes. Do NOT place your hands in a firm fist around the hand-held unit 1.

1. Your body weight appears on the display 3. The scale user detected (e.g. "U: 1" for scale user 1) should then appear automatically.

• If the automatic scale user recognition does not work, you can assign your measurement to yourself in the "beurer HealthManager Pro" app.

• The following values will then appear one after the other.

BMI	Body mass index (a healthy value is 18.5 – 25)
BF	Body fat percentage (a healthy value is 16 – 28% for women and 11 – 23% for men)
~	Body water content in % (a healthy value is 45 – 60% for women and 50 – 65% for men)
-	Muscle percentage (a healthy value is 27 – 43% for women and 37 – 57% for men)
HR♥	Heart rate/pulse in bpm (a healthy value is 50 – 100 beats per minute at rest). Please note that the measurement does not correspond to a defined resting pulse, as measurement takes place whilst standing up and not sitting or lying down. For this reason too, the value may differ slightly during a repeat measurement.

For a precise overview and description of all values, please see the app or the FAQs at: www.beurer.de

1. Step off the scale.
2. If a Bluetooth or WIFI connection has been established and the user measurements have been successfully taken (e.g. for U: 1), the values will be transferred to the "beurer HealthManager Pro" app. This is indicated by the measurement data transfer symbol [16]. If the data cannot be transferred, up to 30 values will be stored per user. As soon as a connection is established, they are transferred with the next measurements.
3. The scale switches itself off automatically.

• Wherever possible, weigh yourself at the same time every day (ideally in the morning), after having been to the toilet, and on an empty stomach.
• Please note that measuring tolerances are possible for technical reasons as this scale is not calibrated for use in a professional medical context.
• This scale works on the principle of B.I.A. (bioelectrical impedance analysis). When this measurement of the electrical resistance (impedance) is considered alongside constants and/or individual values (age, height, gender, activity level), the body fat percentage and other variables in the body can be calculated. Please note that the values calculated by the diagnostic bathroom scale only represent an approximation of the actual medical analytical values for the body. Only a specialist doctor can precisely establish the body fat, body water, muscle percentage and bone structure using medical methods (e.g. computer tomography).

• Obtain professional advice from appropriately qualified personnel (e.g. a doctor) when undertaking any treatment or diet to address being overweight or underweight. The health values determined using the scale can assist the qualified personnel in their diagnoses.
• Inaccurate or implausible results may occur when determining body fat in children, performance athletes or people with medical/physical limitations (e.g. oedema symptoms, osteoporosis, people who are taking cardiovascular medication or medication which changes the vascular system, people with major anatomical abnormalities on the legs).
• Inaccurate or implausible results may occur when determining the heart rate if there is insufficient circulation in the legs, excessive venous stasis, vascular constriction or extensive leg oedemas.

5.2 Deleting scale users

You can delete individual scale users in the "beurer HealthManager Pro" app.

5.3 Changing the weight unit

You can change the weight unit in the "beurer HealthManager Pro" app.

6. WHAT IF THERE ARE PROBLEMS?

6.1 Messages

Display Cause/remedy
Discrepancy in weight	Incorrect zero point (e.g. in the event of a change of location or temperature fluctuation): Briefly press on the scale until the current weight is displayed, then remove your foot.
	Scale is placed on carpet or uneven ground: The surface must be hard and level.
	Wherever possible, weigh yourself at the same time every day (ideally in the morning), after having been to the toilet, and on an empty stomach.
flashing	The scale can be connected to the app via Bluetooth®: Do not connect it via the Bluetooth® settings on your smartphone, only via the app.
PAir	Bluetooth® must be allowed to connect to the smartphone once: If necessary, check the notification on the smartphone and allow connection via Bluetooth®.
UnSt	This weight measurement was unstable: Stand still during the measurement.
U: -- /	The scale was unable to assign the measurement to a scale user: If the automatic scale user recognition does not work, open the "beurer HealthManager Pro" app.
BF--	The body fat percentage is outside the measurable range: Check the user data or change the activity level. Otherwise, no diagnostic values can be determined due to their low informative value.
“no BF”	Diagnostic measurement not possible (e.g. measurement with shoes, hand-held unit not gripped correctly): Repeat the measurement barefoot and with the correct grip around the hand-held unit. Otherwise, only weight values will be displayed and transferred.

Display Cause/	remedy
“no HR”/HR--	Heart rate measurement not successful: Repeat measurement with the correct grip around the hand-held unit whilst barefoot and remain standing still while the weight measurement is being carried out until the heart rate measurement is complete. Do not step off or move too early.
oLd	The maximum weight capacity of 180 kg has been exceeded: Loads must not exceed 180 kg.
BAt/Lo	The batteries are flat. Replace the batteries.
Err1	Incorrect password for your selected WIFI network/SSID/rodter.
Err2	Your router does not have Internet access. The server cannot be reached.
Er3...	Software update failed: Please try again.
utd	The software is up to date.
	WIFI and connection to cloud/server successfully established
	Measurement is being transferred
BMI	Body mass index
BF	Body fat percentage in %
	Body water content in %
	Muscle percentage in %
HR	Heart rate/pulse in bpm

6.2 WIFI/Bluetooth® connection problems

Problem Cause/remedy
No Bluetooth® connection Symbol 17 is not displayed	Device is outside the Bluetooth® range. The minimum range in the open is approx. 10 m. Walls and ceilings reduce the range. Other radio waves may interfere with the transmission. Therefore, do not position the scale near devices such as microwaves or induction hobs. Ideally, switch off other Bluetooth® devices that are within range.
	No Bluetooth® connection to the app. • Switch Bluetooth® on your smartphone off and on again. Ensure that the scale is not being connected via the Bluetooth® settings of the operating system. If necessary, remove it from the device list in the Bluetooth® settings and then use the "beurer HealthManager Pro" app. • Completely close the app (including in the background). Switch your smart-phone off and on again. • When connecting the scale, check the status bar on the smartphone to start pairing/bonding. Notice: A Bluetooth® connection is only required for initial use and changing the scale's settings. Although the measurements can also be transferred via Bluetooth®, the measurement data transfer will take place in the normal standard application via WIFI (without Bluetooth®).
No connection to server/cloud Symbol 15 18 is not displayed	Check whether your router has an Internet connection. Check the device settings in the app.
No connection to the router Symbol 15 18 is not displayed or „no	Incorrect password • Open the app. Open the scale setting in the app. • WIFI radio network/network name (SSID) of your Internet router and password (WIFI network key) must match. Re-enter password/network key. Ensure that the password/network key matches the one set on your selected router/WIFI name. Please remember that it is case sensitive. For further information, see technical data under “Connectivity”.
	Incorrect router settings The device connects to 2.4 GHz. The device cannot connect to 5 GHz or 6 GHz. Check the router settings to see if 2.4 GHz is supported (mixed 2.4 GHz / 5 GHz operation is possible in principle). Do not use a mobile WIFI hotspot, as it may not be available at all times. Avoid guest networks.

Problem Cause/remedy

Measurements are not sentSymbol 16 is not displayedNo measurement for the scale user: The user memory (e.g. U: 1) which appears on the scale display during a measurement must be assigned to the scale in your app settings. Only these measurements can be transferred. Therefore, when taking a measurement, check your user on the scale and in your app settings.

7. CLEANING AND MAINTENANCE

Clean the surface of the scale from time to time using a slightly damp cloth. Do not use the scale again until the surface is completely dry.

CAUTION

• Do not use any abrasive cleaning products.
• Never submerge the scale in water. Never rinse the scale under running water.
• Do not place any objects on the scale when it is not in use.
• Protect the scale from knocks, moisture, dust, chemicals, drastic changes in temperature and nearby sources of heat (ovens, heaters).

8. DISPOSAL

NOTICE

When disposing of batteries, keep batteries with different electrochemical systems separate.

For environmental reasons, do not dispose of the device in household waste at the end of its service life. Dispose of the device at a suitable local collection or recycling point in your country. Observe the local regulations for material disposal. Dispose of the device in

accordance with EC Directive Waste Electrical and Electronic Equipment (WEEE).

If you have any questions, please contact the local authorities responsible for waste disposal. You can obtain the location of collection points for old devices from the local or municipal authorities, local waste disposal companies or your retailer, for example.

Used batteries should not be disposed of in normal household waste. Dispos of them via your electronics retailer or your local recycling point. You are legally obliged to do this.

Notice: The codes below are printed on batteries containing harmful substances: Pb = Battery contains lead, Cd = Battery contains cadmium, Hg = Battery contains mercury.

9. TECHNICAL DATA

Model: BF 990 WIFI
Dimensions: 310 x 336 x 29 mm
Weight: 2.23 kg
Measurement range: 180 kg / 396 lb / 28 st
Display kg: 0.1 kg	lb: 0.2 lb st: between 0-19 st = 0.2 lb; between 20-28 st = 1 lb / 0.1% / 1 bpm
Repetition accuracy: max. ± 0.4 kg
Absolute precision: max. ± (0.5% + 0.1 kg), e.g. for 80 kg: max. ± 0.5 kg
Battery: 3 type AAA, 1	5 V
Connectivity: Setup and settings via Bluetooth® low energy technology. Data transfer preferably via WIFI or alternatively viaBluetooth® low energy technology. WIFI system requirement: IEEE 802.11 b/g/n (2.4 GHz) Encryption system requirement: WPA2-PSK, WPA3-PSK WIFI frequency band: 2412 - 2472 MHz, transmission power max. 14.05 dBm. Bluetooth® frequency band: 2402 - 2480 MHz, transmission power max. 8.77 dBm.
System requirements and list of compatible devices for the "beurer HealthManager Pro" app

Subject to technical changes.

*This product satisfies the requirements of the applicable European directives.

We hereby confirm that this product complies with the European RED Directive 2014/53/EU.

The CE Declaration of Conformity for this product can be found under:

https://www.beurer.com/conformity

10. GUARANTEE

Further information on the guarantee and guarantee conditions can be found in the guarantee leaflet supplied.

FRANÇAIS

https://www.beurer.com/conformity

10. GARANTI

Ha npi6ope, B nHCTpykCnNo npImMeHeHIO, Ha yNaKOBKe i nPmHHoTbIuYke npi6opa NcNOL3yOITcneJeUOune CmMBOnbl.

PNEyNPEKDEHNE

Yka3bIbaeHa noteHcuaJIbHyIO onaChocTb.Ecnn ee He npedotBpaNTb, BO3MOXHb TjKeJeIuE TpaMbI JIN daKe Cmeptb.

BHIMAHHE

Yka3bIbaeHa notEHuaJIbHyIO onaHocTb.EcJn ee He npEoTbpaNTb, BO3MOXHbJIerKne IINHe3HaHTeJIbHbIE TpaBMbl.

YBEDOMJIENHE

Yka3bIbaeT Ha BO3MOXHbI MaTePnaJIbHbI yUeep6. EcIaDHHyO CITyauCIO He IpeIoTbPaTtB, BO3MOXHO NOBpeKdHeNepn6opa HIN OKpykaOuix OBeKToB.

Hhopmaun6n3denn

Yka3bIbAeT Ha BaXkHyIO INHOpMaIIO

3anpezaetcnpimehene npnbopa liuzamn, noJIb3yUOUMNCSMeDNIHCKIMNIMPINAHTaTAMN (haprimep,kapdnoctmnylantopom).BnpotnbHom cIyuae kauecTBO pa6oTbI npnbopa moKet yXuDunTbcra.

i Cm. INCTpykuni no npimehenio

HeIb3a yTuIN3HPOBaTb (3JeKTPo-)npnbop BMeCTe c 6bITOBblM MycOpOM

MapknipobKa dIyIeNTnΦnkaCn yNaKOBOnHO MaTePnAna.A = 6yKBENHoe o6o3NaChEne MaTePnAna, B = YIcNoBoe o6o3NaChEne MaTePnAna: 1-7 = IOnImepbl, 20-22 = 6ymara n KapToH

MapknipobKa CE DaHHe OI3DeIe COOTBeTCTByET Tpe6oBaHnYm IeIcCTByOuXeBpOeNcknx N HaIIOHaJIbHbIX DInpeKTIB.

CeptnΦnkat COOTBeTCTBnY BeNIko6pntAHn

IpoIyKzIg IpoIa IpoIbePXDedHne COOTBeTCTBnY Tpe6oBaHnYm TexHnuecknx peRlAmENTOB EA3C.

I3rTOBvItelb

CNIMITE yNAKOBky C I3deIyN yTuIN3HpyIte ee B COOTBeTCTBn C MeCTHbIMN PpeDNICAHnYMi.

CIMBOJ IMnopTepa

3. ПЕДОCTEPEXKEHЯ И УКАЗHAнЯ ПО ТЕХИКЕ БЕЗПАСHOCTN

PPEyPExKdEHNIE

IcnoJb3ObaHne no Ha3HaueHnIO

Pnp6op npedHa3HaeH NCKIOHTeBHO DnB B3BeWbAHn HIOeN 3aIncn Baunx IINhBIX ΦntHeC-napametPOB. Pnp6op npedHa 3haeH NCKIOHTeBHO DnAocTHOrO NOB3OBaHn; 3anpeaaTeer OcnoB3OBaHne B MeuHcknx IN KOMMepuecknx cenax. Vc- noB3ynte np6op TOIbKO B Tex cenAx, dIg KOtOpbIX OH 6bl pa3pa60TaH, nToIbKO TeM CnOCoBOM, KOtOpbI ONiCaH B daHHOn IHCTpyKUIM No npimMeHEnIO.

I P E D U N P E X K D E H N E

3aPpeaaetcnpmeHne np6opa JnUaMn, NOb3yIOUIMNcR MeuHCKMN IMIJaHTaTM (HaPmep, KapnoCTMnyJrTopOM). B npOTNBOM clyuae kaueCTBO paOToI np6opa moKet yxduNTbcra.
He nCnoB3yIe npu6op BO BpeMg 6epemH - HOCTn.
- OnachocTb onpOKnDbBaHnHa! HnKOrJa He yctaHaBnBaTe Becbl Ha HepoBHyIO NobepxHocTb (cm. pnc. A). He BcTaBaTe Ha caMbI KpaBecOB C OdHoi CTOpOHbI (cm. pnc. B).
- OnachocTb nockoJb3HyTbcr! He BcTaBaIte Ha Becbl BnaXHbIMN Horamu (cm. pnc. B). He BcTaBaIte Ha Becbl, ecn IN NOBepx-HocTb BnaXHra. He BcTaBaIte Ha Becbl B HOCKax.
- PEmoHThIe pa60Tb IOnJXHbI npOImBODITbc TOnbKO cepBcHON CnyKbO Beurer nn ABTopn3OBaHHbIMN ToproBbIMN npedCTaBnteMn. Kateropueckn 3anpeuaetc caMoCToTeJIbHOE BCKpbITne BECOB.

Yka3aHnno o6paueHnO c 6aTapeKamn

PPEyPExKdEHNIE

Bcerda npabunbHo yctahabnBaIte 6aTapeKc yHETOM noJrphoctn (+ / - ) .Cneinte 3a TEM, YTO6bI 6aTapeKu 6blnn uCTbIMN cyxMn; 3auuuaaIte INX OT BO3deIcTBnB BoDbl. Bcerda BBbupaIte 6aTapeKn noXOJaero Tuna.
- He donyckaTte kopoTKoro 3ambikaHn8 6aTaapeek n KOHTaKTOB oTceka dny 6aTaapeek.
Kateropueckn 3aepaeTcraJxKaTb, npHnynteBHO pa3pJxKaTb, HArpeBaTb, pa36uPaTb, deOpMnpoBaTb, repMeTu3npoBaTb nn MoDnΦuNpuPoBaTb 6aTaapeKn.
- Kateropueckn 3anpeuaetcra CBapnBaTb n 3anaaBaTb 6atapeKn.
- Kateropnueckn 3anpeaetcnaCnoNb3oBaTb BHytpn np6opa 6atapeKn pa3hblx npon3BODnteJe, pa3HOJ emKOCTn (HOBbie n CNOB3OBAHHie), pa3HOrO pa3Mepa n Tnla.
- OnachocbB3pbBa! HecobJIOeHne cJeIyUOx yKa3AHm MOKeT npIBeCTN K TpaBMam NIN K NepeIpeBy, BbTEKaHIO, BbIpyCKy BO3dyxa, NOLOMKe, B3pbBy NIN BO3ROPaHIO.
- Ecni 6aTapeiKa noteKna, ONUCTne OTcek dIy 6aTapeek cyxoi canfetko, HaneB 3aunTHbIe nepuATkn.
- Pnp nonapaHnn KndKocTn 36aTaapeKn Ha Koxy nIIN B rna3a npomOnTe nopaxKeHHb yactOK 60JIbUIM KOINHeCTBOM BOdbn O6paTntecb K BpaCy.
- Onachoctb nporlatabHn! XpaHnte 6aTapeKn B HeNoctyn HOM dIra DeTeMecTe. Ppi nporlaTbAHHH HeMeJeHHo o6paTtEcB K BpaCy. PporlaTbAHHe MOKe TnpuBeCTN K TReKeJIbIM BHyTpEHnM OXkOram n JeTaIbHomy NCxOy.
He no3B0JrTe DeTm 3aMeHrTB 6aTapeKn 6e3 npncMoTpa B3pocJIbIX.

BHUMAHNE

XpaHnTe 6aTapeKn BdAnl OT MeTaJIuYeCKnx PpeMToB, BXoPoIPOBETPnBaEMbIX,CyXNX IN POxNaHbIX NOMEeHnIX.
He noDBeprAte 6aTapeKn BO3dEInCTBnIO npRmblx COHHeHbIX nyue nn DoXJ.
- Bo3deiCTBnE Ha 6aTapeKn Ype3BbUaHNo BbICOKo Temnpa - TpybI NIN Ype3BbUaHNO HN3KOTo DaBHeHn BO3DyXa MOKeT Bbl- 3BaTb B3pBIB NIN yTeKy JERKOBOCnJaMeHraOuXcR XnIKOCTe n Ira3OB.
- Ecnn npn6op dntteIbHoe Bpem He nCnoJIb3yeTc, n3BleKeITe n3 Hero 6atapeKn. Ppekpatnte nCnoJIb3ObaHne n3dEInra, ecnn KpbIwka oTcKa dna 6atapeek 6oJIbWe He 3aKpbIbAeTc DaONKHbIM o6pa3OM.
Pa3pKaeHHbe 6aTapeKn CneNyET HeMeIeHNO yTuIN3uPoBaTb HndJexKaUIM o6pa3oM. He 6pocain Te 6aTapeKn B OOrH bnn B Tropayu ney.

CnCTemHbIe yBeDMJHeHna

Becb MoIyT nCNoJIb3OBAbC8 JIuCaMn B Bo3paCTe He MnaJue 10 let.

Becb MoxHIO nCnOJIb3OBAbT TOJIbKO C npNUJIOKeHHEM beurer HealthManager Pro u yehTHo 3aIncbU B peXm Me OHnaH.

4. ONICAHNE IPIPUEOPA

Co0TBeTCTByIOUneYepeTeKn npedctabIeHbHa cTp.3.

DnarHOCHTNueCKne Becbl

1 PykorTaKa
2 ΘneKtpoDbI Ha pykoTke
3 DnCnnnei
HOxKhIe 3JIeKToDbI C NOKpbITnEM n3 OKCnJa NHnra n OIOBA (ITO)
5 KaBeJIb pyKoRtKN
6 Otcek dIy 6aTaapeek

Ducnien

7 PezylbTaN3MepeHn
8 EINHnua n3MepeHnna
9 Yactota cepdeHbIX cokpaueHHIyIbc B yd/MIN
10 DoJIyMbIeHNoMaccbI B%
11 DJIaTKeHbOeXnKoCTN B%
12ДолЯжиробий масьв % (BF = Bodyfat)
13 INHdeK Maccbi Tena
14 Hen3BecThbI nOlb3ObaTeNb npn 3MepeHm
15 Becbi noKIOHcHb K WIFI
16 Perepedaa daHHbix m3pehenia
17 BeCbI noDkJIIOUeHbI uepe3 BluTooth
18 BeCbI noJokKluOeHb K oBnaKy/cepBepy

5. ПРIMMEHEHNE

5.1 PpOBeHne npOceDypbl

UJAR 1. YcTaHOBka 6aTapeek

BCTaBbTe TPN 6aTapeuKn 1,5 B AAA u3 KOMPJIeKTA NOCTaBKn BOTCEK DIA 6aTapeek 6Ha HIXKHe CTOPOHe BEcoB. PpN yCTaHOBKe Co6JIoDai Te npaBnblHyIO NIIpHocTb (+/-) 6aTapeek.

LJAR 2. Bb6op MecTa yCTaHOBKn BECOB

• NocTaBbTe BeCbI Ha POBHyIO IN TBepDyIO NOBepxHOCb. He cTaBbTe BeCbI Ha KOBeP!

UJAR 3. Co3dHne noIb3OBeTEn BecOB B npInloXeHN beurer HealthManager Pro c yueTHoN 3aINcBIO BpeKIMe OHnaH

PpnooxeHne beurer HealthManager Pro Tpe6yeTcI nI nepeaun pe3yIbTaTOB u3MepeHn I OTo6paXeHn DOONHHTeNbHbIX 3HaueHn.

BecamM MoryT noIb30BaTbc8 noIb30BaTeJe, HapnMpEep, dpyrne yIeHb BaWee cEmBu. C nOmoUBo npInoXeHna beurer HealthManager Pro Bbl MoKeTe yIO6HO HaCTpaNBAbToDJIbHbIE yUeTHbIe 3aNNcN noIb30BaTeJe npInoXeHna COOTBeTCTByIOuNe IM yUeTHbIe 3aNNcN noIb30BaTeJe BEcoB Ha CBOe mCapTfoHe. IJra 3TOrO BblONHIne CneIyUOune DeIcTBnR.

• 3a pyu3nte 6ecnnaTHe o npnoxehne beurer HealthManager Pro B Apple App Store (iOS) nnu Google Play (AndroidTM).

IpehexoK npinloxkeHIO beurer HealthManagerPro

UAR4.HaayaoB3BeuBaHnA

AHaJIHTUeCKoe N3MepeHne MOxHO BbINOJHHTb, TOJbKO BCTAB Ha Becbi 6OcBIMN HORAMN McNOJb3y pyKoTky [1]. B npOTNBOM Cnyae BbINOJHReTCr TOJbKO N3MepeHne BEca, KOTOpOE npNCBaUNBaETcR ODHOMY NOJb3OBaTEIIO BECOB.

1.BCTaHbTe Ha BeCbI 6OcNkOM.CnOKoHHO CTOnTE Ha HOXhBIX 3JIeKtPOdax4paBHOMepHo paCppeJeINB Bec Ha oBe Horn. BeCbI BKJIOuHaTcA bTOMaTHueckn.

2.Деркnte pyKoTky 1Ha ypoBHe 6eep, BbIyHyB pyKn Bnepei.

1. NomeCTIte 60JIbUne nJIbUcIbHa IBa OBaJIbHbIX 3JIeKTKpOJa Ha pyKOJrTKe 2.OCTaJIbHbIMn NAJIbUcAMN OxbaTInTe 3JIeKTKpODb C O6paTHoI CTOpOHb.IHE CxKImaTe pyKn B KyNaKN, O6XbATbIBaR pyKOrTkY1.

1. Ha dinncnnee 3 NOBNTC Bc Tena. Nocne 3Toro ABTomaTneckn DOJIKeH NOBNTBCPacNo3HaHHbI NIOb3OBATeJIb BECOB (HaPnMep, U: 1 nnoNob3OBATeJI BECOB 1).

• EcInn aBtOMaTnueeCKoe paCnO3HaBaHne noIb- 3OBaTeIeB BecOB He cpa6oTaIIO, Bbl moKeTe Ha3Haunr h3MepeHne B npuIoXeHn beurer HealthManagerPro.

• Iocne 3toro 6ydyt nocleIOBaTeIbHO OTO6paKaTbcra HnKeYka 3aHHble 3HaueHn.

Bo3MOXKbI TEXHnuecknE n3MeHeHHa.

* DaHHeoe n3eJInne COOTBeTCTBye Tpe6oBaHnM DeiCTBHyOuNX EBPOneCKnx DnpeKTNB.

HactoIIM NoTBePkaem, YTO DaHHeoe 3deJine COOTBeTCTByET Tpe6OBaHnM EBpOeNckO DNPeKtNBbI RED 2014/53/EU.

C DeKlapauei o COOTBeTCTBn DnpeKtNBam EC nlaDaHHoro yCTpOInCTBa MoXHO O3HaKOMITbcra, IpeEJa No CcbJIke: https://www.beurer.com/conformity

10. ΓΑΡΑΤΗ

Boeene noopobHyu HOpmauO rapaHTn uycIOBnx rapaHTn CM. B npuaeraemOM rapaHTHOM TaHOe.

3. WAARSCHUWINGEN EN VEILIGHEIDSRICHTLIJNEN

WAARSCHUWING

4. BESCHRIJVING VAN HET APPARAAT

TRINN 4: Start veiing

United Kingdom Conformity Assessed Mark

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Beurer GmbH is under license. Other trademarks and trade names are those of their respective owners.

Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries.

Google Play and the Google Play logo are trademarks of Google LLC.

Android is a trademark of Google LLC.

BEURER UK Ltd.

Suite 16, Stonecross Place, Stonecross Lane North, WA3 2SH

Lowton,

United Kingdom

Beurer GmbH • Söflinger Str. 218 • 89077 Ulm, Germany • www.beurer.com

www.beurer-healthguide.com • www.beurer-gesundheitsratgeber.com
