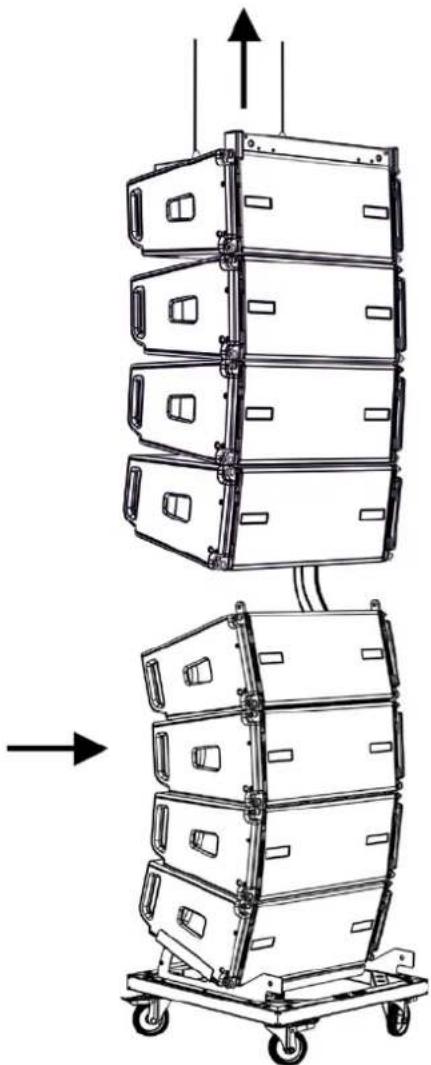

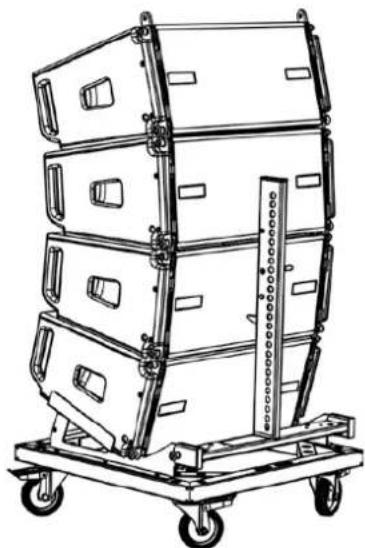

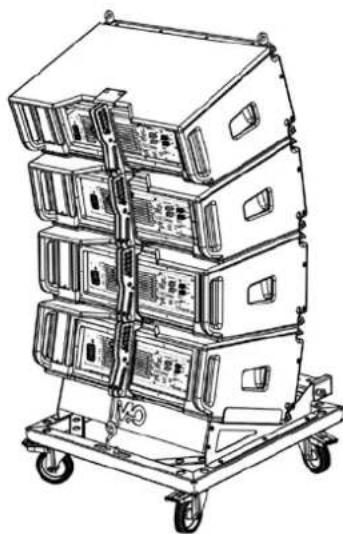

INSTALLAZIONE FLOWN (ESEMPIO DI 1 ARRAY CON 8 MODULI)

Line drawing of a multi-tiered industrial cart with wheels and structural brackets (no text or symbols)

Line drawing of a multi-tiered storage cart with a handrail, no text or symbols present

Line drawing of a multi-tiered industrial cart loaded with stacked equipment (no text or symbols visible)

VIO-L208 Cod. 420120268 REV. 1.1

Line drawing of a multi-tiered industrial cart with a support structure (no text or symbols)

VIO-L208

Technical line drawing of a multi-tiered server rack with visible wiring and components (no text or labels)

Technical line drawing of a multi-tiered mechanical device with wheels and mounting brackets, showing structural assembly (no text or symbols)

Cod. 420120268 REV. 1.1

Technical diagram showing assembly of stacked equipment with labeled components and directional arrows indicating assembly steps.

VIO-L208 Cod. 420120268 REV. 1.1

Technical line drawing of a multi-tiered storage or rack system with mounting holes and structural supports (no text or symbols)

Technical line drawing of a multi-tiered industrial or electronic device housing with mounting brackets and ventilation slots (no text or symbols)

6. RISOLUZIONE DEI PROBLEMI

Simple line drawing of a laptop connected to a USB cable with a USB symbol (no text or labels)

PRODUCT OVERVIEW.... 34

USER REFERENCE 34

MECHANICAL AND ACOUSTICAL FEATURES.... 35

SIZE AND WEIGHT 35

ACOUSTICAL FEATURES.... 35

MECHANICS 36

ACCESSORIES 39

FEATURES OF THE AMPLIFIER AND CONTROL SECTIONS.... 40

INPUT, OUTPUT AND CONTROL SECTION 41

POWER SUPPLY UNIT SECTION 42

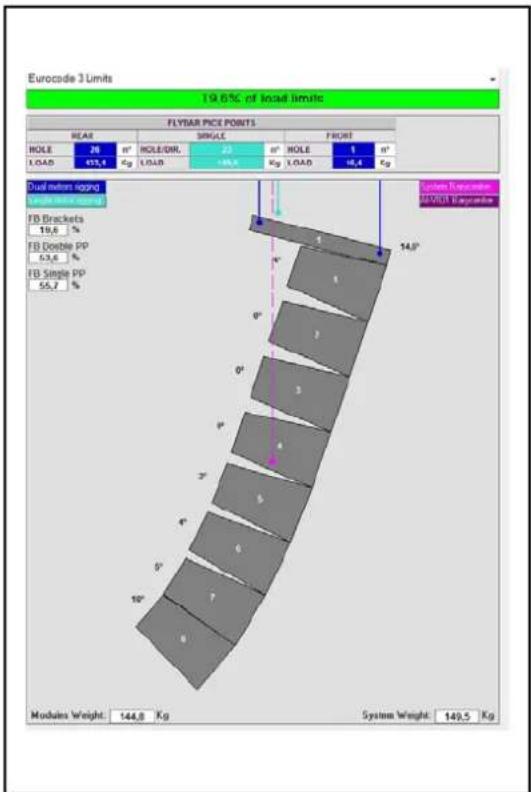

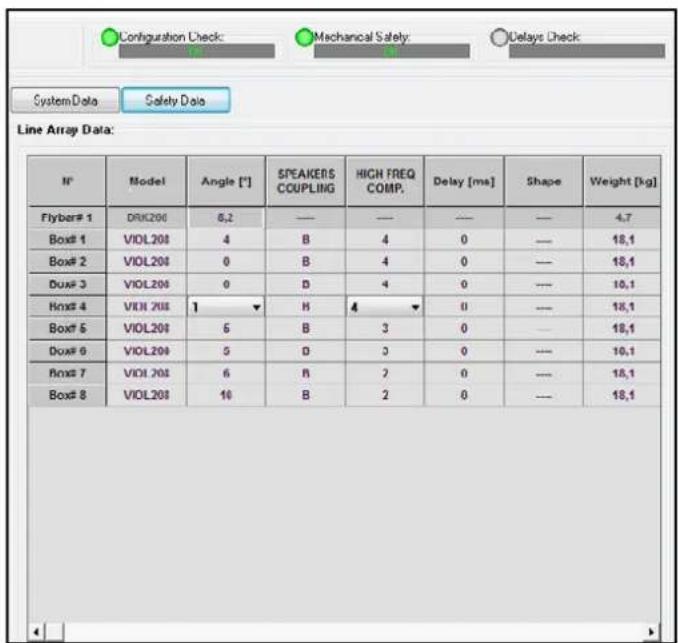

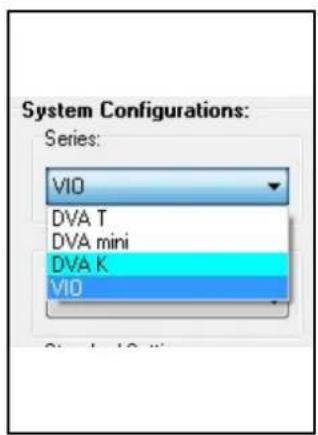

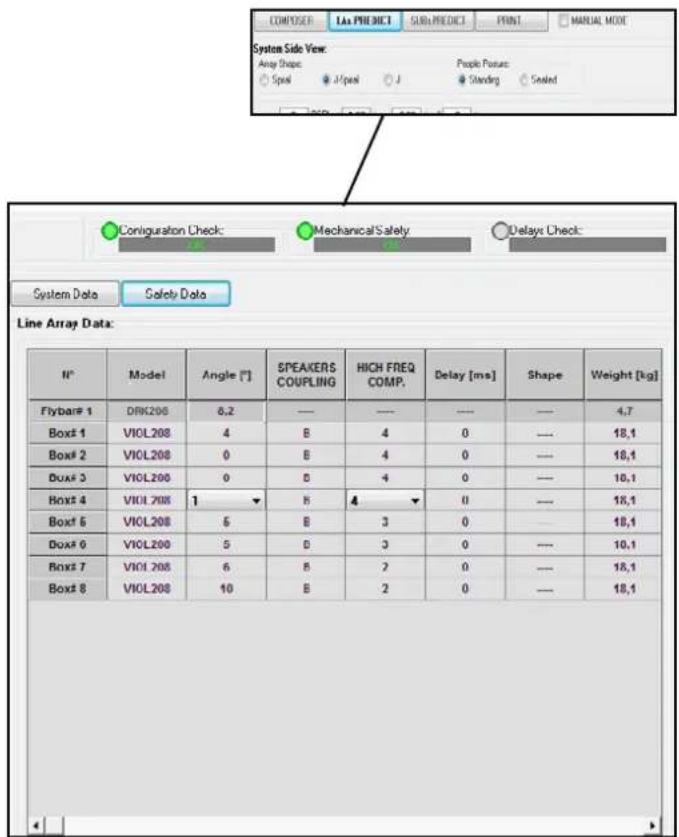

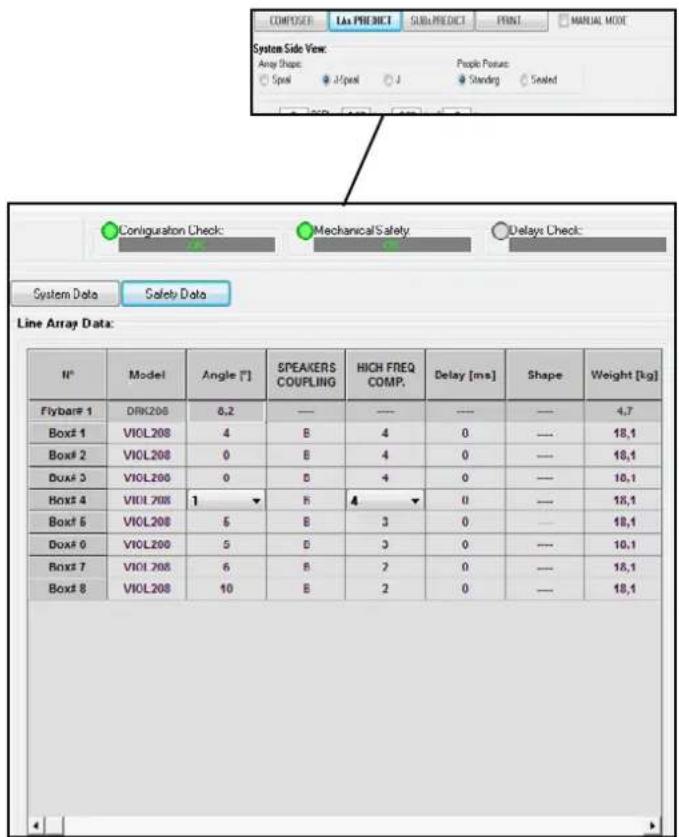

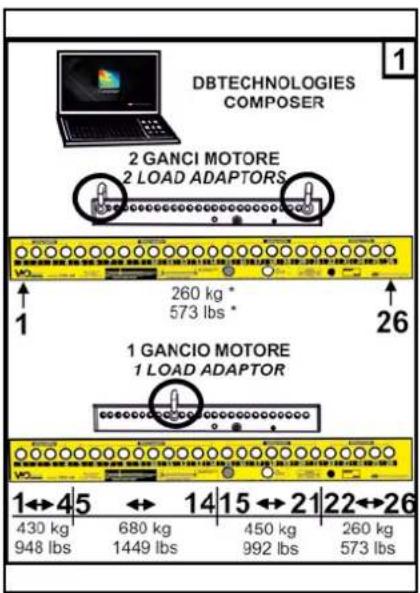

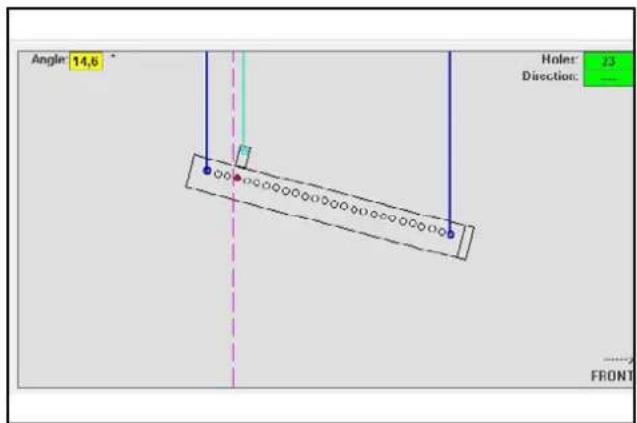

2. DBTECHNOLOGIES COMPOSER...... 43

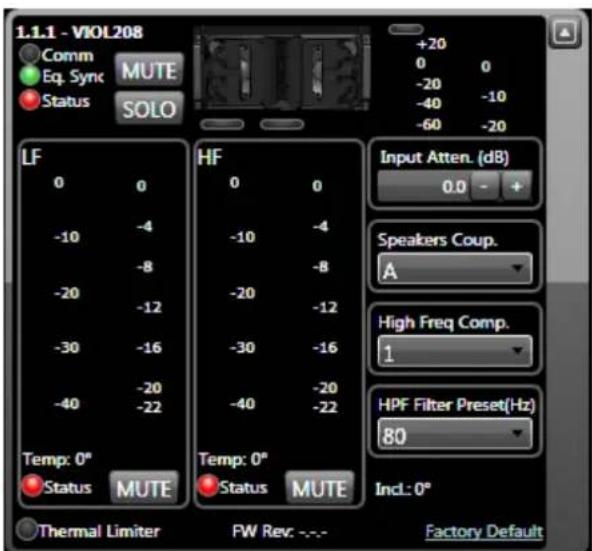

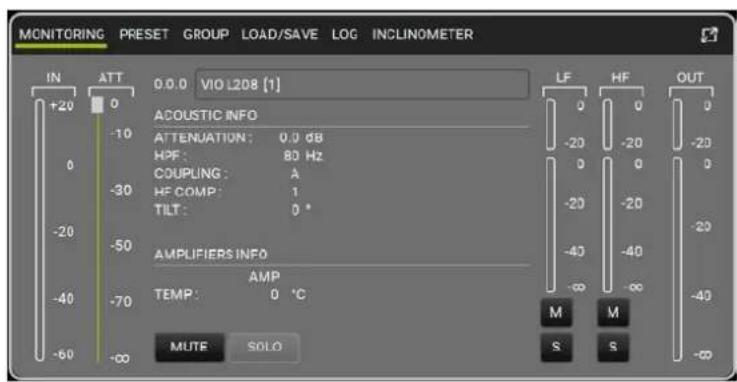

3. DSP PRESET PARAMETERS AND REMOTE CONTROL.... 47

4. CONNECTIONS.... 49

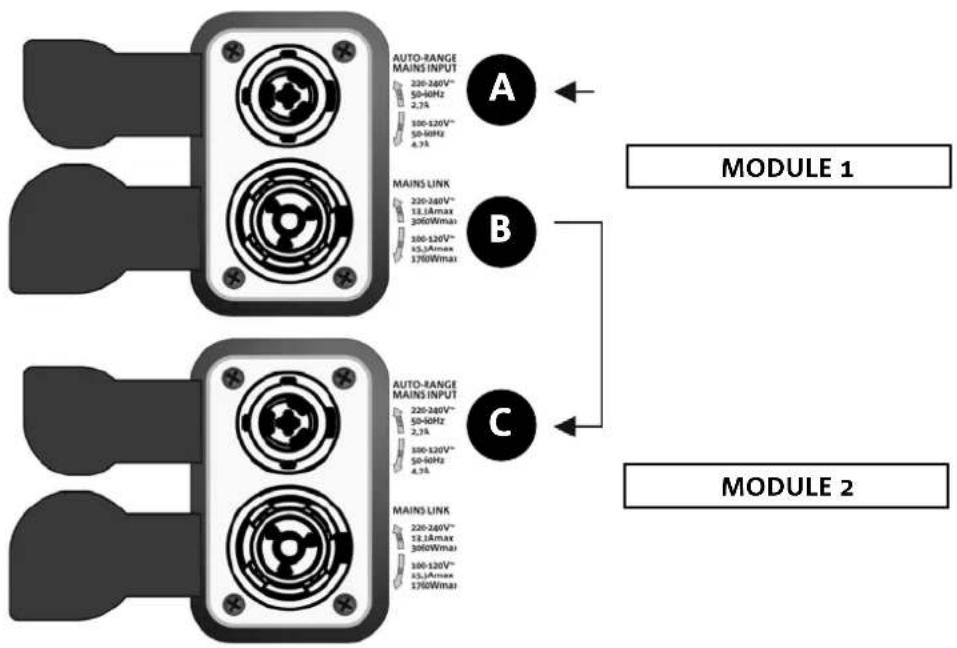

CONNECTION AND POWER DAISY CHAIN 49

AUDIO AND RDNET SIGNAL CONNECTION AND DAISY CHAIN.... 50

5. INSTALLATION AND CONFIGURATION.... 52

PACKAGE CONTENTS.... 52

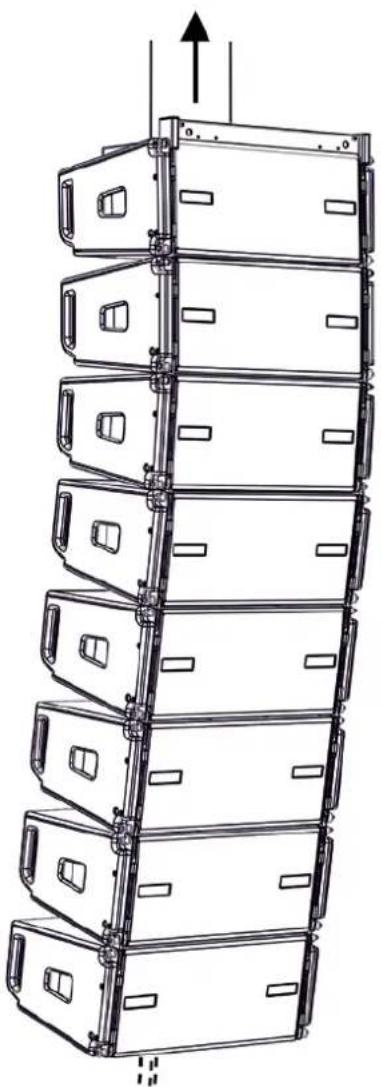

FLOWN INSTALLATION (EXAMPLE OF 1 ARRAY WITH 8 MODULES)....52

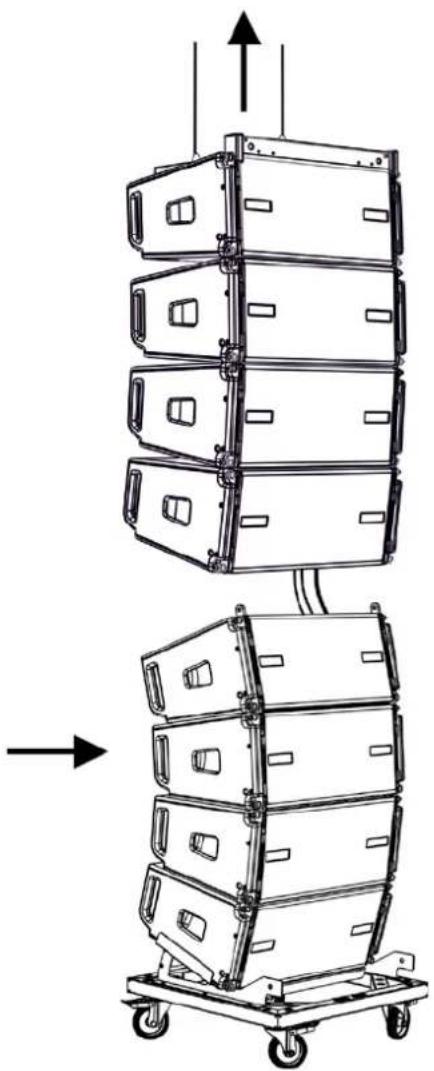

STACKED INSTALLATION.... 56

6. TROUBLESHOOTING 57

7. FIRMWARE UPDATES.... 58

8. SPECIFICATIONS 59

GENERAL 59

ACOUSTICAL SPECIFICATIONS.... 59

AMPLIFIER.... 59

PROCESSOR.... 60

USER INTERFACE 60

INPUTS AND OUTPUTS.... 60

POWER SUPPLY SPECIFICATIONS (ABSORPTION) 60

MECHANICAL SPECIFICATIONS 61

1. GENERAL INFORMATION

WELCOME!

Thanks for purchasing a product designed and developed in Italy by dBTechnologies!

This powerful and easy to assemble active line-array module is the result of years of experience in the field of sound systems. It makes use of optimized sound, electronic and material research solutions.

PRODUCT OVERVIEW

The VIO-L208 2-way active line-array module marks the start of a new era in the sound reinforcement industry for medium and large-sized indoor and outdoor live applications. The VIO family combines technical innovation and optimized design in a superbly sounding system, packed into a compact mechanical solution that is quick and easy to install. The key features are:

• acoustic design with optimized front panel, which smoothes frequency response for precise audio coverage
• wooden cabinet with a polyurea finish, to increase surface durability
• a 3-point integrated rigging system for quick assembly/disassembly
• a powerful (900 W RMS) and silent amplifier which needs no ventilation and allows reaching an SPL peak of 133.5 dB (at 1 m)
  • control entrusted to a powerful 56-bit DSP
• ADC Floating technology, developed for a perfect isolation from interference, noise or hums, of the audio input
  • power, audio and mains daisy chains for optimized wiring
• on-board RDnet control and predictive and remote management software (DBTECHNOLOGIES COMPOSER, EASE, EASE FOCUS 3, DBTECHNOLOGIES NETWORK, AURORA NET)

USER REFERENCE

To make the most of your VIO amplifier, we recommend that you:

• read the quick start user manual included in the package and this user manual thoroughly and keep this manual during the whole life of the product.
• Register your product at http://www.dbtechnologies.com under "SUPPORT".
• keep proof of purchase and WARRANTY (User manual "section 2").

VIO-L208

Cod. 420120268 REV. 1.1

MECHANICAL AND ACOUSTICAL FEATURES

SIZE AND WEIGHT

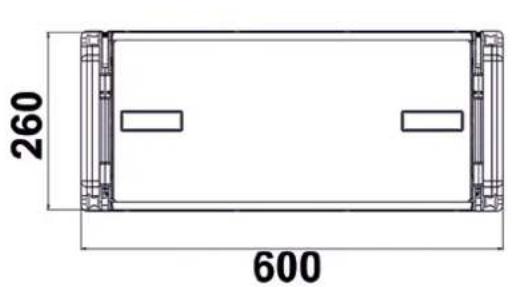

The VIO series has been designed with particular attention to the optimization of weight and size. The wooden cabinet, with a polyurea finishing, weighs 18.8 kg. The dimensions are: 600 mm (L), 260 mm (H), 390 mm (W).

260 600

Technical line drawing of a mechanical component with no visible text or symbols

ACOUSTICAL FEATURES

The acoustic optimization is based on a careful choice of materials, shape and geometry of the wooden cabinet. Inside the module there are several measures to ensure accuracy in a very wide range of frequencies.

In particular, the 2 high quality 8" woofers with neodymium magnets and the 3" titanium compression driver (1/4" output), are optimized thanks to a front panel with phase corrector.

These details allow a perfect matching between the modules, thus allowing an optimal frequency response, both at a distance and in off-axis listening.

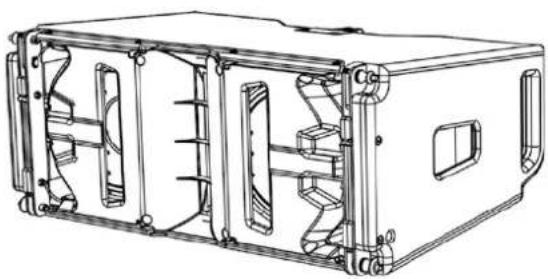

Technical line drawing of a mechanical enclosure or enclosure frame with internal compartments and mounting holes (no text or symbols)

MECHANICS

1 2 3

Technical diagram of an electronic device with numbered components labeled 4, 5, 6, 7, and 8.

The module ergonomics and the quick assembly in line arrays are guaranteed by:

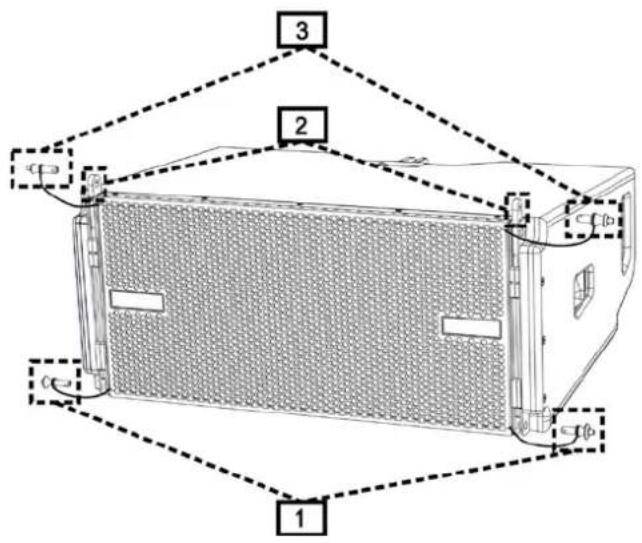

FRONT SIDE

1) Lower fastening system for connecting other modules or the TF-VIO1/AF/VIO1/DSA-VIOL208 frame (in flown/stacked configuration depending on the accessory).
2) Retractable brackets for fastening to an upper module (or to a DRK-208 fly-bar in flown configuration).
3) Pins for fastening the retractable brackets in open/closed position [2].

REAR SIDE

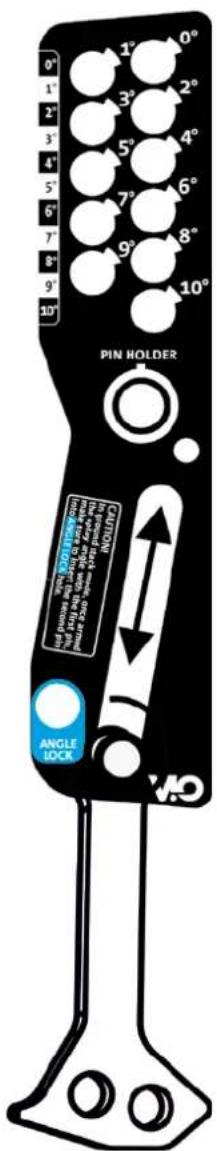

4) Central bracket. Equipped with graduated label for selecting the angle of the line-array module. Steps every 1° are possible (range: 0-10°).

5) Pin for fixing the angle of inclination: it is necessary to insert only 1 pin in flown configuration, 2 in stacked configuration. See the figures on page 9.

6) Movable arm with slot. Inserted in bracket [4], it mechanically fastens the unit at the selected angle by means of pins [5].

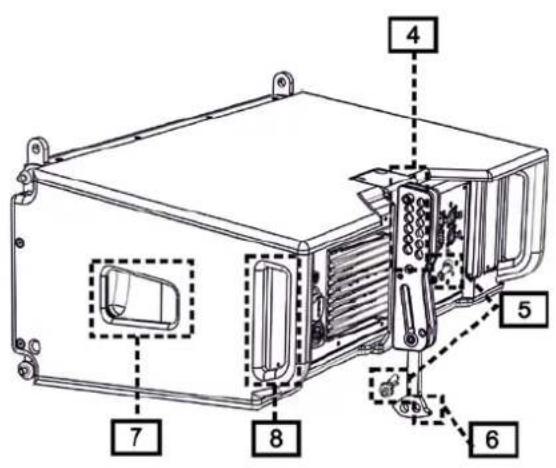

RH AND LH SIDES

7) Handle in a balanced position with respect to the weight of the cabinet.
8) Handle in the back position in the cabinet, facilitating the lifting of a module on the back, when the front side is fixed.

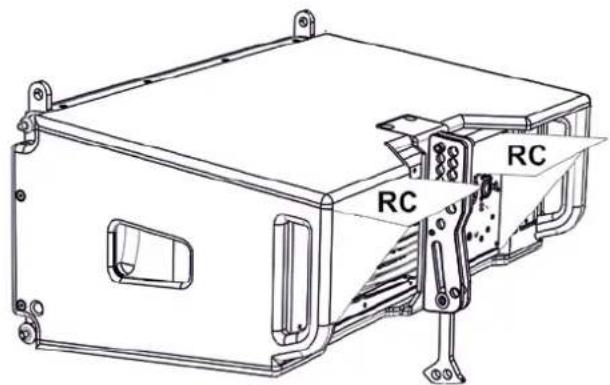

The VIO-L208 modules are also equipped with 2 rain covers on the rear side, in order to protect the amplifier from water and allow operation even in critical weather conditions. They will be no longer shown in the following drawings, for simplicity.

For further information regarding the fly-bar (see the ACCESSORIES section), please refer to the relevant manual.

RC RC

VIO-L208

Cod. 420120268 REV. 1.1

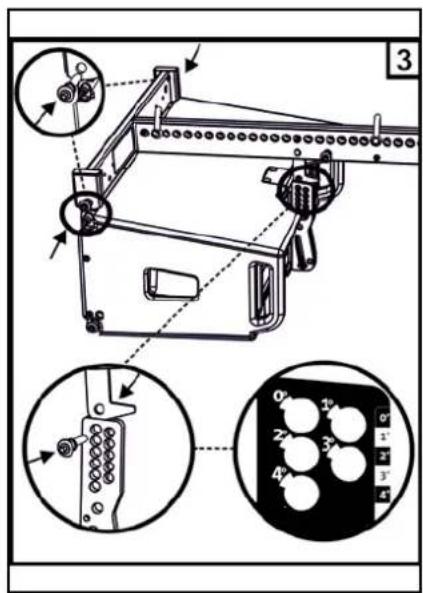

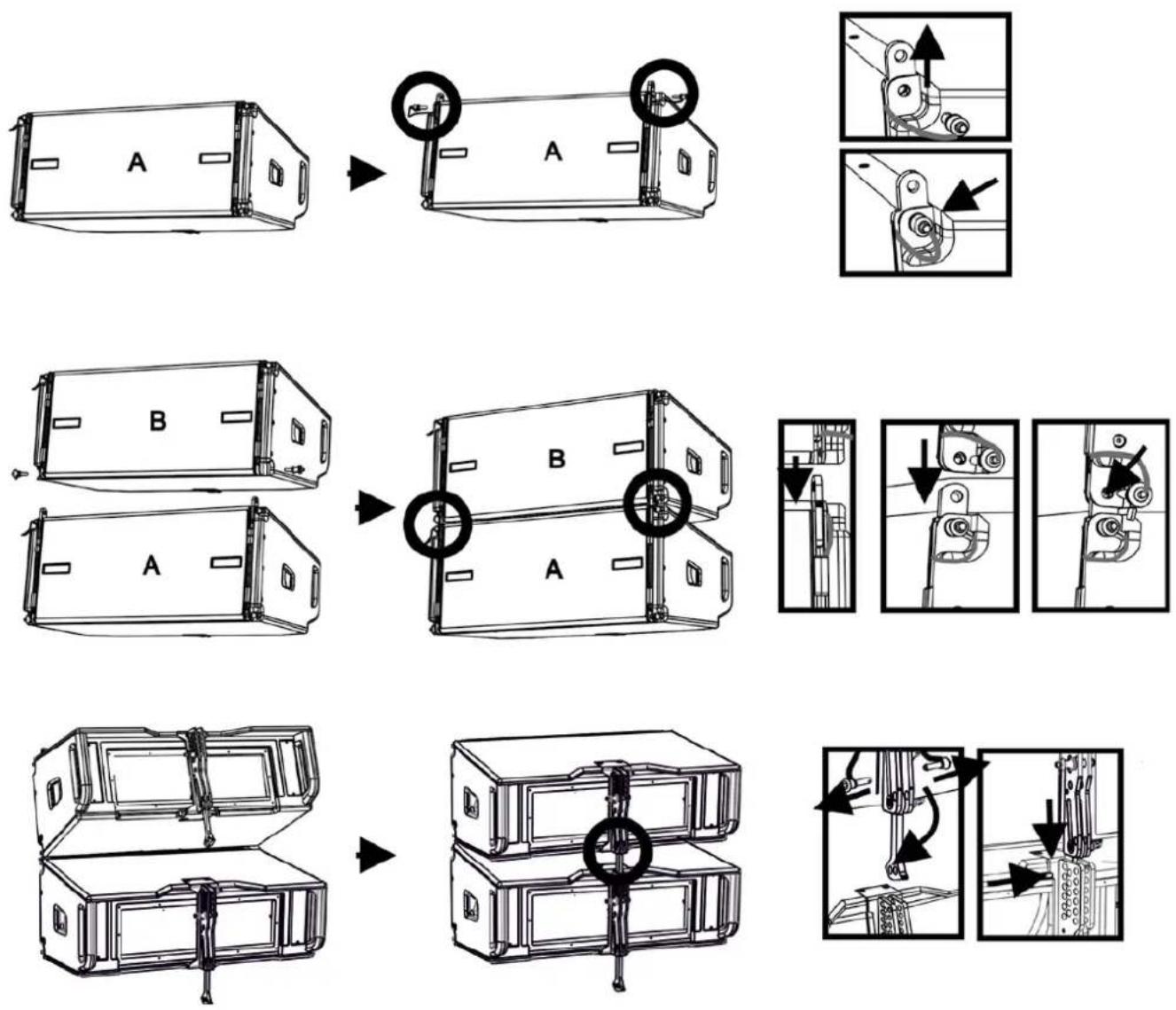

The assembly of the 2 modules A and B requires a few easy steps:

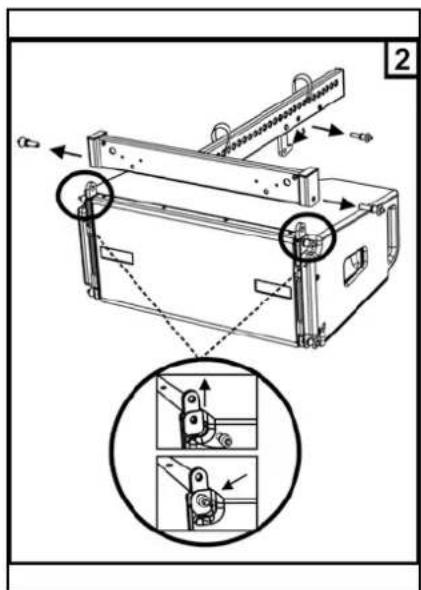

• On module A remove the pins [3], raise the retractable brackets [2] and fasten them to the new position using the pins [3].
• Remove the pins [1] from module B, place it on top of module A, inserting the brackets [2] as shown. Then fasten the front side of the two modules using the pins [1] of module B.
• At the back, remove the pins [5] from the rear brackets [4]. Then insert the movable arm [6] of module B into the bracket [4] of module A. The next page shows the details of the corner fixing on the back between the two modules.

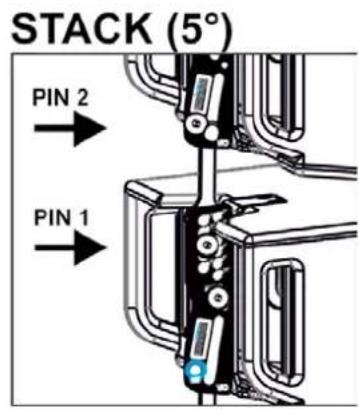

FLOWN (5°) PIN 1

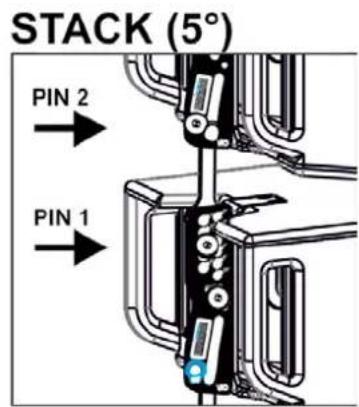

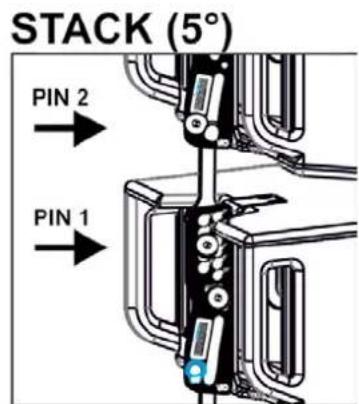

STACK (5°) PIN 2 PIN 1

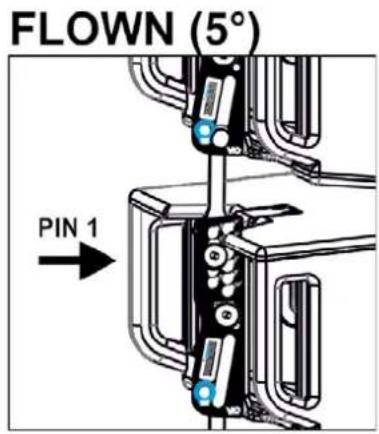

The example shows the case in which you want to set an angle of 5^ between 2 modules. Before carrying out any other work, make sure that the hole in the selected angle is aligned once the movable arm [6] has been inserted.

• FLOWN SCENARIO: insert only 1 pin in the hole corresponding to the angle chosen. The second pin can be housed in the "PIN HOLDER" hole. Note that this type of configuration during assembly allows you to change the angle without having to lift the upper module.
• STACKED SCENARIO: insert pin 1 in the hole of the chosen angle, lift module B until the movable arm [6] allows it. Now insert the second pin into the "ANGLE LOCK" position and release module B. In this way module B is completely blocked on the back thanks to the 2 pins.

Always make sure that all pins are fully inserted and locked at the end of assembly.

VIO-L208

Cod. 420120268 REV. 1.1

ACCESSORIES

The following accessories are provided as options for quick assembly:

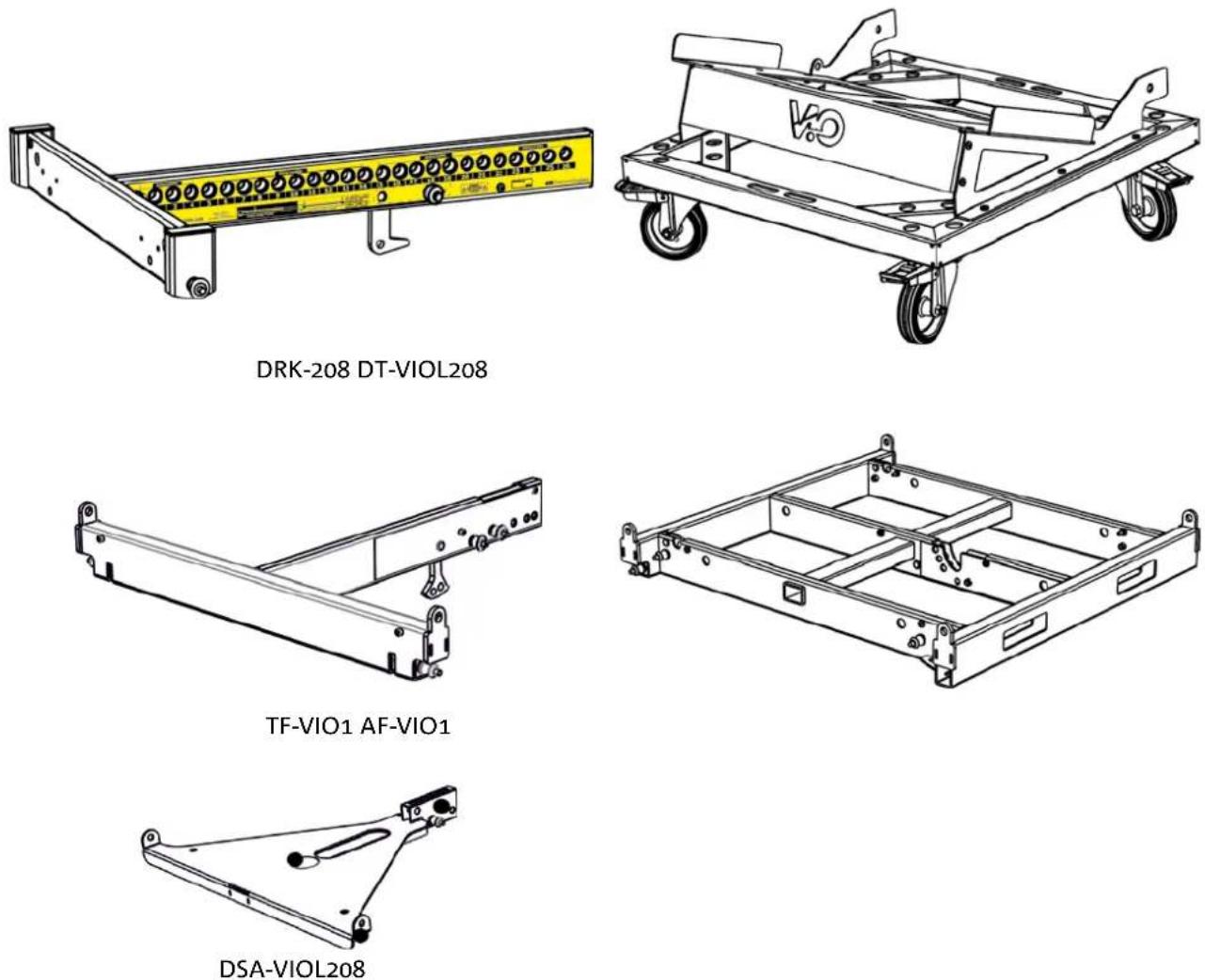

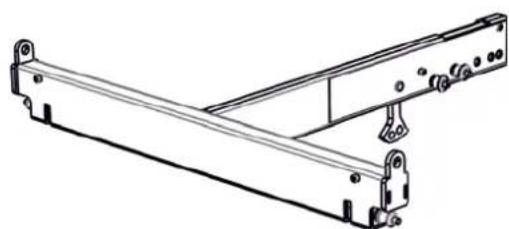

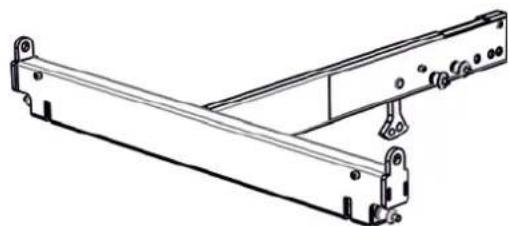

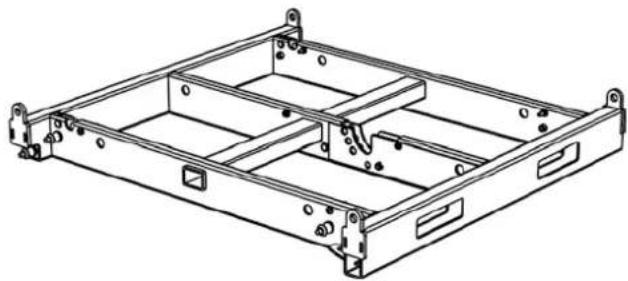

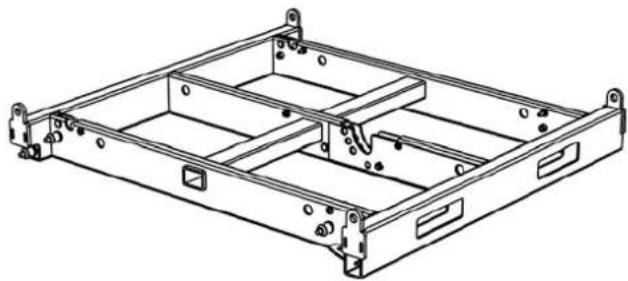

• DRK-208, fly-bar usable for flown and stack configurations of VIO-L208 module line arrays.

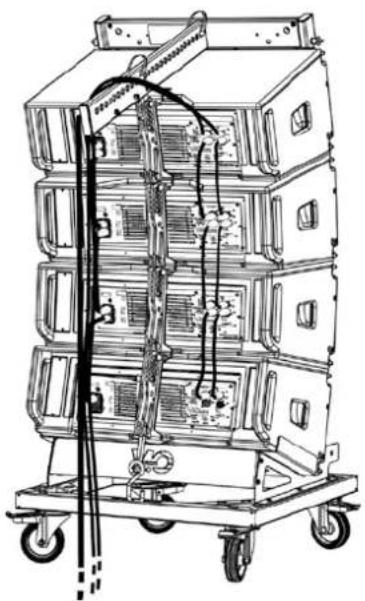

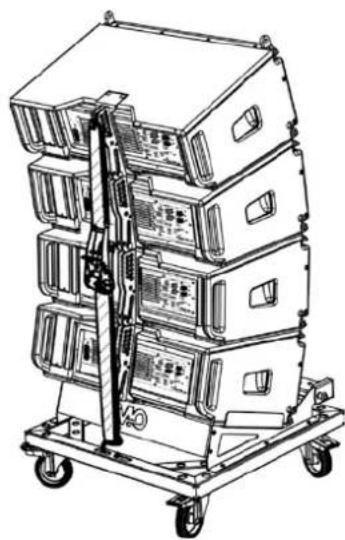

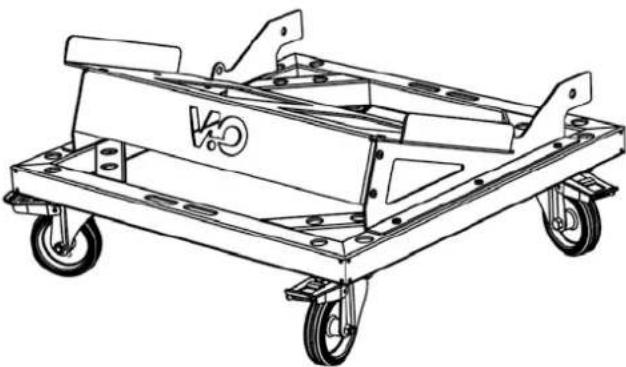

• DT-VIOL208, dolly for transporting up to 4 modules VIO-L208 and 1 fly-bar DRK-208. Fixing with the safety strap (included) is compulsory.

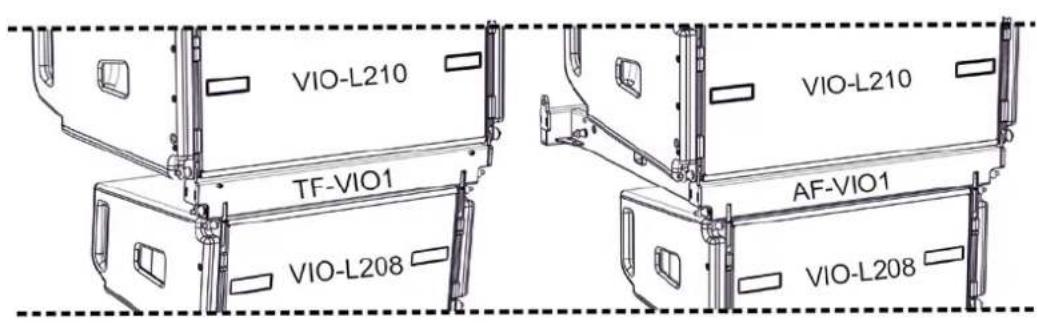

• TF-VIO1, an accessory that allows you to use the VIO-L208 in a flown configuration underneath the VIO-L210 modules.
• AF-VIO1, accessory for stack and flown configurations (see the relevant instructions for further information). It is important to note that this accessory also allows a line-array with the VIO-S118.

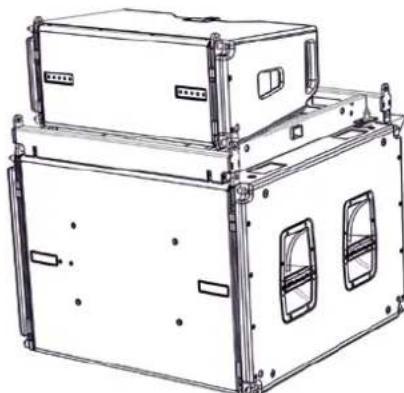

• DSA-VIOL208, accessory for stack configuration on sub or pole.

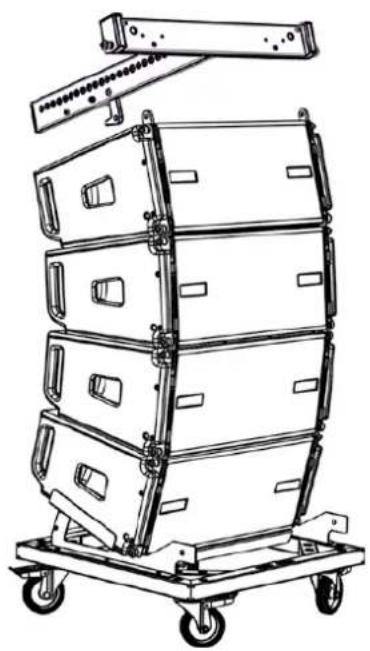

WARNING!

- Only use accessories and configurations described in this manual and operate according to the instructions in the manuals provided with the accessories.

Please read the corresponding manuals for more details.

For all updates on accessories, refer to the web site www.dbtechnologies.com

VIO-L208 Cod. 420120268 REV. 1.1

FEATURES OF THE AMPLIFIER AND CONTROL SECTIONS

The class D digital amplifier is the heart of the VIO-L208 modules. Allows you to deliver up to 900 W RMS, quietly and efficiently, not requiring a ventilation system. The control of the system is entrusted to a powerful DSP that makes it possible to immediately and quickly set up the line-array in any context of use.

Thanks to the possibility of a networking with RDNet, the parameters on the panel can be remotely controlled through the "DBTECHNOLOGIES NETWORK" software (refer to DSP PRESET PARAMETERS AND REMOTE CONTROL paragraph).

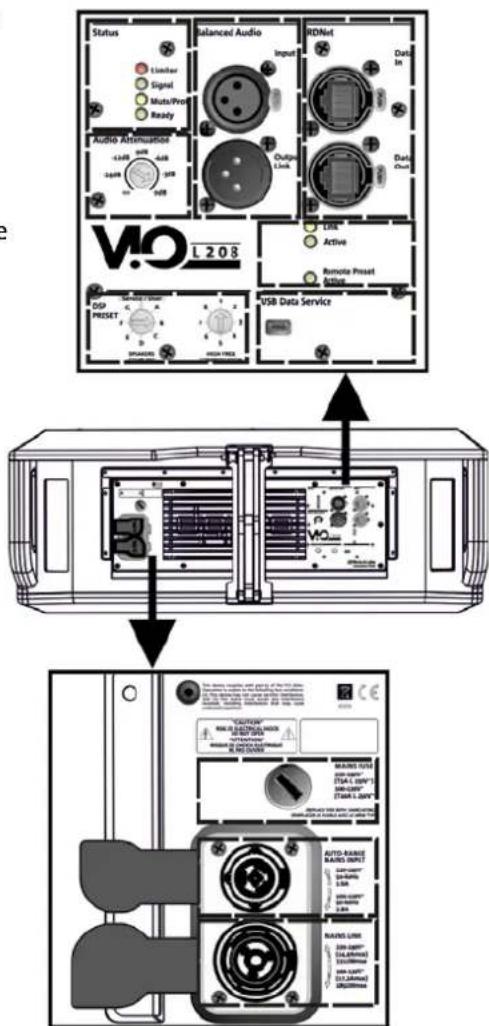

The DIGIPRO G3 panel is made up of:

• Input, Output and Control Section
• Power Supply Unit Section

WARNING!

• Do not obstruct the rear heat sinks of the amplifier. If the module heats up excessively, the audio volume is gradually reduced until the module is thermally stabilized. The audio is automatically restored when the normal operating temperature is reached.
• Never attempt to disassemble the amplifier in any way.
• In the event of a malfunction, remove power supply immediately by disconnecting the unit from the power mains and contact an authorized repair center.

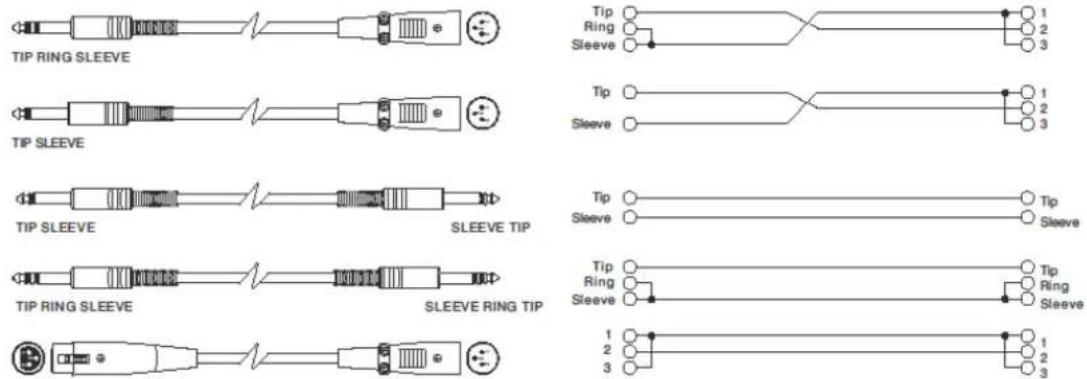

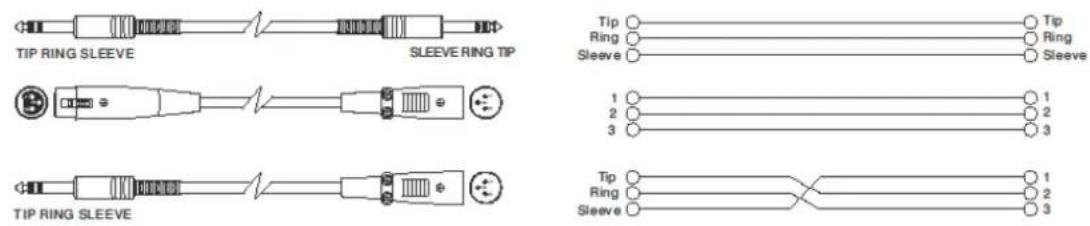

• Preferably use cables with original, high quality Neutrik® connectors. Periodically check their integrity.

• The fuse installed at the factory is rated for operation in the 220-240 V voltage range. If you need to operate the speaker in the 100-120 V range:

• Disconnect all connections, including the power supply connection.

• Wait 5 minutes.
• Replace the fuse with the fuse rated for the 100-120 V range, which is included in the package.

WARNING!

- Never remove the front grille protecting the product. To prevent the danger of electric shock, in case of accidental damage or replacement of the protection grille (to be carried out at the service), disconnect power supply immediately. Never connect mains power supply when the grille is removed.

Status Marker Signal Multi/Prof Ready Audio Attenuation 4.6dB 4.6B 3.4dB 3.4B Balanced Audio Input RDNet Data In Output Link Data Chart VIO L208 DSP PRESET SPINER HOLD PRESS VSB Data Service LINE Active Remote Preset Active R12 R12 R12 R12 R12 R12 R12 R12 R12 R12 R12 R12 R12 R12 R12 R12 R12 R12 R12 R12 R12 R12 R12 R12 R12 R14 R14 R14 R14 R14 R14 R14 R14 R14 R14 R14 R14 R14 R14 R14 R14 R14 R14 R14 R14 R14 R14 R14 R14 R14 R15 R15 R15 R15 R15 R15 R15 R15 R15 R15 R15 R15 R15 R15 R15 R15 R15 R15 R15 R15 R15 R15 R15 R15 R15 R16 R16 R16 R16 R16 R16 R16 R16 R16 R16 R16 R16 R16 R16 R16 R16 R16 R16 R16 R16 R16 R16

INPUT, OUTPUT AND CONTROL SECTION

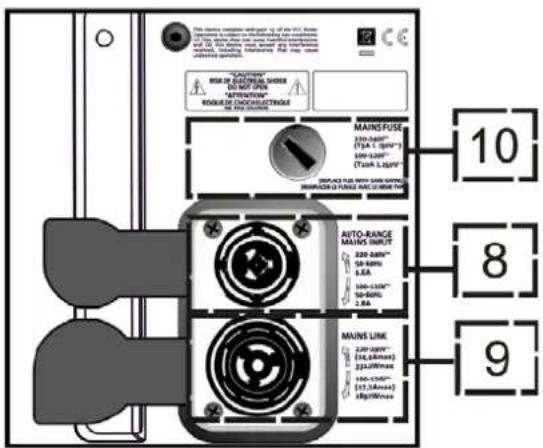

POWER SUPPLY UNIT SECTION

VIO-L208

Cod. 420120268 REV. 1.1

INPUT, OUTPUT AND CONTROL SECTION

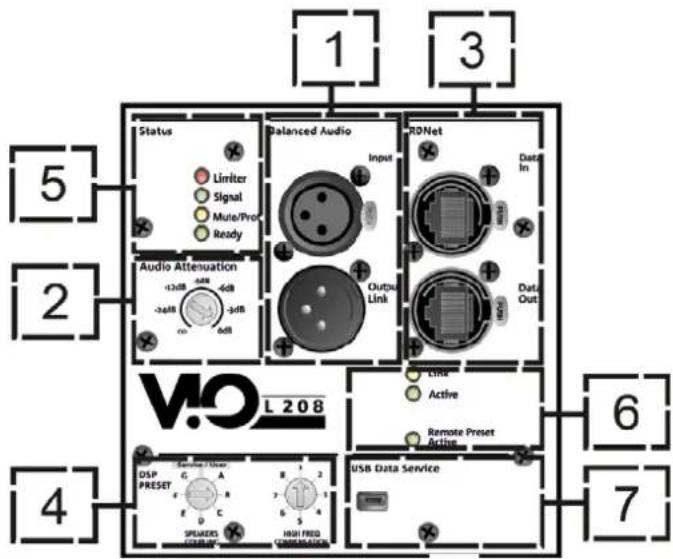

1 3 5 2 Audio Attenuation -1 dB -2 dB 6 dB Balanced Audio Input RDNet Data In Output Link Data Out VIO L 208 6 4 7 USB Data Service

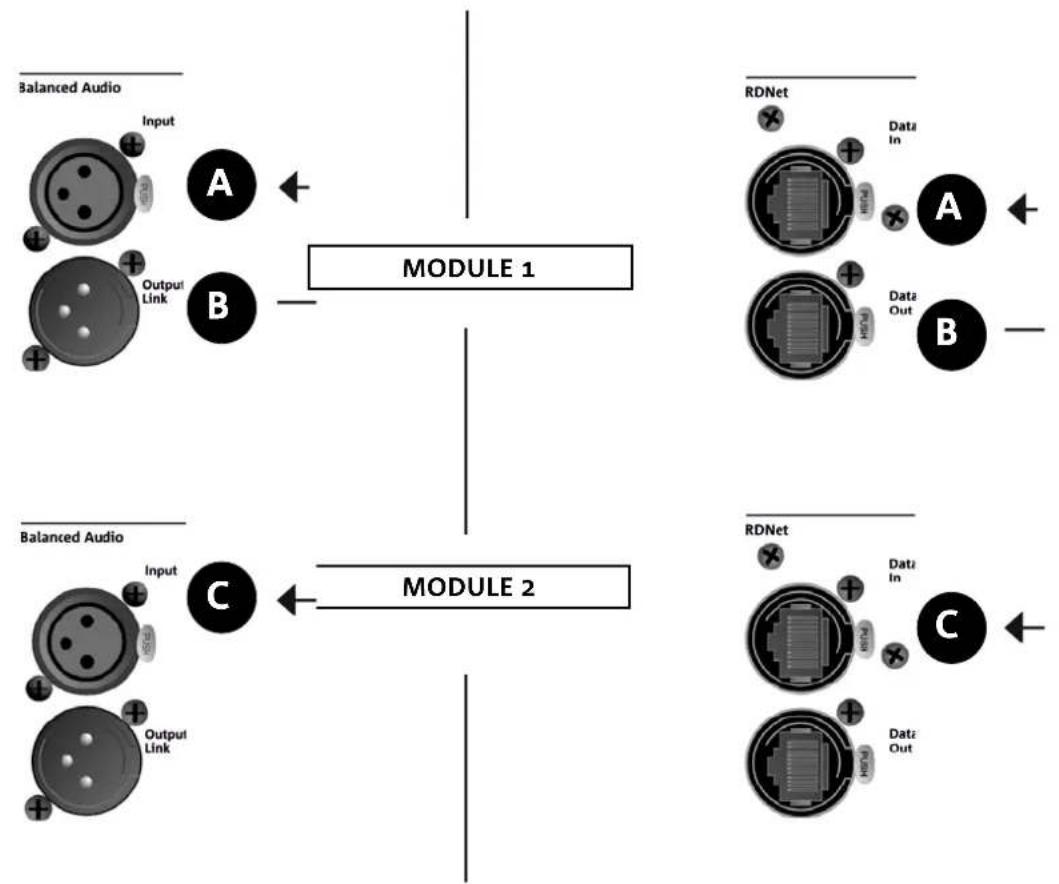

1. INPUT AND OUTPUT LINK ("Balanced audio")

Input and output compatible with balanced XLR cables.

In particular, "Input" is used to connect with the audio signal coming from the mixer or from another loudspeaker,

"Output Link" is used to link the signal to the other modules of the line-array, in daisy-chain configuration.

1. AUDIO ATTENUATION

Allows adjusting the attenuation of the module using the input volume.

Before installing the line array, set at 0 dB.

1. INPUT AND NETWORK CONNECTION LINK RDNet

Section compatible with network cables with etherCON/RJ45 connectors.

In particular, "Data in" must be connected to devices such as RDNet Control 2 or Control 8; "Data Out" is used to link the network to additional modules of the line array in daisy-chain configuration.

1. DSP PRESET

Rotary for the acoustic setup of the line array.

It is advisable to use these controls (or the same parameters remotely via RDNet connection) to optimize the acoustic behavior as a function of the number of modules and their aiming. An in-depth analysis on the use of "SPEAKER COUPLING" and "HIGH FREQUENCY COMPENSATION" can be found in the "DSP PRESET PARAMETERS AND REMOTE CONTROL" section.

1. STATUS LEDs

LEDs relating to module operation. A table in next page summarizes the meaning of the different LEDs.

1. CONTROL LEDs

LEDs relating to module network operation (RDNet).

In particular, if "Link" is on the RDNet network is active and has acknowledged the device, if "Active" is flashing there is data traffic, if "Remote Preset Active" is on all local control on the amplifier panel are by-passed by the RDNet remote control.

1. SERVICE DATA USB PORT

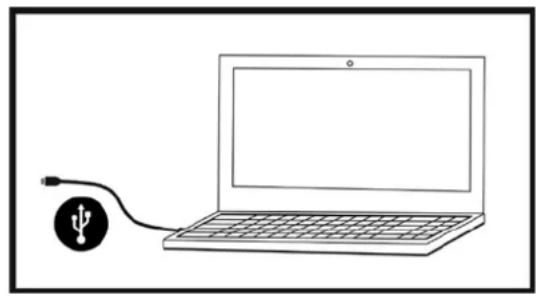

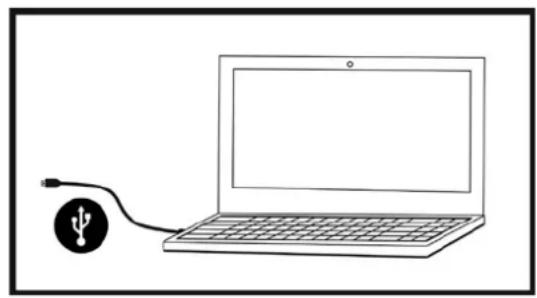

It is a mini-USB B port to be used only for product firmware update. For further information refer to "FIRMWARE UPDATE".

VIO-L208 Cod. 420120268 REV. 1.1

LED TYPE	TURNING THE SPEAKER ON OF THE SPEAKER	NORMAL OPERATION	GENERIC WARNING	SPEAKER SHUTS DOWN DUE TO MALFUNCTION
LIMITER OFF	TURNED OFF,	TURNS ON ONLY IN CASE OF TRIGGERING	TEMPORARY FLASHING	CONTINUOUS CYCLIC FLASHING
SIGNAL	OFF FLASHING	IN THE PRESENCE OF A SIGNAL	NORMAL SIGNAL OF INPUT AUDIO	OFF
MUTE/ PROT	ON FOR A FEW SECONDS	OFF TEMPORARY	FLASHING	STEADY ON
READY OFF	STEADY ON STEADY ON OFF

Table of the status LED signals

POWER SUPPLY UNIT SECTION

Electric shock control unit (12) of the UCL Series Power supply, power output, and voltage output. "AUTO-RANGE" MAINS INPUT 300-500V~ (5kA 1.8W) 500-1000V~ (Tank 1.2W) 100-1500V~ (5kA 1.8W) 150-2000V~ (16.4kWmax) (21.4kWmax) (27.3kWmax) (38pWmax) MAINS FUSE MAINS LINK MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS SWITCH MAINS Switch MAINS Switch MAINS Switch MAINS Switch MAINS Switch MAINS Switch MAINS Switch MAINS Switch MAINS Switch MAINS Switch MAINS Switch MAINS Switch MAINS Switch MAINS Switch MAINS Switch MAINS Switch MAINS Switch MAINS Switch MAINS Switch MAINS Switch

8. "MAINS INPUT" POWER CONNECTOR

Compatible with powerCON TRUE1® connector, the power supply features an auto-range function. Once the appropriate range has been defined and the fuse has been changed, if necessary, the system automatically recognizes the voltage within the range [100-120V\~] or [220-240V\~].

9. "MAINS LINK" POWER DAISY CHAIN

Compatible with powerCON TRUE1 ^® connector for power daisy chain to other modules.

To find the maximum number of modules that can be connected in a re-linked system, see the TECHNICAL SPECIFICATIONS section.

10. NETWORK FUSE

Housing for the network fuse.

VIO-L208

Cod. 420120268 REV. 1.1

2. DBTECHNOLOGIES COMPOSER

dBTechologies Composer software, available for free download from www.dbtechnologies.com, is a tool for the proper designing of the audio systems, recommended for the entire VIO series.

It offers a solution for the spaces to sonorize, indicating the angle of the line-array modules in order to achieve the desired coverage and the preset to use.

Besides being a predictive instrument, it also allows several manual adjustments to further improve the configuration based on possible audio measurements made on the field or on special needs.

It is also the effective tool to assess installation safety level. In fact, thanks to the simulation of the fly-bar's static behavior and an indication of the mechanical forces at play, it allows verifying how many modules should be installed before reaching an overload condition.

The main sections of dBTechnologies Composer are:

• COMPOSER - overview allowing to enter design start data
- LAs PREDICT - with the simulation, configuration and safety check of the line-arrays
- SUBs PREDICT - with the simulation, configuration and safety check of the subwoofers

This chapter describes some of the software's details relating to installation and safety, in particular for the FLOWN configuration of VIOL208 line arrays.

VIO-L208 Cod. 420120268 REV. 1.1

The LAs PREDICT section contains all the information necessary for the proper configuration, flown or stack, of a VIO system. To access it, you need to first enter the project's data, included in the Composer section.

The System Data sub-page provides the following suggestions: the angulation of the various modules, various parameters relating to the “DSP preset” section and the angulation of the DRK-208 fly-bar. This last angulation can be detected on the field with the use of a laser inclinometer, not included, the assembly of which is illustrated in the DRK-208 manual.

System Configurations: Series: VIO DVA T DVA mini DVA K VIO

VIO Typology: Flown Flown Ground Stacked System Height:

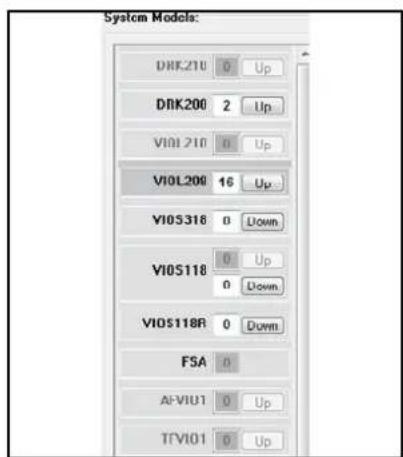

System Models: DRK210 0 Up DRK200 2 Up VI01 210 0 Up VI0L200 16 Up VI0S318 0 Down VI0S118 0 Up 0 Down VI0S118R 0 Down FSA 0 AI-VI01 0 Up TFV101 0 Up

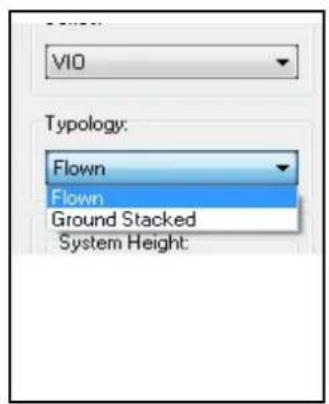

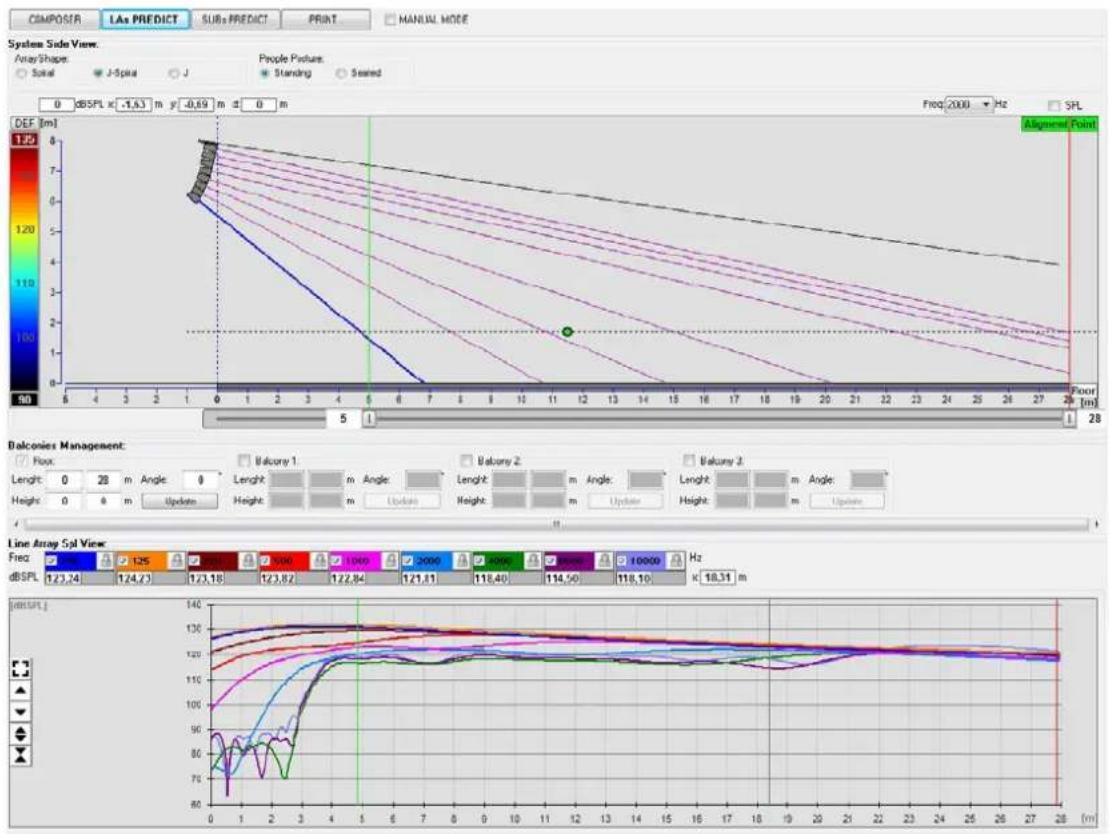

COMPUSER Lab PMI 30CT SUB-PREDICT PRINT MANUAL MODE System Side View: Array Shape: Spool J-Spool J People Features: Standing Sealed Configuration Check: Mechanical Safety Delay Check: System Data Safety Data Line Array Data: N° Model Angle [°] SPEAKERS COUPLING HICH FREQ COMP Delay [ms] Shape Weight [kg] Flybar# 1 DRK208 6,2 — — — — 4,7 Box# 1 VIOL208 4 B 4 0 — 18,1 Box# 2 VIOL208 0 B 4 0 — 18,1 Box# 3 VIOL208 0 B 4 0 — 18,1 Box# 4 VIOL 208 1 B 4 0 — 18,1 Box# 5 VIOL208 5 B 3 0 — 18,1 Box# 6 VIOL208 5 B 3 0 — 18,1 Box# 7 VIOL 208 6 B 2 0 — 18,1 Box# 8 VIOL208 10 B 2 0 — 18,1

VIO-L208

Cod. 420120268 REV. 1.1

In the Safety Data section, you can find a simulation of the flown system's center of gravity with DRK-208.

In particular, the user can choose between EUROCODE 3 or BGV-C1 references.

The related results are shown in green, if safe, and in red, if the maximum permissible load for the chosen angle is being exceeded (and which is therefore forbidden to use).

Configuration Check: Mechanical Safety: Delays Check: SystemData Safety Data Line Array Data: N° Model Angle [°] SPEAKERS COUPLING HIGH FREQ COMP. Delay [ms] Shape Weight [kg] Flyber# 1 DRK200 6,2 — — — — — 4,7 Box# 1 VIOL200 4 B 4 0 — 18,1 Box# 2 VIOL200 0 B 4 0 — 18,1 Box# 3 VIOL200 0 B 4 0 — 18,1 Box# 4 VIOL 200 1 B 4 0 — 18,1 Box# 5 VIOL200 5 B 3 0 — 18,1 Box# 6 VIOL200 5 B 3 0 — 18,1 Box# 7 VIOL 200 6 B 2 0 — 18,1 Box# 8 VIOL200 16 B 2 0 — 18,1

Angle: 14,6 ° Holes: 23 Direction: FRONT

In the event that only one engine is being used in a flown configuration, "SINGLE" indicates the position of the single hook to use on DRK-208 (which requires graduated positions described by a label placed on the fly-bar). In addition, there is a "FRONT" or "REAR" direction for directing the hook for the engine.

In the case of "FRONT", the reference (shown in the figure below and shown as LOAD ADAPTOR REFERENCE SIDE), should be placed toward the front of the line array, in the case of "REAR", it should be directed toward the rear of the line array.

If instead two engines are used, the hooks should always be placed at the ends of the fly-bar (in this case, the direction of the placement is irrelevant).

For any other information on the dBTechnologies Composer software, see the relevant manual, available for free download from: www.dbtechnologies.com.

Eurocode 3 Limits 19.6% of load limitc FLYBAR PICE POINTS REAR HOLE LOAD 20 475,4 n° d²g SINGLE HOLE/DIR. LOAD 20 485,4 n° d²g FROSET HOLE 1 16,4 n° n° 14,0" 10,6 FB Brackets 53,6 FB Double PP 55,7 FB Single PP 10,0" System Weight: 144,8 Kg System Weight: 149,5 Kg

DBTECHNOLOGIES COMPOSER 2 GANCI MOTORE 2 LOAD ADAPTORS 1 260 kg * 573 lbs * 1 GANCIO MOTORE 1 LOAD ADAPTOR 1↔45 ↔ 1415 ↔ 2122↔26 430 kg 680 kg 450 kg 260 kg 948 lbs 1449 lbs 992 lbs 573 lbs

Technical diagram of a mechanical device with labeled components and directional arrows, including zoomed-in insets for mechanical assembly.

Technical diagram of a mechanical device with labeled components and exploded views showing internal structure and assembly details.

VIO-L208

Cod. 420120268 REV. 1.1

3. DSP PRESET PARAMETERS AND REMOTE CONTROL

The use of a line array has a number of advantages in different contexts, in particular:

• Homogeneous SPL along the front line of the speakers, an effect that is particularly noticeable over medium to long distances
• directional acoustic behavior, which allows the sound to be accurately focused on the audience, avoiding unnecessary dispersion in areas where sound coverage is not required.

The achievable optimization of the line array takes into account the behavior of the system with respect to frequency:

• increasing the distance to the line array increases air attenuation. This has an effect especially on the high frequencies.
  • as the angle between the line array elements increases, the mid-frequency phase coupling decreases.
• As the number of line array modules increases, the low frequencies will add up in an acoustically consistent manner.

The line array acoustic configuration of the VIO L208 modules can be optimized, thanks to the control functions managed by the DSP. The interface for use is simple and user-friendly: it uses two rotary controls of the "DSP Preset" section (4) and refers to the explanatory label on the side of the amplifier:

4 DLP PRESET Service User A E F B E C S 1 7 3 5 8 S 9 SPEAKER FLOOR 200 HIGH FREED WOMMISANCE

- Position the rotary "SPEAKER COUPLING" according to the number of modules used in the line array. This rotary acts on the low frequencies and must be set in the position:

• A - 2 to 6 speakers
• B - 7 to 8 speakers
• C - 9 to 10 speakers
• D - 11 to 12 speakers
• E - 13 to 14 speakers
• F - 15 speakers or more

- G - to enhance the low frequencies (front fill or stand-alone use)

- Position the rotary "HIGH FREQUENCY COMPENSATION" according to the installation type and angle set in the line array. This rotary acts on the mid-high frequency range and must be set in the position:

V.O. L 208 SUGGESTED CONFIGURATIONS SPEAKERS COUPLING NUMBER OF CABINETS 2 → 6 A 7 → 8 B 9 → 10 C 11 → 12 D 13 → 14 E more than 15 F Bass boost G service/user HIGH FREQ. COMPENSATION FLAT 1 THROW DISTANCE m [ft] front fill 0 → 10 [32] 2 11 [33] → 20 [66] 3 21 [67] → 30 [98] 4 31 [99] → 40 [131] 5 41 [132] → 50 [164] 6 more than 50 [165] 7 DOWN FILL 8 dB Technologies

VIO-L208 Cod. 420120268 REV. 1.1

• 1 - FLAT (there is no emphasis on any particular frequency band)
• 2 - front fill with public at 0 to 10 m (32 feet) distance
• 3 - with public at 11-20 m (33-66 feet) distance
• 4 - with public at 21-30 m (67-98 feet) distance
• 5 - with public at 31-40 m (99-131 feet) distance
• 6 - with public at 41-50 m (132-164 feet) distance
• 7 - with public at 51-60 m (165-197 feet) distance
• 8 - with public at a distance from 61 m (198 feet)

- All these parameters can be adjusted with the remote control, once the RDNet connections have been properly made, using the free DBTECHNOLOGIES NETWORK software (free to download from www.dBTechologies.com in the DOWNLOADS section) or AURORA NET (in Beta version at the date of release of this manual). When using the remote control, the local controls on the panels of the VIO-L208 modules are by-passed. Using this software, you can control a larger number of parameters (for more information, please refer to the full DBTECHNOLOGIES NETWORK and AURORA NET manual).

AURORA NET, in particular, compared to dBTechologies Network is a software that:

• is multiplatform (Windows /MAC OS X)
- allows a more accurate control of the parameters and their history
- allows a more flexible management even in the case of large fixed/live installations (with advanced group control)
- is optimized for usability and speed of data displaying.

MONITORING PRESET GROUP LOAD/SAVE LOG INCLINOMETER IN ATT 0.0.0 VIO L208 [1] ACOUSTIC INFO ATTENUATION: 0.0 dB HDF: 80 Hz COUPLING: A HF COMP: 1 TILT: 0 ° AMPLIFIERS INFO AMP TEMP: 0 °C MUTE SOLO LF HF OUT 0 0 0 -20 -20 -20 0 0 0 -20 -20 -20 -40 -40 -40 -∞ -∞ -∞ M M S S -∞

1.1.1 - VIOL208 Comm Eq. Sync Status MUTE SOLO [phone] -40 -60 -20 LF 0 -10 -20 -30 -40 Temp: 0° Status MUTE HF 0 -10 -20 -30 -40 Temp: 0° Status MUTE Input Atten. (dB) 0.0 + Speakers Coup. A High Freq Comp. 1 HPF Filter Preset(Hz) 80 Incl: 0° Thermal Limiter FW Rev: --- Factory Default

Last settings stored on VIOL208 modules (using DBTECHNOLOGIES NETWORK software), can be recalled later on the speaker, without RDNet remote control. To do this, turn the rotary SPEAKER COUPLING on Service/User position.

VIO-L208

Cod. 420120268 REV. 1.1

4. CONNECTIONS

CONNECTION AND POWER DAISY CHAIN

The figure above shows a general connection where a module 1

is over module 2. For this purpose, use cables with powerCON TRUE1® connectors (not provided).

• Connect the power supply of module 1 AUTO-RANGE MAINS INPUT (A).
• Link the power supply from module 1 to module 2 connecting the output MAINS LINK (B) of module 1 to the input AUTO-RANGE MAINS INPUT (C) of module 2.
• Repeat this procedure until connecting the maximum permitted number of the line-array module (refer to section SPECIFICATIONS).

WARNING!

- The cables must be properly sized and the system's design, installation and testing should be performed by qualified personnel only. AEB industriale declines any responsibility in case of cables that are non-compliant, uncertified and incompatible with the proper layout of the system and the regulations in force for the country of use.

VIO-L208 Cod. 420120268 REV. 1.1

AUDIO AND RDNET SIGNAL CONNECTION AND DAISY CHAIN

The figure above shows a general connection where a module 1

is over module 2 as well as the audio and network connections. To this end, use the not supplied cables with XLR (audio) and etherCON/RJ45 (network) connectors. For further information on the available types of cables, refer also to the image in next page.

• For the audio connection, connect the cable originating from MIXER/LINE to the BALANCED AUDIO INPUT (A) of module 1 of the line array. Re-link the signal between the first and the second module. For this purpose, connect the output BALANCED AUDIO OUTPUT/LINK (B) of module 1 to the BALANCED AUDIO INPUT (C) of module 2.
• Repeat the operation between the second and the third module and so on, until all modules of the line array are connected.
• For network connection, connect DATA IN connector (A) of module 1 to remote controller (RDNet CONTROL 2 or RDNet CONTROL 8). Re-link the signal by connecting DATA OUT (B) of module 1 to DATA IN (C) of module 2.
• Repeat the operation between the second and the third module and so on, until all modules of the line array are connected.

VIO-L208

WARNING!

- Replace any damaged cable to prevent malfunctioning and sound poor quality.

Cod. 420120268 REV. 1.1

• Balanced

• Unbalanced


5. INSTALLATION AND CONFIGURATION

PACKAGE CONTENTS

Check that the package content of the VIO-L208 module is complete. The package contains:

• VIO-L208 module
- fuse for operation in the 110-120V\~ range (see FEATURES OF THE AMPLIFIER AND CONTROL SECTIONS section for further details)
- quick start user manual and warranty documents

WARNING!

The product and accessories must be handled by experienced personnel only! Make sure that the installation is positioned in a stable and safe manner in order to avoid hazardous conditions for people, animals and/or objects. The user is required to follow regulations and mandatory laws on safety of the country in which the product is used. For safe use, regularly check the operation of all parts and integrity before use.

Design, calculations, installation, testing and maintenance of suspended systems or professional audio stacks must be performed by authorized personnel only. AEB Industriale is not responsible for improper installations, non-compliant with safety requirements.

FLOWN INSTALLATION (EXAMPLE OF 1 ARRAY WITH 8 MODULES)

• Use DBTECHNOLOGIES COMPOSER to set project parameters.
• Make sure that the local parameters of the different modules are correctly set on the single amplifier panels. In particular, verify according to the project, Audio Attenuation, Speaker Coupling and High Frequency Compensation settings. As an alternative, all parameters can be remotely edited in real time if the line array connection is carried out through the RDNet network (DBTECHNOLOGIES NETWORK/AURORA NET). Nevertheless, in this case, project initial settings should be physically repeated on the VIO-L208 modules before installation. For further information see the DSP PRESET PARAMETERS AND REMOTE CONTROL section.
• Transport, through DT-VIOL208, the first 4 modules and DRK-208 fly-bar to the spot in which the line array will be lifted. Have a second dolly (with no fly-bar) ready with other 4 modules for the following assembly stages of the complete line array. Please read the manuals of these accessories for more details.

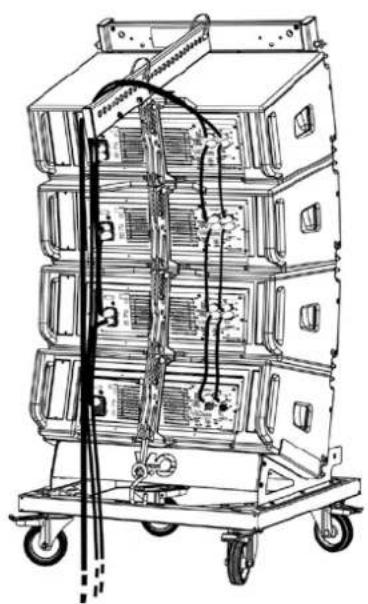

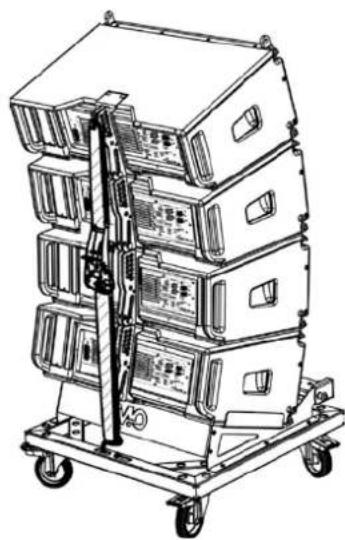

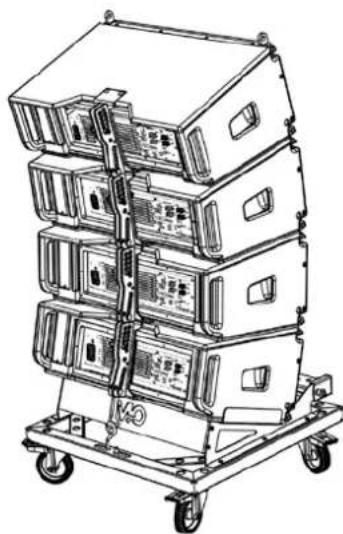

THE CONNECTIONS SUGGESTED IN THE FOLLOWING PICTURES ARE FOR INFORMATION ONLY.

Line drawing of a multi-tiered industrial cart with wheels and structural panels (no text or symbols)

Line drawing of a multi-tiered storage cart with a handrail, no text or symbols present

Line drawing of a multi-tiered industrial cart loaded with stacked equipment (no text or symbols visible)

VIO-L208
Cod. 420120268 REV. 1.1

• Fix the brakes on the DT-VIOL208 wheels.
- Remove the safety strap of the dolly.
- Insert the movable arms [6] into the brackets [4] as shown in the MECHANICS paragraph.
- Insert the pins corresponding to the previously calculated angles inside the arms (for this operation, you do not need to lift the modules).
- Carry out audio, RDNet and power supply re-link connections as described in the previous paragraphs. To find the maximum number of power connections in a re-linked system, see the TECHNICAL SPECIFICATIONS section.
- Install the DRK-208 fly-bar on the upper module according to the settings checked with DBTECHNOLOGIES COMPOSER.
- Lift the 4 modules anchored to DRK-208 using one or two engines and the appropriate means for rigging (not provided).
- Disengage the brakes from the DT-VIOL208 wheels and put dolly back.

WARNING!

DRK-208 ensures a loading capacity up to 260 kg / 573 lbs. Any other configuration or information regarding the system's data, such as the maximum capacity and hooking points, must be verified prior to the installation using the software dBTechologies Composer (refer to the relevant paragraph in this manual). It is available for free on the website www.dbtechnologies.com under the DOWNLOADS section.

Line drawing of a multi-tiered industrial cart with wheels and a support structure (no text or symbols)

Technical line drawing of a multi-tiered industrial machine chassis with visible internal components and wiring (no text or labels)

Technical line drawing of a multi-tiered mechanical device with wheels and arrows indicating assembly (no text or symbols)

VIO-L208 Cod. 420120268 REV. 1.1

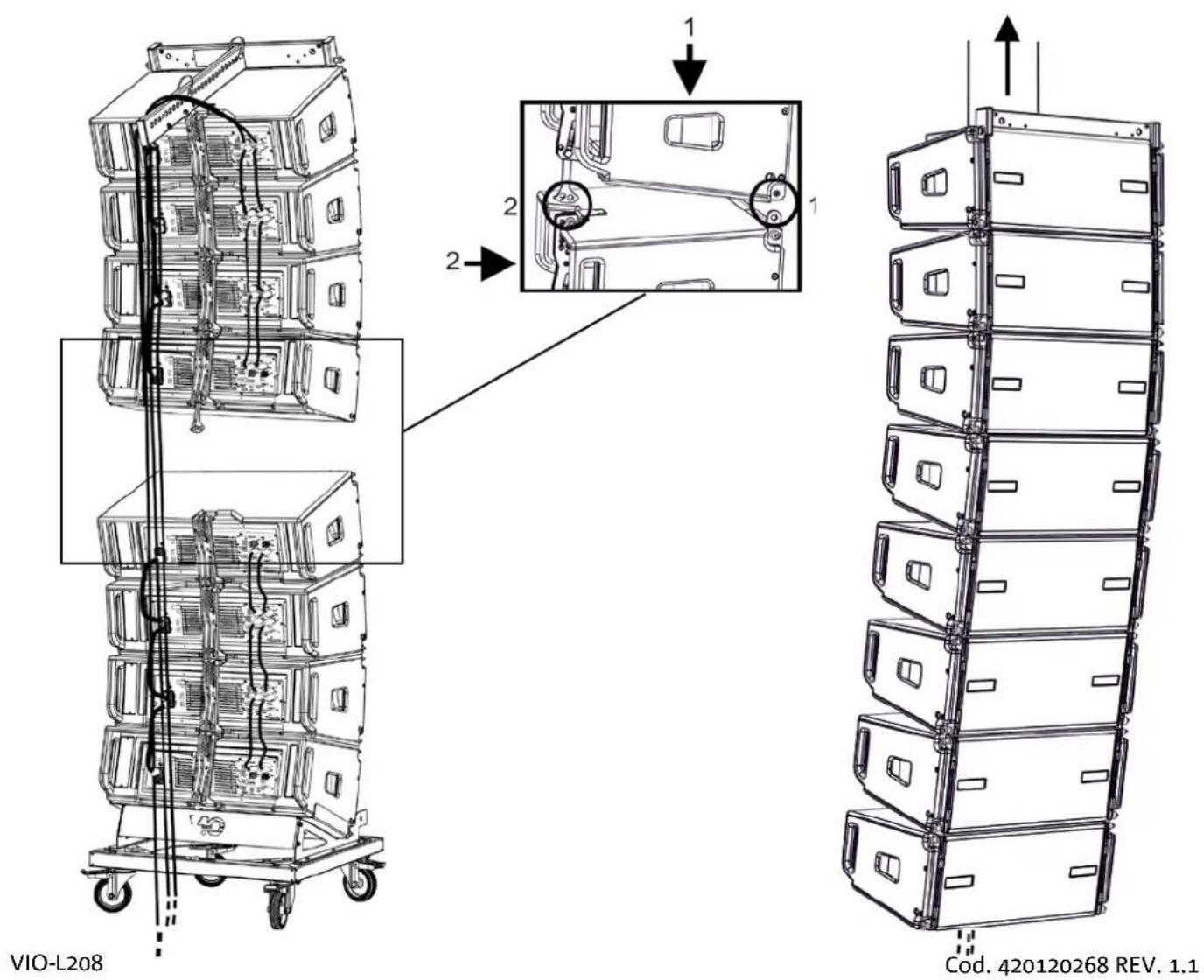

• Bring the additional 4 modules with a second DT-VIOL208 dolly under the first 4, currently suspended.
• Remove the safety strap and adjust the angles as described in the previous step.
• Properly lower the 4 suspended modules and hook them as described in the MECHANICS paragraph for both front and rear. Pay careful attention to this step when moving the upper suspended block (the engine ropes must always be kept taut). In the 2 coupling phases, front and rear of the 2 units, in the case of 2 engines, it is possible to push the 2 modules concerned slightly forward to make coupling easier. Always use only the module handles for holding it.
• Complete audio, RDNet and power supply re-link connections as described in the previous paragraphs. To find the maximum number of power connections in a re-linked system, see the TECHNICAL SPECIFICATIONS section. Slightly lift the line array to verify the correctness of hooks and angles. If necessary, check with a laser inclinometer (not provided) that the inclination of the fly-bar corresponds to the one in the project. Check that all the pins have been fully inserted and are locked.
• Remove the brakes from the DT-VIOL208 dolly and remove it.
• Lift the assembled line array with maximum care.
• Implement any other fastening technique necessary for the safe and stable use of the line array, also considering any atmospheric phenomena it may be exposed to.

VIO-L208 Cod. 420120268 REV. 1.1

• Using the 2 TF-VIO1 and AF-VIO1 accessories, the VIO-L208 modules can be used as down fills under a VIO-L210 line-array. In this case it is recommended to maintain as much as possible a 1:3 ratio between the two line array models. See also the VIO-L210 manual and the one concerning the accessories for further details.
• You can use AF-VIO1 accessory to create a VIO-L208 line array with VIO-S118. Refer to the relevant instructions for further information.

VIO-L210 TF-VIO1 VIO-L208 VIO-L210 AF-VIO1 VIO-L208

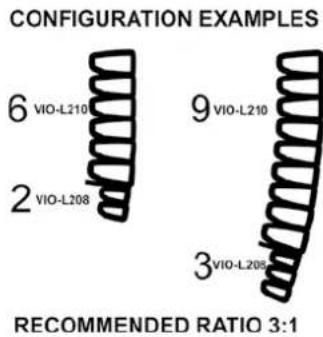

CONFIGURATION EXAMPLES 6 VIO-L210 2 VIO-L208 9 VIO-L210 3 VIO-L205 RECOMMENDED RATIO 3:1

WARNING!

• Never use the handles, the brackets or other elements of the speaker to directly suspend the modules or the system!
• In case of outdoor use, it is recommended to anchor the system to prevent any oscillations due to wind or weather conditions

VIO-L208 Cod. 420120268 REV. 1.1

STACKED INSTALLATION

- A maximum of 3 modules can be mounted in stacked configuration on DSA-VIOL208 or AF-VIO1 frames, so they can be used on a VIO S318, S218, S118R subwoofer.

- Use the DBTECHNOLOGIES COMPOSER to set the project parameters, for safety reasons.

- Position the selected frame on the subwoofer (installed on a flat surface). For further details on this accessory, refer to the relevant instructions.

- Add VIO-L208 modules one by one, with the previously-calculated angle, as shown in the MECHANICS paragraph.

- Make sure that the local parameters of the different modules are correctly set on the single amplifier panels. In particular, verify according to the project, Audio Attenuation, Speaker Coupling and High Frequency Compensation settings. As an alternative, all parameters can be remotely edited in real time or at a later stage in case of line-array connection through the RDNet network (DBTECHNOLOGIES NETWORK). Nevertheless, project initial settings should at least be physically repeated on the VIO-L208 modules before installation. For further information see DSP PRESET PARAMETERS AND REMOTE CONTROL section.

- Make the audio daisy-chain, RDNet and power connections as described in previous paragraphs.

WARNING!

- If the support surface presents even the slightest inclination, it is necessary to properly fasten using the appropriate mechanical means and/or installation straps.

- This requirement is also necessary for more than 2 subs and more than 3 VIO-L208 modules.

Technical line drawing of two stacked electronic equipment units with ventilation grilles (no text or symbols)

VIO-L208

Cod. 420120268 REV. 1.1

6. TROUBLESHOOTING

The module does not turn on:

1. Check that power supply is present upstream of the installation.
2. Check that the power supply or the re-link connection of the power supply is properly inserted.

The module turns on but produces no sound:

1. Check that the audio signal input connections or the audio signal re-links are properly carried out.
2. Check that the Audio Attenuation is set to 0 dB.
3. Check that the audio source (mixer) is properly connected and active.
4. In case of RDNet network connection and control with DBTECHNOLOGIES NETWORK, check that the MUTE function is disabled.

Module sound is not fully satisfactory.

1. Re-check the project, the installation and configuration specifications using DBTECHNOLOGIES COMPOSER.
2. Verify that the DSP PRESET parameters are actually replicated on the control panel of the module (especially if the remote control of the modules is not used).
3. Check that, in case of RDNet network connection and control with DBTECHNOLOGIES NETWORK or AURORA NET, all the parameters are properly set.

7. FIRMWARE UPDATES

IT IS very important to keep product firmware updated to the latest version to ensure full performance. Please check site http://www.dbtechnologies.com for updates under section "DOWNLOADS" periodically.

Simple line drawing of a laptop connected to a USB cable (no text or symbols)

1. Download and install on your PC the USB BURNER MANAGER under the "SOFTWARE & CONTROLLER" section.
2. Download the .zip file of the latest firmware in the "DOWNLOADS" section of your product.
3. Connect the product to the PC using a USB cable (not provided) with a suitable connector type (see this detail in the FEATURES OF THE AMPLIFICATION AND CONTROL SECTION chapter).
4. In the top right corner of the USB BURNER MANAGER screen, select "File Opening".
5. Select the file containing the previously downloaded firmware.
6. Follow the operations shown on the screen.
7. Click "UPDATE".

VIO-L208

Cod. 420120268 REV. 1.1

8. SPECIFICATIONS

GENERAL

Type: Active 2-way line-array module

ACOUSTICAL SPECIFICATIONS

Frequency response [- 6 dB]: 75 - 20000 Hz
Frequency response [± 3 dB]: 85 - 18100 Hz
Max SPL: 133.5 dB (frequency/preset dependent)
HF: 1 x 1.4” (Coil: 3”)
Type of HF transducer: Titanium
LF: 2 x 8” (Voice Coil: 2”)
Type of LF transducer: Neodymium
Crossover frequency: 1000 Hz
Waveguide for high frequencies: Yes
Phase plug:	Phase corrector in aluminum
Directivity (HxV):	100° (-6 dB) x10° (single module)

AMPLIFIER

Type:	Digipro® G3
Amplification class:	Class D
Amplification power (Peak)	1800 W
Amplification power (RMS):	900 W
Power supply:	Auto-range
Cooling technique:	Convection
Operating temperature range (ambient):	from -15° to + 55° [°C]

VIO-L208 Cod. 420120268 REV. 1.1

PROCESSOR

Internal controller: DSP 28/56 bit 48 kHz
Advanced functions: FIR filters
Limiter: Peak, RMS, Thermal

USER INTERFACE

Controls:	Audio Attenuation, 2 rotary controls with 8 positions (Coupling, Compensation)
Indicator LEDs: Limiter, Signal, Mute/prot, Ready
Status LEDs (RDNet network) Link, Active, Remote Preset Active

INPUTS AND OUTPUTS

Power supply inputs and re-links: PowerCON® In/Link

Audio inputs: 1x XLR IN balanced (insulation: Floating ADC)

Audio outputs: 1x XLR link OUT balanced

RDNet inputs/outputs: Data In / Data Out (etherCON® connectors)

USB (firmware update): 1x USB MINI type B

POWER SUPPLY SPECIFICATIONS (ABSORPTION)

Absorption at 1/8th of power in average use conditions (*):	1.6 A (220-240V~) - 2.8 A (100-120V~)
Absorption at 1/3rd of power in maximum use conditions (**):	2.7 A / 76 W (220-240V~) - 4.7 A / 70 W (100-120V~)
Absorption with speaker on in no-signal condition (idle):	22 W
Inrush current:	21 A
Max number of modules per power supply line (**)[mains input + mains link]:	1 + 5 (220-240V~) / 1 + 3 (100-120V~)

* NOTE FOR INSTALLER: Values refer to 1/8th of power, under average operating conditions (music programme with occasional or no clipping). For any type of configuration we recommend to consider them as minimum sizing values.
** NOTE FOR INSTALLER: Values refer to 1/3rd of power, under heavy operating conditions (music programme with frequent clipping and limiter activation). In case of professional installations and tours we recommend sizing according to these values.

VIO-L208

Cod. 420120268 REV. 1.1

MECHANICAL SPECIFICATIONS

Material: wooden cabinet - black polyurea finish
Grille: full metal - CNC machining
Handles integrated (2x side)
Front mounting setups:	Retractable brackets, built-in cabinet points with quick-release pins
Rear mounting setups:	Graduated bracket and movable arm with quick-release pins
Flown and stacked assembly: With DRK-208 fly-bar accessory
Width: 600 mm (25.98 inches)
Height: 260 mm (10.24 inches)
Depth: 390 mm (15.35 inches)
Weight: 28.6 kg (39.9 lbs)

Product features, specifications and appearance are subject to changes without prior notice. dBTechnologies reserves the right to make changes or improvements in design or manufacture without any obligation to incorporate such changes or improvements in previously manufactured products.

AEB

A.E.B. Industriale Srl

Via Brodolini, 8

Technical line drawing of a mechanical housing or enclosure with mounting brackets and a central component, labeled '390' at the bottom (no text or symbols on the diagram itself)

Technical line drawing of a mechanical enclosure or housing frame with internal compartments and mounting brackets (no text or symbols)

VIO-L208

Technical diagram of an electronic device with numbered components labeled 4, 5, 6, 7, and 8.

FLOWN (5°) PIN 1

STACK (5°) PIN 2 PIN 1

Illustration of a yellow industrial rack-mounted device with multiple ports and mounting brackets (no text or symbols)

DRK-208 DT-VIOL208

Line drawing of a four-wheeled cart with metal frame and wheels (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

TF-VIO1 AF-VIO1

Technical line drawing of a mechanical frame assembly (no text or symbols)

Mechanical linkage diagram showing a frame with joints and a handle (no text or labels)

DSA-VIOL208

ACHTUNG!

1 3 5 2 Audio Attenuation -1dB -2dB 6dB 4 Status Limiter Signal Mute/Prot Ready Balanced Audio Input RDNet Data In Output Link Data Out V:O L 208 Line Active Remote Preset Active USB Data Service 6 7

VIO Typology: Flown Flown Ground Stacked System Height:

System Models: DNK210 0 Up DNK200 2 Up VI01 210 0 Up VI0L200 16 Up VI0S318 0 Down VI0S118 0 Up 0 Down VI0S118R 0 Down FSA 0 AI-VI01 0 Up TFV01 0 Up

COMPUSER Las PMI 30.1 SARL PREDICT PRINT MANUAL MODE System Side View: Array Shape: Spool J-Spool J People Features: Standing Sealed Configuration Check: Mechanical Safety Delay Check: System Data Safety Data Line Array Data: N° Model Angle [°] SPEAKERS COUPLING HICH FREQ COMP Delay [ms] Shape Weight [kg] Flybar# 1 DRK208 6,2 — — — — 4,7 Box# 1 VIOL208 4 B 4 0 — 18,1 Box# 2 VIOL208 0 B 4 0 — 18,1 Box# 3 VIOL208 0 B 4 0 — 18,1 Box# 4 VIOL208 1 B 4 0 — 18,1 Box# 5 VIOL208 5 B 3 0 — 18,1 Box# 6 VIOL208 5 B 3 0 — 18,1 Box# 7 VIOL208 6 B 2 0 — 18,1 Box# 8 VIOL208 10 B 2 0 — 18,1

Technical diagram of a mechanical device with labeled components and two inset views showing mechanical assembly details.

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or assembly steps.

VIO L208 SUGGESTED CONFIGURATIONS SPEAKERS COUPLING NUMBER OF CABINETS 2 → 6 A 7 → 8 B 9 → 10 C 11 → 12 D 13 → 14 E more than 15 F Bass boost G service/user HIGH FREQ. COMPENSATION FLAT 1 THROW DISTANCE m [ft] front fill 0 → 10 [32] 2 11 [33] → 20 [66] 3 21 [67] → 30 [98] 4 31 [99] → 40 [131] 5 41 [132] → 50 [164] 6 more than 50 [165] 7 DOWN FILL 8 dB Technologies

VIO-L208

Line drawing of a multi-tiered industrial containerized pallet on a wheeled cart (no text or symbols)

Line drawing of a multi-tiered storage cart with wheels and a vertical support bar (no text or symbols)

Line drawing of a multi-tiered industrial cart loaded with stacked equipment (no text or symbols visible)

Line drawing of a multi-tiered industrial cart with a support structure (no text or symbols)

VIO-L208

Technical line drawing of a multi-tiered industrial machine chassis with visible internal components and wiring (no text or labels)

Technical line drawing of a multi-tiered mechanical device with wheels and mounting brackets, showing assembly or assembly process (no text or symbols)

Technical line drawing of a multi-tiered industrial or electronic device housing with mounting holes and ventilation slots (no text or symbols)

6. PROBLEMABHILFE

Simple line drawing of a laptop connected to a USB cable with a power icon (no text or symbols)

DONNÉES ACOUSTIQUES 117

AMPLIFICATEUR.... 117

PROCESSEUR 118

INTERFACE UTILISATEUR 118

ENTRÉES ET SORTIES.... 118

SPÉCIFICATIONS D'ALIMENTATION (ABSORPTION) 118

SPÉCIFICATIONS MÉCANIQUES 119

1. GÉNÉRALITÉS

BIENVENUS!

Technical line drawing of a mechanical housing or enclosure with mounting brackets and a central rectangular component, labeled '390' at the bottom (no text or symbols on the diagram itself)

CARACTÉRISTIQUES ACOUSTIQUES

Technical line drawing of a mechanical enclosure or enclosure frame with internal compartments and mounting holes (no text or symbols)

VIO-L208 Code 420120268 RÉV. 1.1

MÉCANIQUE

1 2 3

Technical diagram of an electronic device with numbered components labeled 4, 5, 6, 7, and 8.

FLOWN (5°) PIN 1

STACK (5°) PIN 2 PIN 1

Technical line drawings of two industrial equipment components: a yellow control panel with circular buttons and a wheeled cart with wheels (no text or symbols)

DRK-208 DT-VIOL208

Technical line drawing of a mechanical bracket assembly (no text or symbols)

TF-VIO1 AF-VIO1

Technical line drawing of a metal frame structure with mounting holes and internal compartments (no text or symbols)

Technical line drawing of a mechanical lever assembly (no text or symbols)

DSA-VIOL208

ATTENTION!

1 3 5 2 Audio Attenuation -4dB -2dB -6dB -3dB -9dB -6dB -3dB -2dB -1dB -7dB -3dB -1dB -7dB -3dB -1dB -7dB -3dB -1dB -7dB -3dB -1dB -7dB V:O L 208 6 7 4 Service/Power DSP PRESET C A R 1 2 S PLEKES C S H I G F R E D USB Data Service

1. ENTRÉE ET RELANCE AUDIO (« Balanced audio »)

VIO Typology: Flown Flown Ground Stacked System Height:

System Models: DRK210 0 Up DRK200 2 Up VI01 210 0 Up VI0L200 16 Up VI0S318 0 Down VI0S118 0 Up 0 Down VI0S118R 0 Down FSA 0 AI-VI01 0 Up TFV101 0 Up

COMPUSER Lab PMI 30CT SUB-PREDICT PRINT MANUAL MODE System Side View: Array Shape: Spool J-Spool J People Features: Standing Sealed Configuration Check: Mechanical Safety Delay Check: System Data Safety Data Line Array Data: N° Model Angle [°] SPEAKERS COUPLING HICH FREQ COMP Delay [ms] Shape Weight [kg] Flybar# 1 DRK208 6,2 — — — — 4,7 Box# 1 VIOL208 4 B 4 0 — 18,1 Box# 2 VIOL208 0 B 4 0 — 18,1 Box# 3 VIOL208 0 B 4 0 — 18,1 Box# 4 VIOL 208 1 B 4 0 — 18,1 Box# 5 VIOL208 5 B 3 0 — 18,1 Box# 6 VIOL208 5 B 3 0 — 18,1 Box# 7 VIOL 208 6 B 2 0 — 18,1 Box# 8 VIOL208 10 B 2 0 — 18,1

VIO-L208

Code 420120268 RÉV. 1.1

Technical diagram of a mechanical device with labeled components and directional arrows, including zoomed-in insets for mechanical assembly.

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or assembly steps.

VIO-L208

Code 420120268 RÉV. 1.1

V!OL208 SUGGESTED CONFIGURATIONS SPEAKERS COUPLING NUMBER OF CABINETS 2 → 6 A 7 → 8 B 9 → 10 C 11 → 12 D 13 → 14 E more than 15 F Bass boost G service/user HIGH FREQ. COMPENSATION FLAT 1 THROW DISTANCE m [ft] front fill 0 → 10 [32] 2 11 [33] → 20 [66] 3 21 [67] → 30 [98] 4 31 [99] → 40 [131] 5 41 [132] → 50 [164] 6 more than 50 [165] 7 DOWN FILL 8 dB Technologies

VIO-L208 Code 420120268 RÉV. 1.1

Line drawing of a multi-tiered industrial cart with wheels and structural supports (no text or symbols)

Line drawing of a multi-tiered storage cart with a handrail, no text or symbols present

Line drawing of a multi-tiered industrial cart loaded with stacked equipment (no text or symbols visible)

VIO-L208
Code 420120268 RÉV. 1.1

Line drawing of a multi-tiered industrial cart with a support structure (no text or symbols)

Technical line drawing of a multi-tiered industrial machine chassis with visible wiring and mounting brackets (no text or symbols)

Technical line drawing of a multi-tiered mechanical device with wheels and mounting brackets, showing assembly or assembly process (no text or symbols)

Technical line drawing of a multi-tiered industrial or electronic device housing with mounting brackets and ventilation slots (no text or symbols)

VIO-L208

Code 420120268 RÉV. 1.1

6. DÉPANNAGE

Simple line drawing of a laptop connected to a USB symbol (no text or labels)

SPÉCIFICATIONS D'ALIMENTATION (ABSORPTION)

Technical line drawing of a mechanical housing or enclosure with mounting brackets and a central component, labeled '390' at the bottom (no text or symbols on the diagram itself)

CARACTERÍSTICAS ACÚSTICAS

Technical line drawing of a mechanical enclosure or enclosure frame with internal compartments and mounting holes (no text or symbols)

VIO-L208

Cód. 420120268 REV. 1.1

MECÁNICA

1 2 3

Technical diagram of an electronic device with numbered components labeled 4, 5, 6, 7, and 8.

FLOWN (5°) PIN 1

STACK (5°) PIN 2 PIN 1

Technical line drawings of two industrial equipment components: a yellow rack-mounted device and a wheeled cart with wheels (no text or symbols)

DRK-208 DT-VIOL208

Technical line drawing of a mechanical bracket assembly (no text or symbols)

TF-VIO1 AF-VIO1

Technical line drawing of a metal frame structure with mounting holes and internal compartments (no text or symbols)

Technical line drawing of a mechanical lever assembly (no text or symbols)

DSA-VIOL208

¡ATENCIÓN!

Electric shock circuit breaker, 12 of the UCL Series Power supply, 30V DC power, 50V DC power, 10V DC power, 15V DC power, 20V DC power, 25V DC power, 30V DC power, 40V DC power, 50V DC power, 60V DC power, 70V DC power, 80V DC power, 90V DC power, 100V DC power, 110V DC power, 120V DC power, 130V DC power, 140V DC power, 150V DC power, 160V DC power, 170V DC power, 180V DC power, 190V DC power, 200V DC power, 210V DC power, 220V DC power, 230V DC power, 240V DC power, 250V DC power, 260V DC power, 270V DC power, 280V DC power, 290V DC power, 300V DC power, 310V DC power, 320V DC power, 330V DC power, 340V DC power, 350V DC power, 360V DC power, 370V DC power, 380V DC power, 390V DC power, 400V DC power, 410V DC power, 420V DC power, 430V DC power, 440V DC power, 450V DC power, 460V DC power, 470V DC power, 480V DC power, 490V DC power, 500V DC power, 510V DC power, 520V DC power, 530V DC power, 540V DC power, 550V DC power, 560V DC power, 570V DC power, 580V DC power, 590V DC power, 600V DC power, 610V DC power, 620V DC power, 630V DC power, 640V DC power, 650V DC power, 660V DC power, 670V DC power, 680V DC power, 690V DC power, 700V DC power, 710V DC power, 720V DC power, 730V DC power, 740V DC power, 750V DC power, 760V DC power, 770V DC power, 780V DC power, 790V DC power, 800V DC power, 810V DC power, 820V DC power, 830V DC power, 840V DC power, 850V DC power, 860V DC power, 870V DC power, 880V DC power, 890V DC power, 900V DC power, 910V DC power, 920V DC power, 930V DC power, 940V DC power, 950V DC power, 960V DC power, 970V DC power, 980V DC power, 990V DC power

VIO-L208

Cód. 420120268 REV. 1.1

VIO Typology: Flown Flown Ground Stacked System Height:

System Models: DNK210 0 Up DNK200 2 Up VI01 210 0 Up VI0L200 16 Up VI0S318 0 Down VI0S118 0 Up 0 Down VI0S118R 0 Down FSA 0 AI-VI01 0 Up TFV01 0 Up

COMPUSER Las PMI 30.1 SARL PREDICT PRINT MANUAL MODE System Side View: Array Shape: Spool J-Spool J People Features: Standing Sealed Configuration Check: Mechanical Safety Delay Check: System Data Safety Data Line Array Data: N° Model Angle [°] SPEAKERS COUPLING HICH FREQ COMP Delay [ms] Shape Weight [kg] Flybar# 1 DRK208 6,2 — — — — 4,7 Box# 1 VIOL208 4 B 4 0 — 18,1 Box# 2 VIOL208 0 B 4 0 — 18,1 Box# 3 VIOL208 0 B 4 0 — 18,1 Box# 4 VIOL208 1 B 4 0 — 18,1 Box# 5 VIOL208 5 B 3 0 — 18,1 Box# 6 VIOL208 5 B 3 0 — 18,1 Box# 7 VIOL208 6 B 2 0 — 18,1 Box# 8 VIOL208 10 B 2 0 — 18,1

Technical diagram of a mechanical device with labeled components and two inset views showing mechanical assembly details.

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or assembly.

VIO-L208 Cód. 420120268 REV. 1.1

3. PARÁMETROS DSP PRESET Y CONTROL REMOTO

SUGGESTED CONFIGURATIONS
SPEAKERS COUPLING
NUMBER OF CABINETS	2 → 6	A
	7 → 8	B
	9 → 10	C
	11 → 12	D
	13 → 14	E
	more than 15	F
	Bass boost	G
	service/user
HIGH FREQ. COMPENSATION
THROW DISTANCE m [ft]	FLAT	1
	front fill 0 → 10 [32]	2
	11 [33] → 20 [66]	3
	21 [67] → 30 [98]	4
	31 [99] → 40 [131]	5
	41 [132] → 50 [164]	6
	more than 50 [165]	7
	DOWN FILL	8
dB Technologies

VIO-L208

Cód. 420120268 REV. 1.1

Line drawing of a multi-tiered industrial cart with wheels and structural brackets (no text or symbols)

Line drawing of a multi-tiered industrial pallet jack with a vertical support mechanism (no text or symbols)

Line drawing of a multi-tiered industrial cart loaded with stacked equipment (no text or symbols visible)

VIO-L208 Cód. 420120268 REV. 1.1

Line drawing of a multi-tiered industrial cart with a support structure (no text or symbols)

Technical line drawing of a multi-tiered server rack with visible wiring and components (no text or labels)

Technical line drawing of a multi-tiered mechanical device with wheels and mounting brackets, showing assembly or assembly process (no text or symbols)

VIO-L208

Cód. 420120268 REV. 1.1

Technical diagram of a multi-tiered industrial machine with labeled components and assembly steps

VIO-L208 Cód. 420120268 REV. 1.1

Technical line drawing of a multi-tiered storage or rack structure with mounting holes and structural beams (no text or symbols)

Technical line drawing of two stacked electronic equipment units with mounting holes and ventilation slots (no text or symbols)

Simple line drawing of a laptop connected to a USB cable (no text or symbols)
