USER MANUAL SMWC 700 D1 SILVERCREST

PDF ONLINE www.lidl-service.com

Exterior view of a modern microwave oven (no visible text or labels)

Black microwave oven with control panel and display (no visible text or symbols)

Front view of a modern microwave oven with control panel and display (no visible text or symbols)

MIKROWELLE/MICROWAVE/FOUR À MICRO-ONDES SMWC 700 D1

DE AT CH

MIKROWELLE

Operation and safety notes

FR BE

FOUR À MICRO-ONDES

GB/IE Operation and safety notes Page 29

Labeled diagram of a microwave oven showing interior components and open door

SILVERCREST® 8 14 13 12 9 10 11

Warnings and symbols used ...... Page 30

Introduction Page 31

Intended use ...... Page 31

Scope of delivery.... Page 31

Description of parts.... Page 31

Technical data ...... Page 31

Safety instructions ...... Page 32

Basic principles of microwave cookery ...... Page 36

Using suitable cookware.... Page 37

Before first use.... Page 37

Positioning the product Page 37

Assembly Page 37

Operation Page 37

Standby mode Page 37

Setting the time.... Page 38

Setting the timer.... Page 38

Cancelling/stopping the input process.... Page 38

Child lock Page 38

Cooking food.... Page 38

Selecting the power level ...... Page 39

Setting the cooking time.... Page 39

Starting the cooking process.... Page 39

Quick start 1.... Page 39

Quick start 2.... Page 39

Pausing/cancelling the cooking process ...... Page 40

Defrosting Page 40

Preset time function.... Page 41

Automatic menu...... Page 41

Examples of use.... Page 43

Recipes...... Page 44

Chocolate mug cake.... Page 44

Caramel corn.... Page 44

Breakfast potatoes Page 45

Meat loaf Page 45

Salmon.... Page 46

Cleaning and care ...... Page 46

Troubleshooting...... Page 47

Disposal Page 47

Warranty Page 48

Warranty claim procedure.... Page 48

Service...... Page 49

Warnings and symbols usedThe following warnings are used in this user manual and on the packaging:
	DANGER! This symbol in combination with the signal word “Danger” marks a high-risk hazard that if not prevented could result in death or serious injury.		Voltage [alternating current]
			Hertz [supply frequency]
			Watts
	WARNING! This symbol in combination with the signal word “Warning” marks a medium-risk hazard that if not prevented could result in death or serious injury.		This product is classified as protection class I and must be connected to a protective ground.
			Use the product in dry indoor spaces only.
	CAUTION! This symbol in combination with the signal word “Caution” marks a low-risk hazard that if not prevented could result in minor or moderate injury.		Danger – risk of electric shock!
			Warning – hot surface!
	ATTENTION! This symbol with the signal word “Attention” indicates a possible property damage.		Food safe. This product has no adverse effect on taste or smell.
	NOTE: This symbol in combination with “Note” provides additional useful information.		Suitable for the dishwasher: 4 Turntable
CE	CE mark indicates conformity with relevant EU directives applicable for this product.	[SIGN]	Safety information Instructions for use

MICROWAVE

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is intended for heating and preparing food. Do not use the product for any other purpose.
The product is designed only for use in private household and must not be used in medicinal or commercial areas.
The manufacturer is not liable to damage caused by improper use.

- Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packing materials before use.

1 Microwave
1 Turntable
1 Turntable holder
1 Roller
1 User manual
1 Quick start guide

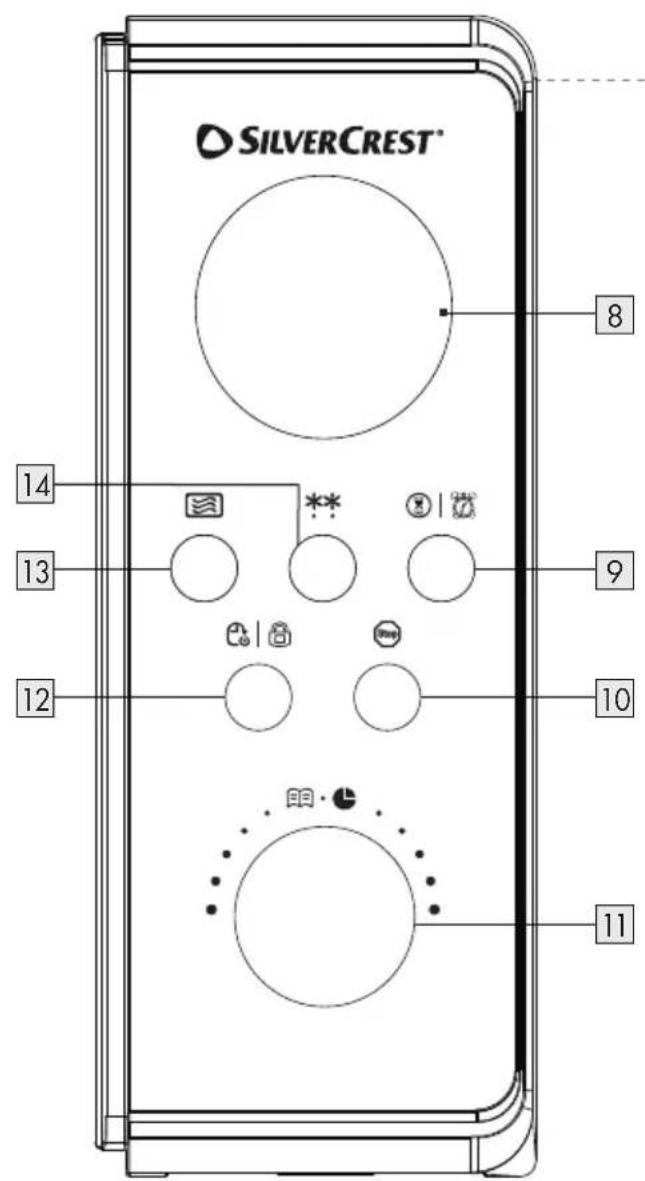

• Description of parts

[Fig. A]

1 Ventilation openings (rear side, not illustrated)
2 Cooking chamber
3 Mains cord with mains plug
4 Turntable with roller and turntable holder
5 Door assembly (door seal)

6 Catch
7 Door handle
8 Display
9 [Timer/Clock button]
10 [Stop button]
11 Rotary knob
12 (Preset time/Child safety button)
13 [Microwave button]
14 [Defrost button]

Technical data

Nominal voltage: 220 – 240 V~, 50 Hz
Power consumption: 1,100 W
Power consumption in standby mode: 0.6 W
Protection class:	I
Power output:	700 W
Microwave frequency:	2,450 MHz
Cooking chamber volume:	approx. 17 litres
Weight:	approx. 10 kg
Measurements:	approx. 446 mm × 241 mm × 354 mm
Certification:
HG11352, HG11353, HG12869	GS (SGS)
HG11352-BS, HG11353-BS, HG12869-BS	-
HG11352-CH, HG11353-CH, HG12869-CH	-

This product fulfils the requirement of the European standard EN 55011.
In conformity with this standard, this product is classified as Group 2 Class B equipment.

■ Group 2 = The product intentionally generates radio-frequency energy in the form of electromagnetic radiation for the heat treatment of food.
Class B equipment = The product is suitable to be used in domestic establishments.

Safety instructions

BEFORE USING THE PRODUCT, FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

■ This product can be used by children aged from 8 years and above and persons with reduced physical, sensory

or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

Children shall not play with the product.

Cleaning and user maintenance shall not be made by children without supervision.

Keep the product and its cord out of reach of children less than 8 years.

⚠ WARNING! If the door or door seals are damaged, the product must not be operated until it has been repaired by a competent person.

⚠ WARNING! It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

⚠ WARNING! Liquids and other foods must not be heated in sealed containers since they are liable to explode.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ The product is intended to be used in household and similar applications such as:

—staff kitchen areas in shops, offices and other working environments; —farm houses; —by clients in hotels, motels and other residential environments; —bed and breakfast type environments.

A minimum of 20 cm of free space must remain above the top surface of the product.

■ Only use utensils that are suitable for use in microwave ovens.

■ Metallic containers for food and beverages are not allowed during cooking with the product.

Metals reflect the microwave radiation and this leads to the generation of sparks. Sparks can cause a fire and irreparably damage the product!

■ When heating food in plastic or paper containers, keep an eye on the product due to the possibility of ignition.

The product is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

If smoke is emitted, switch off or unplug the product and keep the door closed in order to stifle any flames.

■ Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

■ The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

The product should be cleaned regularly and any food deposits removed (see "Cleaning and care").

Failure to maintain the product in a clean condition could lead to deterioration of the surface that could adversely affect the life of the product and possibly result in a hazardous situation.

■ The product shall not be cleaned with a steam cleaner.

■ The product is intended to be used freestanding. It must not be placed in a cabinet or in a similar environment.

ADDITIONAL SAFETY ADVICE

■ People fitted with a heart pacemaker should consult their doctor about the possible risks of using his product before taking it into use.

WARNING! Hot surface!

During use the product gets hot. Do not touch the hot surface of the product while in use nor immediately after use.

⚠️ DANGER! Risk of electric shock! Do not immerse the product in water or other liquids. Never hold the product under running water.

DANGER! Risk of electric shock! Never use a damaged product. Disconnect the product from the power supply and contact your retailer if it is damaged.

■ The product is not to be used if it has been dropped, if there are visible signs of damage.

Before connecting the product to the power supply, check that the voltage and current rating corresponds with the power supply details shown on the product's rating label.

■ Protect the power cord against damages. Do not let it hang over sharp edges, do not squeeze or bend it. Keep the power cord away from hot surfaces and open flames.

Positioning the product

⚠️ ATTENTION! Do not install the product above a cooker or any other heat-generating device. Installation in such a location could cause damage to the product.

Operation

⚠️ DANGER! Risk of fire! Remove all metallic closures from the packaging of the food that you intend to heat.

• Do not move the product while it is in operation.
  ■ Never operate the product when it is empty.
• Do not place the product on hot plates (gas, electric, coal cooking range etc.). Operate the product on a level, stable, clean, heat-resistant and dry surface.

■ Do not place flammable materials close to the product.

The product is not intended to be operated by means of an external timer or separate remote control system.

Cleaning and care

⚠ WARNING! Risk of injury!

Disconnect the product from the power supply before cleaning work and when not in use.

• Do not pull the power plug out of the electrical outlet by the power cord.
  ■ Protect the product, its power cord and power plug against dust, direct sunlight, dripping and splashing water.
  ■ Always clean the product after use, especially the door seals, cavities and adjacent parts (see "Cleaning and care" for further details).

Do not remove the light grey mica cover plate, which is mounted inside the cooking chamber to protect the magnetron.

If the luminary inside the product needs replacing, have this done by a qualified specialist.

RADIO INTERFERENCE WITH OTHER DEVICES

The operation of the product may cause interference on your radio, television or similar devices.

If such interference occurs, it can be reduced or corrected by the following remedial measures:

■ Clean the door and the door seals of the product.
■ Realign the aerial of your radio or television.

Keep the product and the receiver spatially separated.

■ Move the product away from the receiver.
- Plug the product into another wall socket. The product and the receiver should be connected to different circuits.

SAFETY PRECAUTIONS FOR THE PREVENTION OF EXCESSIVE EXPOSURE TO MICROWAVE ENERGY

- Do not try to operate the product while the door is open.

This can lead to you being exposed to a potentially harmful dose of microwave radiation.

It is also important not to break or manipulate the safety locks.

- Do not jam anything between the door. Make sure that there is no food or cleaning agent residue left on the seals.

● Basic principles of microwave cookery

☐ Cooking time: Pay attention to the cooking time. Select the shortest possible stated cooking time and increase as required. Food that is cooked too long can begin to smoke or catch fire.

Food: Arrange the pieces of food evenly in the product. Cut the food into pieces of approximately the same size. Place the thickest pieces near the edges.

☐ Covering food: Cover the food during cooking with a lid suitable for microwave cookery. The lid prevents splashing and helps in the even cooking of the food.

Turning food: While cooking, turn the food in the product once so that items such as chicken or hamburgers are cooked more quickly. Large pieces of food, such as joints of meat, must be turned at least once.

Completely rearrange small food items, such as meatballs, after half the cooking time. Turn the meatballs and move them from the middle of the plate to the edge.

☐ Food with skins: Puncture the skins of potatoes, sausages and similar food before cooking. Otherwise, they could explode.
☐ Food with thick skins: Prick whole pumpkins, apples, chestnuts and similar food before cooking.
☐ Fat or oil: Do not thaw frozen fat or oil in the product. Do not fry foods in the product. The fat or oil could ignite.
□ Beverages: When heating drinks with the product, bubbling may be delayed when the drink boils. Be careful when handling the container. To avoid sudden bubbling up:

If possible, place a suitable glass rod in the fluid for as long as it is being heated.

To avoid an unexpected bubbling up, leave the liquid to stand in the cooking chamber 2 for about 20 seconds after heating.

□ Popcorn: Only use microwaveable popcorn.

Using suitable cookware

⚠ WARNING! Risk of fire! Never use metallic objects when you are using the product. Metals reflect the microwave radiation and this leads to the generation of sparks. This can cause a fire and irreparably damage the product!

The ideal material for use in a microwave oven is microwave-permeable, allowing the energy to penetrate the container to heat the food. Microwaves cannot penetrate metal. For this reason, metal containers and cookware should not be used.
☐ When using the product for heating, do not use products made of recycled paper. These can contain minute fragments of metal, which can generate sparks and/or fires.
We recommend the use of round/oval cookware instead of square or oblong containers, as food in corner areas tends to overcook. The following list provides general hints to assist you in selecting the correct cookware.

Cookware Microwave
Heatproof glass Yes
Non-heatproof glass No
Heatproof ceramic Yes
Microwave-suitable plastic dishes Yes
Kitchen roll Yes
Metal tray/plate	No
Aluminium foil and foil containers	No

Before first use

1. Remove the packaging material (including protection board and tape inside the cooking chamber 2). Check if the delivery is complete (see "Scope of delivery").

2. Clean the product and its accessories (see "Cleaning and care").

- Positioning the product

⚠ WARNING! Risk of fire! This product is not suitable for installation in a kitchen cabinet. In closed cabinets, the ventilation of the product is not sufficiently guaranteed. The product could then be damaged and there is a risk of fire!

☐ Place the product on a flat surface that leaves enough space for ventilation.
☐ Keep a minimum of 10 cm of free space between the product and the adjacent walls. It must remain possible to fully open the door 5.
☐ Keep a minimum of 20 cm of free space above the top surface of the product.

Assembly

1. Insert the turntable holder 4 on the centre of the cooking chamber 2.
2. Place the roller 4 on the roller surface inside the cooking chamber 2.
3. Place the turntable 4 on the roller and on the turntable holder. The turntable must rest properly on the turntable holder.
4. Connect the mains plug 3 with a socket-outlet. 1:00 is shown in the display 8. A beep sounds.

Operation

i NOTES:

☐ There may be a faint odour the first time the product is used. Make sure there is sufficient ventilation in the area.

■ Each press of the controls is acknowledged by a beep.
If you press a control that has no function in the current setting, you will hear a double beep.

Standby mode

The product enters standby mode automatically once it is connected to the mains supply.

If no control is pressed for a longer time, the product automatically switches to standby mode.
In standby mode, the current time and are shown in the display 8.

Setting the time

1. Connect the mains plug 3 with a socket-outlet. 1:00 and ⏱ are shown in the display 8. A beep sounds.
2. In standby mode: Press and hold 9 for a few seconds. Hr 12 is shown in the display 8 (Hr: "Hour").
3. Press ⑧|⑨9 to switch between Hr 12 and Hr 24.

Display Meaning
Hr 12 12 hour mode
Hr 24 24 hour mode

1. Use the rotary knob 11 to set the hours. The hour display is flashing during setting. Press 8 | 9 to confirm your selection.
2. The minute display is flashing. Use the rotary knob 11 to set the minutes. Press ⑤ ⑨ to confirm your selection.
3. The time is set now.

Setting the timer

i NOTES:

The product has a timer that can be used independently of the product's operation.
If you wish to check the progress of the timer: Press Ⓤ|∅9. The time is displayed for a short time.

1. Press 8|9. is flashing in the display 8.
2. Use the rotary knob 11 to set the desired time:

Time setting (Timer) Time increments
less than 5 minutes	10-second increments

Time setting (Timer) Time increments
from 5 to 10 minutes	30-second increments
from 10 to 30 minutes 1-minute increments
from 30 to 95 minutes	5-minute increments

1. Press the rotary knob 11 to confirm your selection. The set time is counted down. After approximately 4 seconds, the current time is shown again. The timer continues to run in the background.
2. As soon as the time has elapsed, a long beep sounds.

- Cancelling/stopping the input process

☐ Cancel the input process: Press ☐10. The product switches to the standby mode.

Child lock

NOTE: Activate this setting to prevent accidental activation by children and other persons not familiar with the operation of the product.

□ Activate child lock: Press and hold 📞 | 📞 12. A beep sounds. 🔒 is shown in the display 8. The buttons and the rotary knob 11 are now deactivated.
☐ Deactivate child lock: Press and hold 📞 | 🔒 12 until a beep sounds and 🔒 goes off in the display 8.

Cooking food

WARNING! Risk of fire! Never use metallic objects when you are using the product. Metals reflect the microwave radiation and this leads to the generation of sparks. This can cause a fire and irreparably damage the product!
NOTE: During the cooking process, press 13. The current power level is shown for a few seconds in the display 8.

- Selecting the power level

1. Press 13. 100% (700 Watt power level) and are shown in the display 8.

2. Press 13 to set the desired power level. You can select between 100% to 10%.

13	Display Output power Application
Press 1×	100%	700 W	Pasta, frozen food, fish, potatoes, popcorn
Press 2×	80%	560 W	Beverages, warm milk, reheating, rice, ground meat
Press 3×	50%	350 W Stew, reheating	bread
Press 4×	30%	210 W	Defrosting, melting butter/chocolate/cheese
Press 5×	10%	70 W Keeping warm, so	softening ice cream

Setting the cooking time

□ After you have selected the power level, use the rotary knob 11 to set the desired cooking time:

- Turn the rotary knob 11 towards the right (turning direction ⏻) to set the time from 10 seconds upwards.

- Turn the rotary knob 11 towards the left (turning direction 📄) to set the time from 95 minutes downwards.

Time setting (Cooking time)	Time increments
less than 5 minutes	10-second increments
from 5 to 10 minutes	30-second increments
from 10 to 30 minutes	1-minute increments
from 30 to 95 minutes	5-minute increments

Starting the cooking process

NOTE: Once you have set the power level and the cooking time, you can start cooking.

1. Start cooking: Press the rotary knob 11. Cooking begins. The time is counted down. 📋 is shown in the display 8.

2. When the set time has elapsed: End is shown in the display 8.4 beeps sound.

3. Press Step 10 or open the door 5. The product switches to the standby mode. If you do nothing, there will be a further 4 beeps every 2 minutes.

Quick start 1

1. In standby mode, turn the rotary knob 11 towards the right (turning direction).

2. Setting the desired cooking time:

- Turn the rotary knob 11 towards the right [turning direction 📁] to set the time from 10 seconds upwards. - Turn the rotary knob 11 towards the left [turning direction 📋] to set the time from 95 minutes downwards.

1. Press the rotary knob 11 to start cooking with 700 Watt power.

Quick start 2

NOTE: With this function, you can start cooking immediately for 30 seconds [or longer, for up to 10 minutes] with 700 Watt power.

☐ Press the rotary knob 11. 00:30 and are shown in the display 8. The product starts cooking for 30 seconds. The time is counted down.

☐ If you wish to cook for longer than 30 seconds: Press the rotary knob 11 repeatedly until the desired time is displayed.

● Pausing/cancelling the cooking process

NOTE: You can pause or stop cooking at any time.
☐ Pause cooking: Press 10 or open the door 5. The remaining time stops and flashes. The cooking time is paused.
☐ Resume cooking: Press the rotary knob 11. The time is counted down again.
□ Stop cooking: Press 10 again. The product enters standby mode.

Defrosting

NOTE: Use this function to defrost food. You can set either a time or a weight.

Defrosting by time

1. Press **[14]. 00:00 and are shown in the display 8.
2. Use the rotary knob 11 to set the desired time:

Time setting (Defrost)	Time increments
less than 5 minutes	10-second increments
from 5 to 10 minutes	30-second increments
from 10 to 30 minutes	1-minute increments
from 30 to 95 minutes	5-minute increments

1. Start defrosting: Press the rotary knob 11. Defrosting begins. The time is counted down.

NOTE: To ensure uniform defrosting, some foods should be mixed or turned after around two thirds of the defrosting time. Defrosting pauses automatically at this time. 4 beeps sound and the time display flashes. If required, turn or mix the food.

Resume defrosting: Press the rotary knob 11.

If you do not want to turn the food: Resume defrosting by pressing the rotary knob ^11 .

1. After the set time has elapsed: End is shown in the display 8.4 beeps sound.
2. Press 10 or open the door 5. The product switches to the standby mode. If you do nothing, there will be a further 4 beeps every 2 minutes.
   NOTE: For example, to defrost 500 g of minced meat, we recommend a defrosting time of 11 minutes.

Defrosting by weight

1. Press **14 twice. 100 g (100 gram), AUTO and ✕ are shown in the display 8.
2. Use the rotary knob 11 to set the weight of the food that needs defrosting. A weight between 100 g and 1800 g can be set in 100-g-increments. The product calculates the required defrosting time automatically.
3. Start defrosting: Press the rotary knob 11. Defrosting begins. The defrosting time for the set weight appears in the display 8. The time is counted down.
   NOTE: To ensure uniform defrosting, some foods should be mixed or turned after around two thirds of the defrosting time. Defrosting pauses automatically at this time. 4 beeps sound and the time display flashes. If required, turn or mix the food.

Resume defrosting: Press the rotary knob 11.

If you do not want to turn the food: Resume defrosting by pressing the rotary knob ^11 .

1. After the set time has elapsed: End is shown in the display 8. 4 beeps sound.

2. Press 10 or open the door 5. The product switches to the standby mode. If you do nothing, there will be a further 4 beeps every 2 minutes.

Defrost weight (g)	Defrost time (minutes:seconds)
100 5:30
200 7:30
300 9:30
400 11:30
500 13:30
600 15:30
700 17:30
800 19:30
900 21:30
1,000 23:30
1,100 25:30
1,200 27:30
1,300 29:30
1,400 31:30
1,500 33:30
1,600 35:30
1,700 37:30
1,800 39:30

- Preset time function

NOTE: The product has a preset function. You can use this function to set a time at which the product should start a preset cooking process. The preset function is not available for the defrosting function and the automatic menu.

1. Select a microwave cooking programme [refer to previous sections].

2. Before starting the cooking process by pressing the rotary knob 11: Press 📷 | 📥 12.

3. 01:00 and 📋 are shown in the display 8. The time and 🔔 are flashing during setting.

4. Use the rotary knob 11 to set the hours. Press the rotary knob to confirm your selection.
5. Use the rotary knob 11 to set the minutes. Press the rotary knob to confirm your selection. The current time is shown in the display 8 again.
6. View the preset time: Press 📞 | 📞 12. The preset time is shown for approximately 4 seconds in the display 8. 📞 is shown in the display.

Delete preset time

1. Press 📄 | 📋 12. The preset time is shown.
2. Press ☐10. The stored values are deleted.

i NOTES:

☐ Changing the preset time: Delete the old values first. Then, set the new values.
All other functions are deactivated, as long as the preset function is active.

Automatic menu

NOTE: The automatic programmes are designed for fresh foods. Frozen foods will not be adequately cooked with the times programmed into the product. If required, defrost frozen foods using the defrost function beforehand (see “Defrosting”).

It is not necessary to set the duration of the cooking process and the power level for foods that are prepared in the automatic menu mode. You only need to enter the type of food you wish to cook and its weight.

Starting the automatic menu

NOTE: Once you turn the rotary knob 11 to the left to call up automatic menu mode, you can then turn it right to select the automatic menus in the order from A-01 to A-08.

In standby mode, turn the rotary knob 11 towards the left (turning direction). AUTO and a number (e.g. A-01 for auto programme 1 [Heating up]) are shown in the display 8. Turn the rotary knob to select the desired auto programme.

Display Food/Function		Amount/Weight	Duration(minutes:seconds)	Output power
A-01 Heating up		200 g 2:00		100 %
		300 g 2:40
		400 g 3:20
		500 g 4:00
		600 g 4:40
		700 g 5:20
		800 g 6:00
A-02 Vegetables		200 g 3:30		100 %
		300 g 4:30
		400 g 5:30
		500 g 6:30
		600 g 7:30
A-03 Fish		200 g 4:00		80 %
		300 g 5:20
		400 g 6:40
		500 g 8:00
		600 g 9:20
A-04 Meat		200 g 2:40		100 %
		300 g 3:30
		400 g 4:20
		500 g 5:10
		600 g 6:00
A-05 Pasta		100 g 25:00		80 %200 g 30:00
		300 g 35:00
A-06 Potatoes		1 piece 6:00		100 %
		2 pieces 9:00
A-07 Pizza		150 g 1:00		100 %300 g 1:30
		450 g 2:00
A-08 Soup		1 bowl 2:30		100 %2 bowls 4:00
		3 bowls 6:00

Application example 1:

Heat 200 ml of water:

1. Turn the rotary knob 11 left [turning direction 📄 until A-01 is shown in the display 8. Press the rotary knob to confirm your selection.
2. Use the rotary knob 11 to set the quantity of 200 g (1 ml of water = 1 g of water).
3. Start heating: Press the rotary knob 11.

Application example 2:

Cook 400 g of vegetables:

1. Turn the rotary knob 11 left [turning direction] until A-02 is shown in the

display 8. Press the rotary knob to confirm your selection.

1. Use the rotary knob 11 to set a weight of 400 g.
2. Start cooking: Press the rotary knob 11.

Recalling the selected automatic menu

■ After cooking has started, the remaining time is counting down in the display 8.
When you turn the rotary knob [11] left (turning direction [3]), the display shows the selected programme number for 3 seconds. After that, the display shows the remaining time again.

Examples of use

Cooking non-frozen food

Food	Quantity	Power (W)	Time (min)	Information
Fish fillet	400 g	700	10–15	Add a little water and lemon juice.
Vegetables	250 g	560	5–10	Cut the vegetables into pieces. Add a little water. Stir the vegetables occasionally.
Potatoes 500 g	700	8–10		Cut the potatoes into pieces. Add a little water. Stir the potatoes occasionally.
Food Quantity Power (W) Time (min) Information
Dessert (e.g. pudding, cupcake)	100–300 g 560 l–5			Follow the dessert manufacturer's instructions.
Rice	100 g rice250 ml water	560 l5		Rinse the rice before cooking.
Meat loaf 600 g	700 23–28			Season the meat loaf, place it on a dish and cover the dish with a lid.

Cooking frozen food

Food Quantity Power (W) Time (min)
Soup 400 ml	560	8–10
Stew	500 g	700	10–13
Side dishes (e.g. pasta)	500 g	700	8–10
Vegetables 300 g	560	8–10

- Recipes

● Chocolate mug cake

7 min

Preparation time:	5 min
Cooking time:	2 min

Ingredients

4 tbsp	Flour
14 tbsp	Baking powder
4 tbsp	Caster sugar
2 tbsp Cocoa powder
1	Egg
3 tbsp	Milk
3 tbsp	Vegetable oil
A few drops	Vanilla extract or another extract [optional]
2 tbsp	Chocolate chips, nuts, or raisins [optional]

Preparation

1. Add flour, baking powder, caster sugar, and cocoa powder in a large, microwave-safe mug. Mix all ingredients.
2. Add an egg and mix all ingredients.
3. Add milk and vegetable oil. Add vanilla extract or another extract, if desired. Mix all ingredients until the mixture is smooth.
4. If desired, add chocolate chips, nuts, or raisins. Mix all ingredients.
5. Place the mug on the centre of the turntable 4. Cook the cake at 700 W for 2 minutes or until the cake stops rising and becomes firm.
6. Wear oven mitts to remove the hot mug. Enjoy the tasty cake!

Caramel corn

24 min

x8

Preparation time:	20 min
Cooking time:	4 min

Ingredients

60 g Corn kernel
240 g Brown sugar
60 ml Corn syrup
3 tbsp Unsalted butter
12 tsp Salt
1 tsp Vanilla extract
14 tsp Baking soda
A few drops	Vegetable oil (optional)

Preparation

1. Add the corn kernels in a paper bag. Add a few drops of vegetable oil, if desired. Crimp the top of the bag a few times to close it.
2. Place the bag on the centre of the turntable 4. Cook the corn at 700 W for 4 minutes or until you do not hear the "pop" sound anymore.
3. Preparing caramel: Add sugar, corn syrup, butter, and salt in a large, microwave-safe bowl. Cook the mixture at 700 W for 2 minutes. Stir the mixture and cook it at 700 W for another 2 minutes until it forms many bubbles.
4. Add vanilla extract and baking soda to the caramel mixture and stir it well. Immediately add a third of the hot caramel over the popcorn in the bag. Close the bag and shake it to coat the popcorn. Add another third of the caramel over the popcorn. Close the bag and shake it. Add the remaining caramel over the popcorn and shake the bag one last time.
5. Place the bag on the centre of the turntable 4. Cook the popcorn at 700 W for 1 minute. Wear oven mitts to remove and shake the hot bag.
6. Pour the hot caramel corn into a container. Let the caramel corn cool down completely for approx. 20 minutes. Break the caramel corn apart and enjoy!

Breakfast potatoes

25 min

x2

Preparation time: 15 min
Cooking time: 10 min

Ingredients

2	Medium-sized potatoes (peeled and sliced)
12	Onion (sliced)
14 tsp Salt
18 tsp Pepper
14 tsp Garlic salt
60 g Cheddar cheese (shredded)

Preparation

1. Add potato and onion slices in a microwave-safe bowl.
2. Season the potatoes and onions with salt, pepper, and garlic salt. Mix everything well and cover the bowl.
3. Place the bowl on the centre of the turntable 4. Cook the seasoned potatoes and onions at 700 W for 9 minutes or until the potatoes are cooked.
4. Add cheese and cook at 560 W for 1 minute.
5. Wear oven mitts to remove the hot bowl. Enjoy the tasty breakfast!

Meat loaf

33–38 min

x2-3

Preparation time: 10 min
Cooking time: 23–28 min

Ingredients (meat loaf)

500 g	Minced beef
12	Onion (diced)
1	Egg (beaten)
100 g	Bread crumbs
14 tsp Pepper	per
14 tsp Salt

Ingredients (sauce)

75 ml Water
1 tbsp Mustard
2 tbsp Tomato ketchup
1 tsp Sugar
To taste Parsley (optional)

Preparation

1. Mix the minced beef, onion, egg, bread crumbs, pepper, and salt.
2. Form the meat loaf and place it on a dish. Cover the dish with a lid.
3. Place the dish on the centre of the turntable 4. Cook the meat loaf at 700 W for 18–23 minutes.
4. Meanwhile, mix the water, mustard, tomato ketchup, sugar, and parsley (optional) in a small bowl.
5. Once the meat loaf is cooked, drizzle the sauce over the meat loaf. Cover the dish with a lid.
6. Cook the meat loaf with sauce at 700 W for another 5 minutes.
7. Serve the meat loaf and enjoy!

Salmon

28 min

x1

Preparation time:	5 min
Cooking time:	23 min

Ingredients

400 g Salmon
12 tsp Pepper
12 tsp Salt
2 tsp	Water
14	Lemon

Preparation

1. If necessary, defrost the salmon (see "Defrosting").
2. Season the salmon with pepper and salt.
3. Place the salmon on a dish. Add water. Cover the dish with a lid.
4. Place the dish on the centre of the turntable 4. Cook the salmon at 560 W for 7 minutes. Alternatively, select automatic menu A-03 (see "Automatic menu").
5. Add a little lemon juice before serving the salmon.

● Cleaning and care

⚠️ DANGER! Risk of electric shock! Before cleaning: Always disconnect the product from the wall outlet.
DANGER! Risk of burns! Do not clean the product right after operation. Let the product cool first.
⚠ WARNING! Do not immerse the product's electrical components in water or other liquids. Never hold the product under running water.

i NOTES:

□ Clean the product right after it has cooled. Once the food residues have dried, they are not easy to remove.
☐ Do not use cleaning sprays and other aggressive cleaning agents, as they can cause stains, smears or clouding on the surfaces.
☐ Do not use abrasive cleaning agents.
Housing: Clean the product's housing with a damp cloth.
☐ Cooking chamber: Always keep the cooking chamber 2 clean. If splashes of food or spilt liquids stick to the walls of the product, wipe them off with a damp cloth. If required, use a mild washing-up liquid on the cloth. Afterwards, wipe with a cloth moistened only with clear water to remove any detergent residue.

Turntable: Clean the turntable 4 regularly with warm, soapy water. You may also clean the turntable in a dishwasher.
☐ Splashes and soiling: Use a damp cloth regularly to remove splashes and soiling from the following components:

• Doo[5] (both sides)
• Viewing window (both sides)
• Door seals and adjacent components

☐ Condensation: If condensation accumulates on or around the outside of the door 5, wipe it off with a soft cloth. This can happen if the product is operated in extremely humid conditions.
☐ Odours: Remove odours regularly. Put a deep microwave bowl – filled with a cup of water, plus the juice and peel of a lemon – into the cooking chamber 2. Heat the mixture for 5 minutes. Wipe the cooking chamber thoroughly and rub dry with a soft cloth.

● Troubleshooting

Problem Possible cause Possible solution
There is nothing in the display8.	The mains plug3is not inserted into a mains power socket.	Check the mains plug3.
	The mains power socket is defective.	Try another mains power socket.
	The display8is defective.	Contact the customer service department.
The product does not respond to pressing the buttons.	The child safety lock is activated.	Deactivate the child safety lock (see “Operation”).
The product does not start cooking.	The door5is not properly closed.	Close the door5.
The turntable4makes a loud noise when turning.	The turntable4is not correctly positioned on the turntable holder.	Position the turntable4correctly on the turntable holder.
	The rollers4and/or the floor of the cooking chamber2are unclean.	Clean the rollers4and the floor of the cooking chamber2.
The light inside the product is not working.	The luminary is defective. Contact the customer service department (see “Service”).

● Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Product:

The product and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri [sorting information], for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

To ensure quick processing of your claim, observe the following instructions:

Make sure to have the original sales receipt and the item number [IAN 481435_2410/481436_2410/481437_2410] available as proof of purchase.

You can find the item number on the rating plate, an engraving on the product, on the front page of the instruction manual (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, contact the service department listed below either by telephone or by e-mail.

Once the product has been recorded as defective you can return it free of charge to the service address that will be provided to you. Ensure to enclose the proof of purchase (sales receipt) and a short, written description outlining the details of the defect and when it occurred.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail:[e-mail]

CE

Ingredienser (sauce)

75 ml Vand
1 spsk.	Sennep
2 spsk.	Tomatketchup
1 tsk.	Sukker
Efter smag	Persille [valgfrit]

Tilberedning
