Caution: please read and preserve these important instructions

ÍNDICE

1. Important Note P. 14

2. Symbol definitions P. 14

3. Safety instructions for the user P. 14

I. General precautions during the use of electrical equipment P. 14-15

II. Restrictions on use to avoid personal injury P. 15-16

III. Product use restrictions due to poor condition or breakdown P. 16-17

IV. Restrictions on use when used with children and elders P. 17-18

V. IMPORTANT WARNING P. 18

VI. Instructions to follow when using the device P. 18-20

1. Product and accessories Information P. 21

2. Technical specifications P. 21

3. Parts description P. 21

4. Instructions for use P. 21-23

5. Cleaning and maintenance P. 23

6. Declaration of conformity P. 68

7. Responsibility for disposal, details of the manufacturer and after-sales service P. 69

ÍNDICE

Exploded diagram of a cleaning machine with numbered parts for identification

7. INSTRUCCIONES DE USO

Technical diagram of a mechanical component with concentric rings and central shaft (no text or symbols)

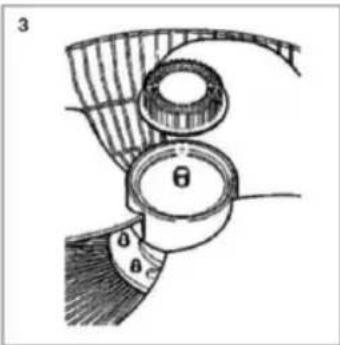

Technical illustration of a mechanical component with labeled parts (no readable text or symbols)

▶ Imágen 2

Diagram of a medical or industrial device with a tool and connected tubing (no text or symbols)

▶Imágen 4

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

1- Important information and useful hinds on use
2- Warning against dangerous situations in terms of life and property
3- Cautions while using electrical and electronic equipment.

3. Safety instructions for the user

1.

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
  • Always place the appliance on to the flat and even surface.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the

user.

• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
  • Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
  • Always ensure that a device which has been switched off cannot be restarted unintentionally.

II.

Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g.,

stove plates) or open flames.

• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.
• Do not use devices with an on/off switch that does not function correctly.

III.

Product use restrictions due to poor condition or breakdown

- Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect

immediately from the mains supply and take it to an authorized service agent for repair before reusing.

• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

IV. ⚠️! Restrictions on use when used with children and elders

• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
  • Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children shall not play with the appliance.
• This appliance can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Keep the appliance and its cord out of reach of children less than 8 years.

V. ⚠️ IMPORTANT WARNING

• The device may only be connected to a socket that is correctly installed and grounded.
• The fuse must be a residual current circuitbreaker with a measured residual current of no more than 30 mA.
• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

VI. ⚠️ Instructions to follow when using the appliance

- Do not insert foreign things to air outlets

and inlets, in order to avoid damage.

- Do not use the appliance near explosive and combustible gas. Avoid long-term direct solar radiation.

- The level of water tank should not be over “MAX” scale at any time, when humidifying, the total level of water tank should not be below “MIN” scale.

• After adding water to the water tank, do not tilt or knock over it when you put or move. If you want to move, please push slowly from the side, in order to avoid spilling.

- Do not tilt over the appliance. If it is toppled over and there is some water in the body, should unplug the power supply first. Then send it to the repair department or after-sales service and overhaul the appliance.

- Do not cover the air vent.

- Clean the appearance with a lightly damp cloth. Do not use any type of detergents or solutions. Do not rinse the appliance.

- Do not make air outlets and inlets near the wall or curtain.

- Do not knock or shake the body when using, otherwise it may cause stop automatically.

- The water in tank will easily metamorphose and has odor in summer, please renew the water frequently.

- Should it be necessary to move the unit after the water has been added, roll gently to the required position and activate the bracket of the castors.

- Remember that moving parts may also be

located behind ventilation and venting slots.
- Symbols appearing on your device may not be removed or covered. Signs on the device that are no longer legible must be replaced immediately.
- Be aware that high humidity levels may encourage the growth of biological organisms in the environment.
- Do not permit the area around the humidifier to become damp or wet. If dampness occurs, turn down the output of humidifier. If the humidifier output volume cannot be turned down, use the humidifier intermittently. Do not allow absorbent materials, such as carpets, curtains, drapes or tablecloths to become damp.
- Unplug the appliance during filling and cleaning.
- Never leave water in the reservoir when the appliance is not in use.
- Empty and clean the humidifier before storage, clean the humidifier before next use.
- Warning: If the water is not renewed timely, than micro-organisms that might be present in the water or in the environment where the appliance is used or stored, can grow in the water reservoir and be dispersed in the air causing very serious health issues. It is recommended to change the water every 3 days.

4. PRODUCT AND ACCESSORIES INFORMATION

This product contains a Mist fan, 1 remote control and 1 instruction manual

5. TECHNICAL SPECIFICATIONS

Power 90W
Voltage/Frequency 220-240V / 50Hz
Timer 7.5 hrs
Speeds 3
Sound Sensibility <50db
Air flow 45m3/min
Air throw 3m/s
Mist output 220ml/hr
Coverage area	12.5m2
Water tank capacity 3L
RPM	1250
Cable length 1.6m
Humidifier Yes
Oscillation function Yes
Blades	5

6. PARTS DESCRIPTION

1. Mist outlet
2. Front guard
3. Screw for outlet fixing
4. Blade lock
5. Leaf
6. Guard lock
7. Rear guard
8. Motor
9. Motor shaft
10. Guard Grill
11. Guard grill screw
12. Connector
13. Connector bracket
14. Stanchion pole
15. Handle screw
16. Main body rear shell
17. Water Tank
18. Drain stopper
19. Base
20. Base lock
21. Castor
22. Mist tube
23. Control panel
24. Remote control
25. Main body front shell
26. Transparent window

7. INSTRUCTIONS FOR USE

Assembly of your fan pedestal

Your Fan has been boxed unassembled to minimize packaging waste. Each part is designed to fit together and be disassembled easily for cleaning or storage.

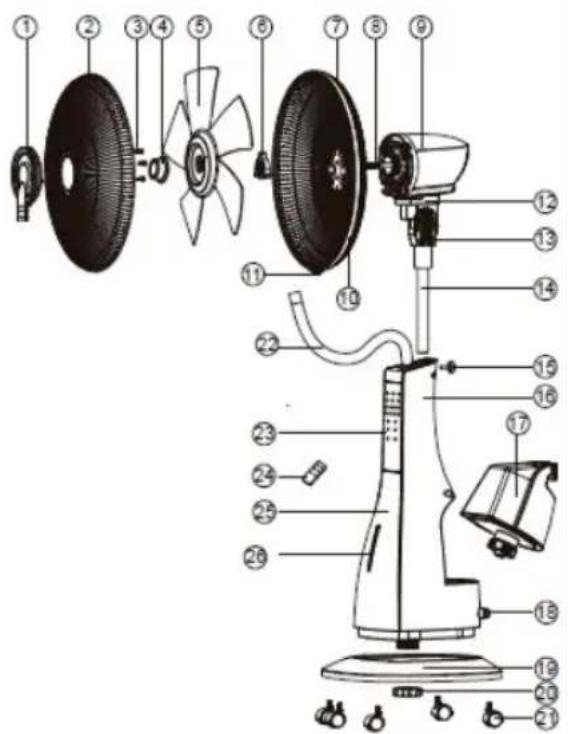

Exploded diagram of a cleaning or cleaning machine with numbered parts for identification

• To assemble the safety grille and blade assembly, remove the spinner (by turning it clockwise), then the locking nut (by turning it anticlockwise) from the motor spindle.
• Place the back safety grille (rear guard) into position. Ensure the safety grille fits onto the locating lugs. If this is done correctly, the safety grille's carry handle will be at the top. To assemble the safety grille and blade assembly, remove the spinner (by turning it clockwise), then the locking nut (by turning it anticlockwise) from the motor spindle.
• Fix the safety grille into position by replacing the locking nut tightly by hand.

Technical diagram of a mechanical component with no visible text or symbols

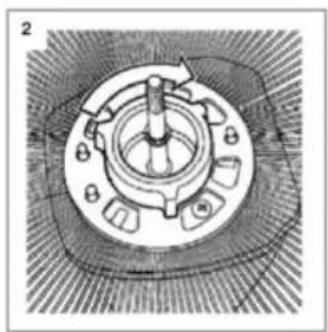

Technical illustration of a mechanical component with labeled parts (no readable text or symbols)

Item 2

- Do not force the locking nut.

▶ Item 3

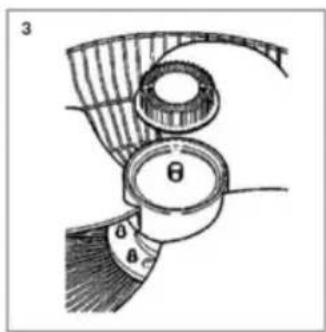

- The groove in the centre of the fan blade aligns with a T-bar on the motor spindle to ensure correct positioning. Fix the blade into place by gently hand tightening the spinner (Fig. 2) anticlockwise onto the end of the motor spindle. The spinner is self-tightening; do not force it (Spinner tightens anti-clockwise). Water tank Assembly (water fill in)

Diagram of a cleaning or cleaning device with a tool and a base, showing no text or symbols.

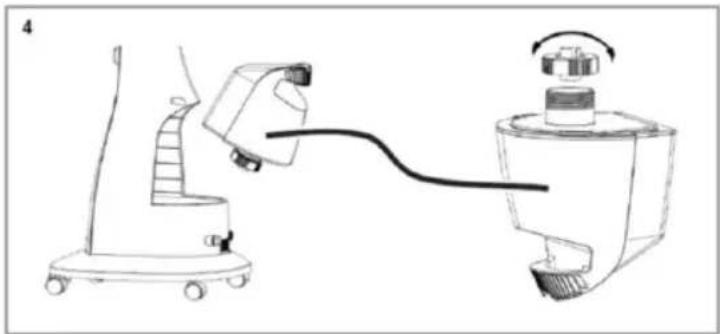

▶ Item 4

- Take out water tank first, and then take out water tank cover from water tank, and then put the water in the tank and tighten the water tank cover. Put the tank on atomizer main body, the temperature of water should not above 40°C.

Operation

Check before switching on!

DANGER! Caution, risk of injury! The product may only be put into operation if no faults are found during the checkup. Ensure that any defective parts are replaced before the product is used again. Check the safe condition of the product:

- Check whether there are any visible defects

- Check whether all parts of the product are firmly attached.

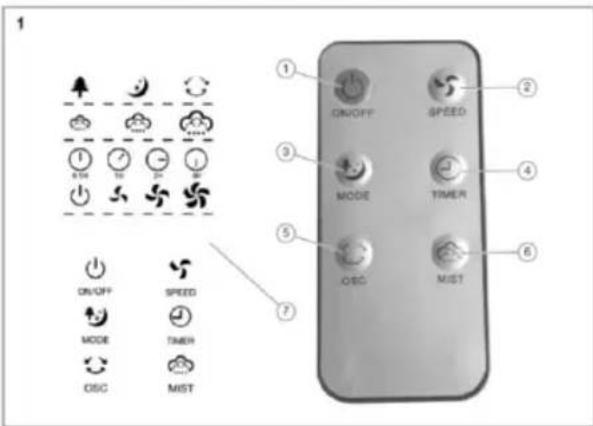

Features

1. ON/OFF

2. Oscillating Control

2.3 Speed Control

1. Mist Control

2. Sleep-Natural-Normal Mode

3. LED Display

4. Timer Control

Operation instructions

• Insert the power cord into plug socket, and hear a "beep" sound after power is connected work as shown above, use remote control point to receive window and push any button, various functions work accordingly ON/OFF Button
• Press ON/OFF button first time, you can separate to use mist function.
• Press ON/OFF second time, the indicator light is on, the speed is at low level by acquiesce. Then you can control speed level, timer setting, mode and oscillation function.

SPEED Button:

- Since you press ON/OFF second time, the speed is at low level by acquiesce, so when you press SPEED button again, it will turn to médium speed. If you chose high speed, please press this button again, the appropriate LED will glow, viewing LED display on fan body.

TIMER Button:

– Timer key adjusts off timer, you can select timing 0.5–7.5hrs OSC Button:

- Press the button, light of OSC on. Press again light off.

OSC Button:

- Press the button, OSC light turns on. Press again, the light turns off.

MODE Button:

- Since you press ON/OFF second time, the speed is at low level and the mode is set at normal mode by acquiesce, when you press the MODE again, it change to Natural mode, press it again, it turn to sleep mode.

Mist Function:

- You can adjust the mist level by operating the button under any circumstances. Cycling operation like Low - Middle - High - Off - Low - Middle and so on. Moist lights and the mount of the moist are also in accordance with this cycling operation: MIST (Low-Middle-High-Off-Low...)

1 ① ON/OFF SPEED ② ③ MODE TIMER ④ ⑤ OSC MIST ⑥ ⑦ ON/OFF SPEED MODE TIMER OSC MIST

CLEANING AND MAINTENANCE

DANGER! Caution, risk of injury! Always pull the mains plug out before commencing any work on the product.

• Turn off the product, pull out the mains plug.
• Never spray with liquids or submerge the Fan in water or any other liquid.
• Do not fill with water over 40^ in tank and sink to avoid discoloration or deformation.
• Pour out water from sink & tank when temperatura below 0 °C to keep water away from freezing to avoid component damaged.
• Do not fill water into handles directly
• Wipe the product with a slightly damp cloth.

Water Sink Cleaning:

• If sink with dusty or dirty material, put detergent onto soft cloth to clean the dirty place, then clean with water. Water bottle holder cleaning:
• First cut power off, take out water tank then pull mist tube appropriately. Clean it if it's dirty. Use clean water to wash mist control box (product composition like 1).

Troubleshooting

If something stops working...

DANGER! Risk of injury! Improper repairs can result in the product functioning unsafely. This endangers yourself and your environment.

Malfunctions are often caused by minor faults. You can easily remedy most of these yourself. Please consult the following table before contacting the vendor. You will save yourself a lot of trouble and possibly money too.

Fault/malfunction Cause Remedy
Product not running. No mains voltage?Cable faulty?		Check cable, plug, socket and fuse.Contact your local vendor.

If you can't fix the fault yourself, contact your nearest vendor. Please be aware that any improper repairs will algo invalidate the warranty and additional costs may be incurred.

Description Symbol Value	Unit
Maximum fan flow rate F (44,98) m3/min
Fan power input P (39,60) W
Standby power consumption PSB (0,26)	W
Fan sound power level	LWA	(59,68)	dB(A)
Maximum air velocity	c	(3,08)	m/s

1. IMPORTANT:

Exploded diagram of a cleaning or cleaning machine with numbered parts for identification

7. MODE D'EMPLOI

Assemblage du socle

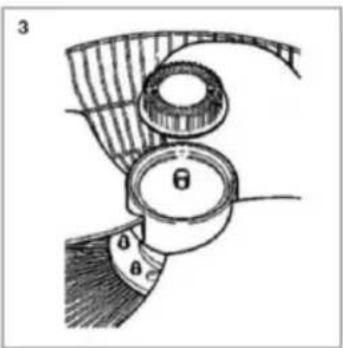

Technical diagram of a mechanical component with concentric rings and central shaft (no text or symbols)

Technical illustration of a mechanical component with labeled parts (no readable text or symbols)

▶ Point 2

Diagram of a robotic arm connecting a motor to a cylindrical device with a curved cable (no text or symbols)

▶ Point 4

Exploded diagram of a cleaning machine with numbered parts for identification

7. INSTRUÇÕES DE USO

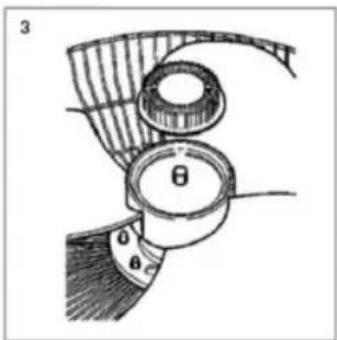

Technical diagram of a mechanical component with concentric rings and central shaft (no text or symbols)

Technical illustration of a mechanical component with labeled parts (no readable text or symbols)

Item 2

Diagram of a medical or industrial device with a tool and connected tubing (no text or symbols)

▶ Item 4

Exploded diagram of a cleaning or cleaning machine with numbered parts for identification

Technical diagram of a mechanical component with no visible text or symbols

Technical illustration of a mechanical component with labeled parts (no readable text or symbols)

▶ Punkt 2

Line drawing of a cleaning or spray gun system with a hand operating the gun and a mounted device (no text or symbols present)

▶Punkt 4

Exploded view diagram of a cleaning or cleaning device with numbered parts for identification

7. ISTRUZIONI PER L'USO

Technical diagram of a mechanical component with concentric rings and central shaft (no text or symbols)

Technical illustration of a mechanical assembly with labeled parts (no readable text or symbols)

▶ Punto 2

Line drawing of a medical or industrial device with a tool and connecting rod (no text or symbols)

▶ Punto 4

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in China After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161

Directive 2009/125/EC

Description Symbol Value Unit
Alimentazione / Stromversorgung 220 – 240V~ 50Hz
Potere / Potenz 90W
Clase / Klasse I
Portata del ventilatore / Lüfterdurchfluss F		44.98 m^3 /min
Potenza assorbita dal ventilatore / Lüfterleistungseingang P		39.6 W
Valore del servicio / Servicewert SV		1.14 m^3 /min/W
Consumo energético in standby / Standby-Stromverbrauch P	SB	0.26 W
Livello di potenza sonora del ventilatore / Lüfter-Schallleistungs-pegel	LWA	59.68 DB(A)
Velocità dell'aria / Luftgeschwindigkeit C		3.08 Meter/sec
Standard di misura per volare dal servicio / Messstandard, um vom Dienst zu fliegen	IEC 60879:1986 /corr.1992)
Dettagli del contatto / Kontaktdetails Sanysan appliances S.I., C/	Barcas,2, 2 , Valencia , 46002, SPAIN

SOGO®

Human Technology
