SS-21220 - Fan Sogo - Free user manual and instructions

Product type	Pedestal fan
Brand	Sogo
Model	SS-21220
Blade diameter	40 cm (16 inches)
Voltage/Frequency	220-240 V ~ 50 Hz
Power	40 W
Adjustable height	Yes, telescopic tube with lock
Oscillation function	Yes, activation by button on the motor
Number of speeds	Not specified (usually 3 speeds)
Tube material	Steel
Blade material	Plastic
Protective grille	Front and rear, metal
Weight	Approximately 3.5 kg
Dimensions (overall)	Max height approx. 140 cm, base diameter 40 cm
Cleaning	Unplug, wipe with a damp cloth, do not immerse
Maintenance	Check free rotation of blades, store in a dry place
Safety	Do not insert objects, do not cover, supervise children
Spare parts	Blades, grilles, nuts, screws available
Compliance	EC Directives 2014/35, 2014/30, 2011/65, 2009/125
After-sales service	www.sogosat.com, 0034 902 222 161

Frequently Asked Questions - SS-21220 Sogo

How to assemble the SS-21220 fan?

Assemble the tube to the base using the fixing screw. Insert the steel tube, tighten the lock. Attach the fan body to the tube. Place the rear grille, then the blade by aligning the slot, tighten the blade screw counterclockwise. Finally, place the front grille and secure it with the locking ring.

How to clean the fan?

Always unplug the device before cleaning. Use a damp cloth (not soaked) to wipe the grilles and blades. Never immerse the fan in water or any other liquid.

Does the fan oscillate?

Yes, the SS-21220 fan has an oscillation function. Activate it by pressing the button on the motor housing. To stop it, press again.

How to adjust the fan height?

Unscrew the tube lock, gently pull the steel tube up or down to adjust the height, then retighten the lock firmly.

The fan is noisy, what to do?

Check that the blade rotates freely without friction. Make sure all screws are tightened. If the noise persists, contact after-sales service.

Can I use an extension cord?

It is not recommended to use an extension cord. If necessary, ensure it has been checked by a qualified technician and matches the power of the device.

What is the required voltage?

The fan operates on a voltage of 220-240 V ~ 50 Hz. Check that your outlet matches this voltage before use.

How to store the fan in winter?

Clean it thoroughly, repack it in its original packaging or similar, and store it in a dry, dust-free place.

Is the device suitable for children?

This device can be used by children aged 8 years and above under supervision. Children must not play with the device. Cleaning and maintenance must not be performed by children without supervision.

Where to find spare parts?

Contact Sogo after-sales service via www.sogosat.com or at 0034 902 222 161. Parts such as blades, grilles, and nuts are available.

USER MANUAL SS-21220 Sogo

White outdoor fan with three blades and a mesh grille, standing on a stand (no text or symbols visible)

Caution: please read and preserve these important instructions

Instructions for use

Dear Customer, Please read this instruction manual carefully.

IMPORTANT SAFEGUARDS

This instruction manual can also be downloaded from our web page www.sogo.es

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions carefully and save these instruction manual for futur reference.
• To protect against electric shock, do not immerse cord, plug or fan into water or any other liquid.
• Do not use appliance for other than intended use.
• Use the appliance only on the voltage specified on its rating plate (230V/50Hz).
• Unplug from outlet when not in use and before cleaning.
• Do not pull the plug out of the socket by pulling the connection cord.
• Do not use outdoors.
• Do not use an extension cord, unless the cord has been checked and tested by your electrical authority or a qualified technician.
• Close supervision is necessary when any appliance is used by or near children.
  • Always use your appliance on a suitable

level and dry plataforma.

- Avoid using an appliance where it can fall or be pushed into water.

- Never reach for an appliance after it has fallen into water. Switch off at the mains power point und unplug immediately.

- Never attempt to insert any object through the grille when the fan is operating.

- Always disconnect fan when moving from one location to another.

- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner, please connect with manufacturer or local distributor.

- Do not cover the grille.

- If the fan is to be stored for an extended period of time or not used regularly, replace it in the original packaging (or similar) and store it in a dry and clean place. Before using again, check if the unit is clean and dry if the fan blades rotates freely.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
- Keep the appliance and its cord out of reach of children.

HOW TO INSTALL

Check before installation

• Unpack the product to check if all the accessories are available.
• Check the voltage shown in the nameplate to see if it accords with the local situation.
• Check the motor if it can move smoothly.

INSTALL

• Assemble the pole on the base with screws.
• Fix the base on the bottom with screw (If it is available).
• Unscrew Pipe Locker, Pull the stainless pipe at proper beight and then tighten the pine locker again.
• Unscrew the pipe holder. Connect the fan body firmly on the top of the atainless pipe and fasten the pipe holder again.
• Please take off the nut and put the rear guard into the front of the motor house, tighten the nut firmly, then put the fan blade into the motor axis (be sure to put the horizontal bolt into blade groove) and tighten the blade screw anti-clockwise.
• Put front guard and close or screw grills ring to secure guards together.

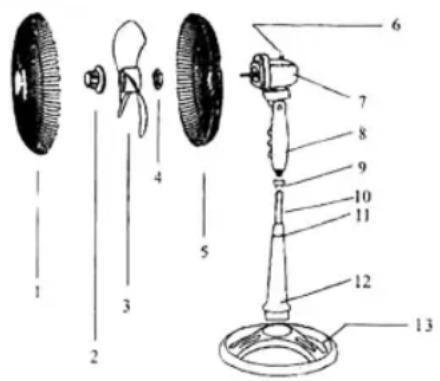

DRAWING

1. Front Guard
2. Blade Screw
3. Blade
4. Nut
5. Rear Guard
6. Oscillation Nob
7. Motor House
8. Switch Box
9. Pipe Holder
10. Stainless Pipe
11. Pipe Locker
12. Pole
13. Circle Base

TECHNICAL INFORMATION

Voltage / Frequency: 220-240V \~ 50Hz

Output Power: 40W

Mode d'emploi

ATTENTION

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161

DÉCLARATION DE CONFORMITÉ
