SPECIFICATIONS

Model: TW011G
Fastening capacities Standard bolt M12 - M36
High tensile bolt M10 - M27
Square drive 19.0 mm
No load speed (RPM) Max impact mode (4) 0 - 1,800 min		-1
Impacts per minute Max impact mode (4) 0 - 2,600 min		-1
Max. fastening torque *2	Max impact mode (4) 1,500 N·m
Target fastening torque *3	Hard impact mode (3) 300 - 450 N·m
	Medium impact mode (2)	50 - 150 N·m
	Soft impact mode (1)	30 - 50 N·m
Nut-Busting torque(at max impact mode (4))		1,900 N·m
Overall length		329 mm
Rated voltage		D.C. 36 V - 40 V max
Net weight		4.3 - 5.5 kg

^1 Tool stops automatically as soon as it has started impact blows.
^2 Fastening torque with M30 for 6 seconds.
^3 With M20 - M24.

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.

• Specifications may differ from country to country.

- The weight may differ depending on the attachment(s), including the battery cartridge. The lightest and heaviest combination are shown in the table.

Applicable battery cartridge and charger

Battery cartridge	BL4020* / BL4025* / BL4040* / BL4040F* / BL4050F / BL4080F*: Recommended battery
Charger	DC40RA / DC40RB / DC40RC / DC40WA / BCC01 / BCC02

• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

⚠ WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges and chargers may cause injury and/or fire.

Intended use

The tool is intended for fastening bolts and nuts.

Noise

The typical A-weighted noise level determined according to EN62841-2-2:

Sound pressure level ( L_pA ): 104 dB (A)

Sound power level ( L_WA ): 112 dB (A)

Uncertainty (K) : 3 dB (A)

NOTE: The declared noise emission value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another.

NOTE: The declared noise emission value(s) may also be used in a preliminary assessment of exposure.

WARNING: Wear ear protection.
⚠ WARNING: The noise emission during actual use of the power tool can differ from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.
⚠ WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Vibration

The vibration total value (tri-axial vector sum) determined according to EN62841-2-2:

Work mode: impact tightening of fasteners of the maximum capacity of the tool

Vibration emission ( a_h ): 15.6 m/s ^2

Uncertainty (K) : 2.4 m/s ^2

NOTE: The declared vibration total value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another.

NOTE: The declared vibration total value(s) may also be used in a preliminary assessment of exposure.

⚠ WARNING: The vibration emission during actual use of the power tool can differ from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.
⚠ WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Declarations of Conformity

For European countries only

The Declarations of conformity are included in Annex A to this instruction manual.

SAFETY WARNINGS

General power tool safety warnings

⚠ WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Cordless impact wrench safety warnings

1. Wear ear protectors.
2. Check the impact socket carefully for wear, cracks or damage before installation.

3. Hold the tool firmly.

4. Keep hands away from rotating parts.

5. Do not touch the impact socket, bolt, nut or the workpiece immediately after operation. They may be extremely hot and could burn your skin.

6. Always be sure you have a firm footing. Be sure no one is below when using the tool in high locations.

7. The proper fastening torque may differ depending upon the kind or size of the bolt. Check the torque with a torque wrench.

8. Make sure there are no electrical cables, water pipes, gas pipes etc. that could cause a hazard if damaged by use of the tool.

9. Do not carry the tool by holding the impact socket or any detachable accessories. The tool body otherwise may accidentally fall off, causing injury to you or someone around you.

SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product.

MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble or tamper with the battery cartridge. It may result in a fire, excessive heat, or explosion.
3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:
   (1) Do not touch the terminals with any conductive material.
   (2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.

(3) Do not expose battery cartridge to water or rain.

A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

1. Do not store and use the tool and battery cartridge in locations where the temperature may reach or exceed 50 °C (122 °F).

2. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.

3. Do not nail, cut, crush, throw, drop the battery cartridge, or hit against a hard object to the battery cartridge. Such conduct may result in a fire, excessive heat, or explosion.

4. Do not use a damaged battery.

5. The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements.

For commercial transports e.g. by third parties, forwarding agents, special requirement on packaging and labeling must be observed.

For preparation of the item being shipped, consulting an expert for hazardous material is required.

Please also observe possibly more detailed national regulations.

Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

1. When disposing the battery cartridge, remove it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.
2. Use the batteries only with the products specified by Makita. Installing the batteries to non-compliant products may result in a fire, excessive heat, explosion, or leak of electrolyte.
3. If the tool is not used for a long period of time, the battery must be removed from the tool.
4. During and after use, the battery cartridge may take on heat which can cause burns or low temperature burns. Pay attention to the handling of hot battery cartridges.
5. Do not touch the terminal of the tool immediately after use as it may get hot enough to cause burns.
6. Do not allow chips, dust, or soil stuck into the terminals, holes, and grooves of the battery cartridge. It may cause heating, catching fire, burst and malfunction of the tool or battery cartridge, resulting in burns or personal injury.
7. Unless the tool supports the use near high-voltage electrical power lines, do not use the battery cartridge near high-voltage electrical power lines. It may result in a malfunction or breakdown of the tool or battery cartridge.
8. Keep the battery away from children.

SAVE THESE INSTRUCTIONS.

CAUTION: Only use genuine Makita batteries.

Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.
2. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.
3. Charge the battery cartridge with room temperature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.
4. When not using the battery cartridge, remove it from the tool or the charger.
5. Charge the battery cartridge if you do not use it for a long period (more than six months).

FUNCTIONAL DESCRIPTION

CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.

Installing or removing battery cartridge

⚠️ CAUTION: Always switch off the tool before installing or removing of the battery cartridge.
⚠️ CAUTION: Hold the tool and the battery cartridge firmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridge firmly may cause them to slip off your hands and result in damage to the tool and battery cartridge and a personal injury.

To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator as shown in the figure, it is not locked completely.

To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge.

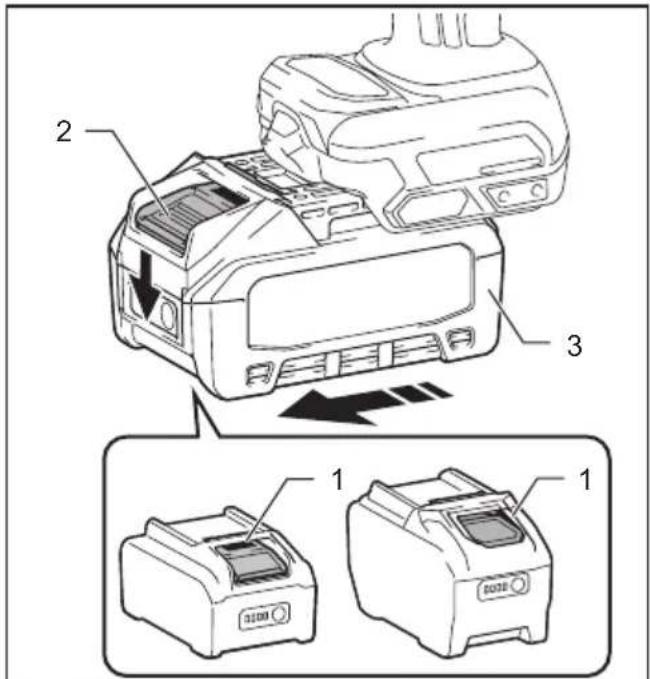

▶ Fig.1: 1. Red indicator 2. Button 3. Battery cartridge

⚠CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
⚠️CAUTION: Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly.

Tool / battery protection system

The tool is equipped with a tool/battery protection system. This system automatically cuts off the power to extend tool and battery life. The tool will automatically stop during operation if the tool or battery is placed under one of the following conditions:

Overload protection

This protection works when the tool is operated in a manner that causes it to draw an abnormally high current. In this situation, turn the tool off and stop the application that caused the tool to become overloaded. Then turn the tool on to restart.

Overheat protection

When the tool is overheated, the tool stops automatically and the lamps blink. In this situation, let the tool and battery cool before turning the tool on again.

Overdischarge protection

This protection works when the remaining battery capacity gets low. In this situation, remove the battery from the tool and charge the battery.

Protections against other causes

Protection system is also designed for other causes that could damage the tool and allows the tool to stop automatically. Take all the following steps to clear the causes, when the tool has been brought to a temporary halt or stop in operation.

1. Make sure that all switch(es) is/are in the off position, and then turn the tool on again to restart.
2. Charge the battery(ies) or replace it/them with recharged battery(ies).
3. Let the tool and battery(ies) cool down.

If no improvement can be found by restoring protection system, then contact your local Makita Service Center.

Indicating the remaining battery capacity

Press the check button on the battery cartridge to indicate the remaining battery capacity. The indicator lamps light up for a few seconds.

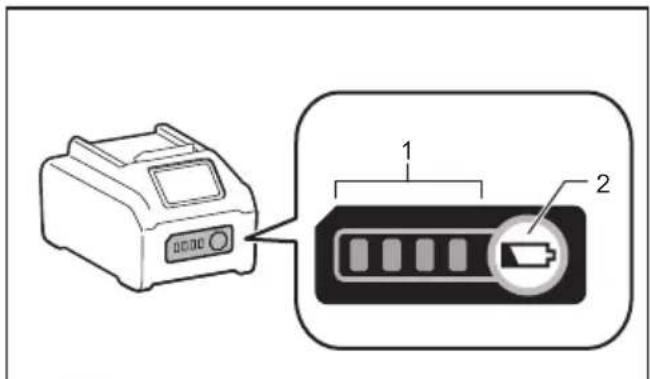

▶ Fig.2: 1. Indicator lamps 2. Check button

Indicator lamps Remaining			capacity
Lighted Off	Blinking
			75% to 100%
			50% to 75%
			25% to 50%
			0% to 25%
			Charge the battery.
			The battery may have malfunctioned.

NOTE: Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity.

NOTE: The first (far left) indicator lamp will blink when the battery protection system works.

Switch action

CAUTION: Before installing the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.

To start the tool, simply pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop.

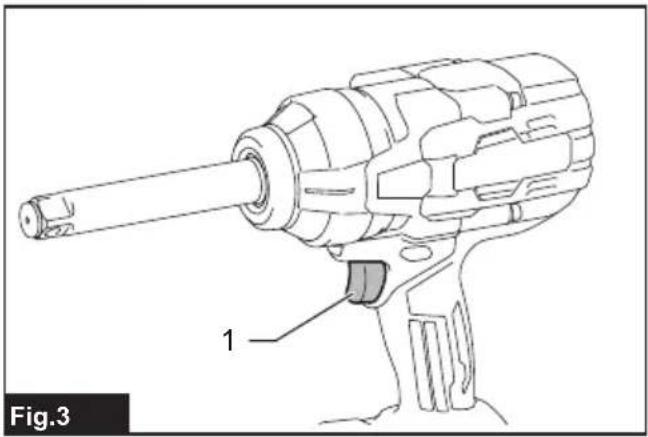

▶ Fig.3: 1. Switch trigger

NOTE: The tool automatically stops when you keep pulling the switch trigger for about 6 minutes.

NOTE: When full speed mode is turned on, the rotation speed becomes fastest even if you do not pull the switch trigger fully.

For detailed information, refer to the section of full speed mode.

Electric brake

This tool is equipped with an electric brake. If the tool consistently fails to quickly stop after the switch trigger is released, have the tool serviced at a Makita service center.

Accidental re-start preventive function

Even if you install the battery cartridge while pulling the switch trigger, the tool does not start.

To start the tool, first release the switch trigger and then pull the switch trigger.

Lighting up front lamps

⚠CAUTION: Do not look in the light or see the source of light directly.

Press the button to switch on the lamp status. Press the button again to switch off the lamp status. With the lamp status ON, pull the switch trigger to turn on the lamps. To turn off the lamps, release the switch trigger. The lamps go out approximately 10 seconds after releasing the switch trigger. With the lamp status OFF, the lamps do not turn on even if the trigger is pulled.

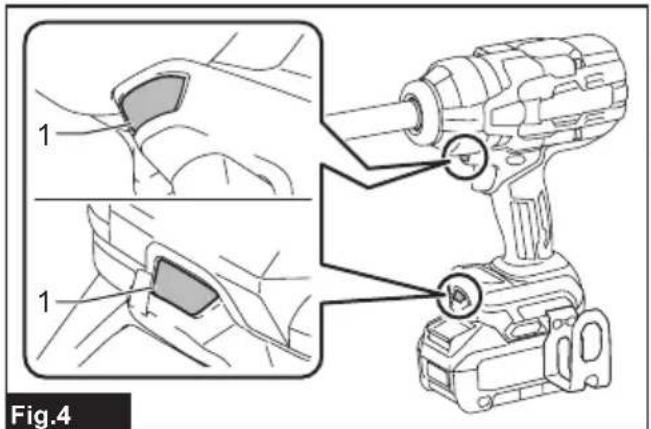

▶ Fig.4: 1. Lamps

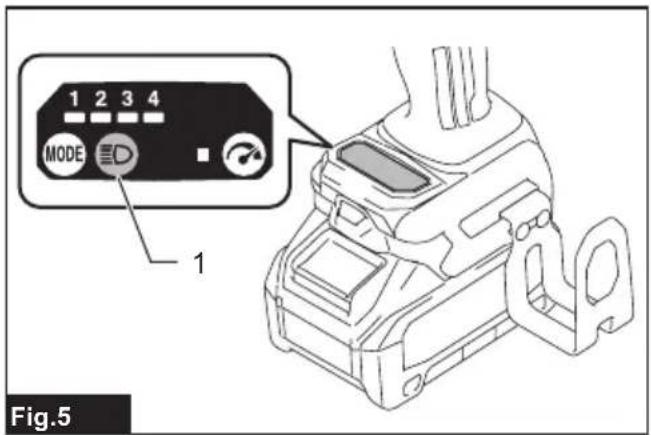

▶ Fig.5: 1. Button

NOTE: The lamp status can be recognized by pulling the switch trigger. The ON status has been maintained if you see the lamps light up. The ON status has been lost if not.

NOTE: When the tool is overheated, the front lamps flash for one minute, and then the LED display on the control panel goes off. In this case, cool down the tool before operating again.

NOTE: Use a dry cloth to wipe the dirt off the lens of the lamp. Be careful not to scratch the lens of the lamp, or it may lower the illumination.

NOTE: While pulling the switch trigger, the lamp status cannot be changed.

NOTE: You can change the lamp status for a duration of approximately 10 seconds after releasing the switch trigger.

Forward/Reverse switch

⚠️ CAUTION: Always check the direction of rotation before operation.

CAUTION: Use the forward/reverse switch only after the tool comes to a complete stop.

Changing the direction of rotation before the tool stops may damage the tool.

CAUTION: When not operating the tool, always set the forward/reverse switch to the neutral position.

Change the rotation direction using the forward/reverse switch. Depress the switch from the A side for clockwise (forward) rotation or from the B side for counterclockwise (reverse) rotation.

When the forward/reverse switch is in the neutral position, the switch trigger cannot be pulled.

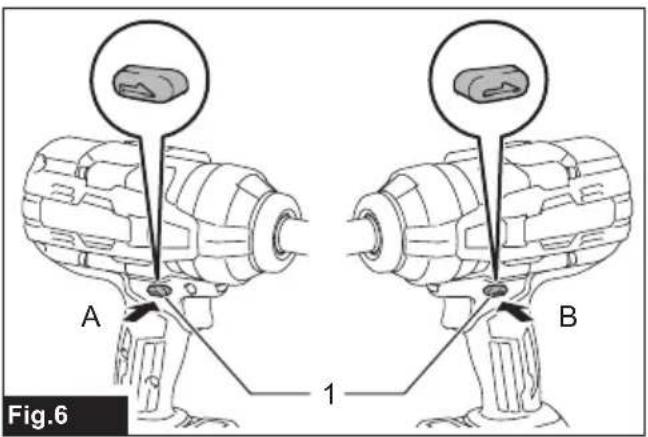

▶ Fig.6: 1. Forward/Reverse switch

Changing operation mode

The tool features multiple application modes for efficient bolt/nut fastening and torque control. Select an appropriate mode according to your preferences and needs.

Application modes can be switched for approximately 1 minute(s) after you release the switch trigger. You can extend the hold time for 1 more minute(s) by pressing the button MODE.

NOTE: The LED display on the control panel goes off to save the battery power while the tool is switched off.

NOTE: When the LED display on the control panel stays blank, slightly pull the switch trigger to reactivate the display and then press the button 📄.

Application modes in clockwise (forward) rotation

4 right-hand threading modes are available: a single free-range impact mode and 3 auto-stop modes.

Auto-stop modes employ 3 levels of torque limiting. It helps to repeat fastening continuously with equal torque, reducing the risk of breakage of bolts/nuts due to overtightening.

An auto-stop feature turns the tool off once the bolt or nut you are working on has been fastened to a predetermined torque level.

Free-range impact mode allows you to control the torque with the switch trigger. You can adjust the torque manually on the trigger for fastening. It is recommended for people who already feel comfortable using power tools.

The modes can be toggled among the applicational options by pressing the button 📂.

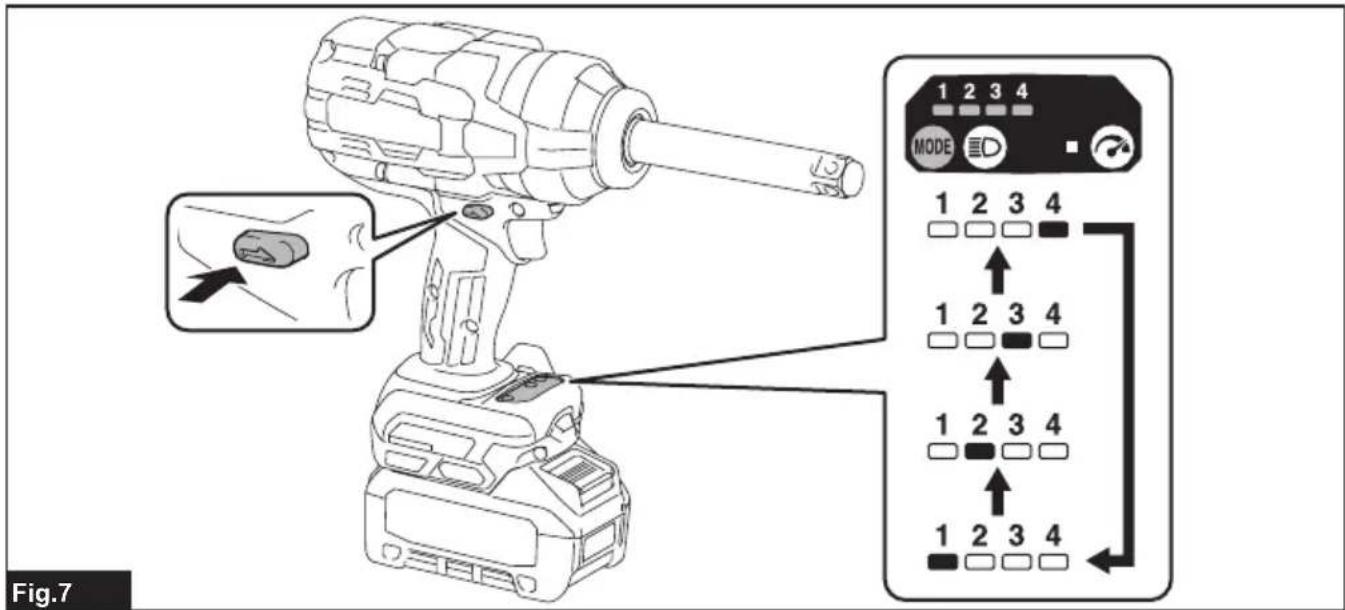

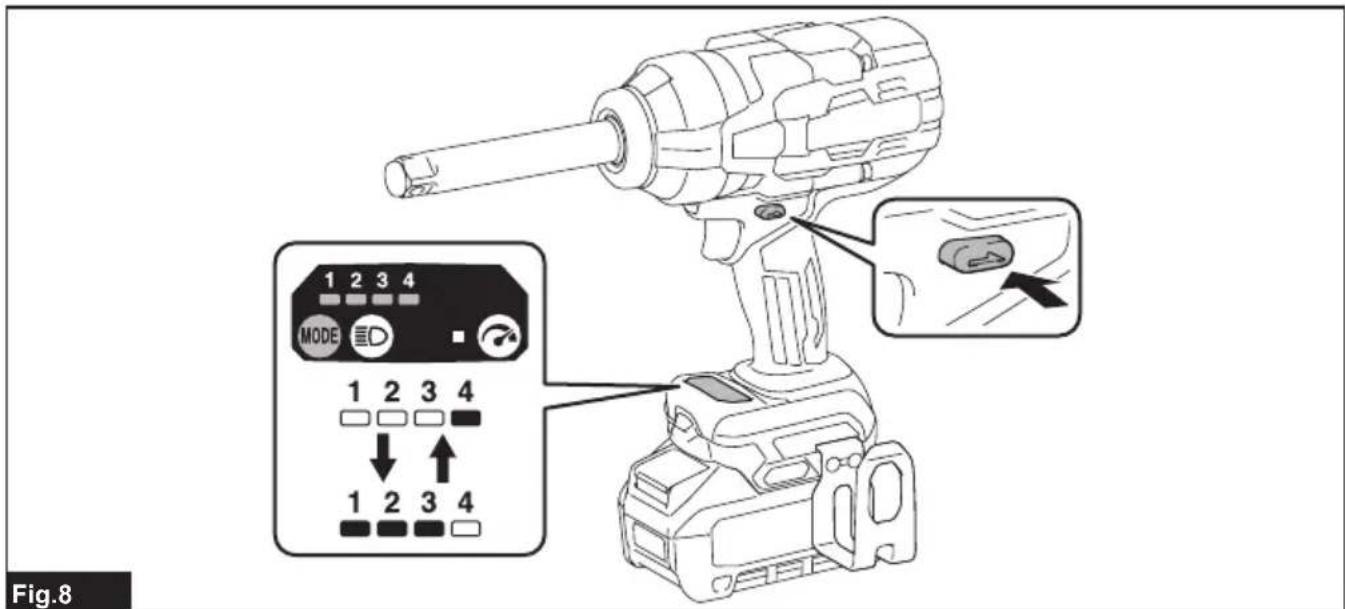

▶ Fig.7

Indication Mode Max.		blows (min ^-1 )	Max. rota-tion speed (RPM) (min ^-1 )	Target torque (N·m) ^*1	Features Application
4 (Max)	Impact (Free-range)	2,600 1,800	1,500	^*2 *3	Maximum speed, blows and torque can be obtained.	Fastening operation that requires a dynamic pow-er-speed range control.
3 (Hard)	Auto-stop	2,000 1,100	300 - 450 Prevents the tool from fastening temporarily.		add-ing too much torque when fastening temporarily.	Temporary fastening.
					Stops automatically approximately 0.8 second after the tool has started impact blows.	Stops the tool from rotating any further before it gets to the predetermined torque. This makes it easier to then fasten bolts/nuts on com-pletely. ^*4
2 (Medium)	Auto-stop	1,400	700	50 - 150	Secures the initial fixing to prevent loss of clamping force or displacement of fastening components.	Primary fastening.(Secondary retention)
					Stops automatically approximately 0.5 second after the tool has started impact blows.	Allows to fasten bolts/nuts with the required torque in a cross-fastening manner.
1 (Soft)	Auto-stop	^*5	500 30 - 50 Seats bolts/nuts at the rotation speed according to the target torque.		Hand fastening.
					Stops automatically as soon as the tool has started impact blows.	Roughly fastens bolts/nuts to hold fastening compo-nents in place.

: The lamp is on.

^1 The declared values have been measured in accordance with the manufacturer's standard test method and may not guarantee optimal performance on specific tasks.
^2 Maximum fastening torque with M30 for 6 seconds.
^3 Tool requires to apply the correct pressure to the switch trigger for good torque control.
^4 Wheel nuts (lug nuts) on cars, nuts and bolts on other vehicles and buildings need to be fastened to a specific level of torque. Be sure to tighten a fastener to its required tension using a torque wrench.
^5 Tool stops soon after starting impact blows.

NOTE: The timing to stop the tool driving varies depending on the type of the bolt/nut and material to be driven. Make a test driving before using the auto-stop mode.

Application modes in counterclockwise (reverse) rotation

2 left-hand threading modes are available: free-range impact mode and auto-stop mode.

Auto-stop mode lowers the rotation speed to avoid unfastened bolts/nuts falling off and damaging the material you are working on.

Free-range impact mode allows you to control the torque with the switch trigger. You can adjust the torque manually on the trigger for unfastening. It is recommended for people who already feel comfortable using power tools.

The modes can be toggled among the applicational options by pressing the button MODE.

▶ Fig.8

Indication Mode Max.		blows (min ^-1 )	Max. rota-tion speed (RPM) (min ^-1 )	Target torque (N·m) ^*1	Features Application
4	Impact (Free-range)	2,600 1,800	1,900	^*2	Maximum speed, blows and torque can be obtained.	Unfastening operation that requires a dynamic pow-er-speed range control.
1/2/3	Auto-stop	2,600 1,800	1,900 Automatically slows down		the rotation speed from the full speed after the tool has stopped impact blows.	Bolts/nuts loosening.
					Prevents the tool from loosening bolts/nuts too fast and causing them to come off.	Less likely to have bolts/nuts slip away during removal.

: The lamp is on.

^*1 The declared values have been measured in accordance with the manufacturer's standard test method and may not guarantee optimal performance on specific tasks.
^2 Tool requires to apply the correct pressure to the switch trigger to control the torque.

NOTE: The timing to slow down the rotation speed varies depending on the type of the bolt/nut and material to be driven. Make a test driving before using this mode.

Full speed mode

In full speed mode, the rotating speed immediately reaches its fastest in the selected mode whether you pull the switch trigger slightly or fully.

Press the button ⚙ to switch to full speed mode. Press the button ⚙ again to exit the mode. The indicator lamp on the control panel lights up while full speed mode is set to on.

▶ Fig.9: 1. Button ⏱ 2. Indicator lamp

NOTE: The tool stays in full speed mode after you change application modes.

ASSEMBLY

⚠️CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool.

Selecting correct impact socket

Always use the correct size impact socket for bolts and nuts. An incorrect size impact socket will result in inaccurate and inconsistent fastening torque and/or damage to the bolt or nut.

Installing or removing impact socket

⚠️ CAUTION: Make sure that the impact socket and the mounting portion are not damaged before installing the impact socket.
⚠️ CAUTION: After inserting the impact socket, make sure that it is firmly secured. If it comes out, do not use it.

Move the O-ring out of the groove in the impact socket and remove the pin from the impact socket. Fit the impact socket onto the square drive so that the hole in the impact socket is aligned with the hole in the square drive.

Insert the pin through the hole in the impact socket and square drive. Then return the O-ring to the original position in the impact socket groove to retain the pin.

To remove the impact socket, follow the installation procedures in reverse.

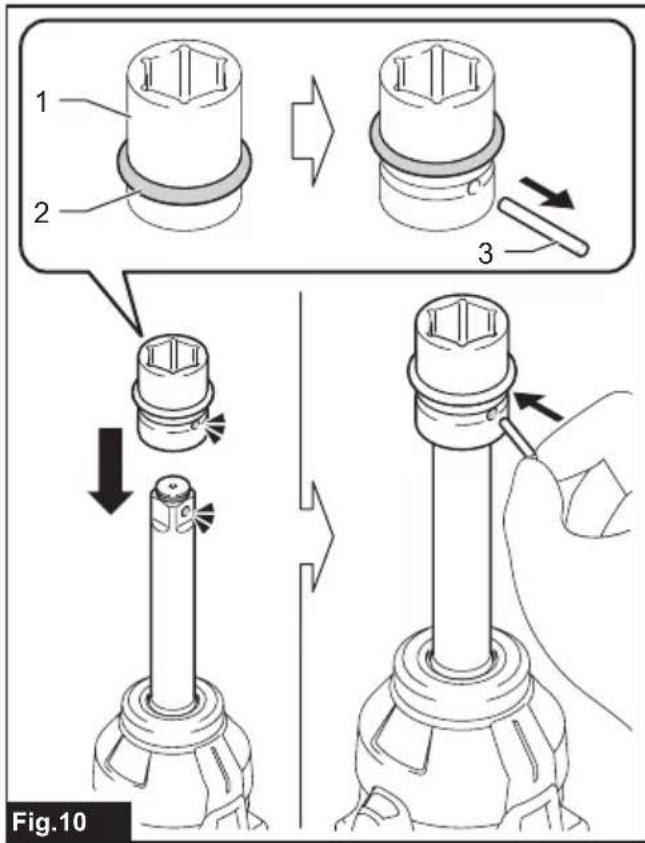

▶ Fig.10: 1. Impact socket 2. O-ring 3. Pin

Installing hook

WARNING: Use the hanging/mounting parts for their intended purposes only, e.g., hanging the tool on a tool belt between jobs or work intervals.
WARNING: Be careful not to overload the hook as too much force or irregular overburden may cause damages to the tool resulting in personal injury.

⚠️CAUTION: When installing the hook, always secure it with the screw firmly. If not, the hook may come off from the tool and result in the personal injury.
⚠️CAUTION: Make sure to hang the tool securely before releasing your hold. Insufficient or unbalanced hooking may cause falling off and you may be injured.

The hook is convenient for temporarily hanging the tool. This can be installed on either side of the tool. To install the hook, insert it into a groove in the tool housing on either side and then secure it with two screws. To remove, loosen the screws and then take them out.

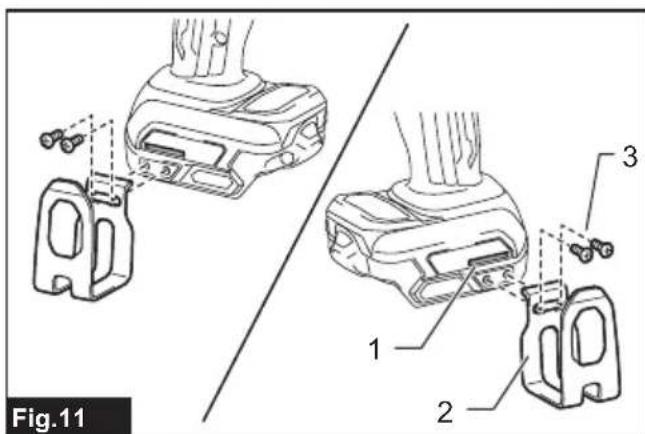

▶ Fig.11: 1. Groove 2. Hook 3. Screws

Ring

Country specific

⚠️CAUTION: Before using the ring, always make sure that the bracket and ring are secured and not damaged.
⚠️CAUTION: Use the hanging/mounting parts for their intended purposes only. Using for unintended purpose may cause accident or personal injury.

The ring is convenient for hanging the tool with hoist. First, place the rope through the ring. Then hang the tool up to the air with hoist.

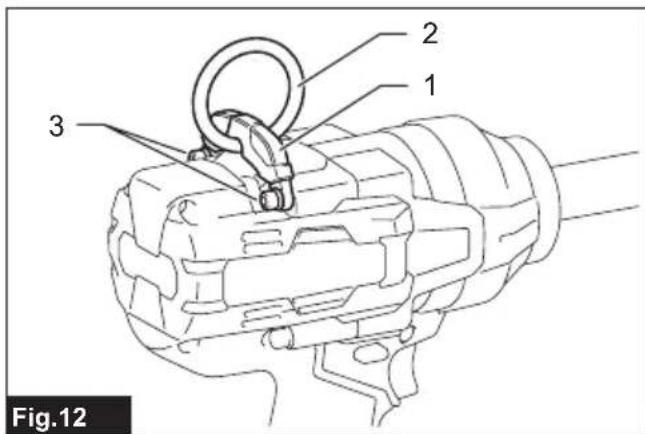

▶ Fig.12: 1. Bracket 2. Ring 3. Screws

OPERATION

⚠️CAUTION: Always insert the battery cartridge all the way until it locks in place. If you can see the red indicator around the front button, the battery cartridge is not locked completely. Insert the battery cartridge fully until the red indicator cannot be seen. If not, the battery cartridge may accidentally fall out of the tool, causing injury to you or someone around you.

Hold the tool firmly and place the impact socket over the bolt or nut. Turn the tool on and fasten for the proper fastening time.

The proper fastening torque may differ depending upon the kind or size of the bolt, the material of the workpiece to be fastened, etc. The relation between fastening torque and fastening time is shown in the figure(s).

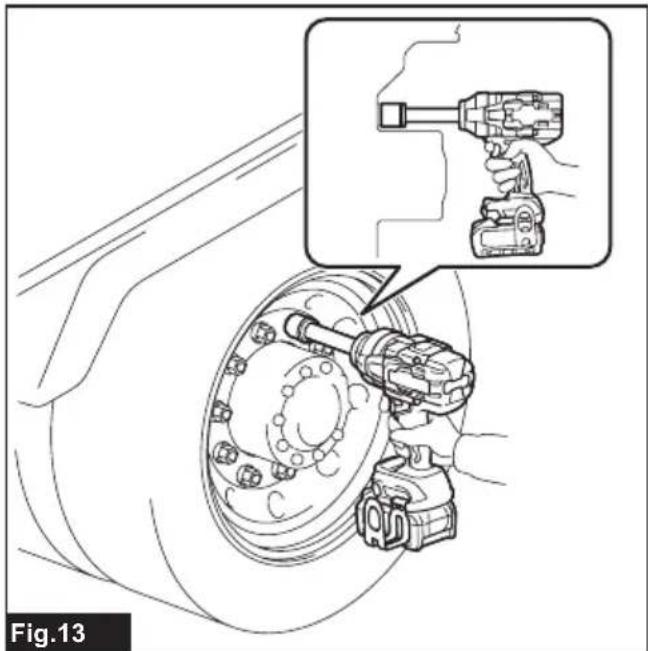

▶ Fig.13

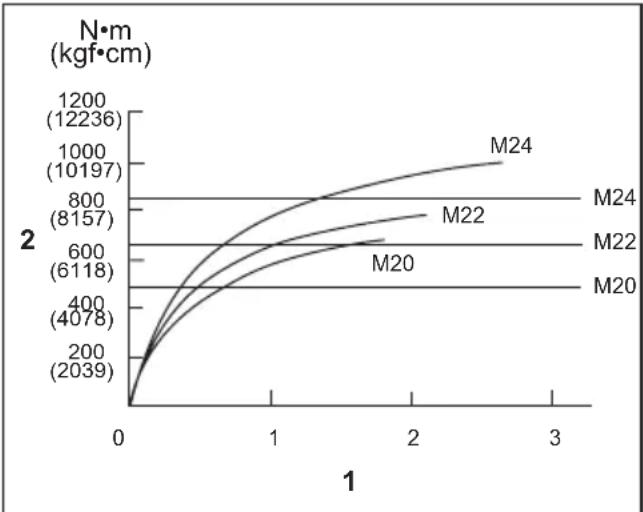

Proper fastening torque for high tensile bolt with max impact mode (4)

1. Fastening time (second) 2. Fastening torque

⚠CAUTION: If the tool is operated continuously, do not touch the hammer case. The hammer case may be extremely hot and could burn your skin.

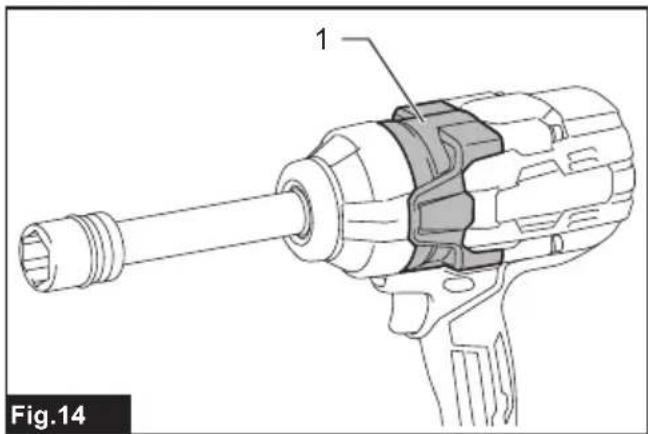

▶ Fig.14: 1. Hammer case

NOTE: Hold the tool pointed straight at the bolt or nut.

NOTE: Excessive fastening torque may damage the bolt/nut or impact socket. Before starting your job, always perform a test operation to determine the proper fastening time for your bolt or nut.

NOTE: If the tool is operated continuously until the battery cartridge has discharged, allow the tool to rest for 15 minutes before proceeding with a fresh battery cartridge.

The fastening torque is affected by a wide variety of factors including the following. After fastening, always check the torque with a torque wrench.

1. When the battery cartridge is discharged almost completely, voltage will drop and the fastening torque will be reduced.

2. Impact socket

3. Failure to use the correct size impact socket will cause a reduction in the fastening torque.

4. A worn impact socket (wear on the hex end or square end) will cause a reduction in the fastening torque.

5. Bolt

6. Even though the torque coefficient and the class of bolt are the same, the proper fastening torque will differ according to the diameter of bolt.

7. Even though the diameters of bolts are the same, the proper fastening torque will differ according to the torque coefficient, the class of bolt and the bolt length.

8. The use of the universal joint somewhat reduces the fastening force of the impact wrench.

Compensate by fastening for a longer period of time.

1. The manner of holding the tool or the material of driving position to be fastened will affect the torque.

2. Operating the tool at low speed will cause a reduction in the fastening torque.

MAINTENANCE

⚠️CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.

NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

OPTIONAL ACCESSORIES

⚠️CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Impact socket
  • Universal joint
• Protector
• Makita genuine battery and charger

NOTE: Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.

SPÉCIFICATIONS

▶ Fig.12: 1. Support 2. Anneau 3. Vis

UTILISATION

▶ Fig.14: 1. Corps du marteau

A WAARSCHUWING: Draag gehoorbescherming.

VEILIGHEIDSWAAR- SCHUWINGEN

▶ Fig.11: 1. Gleuf 2. Haak 3. Schroeven

Ring

OPTIONELE ACCESSOIRES

Acender as lâmpadas frontais

▶ Fig.11: 1. Ranhura 2. Gancho 3. Parafusos

Anel

Específico do país
