USER MANUAL MC-210 Mestic

Two black rectangular navigation monitors displaying camera modules, one with a display screen and control buttons (no visible text or symbols on the devices themselves)

Gebruiksaanwijzing NL User instructions EN Bedienungsanleitung DE Mode d'emploi FR

Instrucciones de uso ES Istruzioni per l'uso IT Betjeningsvejledning DK

Bruksanvisning SE Bruksanvisning NO

CAMERA

MC-210

DOUBLE

NEDERLANDS

Three safety warning symbols: lightning bolt, warning triangle with exclamation mark, and waste bin with cross symbol.

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Pull out
Push

Let op!

(Male) Shell to the shielded wire

Let op!

Blue background with a cyan horizontal bar and speaker icon (no text or symbols)

MIRROR F F

Abstract geometric pattern with green, yellow, and red lines forming a symmetrical shape against a solid blue background (no text or symbols)

Precautions, Storage and keeping

1. Do not expose the monitor to excessive heat or cold. The storage temperature of this product is -30 \~ +75°C and the operating temperature is -20 \~ +60°C. The humidity is Rh90%.
2. Do not puncture, scratch or use abrasive cleaning materials on this unit.
3. Do not place cables where they can be pinched or stepped on.
4. Allow at least 2" clearance between the monitor and walls, cabinets or other objects to allow adequate air circulation around the unit.
5. The monitor is not waterproof.

Precautions, Operating Precautions

1. The unit can be powered by a 12 or 36 volt automotive battery or vehicle electrical system.
2. Ensure that all cables are connected correctly, observing the correct polarity. Incorrect connections may damage the monitor. Disconnect power cables when not in use.

Warning!

High voltage is present within the monitor. The opening of the case should be by professionals. Do not watch the video while driving unless you are monitoring the rear view camera display.

pecial notice!

Occasionally, the LCD screen may show some bright or dark spots. This is a very common phenomenon in active matrix display technology and doesn't necessarily indicate a defect or malfunction. Never attempt to repair this unit yourself. In the event of a problem, immediately turn off the monitor and contact our company or an authorized dealer. The monitor is a complex piece of equipment. Any disassembly or modification may cause damage and void the warranty.

Maintenance

1. Disconnect all cables from the monitor before cleaning.
2. Use a mild household detergent and wipe the unit with a damp, soft cloth. Never use strong solvents such as thinner or benzene as they may damage the finish of the unit.

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This symbol is intended to alert the user to the need to dispose of electrical and electronic equipment.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

CAUTION

Please note that any changes or modifications not expressly approved in this manual may invalidate your warranty and require costly repairs.

Declaration of conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause under sired operation.

Product Features

1. Language selection: English / Deutsch / Francais / Italiano / Espanol / Nederlands.
2. Equipped with remote control.
3. Supports automatic video signal detection.
4. Supports simultaneous video input from two cameras.
5. Supports image mirroring function.
6. Support trigger function, the camera is controlled by a trigger line, and automatically switches when triggered.
7. Supports automatic start and switch to corresponding camera image when triggered in standby mode.
8. Working power supply range 12-36V, power short circuit protection function.

Technical Specifications

Monitor

7" TFT LCD colour monitor.

Resolution: 1024(RGB)X600

System: PAL/NTSC/AUTO

Brightness: 550cd/m².

Active area: 154.21(H)X85.92(V) mm

Video: CVBS\AHD(1080P)

Video Channel : 2 Channel

Guide function : 2 channel Auto switching

Power supply: 12/24V DC/<3.5W

Operating temperature: -20°C to +70°C.

Storage temperature: -25°C to +70°C.

CAMERA

TV system: NTSC/PAL

Effective pixels: 1920(H)*1080(V)

Sync. System: Internal

IR LED Qty: 15PCS/15PCS

Scanning system: Interlace

Lens: 2.8mm

All specifications may change without notification.

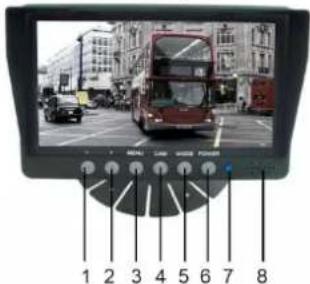

Key/Control descriptions

1 2 3 4 5 6 7 8

1. Decrease button - Adjusts volume, brightness, contrast, language, rotation, etc.
2. Increase button - Adjusts volume, brightness, contrast, language, rotation, etc.
3. MENU - Access brightness, contrast, language, rotation, etc.
4. CAM - Switches between all cameras connected to the monitor.
5. MODE - Select brightness mode.
6. POWER - Turns the monitor on and off.
7. Power indicator.
8. Speaker.

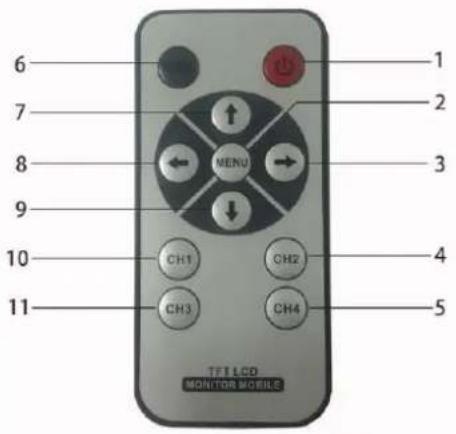

Remote Control Operation

6 7 8 9 10 11 MENU CH1 CH2 CH3 CH4 1 2 3 4 5 TFT LCD MONITOR MOBILE

1. Power on/off
2. Menu/confirm
3. Increase button
4. CH2
5. CH4(No effect)
6. Switching channel/return
7. Upwards select
8. Decrease button
9. Downwards select
10. CH1
11. CH3(No effect

Replacing the remote control batteries

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Pull out
Push

Notice!

1. To operate, point the remote control towards the infrared window on the monitor.

2. Never disassemble the remote control, drop it or get it wet.

3. Press the control buttons firmly. Allow 2 seconds for the picture to change.

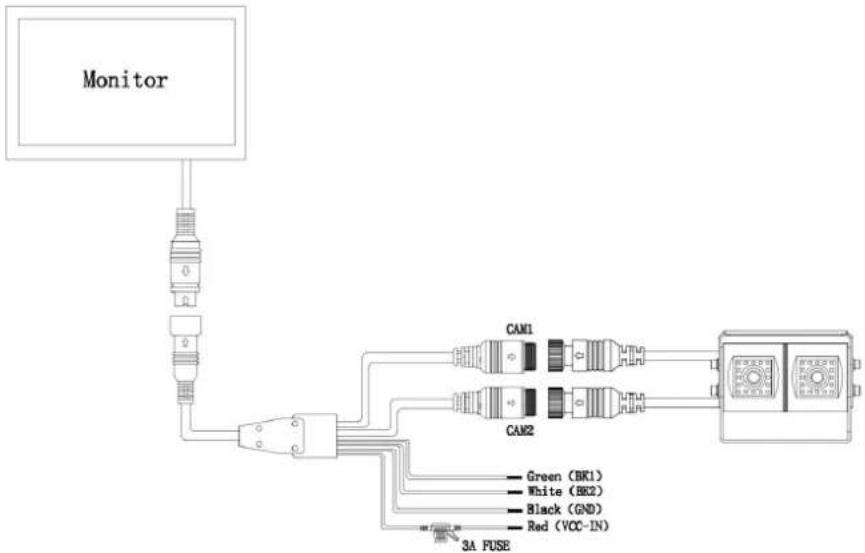

Basic operation

Black: Ground

Red: ACC (car key power) DC 12\~36V

Green: Trigger Cam 1 - Reverse light power positive DC12\~36V.

Video Audio +12V DC GND

(Male) Shell to the shielded wire

Notice!

1. There is high voltage inside the monitor. The housing should only be opened by a specialist.
2. Do not watch the video while driving, unless you are monitoring the rear view camera display.

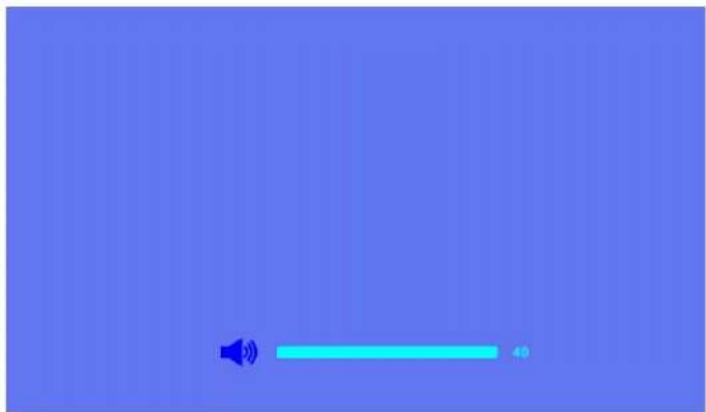

Menu options Audio

Blue background with a cyan horizontal bar and speaker icon (no text or symbols)

1. If there is no menu, press the Function button up or down to display the Volume menu. Then press the Function up or down button to increase or decrease the volume level. Press the MENU button to confirm OK and automatically save the status parameters.

2. Press the MODE button to return to the previous level.

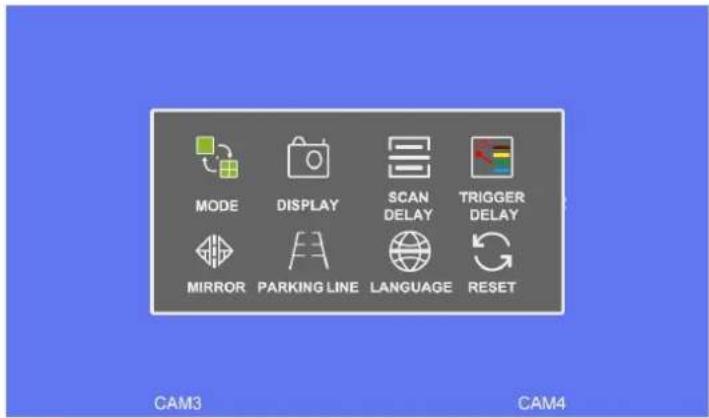

Main Menu

MODE DISPLAY SCAN DELAY TRIGGER DELAY MIRROR PARKING LINE LANGUAGE RESET CAM3 CAM4

1. When there is no menu, the MENU key will pop up the main menu. Press the function add or subtract key to move to the corresponding selection item

the MENU key to confirm OK, and enter the corresponding next level menu.

1. Press the MODE key to return to the previous layer.

Mode

MODE FULL INTER

Single channel mode 1-2 1-2 Single cycle mode

1. Press the function add or subtract key, move to the corresponding press the MENU key to confirm OK, automatically switch and save the status parameters.

2. Press the MODE key to return to the previous layer.

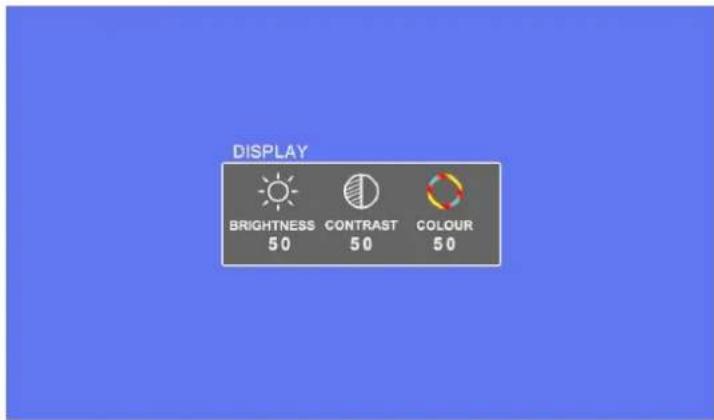

Display

DISPLAY BRIGHTNESS 50 CONTRAST 50 COLOUR 50

Brightness

Contrast

Color

1. Press the function plus or minus keys to switch values. Press the MENU key to
   confirm OK,
   switch
   channels and automatically save status parameters.
2. Press the MODE key to return to the previous layer.

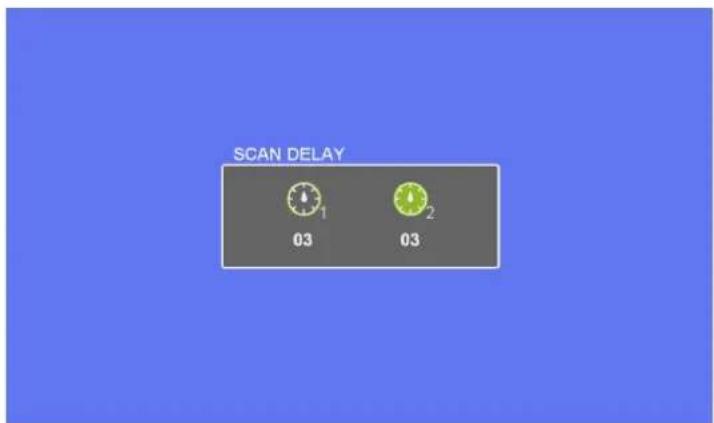

Scan Delay

SCAN DELAY 03 1 2 03

1 Channel

2 Channel

1. Press the function plus or minus keys to switch the values. Press the MENU key to confirm OK, and switch channels and automatically save the status parameters.

2. Press the MODE key to return to the previous layer.

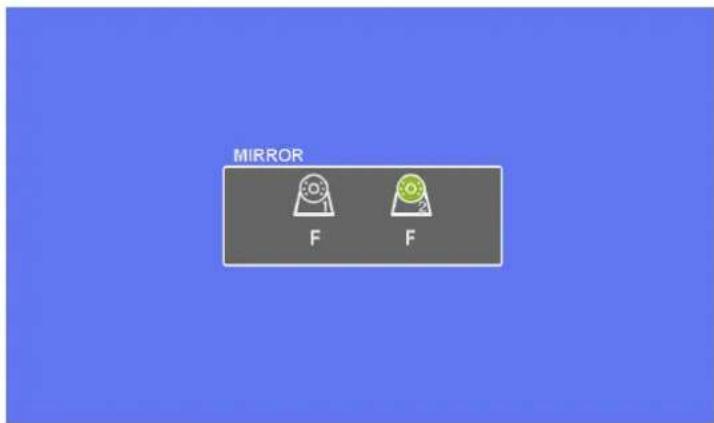

Mirror

MIRROR F F

1. Press the function plus or minus will switch to display changes, press the MENU key to confirm OK, automatically save status parameters.

2. Press the MODE key to return to the previous layer.

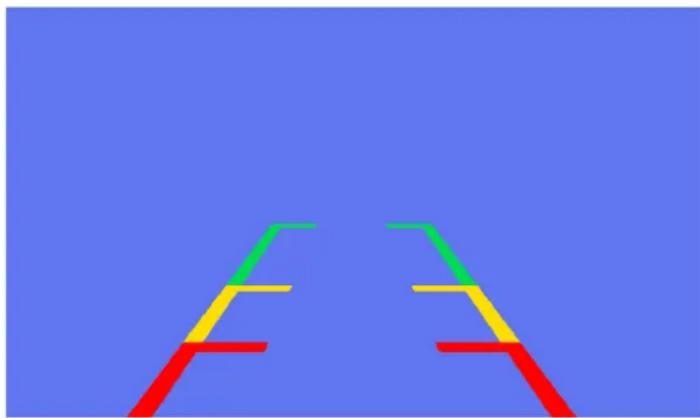

Parking Line

1 2 ON

Channel options

Turn parking line on

Turn parking line off

Scale parking lines

Abstract geometric pattern with green, yellow, and red lines forming a symmetrical shape against a solid blue background (no text or symbols)

1. Press the function add or subtract key to move to the corresponding option, press the MENU key to confirm O to switch channels or enter the corresponding next level menu.

2. Press the MENU key to confirm OK

3. Press MODE to return to the previous level.

4. The next level of (Arrow left/right), press the function plus or minus keys to move the position of icon left or right.

5. The next level of (Arrow up/down), press the function plus or minus keys to move the position of icon up or down.

6. The next level of (Arrow left/right), press the function plus or minus keys to move the position of icon width.

7. Press the MODE key to return to the previous layer

Language

LANGUAGE English Français Deutsch Italiano Español Nederlands Português 中文 العربية

1. Select your desired language. Choose between: English / Deutsch / Français / Italiano / Español / Nederlands / Dansk / Norsk

Troubleshooting

The symptoms described below do not necessarily indicate a fault within the display. Please check the following points before requesting service.

Symptom	Possible causes/solution
Dark screen	Check that the brightness and contrast are set correctly.Check that the ambient temperature is not too low.
No picture	Check that the locking cable is connected correctly.
No color	Adjust the colour settings.
Upside down or sideways Inverted image	Use the remote control/MENU ROTATION button to set the correct orientation.
No reverse function (i.e. image)	Check the wires (black/red/green) that may be loose.

DEUTSCH

Warning symbols including lightning bolt, exclamation mark, and waste bin with cross symbol

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Pull out
Push

Achtung!

(Male) Shell to the shielded wire

Achtung!

Blue background with a cyan horizontal bar and speaker icon (no text or symbols)

MIRROR F F

Abstract geometric pattern with green, yellow, and red lines forming a triangular shape against a solid blue background (no text or symbols)

Three safety warning symbols: lightning bolt, warning triangle with exclamation mark, and waste bin with cross symbol

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Pull out
Push

Avis!

(Male) Shell to the shielded wire

Avis!

Blue background with a cyan horizontal bar and speaker icon (no text or symbols)

MIRROR F F

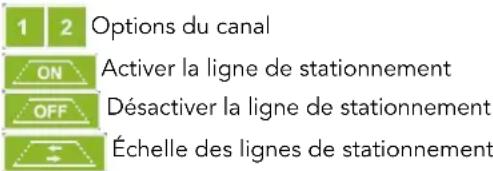

Abstract geometric pattern with green, yellow, and red lines forming a triangular shape against a solid blue background (no text or symbols)

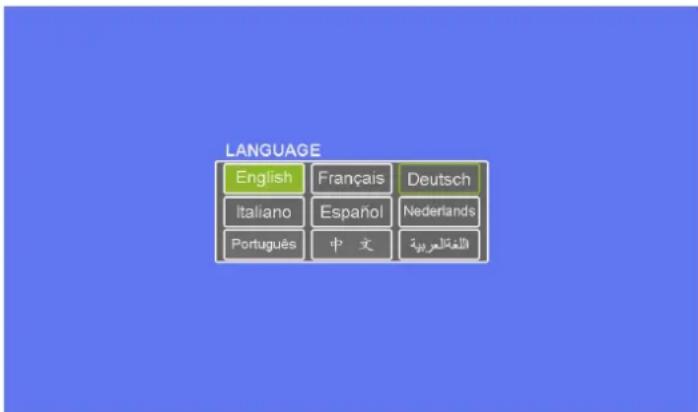

Langue

LANGUAGE English Français Deutsch Italiano Español Nederlands Português 中文 الغربية

Three safety warning symbols: lightning bolt, warning triangle with exclamation mark, and waste bin with cross symbol

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Pull out
Push

Avviso!

(Male) Shell to the shielded wire

Avviso!

Blue background with a cyan horizontal bar and speaker icon (no text or symbols)

MIRROR F F

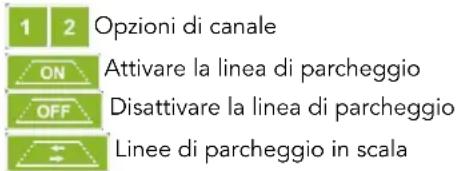

Abstract geometric pattern with green, yellow, and red lines forming a symmetrical shape against a solid blue background (no text or symbols)

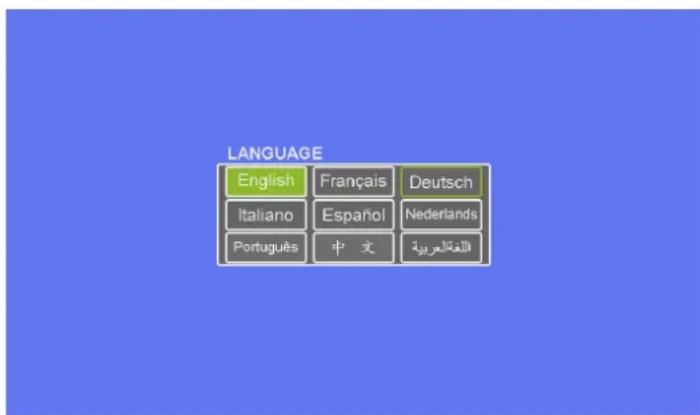

Lingua

LANGUAGE English Français Deutsch Italiano Español Nederlands Português 中文 الغترية

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Pull out
Push

Bemærk!

(Male) Shell to the shielded wire

Bemærk!

Blue background with a cyan horizontal bar and speaker icon (no text or symbols)

MIRROR F F

Abstract geometric pattern with green, yellow, and red lines forming a symmetrical shape against a solid blue background (no text or symbols)

Sprog

LANGUAGE English Français Deutsch Italiano Español Nederlands Português 中文 الغترية

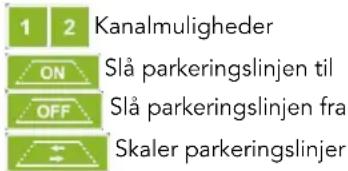

1 2 Kanalmuligheder ON Slå parkeringslinjen til OFF Slå parkeringslinjen fra Skaler parkeringslinjer
