MC-300 - Surveillance Camera Mestic - Free user manual and instructions

Product type	Surveillance camera with monitor
Screen size	7 inches
Screen resolution	1024 x 600 pixels
Camera resolution	1920 x 1080 pixels (Full HD)
Viewing angle	Horizontal 106°, Vertical 55°, Diagonal 120°
Lens	2.8 mm
Night vision	18 infrared LEDs
TV system	Automatic NTSC/PAL
Power supply	12~24 V DC
Number of video inputs	2 (Cam1, Cam2)
Built-in speaker	Yes
Remote control	Included
Available languages	12 languages
Operating temperature (camera)	-20°C to 70°C
Storage temperature	-30°C to 80°C
Image settings	Brightness, contrast, color, rotation, mirror
Parking guidelines	Adjustable (on/off, position)
Auto scan	Between cameras 1 and 2
Maintenance	Soft cloth and mild detergent
Safety	Internal high voltage, do not open
Warranty	Void if unauthorized modification

Frequently Asked Questions - MC-300 Mestic

How to install the Mestic MC-300 rear view camera?

Connect the wires: black (ground), red (ACC 12-24V), green (camera 1 trigger - reverse light), white (camera 2 trigger). Ensure connections are correct and insulated.

What to do if the screen stays black?

Check that the power is properly connected and the switch is in the ON position. Make sure the trigger cable is connected.

How to adjust the parking guideline?

Press MENU, use + to navigate to the Parking guideline menu, press MENU to confirm. Adjust horizontal and vertical position with + and - buttons, then confirm.

How to mirror the image?

In the Rotation menu (press MENU 6 times), use + and - to select mirror or normal mode. The image can also be adjusted horizontally, vertically, or mirrored.

The remote control does not work, what to do?

Check the batteries, replace if necessary. Point the remote towards the monitor's infrared sensor. Do not drop the remote and avoid moisture.

How to reset image settings?

In the menu, select Reset (press MENU 7 times). This will restore brightness, contrast, and color to default values (20).

Can I connect two cameras?

Yes, the device has two video inputs (Cam1 and Cam2). You can switch between cameras manually or enable auto scan.

How to clean the monitor?

Disconnect all cables. Use a soft cloth slightly dampened with mild household detergent. Never use solvents like thinner or benzene.

What to do if the image is upside down?

Use the remote or MENU button to access the Rotation menu and select the correct orientation (normal, mirror, etc.).

Can the device be used in the rain?

The monitor is not waterproof. Avoid exposure to water. The camera is designed for outdoor use in normal conditions, but should not be submerged.

USER MANUAL MC-300 Mestic

Precautions, Storage and keeping

1. Do not expose the monitor to excessive heat or cold. The storage temperature of this product is -30 +75^ and the operating temperature is -20 +60^. The humidity is Rh 90%
2. Do not puncture, scratch or use abrasive cleaning materials on this unit.
3. Do not place cables where they can be pinched or stepped on.
4. Allow at least 2" clearance between the monitor and walls, cabinets or other objects to allow adequate air circulation around the unit.
5. The monitor is not waterproof.

Precautions, Operating Precautions

1. The unit can be powered by a 12 or 24 volt automotive battery or vehicle electrical system.
2. Ensure that all cables are connected correctly, observing the correct polarity. Incorrect connections may damage the monitor. Disconnect power cables when not in use.

Warning!

High voltage is present within the monitor. The opening of the case should be by professionals. Do not watch the video while driving unless you are monitoring the rear view camera display.

Special notice!

Occasionally, the LCD screen may show some bright or dark spots. This is a very common phenomenon in active matrix display technology and doesn't necessarily indicate a defect or malfunction. Never attempt to repair this unit yourself. In the event of a problem, immediately turn off the monitor and contact our company or an authorized dealer. The monitor is a complex piece of equipment. Any disassembly or modification may cause damage and void the warranty.

Maintenance

1. Disconnect all cables from the monitor before cleaning.
2. Use a mild household detergent and wipe the unit with a damp, soft cloth. Never use strong solvents such as thinner or benzene as they may damage the finish of the unit.

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This symbol is intended to alert the user to the need to dispose of electrical and electronic equipment.

CAUTION

Please note that any changes or modifications not expressly approved in this manual may invalidate your warranty and require costly repairs.

Declaration of conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause under sired operation.

Product Features

1. TFT LCD monitor with wide viewing angle and high resolution display.
2. Image can be adjusted for horizontal, vertical, mirror and normal viewing.
3. Choice of 12 languages for user operation.
4. Mirror and Normal switch available.
5. Full function remote control.
6. Multiple video formats available: AUTO
7. Up to 2 AV inputs. Automatically switches to rear camera view.
8. Power Supply: 12~24V.
9. Built-in speaker.

Technical Specifications

Monitor

7" colour monitor.

Audio output: ≤ 8.64W

Power supply: 12~24V

Video inputs: 2-CH inputs

Type: 16:9 Wide Screen

Digital Screen Resolution: 1024*600

Colour system: AUTO

Rear Guide: Yes

MIRROR/NORMAL Switch: Yes

Reverse Trigger: Automatic

CAMERA

TV system: NTSC/PAL

Effective pixels: 1920(H)*1080(V)

Sync. System: Internal

IR LED Qty: 18PCS

Scanning system: Interlace

Lens: 2.8mm

Lens angle: H:106° V:55° D:120°

Operating temperature: -20°C - 70°C, RH 95% MAX

Storage temperature: -30^ - 80^, RH 95% MAX

Key/Control descriptions

FUNCTION	BUTTON	ADJUSTMENT	FUNCTION
ON/OFF
Video selection	V1/V2	Cam 1 / Cam 2	Channel switching
Menu	M	Menu	Single key cycle menu switching
Brightness Press 1x M (Menu)		▲ and ▼ to control	Enter the menu, you should be able to adjust (0-40, default 20) and save the parameters when you exit.
Contrast	Press 2x M (Menu)	▲ and ▼ to control
Color	Press 3x M (Menu)	▲ and ▼ to control
Language Press 4x M (Menu)		▲ and ▼ to select	Select language
Ruler Press 5x M (Menu)		▲ and ▼ to select	ON: display the ruler. OFF: do not display the ruler.
Rotate	Press 6x M (Menu)	▲ and ▼ to select	Adjust the mirror flip mode of a single channel, save parameters after exiting
Reset	Press 7x M (Menu)	▲ and ▼ to control	Reset brightness, contrast, chroma, to default (20)
VCOM	Press 8x M (Menu)	▲ and ▼ to control	Default: 20

Menu options Image settings

1. Press the MENU button to enter the menu, you will see the icon selected in green by default.
2. Press MENU button again to confirm to enter picture setting as shown on the left.
3. Press + to select Camera 1 or Camera 2, then press MENU button to confirm.
4. Press + again to enter the submenu below, it will turn green.
5. Press MENU button to confirm, then press - or + to adjust the value. After the value is well adjusted, press MENU button again to confirm the adjustment.
6. Then press + button to enter Brightness or other submenus to adjust the value. Repeat from step 4 to step 5. When all the settings are done, press MODE to exit to return to the main menu.
7. 6^th option is for setting the mirror/non-mirror image.

Parking line settings

1. Press MENU button to enter menu, then press + button to move to Parking Line menu, press MENU button to confirm and enter Parking Line setting menu as shown on the left.
2. Press + or - key to select Camera 1 or Camera 2, press MENU key to confirm. Press + to move to M(meters) or ft(feet), press MENU to confirm.
3. Press + or - to select ON, then press MENU button to set as ON/OFF. Press + or - to select, then press MENU to confirm. Then press + or - to move the parking line horizontally. Press the MENU button to confirm the setting.
4. Press + to move to, then press MENU button to confirm to select. Then press + or - to move the parking line vertically. Press the MENU button to confirm the setting.
5. Press + to move to, then press MENU key to confirm to select. Then press + or - to move the parking line horizontally. Press the MENU button to confirm the setting.
6. Press + to move to, then press MENU key to confirm to select. Then press + or - to move the number you want to adjust. Press MENU to confirm the selection, then press + or - to increase or decrease.
7. When your setting is complete, press MODE to exit and return to the main menu. If the parking line is set to ON, please also connect the trigger wire to the positive + of the rear light power. When you put the car in reverse, the monitor will show the parking line. At this moment all buttons will not work. After reversing the buttons will work.

Language settings

Press the MENU button to enter the menu Language, then press the + button to move to the menu, then press the MENU button to confirm and enter the submenu. Press + or - to select the language you prefer, then press MENU to confirm. Press MODE to exit.

Backlight settings

Press the MENU button to enter the menu Backlight, then press the + button to move to the menu, then press the MENU button to confirm and enter the submenu. Press + or - to select the language you prefer, then press MENU to confirm. Press MODE to exit.

System settings

1. Press the MENU button to enter the menu, then press the + button to move to the menu, then press the MENU button again to confirm.
2. Press + to move to, then press MENU to confirm to set the trigger delay time. Then press + or - to select or to set the time for camera 1 or camera 2. Then press MENU to confirm, press + or - to increase or to increase or decrease the number. When the setting is complete, press MODE to exit.
3. Press + to move to and press MENU to confirm. button to confirm to set the automatic scanning/cycling between camera 1 and camera 2. Then press + or - to select the or to set the time for camera 1 or camera 2, then press MENU to confirm, press + or - to increase or decrease the number. When the setting is complete, press MODE to exit. If you want to start the automatic scanning/cycling, please leave all the menus and press the MENU button for about 5 seconds, it will start automatically scanning between 2 cameras. between 2 cameras. Press MODE to cancel.
4. Press + to move to . Then press MENU to rotate the image. When the setting is complete, press MODE to exit.
5. Press + to move to reset all.

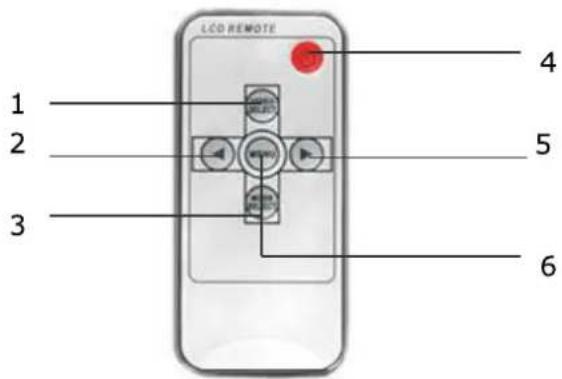

Remote Control Operation

1. Video Select - Switches between all cameras connected to the monitor.
2. Down key - Adjusts volume, brightness, contrast, language, rotation, etc.
3. Mode select - Select brightness mode
4. Power On/Off
5. Increase button - Adjusts volume, brightness, contrast, language, rotation, etc.
6. Menu - Access brightness, contrast, language, rotation, etc.

Replacing the remote control batteries

Notice!

1. To operate, point the remote control towards the infrared window on the monitor.

2. Never disassemble the remote control, drop it or get it wet.

3. Press the control buttons firmly. Allow 2 seconds for the picture to change.

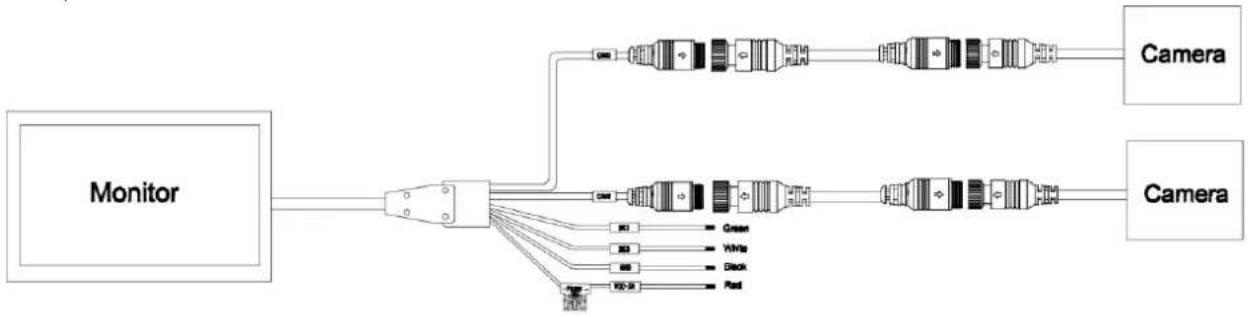

Basic operation

Black: Ground

Red: ACC (car key power) DC 12~24V

Green: Trigger Cam 1 - Reverse light power positive DC12~24V.

White: Trigger Cam 2 - Reversing light power positive DC12~24V.

Troubleshooting

The symptoms described below do not necessarily indicate a fault within the display. Please check the following points before requesting service.

Symptom	Possible causes/solution
No picture. No sound	Incorrect connection of the car adapter. Use of an unauthorized power supply. The power switch is in the OFF position.
No picture	Check that the locking cable is correctly connected.
No sound	Check that the lock cable is connected correctly or that the volume is set too low.
Dark picture	Check that the brightness and contrast are set correctly; check that the ambient temperature is not too low.
No color	Adjust the color settings.
Upside down or sideways Inverted image	Use the remote control/MENU-ROTATION button to set the correct orientation.
No reverse function (i.e. image)	Check for loose wires (black/red/green).
