USER MANUAL IN-112DDI incubato

Labeled diagram of a yellow portable device with numbered components and control panel

Model IN 96DDI, IN 12DDI

22.03.2023

DE

Zusammensetzen.

Two 3D architectural or mechanical component views: yellow blocks on left and gray frame structure on right (no text or symbols)

Stacked 3D rectangular blocks with colored layers and a small orange component at the bottom (no text or symbols visible)

Modell IN-88DDI

Parameter description	Parameter value
Product name Egg incubator
Model IN-	IN-7DDI	IN-48DDI	IN-56DDI	IN-96DDI
Rated voltage[V~]F/Frequency[Hz]	230/50
Rated power[W]	15 90	90 120
Protection class	II
Protection rating IP	IPX4
Capacity (hens' eggs) [pcs]	7 48	56 96
Automatic egg rotation Function	--- Yes
Alarm function --- Yes
Fan Yes
egg candler Accessory powered by1xA A battery(Battery is not included)			Built-in Accessory powered by1xA A battery(Battery is not included)
Dimensions[mm]	165x165x155	495x471x230	485x460x210	495x477x380
Weight [kg] 0.4 3.1		3.5	5.5

Product name Egg incubator

Model	IN-88DDI	IN-52DDI	IN-112DDI	IN-12DDI
Rated voltage [V~]F frequency [Hz]	230/50
Rated power [W]	100	90	120 40
Protection class	II
Protection rating IP	IPX4
Capacity (hemd' eggs) [pcs]	88	32	112 12
Automatic egg rotation Function	— Yes

Alarm function	--	Yes
Fan	Yes
egg candler	Accessory powered by 1xAA battery (Battery is not included)	Built-in	Accessory powered by 1xAA battery (Battery is not included)	Built-in
Dimensions [mm]	490 x/190 x/180	350 x/160 x/195	495 x/70 x/385	260 x/370 x/170
Weight [kg]	1.4	2.75	5.6	1

1. GENERAL DESCRIPTION
   The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

LEGEND

CE	The product satisfies the relevant safety standards.
	Read instructions before use.
	The product must be recycled.
	WARNING! or CAUTION! or REMEMBER! Applicable to the given situation (general warning sign).
	ATTENTION! Electric shock warning!
	Class II protection device with double insulation.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

The original operation manual is in German. Other language versions are translations from German.

1. USAGE SAFETY

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in an electric shock, fire and/or serious injury or even death.

22.03.2023

EN

The terms "device" or "product" are used in the warnings and instructions to refer to "egg incubator". Do not use in very humid environments or in the direct vicinity of water tanks. Prevent the device from getting wet. Risk of electric shock! Do not cover the ventilation openings!

2.1.ELECTRICAL SAFETY

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.

b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.

c) Do not touch the device with wet or damp hands. d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.

e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock

Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.

g) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.

2.2. SAFETY IN THE WORKPLACE

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.

b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust. The device generates sparks which may ignite dust or fumes.

c) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.

d) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.

c) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!

In case of fire, use a powder or carbon dioxide (CO _2 ) fire extinguisher (one intended for use on live electrical devices) to put it out.

g) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.

h) Keep packaging elements and small assembly parts in a place not available to children.

i) Keep the device away from children and animals.

REMEMBERI When using the device, protect children and other bystanders.

23. PERSONAL SAFETY

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.

b) The device can be handled only by physically fit persons who are capable of handling it, properly trained, familiar with this manual and trained within the scope of occupational health and safety.

c) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.

d) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.4. SAFE DEVICE USE

a) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.

b) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.

c) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.

d) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.

c) Keep the device out of the reach of children. f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.

g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.

h) Do not touch articulated parts or accessories unless the device has been disconnected from the power source.

i) Do not move, adjust or rotate the device in the course of work.

j) Clean the device regularly to prevent stubborn grime from accumulating.

k) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.

It is forbidden to interfere with the structure of the device in order to change its parameters or construction.

m) Keep the device away from sources of fire and heat. n) Before the first use, always verify that the device is complete and that all movable elements that may affect the safety of embryonated eggs or chicks, e.g. the fans, are protected by covers.

o) Do not cover the device when in use. p) Warning: Risk of fire.

q) Some parts of this appliance can get very hot. To avoid injury, be careful when touching these surfaces. r) Inspect the water level in the egg incubator regularly. Fill with warm water.

14 15

EN

s) Use a measuring cup when filling with water.

t) Always disconnect the egg incubator from power when topping up with water and when not in use.
u) In order to improve incubation observe generally accepted breeding principles.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

1. USE GUIDELINES

The egg incubator is designed for incubating fertile avian eggs. The incubator keeps the eggs at the correct temperature and humidity required for the embryo to develop and hatch.

The user is liable for any damage resulting from non-intended use of the device!

3.1. DEVICE DESCRIPTION IN-7DDI model

IN 48DDI model

IN-56DDI, IN-32DDI models

IN-96DDI, IN-112DDI models

Diagram of a yellow portable device with labeled components and digital display screen

Modell IN-96DDI, IN-12DDI

Assembly:

Two 3D architectural models: yellow brick blocks and gray frame structure (no text or symbols)

Diagram showing layered structure with labeled components and color-coded sections, likely representing a mechanical or electronic assembly.

0

22.03.2023

EN

1. Cover

2. Egg tray

3. Housing

4. Control panel

5. Water inlets

IN-7DDI, IN-48DDI, IN-96DDI, IN-112DDI and IN-88DDI egg incubators include an egg candler as an additional accessory. The IN-56DDI, IN-12DDI and IN-32DDI features a built-in egg candler.

Control panel IN-7DDI, IN-88DDI models

1. Temperature display

2. Work clock

3. Set diode

4. Decrease value button

5. Increase value button

6. Set button

7. ON/OFF switch (Applies to model IN-88DDI only)

IN-45DDI, IN-96DDI, IN-112DDI models

1. Humidity display

2. Temperature display

3. Set button

4. Increase value button

5. ON/OFF switch

6. Decrease value button

7. Reset button

8. Display showing time left until next egg rocking

9. Number of incubation days display

IN-56DDI, IN-32DDI models

1. Display

2. Set button

3. Increase value button

4. ON/OFF switch

5. Decrease value button

6. Fan oscillator switch

7. Reset* button

Display description:

1 2 8 8 8 3 day 88 88.0 °C 7 88.0 % y.

1. Time countdown until next egg rocking.

2. Temperature

3. Humidity

4. Fan

5. Low humidity alarm

6. Heating on

7. Egg candle light on

8. Number of incubation days

Control panel IN-120D1

1. Temperature display

2. Work diode

3. Set* diode

4. Decrease value button

5. Increase value button

6. Set* button

7. Fan candler

8. Fog candler switch

Egg candler

1. ON/OFF switch

3.2. PREPARING FOR USE

APPLIANCE LOCATION

The temperature of environment must not be higher than 40°C, and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label!

22.03.2023

0

EN

3.3. DEVICE USE

The following tables present the summary of how many eggs of a particular type can be incubated simultaneously in the device and how they should be spaced.

Model	IN-7201	IN-46001	IN-56001	IN-56001	IN-12001	IN-32001	IN-127001	IN-86001
The maximum number of hen eggs.	7	48	56	96	12	32	112	88
The maximum number of pigeon and quail eggs.	7	48	56	96	35	32	112	132
The maximum number of turkey and duck eggs.	4	24	28	48	9	16	56	44
The maximum number of goose eggs.	-	16	18	32	4	10	38	29
How should hen and pigeon eggs be spaced.	One egg in each egg tray hole.							-
How should turkey and duck eggs be spaced.	Leave one empty space (hole) between the eggs on the tray.							-
How should goose eggs be spaced	-		Remove the egg tray and place the eggs on the net.

IN-7DDI model

1. Remove cover and lift egg tray.

2. Pour water into the groove around the white mesh as (shown in the picture below).

ATTENTION: Do not pour water into the white mesh as that may damage the device!

3. Attach cover.

1. Connect the device to a power source.

2. Select the required temperature: press the „SET“ (8) button. The „set“ (3) diode will illuminate, indicating that the device is in settings mode. Use „+” (5) and „-” (4) buttons to select the temperature. Use the „SET“ (6) button to confirm. The „Work“ (2) diode will come on.

3. Wait for the device to warm up (approx. 10-20 min.).

4. Gently arrange the eggs on the tray.

5. Inspect the water level in the egg incubator regularly.

IN-48DDI, IN-96DDI, IN-112DDI models

IMPORTANT! The humidity function will be only measured/ shown but can't be regulated.

1. Open the covers covering the water inlets at the bottom of the device. Pour water into the egg incubator. Make sure the drive mechanism does remains dry. Close the covers.

1. Connect the device to a power source.

2. Use the On/Off (5) switch to turn the device on.

3. An alarm will sound. Disable the alarm by pressing a button on the control panel.

4. The device will automatically rock the eggs every 2 hours. The eggs are rocked to the left and right, up to 45 degrees for 10 seconds. Do not lift the cover during automatic egg tuming. Pay particular attention when using the incubator for the first time

5. Pressing the „reset“ button (7) once makes the eggs rock and resets the timer which counts down to the next egg rocking (sets it back to 1:59).

6. In order to reset the incubation days counter, press and hold buttons (3) and (4), then disconnect and connect the device to the power supply without releasing the buttons. Device's factory settings will be restored.

7. Setting the temperature:

• The egg incubator's temperature factory setting is 38°C

- Press the „Set" (3) button

- Use buttons (4) and (6) to set the heating temperature.

- Press the „Set“ (3) button to confirm the selection.

1. Setting alarm values and calibration

- To enter settings mode press and hold the „Set" (3) button for three seconds.

- Use buttons (4) and (6) to switch between the parameters shown in the table below.

22.03.2023

EN

Parameter Parameter meaning Factory setting
AL Setting the low temperature alarm.		1°C
AH	Setting the high temperature alarm.	1°C
AS	Setting the low humidity alarm.	45%
CA	Thermometer calibration.	0°C
HS	Setting the upper temperature limit.	39.5°C
LS	Setting the lower temperature limit.	30°C

• To enter settings of the selected parameter, press and hold the 'Set' (3) button
- Use buttons (4) and (6) to set alarm values. Wait for the device to automatically return to the main menu
• The alarm emits a sound signal. To disable the alarm, press a button on the control panel.
10. Wait for the device to warm up (approx. 10-20 min).
11. Gently arrange the eggs on the tray.
12. Inspect the water level in the egg incubator regularly. ATTENTION: This product IN-48ODI does not feature cooling. This means the lowest internal temperature achievable for the product is the ambient temperature around the product.

IN-56DDI, IN-32DDI models

1. Remove cover and lift egg tray. Carefully pour water into the groove. Close the cover.
2. Connect the device to a power source.
3. Use the On/Off (4) switch to turn the device on.
4. An alarm will sound. Disable the alarm by pressing a button on the control panel.
5. Setting the temperature:
   • The egg incubator's temperature factory setting is 38^ C.
6. Press the „Set“ (2) button
7. Use buttons .1* (3) and .* (5) to set the heating temperature.
8. Press the „Set“ (2) button to confirm the selection.
9. Setting alarm values and calibration – in accordance with operating instructions point 10 for IN-48DDI and IN-96DDI models
10. Pressing the „reset“ button (7) once makes the eggs rock and resets the timer which counts down to the next egg rocking (sets it back to 1.59).
11. To reset the egg incubation days counter, press and hold the reset button (7) until the start screen appears. During the resetting procedure, do not release the depressed key after the beep goes off or during the countdown. Only when the start screen appears is the procedure completed correctly and the factory settings restored.
12. Wait for the device to warm up (approx. 10-20 min).
13. Gently arrange the eggs on the tray.
14. Inspect the water level in the egg incubator regularly.
15. Use button (6) to activate the egg candler and check embryo development inside the egg.

IN-84DDI model

IMPORTANT! This model does not have humidity detection function, so the display show temperature only.

1. Remove cover. Fill with water. Close the cover.

2. Connect the device to a power source.

3. Use the On/Off (7) switch to turn the device on:

4. Select the required temperature: press the _SET* (6) button. The _set* (3) diode will illuminate, indicating that the device is in settings mode. Use _+^ (5) and _-^ (4) buttons to select the temperature. Use the _SET* (6) button to confirm. The _Work* (2) diode will come on.

5. Wait for the device to warm up (approx. 10-20 min.)

6. Gently arrange the eggs on the tray.

7. Inspect the water level in the egg incubator regularly, to prevent it from drying out completely.

Tips for incubating eggs:

- Before incubating eggs, always check that the incubator is in operational condition and its functions are working correctly.

- For best results, it's better to choose medium- or small-sized eggs for hatching. Fertilized eggs for incubation should be fresh and cleaned of impurities on the shell.

- The proper method of placing eggs for hatching is to arrange them with the wider end upwards and the narrower end downwards, as shown in the figure below.

• To avoid hitting the egg with the lid, place large eggs in the middle of the tray and smaller ones on the sides. Always check that the egg is not too large to avoid accidental damage.
• If the eggs are too large to place on the tray, it is recommended to remove the trays and arrange the fertilised eggs directly on the white grid (not applicable for the IN 7DDI model).
• The water level in the incubator should be constantly monitored to ensure adequate humidity for hatching eggs.
• The IN 88DDI does not have an auto turn feature, so for the first 18 days, the eggs should be rotated manually 4-6 times a day.
• If the ambient temperature drops below 20 °C, we recommend placing the incubator in a unit made of insulating material, e.g. polystyrene foam, etc. If such insulation is not possible, it is recommended to place the incubator in a heated room or surround it with thick material such as blankets.
• After 19 days of incubation, when the egg shells start to crack, it is recommended to remove the eggs from the egg tray and place them on a white grid to hatch the chicks (does not apply to the IN-7DDI model).
• It often happens that some eggs do not completely hatch after 19 days, then you should wait another 2-3 days.
• When a chick gets stuck in the shell, spray the shell with warm water and help by gently pulling off the egg shell.
  • After hatching, the chicks should be kept in a warm place and supplied with proper food and water.

18 19

EN

IN-12DDI MODEL

1. Remove cover. Fill with water. Close the cover.
2. Connect the device to a power source.
3. Select the required temperature: press the „SET“ (6) button. The „set“ (3) diode will illuminate, indicating that the device is in settings mode. Use „+” (5) and „-” (4) buttons to select the temperature. Use the „SET“ (6) button to confirm. The „Work“ (2) diode will come on.
4. Wait for the device to warm up (approx. 10-20 min.).
5. Gently arrange the eggs on the tray.
6. Inspect the water level in the egg incubator regularly. The device will automatically pass the open, even
7. The device will automatically lock the eggs every 2 hours. The eggs are rocked to the left and right for 10 seconds. Do not lift the cover during automatic egg turning. Pay particular attention when using the incubator for the first time.
   B. Setting alarm values and calibration:
8. To enter settings mode press and hold the „Set“ (6) button for three seconds.
9. Use buttons (4) and (5) to switch between the parameters shown in the table below.

Parameter Parameter meaning Factory setting
AL Setting	the low temperature alarm.	1°C
AH Setting	the high temperature alarm.	1°C
CAU Thermometer calibration.		0°C
HS Setting	the upper temperature limit.	39.5°C
LS Setting	the lower temperature limit.	30°C

1. ASSEMBLING THE EQUIPMENT

WARNING! An instructional video of the element assembly is available at the link / QR code provided below.

https://youtu.be/ie2orwepKVU

3.4. CLEANING AND MAINTENANCE

a) Always unplug the device before cleaning it.

b) Use only non-corrosive cleaners to clean the surface.

c) After cleaning the device, all parts should be dried

completely before using it again.

d) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.

and direct exposure to sunlight

e) Do not spray the device with a water jet or submerge it in water.

6.

1) Do not allow water to get inside the device through vents in the housing of the device.
g) Clean the vents with a brush and compressed air.
h) The device must be regularly inspected to check its
technical efficiency and spot any damage.
i) Use a soft cloth for cleaning.
j) Do not leave the battery in the device if it will not be used for a longer period of time.
k) Disinfect the device after each use.

SAFE REMOVAL OF BATTERIES AND RECHARGEABLE BATTERIES (IN-7DDI, IN-48DDI, IN-96DDI, IN-112DDI, IN-88DDI)

An AA 1.5V battery is installed in the egg candler. Use the On/Off button to turn the candler off before attempting to remove the battery. Unscrew the back of the housing and remove the battery. Recycle batteries.

DISPOSING OF USED DEVICES

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment. Contact local authorities for information on your local recycling facility.

22.03.2023

INSTRUKCJA OBSŁUGI

PL

DANE TECHNICZNE

Diagram of a yellow electronic device with numbered components and directional arrows indicating components.

Modell IN-96DDI, IN-12DDI

22.09.2023

PL

Składanie:

30V/120A 30V/120B 30V/120C 30V/120D 30V/120E 30V/120F 30V/120G 30V/120H 30V/120I 30V/120J 30V/120K 30V/120L 30V/120M 30V/120N 30V/120O 30V/120P 30V/120Q 30V/120R 30V/120S 30V/120T 30V/120U 30V/120V 30V/120W 30V/120X 30V/120Y 30V/120Z 30V/120A 30V/120B 30V/120C 30V/120D 30V/120E 30V/120F 30V/120G 30V/120H 30V/120I 30V/120J 30V/120K

Diagram of a yellow laboratory incubator with labeled parts, showing digital display and control buttons

Modell IN-96DDI, IN-12DDI

vkladání

Diagram showing layered material structure with labeled components and color-coded layers

Model IN-84DDI

0

22.03.2023

CZ

Labeled diagram of a yellow laboratory instrument with numbered parts and digital display

FR

Two 3D architectural models: yellow rectangular blocks and gray frame structure (no text or symbols)

Diagram showing layered structure with labeled components and measurement indicators

1. ASSEMBLAGE DU PRODUIT

Labeled diagram of a yellow electronic device with numbered components and a digital display screen

Modello IN-96DDI, IN-12DDI

22.09.2023

IT

Montaggio:

Two 3D mechanical parts: yellow LEGO blocks and gray frame structure (no text or symbols)

Stacked 3D rectangular blocks with colored layers (yellow, gray, orange) and a small digital display on top, no visible text or symbols.

Labeled diagram of a yellow portable device with numbered components and internal display screen

Modelo IN-96DDI, IN-12DDI

ES

Composición:

Stacked 3D diagram of layered electronic components with no visible text or symbols

Diagram of a yellow portable kitchen appliance with labeled parts 1, 2, and 3 pointing to its front panel.

Összeszerelés:

Stacked 3D blocks with colored layers and a small display panel (no visible text or symbols)

Modell IN-8BDDI

60 61

HU

Diagram of a yellow plastic container with labeled parts, showing internal components and directional arrows.

Two 3D mechanical components: yellow blocks with a ruler and gray frame structure (no text or symbols visible)

Stacked 3D diagram of layered electronic components with no visible text or symbols

Model IN-88DD

1. Lég
2. Æggeplade
3. Kabinet
4. Kontrolpanel

3.3.ARBEJDE MED APPARATET

Labeled diagram of a yellow portable device with numbered components and control panel

Malli IN-96DDI, IN-12DDI

Kokoaminen:

Two 3D mechanical components: yellow LEGO blocks and a gray frame structure (no text or symbols visible)

Stacked 3D printing or assembly components in yellow, gray, and orange, with no visible text or symbols

0

22.03.2023

FI

Malli IN-88DDI

Labeled diagram of a yellow industrial machine with numbered components and control panel

Model IN 96DDI, IN 12DDI

22.03.2023

NL

Montage:

Stacked 3D diagram of layered electronic components with no visible text or symbols

Model IN-88DD

1. Afdekking

2. Eiertray

3. Chassis
4. Bedieningspance
5. Wateringang

PLAATSING VAN HET APPARAAT

3.3. WERKEN MET HET APPARAAT

2.2. SIKKERHET PÅ ARBEIDSPLASSEN

Labeled diagram of a yellow portable electronic device with numbered components and control panel

Modell IN-96DDI, IN-12DDI

Sammenlegging:

3D CAD model of a mechanical assembly with yellow components and gray frame structure (no text or symbols)

Surface Molecule Ground

Model IN-68DD

22.03.2023

NO

1. Lokk
2. Eggebrett
3. Hus
4. Betieningspanel
5. Vanninnlop

FÖRKLARING AV SYMBOLERNA

Diagram of a yellow laboratory appliance with labeled parts including control panel, display screen, and numbered arrows pointing to components.

22.09.2023

Montering

Two 3D mechanical parts: yellow grid-like blocks and gray frame structure (no text or symbols)

Stacked 3D diagram of layered electronic components with no visible text or symbols

Modell IN-68DDI

1. Lock
   2 Aggbricka
2. Hčlje
3. Kontrollpanel

PLACERING AV APPARATEN

3.3 ARBETE MED APPARATEN

Labeled diagram of a yellow laboratory instrument with numbered parts pointing to its internal components.

Modelo IN 96DDI, IN 12DDI

22.03.2023

22.09.2023

102 103

PT

Composição:

20V 1A 30V 1A 1A 1A

Modelo IN-88DDI

1. Tampa
2. Tabuleiro de ovos
3. Caixa
4. Painel de controlo
5. Entradas de água

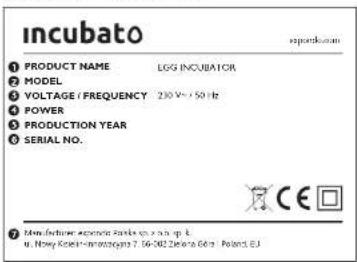

NAMEPLATE TRANSLATIONS

incubato ① PRODUCT NAME LGG INCUBATOR ② MODEL ③ VOLTAGE / FREQUENCY 230 V~ 50 Hz ④ POWER ⑤ PRODUCTION YEAR ⑥ SERIAL NO. CE

	1	2	3
EN	Product Name	Model	Voltage/Frequency
DE	Produktname	Modell	Spannung/Frequenz
PL	Nazwa produktu	Model	Napięcie/Czostotliwość
CZ	Název výroloku	Model	Jmenovité napající napėti/Frekvenso
FR	Nom du produit	Modèle	Tension/Fréquence
II	Nome del prodotto	Modello	Tensione/Frequenza
ES	Nombre del producto	Modelo	Voltaje/frecuencia
HU	Termék neve	Modell	Feszultség/Nyomaték kikapcsolási
DA	Produktnavn	Model	Spending/Trekvens
FIN	Tuconimi	Malli	Jannite [V -]//tæjuus [Hz]
NL	Productnaam	Model	Spanning [V -]/Frequentie [Hz]
SE	Produktnamn	Modell	Spanning [V -]/Frekvens [Hz]
PT	Nome do produto	Modelo	Tensão [V -]/Frequência [Hz]
NOR	Produktnavn	Modell	Spanning [V -]/Frekvens [Hz]

22.03.2023

22.03.2023

108 109

	4567	●	●	●
FN Power Production year Serial No. Manufacturer
DF Leistung Produktionsjahr Ordnungsnummer Hersteller
PL Moc Rok produkcji Numer seri Producent
CZ	Jmenovitý výkon	Rok výroby	Sériové číslo	Výrobce
FR	Puissance	Année de production	Numéro de serie	Fabricant
IT	Potenza	Anno di produzione	Numero di serie	Produktore
FS	Patencia	Año de producción	Número de serie	Fabricante
HU	Teljesítmény	Cyártás éve	Cyártási szám	Gyárto
DA	Effekt	Produktionsár	Serienummer	Producent
FIN	Teho	Valmistusvuosi	Sarjanumero	Valmistaja
NL	Vermogen	Productiejaar	Serienummer	Producent
SE	Effekt	Produktionsár	Serionummer	Tillvorkare
P1	Potência	Ano de produção	Número de série	Produtor
NOR	Effekt	Produksjonsár	Serienummer	Produsent

NOTES/NOTIZEN

22.03.2023

22.03.2023

NOTES/NOTIZEN NOTES/NOTIZEN

22.03.2023

22.03.2023

incubato

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
