USER MANUAL X-Force Flex 13.60 TEFAL

SR UPUTSTVO ZA UPOTREBU 183

RE FIRST USE VACUUM CLEANER 1 x2 ZR009014 2 3 7 8 9 4 ZR009015 5 ZR009706 6 *Depending on model

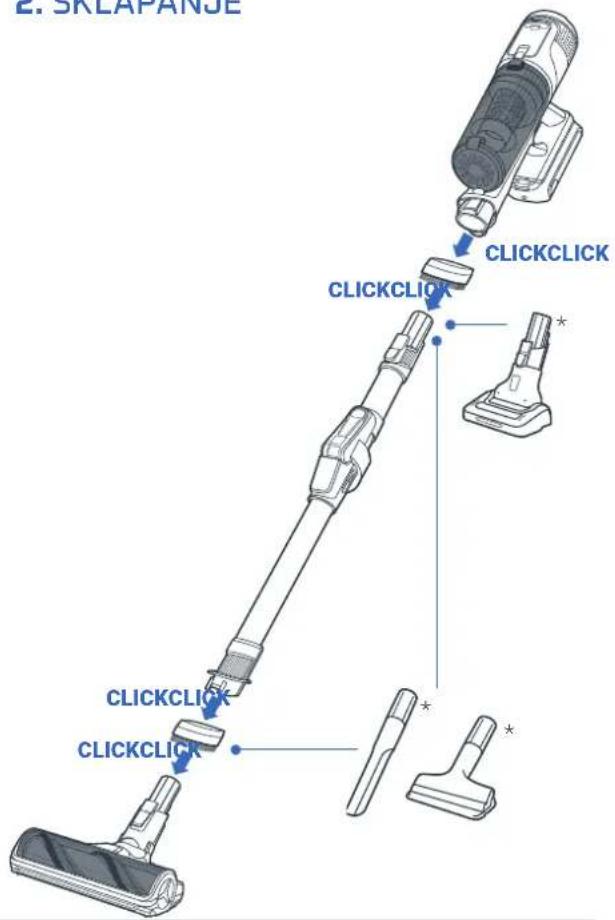

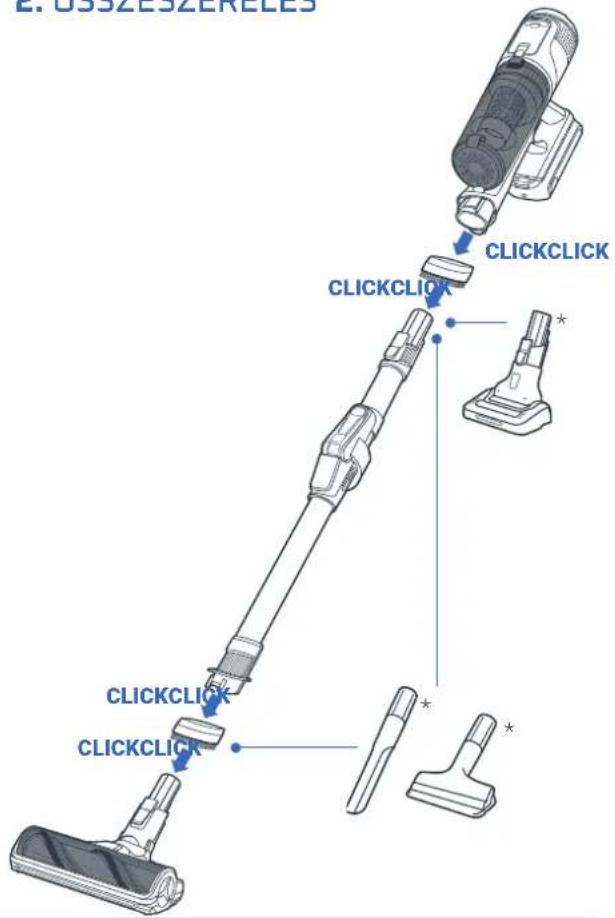

1. ASSEMBLY


E. ASSEMBLY CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK

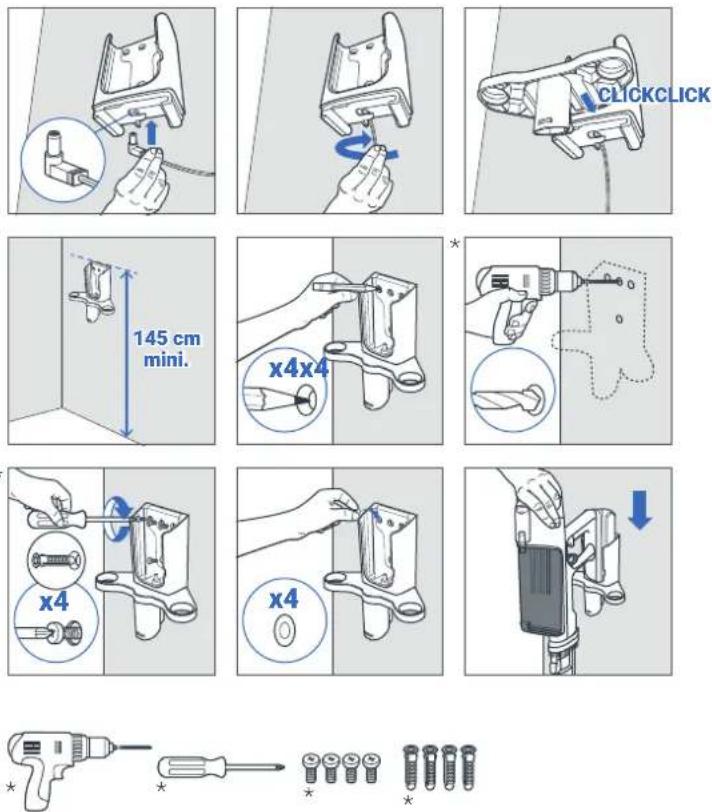

1. CHARGING BASE SET UP

   *Not included*Dependir

4. USING THE VACUUM CLEANER

YOUR VACUUM CLEANER SHOULD BE FULLY CHARGED BEFORE THE FIRST USE

POWER BUTTON ON/OFF

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

To turn your device on or off, press the start button.

BOOST TRIGGER

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

For intensive cleaning of hard floors and heavily soiled carpets.

AUTO FUNCTION

Diagram showing a device with two circular gauges and a battery, likely illustrating a measurement or control system.

The vacuum cleaner features an AUTO function that adapts the power to different floor types. The X-Force Flex 12.60 Neo performs thousands of calculations and measurements during each floor detection, and so it is normal to have a reaction time of a few seconds between those floor transitions to optimise performance.

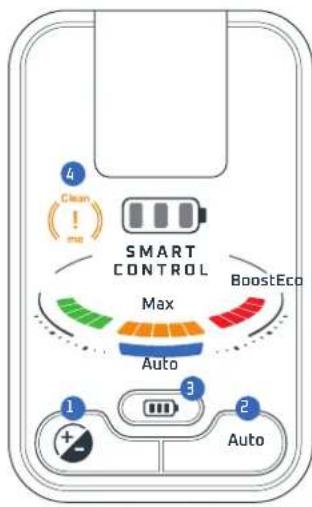

CONTROL DISPLAY

4 Clean me SMART CONTROL Max Auto BoostEco 1 2 3 Auto

Your appliance has 4 power modes for different tasks. Change cleaning modes directly on the control display and adjust the power according to your needs.

1 MANUEL MODE:

ECO: For everyday use. Suitable for dirty soils and delicate surfaces: shelves, frames, curtains, etc.

MAX: For vacuuming dust from hard floors and carpets.

BOOST: For intensive daily cleaning of floors hard and very dirty carpets.

At maximum power, the vacuum cleaner has a time of shorter operation.

2 AUTO MODE:

Adjust the power automatically depending on the type of floors.

3 BATTERY:

Allows to see the battery level when the vacuum cleaner is turned off.

4 CLEANING ALERT:

Vacuum cleaner to be cleaned when the light comes on.

SCAN WITH YOUR PHONE CAMERA OR QR READER TO WATCH HELPFUL VIDEO GUIDE ON HOW TO USE THE CONTROL DISPLAY

5. FLEX FUNCTION & ACCESSORIES

EN

FLEX FUNCTION ACCESSORIES FOR SPECIFIC CLEANING PURPOSES

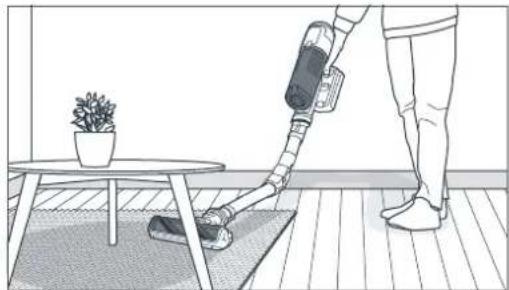

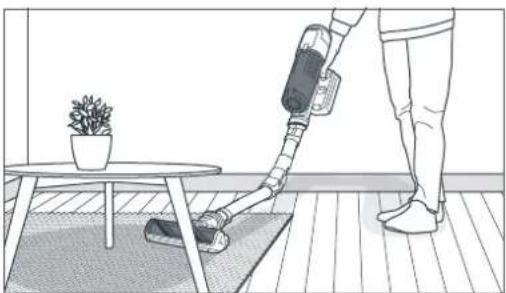

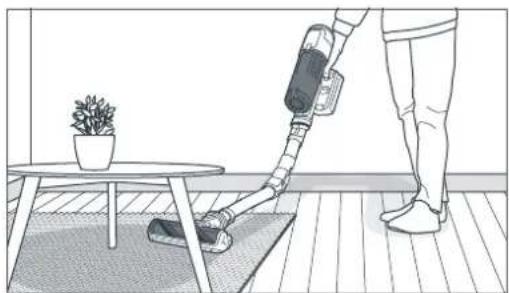

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a small potted plant nearby (no text or symbols)

1 PUSHPUSH

Your appliance is equipped with Flex technology. It allows you to reach the furthest areas under low height furniture effortlessly.

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up inset showing the component (no text or symbols)

Diagram of a mechanical connector with blue arrows indicating connection points (no text or symbols present)

Illustration of a hand using a tool to lift a component, with a blue arrow indicating direction (no text or symbols)

Your device has 2 integrated cleaning brushes. You can use them to vacuum the majority of your surfaces.

NB: If you remove the accessories for cleaning, make sure that they are reattached properly before next use.

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting a small component (no text or symbols present)

Use the crevice tool* to vacuum hard to reach places.

Illustration of a person's foot stepping on a pedal, showing the foot and leg positioning (no text or symbols present)

Medical procedure illustration showing a catheter insertion into tissue with magnified view (no text or labels)

Use the sofa brush* to vacuum textiles like sofa, cur tains or mattress.

*Use the mini turbo brush to vacuum in-depth your sofas, mattress carpet or small rugs.

*available on some models only.

6. BATTERY & CHARGE

THE FULL BATTERY CHARGE TAKES 3 HOURS.

To charge your appliance, you have the choice between two options:

OPTION 1

Illustration of a hand holding a tool with a downward arrow indicating motion (no text or symbols)

Place the device on its previously installed charging base and plug it in.

OPTION 2

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Remove the battery from the device by sliding it out, then insert the battery into its charging base and plug it in.

SCAN TO LEARN MORE ABOUT THE BATTERY AND ITS CHARGING

Flashing blue light the battery is charging.

Blue light off: battery is charged

Flashing red light: Please refer to the safety booklet.

BATTERY LEVEL

	(TT8Z)
ECO	Up to60 min	Up to32 min
MAX	Up to32 min	Up to26 min
BOOST	Up to5 min	Up to11 min

7. MAINTENANCE

EN

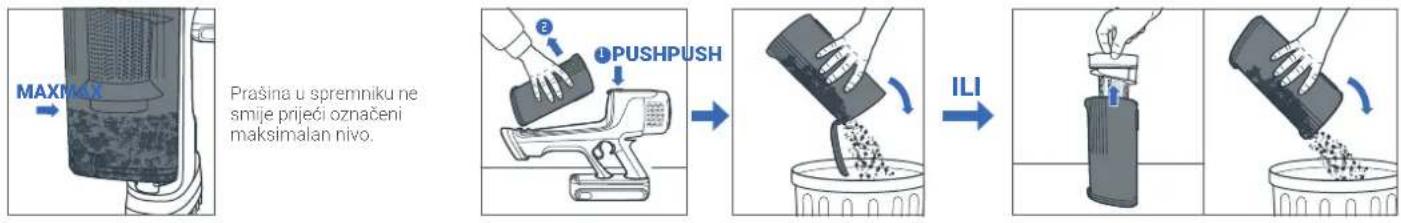

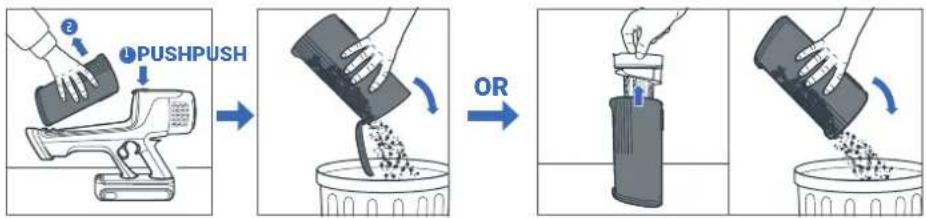

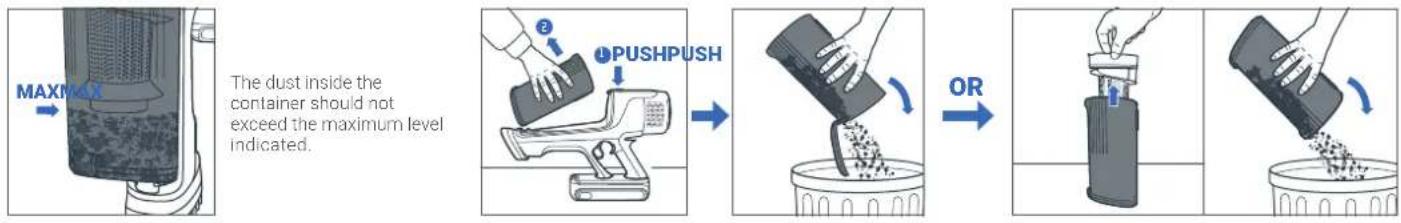

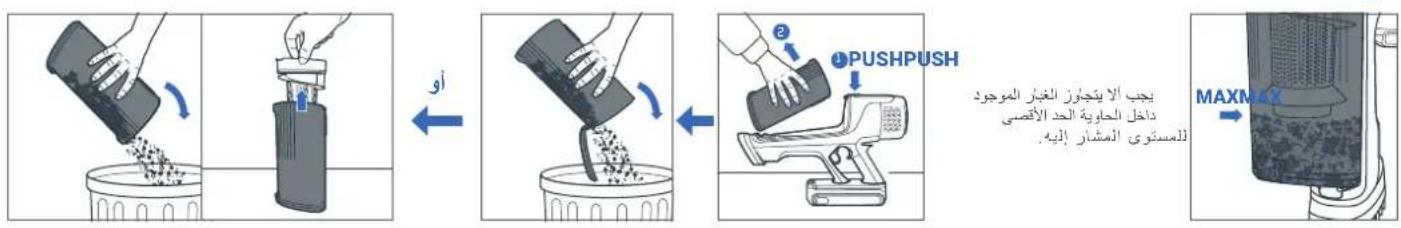

EMPTYING THE DUST CONTAINER

The dust inside the container should not exceed the maximum level indicated.

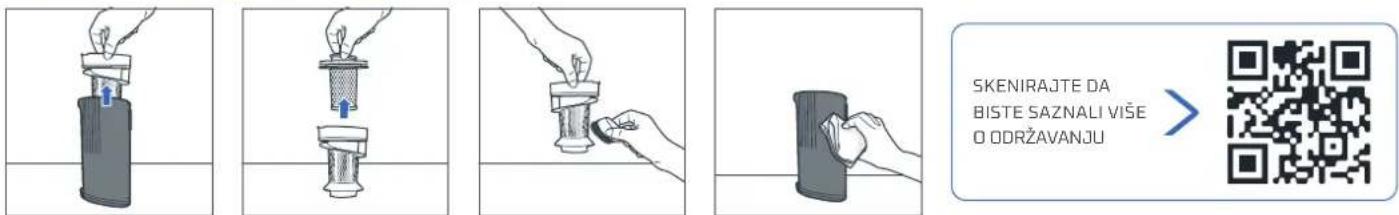

CLEANING THE DUST CONTAINER

SCAN TO LEARN MORE ABOUT MAINTENANCE
Remember to clean your dust container once a week for optimal efficiency.

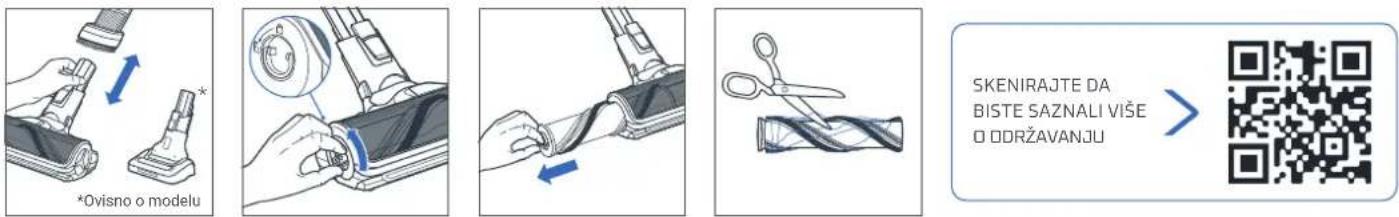

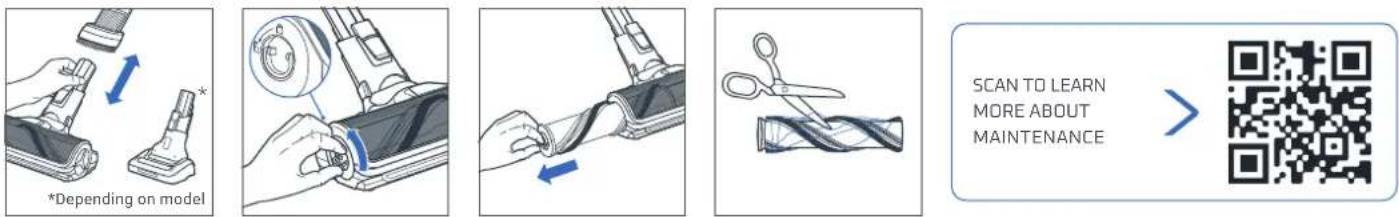

CLEANING THE BRUSH

SCAN TO LEARN MORE ABOUT MAINTENANCE

FILTER MAINTENANCE

PUSHRUSH

Diagram illustrating two steps of a mechanical device operation, labeled 1 and 2 with arrows indicating movement.

Diagram showing a faucet and a filter mechanism (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

1X WEEK

After cleaning the filter, if the indicator light on the filter stays on, check that the tube is not clogged.

Clean your filter once a week for maximum efficiency. Replace your filter twice a year. To buy a new one, look for Rowenta part number ZR009014.

THE MOTOR FILTER MAINTENANCE

Illustration of a hand holding a device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, next to a device casing (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

1X YEAR

Clean your motor filter after 6 months of use for maximum efficiency. Replace your motor filter twice a year. To buy a new one, look for reference Rowenta ZR009015.

SCAN TO LEARN MORE ABOUT MAINTENANCE

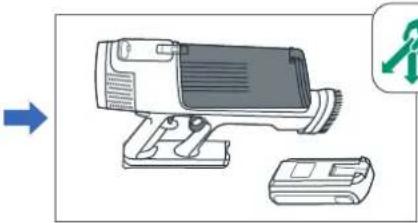

RECYCLABILITY

Diagram showing a hand using a toilet to stop a trash bin with a blue diagonal line and 'NO' sign indicating no waste.

Illustration of a hand holding a firearm with a blue arrow indicating direction (no text or symbols present)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld device with a separate case and a green warning symbol (no text or labels)

Make sure that you separate the battery from the device and recycle these items at the designated collection points.

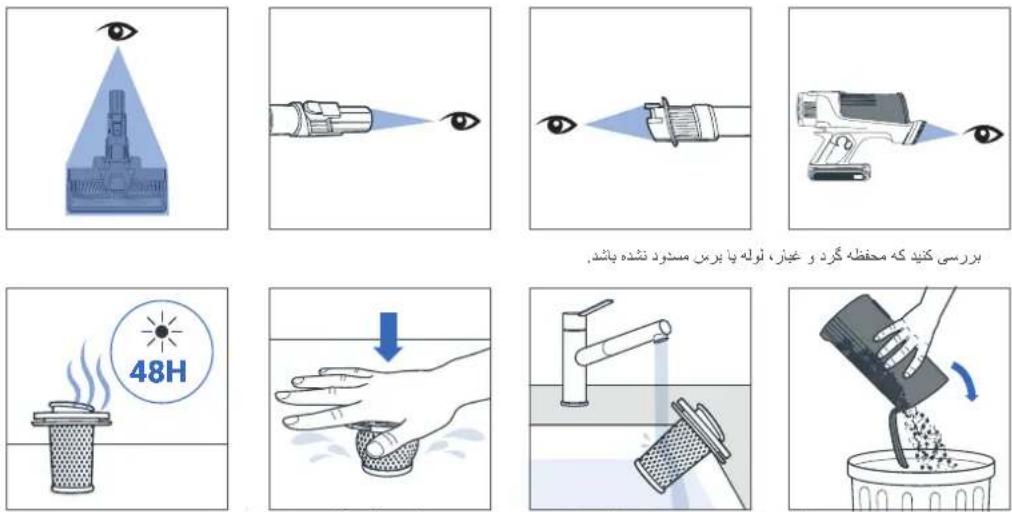

8. MAINTENANCE ALERT

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

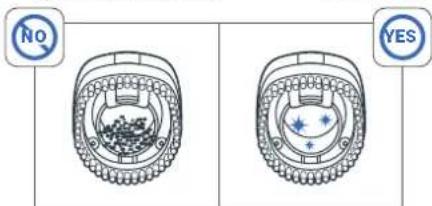

Check that the dust container, tube or brush are not clogged.

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter stand (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Empty the bowl and clean the filter inside the separator. The filter must be completely dry before being put back in place.

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

To finish, clean the engine filter. The engine filter must be completely dry before being put back in place.

No

-MAX 40°C - 104°F -MIN 0°C - 32°F

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' and a small blue circle with a downward arrow.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Diagram showing a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to press a trash bin with a 'No' sign, indicating no waste or no litter.

NO YES

EN

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'NO' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

EN

Turn the vacuum cleaner off and on again.

If this does not resolve the problem, contact an Authorized Service Center.

Line drawing of a handheld electronic device (no text or symbols)

Check that the charger used is the correct one.

If this does not resolve the problem, contact an Authorized Service Center.

Line drawing of a battery pack with a red indicator point on the side (no text or symbols)

Disconnect and reconnect the battery pack.

If this does not resolve the problem, contact an Authorized Service Center.

1. PRÉSENTATION DE VOTRE X-FORCE FLEX 12.60 NEO / 13.60

LISEZ ATTENTIVEMENT LE MANUEL AVANT LA PREMIÈRE UTILISATION AFIN D'UTILISER AU MIEUX VOTRE NOUVEL ASPIRATEUR

① FILTRE «EASY WASH»
2 SÉPARATEUR
③ BAC À POUSSIÈRE
4 FILTRE À PARTICULES FINES
⑤ BATTERIE AMOVIBLE
6 BASE DE CHARGE
⑦ ACCESSOIRE FENTE
8 BROSSE SOFA
9 ANIMAL TURBO BROSSE

AVANT LA PREMIÈRE UTILISATION IVEL ASPIRATEUR 1 x2 ZR009014 2 3 4 ZR009015 5 ZR009706 6 7 8 9 *Selon modèle

1. ASSEMBLAGE


E. ASSEMBLAGE CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK

1. INSTALLATION BASE DE CHARGE

   *Non inclus*Selon mc

4. UTILISATION DE L'APPAREIL

VOTRE APPAREIL DOIT ÊTRE COMPLÈTEMENT CHARGÉ AVANT LA PREMIÈRE UTILISATION

BOUTON MARCHE/ARRÊT

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical component with two circular gauges and a dial indicator, likely illustrating a motion or control system.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up inset showing the component (no text or symbols)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the motion (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting a small component (no text or symbols present)

Illustration of a person's foot stepping on a pedal, showing the foot and leg positioning (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a hand holding a device with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool or device with a blue arrow indicating direction (no text or symbols present)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Diagram illustrating two steps of a mechanical press or press operation, labeled 1 and 2, with arrows indicating movement.

Diagram showing a faucet and a filter mechanism (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

1X SEMAINE

Illustration of a hand holding a portable device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a rolled wallet (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

1X AN

Line drawing of hands holding a firearm with an arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld device with a separate case and a green warning symbol (no text or labels)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Simple line drawing of an eye with a light beam projecting onto it, no text or symbols present

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with a blue arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter stand (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no protection.

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' and a small blue circle with a downward arrow.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to clean a trash bin with a 'No' sign nearby

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

FR

Line drawing of a handheld electronic device (no text or symbols)

Line drawing of a battery pack with a red indicator point on the side (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a device with two gauges and a battery pack, labeled with Chinese characters.

HANDYKAMERA ODER IHREM

QR-READER DEN CODE, UM SICH

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a small potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a blue arrow indicating the insertion point (no text or symbols present)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the motion (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting a small component (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a person's foot stepping on a pedal, showing the foot and ankle (no text or symbols present)

Illustration of a hand holding a device with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool or device with a blue arrow indicating direction (no text or symbols present)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Diagram illustrating two steps of a mechanical or fluid handling process, labeled 1 and 2 with arrows indicating movement.

Diagram showing a faucet and a filter mechanism (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

1X WOCHE

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a partially open wallet (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

1 X JÄHRLICH

Diagram showing a hand using a toilet to clean a trash bin, with a blue diagonal line and a 'NO' sign nearby.

Line drawing of a hand holding a tool with a blue arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a portable electronic device with a separate case and a green logo (no text or symbols)

Illustration of a firearm emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a stylized eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of an eye above a stylized human figure with a pyramid, no text or symbols present.

Illustration of a hand pouring granular material into a trash bin with a curved arrow indicating rotation (no text or symbols)

Illustration of a faucet and a filter device (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a barcode item with an upward arrow, next to a partially open wallet (no text or symbols)

Illustration of a faucet and a filter in a water surface (no text or symbols)

48H

Diagram showing a plug connected to a cable with a 'NO' sign, indicating no movement or safety warning.

-MAX 40°C - 104°F -MIN 0°C - 32°F

Diagram showing a vacuum cleaner cleaning a fire inside a room, with a 'NO' sign indicating no pollution.

Safety diagram showing a hand valve and a device with 'NO' indicating no protection

Diagram showing a child cleaning a floor with a vacuum cleaner, indicating no number of non-zero items.

Safety warning illustration showing a hand cleaning a surface with hazard symbols and a 'NO' sign

Diagram showing a vacuum cleaner cleaning surface with a 'NO' sign indicating no detectable air.

Diagram showing a robotic arm interacting with a circular symbol labeled 'No' and a blue arrow pointing to a small circle.

Illustration of a hand washing a sink with a 'No' sign nearby (no text or symbols on the diagram itself)

Illustration showing a hand holding a spray bottle labeled 'NO' with various spray bottles and a plastic cap, indicating no detectable chemical agents.

Diagram showing a device with a 'NO' sign indicating no change, likely from a safety or safety instruction.

NO ON

Diagram showing a vacuum cleaner with a 'NO' sign and raindrops, indicating no detectable air.

Diagram showing a hand spraying a spray bottle with a 'NO' symbol, next to a smokestack emitting vapor.

Diagram showing a hand using a device to clean a waste bin with a 'NO' label, indicating no detectable waste.

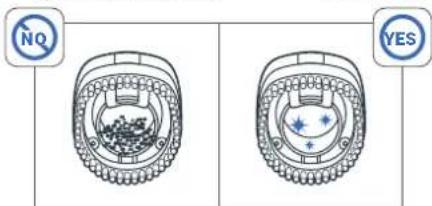

NO YES

DE

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' traffic sign nearby

Diagram showing a hand cleaning a tiled floor with a 'NO' directional sign indicating no change.

Diagram showing a smartphone with a 'NO' sign and a magnified view of a battery labeled 'NO' (no text or symbols on the device itself)

DE

Line drawing of a handheld electronic device (no text or symbols)

Line drawing of a battery pack with a red indicator point on the side (no text or symbols)

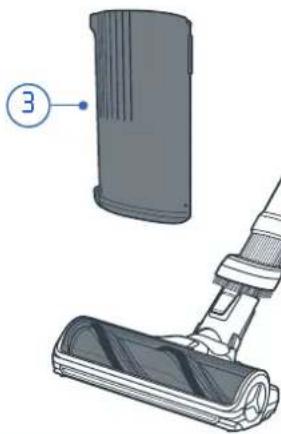

3D model of a cylindrical object with a numbered label (3) pointing to its side, no text or symbols present.

Technical line drawing of a mechanical bracket component with mounting holes and a numbered callout (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a device with two circular gauges and a battery, likely illustrating a measurement or control system.

4 REINIGINGSWAARSCHUWING:

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up inset showing the component (no text or symbols)

Diagram showing a connector being inserted into a cable, with no visible text or symbols

Illustration of a hand using a tool to lift a component, with a blue arrow indicating direction (no text or symbols)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting the insertion area (no text or symbols present)

Illustration of a person's foot wearing a high leg and standing on a chair, with an inset showing the foot being held (no text or symbols present)

Medical procedure illustration showing a catheter insertion into tissue with magnified view (no text or labels)

Illustration of a hand holding a device with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Diagram illustrating two steps of a mechanical or electrical device operation, labeled 1 and 2, with arrows indicating direction of movement.

Diagram showing a faucet and a filter device against a water surface (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

1X WEEK

Illustration of a hand holding a portable water dispenser with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, next to a cylindrical container (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

1X JAAR

Illustration of a hand holding a tool with a blue arrow indicating direction (no text or symbols present)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld device with a separate case and a green warning symbol (no text or labels)

8. ONDERHOUDSWAARSCHUWING

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with a blue arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and drain sink (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

Safety warning illustration showing a hand using a tool to clean debris with hazard symbols and a 'NO' sign.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' and a small blue circle with a downward arrow.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to press a trash bin with a 'No' sign, indicating no waste or no litter.

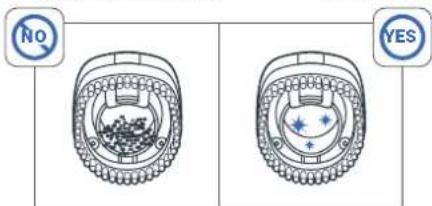

NO YES

NL

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'NO' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

NL

Line drawing of a battery pack (no text or symbols)

Line drawing of a battery pack with a red mark on one side (no text or symbols)

3D model of a cylindrical object with a numbered label pointing to its side (no text or symbols on the object itself)

Technical line drawing of a mechanical bracket with mounting holes and a numbered callout (no text or symbols)

*Según modelo

1. MONTAJE 3.


E. MONTABLE 3. CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK *

Illustration of a hand holding a device with a blue arrow pointing to a cable, showing a close-up of the cable (no text or symbols present)

Hand holding a mechanical component with a blue spiral arrow indicating rotational motion (no text or symbols)

Mechanical component diagram with no visible text or symbols

145 cm mini.

x4x4

Diagram illustrating a hand using a drill pen to apply a tool to a surface, with an inset showing the same tool's tip.

Diagram showing a hand using a tool to adjust a mechanical component, with magnified insets highlighting the component 'x4'.

x4 0

Illustration of a hand holding a smartphone next to a device with a downward arrow indicating action (no text or symbols present)

Illustration of a power tool and screw assembly with three rows of screws (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical component with two circular gauges and a dial indicator, likely illustrating a measurement or control system.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up inset showing the component (no text or symbols)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the direction (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting the insertion area (no text or symbols present)

Illustration of a person's foot stepping on a pedal, showing the foot and leg positioning (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a hand holding a tool with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand using a vacuum cleaner to adjust or install a component (no text or symbols visible)

Illustration of a hand holding a wristband with a blue arrow indicating force or pressure point (no text or symbols present)

Illustration of scissors cutting a twisted rope (no text or symbols)

Diagram illustrating two steps of a mechanical or electrical device operation, labeled 1 and 2, with arrows indicating direction of movement.

Diagram showing a faucet and a filter mechanism (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

1 VEZ A LA SEMANA

Illustration of a hand holding a portable device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a partially open wallet (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

1 VEZ AL AÑO

Illustration of hands holding a firearm with a blue arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a portable electronic device with a separate case and a green warning symbol (no text or labels)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and drain sink components (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Diagram showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' indicating no sign or absence.

No

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to press a trash bin with a 'No' sign, indicating no waste or no litter.

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

Line drawing of a battery pack (no text or symbols)

Line drawing of a battery pack with a red mark on one side (no text or symbols)

Illustration of a hand holding a device with a blue arrow pointing to a cable, no text or symbols present

Hand holding a mechanical component with a blue spiral arrow indicating rotational motion (no text or symbols)

Mechanical component diagram with no visible text or symbols

145 cm mini.

x4x4

Diagram illustrating a hand using a power tool to apply a tool to a surface, with an inset showing the same tool's tip.

Diagram showing a hand using a tool to adjust a screw with magnified views and a 4x magnification indicator.

x4 0

Illustration of a hand holding a smartphone next to a device with a downward arrow indicating action (no text or symbols present)

Illustration of a power tool and screw assembly with three rows of screws (no text or symbols)

*Nao incluidos*Consoant

4. UTILIZAR O ASPIRADOR

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical component with two circular gauges and a dial indicator, likely illustrating a measurement or control system.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up inset showing the component (no text or symbols)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the direction (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting a small component (no text or symbols present)

Illustration of a person's foot stepping on a pedal, showing the foot and leg positioning (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a hand holding a device with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand using a tool to adjust or install a device, with no visible text or symbols.

Illustration of a hand holding a wristband with a blue arrow indicating force or pressure point (no text or symbols present)

Illustration of scissors cutting a twisted rope (no text or symbols)

EFETUE A LEITURA PARA SABER MAIS SOBRE A MANUTENÇÃO

Diagram illustrating two steps of a mechanical press or lifting operation, labeled 1 and 2 with arrows indicating direction.

Diagram showing a faucet and a filter mechanism (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, next to a stack of coins (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

Diagram showing a hand using a tool to clean debris with a blue diagonal line and a 'NO' sign, indicating no detectable waste.

Line drawing of a hand holding a tool with an arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a portable electronic device with a separate case and a green warning symbol (no text or labels)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the right eye (no text or symbols)

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Blue geometric illustration of a symbolic structure with an eye above it, resembling the Eye of Horrilla (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a rectangular object with an upward arrow, next to a stack of circular objects (no text or symbols)

Illustration of a faucet and a filter in a water surface (no text or symbols)

48H

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no protection.

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' and a small blue circle with a downward arrow.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Diagram showing a vacuum cleaner with a 'NO' sign and raindrops, indicating no detectable air.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to press a trash bin with a 'No' sign, indicating no waste or no litter.

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

PT

Line drawing of a battery pack (no text or symbols)

Line drawing of a battery pack with a red indicator point (no text or symbols)

PULSANTE DI ACCENSIONE ON/OFF

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical component with two circular gauges and a dial indicator, likely illustrating a measurement or control system.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a blue arrow indicating the insertion point (no text or symbols present)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a small object, with a blue arrow indicating direction (no text or symbols)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting a small component (no text or symbols present)

Illustration of a person's foot stepping on a pedal, showing the foot and ankle (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a hand holding a device with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand using a vacuum cleaner to adjust or install a component (no text or symbols visible)

Illustration of a hand holding a wristband with a blue arrow indicating force direction (no text or symbols)

Illustration of scissors cutting a twisted rope (no text or symbols)

ESEGUIRE LA

SCANSIONE

PER ULTERIORI

INFORMAZIONI

SULLA

MANUTENZIONE

MANUTENZIONE DEL FILTRO
1VOLTA A SETTIMANA

PUSHRUSH

Diagram illustrating two steps of a hairpin press application, labeled 1 and 2, showing how to press or adjust the product.

Diagram showing a faucet and a filter mechanism (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

Illustration of a hand holding a portable device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a rectangular object with an upward arrow, next to a partially open wallet (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

Illustration of hands holding a firearm with a blue arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld device with a separate case and a green warning symbol (no text or labels)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter stand (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

Safety warning illustration showing a hand using a tool to clean debris with hazard symbols and a 'NO' sign.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' and a small blue circle with a downward arrow.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Diagram showing a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to clean a trash bin with a 'No' sign, indicating no waste or no litter.

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

IT

Line drawing of a handheld electronic device (no text or symbols)

Line drawing of a battery pack with a red indicator point on the side (no text or symbols)

Illustration of a hand holding a device with a close-up inset showing a connector (no text or symbols)

Hand holding a mechanical component with a blue spiral arrow indicating rotational motion (no text or symbols)

Mechanical component diagram with no visible text or symbols

145 cm mini.

x4x4

Diagram illustrating a drill bit technique with magnified detail showing the tip and end of the drill

Diagram showing a hand using a wrench to adjust a screw with magnified insets highlighting the 4x ratio.

x4 0

Illustration of a hand holding a smartphone with a downward arrow indicating action (no text or symbols present)

Illustration of a power tool and screw assembly (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical device with two circular gauges and a labeled component, likely illustrating a motion or calibration setup.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a blue arrow indicating the insertion point (no text or symbols present)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the motion (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting the insertion point (no text or symbols present)

Illustration of a person's foot wearing a high leg and standing on a chair, with an inset showing the foot being held (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Използвайте

четката за мека

мебел*, за да

почистите с

прахосмукачката

текстилни

изделия, като

дивани, завеси

или матраци.

*Използвайте мини

турбочетката, за да

Illustration of a hand holding a device with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool or device with a blue arrow indicating direction (no text or symbols present)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow pointing to it, no text or symbols present

Diagram of a hand holding a filter component above a cylindrical object (no text or symbols)

Line drawing of two hands performing a manual press or stamping operation (no text or symbols)

Hand cleaning a cylindrical object with a cloth (no text or symbols visible)

Illustration of a hand using a vacuum cleaner to adjust or install a component (no text or symbols visible)

Illustration of a hand holding a wristband with a blue arrow indicating force or pressure point (no text or symbols present)

Illustration of scissors cutting a twisted rope (no text or symbols)

Diagram illustrating two-step steps of a mechanical or electrical component, labeled 1 and 2 with arrows indicating direction.

Diagram showing a faucet and a filter mechanism (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

1 X НА СЕДМИЦА

Illustration of a hand holding a device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, next to a stack of coins (no text or symbols)

Illustration of a faucet and a filter in a water surface (no text or symbols)

48H

1 X НА ГОДИНА

Diagram showing a hand using a tool to stop a trash bin with a blue diagonal line and a 'NO' symbol indicating no waste.

Line drawing of hands holding a tool with an arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld electronic device with a separate physical device beside it (no text or symbols visible)

Отделете батерията

от устройството

и рециклирайте

тези елементи в

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Simple line drawing of a human eye with a light beam projecting the lens (no text or symbols)

Simple line drawing of a human eye with a pointed light beam, no text or symbols present

Blue geometric illustration of a human eye above a stylized pyramid with a central column (no text or symbols)

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, next to a stack of coins (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

Safety warning illustration showing a hand using a tool to clean debris with hazard symbols and a 'NO' sign.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' and a small blue circle with a downward arrow.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to press a trash bin with a 'No' sign, indicating no waste or no litter.

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

Line drawing of a battery pack (no text or symbols)

Line drawing of a battery pack with a red mark on one side (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a device with two gauges and a sensor, likely illustrating a mechanical or electrical setup.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a blue arrow indicating the insertion point (no text or symbols present)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the direction (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting the insertion area (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a person's foot stepping on a pedal, showing the foot and leg positioning (no text or symbols present)

Illustration of a hand holding a device with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand pressing down on a cylindrical object with a blue arrow indicating motion (no text or symbols)

Diagram of a hand holding a filter component above a cylindrical object, with no visible text or symbols.

Line drawing of two hands using a tool to press or install a cylindrical object (no text or symbols present)

Hand cleaning a cylindrical object with a cloth (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a device, with no visible text or symbols.

Illustration of a hand holding a wristband with a blue arrow indicating force or pressure point (no text or symbols present)

Illustration of scissors cutting a twisted rope (no text or symbols)

VÍCE O ÚDRŽBĚ SE DOZVÍTE PO NASKENOVÁNÍ

ÚDRŽBA FILTRU

1X TÝDNĚ

PUSHRUSH

Diagram illustrating two steps of a mechanical or electrical device operation, labeled 1 and 2 with arrows indicating direction.

Diagram showing a faucet and a filter device against a water surface (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, next to a partially open container (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

Illustration of a hand holding a tool with a blue arrow indicating direction (no text or symbols present)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld device with a separate case and a green warning symbol (no text or labels)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and drain sink components (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Diagram showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

Safety warning illustration showing a hand using a tool to clean debris with hazard symbols and a 'NO' sign.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' indicating no sign or absence.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Diagram showing a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to clean a trash bin with a 'No' sign nearby

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

Line drawing of a battery pack (no text or symbols)

Line drawing of a battery pack with a red mark on one side (no text or symbols)

Odpojte a znovu zapojte baterii.

Illustration of a hand holding a device with a blue arrow pointing to a cable, no text or symbols present

Hand holding a mechanical component with a blue spiral arrow indicating rotational motion (no text or symbols)

CLICKCLICK

145 cm mini.

x4x4

Illustration of a hand using a drill pen to cut a tool, with an inset showing the same tool (no text or symbols present)

Diagram showing a hand using a tool to adjust a mechanical component, with magnified insets highlighting the component's size 'x4'.

x4 0

Illustration of a hand holding a smartphone with a downward arrow indicating action (no text or symbols present)

Illustration of a power tool and screw assembly with three rows of screws (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Da biste uključili ili isključili uređaj, pritisnite tipku za pokretanje.

OKIDAČ ZA POJAČAVANJE

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Služi za intenzivno čišćenje tvrdih podova ili jako zaprljanih tepiha.

FUNKCIJA AUTO

Diagram showing a device with two gauges and a sensor, likely illustrating a measurement or calibration process.

Line drawing of a person using a handheld vacuum cleaner on a small table with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Vaš je uređaj opremljen Flex tehnologijom. Ona vam omogućuje da bez napora dosegnete najudaljenija područja ispod niskog namještaja.

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up view showing the component being inserted (no text or symbols present)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the motion (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting the insertion area (no text or symbols present)

Illustration of a person's foot stepping on a pedal, showing the foot and ankle (no text or symbols present)

Rabite četku za sofe* za usisavanje tekstila kao što su sofe, zavjese ili madraci.
*Rabite mini turbo četkicu za dubinsko usisavanje sofa, madraca, tepiha ili otirača.

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

*dostupno samo u određenim modelima.

6. BATERIJA I PUNJENJE

TRAJANJE POTPUNOG PUNJENJA BATERIJE IZNOSI 3 SATA.

Illustration of a hand holding a tool with a downward arrow indicating action (no text or symbols present)

Uređaj stavite na ranije postavljeno postolje za punjenje i ukopčajte ga u struju.

OPCIJA 2

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Diagram illustrating two steps of a mechanical device operation, labeled 1 and 2 with arrows indicating movement.

Diagram showing a faucet and a filter mechanism (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

1 TJEDNO

Illustration of a hand holding a device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a partially open wallet (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

1 GODIŠNJE

Line drawing of a hand holding a tool or device with a blue arrow indicating direction (no text or symbols present)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld device with a separate case and a green logo (no text or symbols on the device itself)

Obavezno izvadite bateriju iz uređaja i reciklirajte komponente na odgovarajućim sabirnim mjestima.

8. UPOZORENJE O ODRŽAVANJU

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Simple line drawing of an eye with a light beam projecting onto it, no text or symbols present

Illustration of a human eye with a laser beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter stand (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter in a sink (no text or symbols)

48H

Da biste dovršili postupak, očislite filter motora. Filter motora mora biti u potpunosti suh prije vraćanja na mjesto.

No

-MAX 40°C - 104°F -MIN 0°C - 32°F

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' indicating no sign or absence.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or security warning.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to press a trash bin with a 'No' sign, indicating no waste or no litter.

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

HR

Line drawing of a handheld electronic device (no text or symbols)

Provjerite rabite li odgovarajući punjač.

Ako to ne riješi problem, obratile se ovlaštenom servisnom centru.

Line drawing of a battery pack with a red indicator point on the side (no text or symbols)

Odspojite i ponovno spojite bateriju.

Ako to ne riješi problem, obratite se ovlaštenom servisnom centru.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a device with two gauges and a belt, labeled with Chinese characters for measurement or control.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a small potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up inset showing the component (no text or symbols)

Diagram of a mechanical connector with blue arrows indicating connection points (no text or symbols present)

Illustration of a hand using a tool to lift a component, with a blue arrow indicating direction (no text or symbols)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting a small component (no text or symbols present)

Illustration of a person's foot wearing a high leg and standing on a chair, with an inset showing the foot being held (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a hand holding a tool with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Diagram illustrating two steps of a mechanical or fluid handling process, labeled 1 and 2 with arrows indicating movement.

Diagram showing a faucet and a filter device against a water surface (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

Illustration of a hand holding a portable device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a partially open container (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

1 ФОРА ТОН ХРОНО

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld device with a separate case and a green warning symbol (no text or labels)

Illustration of a medical device projecting an eye to the right (no text or symbols)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a projectile with a light beam projecting to an eye (no text or symbols)

Blue triangular diagram with an eye above a stylized building silhouette (no text or symbols)

Illustration of a hand pouring granular material into a trash bin with a curved arrow indicating rotation (no text or symbols)

Two kitchen fixtures: a faucet and a filter, shown in line drawings without any text or symbols.

Hand holding a container with liquid, no text or symbols visible

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a barcode tag above a wallet with an upward arrow (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

Safety warning illustration showing a hand using a mop to clean debris with hazard symbols and a 'NO' sign.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' indicating no sign or absence.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to press a trash bin with a 'No' sign, indicating no waste or no litter.

NO YES

EL

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

EL

Line drawing of a battery pack (no text or symbols)

Line drawing of a battery pack with a red mark on one side (no text or symbols)

3D model of a cylindrical object with internal ridges and a numbered label (3) pointing to its edge, no text or symbols present.

Technical line drawing of a mechanical bracket component with mounting holes and a numbered callout (no text or symbols)

*Modelltöl függöen

1. ÖSSZESZERELÉS


E. USSZESZERLEES CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a device with two circular gauges and a belt, likely illustrating a mechanical or electrical component.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Illustration of a handheld vacuum cleaner with a blue circular motion arrow indicating rotation (no text or symbols)

3 CLICKCLACK

Diagram of a vacuum cleaner with a close-up inset showing the component (no text or symbols)

Diagram showing a connector being inserted into a cable, with no visible text or symbols

Illustration of a hand using a tool to lift a small object, with a blue arrow indicating direction (no text or symbols)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting the joint detail (no text or symbols present)

Illustration of a person's foot wearing a high leg and standing on a chair, with an inset showing the foot being adjusted (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a hand holding a tool with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand pressing down on a cylindrical object with a blue arrow indicating motion (no text or symbols)

Diagram of a hand holding a filter component above a cylindrical object (no text or symbols)

Line drawing of two hands performing a manual press or stamping operation (no text or symbols present)

Hand washing a cylindrical object with a cloth (no text or symbols visible)

OLVASSA BE A KARBANTARTÁSSAL KAPCSOLATOS TOVÁBBI INFORMÁCIÓKÉRT

Illustration of a hand using a vacuum cleaner to adjust a device (no text or symbols visible)

Illustration of a hand holding a wristband with a blue arrow indicating force or pressure point (no text or symbols present)

Illustration of scissors cutting a twisted rope (no text or symbols)

OLVASSA BE A KARBANTARTÁSSAL KAPCSOLATOS TOVÁBBI INFORMÁCIÓKÉRT

A SZÜRÖ KARBANTARTÁSA

PUSHRUSH

Diagram illustrating two steps of a mechanical or electrical component assembly, labeled 1 and 2 with arrows indicating direction.

Diagram showing a faucet and a filter device against a water surface (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

HETI EGYSZER

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a rectangular object with an upward arrow, next to a partially open wallet (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

ÉVENTE EGYSZER

Line drawing of a hand holding a tool with an arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a portable electronic device with a separate case and a green directional arrow (no text or symbols)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Simple line drawing of an eye with a light beam projecting onto it, no text or symbols present

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

Safety warning illustration showing a hand using a mop to clean debris with hazard symbols and a 'NO' sign.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' and a small blue circle with a downward arrow.

No

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to press a trash bin with a 'No' sign, indicating no waste or no litter.

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

HU

Line drawing of a handheld electronic device (no text or symbols)

Line drawing of a battery pack with a red indicator point on the side (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a device with two circular gauges and a battery, likely illustrating a measurement or control system.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a small potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

AKCESORIA DO KONKRETNYCH ZASTOSOWAŃ W CZYSZCZENIU

Diagram of a vacuum cleaner with a close-up view showing the component being inserted (no text or symbols present)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a small object, with a blue arrow indicating direction (no text or symbols)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting a small component (no text or symbols present)

Illustration of a person's foot stepping on a pedal, showing the foot and leg positioning (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a hand holding a tool with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Diagram illustrating two steps of a mechanical device operation, labeled 1 and 2 with arrows indicating movement.

Diagram showing a faucet and a filter device against a water surface (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

RAZ W TYGODNIU

Illustration of a hand holding a device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, next to a partially open device (no text or symbols visible)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

RAZ NA ROK

Diagram showing a hand using a device to stop a trash bin with a blue diagonal line and a 'NO' symbol indicating no stop.

Line drawing of a hand holding a tool with an arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld device with a separate case and a green warning symbol (no text or labels)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter sink components (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

Safety warning illustration showing a hand using a mop to clean debris with hazard symbols and a 'NO' sign.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' indicating no sign or absence.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to clean a trash bin with a 'No' sign nearby

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

PL

Line drawing of a handheld electronic device (no text or symbols)

Line drawing of a battery pack with a red indicator point on the side (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a device with two circular gauges and a handle, likely illustrating a mechanical or electrical component.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up inset showing the component (no text or symbols)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the direction (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting the insertion area (no text or symbols present)

Illustration of a person's foot stepping on a pedal, showing the foot and ankle (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a hand holding a tool with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Diagram illustrating two steps of a mechanical or fluid handling process, labeled 1 and 2 with arrows indicating movement.

Illustration of a faucet and a filter device against a water surface (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

1 X NEDÊLÃ

Illustration of a hand holding a device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a rectangular object with an upward arrow, next to a partially open wallet (no text or symbols)

Illustration of a faucet and a showerhead in a water bath (no text or symbols)

48H

1X GADÃ

Illustration of a hand holding a tool with a blue arrow indicating direction (no text or symbols present)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld device with a separate case and a green directional arrow (no text or symbols)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Pārbaudiet, vai puteklu tvertne, caurule vai birste nav nosprostota.

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter stand (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Diagram showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' and a small blue circle with a downward arrow.

No

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to clean a trash bin with a 'No' sign nearby

NO YES

LV

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'NO' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

LV

Line drawing of a handheld electronic device (no text or symbols)

Line drawing of a battery pack with a red indicator point on the side (no text or symbols)

Atvienojiet un vêlreiz pievienojiet bateriju.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand inserting a component into a device (no text or symbols)

Diagram showing a device with two gauges and a belt, likely illustrating a mechanical or electrical component.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a small potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a blue arrow indicating the insertion point (no text or symbols present)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the motion (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting the insertion point (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a person's foot wearing a high-heeled shoe, with a magnified inset showing the foot being adjusted (no text or symbols present)

Illustration of a hand holding a device with a downward arrow indicating action (no text or symbols present)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Diagram illustrating two steps of a mechanical press or lifting operation, labeled 1 and 2 with arrows indicating direction.

Illustration of a faucet and a filter in a water tank (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

1 KARTA PER SAVAITE

Illustration of a hand holding a portable device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a rolled wallet (no text or symbols)

Illustration of a faucet and a filter in a water surface (no text or symbols)

48H

1 KARTA PER METUS

Diagram showing a hand using a tool to stop a trash bin with a blue diagonal line and a 'NO' symbol indicating no waste.

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a portable electronic device with a separate case and a green directional arrow (no text or symbols)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and drain sink components (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robotic arm interacting with a blue circular symbol labeled 'No' indicating no sign.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to press a trash bin with a 'No' sign, indicating no waste or no litter.

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

LT

Line drawing of a handheld electronic device (no text or symbols)

Line drawing of a battery pack with a red indicator point on the side (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a device with two circular gauges and a battery, likely illustrating a mechanical or electrical component.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up inset showing the component (no text or symbols)

Diagram of a mechanical connector with blue arrows indicating connection points (no text or symbols present)

Illustration of a hand using a tool to lift a small object, with a blue arrow indicating direction (no text or symbols)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting a small component (no text or symbols present)

Illustration of a person's foot stepping on a pedal, showing the foot and leg positioning (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a hand holding a device with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool or device with a blue arrow indicating direction (no text or symbols present)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand operating a mechanical device with a magnified inset showing a circular component (no text or symbols visible)

Illustration of a hand holding a wristband with a blue arrow indicating force or pressure point (no text or symbols present)

Illustration of scissors cutting a twisted rope (no text or symbols)

SKANNIGE, ET SAADA LISATEAVET HOOLDUSE KOHTA

FILTRI HOOLDUS

PUSHRUSH

Diagram illustrating two-step steps of a mechanical or electrical device operation, labeled 1 and 2.

Diagram showing a faucet and a filter mechanism (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

1 X NÄDALAS

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a partially open wallet (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

1 X AASTAS

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld device with a separate case and a green warning symbol (no text or labels)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of a faucet and a filter device (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' indicating no sign or absence.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to clean a trash bin with a 'No' sign nearby

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

ET

Line drawing of a battery pack (no text or symbols)

Line drawing of a battery pack with a red mark on one side (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a device with two circular gauges and a battery, likely illustrating a mechanical or electrical component.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a blue arrow indicating the insertion point (no text or symbols present)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the motion (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting the insertion point (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a person's foot stepping on a pedal, showing the foot and ankle (no text or symbols present)

Illustration of a hand holding a tool with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand using a tool to adjust or install a device (no text or symbols visible)

Illustration of a hand holding a wristband with a blue arrow indicating force or pressure point (no text or symbols present)

Illustration of scissors cutting a rolled-up rope (no text or symbols)

SCANATI PENTRU A AFLA MAI MULTE DESPRE ÎNTRETINERE

ÎNTRETINEREA FILTRULUI
1 X SÄPTÄMÄNÄ

PUSHRUSH

Diagram illustrating two steps of a mechanical or electrical component assembly, labeled 1 and 2 with arrows indicating direction.

Diagram showing a faucet and a filter device against a water surface (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

Illustration of a hand holding a portable device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, next to a stack of coins (no text or symbols)

Illustration of a faucet and a filter in a water surface (no text or symbols)

48H

Line drawing of hands holding a tool with an arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld device with a separate case and a green warning symbol (no text or labels)

Illustration of a handgun emitting a light beam to an eye (no text or symbols)

Simple line drawing of a human eye with a light beam projecting to the right eye (no text or symbols)

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of an eye above a stylized building with a tower, enclosed in a blue triangle (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter stand (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a rectangular object with an upward arrow, next to a partially open wallet (no text or symbols)

Illustration of a faucet and a filter in a water surface (no text or symbols)

48H

Diagram showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' and a small blue circle with a downward arrow.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle labeled 'No' with other containers and a bolt, indicating no chemical or operational hazard.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to press a trash bin with a 'No' sign, indicating no waste or no litter.

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

RO

Line drawing of a handheld electronic device (no text or symbols)

Line drawing of a battery pack with a red indicator point on the side (no text or symbols)

3D model of a cylindrical object with ribbed top and label '3' pointing to its side (no text or symbols on the object itself)

*Ovisno o modelu

1. SASTAVLJANJE


E. SASTAVLANCE CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK *

1. POSTAVLJANJE BAZE ZA PUNJENJE

   *Nije uključeno*Ovisno o

4. KORIŠTENJE USISIVAČA

USISIVAČ TREBA DO KRAJA NAPUNITI PRIJE PRVE UPOTREBE

TIPKA ZA UKLJUČIVANJE/ISKLJUČIVANJE

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Da biste uključili i isključili aparat, pritisnile tipku za pokretanje.

AKTIVACIJA POJAČANJA

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical component with two circular gauges and a labeled measurement point.

Usisivač ima funkciju AUTO koja snagu prilagođava različitim tipovima podova. X-Force Flex 12.60 Neo obavlja hiljade izračuna i mjerenja tokom svakog prepoznavanja tipa poda, pa je normalno vrijeme reakcije od nekoliko sekundi između prelaska na drugi tip poda da bi se optimizovao rad.

KONTROLNI EKRAN

4 Clean me SMART CONTROL Max BoostEco Auto 1 2 3 Auto

Vaš aparat ima 4 nivoa snage za različite zadatke. Način usisavanja možete promijeniti direktno na kontrolnom ekranu te nivo snage podesiti prema svojim potrebama.

1 RUČNI NAČIN RADA

ECO: Za svakodnevnu upotrebu. Prikladan za uprjane podove i osjetljive površine: police, rame, zavjese itd.

MAX: Za usisavanje prašine sa tvrdih podova i tepiha.

BOOST: Za intenzivno čišćenje podova i veoma zaprljanih tepiha.

Kada je izabran maksimalan nivo snage, usisivač kraće radi.

2 AUTOMATSKI NAČIN RADA:

Automatski podesite snagu prema tipu poda

3 BATERIJA:

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

U aparat je ugrađena Flex tehnologija. Ona omogućava da bez problema dođete do udaljenih dijelova ispod niskog namještaja.

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up view showing the component being inserted (no text or symbols present)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the motion (no text or symbols present)

Aparat ima 2 integrirane četke za čišćenje. Njima možete usisati većinu površina. Napomena: Ako skinete pribor za čišćenje, prije sljedeće upotrebe provjerite da li je pravilno ponovo postavljen.

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting the insertion point (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a person's foot wearing a small device, with a magnified inset showing the foot being adjusted (no text or symbols present)

*Mini turbo četkom dubinski usisavajte sofe, madrace, teplhe ili male otirače.

Illustration of a hand holding a device with a downward arrow indicating motion (no text or symbols)

Aparat postavite na prethodno instaliranu bazu za punjenje i priključite ga.

OPCIJA 2

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Izvadite bateriju iz aparata tako da je izvučete, a zatim umelnite bateriju na bazu za punjenje i priključite.

SKENIRAJTE DA BISTE SAZNALI VIŠE O BATERIJI I PUNJENJU

Treperi plavi indikator: baterija se puni,

Plavi indikator isključen: baterija je napunjena

Treperi crveni indikator: Pogledajte knjižicu Sigurnosna uputstva.

NIVO NAPUNJENOSTI BATERIJE

	[AKAC]
ECO	Do60 min	Do32 min
MAX	Do32 min	Do26 min
BOOST	Do5 min	Do11 min

7. ODRŽAVANJE

PRAŽNJENJE SPREMNIKA ZA PRAŠINU

Prašina u spremniku ne smije prijeći označeni maksimalan nivo.

PRAŽNJENJE SPREMNIKA ZA PRAŠINU

SKENIRAJTE DA BISTE SAZNALI VIŠE O ODRŽAVANJU
Vodite računa da za optimalnu efikasnost spremnik za prašinu ispraznite jednom sedmično.

ČIŠĆENJE ČETKE

SKENIRAJTE DA BISTE SAZNALI VIŠE O ODRŽAVANJU

ODRŽAVANJE FILTERA

PUSHRUSH

Diagram illustrating two steps of a mechanical or electrical device operation, labeled 1 and 2 with arrows indicating direction.

Diagram showing a faucet and a filter device against a water surface (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

1 X SEDMIČNO

Illustration of a hand holding a device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a partially open container (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

1 X GODIŠNJE

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a portable electronic device with a separate case and a green warning symbol (no text or labels)

Obavezno odvojite bateriju do aparata i oba proizvoda reciklirajte na odgovarajućoj lokaciji.

8. UPOZORENJE O ODRŽAVANJU

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a human eye with a laser beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Provjerite da spremnik za prašinu, cijev ili četka nisu blokirani.

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and drain sink components (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Ispraznite spremnik i očistite filter u separatoru. Filteri se prije vraćanja moraju do kraja osušiti.

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Na kraju očistite filter motora. Filter motora se prije vraćanja mora do kraja osušiti.

No

-MAX 40°C - 104°F -MIN 0°C - 32°F

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no protection.

No

Safety warning illustration showing a hand using a mop to clean debris with hazard symbols and a 'NO' sign.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' and a small blue circle with a downward arrow.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to press a trash bin with a 'No' sign, indicating no waste or no litter.

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

Isključite usisivač i ponovo ga uključite.

Ako to ne ispravi problem, kontaktirajte ovlašteni servis.

Line drawing of a battery pack (no text or symbols)

Provjerite da li koristite odgovarajući punjač.

Ako to ne ispravi problem, kontaktirajte ovlašteni servis.

Line drawing of a battery pack with a red mark on one side (no text or symbols)

Odvojite bateriju i ponovo je spojite.

Ako to ne ispravi problem, kontaktirajte ovlašteni servis.

1. PREDSTAVLJANJE UREĐAJA X-FORCE FLEX 12.60 NEO / 13.60

PAŽLJIVO PROČITAJTE PRIRUČNIK PRE PRVOG KORIŠĆENJA DA BISTE NA NAJBOLJI NAČIN ISKORISTILI SVOJ NOVI USISIVAČ

① FILTER KOJI SE JEDNOSTAVNO PERE
② SEPARATOR
③ POSUDA ZA PRAŠINU
4 FILTER ZA FINE ČESTICE
⑤ BATERIJA KOJA SE MOŽE UKLONITI
⑥ BAZA ZA PUNJENJE
⑦ ČETKA ZA SOFU
8 MLAZNICA ZA PUKOTINE
⑨ TURBO ČETKA ZA ŽIVOTINJE

Illustration of a vacuum cleaner with a labeled component (3), showing its internal structure and assembly (no text or symbols present)

Technical line drawing of a mechanical bracket with mounting holes and a numbered callout (no text or symbols)

Line drawing of a vacuum cleaner with a circular indicator below (no text or symbols)

*U zavisnosti od modela

1. SKLAPANJE


E. SKLAPANJE CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Za intenzivno čišćenje tvrdih podova i veoma zaprljanih tepiha.

AUTOMATSKA FUNKCIJA

Diagram showing a mechanical component with two circular gauges and a labeled measurement point.

Usisivač poseduje AUTOMATSKU funkciju koja podešava jačinu prena različitim vrstama podova. Uređaj X-Force Flex 12.50 Neo obavlja hiljade proračuna i merenja tokom svake detekcije poda i period reakcije od nekoliko sekundi između tih prelaza sa podova je normalan radi optimizacije performansi.

KONTROLNI EKRAN

4 Clean me SMART CONTROL Max BoostEco Auto 1 2 3 Auto

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a blue arrow indicating the insertion point (no text or symbols present)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the direction (no text or symbols present)

Vaš uređaj ima 2 integrisane četke za čišćenje. Možete da ih koristite za usisavanje većine površina.
Napomena: ako uklonite dodatke za čišćenje, overite se da su ispravno postavljeni pre naredne upotrebe.

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting the insertion area (no text or symbols present)

Dodatak za pukotine* koristite za usisavanje mesta do kojih se teško dolazi.

Illustration of a person's foot stepping on a pedal, showing the foot and leg positioning (no text or symbols present)

Četku za sofu* koristite za usisavanje tekstila kao što su sofe, zavese i dušeci.
*Mini turbo četku koristite za dubinsko usisavanje sofa, dušeka ili malih tepiha.

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

*Dostupno samo na nekim modelima.

6. BATERIJA I PUNJENJE

POTPUNO PUNJENJE BATERIJE TRAJE 3 SATA.

Illustration of a hand holding a tool with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Uklonite bateriju iz uređaja tako što ćete je izvući, a zatim bateriju umetnite u bazu za punjenje i uključite je.

SKENIRAJTE DA BISTE OTKRILI VIŠE O BATERIJI I KAKO SE PUNI

Trepćuća plava lampica: baterija se puni,

Isključena plava lampica: baterija je napunjena

Illustration of a hand using a vacuum cleaner to adjust a device (no text or symbols visible)

Illustration of a hand holding a wristband with a blue arrow indicating force or pressure point (no text or symbols present)

Illustration of scissors cutting a rolled-up rope (no text or symbols)

SKENIRAJTE DA BISTE OTKRILI VIŠE O ODRŽAVANJU

ODRŽAVANJE FILTERA
JEDNOM NEDELJNO

PUSHRUSH

Diagram illustrating two steps of a mechanical press or lifting operation, labeled 1 and 2 with arrows indicating direction.

Diagram showing a faucet and a filter mechanism (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

Nakon čišćenja filtera, ako indikatorska lampica ostaje uključena, proverite da li je cev začepljena.
Filter čistite jednom nedeljno radi maksimalne efikasnosti. Filter menjajte dvaput godišnje. Da biste kupili novi, potražite broj Rowenta rezervnog dela ZR009014.

ODRŽAVANJE FILTERA MOTORA
JEDNOM GODIŠNJE

Illustration of a hand holding a device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a partially open wallet (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

Line drawing of a hand holding a firearm with a blue arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld device with a separate case and a green directional arrow symbol (no text or labels)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Simple line drawing of an eye with a light ray passing through it, no text or symbols present

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Proverite da li su posuda za prašinu, cev ili četka začepljeni.

Illustration of a hand pouring granular material into a trash bin with a blue arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter stand (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Ispraznite posudu i očistite filter unutar separatora. Filter mora da bude potpuno suv pre vraćanja na mesto.

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Za kraj, očistite filter motora. Filter motora mora da bude potpuno suv pre vraćanja na mesto.

No

-MAX 40°C - 104°F -MIN 0°C - 32°F

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

Safety warning illustration showing a hand using a tool to clean debris with hazard symbols and a 'NO' sign.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' and a small blue circle with a downward arrow.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or security warning.

NO ON

Diagram showing a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to clean a trash bin with a 'No' sign nearby

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

SR

Usisivač isključite i ponovo uključite.

Line drawing of a handheld electronic device (no text or symbols)

Proverite da li je punjač ispravan.

Line drawing of a battery pack with a red indicator point on the side (no text or symbols)

Izvadite i ponovo stavite bateriju.

3D model of a cylindrical object with ribbed texture, labeled with number 3 and partial text below (no readable document text)

Technical line drawing of a mechanical bracket with mounting holes and a numbered callout (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical component with two circular gauges and a labeled dial indicator.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Illustration of a handheld vacuum cleaner with a blue circular motion arrow indicating rotation (no text or symbols)

3 CLICKCLACK

Diagram of a vacuum cleaner with a close-up inset showing the component (no text or symbols)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a component, with a blue arrow indicating direction (no text or symbols)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting a small component (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a person's foot wearing a high leg and standing on a chair, with an inset showing the foot being adjusted (no text or symbols present)

Illustration of a hand holding a tool with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a tool with a blue arrow indicating direction (no text or symbols present)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand inserting a device into a cylindrical container with a blue arrow indicating direction (no text or symbols)

Diagram of a hand holding a filter component above a cylindrical object (no text or symbols)

Line drawing of two hands performing a manual press or stamping operation (no text or symbols present)

Hand cleaning a cylindrical object with a cloth (no text or symbols visible)

Illustration of a hand using a vacuum cleaner to adjust a component (no text or symbols visible)

Illustration of a hand holding a wristband with a blue arrow indicating force or pressure point (no text or symbols present)

Illustration of scissors cutting a rolled-up rope (no text or symbols)

Diagram illustrating two-step steps of a mechanical or electrical component, labeled 1 and 2 with arrows indicating direction.

Diagram showing a faucet and a filter device against a water surface (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

Illustration of a hand holding a portable device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a rectangular object with an upward arrow, next to a partially open wallet (no text or symbols)

Illustration of a faucet and a filter in a water surface (no text or symbols)

48H

Diagram showing a hand using a tool to stop a trash bin with a blue diagonal line and a 'NO' symbol indicating no waste.

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld device with a separate case and a green directional arrow symbol (no text or labels)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Simple line drawing of a human eye with a light beam projecting the lens (no text or symbols)

Simple line drawing of a human eye with a pointed light beam, no text or symbols present

Blue geometric illustration of a symbolic structure with an eye above it, no text or symbols present.

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a mug with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, next to a stack of circular objects (no text or symbols)

Illustration of a faucet and a filter in a sink (no text or symbols)

48H

Diagram showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' indicating no sign or absence.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to clean a trash bin with a 'No' sign nearby

NO YES

RU

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

RU

Line drawing of a battery pack (no text or symbols)

Line drawing of a battery pack with a red mark on one side (no text or symbols)

Illustration of a hand holding a device with a blue arrow pointing to a cable, no text or symbols present

Hand holding a mechanical component with a blue spiral arrow indicating rotational motion (no text or symbols)

Mechanical component diagram with no visible text or symbols

145 cm mini.

x4x4

Diagram illustrating a hand using a power tool to apply a tool to a surface, with an inset showing the same tool's tip.

Diagram showing a hand using a tool to adjust a screw with magnified views and a 4x magnification indicator.

x4 0

Illustration of a hand holding a smartphone next to a device with a downward arrow indicating action (no text or symbols present)

Illustration of a power tool and screwdriver with corresponding screw assembly (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Za intenzivno čiščenje trdih tal in močno umazanih preprog.

SAMODEJNI NAČIN

Diagram showing a device with two gauges and a sensor, likely illustrating a mechanical or electrical setup.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a small potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up view showing the component being inserted (no text or symbols present)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the motion (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting the insertion area (no text or symbols present)

Z ozkim

nastavkom*

lahko sesate

težko

dostopna

mesta.

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a person's foot stepping on a pedal, showing the foot and leg positioning (no text or symbols present)

Illustration of a hand holding a device with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Baterijo izvlecite iz aparata in jo vstavite v napajalni podstavek ter jo priklopite.

POSKENIRAJTE

KODO ZA

DODATNE

INFORMACIJE

O BATERIJI IN

POLNJENJU.

Illustration of a hand pressing down on a cylindrical object with a blue arrow indicating motion (no text or symbols)

Diagram of a hand holding a filter component above a cylindrical object (no text or symbols)

Line drawing of two hands performing a manual press or stamping operation (no text or symbols present)

Hand cleaning a cylindrical object with a cloth (no text or symbols visible)

POSKENIRAJTE ZA DODATNE INFORMACIJE O VZDRŽEVANJU

Illustration of a hand using a vacuum cleaner to adjust or install a component (no text or symbols visible)

Illustration of a hand holding a wristband with a blue arrow indicating force or pressure point (no text or symbols present)

Illustration of scissors cutting a rolled-up rope (no text or symbols)

POSKENIRAJTE ZA DODATNE INFORMACIJE O VZDRŽEVANJU

VZDRŽEVANJE FILTRA
ENKRAT TEDENSKO

PUSHRUSH

Diagram illustrating two steps of a mechanical or fluid handling process, labeled 1 and 2 with arrows indicating movement.

Diagram showing a faucet and a filter mechanism (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

Illustration of a hand holding a portable device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a partially open wallet (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld device with a separate case and a green warning symbol (no text or labels)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Preverite, ali so posoda za prah, cev ali krtača za prah zamašeni.

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and drain sink components (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Izpraznite posodo in očistite filter v ločevalniku. Filter mora biti popolnoma suh, preden ga znova vstavite v aparat.

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no protection.

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' indicating no sign or absence.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle labeled 'No' with other containers and a bolt, indicating no chemical or operational hazard.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to clean a trash bin with a 'No' sign nearby

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

SL

Şesalnik izklopite in znova vklopite.

Če s tem težave ne odpravite, se obrnite na pooblaščeni servisni center.

Line drawing of a battery pack (no text or symbols)

Line drawing of a battery pack with a red mark on one side (no text or symbols)

Odstranite in znova namestite baterijo.

Če s tem težave ne odpravite, se obrnite na pooblaščeni servisni center.

1. PREDSTAVUJEME VYSÁVAČ X-FORCE FLEX 12.60 NEO / 13.60

PRED PRVÝM POUŽITÍM SI POZORNE PREČÍTAJTE NÁVOD, ABY STE ČO NAJLEPŠIE VYUŽILI SVOJ NOVÝ VYSÁVAČ

① FILTER EASY WASH
2 V ZÁVISLOSTI OD MODELU
③ NÁDOBA NA PRACH
4 FILTER JEMNÝCH ČASTÍC
5 VYBERATEL'NÁ BATÉRIA
6 NABÍJACIA ZÁKLADŇA
⑦ KEFA NA POHOVKU
8 ŠTRBINOVÁ HUBICA
⑨ TURBO KEFA NA ZVIERACIE CHLPY

3D model of a cylindrical object with internal ridges and a numbered label (3) pointing to its edge, no text or symbols present.

Technical line drawing of a mechanical bracket with mounting holes and a numbered callout (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a device with two gauges and a battery, labeled with Chinese characters for measurement or status indicators.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a small potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up view showing the component being inserted (no text or symbols present)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the motion (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting a small component (no text or symbols present)

Illustration of a person's foot stepping on a pedal, showing the foot and leg positioning (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a hand holding a device with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Vysuňte batériu zo zariadenia, potom ju vložte do nabíjacej základne a zapojte ju.

NASKENUJTE A ZISTITE ďALŠIE INFORMÁCIE O BATÉRII A JEJ NABÍJANÍ

Diagram illustrating two steps of a mechanical or electrical component assembly, labeled 1 and 2 with arrows indicating direction.

Diagram showing a faucet and a filter mechanism (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a rectangular object with an upward arrow, next to a cylindrical device (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

Diagram showing a hand using a tool to clean a trash bin with a blue diagonal line and a 'NO' sign nearby

Illustration of a hand holding a tool with a blue arrow indicating direction (no text or symbols present)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a portable electronic device with a separate case and a green warning symbol (no text or labels)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter stand (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

Safety warning illustration showing a hand using a tool to clean debris with hazard symbols and a 'NO' sign.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' indicating no sign or absence.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle labeled 'No' with other containers and a bolt, indicating no chemical or operational hazard.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Diagram showing a vacuum cleaner with a 'NO' sign and raindrops, indicating no detectable air.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to clean a trash bin with a 'No' sign nearby

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'NO' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

SK

Vysávač vypnite a znova zapnite

Line drawing of a handheld electronic device (no text or symbols)

Line drawing of a battery pack with a red indicator point on the side (no text or symbols)

Odpojte a znova pripojte jednotku batérie.

1 x2 ZR009014 2 3 7 8 9

Technical line drawing of a mechanical bracket with mounting holes and a numbered callout (no text or symbols)

78*9 *

*Modele göre

1. MONTAJ


E. MUNTAS CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK

Line drawing of a hand holding a tool over a mechanical component (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a device with two gauges and a sensor, likely illustrating a mechanical or electrical setup.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up inset showing the component (no text or symbols)

Diagram of a mechanical connector with blue arrows indicating connection points (no text or symbols present)

Illustration of a hand using a tool to lift a component, with a blue arrow indicating direction (no text or symbols)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting a small component (no text or symbols present)

Medical procedure illustration showing a catheter insertion into tissue with magnified view (no text or labels)

Illustration of a person's foot stepping on a pedal, showing the foot and leg positioning (no text or symbols present)

Illustration of a hand holding a device with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Diagram illustrating two steps of a mechanical or electrical device operation, labeled 1 and 2, with arrows indicating direction of movement.

Illustration of a faucet and a filter device against a water surface (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

HAFTADA 1 KEZ

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a partially open container (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

YILDA 1 KEZ

Illustration of a hand holding a tool with a blue arrow indicating direction (no text or symbols present)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld device with a separate case and a green logo (no text or symbols)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Simple line drawing of an eye with a light beam projecting onto it, no text or symbols present

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter stand (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' indicating no sign or absence.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to clean a trash bin with a 'No' sign nearby

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

TR

Line drawing of a battery pack (no text or symbols)

Line drawing of a battery pack with a red mark on one side (no text or symbols)

3D model of a cylindrical object with a numbered label pointing to its side (no text or symbols on the object itself)

Technical line drawing of a mechanical bracket component with mounting holes and a numbered callout (no text or symbols)

*Залежно від моделі

1. ЗБИРАННЯ 3.


E. ЗВИРАННЯ 3. CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK *

Illustration of a hand holding a device with a blue arrow pointing to a cable, no text or symbols present

Hand holding a mechanical component with a blue spiral arrow indicating rotational motion (no text or symbols)

CLICKCLICK

145 cm mini.

x4x4

Illustration of a hand using a drill pen to cut a tool, with an inset showing the same tool (no text or symbols present)

Diagram showing a hand using a tool to adjust a screw with magnified views and a 4x magnification indicator.

x4 0

Illustration of a hand holding a smartphone with a downward arrow indicating action (no text or symbols present)

Illustration of a power tool and screwdriver with corresponding screw assembly (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a device with two circular gauges and a labeled component, likely illustrating a mechanical or electrical setup.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up view showing the component being inserted (no text or symbols present)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the motion (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting the insertion area (no text or symbols present)

Illustration of a vacuum cleaner on a sofa with a close-up inset showing the foot area (no text or symbols)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a hand holding a tool with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a tool with a blue arrow indicating direction (no text or symbols present)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a cylindrical object with a blue arrow pointing to it, against a plain background (no text or symbols)

Diagram of a hand holding a filter component above a cylindrical object (no text or symbols)

Line drawing of two hands using a tool to press or install a cylindrical object (no text or symbols present)

Hand cleaning a cylindrical object with a cloth (no text or symbols visible)

ВІДСКАНУЙТЕ, ЩОБ

ОЗНАЙОМИТИСЯ

З ДОДАТКОВОЮ

ІНФОРМАЦІЄЮ

ПРО ТЕХНИЧНЕ

ОБСЛУГОВУВАННЯ

Illustration of a hand using a tool to adjust or install a device, with no visible text or symbols.

Illustration of a hand holding a wristband with a blue arrow indicating force or pressure point (no text or symbols present)

Illustration of scissors cutting a rolled-up rope (no text or symbols)

ВІДСКАНУЙТЕ, ЩОБ

ОЗНАЙОМИТИСЯ

З ДОДАТКОВОЮ

ІНФОРМАЦІЄЮ

ПРО ТЕХНИЧНЕ

ОБСЛУГОВУВАННЯ

Diagram illustrating two steps of a mechanical device operation, labeled 1 and 2, showing hand positioning and assembly.

Diagram showing a faucet and a filter mechanism (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

Якщо після очищення

Illustration of a hand holding a device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, next to a stack of cash (no text or symbols)

Illustration of a faucet and a filter in a water surface (no text or symbols)

48H

1 PA3 HA PIK

Line drawing of a hand holding a firearm with an arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld device with a separate case and a green directional arrow symbol (no text or labels)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the right eye (no text or symbols)

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Blue geometric illustration of a symbolic structure with an eye above it, resembling the Eye of Horrilla (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with a blue curved arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and a filter device (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a rectangular object with an upward arrow, next to a stack of circular objects (no text or symbols)

Illustration of a faucet and a filter in a water surface (no text or symbols)

48H

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no protection.

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter.

Diagram showing a robotic arm interacting with a blue circular symbol labeled 'No' indicating no sign.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to press a trash bin with a 'No' sign, indicating no waste or no litter.

NO YES

UK

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

UK

Line drawing of a battery pack (no text or symbols)

Line drawing of a battery pack with a red mark on one side (no text or symbols)

Illustration of a hand holding a device with a blue arrow pointing to a component, no text or symbols present

Hand holding a mechanical component with a blue spiral arrow indicating rotational motion (no text or symbols)

CLICKCLICK

145 cm mini.

x4x4

Illustration of a hand using a drill pen to cut a tool, with an inset showing the same tool (no text or symbols present)

Diagram showing a hand using a tool to adjust a screw with magnified views and a 4x magnification indicator.

x4 0

Illustration of a hand holding a smartphone with a downward arrow indicating action (no text or symbols present)

Illustration of a power tool and screw assembly (no text or symbols)

*非隠附配件*繁中視乎

4. 使用吸塵機

首次使用前，應為吸塵機完全充電

電源開關按鈕

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

要開啟或關閉裝置，請按下開始按鈕。

強效吸力按鈕

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

適合徹底清潔硬地板和特別骯髒的地毯。

自動功能

Diagram showing a device with two circular gauges labeled '一' and '二', likely indicating speed or pressure measurement.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a small potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up inset showing the component (no text or symbols)

Mechanical assembly diagram showing a connector with blue arrows indicating connection points (no text or symbols present)

Illustration of a hand using a tool to lift a car seat, with a blue arrow indicating the motion (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting the insertion point (no text or symbols present)

使用窄縫吸嘴*清潔難以觸及的地方。

Illustration of a person's foot wearing a small device, with a magnified inset showing the foot being adjusted (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a hand holding a device with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand pressing down on a cylindrical object with a blue arrow indicating motion (no text or symbols)

Diagram of a hand pressing down a cylindrical object with a blue arrow indicating motion (no text or symbols)

Line drawing of two hands performing a manual press or stamping operation (no text or symbols present)

Hand cleaning a cylindrical object with a cloth (no text or symbols visible)

掃瞄以了解更多有關保養的資料

Illustration of a hand operating a vacuum cleaner with a magnified inset showing the wheel (no text or symbols present)

Illustration of a hand holding a wristband with a blue arrow indicating force or pressure point (no text or symbols present)

Illustration of scissors cutting a rolled-up rope (no text or symbols)

掃瞄以了解更多有關保養的資料

濾網保養

每星期1次

HK

PUSHRUSH

Diagram illustrating two steps of a mechanical or electrical device operation, labeled 1 and 2, with arrows indicating direction of movement.

Diagram showing a faucet and a filter device against a water surface (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, next to a partially open device (no text or symbols visible)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

Illustration of hands holding a tool or device with a blue arrow indicating direction (no text or symbols present)

Simple line drawing of a device casing with an arrow pointing to it, no text or symbols present.

Diagram of a device with a battery and a switch, showing no text or symbols

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a human eye with a laser beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

檢查集塵箱，吸塵管或吸刷是否有堵塞。

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen fixtures: a faucet and a filter (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Diagram showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' and a small blue circle with a downward arrow.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Diagram showing a vacuum cleaner with a 'NO' sign and raindrops, indicating no detectable air.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to press a trash bin with a 'No' sign, indicating no waste or no litter.

NO YES

HK

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

HK

關閉並重新打開吸塵機。

如果無法解決問題，請聯絡授權服務中心。

Line drawing of a battery pack (no text or symbols)

檢查使用的充電器是否正確。

如果無法解決問題，請聯絡授權服務中心。

Line drawing of a battery pack with a red mark on one side (no text or symbols)

斷開並重新連接電池組。

如果無法解決問題，請聯絡授權服務中心。

1. X-FORCE FLEX 12.60 NEO / 13.60 简介

首次使用前请仔细阅读本手册

以便充分利用新吸尘器的各项功能

Illustration of a hand holding a device with a blue arrow pointing to a component, no text or symbols present

Hand holding a mechanical component with a blue spiral arrow indicating rotational motion (no text or symbols)

CLICKCLICK

145 cm mini.

x4x4

Illustration of a hand using a drill pen to cut a tool, with an inset showing the same tool (no text or symbols present)

Diagram showing a hand using a tool to adjust a screw with magnified views and a 4x magnification indicator.

x4 0

Illustration of a hand holding a smartphone with a downward arrow indicating action (no text or symbols present)

Illustration of a power tool and screw assembly (no text or symbols)

*不包括在内*取决于具体

4. 使用吸尘器

首次使用前,吸尘器应充满电

开/关电源按钮

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

要打开或关闭设备，请按下开始按钮。

强力触发器

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

用于对硬地板和脏污的地毯进行强力清洁。

自动功能

Diagram showing a device with two circular gauges and a belt, likely illustrating a mechanical or electrical component.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up inset showing the component (no text or symbols)

Mechanical assembly diagram showing a connector with blue arrows indicating connection points (no text or symbols present)

Illustration of a hand using a tool to lift a car seat, with a blue arrow indicating the motion (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting the insertion point (no text or symbols present)

使用缝隙工具*清洁难以触及之处。

Illustration of a person's foot wearing a small device, with a magnified inset showing the foot being adjusted (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a hand holding a device with a blue arrow indicating downward motion (no text or symbols)

Illustration of hands holding a tool or device with an arrow indicating direction (no text or symbols present)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand pressing down on a cylindrical device with a blue arrow indicating motion (no text or symbols)

Diagram of a hand pressing down a cylindrical object with a blue arrow indicating motion (no text or symbols)

Line drawing of two hands performing a manual press or stamping operation (no text or symbols present)

Hand cleaning a cylindrical object with a cloth (no text or symbols visible)

Illustration of a hand using a vacuum cleaner to adjust or install a component (no text or symbols visible)

Illustration of a hand holding a wristband with a blue arrow indicating force direction (no text or symbols)

Illustration of scissors cutting a rolled-up rope (no text or symbols)

扫描了解有关维护的更多信息

滤芯维护
每周1次

PUSHRUSH

Diagram illustrating two-step steps of a mechanical or electrical device operation, labeled 1 and 2 with arrows indicating direction.

Illustration of a faucet and a filter component (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a portable device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, next to a stack of coins (no text or symbols)

Illustration of a faucet and a filter in a water surface (no text or symbols)

48H

Diagram showing a hand using a tool to clean debris with a blue diagonal line and a 'NO' symbol indicating no waste.

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a portable electronic device with a separate case and a green warning symbol (no text or labels)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a human eye with a laser beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

检查集尘桶、吸尘管或吸尘刷是否堵塞。

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter stand (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' and a small blue circle with a downward arrow.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to press a trash bin with a 'No' sign, indicating no waste or no litter.

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

CN

关闭并再次打开吸尘器。

如果仍未解决问题，请联系授权服务中心。

Line drawing of a battery pack (no text or symbols)

检查使用的充电器是否正确。

如果仍未解决问题，请联系授权服务中心。

Line drawing of a battery pack with a red mark on one side (no text or symbols)

断开并重新连接电池组。

如果仍未解决问题，请联系授权服务中心。

1. X-FORCE FLEX 12.60 NEO/13.60 소개

Illustration of a hand holding a device with a blue arrow pointing to a component, no text or symbols present

Hand holding a mechanical component with a blue spiral arrow indicating rotational motion (no text or symbols)

Mechanical component diagram with no visible text or symbols

145 cm mini.

x4x4

Diagram illustrating a hand using a power tool to apply a tool to a surface, with an inset showing the same tool's tip.

Diagram showing a hand using a tool to adjust a screw with magnified views and a 4x magnification indicator.

x4 0

Illustration of a hand holding a smartphone next to a device with a downward arrow indicating action (no text or symbols present)

Illustration of a power tool and screwdriver with corresponding screw assembly (no text or symbols)

*포함되지 않음*모델에 띄

4. 진공청소기 사용 중지

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a battery pack with two circular gauges and a warning symbol, likely illustrating safety or maintenance instructions.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up inset showing the component (no text or symbols)

Mechanical assembly diagram showing a connector with blue arrows indicating connection points (no text or symbols present)

Illustration of a hand using a screwdriver to lift a small object, with a blue arrow indicating the motion (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting a small component (no text or symbols present)

Illustration of a person's foot wearing a high leg and standing on a chair, with an inset showing the foot being held (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

-일부 모델에서만 사용 가능.

6.배터리 및 충전

Illustration of a hand holding a device with a downward arrow indicating motion (no text or symbols)

Line drawing of a hand holding a tool with an arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand using a tool to press or install a cylindrical object, with no visible text or symbols.

Diagram of a hand pressing down a cylindrical object with a blue arrow indicating motion (no text or symbols)

Line drawing of two hands using a tool to press or install a cylindrical object (no text or symbols present)

Hand cleaning a cylindrical object with a cloth (no text or symbols visible)

Illustration of a hand operating a vacuum cleaner with a magnified inset showing the wheel (no text or symbols present)

Illustration of a hand holding a wristband with a blue arrow indicating force direction (no text or symbols)

Illustration of scissors cutting a rolled-up rope (no text or symbols)

Diagram illustrating two steps of a mechanical device operation, labeled 1 and 2, showing hand positioning and assembly.

Illustration of a faucet and a filter device (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a portable device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a partially open wallet (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

Diagram showing a hand using a tool to clean trash with a blue diagonal line and a 'No' symbol indicating no waste.

Illustration of a hand holding a tool with a blue arrow indicating direction (no text or symbols present)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a portable electronic device with a separate case and a green warning symbol (no text or labels)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen fixtures: a faucet and a filter (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Diagram showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' indicating no sign or absence.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to press a trash bin with a 'No' sign, indicating no waste or no litter.

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

KO

Line drawing of a battery pack (no text or symbols)

Line drawing of a battery pack with a red mark on one side (no text or symbols)

Line drawing of a handheld electronic device (no text or symbols)

Line drawing of a battery pack with a red mark on the side (no text or symbols)

No

-MAX 40°C - 104°F -MIN 0°C - 32°F

Illustration showing a mop dusting a fire inside a room with a 'No' sign indicating no dust removal.

No

No

Safety warning illustration showing a hand using a mop to clean debris with a 'NO' sign, accompanied by warning symbols.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter.

Diagram showing a robotic arm interacting with a blue circular symbol labeled 'No' indicating no violation.

Diagram showing a hand turning a tool on a sink with a 'No' sign indicating no action

Illustration showing a hand holding a spray bottle labeled 'NO' with various spray bottles and a plastic cap, indicating no chemical reaction or safety.

Diagram showing a device with a 'NO' sign indicating no non-zero value, likely used for safety or clearance instructions.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a thought bubble showing the clean air.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a smartphone to press a device with a 'NO' sign, indicating no change or absence of the device.

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

No

Diagram showing a smartphone with a 'No' sign and a magnified view of a battery cell, likely illustrating battery status or safety warning.

1. تنبيه الصيانة

AR

Blue geometric illustration of a symbolic eye above an architectural structure (no text or symbols)

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Simple line drawing of an eye with a light beam projecting onto it, no text or symbols present

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a hand holding a container with liquid, no text or symbols present

Illustration of a faucet and a filter component (no text or symbols)

Illustration of a hand pouring granular material into a trash bin with a curved arrow indicating rotation (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

Illustration of a hand holding a striped object with an upward arrow, next to a partially open wallet (no text or symbols)

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Hand holding a basket with a downward arrow indicating liquid level (no text or symbols)

Illustration of a faucet and a filter device against a water surface (no text or symbols)

Diagram showing two steps of a hairpin insertion process, labeled ① and ②, with arrows indicating the insertion direction.

PUSHPUSH

Illustration of a faucet and a filter in a water bath (no text or symbols)

Illustration of a hand holding a barcode tag above a wallet with an upward arrow (no text or symbols)

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

إعادة التدوير

Line drawing of a battery pack (no text or symbols on the diagram itself)

Line drawing of a hand holding a tool or device with an arrow indicating direction (no text or symbols present)

No

.7 AR

إفراغ حاوية الغبار

Hand holding a cylindrical object with a textured surface, no visible text or symbols

Illustration of two hands using a tool to press or install a cylindrical component (no text or symbols visible)

Illustration of a hand holding a small container with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand pressing down on a cylindrical object with a blue arrow indicating force (no text or symbols)

Illustration of scissors cutting a twisted rope (no text or symbols)

Illustration of a hand holding a wrist with a blue arrow indicating pressure point (no text or symbols present)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a device with a downward arrow indicating action (no text or symbols present)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a tool with a blue arrow indicating direction (no text or symbols present)

م إ Mizaz la biqatral y en la jhea z en طري c sceb ha ta l'charg, t'm a dcl la biqatral y fi q aedda thehcn laqasbe bha و قm btoqulih.

Illustration of a hand holding a tool with a blue arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a connector with blue arrows indicating connection points (no text or symbols present)

Diagram of a vacuum cleaner with a close-up view of the component (no text or symbols)

Illustration of a vacuum cleaner on a sofa with an inset showing the same device (no text or symbols present)

Diagram showing a mechanical assembly with a magnified inset highlighting a component (no text or symbols present)

Person using a handheld vacuum cleaner on a small table with a potted plant nearby (no text or symbols visible)

Illustration of a medical or laboratory procedure showing a tool interacting with vertical bars and a magnified inset of a mechanical component (no text or symbols present)

3 CLICKCLICK

Diagram of a hand holding a vacuum cleaner with a blue curved arrow indicating motion (no text or symbols)

Diagram showing a mechanical device with two gauges and directional indicators, likely illustrating a motion or control system.

Line drawing of a handheld electronic device (no text or symbols)

Line drawing of a battery pack with a red mark on the side (no text or symbols)

No

-MAX 40°C - 104°F -MIN 0°C - 32°F

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

No

No

Safety warning illustration showing a hand using a mop to clean debris with a 'NO' sign, accompanied by warning symbols.

Diagram showing a vacuum cleaner cleaning surface with a 'No' sign indicating no pollution.

Diagram showing a robotic arm interacting with a blue circular symbol labeled 'No' indicating no motion or absence.

Diagram showing a hand washing a tooth with a 'No' sign indicating no number, likely for cleaning or repair instructions.

Illustration showing a hand holding a spray bottle labeled 'NO' with various spray bottles and a plastic cap, indicating no chemical reaction or safety.

Diagram showing a device with a 'NO' sign indicating no non-zero value, likely used for safety or clearance instructions.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a thought bubble showing the clean air.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a smartphone to press a device with a 'NO' sign, indicating no change or absence of the device.

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

No

Diagram showing a smartphone with a 'No' sign and a magnified view of a battery cell, likely illustrating battery status or safety warning.

هشدار حفظ و نگهداری

Illustration of a faucet and a filter component (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, next to a cup (no text or symbols)

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Hand holding a basket with a downward arrow indicating liquid level (no text or symbols)

Illustration of a faucet and a filter mechanism (no text or symbols)

Diagram showing two steps of a hairpin insertion process, labeled ① and ②, with arrows indicating the insertion direction.

PUSHPUSH

Illustration of a faucet and a filter in a water bath (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, next to a wallet (no text or symbols)

Illustration of a hand holding a device with a blue circular arrow indicating rotation (no text or symbols)

قابلیت پازیافت

Line drawing of a portable electronic device with a separate battery pack (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of hands holding a tool with an arrow indicating direction (no text or symbols present)

No

1. حفظ و نگهداری

FA

Hand washing a cylindrical object (no text or symbols visible)

Illustration of two hands using a tool to press or install a cylindrical object (no text or symbols visible)

Illustration of a hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

Illustration of a hand holding a cylindrical object with a blue arrow pointing to it, against a plain background (no text or symbols)

Illustration of scissors cutting a twisted rope (no text or symbols)

Illustration of a hand holding a wrist with a blue arrow indicating pressure point (no text or symbols present)

Illustration of hands using a vacuum cleaner to adjust or install a component (no text or symbols visible)

Illustration of a hand holding a device with a downward arrow indicating action (no text or symbols present)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a tool with a blue arrow indicating direction (no text or symbols present)

Illustration of a hand using a tool to lift a small object, with a blue arrow indicating downward motion (no text or symbols)

Mechanical assembly diagram showing a connector with blue arrows indicating connection points (no text or symbols present)

Illustration of a vacuum cleaner with a close-up view of the component (no text or symbols)

Illustration of a vacuum cleaner on a sofa with an inset showing the same device (no text or symbols present)

Diagram showing a mechanical assembly with a magnified inset highlighting a component (no text or symbols present)

Illustration of a medical or laboratory procedure showing a tool interacting with vertical bars, with an inset close-up highlighting a mechanical component (no text or symbols present)

Person using a handheld vacuum cleaner on a small table with a potted plant nearby (no text or symbols visible)

Diagram of a hand holding a vacuum cleaner with a blue curved arrow indicating motion (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

راه انداز پرقدرت

Line drawing of a hand holding a tool over a mechanical component (no text or symbols)

عملکرد خودکار

Diagram showing a device with two gauges and a belt, likely illustrating a mechanical or electrical component.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a device with two gauges and a sensor, likely illustrating a measurement or calibration process.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up view showing the component being inserted (no text or symbols present)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the motion (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting the insertion point (no text or symbols present)

Illustration of a person's foot wearing a high-heeled shoe, with a magnified inset showing the foot being adjusted (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a hand holding a device with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Diagram illustrating two steps of a mechanical or fluid handling process, labeled 1 and 2 with arrows indicating movement.

Diagram showing a faucet and a filter device against a water surface (no text or symbols)

Hand holding a small container with liquid, marked by a blue downward arrow (no text or symbols)

48H

Illustration of a hand holding a portable device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a partially open wallet (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

Illustration of a hand holding a tool with a blue arrow indicating direction (no text or symbols present)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld device with a separate case and a green warning symbol (no text or labels)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter stand (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robotic arm interacting with a blue circular symbol labeled 'No' indicating no sign.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or security warning.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to press a trash bin with a 'No' sign, indicating no waste or no litter.

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

DA

Line drawing of a battery pack (no text or symbols)

Line drawing of a battery pack with a red mark on one side (no text or symbols)

Illustration of a hand holding a device with a blue arrow pointing to a component, no text or symbols present

Hand holding a mechanical component with a blue spiral arrow indicating rotational motion (no text or symbols)

Mechanical component diagram with no visible text or symbols

145 cm mini.

x4x4

Diagram illustrating a drill bit technique with magnified detail showing the tip and end of the drill

Diagram showing a hand using a wrench to adjust a mechanical component, with magnified insets highlighting the 'x4' ratio.

x4 0

Illustration of a hand holding a smartphone with a downward arrow indicating action (no text or symbols present)

Illustration of a power tool and screwdriver with corresponding screw assembly (no text or symbols)

*Ei sisally*Mallista r

4. PÖLYNIMURIN KÄYTTÖ

PÖLYNIMURI ON LADATTAVA TÄYTEEN ENNEN ENSIMMÄISTÄ KÄYTTÖKERTAA

VIRTAPAINIKE ON/OFF

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a device with two gauges and a battery, labeled with Chinese characters for measurement or status indicators.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up inset showing the component (no text or symbols)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the motion (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting the insertion area (no text or symbols present)

Illustration of a person's foot stepping on a pedal, showing the foot and ankle (no text or symbols present)

Medical procedure illustration showing a catheter insertion into tissue with magnified view (no text or labels)

Illustration of a hand holding a device with a downward arrow indicating action (no text or symbols present)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Diagram illustrating two steps of a mechanical or fluid handling process, labeled 1 and 2 with arrows indicating movement.

Diagram showing a faucet and a filter mechanism (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

KERRAN VIIKOSSA

Illustration of a hand holding a water dispenser with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, next to a cylindrical container (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

KERRAN VUODESSA

Diagram showing a hand using a tool to clean a trash bin with a blue diagonal line and 'NO' symbol indicating no pollution.

Line drawing of a hand holding a tool with a blue arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld device with a separate case and a green logo (no text or symbols on the device itself)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the right eye (no text or symbols)

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of an eye above a pyramid with a central column and base, representing the Eye of Horrsby (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a rectangular object with an upward arrow, next to a partially open wallet (no text or symbols)

Illustration of a faucet and a filter in a water tank (no text or symbols)

48H

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no protection.

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' indicating no sign or absence.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to clean a trash bin with a 'No' sign nearby

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

FI

Line drawing of a battery pack (no text or symbols)

Line drawing of a battery pack with a red mark on one side (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a device with two gauges and a battery, labeled with Chinese characters for components.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a blue arrow indicating the insertion point (no text or symbols present)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the motion (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting a small component (no text or symbols present)

Illustration of a person's foot wearing a high leg and standing on a chair, with an inset showing the foot being held (no text or symbols present)

Medical procedure illustration showing a catheter insertion into tissue with magnified view (no text or labels)

Illustration of a hand holding a tool with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

SKANN FOR Å LÆRE MER OM VEDLIKEHOLD

VEDLIKEHOLD AV FILTER

PUSHRUSH

Diagram illustrating two steps of a mechanical or electrical component assembly, labeled 1 and 2.

Diagram showing a faucet and a filter device against a water surface (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

VEDLIKEHOLD AV MOTORFILTERET

Illustration of a hand holding a device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a partially open device (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

1 X ÅR

SKANN FOR Å LÆRE MER OM VEDLIKEHOLD

RESIRKULERING

NO

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld device with a separate case and a green warning symbol (no text or labels)

8. VEDLIKEHOLDSVARSEL

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' indicating no sign or absence.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to press a trash bin with a 'No' sign, indicating no waste or no litter.

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

NO

Line drawing of a handheld electronic device (no text or symbols)

Line drawing of a battery pack with a red indicator point on the side (no text or symbols)

3D model of a cylindrical object with internal ridges and a numbered label (3) pointing to its edge, no text or symbols present.

Technical line drawing of a mechanical bracket with mounting holes and a numbered callout (no text or symbols)

*Beroende på modell

1. MONTERING


E. MUNTERING CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK CLICKCLICK

1. KONFIGURATION AV LADDNINGSBAS

   *Ingar ej*Beroende

4. ANVÄNDA DAMMSUGAREN

DAMMSUGAREN SKA VARA FULLADDAD INNAN DU ANVÄNDER DEN FÖR FÖRSTA GÅNGEN

STRÖMBRYTARE PÅ/AV

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a device with two circular gauges and a belt, likely illustrating a mechanical or electrical component.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up inset showing the component (no text or symbols)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the direction (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting the insertion area (no text or symbols present)

Illustration of a person's foot wearing a high leg and standing on a chair, with an inset showing the foot being held (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a hand holding a tool with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand using a tool to adjust or install a device (no text or symbols visible)

Illustration of a hand holding a wristband with a blue arrow indicating force or pressure point (no text or symbols present)

Illustration of scissors cutting a twisted rope (no text or symbols)

SKANNA FÖR ATT LÄRA DIG MER OM UNDERHÅLL

FILTERUNDERHÅLL
EN GÅNG PER VECKA

PUSHRUSH

Diagram illustrating two steps of a mechanical or electrical component handling, labeled 1 and 2 with arrows indicating movement.

Diagram showing a faucet and a filter device against a water surface (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a rectangular object with an upward arrow, next to a cylindrical device (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

Line drawing of a hand holding a tool with a blue arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a portable electronic device with a separate case and a green warning symbol (no text or labels)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter stand (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robotic arm interacting with a blue circular symbol labeled 'No' indicating no sign.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to clean a trash bin with a 'No' sign nearby

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

Line drawing of a battery pack (no text or symbols)

Line drawing of a battery pack with a red mark on the side (no text or symbols)

Illustration of a vacuum cleaner with a numbered component (3), shown from two different angles (no text or symbols present)

Technical line drawing of a mechanical bracket with mounting holes and a numbered callout (no text or symbols)

78*9 *

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a device with two circular gauges and a labeled component, likely illustrating a mechanical or electrical setup.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up view showing the component being inserted (no text or symbols present)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the motion (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting a small component (no text or symbols present)

Illustration of a person's foot stepping on a pedal, showing the foot and leg positioning (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a hand holding a tool with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Diagram illustrating two steps of a mechanical or electrical component handling, labeled 1 and 2 with arrows indicating movement.

Illustration of a faucet and a filter device (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

1X SEMINGGU

Illustration of a hand holding a device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a partially open wallet (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

1 X SETAHUN

KEBOLEHKITARAN SEMULA

Diagram showing a hand using a tool to clean trash with a blue diagonal line and a 'No' symbol indicating no waste.

Line drawing of a hand holding a tool with a blue arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a handheld device with a separate case and a green directional arrow (no text or symbols)

Illustration of a medical device projecting an eye to the right (no text or symbols)

Simple line drawing of a human eye with a light ray pointing to it, no text or symbols present

Simple line drawing of a projectile with a light beam projecting to an eye (no text or symbols)

Symbolic illustration of the Eye above a stylized building with a column, resembling an optical illusion (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with a curved arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, next to a stack of coins (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

Diagram showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robot interacting with a blue circular symbol labeled 'No' indicating no sign or absence.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or diagnostic testing.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to press a trash bin with a 'No' sign, indicating no waste or no litter.

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

Line drawing of a battery pack (no text or symbols)

Line drawing of a battery pack with a red mark on one side (no text or symbols)

Putuskan sambungan dan sambungkan semula pek bateri.

Illustration of a hand holding a device with a blue arrow pointing to a component, no text or symbols present.

Hand holding a mechanical component with a blue spiral arrow indicating rotational motion (no text or symbols)

Mechanical component diagram with no visible text or symbols

145 cm mini.

x4x4

Diagram illustrating a hand using a power tool to apply a tool to a surface, with an inset showing the same tool's tip.

Diagram showing a hand using a tool to adjust a screw with magnified views and a 4x magnification indicator.

x4 0

Illustration of a hand holding a smartphone next to a device with a downward arrow indicating action (no text or symbols present)

Illustration of a power tool and screw assembly (no text or symbols)

*ไม่รวม* ขนี้ อยกุ

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical device with two gauges and a dial indicator, likely illustrating a motion or control system.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a blue arrow indicating the insertion point (no text or symbols present)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the motion (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting a small component (no text or symbols present)

Illustration of a person's foot stepping on a vehicle pedal, with an inset showing the foot being inserted (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a hand holding a device with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a device with a blue arrow indicating direction (no text or symbols)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand pressing down on a cylindrical object with a blue arrow indicating motion (no text or symbols)

Diagram of a hand holding a filter component inserted into a cylindrical container (no text or symbols)

Illustration of two hands using a tool to press or inspect a cylindrical object (no text or symbols visible)

Hand cleaning a cylindrical object with a cloth (no text or symbols visible)

Diagram showing a hand holding a device with an arrow indicating rotation or change, and a separate view of the device being held.

Illustration of a hand using a vacuum cleaner to adjust or install a component (no text or symbols visible)

Illustration of a hand holding a wristband with a blue arrow indicating force or pressure point (no text or symbols present)

Illustration of scissors cutting a rolled-up rope (no text or symbols)

Diagram illustrating two steps of a mechanical or electrical component handling, labeled ① and ② with directional arrows.

Diagram showing a faucet and a filter mechanism (no text or symbols)

Illustration of a hand holding a small container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, next to a partially open container (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

Line drawing of a hand holding a tool with an arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a portable electronic device with a separate case and a green warning symbol (no text or labels)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Simple line drawing of an eye with a light ray passing through it, no text or symbols present

Illustration of a human eye with a pointed light beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a partially open mug (no text or symbols)

Illustration of a faucet and a showerhead against a water surface (no text or symbols)

48H

Diagram showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robotic arm interacting with a blue circular symbol labeled 'No' indicating no sign.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or security warning.

NO ON

Diagram showing a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to press a trash bin with a 'No' sign, indicating no waste or no litter.

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

Line drawing of a handheld electronic device (no text or symbols)

Line drawing of a battery pack with a red indicator point on the side (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a device with two circular gauges and a belt, likely illustrating a mechanical or electrical component.

Line drawing of a person using a handheld vacuum cleaner on a wooden floor, with a potted plant nearby (no text or symbols)

1 PUSHPUSH

Diagram of a handheld vacuum cleaner with a blue curved arrow indicating rotation (no text or symbols)

3 CLICKCLICK

Diagram of a vacuum cleaner with a close-up view showing the component being inserted (no text or symbols present)

Diagram showing a mechanical connector with blue arrows indicating assembly or connection (no text or symbols present)

Illustration of a hand using a tool to lift a wall-mounted device, with a blue arrow indicating the direction (no text or symbols present)

Diagram showing a mechanical component being inserted into a corner, with an inset magnified view highlighting a small component (no text or symbols present)

Illustration of a person's foot stepping on a pedal, showing the foot and ankle (no text or symbols present)

Illustration of a medical or surgical tool interacting with a device, showing a magnified view of the tool (no text or symbols present)

Illustration of a hand holding a device with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a tool or device with a blue arrow indicating direction (no text or symbols present)

Hand holding a mechanical device with a blue arrow indicating downward motion (no text or symbols)

Diagram illustrating two steps of a mechanical or electrical device operation, labeled ① and ② with directional arrows indicating movement.

Diagram showing a faucet and a filter component, both without any text or symbols

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a blue circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, next to a partially open wallet (no text or symbols)

Illustration of a faucet and a filter in a water bath (no text or symbols)

48H

Diagram showing a hand using a tool to clean debris with a blue diagonal line and 'NO' symbol indicating no waste.

Line drawing of a hand holding a tool with an arrow indicating direction (no text or symbols)

Line drawing of a battery pack (no text or symbols on the diagram itself)

Illustration of a portable electronic device with a separate case and a green warning symbol (no text or labels)

Illustration of a medical device emitting a light beam to an eye (no text or symbols present)

Illustration of a human eye with a light beam projecting the lens, no text or symbols present

Illustration of a human eye with a laser beam projecting to the right eye (no text or symbols)

Symbolic illustration of the Eye of Horus symbol above a stylized building silhouette (no text or symbols present)

Illustration of a hand pouring granular material into a trash bin with an arrow indicating rotation (no text or symbols)

Illustration of two kitchen faucet and filter stand (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

48H

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an upward arrow, next to a mug (no text or symbols)

Illustration of a faucet and a filter component (no text or symbols)

48H

Illustration showing a vacuum cleaner cleaning a fire inside a room, with a 'No' sign indicating no fire.

Safety warning illustration showing a hand valve and a device with 'No' indicating no barrier

No

NO

Diagram showing a hand cleaning a tiled floor with a 'No' sign indicating no litter or noise.

Diagram showing a robotic arm interacting with a blue circular symbol labeled 'No' indicating no sign.

Diagram showing a hand washing a tooth with a 'No' sign indicating no water level, likely for cleaning or disinfection.

Illustration showing a hand holding a spray bottle with a 'No' sign, accompanied by mechanical components and a plastic cap.

Diagram showing a device with a 'No' sign indicating no non-zero value, likely used for safety or security warning.

NO ON

Illustration of a vacuum cleaner with a 'No' sign indicating no pollution, accompanied by a cloud and raindrops symbol.

Illustration showing a hand spraying a spray bottle with a 'NO' sign, next to a smokestack emitting vapor.

Diagram showing a hand using a device to press a trash bin with a 'No' sign, indicating no waste or no litter.

NO YES

Diagram showing a vacuum cleaner emitting heat from a heater, with a 'No' sign indicating no non-zero emission.

Diagram showing a hand cleaning a tiled floor with a 'NO' sign indicating no barrier

Diagram showing a smartphone with a 'No' sign and a warning symbol, indicating no change or absence of change.

VI

Line drawing of a battery pack (no text or symbols)

Line drawing of a battery pack with a red mark on one side (no text or symbols)

EN Repairable at faire price for 15 years

Line drawing of a vacuum cleaner with attached hose and blade (no text or symbols)
