Product Type	Bagged Canister Vacuum Cleaner
Model	Micro Space TW2233AH
Color	Not specified
Power Cord Length	Not specified
Voltage	Check domestic supply (not specified)
Bag Type	Paper bag (ref RS-RT900390) or cloth bag (ref RS-RT900389)
Filtration System	Microfilter (ref RS-RT900387) and air outlet foam filter (ref RS-RT900388)
Suction Power Control	Electronic power control on body + manual grip slider
Full Bag Indicator	Yes, warning light
Power Cord Rewind	Yes, pedal-operated
Self-Standing Position	Yes, for storage
Included Accessories	Multi-surface nozzle, crevice nozzle, telescopic tube, flexible hose with handle
Optional Accessories	Upholstery nozzle, parquet nozzle, mini turbo-brush
Filter Maintenance	Microfilter: replace every 6 months; Foam filter: clean every 6 months
Bag Replacement	When full or when full-bag light stays red at max power
Safety Features	Automatic shutoff if overload? Not specified; manual switch-off recommended
Warranty	Domestic use only; misuse voids warranty
Repairability	Only by Tefal Approved Service Centres

Frequently Asked Questions - Micro Space TW2233AH TEFAL

How do I know when the bag is full?

The full-bag warning light on the vacuum cleaner will turn red. If the light stays red when the power is at maximum and the nozzle is held above the ground, replace the bag.

What type of bags does the Micro Space TW2233AH use?

It uses either a paper bag (ref RS-RT900390) or a cloth bag (ref RS-RT900389). Use only original Tefal bags.

How often should I replace the microfilter?

The microfilter should be replaced every six months to maintain performance.

How do I clean the air outlet foam filter?

Remove the air outlet grill, take out the foam filter, wash it in clean water, and let it dry for 24 hours before refitting. Do this every six months.

Can I vacuum water or wet surfaces?

No. The vacuum cleaner is designed for dry use only. Do not vacuum wet surfaces, water, or any liquids.

What should I do if the suction power decreases?

Check if the bag is full or if an accessory or hose is blocked. Also ensure the filters are clean. Adjust the power control as needed.

How do I adjust the suction power?

You can adjust suction power via the electronic power control on the body or the manual slider on the grip. Turn toward max for floors, min for delicate fabrics.

Why won't the lid close?

Ensure that a bag and bag base are correctly positioned inside the compartment. The bag base presence detector prevents closing if not properly installed.

What accessories are included with the vacuum?

The vacuum comes with a multi-surface nozzle, crevice nozzle, telescopic tube, and flexible hose with handle.

How do I store the vacuum cleaner?

After use, switch off and unplug. Press the cord rewind pedal to retract the cord. Place the multi-surface nozzle in the self-standing position for compact storage.

USER MANUAL Micro Space TW2233AH TEFAL

TE_TW22_903513-01_micro-space_903513/01 17/04/14 09:21 PageC2

Tefal®

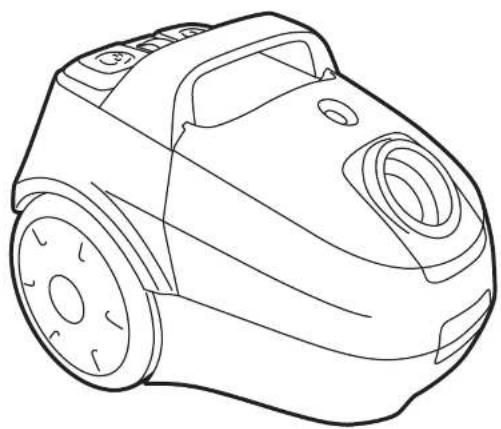

Line drawing of a vacuum cleaner (no text or symbols)

EN

TH

VI

MS

HK

TE_TW22_903513-01_micro-space_903513/01 17/04/14 89:21 PageC3

TE_TW22_903513-01_micro-space_903513/01 17/04/14 09:21 PageC4

fig. 1 fig. 2 fig. 3 fig. 4

fig. 6fig. 5 fig. 7 fig. 8

fig. 9 fig. 10 fig. 11 fig. 12

fig. 13

fig. 14 fig. 15

fig. 16

fig. 17 fig. 18

广力云

fig. 19

fig. 20

TE_TW22_903513-01_micro-space_903513/01 17/04/14 89:21 PageC5

TE_TW22_903513-01_micro-space_903513/01 17/04/14 09:21 Page1

1. SAFETY INSTRUCTIONS

For your safety, this appliance complies with all applicable standards and regulations (Low Voltage, Electromagnetic Compatibility, Environmental directives, etc.).

- This appliance is not designed to be used by persons (including children) with reduced physical, sensory or mental capabilities, or by people with no prior knowledge or experience, except where they have benefited from supervision or previous instructions relating to the use of the appliance, from a person responsible for their safety.

Children must be supervised to ensure that they do not play with the appliance.

- Do not use the appliance if the power cord is damaged. The cord winder and cord of your vacuum cleaner must be replaced by a Tefal Approved Service Centre to avoid any risks.

Conditions of use

• Your vacuum cleaner is an electrical appliance: it should be used under normal operating conditions.
• Use and store the appliance out of the reach of children. Never leave the vacuum on unsupervised.
• Do not place the nozzle or the end of the tube near the eyes or ears.
• Do not vacuum wet surfaces, water or any type of liquids, hot substances, superfine substances (plaster, cement, ash, etc.), large sharp waste (glass), harmful products (salvents, abrasives, etc.), corrosive products (acids, cleaning products, etc.), flammable or explosive materials (oil or alcohol based).
• Never immerse the appliance in water or any other liquid; do not spill water on the appliance and do not store it outside.
• Do not use the appliance if it has been dropped and there is visible damage to it, or if it fails to function normally. In this case, do not open the appliance but send it to the nearest Approved Service Centre or contact Tefal Customer Services.

Power supply

• Check that your vacuum cleaner voltage corresponds to that of your domestic power supply: you will find this information under the appliance. Any error in connection may cause irreversible damage and invalidate the guarantee
  • Switch off and unplug the appliance:

• immediately after each use;

• before every change of accessories;
• before every clean-up or maintenance procedure, and before changing the filter.

Repairs

Repairs should only be performed by specialists using original spare parts.

Repairs carried out by the user can be dangerous.

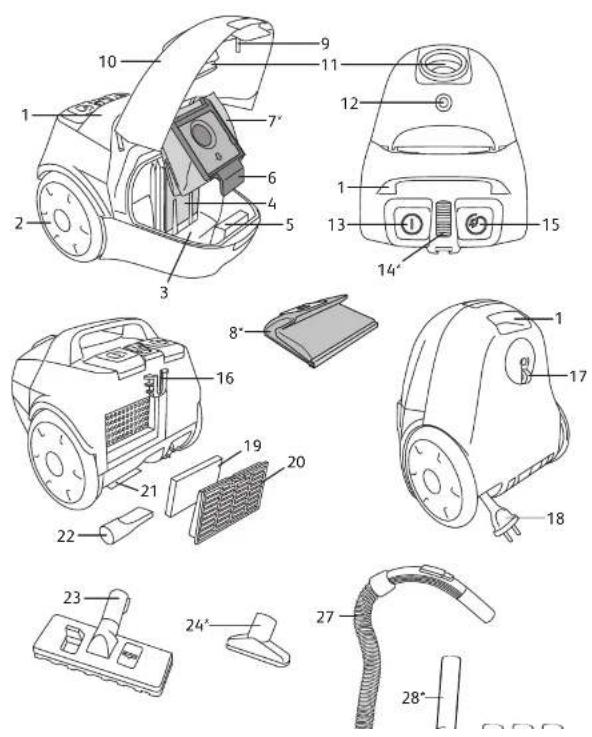

2. DESCRIPTION

1. Transport handle
2. Wheels
3. Bag compartment
4. Microfilter (ref: RS-RT900387)
5. Bag base runner
6. Bag base
7. Paper bag* (ref RS-RT900390)
8. Cloth bag* (ref RS-RT900389)
9. Bag base presence detector
10. Lid
11. Suction inlet
12. Full-bag warning light
13. ON/OFF pedal
14. Power control*

15. Power cord wind pedal

16. Self-standing position

17. Multi-directional wheel
18. Power cord
19. Air outlet foam filter (ref. RS-RT900388)
20. Air outlet grill
21. Crevice nozzle storage space
22. Crevice nozzle
23. Multi-surface nozzle
24. Upholstery nozzle*
25. Parquet nozzle*
26. Mini turbo-brush*
27. Flexible tube with handle and manual power
    control
28. Telescopic tube*
29. Tubes*

3. USING FOR THE FIRST TIME

Unpacking

Unpack your appliance, keep your guarantee form and read the instructions carefully before using your appliance for the first time.

Recommendations and precautions

• Before each use, unwind the power cord completely.
• Do not jam it and do not allow it to come into contact with sources of heat or against sharp edges.
• If you are using an electrical extension, check that it is in good condition and that it is suited to the power of your vacuum cleaner.
• Do not move the vacuum cleaner by pulling on the power cord, the appliance must be moved using its transport handle.
• Do not use the power cord to lift the appliance.
• Do not unplug the appliance by pulling on the power cord.
• Never use the vacuum cleaner without a bag or without a filtration system in place: microfilter, air outlet foam filter.
• Check that the filters are fitted correctly.
• Only use original Tefal bags and filters.
• Use only original Tefal accessories.
• If you have any difficulties in finding accessories or filters for this vacuum cleaner, contact the Tefal Customer Service.
• Switch off and unplug your vacuum cleaner after each use.
  • Always switch off and unplug your vacuum cleaner before carrying out maintenance or cleaning.

TE_TW22_903513-01_micro-space_903513/01 17/04/14 09:21 Page3

• Fit the required accessory on to the end of the tube:
- For rugs and carpets: use the multi-surface nozzle (23) in the retracted brush position - fig. 5, or the mini Turbo-brush* (26).
- For parquets and smooth floors: use the multi-surface nozzle (23) in the extended brush position - fig. 6 or, for best results, directly use the parquet nozzle* (25).
- For corners and hard-to-reach areas: use the crevice nozzle (22).
- For furniture and fragile surfaces: use the upholstery nozzle* (24).

Warning! Always switch off and unplug your vacuum cleaner before changing the accessories

EN

Plugging in the power cord and switching on the appliance

• Unwind the power cord completely, plug in your vacuum cleaner - fig. 7 and press the ON/OFF pedal (13) - fig. 8.
• Adjust the suction power:
• with the electronic power control* (14): turn the electronic control button* to adjust the suction power: towards
  the max position for floors and to the min position for furniture and delicate fabrics - fig. 9.
• with the grip's manual power control: open the shutter of the adjustable slider to manually decrease the suction power, a v-jan fragile surface etc. - fig. 10
  power, e.g.: on huge surfaces etc. - fig. 10.

Storing and transporting the appliance

• After use, switch off your vacuum cleaner by pressing the ON/OFF pedal (13) - fig. 8 - and unplug it - fig. 11.
• Rewind the power cord by pressing the power cord rewind pedal (15) - fig. 12.
• Place the multi-surface nozzle (23) in the self-standing position - fig. 13.
• Your vacuum cleaner can be easily moved thanks to its transport handle (1).

5. CLEANING AND MAINTENANCE

Important: Always switch off and unplug your vacuum cleaner before carrying out maintenance or cleaning.

Changing the bag

• The full bag warning light (12) indicates that the bag is full or saturated.
  If you notice a reduction in the efficiency of your appliance, set the power at maximum and hold the nozzle above the ground. If the full-bag warning light remains red, replace the bag.
• Remove the flexible pipe (27) from the suction inlet (11) - fig. 2.
• Open the lid (10) of your vacuum cleaner - fig.14.

a) If your vacuum cleaner is equipped with a paper bag*:

• remove the bag base (6) from the bag compartment (3) - fig. 15, and then remove the paper bag (7) from its base (6) by sliding it on the runners - fig. 16;
• throw the paper bag in a dustbin - fig.17;
• put a new paper bag on the bag base - fig. 18, and then using the bag base runner (5), place it inside the compartment - fig. 19;
  • make sure that the paper bag and the bag base are correctly positioned before closing the lid (10).

TE_TW22_903513-01_micro-space_903513/01 17/04/14 9:21 Page4

• reposition the cloth bag on the bag base - fig. 18, and then using the bag base runner (5), place it inside the compartment - fig. 19:
  • make sure that the cloth bag and the bag base are correctly positioned before closing the lid (10).

Changing the microfilter (4)

Important: change the microfilter every six months
- Remove the flexible pipe (27) from the suction inlet (11) - fig. 2.
- Open the lid (10) of your vacuum cleaner - fig.14.
- Remove the bag from the bag compartment - fig.15.
- Remove the microfilter - fig. 23 and throw it in the dustbin - fig. 24.
- Put a new microfilter in its housing - fig. 25.
- Reposition the bag inside the compartment - fig.19.
- Make sure that the bag and the bag base are correctly positioned before closing the lid (10).

Clean the air outlet foam filter (19)

Important: clean the air outlet foam filter every 6 months

• Remove the air outlet grill (20) positioned behind the appliance - fig. 26.
• Remove the air outlet foam filter (19), wash it in clean water - fig. 27, and leave it to dry for 24 hours.
• Refit the air outlet foam filter (19) in its housing and close the air outlet grill (20) - fig. 28.

Cleaning the vacuum cleaner

• Wipe the body of the vacuum cleaner and accessories with a soft damp cloth, then dry.
  • Wipe the lid with a dry cloth.
• Do not use detergents or any corrosive or abrasive products.

6. REPAIR SERVICE

Important: If you notice that your vacuum cleaner is not operating as well, before carrying out any checks, switch it off using the ON/OFF pedal.

If your vacuum cleaner does not function

The appliance is not plugged in: check that the appliance is plugged in correctly.

If your vacuum cleaner has no suction

• An accessory or hose is blocked: unblock the accessory or the hose.
• The vacuum lid is not closed properly: check the position of the bag and close the lid again.

If your vacuum cleaner suction is not working properly or is making a whist-ling noise

• An accessory or hose is partly blocked: unblock the accessory or the hose.
• The bag is full or saturated with fine dust: replace the paper bag* (7), or empty the cloth bag* (8).

TE_TW22_903513-01_micro-space_903513/01 17/04/14 9:21 Page5

If the lid does not close (bag base presence detection (9))

- Check to see if there is a bag and a bag base (6) in place and make sure they are correctly positioned.

If the suction attachment is difficult to move

- Open the grip's adjustable slider to decrease the power or move the electronic power control* (14) to minimum.

- Check that the nozzle position (23) is adjusted to the surface being vacuumed: for rugs and carpets, use the

nozzle in the retracted brush position - fig. 5, for parquets and smooth floors, use the nozzle in the extended position - fig. 6.

If the power cord does not wind up completely

- The power cord is slow to wind up: pull the cord out again and press on the power cord rewind pedal.

If a problem persists, take your vacuum cleaner to your nearest Tefal Approved Service Centre.

Guarantee

- This appliance is for domestic use only; any misuse or use that does not comply with the instructions will release the brand from all liability and the guarantee will be cancelled.

- Read the instructions for use carefully before using your appliance for the first time: Tefal shall accept no liability in the event of any use that does not comply with the instructions.

7. ENVIRONMENT

In accordance with current regulations, any appliance that is no longer used must be made permanently inoperable; disconnect and cut the power cord before throwing the appliance away.

Think of the environment!

① Your appliance contains a lot of materials which can be recovered or recycled.

Leave it at a local waste collection point so that is can be processed.
