USER MANUAL Air Active OxyFlow 2955 Fiap

Illustration of a water fountain with lotus flowers and koi fish, set against a green landscape with scattered plants and rocks (no text or symbols)

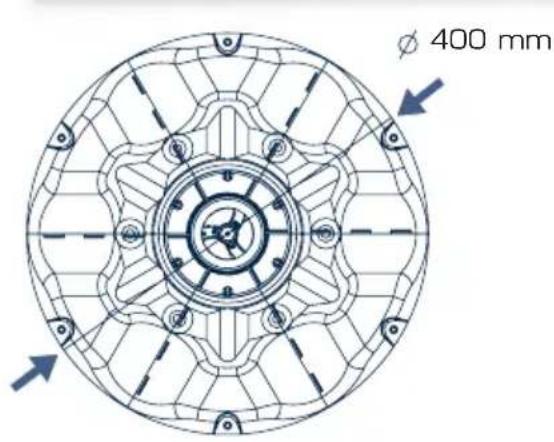

Ø 400 mm

g h k j

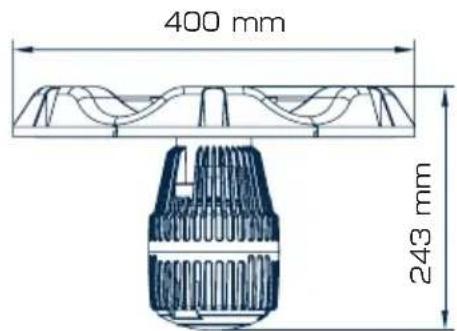

400 mm 243 mm

Z

π

Technical line drawing of an electronic device with two connectors and a power outlet (no text or symbols)

m

Abstract dark blue textured surface with a white arrow pointing to a small irregular shape (no text or symbols)

Circular mechanical component with directional arrows indicating rotational flow (no text or symbols)

Circular mechanical component with radial grooves and central hole (no text or symbols)

With the purchase of the AIR ACTIVE OxyFlow product you have made a very good choice. Before using the device for the first time, read the operating instructions carefully and familiarize yourself with the product. All work on and with this device may only be carried out in accordance with these operating instructions. It is essential to observe the safety instructions for correct and safe use. Keep these operating instructions in a safe place. If you change hands, please pass on the operating instructions.

INTENDED USE

AIR ACTIVE OxyFlow, hereinafter referred to as the device, may only be used for circulating and aerating ponds and for decorative purposes in ornamental waters. The device may only be used in fresh water. All other parts from the scope of delivery may only be used in this context. The device may only be operated within the permissible temperature range between +5 °C and +35 °C. The area of application is for ponds and water basins with and without fish stock. The device must not be operated: In swimming ponds, without water flow, when frost is expected, not in contact with chemicals, food, highly flammable or explosive substances.

IMPROPER USE

It can occur in the event of improper use and improper handling.

This device poses a risk to people. In the event of improper use, our liability and the general operating license expire.

CE manufacturer's declaration

In terms of the EC directive EMC directive (2014/30 / EU) and the low voltage directive (2014/35 / EU) we declare conformity.

The following harmonized standards were applied:

EN 55014-1: 2006 + A1: 2009 + A2: 2011, EN 55014-2: 2015, EN 6100-3-2: 2014,

EN 6100-3-3: 2013, EN 60335-1: 2012 + A11: 2014, IEC 60335-1-2016,

EN 60335-2-41: 2003 + A1: 2004 + A2: 2010, IEC 60335-2-41: 2012

SAFETY INSTRUCTIONS

This device can be used by children aged 8 years and over and by persons with reduced physical, sensory or mental capabilities or a lack of experience and knowledge, provided they are supervised or have been instructed in the safe use of the device and understand the resulting dangers.

Children are not allowed to play with the device. Cleaning and user maintenance should not be carried out by children without supervision. It is essential to observe the safety instructions for correct and safe use. Please keep these instructions in a safe place. If the owner changes, please pass on the instructions.

All work with this device may only be carried out in accordance with these instructions. The combination of water and electricity can lead to serious danger to life and limb if it is not connected properly or handled improperly.

Only operate the device when nobody is in the water!

Before reaching into the water, always unplug all devices in the water. Compare the electrical data of the power supply with the type plate on the packaging or on the device. Make sure that the device is protected by a residual current device with a rated residual current of maximum 30 mA. Only operate the device from a properly installed socket. Keep the power plug and all connection points dry! Lay the connection cable so that it is protected to prevent damage. Only use cables, installations, adapters, extension or connection cables with protective contact that are approved for outdoor use. Do not carry or pull the device by the connecting cable! The device must not be operated if the cable or housing is defective! If the power cord of the device is damaged, the device must be disposed of; it is no longer possible to replace the power cord. If the cable is damaged, the device must be disposed of. Electrical installations on garden ponds must comply with international and national installation regulations. Never open the housing of the device or its associated parts unless this is expressly stated in the instructions for use. Never

make technical changes to the device, this leads to the immediate expiry of all warranty and guarantee claims. Use only original spare parts and accessories. Have repairs carried out only by authorized customer service centers. Never operate the device without water flowing through it! Never pump liquids other than water!

For your own safety, contact a qualified electrician if you have any questions or problems!

Caution, LED light: do not look into the LED light beam! Do not look at it directly or with optical instruments

INSTALLATION AND COMMISSIONING

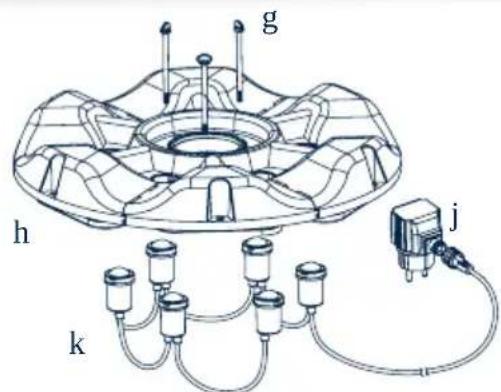

The device is delivered as a complete set with power supply unit and all necessary accessories. The float is delivered pre-assembled. If the float is not installed, follow the installation instructions below:

AIR ACTIVE OxyFlow

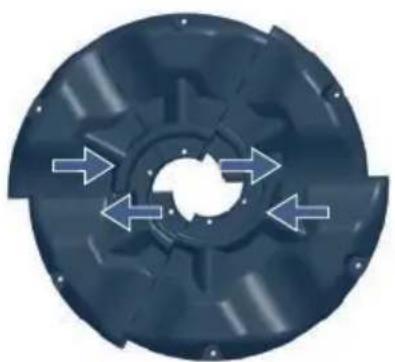

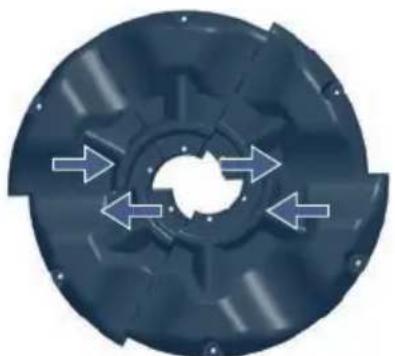

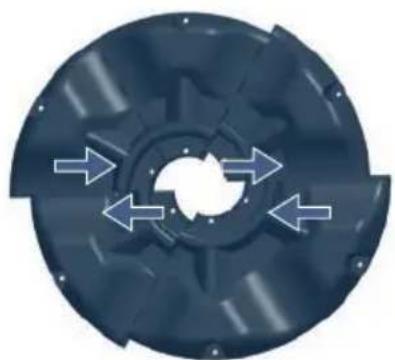

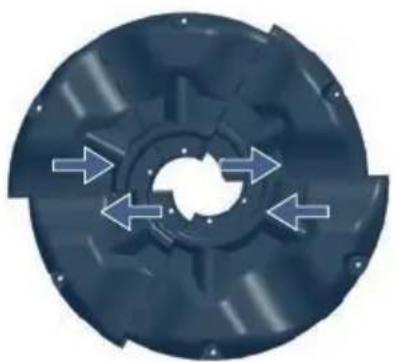

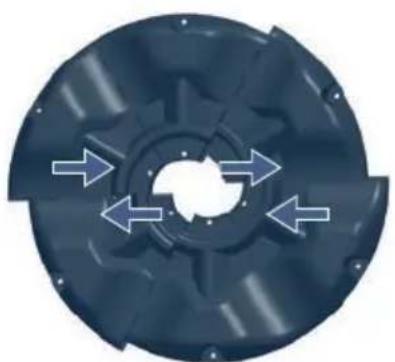

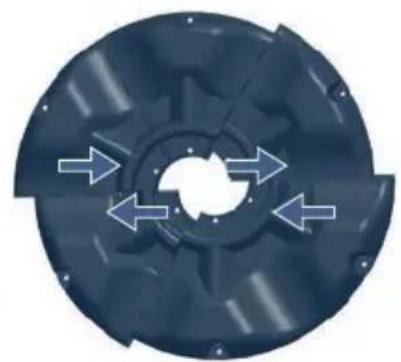

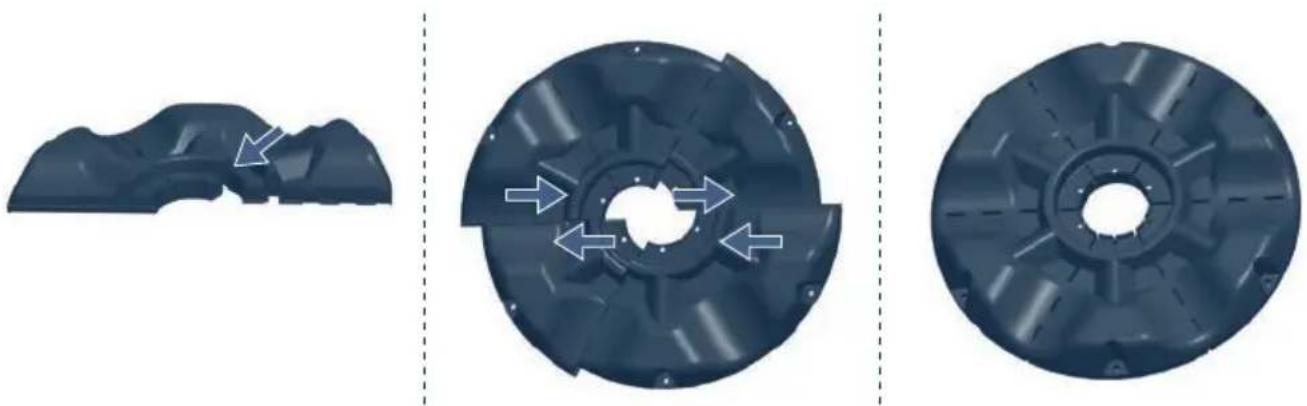

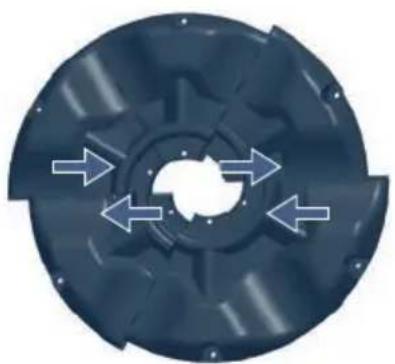

The device is delivered with LED lighting. To remove the lighting, turn the light with one of the three edges on the transparent cover until it is flush with the small gap on the float and carefully push the light down and out of the float (light pressure must be sufficient, do not use force! Under certain circumstances it may be necessary to move the parts of the float a little, this makes it easier to install and remove the lights). If not all lights are pre-assembled, first check whether all sealing caps are screwed on. Carefully insert the lights one after the other from bottom to top into the openings provided in the float (also note the position of the edges in the lid). Then mount the pump housing with the pump on the float. To do this, insert the housing with the pump rotor up into the float. Secure the pump housing with the three long retaining pins (screws). Connect the cable of the pump motor with the connector of the control. Put the assembled aerator in its intended position in the pool and fix it with the supplied cord. It is important that the aerator is secured on at least two opposite sides. Finally, connect the lighting lead to the transformer supplied. As soon as all preparations have been made and the aerator is immersed in the pool, it can be put into operation.

Watch the aerator running for about 30 minutes and check for unusual noises and steady flow of water. If the aerator does not run properly for more than 30 minutes, there is a fault and must be remedied.

IMPORTANT: The pump motor can be varied by controlling from level 0 - 100 using the triangular buttons. After releasing the button, the control shows the current power consumption (watt). The last set power level is retained even after disconnection from the power supply. Operation via a timer is therefore possible without any problems.

Observe the relevant product videos on the subject of installation and commissioning

in our Youtube channel:

https://www.youtube.com/user/FIAPGmbH

CLEANING AND MAINTENANCE

Before cleaning and servicing, ensure that the device is switched off and unplugged from the power source.

The filter housing and the impeller must be cleaned at regular intervals. The cleaning interval depends heavily on the degree of soiling. The degree of pollution can vary significantly from water to water. To clean the housing and the motor, first remove the ventilator float (loosen the three long retaining pins). Open the filter basket by turning the basket counterclockwise. To clean the rotor and the internal parts, also remove the corresponding screws. The rotor can then easily be pulled out of the liner and cleaned. Do not use any sharp-edged objects such as Steel brushes, use a soft sponge instead. Stubborn dirt such as Limescale deposits are best removed with premiumcare PUMP CLEANSER pump cleaner. If there is sufficient flow, the pump is cooled by the water. Always make sure that the pump works against as little resistance as possible. If the

flow rate is reduced (e.g. hose diameter too small, ball valve in the line, delivery height too high, contamination, etc.) the operating temperature rises significantly. From 55 degrees Celsius, more lime is deposited on the pump motor. In the worst case, this layer of lime-scale becomes so thick that the rotor runs very stiffly, blocks and the motor burns out. Damage caused by soiling and calcification is excluded from the guarantee. The user has to maintain and clean the pump properly depending on the amount of dirt and limescale.

Observe the relevant product videos on the subject of cleaning and maintenance

n our Youtube channel:

https://www.youtube.com/user/FIAPGmbH

WEAR PARTS

The pump may only be used in water when it is submerged. The pump must not run dry. The dry run leads to rapid wear and tear and damages the pump in the long term. Use in polluted water with solids and particles also leads to premature wear and has a negative impact on the service life of the pump. Algae or others plants that wrap around the filter basket and can quickly clog it lead to reduced water flow and increased wear. We recommend operating the device exclusively in bodies of water without plants, or to ensure that no plants can be sucked in. Wear parts are excluded from the guarantee. Appropriate cleaning and care reduce wear and tear on the device.

REPAIR

The power supply unit and the LED lighting cannot be repaired if the cables or the housing are damaged and must therefore be replaced. If you have any questions or problems, please contact a qualified electrician or your specialist dealer for your own safety.

STORAGE

If frost is expected, the device must be taken out of service and dismantled. First clean the device as described under Cleaning and Maintenance. The device can be stored dry or wet. If the device is to be stored dry, it is important that all components, including the internal engine parts, are completely dry. Set when stored wet Place the cleaned aerator in a container filled with fresh tap water.

Make sure that the container is set up frost-free.

DISPOSAL

The device must be disposed of in accordance with national legal regulations. This device must not be disposed of as domestic waste. Make the device unusable by cutting the cable and dispose of it via the return system provided.

If the device contains light sources, they must be disposed of using the return system provided for this purpose.

Ask your specialist dealer.

AIR ACTIVE OxyFlow

REMARQUES SUR CE MODE D'EMPLOI

Abstract dark blue textured shape with a white arrow pointing to a curved edge (no text or symbols)

Circular mechanical component with directional arrows indicating flow or movement (no text or symbols)

Close-up of a dark blue mechanical component with radial grooves and central hole (no text or symbols visible)

AIR ACTIVE OxyFlow

Abstract dark blue textured shape with a white arrow pointing to a curved edge (no text or symbols)

Circular mechanical component with directional arrows indicating flow or movement (no text or symbols)

Circular dark plastic mechanical component with radial grooves and central hole (no text or symbols)

AIR ACTIVE OxyFlow

Close-up of a dark, irregularly shaped object with a white arrow pointing to a small feature (no text or symbols visible)

Circular mechanical component with directional arrows indicating flow or movement (no text or symbols)

Close-up of a dark, circular mechanical component with radial grooves and central hole (no text or symbols visible)

AIR ACTIVE OxyFlow

Abstract dark blue textured shape with a white arrow pointing to a curved edge (no text or symbols)

Circular mechanical component with directional arrows indicating flow or movement (no text or symbols)

Close-up of a dark blue plastic mechanical component with radial grooves and central hole (no text or symbols)

AIR ACTIVE OxyFlow

Abstract dark blue textured shape with a white arrow pointing to a small feature (no text or symbols)

Circular mechanical component with internal blades and directional arrows, no visible text or symbols

Close-up of a dark, circular mechanical component with radial grooves and central hole (no text or symbols visible)

AIR ACTIVE OxyFlow

Abstract dark blue 3D shape with a white arrow pointing to a curved surface (no text or symbols)

Circular mechanical component with directional arrows indicating flow or movement (no text or symbols)

Circular dark blue plastic mechanical component with radial grooves and central hole (no text or symbols)

AIR ACTIVE OxyFlow

Abstract dark blue textured shape with a white arrow pointing to a small white object (no text or symbols)

Circular mechanical component with internal flow arrows, no visible text or symbols

Circular mechanical component with radial grooves and central hole (no text or symbols)

AIR ACTIVE OxyFlow

Abstract dark blue textured shape with a white arrow pointing to a small white object (no text or symbols)

Circular mechanical component with directional arrows indicating rotation or flow (no text or symbols)

Circular mechanical component with radial grooves and central hole (no text or symbols)

AIR ACTIVE OxyFlow

Abstract dark blue shape with a white arrow pointing to its center (no text or symbols)

Circular mechanical component with internal blades and directional arrows, no visible text or symbols

Circular dark blue mechanical component with radial grooves and central hole (no text or symbols)

AIR ACTIVE OxyFlow

3D rendered object with a white arrow pointing to a curved surface (no text or symbols)

Circular mechanical component with white directional arrows indicating flow or movement (no text or symbols)

Close-up of a dark, circular mechanical component with radial grooves and central hole (no text or symbols visible)

AIR ACTIVE OxyFlow

Abstract dark blue textured shape with a white arrow pointing to a small feature (no text or symbols)

Circular mechanical component with internal flow arrows, no visible text or symbols

Close-up of a dark blue plastic mechanical component with radial grooves and central hole (no text or symbols visible)

AIR ACTIVE OxyFlow

Abstract dark blue shape with a white arrow pointing to a curved edge (no text or symbols)

Circular mechanical component with directional arrows indicating flow or movement (no text or symbols)

Close-up of a dark blue plastic mechanical component with radial grooves and central hole (no text or symbols visible)

AIR ACTIVE OxyFlow

Close-up of a dark, irregularly shaped object with a white arrow pointing to it (no text or symbols visible)

Circular mechanical component with directional arrows indicating rotational flow (no text or symbols)

Close-up of a dark blue plastic mechanical component with radial grooves and central hole (no text or symbols visible)

AIR ACTIVE OxyFlow

Close-up of a stone pavement with green foliage in the background (no text or symbols visible)

FIAP GmbH

Jakob - Oswald - Str. 16

92289 Ursensollen

GERMANY

49 9628 9213-0

[e-mail]

www.fiap.com

QR code with central logo containing 'F1AP' text and a stylized alien-like symbol
