USER MANUAL profibrand NovaVac 315 Fiap

profibrand NovaVac 315

Assorted raw fish and meat products wrapped in plastic bags, placed on a wooden surface with scattered spices (no text or symbols visible)

DE Gebrauchsanweisung
GB Instructions for use
FR Mode d'emploi
NL Gebruiksaanwijzing
ES Instrucciones de uso
PT Instruções de uso

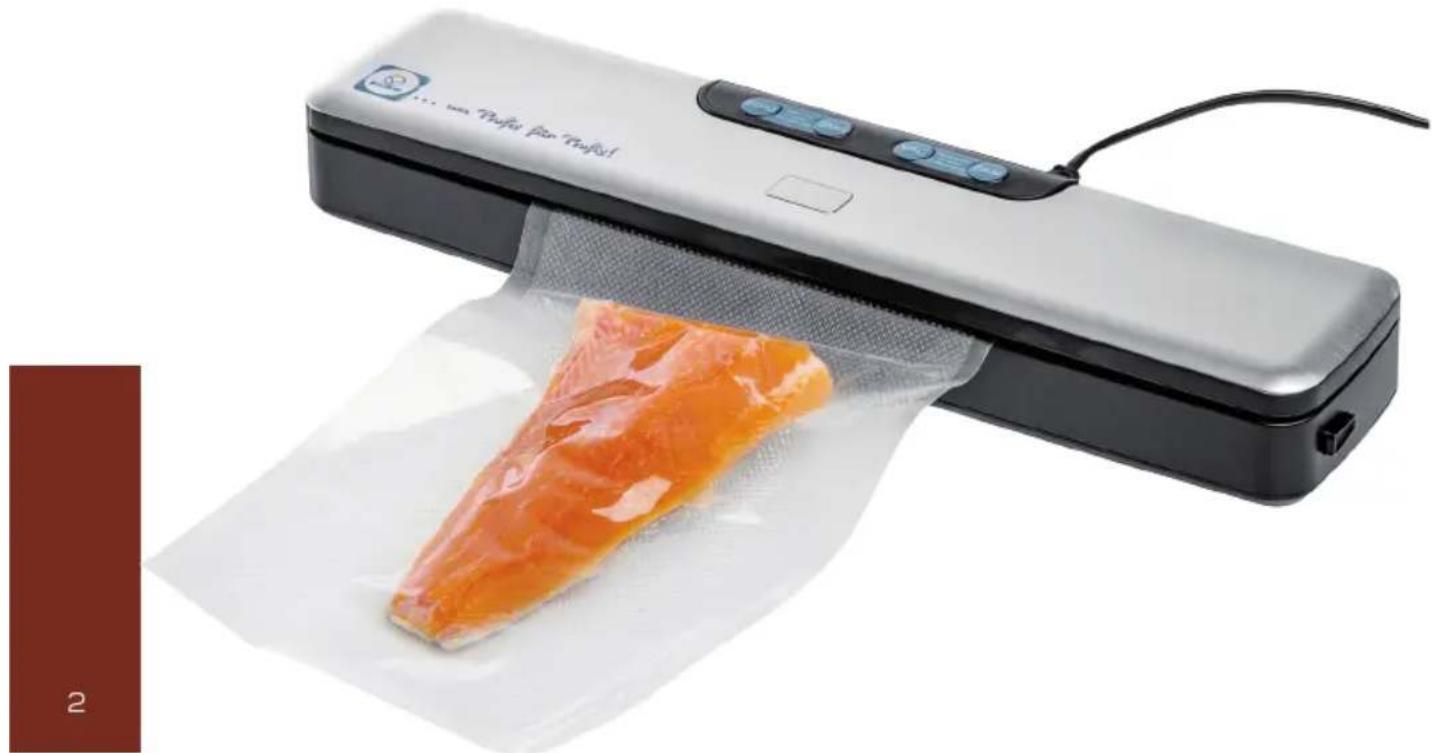

profibrand NovaVac 315

Raw fish fillets in protective packaging on a wooden surface, garnished with herbs and garlic (no text or symbols visible)

Exterior view of a silver printing presser with a piece of raw salmon wrapped in plastic film (no text or symbols visible)

BEDIENUNGSANLEITUNG

Soft Dry Meat Food

Labeled diagram of a device interior showing numbered components for identification

Scanned text of a document with dense, partially illegible Chinese characters and numbers.

Simple line drawing of a folded paper or document (no text or symbols)

Simple line drawing of a 3D rectangular prism (no text or symbols)

Diagram showing hand positions above a device with labeled buttons and an oval diagram below, likely illustrating a control or logic system.

FIAP profibrand NovaVac 315 vacuum sealer

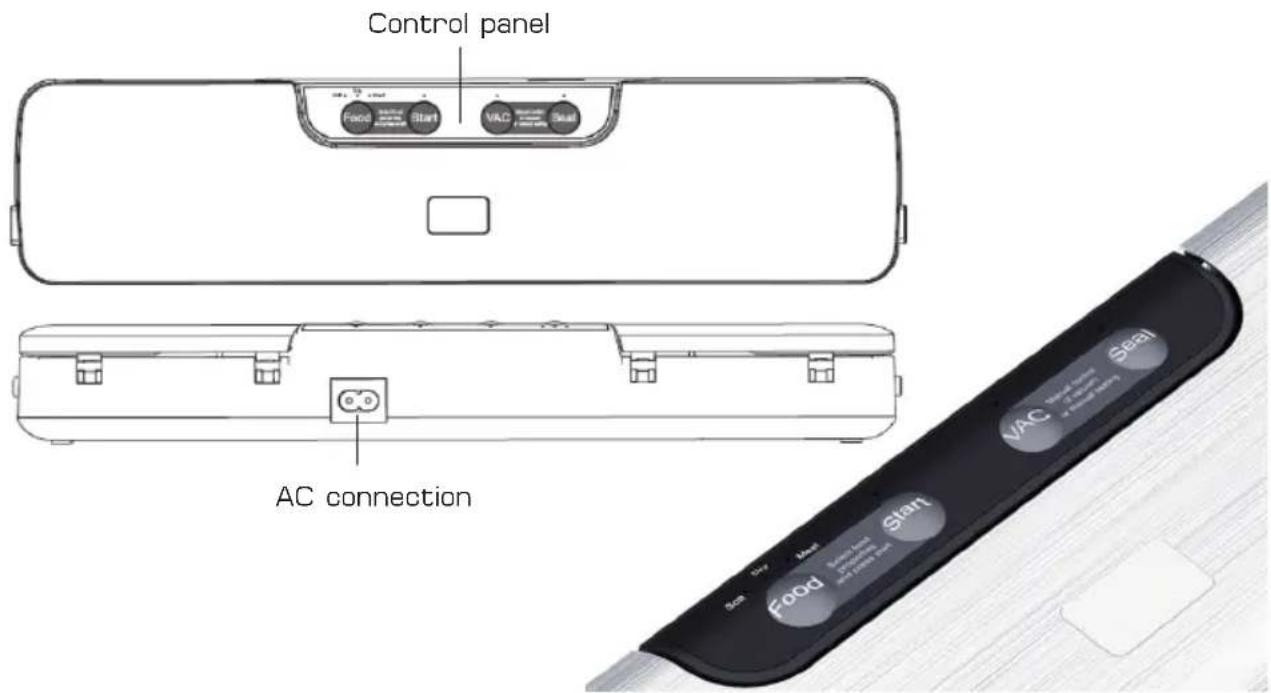

Control panel VAC AC connection VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC VAC

OUTSIDE

Soft Dry Meat Food

After selecting the food category, press the start button to vacuum automatically

Soft: Low suction power so as not to damage the texture of the food

Dry: Maximum suction power, suitable for dry food

Meat: Medium suction power so as not to damage the structure of the meat and keep it fresh

Start

Start button for automatic vacuum sealing

Manual vacuum button: Press the button to vacuum. Release the button to cancel the process. 3 seconds after releasing the button, the device switches to the sealing process.

During use, the process can be canceled by pressing other buttons

Manual seal button. Direct welding of the vacuum bag


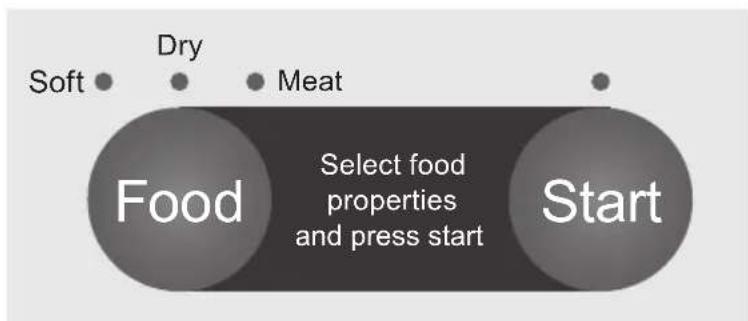

Select food category and press start

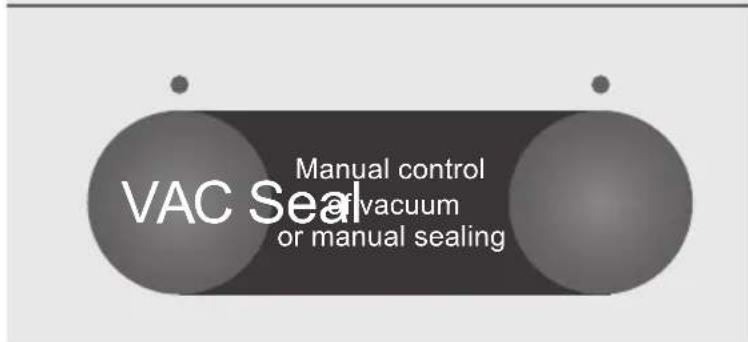

VAC Seal Manual control of vacuum or manual sealing

Manual control for Vacuum and seal

profibrand NovaVac 315

INSIDE

Labeled diagram of a black rectangular device interior with numbered components and internal structure

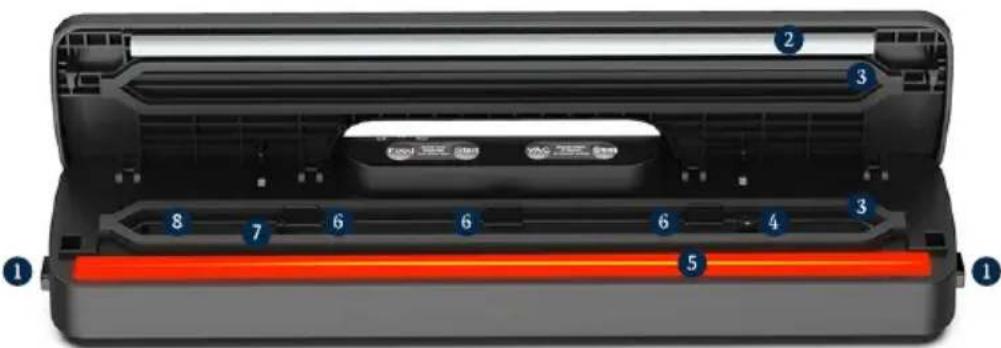

1 Double-sided closure
2 sealing beams
3 sealing ring
4 Suction opening

5mm sealing bar
6 Protective barrier
7 Air sensor
8 DN sealing ring

DANGER

1. Please check the input voltage before using the device AC100-220V/50-60Hz is.
2. Use a grounded outlet of 10A or greater. The plug must fully plugged into the socket to avoid possible accidents.
3. Do not operate the device with an external timer or remote control, to avoid dangers such as a short circuit and spontaneous combustion.
4. If the power cord is damaged, replace it before use.
5. Special vacuum bags must be used for vacuum sealing. Ordinary ones smooth plastic bags cannot be vacuum sealed and can only be sealed.
6. Do not put any liquid into the plastic vacuum bag, otherwise it will device damaged!
7. Do not vacuum sharp objects/food, otherwise the vacuum bag will damage possibly punctured after vacuum sealing.
8. Foods with a pungent smell such as garlic, onions, ginger and foods that are fermented and react enzymatically, such as for example. fresh corn, wet rice and sliced apples can cause the bag to sag swells during vacuum sealing.

1. After completing the vacuum sealing, the top cover must be opened to remove the plastic bag. Do not pull the plastic bag forcibly removed before the lid is opened, otherwise the seal ring and the sealing glue will be damaged and moved, causing damage to the machine can lead!

2. After welding is completed, do not touch the heating wire avoid burns!

3. Before removing, installing or moving any part of the device, you must: interrupt the power supply.

4. It is strictly forbidden to plug and unplug the plug with wet hands or clean the socket with a damp cloth to avoid the risk of a to avoid electric shock

5. Do not rinse the case under water or other liquids. Do not immerse it in water or other liquids. Just wipe it with a soft cloth.

6. Store the device in a dry place that is inaccessible to children. Do not leave this product unattended by children or people reduced physical, sensory or mental abilities or lack thereof Use experience and knowledge to avoid burns, short circuits, etc to avoid improper use.

7. When the device is not in use or is not used for a long period of time, please unplug the power plug, clean the drip container of the vacuum chamber and do not close the top cover to prevent the sealing ring from entering the barrel over time deformed under pressure, which may otherwise affect the use.

8. Do not use continuous dry firing. Dry burning damages the Heating wire and the Teflon tape.

9. Please keep the device away from gas or heating stoves and electric heaters. Do not use it in high temperature places or wet environments with high humidity.

10. This product is for household use only and only for Vacuum and packaging purposes.

profibrand NovaVac 315

Vacuum sealing with special plastic bags

Scanned text of a document with dense, vertically oriented text blocks, likely a form or report.

Polybag with dots and/or diamonds

Simple line drawing of a folded paper or document (no text or symbols)

Plastic bag with folded edges

Simple line drawing of a 3D rectangular prism (no text or symbols)

Plastic bag with open ends

Application

Before use, make sure you have a bag suitable for vacuum sealing.

When vacuum sealing meat, please select "Meat" mode, otherwise the bag may not be vacuum sealed and sealed properly.

Do not vacuum food with leaking liquid or completely liquid food, as liquid penetration into the device could cause damage.

Do not forcefully pull the plastic bag out of the device if the top cover is not open.

1. Open the top cover

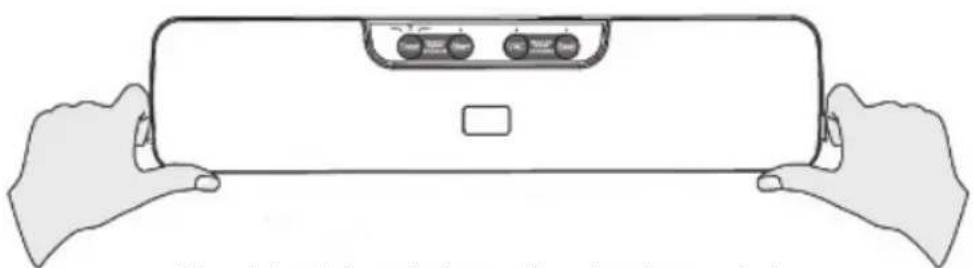

Press the clasp on both sides and then fold with your thumbs the top cover up.

Illustration of two hands holding a rectangular device with buttons on top (no text or symbols)

Clench both hands into a fist, bend your index finger and press the switch to save strength!

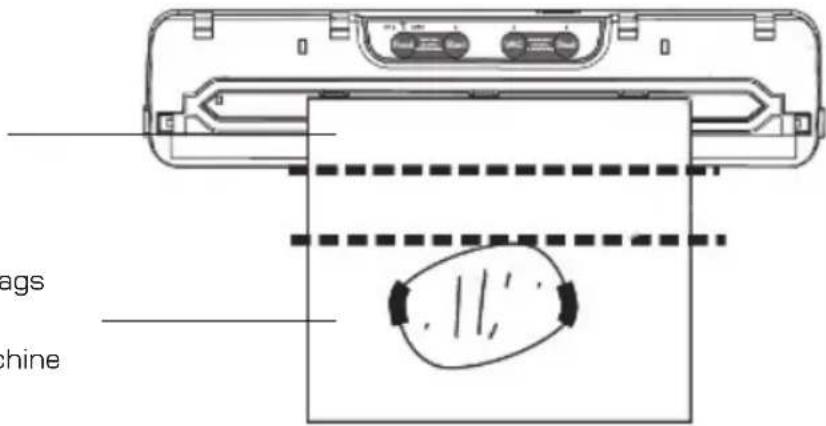

1. Place the food in a suitable vacuum bag and continue as follows:

2. Place the opening of the bag over the Vacuum collection container

3. Keep the food in Vacuum bags more than 1.5 inches (381 mm) away from the machine

bags machine

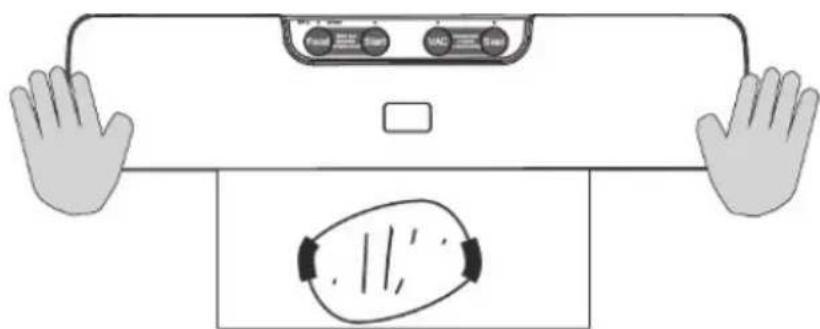

1. Close the top cover and press both with both hands sides of the top cover until you hear a click.
2. Make sure the vacuum bag is not too full to avoid the food gets trapped by the top cover and so on interfere with the vacuum sealing process.

Diagram showing hand positions above a device with labeled buttons and an oval diagram below, likely illustrating a medical or diagnostic concept.

1. Select the mode according to the food categories and press. Then press the start button.
2. Wait until the LED light on the right side of the start button turns off. Then open the top cover and remove the vacuum sealed plastic bag.

profibrand NovaVac 315

TROUBLESHOOTING

Error phenomenon	Error analysis	Troubleshooting
The light does not light up	The power plug is not plugged in properly	Check whether the socket is connected to the mains and whether the plug is inserted correctly
	The machine is damaged	Contact a dealer
The vacuum pump works but does not pump vacuum, or the vacuuming time is long but the vacuum is weak	Die Abdeckklappe ist nicht verschlossen	The cover flap is not closed
	Der Vakuumbeutel ist undicht	The vacuum bag is leaking
	Dichtungsring ist lose oder verformt	Seal ring is loose or deformed
	Fremdkörper auf dem Dichtungsring	Foreign bodies on the sealing ring
	Die Lebensmittel im Vakuumbeutel liegen am Deckel an	The food in the vacuum bag lies against the lid
	Die Lebensmittel im Va- kuumbeutel sind zu dick	The food in the vacuum bag is too thick
	The opening of the vacuum bag is not placed over the vacuum collection container	Smooth the opening of the vacuum bag. Place it over the vacuum collection container. Close the cover and try again
No vacuum/vacuum pump not working	Machine was not started	Press the Start button or other function keys
	The vacuum pump is damaged	Contact a dealer
Machine seals automatically before vacuum sealing	The plastic bag used is not a special vacuum structure bag	Replace it with a special vacuum bag
	The structural notches of the vacuum bag are too shallow	Use another batch of vacuum bags
Gas/air escapes from the plastic bag after vacuum sealing	There are sharp objects in the vacuum bag that will puncture it	Remove the sharp and hard objects in the bag, such as fish bones, etc. Replace the plastic bag and vacuum again
	The vacuum bag is leaking	Replace the vacuum bag
	There is liquid in the vacuum bag, which is sucked into the opening of the bag during vacuuming. This can affect the seal	Do not vacuum liquid foods. When vacuum sealing, select the appropriate food category before starting the process

profibrand NovaVac 315

The temperature is too high. The bag opening fuses when sealed	Overheating of the machine	Wait 10 minutes before next use
Some time after vacuum sealing, the bag is too loose, like a hole in the bag, or the bag swells	The food in the vacuum bag is fermented	Foods with a pungent smell such as garlic, onions, ginger and foods that are fermented and react enzymatically, such as: Food items such as fresh corn, wet rice, and sliced apples can cause the bag to swell after vacuum sealing if they have not been dried beforehand. This phenomenon can be avoided by pouring desiccant into the bag and then vacuum sealing it.

MODE D'EMPLOI

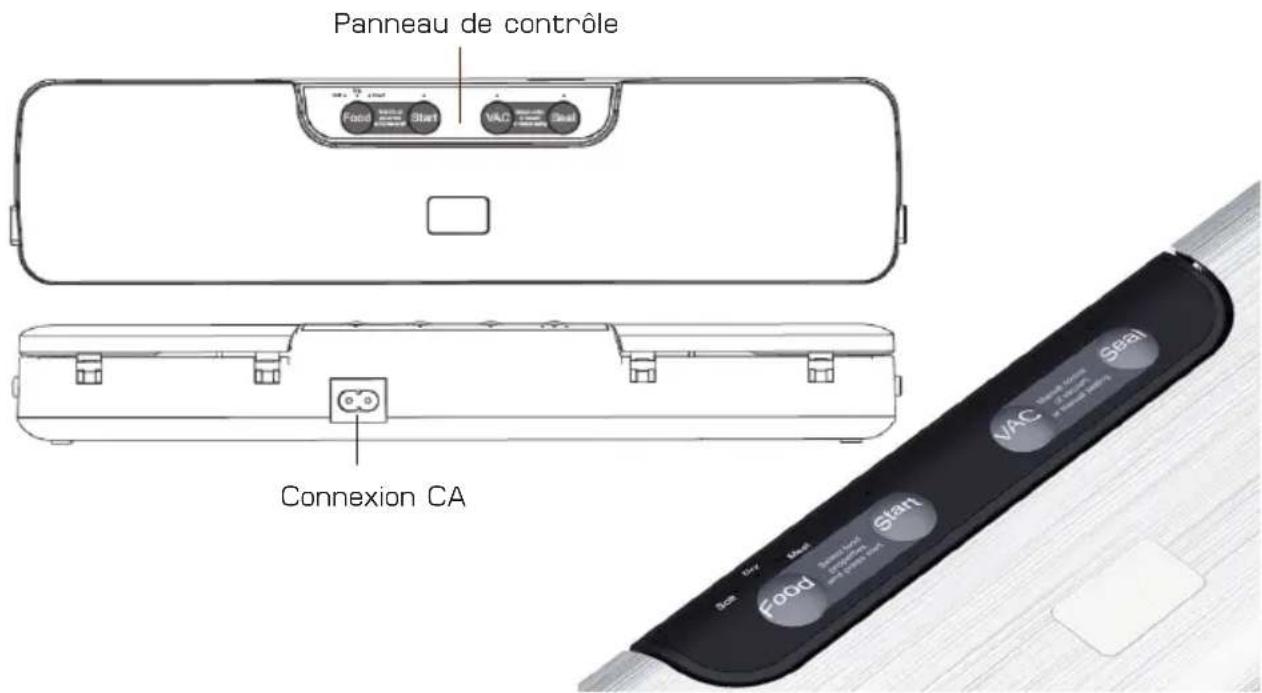

Machine sous vide FIAP profibrand NovaVac 315
