Product Type Domestic vacuum packaging machine
Brand Fiap
Model profibrand NovaVac PRO 310
Pump Pressure -28.3 inches Hg / -958 mbar (±3%)
Maximum Bag Width 310 mm
Pump Type Double pump
Seal Bar Width 5 mm
Dimensions (L x W x H) 391 x 280 x 150 mm
Weight 4.4 kg
Power Supply 110-120 V ~ 60 Hz / 220-240 V ~ 50 Hz
Power 460 W / 475 W
Main Functions Automatic vacuum and sealing, manual sealing, pulsed vacuum, impulse sealing, quick marinade mode (15 min) and normal (27 min), use with accessories (canister, bottle stopper)
Digital Display Shows cycle time and adjustable sealing time (0 to 6)
Auto Shut-off After 10 minutes of inactivity, the fan and display turn off
Thermal Protection Error codes E1, E2, E3 for overheating; requires a 20-minute rest
Bag Compatibility Vacuum bags and rolls; reusable, boilable, and microwave-safe bags (except after use with fish or fatty foods)

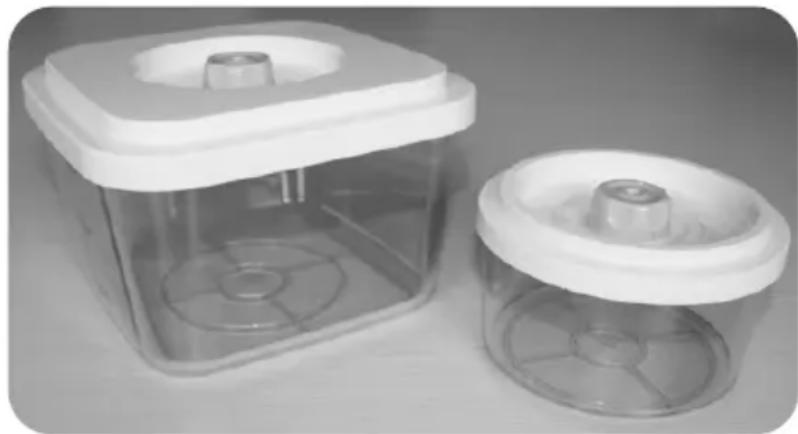

Included Accessories Vacuum canister, bottle stopper, accessory hose
Care and Cleaning Clean with a damp cloth and mild soap; removable sealing gasket for cleaning
Safety Instructions Do not immerse; use on a dry surface; unplug before cleaning; do not use an extension cord
Repairability Spare parts available (gasket, hose); no user repair (except cleaning)
Warranty Not specified, contact customer support

Frequently Asked Questions - profibrand NovaVac PRO 310 Fiap

How to make a bag from a roll?
Place the open end of the roll on the sealing wire, close the lid, and press Seal. The sealing time counts down on the display. Check that the seal is clear and uniform. Then cut to the desired size leaving 4.5 cm of space.
How to use the <b>Marinade</b> function?
Place the food in the canister, turn the lid knob to Open, connect the hose to the accessory ports and canister. Press Marinate once for quick mode (15 min) or twice for normal (27 min). Press Start and hold the canister lid down for 3-5 seconds. The machine performs two cycles of vacuum and air release.
What to do if the machine does not vacuum the bag completely?
Make sure the open end of the bag is properly placed in the vacuum chamber and there are no wrinkles. Check that the bag and sealing bar are clean and dry. If using a roll, the first seal must be perfect. Clean the sealing bar and try again.
How to clean the machine?
Unplug first. Clean the housing with a damp cloth and mild soap. The chamber sealing gasket is removable to clean spilled liquids. Never immerse the machine in water.
Can I use reusable bags?
Yes, vacuum bags are reusable, boilable, and microwave-safe. However, do not reuse bags that have contained fresh fish or fatty foods. Wash them thoroughly before reuse.
What does error code <b>E1</b> on the display mean?
Code E1 indicates the machine is in thermal protection after a seal. To cool down, press Seal to deactivate heating, then close the lid to resume. If the code persists, turn off and let rest for 20 minutes.
How to prevent delicate foods from being crushed?
Use the Pulse vac function: press Pulse vac, then hold Start to manually control the pressure. Release to stop suction. When desired pressure is reached, press Seal. Also pre-freeze fragile foods.
The bag loses vacuum after a few days, what to do?
Check if sharp objects (bones, fish bones) have punctured the bag. Use paper towels to protect them. Some unblanched vegetables release gases: blanch them first. If food seems spoiled, discard it.
How to use the appliance with a wine bottle?
Attach the vacuum bottle stopper to the bottle leaving 2.5 cm between the liquid and the stopper. Connect the hose to the accessory port and the stopper. Press Accessory to vacuum out the air. The machine stops automatically.
What is the power and voltage of the appliance?
The appliance operates on 110-120 V ~ 60 Hz or 220-240 V ~ 50 Hz, with a power of 460 W (110 V) or 475 W (220-240 V). Plug only into a grounded outlet.

User questions about profibrand NovaVac PRO 310 Fiap

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Vacuum packaging machines in PDF format for free! Find your manual profibrand NovaVac PRO 310 - Fiap and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. profibrand NovaVac PRO 310 by Fiap.

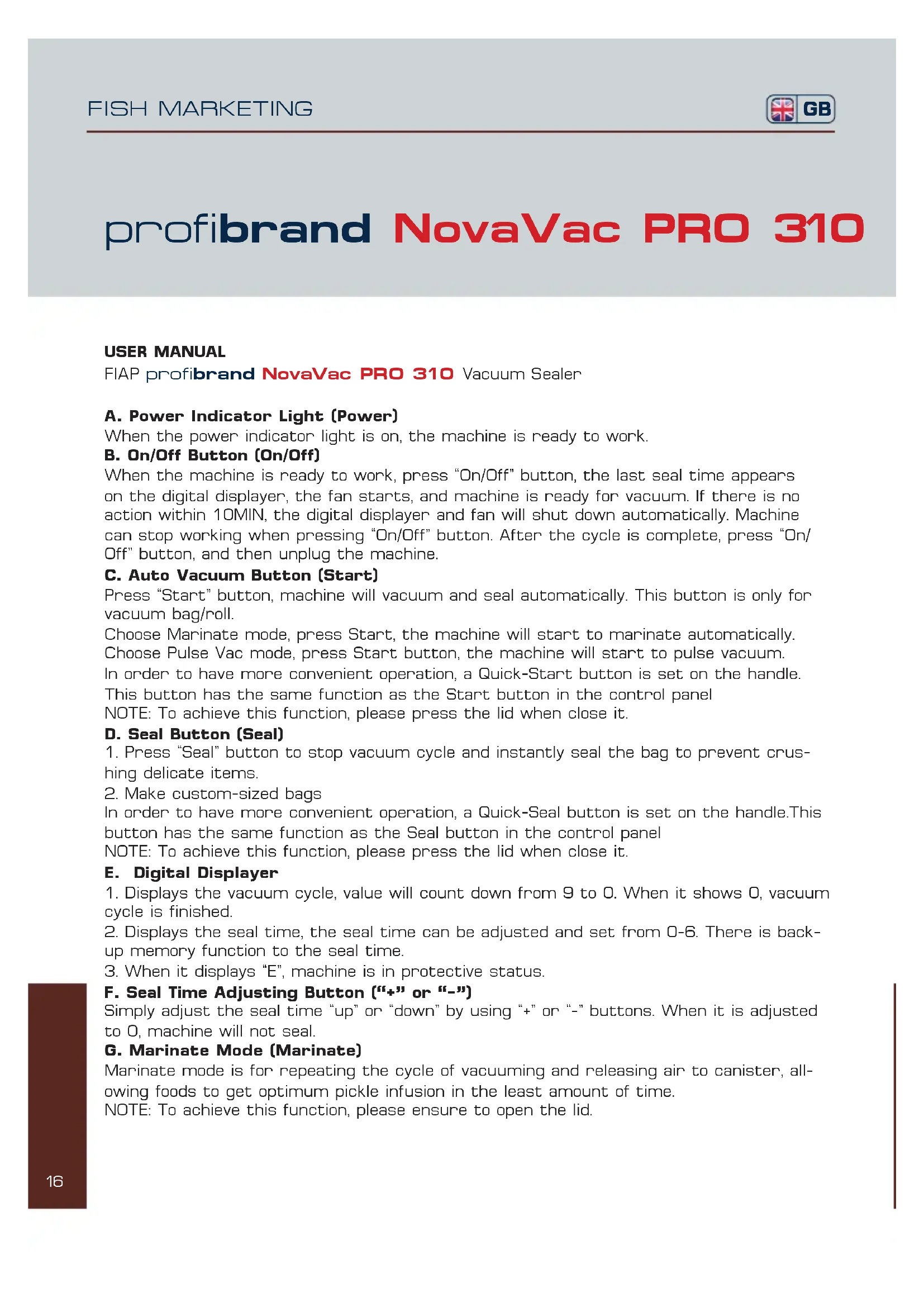

USER MANUAL profibrand NovaVac PRO 310 Fiap
