USER MANUAL SS-5750 Sogo

Exterior view of a modern stainless steel and black SOGO brand water heater (no visible text or symbols)

SOUS VIDE - COCCIÓN LENTA DE PRECISIÓN SOUS VIDE - PRECISION SLOW COOKER SOUS VIDE - CUISEUR DE PRÉCISION

Caution: please read and preserve these important instructions

This manual can be downloaded from our website, www.sogo.es in the following languages.

SPANISH, CATALAN, ENGLISH, FRENCH, PORTUGUESÉ, GERMAN, ITALIA

ref. SS-5750

IPX7

Line drawing of a cylindrical container with a side arm holding a glass tube (no text or symbols)

Line drawing of a simple mechanical device with a vertical funnel and rectangular base (no text or symbols)

SOGO 55.0 02:00

Technical line drawing of two cylindrical devices with ports and control knobs, no visible text or symbols

Technical line drawing of a cylindrical device with internal components and a separate view (no text or symbols)

Technical line drawing of a handheld device with a cylindrical base and handle, alongside a separate cylindrical device (no text or symbols present)

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

This section explains the potential dangers that may arise when operating the sours vide circulator and notes many important safety precautions.

This instruction manual can also be downloaded from our web page www.sogo.es

• Please put the cooking container on the place which can withstand the heat over 120° for preventing damage.
• Never arbitrarily exchange the machine's original power cords. Never operate with a damaged cord or plug. Use properly grounder electrical outlets only.
• Do not immerse system past the top etch mark of stainless steel skirt. Only the stainless steel skirt and the pump housing are dishwasher safe. Unplug from outlet when not in use and before the cleaning process.
• Burn Hazard- the cooking container, the stainless steel portion of circulator, and food pouches all get hot when used. Use oven mitts or tongs when handlings.
• This system is an indoor appliance and is not a toy.
• Do not disassemble. Observe all warning labels. Do not remove warning labels.
• Do not use this appliance for anything other

than intended use.

- Firmly lock the product by clamping it on the side of your container. Place the container on an even surface to prevent spills and tipping over. Do not place unit on a stove, or in an oven.

- Do not use deionized water (DI water).

- Before plugging into a socket, check whether your voltage corresponds to the rating label of the appliance.

- Children should be supervised to ensure that they do not play with the appliance. Don’t let children touch and use with this appliance. Keep the appliance and its cord out of reach of children.

- Never use a damaged appliance. If it has been damaged, please get it to approved service center, checked or repaired.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in in order to avoid a hazard.

- Do not let excess cord hang over the cooking container or touch hot surface.

- If need to clean the accessories, please switch off the appliance and release the power plug, and the release the accessories to cleaning.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge.

- Sous Vide circulators are designed to be used only with water.

- Switch off the appliance and disconnect

from supply before changing accessories or approaching parts that move in use.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- The appliance is not intended to be operated by means of an external timer or a separate remote-control system."

- Unplug the immersion heater before removing it from the liquid; After unplugging, the heating element will remain hot and should not be touched or placed on combustible surfaces.

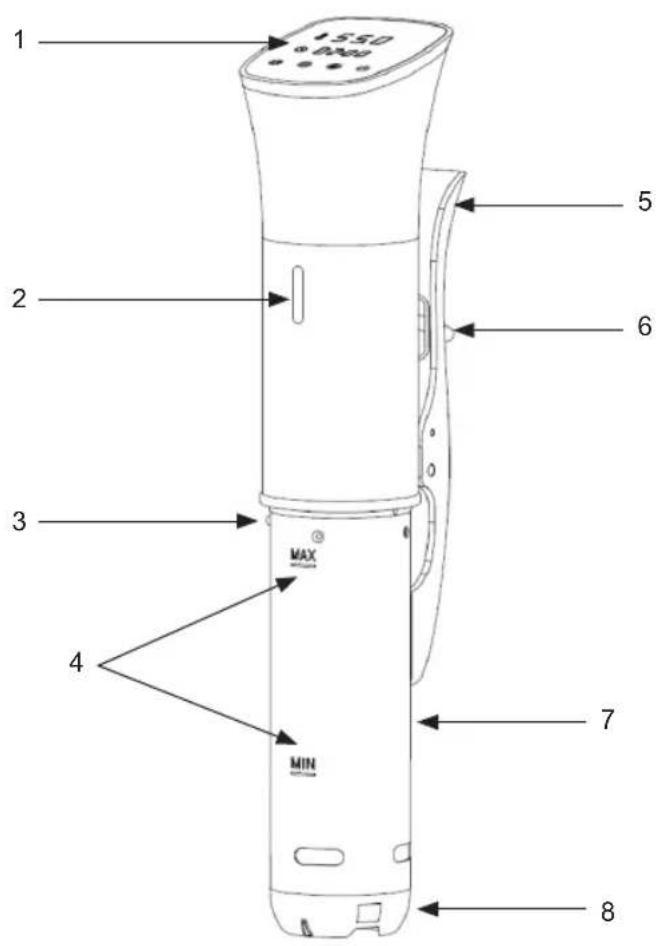

Overview of the Components

Main Components and Standard Accessories:

1 2 3 4 5 6 7 8 MAX MIN

1. Control Button and Display
2. Work indicator
3. Safety Screw
4. Max and Min Water level
5. Clamp
6. Power cord
7. Stainless steel Skirt
8. Water Pump Cap

Using the Sous Vide

Sous Vide circulator requires a 6-15L round, rectangular or other different container or pot. Firmly lock the product by clamping it on the side of your container.

Line drawing of a cylindrical container with a lid and handle, no text or symbols present

Line drawing of a simple mechanical device with a vertical funnel and rectangular base (no text or symbols)

SOGO 5:50 02:00

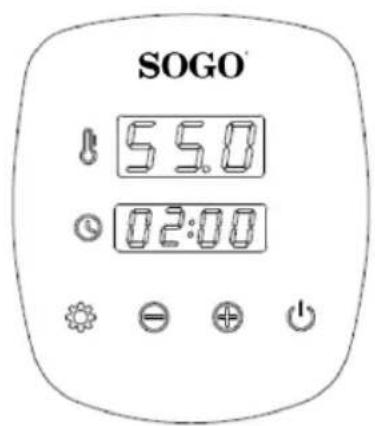

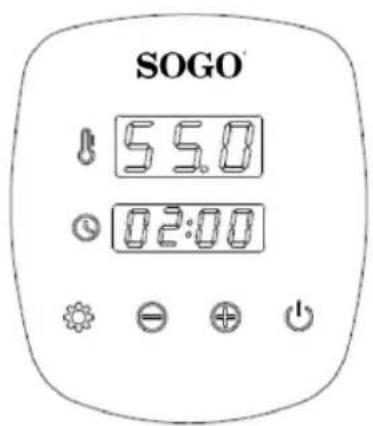

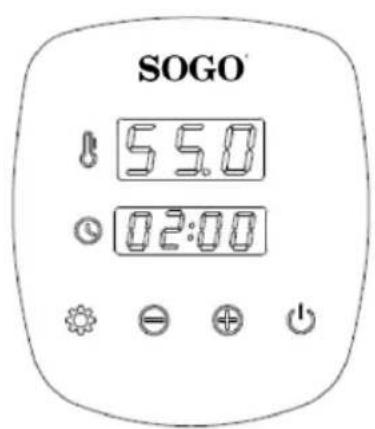

Control panel diagram

Setting Temperature /Timer:

1. Plug it into the outlet. The number icon "0" will flash & Power red LED lights will turn on and it will enter the standby mode. Press the icon to enter the setting mode. You will hear a sound of beep. The temperature digital LED screen will flash "55.0" and the timer digital LED screen will flash "02:00" together.
2. Temperature/Timer setting:

a. Temperature: Press the 🎨 icon once, on the temperature digital LED screen “55.0” will flash. By tapping “+/-”, increase / decrease of temperature of 0.5^ C with each tapping can be achieved. By pressing “+/-” for longer time, increase/ decrease of 5^ C can be achieved. The max. Temperature is 95^ C and the Min. Temperature 25^ C. The default temperature is “55.0”.
b. Timer: Press the ⚙️ icon once, on the Timer digital LED screen “02:00” (minute setting) will flash. By tapping “+/-”, increase/ decrease of 1 minute with each tapping can be achieved. By pressing “+/-” for longer time, increase/ decrease of 5 minutes can be achieved. The max. minutes setting is 59, the Min. minutes setting is 0;
c. Timer: Press the ⚙ icon once, on the Timer digital LED screen "02:00" (hour setting) will flash. By tapping "+/-", increase / decrease of 1H with each tapping can be achieved. By pressing "+/-" for longer time, increase/ decrease of 10H can be achieved. The max. setting is 99 and the Min. setting is 0. The default time is "02:00" (2H).

1. Press the icon ⏻ to confirm the setting and unit will start working. When the set temperature is reached, the unit will make three sounds of beep and enter the state of keeping stable temperature.
2. If you want to change the setting, press the icon and hold for 2 seconds; then repeat the setting above. The unit will stop automatically when it runs out of the set time and enter the standby mode.
3. If the unit is standby mode, Press icon for 2 seconds, the unit will switch off.
4. When water level is lower than the "Min" mark or the unit is raised up during use, the temperature LED will display "Err" with sounds of beep till 30 seconds. Push the icon to restart the unit or 30 seconds later, it will automatically turn off.
5. When the setting program runs off, the indication icon "End" will be displayed on the temperature display area with 6 sounds of beep. The "End" icon will continuously display till the unit is switched off or restarted.

When adjusting the setting, it will always make a beep sound.

Maintenance:

Always turn off and unplug the unit when the unit is out of order. Maintenance work must be performed by certified personnel only

Make sure system is at room temperature, check for signs of damage including pulled cord or physical damage to system or heaters. If any signs of physical damage are found, please send back to agent or factory for replacement parts.

Install the lower part

Hold the unit and align the unlocking symbol and the arrow, rotate the lower part in anticlockwise direction until you can see the arrow and clocking symbol are in the same vertical position. Firmly twist the safety screw.

Technical line drawing of two cylindrical devices with ports and a handle, no visible text or symbols

Maintenance (skirt/pump):

Twist off the safety screw if maintenance is needed. Turn the pump cap out of the lock position then pull off. The skirt and pump cap can be placed into the dishwasher.

Technical line drawing of a cylindrical device with internal components and a separate view (no text or symbols)

Cleaning the Circulator:

For cleaning the heating coil, pump shaft, and sensors, use dish soap, soft booth brush and rinse under water. Do not rinse the top part of the circulator including the main body in water.

Technical line drawing of a handheld device with a cylindrical base and handle, alongside a separate cylindrical device (no text or symbols present)

FAQ & Trouble Shooting

Noise:

Under normal operation the system will hum due to the motor, impeller and cooling fan in operation.

Grinding Noise:

The stainless steel skirt is loose. Push the stainless skirt up into guide groove and turn to the right until the hole aligns the nut insert inside the body.. With the skirt secure, the noise will go away. There also might be the chance the stirring shaft was inadvertently bent. If this is the case, unscrew the bottom pump disc and gently push the impeller until if is centered.

Slurping noise:

Your pump has formed a water vortex like when you are emptying out a bathroom sink or tub. Add more water or gently disturb with a spoon. There is no sure way to eliminate a vortex forming due to the pump rotation but usually will go away on its own.

Gurgling + Whoosh noise:

The pump is sucking air – add more water. You should also see small bubbles in your tank.

Food damage:

The pump's water jet is cracking eggs or damaging fish fillets: Turn the pump outlet to face the container wall; this will greatly temper the flow of the pump output. It is also good practice to bag eggs to prevent them from being "blown" around in certain containers.

Low water level alarm:

Add more water – the water level can be dropped during operation by pump due to water turbulence. And the pump generates “Waves” – sometimes these waves will cause the water level at the sensors to fluctuate up and down. The waves sometimes drop the water level right under the sensor and will cause a low water alarm. This is normal and you just need to add more water. The will display “Err” with Bi-Bi of alarm for 2 minutes to return to the original state or until you add more water and restart the unit.

Temperature read does not match thermometer:

Sous Vide circulators are calibrated to a scientific platinum primary standard which is far more accurate than store thermometers.

When the machine is out of work, please check power plug and breakers. Lights are slightly flickering when system is on, this is normal phenomenon.

TECHNICAL SPECIFICATIONS:

Power Rate: 220-240V\~, 50-60Hz, 1200W

Insulation Level: Class I

Temperature: 25 - 95°C

Temperature accurate: ±0.1°C

Timer: Max. 99:59hous.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Line drawing of a cylindrical container with a side arm and a lid, no text or symbols present

Line drawing of a portable water heater with a side-mounted funnel and base unit (no text or symbols)

SOGO 55.0 02:00

Technical line drawing of two cylindrical devices with ports and a handle, showing internal components (no text or symbols)

Entretien (jupe / pompe)

Technical line drawing of a cylindrical device with two separate views: top view and side view (no text or symbols)

Technical line drawing of a handheld device with a cylindrical base and handle, shown alongside an empty cylindrical device (no text or symbols present)

FAQ et dépannage

Bruit:

Line drawing of a cylindrical container with a lid and handle, no text or symbols present

Line drawing of a portable air purifier with handle and base (no text or symbols)

SOGO 55.0 02:00

Diagrama do painel de controle

Technical line drawing of two cylindrical devices with ports and control knobs, no visible text or symbols

Technical line drawing of a cylindrical device with internal components and a separate view (no text or symbols)

Limpando o circulador

Technical line drawing of a handheld device with a cylindrical base and handle, alongside a separate cylindrical device (no text or symbols present)

Line drawing of a cylindrical container with a side arm holding a glass cap (no text or symbols)

Line drawing of a portable water heater with a side-mounted funnel and base unit (no text or symbols)

SOGO 55.0 02:00

Bedienfelddiagramm

Technical line drawing of two cylindrical devices with internal components and mounting points (no text or symbols)

Technical line drawing of a cylindrical device with internal components and a separate view (no text or symbols)

Zirkulator reinigen

Technical line drawing of a handheld device with a cylindrical base and handle, alongside a separate cylindrical device (no text or symbols present)

Line drawing of a cylindrical container with a side arm holding a glass tube (no text or symbols)

Line drawing of a simple mechanical device with a vertical funnel and rectangular base (no text or symbols)

SOGO 5:50 02:00

Technical line drawing of two cylindrical devices with ports and control knobs, no visible text or symbols

Technical line drawing of a cylindrical device with internal components and a separate view (no text or symbols)

Technical line drawing of a handheld device with a cylindrical base and handle, alongside a separate cylindrical device (no text or symbols present)

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
