USER MANUAL BrainGuard Flash S-M CECOTEC

Urban bike and scooter helmet

Front view of a gray cycling helmet with visible branding and red highlights (no text or symbols on the helmet itself)

Safety instructions 7

1. Parts and components 37
2. Before use 37
3. Operation 37
4. Cleaning and maintenance 39
5. Technical specifications 39
6. Disposal of old electrical and electronic appliances 39
7. Technical support and warranty 40
8. Copyright 40
9. Simplified EU Declaration of Conformity 40

SOMMAIRE

EN · The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• To ensure proper use of this helmet, familiarise yourself with its features and settings by reading this manual carefully before using your helmet.
• This helmet has been designed solely and exclusively to protect users of bicycles, electric scooters or roller skates. It must never be used for activities other than those indicated.
• Note that the protection provided by a helmet is limited and only affects the covered areas of the head. This helmet offers no protection against spinal or other bodily injuries. You are cautioned that wearing a properly fitted helmet does not guarantee that you will not suffer serious injury or death in the event of an accident.

WARNINGS:

A No helmet can protect the wearer against all possible impacts.
B The helmet is designed to be fastened by a strap under the lower jaw.
C To be effective, the helmet must fit and be worn correctly. To check the correct fit, place the helmet on the head and make the necessary adjustments as indicated below.

Secure the restraint system safely. Grasp the helmet and try to rotate it back and forth. A properly fitted helmet should be comfortable and should not move forward to obstruct vision or backward to expose the forehead.

D No adjustments should be made to the helmet except those recommended by the helmet manufacturer in this instruction manual.

E The helmet is designed to absorb impacts through partial destruction of the housing and liner. This damage may not be visible. Therefore, if subjected to a severe blow, the helmet must be destroyed and replaced, even if it appears to be undamaged.

F The helmet can be damaged and rendered ineffective by petroleum products, cleaning agents, paints, adhesives, etc., without the user being able to detect the damage visually.

G A helmet has a limited-service life and should be replaced when it shows obvious signs of wear.

H This helmet must not be worn by children while climbing or doing other activities where there is a risk of suffocation or strangulation if the child becomes trapped while wearing the helmet.

The helmet can only protect if it fits properly, and the buyer should try on different sizes and choose the one that feels secure and comfortable on the head.

J The helmet should be adjusted to fit the wearer, for example, the straps should be positioned so that they do not cover the ears, the buckle should be positioned away from the jawbone, and the straps and buckle should be adjusted so that they are comfortable and firm.

K The helmet should be placed on the head in such a way that it protects the forehead and is not pushed too far towards the back of the head, to ensure the intended protection.

L A helmet cannot always protect against injury.
M A helmet subjected to severe impact must be discarded and destroyed.
N It is dangerous to modify or remove any original part of the helmet except as recommended by the manufacturer.

Helmets shall not be adapted to fit accessories in a manner not recommended by the manufacturer.

Warning:

Use a charger rated between 5 V 0.5 AH and 5 V 2 AH. Do not use a charger that does not meet these parameters.

INSTRUCTIONS DE SÉCURITÉ

• Helmet
• Instruction manual
• USB charging cable

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

3. OPERATION

Fitting instructions

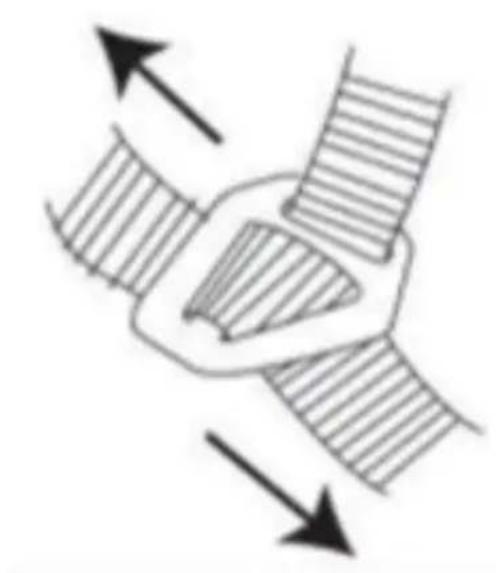

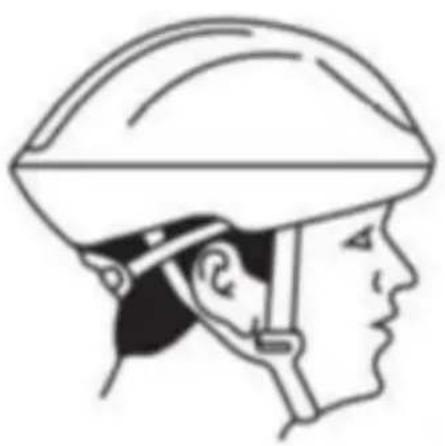

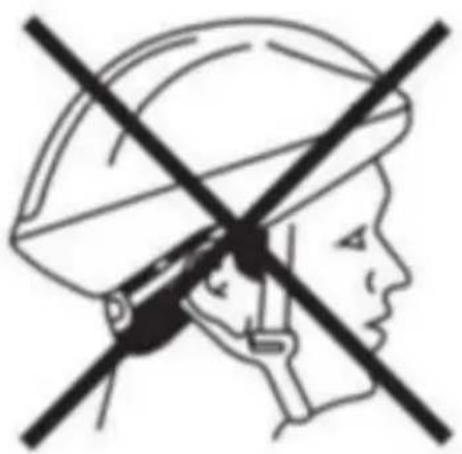

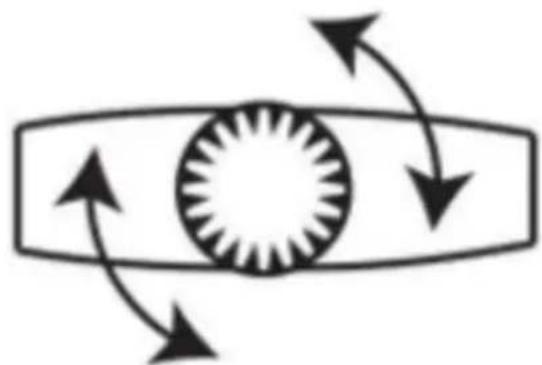

To determine the size of your head, measure the diameter of your head with a measuring tape as shown in figure A. Make sure that the helmet size you choose is the same size as the circumference of your head. This will ensure a snug and comfortable fit for your helmet. Then tighten the straps (figure B). The helmet should be placed on the head so that it protects the forehead, as shown in figure C. To ensure that the helmet is properly fitted, adjust the straps under the chin and fasten the buckle. To unfasten the buckle, press the part you inserted earlier, and it will automatically snap off. The helmet must also be adjusted by turning the knob at the rear (figure D).

Light information

Fig 1.

1. Power button
2. Charging port

ENGLISH

Helmet control panel

Fig 2.

1. Left turn signal
2. Right turn signal
3. Mode change button

Handlebar remote control

In order to turn the helmet on and activate the lights, press the power button. To turn the helmet off and deactivate the lights, press and hold the power button for 3 seconds.

1. To select the desired front/rear light mode, press the M button (or the power button) as many times as necessary.
2. To activate the left turn signal, press the corresponding button once. To deactivate it, press it again.
3. To activate the right turn signal, press the corresponding button once. To deactivate it, press it again.

Note: The first time you use the helmet, the turn signal buttons may not work. If this is the case, press and hold the power button on the helmet for 5 seconds. The turn signals on both sides will then light up, which means that the corresponding buttons on the helmet have been activated.

The helmet features four modes for the front and rear lights, which are activated by pressing the power button on the helmet or the M button on the handlebar remote control.

Light modes	One press Two presses	Three presses Four presses
Front lights	White light in the middle	White light on the sides	Full white light /
Rear lights Steady red light		Slowly flashing red light	Rapidly flashing red light	Slowly flashing red light

The helmet battery lasts approximately 4 hours and will take about 2 hours to fully charge. When charging, the corresponding light on the helmet control panel will light up in red. When the battery is fully charged, the light will turn green.

4. CLEANING AND MAINTENANCE

1. Clean the inside of the helmet with mild soap. Do not use excessive pressure when cleaning the inner pads. Then wipe off excess water and allow the helmet to air dry. Do not use a hair dryer or any other appliance to dry the helmet, as this will damage the inner pads and lining.
2. Wipe the helmet exterior with a soft, damp cloth and then dry it with another cloth. If needed, you can use a small amount of mild soap. Do not use abrasive cleaners, otherwise it will damage the helmet.
3. Do not expose the helmet to temperatures above 40 °C . Doing so may deform it.

5. TECHNICAL SPECIFICATIONS

Product reference EU01_101746 / EU01_101747
Appliance BrainGuard Flash
Use Electric scooter - Bike - Roller skates - Skateboard
Sizes S-M (55-58 cm) / L-XL (58-61 cm)
Weight 330 – 340 g
Charger Use a charger rated between 5 V 0.5 AH and 5 V 2 AH.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

6. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the appliance and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

ENGLISH

7. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

9. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested to meet the required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the

following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Contenu de la boîte

https://cecotec.es/es/information/declaration-of-conformity

https://cecotec.es/es/information/declaration-of-conformity

1. PECES I COMPONENTS

Line drawing of a person's head with short hair and a headband (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. A

Diagram showing two intersecting curved lines with arrows indicating direction, no text or symbols present

Fig./Img./Abb./Afb./Rys./Obr. B

Side profile illustration of a person wearing a helmet and holding an object (no text or symbols)

Cross-sectional diagram of a human head with a diagonal line crossing the profile, no text or symbols present.

Fig./Img./Abb./Afb./Rys./Obr. C

Diagram of a circular object with radial arrows indicating rotational motion (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. D

1 2

3 4 5

Fig./Img./Abb./Afb./Rys./Obr. 1 Fig./Img./Abb./Afb./Rys./Obr. 2
