USER MANUAL CC82 GRAEF

Operating Instructions

FR

Product overview 14
Product description. 14
Preface. 15
Information on these operating instructions. 15
Warning messages. 15
General safety instructions 16
Danger caused by electric current 17
Intended use 17
Limitation of liability. 18
After-sales service 18
Unpacking 18
Disposal of the packaging. 18
Disposal of the unit 19
Requirements on the installation location 19
Electrical connection 19
Commissioning. 20
Resharpening the knife edge 21
Sharpening serrated blades 21
Cleaning 21
Two-year warranty 22

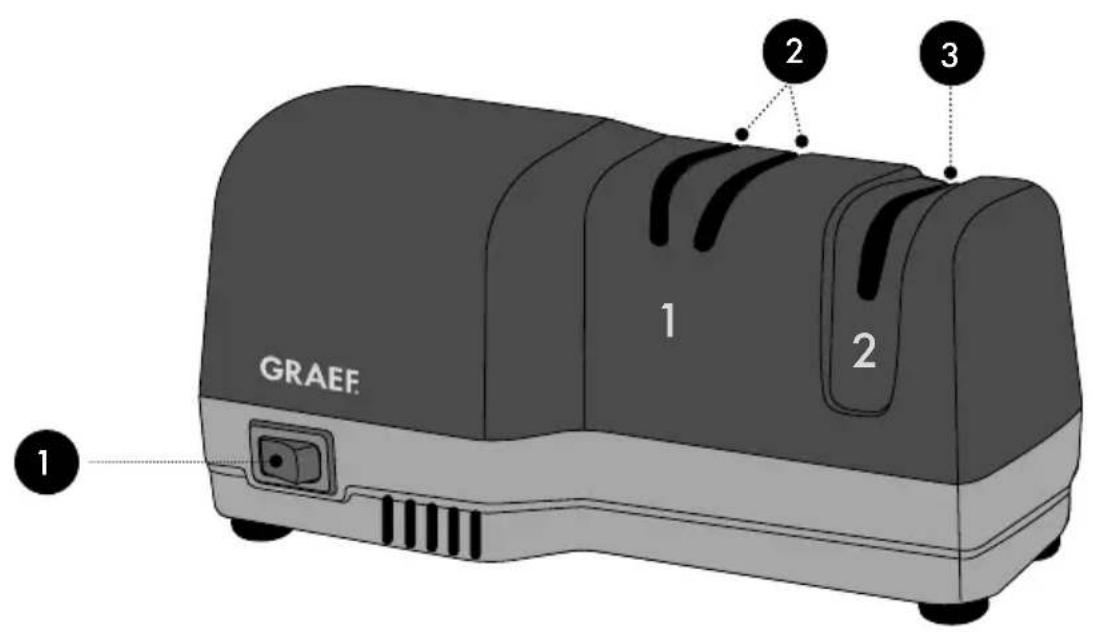

PRODUCT DESCRIPTION

1 On/off switch
Level 1, left/right slot
3 Level 2, manual polishing

PREFACE

Dear Customer,

You have made a good choice by buying this knife sharpener. You have purchased a recognized quality product.

Thank you for your purchase and we hope you enjoy using your new Graef knife sharpener.

INFORMATION ON THESE OPERATING INSTRUCTIONS

These operating instructions are an integral part of the knife sharpener (hereinafter referred to as the "unit") and provide important information on the start-up, safety, intended use and maintenance of the unit.

The operating instructions have to be available at the unit at all times. The instructions have to be read and applied by every person who is in charge for:

commissioning,
- operation,
- Fault correction and/or
- Cleaning

Keep these operating instructions and pass them on to the next owner along with the unit.

These operating instructions cannot take into consideration every conceivable use. For further information or in the event of problems that are not covered or not covered in sufficient detail in these instructions, please contact Graef customer service or your specialist dealer.

WARNING MESSAGES

In these operating instructions, the following warning messages and signal words are used:

WARNING

This refers to a potentially dangerous situation. Failure to observe this warning may result in serious injury or even death.

CAUTION

This refers to a potentially dangerous situation. In case of non-observation of this warning message, material damage may occur.

IMPORTANT!

This refers to application hints and other especially important information!

GENERAL SAFETY INSTRUCTIONS

This device conforms to the relevant safety regulations. For safe handling of this unit, please observe the following safety instructions:

However, incorrect handling may lead to injury and damage.
- Before using this device for the first time, check it for visible outer damages on the housing, connection cable and plug.
- Do not operate a damaged unit.
- If the connection cable is damaged, it must be replaced by the manufacturer, the after-sales service or a similarly qualified person in order to prevent danger.
- Repairs must be carried out by an expert or by Graef after-sales service only. Incorrect repairs may cause considerable hazards for the user. In addition, any claim under guarantee is forfeited.
- Defective parts must be replaced by original spare parts only. Only these parts are guaranteed to meet the safety requirements.
- This unit must not be used by children. Keep the unit and its connection cable away from children.
- Children should be supervised in order to make sure that they do not play with this unit.
- This unit can also be used by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the unit in a safe way and understand the hazards involved.
- The unit is not intended to be used with an external timer or a separate remove control.
- Always disconnect the connection cable by using plug; do not pull the connecting cable.
- Make sure that the power cable does not get caught anywhere. This could cause the fall of the unit.
- Packaging materials must not be used for playing. There is danger of suffocation.
- Always switch off the unit and disconnect it from the power supply

when you are not using it or when the unit is unattended. The same applies before cleaning and maintaining the unit or when replacing accessories.

• Make sure that only clean knife blades are inserted.
• The knife sharpener is used for sharpening kitchen knives, pocket knives and certain sports knives. Do not try to sharpen scissors, axe blades, ceramic knives or other blades that cannot be easily inserted into the sharpening slots.
• CAUTION: The knives are very sharp after sharpening.
• Do not use grinding oil, water or other lubricants.

DANGER CAUSED BY ELECTRIC CURRENT

WARNING

Mortal danger is caused by contact with live cables or components!

Please observe the following safety instructions in order to prevent exposure to electric current:

• Do not use the unit if the connecting cable or plug is damaged.

• In this case, you should let the Graef Customer Service or an authorized specialist install a new connecting cable before re-using the unit.

• Do not open the housing under any circumstances. When touching live connections and if the electric and mechanical structure is changed, there is danger of electric shock.
• Never touch live parts. They may cause an electric shock or even may lead to death.

INTENDED USE

This unit is not intended for commercial use. Use the unit for sharpening knives only.

This appliance is intended for domestic and similar use, such as:

Staff kitchens in shops and office
In agricultural estates
- By guests in hotels, motels and other living quarters
In bed and breakfast boarding houses

IMPORTANT!

Use only in household-like areas!

Another or any exceeding use shall not be considered intended.

CAUTION

The unit can cause dangers, if is not used as intended.

Use the unit exclusively as intended.
- Observe the procedures described in these operating instructions.

Claims of any kind caused by damage by unintended use shall be excluded.

The risk shall be borne sole by the user.

LIMITATION OF LIABILITY

All technical information, data and notes on the installation, the operation and the care contained in these operating instructions correspond to the last status before printing, and are rendered under consideration of our previous experience and to the best of knowledge.

No claims may be derived from the specifications, illustrations and descriptions in these instructions.

The manufacturer does not assume any liability for damage caused by:

Non-observation of the instructions
- Unintended use
- Improper repairs
Technical modifications
Use of unapproved spare parts

Translations are carried out to the best of knowledge. We do not assume any liability for translation mistakes. The original German text shall be binding only.

AFTER-SALES SERVICE

If your Graef unit is damaged, please contact your dealer or the Graef Customer Service at [phone] or write an e-mail to [e-mail].

IMPORTANT!

If possible, keep the original packaging during the guarantee period of the unit in order to be able to pack the unit correctly in case of guarantee.

UNPACKING

When unpacking the unit, proceed as follows:

• Remove the unit from the box.
• Remove the packaging parts.
• Remove any stickers on the unit. Do not remove the type plate!

DISPOSAL OF THE PACKAGING

The packaging protects the unit against transport damage. The packaging materials are selected according to the environmental compatibility and disposal-related aspects and can therefore be recycled.

The return of packaging into the material cycle saves raw material and reduces the waste volume. Dispos of the packaging material no longer needed at collection points for the "Green Dot" recycling system (in Germany).

DISPOSAL OF THE UNIT

At the end of its service life, this product cannot be disposed of in normal domestic waste. The symbol on the product and in the operating instructions point out to this fact. Reuse the materials according to their marking. With the reuse, recycling or other forms of recycling of old equipment, you make an important contribution to the protection of our environment. Please ask your municipal administration for the disposal point.

REQUIREMENTS ON THE INSTALLATION LOCATION

For safe and faultless operation of the unit, the following requirements of the installation location have to be met:

• The unit has to be placed on a solid, flat, horizontal, and non-slipping surface with a sufficient weight-carrying capacity.
• Make sure that the unit cannot topple over.
• Choose the location in such a way that children cannot reach the connecting cable of the unit.
• Do not place the unit on hot surfaces, such as hotplates, or near them.
• Never use the unit outdoor and store in a dry location.
• The unit is not designed for installation in a wall or a built-in cupboard.
• Do not set up the unit in a hot, wet or moist environment.
• The socket has to be easily accessible so that the connecting cable can be removed easily in case of emergency.

ELECTRICAL CONNECTION

For safe and fault-free operation of the unit, the following requirements have to be met during the electrical connection:

• Before connecting the unit, compare the connecting data (voltage and frequency) on the type plate with those of your energy network. These details must correspond so that no damage occurs to the unit. In case of uncertainty, contact a qualified electrician.
• The socket has to be protected at least by a 10 amps circuit breaker.
• Make sure that the connecting cable is not damaged and not laid across hot surfaces or sharp edges.
• The connecting cable must not be stretched tightly.
• The electric safety of the unit is ensured only when it is connected to a socket with protective conductor installed correctly. Operation on a socket without protective conductor is forbidden. If in doubt, let the house installation be checked by a skilled electrician. The manufacturer does not assume responsibility for damage which has been caused by missing or interrupted protective conductor.

IMPORTANT!

The grinding angle is 20^
- If the knife is not very blunt, in most cases it is sufficient to reshapepen it just a little in level 2.

Always alternate between the right and left slot in level 1. This double-slot level quickly ensures a sharp cutting edge, which is then polished in the manual second level. This uses only a single slot that removes both sides of the blade simultaneously.

• Clean the knife to be sharpened before use.
• Position the unit in such a way that the numbers for sharpening levels 1 and 2 are facing you.
• Insert the plug into the socket and switch the unit on.
• Pull the smooth knife first through the left slot of level 1 and then through the right slot of level 1.

IMPORTANT!

• Make sure that the knife blade is in contact with the diamond discs. All you need to do is apply slight downward pressure while pulling the blade towards you.
• Additional pressure is not necessary and does not accelerate the sharpening process.
• Prevent cuts into the plastic housing. Accidental cuts into the housing will not impair the operation of the unit or damage the cutting edge.

• In individual cases, slight scratches on the knife cannot be avoided.

• Depending on the bluntness of the blade, pull the blade approx. 5 - 10 times per side through the right and left slots of level 1.

IMPORTANT!

In the case of a 20 cm long knife, each passage should take approx. 6 seconds. Pull shorter knives through in 3 - 4 seconds.

• Before proceeding with phase 2, make sure that a burr has been created along the cutting edge.

IMPORTANT!

• You can feel the burr by moving your fingers from the back of the knife over the side surface of the knife towards the cutting edge and then carefully stroking over the cutting surface. You can do this on both sides of the knife; a burr should have formed on one side.
• If your last sharpening passage took place in the right-hand slot, there should be a small burr on the right-hand side of the knife edge. If the last pull was in the left slot, you should be able to feel a burr on the left side.
• If there is no burr, pull the knife 2 - 3 times alternately through the right and left slots of level 1.
• Then switch the unit off; no more power is required for the manual polishing stage.
• Now pull the knife back and forth approx. 4 - 5 times at level 2.

CAUTION

Keep your fingers away from the blade. Sharpening makes the blade very sharp. There is danger of injury.

IMPORTANT!

For best results in level 2, centre the blade within the slotwidth and keep the length of the blade aligned with the centreline of the slot while moving the knife back and forth in the slot without lifting it up. Only apply light downward pressure to the blade when sharpening in level 2.

RESHARPENING THE KNIFE EDGE

To reshapepen, follow the procedure described above for level 2 by making two to three (2-3) complete forward and backward movements while maintaining the recommended downward pressure. Ensure that the grinding discs are rotating in the process.

Test the sharpness of the cutting edge. Repeat the process if necessary.

In general, it should be sufficient to sharpen several times with level 2 only before sharpening the knife in level 1.

SHARPENING SERRATED BLADES

Serrated blades can only be sharpened in level 2.

• Centre the blade in the slot for level 2.

• Now pull the knife back and forth approx. 5 times.
  Test the sharpness of the blade.

• If the blade is very blunt, switch the unit on and first carry out two quick but complete pairs of strokes in level 1 - alternating between the right and left slots.

IMPORTANT!

Attention: Only carry out a few pulls in level 1, otherwise you will remove too much metal from the teeth of the serrated blade.

• Then pull the knife back and forth approx. 5 times at level 2.

IMPORTANT!

Due to its saw-like structure, a serrated knife will never be as sharp as a knife with a smooth blade.

CLEANING

• The outside surface of the knife sharpener can be cleaned with a damp, soft cloth.
• Regularly remove the metal dust by turning the knife sharpener upside down and gently tapping it out over a newspaper, paper towel or other paper.
• This knife sharpener does not require any oils or other lubricants.

TWO-YEAR WARRANTY

For this product, we assume 24 months manufacturer warranty for defects, which are due to production or material defects. Your legal warranty claim in conformity with Section 437 et seq. of the German Civil Code (BGB) shall remain unaffected by this regulation. The warranty does not cover damage caused by improper handling or use as well as defects which only slightly influence the function or the value of the appliance. In this case, the warranty will also become null and void. Transport damages, as far as we are not responsible for it, are excluded from the warranty claims. A warranty claim is excluded for damage caused by a repair which has not been carried out by us or one of our agents. In case of justified complaints, we shall repair the defective product or replace it by a product without defects at our discretion.
