USER MANUAL LRP S5 525-56 ZEISS

Long-Range Precision Riflescope

Instructions for use / Customer Service and Warranty

Patents: www.zeiss.com/cop/patents

EN DE FR ES IT NL DK

FI HU PL SE RU JP CN | 03.2023

ZEISS products are famous for outstanding optical performance, precision workmanship, and long service life. Please observe the following instructions for use to obtain the best results from your riflescope and to ensure it remains as your preferred gear for many years to come.

WARNING!

Please note the enclosed safety instructions and regulatory information. You can also find them at:

www.zeiss.com/cop/safety

Table of Contents

Scope of Supply 4

Technical Data 5

Description of the Components 6

Changing the Magnification 8

Focusing the Reticle 9

Diopter Adjustment 9

Reticle Illumination 10

Battery Replacement 12

Parallax Adjustment 13

Basic Mounting Instructions 14

Leveling The Reticle 16

Establishing a Sight-In Zero 18
Elevation Turret 20
How to Set the Ballistic Stop, Elevation 21

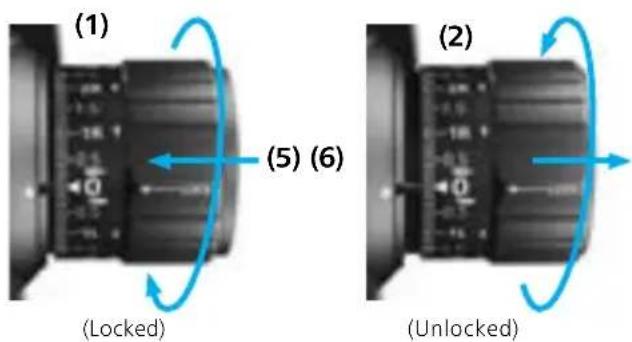

External Locking Windage Turret (ELWT)	24
How to Re-Index to Zero (ELWT)	25

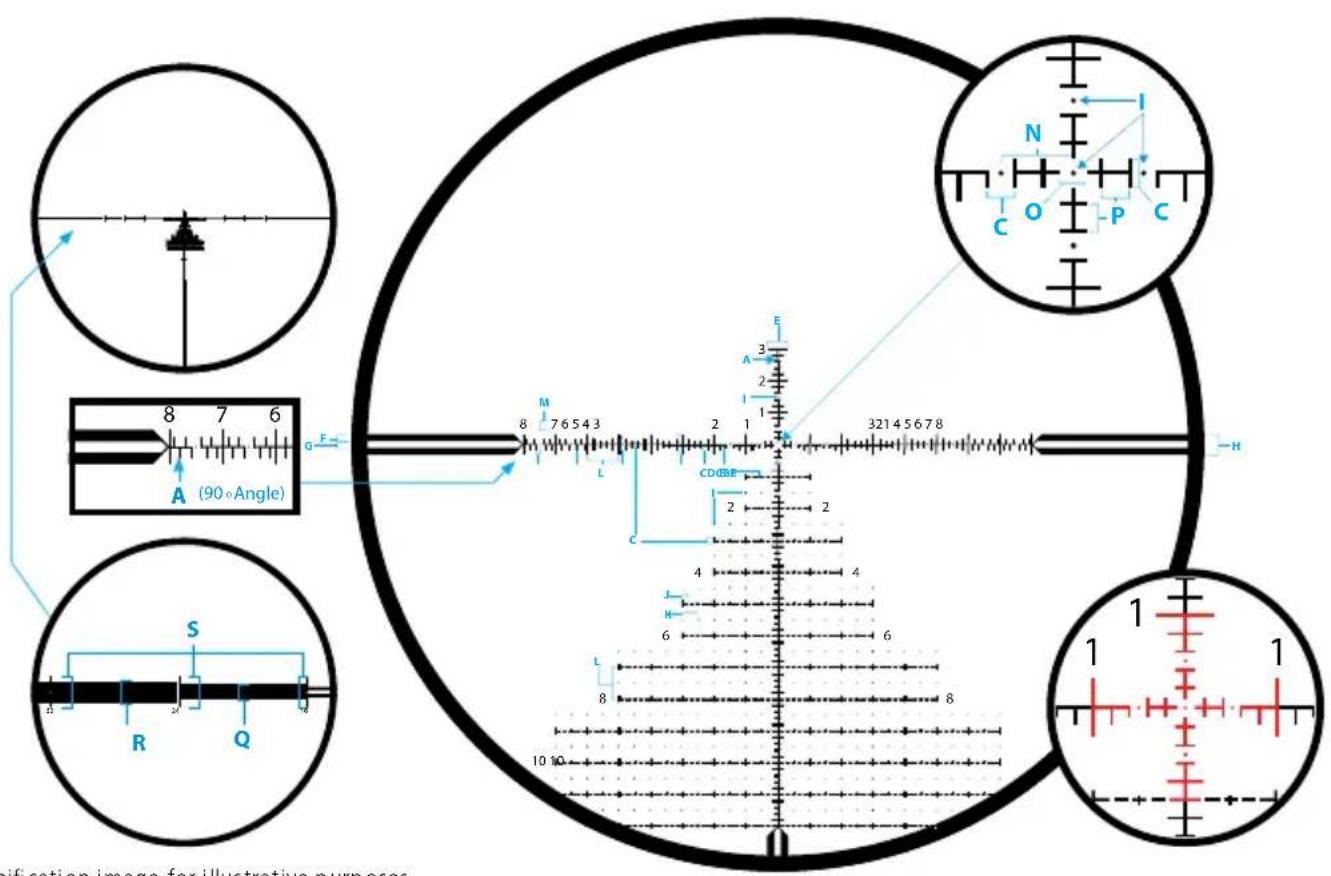

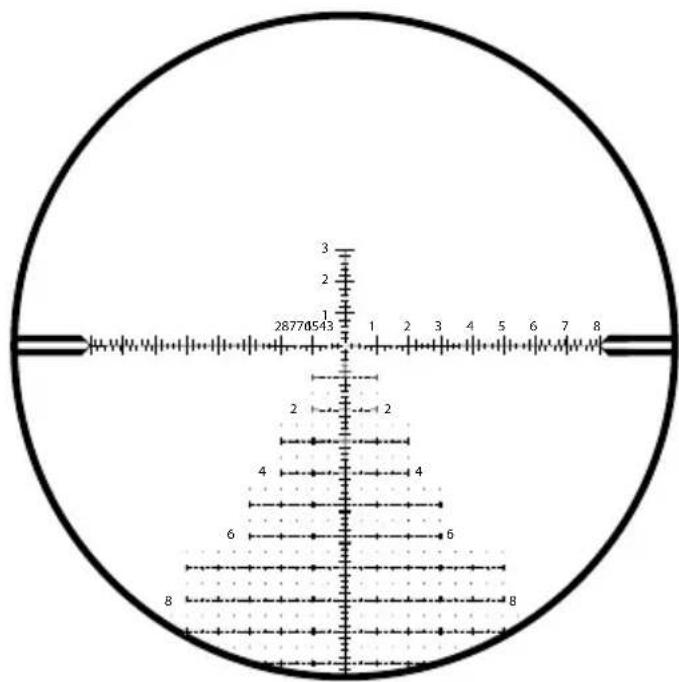

Reticle Type ZF-MRi (FFP)	28
Reticle Type ZF-MOAi (FFP)	30
Accessories	32
Care and Maintenance	34
Customer Service and Warranty	36

Instructions for use ZEISS LRP S5 318-50 | 525-56

Scope of supply

LRP S5 Order number

318-50 MRi 522275-9916-090

525-56 MRi 522295-9916-090

318-50 MOA 522265-9917-090

525-56 MOA 522285-9917-090

umber 75-9916-090 95-9916-090 265-9917-090 285-9917-090 LRP S5 525-56

LRP S5 525-56

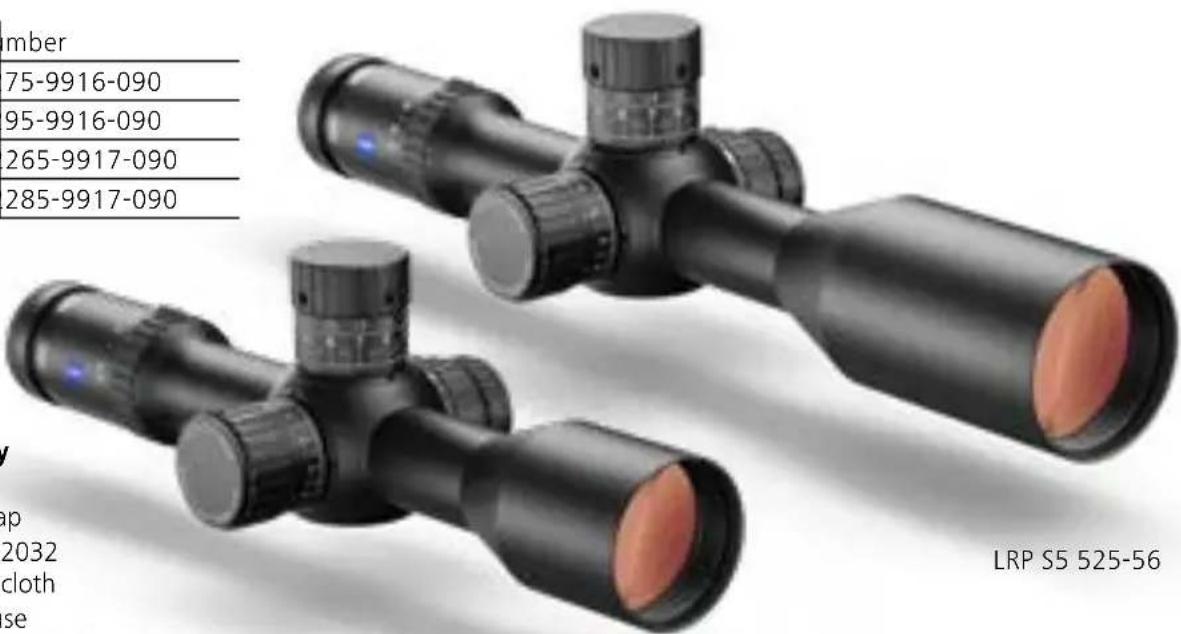

Scope of Supply

• Riflescope
• Protective lens cap
• Li battery 3V CR 2032
• Optical cleaning cloth
• Instructions for use
• Safety information
• Twin Torx* wrench (size T 6 and T 8)
  * Torx is a registered trademark of Acument Intellectual Properties, LLC.

LRP S5 318-50

Technical data		25-56
Magnification 3,6 x - 18x5 x - 25 x
Focal Plane First Focal Plane (FFP)
Effective lens diameter 50 mm56 mm
Exit pupil diameter 9.3 - 2.8 mm9.2 - 2.4 mm
Twilight factor		13.4-30.0	16.7-37.4
Field of view		10.0-2.0 m/100m / 30-6 ft/100yd	7.5-1.5m/100m / 22.5-4.5ft/100yd
Objective viewing angle		5.7°-1.1°	4.3°-0.8°
Diopter adjustment range		+2 / -3 dpt
Eye relief		90 mm / 3.5 in
Parallax setting		25-∞ m / 27-∞ yd
Elevation (E) + Windage (W) adjustment range	MRAD	E: 40.7 + W: 24
	MOA	E: 140 + W: 60
Adjustment per click	MRAD	0.1
	MOA	0.25
Main tube diameter		34 mm
Eyepiece tube diameter		46 mm46 mm
Objective tube diameter		56mm	62mm
Objective Thread		M54x0.75mm	M60x0.75mm
Coatings		LotuTec®, T* (T-Star)
Nitrogen filling		yes
Waterproof		400 mbar (4 m / 13 ft)
Operating temperature		-25/+55 °C / -13/+133 °F
Length (neutral diopter setting)		340mm / 13.4in	396mm / 15.6in
Weight		930g / 32.8oz	1,030g / 36.3oz
Reticles (illuminated)		ZF-MRi (Milliradian) / ZF-MOAi (Minute of Angle)

5Data above

Instructions for use ZEISS LRP S5 318-50 | 525-56

Description of the Components

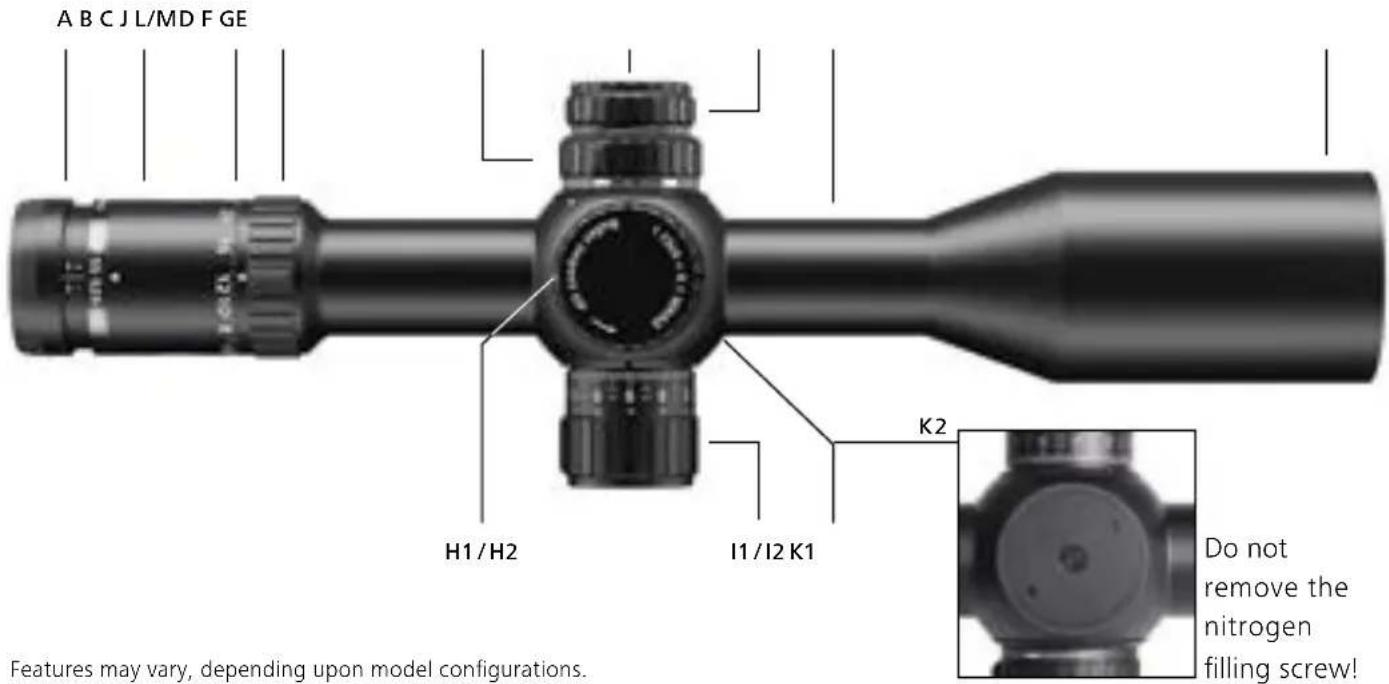

A B C J L/M D F GE H1/H2 I1/I2 K1 K2 Do not remove the nitrogen filling screw! Features may vary, depending upon model configurations.

A Diopter Adjustment
B Ocular Housing
C Magnification Zoom Indicator
D Magnification Zoom Adjustment
E Parallax Adjustment
F Battery Housing
G Illumination On / Off and Adjustment
H1 Elevation Turret MRAD
H2 Elevation Turret MOA
I1 Locking Windage Turret MRAD
12 Locking Windage Turret MOA
J Main Tube
K1 Saddle area
K2 Bottom Saddle area
L Objective
M Objective Thread

For the latest updates and information regarding our products, visit:

www.zeiss.com/precision-shooting

Close-up of a black cylindrical device dial with measurement markings (no visible text or symbols)

H1 - Elevation Turret MRAD

Close-up of a black cylindrical device dial with measurement markings (no visible text or symbols)

H2 - Elevation Turret MOA

Close-up of a black camera lens with adjustment knobs and focal point (no visible text or symbols)

I1 – Windage Turret MRAD

Close-up of a black camera lens with adjustment knobs and a lock indicator (no visible text or symbols)

12 – Windage Turret MOA

WARNING!

Never look at the sun or a laser light source through the riflescope. This can cause severe injuries to your eyes.

Changing the Magnification

The magnification adjustment allows to select the desired magnification setting (1a, 1b). Accomplish this task by rotating the adjustment ring (1).

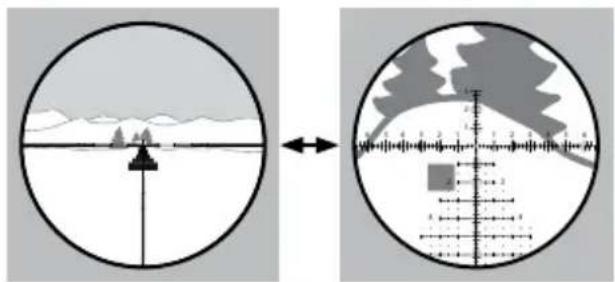

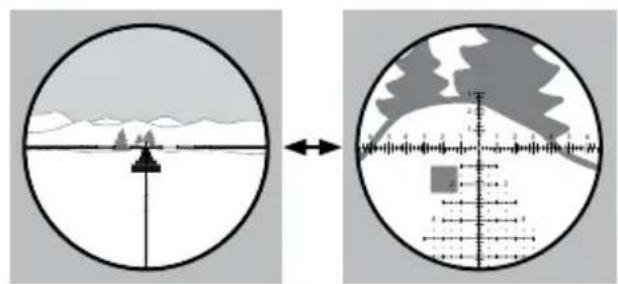

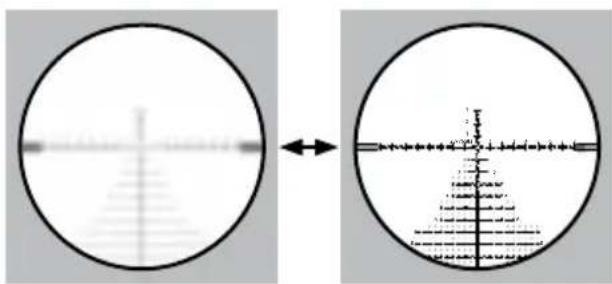

Two circular diagrams showing a landscape with mountains and a crosshair overlay, no text or symbols present.

(1a) Low magnification
(1b) High magnification

Close-up of a black optical lens with blue circular arrows indicating rotational direction, labeled (1) and (2), showing internal color bands.

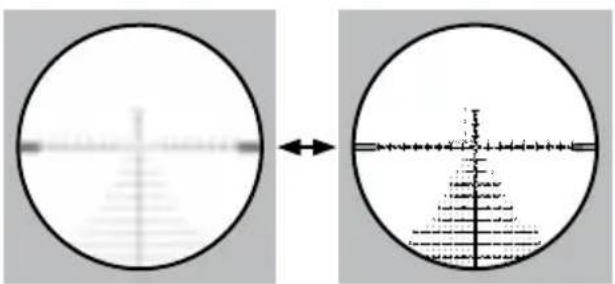

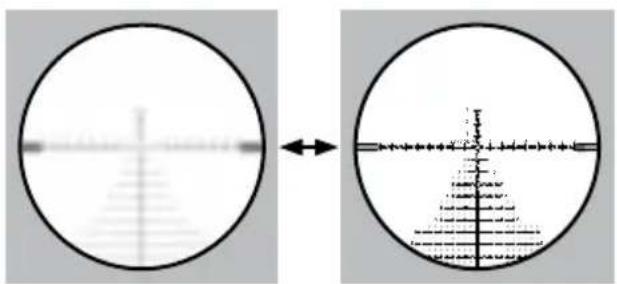

Diagram showing a circular cross-section before and after transformation, with scale bars and waveform patterns on the right side.

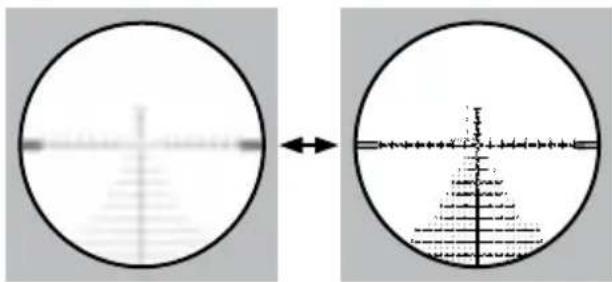

(2a) Out of focus reticle
(2b) Focused reticle

Focusing the Reticle / Diopter Adjustment

To adjust the eyepiece to establish an appropriate diopter setting, turn the eyepiece either inward or outward (2) to achieve the preferred setting (2b). If you plan to wear corrective vision glasses when shooting, then set this focus while wearing your corrective glasses or using contact lenses.

1. Begin at the highest magnification setting.
2. Set parallax to the infinity setting .
3. Look through the riflescope at a neutral colored background, such as a white or gray wall, or cover the objective lens with a light cloth to eliminate distracting background. Determine if the reticle is clear and in focus as soon as you view through the eyepiece. Note that staring

at the reticle for more than about two seconds during this setup will cause the eye to begin to compensate for focus, resulting in a false indication of the reticle's true focus. Try to assess a few seconds at a time, looking away for about 5-10 seconds, and then view again to determine results. The goal is to get a crisp and highly focused reticle image – without straining the eye.

1. If adjustment is necessary, follow these steps: Because of the way the eye accommodates, ideal results are typically obtained by turning the eyepiece inward until the reticle is slightly blurred (2a), then turning it outward until sharp focus is obtained (2b).

Once you are satisfied with the reticle's focus, note the position of the eyepiece for quick reference in the future.

Diagram illustrating optical measurement setup with two circular gauges and a camera lens, labeled (1) and (2)

Reticle Illumination

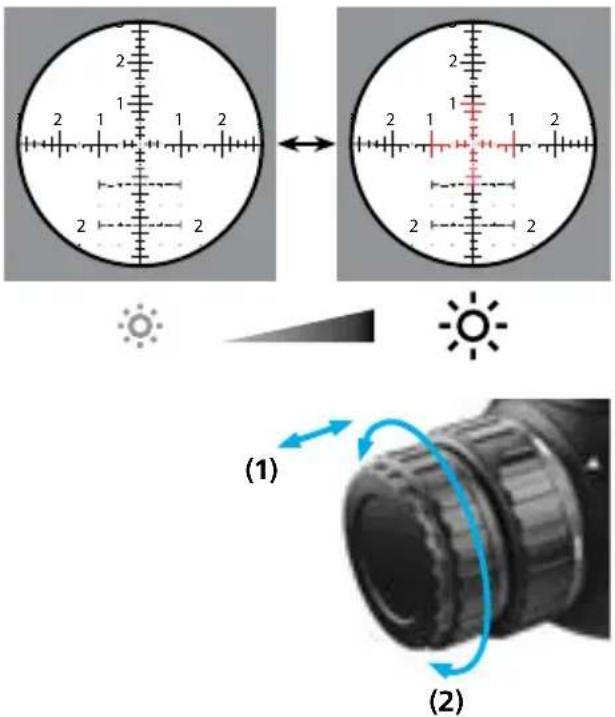

Illumination is turned on by pulling out the adjustment knob (1). Turning the knob (2) to the right (clockwise) increases brightness. Turning to the left (counterclockwise) reduces brightness.

Control is infinitely variable up to a preset minimum or maximum and has no mechanical stop. Push in the knob to switch it off. The set brightness is saved, even if the adjustment knob (1) is pushed to the off position. When turned back on, illumination returns to the previously set brightness.

If the reticle illumination adjustment knob is not activated for 4 hours while in the 'on' position, the illumination switches off automatically.

Low battery charge is indicated by flashing of the illumination. The flashing can be suppressed if desired: Push in the adjustment knob and pull out

again immediately (within 2 seconds). By using this cancellation process, the reticle illumination can be used until final battery failure without further flashing. After replacing with a new battery or switching off the illumination, the warning flashing functionality will be re-initiated.

ZEISS LRP S5 riflescopes are fitted with a motion sensor to maximize battery service life. The sensor automatically identifies the position of the riflescope and switches off the illumination if 'rotated' at a lateral angle of 45^ or more, or while at an angle of +/-70^ from horizontal below or above. As soon as the rifle is lifted to fire a shot, the illumination automatically turns on again at the preset level of brightness.

This feature can be deactivated or activated by turning the riflescope upside down (bottom of scope facing upwards) and manipulating the adjustment knob (1) in and out three consecutive times. The illumination will flash three times for confirmation.

Note: Even if the angle is switched off, the 4-hour standby will apply. In other words, the riflescope will not switch back on after 4 hours in a tilted position.

Diffractive reticle illumination technology

allows for far greater reticle illumination intensity, therefore, offers a truly daylight-visible reticle illumination, even in the harshest lighting conditions. If a slight movement/displacement of the illuminated part of the reticle is noticeable in unique shooting conditions, please ensure that the eye is properly aligned with the optical axis. This ensures that a precise shot placement can be achieved.

Instructions for use ZEISS LRP S5 318-50 | 525-56

Battery Replacement

Inserting / removing the battery

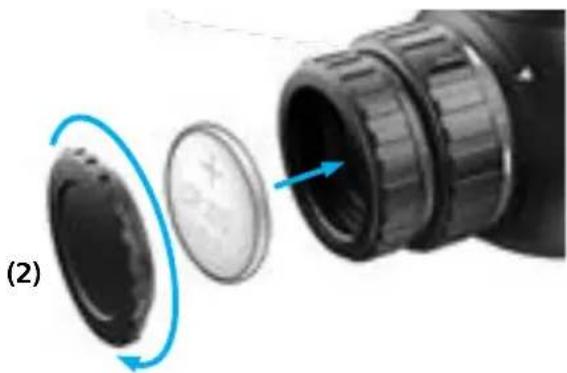

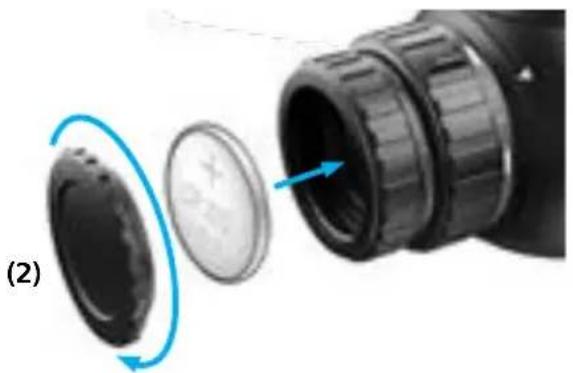

To change the battery (model CR 2032), turn the cover (1) to the left (counterclockwise).

The battery is inserted with the positive (+) pole pointed up. Then screw the cover (2) back on.

Make sure it is seated properly and check the condition of the sealing ring.

Replace the seal if it is damaged.

Note: If the riflescope will not be used for an extended period of time, remove the battery.

WARNING!

Please note the enclosed safety instructions and regulatory information about battery handling and disposal. You can also view them at:

www.zeiss.com/cop/safety

Close-up of a camera lens component with blue circular motion indicator (no text or symbols)

Close-up of a camera lens showing internal components and a blue circular arrow indicating rotation (no text or symbols)

Parallax Adjustment

Parallax is the reticle's apparent movement in relation to the target as the user moves his eye across the exit pupil of the riflescope. This condition is caused by the target and the reticle appearing on different focal planes within the riflescope.

The goal is to remove the parallax sighting error by adjusting the focus setting via the parallax adjustment. If parallax is present, it will be noticeable by moving the eye left and right or up and down, and witnessing the reticle slightly move against the target. Parallax creates an aiming error.

Adjusting to Remove Parallax

Check for parallax with the rifle in a stable position while looking through the riflescope at a defined point on the target. To eliminate parallax, rotate the parallax adjustment until the reticle remains stable in relation to the target, regardless of head movement / eye placement.

Close-up of a circular scale with measurement markings and pointer, showing 120-degree markings from 1 to 4.

Image plane is behind the reticle (parallax present).

Diagram showing a crosshair with numbered scale and measurement markings, likely from an optical or engineering context.

Image and reticle are located in a single plane (parallax absent).

Make sure your rifle is unloaded, the chamber is empty, and the action is open prior to installing your ZEISS riflescope.

Poor or improper mounting of the riflescope can cause equipment and personal damage, which can result in serious equipment damages, as well as personal injury or death.

Recoil is real energy, and it can be dangerous for the user! Please be certain that the installation provides maximum eye relief. Pay attention to this warning, especially when shooting uphill or from a prone position. Shooting conditions such as these can dramatically reduce eye relief.

If you are not familiar or comfortable with the following steps of the process, ZEISS suggests that these steps of the procedure be accomplished by a competent gun shop staff member, gunsmith, or professional entity.

Basic Mounting InstructionsWARNIN

Ring and Base Selection (Rings Equal 34 mm)

To optimize the performance of the riflescope and mounting solutions, ZEISS recommends the following:

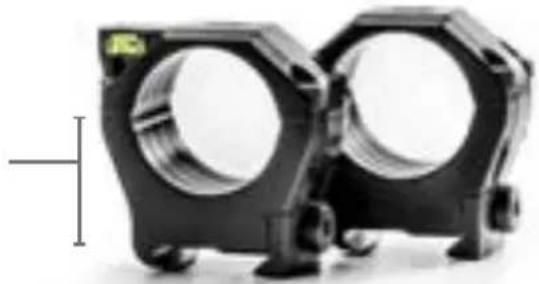

■ Use a high-quality ring and base combination that properly fits the rifle as well as the riflescope model, e.g., ZEISS Precision rings.

Mounting the Base to the Action

Attach the base to the action, and follow the torque setting for the mounting screws provided by the manufacturer. Ensure the mounting screws and threaded holes are clean and free of grease and contaminants.

Mounting the Rings to the Base

Ensure that the rings' inside surfaces and the surface of the scope tube are clean and free of grease.

Do not place any other substance or material between the scope tube and the inner surface of the rings.

Ensure that the height of the rings will allow for adequate clearance of the objective and barrel surface. If you plan to use flip-up or pull-over lens covers, consider the additional space requirements. Install the rings on the base per the manufacturer's specifications. Take care to ensure that the rings do not contact the main tube transition points of the ocular or objective. Ensure as well that the rings do not come into contact with the saddle portion of the riflescope.

Mounting the Riflescope

1. For the initial fit of the riflescope to the rifle, set the riflescope to the highest magnification. Place the riflescope in the rings as far forward as possible. Tighten the ring screws with minimal tension to gently but safely hold the riflescope

in position. This initial step should just allow the scope to move back and forth for step 2 listed below.

1. Place the rifle in your normal shooting position. Place your head as far forward on the stock as you might position it in field use. Slowly move the riflescope back just to the point where the full field of view is obtained. ZEISS recommends mounting the riflescope at this position to ensure maximum eye relief.

Eye relief: 3"-4"/ \~8-10 cm

Diagram of a mechanical component with an eye and shaft, no text or symbols present

Note: While wearing thick clothing, you may need to adjust your riflescope mounting location to accommodate for maximum eye relief.

Leveling The Reticle

For precise shot placement, the reticle and the rifle need to be squared or plumb to each other. This will reduce sighting errors that will be magnified as the distance to target is increased.

The reticles in ZEISS riflescopes are plumb with the flat surface of the bottom of the saddle area. To level the reticle using a plumb line, follow these helpful steps:

1. Ensure the rifle is unloaded and is level and affixed in a steady rest or sandbags throughout this procedure.

2. While viewing through the riflescope, reference a plumb line or plumb target frame at a suggested distance of approximately 100 meters / yards.

3. From the shooting position, center/align the reticle on the plumb line for reference and rotate the riflescope in the rings until the vertical line of the reticle is parallel with the plumb reference line.

When all is adjusted and aligned properly, finalize the tightening of the ring screws evenly to secure the riflescope in the rings.

Torque the ring screws to the recommended torque settings. Your ZEISS riflescope should now be mounted and secured in the proper position.

Instructions for use ZEISS LRP S5 318-50 | 525-56

Establishing a Sight-In Zero

Please visit www.zeiss.com/lrp-s5 or ZEISS Hunting YouTube channel for a video tutorial on this process and setting methods that can maximize the performance of your Ballistic Stop configured riflescope.

Riflescope

Adjust the elevation and windage turrets until the reticle is centered on the target, keeping the target centered in the bore during this process.

Bore of barrel Stock (1) (2) (3) Target

1. Confirm that the rifle is unloaded and the chamber is empty. Affix the rifle in a steady rest and remove the bolt assembly.
2. While looking down the bore's centerline from the action end (1), center the target in the bore. The target should appear in the center of the barrel's bore. (2) With the rifle held in a position not allowing it to move, adjust the elevation and windage turrets until the reticle is centered on the target (3), keeping the target centered in the bore during this process (ensure the windage turret is in the unlocked position, see pages 24–25).

Abstract geometric pattern with concentric circles and intersecting lines (no text or symbols)

Concentric circle with concentric rings and crosshairs, no text or symbols present

1. With the bore sighting process completed, you can begin live firing sight-in at the respective 25, 50, or 100 meters / yards. ZEISS recommends 2–3 confirmation shots. After the point of impact is confirmed, proceed to the next step. The 2–3 shots should be located somewhere on your sighting target.

2. Now aim the rifle and center the reticle on the intended sight-in target from step 3. While holding the rifle steady on the center of the target and looking through the riflescope, adjust the elevation and windage turrets until the reticle is aligned in the center of the 2-3 shot group from step 3.

3. After completing step 4 to confirm sight-in adjustments, shoot a three-shot group at the sight-in target. The center of the group should represent the center of aim. Once your zero is established, ZEISS suggests a final confirmation of 2–3 shots on target at your sight-in distance. See the "NOTE" section below.

4. a) Reindex the elevation turret to zero and set the Ballistic Stop (see page 21).
   b) Reindex the windage turret to zero and lock the turret (see page 25).

NOTE: Many variables can impact your point of aim and zero, i.e., different types of ammunition, ammunition temperature, barrel temperature, wind. Please zero-in under stable conditions and parameters.

Instructions for use ZEISS LRP S5 318-50 | 525-56

Elevation Turret

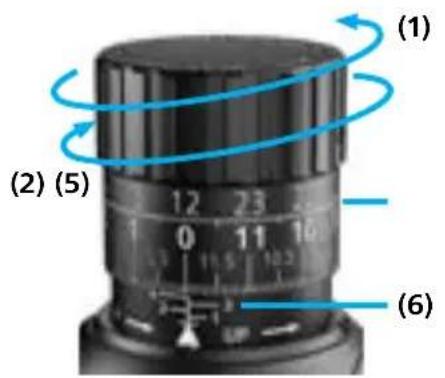

The turret incorporates a mechanically lifting design that moves the reticle vertically across its total elevation adjustment value.

Counterclockwise (CCW) adjustment for upward bullet impact on target (1) and clockwise (CW) adjustment for downward bullet impact on target (2). Depending upon the configuration of your riflescope, the turret

(1) (2) (5) (6)

(3)

(4) 3 12 23 1 0 11 5 0.5 11.5 10.5 LIP

34 32 30 58 58 4 2 0 28 26 3 1 29 27 UP

Elevation turret MRAD Elevation Turret MOA

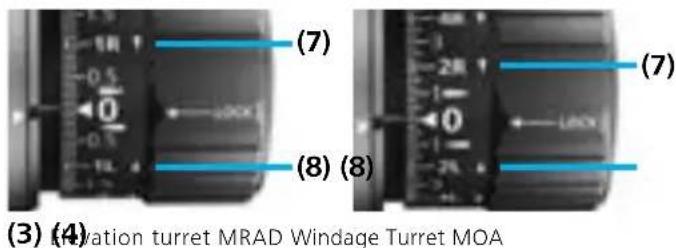

will be engraved with either milliradian (MRAD) (3) or minute of angle (MOA) (4) value of adjustment.

The dual-row engraving allows for quick visual tracking references for most short-to-long-distance shooting scenarios (5). The current turret rotation will be shown by the numbers 1-4 (6). Zero is represented with a horizontal hash-mark at the top of the delta indicator.

Exclusive to the MRAD elevation turret configuration, ZEISS has incorporated a more pronounced click (MPC) at every whole MRAD number. Therefore, every 10th click position has distinctly pronounced tactile and acoustic feedback.

The ZEISS LRP S5 models are shipped from the manufacturing facility

• with the elevation turret set at the middle of the riflescope's total elevation travel adjustment value.
• with the Ballistic Stop set to allow for total elevation travel adjustment value.

The per-click value will be:

■ MRAD turrets = 0.1 MRAD - per click
■ MOA turrets = 0.25 MOA – per click

The complete travel of one full rotation will be:

■ MRAD turrets = 12 MRAD – per rotation
■ MOA turrets = 30 MOA – per rotation

The total travel adjustment value will be:

■ MRAD turrets = 40.7 MRAD – total elevation travel
■ MOA turrets = 140 MOA – total elevation travel

How to Set the Ballistic Stop, Elevation

NOTE A: The Ballistic Stop is aligned to the "0" reference when set.

NOTE B: The elevation turret shall not be removed. It is only to be loosened for rotational adjustment to set the Ballistic Stop feature.

NOTE C: Do not attempt to remove the two accessible Torx TX 8 set screws from the turret. The turrets are designed to retain the two set screws to prevent the loss of hardware.

NOTE D: Do not attempt to remove the plugged set screw. This is to be permanent, and no adjustment is necessary outside of initial assembly. Unauthorized access and manipulation of this screw will void your warranty.

Step 1: It is assumed that the riflescope is, and that the turret settings are, now sighted-in to the preferred zeroing distance. It is suggested that the rifle and scope be well secured to prevent any unnecessary movement and allow for both hands to be free to work.

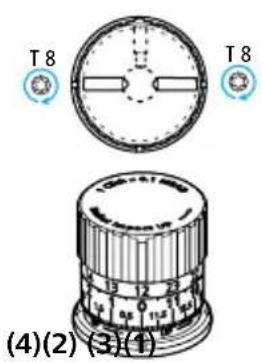

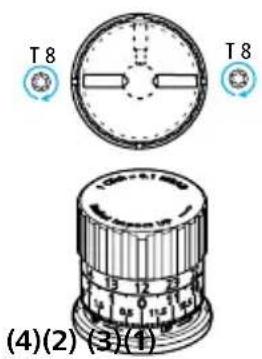

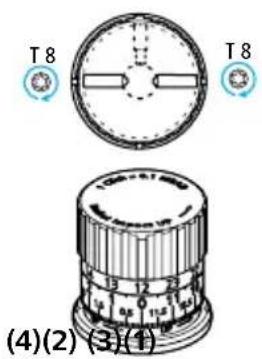

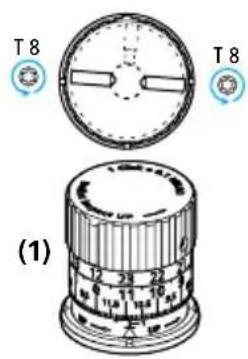

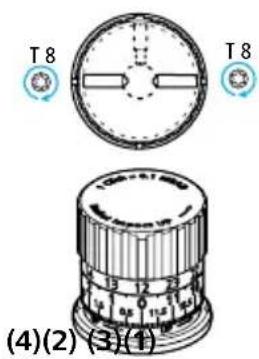

Step 2: Using the appropriate Torx T 8 (1) wrench (short side), loosen the TWO set screws by turning each of the two set screws counterclockwise for one rotation. (2)

Note: Be aware that the elevation turret will continue to exhibit a tactile 'click' feeling even after the two set screws are properly loosened. When following Step 2 correctly, the reticle adjustment function is now disengaged.

Step 3: With both set screws now loosened, press down firmly on the turret until it has stopped and is bottomed-out. (3)

Step 4: With the turret completely at the bottom, rotate the turret clockwise while keeping it pressed down until the turret comes to a hard stop. (3) Info: The Ballistic Stop is aligned with the "0" reference

Step 5: The turret's internal mechanical stops have now made contact, creating the 'stop' feel. While pressing down on the turret and ensuring it remains at the 'stop' position, tighten the previously loosened two set screws with the Torx wrench by turning each set screw clockwise until the set screw meets resistance. (4) Once resistance is felt, tighten turn to ensure the set screws are set firmly against the internal mechanism. The torque value setting for the set screws (T 8) is: 1.9 Nm or 16.8 in lbs.

Step 6: When completed, it is advised that the 'stop' setting is tested. To do so, try to rotate the elevation turret beyond the newly established 'stop'.

You should not be able to rotate past the newly established Ballistic Stop setting. It should render a solid and robust stop, with no further click feeling or adjustment.

Step 7: Once satisfied that the Ballistic Stop is set properly, confirm the rifle and scope zero by firing 2–3 additional shots on the sight-in target, at the sight-in distance, to reconfirm the previously established zero.

Note: If you have a need to re-set your Ballistic Stop (due to changing ammunition or rifle platform) follow the instructions below:

• turn elevation turret (CW) till existing Ballistic Stop
• loosen both screws of the elevation turret
• pull up the elevation turret till it stops
• tighten both screws
• follow "Establishing Sight-in-Zero" instructions (see page 18)
• reset the Ballistic Stop (see page 22, step 2)

T 8 T 6

T 8 T 8 (1)

1.) 2.)

T 8 T 8 (4)(2) (3)(1)

Instructions for use ZEISS LRP S5 318-50 | 525-56

External Locking Windage Turret (ELWT)

The turret incorporates a multi-turn functionality, with approximately two complete rotations of total windage adjustment value.

From the UNLOCKED position, counterclockwise (CCW) adjustment for rightward bullet impact on target (1), and clockwise (CW) adjustment for leftward bullet impact on target (2).

(1) (5) (6) (Locked) (2) (Unlocked)

(7) (7) (8) (8) (3) (4) Rotation turret MRAD Windage Turret MOA

Depending upon the configuration of your riflescope, the turret will be engraved with either milliradian (MRAD) (3) or minute of angle (MOA) (4) value of adjustment.

The locking feature protects the chosen turret setting by pushing in on the locking collar (5). To adjust the turret, the user will need to unlock the turret by pulling out on the locking collar (6).

The arrow indicators next to the respective engraving of 'R' (7) or 'L' (8) indicate the necessary direction to rotate the turret to get the bullet to impact further right or further left.

The ZEISS LRP S5 models are shipped from the manufacturing facility

• with the windage turret set at the middle of the riflescope's total windage travel adjustment value
• with the locking collar set in the 'locked' position.

The per-click value will be:

■ MRAD turrets = 0.1 MRAD - per click
■ MOA turrets = 0.25 MOA – per click

The complete travel of one full rotation will be:

■ MRAD turrets = 12 MRAD - per rotation
■ MOA turrets = 30 MOA – per rotation

The total travel adjustment value will be:

■ MRAD turrets = 17.5 MRAD – total windage travel

■ MOA turrets = 60 MOA – total windage travel

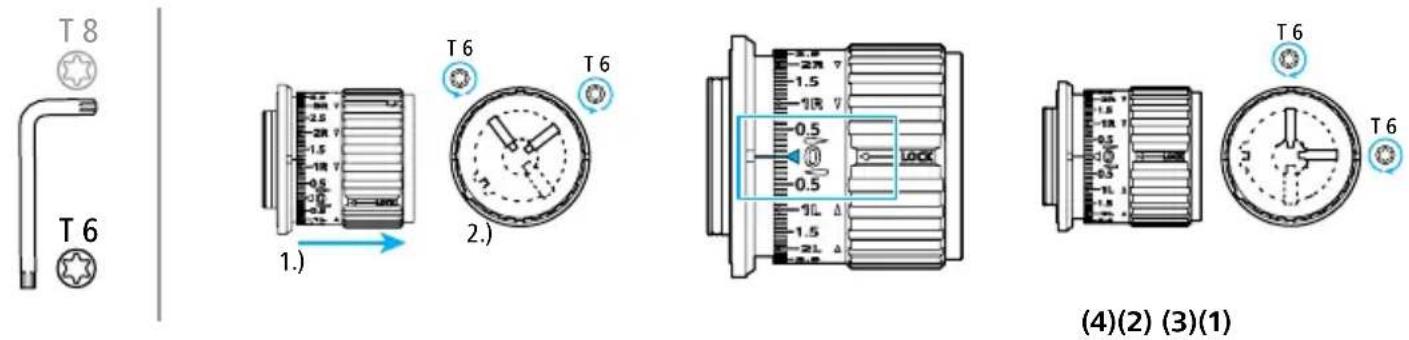

How to Re-Index to Zero (ELWT)

NOTE A: The windage turret shall not be removed. It is only to be loosened for rotational adjustment to set the zero indexing.

NOTE B: Do not attempt to remove the two accessible Torx TX 6 set screws from the turret. The turrets are designed to retain the two set screws to prevent the loss of hardware.

NOTE C: Do not attempt to remove the plugged set screw. This is to be permanent, and no adjustment is necessary outside of initial assembly. Unauthorized access and manipulation of this screw will void your warranty.

Step 1: It is assumed that the riflescope is zeroed and that the turret settings are now sighted-in to the preferred zeroing distance. It is suggested that the rifle and scope be well secured to prevent any unnecessary movement and allow for both hands to be free to work.

Step 2: With the turret in the UNLOCKED position (2), using the appropriate Torx T 6 wrench (1), loosen the TWO set screws by turning each of the two set screws counterclockwise for one rotation. (2)

Note: Be aware that the windage turret will continue to exhibit a tactile 'click' feeling even after the two set screws are properly loosened. When following Step 2 correctly, the reticle adjustment function is disengaged.

Step 3: With both set screws now loosened, rotate the locking collar until the numerical zero is aligned and indexed with the zero indicator mark in the center position and delta. (3)

Step 4: While continuing to hold the turret in place and ensuring it remains aligned and indexed at the zero position, tighten the previously loosened two set screws with the Torx wrench by turning each set screw clockwise until the set screw meets resistance. (4) Once resistance is felt, tighten to ensure the set screws are set firmly against the internal mechanism. The torque value setting for the set screws (T 6) is 0.8 Nm or 7.08 in lbs.

Step 5: When completed, it is advised that the zero setting is tested. To do so, lock the turret by pressing the locking collar inward. Now try to rotate the turret. You should not be able to rotate while in the locked position.

Afterward, unlock the turret by pulling out on the locking collar. From the unlocked position, you should be able to make reticle adjustments by rotating the turret forward and backward.

Step 6: Once satisfied that the ELWT is set properly to zero, confirm the rifle and scope zero by firing 2–3 additional shots on the sight-in target, at the sight-in distance, to reconfirm the previously established zero.

Instructions for use ZEISS LRP S5 318-50 | 525-56

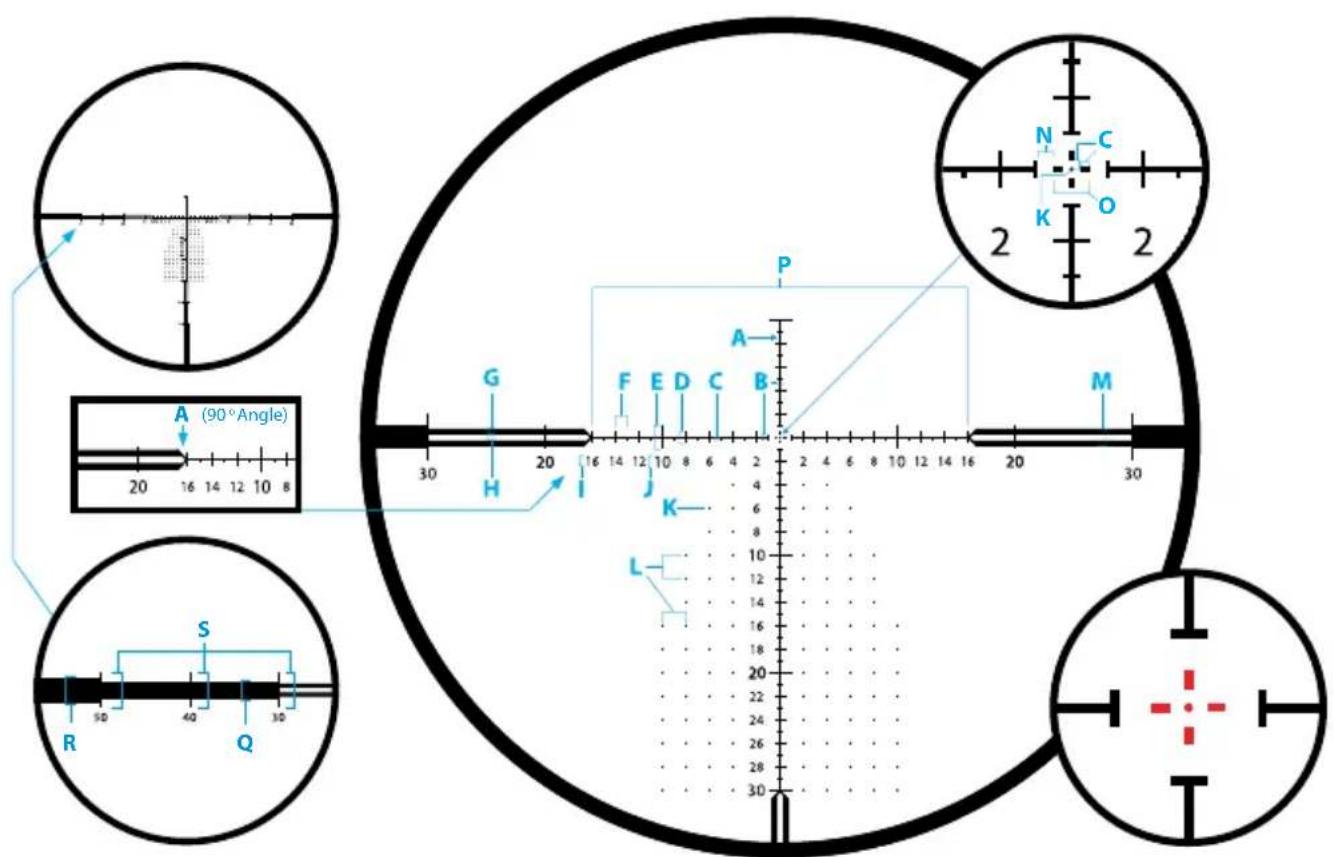

Reticle Type ZF-MRi (FFP)

28770543 1 2 3 4 5 6 7 8 3 2 1 2 4 6 8

ZF-MRi = ZEISS First Focal Plane - Milliradian, illuminated

ZEISS LRP S5 318-50 525-56
Unit of Measure MRAD
Line Thickness A 0.04		0.03
Distance B 0.1
Distance C 0.2
Distance D 0.4
Distance E 0.6
Distance F 0.2
Distance G 0.2
Distance H 0.6
Dot Size I	0.05	0.04
Distance J	0.2
Distance K	0.5
Distance L	1.0
Standard Number Size M	0.3
Distance N	0.5
Distance O	0.2
Distance P	0.2
Distance Q	0.9
Distance R	1.2
Distance S	1.8

8 7 6 A (90° Angle) S R Q CD/DBE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78

Magnification image for illustrative purposes

Instructions for use ZEISS LRP S5 318-50 | 525-56

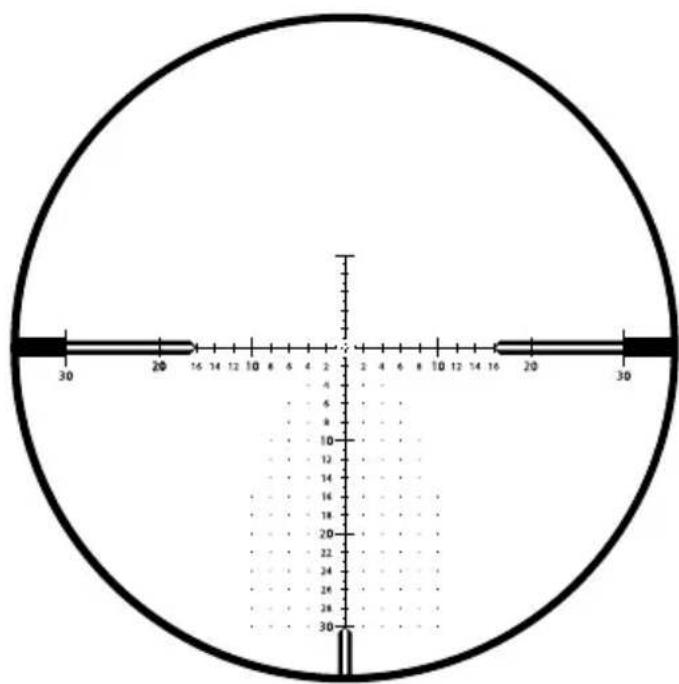

Reticle Type ZF-MOAi (FFP)

30 20 16 14 12 10 8 6 4 2 0 2 4 6 8 10 12 14 16 20 30 4 6 8 10 12 14 16 18 20 22 24 26 28 30

ZF-MOAi = ZEISS First Focal Plane - Minute of Angle, illuminated

ZEISS LRP S5 318-50 525-56
Unit of Measure MOA
Line Thickness A	0.125 0.1
Distance B	0.5
Distance C	0.25
Distance D	1.0
Distance E	2.0
Distance F	1.0
Distance G	0.5
Distance H	0.5
Standard Number Size I	0.75
10, 20, 30 Number Size J	1.0
Dot Size K	0.125
Dot Spacing L 2.0
Distance M 1.5
Spacing around Center Cross N 0.5
Distance O 1.0
Distance P 32
Distance Q 2.0
Distance R 3.0
Distance S	4.0

A (90° Angle) R S Q 30 20 16 14 12 10 8 G F E D C B P A M H I J K L N C O N 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2

Magnification image for illustrative purposes

Instructions for use ZEISS LRP S5 318-50 | 525-56

Accessories

ZEISS Precision Rings with Integral Anti-cant Bubble Level

ZEISS ultralight 1913 Mil-Std, STANAG-compliant rings are manufactured to the highest of standards from premium materials and with tight tolerances for your long-term safety and field applications. They are designed for optimal long-range shooting solutions and allow for either right or left-handed operations as well as eye dominance. The bubble level is easily viewed from the shooting position, creating no disturbance in your shooting position. A smarter, sleeker, and ultralightweight ring design for all heavy-duty hunting and shooting applications.

Ring height measurements are determined from the top of the mounting rail to the center line of the ring's bore.

34 mm needed for ZEISS LRP S5

Two black mechanical components with circular cutouts and mounting holes, no visible text or symbols

Recoil Lug

Integral bottom recoil lug for best alignment and a secure zero under the harshest recoil.

Hard Case

Included, with both T15 and T25 Torx ^® driver bits.

Bubble Level

Integral anti-cant bubble level in top half of ring.

Ultralight

Approximately 4.4 oz. with screws (set 30 mm low).

Durable Material

7075-T6 aluminum, 30-micron hard anodized finish – matte black.

Wider

Offers more clamping surface for a more secure mounting solution for heavy recoiling rifles and heavy riflescopes.

Sunshade 3"

Matte black – hard anodized sunshades. This ZEISS accessory helps to eliminate harsh glare from the sun while viewing and shooting. Simply install by threading the sunshade to the riflescope's objective.

Black cylindrical object with smooth surface (no text or symbols visible)

Order no. 529860-0002-000 50 mm

Black cylindrical object with smooth surface (no text or symbols visible)

Order no. 529860-0003-000 56 mm

Objective Lens Flip-Up Cover

Simply install by threading the flip-up cover to the riflescope's objective or sunshade.

Close-up of a black circular object with a strap, resembling a smartwatch or ring (no visible text or symbols)

Order no. 50 mm 2105-737 56 mm 2105-798

Magnification Throw Lever

For fast magnification adjustments when speed is a critical factor.

Close-up of a metallic pipe fitting with a black clamping mechanism (no visible text or symbols)

Order no. 2224-899

Instructions for use ZEISS LRP S5 318-50 | 525-56

Care and Maintenance

Ensure your ZEISS riflescope is not exposed to extreme heat over prolonged periods of time, such as those elevated temperatures sometimes found inside of a vehicle on a sunny day.

Your ZEISS riflescope is designed and manufactured to give you many years of reliable and long-term service. One of the best ways to protect your optical investment is to be sure and use appropriate lens covers when you are not using your riflescope. To further protect your riflescope, ZEISS strongly suggests you keep the product clean and free of troublesome sand, dirt, saltwater, and various contaminants.

Cleaning Your ZEISS Riflescope's Exterior

For a heavily soiled riflescope, you can rinse the riflescope under a stream of lukewarm water and then wipe it down with a soft, clean tissue. Do not use strong solvents to clean your riflescope or its optics. Using such solvents will void the ZEISS warranty.

ZEISS LotuTec® Coating

Your riflescope has ZEISS LotuTec ^® coating. The effective protective coating for the lens surfaces noticeably reduces contamination of the lenses through an especially smooth surface and the resulting water-beading effect. All types of contamination stick less and can be quickly and easily removed without smearing. LotuTec ^® coating is durable and abrasion-resistant.

ZEISS 30 DISPLAY CLEAN BEANS ZEISS

Cleaning Your Lenses

ZEISS recommends using original ZEISS lens cleaning solutions to care for the lenses on your riflescope.

Long-Term Storage

ZEISS suggests you remove the battery – where applicable – if the riflescope will not be used for a prolonged period of time. Store the riflescope in a cool, dry, clean, and contaminant-free location.

Instructions for use ZEISS LRP S5 318-50 | 525-56

Customer Service and Warranty

QR code image containing encoded data, no visible human-readable text

For service questions or obtaining the warranty terms, please see our website: www.zeiss.com/cop/warranty

For service inquiry or a free copy of the warranty terms for your region, please contact:

ZEISS Customer Service

Zeiss Sports Optics GmbH

Gloelstr. 3 – 5, 35576 Wetzlar, Germany

Phone [phone]

E-Mail [e-mail]

ZEISS Customer Service USA

Carl Zeiss SBE, LLC

Consumer Products

1050 Worldwide Blvd.

Hebron, KY 41048-8632, USA

Phone [phone]

E-Mail [e-mail]

ZEISS LRP S5 User Guide

318-50 | 525-56

Long-Range Precision Riflescope

Patents: www.zeiss.com/cop/patents

EN DE FR ES IT NL DK

FI HU PL SE RU JP CN | 03.2023

www.zeiss.com/precision-shooting

Close-up of a black mechanical dial with measurement markings (no readable text or symbols)

Close-up of a black cylindrical device dial with measurement markings (no readable text or symbols)

Close-up of a black camera lens with adjustment knobs and focal point (no visible text or symbols)

Close-up of a black camera lens with adjustment knobs and focal point (no visible text or symbols)

Two circular diagrams showing a landscape view and a crosshield plot with scale bar (no text or symbols)

Close-up of a black optical lens with blue circular arrows indicating rotational direction (no text or symbols)

Diagram showing a circular cross-section before and after transformation, with scale bars and directional arrow indicating measurement or analysis.

Diagram illustrating optical measurement setup with two circular views and a magnified view of a camera lens, labeled (1) and (2).

Absehenbeleuchtung

Close-up of a black cylindrical object with a blue circular arrow indicating rotation (no text or symbols)

Close-up of a camera lens showing internal components and a blue circular arrow indicating rotation (no text or symbols)

Parallaxeeinstellung

Diagram showing a crosshair with numbered scale and measurement markings, likely from an optical or engineering context.

Diagram of a mechanical component with an eye and shaft, no text or symbols present

Abstract geometric design with concentric circles and intersecting lines (no text or symbols)

Concentric circle with concentric rings and crosshairs, no text or symbols present

T 8 T 8 (1)

Two black mechanical components with circular cutouts, shown side by side (no text or symbols visible)

Rückstoßstollen

Black cylindrical object with smooth surface (no text or symbols visible)

Black cylindrical object with smooth surface (no text or symbols visible)

Close-up of a black circular object with a strap, resembling a smartwatch or ring (no visible text or symbols)

Close-up of a metallic pipe fitting with a black clamping mechanism (no visible text or symbols)

Best.-Nr. 2224-899

Pflege und Wartung

QR code image containing encoded data, no visible human-readable text

1050 Worldwide Blvd.

Hebron, KY 41048-8632, USA

Telefon [phone]

E-Mail [e-mail]

ZEISS LRP S5 User Guide

318-50 | 525-56

Long-Range Precision Riflescope

Patents: www.zeiss.com/cop/patents

EN DE FR ES IT NL DK

FI HU PL SE RU JP CN | 03.2023

www.zeiss.com/cop/safety

Table des matières

www.zeiss.com/precision-shooting

Close-up of a black cylindrical device dial with measurement markings (no visible text or symbols)

Close-up of a black camera lens with adjustment knobs and focal point (no visible text or symbols)

Close-up of a black mechanical dial with measurement markings (no readable text or symbols)

Close-up of a black camera lens with adjustment knobs and a lock indicator (no readable text or symbols)

Close-up of a black optical lens with blue circular arrows indicating rotational direction (no text or symbols)

Two circular diagrams showing a landscape with mountains and a crosshair overlay, no text or symbols present.

(1a) Grossissement min.
(1b) Grossissement max.

Diagram showing a circular cross-section before and after transformation, with scale bars and directional arrow indicating measurement or analysis.

(2a) Réticule flou
(2b) Réticule net

Diagram illustrating optical measurement setup with two circular gauges and a camera lens, labeled (1) and (2)

Close-up of a camera lens component with blue circular motion indicator (no text or symbols)

Close-up of a camera lens with a blue circular arrow indicating rotation, showing the lens and aperture (no text or symbols)

Close-up of a circular optical measurement dial with scale markings and pointer positions labeled in millieters.

Diagram showing a crosshair with numbered scale and measurement markings, likely from an optical or engineering context.

Diagram of a mechanical component with an eye and shaft, no text or symbols present

Abstract geometric pattern with concentric circles and intersecting lines (no text or symbols)

Concentric circle with concentric rings and crosshairs, no text or symbols present

T 8 T 8 (1)

T 8 T 8 (4)(2) (3)(1)

ZF-MOAi = ZEISS Minute of Angle, illuminated (First Focal Plane) (minutes d'angle, éclairé, premier plan focal)

A (90°Angle) R S Q 30 20 16 14 12 10 8 G H I J K L M P A B N C 2 K O 2 30

Two black mechanical components with circular cutouts, shown side by side (no text or symbols visible)

Cale anti-recul

Black cylindrical object with smooth surface (no text or symbols visible)

Référence

529860-0002-000

50 mm

Black cylindrical object with smooth surface (no text or symbols visible)

Référence

529860-0003-000

56 mm

Flip Cover

Close-up of a black circular object with a strap, resembling a smartwatch or ring (no visible text or symbols)

Référence

50 mm 2105-737

56 mm 2105-798

Throw Lever

Close-up of a metallic pipe fitting with a black clamping mechanism (no visible text or symbols)

Référence

2224-899

QR code image containing encoded data, no visible human-readable text

1050 Worldwide Blvd.

Long-Range Precision Riflescope

Patents: www.zeiss.com/cop/patents

EN DE FR ES IT NL DK

FI HU PL SE RU JP CN 03.2023

www.zeiss.com/precision-shooting

Close-up of a black cylindrical device dial with measurement markings (no visible text or symbols)

Close-up of a black camera lens with adjustment knobs and focal point (no visible text or symbols)

1 – Torreta de ajuste lateral MRAD

Close-up of a black cylindrical device dial with measurement markings (no readable text or symbols)

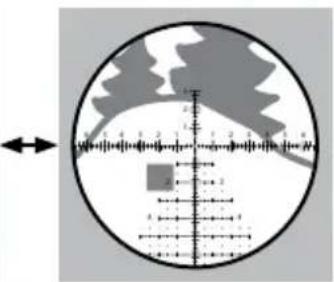

Two circular diagrams showing a landscape view and a crosshairs with a scale bar (no text or symbols)

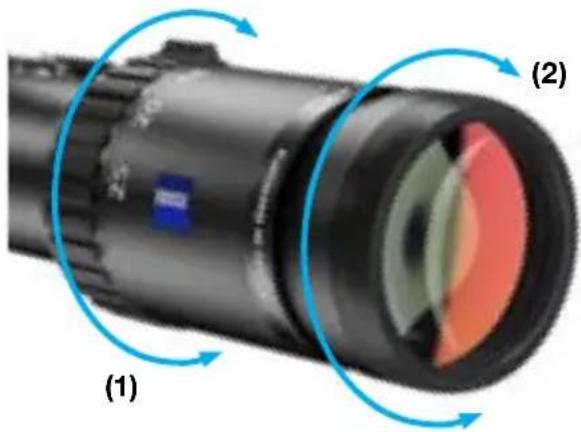

Close-up of a black optical lens with blue circular arrows indicating rotational direction (no text or symbols)

Diagram showing a circular cross-section before and after transformation, with scale bars and directional arrow indicating measurement or analysis.

(2a) Reticula no enfocada
(2b) Retícula enfocada

Diagram illustrating optical measurement setup with two circular gauges and a camera lens, labeled (1) and (2)

Close-up of a camera lens component with blue motion arrow indicating rotation (no text or symbols)

Close-up of a camera lens showing internal components and a blue circular arrow indicating rotation (no text or symbols)

Ajuste del paralaje

Diagram showing a crosshair with numbered scale and measurement markings, likely from an optical or engineering context.

Diagram of a mechanical component with an eye and shaft, no text or symbols present

Close-up of a mechanical T-joint with a circular crosshair and labeled 'Visor' (no other text or symbols)

Abstract geometric design with concentric circles and intersecting lines (no text or symbols)

Concentric circle with concentric rings and crosshairs, no text or symbols present

T 8 T 8 (1)

1.) 2.)

T 8 T 8 (4)(2) (3)(1)

Two black mechanical components with circular cutouts, no visible text or symbols

Black cylindrical object with smooth surface (no text or symbols visible)

Black cylindrical object with smooth surface (no text or symbols visible)

Close-up of a black circular object with a strap, resembling a smartwatch or ring (no visible text or symbols)

Close-up of a metallic pipe fitting with a black clamping strap (no visible text or symbols)

QR code image containing encoded data, no visible human-readable text

1050 Worldwide Blvd.

Hebron, KY 41048-8632, EE. UU.

Long-Range Precision Riflescope

Patents: www.zeiss.com/cop/patents

EN DE FR ES IT NL DK

FI HU PL SE RU JP CN | 03.2023

www.zeiss.com/cop/safety

Indice

www.zeiss.com/precision-shooting

Close-up of a black cylindrical device dial with measurement markings (no readable text or symbols)

Close-up of a black camera lens with adjustment knobs and focal point (no visible text or symbols)

Close-up of a black cylindrical device dial with measurement markings (no visible text or symbols)

Close-up of a black camera lens with adjustment knobs and a lock indicator (no visible text or symbols)

Two circular diagrams showing a landscape with mountains and a crosshairs, one with a scale bar (no text or symbols)

Close-up of a black optical lens with blue circular arrows indicating rotational direction (no text or symbols)

Diagram showing a circular cross-section before and after transformation, with labeled axes and wave patterns.

Diagram illustrating optical measurement setup with two circular gauges and a camera lens, labeled (1) and (2)

Close-up of a camera lens component with blue motion arrow indicating rotation (no text or symbols)

Close-up of a camera lens showing internal components and a blue circular arrow indicating rotation (no text or symbols)

Close-up of a circular optical measurement dial with scale markings and pointer positions

Diagram showing a crosshair with numbered scale and measurement markings, likely from an optical or engineering context.

Diagram of a mechanical component with an eye and shaft, no text or symbols present

Two identical circular diagrams with concentric rings and crosshairs, no text or symbols present.

T 8 T 8 (4)(2) (3)(1)

Two black mechanical components with circular cutouts, shown against a white background (no text or symbols visible)

Calcio anti-rinculo

Black cylindrical object with smooth surface (no text or symbols visible)

N. d'ordine

529860-0002-000

50 mm

Black cylindrical object with smooth surface (no text or symbols visible)

N. d'ordine

529860-0003-000

56 mm

Flip Cover

Close-up of a black circular object with a strap, resembling a smartwatch or ring (no visible text or symbols)

N. d'ordine

50 mm 2105-737

56 mm 2105-798

Throw Lever

Close-up of a metallic pipe fitting with a black clamping strap (no visible text or symbols)

N. d'ordine

2224-899

QR code image containing encoded data, no visible human-readable text

1050 Worldwide Blvd.

Hebron, KY 41048-8632, USA

Telefono 1-800-441-3005

E-mail [e-mail]

ZEISS LRP S5 User Guide

318-50 | 525-56

Long-Range Precision Riflescope

Patents: www.zeiss.com/cop/patents

EN DE FR ES IT NL DK

FI HU PL SE RU JP CN | 03.2023

www.zeiss.com/cop/safety

Inhoudsopgave

www.zeiss.com/precision-shooting

Close-up of a black cylindrical device dial with measurement markings (no readable text or symbols)

Close-up of a black camera lens with adjustment knobs and focal point (no visible text or symbols)

Close-up of a black cylindrical device dial with measurement markings (no visible text or symbols)

Close-up of a black camera lens with adjustment knobs and a lock indicator (no visible text or symbols)

Two circular diagrams showing a landscape view and a crosshairs with a scale bar (no text or symbols)

(1a) Lage vergroting
(1b) Hoge vergroting

Close-up of a black optical lens with blue circular arrows indicating rotational direction (no text or symbols)

Diagram showing a circular cross-section before and after transformation, with scale bars and directional arrow indicating measurement or analysis.

(2a) Onscherp vizier
(2b) Scherp vizier

Vizier scherpstellen / dioptrie instellen

Diagram illustrating optical measurement setup with two circular gauges and a camera lens, labeled (1) and (2)

Vizierverlichting

Close-up of a camera lens component with blue motion arrow indicating rotation (no text or symbols)

Close-up of a camera lens showing internal components and a blue circular arrow indicating rotation (no text or symbols)

Parallaxregeling

Close-up of a circular optical scale with measurement markings and pointer positions, showing 120-degree markings.

Diagram showing a crosshair with numbered scale and measurement markings, likely from an optical or engineering context.

Diagram of a pointed object with a cylindrical shaft and internal structure, no text or symbols present

Abstract geometric pattern with concentric circles and intersecting lines (no text or symbols)

Concentric circle with concentric rings and crosshairs, no text or symbols present

T 8 T 8 (1)

1.) 2.)

T 8 T 8 (4)(2) (3)(1)

Vizier ZF-MOAi (FFP)

ZF-MOAi = ZEISS Minute of Angle, illuminated (First Focal Plane) (boogminuten, verlicht, eerste BV)

ZEISS LRP S5 318-50 525-56
Maateenheid MOA
Lijndikte A	0,125 0,1
Afstand B	0,5
Afstand C	0,25
Afstand D	1,0
Afstand E	2,0
Afstand F	1,0
Afstand G	0,5
Afstand H	0,5
Standaard cijfergrootte I	0,75
10, 20, 30 cijfergrootte J	1,0
Puntgrootte K	0,125
Puntafstand L 2,0
Afstand M 1,5
Afstand rond middenkruis N 0,5
Afstand O 1,0
Afstand P 32
Afstand Q 2,0
Afstand R 3,0
Afstand S	4,0

A (90° Angle) R S Q 30 20 16 14 12 10 8 G F E D C B P A M H I J K L N C O N 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2

Black cylindrical object with smooth surface (no text or symbols visible)

Bestelnr. 529860-0002-000 50 mm

Black cylindrical object with smooth surface (no text or symbols visible)

Bestelnr. 529860-0003-000 56 mm

Flip cover

Close-up of a black circular object with a strap, resembling a smartwatch or ring (no visible text or symbols)

Bestelnr. 50 mm 2105-737 56 mm 2105-798

Throw lever

Close-up of a metallic pipe fitting with a black clamping mechanism (no visible text or symbols)

Bestelnr. 2224-899

Onderhoud

QR code image containing encoded data, no visible human-readable text

1050 Worldwide Blvd.

Hebron, KY 41048-8632, USA

Telefoon 1-800-441-3005

E-mail [e-mail]

ZEISS LRP S5 User Guide

318-50 | 525-56

Long-Range Precision Riflescope

Patents: www.zeiss.com/cop/patents

EN DE FR ES IT NL DK

FI HU PL SE RU JP CN | 03.2023

www.zeiss.com/cop/safety

Indholdsfortegnelse

Close-up of a black cylindrical device dial with measurement markings (no visible text or symbols)

Close-up of a black cylindrical device dial with measurement markings (no visible text or symbols)

Close-up of a black camera lens with adjustment knobs and focal point (no visible text or symbols)

I1 – Sidejusteringstårn MRAD

Close-up of a black camera lens with adjustment knobs and a lock indicator (no visible text or symbols)

Two circular diagrams showing a landscape with mountains and a crosshairs, one with a scale bar (no text or symbols)

Close-up of a black optical lens with blue circular arrows indicating rotational direction (no text or symbols)

Diagram showing a circular cross-section before and after transformation, with labeled axes and wave patterns.

Diagram illustrating optical measurement setup with two circular gauges and a camera lens, labeled (1) and (2)

Trådkorsbelysning

Close-up of a camera lens component with blue circular motion indicator (no text or symbols)

Close-up of a camera lens with a blue circular arrow indicating rotation, showing internal components (no text or symbols)

Parallakse-indstilling

Close-up of a circular dial with measurement markings and scale, showing 12 segments and 0.5 units.

Billedplan bag ved trådkorset (parallakse)

Diagram showing a crosshair with numbered scale and measurement markings, likely from an optical or engineering context.

Diagram of a mechanical component with an eye and shaft, no text or symbols present

Two identical circular diagrams with concentric rings and crosshairs, no text or symbols present.

T 8 T 8 (1)

1.) 2.)

T 8 T 8 (4)(2) (3)(1)

Sidejusteringstårn med lås (ELWT)

Two black mechanical components with circular cutouts, shown side by side (no text or symbols visible)

Rekyldæmper

Black cylindrical object with smooth surface (no text or symbols visible)

Best.nr. 529860-0002-000 50 mm

Black cylindrical object with smooth surface (no text or symbols visible)

Best.nr. 529860-0003-000 56 mm

Flip Cover

Close-up of a black circular object with a strap, resembling a smartwatch or ring (no visible text or symbols)

Best.nr. 50 mm 2105-737 56 mm 2105-798

Throw Lever

Close-up of a metallic pipe fitting with a black clamping mechanism (no visible text or symbols)

Best.nr. 2224-899

QR code image containing encoded data, no visible human-readable text

1050 Worldwide Blvd.

Hebron, KY 41048-8632, USA

Telefon [phone]

E-mail [e-mail]

ZEISS LRP S5 User Guide

318-50 | 525-56

Long-Range Precision Riflescope

Patents: www.zeiss.com/cop/patents

EN DE FR ES IT NL DK

FI HU PL SE RU JP CN | 03.2023

www.zeiss.com/cop/safety

Sisällysluettelo

www.zeiss.com/precision-shooting

Close-up of a black cylindrical dial with measurement markings (no visible text or symbols)

Close-up of a black industrial rotary dial with dual dials and a pointer (no visible text or symbols)

Close-up of a black camera lens with adjustment knobs and focal point (no visible text or symbols)

Close-up of a black camera lens with adjustment knobs and a lock indicator (no visible text or symbols)

Simple circular diagram with a crosshair and landscape elements, no text or symbols present.

Diagram showing a circular cross-section with shaded regions and a scale ruler, likely illustrating a measurement or calibration system.

Close-up of a black optical lens with blue circular arrows indicating rotational direction (no text or symbols)

Simple circular diagram with a central crosshair and concentric lines, no text or symbols present.

Circular diagram with a horizontal axis and vertical lines, no text or symbols present

Diagram illustrating optical measurement setup with two circular gauges and a camera lens, labeled (1) and (2)

Ristikon valaistus

www.zeiss.com/cop/safety

Close-up of a camera lens component with blue motion arrow indicating rotation (no text or symbols)

Close-up of a camera lens showing internal components and a blue circular arrow indicating rotation (no text or symbols)

Parallaksisäätö

Close-up of a circular optical measurement dial with scale markings and pointer positions

Diagram showing a crosshair with numbered scale and measurement markings, likely from an optical or engineering context.

Diagram of a mechanical component with an eye and shaft, no text or symbols present

Abstract geometric pattern with concentric circles and intersecting lines (no text or symbols)

Concentric circle with concentric rings and crosshairs, no text or symbols present

T 8 T 8 (4)(2) (3)(1)

Ristikko ZF-MOAi (FFP)

30 20 16 14 12 10 8 6 4 2 0 2 4 6 8 10 12 14 16 20 30 4 6 8 10 12 14 16 18 20 22 24 26 28 30

Two black mechanical components with circular cutouts and mounting holes, shown side by side (no text or symbols visible)

Rekyylivaste

Black cylindrical object with smooth surface (no text or symbols visible)

Tilausnro

529860-0002-000

50 mm

Black cylindrical object with smooth surface (no text or symbols visible)

Tilausnro

529860-0003-000

56 mm

Kääntökansi

Close-up of a black circular object with a strap, resembling a smartwatch or ring (no visible text or symbols)

Tilausnro

50 mm 2105-737

56 mm 2105-798

Säätövipu

Close-up of a metallic pipe fitting with a black clamping mechanism (no visible text or symbols)

Tilausnro

2224-899

QR code image containing encoded data, no visible human-readable text

1050 Worldwide Blvd.

Hebron, KY 41048-8632, USA

Puhelin 1-800-441-3005

Sähköposti [e-mail]

ZEISS LRP S5 User Guide

318-50 | 525-56

Long-Range Precision Riflescope

Patents: www.zeiss.com/cop/patents

EN DE FR ES IT NL DK

FI HU PL SE RU JP CN | 03.2023

www.zeiss.com/cop/safety

Tartalomjegyzék

www.zeiss.com/precision-shooting

Close-up of a black cylindrical device dial with measurement markings (no readable text or symbols)

Close-up of a black industrial rotary dial with dual dials (no visible text or symbols)

Close-up of a black camera lens with adjustment knobs and focal point (no visible text or symbols)

Close-up of a black camera lens with adjustment knobs and a lock indicator (no visible text or symbols)

Two circular diagrams showing a landscape with mountains and a crosshairs, one with a scale bar and arrow, the other with a shaded region (no text or symbols)

Close-up of a black optical lens with blue circular arrows indicating rotational direction (no text or symbols)

Diagram showing a circular cross-section before and after transformation, with scale bars and waveform patterns on the right side.

Diagram illustrating optical measurement setup with two circular gauges and a camera lens, labeled (1) and (2)

Irányzékvilágítás

Close-up of a camera lens component with blue circular motion indicator (no text or symbols)

Close-up of a camera lens with a blue circular arrow indicating rotation, showing internal components (no text or symbols)

Close-up of a circular optical scale with measurement markings and pointer, showing 120-degree markings.

Diagram showing a crosshair with numbered scale and measurement markings, likely from an optical or mechanical measurement system.

Abstract geometric pattern with concentric circles and intersecting lines (no text or symbols)

Concentric circle with concentric rings and crosshairs, no text or symbols present

T 8 T 8 (1)

T 8 T 8 (4)(2) (3)(1)

Two black mechanical components with circular cutouts, no visible text or symbols

Visszarúgás-elnyelő

Black cylindrical object with smooth surface (no text or symbols visible)

Rendelési szám

529860-0002-000

50 mm

Black cylindrical object with smooth surface (no text or symbols visible)

Rendelési szám

529860-0003-000

56 mm

Close-up of a black circular object with a strap, resembling a smartwatch or ring (no visible text or symbols)

Rendelési szám

50 mm 2105-737

56 mm 2105-798

Close-up of a metallic pipe fitting with a black clamping strap (no visible text or symbols)

Rendelési szám

2224-899

QR code image containing encoded data, no visible human-readable text

1050 Worldwide Blvd.

Hebron, KY 41048-8632, USA

Telefon [phone]

E-mail [e-mail]

ZEISS LRP S5 User Guide

318-50 | 525-56

Long-Range Precision Riflescope

Patents: www.zeiss.com/cop/patents

EN DE FR ES IT NL DK

FI HU PL SE RU JP CN | 03.2023

Close-up of a black cylindrical device dial with measurement markings (no visible text or symbols)

Close-up of a black camera lens with adjustment knobs and focal point (no visible text or symbols)

Close-up of a black cylindrical device dial with measurement markings (no visible text or symbols)

Close-up of a black camera lens with adjustment knobs and a lock indicator (no readable text or symbols beyond measurement markings)

Diagram illustrating a landscape assessment system with crosshairs, scale, and directional arrows for surveying or monitoring.

Close-up of a black optical lens with blue circular arrows indicating rotational direction (no text or symbols)

Diagram showing a circular cross-section before and after transformation, with scale bars and waveform patterns on the right side.

Diagram illustrating optical measurement setup with two circular gauges and a magnified view of the lens, labeled (1) and (2).

Close-up of a camera lens component with blue circular motion indicator (no text or symbols)

Close-up of a camera lens with a blue circular arrow indicating rotation, showing the lens and aperture (no text or symbols)

Close-up of a circular optical scale with measurement markings and pointer positions, showing 120-degree markings.

Diagram showing a crosshair with numbered scale and measurement markings, likely from an optical or engineering drawing.

Diagram of a camera lens system with an optical lens and focal point (no text or labels)

Abstract geometric pattern with concentric circles and intersecting lines (no text or symbols)

Concentric circle with concentric rings and crosshairs, no text or symbols present

T 8 T 8 (1)

T 8 T 8 (4)(2) (3)(1)

Two black mechanical components with circular cutouts, no visible text or symbols

Opora (recoil lug)

Black cylindrical object with smooth surface (no text or symbols visible)

Nr katalogowy

529860-0002-000

50 mm

Black cylindrical object with smooth surface (no text or symbols visible)

Nr katalogowy

529860-0003-000

56 mm

Flip Cover

Close-up of a black circular object with a strap, resembling a smartwatch or ring (no visible text or symbols)

Nr katalogowy

50 mm 2105-737

56 mm 2105-798

Throw Lever

Close-up of a metallic pipe fitting with a black clamping mechanism (no visible text or symbols)

Nr katalogowy

2224-899

QR code image containing encoded data, no visible human-readable text

1050 Worldwide Blvd.

Hebron, KY 41048-8632, USA

Telefon [phone]

E-mail [e-mail]

ZEISS LRP S5 User Guide

318-50 | 525-56

Long-Range Precision Riflescope

Patents: www.zeiss.com/cop/patents

EN DE FR ES IT NL DK

FI HU PL SE RU JP CN | 03.2023

Close-up of a black cylindrical device dial with measurement markings (no readable text or symbols)

Close-up of a black camera lens with adjustment knobs and focal point (no visible text or symbols)

Close-up of a black cylindrical device dial with measurement markings (no visible text or symbols)

Close-up of a black camera lens with adjustment knobs and a lock indicator (no visible text or symbols)

Two circular diagrams showing a landscape with mountains and a crosshair overlay, no text or symbols present.

Close-up of a black optical lens with blue circular arrows indicating rotational direction, labeled (1) and (2), showing internal color bands.

Diagram showing a circular cross-section before and after transformation, with labeled axes and wave patterns.

(2a) Otydlig streckplatta
(2b) Tydlig streckplatta

Diagram illustrating optical measurement setup with two circular views and a camera lens, labeled (1) and (2), showing alignment and rotation.

Belysning av streckplattan

Close-up of a camera lens component with blue circular motion indicator (no text or symbols)

Close-up of a camera lens with a blue circular arrow indicating rotation, showing the lens and aperture (no text or symbols)

Parallaxinställning

Close-up of a circular optical measurement dial with scale markings and pointer positions labeled in millieters.

Fokalplan bakom streckplattan (parallax)

Diagram showing a crosshair with numbered scale and measurement markings, likely from an optical or mechanical measurement system.

Diagram of a mechanical component with an eye and shaft, no text or symbols present

Two identical circular diagrams with concentric rings and crosshairs, no text or symbols present.

T 8 T 8 (1)

1.) 2.)

T 8 T 8 (4)(2) (3) (1)

Two black mechanical components with circular cutouts and mounting holes, shown side by side (no text or symbols visible)

Rekylklack

Black cylindrical object with smooth surface (no text or symbols visible)

Black cylindrical object with smooth surface (no text or symbols visible)

Close-up of a black circular object with a strap, resembling a smartwatch or ring (no visible text or symbols)

Close-up of a metallic pipe fitting with a black clamping strap (no visible text or symbols)

QR code image containing encoded data, no visible human-readable text

1050 Worldwide Blvd.

Hebron, KY 41048-8632, USA

Telefon [phone]

E-post [e-mail]

ZEISS LRP S5 User Guide

318-50 | 525-56

Long-Range Precision Riflescope

Patents: www.zeiss.com/cop/patents

EN DE FR ES IT NL DK

FI HU PL SE RU JP CN | 03.2023

Close-up of a black cylindrical device dial with measurement markings (no visible text or symbols)

Close-up of a black camera lens with adjustment knobs and focal point (no visible text or symbols)

Close-up of a black cylindrical device dial with measurement markings (no visible text or symbols)

Close-up of a black camera lens with adjustment knobs and a lock indicator (no readable text or symbols beyond measurement markings)

Simple circular diagram with a crosshair and landscape elements, no text or symbols present.

Diagram showing a circular cross-section with shaded regions and a scale ruler, likely illustrating a measurement or calibration system.

Close-up of a black optical lens with blue circular arrows indicating rotational direction, labeled (1) and (2), showing internal color bands.

Simple circular diagram with a crosshair and concentric lines, no text or symbols present.

Circular diagram with a horizontal axis and vertical lines, no text or symbols present

Diagram illustrating optical measurement setup with two circular views and a magnified view of the lens, labeled (1) and (2).

Close-up of a camera lens component with blue circular motion indicator (no text or symbols)

Close-up of a camera lens with a blue circular arrow indicating rotation, showing internal components (no text or symbols)

Diagram of a circular target with numbered measurement markings and scale indicators

Diagram of a mechanical component with a pointed tip and internal shaft, no text or symbols present

Abstract geometric design with concentric circles and intersecting lines (no text or symbols)

Concentric circle with concentric rings and crosshairs, no text or symbols present

T 8 T 8 (1)

Two black mechanical components with circular cutouts, shown side by side (no text or symbols visible)

Шептало отдачи

Black cylindrical object with smooth surface and no visible text or symbols

Black cylindrical object with smooth surface (no text or symbols visible)

Close-up of a black circular object with a strap, resembling a smartwatch or ring (no visible text or symbols)

Close-up of a metallic pipe fitting with a black clamping strap (no visible text or symbols)

QR code image containing encoded data, no visible human-readable text

1050 Worldwide Blvd.

Long-Range Precision Riflescope

Patents: www.zeiss.com/cop/patents

EN DE FR ES IT NL DK

FI HU PL SE RU JP CN | 03.2023

www.zeiss.com/cop/safety

目次

www.zeiss.com/precision-shooting

Close-up of a black cylindrical dial with measurement markings (no visible text or symbols)

Close-up of a black camera lens with adjustment knobs and focal point (no visible text or symbols)

Close-up of a black industrial rotary dial with dual dials and a pointer (no visible text or symbols)

Close-up of a black camera lens with adjustment knobs and a lock indicator (no visible text or symbols)

12 - ウインデージタレット MOA

Close-up of a black optical lens with blue circular arrows indicating rotational direction, labeled (1) and (2), showing internal color bands.

Simple circular diagram with a crosshair and landscape elements, no text or symbols present.

(1a) 低倍率

Diagram showing a circular cross-section with shaded regions and a scale ruler, likely illustrating a measurement or calibration system.

(1b) 高倍率

Simple circular diagram with a crosshair and concentric lines, no text or symbols present.

(2a) 不鮮明なレチクル

Circular diagram with a horizontal axis and vertical lines, no text or symbols present

(2b) 鮮明なレチクル

Diagram illustrating optical measurement setup with two circular gauges and a camera lens, labeled (1) and (2)

レチ クルライト

Close-up of a camera lens component with blue motion arrow indicating rotation (no text or symbols)

Close-up of a camera lens showing internal components and a blue circular arrow indicating rotation (no text or symbols)

パララックス調整

Close-up of a circular optical scale with measurement markings and pointer positions, showing 120-degree markings.

Diagram showing a crosshair with numbered scale and measurement markings, likely from an optical or engineering context.

Diagram of a mechanical component with an eye and shaft, no text or symbols present

注意：

Abstract geometric pattern with concentric circles and intersecting lines (no text or symbols)

(3)

Concentric circle with concentric rings and crosshairs, no text or symbols present

T 8 T 8 (1)

T 8 T 8 (4)(2) (3)(1)

Diagram of a crosshair with numbered scale and alignment markers, likely for survey or measurement purposes.

ZF-MOAi = ZEISS 角度の分、照明付き
(First Focal Plane)(分角、照明付き、最初の像面)

ZEISS LRP S5 318-50 525-56

Two black mechanical components with circular cutouts, no visible text or symbols

リコイルラグ

Black cylindrical object with smooth surface (no text or symbols visible)

注文番号

529860-0002-000

50 mm

Black cylindrical object with smooth surface (no text or symbols visible)

注文番号

529860-0003-000

56 mm

フリップカバー

Close-up of a black circular object with a strap, resembling a smartwatch or ring (no visible text or symbols)

注文番号

50 mm 2105-737

56 mm 2105-798

スローレバー

Close-up of a metallic pipe fitting with a black clamping strap (no visible text or symbols)

注文番号

2224-899

お手入れとメンテナンス

QR code image containing encoded data, no visible human-readable text

サービスに関するご質問や保証条件のダ

1050 Worldwide Blvd.

Hebron, KY 41048-8632, USA

電話 1-800-441-3005

Long-Range Precision Riflescope

使用提示 / 售后服务和保修

Patents: www.zeiss.com/cop/patents

EN DE FR ES IT NL DK

FI HU PL SE RU JP CN | 03.2023

www.zeiss.com/cop/safety

目录

Close-up of a black cylindrical device dial with measurement markings (no visible text or symbols)

H1-高度调节轮MRAD

Close-up of a black industrial rotary dial with dual dials (no visible text or symbols)

H2-高度调节轮MOA

Close-up of a black camera lens with adjustment knobs and focal point (no visible text or symbols)

I1 - 侧向调节轮 MRAD

Close-up of a black camera lens with adjustment knobs and focal point (no visible text or symbols)

12 - 侧向调节轮 MOA

使用提示 ZEISS LRP S5 318-50 | 525-56

警告！

Simple line drawing of a crosshair with mountain and lake views (no text or symbols)

(1a) 低放大倍率

Diagram showing a crosshair with measurement scales and a shaded region, likely illustrating optical or signal processing concepts.

(1b) 高放大倍率

Close-up of a black optical lens with blue circular arrows indicating rotational direction, labeled (1) and (2), showing internal structure without any text or symbols.

Simple circular diagram with a crosshair and concentric lines, no text or symbols present.

(2a) 瞄准装置不清晰

Circular diagram with a central vertical axis and horizontal lines, no text or symbols present.

(2b) 瞄准装置清晰

瞄准装置的调焦/屈光度调节

Diagram illustrating optical measurement setup with two circular views and a magnified view of the lens, labeled (1) and (2).

瞄准照明装置

www.zeiss.com/cop/safety

Close-up of a camera lens component with blue motion arrow indicating rotation (no text or symbols)

Close-up of a camera lens showing internal components and a blue circular arrow indicating rotation (no text or symbols)

视差调节

Close-up of a circular optical scale with measurement markings and pointer, showing 120-degree markings.

瞄准装置后方的焦平面（视差）

Diagram showing a crosshair with numbered scale markings and measurement indicators, likely from an optical or mechanical system.

Diagram of a droplet with an arrow pointing to a cylindrical object (no text or symbols)

Abstract geometric pattern with concentric circles and intersecting lines (no text or symbols)

Concentric circle with concentric rings and crosshairs, no text or symbols present

T 8 T 8 (1)

1.) 2.)

T 8 T 8 (4)(2) (3)(1)

带锁闭装置的侧向调节轮 (ELWT)

ZF-MOAi = ZEISS Minute of Angle, illuminated (First Focal Plane) (角分、发光、第一焦平面)

Black cylindrical object with smooth surface (no text or symbols visible)

订购编号

529860-0002-000

50 mm

Black cylindrical object with smooth surface (no text or symbols visible)

订购编号

529860-0003-000

56 mm

Close-up of a black circular object with a strap, resembling a smartwatch or ring (no visible text or symbols)

订购编号

50 mm 2105-737

56 mm 2105-798

Close-up of a metallic pipe fitting with a black handle (no visible text or symbols)

订购编号

2224-899

保养和维护

QR code image containing encoded data, no visible human-readable text

www.zeiss.com/cop/warranty

1050 Worldwide Blvd.

Hebron, KY 41048-8632, USA

电话 1-800-441-3005

电子邮箱 [e-mail]

Carl Zeiss AG

Consumer Products

Carl-Zeiss-Strasse 22

73447 Oberkochen

Germany

www.zeiss.com/consumer-products

EN_2424-945 Printed in Germany 000000-2424-945 CZ-03/2023

Subject to change in design and scope of delivery and as a result of

ongoing technical development. ZEISS is not responsible for typographical

errors. Product images are for illustration purposes only. Specifications and

products may change without prior written notice.
