USER MANUAL PA32ER CHAUVIN ARNOUX

Power supply and battery charger

Thank you for purchasing this PA32ER power supply and battery charger. This accessory is designed to be used with the Qualistar2 C.A 8345, the Scopix IV and the C.A 6117.

For best results from your instrument:

■ read these operating instructions carefully,

■ comply with the precautions for use.

WARNING, risk of DANGER! The operator must refer to these instructions whenever this danger symbol appears.

Equipment protected by double insulation.

Indoor use.

Chauvin Arnoux has adopted an Eco-Design approach in order to design this appliance. Analysis of the complete lifecycle has enabled us to control and optimize the effects of the product on the environment. In particular this appliance exceeds regulation requirements with respect to recycling and reuse.

The CE marking indicates compliance with the European Low Voltage Directive (2014/35/EU), Electromagnetic Compatibility Directive (2014/30/EU), and Restriction of Hazardous Substances Directive (RoHS, 2011/65/EU and 2015/863/EU).

The UKCA marking certifies that the product is compliant with the requirements that apply in the United Kingdom, in particular as regards Low-Voltage Safety, Electromagnetic Compatibility, and the Restriction of Hazardous Substances.

The rubbish bin with a line through it indicates that, in the European Union, the product must undergo selective disposal in compliance with Directive WEEE 2012/19/UE: This equipment must not be treated as household waste.

Definitions of overvoltage categories

■ Overvoltage category IV concerns equipment installed where the power supply enters a building, or nearby, between the point of entry and the main distribution frame. This equipment can include electricity meters and primary overvoltage protection devices.
■ Overvoltage category III concerns equipment that is part of the electrical installation of a building. This equipment includes sockets, fuse panels, and some network installation control devices.
■ Overvoltage category II concerns equipment designed to be supplied from the electrical installation of the building. It includes both equipment connected by plugs and equipment connected permanently.

This instrument is compliant with safety standard IEC/EN 61010-1 or BS EN 61010-1 and the leads are compliant with IEC/EN 61010-031 or BS EN 61010-031, for voltages up to 1,000V in overvoltage category IV. The protection provided by the instrument may be impaired if it is used other than as specified by the manufacturer.

Failure to observe the safety instructions may result in electric shock, fire, explosion, and destruction of the instrument and of the installations.

The operator and/or the responsible authority must carefully read and clearly understand the various precautions to be taken in use. Sound knowledge and a keen awareness of electrical hazards are essential when using this instrument.
■ Comply with the rated maximum voltage and current and the overvoltage category.

■ Never exceed the protection limits stated in the specifications.

• Observe the conditions of use, namely the temperature, the relative humidity, the altitude, the degree of pollution, and the place of use.
  Do not use the instrument if it is open, damaged, or incorrectly reassembled. Before each use, check the integrity of the housing, leads and accessories. Any item of which the insulation is deteriorated (even partially) must be set aside for repair or scrapping.
  ■ Use only the leads and accessories supplied. The use of leads (or accessories) of a lower voltage or category limits the voltage or category of the combined instrument and leads (or accessories) to that of the leads (or accessories).
  ■ Do not expose the housing to a source of heat or to direct sunlight. Let air flow freely around it to ensure sufficient cooling.
  ■ When handling the crocodile clips, keep your fingers behind the physical guard.
  ■ Use suitable personal protection equipment when parts at a dangerous voltage may be accessible in the installation where the measurement is made.
  ■ All troubleshooting and metrological checks must be done by competent, accredited personnel.

CONTENTS

1. PRESENTATION ...... 14

1.1. Delivery condition 14
1.2. Accessories and spares....14
1.3.View of the PA32ER 14

1. USE....15

2.1. Supply from the measurement 15
2.2. Supply from mains 16

1. TECHNICAL CHARACTERISTICS ....18

3.1. Reference conditions....18
3.2. Electrical characteristics....18
3.3.Environmental conditions 19
3.4.Mechanical characteristics 19
3.5. Compliance with international standards....19
3.6. Electromagnetic compatibility (CEM)....19

1. MAINTENANCE....20

4.1.Cleaning 20

1. WARRANTY....21

1.1. DELIVERY CONDITION

The PA32ER power supply and battery charger are delivered in a cardboard box with:

■ 2 straight-straight safety leads, 1000V in category IV, 3 metres long

■ 2 black crocodile clips, 1000V in category IV
■ 1 adapter, C8 male plug to 2 female banana jacks
■ 1 C7 receptacle to mains cord
■ 1 multilingual manual

1.2. ACCESSORIES AND SPARES

For the accessories and spares, consult our web site:

www.chauvin-arnoux.com

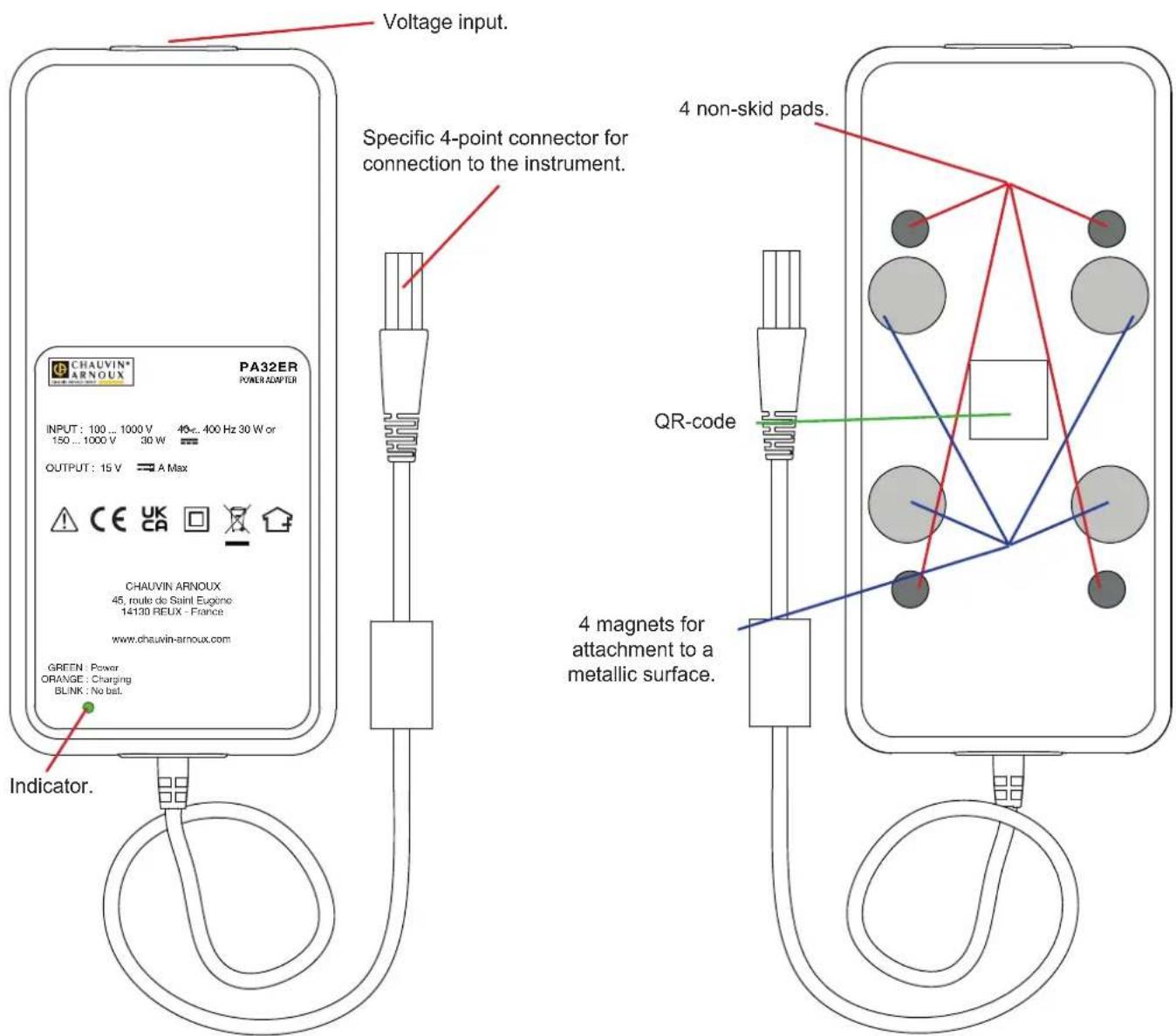

1.3. VIEW OF THE PA32ER

Voltage input. Specific 4-point connector for connection to the instrument. 4 non-skid pads. QA32ER POWER ADAPTER INPUT: 100 ... 1000 V 40c... 400 Hz 30 W or 150 ... 1000 V 30 W OUTPUT: 15 V A Max CHAUVIN ARNOUX 45, route de Saint Eugène 14130 REUX - France www.chauvin-arnoux.com GREEN : Power ORANGE : Charging BLINK : No bat. Indicator. 4 magnets for attachment to a metallic surface.

Top view. Bottom view.

The PA32ER power supply and battery charger are used to power the instrument for long-term applications and thereby economize the instrument's internal battery. It also serves to recharge the battery.

The supply may come from the measurement or from mains.

2.1. SUPPLY FROM THE MEASUREMENT

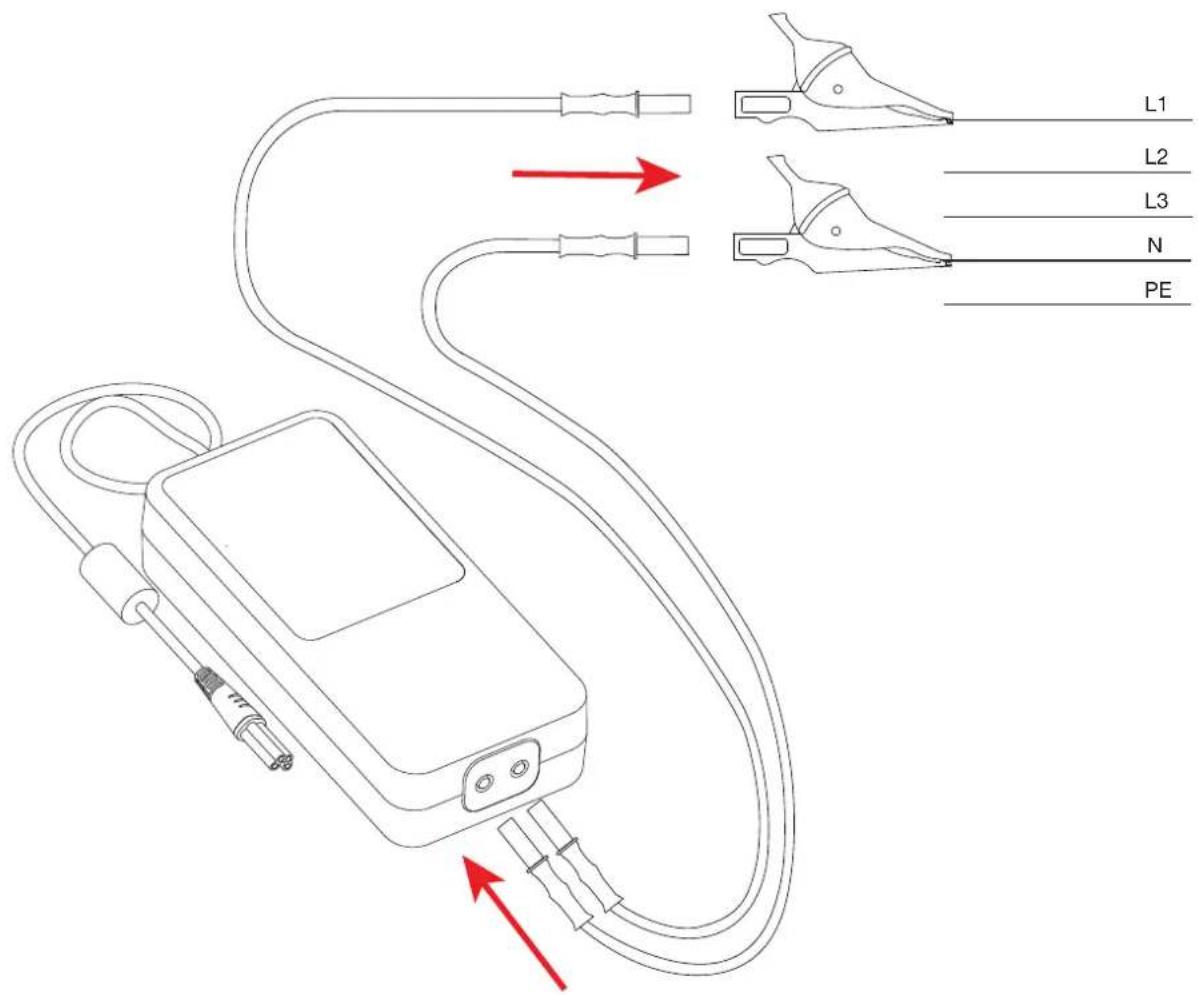

■ Using the leads provided and crocodile clips, connect the adapter to a voltage. Either between a phase (L1, L2, or L3) and neutral or between 2 phases.

L1 L2 L3 N PE

In the example above, the adapter is connected between the neutral (N) and phase L1.

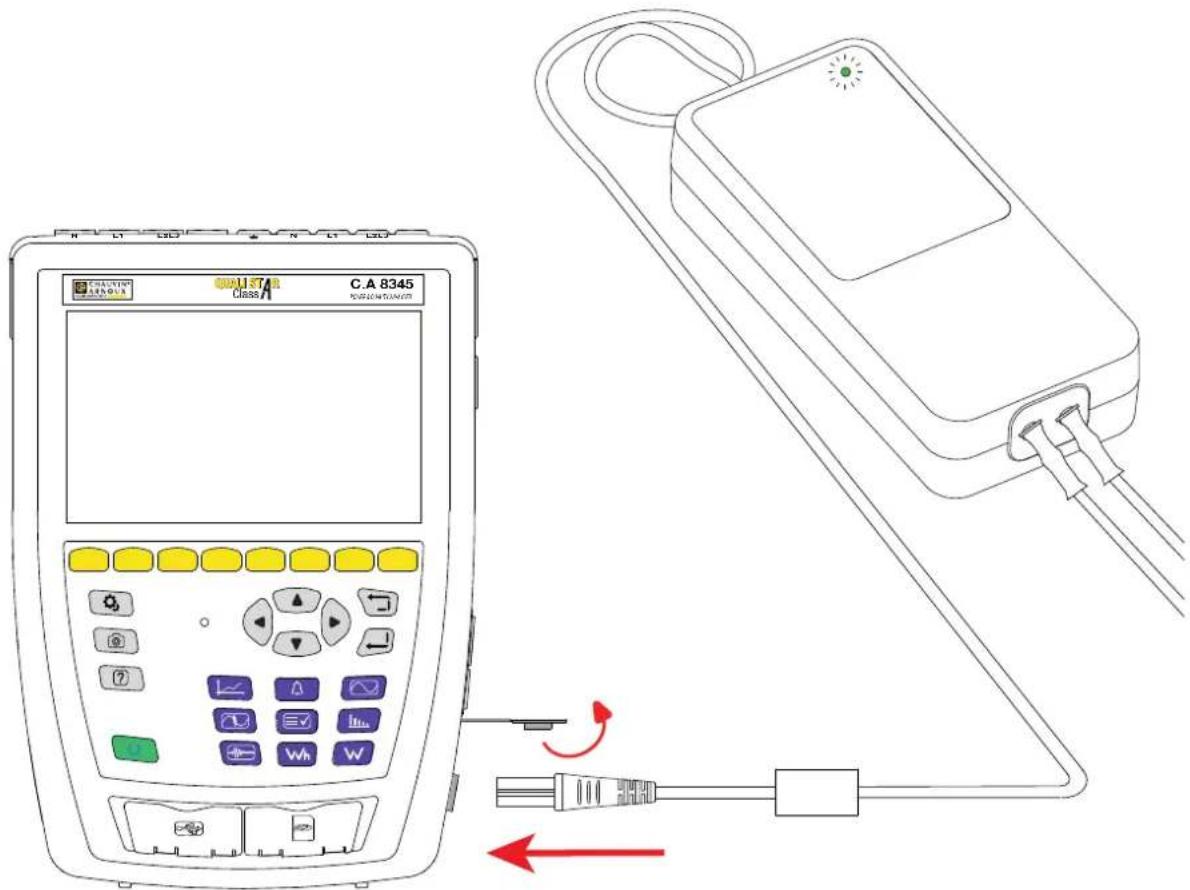

■ Open the elastomer cap and connect the specific 4-point connector to the external power supply input of the instrument.

The indicator lights:

■ green to indicate the power-on condition,
■ orange to indicate that the battery is charging.

C.A 8345 CLASS SELECTING A.10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

If it blinks, the battery is missing and the instrument is powered by the external power supply alone.

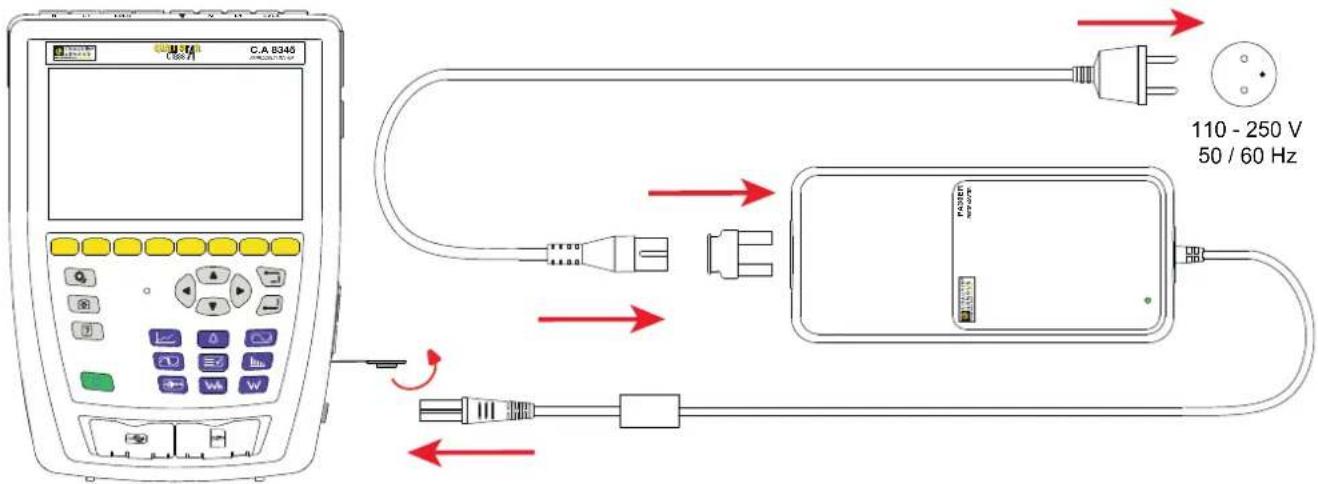

2.2. SUPPLY FROM MAINS

■ Connect the C8-to-banana adapter to the PA32ER power supply.
■ Then connect the C7 cord between the adapter and the mains socket.
■ Open the elastomer cap and connect the specific connector of the power supply to the instrument.

C.A. B340 110 - 250 V 50 / 60 Hz

The indicator lights:

■ green to indicate the power-on condition,
■ orange to indicate that the battery is charging.

If it blinks, the battery is missing and the instrument is powered by the external power supply alone.

3. TECHNICAL CHARACTERISTICS

3.1. REFERENCE CONDITIONS

Quantity of influence Reference values
Temperature 20 ± 3°C

3.2. ELECTRICAL CHARACTERISTICS

3.2.1. INPUT CHARACTERISTICS

■ Voltage range: 100 to 1000V at a frequency from 40 to 400Hz.

150 to 1,000 VDC

■ Overload tolerance: ± 10% permanent, ± 15% temporary.
■ Frequency range: DC, 40 - 70Hz, 340 - 440Hz
■ Input current: 0.5 ARMS max
■ No-load consumption:

Supply voltage (V)	Input current (mA)	Apparent power (VA)	RMS power (W)
115 11.5 0.92	0.65
230	6	1.265 0.6
400	5.3 1.920 1
1,000	3.5	3.3	1.4

3.2.2. OUTPUT CHARACTERISTICS

Characteristics	Values
Permanent output power	23 W
Output voltage @ 30W	15 V ± 8%
Maximum no-load output voltage	16.2 V
Ripple of the output voltage	550mVRMS
Maximum short-circuit duration Permanent
Starting-up time at 110V	< 13s

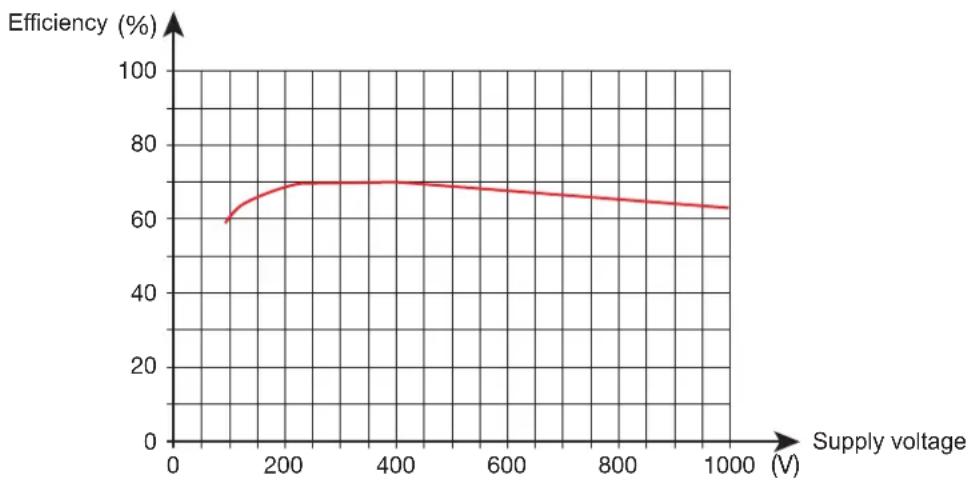

3.2.3. EFFICIENCY

The efficiency depends on the supply voltage and the load. In general, it is 68%.

3.2.4. CHARGER

Charging current: 1A.

3.3. ENVIRONMENTAL CONDITIONS

Range of operation: from -20 to +45 °C, from 30 to 95%RH without condensation. Range of storage: from -25 to +70 °C, from 10 to 90%RH without condensation.

Electric field: < 1V/m Magnetic field: < 40A/m

Indoor use. Altitude : < 2000 m Degree of pollution: 3

3.4. MECHANICAL CHARACTERISTICS

Dimensions (L x D x H) 220 x 112 x 53 mm Lead 1.50m, terminated by a specific 4-point connector. Weight approximately 930g.

Inrush protection IP54 when not in operation and IP50 in operation per IEC 60 529. IK 08 per IEC 62262.

Drop 1 meter.

3.5. COMPLIANCE WITH INTERNATIONAL STANDARDS

The instrument is compliant with IEC/EN 61010-1 or BS EN 61010-1 and IEC/EN 61010-031 or BS EN 61010-031 for a voltage of 1000V in overvoltage category IV with degree of pollution 3.

The instruments are compliant with FCC Rules part 1 under number 83TD07571.

3.6. ELECTROMAGNETIC COMPATIBILITY (CEM)

The instrument is compliant with standard IEC/EN 61326-1 or BS EN 61326-1.

The instrument contains no parts that can be replaced by personnel who have not been specially trained and accredited. Any unauthorized repair or replacement of a part by an “equivalent” may gravely impair safety.

4.1. CLEANING

Disconnect the unit completely.

Use a soft cloth, dampened with soapy water. Rinse with a damp cloth and dry rapidly with a dry cloth or forced air. Do not use alcohol, solvents, or hydrocarbons.

5. WARRANTY

Except as otherwise stated, our warranty is valid for 24 months starting from the date on which the equipment was sold. Extract from our General Conditions of Sale provided on request.

The warranty does not apply in the following cases :

■ Inappropriate use of the equipment or use with incompatible equipment;
■ Modifications made to the equipment without the explicit permission of the manufacturer's technical staff;
■ Work done on the device by a person not approved by the manufacturer;
■ Adaptation to a particular application not anticipated in the definition of the equipment or not indicated in the user's manual;
■ Damage caused by shocks, falls, or floods.
