Navodila za uporabo indukcijskih kuhalnih plosë CIE4630B3 CIE4630B CIE3637B CIE3640B3 CIE3640X Thank you for purchasing the CANDY induction hob. Please read this instruction manual carefully before using the hob and keep it in a safe place for future reference.

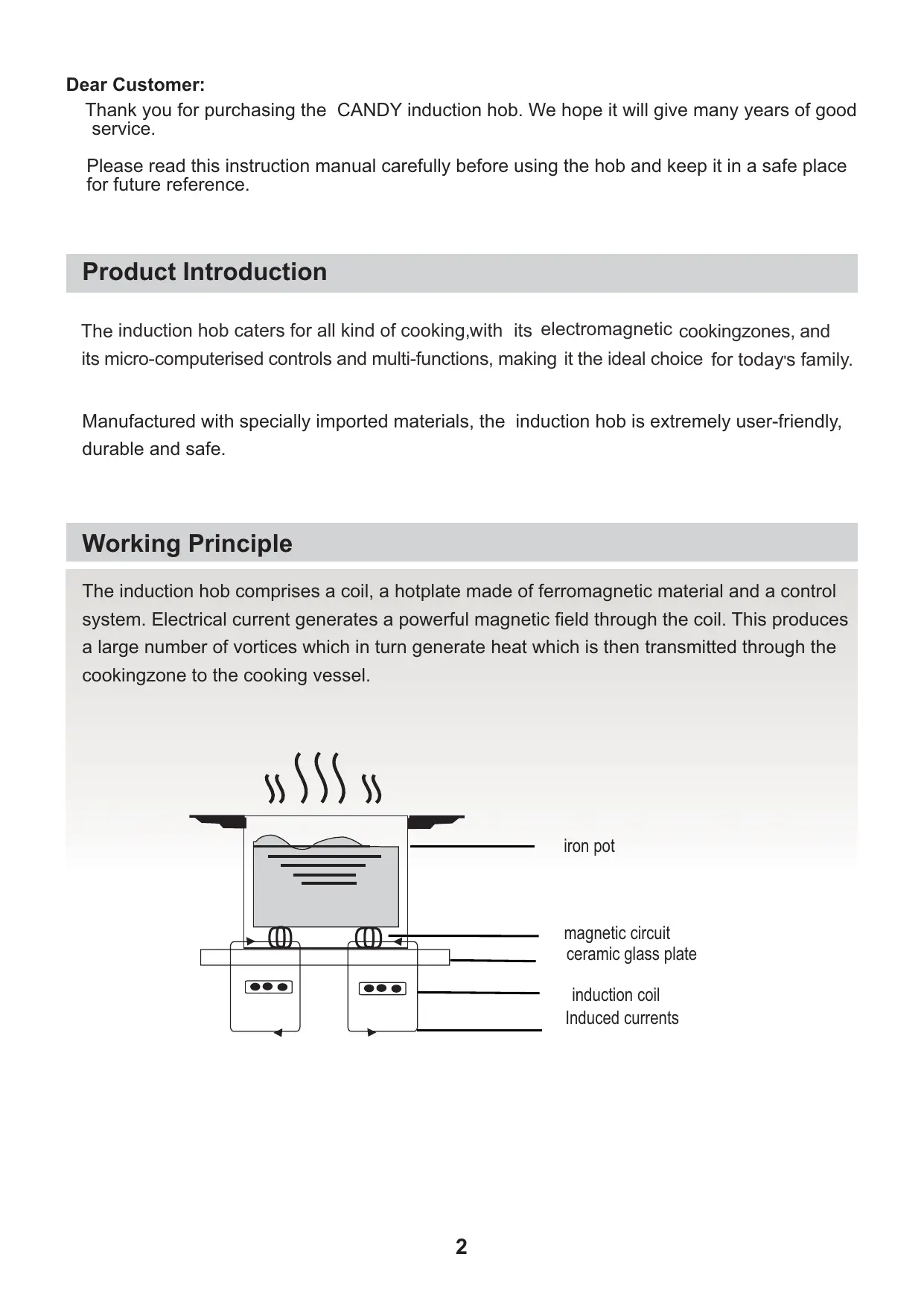

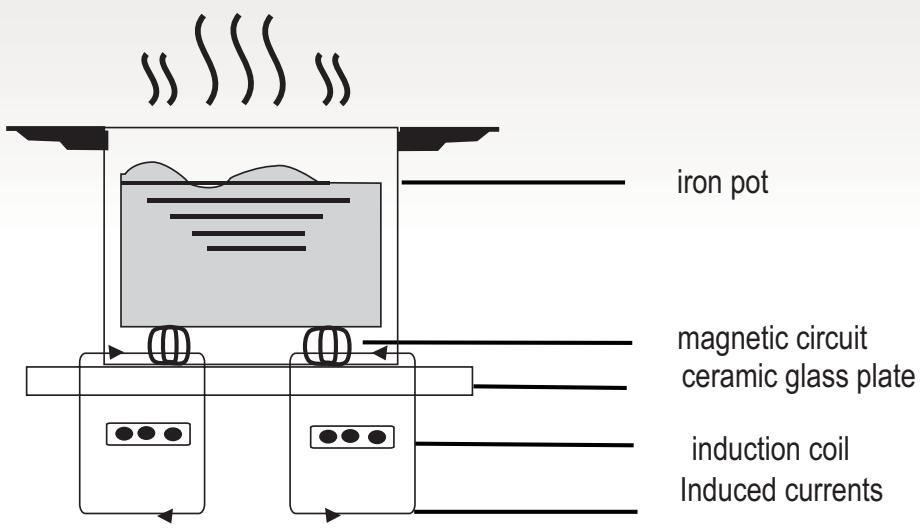

Dear Customer: Thank you for purchasing the CANDY induction hob. We hope it will give many years of good service. Please read this instruction manual carefully before using the hob and keep it in a safe place for future reference. Product Introduction The induction hob caters for all kind of cooking,with its electromagnetic cookingzones, and its micro-computerised controls and multi-functions, making it the ideal choice for today's family. Manufactured with specially imported materials, the induction hob is extremely user-friendly, durable and safe. Working Principle The induction hob comprises a coil, a hotplate made of ferromagnetic material and a control system. Electrical current generates a powerful magnetic field through the coil. This produces a large number of vortices which in turn generate heat which is then transmitted through the cookingzone to the cooking vessel. NADLES iron pot (D. (D) =—————————— magnetic circuit ceramic glass plate ee ee induction coil Induced currents

Safety This hob was specially designed for domestic use. In its constant search to improve its products, CANDY reserves the right to modify any technical, programme or aesthetic aspects of the appliance at any time. Protection from over-heating A sensor monitors the temperature in the cooking zones. When the temperature exceeds a safe level, the cooking zone is automatically switched off. Detection of small or non-magnetic items When a pan with a diameter of less than 80mmor some other small item(e.g.knife,fork,key) or a non- magnetic pan( e.g. aluminium) has been left on the hob, a buzzer sounds for approximately one minute,after which the hob goes automatically on to standby. Residual heat warning When the hob has been operating for some time, there will be some residual heat. The letter “H” appears to warn you to keep away from it. Auto shutdown Another safety feature of the induction hob is auto shutdown. This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below: Power level| The heating zone shut down automatically after 1-3 8 hours 4-6 4 hours 7-9 2 hours When the pan is removed from the cooking zone, it stops heating immediately and switches itself off after the buzzer has sounded for one minute.

Warning: Anyone who has been fitted with a

heart pacemaker should consult a doctor before using the induction hotplate. Installation

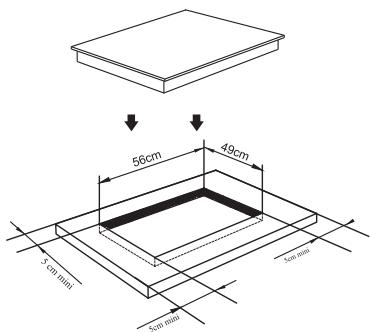

1. Cut a hole in the worktop of the dimension

shown in the diagram below. À minimum of 50 mm space should be left around the hole. The worktop should be at least 30 mm thick and made of heat-resistant material. As shown in Figure (1)

2. Itis essential that the induction hob is well

ventilated and that the air intake and exit are not blocked. Make sure the hob is correctly installed as shown in Figure 2. Figure (2) LIT fi 760mm 7 minisem Aïr intake Figure (2) NB: For safety, the gap between the hob and any cupboard above it should be at least 760 mm. ENGLISH

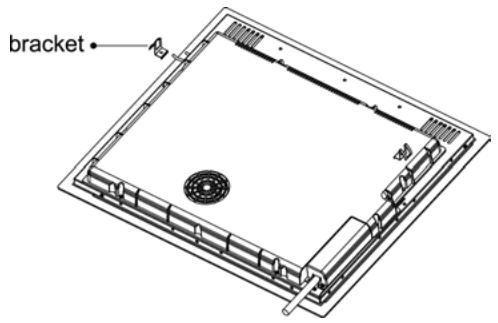

3. Fix the hob to the worktop using the four

brackets on the base of the hob. The position of the brackets can be adjusted according to the thickness of the top. Warnings: (1) The induction hob must be installed by a properly qualified person. We have our own qualified installers. Never try to install the appliance yourself. (2) The induction hob must not be installed above refrigerators, freezers, dishwashers or tumble dryers. (3) The induction hob should be installed so that optimum radiation of heat is possible. (4) The wall and the area above the hob should be able to withstand heat. (5) To avoid any damage, the sandwich layer and adhesive should be heat-resistant.

4. Connection to power supply

The socket should be connected in compliance With the relevant standard, to a single-pole circuit breaker. The method of connection is shown in Figure 3. Vo tageBfrequency Hire connection

OA |—7 ur + SOGOHZ |B-ouméBlack GrayéBlue _ Yel lon/Green Figure (3) Ifthe cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents. If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3 mm between the contacts. The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations. The cable must not be bent or compressed. The cable must be checked regularly and only replaced by a properly qualified person. Diagram of induction hob: CE Air entry

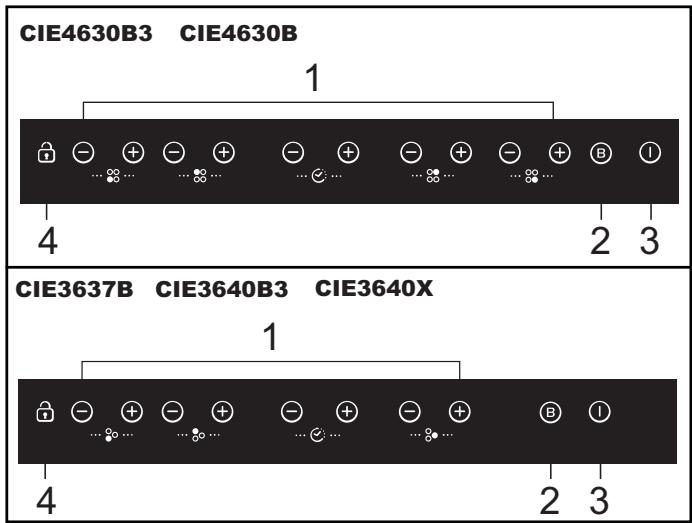

Instructions for Use Preparation before using: When the power is switched on, the buzzer will sound once and all the indicators will come on for one second and then go out. The hob is now in standby mode. Place the pan in the centre of the cooking zone.

Operating instructions When the ON/OFF key is pressed, all the indicators show "-". Select the power level by pressing the "+" or "-" key for the relevant hotplate. To begin with the indicator shows "5". Adjust up or down by pressing the "+" or "-" key. If you press the "+" and "-" keys simultaneously, the power setting returns to "0" ,and the cooking zone switches of. See the table on Page 6 for the power specific to each cooking zone. NB: When the ON/OFF key is pressed, the induction hob returns to standby mode if no other operation is carried out within one minute.

Boost mode To heat up more quickly, press "BOOST" after selecting the cooking zone, with the power level indicator showing "P". NB:

1. The boost function only operates for 5 minutes,

after which the cooking zone returns to its orginal setting.

2. The boost function works on the all cooking

3. As the boost function of 1st is activated ,the

2nd cooking zone is limited under level 2 automatically.Vice versa. Cancelling the "BOOST" mode When in the "Boost" mode, Select the corresponding cooking zone and press the "Boost" key or the "-"to cancel the Boost mode, then the cooking zone will revert to its original setting. Timing function Press the "+" or "-" key of that zone, the corresponding indicator will be flashing. To activate timer function by press the "+" or "-" of timer key,the set time is between 1 and 99 minutes. Pressing the "+" of the timer key once the time will increase by one minute. Keeping on the "+" of timer key,the time will increase by 10 minutes,lf the setting time exceeds 99 minutes,it will automatically return to "0" minutes. Same logic for "-". Timing confirmation 1.Pressing the "+" or "-" of the timer key,the time can be set now. 2.When the timing indicator has been flashing for 5 seconds, the set time will be automatically confirmed. ENGLISH

Timer cancellation If pressing the "-" and "+" keys simultaneously, the indicator will display "O".and the the timer will be cancel. Safety mode To ensure the safety of children, the induction hob is fitted with an interlock device. To lock: hold down the "Interlock" ; the hob then goes into "Interlock" mode, the timer shows "Lo and the rest of the keys are disabled except the "ON/OFF"key. Unlocking Hold down the "Interlock" key for 3 seconds and the hob will return to normal working.

The maximum power of cooking zones is as follows: CIE4630B3 CIE4630B | CIE3640B3 CIE3640X CIE3637B Heating zone Normal | Boost | Normal Boost | Normal | Boost

4 2300 2600 | = | | | The above may vary according to the size of the pan and the material it is made from Selection of cooking vessels

Iron oil frying pan Stainless steel pot Iron pan Iron kettle __s Enamel stainless Enamel cooking Iron plate steel kettle utensil You may have a number of different cooking vessels 4 This induction hob can identify a variety of cooking vessels, which you can test by one of the following methods: Place the vessel on the cooking zone. If the corresponding cooking zone displays a power level, then the vessel is suitable. If"£" flashes, then the vessel is not suitable for use with the induction hob. 2 Hold a magnet to the vessel. If the magnet is attracted to the vessel, it is suitable for use with the induction hob. NB: The base of the vessel must contain magnetic material. It must have a flat bottom with a diameter of more than 14 cm. 3 Use pans whose diameter is as large as the graphic of the zone selected. Using a pot a slightly wider energy will be used at its maximum efficiency.lf you use smaller pot efficiency could be less than expected.Pot less than 140 mm could be undetected by the hob.

Safety Reminding and Maintenance: CARE

AA G— A dedicated power For indoor use only. Never wash the induction hob Never have the induction protection air switch must directly with water. hotplate to work without food be used. inside, otherwise its operational performance may be affected and danger may happen. [ET 2 — Always open sealed containers, When a cooking zone has been From time to time check that Do not leave metallic objects, such as cans, before heating on for a long time the surface nothing (e.g. glass, paper, etc.) such as knives, forks, spoons them, otherwise they may remains hot for some time is obstructing the air intake and lids on the hob as they may explode. afterwards - so do not touch beneath the induction hob. get hot. the ceramic surface.

cp LR (ee Never use the induction hob Do not store detergents or lfthe surface of the hob is Do not place rough or uneven near another appliance which flammable materials beneath cracked, switch off the vessels on the hob, as they generates a high temperature, the hob. appliance to avoid any may damage the ceramic Such as a gas cooker or a possibility of electric shocks. surface. paraffin heater.

Clean the induction hob Keep children or infirm persons If the supply cord is damaged, regularly to stop foreign objects away from the appliance. it must be replaced by the from getting into the fan and Never let them use it manufacturer,its service agent preventing the appliance from unsupervised. or similary qualified person in working properly. in order to avoid a hazard. This appliance is labelled in compliance with European directive 2002/96/EC for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way. The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods. This appliance requires specialist waste disposal. For further information regarding the treatment, recovery and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it. DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. ENGLISH

Cleanness and Maintenance The surface of the induction hob may be easily cleaned in the following way: Type of contam- Method of cleaning Cleaning materials ination Light Immerse in hot water and wipe dry Cleaning sponge Rings and lime Apply white vinegar to the area, wipe with | Special adhesive for ceramic scale a soft cloth or use a commercially glass available product Sweetmeat, melted| Use a special scraper for ceramic glass Special adhesive for ceramic aluminium or to remove residue (a silicon product is glass plastics best) NB: Disconnect the power supply before cleaning. Failure Display and Inspection If any abnormality occurs, the induction hob will automatically go into protective mode and display one of the following codes: Fault Possible cause Solutions FO/F1/F2 Fan failure Contact the supplier Temperature Contact the supplier F3-F8 sensor failure Check if power supply is E1/E2 Abnormal voltage in | normal. power supply Power on after power supply returns to normal. Abnormal Check th: ES/E4 temperature REX ne pan E5/E6 Poor heat radiation Restart when cooking in cooking zone zone cools down The above table shows how to assess and check common faults. Do not dismantle the appliance yourself, otherwise you may damage the induction hob. Customer Care Service If a fault should occur, before calling After Sales Service, please do the following: -Check that the appliance is correctly plugged in -Read the failure and display table above If you are still unable to resolve the problem, switch off the appliance, do not try to dismantle it, and call After Sales Service.

Special Declaration The contents of this manual have been carefully checked. However, the company cannot be held responsible for any misprints or omissions. Also, any technical modifications may be included in a revised version of the manual without notice. The appearance and colour of the appliance in this manual may differ from the actual one.
