USER MANUAL CTP634SCBB CANDY

CAREFULLY BEFORE USING THE APPLIANCE. Installation Electrical Shock Hazard + _ Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. + _ Connection to a good earth wiring system is essential and mandatory. + Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. + Alterations to the domestic wiring system must only be made by a qualified electrician. + Failure to follow this advice may result in electrical shock or death. Cut Hazard + Take care - panel edges are sharp. + Failure to use caution could result in injury or cuts. Important safety instructions + Read these instructions carefully before installing or using this appliance. + _ No combustible material or products should be placed on this appliance at any time. + Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs. + In order to avoid a hazard, this appliance must be installed according to these instructions for installation.

+ This appliance is to be properly installed and earthed only by a suitably qualified person. + This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. + WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents. *_Failure to install the appliance correctly could invalidate any warranty or liability claims. + Regarding the details of installation, thanks to refer to the section <Installation>. Operation and maintenance Electrical Shock Hazard + _ Do not cook on a broken or cracked cooktop. If the cooktop surface is break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician. + Switch the cooktop off at the wall before cleaning or maintenance. + Failure to follow this advice may result in electrical shock or death. Health Hazard + This appliance complies with electromagnetic safety standards. Hot Surface Hazard

+ During use, accessible parts of this appliance will become hot enough to cause burns. + Do not let your body, clothing or any item other than suitable cookware contact the ceramic glass until the surface is cool. + Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.4 + Children less than 8 years of age shall be kept away unless continuously supervised. + _ Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children. + _Failure to follow this advice could result in burns and scalds. Cut Hazard + The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children. + Failure to use caution could result in injury or cuts. Important safety instructions + _ Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite. + _ Never use your appliance as a work or storage surface. + _ Never leave any objects or utensils on the appliance. + _ Never use your appliance for warming or heating the room. + After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls). Do not rely on the pan detection feature to turn off the cooking zones when You remove the pan. + Do not allow children to play with the appliance or sit,

stand, or climb on it. Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured. Do not leave children alone or unattended in the area where the appliance is in use. Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings. Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician. Do not use a steam cleaner to clean your cooktop. Do not place or drop heavy objects on your cooktop. Do not stand on your cooktop. Do not use pans with jagged edges or drag pans across the glass surface as this can scratch the glass. Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the ceramic glass. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This appliance is intended to be used in a domestic household environment only! Commercial use of any kind is not covered under the manufacturer's warranty!

WARNING: The appliance and its accessible parts become

hot during use. Young children should be kept away. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: Unattended cooking on a hob with fat or oil

can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: Danger of fire: do not store items on the

WARNING: If the surface is cracked, switch off the

appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts. A steam cleaner is not to be used. The appliance is not intended to be operated by means of an external timer or separate remote-control system. CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised

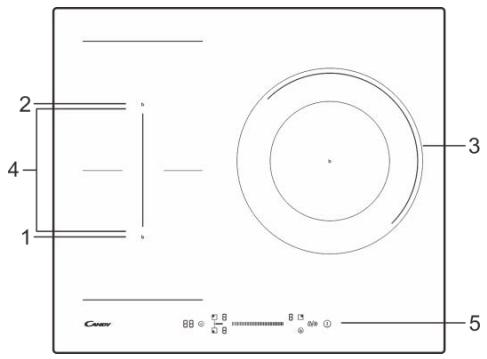

continuously. + _ Power cord can’t accessible after installation. Product Overview Top View

1. 1800 W zone, boost to 2100 W

2— . 2. 1800 W zone, boost to 2100 W { 3. 3000 W zone, boost to 3600 W

4. 3000 W zone, boost to 3600 W

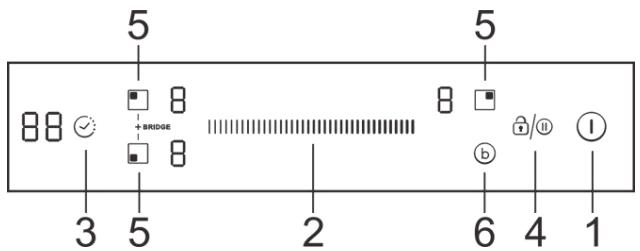

2. Power/Timer regulating key 5. Heating zone selection controls

3. Timer control 6. Boost control

Product Information The ceramic/induction hob can meet different kinds of cuisine demands because of resistance wire heating, micro-computerized control and multi-power selection, really the optimal choice for modern families. The hob centers on customers and adopts personalized design. The hob has safe and reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life.

A Word on Induction Cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up. NANES iron pot magnetic circuit ceramic glass plate induction coil + 7 | induced currents Before using your New Induction Hob + Read this guide, taking special note of the ‘Safety Warnings’ section. + Remove any protective film that may still be on your Induction hob. Using the Touch Controls + The controls respond to touch, so you don’t need to apply any pressure. + Use the ball of your finger, not its tip. + You will hear a beep each time a touch is registered. + Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate. /

Choosing the right Cookware + Only use cookware with a base suitable for induction cooking. Look for the VAN induction symbol on the packaging or on the bottom of the pan. + You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for induction. + If you do not have a magnet:

1. Put some water in the pan you want to check. \

2. Follow the steps under ‘To start cooking”.

3.1f © does not flash in the display and the water is heating, the pan is suitable. + Cookware made by the following materials is not suitable: pure stainless steel, aluminum or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware. Size of burner (mm) The minimum cookware (diameter /mm)

Flexible zone 250 Do not use cookware with jagged edges or a curved base. ) + dE: Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone.

Use pans whose diameter of the ferromagnetic area (base of the pan) is in the range of dimensions in the table below. (Table 1) - If you use smaller pots, performance could be affected - If you use pot with a diameter smaller than the one indicated in the table above, pots may not be detected According to the dimension of the zone you can use pots of different diameters as picture below: If the ferromagnetic part covers only partially the base of the pan, only the ferromagnetic area will heat up, the rest of the base may not heat up a sufficient temperature for cooking.

If the ferromagnetic area is not homogeneous, but presents others material such as aluminum this may affect the heating up and the pan detection. If the base of the pan is similar to the pictures below the pan could be not detected.

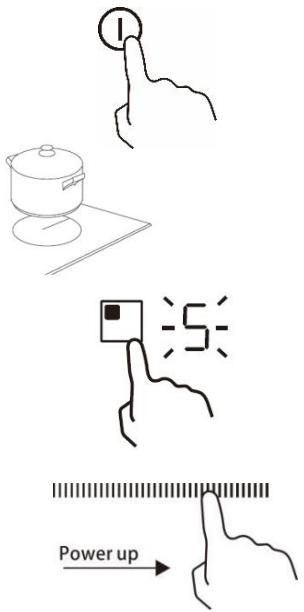

Using your Induction Hob To start cooking *__ After power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that the hob has entered the state of standby mode.

1. Touch the ON/OFF () switch. all the indicators

2. Place a suitable pan on the cooking zone that you

wish to use. Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.

3. Touching the heating zone selection control, and an

indicator next to the key will flash

4. Select a heat setting by touching the “slider” control.

+ If you don’t choose a heat setting within 1 minute, TITI the Induction hob will automatically switch off. You will need to start again at step 1. EbWerup + You can modify the heat setting at any time during cooking. When you have finished cooking 8

1. Touching the heating zone selection that you wish to

2. Turn the cooking zone off by touching “slider”control D

down to“0”. Make sure the display shows“0”. Power down qoserdowr

3. Tumthe whole cooktop off by touching the ON/OFF

“H° will show which means cooking zone is too hot to touch. It will disappear when the surface has cooled down to a safe (l temperature. It can also be used as an energy saving function if you Î want to heat further pans, use the hotplate that is still hot. Using the Power Management It is possible to set a maximum power absorption level for the induction hob, choosing up to different power ranges. Induction hobs are able to limit themselves automatically in order to work at lower power level, to avoid the risk of overloading. To enter the power management function Turn on the hob, then press at the same time the timer control and key lock. The timer indicator will show “P5” which means power level 5. The default mode is on 7.2Kw. Q. CLLLCECLELTE TE LELELELTLELELE LL LUE - Ê (O] O F. À To switch to another level Select a power level by touching the slider control. There are 5 power levels, from “P1? to “PS”. The timer indicator will show one of them. “PI”: the maximum power is 2.5 Kw. “P2”: the maximum power is 3.5 Kw. “P3”: the maximum power is 4.5 Kw. “P4”: the maximum power is 5.5 Kw. “P5”: the maximum power is 7.2 Kw (the maximum power is 6.6 Kw for CI633SCBB). Confirmation and Exit Power Management Function Press at the same time the timer control and key lock for confirmation, then the hob will be turned off. Q. CLLLCECLELTE TE LELELELTLELELE LL LUE - Ê (O] O

Using Boost function Activate the boost function Ë

1. Select the zone with boost function (front left zone).

Note: The power setting of bridge zone works the same as any other normal area.

2. Touch the booster key (©) when the display is blinking,

power level indication shows “P”. Cancel Boost function p

1. Select the zone with boost function (front left zone).

2. Touching the “slider” to cancel the Boost function, and

select the level you want to set. Power down + Boost function can only last for 5 minutes, after that the zone will go to level 9 automatically. Using the Pause function

1. Press the Pause control, 6)0) the heating zones stop working. AIl the zone

2. Press the Pause control ®| 0) once again, all the heating zones will revert to its

original setting. + The function is available when one or more heating zones are working. + If you don't cancel the stop working mode within 30 minutes, the induction cooktop will automatically switch off. indication show

Locking the Controls + You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). +. When the controls are locked, all the controls except the ON/OFF control are disabled. To lock the controls Touch the keylock &/© control for 2 seconds. The timer indicator will show “Lo “. To unlock the controls

1. Make sure the hob is turned on.

2. Touch and hold the keylock control &/© for 2 seconds.

3. You can now start using your hob.

When the hob is in lock mode, all the controls are disable except the ON/OFF, VAN you can always turn the hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operation. Residual Heat Warning When the hob has been operating for some time, there will be some residual heat. The letter “H” appears to warn you to keep away from it. Using Bridge zone function © This may be used as a single zone or two individual zones depending on the cooking needs in each situation. © _Itis made of two independent coils that can be controlled separately. When the bridge zone is working, only the zone covered by the cookware is activated. This function only works on 1# and 2# cooking zones. © To ensure that the cookware is detected and heat is distributed evenly, correctly centre the cookware.

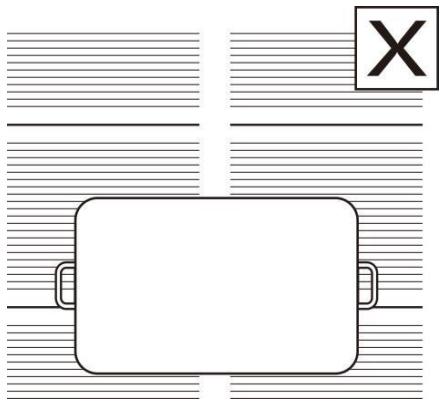

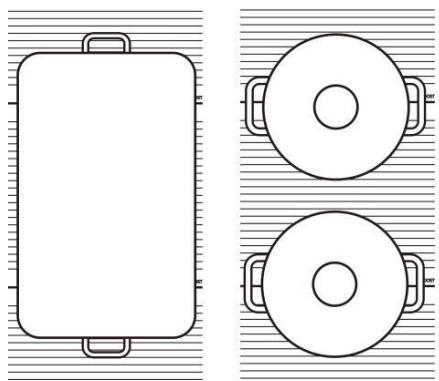

© One hob with more than one flexible zone, it is not recommended to use several zones at the same time for a single pan. Activate Bridge zone function

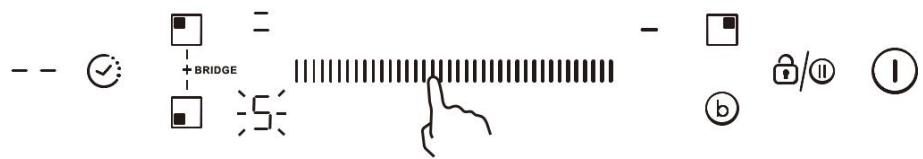

1. To activate the bridge area as a single big zone, press the

front left zone key and rear left zone key at the same time.

2. The buzzer beeps indicating that the induction hob enters

selection of Bridge zone, and the corresponding indicator will flash.

3. Select the power level you want to set by touch “Slider”control.

| 7 'ée © rame IAE (O] ds: ©

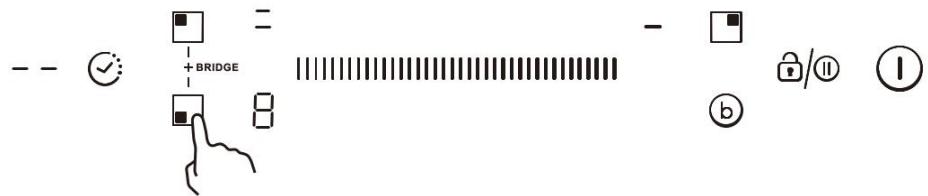

1. Touching one of the bridge zone to cancel the bright zone function.

#smes É CLLLCLCEELTLETETLLLTE EL EL EEE LIEN © &/© @

2. The power setting works the same as any other normal area.

Auto Shutdown Safety feature of the hob is auto shut down. This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below: Power level 1 2 3 4 5 6 7 8 9 Default working timer (hour) | 8 8 8 4 4 4 2 2 2 Using the Timer You can use the timer in two different ways: e You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up. e You can use it as cut-off timer to turn one or more cooking zones off after time is up. +. You can set the timer up to 99 minutes. Using the Timer as a Minute Minder If you are not selecting any cooking zone

1. Make sure the hob is turned on. And zone selection key is not activated (zone

indication ‘-* is not blinking). Note: you can use the minute minder even if you are not selecting any cooking zone.

2. Touch timer control, “10” will show in the timer display

and “0” will flashes.

3. Set the time by touching the slider control ofthe {£ C

4. Touch timer control again, the “1” will flash.

5. Set the time by touching the slider control (e.g.9), g5 C: annees

now the time you set is 95 minutes.

6. When the time is set, it will begin to count down

immediately. The display will show the remaining time.

7. Buzzer will bips for 30 seconds and the timer indicator

shows“-- “ when the setting time finished. Using the timer to switch off one or more cooking zones

1. Touching the heating zone selection control that you want 6

to set the timer for.

2. Touch timer control, “10” will show in the timer display

and “0” will flashes.

3. Set the time by touching the slider control of the :

timer (e.g.5). { 5 C COLLE

4. Touch timer control again, the “1” will flash.

5. Set the time by touching the slider control (e.g.9), 95 Ci nn iunnn As

now the time you set is 95 minutes.

6. When the time is set, it will begin to count down immediately. =

The display will show the remaining time. ” F] NOTE: There will be a red dot in the right bottom corner of power level indication which indicating that zone is selected. T EF]

7. When cooking timer expires, the corresponding cooking

zone will switch off automatically. Note: Other cooking zones will keep operating if they are turned on previously. If the timer is set on more than one zone:

1. When you set timer for several cooking zones, red dots of the relevant cooking

zones are indicated. The timer display shows the min. timer. The dot of the corresponding zone blinks. 3 F] (set to 15 minutes) 6 GE] (set to 45 minutes)

2. Once the countdown timer expires, the corresponding zone will switch off. Then it

will show the new min. timer and the dot of corresponding zone will flash. 31C 6.0 Note: Touch the heating zone selection control, the corresponding timer will be shown in the timer indicator.

Cooking Guidelines Take care when frying as the oil and fat heat up very quickly, particularly if you’re using Boost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk. Cooking Tips + When food comes to the boil, reduce the power setting. + Using a lid will reduce cooking times and save energy by retaining the heat. + Minimise the amount of liquid or fat to reduce cooking times. *__ Start cooking on a high setting and reduce the setting when the food has heated through. Simmering, cooking rice + Simmering occurs below boiling point, at around 85°C, when bubbles are just rising occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because the flavours develop without overcooking the food. You should also cook egg-based and flourthickened sauces below boiling point. + Some tasks, including cooking rice by the absorption method, may require a setting higher than the lowest setting to ensure the food is cooked properly in the time recommended. Searing steak To cook juicy flavoursome steaks:

1. Stand the meat at room temperature for about 20 minutes before cooking.

2. Heat up a heavy-based frying pan.

3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan

and then lower the meat onto the hot pan.

4. Turn the steak only once during cooking. The exact cooking time will depend on the

thickness of the steak and how cooked you want it. Times may vary from about 2 — 8 minutes per side. Press the steak to gauge how cooked it is — the firmer it feels the more ‘well done” it will be. . Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving. For stir-frying

1. Choose a ceramic compatible flat-based wok or a large frying pan.

2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking

large quantities, cook the food in several smaller batches.

3. Preheat the pan briefly and add two tablespoons of oil.

4. Cook any meat first, put it aside and keep warm.

5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a

lower setting, return the meat to the pan and add your sauce.

6. Stir the ingredients gently to make sure they are heated through.

7. Serve immediately.

Heat Settings Heat setting Suitability 1-2 + delicate warming for small amounts of food + melting chocolate, butter, and foods that burn quickly + gentle simmering + slow warming 3-4 + reheating + rapid simmering + cooking rice

7-8 + sauteing + cooking pasta 9 + stir-frying + searing + bringing soup to the boil + boiling water

Care and Cleaning What? How? Important! Everyday soiling on glass Gfingerprints, marks, Stains left by food or gary spillovers on the glass) non

1. Switch the power to the cooktop off.

2. Apply a cooktop cleaner while the

glass is still warm (but not hot!)

3. Rinse and wipe dry with a clean

cloth or paper towel

4. Switch the power to the cooktop

back on. + When the power to the cooktop is switched off, there will be no ‘hot surface” indication but the cooking zone may still be hot! Take extreme care. + Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scourer is suitable + Never leave cleaning residue on the cooktop: the glass may become stained. Boilovers, melts, and hot sugary spills on the glass Remove these immediately with a fish slice, palette knife or razor blade scraper suitable for ceramic glass cooktops, but beware of hot cooking zone surfaces

1. Switch the power to the cooktop off

at he wall Hold the blade or utensil at a 30° angle and serape the soiling or spill to a cool area of the cooktop. Clean the soiling or spill up with a dish cloth or paper towel. Follow steps 2 to 4 for ‘Everyday soiling on glass”

above. + Remove stains lef by melts and sugary food or s as possible. If left to cool on the glass, they may be difficult to remove or even permanently damage the glass surface. + Cut hazard: when the safety cover is retracted, the blade in a scraper is razor-sharp. Use with extreme care and always store safely and out of reach of children. llovers as soon Spillovers on the touch controls Switch the power to the cooktop off. Soak up the spill Wipe the touch control area with a clean damp sponge or cloth Wipe the area completely dry. with a paper towel. Switch the power to the cooktop back on.

The cooktop may beep and tu itself off, and the touch controls may not function while there is liquid on them. Make sure you wipe the touch control area dry before turing the cooktop back on.

Hints and Tips Problem Possible causes What to do The cooktop cannot Be turned on. No power Make sure the cooktop is connected 10 the power supply and that it is switched on. Check whether there is a power outage in your home or area. If you've checked everything and the problem persists, call a qualified technician. The touch controls are unrespons The controls are locked. Unlock the controls. See section “Using your ceramic cooktop” for instructions. The touch controls are difficult to operate There may be a slight film of water over the controls or you may be using the tip of your finger when touching the controls. Make sure the touch control area is dry and use the ball of your finger when touching the controls. is being Rough-edged cookware. Unsuitable, abrasive scourer or cleaning products being used. Use cookware with flat and smooth bases hoosing the right cookware” See See ‘Care and cleaning” Some pans make crackling or clicking nois This may be caused by the construction of your cookware (layers of different metals vibrating differently) This is normal for cookware and The induction hob makes a low humming noise when used on a high heat setting, This is caused by the technology of induction cooking, This is normal, but the noise should quieten down or disappear completely when you decrease the heat setting. Fan noise coming from the induction hob. A cooling fan built into your induction hob has come on to prevent the electronics from overheating. It may continue to run even after you've turned the induction hob off. This Do not switch the power to the induction hob off at the wall while the an is running, ss normal and needs no action Pans do not become hot and appears in the display. The induction hob cannot detect the pan becaus suitable for induction cooking. The induction hob cannot detect the pan because it is too small for the cooking zone or not properly centered on it. itis not Use cookware suitable for induction cooking. See section ‘Choosing the right cookware” Centre the pan and make sure that its base matches the size of the cooking zone. The induction hob or a cooking zone has turned itself off unexpectediy, a tone sounds and an error code is displayed (typically alternating with one or two digits in the cooking timer display). Technical fault. Please note down the error letters and numbers, switch the power to the induction hob off at the wall, and contact a qualified technician.

Failure Display and Inspection If an abnormality comes up, the induction hob will enter the protective state automatically and display corresponding protective codes: Problem Possible causes What to do E4/ES Temperature sensor failure Please contact the supplier. ET/E8 Temperature sensor of the Please contact the supplier. IGBT failure. E2/E3 Abnormal supply voltage Please inspect whether power supply is normal. Power on after the power supply is normal. E6/E9 Bad induction hob heat Please restart after the induction hob radiation cools down. The above are the judgment and inspection of common failures. Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob. Technical Specification Induction Hob CTP634SCBB Cooking Zones 3 Zones Supply Voltage 220-240V— 50/60Hz Installed Electric Power 7200W Product Size DXWx*H(mm) 590x520*x58 Building-in Dimensions AXB (mm) 560x490 Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

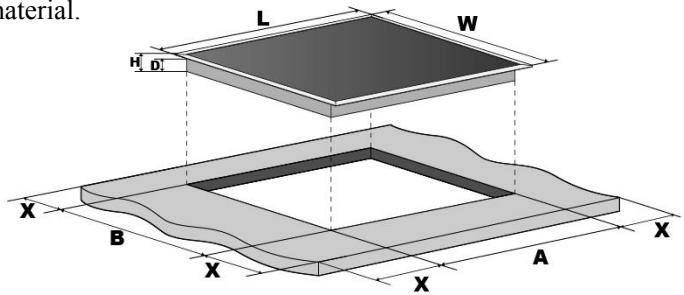

Installation Selection of installation equipment + Cut out the work surface according to the sizes shown in the drawing. *__ For the purpose of installation and use, a minimum of 50mm space shall be preserved around the hole. *__ Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:

Warning: The work surface material must use the impregnated wood or other insulation

material. Model No. L(mm) | W(mm) | Hmm) | D(mm) | A(mm) | B(mm) | X(mm) CTP634SCBB | 590 520 58 54 560 490 50 mini Under any circumstances, make sure the hob is well ventilated and the air inlet and outlet are not blocked. Ensure the hob is in good work state. As shown below Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.

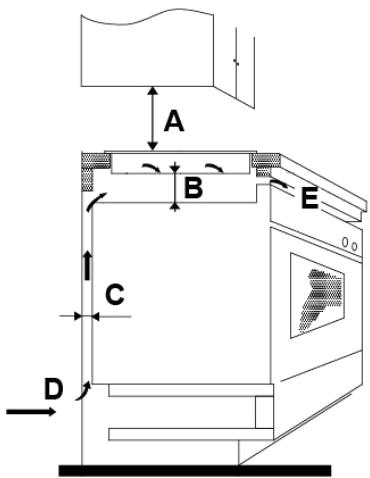

A(mm) B(mm) C(mm) D E 760 50 mini 20 mini Air intake Air exit Smm Before you install the hob, make sure that + the work surface is square and level, and no structural members interfere with space requirements. *__the work surface is made of a heat-resistant material. *__ifthe hob is installed above an oven, the oven has a built-in cooling fan.

• the installation will comply with all clearance requirements and applicable standards and regulations. + a suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations. + Theisolating switch must be of an approved type and provide a 3mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements). + theisolating switch will be easily accessible to the customer with the hob installed + you consult local building authorities and by-laws if in doubt regarding installation + you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob. When you have installed the hob, make sure that + The power supply cable is not accessible through cupboard doors or drawers. + There is adequate flow of air from outside the cabinetry to the base of the hob. + Ifthe hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob. + Theisolating switch is easily accessible by the customer. Before locating the fixing brackets The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. Locating the fixing brackets + The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. + Fix the hob on the work surface by screw four brackets on the bottom of hob (see

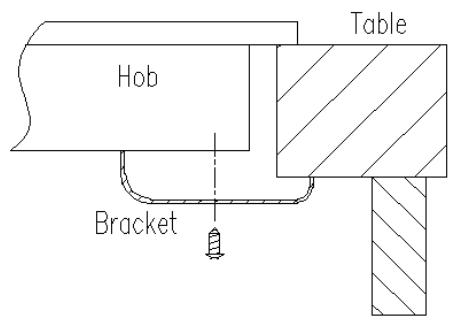

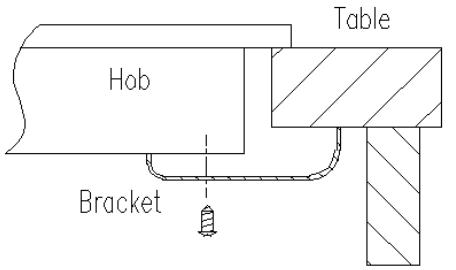

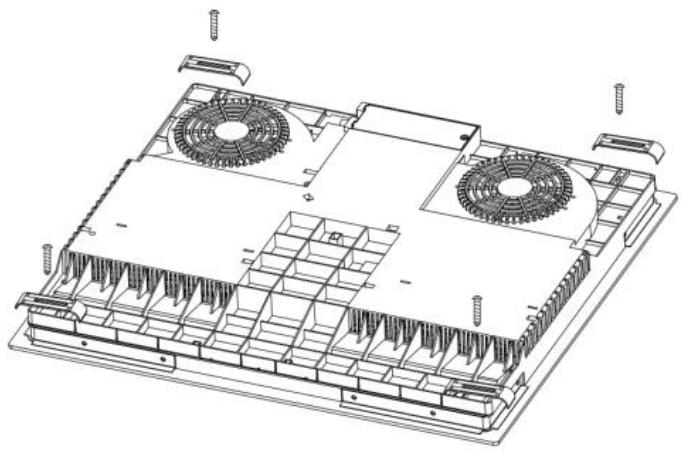

picture) after installation. + Adjust the bracket position to suit for different work surface’s thickness. 1 Table 1 Table Hob Hob Bracket Cautions + The hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. + The hob shall not be mounted to cooling equipment, dishwashers and rotary dryers. + The hob shall be installed such that better heat radiation can be ensured to enhance its reliability. The wall and induced heating zone above the work surface shall withstand heat. To avoid any damage, the sandwich layer and adhesive must be resistant to heat. A steam cleaner is not to be used. This ceramic can be connected only to a supply with system impedance no more than 0.427 ohm. In case necessary, please consult your supply authority for system impedance information.

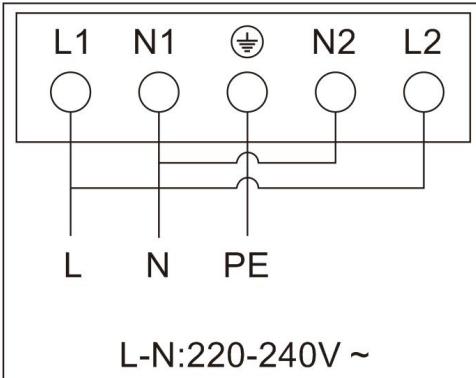

Connecting the hob to the mains power supply The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below. L1 N1 © N2 L2 L1 N1 L2 © N2

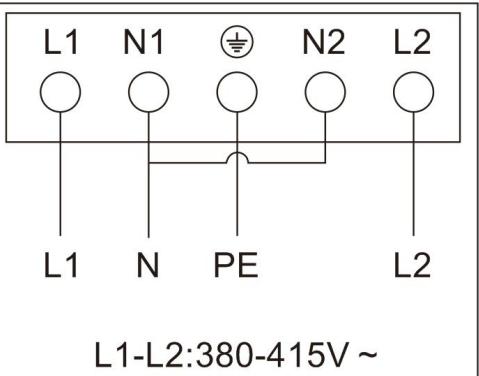

L N PE L1 NN L-N:220-240V - L1-L2:380-415V - + _Ifthe cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents. + _Ifthe appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3mm between the contacts. + The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations. + The cable must not be bent or compressed. + The cable must be checked regularly and only replaced by a proper qualified person.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. This appliance is labeled in compliance with European directive 2012/19/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the Wrong Way. The symbol on the product indicates that it may not be treated as normal houschold waste. It should be taken to a collection point for the recycling of electrical and electronic goods. This appliance requires specialist waste disposal. For further information regarding the treatment, recover and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your houschold waste disposal service or the shop where you purchased the product.
