FCH 755 4G TC - Cooker FRANKE - Free user manual and instructions

Product type	Built-in gas hob
Brand	Franke
Model	FCH 755 4G TC
Number of burners	5 (1 auxiliary, 2 semi-rapid, 1 rapid, 1 triple crown)
Table dimensions (W x D)	750 x 510 mm
Recess dimensions (W x D)	550 x 480 mm
Recommended worktop thickness	40 mm
Net / gross weight	7,8 / 14,7 kg
Power supply	220-240 V ~ 50/60 Hz, 0,6 W
Gas type	G20 (natural gas) or G30/G31 (LPG), convertible
Supply pressure	G20: 20 mbar; G30/G31: 28-30/37 mbar
Total nominal consumption (G20)	1,077 m³/h
Total nominal consumption (G30)	822 g/h
Total installed power	11,3 kW
Power of triple crown burner	3,8 kW (max), 2,10 kW (min)
Power of rapid burner	3,0 kW (max), 1,10 kW (min)
Power of semi-rapid burner	1,75 kW (max), 0,70 kW (min)
Power of auxiliary burner	1,0 kW (max), 0,55 kW (min)
Ignition	Built-in electronic (rotary knob)
Safety	Safety thermocouple (automatic gas shut-off if flame out), child lock (supervision required)
Table material	Stainless steel or enameled (not specified in manual)
Maintenance	Clean after each use with a soft cloth and soapy water; do not use steam cleaner or abrasives
Warranty	Contact Franke after-sales service (see website)

Frequently Asked Questions - FCH 755 4G TC FRANKE

How to light a burner on the Franke FCH 755 4G TC hob?

Press and turn the corresponding knob to the ignition and maximum power position. Hold it down for 3 to 4 seconds to allow the gas to ignite and heat the thermocouple, then release. Adjust the flame by turning the knob anticlockwise.

What to do if a burner does not ignite or stay lit?

Check that the gas and electrical supply are active, the gas valve is open, the LPG cylinder is not empty, the burner openings are not obstructed, and all parts are correctly positioned. Make sure you held the knob long enough (3-4 seconds) to activate the thermocouple.

Can I use the hob with butane or propane gas?

Yes, the model is convertible. You must replace the injectors with those suitable for LPG (supplied as an option) and adjust the minimum flame. This operation must be carried out by a qualified technician.

What pan diameters are recommended for each burner?

For the triple crown burner: 160-260 mm; rapid: 140-220 mm; semi-rapid: 140-200 mm; auxiliary: 60-140 mm. Use suitable pans to avoid overheating of knobs and table.

How to clean the hob?

Clean after each use with a soft cloth or sponge and soapy water. Dry thoroughly. Do not use steam cleaner, steel wool or abrasive products. The grids, caps and burners can be cleaned with warm soapy water (not in dishwasher).

Is there a safety device in case of accidental flame extinguishing?

Yes, the hob is equipped with a safety thermocouple that automatically cuts off the gas supply if the flame goes out (approximately 30 seconds after extinguishing). This prevents gas leaks.

What are the required recess dimensions for this model?

The recess must measure 550 mm width and 480 mm depth, with a recommended worktop thickness of 40 mm. Minimum distances to walls: side 150 mm, rear 50 mm, and 700 mm above for cupboards.

How to maintain the burners?

After cooling, remove the grids, caps and burners. Clean them with warm soapy water and dry them thoroughly. Ensure the gas outlet openings are perfectly clean. Do not wash them in the dishwasher.

What to do if the flame is irregular or yellow?

Check that the burner openings are not obstructed, the minimum flame setting is correct, and the gas type matches the installed injectors. A qualified technician can adjust the minimum adjustment screw or replace the injectors if necessary.

Where to find the serial number and product code for after-sales service?

The serial number (N.S.) and article code (Art./Cod.) are on the rating plate under the hob or in the supplied brochure. Keep this information to contact Franke customer service.

USER MANUAL FCH 755 4G TC FRANKE

EN Installation and user manual Gas Hob

About this manual 3		Cleaning the appliance 13
Safety Information 4		Maintenance and repair 14
Technical data 7		Disposal	15
Installation	8	Packaging	15
Installation procedure 9		Disconnection	15
Intended use 11		Customer service 15
Cleaning and care 13

ABOUT THIS MANUAL

This user manual applies to several models of the device. Thus it may be possible that some of the described features and functions are not available on your specific model.

The explanatory images and figures, described in the various sections, are available at the end of the manual.

• Carefully read the user manual before using the device.
• Keep the user manual. Use the device described in this user manual only according to the intended use.

Franke reserves the right to make modifications to the product without prior notice.

All information correct at time of issuance.

Symbol Meaning

Warning symbol. Warning against risks of injury.

Actions in safety and warning notes to avoid injury or damage. Action step. Specifies an action to be done.

SAFETY INFORMATION

In this manual and on your appliance we have provided many important safety messages. Always read and obey all safety messages. Franke reserves the right to make modifications to the product without prior notice. All information correct at time of issuance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Risk of injury!

This device is not a toy. Keep children and pets away from the device and the packaging material (e.g., plastic film and polystyrene); it can be dangerous. Dispose of it in a proper way.

Do not leave children near the device unattended. Do not let children play with the device.

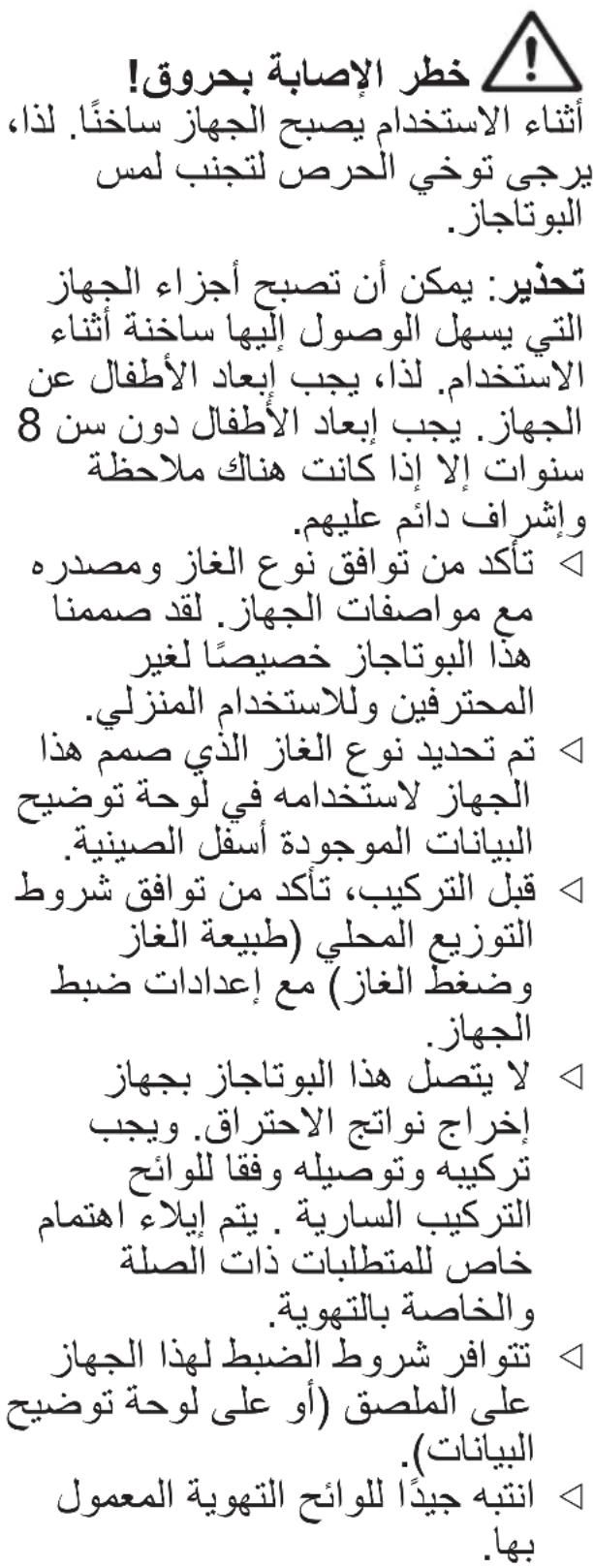

Risk of burns!

During use the appliance becomes hot. Care should be taken to avoid touching the hob.

WARNING: Accessible parts may become hot during use. Young children should be kept away. Children less than 8 years of age shall be kept away unless continuously supervised.

Ensure the gas type and supply is compatible with appliance specifications. The hob was developed exclusively for nonprofessional, domestic use in the household only. The type of gas for which the appliance is arranged is specified on the dataplate on the bottom of the tray. Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible. This appliance is not connected to a combustion products evacuation device.

It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation.

The adjustment conditions for this appliance are stated on the label (or data plate). Pay particular attention to the applicable regulations on ventilation. After use, switch off the hob by its controls. Make sure the burners are cold before closing the lid, if the appliance has one.

Risk of electric shock due to entering liquid!

The device contains electrical components.

Make sure that no liquid enters the interior of the device. Do not use pressurised steam to clean the device. In the event of the burner flames accidentally extinguished, turn off the burner control and do not attempt to reignite the burner for at least 1 min. The device shall not be operated for more than 15 seconds if after 15 seconds the burner has not lit, stop operating the device and

open the compartment door and/or wait at least 1 minute before attempting a further ignition of the burner.

Ensure that the device is installed in a way that allows to disconnect it from the power supply, with a contact opening distance (3 mm) that ensures complete disconnection in category III overvoltage conditions. Ensure that the appliance is connected to an earthing system in compliance with the current regulations.

CAUTION: The use

of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed.

Ensure that the kitchen is well ventilated especially when the appliance is in use: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood). Do not operate the appliance with an external time switch or a separate remote control system.

CAUTION: The cooking

process has to be supervised. A short term cooking process has to be supervised continuously.

Do not use steam cleaners or direct jets of water. Never use scouring pads, steel wool, muriatic acid or other products which could scratch or mark the surface. Never use sharp objects, as they could damage the seals between the trim and worktop. Ensure the gas outlet zones are perfectly clean. These instructions are only valid if the country symbol appears on the appliance. If the symbol does not appear on the appliance, it is necessary to refer to the technical instructions which will provide the necessary instructions concerning modification of the appliance to the conditions of use of the country.

Risk of fire!

Do not store items on the cooking surfaces.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. Hot oils readily ignite.

TECHNICAL DATA

FHTL/FCH 604 3G TC

FHTL/FCH 604 4G

FHTL/FCH 7554GTC

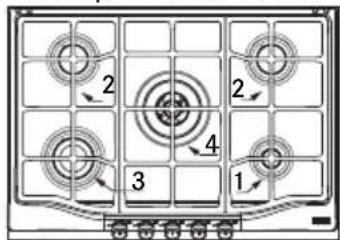

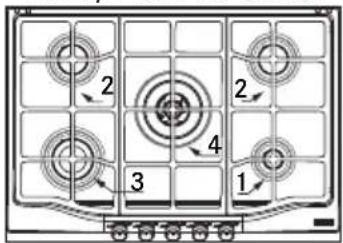

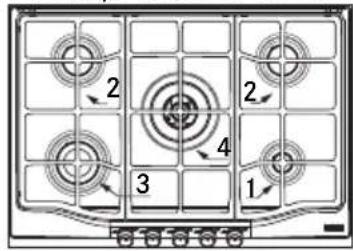

Position	Burner	Rated Capacity - G20	Injectors G20 20 mbar	Rated Capacity - G30	Rated Capacity - G31	Injectors G30/G31 28-30/37 mbar	Rated Power (kW)	Reduced Power (kW)
4	TC	0.362	141	277	277	98	3.8	2.10
3	R	0.286	125	218	218	85	3	1.10
2	SR	0.167	97	127	127	66	1.75	0.70
1	AUX	0.095	78	73	73	50	1	0.55
Pressure (mbar)	min	17		20	25
	nom	20		28-30	37
	max	25		35	45
Type of Gas		G20 natural gas		LPG G30 Butane G31 Propane			Cat. II 2H3+

MOD.	nr AUX	nr SR nr R nr TC	N bur-ners	Heat source	Total Rated Capacity G20 (m3/h)	Total Rated Capacity G30 (g/h)	Air Necessary for combustion (m3/h)	Total installed Gas Rated Power (kW)	Weight (net-gross) (kg)	Power supply voltage/ frequency	Power/ current
FCH 604 3G TC	1	2	1	4	GAS	0.791	604	16.6	8.3	6.1-11.5	220-240 V~50-60 Hz	0.6 W
FCH 755 4G TC	1	2	1	1	5	GAS	1.077	822	22.6	11.3	7.8-14.7	220-240 V~50-60 Hz	0.6 W
FHTL 604 3G TC	1	2		1	4	GAS	0.791	604	16.6	8.3	6.1-11.5	220-240 V~50-60 Hz	0.6 W
FHTL/FCH 604 4G	1	2	1		4	GAS	0.715	545	15	7.5	6.1-11.5	220-240 V~50-60 Hz	0.6 W
FHTL 755 4G TC	1	2	1	1	5	GAS	1.077	822	22.6	11.3	7.8-14.7	220-240 V~50-60 Hz	0.6 W
				TC=Triple Crown		SR=Semi-Rapid		R=Rapid	AUX=Auxiliary

INSTALLATION

Installation and electrical/gas connection must only be carried out by specialized and licensed personnel.

The manufacturer declines any liability for injury to persons or damage to things due to failure to comply with these provisions. The gas connection must comply with the regulations in force in the country at the time of installation.

Ensure that the device is connected directly to the mains socket. Ensure that no adapters, no multi-sockets and no extension cables are used to connect the device.

Cabinet requirements

This handbook refers to a class 3 built-in gas hob and type Y for electric part.

The gas pipe must not come into contact with the sides of any oven under the hob.

For fitted units, the components (plastic materials and veneered wood) must be assembled with heat-resistant adhesives (min.

100°C). Unsuitable materials and adhesives can result in warping and detachment.

The ventilation of rooms must be in compliance with local regulations.

The kitchen element must allow sufficient room for the electrical connections of the appliance.

IMPORTANT: These devices are "Y" type with respect to the degree of protection against the dangers of fire. The minimum distance from the edge of the appliance is 150 mm for the side wall, 50 mm for the rear, and 700 mm for any cabinets above it. The appliance is recommended to be built into 40 mm thick worktops. In case the dimensions are different, eventual modifications have to be managed by the technician.

Note: if a hood is installed above the hob, for the distance to be respected refer to the assembly instructions of the hood.

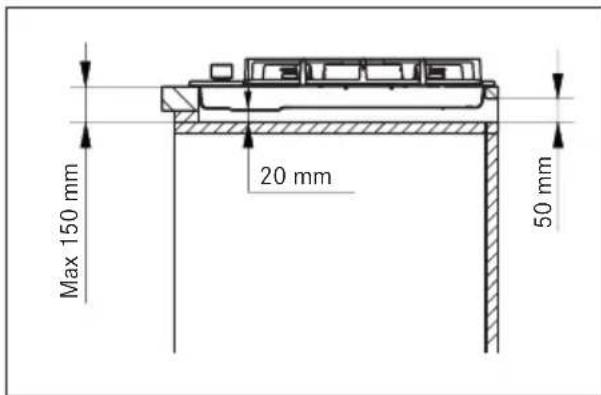

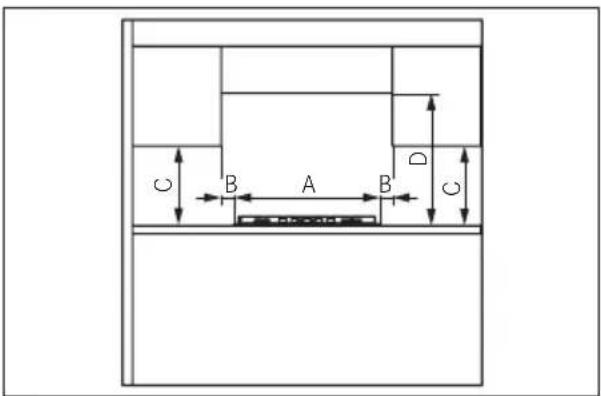

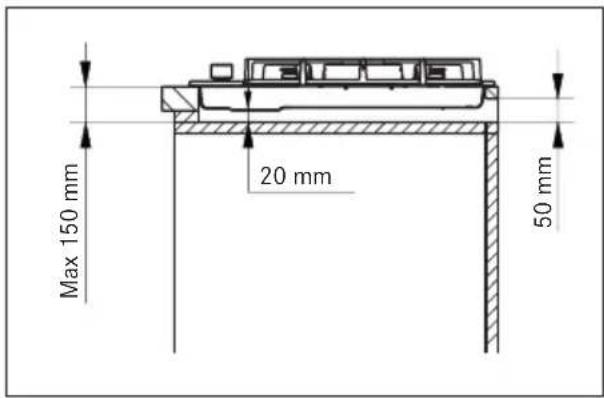

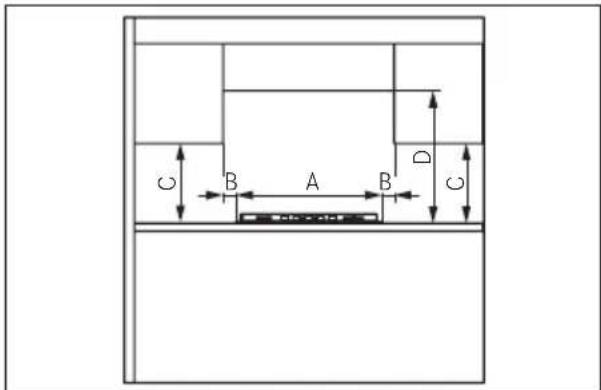

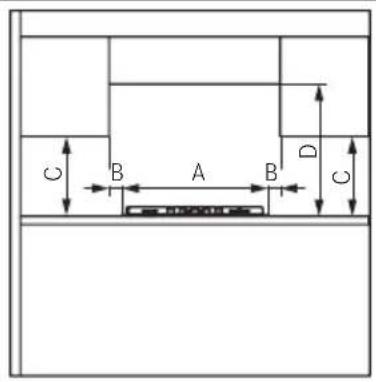

MINIMUM DIMENSIONS (MM)

A-590/750 B-50

C-400 D-700

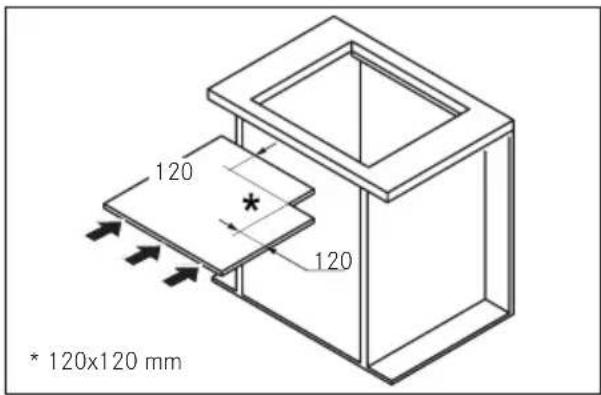

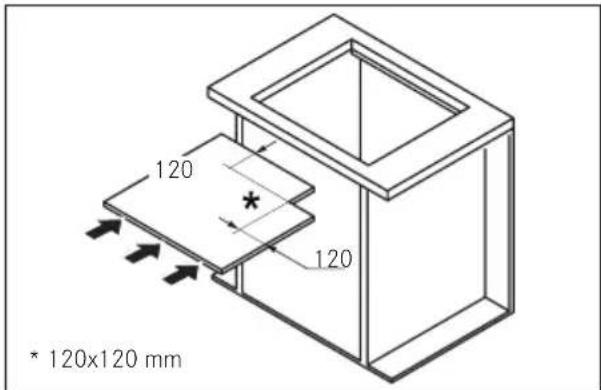

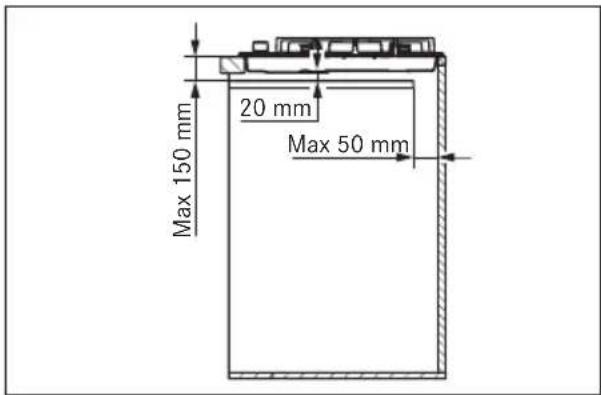

If the appliance is not installed above an oven: arrange a separator baffle.

Installation procedure

The appliance is fixed to the unit by means of the brackets and accessories provided.

Make sure that there is free access to the fixing elements in front and in the rear after the installation of the appliance. Prepare the hole in the worktop according to the dimensions indicated. Be sure to comply with the dimensions indicated.

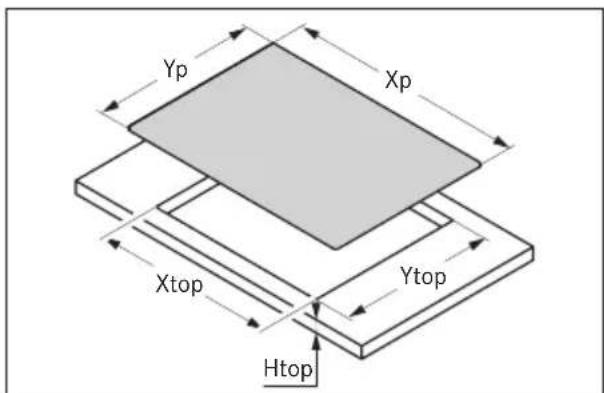

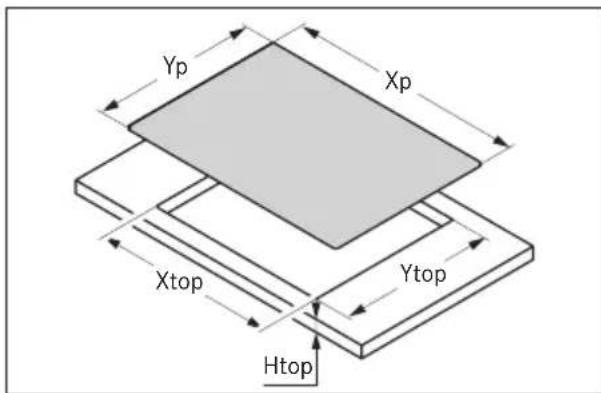

Model xp	mm	yp mm	xtop mm	ytop mm	htop mm
FCH 604 3G TC	590	510	550	480	40
FCH 755 4G TC	750	510	550	480	40
FHTL 604 3G TC	590	510	550	480	40
FHTL/FCH 6044G	590	510	550	480	40
FHTL 755 4G TC	750	510	550	480	40

Apply the sealing strip around the hole and position the hob. Fix the appliance with the screws and brackets. Remove any excess sealing strip.

Connection to gas supply

Connect the appliance to the gas supply in compliance with the current regulations, only after making sure it is arranged for the type of gas to be used. Otherwise, carry out the operations described in the paragraph "Replacing injectors". For liquid gas use pressure regulators complying with the current regulations.

Connection to the gas supply can be made in two ways:

A. Connect the gas hob using a 12 mm diameter rigid copper pipe (3). To ensure a good seal, use the elastomer gasket supplied as an accessory (1). B. Connect the hob using a continuous-surface flexible steel tube (2). Also in this case, to ensure a good seal use the gasket supplied as an accessory (1). The maximum length of the hose is 2 linear metres.

IMPORTANT: if a stainless steel hose is used, it must be installed so as not to touch any mobile part of the furniture. It must pass through an area where there are no obstructions and where it is possible to inspect it on all its length.

After connection to the gas supply light up the burners and turn the knobs from max position to minimum position to check flame stability. After carrying out the connection use soapy water to check for any leaks.

For United Kingdom, Northern Ireland and Republic of Ireland.

Electrical connection

The FRANKE cooking hob comes with a 3-core power cable with free terminals.

Ensure the following:

• The characteristics of your household electrical power supply (voltage, maximum output and current) are compatible with those of your FRANKE hob.
• The plug and the socket can be easily reached and are positioned so that no live part is accessible when inserting or removing the plug.
• A 3 × 0.75 mm² H05RR-F type cable for completely gas hobs is used when replacing the power cable.
• The terminals of two appliances are not connected to the same plug. The polarities of the free terminals (Blue = Neutral = (1) / Yellow and Green = Earth = (2) / Brown = Live = (3) are respected.

Adjustment to different types of gas

WARNING: This operation must be performed by a qualified technician.

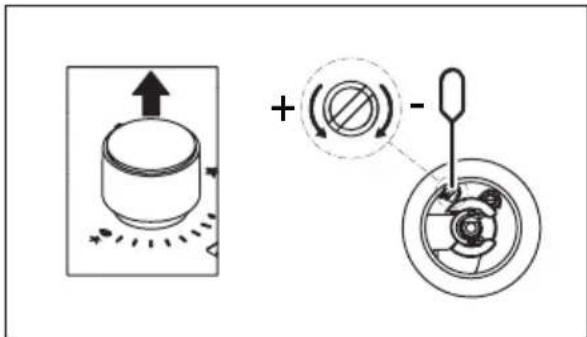

Minimum flame adjustment

Remove the knob. Adjust the minimum flame by turning the adjustment screw clockwise to decrease the flame and anticlockwise to increase it. The screwdriver for adjustment is supplied with the accessories.

Replacing injectors

Not supplied injectors must be requested to the customer service.

IMPORTANT: All the appliances are factory-set for natural gas (G20). If a different type of gas is to be used, change the injectors as follows:

• Remove the grids, burner caps and flame-spreaders;
• Unscrew the injectors and replace them with those provided and suitable for the gas supply, making sure the marking matches that given in the table;
• Refit the flame-spreaders, burner caps and grids.

These burners do not require air adjustment.

Accessing the hob

To access the tray containing the functional parts, proceed as follows:

• Remove the grids, burner caps and flame-spreaders;
• Remove the knobs, sliding them off their pins;
• Remove the screws that fix the burners to the hob;
• Lift the hob.

IMPORTANT: When converting the appliance to a different type of gas, place the corresponding sticker (supplied as an accessory) in the special space on the data plate. For operation with LPG (G30 or G31), the minimum flame adjustment screw must be fully screwed down. These appliances are supplied in cat. II 2H3+.

INTENDED USE

CAUTION: This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

Do not pull the appliance or the power cable to unplug it. Close the general gas supply cock when the hob is not in use.

Risk of burns!

Do not touch the pot grids during use. Do not touch the appliance with wet parts of the body.

Lighting the burners

The hob is lit with the control knobs. To light the burners, proceed as follows:

• Press and turn the required knob to the lighting and max delivery position.
• Keep the knob pressed down for 3-4 seconds to allow the sparks to ignite the gas coming out the burner and to allow the thermocouple to heat up.
• Then release the knob and, turning it anticlockwise, adjust the flame as required. If the flame does not stay lit, repeat the operation from step 1.

Knob icon

Function

Off

Minimum flame

Lighting and maximum flame

Cooking zone

The hob is an item for daily use: signs of usage such as scratches or visible material abrasion from pots or cookware are normal. Intensive use leads to more distinctive signs of usage. In such cases, the appliance continues to function perfectly and a complaint is not justified. Safety is always guaranteed.

Do not use the appliance as support top. To avoid damaging the appliance: In the case of thermal failure, switch the solid plate off and allow to cool down completely. Do not put any dishes on it. Do not cool with cold water under any circumstances. Do not climb onto the appliance. The appliance is manufactured in compliance with the relevant effective safety standard and safety requirements of Gas Directive.

Automatic Safety Valve

These hobs have a safety device that automatically closes the gas flow if the flame accidentally goes out due to draughts, pot spilling, or a temporary interruption of the gas supply. This device is activated approx. 30 seconds after the flame goes out.

Burner use

For lower gas consumption and better efficiency use pots of widths suitable for the burners, making sure the flame does not go beyond the edges (comply with the following table):

Burner Pan bottom min-max (recommended)

Triple crown 160-260 mm

Rapid 140-220 mm

Semi-rapid 140-200 mm

Auxiliary 60-140 mm

The use of larger pots than those specified can cause excessive overheating of the knobs and top and, in case of prolonged use, yellowing of the cover (if in stainless steel). FRANKE declines any liability for damage due to such use (Fig. 1).

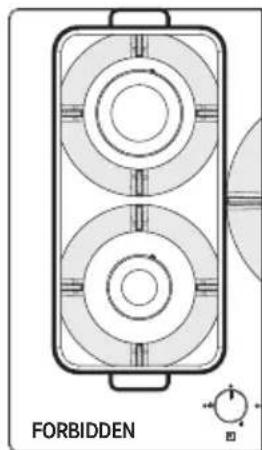

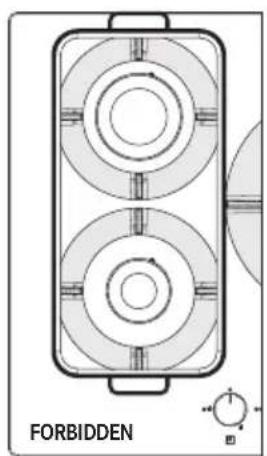

Do not put the same pan on two burners (Fig. 1). Do not use two burners working at the same time with a single container, like a saucepan or a fish pan (Fig. 1). Improper use of the grids can damage the hob: do not position the grids upside down or slide them across the hob. In case of use of cast iron griddles, ollar stones, terracotta pots and pans, use them for no more than 20 minutes and, in case of prolonged cooking, adjust the burner to the minimum. Heat diffusers such as metal mesh, or any other types are not recommended.

CAUTION: The use of particular pans or pots may cause a light temporary deformation of the steel cooking surface. This is normal and does not affect the operation of the appliance.

Fig. 1

CLEANING AND CARE

Risk of burns!

Do not clean the appliance and its accessories until they are cold. Do not use flammable liquids near the appliance.

Before performing any cleaning and care: Turn the appliance off.

Foods that accidentally fall or settle on the surface, on the functional or aesthetic elements of the hob must not be eaten.

Cleaning the appliance

Clean the hob after every use in order to prevent food residues from burning on. To clean food residues, use a soft cloth or sponge with water. We recommend using protective cleaning agents. - Immediately remove any foods with high sugar content that spill onto the hob. To prevent limescale stains from forming, always thoroughly dry the appliance after going over it with a damp cloth. Clean the grids, burner caps and flame-spreaders with hot soapy water, making sure to carefully dry them. Do not clean in a dishwasher. Make sure the gas outlet zones are perfectly clean. The natural colour of the pot grids in the pot placing section may alter over time due to the heat.

MAINTENANCE AND REPAIR

Before any maintenance operations disconnect the appliance from the mains power supply. In case of any operation problems, contact the Franke Technical Service Centre.

Make sure that maintenance on electrical components is carried out only by the manufacturer or the customer service. Use original spare parts only. Make sure that damaged cables are changed only by the manufacturer or the customer service.

When contacting the customer service, please provide the following information:

- type of fault - appliance model (Art. / Cod.) - serial number (S.N.)

This information is given on the data plate on the booklet or under the hob.

If the hob doesn't operate correctly, before calling the Franke Technical Service Centre, refer to the Troubleshooting Guide to determine the problem:

TROUBLESHOOTING GUIDE
Type of failure Check if:
A	1 The gas or electrical supplies are not shut off
The burner fails to ignite, does not stay lit or the flame is not steady	2 The gas supply tap is not open
	3 The refillable gas cylinder (liquid gas) is not empty
	4 The burner openings are not clogged
	5 The plug end is not dirty
	6 All the burner parts have not been positioned correctly
	7 There are no draughts near the hob
	8 When lighting the burner, the knob has not been pressed for enough time to activate the protection device (see page 11 „Intended use“)
	9 The burner openings are not clogged near the thermocouple
	10 The minimum gas setting is not correct
B	11 The bottom of the container is not perfectly flat
The containers (pots, pans, kettles) are not stable	12 The container is not centered on the burner
	13 The grids have not been exchanged or positioned incorrectly

If after the above checks the fault still occurs, get in touch with the nearest Franke Technical Service Centre.

DISPOSAL

Packaging

All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way.

Disconnection

• Disconnect the appliance from the mains. With a fixed appliance, this must be carried out by a qualified electrician.

Disposal

The symbol on the product or on the packaging indicates that the device must not be disposed of in the domestic waste.

Dispose of the device, which is to be discarded, via a specialised waste collection point for electronic and electrical devices.

In accordance with the Directive 2012/19/EU, regarding the reduction of the hazardous substances used in electrical and electronic appliances, and waste disposal.

Proper separate waste collection of the scrapped appliance for subsequent recycling, treatment and environmentally-friendly disposal helps prevent a potentially negative impact on the environment and health and facilitates recycling of the materials used in appliance construction.

CUSTOMER SERVICE

Refer to the contact address for your country on the back page or on our website: www.franke.com

TABLE OF CONTENTS

A = 5 9 0 / 7 5 0 B = 5 0 C = 4 0 0 D = 7 0 0

DISPOSAL

Packaging

Adjustment to different types of gas

The appliance contains electronic components.

MAINTENANCE AND REPAIR

Keep the appliance and its components until they are cool. Do not use flammable liquids near the appliance.

Before cleaning and maintenance, follow these steps: turn off the appliance.

It is forbidden to use food products that have accidentally fallen or spilled on the functional or aesthetic components of the hob surface.

Cleaning the hob

To prevent food residues from burning on, clean the hob surface after each use. For cleaning food residues, use a soft cloth or sponge moistened with water. The manufacturer recommends using cleaning agents with protective properties. If food with high sugar content has fallen on the hob surface, remove it immediately. After cleaning the appliance with a damp cloth, be sure to wipe it dry. This will prevent the formation of limescale. Clean the burner caps, flame spreaders, and burner rings in soapy water and rinse them well. Do not put these parts in the dishwasher. Ensure the area around the gas outlet is completely clean. The natural color of the burner caps and rings located in the area where cookware is placed may change over time due to heating.

TECHNICAL SERVICE AND REPAIR

Before any maintenance work, disconnect the device from the power supply.

If problems occur during operation of the device, contact the Franke service center.

Maintenance of electrical components may only be carried out by the manufacturer's representatives or customer service centers. Use only original spare parts. Replacement of damaged cables may only be carried out by the manufacturer's representatives or customer service centers.

When contacting the customer service center, please provide the following information:

• Type of malfunction;
• Model of the device (Art. / Cod.)
• Serial number (S.N.).

This information is indicated on the rating plate, which can be found in the manual or on the bottom surface.

If the hob is not working properly, before contacting the Franke service center, try to find the cause of the problem with the help of the troubleshooting guide:

TROUBLESHOOTING

Malfunction / Action

A

The hob does not ignite or the flame is uneven

1 Check the power supply. 2 The gas tap is not open. 3 Check the presence of (liquefied) gas in the cylinder. 4 Make sure that the hob openings are not clogged. 5 Clean the burner cap from residues. 6 All parts of the hob were correctly oriented. 7 Eliminate drafts present near the hob. 8 The hob knob was not pressed for a time sufficient to activate the safety device (see page 155, device activation). 9 Make sure that the hob openings located near the thermocouple are not clogged. 10 The minimum gas flow setting is incorrect. 11 The pan is not perfectly flat. 12 The pan is not centered on the hob. 13 Check the correct positioning of the grids.

If you cannot fix the device yourself, contact the Franke service center.

DISPOSAL

Packaging

All packaging materials (cardboard, polyethylene film (PE), polystyrene [EPS]) are marked accordingly. Where possible, they should be taken to a recycling center and disposed of in an environmentally friendly manner.

Disconnection

Disconnect the device from the power supply. If the device is fixed, this operation must be performed by a qualified electrician.

Disposal

This symbol on the device or its packaging indicates that the device must not be disposed of with regular household waste.

Take the device to a special collection point for used electrical and electronic devices.

In accordance with Directive 2012/19/EC on the reduction of hazardous substances used in electrical and electronic devices and the disposal of waste.

Proper ecological disposal of the device in accordance with the rules for separate waste collection and subsequent recycling helps prevent potential negative consequences for the environment and human health, as well as promotes the reuse of device materials.

CUSTOMER SERVICE CENTER

See contacts and address for your country on the back of the manual or on our website: www.franke.com

CONTENTS

User manual 160

Safety instructions 161

Technical data 164

Installation 165

Installation procedure 166

Using the device 168

Disposal 170

Accessories 170

Maintenance and repair 171

Utilization 172

Packaging 172

Disconnection 172

Service center 172

MANUAL

This manual is intended for several models. Some descriptions and functions may not be available for your specific model.

Illustrations in this manual are for reference only and may differ from the actual product.

Before using the device, be sure to read the user manual. Keep the user manual. Use the device only as described in this manual, including for its intended purpose.

Franke Company reserves the right to make changes to its products without prior notice. All data are correct at the time of publication.

SYMBOLS

Warning symbol. Warning of potential injury.

Safety measures and precautions to help avoid injury.

Read the instructions before use.

SAFETY INSTRUCTIONS

The instruction manual for the device contains many important safety instructions. Read and follow all safety instructions.

Franke Company reserves the right to make changes to its products without prior notice. All data are correct at the time of publication.

This device can be used

by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Danger of injury!

This device is not a toy! Keep it and its packaging material away from children and pets.

It may be dangerous; use it properly.

Do not leave the device unattended. Do not let children play with the device.

During operation, the appliance becomes hot. Be careful not to touch the hot surface.

WARNINGS:

Accessible parts may become hot during use. Do not let children touch them. Children under 8 years of age must be kept away from the appliance unless constantly supervised.

Make sure that the gas you use and its pressure correspond to the characteristics of the appliance. The hotplate has been designed for non-professional use, i.e., for domestic use in a household. The gas for which the appliance is intended is indicated on the data plate in its lower part.

Before installation, make sure that the installation conditions (gas type and gas pressure) and the connection of the household appliance are suitable. This appliance is not connected to a flue for combustion products; it must be installed and connected in accordance with the installation regulations. Particular attention must be paid to the relevant requirements regarding ventilation. The installation conditions for this appliance are indicated on the label (or on the data plate). Pay special attention to the ventilation regulations when using the appliance. After using the hotplate, always turn it off using the appropriate control elements. Before lowering the lid (if present), make sure it has cooled sufficiently.

Risk of electric shock. Do not use the appliance if it is damaged.

The appliance contains electrical components.

Make sure that no foreign objects enter the appliance. It is forbidden to clean the appliance with a steam cleaner. In case of accidental ignition of the burner, turn off the burner control and do not attempt to re-ignite it for at least 1 minute. Do not use the appliance for more than 15 seconds continuously; if the burner does not ignite within 15 seconds, stop the operation of the appliance and open the window and/or wait at least 1 minute before the next attempt to ignite the burner.

Make sure that the appliance is installed so that it can be disconnected from the electrical supply, with a contact opening distance of at least 3 mm, which guarantees complete disconnection under overvoltage category II conditions. Be sure to provide reliable earthing of the appliance in accordance with the relevant regulations.

CAUTION:

Using the gas hotplate leads to the formation of heat, moisture, and combustion products in the room where it is installed.

Ensure that the room has good ventilation, especially during use of the appliance: keep the openings for natural ventilation open or install a mechanical ventilation device (mechanical hood). Do not use the appliance with a timer or a separate remote control system.

CAUTION:

Be sure to monitor the cooking process. Since cooking does not take much time, continuously monitor the cooking process.

Do not use abrasive sponges, steel wool, acids, or other agents that can damage the surface.

Scratch the surface or leave stains on it.

Do not use sharp objects near the appliance, as they may damage the insulating layer between the hob and the glass ceramic. Keep the gas outlet area clean. These instructions are valid only if the country symbol is indicated on the appliance. If the symbol is not indicated on the appliance, it is necessary to consult the technical instructions and obtain the necessary information about modifying the appliance according to the operating conditions in a particular country.

Risk of damage

damage!

Do not store any objects on the cooking surface.

WARNING

Cooking on the cooking surface with fat or oil without supervision or in automatic mode is dangerous. This can lead to damage! The oil may ignite almost immediately!

FHTL/FCH 604 3G TC

FHTL/FCH 604 4G

FHTL/FCH 7554GTC

Положения	Конфорсka	НомINALБА СМИСТБ ДД G20	Инж ecтори G20, 20 мбap (100/МM)	НомINALБА СМИСТБ ДД G30	НомINALБА СМИСТБ ДД G31	Инж ecтори G30/G31, 28- 30/37 мбap	НомINALБА notychnictb (KВt)	Положения notychnictb (KВt)
4	ПК	0,362	141	277	277	98	3,8	2,10
3	E	0,286	125	218	218	85	3	1,10
2	SR	0,167	97	127	127	66	1,75	0,70
1	ДОП	0,095	78	73	73	50	1	0,55
	Mн.	17		20	25
ТиSC (мбар)	HOM	20		28-30	37
	Мakc.	25		35	45
Тип raу	Приpondи rαa G20			СПГ Бутан G30 Прочan G31			kat. II 2H3+

TC = Ceramic hob SR = Gas hob R = Oven AUX = Auxiliary

INSTALLATION

Installation and electrical/gas connections must be carried out by a licensed specialist.

The manufacturer is not liable for any damage or injury resulting from failure to follow these instructions. The appliance must comply with national regulations in force at the time of installation.

Connect the appliance to the electrical outlet without extension cords. It is forbidden to place the appliance through partitions, to disassemble the device.

Bmorndokyxohhoia

This appliance is intended for use in built-in gas or electric cooking surfaces of class 3, or for installation in electrical installations of type Y.

The pipe must not protrude beyond any hood or cabinet above the cooking surface.

For assembling furniture components that contain plastic and plywood, use heat-resistant adhesive (min. 100°C):

Room ventilation must comply with local regulations.

The furniture element must have sufficient space for the electrical connections of the appliance.

IMPORTANT! The specified devices belong to class Y in terms of fire safety. The minimum distance from the appliance to the side walls is 150 mm, to the rear wall 50 mm, and to any cabinets above 700 mm. It is recommended to install the appliance in a wall with a thickness of 40 mm. If the dimensions of the available furniture elements differ from those specified, the technical service must make the necessary changes to the design.

Note: If a hood is installed above the cooking surface, the distance must be observed according to the hood installation instructions.

MINIMUM DIMENSIONS (MM)

A=590/750 B=50

C=400 D=700

If the appliance is not installed above an oven, install a separating partition.

Installation procedure

Attach the appliance to the furniture element using the brackets and accessories included in the kit.

After that, access to the valve elements from the side and rear will be ensured. Make an opening in the wall according to the specified dimensions. In doing so, follow the specified dimensions.

Моденьхр	MM	yp MM	x Верх MM	y Верх MM	h Bepx MM
FCH 604 3G TC	590	510	550	480	40
FCH 755 4G TC	750	510	550	480	40
FHTL 604 3G TC	590	510	550	480	40
FHTL/FCH 604 4G	590	510	550	480	40
FHTL 755 4G TC	750	510	550	480	40

Apply a sealant around the opening for the device and install the valve surface in the opening. Close the device with the help of mounting screws. Remove the protruding sealant.

Connecting to the gas supply source

Connect the device to the gas supply source in accordance with the current regulations, after making sure that the device matches the type of gas used. In this case, perform the operations described in the section "Replacing the injectors". When using liquefied gas, use a pressure reducer that complies with the current regulations.

The connection to the gas supply source can be made in two ways:

A. Connect the valve surface using a flexible hose with a diameter of 12 mm (3). To ensure reliable sealing, use the supplied gasket (included in the accessories kit) (1). B. Connect the valve surface using a flexible steel pipe with a continuous surface (2). For reliable sealing, also use the supplied gasket (included in the accessories kit) (1). The maximum length of the hose is 2 linear meters.

IMPORTANT: If a hose is used, it must be installed so that it does not come into contact with any moving part of the furniture. It must pass through a zone where there are no obstructions and where it can be checked along its entire length.

Disconnect the device from the gas supply and turn the knobs to the minimum position to check the stability of the flame. Disassemble the connection using the appropriate wrench and check for the presence of threads.

Access to the valve surface

To access the functional components, perform the following steps:

Remove the grates, the burner caps, and the burner rings; remove the knobs by pulling them towards you;

• Unscrew the screws that secure the knobs to the valve surface;
• Lift the valve surface.

Before connecting the device to the gas network, install the appropriate nozzle (supplied as an accessory) in the dedicated place on the data plate. When using a propane or butane cylinder, fully tighten the minimum level adjustment screw. The described accessories are not included in the kit. II 2H3+.

INTENDED USE

WARNING: This device is intended for

Do not pull on the device, nor on the power cord when disconnecting the appliance from the outlet. Close the gas valve when not using the hob.

Danger of burns!

Do not touch the hot parts of the appliance during operation. Do not touch the appliance with wet parts of the body.

Ignition of burners

The burner surface may be hot. To ignite the burners, follow these steps:

Press and turn the required knob to the ignition position and maximum flame. -Press the knob for 3-4 seconds until the sparks ignite the gas coming out of the burner, and the thermocouple heats up. After releasing the knob, turn it counterclockwise

to the desired flame level. If the flame goes out, repeat the operation from point 1.

Knob symbol

Function

Off

Minimum flame

Po3naiIOBaHHaTaMAKcIMaIbHnBOHOh

3oHaBapHHH

BapnIbHa nobepxHc npnaDom nla OoJeHHo ekcnnyataui. BiinobiHo, cniiN biKactpyta iHwOro kyxOHoro nocdy (Hanpknad, noPraHHn nn CTnpaHH MaTepiany) cuiKOM HopMaIbHM raBnem. Pn iHTeHcNBHomy BHKOpNCtAHNI cniN 6yDyTB nomTHiWMN. Y CbOMy pa3i npnaI i HadaJI npauOBatmme 6e3dOraHHo, TOM He cnID XBNIOBATncr. Mn 3abXdn rapaHTyEmo 6e3neKy haooi npodykuii.

He po3miuye CTOpOHnI npeMeTn H a nobepxhi npncpoio. YHKHyNKHyTN NOKoJKeH npNJaNy: Ypa3i BiIMOBnYepe3 npuyweHHa TeMneparypHoRo peKmMy cIi BmKHyTu CyIbHy NaHeB Ta DaTn Iy K CnId OXOJHOHTN. He cTaBTe Ha Hei KOneH NocyI. 3a KOHNX O6CTaBnH He 3aCTOCOBYte DnOxOJIOKeHH XoIoNDHy BOy. He niHimaiTecaHa npnilad. PnlaBnroTOBneHO 3rINO 3 BiIOBIDHM HHM cTaNdApTOM 36e3neKn Ta BmOrAmn 3 6e3neKn r30BOi DnpeKTbN.

ABTomatuHn 3an06ixHHKJanaH

Li BapnIbHi NOBepxHl MaOTb 3aNo6ixHn npNCTpi, kIn ABTomTuHNO nepeKpNBac NOTk r3y, kUO pANTOM 3racaE BOHO b uee3 npTg, npOnBaHH 3 KAcTpynI a60 uee3 TmUacOBe NepePbAHn Noaui ra3y. OncanH npNCTpi BMKAeTbc np6Jln3HO uee3 30 cekHyd nicra 3HnKHeHHn oJyM'

BnKOpncTaHH KOHOpKn

ДлгЗнжehнсnoЖиBaHHra3y Ta niBnueHRe eKtubHocTi npnaDy BnKOpNCTOByTe nocyd taKOrO diAmetpa, zuo BiNobiJae po3mipy konΦopok. BodNoucac Heo6xIDHO cnIkYbATn, zuo6 nOnym' He BnPnBaIoc3a Kpai nocdy (BiNOBiJaOTb HaCTynHnTa6nui):

Конфоркадишие посуд, м. - Мakc. 0 (pekomehdobaho)
ПOTRIHA	160-260 MM
Корona
Експrec 140-220 MM
Нanziевский 140-200 MM
Довоміжна 60-140 MM

PnBnKOpNCTaHHi 6IbWoRo nocydy, HIX ce nepeD6aueTBcra, KOHΦopKn Ta nobepxna npnlaNy moKyt bHaMIPHO HaPribatncr. KaIO OncaHe ABuIe MaC Micue BnpoOBk TpNBaIoro acy, nobepxHa npnlaNy MoKe NOKOBITn (y BnPaKy 3 HepXabIOU O CTaIIIO). Komnai Franke He Hece XoJHOi BiINOBiAaNbHOCTI 3a NOnKOJKeHHn PnICTPOIO BhaclIDOK ONcaHOro ABuIa (MaI.1).

He cTaBTe OndHy KaCTpyIIO Ha Ibi KOHΦopKN (MaI.1). He BnKOpNCToByTe DBi KOHΦopKn OndHocHoДЯ OndHieI OndHnCi NocUy, HapNKlaD,ДЯ KAcTpPyI aOcKOBOpOn Дя риBn (MaI.1). HeHaleXHe BnKOpNCtAHnpeWitOK MoKe NOsKOJNTn BapInbHy NOBepxHIO: He CTaTBe pewiTKn DOrOpn Hn3Om i He TargHiTb IX nOBapInbHi NOBepxHi. Ypa3i BnKOpNCTaHHaBvHHNXCKOBOpIDOK,KAM'HNHXIINITIINPnIROTyBaHHraHHO NOCyHu, KopnCTyTeCn HmHHe IbWe 20 XbHnH,a y pa3i TpNbAHorO rOtYaHnB iDperyIIOHTeMHiMaJIbHn BOHOb B KOHΦOpui. He peKOMeHnyETbCBAHKOpNCTOBvBaTH po3ciOBaui TeNla, TaKi kMeTaJeBa ciTk a6o 6yNb-ki jHni.

OBEPEXHO: BnKOpNCTaHH naBHoro KxOHHO NOcyu MoKe CnpHHTn IeKy TmUacoby deopmaIo CTaIeBOI BapnlbHOI NOBepxHi. Ce HopMaJIbHe RaNue i BOHO He BnINBaC Ha po6Otu npnaJy.

(Man. 1)

He6e3neka onikib!

He nctitb npnaad ta noro akcecyapn, NOKN BOHN He OXOLOHyTb. He kopructytecra 3aMnCTmPiHa6iJa npna.

IpeepuueHHm iDOrnqom CniBnKohyBaTAt Taki dii: BumKHiTb npnla.i.

Avoid touching the surface with fingers, as grease or dirt may get on the surface, on functional or aesthetic components of the painted surface.

Cleaning the appliance

Before cleaning, unplug the appliance and let the painted surface cool down after each use. To remove dirt from the painted surface, use a soft cloth or sponge with warm water and mild detergent. We recommend using products with neutral properties. If food with high sugar content gets on the painted surface, do not leave it. After cleaning, wipe it dry with a soft cloth. To prevent the formation of limescale, clean the racks, burner caps, and burner heads thoroughly with warm water and dry them carefully. Do not wash these parts in the dishwasher. Keep the gas outlet area clean. The color of the racks and other parts placed in the oven may change over time due to heating.

MAINTENANCE AND REPAIR

Before performing any maintenance operation, disconnect the appliance from the power supply.

If problems arise during the operation of the device, contact the Franke technical service center.

Maintenance of electrical components should only be performed by representatives of the manufacturer or a service center. Use only original spare parts. Replacement of damaged cables is allowed only by the manufacturer's representative or service center.

When contacting the service center, be sure to provide the following information:

• Fault description - Appliance model (Art./Cod.)
• Serial number (S.N.)

This information is provided on the data plate, which is located on the painted surface.

The painted surface is easy to clean. Before calling the technical service center of the Franke company, read the troubleshooting and fault correction instructions to identify the problem:

TROUBLESHOOTING AND FAULT CORRECTION INSTRUCTIONS

Tин-heсправноcti Перевір'te настун've:
A Конфорka He розалноctься, He п探测ж've ropirn a6o почу'm' He e CTiKIM	1 He nepekrta noza ra3y abo enektprkn
	2 He bIDkpHTo Kpan nozaIra3y
	3Злравни ra3obni 6anOH (ckpallnoHOrO ra3y) He c npoxhim
	4ОТВOPN pALbHnKa He 3a6nTi
	5Загушka He e 6pydnoI
	6Bci detani KoHΦopKn po3miuehi He npabInbHo
	7Порун 3 рукopo He mae npotrayiB
	8При залюванHi KOHΦopKn ryUka HATnCKaIacR nPOTrGM HeDocTaTHbOro qucy, zu6 akTbByBatn 3axnchni npncptri (duBtbcr cTopiHky 168 "KornstvbaHHa 3a npnHaueHHaM")
	9ОТВOPN KoHΦopKn He 3acmiiHn lopyu 3 termonapoI
	10He npabInbHe halaTuBaHHa MinImalbNoI noaIra3y
B Емhoefti (kactpyli, ckOBopidki,чayHnKi) e HeCTiKIMn	11Дно nocuy He c ideaIbHo pIBHm
	12Посyd He bIDcentroBaHo Ha konΦopzi
	13Рewitkn He nomiHni MicaMn i po3miuHTbCn prabInbHo

If the device still malfunctions after all checks, contact the Franke company technical service center.

DISPOSAL

Packaging

All packaging materials (cardboard, polyethylene film (PE) and polystyrene (EPS)) are marked with the appropriate symbol. Where possible, they should be sent for recycling and disposed of in an environmentally safe manner.

Disconnection

Disconnect the device from the mains before any operation. The specified operation must be carried out by a qualified electrician.

Disposal

The symbol of the crossed-out wheeled bin indicates that the device must not be disposed of together with household waste.

Then take the device to a special collection point for old electrical appliances.

Directive 2012/19/EC applies regarding the reduction of the quantity of hazardous substances used in electrical and electronic devices and the disposal of waste.

Proper sorting of the components of the old device before further recycling, processing and environmentally sound disposal helps to prevent potential negative impact on the environment and human health, and also promotes the recycling of materials used by the device manufacturers.

SERVICE CENTER

The contact address of the service center in your country is indicated on the last page of the manual, as well as on our website www.franke.com.

FHTL/FCH 7554GTC

FHTL/FCH 604 4G

FHTL/FCH 604 3G TC

11 1 12 2 13 5 13 6 13 7 13 9 jaii

11 2

JLLI 1

piaiuiol jaiyie yiuwll 0o1 jg.

1234567890

i111 1e CxJyF rJ FANKE aS Jiai i 130 22 111 111 111 111

jlll jn nn yll l 124 nlll ldy s aill gll glll jlll jlll jlll jlll jlll jlll jlll jlll jlll jlll jlll jlll jlll jlll jlll

jai jie

aaiy jbiia jia jiaiill jao

！

i 1

4y plall jay yll el yjg 8jgl 0o.
