Volumissima 647.01 - Curling iron VALERA - Free user manual and instructions

USER MANUAL Volumissima 647.01 VALERA

Line drawing of a hair styling iron with a bandage and cord (no text or symbols)

INSTRUCTIONS FOR USE

00060512-01/16

Distributed by Ligo Electric SA - 6853 Ligornetto / Mendrisio - Switzerland Valera is a registered trademark of Ligo Electric S.A. - Switzerland

CE

EN Professional hair volumising iron Translation from original instructions
DE Professionelles Volumeneisen Übersetzung der Originalanweisungen
FR Plaque volumisante professionnelle Traductions à partir des instructions d'origine
IT Piastra volumizzatrice professionale Istruzioni originali
ES Plancha voluminizadora profesional Traducción de las Instrucciones originales
NL Professionele volumetang Vertaling van de originele instructies
PT Placa de volume profissional Tradução das instruções originais
NO Profesjonell volumgivende rettetang Overseltelse av original bruksanvisning
Professionell krustång
Översättningar från originalinstruktioner
FIAmmattimainen hiusten volyymirauta Alkuperäisen käyttöchjeen käännös
DA Professionelt glattejern
Oversattelser fra opindelige anvisninger
HU Professzionális hajtérfogat-növelő vas Az credeti ulasítások fordítása
CS Profesionální kulma pro větší objem vlasů Překlad originálních pokynů
RO Placă profesională pentru volumul părului Traducerea instrucțiunilor originale
PL Profesjonalne urządzenie do stylizacji zwiększające objętość włosów Thumaczenie oryginalnej instrukcji
He
EL Επαγγελματικό σίδερο για όγκο μεταφράσεις από τις αρχικές οδηγίες
TR Profesyonel hacimlendirici plaka Orijinal talimatların çevirisi
SK Žehlička na vlasy
BG Професионална преса за увеличаване обема на косата Превод от оригиналните инструкции
UK Професійні щипці для збільшення об'єму волосся Переклад з оригінальних інструкцій
RU Профессиональные щипцы для увеличения объема волос Перевод с оригинальных инструкций
صفحة ضخيم الحجم الحرفية AR العربية من التangiات الأساسية
ZH 专业松发器 翻译自原文说明
FA صفحة جبودهندة هرفهاي مجموعه ملشین موزنی هرفهاي

Technical diagram of a mechanical tool with numbered parts and an inset view showing a component labeled 6.

1

Illustration of a person receiving hair treatment with an inset showing the same hand (no text or symbols present)

Illustration of a human head with hair and a magnified inset showing hair follicles (no text or symbols)

English

OPERATING INSTRUCTIONS

Please read these operating instructions carefully as they include valuable advice on safety and how to use the equipment. Look after these operating instructions carefully.

Available also on www.valera.com

CAUTION

• Important: In order to guarantee additional protection, it is recommended that a differential breaker with an intervention current not greater than 30mA is installed in the electrical system which feeds the device. For further information, contact a qualified electrician.
  • Make sure the unit is perfectly dry before using it.
  WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
• This appliance can be used by children from 8 years of age and over, and by persons with limited physical, sensory or mental abilities or who lack the relevant experience and knowledge, if they are suitably supervised or have been educated to use the appliance safely and made aware of the associated risks.
• Do not allow children to play with the appliance.
  • Children must not perform cleaning and maintenance procedures unless supervised.
• Prevent the hot surface on the unit from coming into contact with the face, neck or any other parts of the body. Use the unit, holding it by the handgrip and when changing the accessories hold them by the plastic guards.
• Allow the metal parts to cool down before touching them.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard. Do not use your unit if it is not working properly. Do not try to repair this electrical unit yourself, rather contact an authorized technician.
• When the appliance is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the appliance is switched off.
• Only connect this unit to alternating current and check that the mains supply voltage corresponds to that indicated on the unit.
• Never immerse this unit in water or other liquids.
• Do not put this unit down where it could fall into water or other liquids.
• Do not try to pull any electrical appliance out when it has fallen into water - disconnect the plug from the power socket immediately.

Valera

PROFESSIONAL

Mod. Nr

Date of purchase

Kaufdatum

Date d'achal

Name and full address of purchaser

The image is too blurry to recognize any text content.

Overa, crenzare kx. Nipes, oubonet, the epapaste Alcine, lacn euni se adres

• Make sure the unit is perfectly dry before using it.
• Do not put the appliance on heat sensitive surfaces during use.
• After use always switch the unit off and remove the plug from the power supply socket. Do not pull on the wire to remove the plug from the power supply socket. Do not pull the plug out of the power supply socket when your hands are wet.
• Always allow the unit to cool before putting it away and never wrap the cord around the unit.
• Check that the cord has not been damaged from time to time.
• Prevent the cord from coming into contact with the metal parts while these are still hot.
• Use the unit on dry hair.
• Do not use this unit on wigs that have synthetic hair.
• The elements used to pack the unit (plastic bags, cardboard box, etc.) must be kept out of reach of children as they are a potential danger to them.
• This unit must only be used for the purposes for which it is expressly intended. Any other use is to be considered improper and therefore dangerous. The manufacturer accepts no responsibility for damage caused by improper or erroneous use.
• Do not use hair spray while the unit is running.
• Keep the plates clean and free of dust, hair spray, styling gel, etc.
• To avoid dangerous overheating, it is advisable to unwind the entire length of the cord

OPERATING INSTRUCTIONS

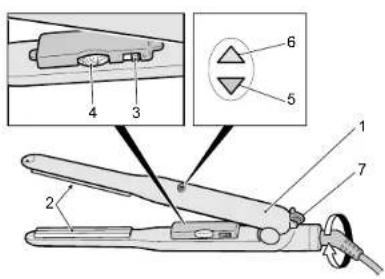

Parts

1. Appliance
2. Plates
3. ON/OFF switch

4. Temperature switch

5. Red indicator light

6. Green indicator light
7. Locking device

Switching the appliance on and off

To switch the appliance on, simply plug it in to an electrical socket and move the switch (fig. 1, ref. 3) to "I". To switch it off, move the switch (fig. 1, ref. 3) to "0" and remove the plug from the socket.

Important: never leave the appliance unattended when on.

Temperature settings

To set the temperature for use turn the switch (fig. 1, ref. 4) to the desired value. You can select different temperatures depending on the type of hair to be treated

up to 150°C for fine, straight hair

up to 210°C for fine, wavy hair

up to 230°C for thick, curly hair

Guide to red and green indicator light (fig. 1, ref. 5 and 6) operation:

• red indicator light illuminated: appliance in operation
• green indicator lights flashing: ready for use, set temperature reached
• green indicator lights illuminated (fixed light): plate heating in progress
• green indicator lights off: plate cooling in progress.

OPERATING TIPS:

This appliance was designed to give your hairstyle extra volume by lifting hair naturally, at the root.

This increase in volume is achieved through the creation of a wave at the very root of the hair (right next to the scalp).

Please take the following advice into account when using the appliance:

• Hair that has just been washed and dried can be styled better.
• The first few times you use this unit it is advisable to practice on small areas of your hair.
• Wait for the appliance to reach the set temperature.
• Brush hair and separate it into 2 cm sections.
• Release the plate locking device (fig. 1, ref. 7).
• If you decide to begin working at the top of the head (fig. 1), the hair next to the parting should not be styled using the appliance. This will ensure that the uppermost layer of hair remains smooth, hiding the slightly crimped effect of the layers underneath (fig. 3).
• Place the first section of hair between the plates (fig. 1, ref. 2), making sure the appliance is as close to the hair root as possible (fig. 2).
• Keep the plates pressed together for approximately 2/3 seconds.
• CAUTION: burning hazard. Do not let the appliance come into direct contact with the skin.
• Continue working on the remaining sections of hair.
• Brush hair gently once you have finished.ù

CLEANING AND MAINTENANCE

Always remove the plug from the power socket before beginning to clean the unit! Let it cool completely before cleaning it.

This unit can be cleaned using a damp cloth, but it must never be immersed in water or any other liquid.

This appliance conforms to European Directives 2014/30/EU, 2014/35/EU, 2009/125/EC, and Regulation (EC) No. 1275/2008.

GUARANTEE

VALERA guarantees the appliance you have bought at following conditions:

1. The guarantee conditions for this appliance are as defined by our dealer in the country of sale. In Switzerland and in the countries subject to the European directive 44/99/CE the guarantee period is 24 months for domestic use and 6 months for professional or similar use. The guarantee period starts from the date of purchase as stated on the present guarantee card regularly filled out and stamped by the dealer or on the sale's invoice.
2. The guarantee is applicable only against submission of the present guarantee card or the sale's invoice.
3. The guarantee covers the elimination of all defects arisen during the guarantee period resulting from proven faults in material or workmanship. The elimination of the defects will be made either by repairing the appliance or exchanging it. The guarantee does not cover any damage arising from incorrect connection to the power supply, improper use, breakage, normal wear and non-compliance with the Instructions for Use.
4. All other claims of any nature, including those for eventual damages outside of the appliance, are excluded, unless our liability is legally mandatory.
5. The guarantee service is carried out free of charge; it does not affect the expiry date of the guarantee.
6. The guarantee becomes void if repairs are undertaken by unauthorized persons.
   For UK only: this guarantee in no way affects your rights under statutory law.
   In case of defect, please return the appliance well packed and together with the guarantee card regularly dated and stamped to one of our Valera Service Centres or to the dealer who will send it to the official importer for the guarantee service.

The symbol — on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

BEDIENUNGSANLEITUNG

Other countries www.valera.com/service
