Conix 641.02 - Fer a boucler VALERA - Free user manual and instructions

USER MANUAL Conix 641.02 VALERA

EN Conical ceramic curling ironTranslation from original instructions 4

OPERATING INSTRUCTIONS - Type 641.02 Read these instructions carefully before using the appliance.Available also on www.valera.com WARNINGS

•Important: In order to guarantee additional protection,

it is recommended that a differential breaker with an

intervention current not greater than 30 mA is installed

in the electrical system which feeds the device. For

further information, contact a qualified electrician.

•Make sure the unit is perfectly dry before using it.

•WARNING: Do not use this appliance near

bathtubs, showers, basins or other vessels

•This appliance can be used by children from 8 years of

age and over, and by persons with limited physical,

sensory or mental abilities or who lack the relevant

experience and knowledge, if they are suitably

supervised or have been educated to use the appliance

safely and made aware of the associated risks.

•Do not allow children to play with the appliance.

•Children must not perform cleaning and maintenance

procedures unless supervised.

•Prevent the hot surface on the unit from coming into

contact with the face, neck or any other parts of the

body. Use the unit, holding it by the handgrip.

•Allow the metal parts to cool down before touching

•Do not use your unit if it is not working properly. Do

not try to repair this electrical unit yourself, rather

contact an authorized technician. If the supply cord is

damaged, it must be replaced by the manufacturer, its

service agent or a similarly qualified person in order to

•When the appliance is used in a bathroom, unplug it

after use since the proximity of water presents a hazard

even when the appliance is switched off. •Only connect this unit to alternating current and check that the mains supply voltage correspondsto that indicated on the unit. •Never immerse this unit in water or other liquids. •Do not put this unit down where it could fall into water or other liquids. •Do not try to pull any electrical appliance out when it has fallen into water - disconnect theplug from the power socket immediately. •Make sure the unit is perfectly dry before using it. English

Ligo Electric SA - 6853 Ligornetto / Mendrisio - Switzerland

00060606 conix cop dic2013 20/12/2013 8.40 Pagina 25

•Do not put the appliance on heat sensitive surfaces during use.

•After use always switch the unit off and remove the plug from the power supply socket. Do not pull

on the wire to remove the plug from the power supply socket. Do not pull the plug out of the power

supply socket when your hands are wet.

•Always allow the unit to cool before putting it away and never wrap the cord around the unit.

•Check that the cord has not been damaged from time to time.

•Prevent the cord from coming into contact with the metal parts while these are still hot.

•Use the unit on dry hair.

•Do not use this unit on wigs that have synthetic hair.

•The elements used to pack the unit (plastic bags, cardboard box, etc.) must be kept out of reach of

children as they are a potential danger to them.

•This unit must only be used for the purposes for which it is expressly intended. Any other use is to

be considered improper and therefore dangerous. The manufacturer accepts no responsibility for

damage caused by improper or erroneous use.

•Do not use hair spray while the unit is running.

•Keep the plates clean and free of dust, hair spray, styling gel, etc.

•To avoid dangerous overheating, it is advisable to unwind the entire length of the cord.

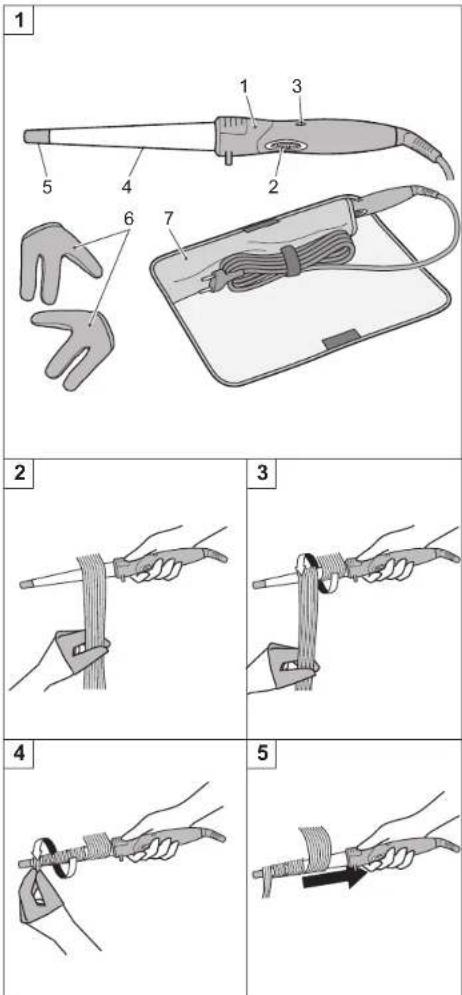

OPERATING INSTRUCTIONS PARTS

1 Appliance 5 Cold end

2 0/1 switch 6 Finger protection

3 On/Off led indicator 7 Thermal pouch

4 Conical curling tong

Switching the appliance on and off

To switch the appliance on, simply plug it into an electrical socket and move the switch (fig. 1,

ref. 2) to I. To switch it off, move the switch (fig.1, ref. 2) to 0 and remove the plug from the socket.

never leave the appliance unattended when on.

OPERATING TIPS This appliance is designed to create curls and ringlets of various sizes.

Let the appliance preheat for about 2 minutes before using.

• CAUTION: burning hazard. Do not let the appliance come into direct contact with the skin.

• Hair that has just been washed and dried can be styled better.

• The first few times you use this unit it is advisable to practice on small areas of your hair.

• The effect obtained depends on how thick and how long your hair is as well as curling time. Start

by using a curling time of 10-20 seconds.

• If necessary, repeat the various steps until you achieve the required effect.

• To obtain ringlets and curls of various sizes, comb and separate the hair into sections about 2 cm

wide. Wind a lock of hair at a time on the tong starting from the hairline down to the tips

To avoid burns, during this operation you should wear the appropriate protection on the three

fingers (fig. 1, ref. 6) that grasp the tip of the lock. The greater the force you apply to wind your

hair on the iron, and the longer the curling time, the tighter the resulting curls will be. At the end of

the curling time, carefully remove your hair from the iron (fig. 5). To increase the duration of the

curl, wind it around one of your fingers while waiting for it to cool.

• Let your hair cool completely before combing or brushing it.

CLEANING AND MAINTENANCE Always remove the plug from the power socket before beginning to clean the unit!

Leave the unit and any accessories used to cool down before cleaning.

This unit can be cleaned using a damp cloth, but it must never be immersed in water or any other

This appliance conforms to European Directives 2004/108/EC, 2009/125/EC, 2006/95/EC

and Regulation (EC) No. 1275/2008.

00060606 conix int dic2013 20/12/2013 8.44 Pagina 56

GUARANTEE VALERA guarantees the appliance you have bought at following conditions:

1. The guarantee conditions for this appliance are as defined by our dealer in the country of sale. In

Switzerland and in the countries subject to the European directive 44/99/CE the guarantee period

is 24 months for domestic use and 12 months for professional or similar use. The guarantee

period starts from the date of purchase as stated on the present guarantee card regularly filled

out and stamped by the dealer or on the sale’s invoice.

2. The guarantee is applicable only against submission of the present guarantee card or the sale’s

3. The guarantee covers the elimination of all defects arisen during the guarantee period resulting

from proven faults in material or workmanship. The elimination of the defects will be made either

by repairing the appliance or exchanging it. The guarantee does not cover any damage arising

from incorrect connection to the power supply, improper use, breakage, normal wear and non-

compliance with the Instructions for Use.

4. All other claims of any nature, including those for eventual damages outside of the appliance,

are excluded, unless our liability is legally mandatory.

5. The guarantee service is carried out free of charge; it does not affect the expiry date of the

6. The guarantee becomes void if repairs are undertaken by unauthorized persons.

For UK only: this guarantee in no way affects your rights under statutory law.

In case of defect, please return the appliance well packed and together with the guarantee card

regularly dated and stamped to one of our Valera Service Centres or to the dealer who will send it to

the official importer for the guarantee service.

VALERA is a registered trade mark of Ligo Electric S.A. - Switzerland

The symbol on the product or on its packaging indicates that this product may not be treated

as household waste. Instead it shall be handed over to the applicable collection point for the

recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly,

you will help prevent potential negative consequences for the environment and human health, which

could otherwise be caused by inappropriate waste handling of this product. For more detailed

information about recycling of this product, please contact your local city office, your household

waste disposal service or the shop where you purchased the product.

00060606 conix int dic2013 20/12/2013 8.44 Pagina 67
