Go Maxi Frame - High chair Bobike - Free user manual and instructions

Product type	Child bike seat
Brand	Bobike
Model	Go Maxi Frame (reclining version available)
Maximum child weight	22 kg
Maximum child height	110 cm
Recommended age	From 9 months to 6 years
Bike frame compatibility	Oval or round frames, diameter 28–40 mm
Bicycle wheel diameter	26 to 28 inches
Restraint system	Adjustable height 5-point harness
Footrest	Height-adjustable with safety straps
Recline (Reclining version)	0° or 20° position via recline button
Bike attachment	Frame bracket with green safety indicators
Frame safety belt	Strap with retention device
Maintenance	Clean with water and mild soap; avoid abrasive products
Spare parts	Available at www.bobike.com or from authorized dealer
Warranty	3 years + 1 additional year upon registration (within 2 months)
Prohibited use	Folding bikes, rear suspension, EPAC > 25 km/h, motorcycles/scooters
Total weight cyclist + child	Must not exceed the bike's maximum capacity (see bike manual)
Center of gravity	Must be placed in front of the rear wheel axis (max 10 cm behind)

Frequently Asked Questions - Go Maxi Frame Bobike

What is the maximum weight and age for using the Bobike Go Maxi Frame?

The seat is designed to carry a child up to 22 kg and 110 cm in height, with a recommended age range of 9 months to 6 years. Weight and height are the determining factors.

Is the Bobike Go Maxi Frame compatible with all bikes?

No. It must not be mounted on folding bikes, bikes with rear suspension, or EPAC (electric bikes) exceeding 25 km/h. It fits round or oval frames with a diameter of 28 to 40 mm and wheels of 26 to 28 inches.

How to properly install the seat on the bike?

Follow the steps: attach the metal support bar (H) to the seat, place the mounting plate (J), adjust the frame bracket (I) onto the frame tube (never on the seatpost), then engage the bar until you see the two green safety indicators. Tighten the screws to a torque of 6 N.m.

How to adjust the harness and footrest?

The 5-point harness can be adjusted in height by changing the straps in the holes (B4). The footrest is adjusted by lifting the lever (E1) and sliding it to the correct height. The foot straps can be repositioned to fit the child's shoe size.

How to recline the seat (Reclining version)?

Press the recline button (K) and push the seat backward to the 20° position. Release the button to lock. To return to 0°, press again and push the seat forward.

How to remove the seat from the bike?

First, detach the frame safety belt (C). Then, simultaneously press the release buttons (I3) on the frame bracket while lifting the metal support bar (H) and pushing it backward.

What are the important safety instructions?

Never exceed the limits of 22 kg and 110 cm. The child must wear a helmet compliant with EN 1078. Check that the frame belt does not touch the wheel. Do not modify the seat and do not carry additional luggage.

How to maintain the Bobike Go Maxi Frame?

Clean it with water and mild soap, without abrasive or corrosive products. Regularly check the condition of the attachments and harness. In case of an accident, even without visible damage, it is recommended to replace the seat.

Where to find spare parts and what is the warranty?

Spare parts are available on the website www.bobike.com or from an authorized dealer. The warranty is 3 years for mechanical components, extendable by 1 year if you register the product within 2 months of purchase.

Can I use this seat for sports or mountain biking?

No. The seat is designed for standard urban and road use. It is not suitable for extreme conditions such as enduro, mountain biking, jumps, or off-road trails.

USER MANUAL Go Maxi Frame Bobike

bicycle safety seats

Go® Maxi Frame

Go® Maxi Frame Reclining System

Assembly Instructions

Quick Guide

Montageanleitung

Kurzanleitung

in accordance with EN14344:2022

for frame for frame with reclining system

Extended Warranty

register your seat at

www.bobike.com

and get

1 extra warranty year

Icon Index

EN. ICONS INDEX

CS. INDEX IKON

FR. INDEX DES IMAGES

HR. INDEKS IKONA

HU. SZIMBÓLUMMUTATÓ

IT. INDICE DELLE ICONE

JP. アイコン索引

LT. PIKTOGRAMU RODYKLÉ

NL. ICONEN INDEX

PL. LISTA IKON

PT. ÍNDICE DE ÍCONES

RO. INDEX IMAGINI

RU. УКАЗАТЕЛЬ СИМВОЛОВ

SK. INDEX IKON

SL. KAZALO IKON

SV. IKONER INDEX

TH. ส ัญล กษณ

TR. SIMGE DIZINI

EN. ATTENTION! IMMINENT DANGER! Failure to comply with these operating instructions can lead to serious injury or death of the bicycle operator and/or child.

CS. POZOR! HROZÍ OKAMŽITÉ NEBEZPEČÍ!

FR. OK ! CORRECTEMENT ASSEMBLÉ

HR. OK! PRAVILNO SASTAVLJANJE

LT. NEGERAI! DRAUDŽIAMA

NL. NIET OK! VERBODEN

PL. NIEPOPRAWNE! ZABRONIONE

PT. ERRADO! PROIBIDO

RO. NU ESTE BINE! INTERZIS

RU. НЕПРАВИЛЬНО! ЗАПРЕЩЕНО

SK. NIE JE TO V PORIADKU! ZAKÁZANÉ

SL. NI V REDU! PREPOVEDANO

SV. INTE OK! FÖRBJUDEN

Specific Instructions for Use

fits round seat tubes for route Ro#are ø 28 - 40 mm ø 1.10 - 1.57"

space required plate Benefit 105 mm / 4,13"

26" - 28"

EPAC/PEDELEC 25 km/h / 15.5 mph

not for bikes with motor (mopeds 8 scooters) not for speed pedalecs

not for speed pedalecs

25 km/h | 15,5 mph wichy filv

not for foldable bicycles aldehy far faltbare Ferralser

Go® Maxi Frames

reinforced
double-walled seat versilinator
a) pictualizer

adjustable

footrests safety belt in 12 positions einstellbare Fussätze 3 punkt-Sicherheitsgewert in 12 Positionen

adjustable 3-point
safety belt
eustellbarer 3 pundt Sicherheitsgur!

water-proof cushion wasserlöchtes Kässen
ar!

tool needed
Included

NOT OK
NICHT OK

NOT OK
NICHT OK

NOT OK
NICHT OK

Product Index

EN. PRODUCT INDEX

CS. INDEX PRODUKTU

DA. OVERSIGT OVER PRODUKTET

FR. INDFX DU PRODUIT

HR. INDEKS PROIZVODA

HU. TERMÉKMUTATÓ

IT. INDICE DEL PRODOTTO

JP.製品索引

LT. GAMINIŲ RODYKLĖ

NL. PRODUCTEN INDEX

PL. LISTA PRODUKTÓW

PT. ÍNDICE DO PRODUTO

RO. INDEX PRODUSE

Specific Instructions for Use

EN. Carefully follow this quick guide for a correct and safe assembly. Important safety and assembly instructions are listed there. The reading of the instruction's user manual is mandatory.

11

12

13

14

15

C

16

17

20

21

C

bobike®

bicycle safety seats

Assembly Instructions

User Manual

Montageanleitung

Gebrauchsanleitung

www.bobike.com

Go® Maxi Frame

rear bicycle safety seat - for frame mount with or without reclining system

Specific Instructions for Use

EN. The reading of instructions manual is mandatory. Carefully follow this instruction's user manual for a correct and safe assembly. The reading of the quick guide is mandatory.

for frame for frame with reclining system

Extended Warranty

register your seat at

www.bobike.com

and get

1 extra warranty year

Assembly Instructions

User Manual

Montageanleitung

Gebrauchsanleitung

EN. pag.4

CS. pag.8

DA. pag.12

DE. pag.16

EL. pag.20

ES. pag.34

Fl. pag.28

FR. pag.32

HR. prg36

HU. pag.40

IT. pag.44

JP. pag.48

LT. pag.s2

NL. pag.56

PL. pag.60

PT. pug.64

RO. p:g.68

RU. pag.72

SK. pag.76

SL. png.80

SV. pag,84

TH. pag.88

TR. pag.92

UK. pag.96

ZH. pag.100

Go® Maxi Frame

Go® Maxi Frame Reclining System

Table of Contents of Product

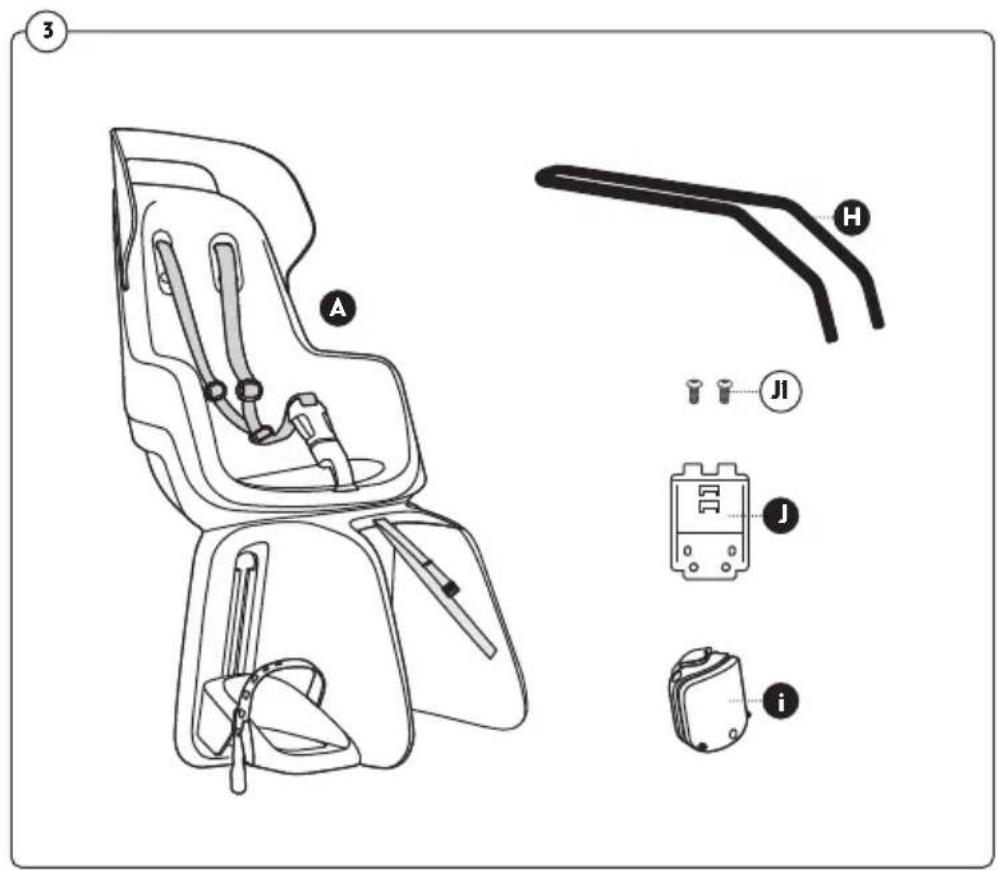

A. Main seat

B. Retention system harness

B1. Safety buckle

B2. Height strap adjusters

B3. Central strap adjusters

B4. Retention system adjustment hole

C. Safety belt for bicycle frame

C1. Safety belt buckle

C2. Safety belt retainer

D. Center of gravity

E. Footrest

E1. Footrest lever

E2. Footrest peg

E3. Footrest strap

F. Traceability information

G. Metallic support bar holder/ mobile stand

H. Metallic support bar

1. Frame holder

2. Screws M8

3. Plastic mounting block

4. Release button

5. Metallic mounting plate

6. Allen key no. 5

7. Lock washer M8

8. Safety device indicator

9. Protective rubber

J. Metallic mounting plate

J1. Screws M8

K. Reclining button

L. Reclining system plate

ATTENTION

This product contains small parts like bolts, plastic bags, and small packaging hangers. Keep them out of reach of children to avoid suffocation hazards.

Specific Instructions For Mounting

- This child bicycle seat must not be mounted in folding bicycles.

- This child bicycle seat must not be used on EPAC / Pedelecs above 25 km/h / 15,5mph.

- This child bicycle seat must not be mounted to bicycles fitted with rear shock absorbers.

- This child bicycle seat must not be mounted to motorized vehicles such as mopeds, scooters.

- This child bicycle seat must be assembled on bicycles with round and oval frames with diameters ranging from ∅28 to ∅40 mm.

- The child bicycle seat must be assembled on bicycles with wheels with diameters of 26" and 28".

- This child bicycle seat is only suitable for carrying children with a maximum weight of 22 Kg, and a maximum height of 110 cm, (and children with recommended ages ranging from 9 months to 6 years of age - with the weight and height as the decisive variable).

• The total weight of the cyclist and the child transported must not exceed the maximum permitted load permitted for the bicycle. Information

on the maximum load can be found in the operating instructions of the bicycle. You can also contact the manufacturer for this question.

- The seat may only be mounted on a bicycle suitable for the attachment of such additional loads. Please consult your bicycle instructions manual.

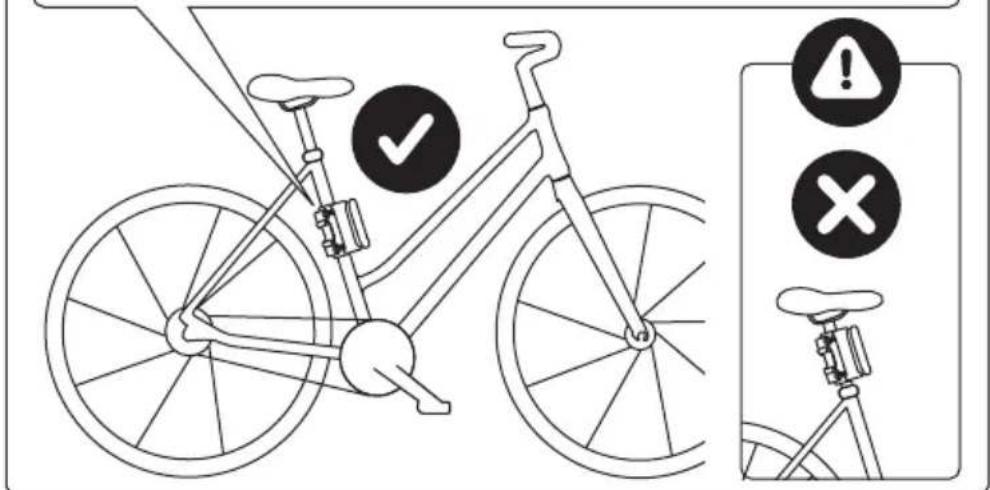

• The position of the child bicycle seat must be adjusted so that the bicycle rider does not touch the child bicycle seat with the feet when in motion.

- It's very important to adjust correctly the seat and its component parts for optimum comfort and safety of the child. It's also important that the seat does not slope forward, so that the child does not tend to slide out of it. It is also important that the backrest slope backward slightly.

- Check if all parts of the bicycle function correctly with the child bicycle seat mounted.

- Check the instructions of the bicycle, and if you have any doubts on fitting the child bicycle seat to your bicycle, please contact your bicycle supplier for further information.

Specific Instructions for Mounting the Seat in the Bicycle

1. Cut the plastic straps that hold the mounting block (l) and others.

2. Use the allen key No. 5 (I5) to loosen the screws (J1). Desingage the metallic support bar holder/

mobile stand (G) by pulling it backwards. After removing this part (G) you will no longer need to use it, so we give it a functional purpose – you can keep it and use it as a mobile stand.

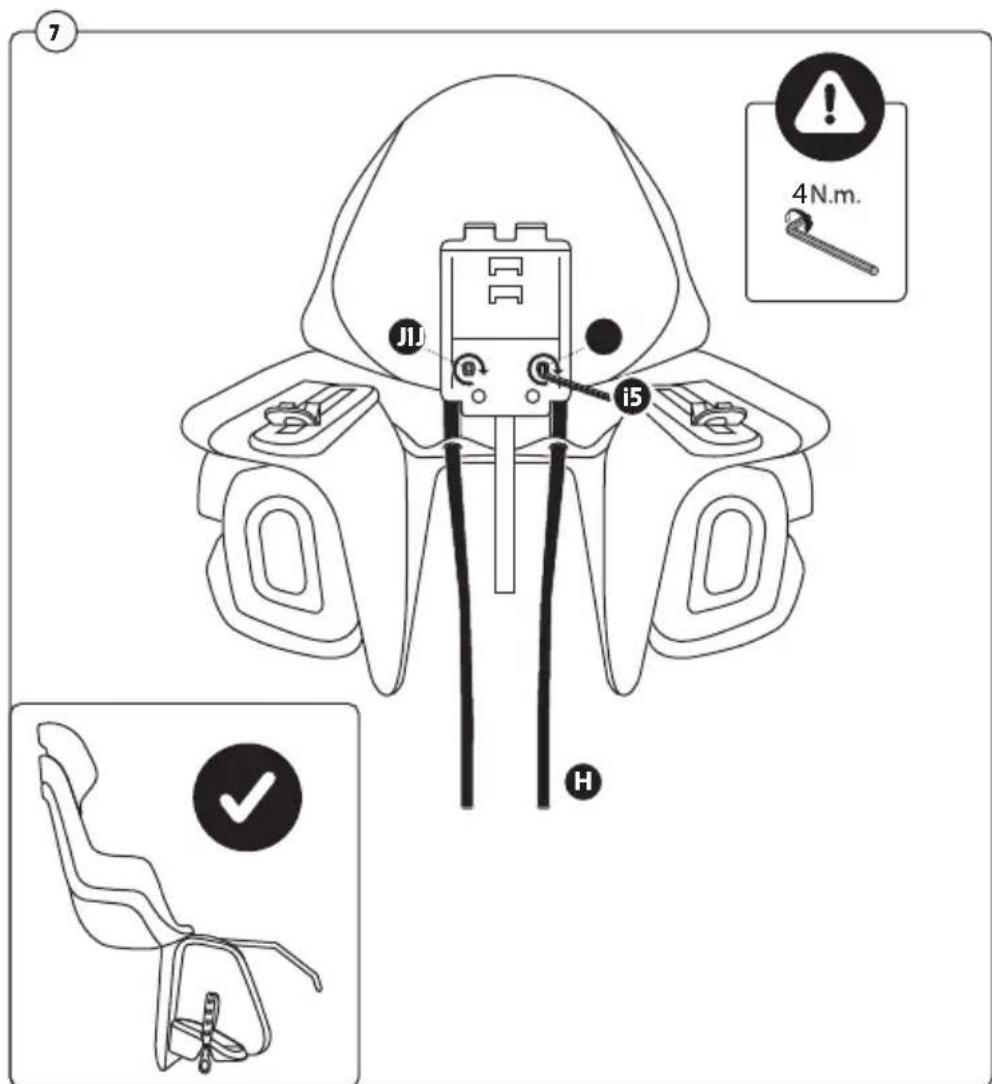

1. Desingage and remove the metallic support bar (H) from the child seat, pulling it backwards. Desingage and remove the metallic mounting plate (J).

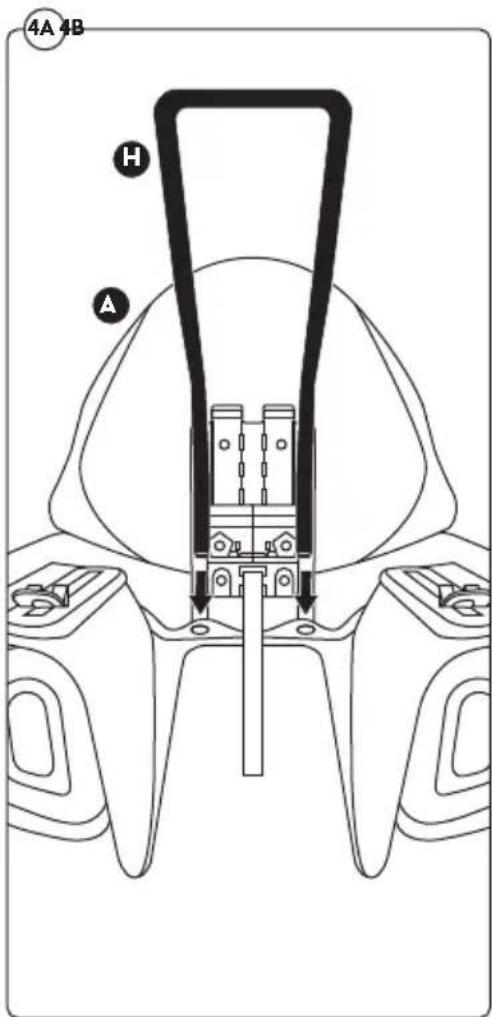

4A. Only for Bobike Go Maxi Frame: Hold the metallic support bar (H) the same as in the picture and pass it through the opening in the child bicycle seat.

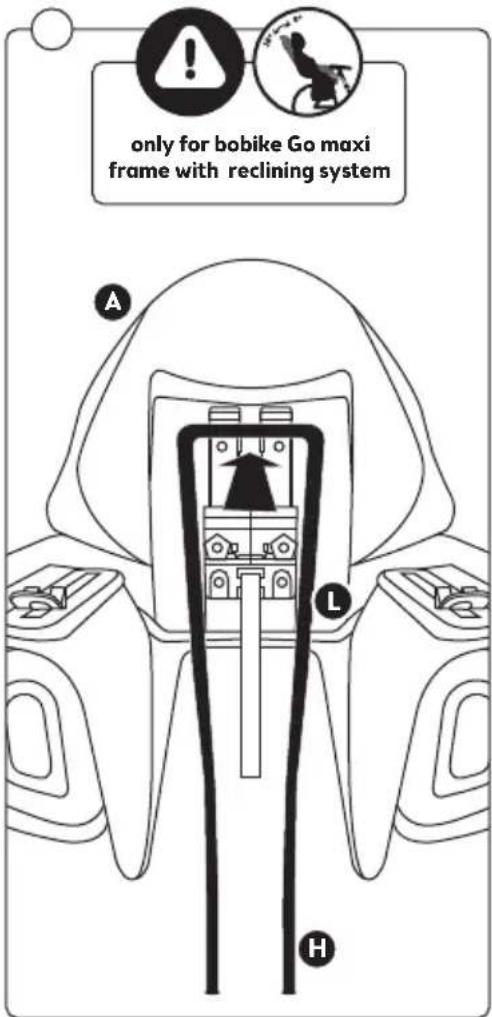

4B. Only for Bobike Go Maxi Frame Reclinable System: Stand the metallic support bar (H) on the bottom of the reclining system plate (L).

1. In order to adjust the child bicycle seat according to the bicycle size, set the metallic support bar (H) into one of the allowed positions to move the seat backward or forward. At the beginning we suggest to place it on the position No. 3. The seat shall be installed as close to the saddle as possible.

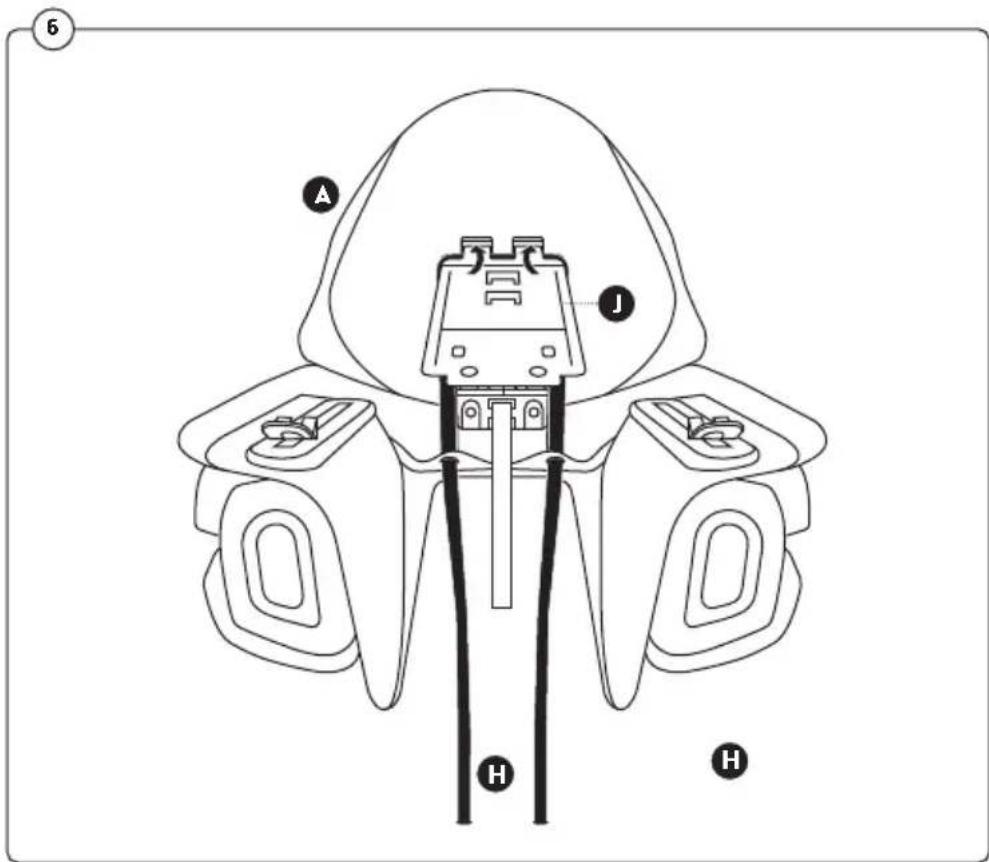

2. Insert the metallic mounting plate (J) on the grooves of the child bicycle seat, and close it as indicated in the picture.

3. Place the screw (J1) into the metallic mounting plate (J) fixing both into to the seat (A). Then tighten it securely with the key (I5). We recommend a torque of 4 N.m. Tighten tightly so that the metallic support bar (H) is securely fastened. This extremely important for cyclist and child safety.

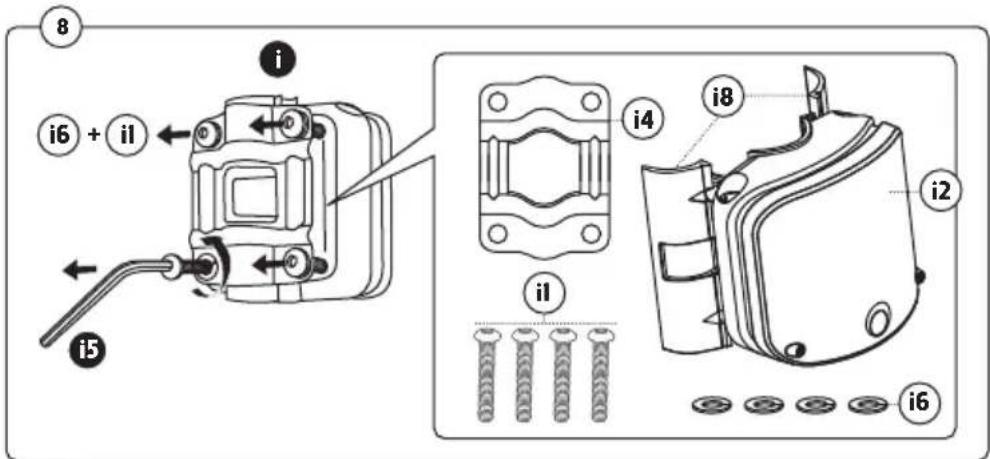

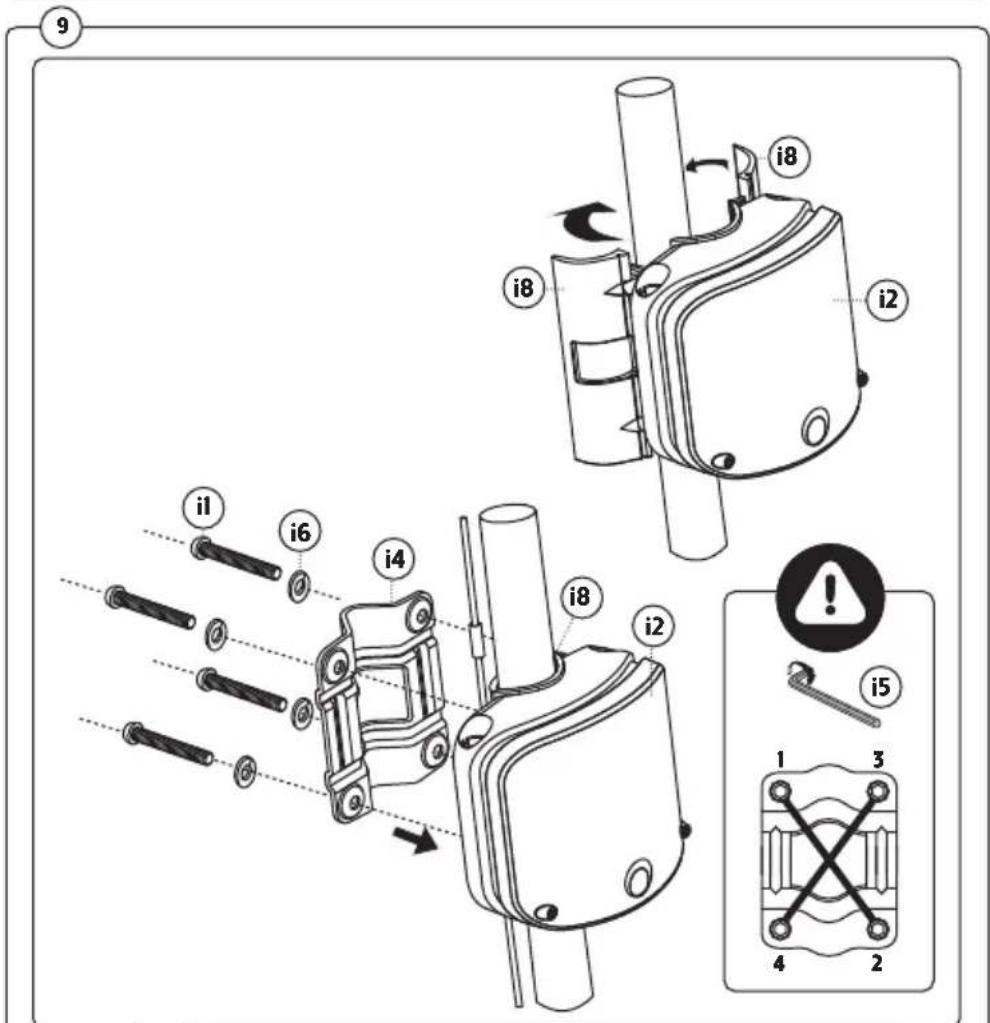

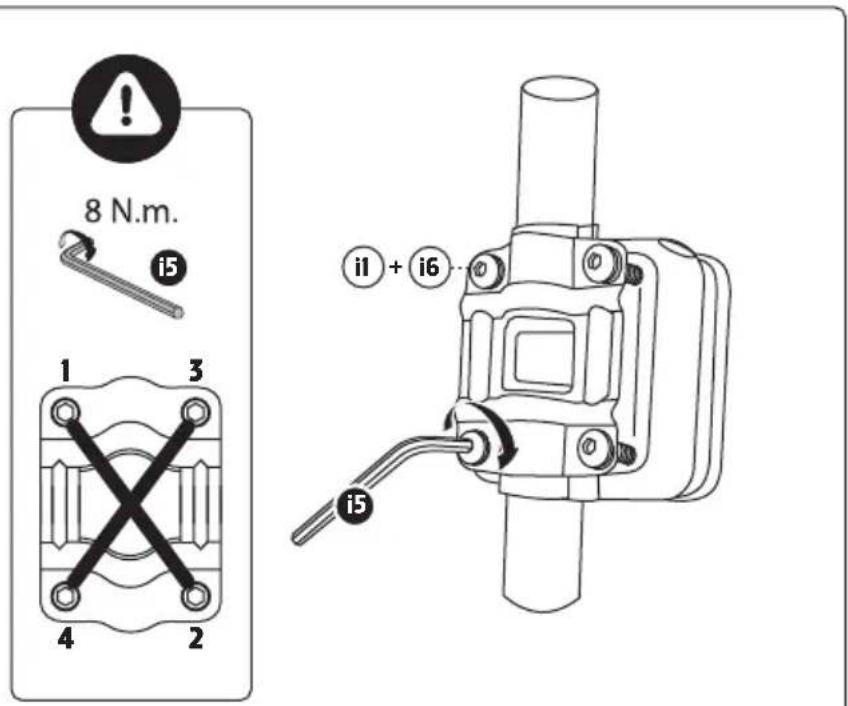

4. Remove the screws (I1+I6) on the frame holder (I), with the Allen key no. 5 (I5).

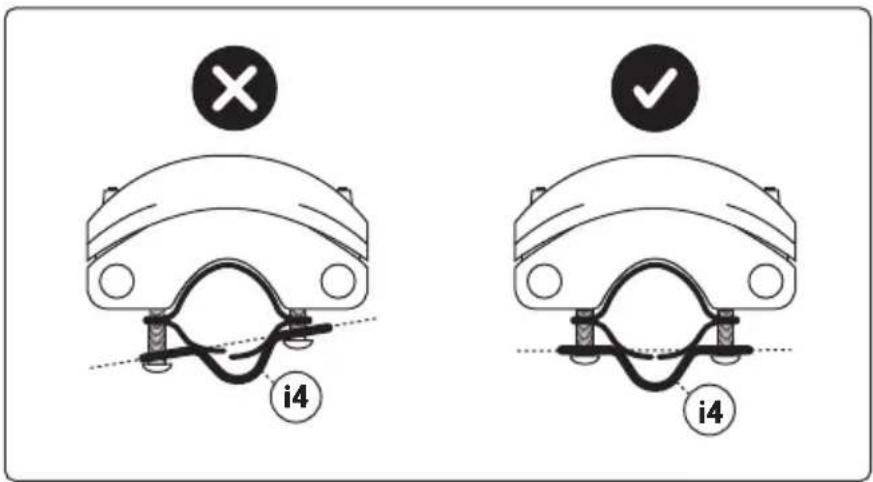

5. The correct positioning of the frame holder (I) is extremely important – make sure it is positioned in the bicycle frame according to the picture – from the front and assembled on the seat tube and never assembled on the seat post. Before placing the frame holder onto the frame, make sure that the protective rubber (I8) is correctly positioned on front of the plastic mounting block (I2). Place the main body of the plastic mounting block (I2) on the front of the bicycle frame, and then place the metallic mounting plate (I4). Note: If they are cables in this area make sure that they are correctly positioned in the central groove of the metallic plate, (between the protective rubber (I8) and the groove of the mounting plate (I4) and are able to move freely). Place the washer (I6) in the M8 screws (I1), and then screw them on to the frame holder (I).

6. Place the edges of the metallic support bar (H) at the holes of the frame holder (I) until you hear a click indicating the lock, and until the 2 green safety device indicators pop up on the front of the mounting block. The child bicycle seat will only be properly installed when the 2 green safety device indicators are visible (I7). This step is extremely important for the child's safety.

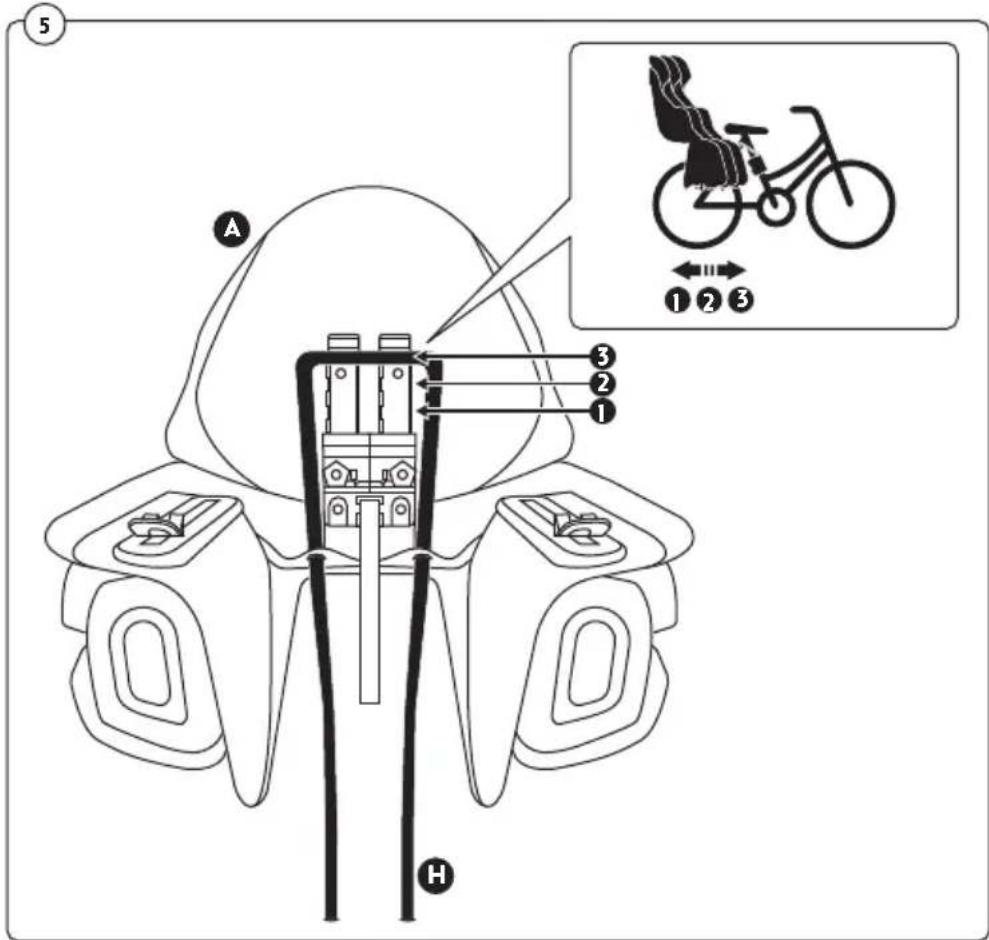

7. Center and adjust the metallic support bar (H) at a height above the rear wheel, so that later, when you add the weight of the child, the child's bicycle seat does not touch the wheel. Note that the metallic support bar (H) should be positioned at a maximum of 10 cm away from the wheel. Never use this metallic support bar (H) to carry any other loads than this child seat, as indicated in this manual.

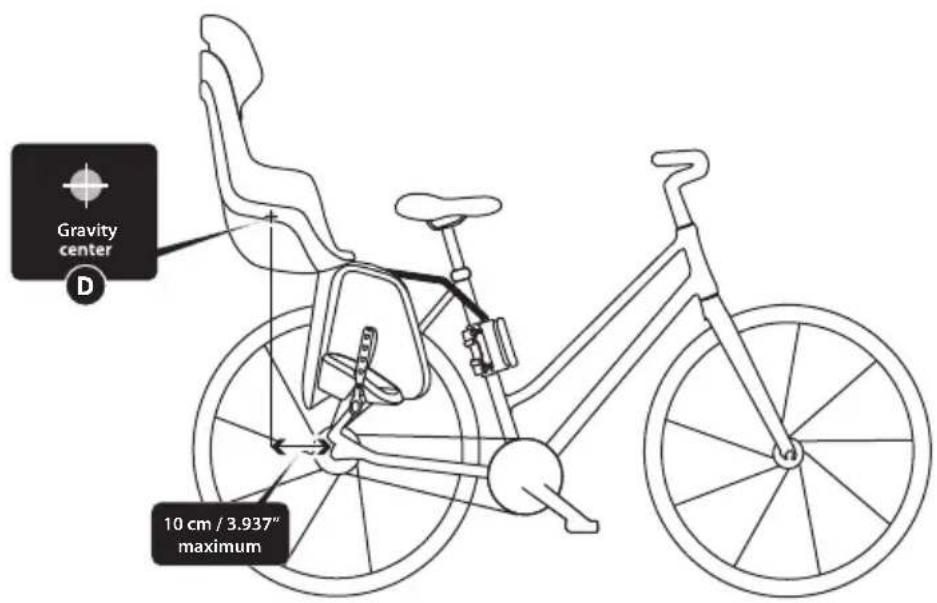

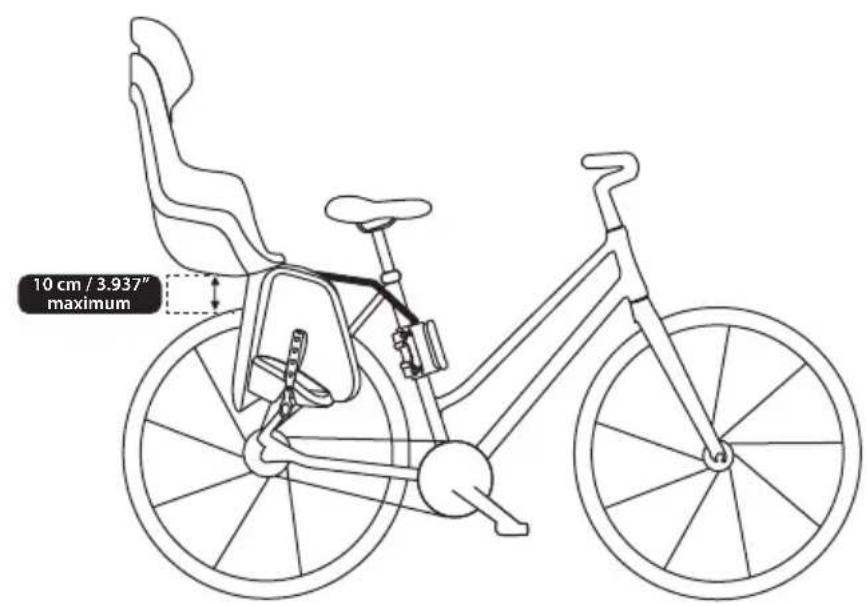

8. The child seat has a centre of gravity (D) (inscribed on the child seat) that must be positioned in front of the rear wheel axle. If it is positioned behind the axle, the distance must not exceed 10 cm. Special care must also be taken when positioning the child seat to ensure that the cyclist does not touch the child seat with his feet when cycling. Note: In Germany, according to the German Traffic Law StVZO, bicycle seats may only be fixed so that 2/3 of the seat depth or the Gravity Center of the seat is located between the front and rear axle of the bicycle.

9. After adjusting the height and positioning of the seat, hand tighten the frame holder (I) to ensure that it cannot move. You need to hand tight the screws diagonally, with the same force and in stages. We recommend a torque of 8 N.m. Make sure that the frame holder (I) is firmly attached.

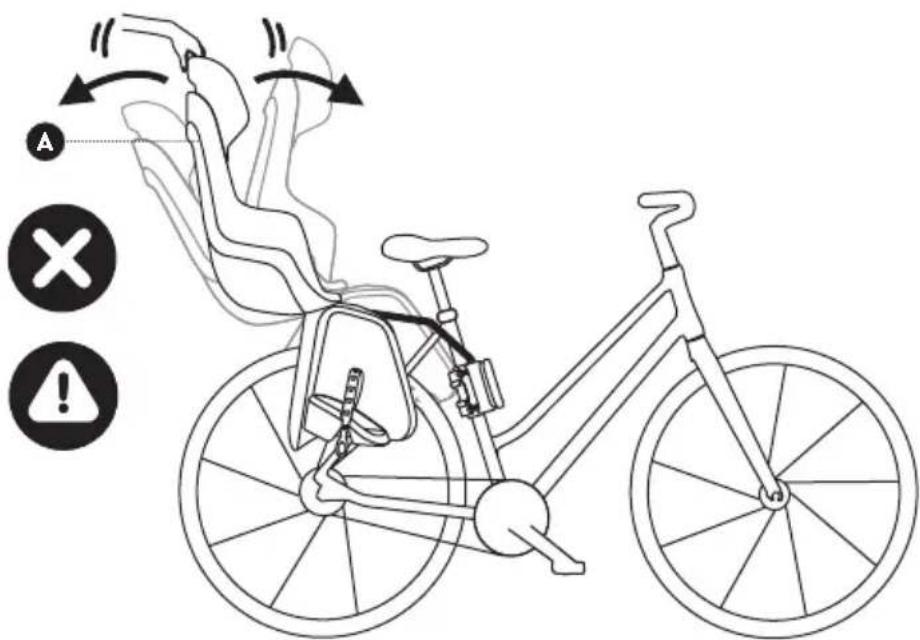

10. Shake the seat to make sure it's properly and securely attached to the frame tube. This extremely important for cyclist and child safety.

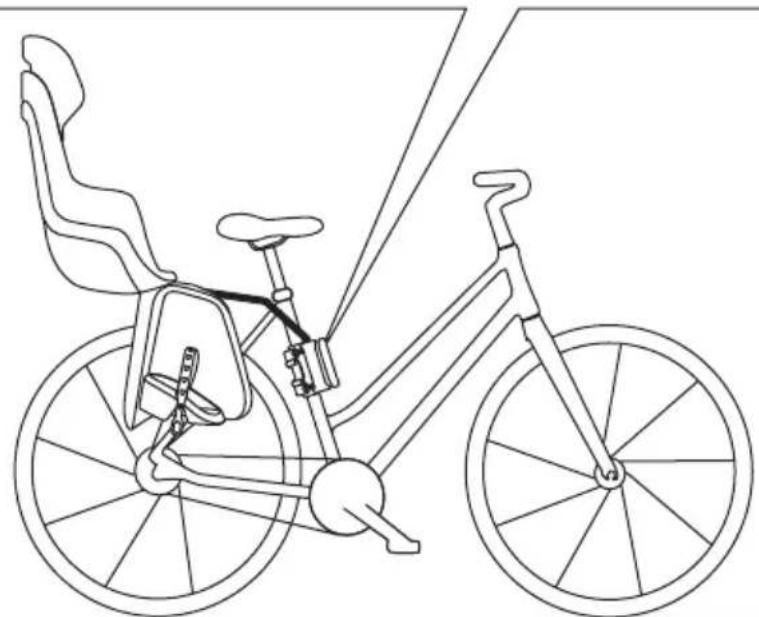

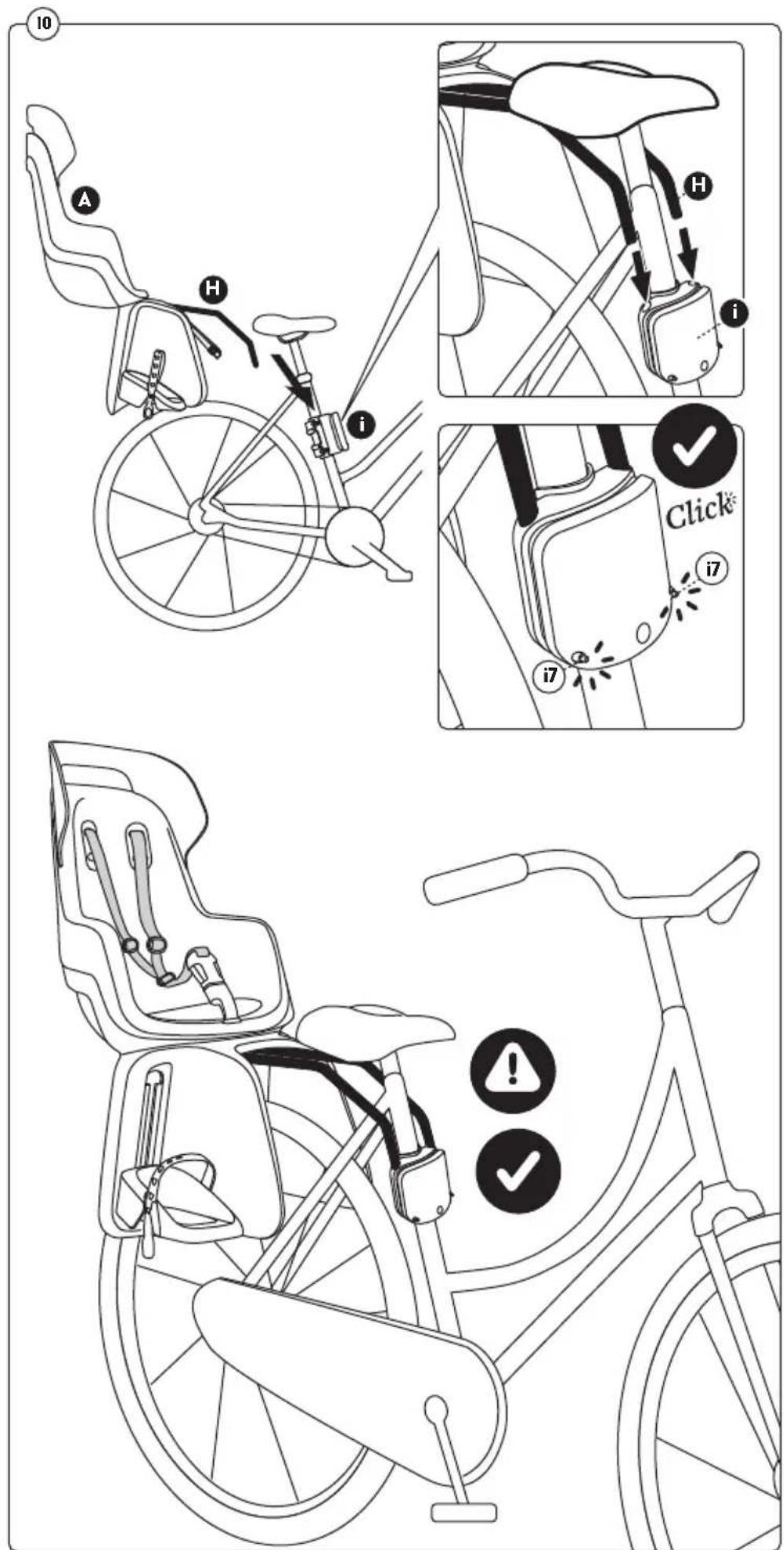

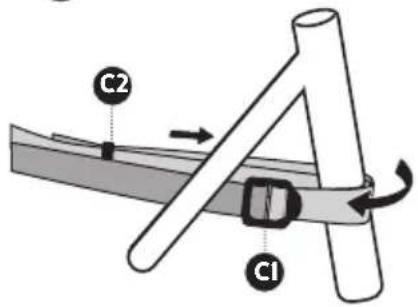

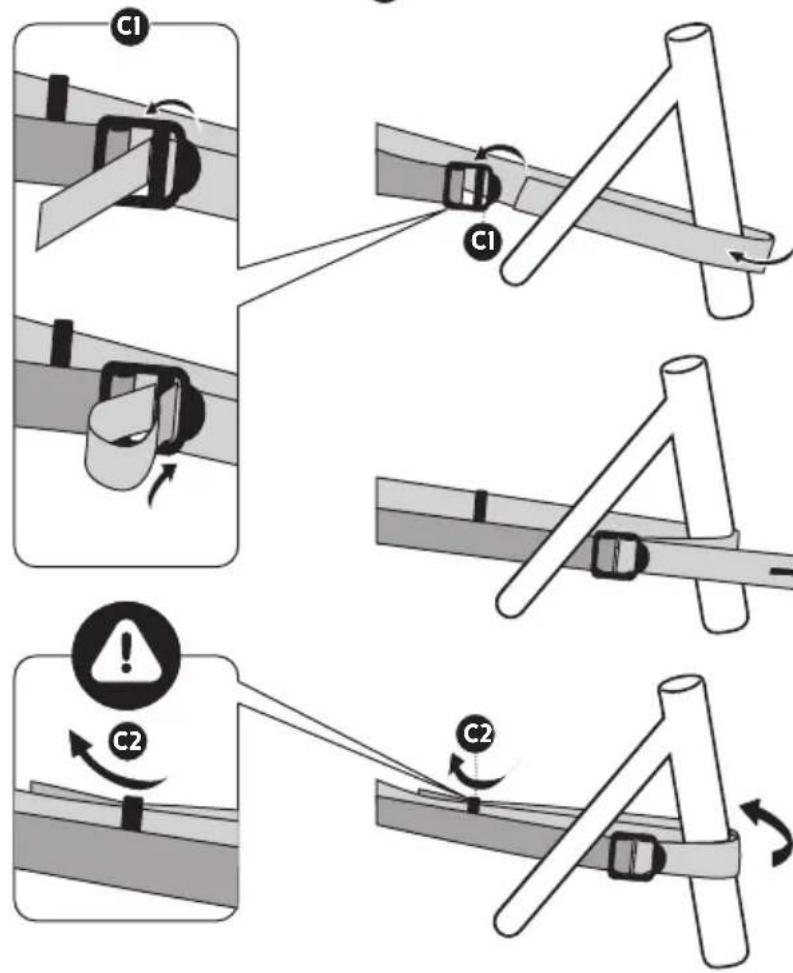

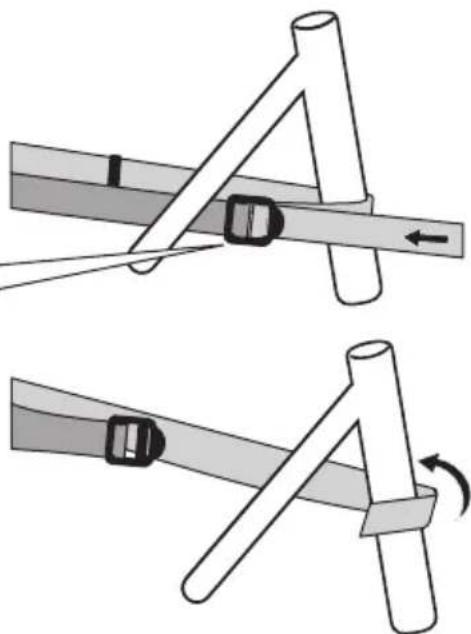

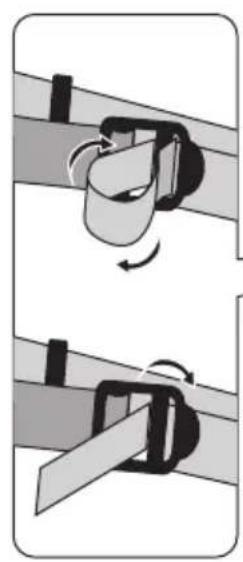

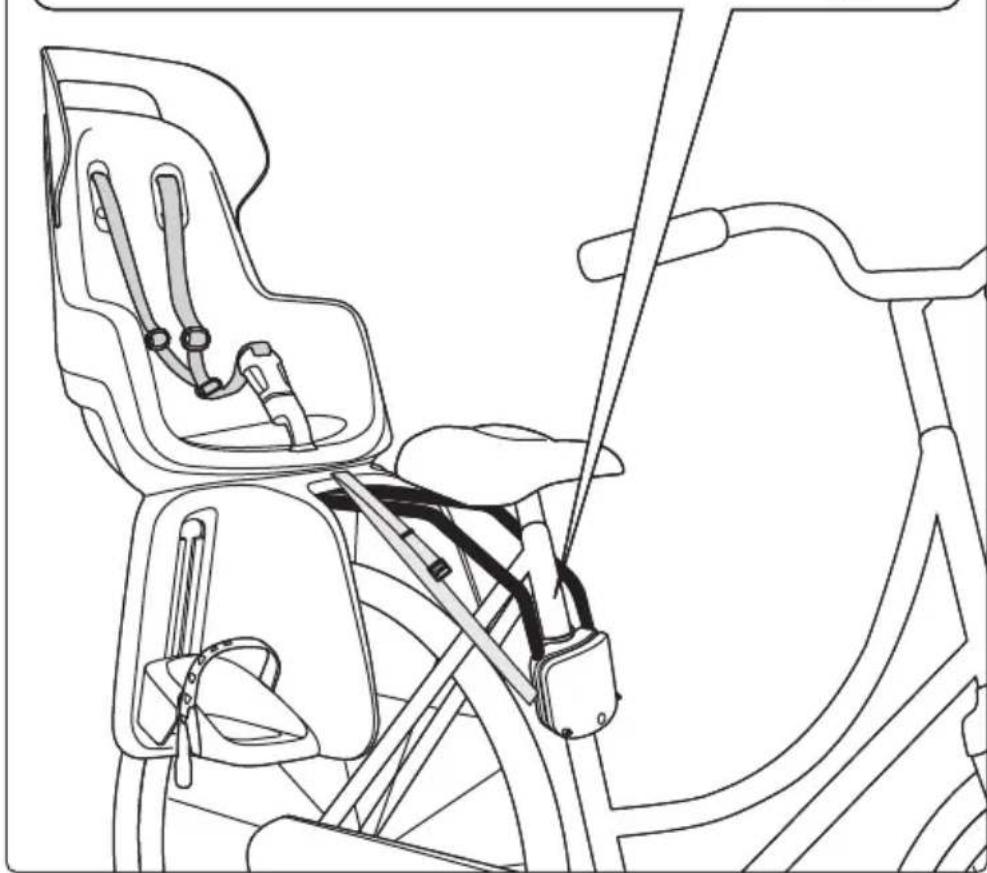

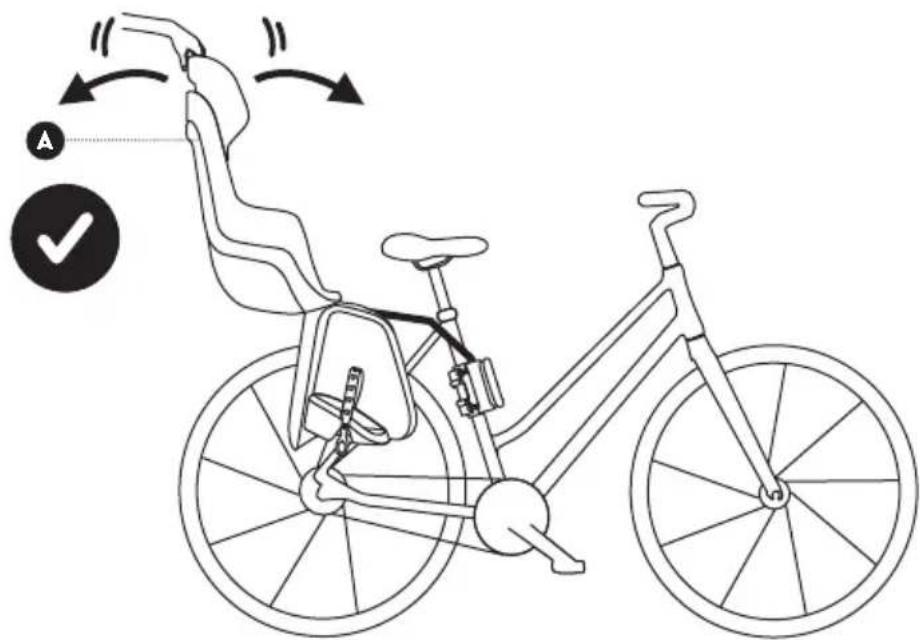

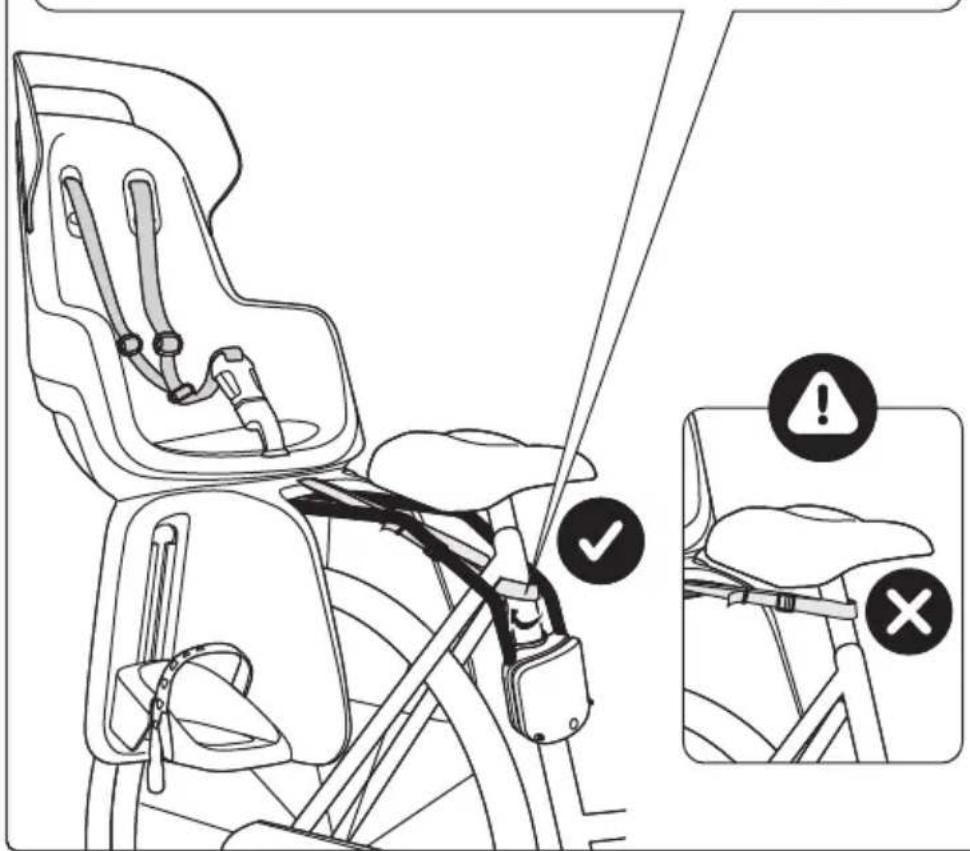

11. Start to open the safety belt buckle (C1) and pass it around the bicycle frame. Adjust the belt it as shown in the picture, under tension. Make sure that remain loosen belt is not in contact with the wheel, so pass it brought the Safety belt retainer (C2). This step is extremely important for the cyclist and child safety.

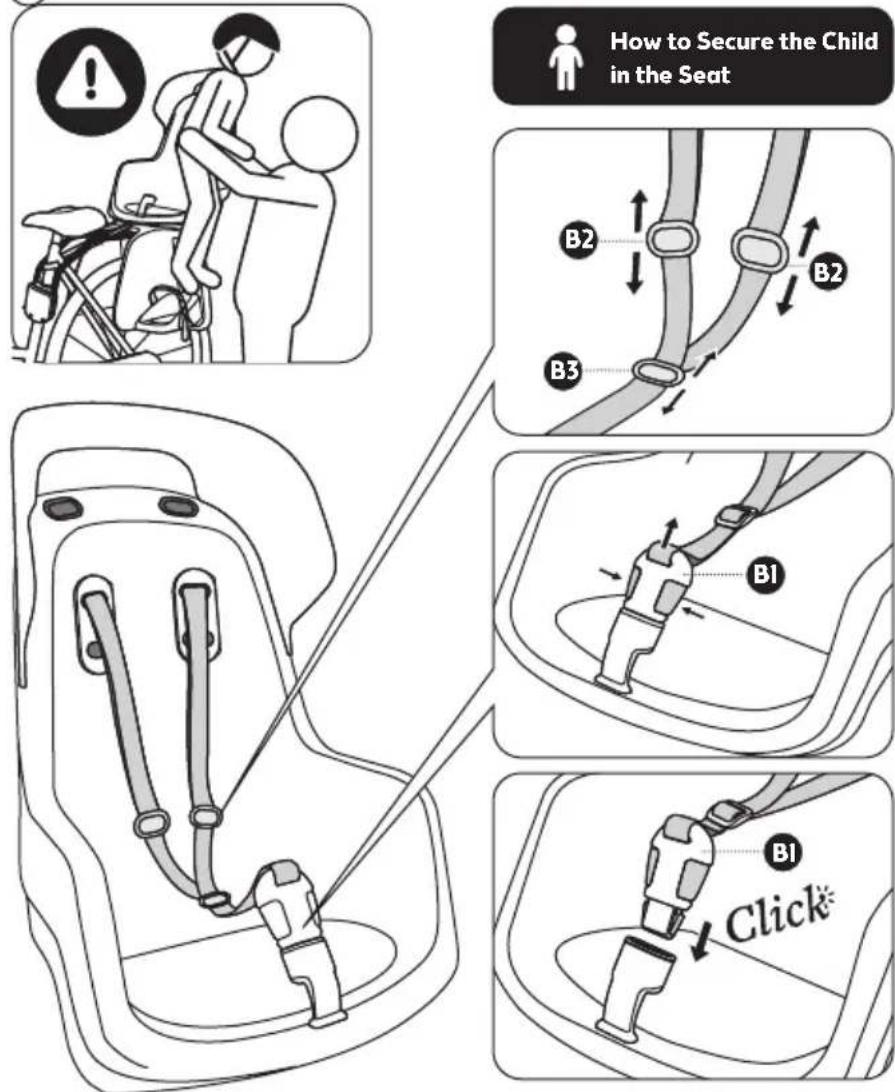

How to safely place and secure the child on the seat

1. To safely place the child on the seat you must place the bicycle on flat and solid ground for maximum bicycle stability. Even if your bicycle offers robust quick stands, you must always hold the bicycle, while placing/ removing the child. You must carry your child in your lap and safely place him on the seat. It's forbidden for the child to climb alone on the bicycle or using the footrests to reach the seat. To place the child in the seat, first fully extend the retention system harness (B), sliding all the strap adjusters (B2, B3) - this makes it easier to put the child in the seat. Then, open the safety buckle (B1) by pressing the safety buckle button. Seat the child, place the shoulder strap and then close the safety buckle, adjust the belt length using the strap adjusters, so that your child is securely restrained. Before starting the journey, always check that the child is secured and that the belt is snug but not so tight that it hurts the child.

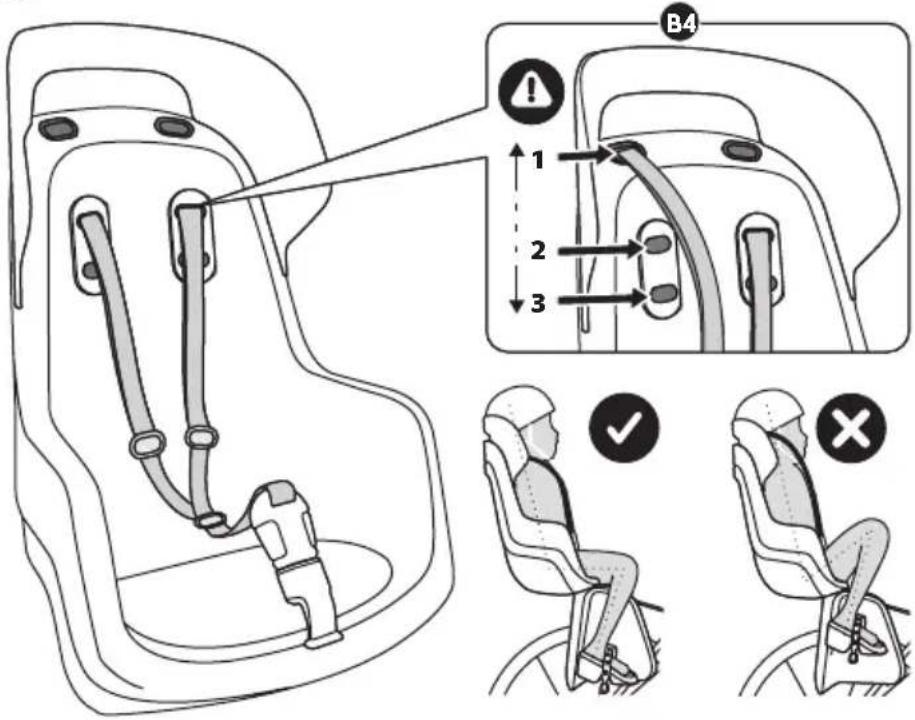

2. According to the child growth, current height, and weight, you can adjust the height of the retention system harness (B) on all the strap adjusters (B2, B3),

by pulling up or down the straps until reaching the desired size. You can also adjust the height of the retention system harness (B) by choosing between the available holes for retention system adjustment (B4). To adjust it, remove the retention system clip from the current hole and place it on the best hole according to your child height.

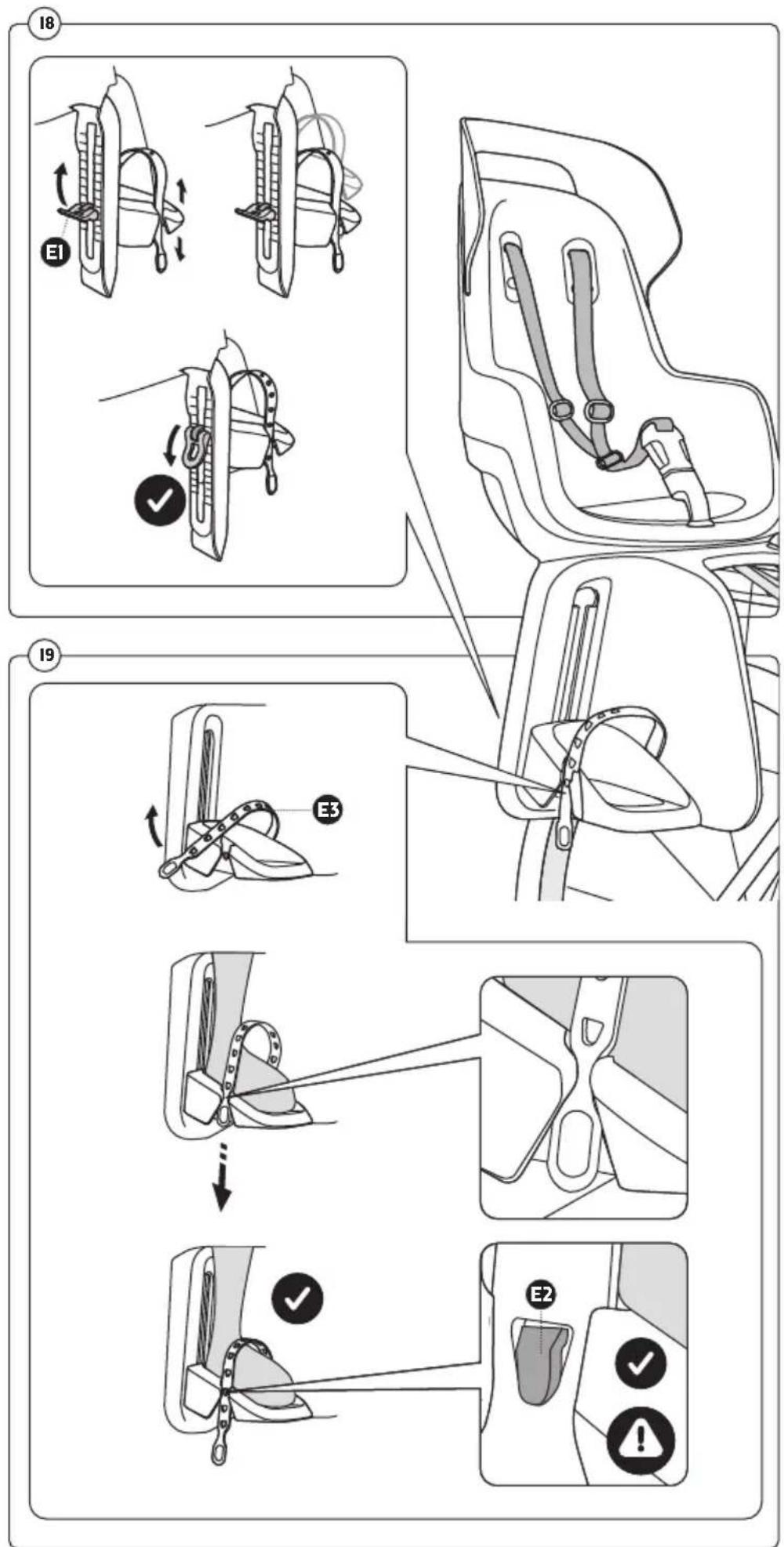

1. Adjust the height of the footrest according to the size of the child. To do this, raise the lever (E1) and slide it up or down for the required height. After deciding on the correct height, lower the lever (E1) to lock in place.

2. To remove the footrest strap (E3), lift it slightly to release it from the footrest peg (E2) and slide it upwards to disengage it from the footrest slot. Then pass the thin end of the plastic strap through the hole in the footrest, as shown in the picture. Once the strap is correctly positioned, it can be easily slid up or down according to the child's foot. Next slot one of the openings in the strap over the foot support peg. If you want to remove the strap (E3), twist it slightly to loosen it from the foot support peg (E2).

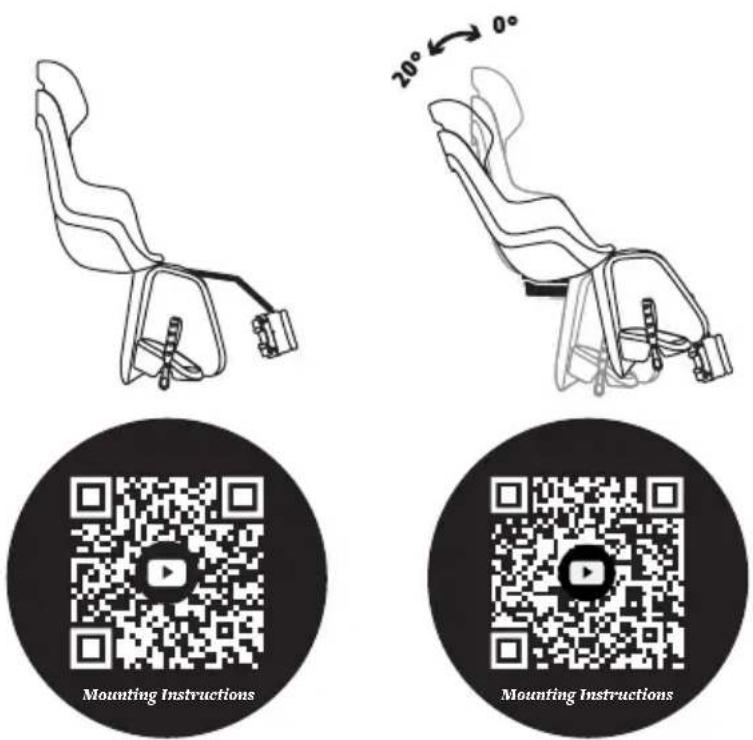

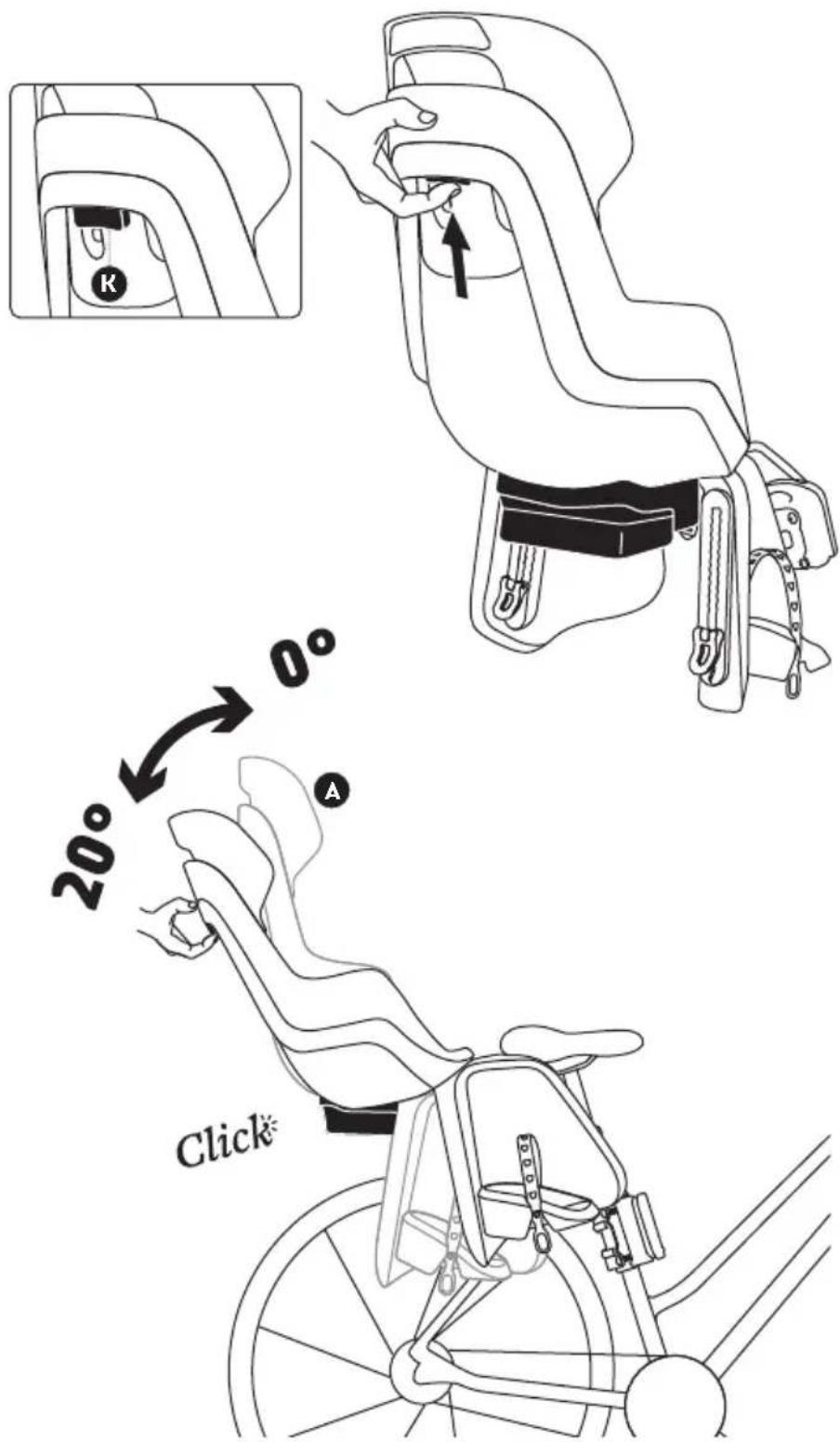

Only for the Reclining Model How to Recline your Seat

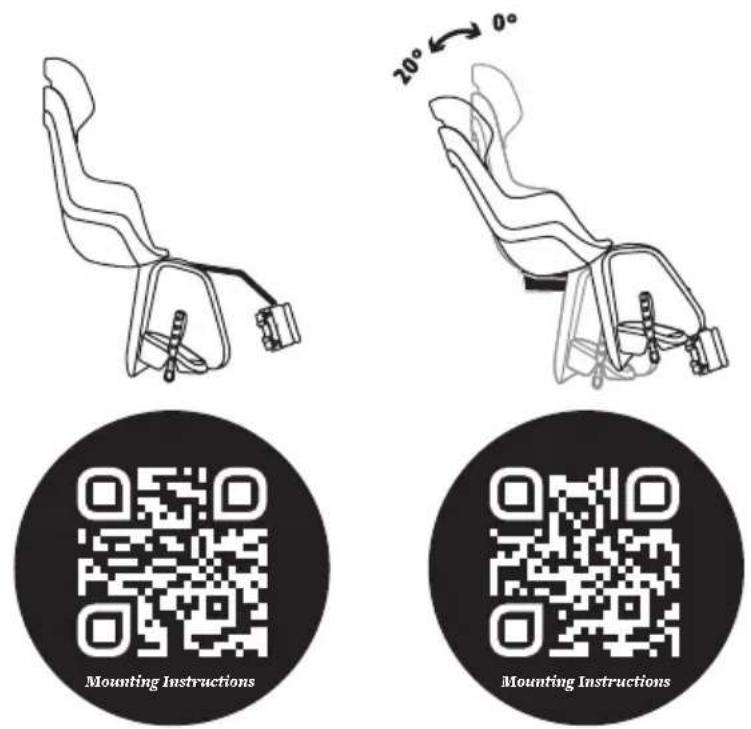

1. If you purchased the Bobike Go maxi reclining model, follow this step to perform the recline action. The seat (A) can be placed in the 20° position by pressing the reclining button (K) and pulling the seat back. When the seat is fully reclined, release the

reclining button (K) to lock the reclining system. To return the seat to the 0° position, press the reclining button (K) again and push the seat again until it reaches the upright position.

How to Remove the Seat from the Bicycle

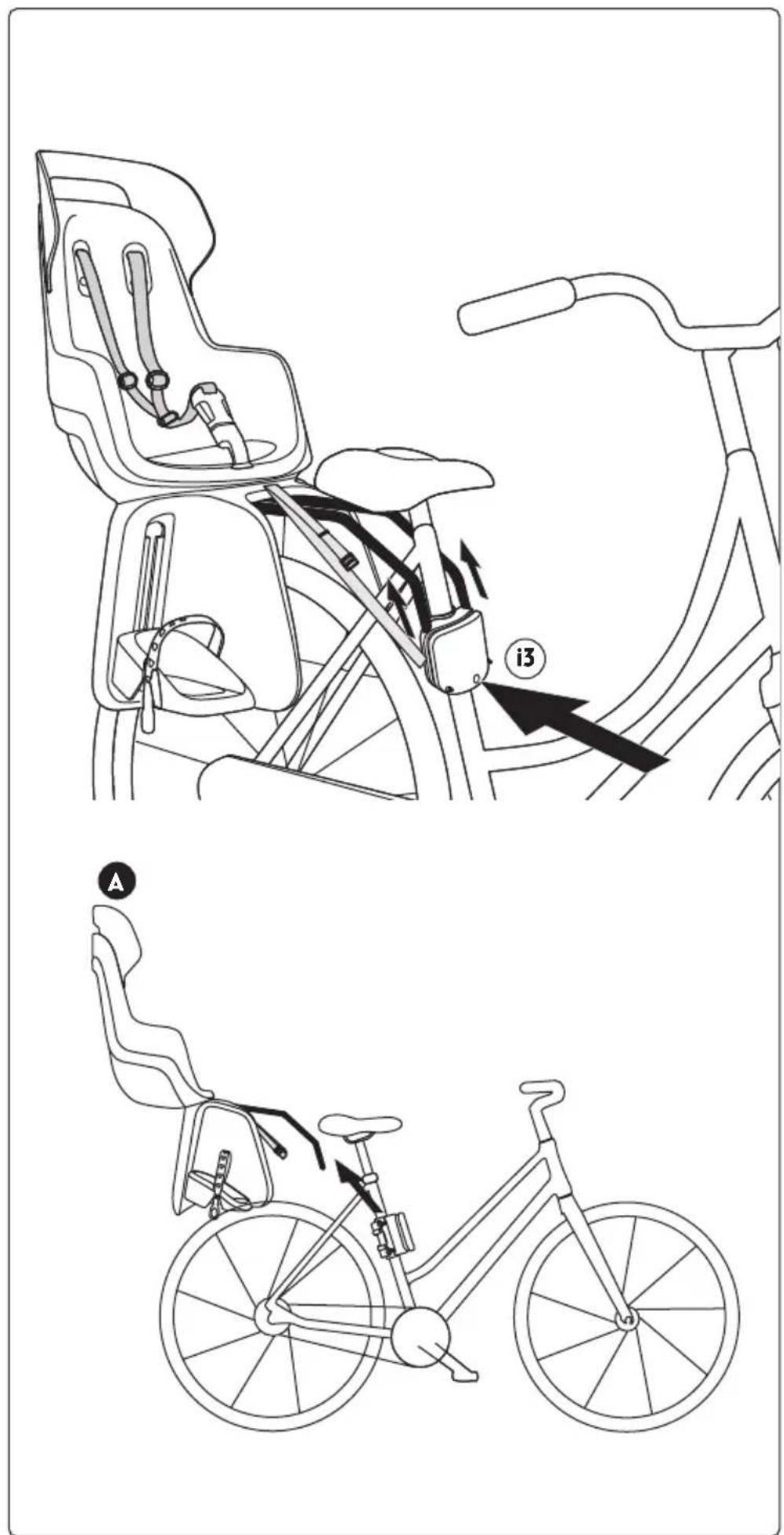

1. Detach the safety-belt (C) in order to remove the child bicycle seat. Then press the release button (I3) on the frame holder (I) and at the same time pull

the metallic support bar (H) up and back as shown in the image.

Attention

Make sure you have followed and fulfilled all the instructions given. When done so, the child bicycle seat is ready for use.

IT IS MANDATORY TO READ the following chapter on safety instructions about using your child bicycle seat.

Specific Instructions for Use

• The rider must be at least 16 years of age.
- Check for any laws and regulations that might be in force in your country, relating to the carrying of children in seats attached to cycles.
- Carry only children that can sit unaided for a longer period, at least as long as the intended cycle journey. - Do not carry a child less than 9 months of age in this child bicycle seat. To be a passenger, the child must be able to sit up straight with the head held upright while wearing a bicycle helmet. A doctor should be consulted if the child's growth is questionable.
- Make sure that the weight and height of the child do not exceed the maximum capacity of the seat, and check this at regular intervals. Check the weight of the child before using the child seat. Under no circumstances should you use the child bicycle seat to transport a child whose weight is above the permissible limit.
- Make sure to check from time to time that the weight and height of the child do not exceed the maximum permissible load of the seat.
• Make sure that it is not possible for any part of the child's body or clothing to come into contact with moving parts of the seat or bicycle and check this as the child grows.
- You must cover any sharp or pointy objects on the bicycle (e.g. frayed cables) that may be reached by the child, in any situation.
- A wheel protector is mandatory to prevent the child from inserting its feet or hands between the spokes. The use of protection underneath the saddle or the use of a saddle with internal springs is mandatory. Make certain that the child is not able to hinder the brakes, thus avoiding accidents. These adjustments should be revised with child's growth.
- Cover any exposed rear saddle springs.
- When the child bicycle seat is not in use, fasten the waist buckle of the security harness to prevent the straps from dangling and entering in contact with

some turning part of the bicycle as wheels, brakes, etc. as these may be a hazard to the cyclist.
- Secure the child into child bicycle seat ensuring that all the safety belts and straps applied firmly but not so tight as to cause discomfort to the child.
- Check the security of fastners frequently.
- You must ensure that you always use the restraint system, and that the child is secured in the seat.
- Dress the child in proper clothes according to weather conditions.
• Children in child seats need to be more warmly dressed than riders of cycles and should be protected from rain.
- Remove the seat when transporting the bicycle by car (outside the car). Air turbulence might damage the seat or loosen its fastenings or other suspended elements, which could lead to an accident.
- Accompanying persons should carefully consider stability / balance when placing the child on the bike in the seat.
- Make sure that children wear a suitable helmet that complies with EN 1078:2012+A1:2012 while riding in the seat. Not wearing a helmet exponentially increases the risk of death, long-term disability, head trauma, or other injuries. As bicycle seat manufacturers, we care about the safety of seat passengers, so we strongly recommend that children and all passengers wear properly fitted and fastened bicycle helmets.
- The seat and cushion can get hot if under the sun for a long time. Make sure that they are not too hot before seating the child.
- This child seat is not suitable for use during sporting activities, or in extreme conditions as per example: enduro, hard mountain biking, big road holes, jumps and off-road ways.
- When riding for the first time with the seat fitted - to test ride the cycle in a safe/quiet environment before riding on the highway.

WARNINGS

WARNING: Do not attach any additional luggage to the child seat. If you carry extra luggage, the bicycle's carrying capacity must not be exceeded, and we recommend that it be placed at the front of the bike.

WARNING: Do not modify the seat. WARNING: The cycle could behave differently with a child in the seat particularly with regarding to balance, steering and braking.

WARNING: Never leave the cycle parked with a child in the seat unattended.

WARNING: For any form of crack or if the surface starts to deconstruct, this indicates that the life of the seat has been reached and it should be replaced. A professional shall be contacted in case of doubt.

WARNING: Always check the surface temperature of the seat before any use.

WARNING: This child seat is not suitable for use during sporting activities.

WARNING: Always ensure that the head of your child is supported in reclined position.

WARNING: Additional security devices are always to be attached.

Attention

Failure to comply with these operating instructions can lead to serious injury or death of the bicycle operator and/or child. Bobike is not liable for any damage to the product or persons resulting from improper installation, storage, or assembly (non-compliance with assembly instructions), improper maintenance, misuse or

use not in compliance with the technical or use specifications (non-compliance with maintenance and care instructions), modifications or repairs made by you or a third party. If you have any doubt, please get in contact with us or with your local shop so that we can assist you to assure you and your child safety while riding with the bicycle seat.

Maintenance

To keep the child bicycle seat in good working condition and to prevent accidents we recommend the following:

• Regularly check the mounting system of the seat to the bicycle to make sure it is in perfect condition.
• Check all the components to see if they work properly. Do not use the seat if any of the components are damaged. Damaged components must be replaced. To replace them you need to

visit your local authorized Bobike dealer to get the correct components for replacement. You can find them on the website: www.bobike.com.

• If you have suffered an accident with your bicycle and safety seat, we advise you to get a new safety seat. Even if there is no visible damage to the seat.
• Clean the seat with soap and water (do not use abrasive, corrosive, or toxic products). Leave it to dry at room temperature.

Warranty

3-YEAR WARRANTY: All mechanical components against manufacturer defects only. Register your product at www.bobike.com.

+ 1 EXTRA WARRANTY YEAR: Register your seat at www.bobike.com and get one more warranty year.

Important: you must register within 2 months of the date of purchase to receive the Bobike Extra Year Warranty.

WARRANTY CLAIMS

To obtain warranty service, you must have your original sales receipt. Items returned without a sales receipt will assume that the warranty begins on the date of manufacture. All warranties will be void if the

product is damaged due to user crash, abuse, system modification, or used in any way not intended as described in this operating manual.

To make sure you have all the required information to activate the warranty you need to keep the information that you have in your Traceability information label (F). You can also record here the info.

O.F Date

Go® Maxi Frame

Go® Maxi Frame Reclining System

Obsah Balení

A. Hlavní sedačka

O.F. ____.
Date ____.

A. Cadeira principal

B2. Passador vertical

B3. Passador central

Double-walled Design

Dutch Design

and Made In Europe

Polisport Plásticos S.A. | Av. Ferreira de Castro, 818

3720-024 Carregosa | Portugal

[e-mail]

SEPARATE WASTE COLLECTION.

CHECK YOUR LOCAL MUNICIPAL GUIDELINES.
