USER MANUAL AES 72 SR-H Ritter

Technical diagram of a mechanical assembly with numbered components for identification

	itnlno
1	Sistema di accensione a2 dita:1a: Interruttore di sicurezza1b: Tasto di accensione	2-vinger-inschakelsysteem:1a: inschakelbeveiliging1b: inschakelknop	Topunkts startsystem:1a: startsperre1b: startknapp
2	Targhetta Typeplaatje Typeskilt
3	Piano mobile Aanslagplaat Stoppeplate
4	Manopola di regolazionedello spessore del taglio	Snijdikteknop Justeringsknapp for	skivetykkelse
5	Vassoio per alimenti Opvangschaal voor snijwaren Oppsamlingsbrett for oppskjær
6	Tasto di sblocco Beslagontgrendeling Låsemekanisme
7	Angolare per protezione perle dita	Hoekbeugel voorvingerbeveiliging	Festevinkel for fingerbeskyttelsen
8	Angolare per pressasalumi Hoekbeugel voor restenhouder		Festevinkel for s ikkerhetsholderen
9	Protezione per le dita	Vingerbeveiliging	Fingerbeskyttelse
10	Pressasalumi	Restenhouder	Sikkerhetsholder
11	Carrello	Snijwarenslede	Skyvebrett
12	Pulsante retraibile	Bufferschroef Bufferskrue
13	Dispositivo di serraggiodella lama	Messluiting	Knivlås
14	Lamade	Rond mesen	Rundknivfr
12-Finger-Einschaltsystem:1a: Einschaltsicherung1b: Einschalttaste		2-finger power control mechanism:1a: Safety lockout button1b: Power button	Dispositif de mise sous tension à 2 doigts :1a : Protection contre la mise sous tension1b : Touche de mise sous tension
2	Typenschild	Type label	Plaque signalétique
3	Anschlagplatte	Stop plate	Plaque protège-lame
4	Schnittstärke-Verstellknopf	Slice thickness adjustment knob	Bouton de réglage de l'épaisseur de coupe
5	Schneidgut-Auffangschale	Slice tray	Plateau de réception des tranches
6	Beschlagsentriegelung	Folding up feature release button	Bouton de déverrouillage
7Haltewinkel für Finger-schutz		Retaining bracket for finger protector	Cornière pour protège-doigts
8Haltewinkel für Restehalter		Retaining bracket for left-over holder	Cornière pour pousse-restes
9Fingerschutz		Finger protector Protège-doigts
10Restehalter		Left-over holder Pousse-restes
11	Schneidgutschlitten	Slice carriage	Chariot
12	Pufferschraube	Buffer screw	Vis de butée
13	Messerverschluss	Blade catch	Dispositif de serrage de la lame
14Rundmesser		Rotary blade	Lame

Illustration of a hand operating a mechanical device with a rotating disc (no text or symbols visible)

Illustration of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Line drawing of a hand operating a mechanical device with a pulley and rotating components (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand holding a circular object against a mechanical bracket (no text or symbols)

Illustration of a hand using a lathe machine to cut a circular component (no text or symbols visible)

Technical line drawing of a hand operating a mechanical device with a circular component (no text or symbols)

H 1b 1a

1. 2.

K 2. 1.

Illustration of a hand pressing a button with an arrow indicating rotation (no text or symbols)

Hand holding a circular component with a curved arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a bracket with mounting holes and a curved connection (no text or symbols)

N 1. 2.

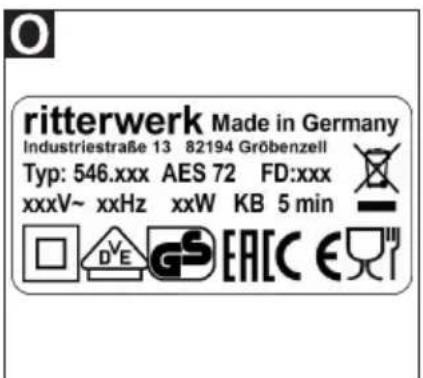

ritterwerk Made in Germany Industriestraße 13 82194 Gröbenzell Typ: 546.xxx AES 72 FD:xxx xxxV~ xxHz xxW KB 5 min

P

Line drawing of a five-tier cabinet or drawer with drawers and a small circular icon on the top (no text or symbols)

Technical line drawing of a rectangular frame with a 96-unit dimension label and internal structure (no text or symbols beyond the dimension)

Q

25 12 32 7 25 25.5 32 8 346 10.5

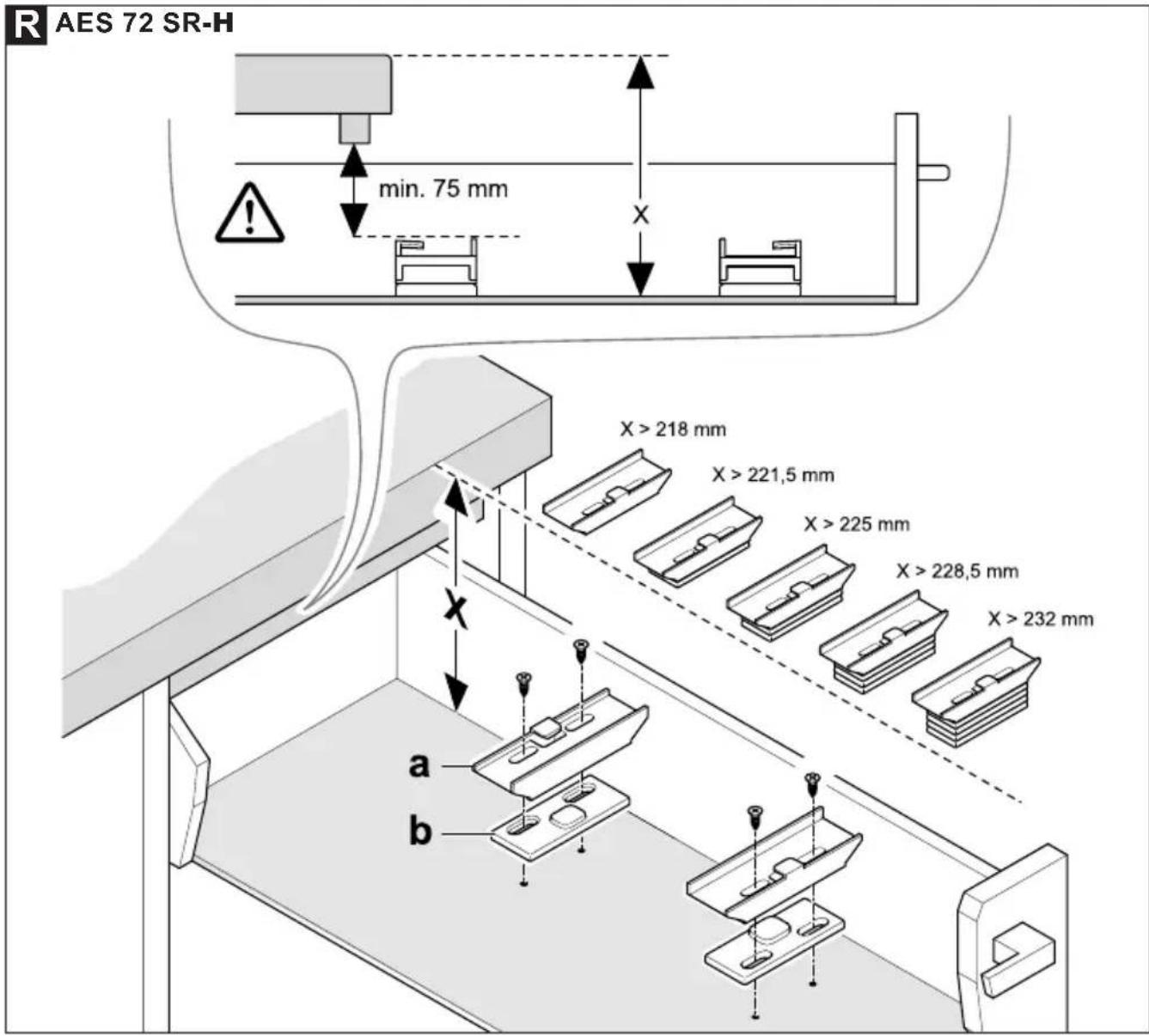

R AES 72 SR-H min. 75 mm X X > 218 mm X > 221,5 mm X > 225 mm X > 228,5 mm X > 232 mm a b

Technical diagram showing mechanical assembly with two metal brackets and a bracket, no text or symbols present

de Gebrauchs- und Montageanleitung 3
en Operating and assembly instructions .....9
fr Notice d'utilisation et de montage ....14
CS Návod k montáži a obsluze....19
es Instrucciones de montaje y de uso....24
hu Használati és összeszerelési útmutató....29
it Istruzioni per l'utilizzo e il montaggio ....34
nl Gebruiks- en montageaanwijzing ....39
no Bruksanvisning og monteringsveiledning......44
pl Instrukcja obsługi i montażu ....49
ru Руководство по эксплуатации и инструкция по сборке ....54
sk Návod na použitie a montáz 59
sl Navodila za uporabo in vgradnjo....64

ALLGEMEINE

SICHERHEITSHINWEISE

GENERAL SAFETY INSTRUCTIONS

To avoid personal injury or damage to the appliance, please observe the following safety instructions:

- The food slicer is to be used for domestic purposes only and must not be used commercially.

- Assembly (see page 13) must be performed by qualified personnel only. ritterwerk will not be held liable for the consequences of improper or incorrectassembly.

- Do not start using the appliance until it has been assembled by a professional.

– Fold the appliance away after each use and keep the drawer closed.

- Use the accessories included in the delivery specification only.

- The mains cable must be positioned to ensure that the appliance can be fully folded down into the drawer without the cable becoming trapped. The mains cable must be routed directly and without obstruction from the built-in system to the socket, which must be mounted in the floor unit.

- Do not bend the mains cable. Never wrap the cable around the appliance.

- Persons with reduced physical, sensory or intellectual capabilities or lacking in relevant experience and/or knowledge may only use this appliance if they do so under supervision or have been instructed in the safe use of the appliance and understand the potential risks associated with its use.

- Do not allow children to play with the appliance.

- Always disconnect the appliance from the mains whenever it is to be left unsupervised, and also prior to assembly, dismantling and cleaning.

- This appliance must not be used by children. Keep the appliance and its connection cable out of reach of children.

- Only connect the appliance to a suitable AC power source that complies with the specifications on the type label.

– Never leave the appliance unattended while it is operating.

- Do not use it to cut frozen foods, bones, food containing large stones, roast meats that are encased in netting or packaged foods!

– Never allow the appliance to run for more than 5 minutes at a time.

Risk of electric shock

- Always remove the mains plug from the socket in the event of a malfunction, before cleaning and when the appliance is not in use. When doing so, pull on the plug and not on the cable.

– Never immerse the appliance in water. Never expose the appliance to rain or any other form of moisture.

If the appliance falls into water, unplug the cable from the mains socket before removing the appliance from the water. Have the appliance inspected at an authorized service location before using it again.

- Always ensure that your hands are completely dry before using the appliance. Do not use the appliance if it is wet or damp or while you are standing on a damp surface. Do not use the appliance outdoors.

- Stop using the appliance immediately if any parts are damaged and contact the ritter after-sales service.

- If the mains cable is damaged, it must be replaced by the manufacturer, the manufacturer's after-sales service or a similarly qualified person to eliminate risk of personal injury.

Risk of injury

- This appliance must not be used without a slice carriage or a left-over holder, unless the size and shape of the food to be sliced means that these parts cannot be used.

- Before replacing accessories or add-on parts that move when operated, the appliance must be switched off and disconnected from the mains.

– The rotary blade is extremely sharp.

- Never touch the rotating blade when the appliance is operating!

- Switch the appliance off before cleaning it; pull the mains plug out off the socket and turn the slice thickness adjustment knob to the "0" position.

- The rotary blade will continue to run for a short time after being switched off.

Unfold the illustrations at the front and back of this manual.

Please read these instructions thoroughly before you start to use the appliance. Keep these operating instructions in a safe place and ensure that they are included with the appliance if passing it on to a third party.

Alternatively, the current operating instructions are available at www.ritterwerk.de.

INTENDED USE

The food slicer is used for the slicing of household foods. If the appliance is used for a purpose other than this, or if it is operated incorrectly, severe injuries may occur or the appliance may be damaged. All warranty and liability claims will be rendered null and void in this case.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

Preparation

Before you use the appliance for the first time, have a specialist install it in a suitable drawer.

Clean the appliance before allowing it to come into contact with any food (see CLEANING).

Setting-up the appliance

- Pull out the drawer containing the food slicer to the stop.

A Lift the appliance using the stop plate (3) and swivel it until it is vertical and latches audibly into place. The slice tray (5) folds automatically into its working position.

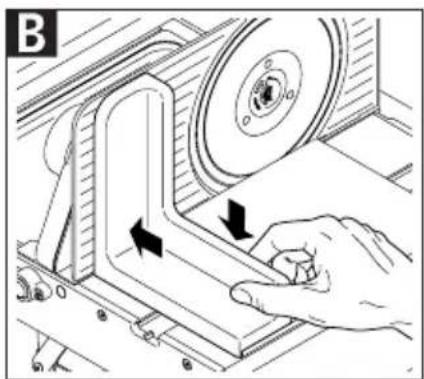

B Fit the finger protector (9) into the locating slot on the slice carriage (11) using the bolt.

- Press the finger protector towards the stop plate (3) until it audibly latches into place.

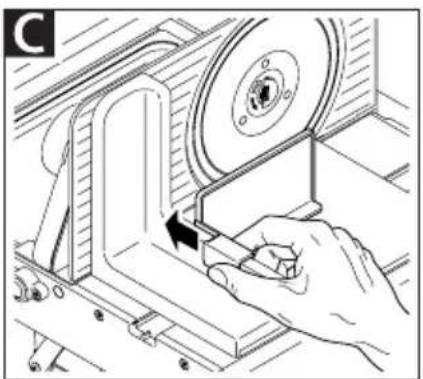

C Slide the left-over holder (10) onto the finger protector.

Adjusting appliance position

When the food slicer is swung out the appliance must not be capable of being pushed in a longitudinal direction, i.e. the buffer screw (12) should be flush with the front edge of the worktop without any play. If this is not the case then you can re-adjust it:

- Position the appliance as described above.

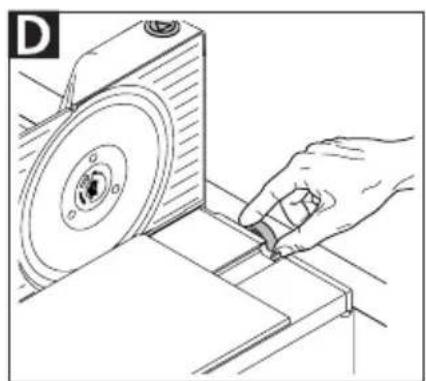

D Turn the buffer screw until it comes into contact with the front edge of the worktop (but do not clamp tight!).

- Check the setup by folding and unfolding the appliance several times in succession.

SLICING

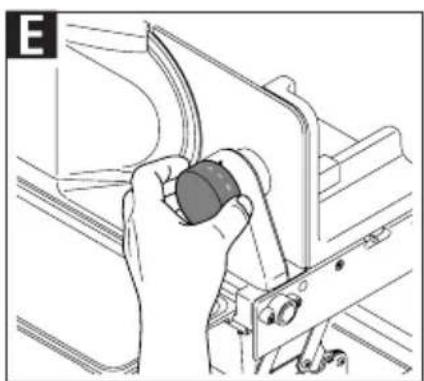

E Use the slice thickness adjustment knob (4) to set the required thickness.

Note:

The slice thickness adjustment scale is not a millimetre scale. For safety reasons, the "0" position is designed to cover the blade.

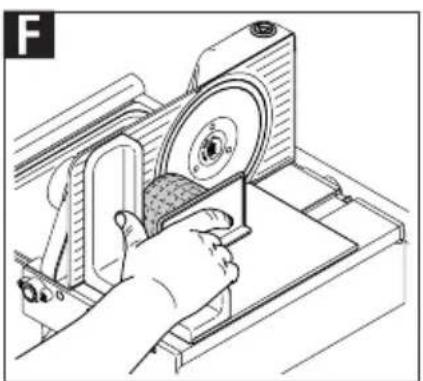

F Place the food to be sliced onto the slice carriage (11). Use the left-over holder (10) to hold the food firmly against the stop plate (3).

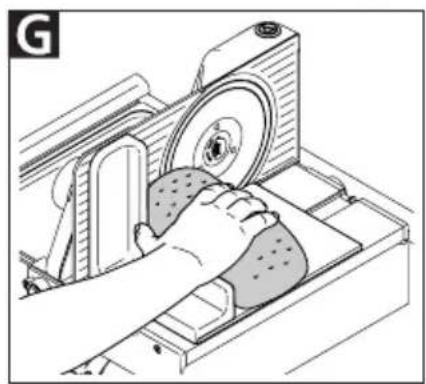

G Protect your hands, by always using the finger protector (9) and, where applicable, the left-over holder. Exception: Excessively large foods to be sliced.

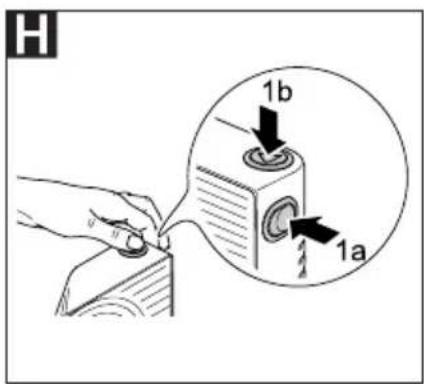

H Switch the appliance on:

- Press and hold down the safety lockout button (1a) with your index or middle finger.

- Press the power button (1b) with your thumb.

Two operating modes are available:

- Temporary operation: Keep both power control buttons pressed. The rotary blade (14) will run until you release the power button.

- Continuous operation: First release the safety lockout button and then the power button. The rotary blade will continue to run until you press the safety lockout button again.

Note:

Never use the appliance for more than a maximum of 5 minutes in continuous operation.

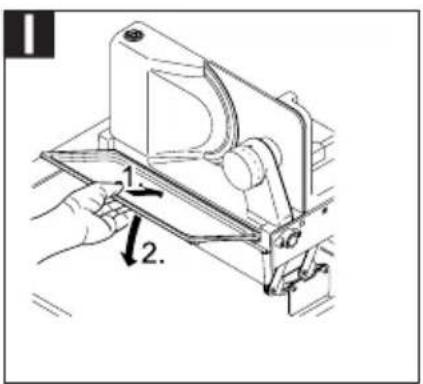

If necessary, place the slice tray (5) at an incline into the holder and swivel it down.

- With the appliance running, gently feed the food to be sliced into the path of the rotary blade.

- Once slicing has been completed, wait until the rotary blade has come to a complete stop.

- After each use, turn the slice thickness adjustment knob to the "0" position, in order to cover up the sharp rotating blade and to avoid any injuries.

CLEANING

Caution:

Switch the appliance off before cleaning it; pull the mains plug out off the socket and turn the slice thickness adjustment knob (4) to the "0" position.

Clean the food slicer regularly to prevent the accumulation of food residue. The rotary blade must also be cleaned regularly as described below to prevent its surface from rusting.

Note:

Over time, an accumulation of food residue may cause damage to the surface of the rotary blade, causing it to rust.

Preparation

- Removing the slice carriage(11).

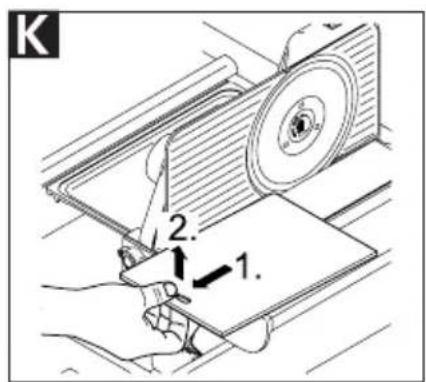

K Pull the slice carriage forwards up to the first stop. Raise it slightly and then pull it over the first stop and on to the second one. Raise it again and then pull it completely off the appliance.

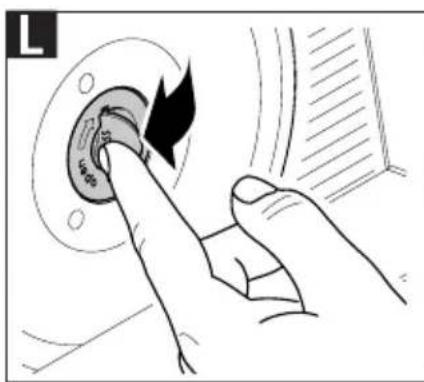

L Removing the rotary blade:

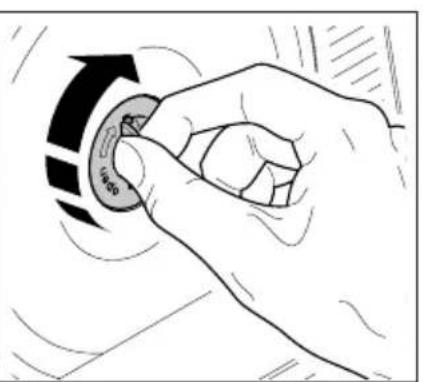

• Fold the blade catch (13) upwards, turn it clockwise, and remove it.
  • Take hold of the rotary blade at its rotational centre and remove it.

Cleaning after each use

- Wipe down the housing and all removed parts, including the rotary blade, with a damp cloth.

Occasional cleaning

• Give all removed parts, including the rotary blade, a thorough wash in warm soapy water (not in the dishwasher!).
• Clean the housing behind the blade using a dry cloth/brush.

Note:

Do not use any abrasive cleansers, sponges with rough surfaces or hard brushes to clean the appliance.

• Dry all parts that you have washed.
• Grease the rotary blade's gear wheel with a little Vaseline.
• Fit the rotary blade back into the appliance.

MAINTENANCE

Your food slicer is maintenance-free. However, we recommend that you occasionally apply a little Vaseline to the rails for the slice carriage to keep them lubricated and ensure that the carriage continues to move easily.

STORAGE

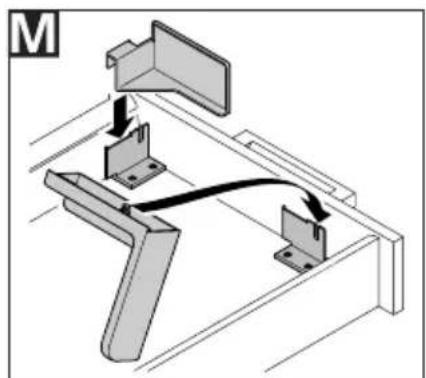

M Remove the finger protector (9) and left-over holder (10) and hang them both onto the retaining brackets (7) and (8).

• Make sure that the slice thickness adjustment knob (4) is set to position "0", as otherwise the appliance cannot be folded down for safety reasons.

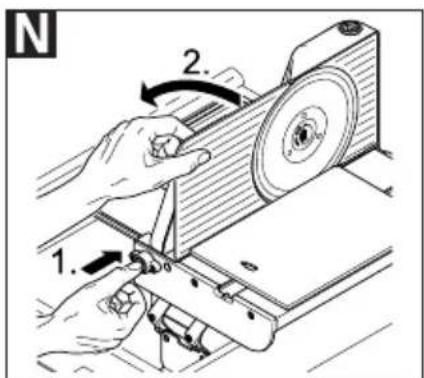

  N Hold the appliance at the stop plate (3) and use the other hand to press the folding up feature release button (6).
• Swivel the appliance until it is located fully in the drawer.

Note:

The slice carriage (11) and slice tray (5) can be left on the appliance.

DISPOSAL

At the end of its service life this product may not be disposed of as part of normal domestic waste.

It must be taken to a dedicated collection point for recycling electrical and electronic devices. This is referred to by the symbol on the product, the operating instructions or the packaging.

The materials can be used again in accordance with their identification. The reuse, material-sensitive recycling or other forms of recycling of old appliances enables you to make a vital contribution to protecting our environment.

Please consult with the disposal office at your local authority.

REACH DIRECTIVE

A non-toothed rotary blade is also available specifically for sliced meat, sausage and ham.

SERVICE, REPAIRS AND SPARE PARTS

Please contact your local after-sales service for all service, repairs and spare parts matters! See www.ritterwerk.de

TECHNICAL DATA

This appliance complies with the following regulations and directives:

• 2014/30/EU
• 2014/35/EU
• 1935/2004/EG
• ErP 2009/125/EG
• 2011/65/EU

The appliance thus complies with the CE specifications.

Mains voltage/power consumption: Refer to the type label on the underside of the appliance.

Slice thickness:

0 mm to approx. 14 mm

WARRANTY

This ritter appliance comes with a two-year manufacturer's warranty, starting with the date of purchase and in accordance with the EU warranty directives. In the event of a warranty claim or for servicing, the appliance must always be sent to the appropriate national customer service centre.

ASSEMBLY AND INSTALLATION

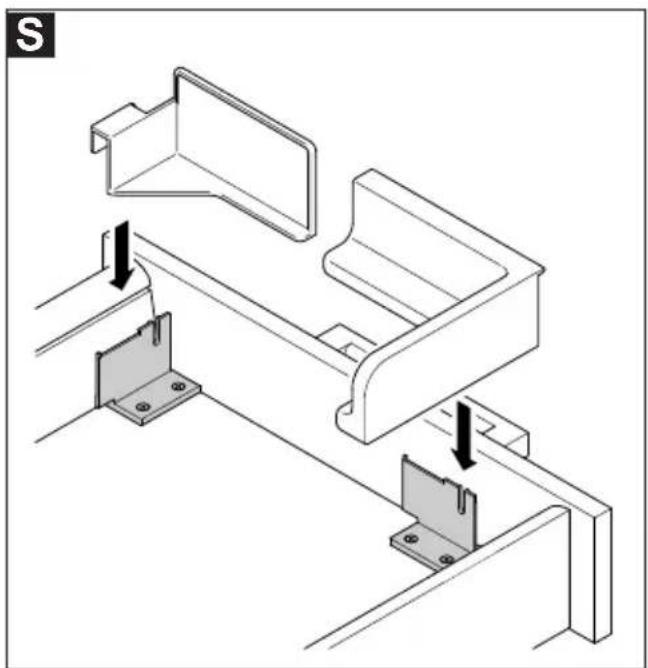

Please refer to the illustrations (P to S) provided at the front and back of this manual. For more information about installation, see also www.ritterwerk.de/installation-notes.

Safety instructions

To avoid personal injury or damage to the appliance, please observe the following safety instructions:

• This appliance may only be assembled by qualified personnel. ritterwerk will not be held liable for the consequences of any improper and/or incorrect assembly.
• The mains cable must be positioned to ensure that the appliance can be fully folded down into the drawer without the cable becoming trapped. The mains cable must be routed directly and without obstruction from the built-in system to the socket, which must be mounted in the floor unit.
• Unplug the cable from the socket before assembly.

Installation conditions

The following dimensions represent minimum values:

– Drawer clearance width: AES 72 SR: 344 mm AES 72 SR-H: 392 mm
– Clearance height for drawer base/crossbeam: without baseplate: 75 mm with baseplate: 83 mm
– Pullout clearance for front edge of worktop/inner edge of front drawer panel: 365 mm (finger protector and left-over holder not mounted)
- Appliance width: AES 72 SR: 342 mm

AES 72 SR-H: 390 mm

The drawer base should be at least 16 mm thick.

At a nominal length of 500 mm, the drawer runners should have a static load capacity of at least 40 kg.

Mounting the socket

Note:

A surface-mounted socket (that complies with VDE/DIN 49440, ÖVE, SEV) must be mounted either on or behind the rear panel at drawer height.

P The mains cable connection to the socket should be routed under the rear crossbeam or the underside of the work top and as high up as possible in the corner of the floor cabinet's rear panel. It must be possible to slide the drawer in fully while the mains plug is in the socket.

The mains plug must be easily accessible to the user to ensure that the appliance can be unplugged from the mains as required (for example, prior to cleaning).

Mounting the food slicer

Preparation:

- Pull out the drawer until it stops.

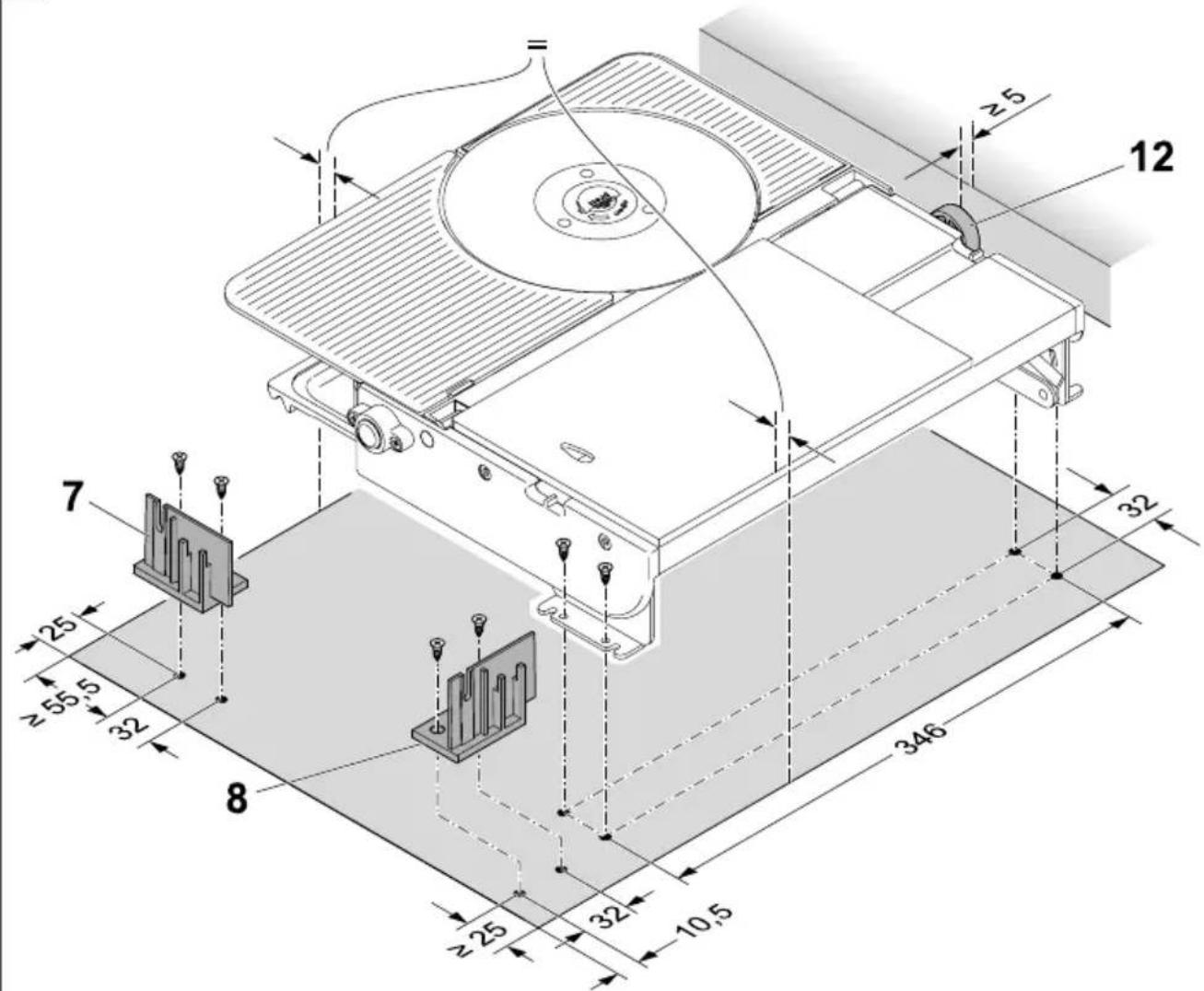

Q Determine the position for the food slicer in accordance with the assembly drawing.

or

• Position the appliance, when folded, into the drawer.
  The distance between the front edge of the worktop and the completely screwed-in buffer screw (12) should be approx. 5 mm.
• Mark the position of the front and rear fastening brackets determined in this manner on the base of the drawer.
• Remove the appliance from the drawer.

Execution:

- Drill the four holes as marked for assembling the appliance onto the base of the drawer. - Mount the appliance using four pan-head screws 4.0 × 16 (for drawer base 16 ~mm ).

R H variants:

If the slice carriage (11) touches off the front edge of the worktop, baseplates (a) and spacer plates (b) can be placed underneath if necessary. In this case, longer screws must also be used for assembly.

Mounting retaining brackets

Q Position the retaining brackets (7) and (8).
S Check the position by placing the finger protector and the left-over holder onto the corresponding retaining bracket.

• Mark the position of the holes and then drill them.
• Mount the two retaining brackets using countersunk screws (Phillips drive) PZ 3.5 x 12 (for drawer base 16 mm).

Adjusting appliance position

• Position the appliance as described in BEFORE USING THEAPPLIANCEFORTHE FIRST TIME.
• Turn the buffer screw (12) until it just makes contact with the front edge of the worktop (do not clamp tight!).
• Check the setup by folding and unfolding the appliance several times in succession.

Note:

All dimensions in the assembly drawings stated in mm!

INSTRUCTIONS DE SÉCURITÉ GÉNÉRALES

MONTERING OG INNBYGGING

AES 72 SR: 342 mm AES 72 SR-H: 390 mm

Dno predala naj bo debelo naj-manj 16 mm.

Vodili predala morata imeti pri nazivni dolžini pribl. 500 mm sta- tično nosilnost najmanj 40 kg.
