USER MANUAL AES 62 SL-H Ritter

AES 62 SR-H/BFS 62 SR-H

AES 62 SL/BFS 62 SL

AES 62 SL-H/BFS 62 SL-H

ritter

QUALITY SINCE 1905

MADE IN GERMANY

Montagevideos / Assemblyvideos:

SR S

QR code image containing encoded data, no visible human-readable text

de	Gebrauchs- und Montageanleitung | Allesschneider Einbau system
en	Operating and assembly instructions | Built-in food slicer system
fr	Notice d'utilisation et de montage |Trancheuse universelle, système d'encastrement
bg	Ръководство за употреба и монтаж | Универсален уред зарязане със система за вграждане
cs	Návod k montáži a obsluze | Vestavný univerzální kráječ
es	Instrucciones de montaje y de uso |Sistema de montaje de cortadora multiuso
hu	Használati és összeszerelési útmutató |Beépíthető univerzális szeletelőgép
it	Istruzioni per l'utilizzo e il montaggio |Affettatrici multiuso con sistema di montaggio
nl	Gebruiks- en montage aanwijzing | Allessnijder inbouwsysteem
no	Bruksanvisning og monteringsveiledning |Universalskjæremaskin for innbygging
pl	Instrukcja obsługi i montażu | Krajalnica uniwersalna do zabudowy
ro	Instrucțiuni de utilizare și montare | Sistem de instalare pentru feliator universal
ru	Руководство по эксплуатации и инструкция по сборке |Монтируемое универсальное режущее устройство
sk	Návod na použitie a montáž |Univerzálny krájač, systém pre zabudovanie
sl	Navodila za uporabo in vgradnjo | Univerzalni rezalnik za vgradnjo

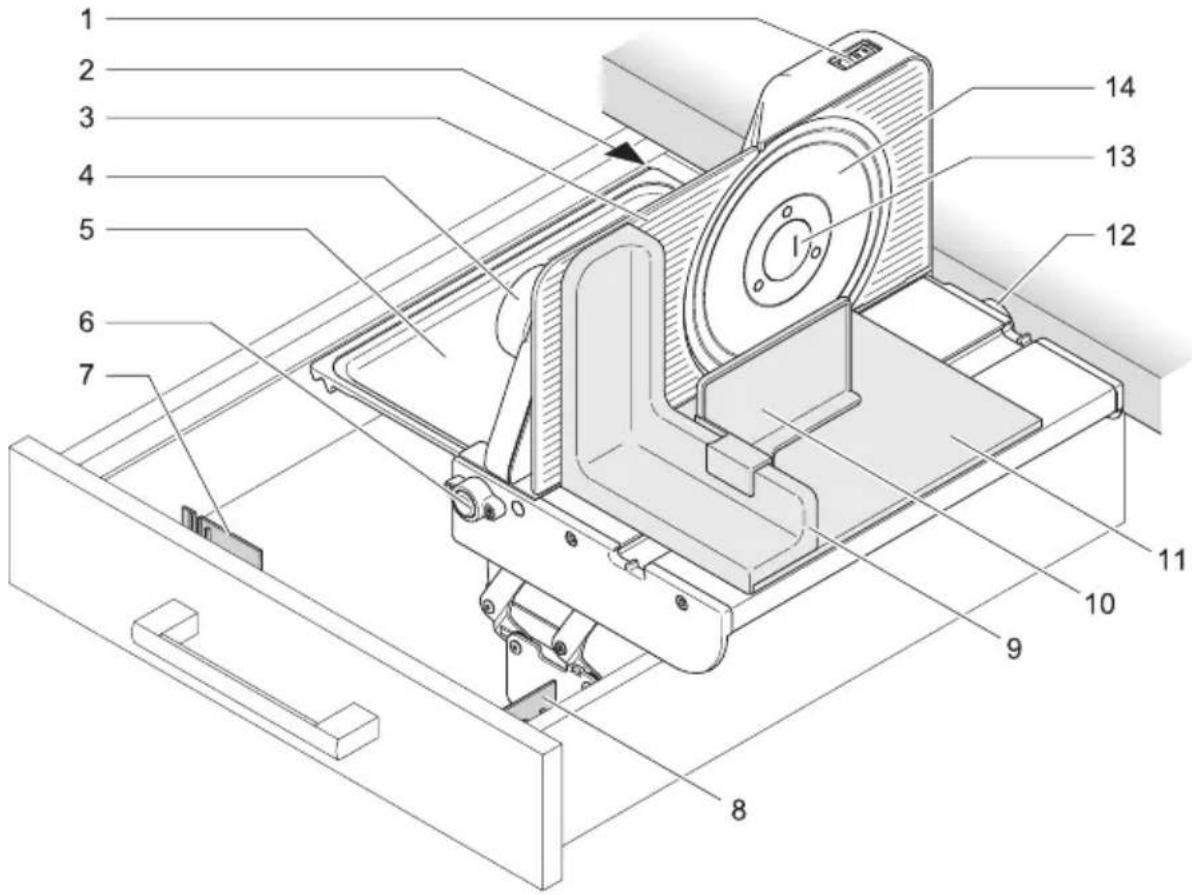

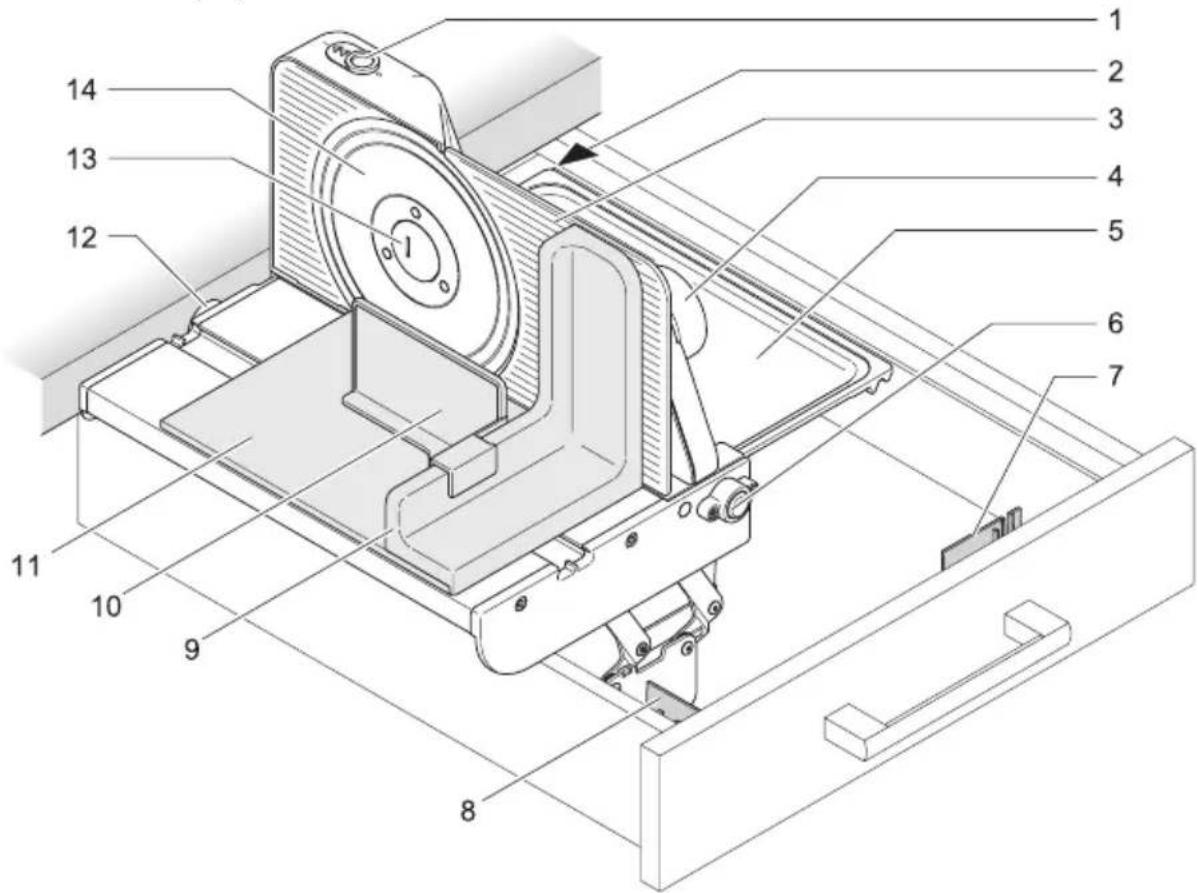

AES/BFS 62 SR(-H)

Technical diagram of a mechanical assembly with numbered components for identification

AES/BFS 62 SL(-H)

Technical diagram of a mechanical assembly with numbered components for identification

Line drawing of a hand operating a roll cutter through a mechanical device (no text or symbols)

Illustration of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Illustration of a hand operating a mechanical device with a circular component and directional arrow (no text or symbols)

Line drawing of a hand using a tool to cut or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a circular object against a mechanical bracket (no text or symbols)

Illustration of a hand using a lathe machine to cut a circular component (no text or symbols visible)

Illustration of a hand using a lathe machine to clean or install a component (no text or symbols visible)

Line drawing of a hand operating a mechanical device with a textured component (no text or symbols)

1. 2.

K 2. 1.

Line drawing of a hand operating a mechanical device with a circular component (no text or symbols)

Mechanical assembly diagram showing a bracket with mounting holes and a curved arrow indicating motion (no text or symbols)

N 1. 2.

ritterwerk Made in Germany Industriestraße 13 82194 Gröbenzell Typ: xxx.xxx FD: xxx xxxV~ xxHz xxW KB x min CE

AES/BFS 62 SL(-H)

Diagram of a hand operating a lathe machine with a rotating wheel (no text or symbols visible)

Illustration of a hand operating a mechanical component with arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, no text or symbols present

Line drawing of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Line drawing of a hand holding a circular object over a mechanical component (no text or symbols)

Technical line drawing of a mechanical device with a foot pressing down on a tray (no text or symbols)

Line drawing of a hand using a lathe machine to work on a mechanical component (no text or symbols present)

Line drawing of hands operating a mechanical device with rollers and a base (no text or symbols)

1 2.

K 1. 2.

Line drawing of a hand operating a mechanical device with a circular component (no text or symbols)

Mechanical assembly diagram showing a bracket with mounting hardware and a curved cable (no text or symbols)

N 1. 2. 1.

ritterwerk Made in Germany Industriestraße 13 82194 Gröbenzell Typ: xxx.xxx FD: xxx xxxV~ xxHz xxW KB x min CE

P

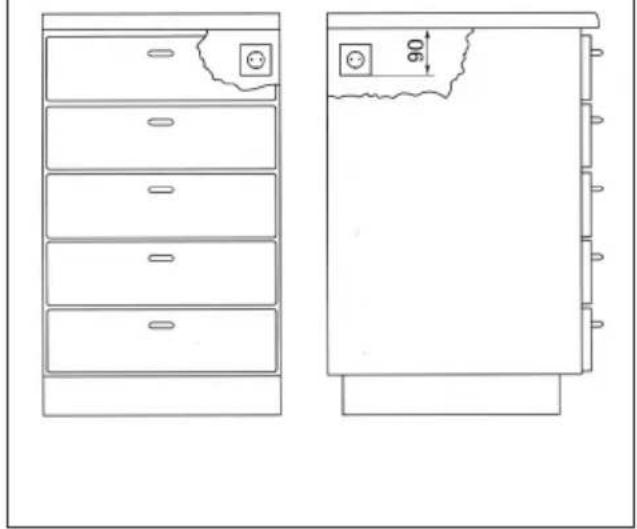

Line drawing of a two-person furniture room layout with drawers and a wall-mounted door (no text or symbols)

Q

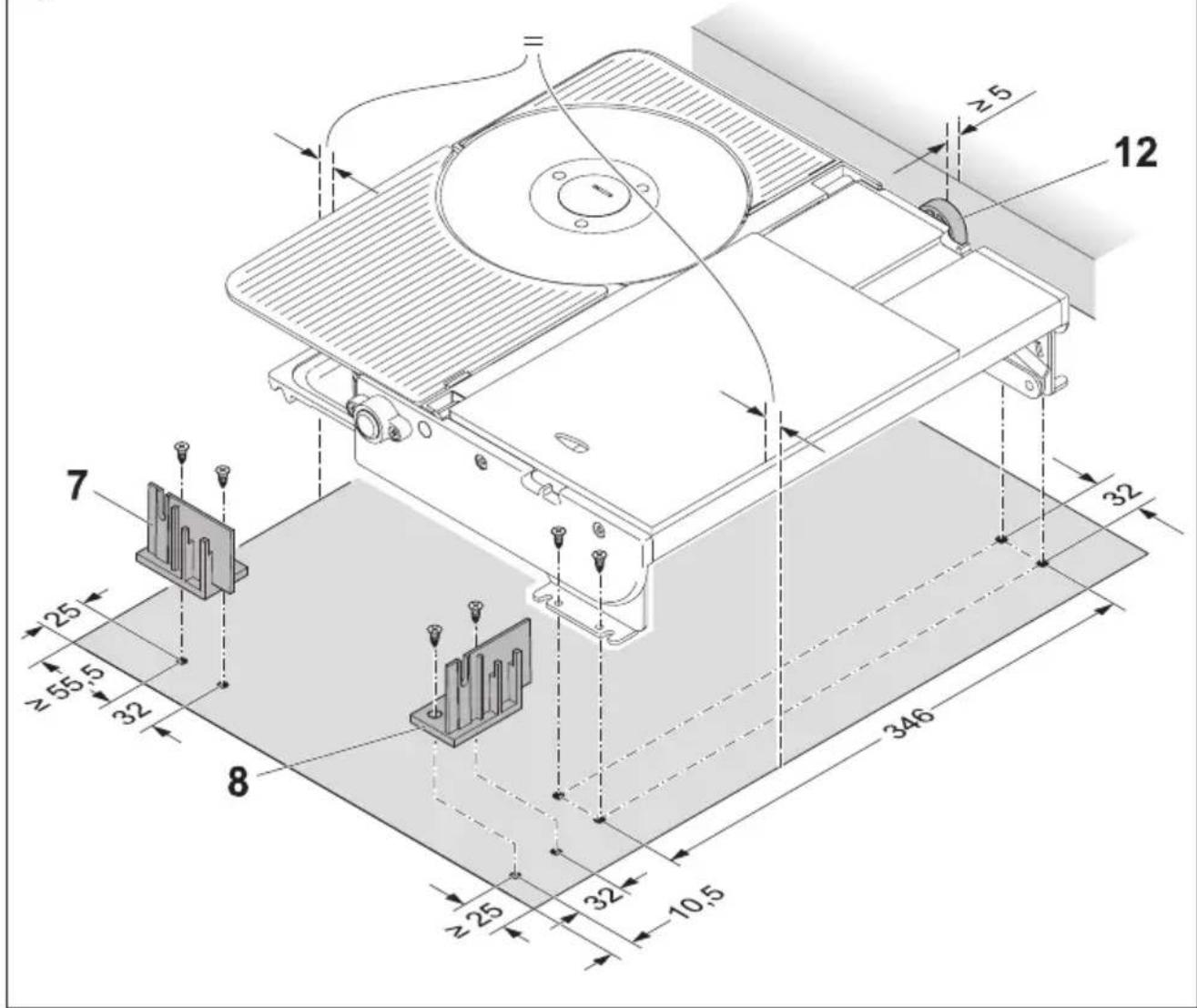

AES/BFS 62 SR/SR-H

≥5 12 32 7 25 ≥55.5 32 8 ≥25 32 10.5 346

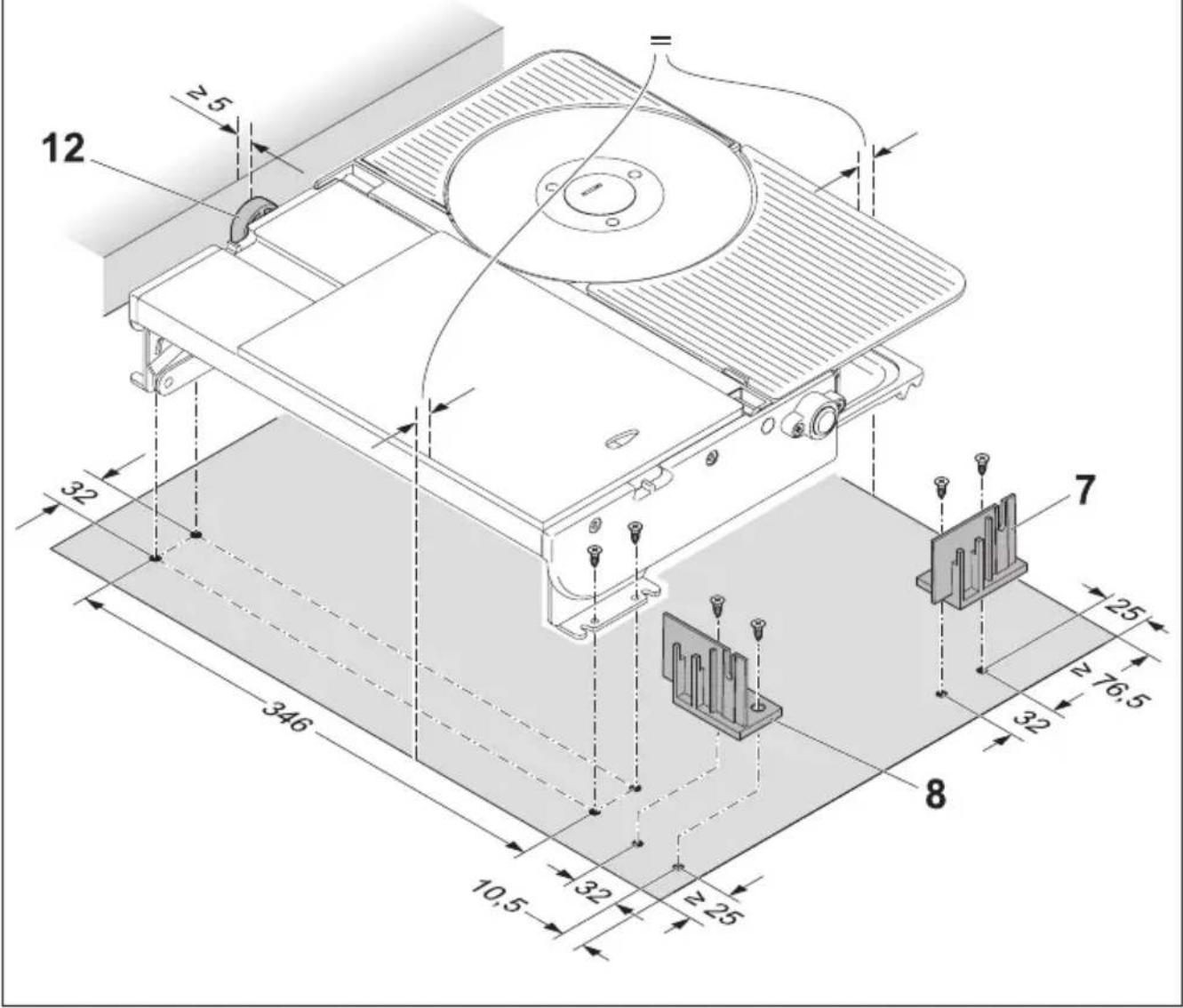

AES/BFS 62 SL(-H)

12 ≥5 32 346 10,5 32 ≥25 7 25 ≥76,5 32 8

R
AES/BFS 62 SR-H/SL-H

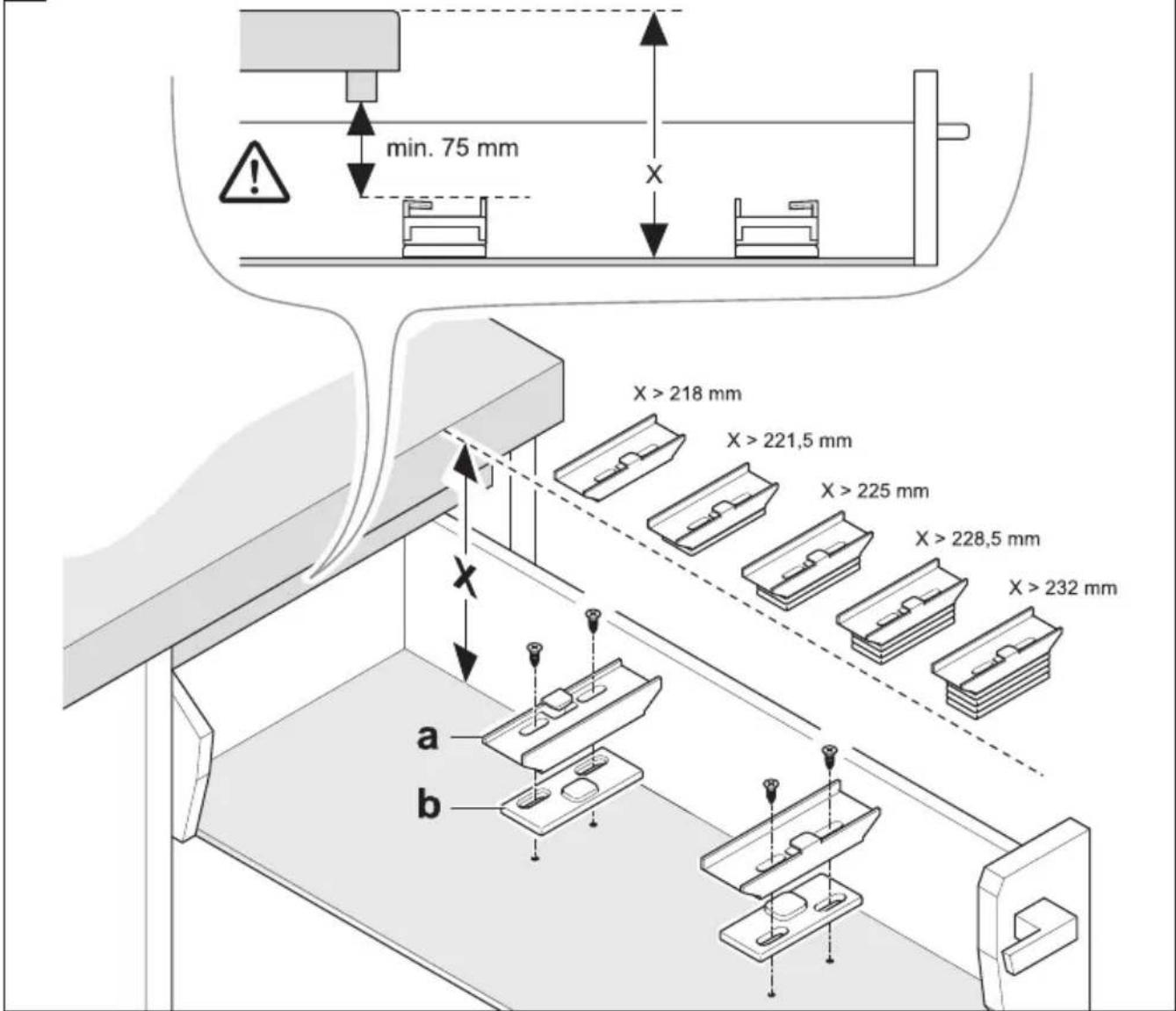

min. 75 mm X > 218 mm X > 221,5 mm X > 225 mm X > 228,5 mm X > 232 mm a b

S
AES/BFS 62 SR(-H)

Technical line drawing of a mechanical assembly with two metal brackets and a bracket (no text or symbols)

S
AES/BFS 62 SL(-H)

Technical line drawing of a mechanical assembly with two metal brackets and mounting holes (no text or symbols)

de Gebrauchs- und Montageanleitung ....4
en Operating and assembly instructions ....10
fr Notice d'utilisation et de montage ....16
bg Ръководство за употреба и монтаж .....22
CS Návod k montáži a obsluze....28
es Instrucciones de montaje y de uso....34
hu Használati és összeszerelési útmutató....40
it Istruzioni per l'utilizzo e il montaggio ....46
nl Gebruiks- en montageaanwijzing ....52
no Bruksanvisning og monteringsveiledning....58
pl Instrukcja obsługi i montażu 64
ro Instructiuni de utilizare și montare ....71
ru Руководство по эксплуатации и инструкция по сборке ....77
sk Návod na použitie a montáz 84
Sl Navodila za uporabo in vgradnjo....90

ALLGEMEINE

SICHERHEITSHINWEISE

AES/BFS 62 SR/SL: 342 mm AES/BFS 62 SR-H/SL-H: 390 mm

GENERAL SAFETY INSTRUCTIONS

To avoid personal injury or damage to the appliance, please observe the following safety instructions:

- The food slicer is to be used for domestic purposes only and must not be used commercially. - Assembly (see page 15) must be performed by qualified personnel only. ritterwerk will not be held liable for the consequences of improper or incorrect assembly.

- Do not start using the appliance until it has been assembled by a professional.

– Fold the appliance away after each use and keep the drawer closed.

- Use the accessories included in the delivery specification only.

- The power cord must be positioned to ensure that the appliance can be fully folded down into the drawer without the cable becoming trapped.

The power cord must be routed directly and without obstruction from the built-in system to the socket, which must be mounted in the floor unit.

- Do not bend the power cord. Never wrap the cable around the appliance.

- Persons with reduced physical, sensory or intellectual capabilities or lacking in relevant experience and/or knowledge may only use this appliance if they do so under supervision or have been instructed in the safe use of the appliance and understand the potential risks associated with its use.

- Do not allow children to play with the appliance.

- Always disconnect the appliance from the mains whenever it is to be left unsupervised, and also prior to assembly, dismantling and cleaning.

- This appliance must not be used by children. Keep the appliance and its connection cable out of reach of children.

- Only connect the appliance to a suitable AC power source that complies with the specifications on the type label.

– Never leave the appliance un-attended while it is operating.

- Do not use it to cut frozen foods, hot foods, bones, food containing large stones, roast meats encased in netting or packaged foods!

- Never allow the appliance to run for more than 5 minutes at a time.

Risk of electric shock

- Always remove the power plug from the socket in the event of a malfunction, before cleaning and when the appliance is not in use. When doing so, pull on the plug and not on the cable. - Never immerse the appliance in water. Never expose the appliance to rain or any other form of moisture. If the appliance falls into water, unplug the cable from the mains socket before removing the appliance from the water. Have the appliance inspected at an authorized service location before using it again.

- Always ensure that your hands are completely dry before using the appliance. Do not use the appliance if it is wet or damp or while you are standing on a damp surface. Do not use the appliance outdoors.

- Stop using the appliance immediately if any parts are damaged and contact the ritter after-sales service.

- If the power cord is damaged, it must be replaced by the manufacturer, the manufacturer's after-sales service or a similarly qualified person to eliminate risk of personal injury.

Risk of injury

- This appliance must not be used without a slice carriage or a left-over holder, unless the size and shape of the food to be sliced means that these parts cannot be used.

- Before replacing accessories or add-on parts that move when operated, the appliance must be switched off and disconnected from the mains.

– The rotary blade is extremely sharp.

- Never touch the rotating blade when operating the appliance!

- Switch the appliance off before cleaning it; pull the power plug out of the socket and turn the slice thickness adjustment knob to the "0" position.

- The rotary blade will continue to run for a short time after being switched off.

Unfold the illustrations at the front and back of this manual.

Please read these instructions thoroughly before you start to use the appliance. Keep these operating instructions in a safe place and ensure that they are included with the appliance if passing it on to a third party.

Alternatively, the current operating instructions are available at www.ritterwerk.de.

INTENDED USE

The food slicer is used for the slicing of household foods.

The food slicer is suitable for contact with foodstuffs.

If the appliance is used for a purpose other than this, or if it is operated incorrectly, severe injuries may occur or the appliance may be damaged. All warranty and liability claims will be rendered null and void in this case.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

Preparation

Before you use the appliance for the first time, have a specialist install it in a suitable drawer.

Clean the appliance before allowing it to come into contact with any food (see CLEANING).

Setting up the appliance

- Pull out the drawer containing the food slicer until it stops.

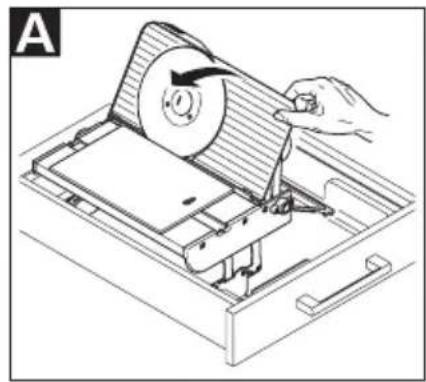

A Lift the appliance using the stop plate (3) and swivel it until it is vertical and latches audibly into place. The slice tray (5) folds automatically into its working position.

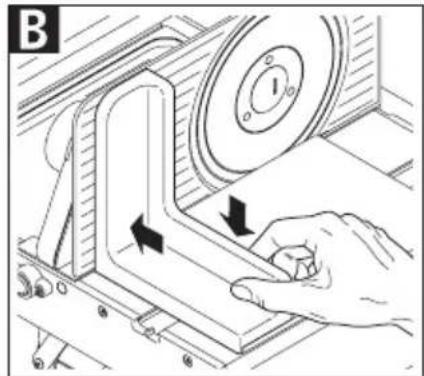

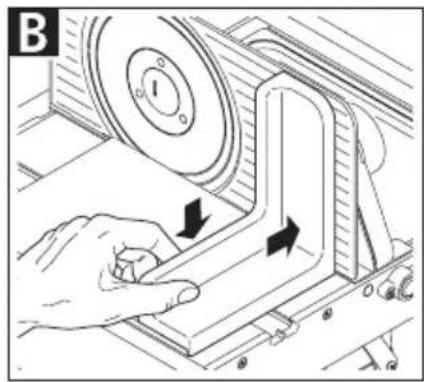

B Fit the finger protector (9) into the locating slot on the slice carriage (11) using the bolt.

- Press the finger protector towards the stop plate until it audibly latches into place.

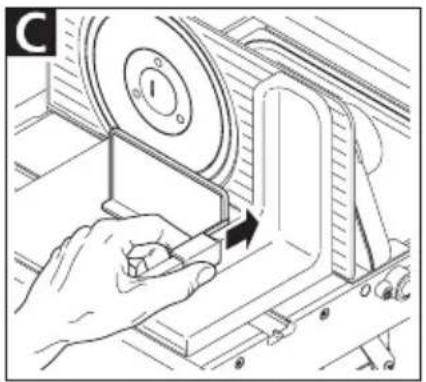

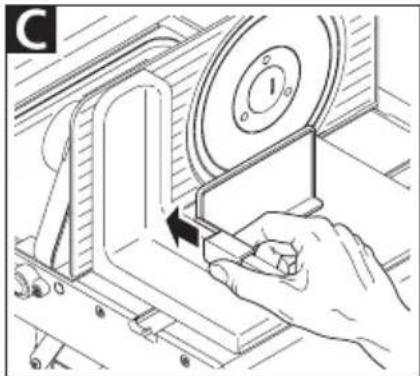

C Slide the left-over holder (10) onto the finger protector.

Adjusting appliance position

When the food slicer is swung out, the appliance must not be capable of being pushed in a longitudinal direction, i.e. the buffer screw (12) should be flush with the front edge of the worktop without any play. If this is not the case then you can re-adjust it:

- Position the appliance as described above.

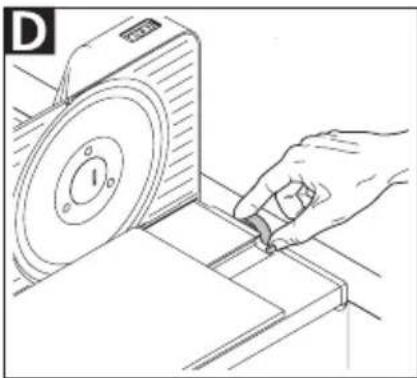

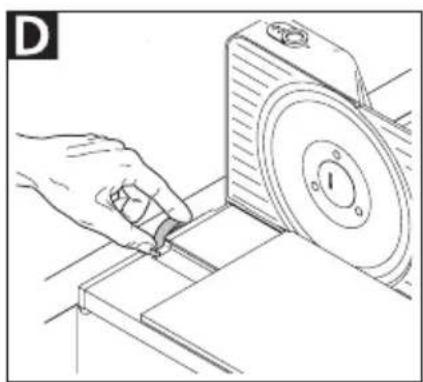

D Turn the buffer screw until it comes into contact with the front edge of the worktop (but do not clamp tight!).

- Check the setup by folding and unfolding the appliance several times in succession.

SLICING

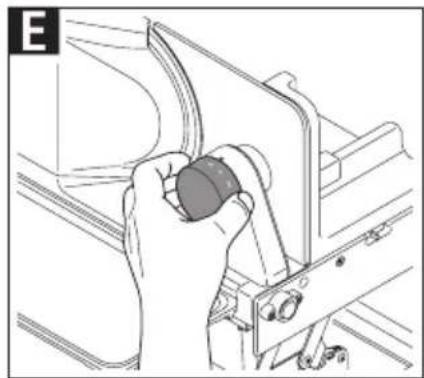

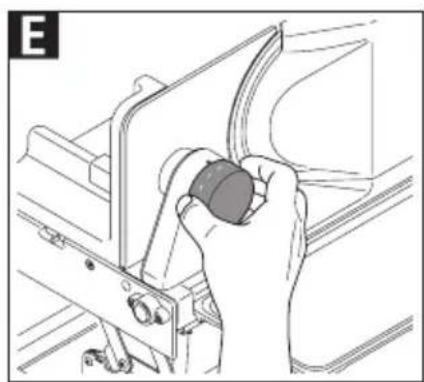

E Use the slice thickness adjustment knob (4) to set the required thickness.

Note:

The slice thickness adjustment scale is not a millimetre scale. For safety reasons, the "0" position is designed to cover the blade.

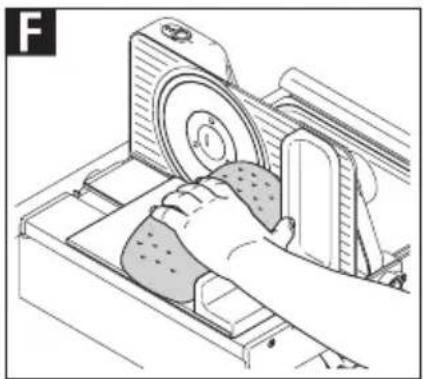

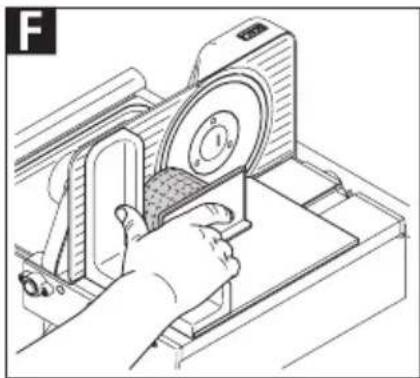

F Place the food to be sliced onto the slice carriage (11). Use the left-over holder (10) to press it up against the stop plate (3).

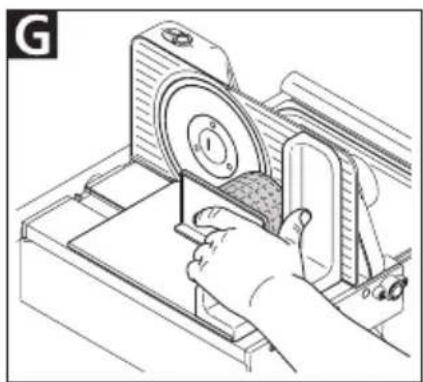

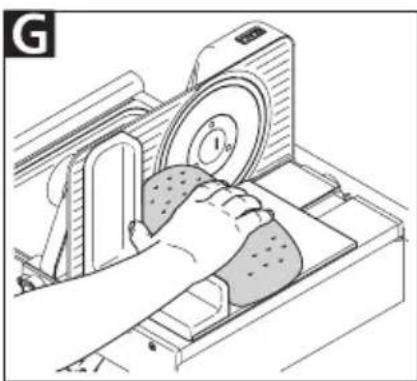

G Protect your hands, by always using the finger protector (9) and, where applicable, the left-over holder. Exception: Excessively large foods to be sliced.

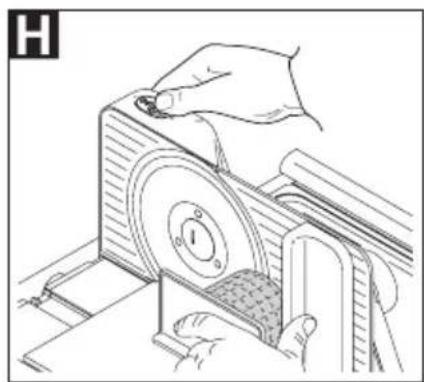

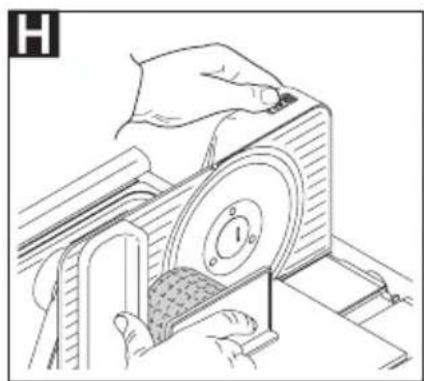

H Turn the appliance on using the power switch (1). Two operating modes are available:

AES/BFS 62 SR(-H)

Temporary (Position II): The rotary blade (14) runs as long as the power switch is pressed and held down in this position.

Continuous operation

(Position I): The rotary blade runs without the power switch being pressed and held down until you move the power switch to the "0" position.

Note:

Never use the appliance for more than a maximum of 5 minutes in continuous operation.

AES/BFS 62 SL(-H)

Temporary operation: Press the power switch and slide it towards the arrow until you feel some resistance. The rotary blade (14) runs as long as the power switch is pressed and held down in this position.

Continuous operation: Press the power switch and slide it towards the arrow beyond the resistance point until it latches into place.

The rotary blade runs without the power switch having to be pressed and held down, until you push the power switch back into the "0" position.

Note:

Never use the appliance for more than a maximum of 5 minutes in continuous operation.

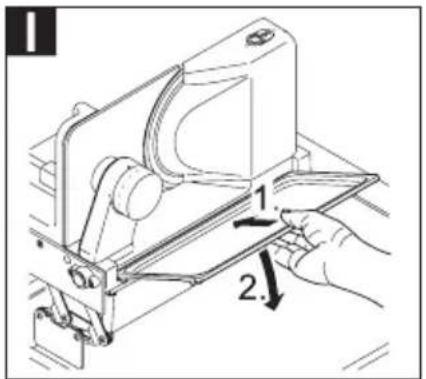

If necessary, place the slice tray (5) at an incline into the holder and swivel it down.

- With the appliance running, gently feed the food to be sliced into the path of the rotary blade. - When finished slicing, wait until the rotary blade has come to a complete stop.

• After each use, turn the slice thickness adjustment knob to the "0" position, in order to cover up the sharp rotating blade and to avoid any injuries.

CLEANING

Caution:

Switch the appliance off before cleaning it; pull the power plug out off the socket and turn the slice thickness adjustment knob (4) to the "0" position.

Clean the food slicer regularly to prevent the accumulation of food residue. The rotary blade must also be cleaned regularly as described below to prevent its surface from rusting.

Note:

Over time, an accumulation of food residue may cause damage to the surface of the rotary blade, causing it to rust.

Preparation

- Removing the slice carriage(11).

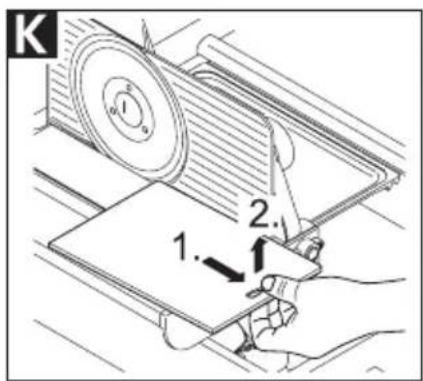

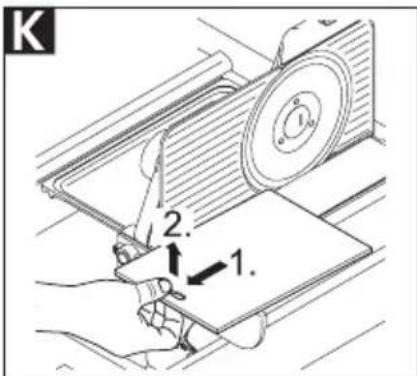

K Pull the slice carriage forwards up to the first stop. Raise it slightly and then pull it over the first stop and on to the second one. Raise it again and then pull it completely off the appliance.

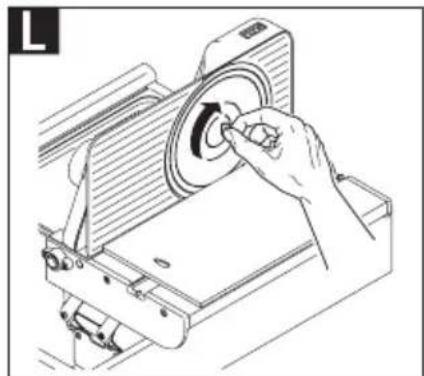

Remove the rotary blade (14):

AES/BFS 62 SR(-H)

Place a suitable coin on the blade catch (13) and turn it in a clockwise direction.

AES/BFS 62 SL(-H)

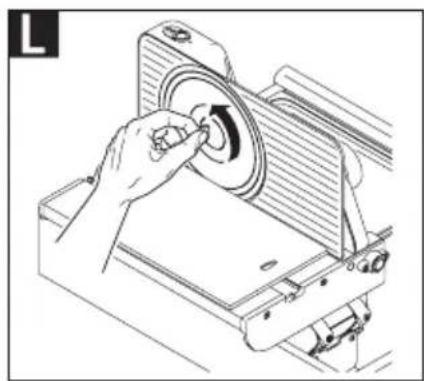

Place a suitable coin on the blade catch (13) and turn it in an anticlockwise direction.

• Take hold of the rotary blade at its rotational centre and remove it.

Cleaning after each use

- Wipe down the housing and all removed parts, including the rotary blade, with a damp cloth.

Occasional cleaning

- Give all removed parts, including the rotary blade, a thorough wash in warm soapy water (not in the dishwasher!).
- Clean the housing behind the blade using a dry cloth/brush. Note:

Do not use any abrasive cleansers, sponges with rough surfaces or hard brushes to clean the appliance.

• Dry all parts that you have washed.
• Grease the rotary blade's gear wheel with a little ritter maintenance grease (alternatively with a little Vaseline).
• Fit the rotary blade back into the appliance.

MAINTENANCE

Your food slicer is maintenance-free. However, we recommend that you occasionally apply a little extra ritter maintenance grease or Vaseline to the rails of the slice carriage to keep them lubricated and ensure that the carriage continues to move easily.

STORAGE

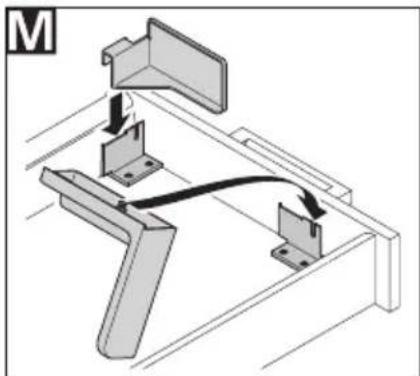

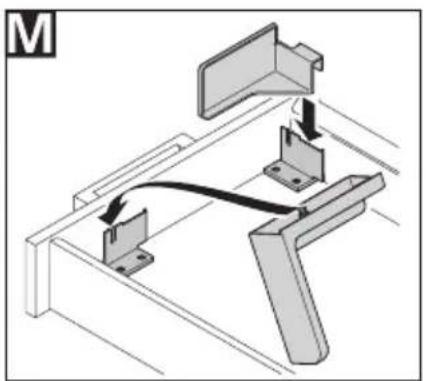

M Remove the finger protector (9) and left-over holder (10) and hang them both onto the retaining brackets (7) and (8). • Make sure that the slice thickness adjustment knob (4) is set to position "0", as otherwise the appliance cannot be folded down for safety reasons.

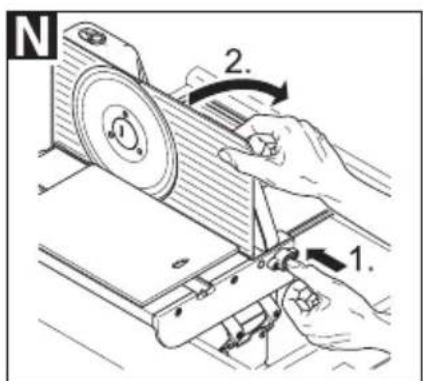

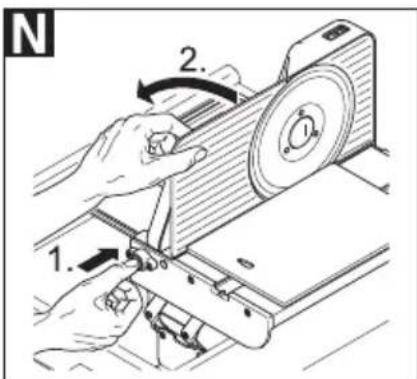

N Hold the appliance at the stop plate (3) and use the other hand to press the release button for folding up device (6).

- Swivel the appliance until it is located fully in the drawer.

Note:

The slice carriage (11) and slice tray (5) can be left on the appliance.

DISPOSAL OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that this product must not be disposed of with unsorted municipal

waste. There is a separate (free) system for the collection and return of waste electrical and electronic equipment. For more information, please contact your local authority or the shop where you purchased the product. By ensuring that this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health and contribute to the conservation of natural resources.

SPECIAL ACCESSORIES

A non-toothed rotary blade is also available specifically for sliced meat, sausage and ham.

The original ritter maintenance grease is available for delivery for maintaining (regreasing) the food slicer.

SERVICE, REPAIRS AND SPARE PARTS

Please contact your local after-sales service for all service, repairs and spare parts matters! See www.ritterwerk.de

TECHNICAL DATA

The appliance complies with the CE specifications.

Mains voltage/power consumption: Refer to the type label on the underside of the appliance.

Slice thickness:

0 mm to approx. 14 mm

REACH DIRECTIVE

This ritter appliance comes with a two-year manufacturer's warranty, starting with the date of purchase and in accordance with the EU warranty directives. Your legal warranty claims according to § 437 ff. BGB (German Civil Code) remain unaffected by this regulation. The manufacturer warranty applies to all devices sold within the European Union. For details of the warranty conditions, see www.ritterwerk.de/warranty. In the event of a warranty claim or for servicing, the appliance must always be sent to the appropriate national customer service centre.

EXPLANATION OF SYMBOLS

Symbol Explanation

CE marking: The product complies with the applicable requirements of the European Union.

The product was put on the market after 13 August 2005. It must not be disposed of as normal domestic waste.

The crossed-out wheelie bin symbol indicates that separate collection is required.

Suitable for contact with foodstuffs

Class II equipment

ASSEMBLY AND INSTALLATION

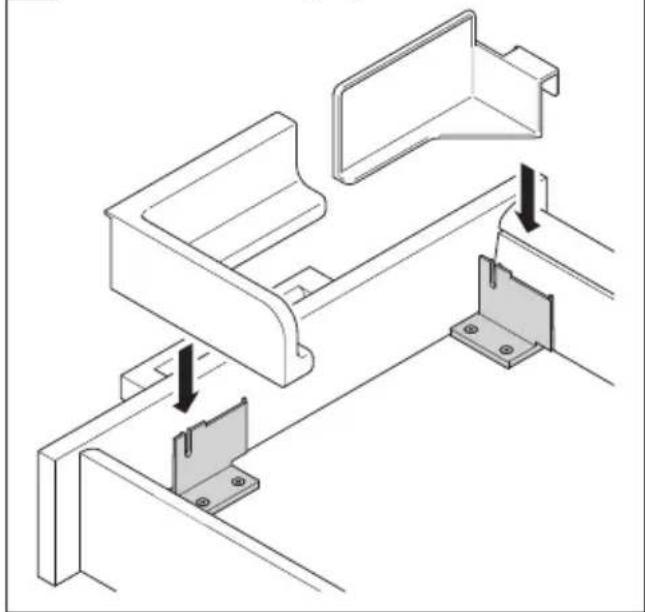

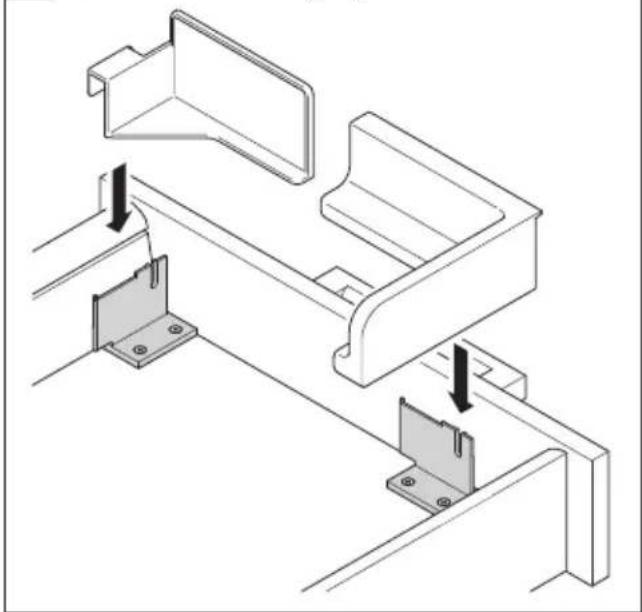

Please refer to the illustrations (P to S) provided at the front and back of this manual. Please note that the installation dimensions differ depending on the appliance version (Figs Q)! For more information about installation, see also www.ritterwerk.de/installation-notes.

Safety instructions

To avoid personal injury or damage to the appliance, please observe the following safety instructions:

• This appliance may only be assembled by qualified personnel. ritterwerk will not be held liable for the consequences of improper and/or incorrect assembly.
• The power cord must be positioned to ensure that the appliance can be fully folded down into the drawer without the cable becoming trapped. The power cord must be routed directly and without obstruction from the built-in system to the socket, which must be mounted in the floor unit.
• Unplug the cable from the socket before assembly.

Installation conditions

The following dimensions represent minimum values:

• Drawer clearance width: AES/BFS 62 SR/SL: 344 mm AES/BFS 62 SR-H/SL-H: 392 mm
• Clearance height for drawer base/crossbeam: without baseplate: 75 mm with baseplate: 83 mm
• Pullout clearance for front edge of worktop/inner edge of front drawer panel: 365 mm (finger protector and left-over holder not mounted)

- Appliance width: AES/BFS 62 SR / SL: 342 mm AES/BFS 62 SR-H / SL-H: 390 mm

The drawer base should be at least 16 mm thick.

At a nominal length of 500 mm, the drawer runners should have a static load capacity of at least 30 kg.

Selecting a socket

Note:

A surface-mounted socket (that complies with VDE/DIN 49440, ÖVE, SEV) must be mounted either on or behind the rear panel at drawer height.

P The power cord connection to the socket should be routed under the rear crossbeam or the underside of the work top and as high up as possible in the corner of the floor cabinet's rear panel. It must be possible to slide the drawer in fully while the power plug is in the socket.

The power plug must be easily accessible to the user to ensure that the appliance can be unplugged from the mains as required (for example, prior to cleaning).

Mounting the food slicer

Preparation:

- Pull out the drawer until it stops.

Q Determine the position for the food slicer in accordance with the assembly drawing.

or

- Position the appliance, when folded, into the drawer.

The distance between the front edge of the worktop and the completely screwed-in buffer screw (12) should be approx. 5 mm.

- Mark the position of the front and rear fastening brackets determined in this manner on the base of the drawer.

- Remove the appliance from the drawer.

Execution:

- Drill the four holes as marked for assembling the appliance onto the base of the drawer. - Mount the appliance using four pan-head screws 4.0 × 16 (for drawer base 16 ~mm ).

R H variants:

If the slice carriage (11) touches off the front edge of the worktop, baseplates (a) and spacer plates (b) can be placed underneath if necessary. In this case, longer screws must also be used for assembly.

Mounting retaining brackets

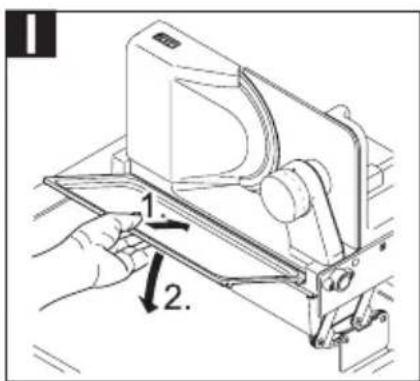

Q Position the retaining brackets (7) and (8).

S Check the position by placing the finger protector and the leftover holder onto the corresponding retaining bracket.

• Mark the position of the holes and then drill them.
• Mount the two retaining brackets using countersunk screws (Phillips drive) PZ 3.5 x 12 (for drawer base 16 mm).

Adjusting appliance position

• Position the appliance as described in BEFORE USING THEAPPLIANCEFORTHE FIRST TIME.
• Turn the buffer screw (12) until it just makes contact with the front edge of the worktop (do not clamp tight!).
• Check the setup by folding and unfolding the appliance several times in succession.

Note:

All dimensions in the assembly drawings stated in mm!

INSTRUCTIONS DE SÉCURITÉGÉNÉRALES

AES/BFS 62 SR/SL: 342 mm AES/BFS 62 SR-H/SL-H: 390 mm

MONTERING OG INNBYGGING

AES/BFS 62 SR/SL: 342 mm AES/BFS 62 SR-H/SL-H: 390 mm

Šírka korpusu by mala byt minimálne 16 mm.
