USER MANUAL Eisbaer Extreme 280 Alphacool

Technical line drawing of a rectangular electronic device with two circular fan blades (no text or symbols)

EISBAER EXTREME

LIQUID CPU COOLER

DEUTSCH....6

SAFETY INSTRUCTIONS....22

MOUNTING MATERIAL....23

TECHNICAL DETAILS....24

MOUNTING THE RADIATOR....25

HORIZONTAL MOUNTING....25

VERTICAL MOUNTING....25

PREPARING THE CPU....26

PREPARING THE CPU - COOLER 26

AM4 WITH BACKPLATE....27

AM4/AM5 WITHOUT BACKPLATE....28

AM3 / AM3+ / AM2 / AM2+ / FM1 / FM2 / FM2+ / G34 / C32 / 940 / 939 ....29

TR 4....30

2011/2011-3/2066....3|

1151 / 1150 / 1155 / 1156 / 1366 .... 32

Technical drawing of a cylindrical mechanical part with a 64.00mm dimension label (no other text or symbols)

92,00 OPEN DEOOL 27,50

RADIATORMONTAGE

HORIZONTALE MONTAGE

Diagram of a server rack unit with two fans and directional arrows indicating movement or force (no text or symbols present)

Stacked black electronic device with a white top panel and a blue arrow pointing to it (no text or symbols visible)

AMD Halterung

Close-up of a black electronic component with blue arrows indicating direction, no visible text or symbols

TR4 Halterung

Mechanical component with blue arrows indicating motion or force direction (no text or symbols visible)

Intel Halterung

Close-up of a black electronic component with blue mounting brackets and directional arrows indicating motion (no text or symbols)

3D diagram of a microchip assembly with multiple screwdrivers and mounting brackets (no text or symbols)

3D CAD rendering of a mechanical assembly with screw fasteners and a central component labeled 'SAM SP3' (no readable text beyond labels)

2011 / 2011-3 / 2066

3D diagram of a mechanical component with four arms and a blue directional arrow indicating rotation (no text or symbols)

Top-down view of a black square mechanical component with four arms and mounting holes (no text or symbols)

DER LETZTE SCHLIFF

Technical line drawing of an electronic component assembly with a black connector and blue arrow indicating a specific part (no text or symbols present)

• Not suitable for children under 6 years. (contains small parts which could be swallowed).
• Do not run any cooling components without ensuring that cooling liquid is flowing through the cooling system. Coolers operated without coolant can become very hot. Caution: Burn Hazard!
• Coolers that have no coolant flowing through them can destroy the computer hardware. When switching on the hardware, always make sure that the pump is working.
• Please note when tightening the connectors or fittings, no tools such as screwdrivers, pliers, or wrenches should be used. All plastic products or metal threaded connections, which are linked with plastic parts, are easily over-loaded with tools. Cracking or other damages incurred in this way, as well as damage from leaking coolant, are not covered under the warranty!
• Use only connectors with a sealing o-ring. When using a sealing ring a firm tightening with the hand is enough. Your instruction manual will clearly refer to the use of tools in exceptional cases.
• If you have not done so yet, please check your hardware and cooling system (tightness, pump function and fans). This will minimize time spent searching for possible problems. ALPHACOOL INTERNATIONAL GMBH accepts no liability on the warranty of the manufacturer of the electronic components. The assembly of the cooling system takes place at your own risk.
• The screws should not be tightened too firmly. If you tighten the screws excessively, the knurled nuts can loosen and the cooler's uniform pressure is no longer guaranteed.
• Fasten the connections of your choice to the cooler. Do not use tools such as wrenches for fastening the connections. Connectors with 8mm long threads may stop the flow.
• We recommend a tightness test before assembling/installing the cooler. The water pressure in the water cooling loop can be at a maximum of 0.8 bar. DO NOT use tools on the connectors.
• Ensure that the cooler is touching all components to be cooled through thermal grease and thermal pads.
• Only use distilled water or ALPHACOOL CAPE KELVIN CATCHER in your cooling circuit. Damage caused by unsuitable coolant is not covered by the warranty!

Specified normal operation

All ALPHACOOL INTERNATIONAL GMBH cooling components are constructed and licensed for ALPHACOOL INTERNATIONAL GMBH computer construction parts. The warranty expires in case of misuse.

Warranty

1. Data, designs, illustrations, technical data, weight, measurement and specifications, contained in folders, catalogues, circulars, announcements or price lists, have a purely informative character. We do not undertake warranty for the correctness of these data. As to the kind and the range of delivery, the data contained in the order and confirmation of order alone are decisive.
2. If there is a lack of warrantor, you are entitled, on the basis of the legal regulations to require subsequent delivery, to withdraw from the contract or reduce the purchase price. If you are a consumer, the limitation period of warranty claims for the supplied commodity amounts to two years starting from receipt of goods ( § 13 BGB ). If you are an entrepreneur, in accordance with legal conditions the limitation period amounts to only one year ( § 14 BGB ).
3. The warranty claim is valid only in combination with the original invoice, the sales slip or an ALPHACOOL confirmation on warranty claim.
4. It is ALPHACOOL INTERNATIONAL GMBHs own discretionary authority to replace or repair the defective product or defective component. The replaced product or component changes into property of ALPHACOOL INTERNATIONAL GMBH.
5. All warranty claims are accomplished by ALPHACOOL INTERNATIONAL GMBH or its authorized dealers. If the repair is carried out by a non-authorized or assigned person, ALPHACOOL INTERNATIONAL GMBH does not take over either costs or liability, unless the repair has been previously agreed upon with ALPHACOOL INTERNATIONAL GMBH.
6. All costs resulting from refitting of the products are not taken over by ALPHACOOL INTERNATIONAL GMBH.
7. ALPHACOOL INTERNATIONAL GMBHs warranty excludes the following points:

7.1. Regular controls maintenance and repair or the replacement of parts subject to regular wear and tear.

7.2. Improper manipulation or defects caused by incorrect installation.

7.3. Damages caused by storm, water, fire, overvoltage, acts of God, war, incorrect connection to the net, insufficient or incorrect ventilation or other reasons over which ALPHACOOL INTERNATIONAL GMBH has no influence.

7.4. Damages resulting from transportation or improper packaging.

1. Consumer's rights are valid in the respective country; demands made to the salesman, as explained and laid down in the sales contract, will not be covered by this warranty. ALPHACOOL INTERNATIONAL GMBH, Its Branch Office and Distributors, are not responsible for direct or indirect damage or losses, as far as the

compelling legal regulations do not oppose it.

1. ALPHACOOL INTERNATIONAL GMBH does not take over the warranty of the manufacturer of the electronic construction units and components. The assembly of the cooler takes place at your own risk.

Contact an authorized waste management company in your country. A waste removal with the municipal waste (unsorted garbage) or similar mechanisms for the collection of local wastes is not permissible!

MOUNTING MATERIAL

RADIATOR
	4x M3x5	4x M3x25	4x 0.5 mm washers
CPU COOLER
	lx thermal paste	4x springs	4x 0.5 mm washers	4x nuts	4x rubber & screw caps
AMD
	lx bracket set	4x AMD screws	4x 2.0 mm washers	lx TR4 bracket set	4x TR4 screws
INTEL
	lx bracket set	4x 1150 screws	4x 2011 / 2066 screws	lx backplate

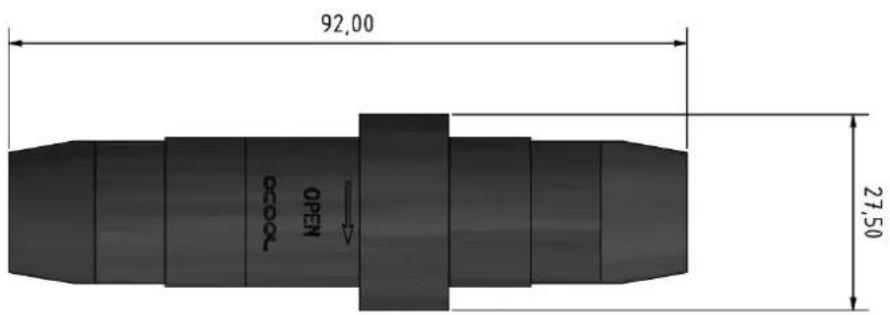

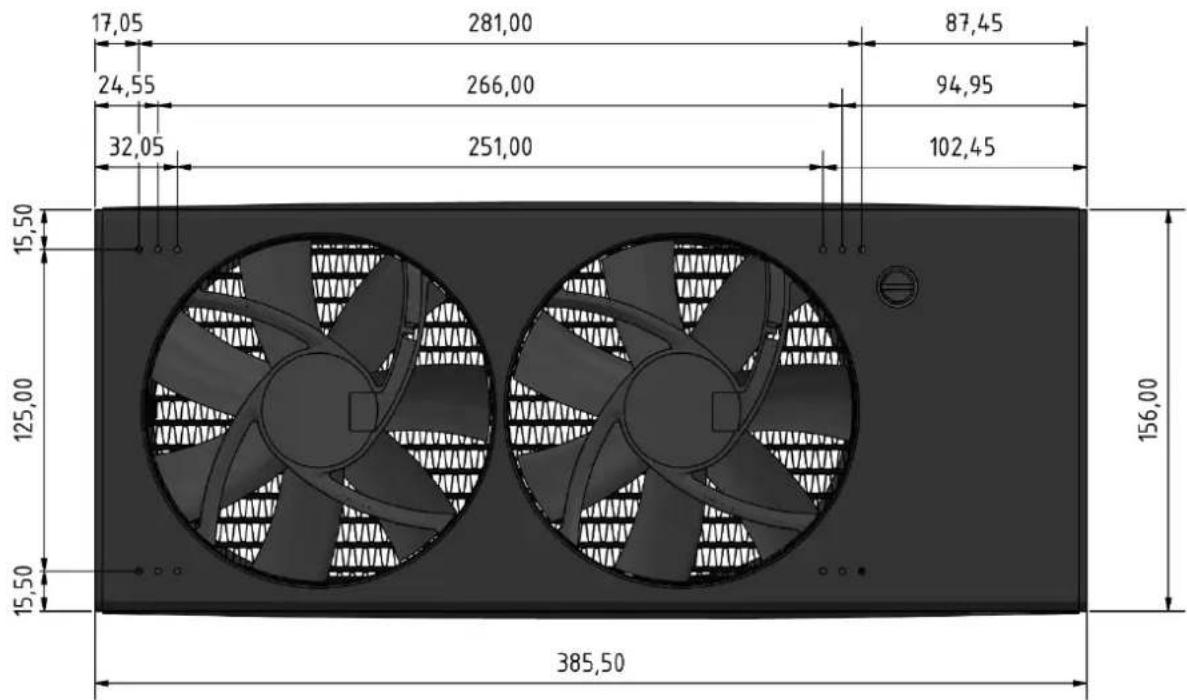

TECHNICAL DETAILS

[Dimensions in mm]

17,05 281,00 87,45 24,55 266,00 94,95 32,05 251,00 102,45 15,50 125,00 15,50 385,50 156,00

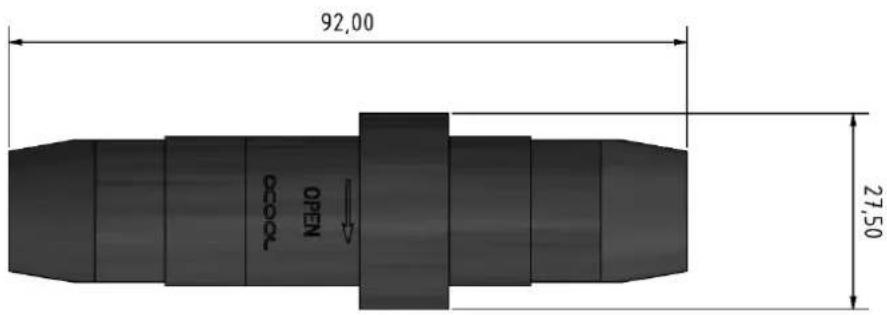

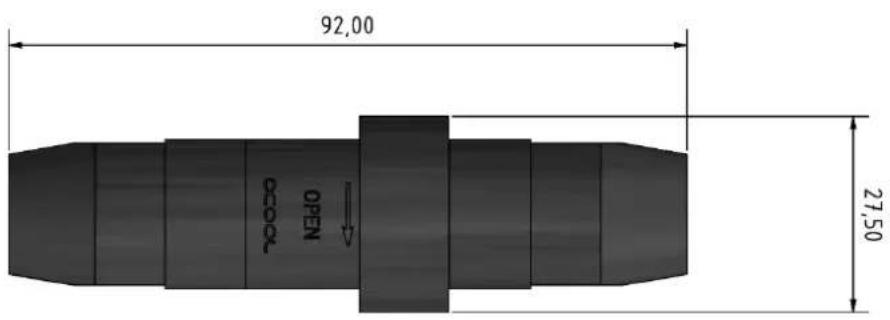

Technical drawing of a cylindrical mechanical part with a 64.00mm dimension label (no other text or symbols)

92,00 OPEN OCOL 27,50

MOUNTING THE RADIATOR

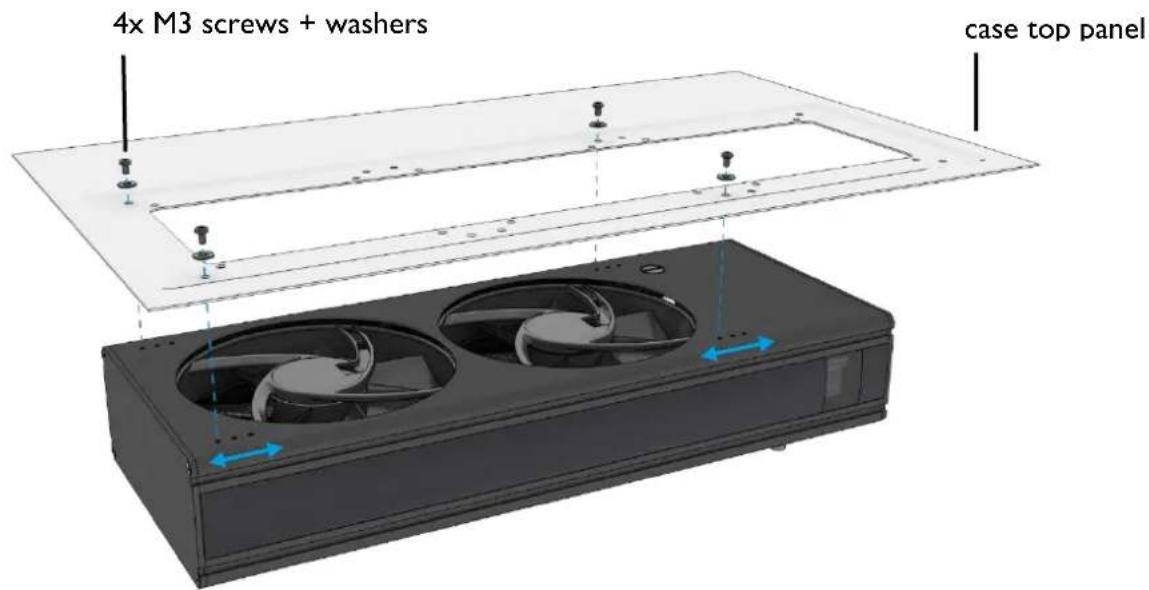

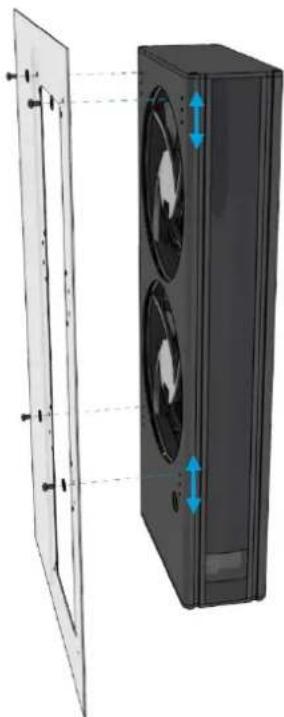

HORIZONTAL MOUNTING

Mount the Eisbaer Extreme ensuring that the fans point upwards. This is important to ensure that the integrated pump is not damaged.

Choose the appropriate M3 screws (5 mm or 25 mm length), depending on your PC case. The additional mounting holes offer even more flexibility for alignment in the case.

4x M3 screws + washers case top panel

VERTICAL MOUNTING

Diagram of a dual-chamber HVAC unit with fan blades and ventilation system, shown from front and side views (no text or symbols)

Vertical mounting is also possible. Make sure that the reservoir is at the bottom of the case as seen in the picture (with the window at the bottom). This will ensure the pump does not get damaged.

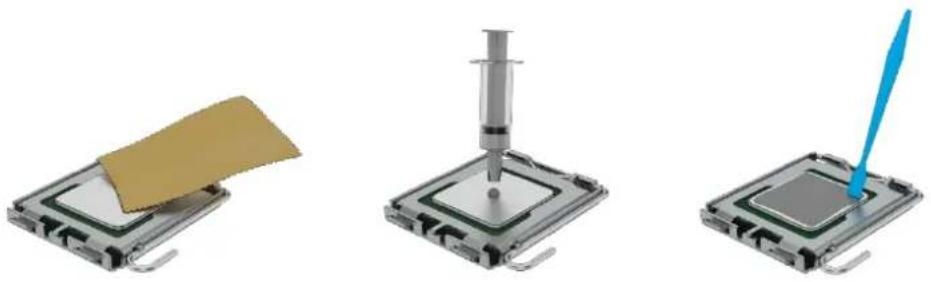

PREPARING THE CPU

If you have a cooler installed, remove it, then:

• Remove any remaining thermal paste from the CPU.
• Use a lint free cloth or other material to help. Dried on, stubborn paste can be removed with alcohol.
• Apply a pea-sized blob of thermal paste to the center of the CPU.
• Spread the paste using a spatular, or similar to an even, thin layer (< 0.5 mm layer thickness).

PREPARING THE CPU - COOLER

- Remove the protective film from the cooling plate.

Black rectangular device with a white top and a blue arrow pointing to it, no visible text or symbols.

AMD bracket

Close-up of a black electronic component with blue indicator lights, shown with blue directional arrows (no text or symbols)

TR4 bracket

Mechanical component with blue arrows indicating motion or force direction (no text or symbols visible)

Intel bracket

Close-up of a black electronic component with blue mounting brackets and directional arrows indicating motion (no text or symbols)

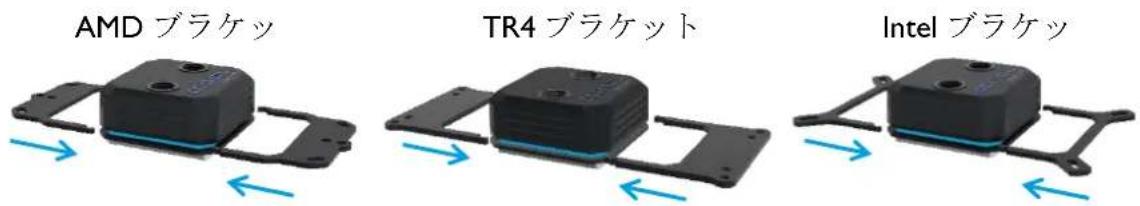

• Select the appropriate bracket for your socket type, (AMD or INTEL).
• Mount the bracket as shown.

Note that inlet and outlet are shown inside the thread of the CPU block:

IN out CCOOL Eisblock XPX

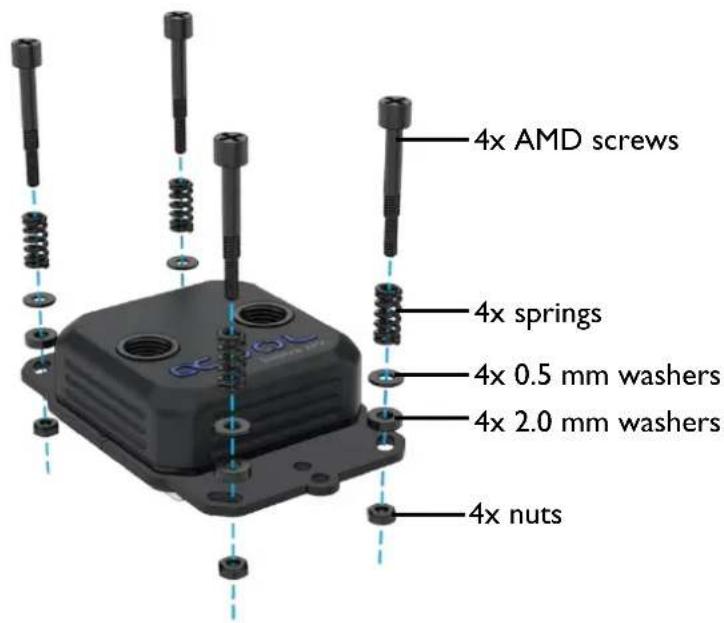

AM4 WITH BACKPLATE

First, mount the screws.

Do not use tools. Tighten only by hand!

4x AMD screws 4x springs 4x 0.5 mm washers 4x 2.0 mm washers 4x nuts

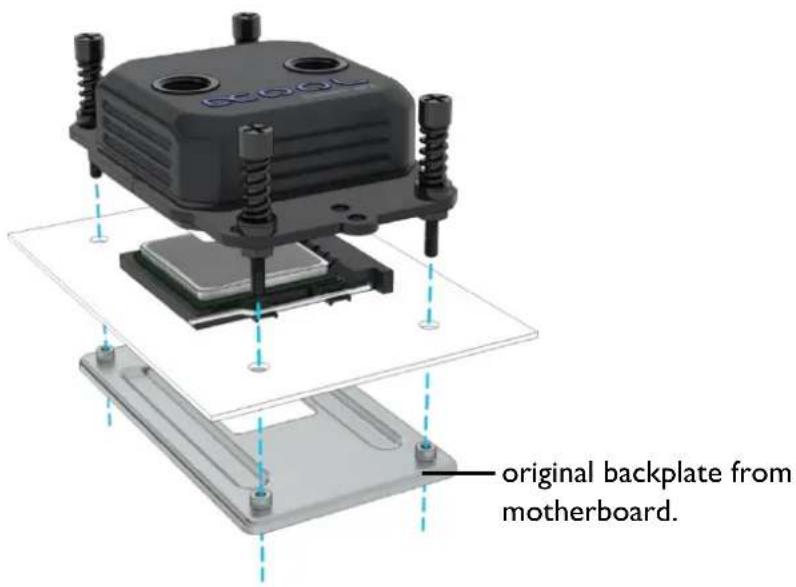

Next, fix the cooler to the base:

original backplate from motherboard.

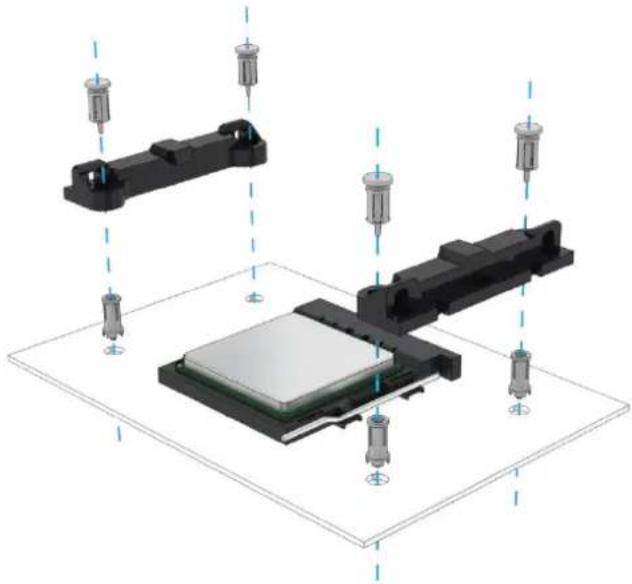

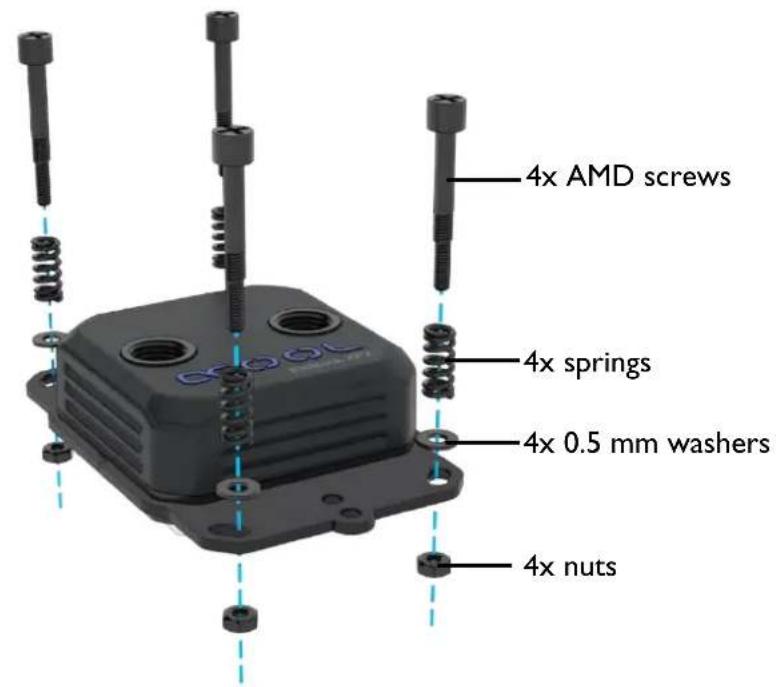

AM4/AM5 WITHOUT BACKPLATE

Some mainboards do not have a backplate,

In this case, first remove the original bracket:

Do not use tools. Tighten only by hand!

3D diagram of a microchip assembly with multiple screwdrivers and mounting brackets (no text or symbols)

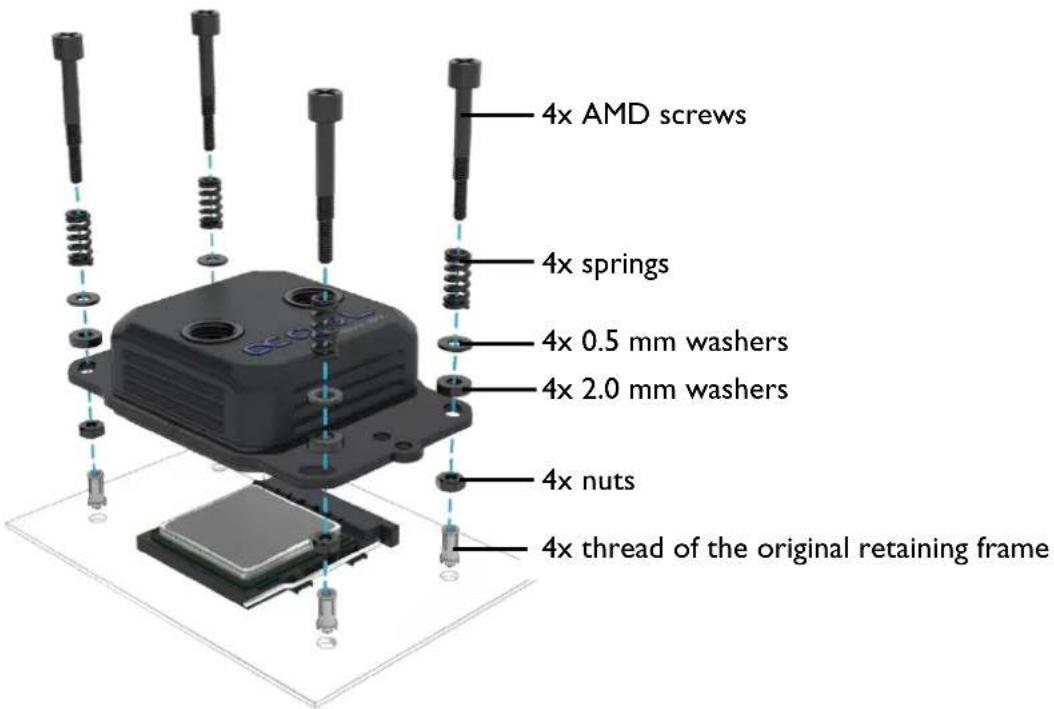

Mount the screws and then fix the cooler, using the original thread, on the base:

4x AMD screws 4x springs 4x 0.5 mm washers 4x 2.0 mm washers 4x nuts 4x thread of the original retaining frame

First mount the screws:

Do not use tools. Tighten only by hand!

4x AMD screws 4x springs 4x 0.5 mm washers 4x nuts

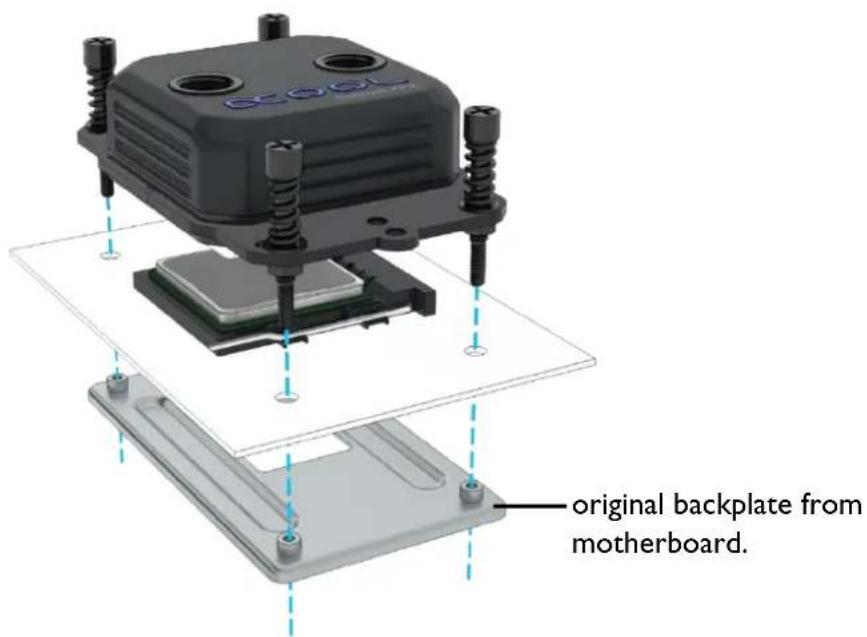

Next, fix the cooler to the base:

C-OLT original backplate from motherboard.

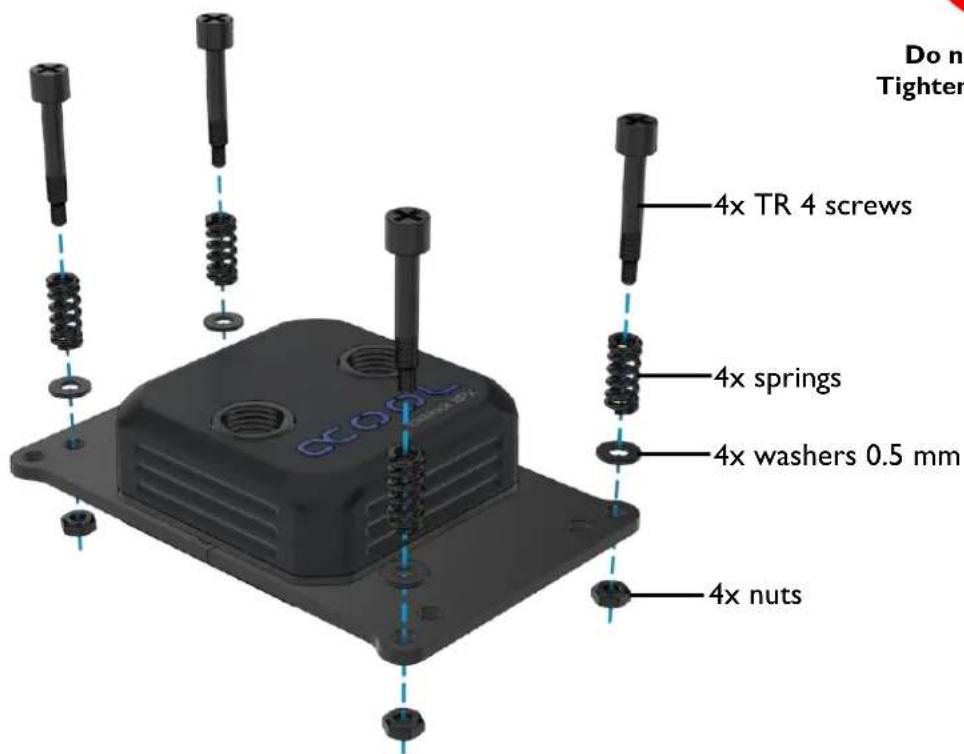

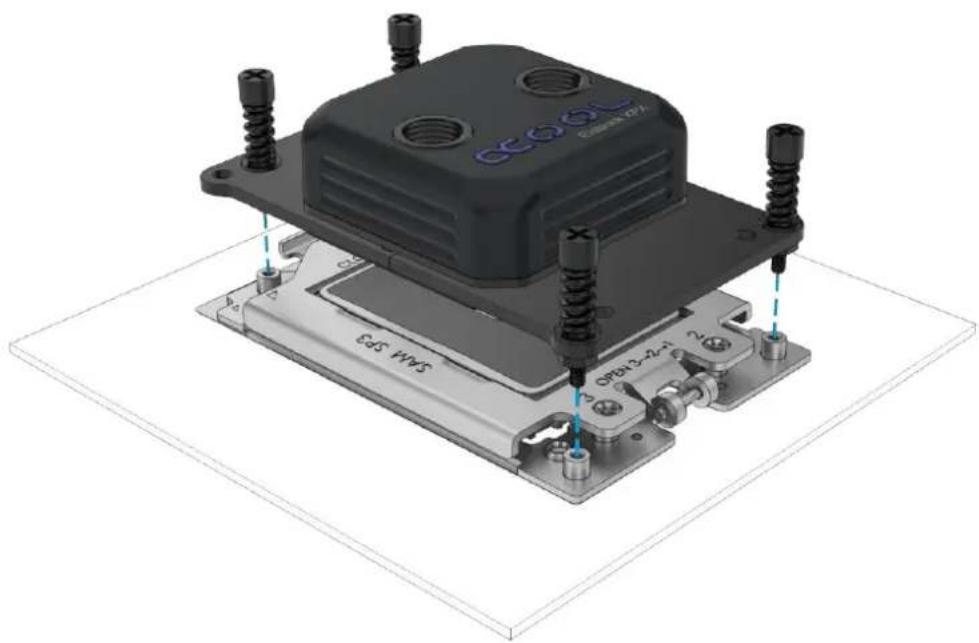

TR 4

First mount the screws:

Do not use tools. Tighten only by hand!

Do n Tighter 4x TR 4 screws 4x springs 4x washers 0.5 mm 4x nuts

Next, fix the cooler to the base:

3D CAD rendering of a mechanical assembly with mounting base and screw mount (no text or symbols visible)

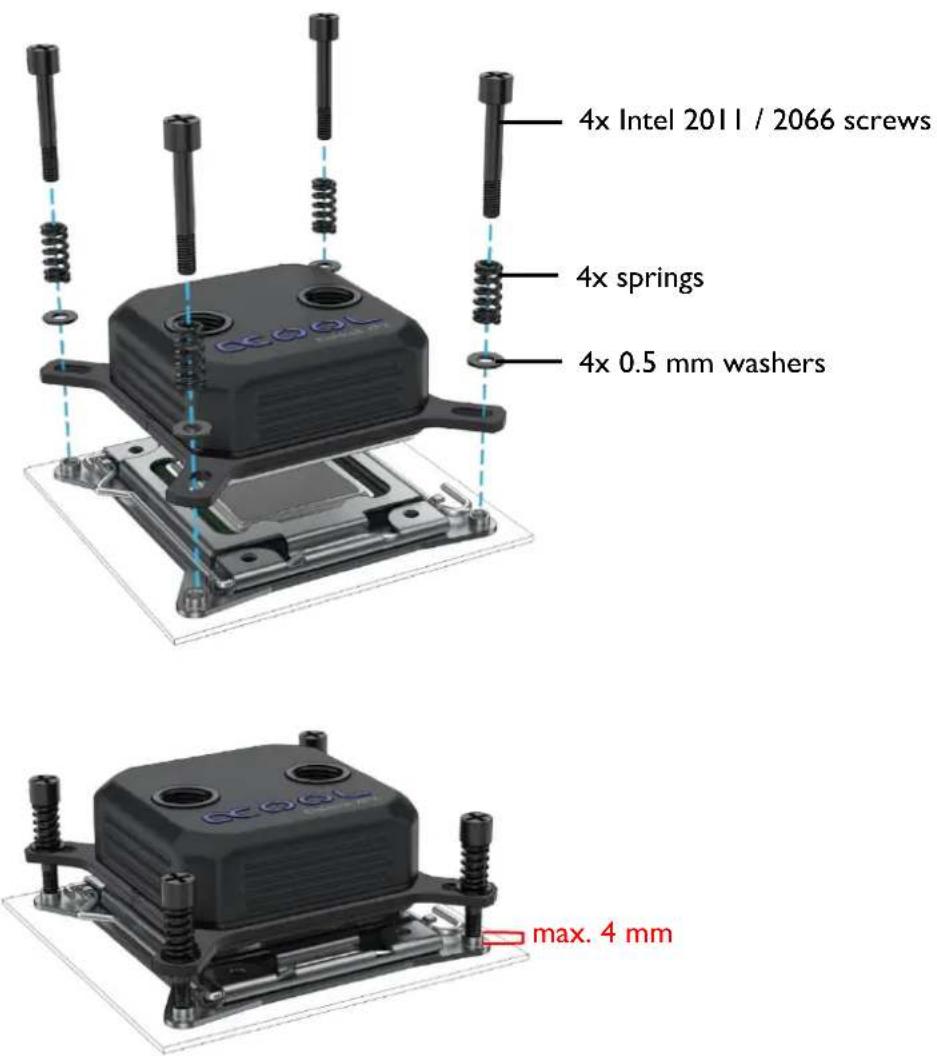

2011 / 2011-3 / 2066

Note: Some 2011/- 3 Socket motherboards have continuous threaded mounting holes in the base. In this case, do not tighten the screws more than 4 ~mm .

Mount the cooler as shown:

Do not use tools. Tighten only by hand!

4x Intel 2011 / 2066 screws 4x springs 4x 0.5 mm washers max. 4 mm

First mount the screws:

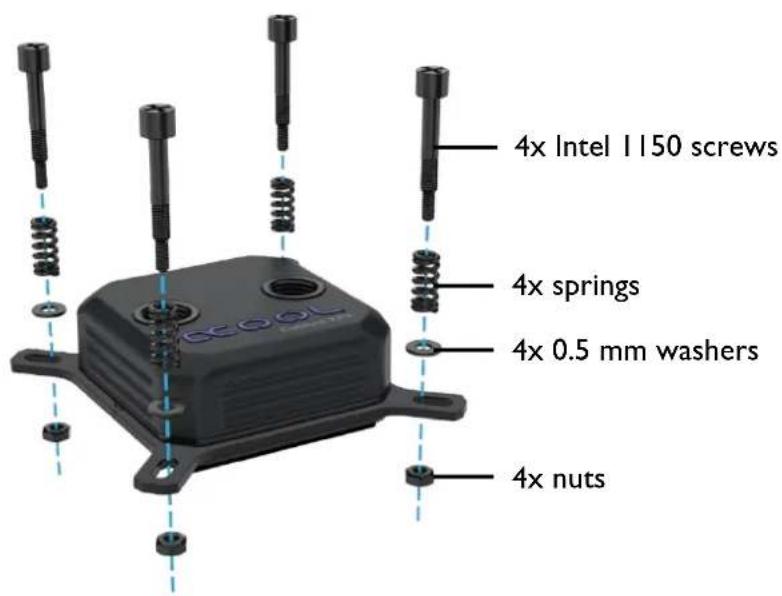

4x Intel I 1150 screws 4x springs 4x 0.5 mm washers 4x nuts

Do not use tools. Tighten only by hand!

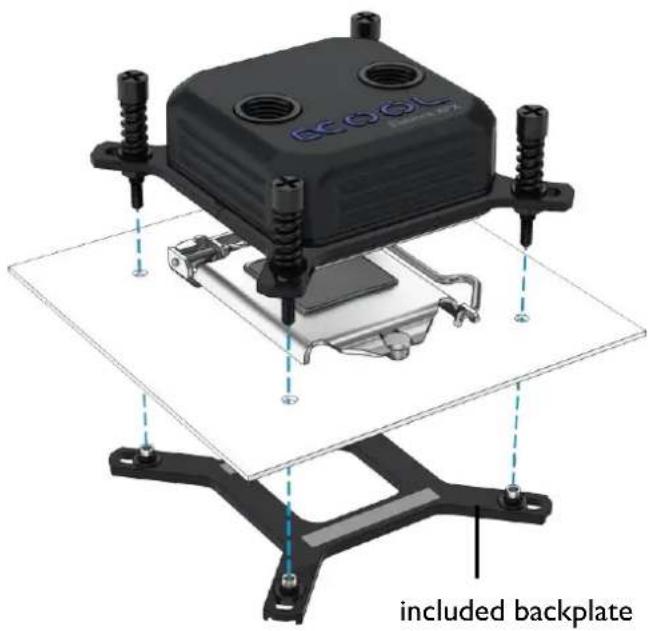

Next, fix the cooler to the base:

DCOL included backplate

Remove the protective film from the adhesive strips:

3D diagram of a mechanical component with four mounting holes and a central diamond-shaped feature, showing rotational motion indicated by blue arrows (no text or symbols)

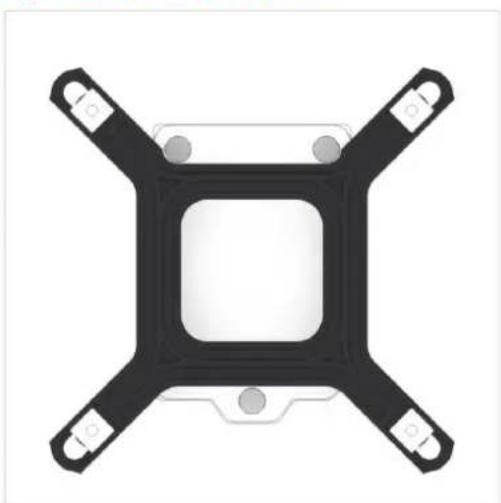

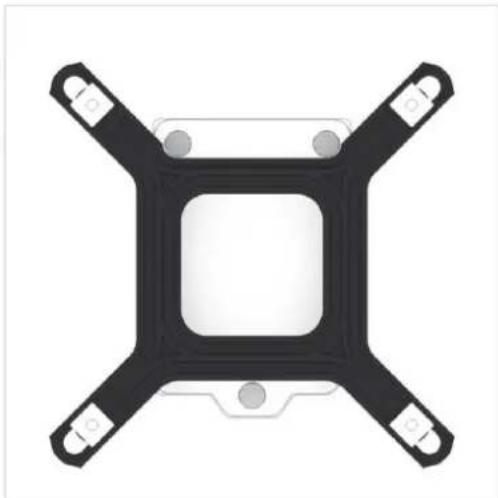

Alignment of the backplate:

Cross-shaped mechanical component with four arms and central square cutout (no text or symbols)

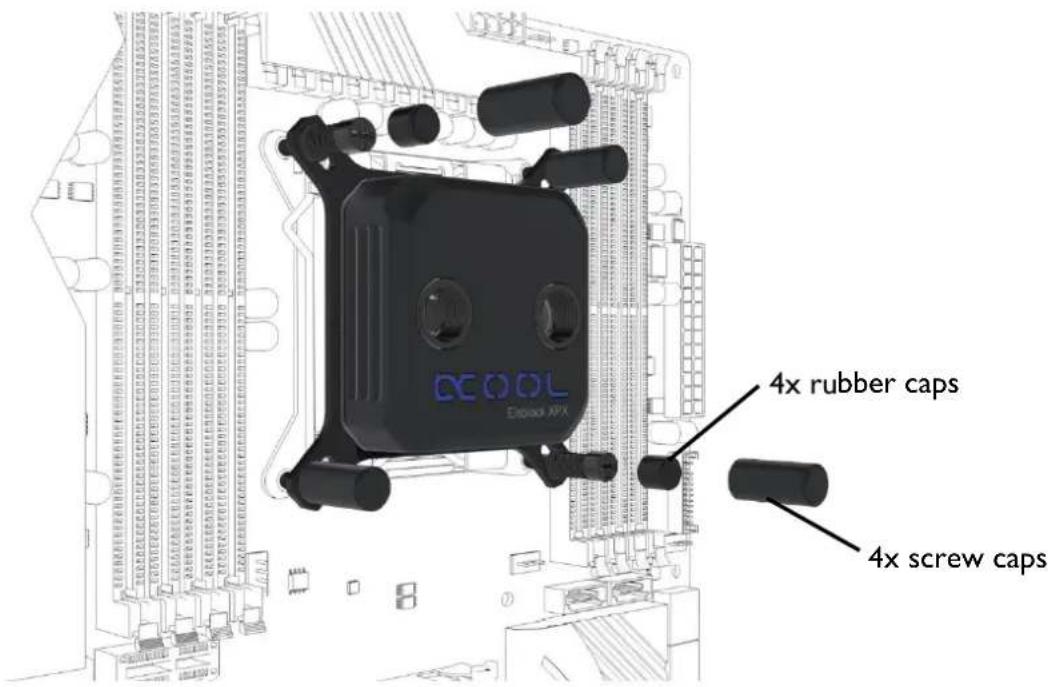

THE FINISHING TOUCH

Install the screw caps:

4x rubber caps 4x screw caps

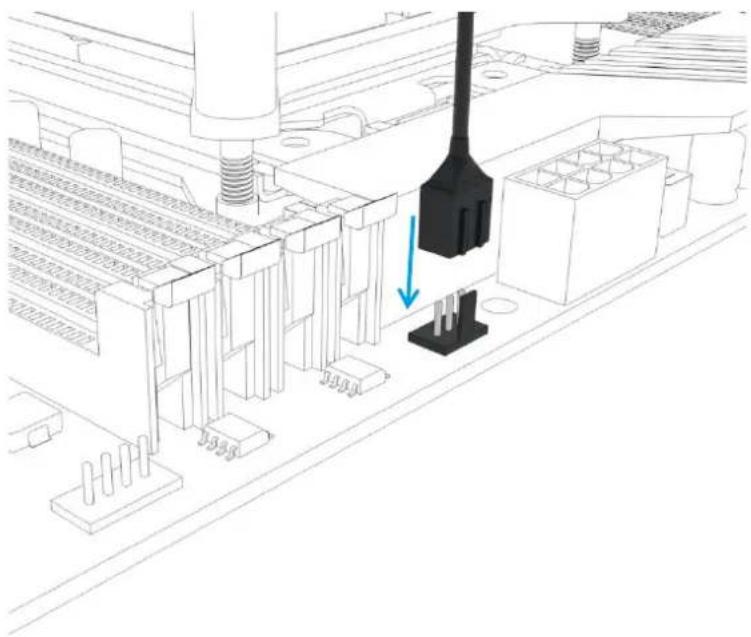

Connect the 3-pin connector for the logo lighting to the mainboard:

Technical line drawing of an electronic component assembly with a black connector and blue arrow indicating a process (no text or symbols present)

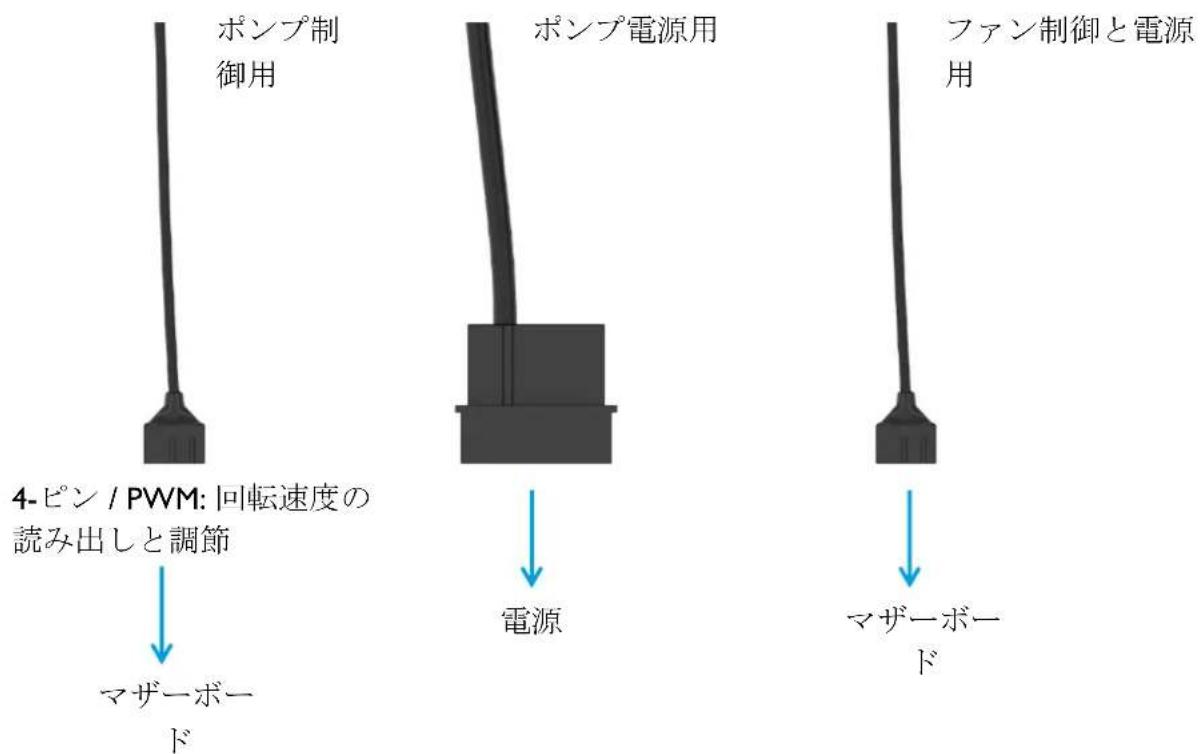

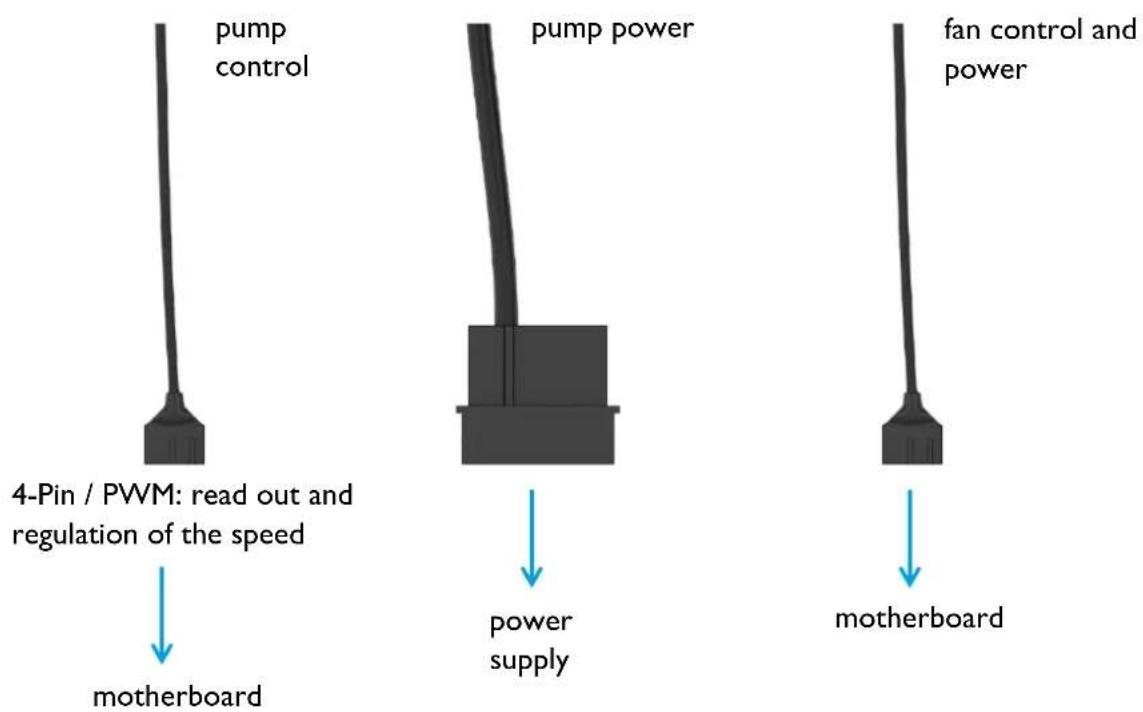

CONNECTING THE PUMP AND FANS

Connect the cables as shown:

pump control 4-Pin / PWM: read out and regulation of the speed motherboard pump power power supply fan control and power motherboard

FILL THE RESERVOIR

The Eisbaer Extreme is prefilled and normally it is not necessary to top up the coolant. If you want to expand your circuit, e.g. with a GPX Eiswolf graphics card cooler, it is advisable to check the level. If the pump is running unusually loud, liquid should be topped up urgently. We only recommend clear coolants from our own production (CKC or Eiswasser Crystal - no UV!) or pure distilled or osmosis filtered water.

Use a funnel or fill bottle and fill up the reservoir as much as possible. Use the viewing window and ensure that it is as full as possible.

Use a funnel or fill bottle and fill up the reservoir as much as possible. Use the viewing window and ensure that it is as full as possible.

USING QUICK RELEASE CONNECTORS

The pre-installed quick-release fastener offers the possibility of expanding the Eisbaer Extreme loop quickly and easily. The connectors are "Eisbaer Ready" and therefore compatible with many other products from our range.

Attention: 2 - 3 drops of water can escape when unscrewing the quick release mechanism – This is normal.

Close-up of a black cable with a blue arrow pointing to the 'OPEN OCCOOL' component (no other text or symbols visible)

Close-up of two black mechanical connectors with a red arrow pointing to one (no text or symbols visible)

Corresponds to the red red quick release fastener - part of the Eisbaer Ready series.

Corresponds to the blue quick release fastener – part of the Eisbaer Ready series.

EXPANDING LOOP USING THE GPX EISWOLF

I. Switch off the PC
2. Insert new component
3. Integrating components into the circuit
→ Make sure that the outlet of one component is connected to the inlet of the next component as shown in the image below.
→ Note: When expanding the circuit with components without quick-release fasteners, you must drain all the coolant first.
4. Top up the coolant
→ You must remove the air from the loop. To do this rock the PC case slightly back and forth gently. Repeat this until no more fluid will fit into the loop and all air bubbles have dissapeared.

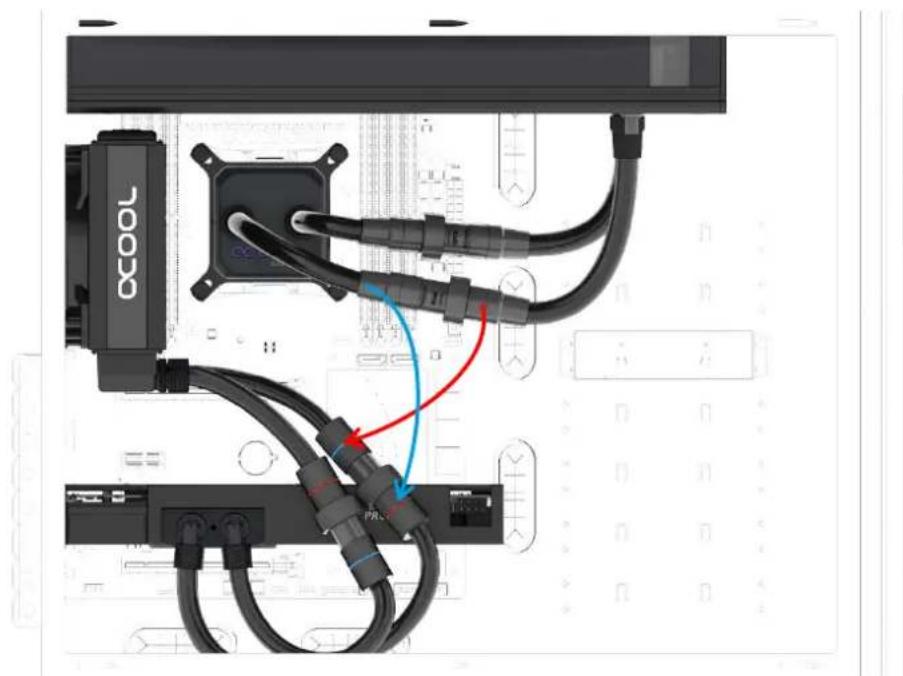

Mounting example with the Eiswolf GPX

OCOOL PR3

Connect the quick-release connectors as shown.

INSTRUCTIONS DE SECURITE

LISEZ LES INSTRUCTIONS DE SECURITE AVANT DE COMMENCER L'INSTALLATION.

Technical drawing of a cylindrical mechanical part with a 64.00mm dimension label (no other text or symbols)

92,00 OPEN DEOOL 27,50

INSTALLATION HORIZENTALE

Diagram of a black server rack with two fans and directional arrows indicating rotation or ventilation (no text or symbols present)

Black rectangular electronic device with a white top and a blue arrow pointing to it, no visible text or symbols.

AMD fixation

Close-up of a black electronic component with blue leads and mounting brackets, no visible text or symbols

TR4 fixation

3D diagram of a black electronic component with blue arrows indicating direction, no text or symbols present

Intel fixation

Close-up of a black electronic component with blue leads and mounting brackets, no visible text or symbols

3D mechanical assembly diagram showing a chip mounted on a base with multiple screw holes and mounting brackets (no text or symbols visible)

3D CAD rendering of a black GEQOL engine component mounted on a base plate with screw fasteners (no text or symbols visible)

2011 / 2011-3 / 2066

3D rendering of a black CPU or processor component with mounting screws and a red annotation indicating maximum 4 mm size (no text or symbols on the device itself)

3D diagram of a mechanical component with four mounting holes and a central diamond-shaped feature, showing rotational motion indicated by arrows (no text or symbols)

Top-down view of a black square mechanical component with four arms and mounting holes (no text or symbols)

DERNIÈRE ETAPE

Technical line drawing of an electronic component assembly with a black connector and blue arrow indicating a process (no text or symbols present)

INSTALLER POMPE ET VENTILATEURS

Technical drawing of a cylindrical mechanical part with a 64.00mm dimension label (no other text or symbols)

92,00 OPEN 27,50

Diagram of a server rack with two fans and directional arrows indicating rotation or ventilation (no text or symbols present)

Three 3D renderings of a microchip with a solder pad, a needle inserted, and a blue tool tip emerging from the base (no text or symbols)

Close-up of a black rectangular electronic device with a white top and a blue arrow pointing to it, no visible text or symbols.

монтажный набор AMD

Close-up of a black electronic component with blue arrows indicating movement or force (no text or symbols visible)

монтажный набор TR4

3D diagram of a black electronic component with blue arrows indicating direction, no text or symbols present

Close-up of a black electronic component with blue and white mounting brackets, shown with directional arrows (no text or symbols)

3D diagram of a microchip assembly with multiple screwdrivers and mounting brackets (no text or symbols)

3D CAD rendering of a mechanical assembly with mounting base and screw holes (no text or symbols visible)

2011 / 2011-3 / 2066

3D mechanical assembly diagram showing a black QCSOL component with multiple springs and mounting holes (no text or symbols)

3D rendering of a black CPU or processor component with mounting screws and a red label (no text or symbols on the device itself)

макс. 4 мм

Mechanical component with four mounting holes and a central diamond-shaped housing, showing rotational motion indicated by arrows (no text or symbols)

Установка пластины:

Top-down view of a black square mechanical component with four arms and mounting holes (no text or symbols)

ПОСЛЕДНИЙ ШАГ

Technical line drawing of an electronic component assembly with a black connector and blue arrow indicating a downward motion (no text or symbols present)

Close-up of a black cable connector with a blue arrow indicating rotation (no text or symbols visible)

Close-up of two black industrial pipe connectors with a red arrow pointing to a component labeled 'OPEN' (no additional text or symbols visible)

Technical drawing of a cylindrical mechanical part with a 64.00mm dimension label (no other text or symbols)

92,00 OPEN 27,50

ラジェータ取り付け

水平に取り付け

Diagram of a dual-chamber HVAC unit with fan blades and ventilation system (no text or symbols)

Three-step diagram showing a microchip being placed on top, with a pipette inserted and a blue tool inserted (no text or symbols)

Black rectangular device with a paper lid and blue arrow pointing to it, no visible text or symbols

3D diagram of a microchip assembly with multiple screwdrivers and mounting brackets (no text or symbols)

工具を使わないでください。

手のみで締めてください!

3D CAD rendering of a black CO2OCL sensor module mounted on a base plate with mounting screws (no text or symbols visible)

2011 / 2011-3 / 2066

3D mechanical component with four arms and a blue rotation arrow indicating rotational motion (no text or symbols)

バックプレートの配置：

Cross-shaped mechanical component with four arms and central square cutout (no text or symbols)

最後の仕上げ

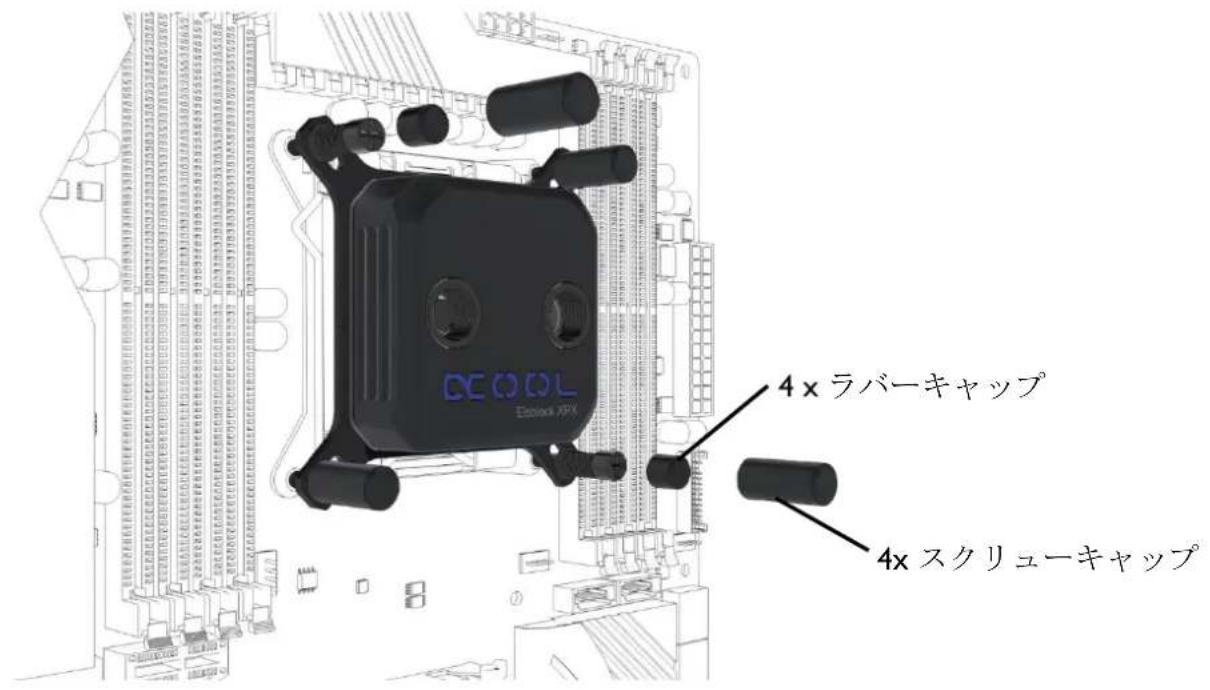

スクリューキャップを取り付けます：

Technical line drawing of an electronic component assembly with a black connector and blue arrow indicating a downward motion (no text or symbols present)

図のようにケーブルを接続します。

Close-up of a black cable connector with a blue arrow indicating a 'OPEN CONDITION' button (no text or symbols on the component itself)

Close-up of two black industrial connectors with a red arrow pointing to one (no text or symbols visible)

Diagram of network cable connections between a device with labeled ports (no readable text or symbols)

General Manager: Fabian Noelte
