USER MANUAL Eisbaer Aurora 360 Alphacool

Technical line drawing of a mechanical fan assembly with no visible text or symbols

EISBAER AURORA

V.1.005-01.2020

DEUTSCH....5

SAFETY INSTRUCTIONS....33

MOUNTING MATERIAL....34

TECHNICAL DETAILS....35

COOLER....35

PUMP 36

RADIATORS....36

QUICK COUPLING 37

MOUNTING THE RADIATOR 38

PUSHING FANS....38

SUCKING FANS....38

CONNECTING THE FANS....39

CONNECT LIGHTING TO THE MAINBOARD....40

CPU COOLER ASSEMBLY 41

INTEL 1156 / 1155 / 1151 / 1150 / 1366....41

INTEL 2011 / 2011-3 / 2066....44

AMD AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FMI / C32 / G34....47

AMD AM4....50

AMD TR4....53

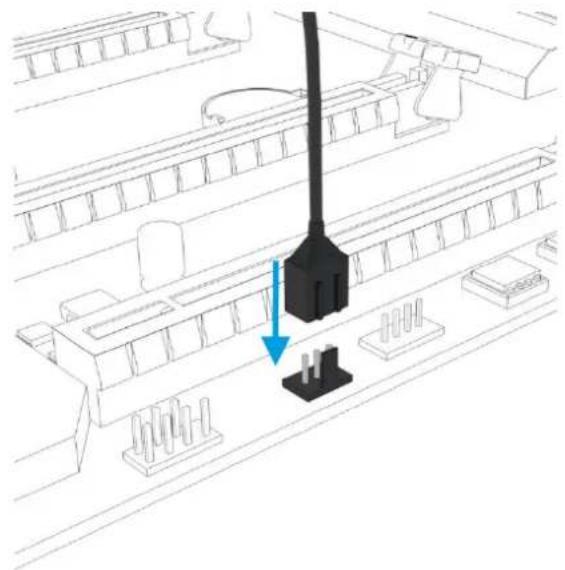

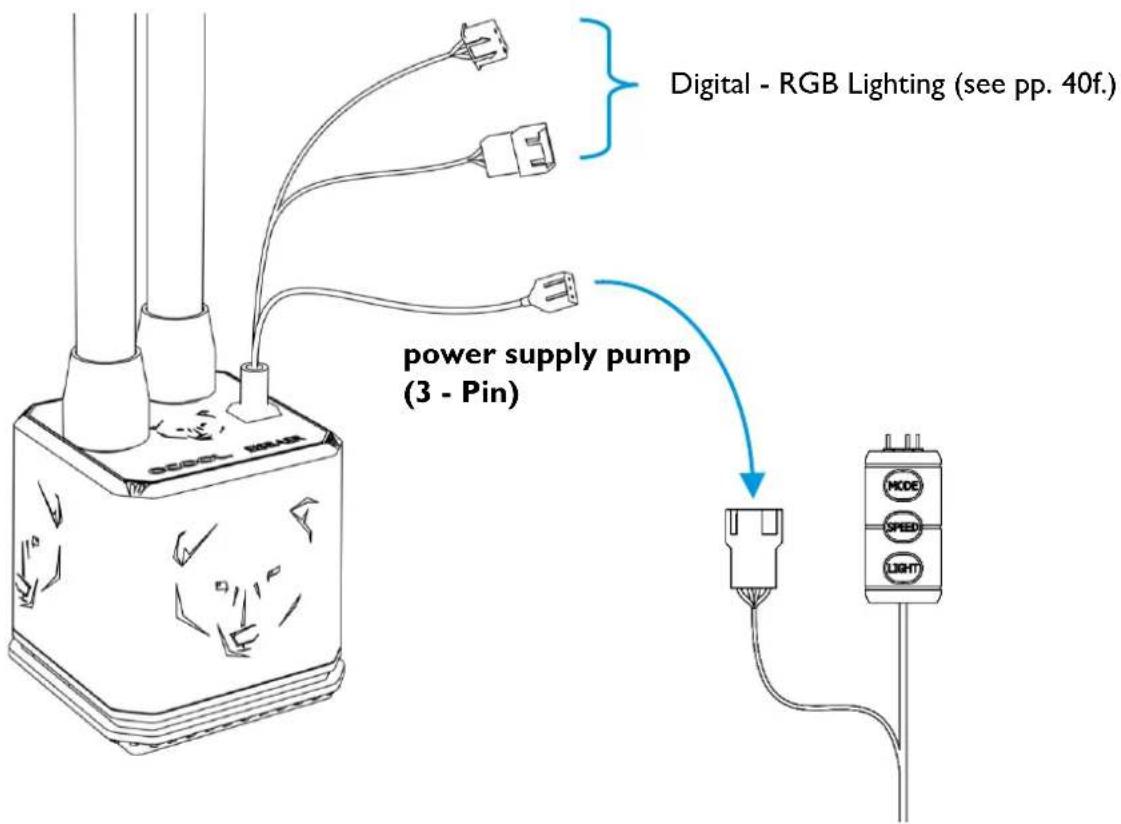

CONNECTING PUMP....56

INITIAL START-UP 57

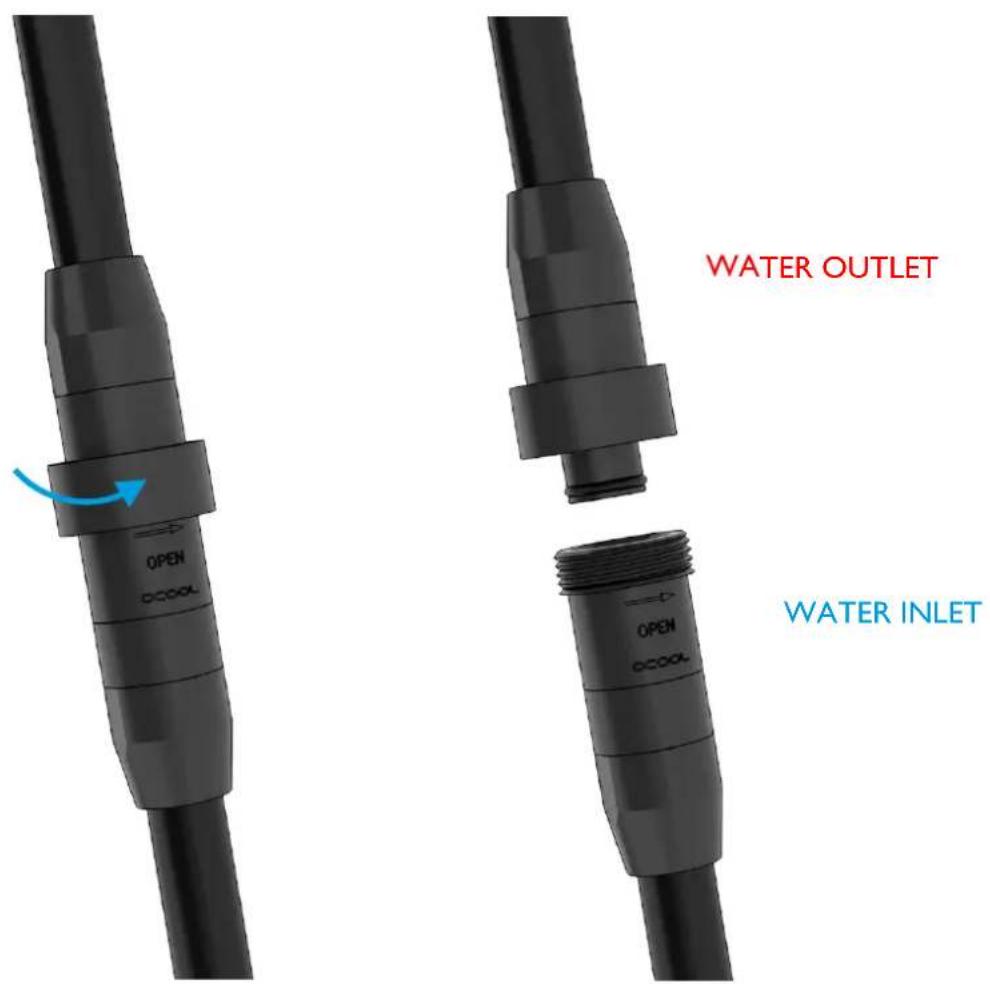

USING QUICK RELEASE CONNECTORS 57

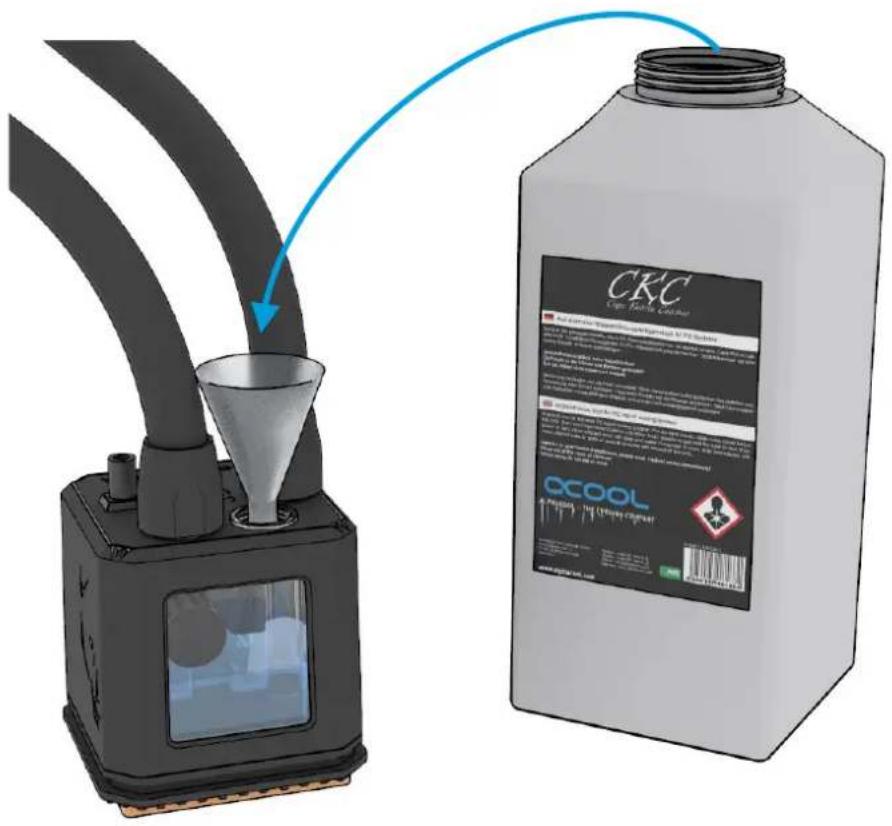

FILLING UP COOLANT 58

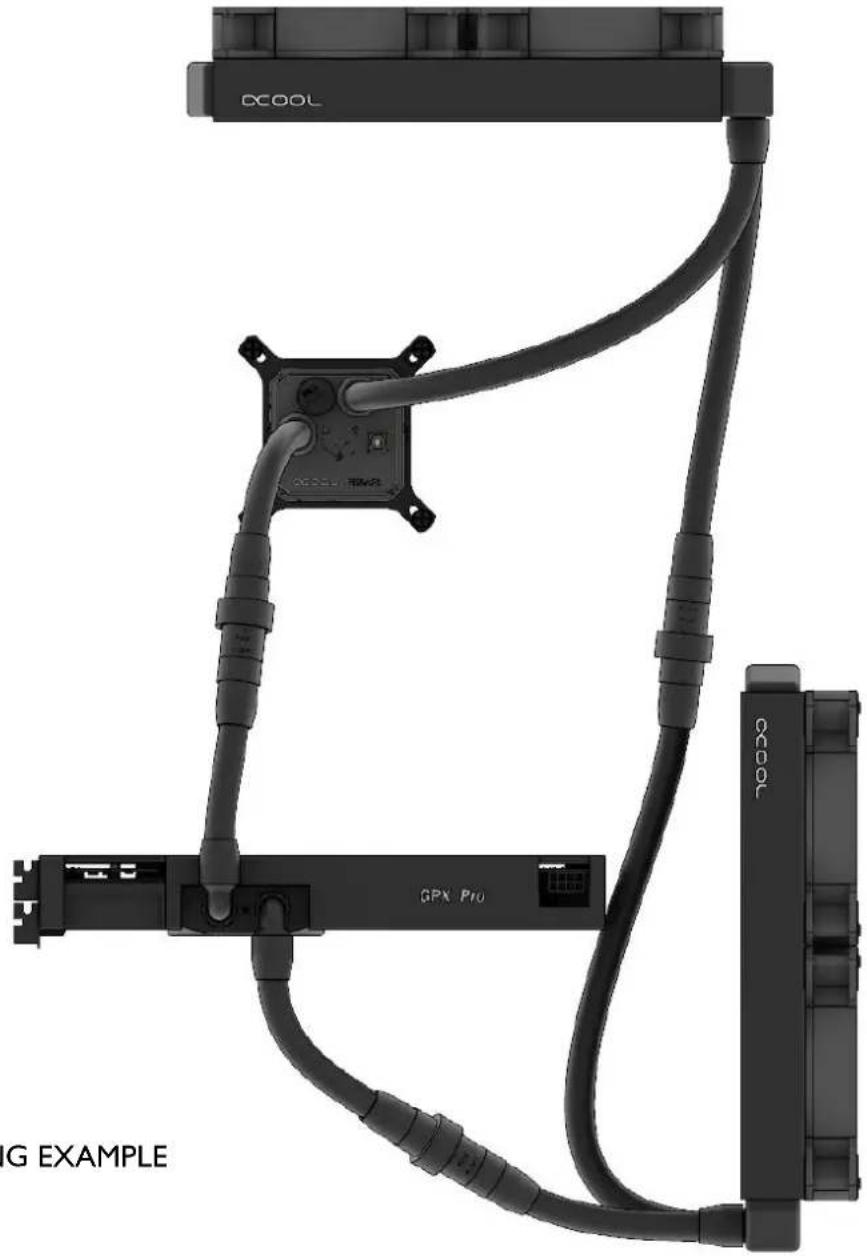

EXPANDING LOOP USING THE GPX EISWOLF 59

FRANÇAIS 61

INSTRUCTIONS DE SECURITE....61

MATERIEL D'INSTALLATION....62

DETAILS TECHNIQUES....63

BLOC....63

POMPE 64

RADIATEURS 64

RACCORDS RAPIDES 65

MONTAGE DE RADIATEUR....66

VENTILATEURS POUSSER....66

VENTILATEURS POMPER....66

BRANCHER LES VENTILATEURS 67

BRANCHER L'ÉCLAIRAGE SUR LA CARTE MÈRE 68

INSTALLATION DE REFROIDISSEUR PROCESSEUR 69

INTEL 1156 / 1155 / 1151 / 1150 / 1366....69

INTEL 2011 / 2011-3 / 2066....72

AMD AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 / C32 / G34....75

AMD AM4....78

AMD TR4....81

BRANCHER LA POMPE 84

MISE EN SERVICE....85

UTILISATION RACCORDS RAPIDES 85

REMLIR RESERVOIR 86

AGRANDISSEMENT PAR GPX EISWOLF....87

DEUTSCH

SICHERHEITSHINWEISE

Technical line drawing of a mechanical impeller or fan assembly (no text or symbols)

Technical line drawing of a heat exchanger or radiator component with no visible text or symbols

ST30 240

Line drawing of a mechanical fan with multiple blades and mounting feet (no text or symbols)

3D rendering of a mechanical component with blue and beige components, no visible text or symbols

Simple diagram with a curved white line inside a black rectangular frame, enclosed by two vertical red borders (no text or symbols)

Three-step diagram showing a microchip with a yellow tape, a black pen inserted into a slot, and a blue tool inserted into a gray chip (no text or symbols)

3D illustration of a cube with decorative patterns and a curved arrow indicating rotation (no text or symbols)

Two technical diagrams showing a mechanical component with arrows indicating motion and a cross-sectional view of the square (no text or symbols present)

Technical illustration of a mechanical assembly with mounting base and clamping elements (no text or symbols)

3D rendering of a mechanical component with mounting brackets and a blue highlighted section (no text or symbols)

Simple diagram with a curved white line inside a black rectangular frame, enclosed in a red border (no text or symbols)

Three-step diagram showing a microchip with a yellow patch, a black pen inserted into a square base, and a blue tool inserted into a gray substrate (no text or symbols)

3D illustration of a cube with decorative patterns and a curved arrow indicating rotation (no text or symbols)

3D technical illustration of a mechanical component with mounting base and mounting holes (no text or symbols)

3D mechanical assembly diagram showing a component with blue and beige layers, alongside a close-up view of a rectangular component (no text or symbols)

Three-step diagram showing a microprocessor with a yellow plastic sheet, a black pen inserted into a slot, and a blue tool tip emerging from the chip (no text or symbols)

3D illustration of a cube with decorative patterns and a curved arrow indicating rotation (no text or symbols)

3D technical illustration of a mechanical assembly with mounting base and internal components (no text or symbols)

3D mechanical assembly diagram showing a component with a blue highlighted section and a close-up view of its side profile (no text or symbols)

Three-step diagram showing a microchip with a yellow patch, a black pen inserted into a square base, and a blue tool inserted into a chip (no text or symbols)

3D illustration of a cube with decorative patterns and a central rectangular block, showing no text or symbols.

3D diagram of a mechanical assembly with mounting base and internal components (no text or symbols)

3D mechanical assembly diagram showing a component with mounting flanges and a close-up view of a rectangular component (no text or symbols)

Three-step diagram showing a microchip with a yellow patch, a black pen inserted into a square base, and a blue tool inserted into a chip (no text or symbols)

3D illustration of a cube with decorative patterns and a central rectangular block, showing no text or symbols.

3D diagram of a mechanical assembly with mounting base and internal components, no visible text or symbols

Technical line drawing of a mechanical assembly with a black component and a blue arrow indicating a process (no text or symbols present)

INBETRIEBNAHME

CKC Cape, Mace, Litter Red mercury acetate is used in 70 gallons. OCCOL + Piping + H⁺ (H⁺) (H⁺) (H⁺) www.cplc.com

Technical diagram of a multi-chamber GPU cable with DCOOL and GPX Pro connectors, no readable text or symbols beyond labels

ENGLISH

SAFETY INSTRUCTIONS

READ THE SAFETY INSTRUCTIONS BEFORE STARTING THE INSTALLATION.

• Not suitable for children under 6 years. (contains small parts which could be swallowed).
• Do not run any cooling components without ensuring that cooling liquid is flowing through the cooling system. Coolers operated without coolant can become very hot. Caution: Burn Hazard!
• Coolers that have no coolant flowing through them can destroy the computer hardware. When switching on the hardware, always make sure that the pump is working.
• Please note when tightening the connectors or fittings, no tools such as screwdrivers, pliers, or wrenches should be used. All plastic products or metal threaded connections, which are linked with plastic parts, are easily over-loaded with tools. Cracking or other damages incurred in this way, as well as damage from leaking coolant, are not covered under the warranty!
• Use only connectors with a sealing o-ring. When using a sealing ring a firm tightening with the hand is enough. Your instruction manual will clearly refer to the use of tools in exceptional cases.
• If you have not done so yet, please check your hardware and cooling system (tightness, pump function and fans). This will minimize time spent searching for possible problems. ALPHACOOL INTERNATIONAL GMBH accepts no liability on the warranty of the manufacturer of the electronic components. The assembly of the cooling system takes place at your own risk.
• The screws should not be tightened too firmly. If you tighten the screws excessively, the knurled nuts can loosen and the cooler's uniform pressure is no longer guaranteed.
• Fasten the connections of your choice to the cooler. Do not use tools such as wrenches for fastening the connections. Connectors with 8mm long threads may stop the flow.
• We recommend a tightness test before assembling/installing the cooler. The water pressure in the water cooling loop can be at a maximum of 0.8 bar. DO NOT use tools on the connectors.
• Ensure that the cooler is touching all components to be cooled through thermal grease and thermal pads.
• Only use distilled water or ALPHACOOL CAPE KELVIN CATCHER in your cooling circuit. Damage caused by unsuitable coolant is not covered by the warranty!

Specified normal operation

All ALPHACOOL INTERNATIONAL GMBH cooling components are constructed and licensed for ALPHACOOL INTERNATIONAL GMBH computer construction parts. The warranty expires in case of misuse.

Warranty

1. Data, designs, illustrations, technical data, weight, measurement and specifications, contained in folders, catalogues, circulars, announcements or price lists, have a purely informative character. We do not undertake warranty for the correctness of these data. As to the kind and the range of delivery, the data contained in the order and confirmation of order alone are decisive.
2. If there is a lack of warrantor, you are entitled, on the basis of the legal regulations to require subsequent delivery, to withdraw from the contract or reduce the purchase price. If you are a consumer, the limitation period of warranty claims for the supplied commodity amounts to two years starting from receipt of goods ( § 13 BGB ). If you are an entrepreneur, in accordance with legal conditions the limitation period amounts to only one year ( § 14 BGB ).
3. The warranty claim is valid only in combination with the original invoice, the sales slip or an ALPHACOOL confirmation on warranty claim.
4. It is ALPHACOOL INTERNATIONAL GMBHs own discretionary authority to replace or repair the defective product or defective component. The replaced product or component changes into property of ALPHACOOL INTERNATIONAL GMBH.
5. All warranty claims are accomplished by ALPHACOOL INTERNATIONAL GMBH or its authorized dealers. If the repair is carried out by a non-authorized or assigned person, ALPHACOOL INTERNATIONAL GMBH does not take over either costs or liability, unless the repair has been previously agreed upon with ALPHACOOL INTERNATIONAL GMBH.
6. All costs resulting from refitting of the products are not taken over by ALPHACOOL INTERNATIONAL GMBH.
7. ALPHACOOL INTERNATIONAL GMBHs warranty excludes the following points:

7.1. Regular controls maintenance and repair or the replacement of parts subject to regular wear and tear.

7.2. Improper manipulation or defects caused by incorrect installation.

7.3. Damages caused by storm, water, fire, overvoltage, acts of God, war, incorrect connection to the net, insufficient or incorrect ventilation or other reasons over which ALPHACOOL INTERNATIONAL GMBH has no influence.

7.4. Damages resulting from transportation or improper packaging.

1. Consumer's rights are valid in the respective country; demands made to the salesman, as explained and laid down in the sales contract, will not be covered by this warranty. ALPHACOOL INTERNATIONAL GMBH, Its Branch Office and Distributors, are not responsible for direct or indirect damage or losses, as far as the

compelling legal regulations do not oppose it.

1. ALPHACOOL INTERNATIONAL GMBH does not take over the warranty of the manufacturer of the electronic construction units and components. The assembly of the cooler takes place at your own risk.

Contact an authorized waste management company in your country. A waste removal with the municipal waste (unsorted garbage) or similar mechanisms for the collection of local wastes is not permissible!

MOUNTING MATERIAL

RADIATOR & FANS	number varies depending on the product version	number tries ding the duct version
	M3x5	M3x30
EISBAER CPU COOLER
	lx thermal grease	4x springs	4x 0,5 mm washers	4x nuts
AMD
	lx bracket set	4x AMD screws	4x 2,0 mm washers	lx TR4 mounting set
INTEL
	lx bracket set	4x 1150 screws	4x 2011 screws	lx backplate
ACCESSORIES	the product version you purchased
	Y-adapter 4-Pin PWM		lx digital - RGB controller + adapter

TECHNICAL DETAILS

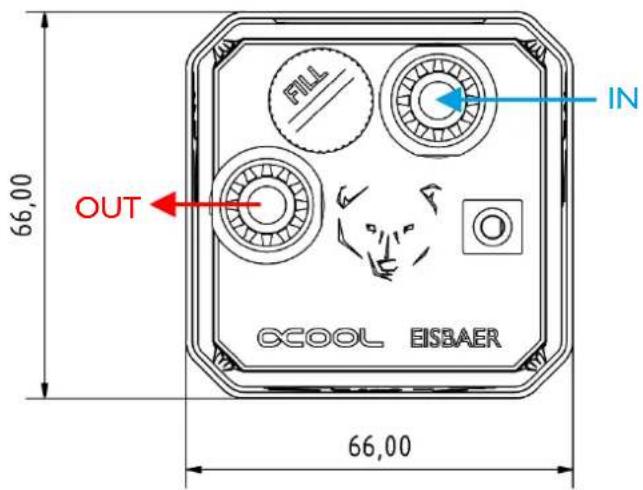

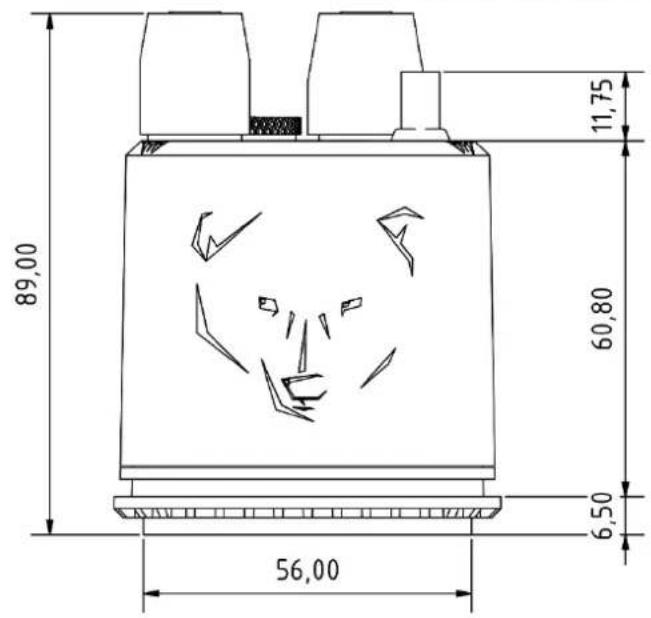

COOLER Eisbaer Aurora

AMD: AM4 / TR4 / AM3+ / AM3 /

AM2+ / AM2 / FM2+ / FM2 /

FMI / C32 / G34

INTEL:2011/2011-3/2066/1156/1155/1151/1150/1366

Mounting kit for 2011-3 Narrow ILM (Art. Nr.: 12531) is available separately.

89,00 11,75 60,80 6,50 56,00

66,00 OUT FILL IN CCOOL EISBAER 66,00

Threads: 3x G1/4" (IN, OUT, FILL)

Liquid capacity: 41 ml

Lighting: Digital - RGB

Operating voltage: 5V

Max. power consumption: I W

PUMP DC-LT 2600

Power consumption: 3,2 W

Voltage range: 7 - 13,5 V DC

Flow rate: 72 l/h

Pressure head: 1 m

Technical line drawing of a mechanical impeller or fan assembly (no text or symbols)

RADIATORS NexXxos series

Material: Copper

Model versions:

Technical diagram of a heat exchanger or radiator component with two circular ports and internal grid pattern (no text or symbols)

ST30 240

Dimensions: 278 mm × 124 mm × 30 mm

ST30 280

Dimensions: 316 mm × 144 mm × 30 mm

ST30 360

Dimensions: 397 mm × 124 mm × 30 mm

ST30 420

Dimensions: 459 mm × 144 mm × 30 mm

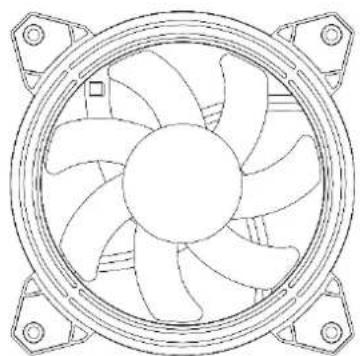

FANS Eiszyklon Aurora LUX PRO Digital RGB

Power consumption: 4,8 W (+ LEDs: 2 W)

Operating voltage: 12 V DC

(LEDs: 5 V DC)

Speed range: 800 – 2000 rpm

Model versions: 120 mm

140 mm

Line drawing of a mechanical fan with multiple blades and mounting feet (no text or symbols)

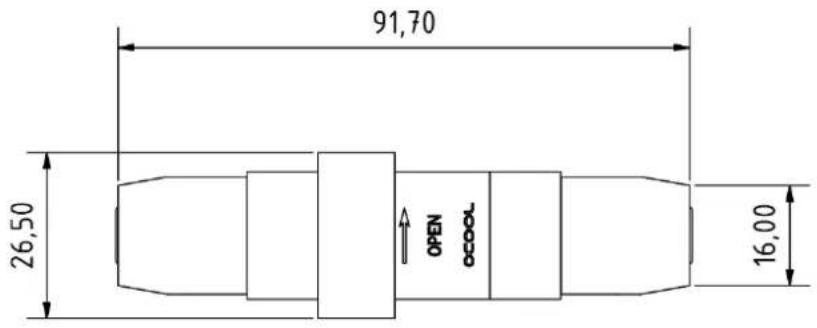

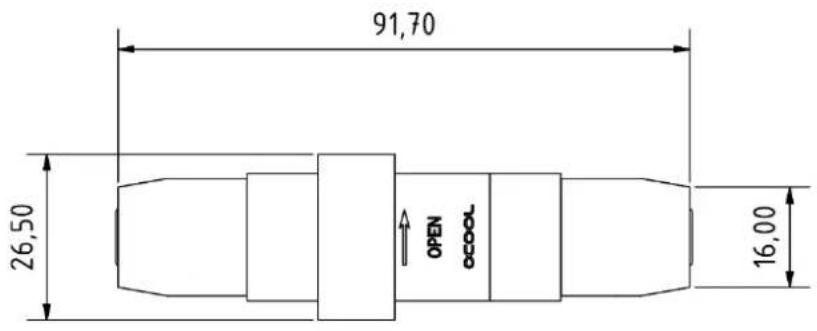

QUICK COUPLING Compatibility: 13/10 mm Tubes

Material: Nylon

91,70 26,50 OPEN CCOOL 16,00

Ø14,00

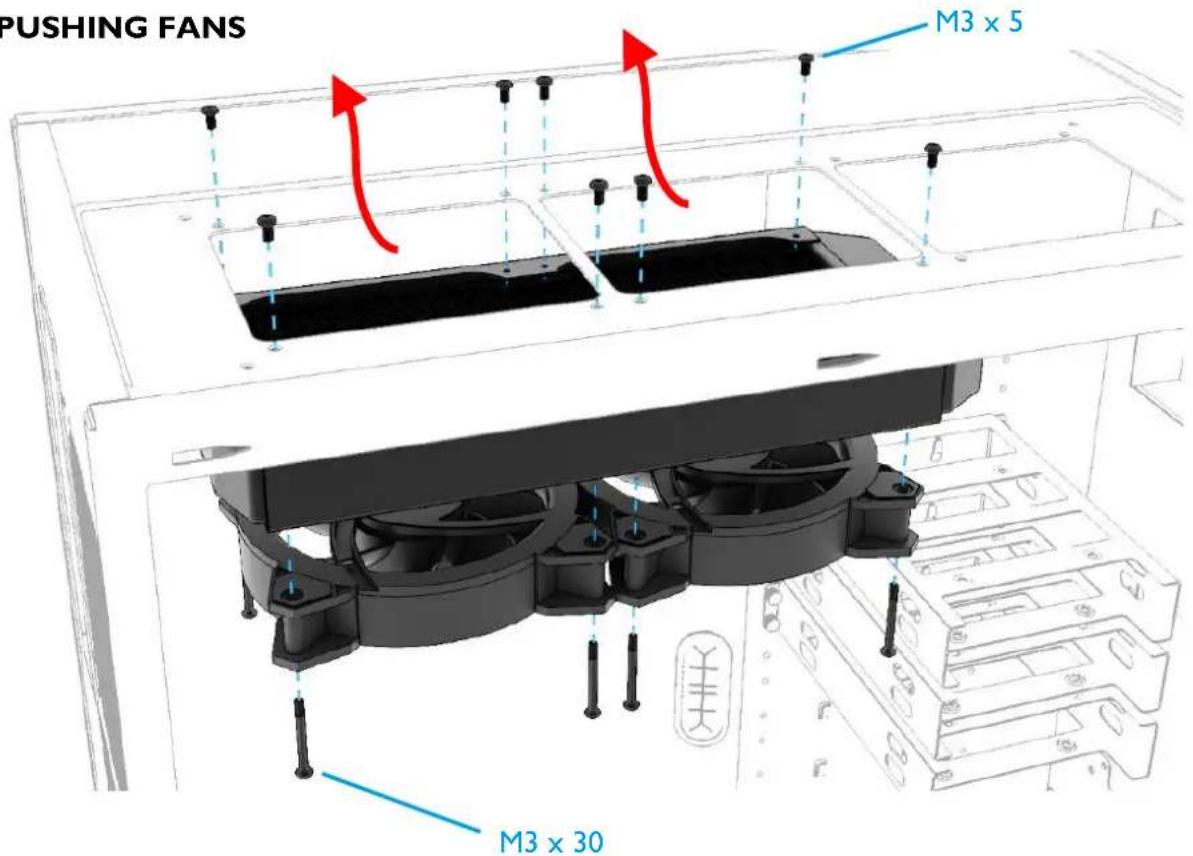

MOUNTING THE RADIATOR

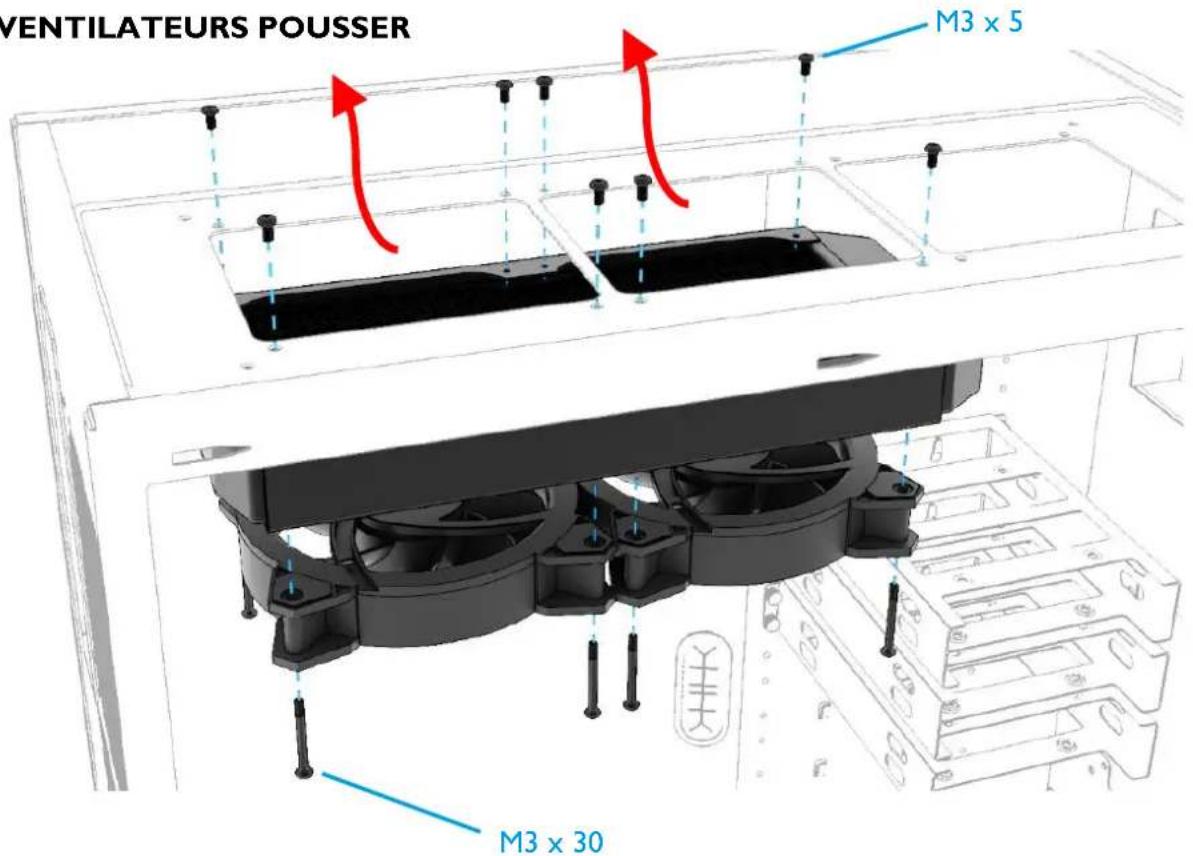

PUSHING FANS M3 x 5 M3 x 30

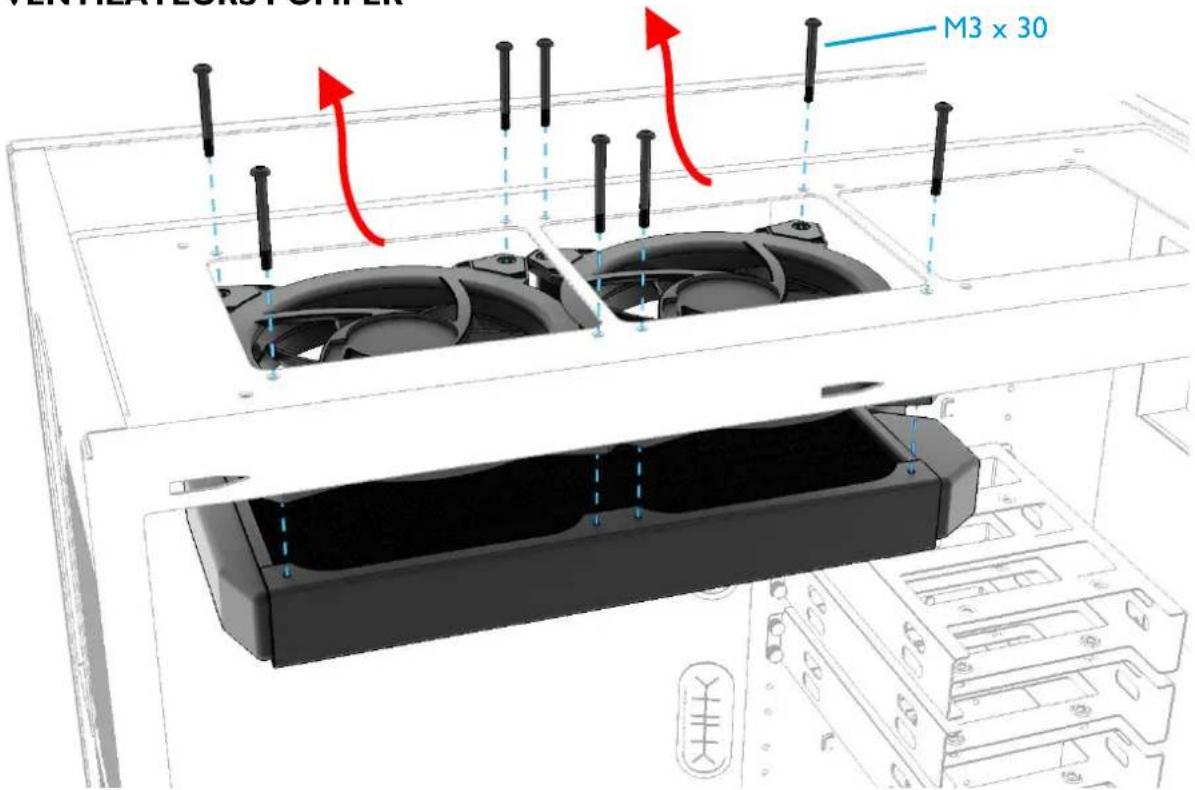

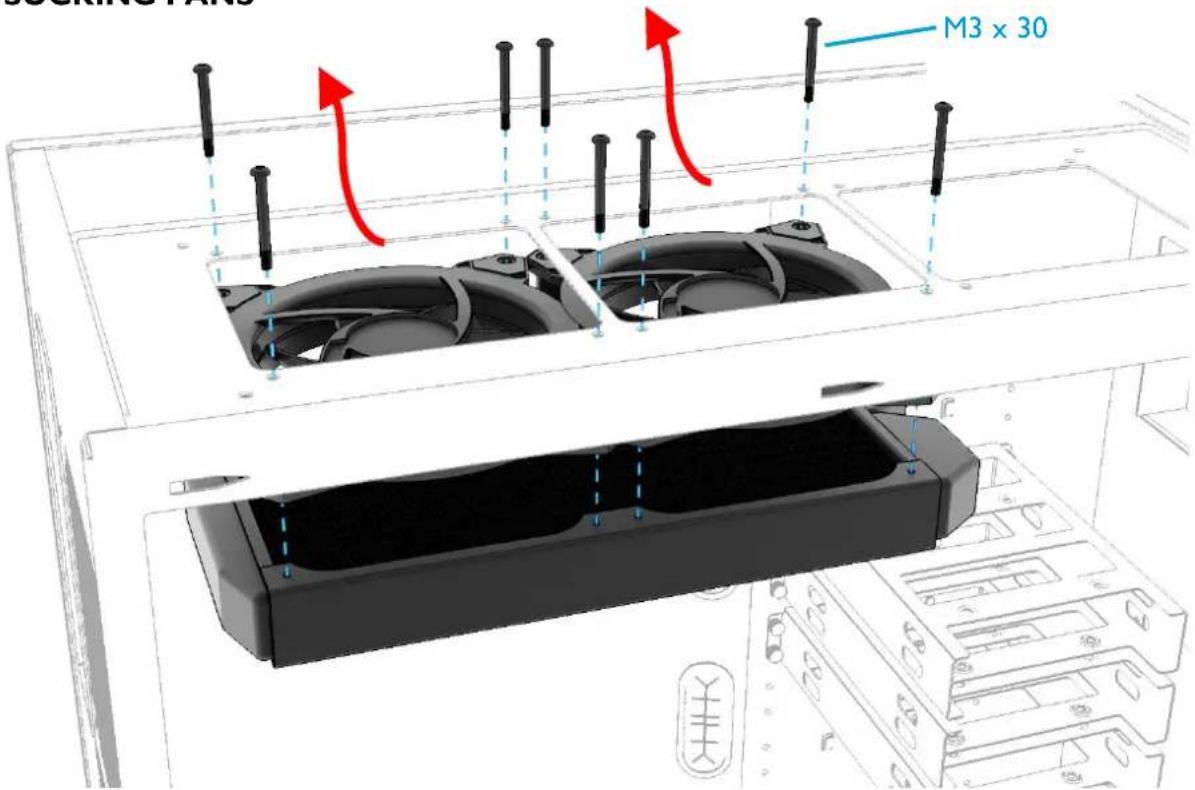

SUCKING FANS

M3 x 30

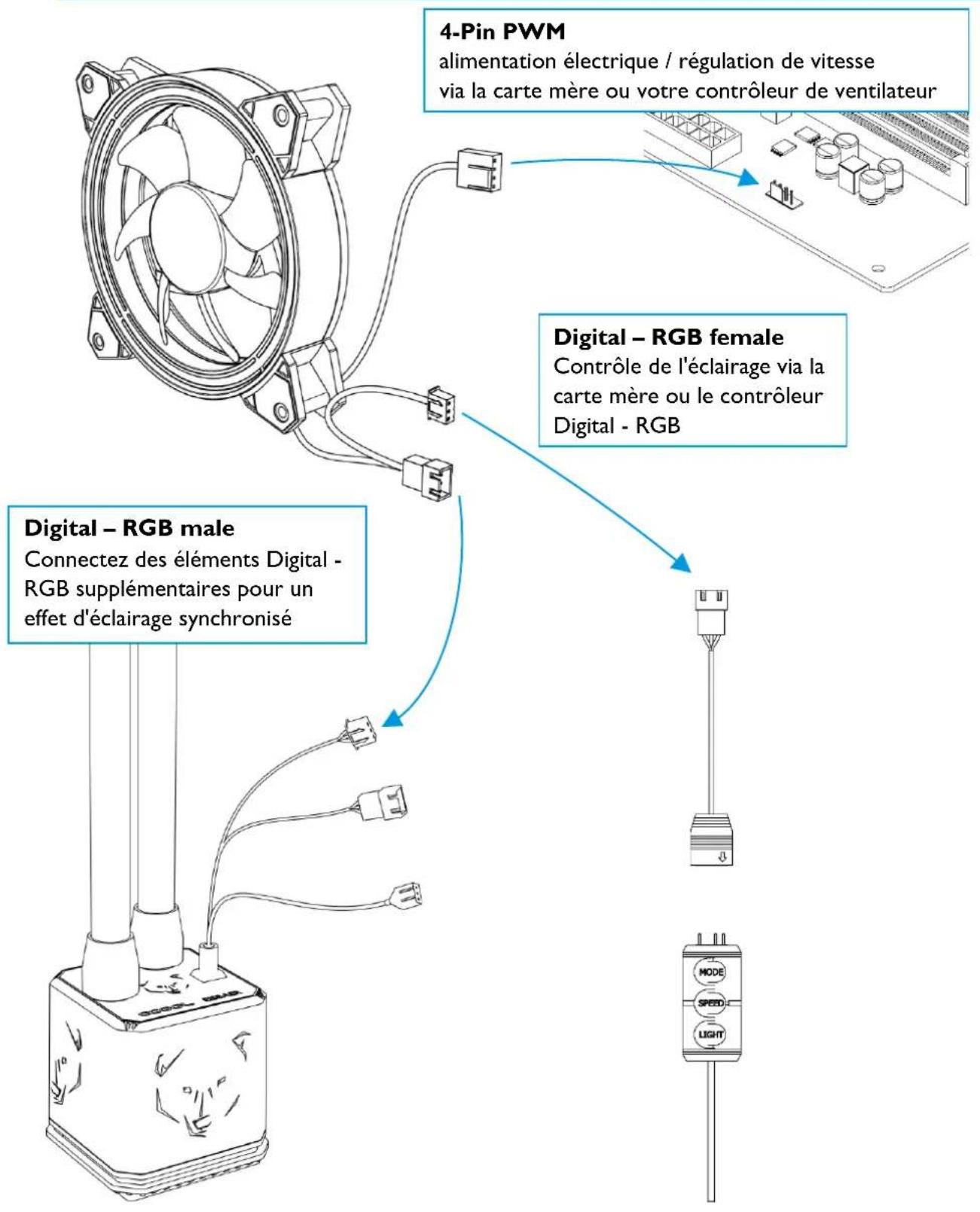

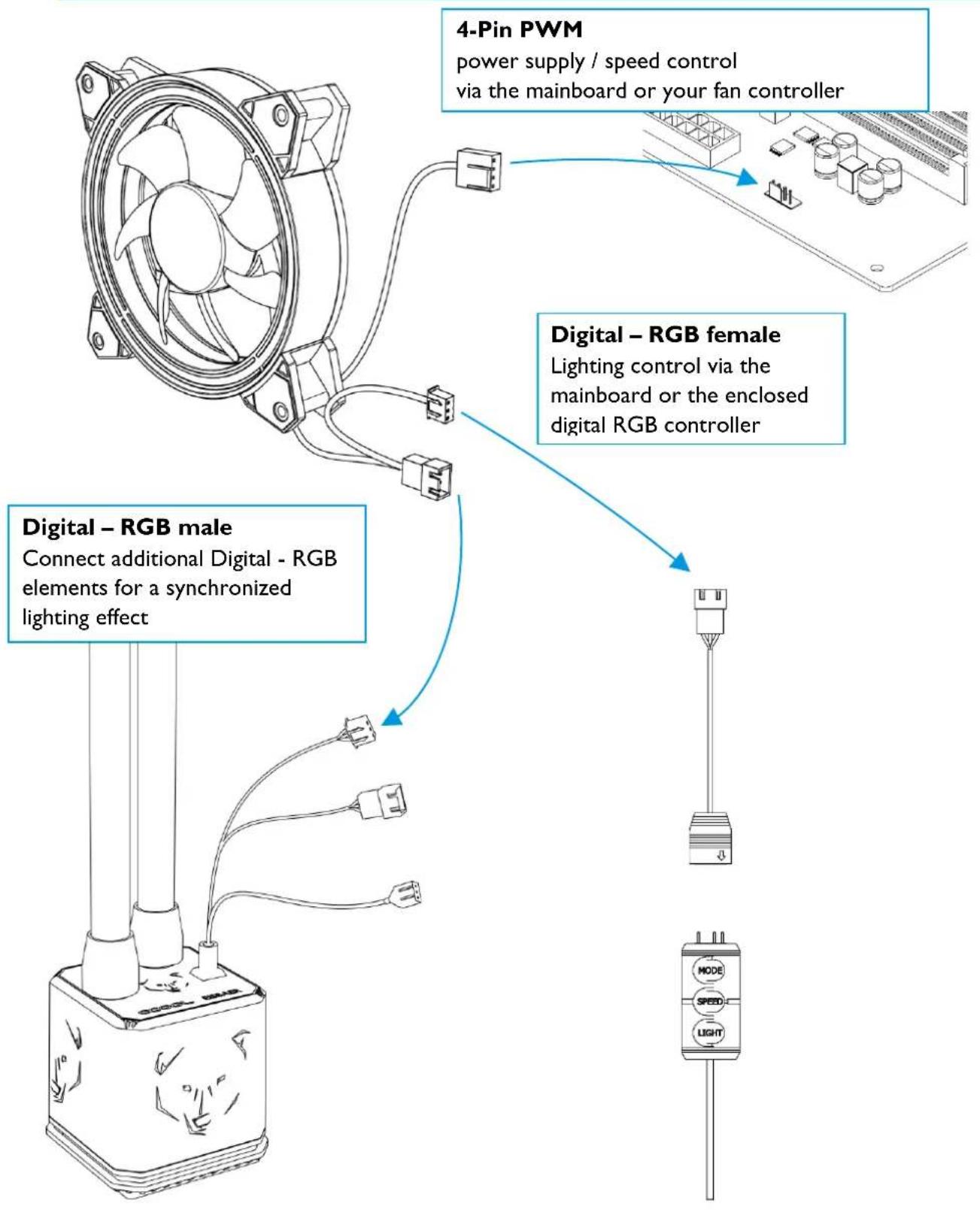

CONNECTING THE FANS


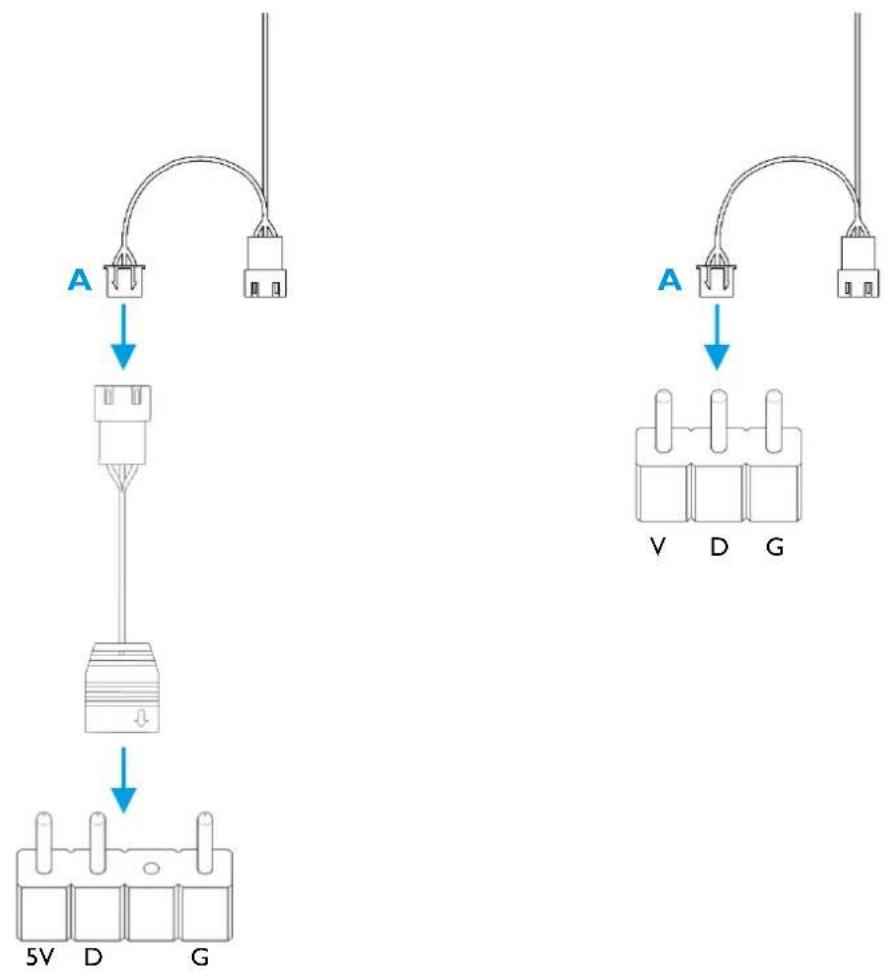

CONNECT LIGHTING TO THE MAINBOARD

- If you do not want to use the included controller, you can also connect and control the lighting directly via your mainboard.

Select the correct wiring depending on your motherboard:

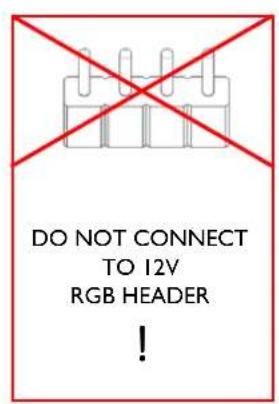

DO NOT CONNECT TO 12V RGB HEADER !

CPU COOLER ASSEMBLY

INTEL 1156 / 1155 / 1151 / 1150 / 1366

- Select the appropriate bracket and screws.

M4 M3 7,5 mm

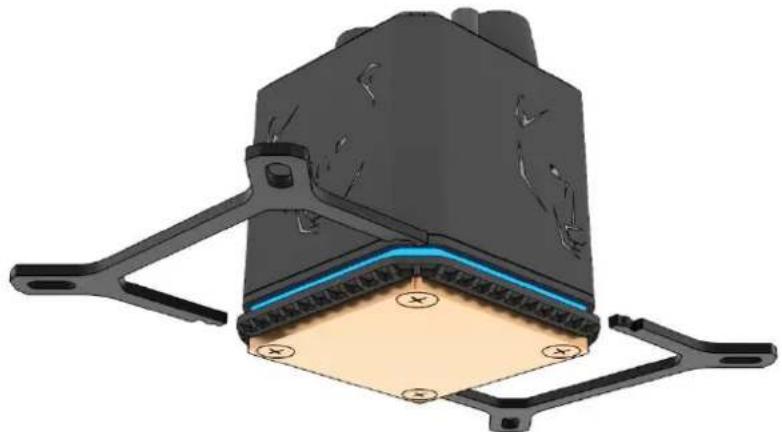

- Plug the bracket together as shown.

3D rendering of a mechanical component with mounting brackets and a blue highlighted section (no text or symbols)

Simple diagram with a curved white line inside a black rectangular frame, no text or symbols present.

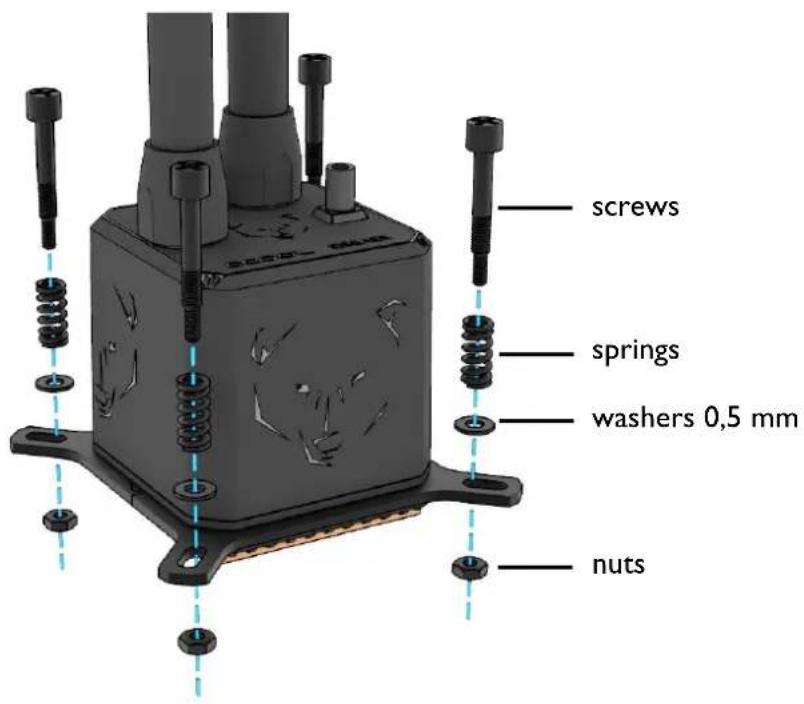

- Slide the compression springs and washers onto the screws and fix them to the bracket with nuts.

screws springs washers 0,5 mm nuts

Three-step diagram showing a microchip with a yellow tape, a black pen inserted into a slot, and a blue tool inserted into a gray chip (no text or symbols)

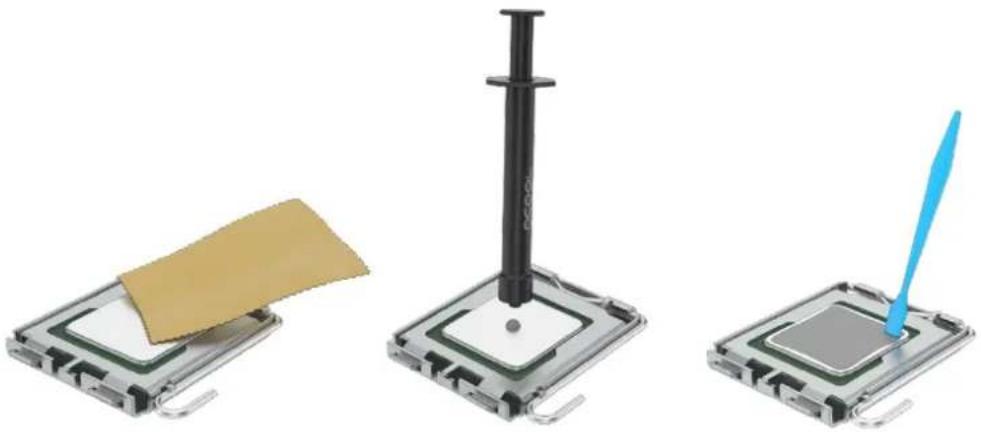

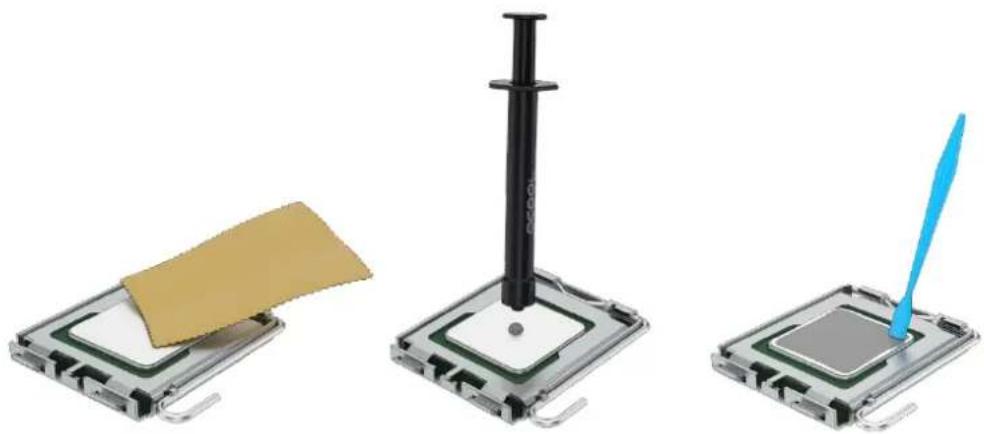

• Remove any remaining thermal paste from the CPU.
• Apply a pea-sized blob of thermal paste to the center of the CPU.
• Spread the paste using a spatula, or similar to an even, thin layer (< 0.5 mm layer thickness).

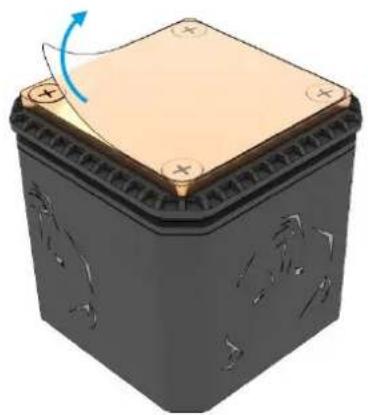

- Remove the protective film from the cooling plate.

3D illustration of a cube with decorative patterns and a curved arrow indicating rotation (no text or symbols)

- Remove the protective film from the adhesive strips of the included backplate. Please note the correct alignment of the backplate:

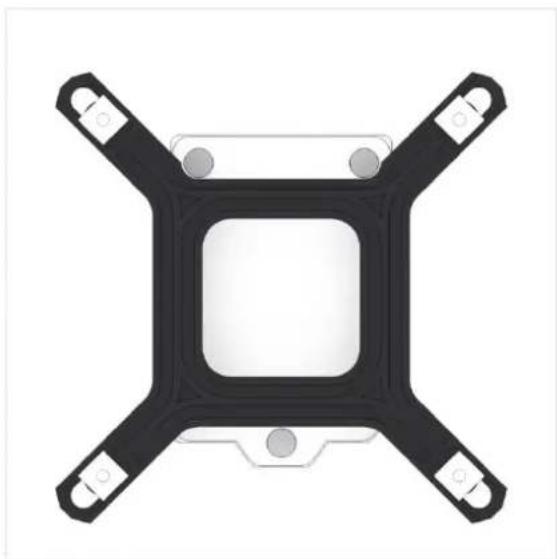

3D mechanical component with four mounting holes and blue directional arrows indicating rotation (no text or symbols)

Cross-sectional view of a mechanical component with four symmetric arms and central square (no text or symbols)

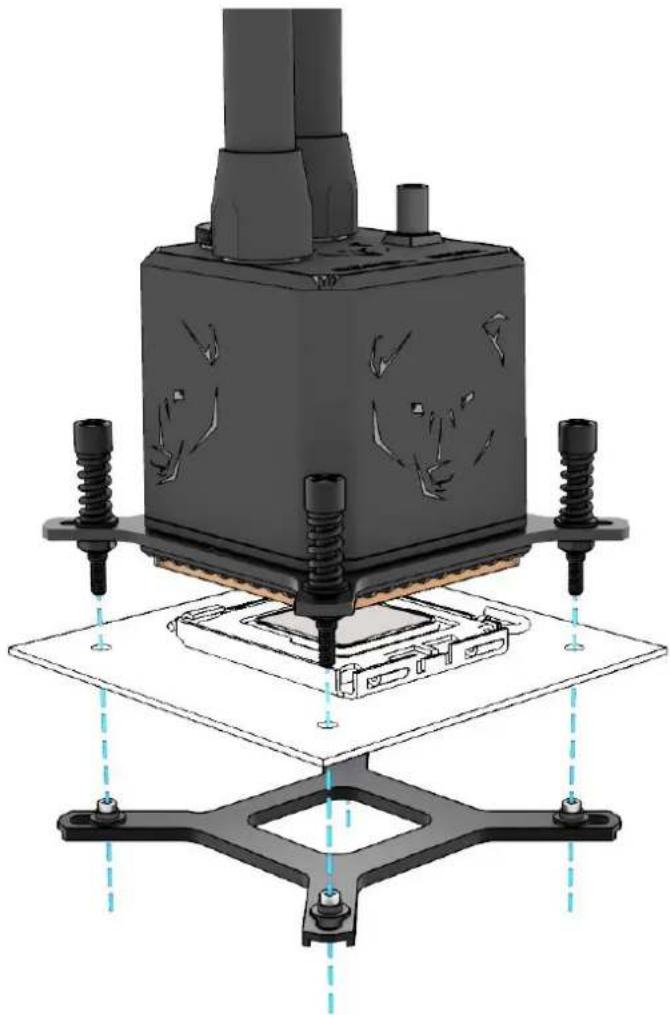

- Attach the cooler to the socket using the backplate. Tighten the screws crosswise, hand-tight.

- Make sure the window is facing upwards (or the Alphacool logo can be read from the front). This design ensures that the pump does not run dry.

3D diagram of a mechanical assembly with mounting base and clamps, no visible text or symbols

Do not use tools. Tighten only by hand!

INTEL 2011 / 2011-3 / 2066

- Select the appropriate bracket and screws.

M4

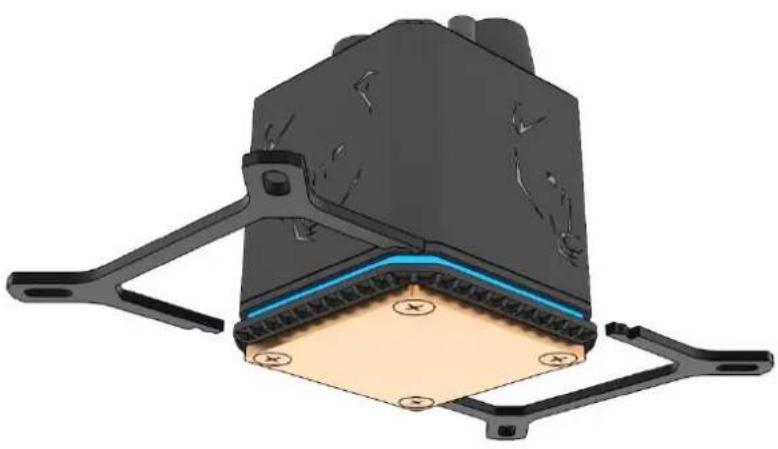

- Plug the bracket together as shown.

3D rendering of a mechanical component with mounting brackets and a blue highlighted section (no text or symbols)

Simple diagram with a curved white line inside a black rectangular frame, enclosed in a red border (no text or symbols)

Three-step diagram showing a microchip with a yellow patch, a black pen inserted into a square base, and a blue tool inserted into a gray substrate (no text or symbols)

• Remove any remaining thermal paste from the CPU.
• Apply a pea-sized blob of thermal paste to the center of the CPU.
• Spread the paste using a spatula, or similar to an even, thin layer (< 0.5 mm layer thickness).

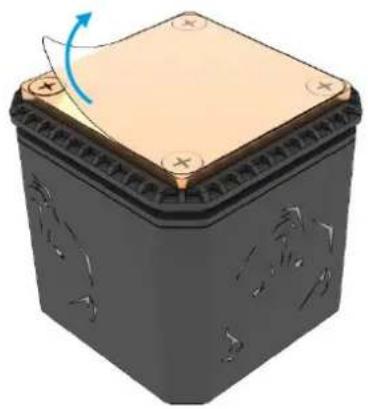

- Remove the protective film from the cooling plate.

3D illustration of a cube with decorative patterns and a curved top surface, no text or symbols present

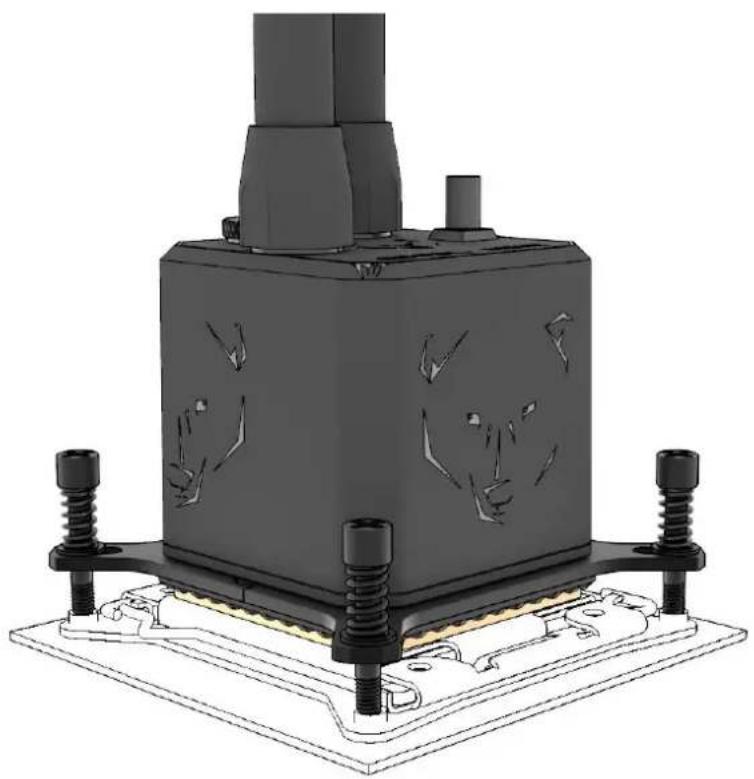

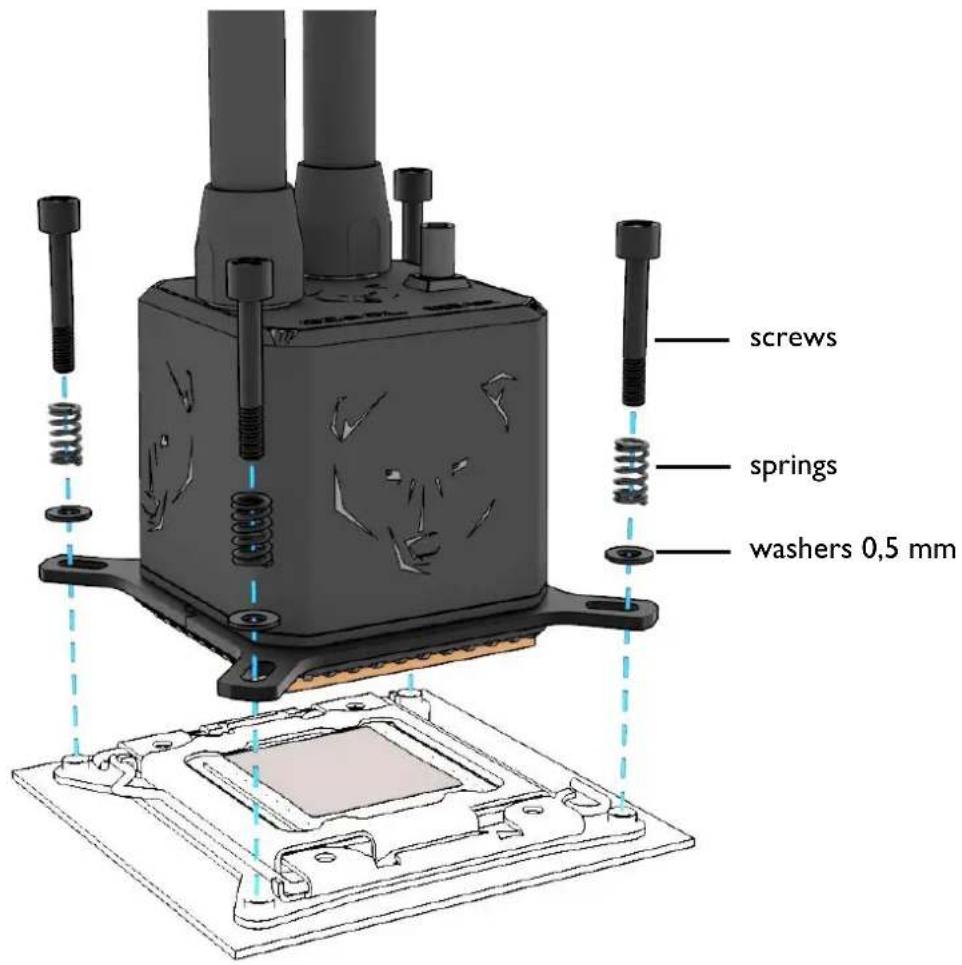

• Attach the cooler to the socket as shown. Tighten the screws crosswise, hand-tight.
• Make sure that the window is facing upwards (or that the Alphacool logo can be read from the front). This design ensures that the pump does not run dry.

screws springs washers 0,5 mm

3D technical illustration of a mechanical component with mounting base and mounting holes (no text or symbols)

Do not use tools. Tighten only by hand!

Note: Some 2011/-3 Socket motherboards have continuous threaded mounting holes in the base. In this case, do not tighten the screws more than 4 mm.

AMD AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FMI / C32 / G34

- Select the appropriate bracket and screws.

M4 UNC 6-32 10,5 mm

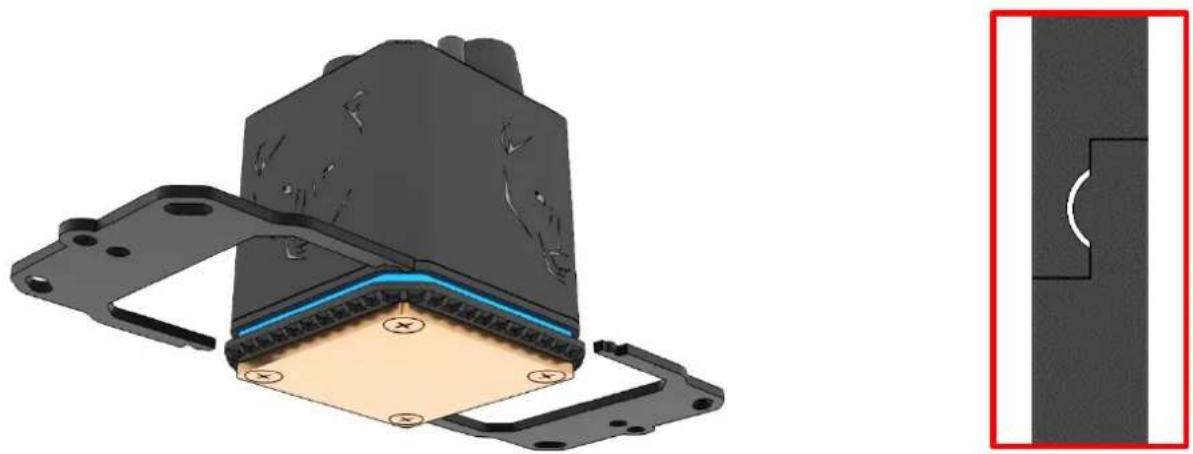

- Plug the bracket together as shown.

3D mechanical assembly diagram showing a component with blue and beige layers, alongside a close-up view of a rectangular component (no text or symbols)

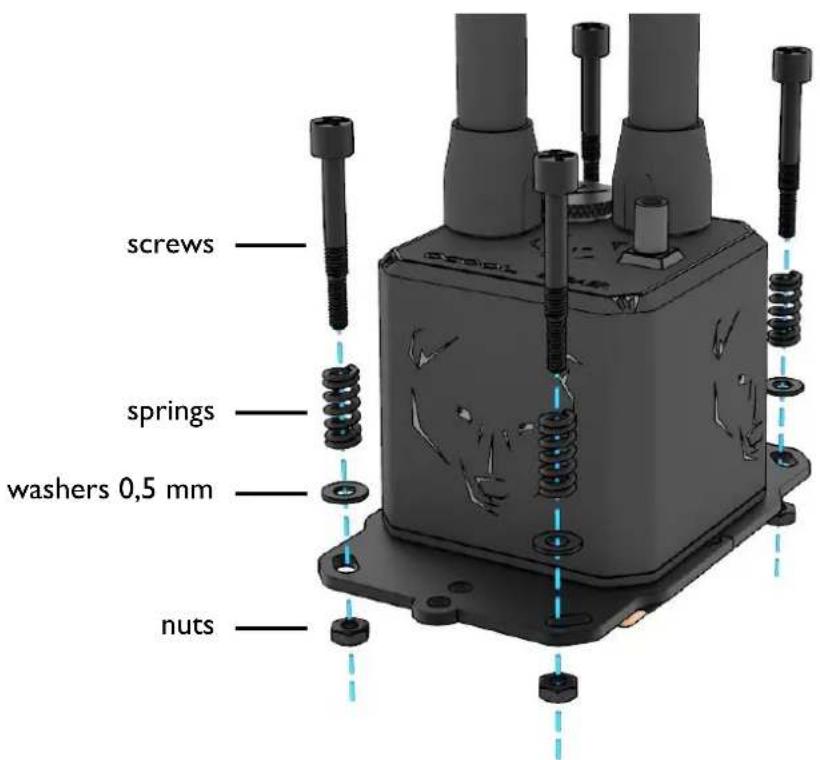

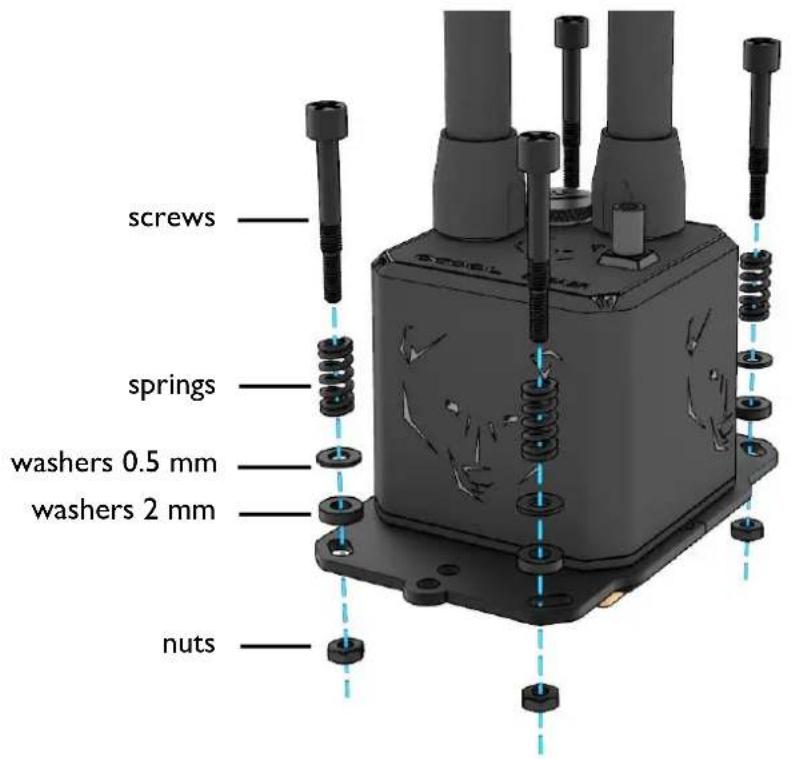

- Slide the compression springs and washers onto the screws and fix them to the bracket with nuts.

screws springs washers 0,5 mm nuts

Three-step diagram showing a microchip with a gold sheet, a black pen inserted into a chip, and a blue tool inserted into a chip (no text or symbols)

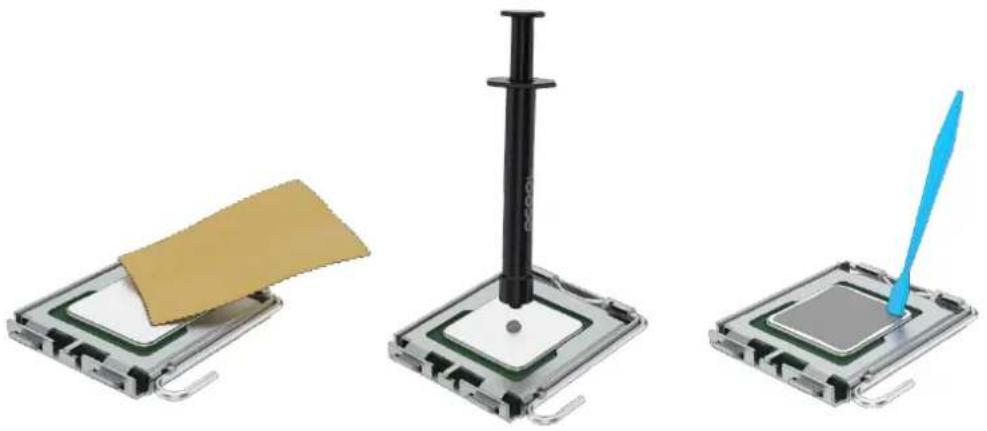

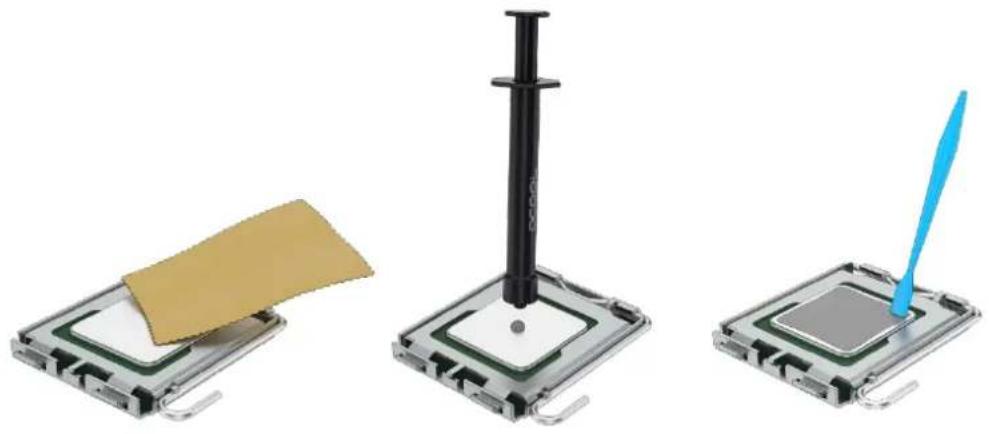

• Remove any remaining thermal paste from the CPU.
• Apply a pea-sized blob of thermal paste to the center of the CPU.
• Spread the paste using a spatula, or similar to an even, thin layer (< 0.5 mm layer thickness).

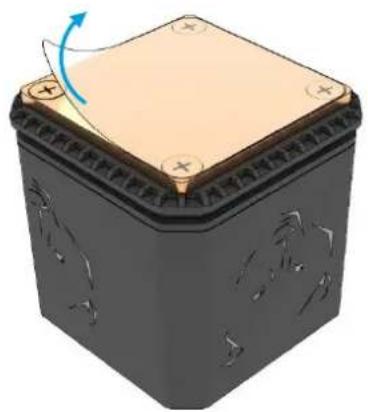

- Remove the protective film from the cooling plate.

3D illustration of a cube with decorative patterns and a rotating arrow, no text or symbols present

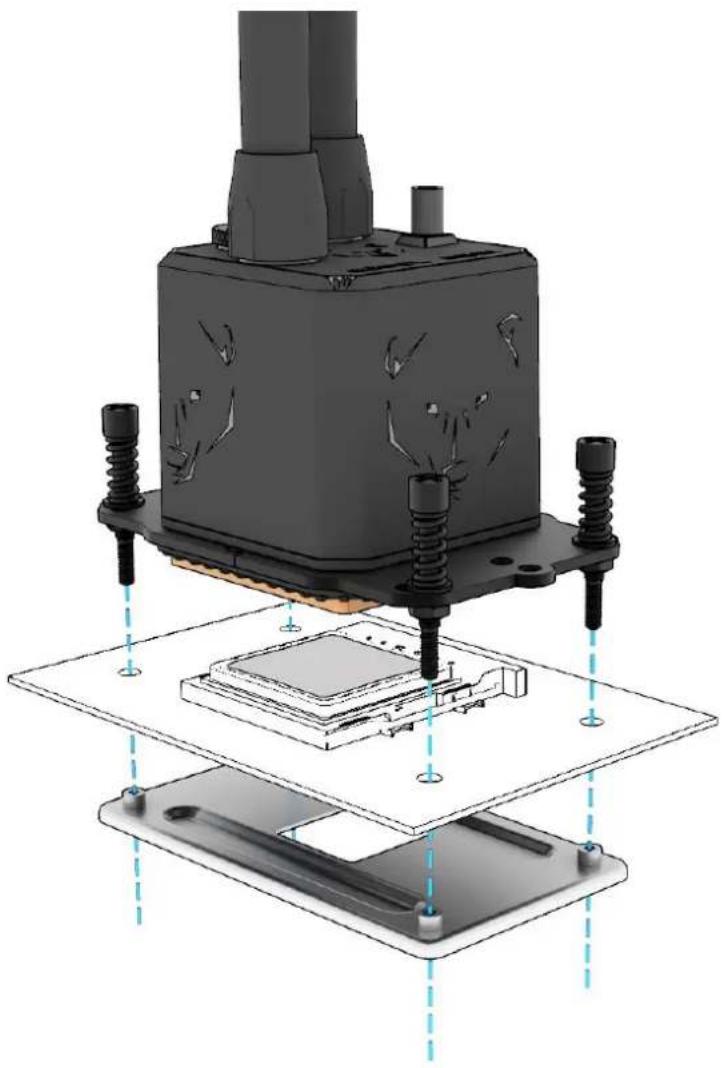

• For the mounting on the socket you need the original backplate of the mainboard.
• Attach the cooler to the socket as shown. Tighten the screws crosswise hand-tight.
• Make sure that the window is facing upwards (or that the Alphacool logo can be read from the front). This design ensures that the pump does not run dry.

3D diagram of a mechanical assembly with mounting base and internal components, no visible text or symbols

Do not use tools. Tighten only by hand!

AMD AM4

- Select the appropriate bracket and screws.

M4 UNC 6-32 10,5 mm

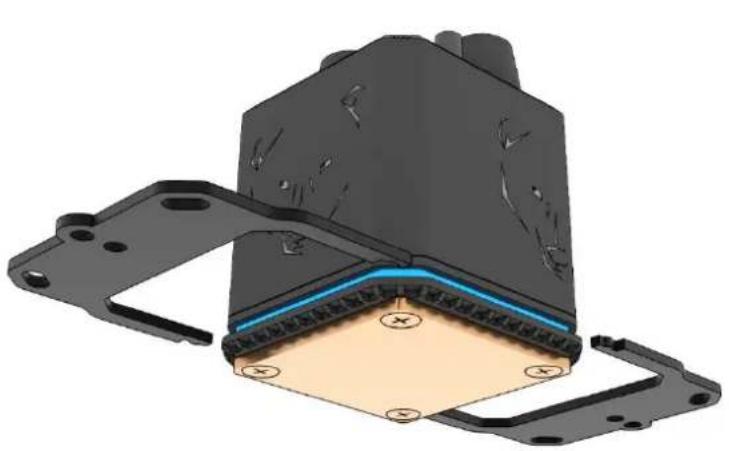

- Plug the bracket together as shown.

3D CAD model of a mechanical assembly with mounting brackets and a central blue highlighted component (no text or symbols visible)

Simple diagram with a curved white line inside a black rectangular frame, no text or symbols present.

- Slide the compression springs and two different washers onto the screws and fix them with nuts to the bracket.

screws springs washers 0.5 mm washers 2 mm nuts

Three-step diagram showing a microchip with a yellow patch, a black pen inserted into a square base, and a blue tool inserted into a chip (no text or symbols)

• Remove any remaining thermal paste from the CPU.
• Apply a pea-sized blob of thermal paste to the center of the CPU.
• Spread the paste using a spatula, or similar to an even, thin layer (< 0.5 mm layer thickness).

- Remove the protective film from the cooling plate.

3D illustration of a cube with decorative patterns and a curved arrow indicating rotation (no text or symbols)

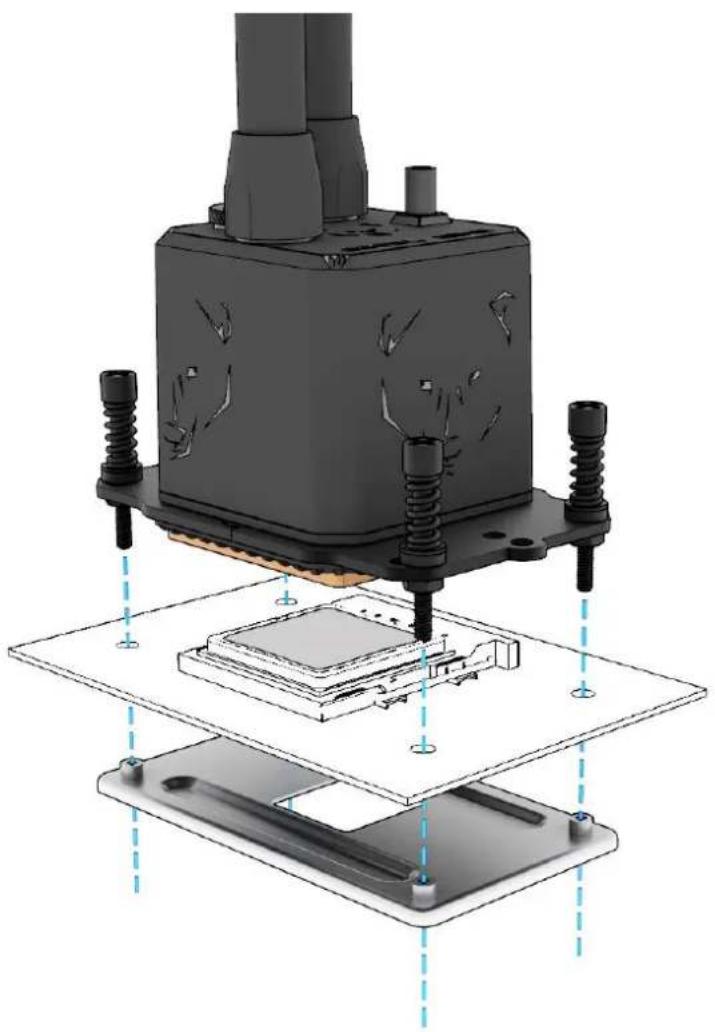

• For the mounting on the socket you need the original backplate of the mainboard.
• Attach the cooler to the socket as shown. Tighten the screws crosswise hand-tight.
• Make sure the window is facing upwards (or the Alphacool logo can be read from the front). This design ensures the pump does not run dry.

3D technical illustration of a mechanical assembly with mounting base and internal components (no text or symbols)

Do not use tools. Tighten only by hand!

AMD TR4

- Select the appropriate bracket and screws.

M4 M3.5 5 mm

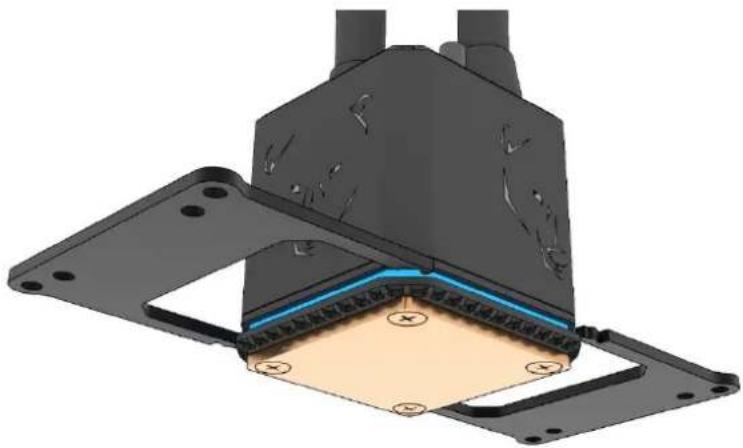

- Plug the bracket together as shown.

3D CAD rendering of a mechanical assembly with mounting flanges and a central component (no visible text or symbols)

Simple diagram with a curved white line inside a black rectangular frame, enclosed in a red border (no text or symbols)

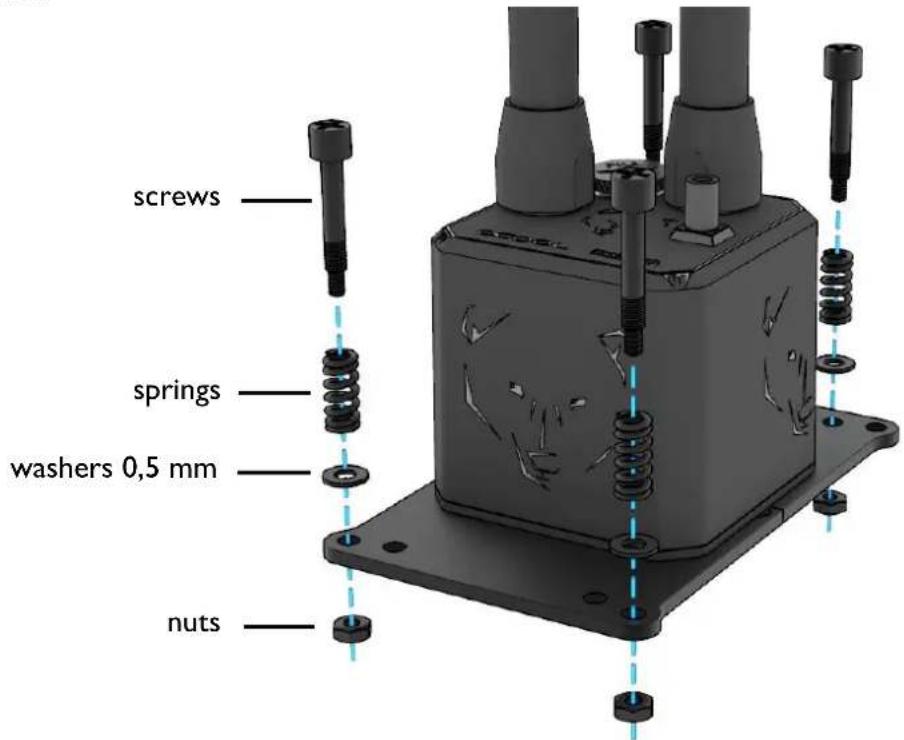

- Slide the compression springs and washers onto the screws and fix them to the bracket with nuts.

screws springs washers 0,5 mm nuts

Three-step diagram showing a microchip with a yellow patch, a black pen inserted into a square base, and a blue tool inserted into a chip (no text or symbols)

• Remove any remaining thermal paste from the CPU.
• Apply a pea-sized blob of thermal paste to the center of the CPU.
• Spread the paste using a spatula, or similar to an even, thin layer (< 0.5 mm layer thickness).

- Remove the protective film from the cooling plate.

3D illustration of a cube with a rectangular top and decorative cutouts, showing a rotating arrow and plus signs (no text or symbols)

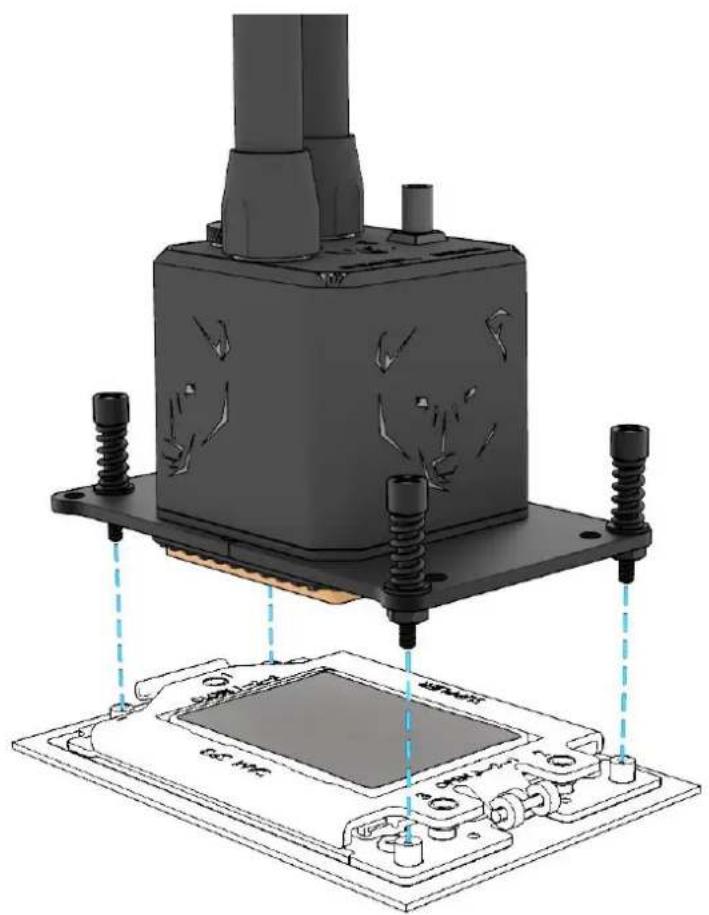

• Attach the cooler to the socket as shown. Tighten the screws crosswise, hand-tight.
• Make sure that the window is facing upwards (or that the Alphacool logo can be read from the front). This design ensures that the pump does not run dry.

Technical illustration of a mechanical assembly with mounting base and internal components, no visible text or symbols

Do not use tools. Tighten only by hand!

CONNECTING PUMP

- Connect the pump's 3 - pin connector to the supplied Digital - RGB Controller.

Digital - RGB Lighting (see pp. 40f.) power supply pump (3 - Pin)

- If you do not want to use the controller, you can also connect the pump directly to your mainboard.

Technical line drawing of a mechanical assembly with a black component and blue arrow indicating a process (no text or symbols)

INITIAL START-UP

If your Eisbaer AiO is unusually loud during initial operation, tipping the entirePC case back and forth a little can help. The higher volume level of the pump occurs due to air bubbles in the closed system. These bubbles form during transport or due to movement during installation.

Double-check that the radiator is mounted above the water block. This setup helps de- aerate the system. After around 12 hours of operation any air in the system should be eliminated and the pump should run quietly as usual.

USING QUICK RELEASE CONNECTORS

The pre-installed quick-release fastener offers the possibility of expanding the Eisbaer loop quickly and easily. The connector is compatible with many other products from our range.

Attention: 2 -3 drops of water can escape when unscrewing the quick release mechanism –This is normal.

WATER OUTLET OPEN COOL WATER INLET

FILLING UP COOLANT

The Eisbaer All-in-One is prefilled and normally it is not necessary to top up the coolant. If you want to expand your circuit, e.g. with a GPX Eiswolf graphics card cooler, it is advisable to check the water level. If the pump is running unusually loud, liquid should be topped up urgently. We only recommend clear coolants from our own production (CKC or Eiswasser Crystal -no UV!) or pure distilled or osmosis filtered water.

A fillport on the cooler is provided for filling. We recommend using a funnel or a filling bottle:

CKC CNC Fuel Tank OCOL Propane / 100% Propane www.2024-003.com

EXPANDING LOOP USING THE GPX EISWOLF

• Switch off the PC.
• Loosen the quick release connector (attention, 1-2 drops of water may leak).
• Insert your graphics card with Eiswolf cooler according to the manual.
• Connect the Eisbaer outlet to the Eiswolf inlet.
• Combine the radiators to a closed circuit.
• Top up coolant if necessary.

→ Use only clear coolants from our own production (CKC or Eiswasser Crystal – no UV!) or pure distilled or osmosis filtered water.

Technical diagram of a GPU cable connector assembly with DCOOL and GPX Pro labels (no readable text or symbols beyond labels)

MOUNTING EXAMPLE

FRANÇAIS

INSTRUCTIONS DE SECURITE

LISEZ LES INSTRUCTIONS DE SECURITE AVANT DE COMMENCER L'INSTALLATION.

Filetages: 3x GI/4" (IN, OUT, FILL)

Contenance: 41 ml

Éclairage: Digital - RGB

Tension d'alimentation: 5V

Technical line drawing of a mechanical impeller or fan component (no text or symbols)

Technical diagram of a heat exchanger or radiator component with two circular ports and internal grid structure (no text or symbols)

ST30 240

Dimensions: 278 mm × 124 mm × 30 mm

ST30 280

Dimensions: 316 mm x 144 mm x 30 mm

ST30 360

Dimensions: 397 mm × 124 mm × 30 mm

ST30 420

Dimensions: 459 mm x 144 mm x 30 mm

VENTILATEURS

Eiszyklon Aurora LUX PRO Digital RGB

Line drawing of a mechanical fan with multiple blades and mounting feet (no text or symbols)

RACCORDS RAPIDES Compatibilité: 13/10 mm tuyaux

Matériel: Nylon

91,70 26,50 OPEN OCOOL 16,00

Ø14,00

MONTAGE DE RADIATEUR

VENTILATEURS POUSSER M3 x 5 M3 x 30

VENTILATEURS POMPER

M3 x 30

BRANCHER LES VENTILATEURS

3D mechanical component with blue and beige highlighted sections, shown alongside a close-up of its cross-section (no text or symbols)

Three-step diagram showing a microchip with a yellow tape, a black pen inserted into a slot, and a blue tool inserted into a gray chip (no text or symbols)

3D illustration of a cube with decorative patterns and a curved arrow indicating rotation (no text or symbols)

3D mechanical component with four mounting holes and a central square frame, showing rotational motion arrows (no text or symbols)

Cross-sectional view of a mechanical component with four symmetric arms and central square (no text or symbols)

3D diagram of a mechanical assembly with springs and a central component, no visible text or symbols

3D rendering of a mechanical component with mounting brackets and a blue highlighted section (no text or symbols)

Simple diagram with a curved white line inside a black rectangular frame, no text or symbols present.

Three-step diagram showing a microchip with a gold sheet, a black pen inserted vertically, and a blue tool inserted into a gray chip (no text or symbols)

3D illustration of a cube with a curved top surface and directional arrows indicating rotation (no text or symbols)

3D technical illustration of a mechanical component with mounting base and mounting holes (no text or symbols)

N'utilisez pasd'outils. Serrezqu'à la main!

3D CAD rendering of a mechanical assembly with mounting flanges and a central component (no text or symbols visible)

Simple diagram with a curved white line inside a black rectangular frame, enclosed in a red border (no text or symbols)

Three-step diagram showing a microchip with a gold sheet, a black pen inserted into a slot, and a blue tool inserted into a gray chip (no text or symbols)

3D diagram of a cube with internal components and directional arrows, no text or symbols present

3D diagram of a mechanical assembly with labeled components, showing internal components and mounting base (no text or symbols)

3D rendering of a mechanical component with mounting flanges and a blue highlighted section (no text or symbols)

Simple diagram with a curved white line inside a black rectangular frame, no text or symbols present.

Three-step diagram showing a microchip with a yellow patch, a black pen inserted into a square base, and a blue tool inserted into a gray substrate (no text or symbols)

3D illustration of a cube with decorative patterns and a curved arrow indicating rotation (no text or symbols)

Exploded view diagram of a mechanical assembly with no visible text or symbols

3D CAD rendering of a mechanical assembly with mounting flanges and a central component (no visible text or symbols)

Simple diagram with a curved white line inside a black rectangular frame, enclosed in a red border (no text or symbols)

Three electronic components: a gold-colored plastic sheet, a black pen inserted into a square base, and a blue tool inserted into a gray substrate (no text or symbols visible)

3D illustration of a cube with decorative patterns and a curved arrow indicating rotation (no text or symbols)

3D diagram of a device with mounting base and internal components, showing assembly steps (no text or symbols)

Technical line drawing of a mechanical assembly with a black component and blue arrow indicating a process (no text or symbols)

MISE EN SERVICE

Technical diagram of a GPU connector with DCool and GPX Pro modules, no readable text or symbols present

EXEMPLE DE MONTAGE

OCOOL
