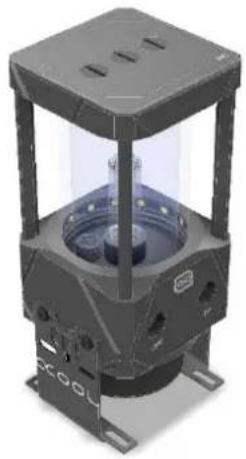

USER MANUAL Eisbecher Aurora D5 150mm Acetal/Glas Alphacool

3D rendering of a cylindrical industrial device with transparent casing and mounting base (no visible text or symbols)

3D rendering of a mechanical device with transparent casing and mounting base (no visible text or symbols)

Eisbecher 2 Aurora Glas Alphacool International GmbH

V. 5.00-02.2021

Deutsch....

Safety Instructions....10

Assembly material 10

Assembly Eisbecher 2 Aurora Glas....11

Tower assembly: 12

Radiator assembly:....13

Connection options:....14

aRGB Connection: 15

Français 16

Alphacool International GmbH Eisbecher 2 Aurora Glas

3D mechanical assembly diagram showing a vertical cylindrical component with mounting brackets and internal components (no text or symbols)

3D mechanical assembly diagram showing a central housing with mounting brackets and structural elements (no text or symbols)

Exploded view diagram of a mechanical device showing internal components and assembly (no text or labels)

Diagram of a cylindrical device with internal components and directional arrows indicating flow or movement (no text or symbols)

Eisbecher 2 Aurora Glas Alphacool International GmbH

Four identical black cylindrical electronic devices with transparent glass bases and mounting feet, shown from different angles (no text or symbols visible)

Close-up of a mechanical component with a red pinout and mounting holes (no visible text or symbols)

Towermontage:

Two identical 3D mechanical device diagrams with mounting brackets and control knobs, shown from different angles (no text or symbols visible)

Read the safety instructions before starting the installation.

Assembly material

4x M3x5

12x M4x8

4x M4x12

4x M4

2x Fan bracket

The 140mm riser pipe is only included in the Eisbecher Aurora 250mm.

1x riser pipe 140mm

2x 120 Fan bracket

3x Screw plug

Ix Allen key

Ix Screw plug - Tool

2x Stand Bracket

lx pump mounting

Ix O-Ring 53×3,5

Ix Digital RGB adapter

Alphacool International GmbH Eisbecher 2 Aurora Glas English

Assembly Eisbecher 2 Aurora Glas

Bracket assembly:

3D mechanical assembly diagram showing a vertical cylindrical component with mounting brackets and internal components (no text or symbols)

3D mechanical assembly diagram showing a frame-like structure with mounting brackets and internal components (no text or symbols)

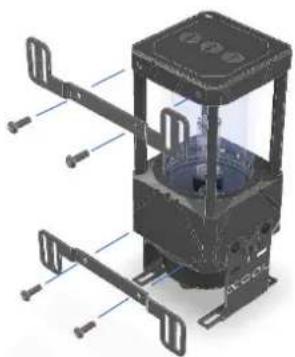

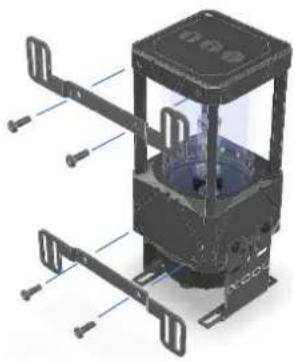

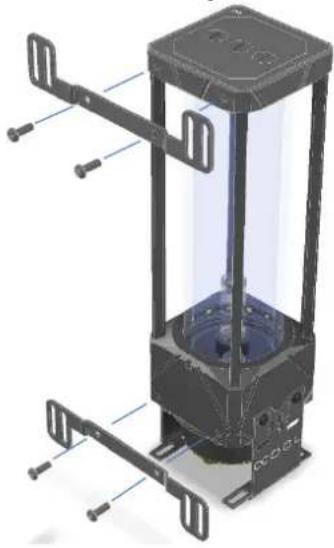

To mount the expansion tank, first screw the brackets to the mounting brackets with the four M4x12 screws. You can then attach the system to any 120mm or 140mm fan and radiator space.

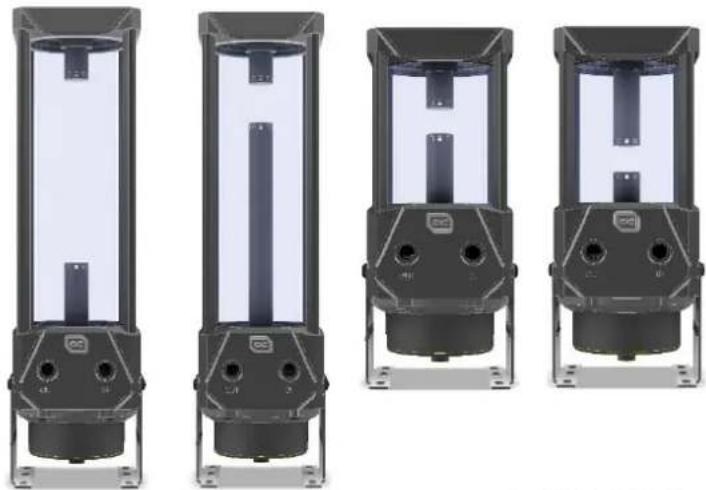

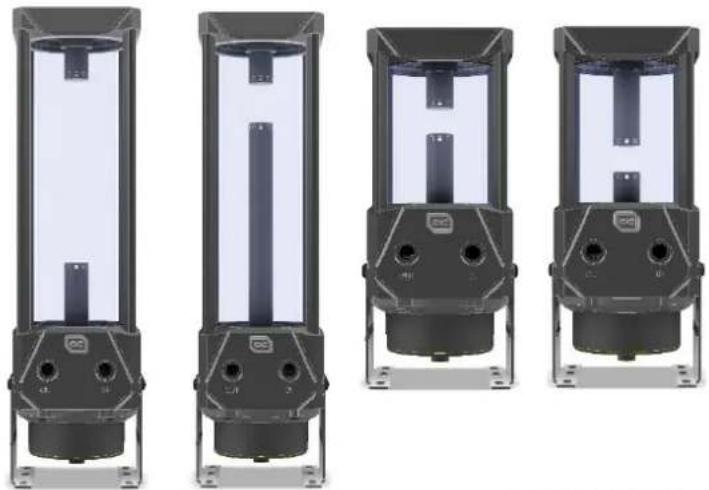

Rising pipe positions:

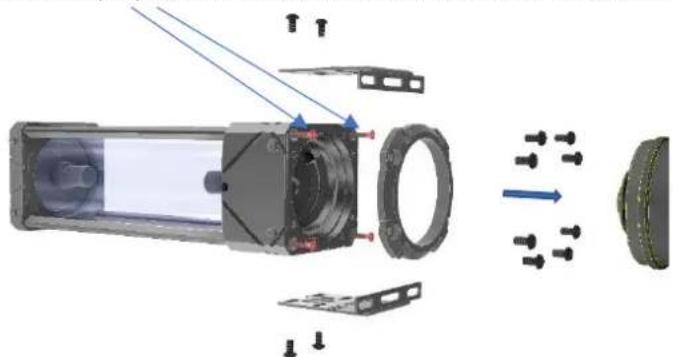

Remove the pump and stand bracket, unscrew the holder screws marked in red.

Exploded view diagram of a mechanical device showing internal components and assembly (no text or labels)

Carefully pull out the cover with linkage and then the glass tube. Replace the desired riser tube. The riser tube is plugged in.

Diagram of a cylindrical device with internal components and directional arrows indicating flow or movement (no text or symbols)

English Eisbecher 2 Aurora Glas Alphacool International GmbH

Four identical black cylindrical electronic devices with transparent casing and mounting base, shown from different angles (no text or symbols visible)

Inlay Position:

Make sure that the filter with the inlay is always positioned on the top left. Only in this position is the water flow guaranteed.

Close-up of a mechanical component with a red pinout and mounting holes (no visible text or symbols)

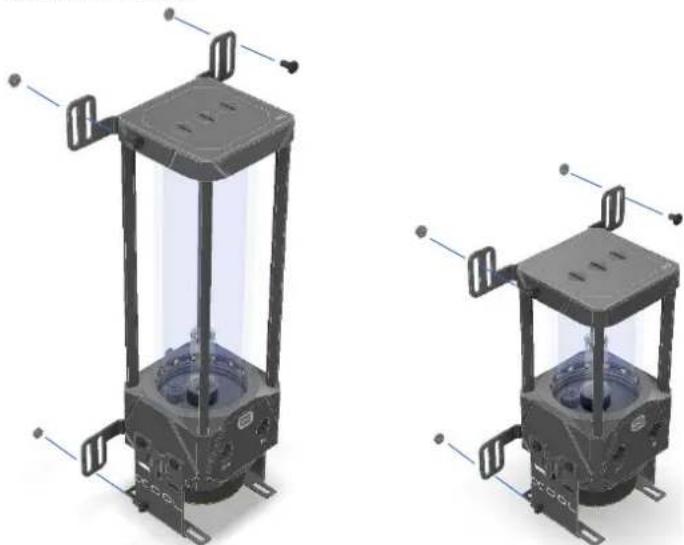

Tower assembly:

Two identical 3D mechanical components with transparent chambers and mounting brackets, shown from different angles (no text or symbols visible)

Use the four M4x8 screws in conjunction with the M4 nuts. Depending on the enclosure type, there are further fastening options.

Alphacool International GmbH Eisbecher 2 Aurora Glas English

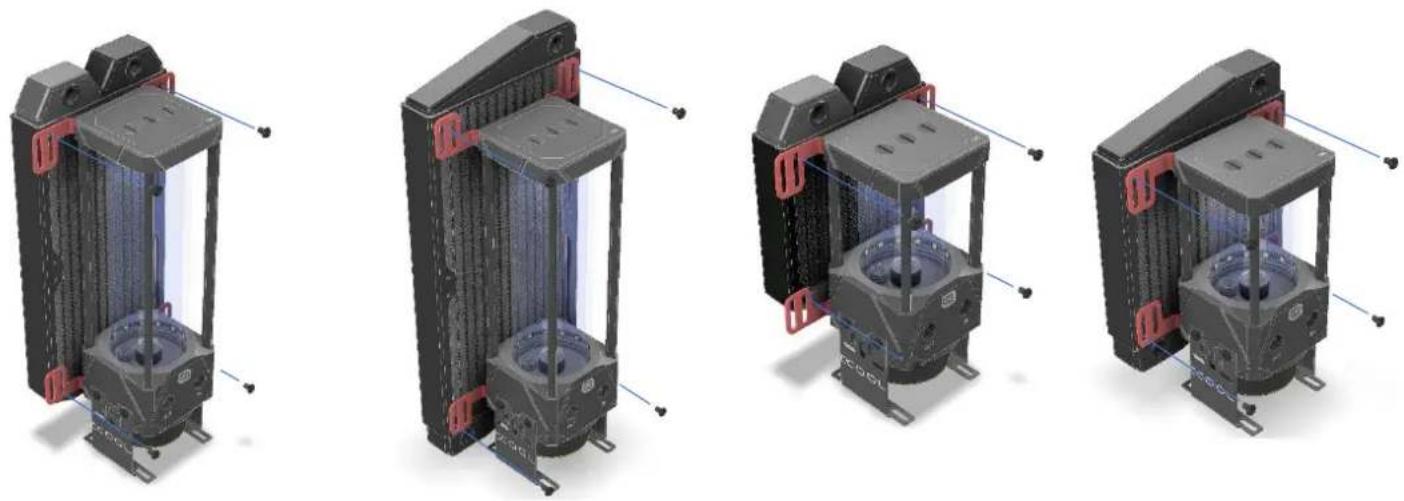

Radiator assembly:

Use the four M3x5 screws for mounting the radiator.

Note: That depending on the radiator size, as in the example 240-30 and 280-30 X-

Flow, the bracket must be rotated.

Radiator example: 120-30 and 140-30 X-Flow. In this example, the holders do not need to be rotated.

Eisbecher 2 Aurora Glas Alphacool International GmbH

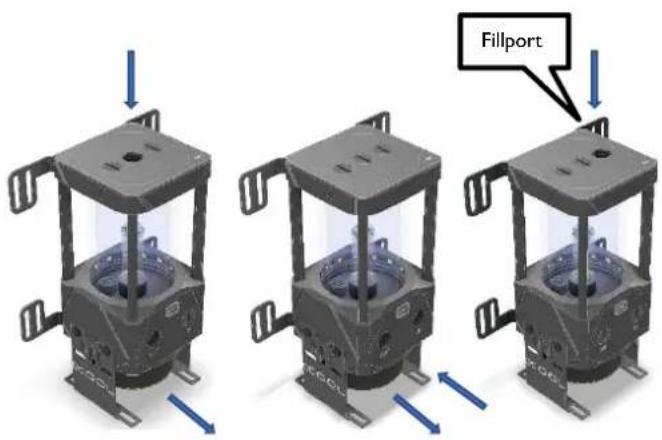

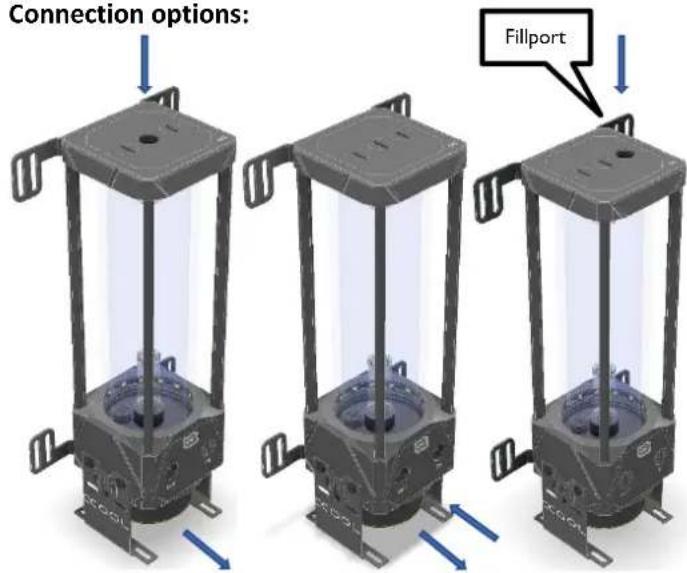

Connection options: Fillport

Connect the tubing to the Reservoir as you wish.
The examples show some possibilities. Close all openings that you do not need with the screw plug.

Fillport

We recommend only clear cooling liquids from our own production (CKC, Tec Protect or Eiswasser Crystal - no UV") or pure distilled or osmosis filtered water for refilling.

Alphacool International GmbH

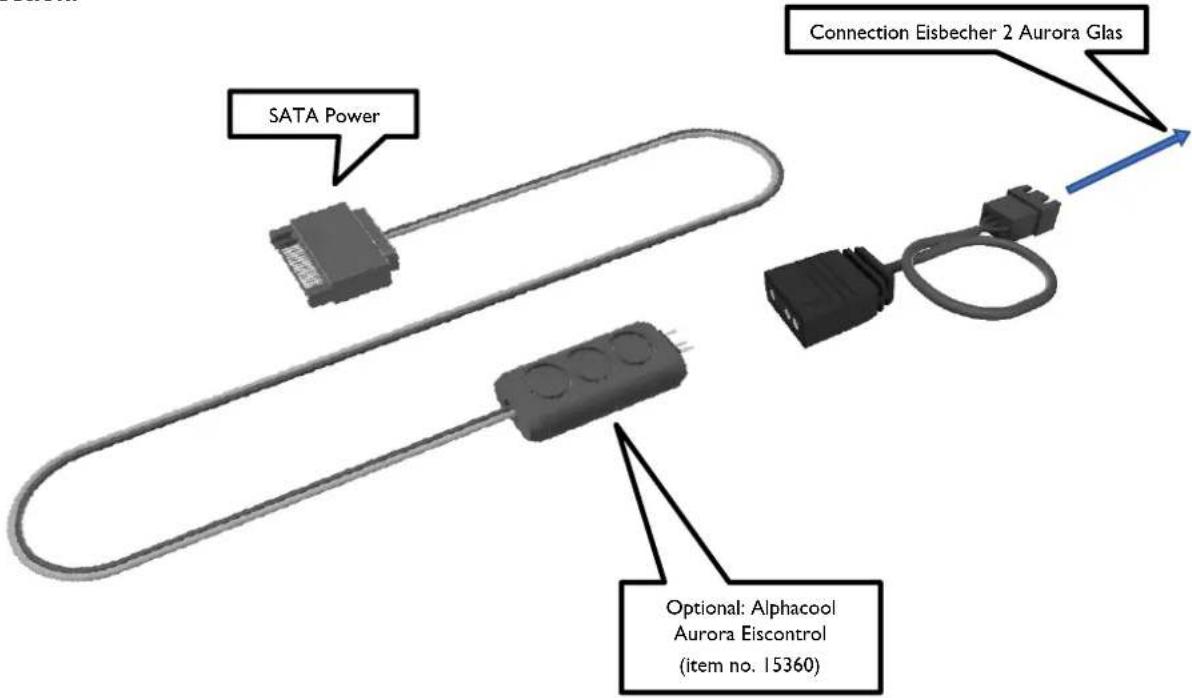

aRGB Connection:

Eisbecher 2 Aurora Glas

SATA Power Connection Eisbecher 2 Aurora Glas Optional: Alphacool Aurora Eiscontrol (item no. 15360)

Français Eisbecher 2 Aurora Glas Alphacool International GmbH

Français

3D mechanical assembly diagram showing a cylindrical device with mounting brackets and internal components (no text or symbols)

3D mechanical assembly diagram showing a cylindrical housing with mounting brackets and internal components (no text or symbols)

Exploded view diagram of a device showing internal components and assembly (no text or labels)

Diagram of a cylindrical device with internal components and directional arrows indicating flow or movement (no text or symbols)

Français Eisbecher 2 Aurora Glas Alphacool International GmbH

Four identical black cylindrical electronic devices with transparent casing and mounting base, shown from different angles (no text or symbols visible)

Close-up of a mechanical component with a red pinout and mounting holes (no visible text or symbols)

Two identical 3D mechanical or electrical enclosure units with mounting brackets and wiring (no visible text or symbols)
