USER MANUAL RCWK-10L-AUT Royal Catering

Abstract white line drawing of a mythical creature on a blue background (no text or symbols)

DE	Produktname	WASSERBOILER MIT AUTOMATISCHER BEFÜLLUNG 10L
EN	Product name	AUTO FILL WATER BOILER 10L
PL	Nazwa produktu	WARNIK DO WODY AUTOMATYCZNY 10L
CZ	Název výrobku	BOJLER NA VODU S AUTOMATICKÝM PLNĚNÍM 10L
FR	Nom du produit	CHAUFFE-EAU A REMPLISSAGE AUTOMATIQUE 10L
IT	Nome del prodotto	BOILER CON RIEMPIMENTO AUTOMATICO 10L
ES	Nombre del producto	CALDERA DE AGUA CON LLENADO AUTOMÁTICO 10L
HU	Termék neve	FORRÓVÍZ ADAGOLÓ - 10 L
DA	Produktnavn	VARMTVANDSDISPENSER - 10 L - VANDTILSLUTNING
FI	Tuotteen nimi	KUUMAVESIANNOSTELIJA - 10 L - VESILIITÄNTÄ
NL	Productnaam	HEETWATERDISPENSER - 10 L - WATERAANSLUITING
NO	Produktnavn	VARMTVANNSDISPENSER - 10 L - VANNTILKOBLING
SV	Produktnamn	VARMVATTENDISPENSER - 10 L - VATTENANSLUTNING
PT	Nome do produto	CHALEIRA DE ÁGUA QUENTE - 10 L - LIGAÇÃO DE ÁGUA
SK	Názov produktu	VARNÝ TERMOS - 10 L - PRÍPOJKA VODY
DE	Modell	RCWK-10L-AUT
EN	Product model
PL	Model produktu
CZ	Model výrobku
FR	Modèle
IT	Modello
ES	Modelo
HU	Modell
DA	Model
FI	Tuotteen malli
NL	Productmodel
NO	Produktmodell
SV	Produktmodell
PT	Modelo do produto
SK	Model
DE	Hersteller	expondo Polska sp. z o.o. sp. k.
EN	Manufacturer
PL	Producent
CZ	Výrobce
FR	Fabricant
IT	Produttore
ES	Fabricante
HU	Termelő
DA	Producent
FI	Valmistaja
NL	Producent
NO	Produsent
SV	Tillverkare
PT	Fabricante
SK	Výrobca
DE	Anschrift des Herstellers	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
EN	Manufacturer Address
PL	Adres producenta
CZ	Adresa výrobce
FR	Adresse du fabricant
IT	Indirizzo del produttore
ES	Dirección del fabricante
HU	A gyártó címe
DA	Producentens adresse
FI	Valmistajan osoite
NL	Adres producent
NO	Produsentens adresse
SV	Tillverkarens adress
PT	Endereço do fabricante
SK	Adresa výrobcu

POWER HEATING 100°C KEEP WARM WATER LEVEL ON/OFF RESERVATION TRANSFORMATION

Kontrolllampen:

POWER - Stromanzeige.

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Auto Fill Water Boiler 10l
Model	RCWK-10L-AUT
Supply voltage [V~] / frequency [Hz]	230/50
Rated power [W].	3000
Water efficiency [l/h]	30
Maximum inlet water pressure [MPa]	0.4
Temperature range[°C]	Up to 100
Dimensions (width x depth x height) [mm]	370 x 185 x 580
Weight [kg]	5.6

1. General Description

The manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK.

To ensure the long and reliable operation of the device, make sure to operate and maintain it properly following the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE !

The product complies with applicable safety standards.

Read the manual before use.

Recyclable product.

CAUTION! or WARNING! or REMEMBER! A general warning sign that describes a given situation.

CAUTION! Warning of electric shock!

Caution! Hot surface can cause burns!

For indoor use only.

CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

2. Safety of use

CAUTION! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury or death.

The term "device" or "product" in the warnings and the description of the instructions refers to Auto Fill Water Boiler 10l

2.1. Electrical safety

a) The plug of this device must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.
b) Avoid touching grounded parts, such as pipes, heaters, ovens, and refrigerators. There is an increased risk of electric shock if your body is grounded and touches the device while exposed to direct rain, wet pavement, or while working in a damp environment. If water enters the device, there is an increased risk of damage to the unit and electric shock.
c) Do not touch the device with wet or damp hands.
d) Do not use the cord in an unintended manner. Never use it to carry the device or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges, or moving parts. Damaged or tangled cords increase the risk of electric shock.
e) If you cannot avoid using the product in a wet environment, use a residual current device (RCD) to connect it to electrical mains. Using an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.
g) To avoid electric shock, do not immerse the cable, plug, or the device itself in water or other liquid. Do not use the product on wet surfaces.

2.2. Safety in the workplace

a) Keep the work area tidy and well-lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the device.
b) If you find any damage or irregularities in the operation of the product, immediately turn it off and report it to an authorized person.
c) Repairs to the device may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own!
d) In the event of ignition or fire, use only powder or snow (CO2) fire extinguishers to suppress the live device.
e) Keep this manual for future reference. If the product is to be handed over to a third party, hand it over with this user manual.

f) Keep the device away from children and animals.
g) When using this product together with other devices, also follow the other instructions for use.

Remember! Keep children and other bystanders safe while operating the appliance.

2.3. Personal safety

a) Do not operate this device if you are tired, ill, or under the influence of alcohol, drugs, or medication that could impair your ability to operate the device.
b) The device is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the device.
c) To prevent accidental start-up, make sure the switch is in the off position before connecting to a power source.

d) The product is not a toy. Children should be watched to ensure that they do not play with the product.
e) Do not place your hands or any objects inside the running device!

2.4. Safe use of the device

a) Do not use the device if the ON/OFF switch does not function properly (does not turn on and off). Units that cannot be controlled by the switch are unsafe, cannot operate, and must be repaired.
b) Disconnect the device from the power supply before adjusting, cleaning, or servicing. This precaution reduces the risk of accidental start-up.
c) Keep unused product out of the reach of children and anyone unfamiliar with the device or this manual. Products are dangerous when used by inexperienced users.
d) Keep the product in good working order. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, return the device for repair before use.
e) Keep the product out of the reach of children.
f) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
g) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws.
h) Do not move, shift, or rotate the device while in operation.
i) Clean the device regularly to prevent permanent dirt build-up.
j) The product is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
k) Do not start up an empty unit.
I) Do not tamper with the device to alter its performance or design.
m) Keep the unit away from sources of fire and heat.
n) Do not overload the device.
o) Do not block the ventilation openings of the unit!

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. Caution and common sense are advised when using the product.

3. Instructions for use

The device is designed only for heating and maintaining the set water temperature.

The user is responsible for any damage resulting from misuse.

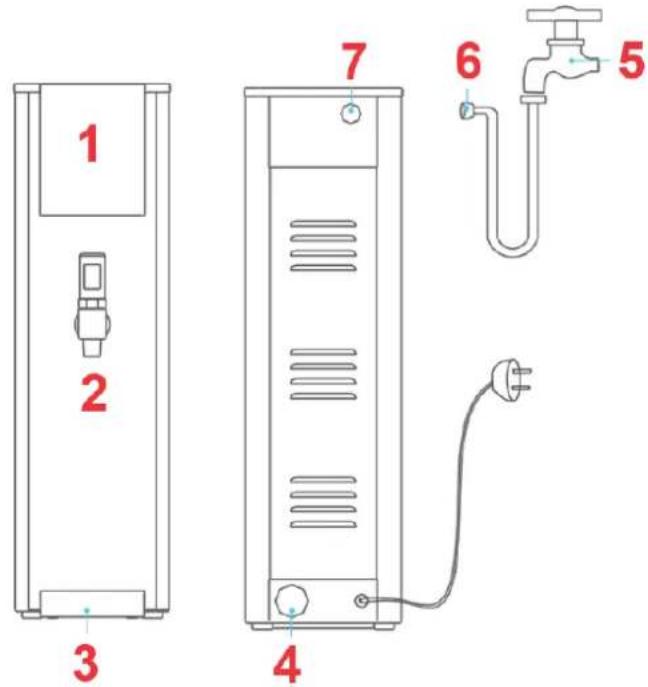

3.1. Product overview

1 2 3 4 7 6 5

1 - Control panel
2 - Tap
3 - Water tray
4 - Water outlet
5 - Supply tap
6 - Water inlet tube
7 - Water inlet

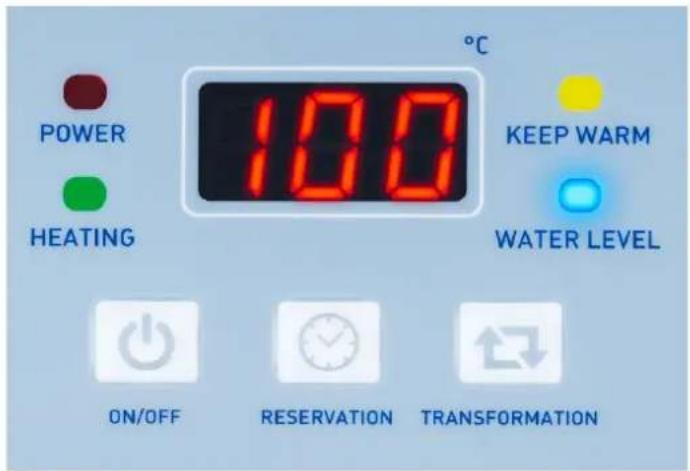

Control panel:

POWER HEATING 100°C KEEP WARM WATER LEVEL ON/OFF RESERVATION TRANSFORMATION

Indicator lights:

POWER - Power indicator.

HEATING - Water heating indicator.

KEEP WARM - The water has reached the set temperature; temperature maintenance mode.

WATER LEVEL - The water level in the unit is correct.

If any of the lights are blinking, there is a malfunction of the device.

Buttons:

ON/OFF - the main switch of the device

RESERVATION - Device operation time on / off button.

TRANSFORMATION - Button to change the display mode: the display shows temperature or time.

3.2. Preparation for operation

POSITIONING OF THE UNIT

The ambient temperature must not exceed 40^ C and ambient humidity should not exceed 85%. Place the unit in a way that ensures good air circulation. Maintain a minimum clearance of 10 cm from any wall of the unit. Keep the unit away from any hot surfaces. Always operate the unit on a level, stable, clean, fireproof, and dry surface and out of the reach of children and persons with impaired mental, sensory, and intellectual functions. Place the unit in such a way that the main plug can be reached at any time. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

Before using the unit for the first time, disassemble all parts and wash them as well as the entire unit.

3.3. Installation of the unit

1) Place the water tray on the bottom.
2) Screw one end of the inlet tube into the water inlet on the back of the device.
3) The other end of the inlet pipe should be screwed to a water source or tap with a threaded hole.
4) Open the water supply.
5) Connect the unit to the power supply.

3.4. Working with the device

Temperature setting

1) When using for the first time, press the ON/OFF button for 5 seconds, when "HP" is displayed, the originally set temperature of the dispenser will be displayed immediately.
2) Hold the ON/OFF button for 5 seconds to turn off the device. Gently press the ON/OFF button to turn on the device.
3) When "HP" appears on the screen, press the RESERVATION button to increase the temperature, press the TRANSFORMATION button to decrease the temperature.

Time setting

Example: 7:30:

1) Press the ON/OFF button for 3 seconds until the display shows "RE".
2) Use the RESERVATION or TRANSFORMATION button to set the value to 7.
3) Press the ON / OFF button to set the minutes value. Use the RESERVATION or TRANSFORMATION button to set the value to 30.
4) Press the ON/OFF button or wait 20 seconds to confirm the setting.

Setting the on/off time of the device

Example: Set the power on time at 8:30 a.m. / power off time at 10:30 p.m.:

1) Press the ON/OFF button for 3 seconds until the display shows " IHO".
2) Use the BOOKING or TRANSFORMATION button to set the value 8.
3) Press the ON/OFF button until the display shows "150", then set the value to 30 using the RESERVATION or TRANSFORMATION button.

Setting the power off time in the evening at 10:30 p.m.

4) Press the ON/OFF button until the display shows "IHF", and then set the value to 22 using the BOOKING or TRANSFORMATION button.
5) Press the ON/OFF button until the display shows "INF", then set the value to 30 using the RESERVATION or TRANSFORMATION button.

6) Press the ON/OFF button or wait 20 seconds to confirm the setting.

3.5. Cleaning and maintenance

a) Pull the mains plug and let the unit cool down completely before cleaning, adjusting or replacing accessories and when the unit is not in use.
b) Use only non-corrosive cleaning agents for cleaning the surfaces.
c) Only mild detergents designed for cleaning food contact surfaces may be used to clean the unit.
d) After each cleaning, all parts should be thoroughly dried before the device is reused.
e) Store the unit in a dry and cool place protected from moisture and direct sunlight.
f) Do not spray the unit with a stream of water or immerse it in water.
g) Perform regular inspections of the unit checking technical fitness and any damages.
h) Use a soft, damp cloth for cleaning.
i) Do not use sharp and/or metal objects (e.g. wire brush or metal spatula) as they may damage the surface of the material from which the appliance is made.
j) Do not clean the unit with acidic substances, medical agents, thinners, fuel, oils, or other chemicals. It may cause damage to the device.

DISPOSAL OF USED UNITS.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions, or packaging. The materials used in this appliance are recyclable according to their marking. By reusing, recycling, or applying other forms of use of waste machines, you make a significant contribution to the protection of our environment.

Your local administration will provide you with information about the appropriate disposal point for used appliances.

TROUBLESHOOTING:

Problem	Possible cause	Action
Red indicator light off. No information is displayed.	The power supply has been disconnected or there is no water.	Check the power supply.
The green light is on, but there is no water.	No water supply, low water pressure. The valve is defective or out of phase.	Repair the water supply and increase the pressure. Check the voltage and replace the valve.
The green light is on, but the temperature is not displayed.	Defective heating element.	Replace the heating element.
The yellow light is on, but the device still does not heat up, producing a lot of steam.	Temperature sensor short circuit.	Replace the temperature sensor.
The green light is off, but water is flowing from the lower overflow.	The solenoid valve is blocked by foreign objects, the water pressure is too high.	Clean the solenoid valve of debris, close the water inlet valve or install a pressure reducing valve.

POWER HEATING 100°C KEEP WARM WATER LEVEL ON/OFF RESERVATION TRANSFORMATION

Lampki kontrolne:

POWER – Kontrolka zasilania.

HEATING – Kontrolka grzania wody.

ROZWIĄZYWANIE PROBLEMÓW:

POWER HEATING 100°C KEEP WARM WATER LEVEL ON/OFF RESERVATION TRANSFORMATION

Kontrolky:

POWER HEATING 100°C KEEP WARM WATER LEVEL ON/OFF RESERVATION TRANSFORMATION

Témoins lumineux :

POWER HEATING 100°C KEEP WARM WATER LEVEL ON/OFF RESERVATION TRANSFORMATION

Spie luminose:

POWER HEATING 100°C KEEP WARM WATER LEVEL ON/OFF RESERVATION TRANSFORMATION

Pilotos:

POWER HEATING 100°C KEEP WARM WATER LEVEL ON/OFF RESERVATION TRANSFORMATION

Jelzőlámpák:

POWER HEATING 100°C KEEP WARM WATER LEVEL ON/OFF RESERVATION TRANSFORMATION

Kontrollamper:

POWER - Strømindikator.

OPVARMNING - Indikator for vandopvarmning.

APPARATETS PLACERING

POWER HEATING 100°C KEEP WARM WATER LEVEL ON/OFF RESERVATION TRANSFORMATION

Merkkivalot:

POWER HEATING 100°C KEEP WARM WATER LEVEL ON/OFF RESERVATION TRANSFORMATION

Indicatie lichten:

POWER - Stroomindicator.

POWER HEATING 100°C KEEP WARM WATER LEVEL ON/OFF RESERVATION TRANSFORMATION

Indikatorlamper:

POWER - Strømindikator.

OPPVARMING - Vannvarmeindikator.

HOLDE VARMT - Vannet har nädd innstilt temperatur; temperaturvedlikeholdsmodus.

VANNIVÅ - Vannstanden i enheten er riktig.

POWER HEATING 100°C KEEP WARM WATER LEVEL ON/OFF RESERVATION TRANSFORMATION

Indikator lampor:

POWER - Strömindikator.

PLACERING AV APPARATEN

POWER HEATING 100°C KEEP WARM WATER LEVEL ON/OFF RESERVATION TRANSFORMATION

Luzes indicadoras:

POTÊNCIA - Indicador de energia.

POWER HEATING 100°C KEEP WARM WATER LEVEL ON/OFF RESERVATION TRANSFORMATION

Kontrolky:

POWER - Indikátor napájania.

For the disposal of the device please consider and act according to the national and local rules and regulations.
