USER MANUAL AIRCLEAN 40G Ulsonix
This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.
Technical data
| Parameter description | Parameter value |
| Product name | OZONE GENERATOR |
| Model | AIRCLEAN 40G |
| Supply voltage [V~] / Frequency [Hz] | 230 / 50 |
| Rated power [W]. | 350 |
| Safety class | I |
| IP class | IPX0 |
| Dimensions [Width x Depth x Height; mm] | 460 x 400 x 840 |
| Weight [kg] | 18.1 |
| Ozonation efficiency [g/h] | Up to 40 |
| Fan capacity [m³/h] | 289 x 2 |
| Area applications [m²] | 75-1200 |
| Ceramic piece | 90 x 110 mm (x4) |
| Remote control battery | CR 2032 |
| Fuse | F3AL 3A 250V |
1. General Description
This manual is intended to assist you for safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.
CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK.
To ensure long and reliable operation of the device, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the
right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way so that risks resulting from noise emissions are reduced to the lowest possible level.
Explanation of symbols
| CE | The product complies with applicable safety standards. |
| Read the manual before use. | |
| Recyclable product. | |
| CAUTION! or WARNING! or REMEMBER! describing a situation (general warning sign). | |
| CAUTION! Risk of electric shock! | |
| Warning against poisoning by toxic substances! | |
| For indoor use only. |
CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.
2. Safety of use
CAUTION! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or death.
The term "device" or "product" in the warnings and in the description of the manual refers to
Ozone Generator
2.1. Electrical safety
a) The plug of this device must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.
b) Avoid touching grounded parts, such as pipes, heaters, ovens, and refrigerators. There is an increased risk of electric shock if your body is grounded and touches the device while exposed to direct rain, wet pavement, or while working in a damp environment. If water enters the device, there is an increased risk of damage to the unit and electric shock.
c) Do not touch the device with wet or damp hands.
d) Do not use the cord in an unintended manner. Never use it to carry the device or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cords increase the risk of electric shock.
e) If you cannot avoid using the product in a wet environment, use a residual current device (RCD) to connect it to electrical mains. Using an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.
g) To avoid electric shock, do not immerse the cable, plug, or the device itself in water or other liquid. Do not use the product on wet surfaces.
h) Do not use the device in rooms with very high humidity / in the immediate vicinity of water tanks!
i) Do not allow the machine to get wet. Risk of electric shock!
2.2. Safety in the workplace
a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the device.
b) If you find any damage or irregularities in the operation of the product, immediately turn it off and report it to an authorized person.
c) If you have any doubts as to whether the product is working properly or if it is damaged, contact the manufacturer's service department.
d) Repairs to the device may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own!
e) In case of open flames or fire, use only dry powder or snow (CO2) fire extinguishers to extinguish the live equipment.
f) No children or unauthorized persons are allowed in the work area. (Inattention may result in loss of control of the unit.)
g) Check the condition of the safety stickers regularly. Replace them if they are illegible.
h) Keep these instructions for use for future reference. If the product is to be handed over to a third party, hand it over with this user manual.
i) Keep the device away from children and animals.
j) The room to be ozonated should be sealed (close the external doors, eliminate leaks in windows, doors, etc.), with mechanical ventilation turned odd and vents covered. If possible, it is recommended to turn on internal ventilation to facilitate the circulation of air in the ozonated room. Open the interior door (e.g. bathroom, wardrobe, etc.) in the ozonated room.
k) It is forbidden for people or animals to stay in the room where the ozonation treatment is carried out. If it is necessary to enter the room, keep the time spent in the room to a minimum and use protective clothing and masks with an appropriate insert.
In the room where the ozone treatment is carried out, it is forbidden to smoke, work with open fire, work with tools that flame or spark, work with oils and greases or leave objects dirty with oil or grease.
m) After turning on the ozonation machine, leave the room immediately.
Remember! Keep children and other bystanders safe while operating the equipment.
2.3. Personal safety
a) Do not operate this device if you are tired, ill or under the influence of alcohol, drugs or medication that could impair your ability to operate the device.
b) The device is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the device.
c) The unit may be operated by persons who are physically fit, capable of operating it and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.
d) Use caution and common sense when operating this unit. A moment's inattention during operation may result in serious personal injury.
e) To prevent accidental start-up, make sure the switch is in the off position before connecting to a power source.
f) The product is not a toy. Children should be watched to ensure that they do not play with the appliance.
2.4. Safe use of the unit
a) Do not use the unit if the ON/OFF switch does not function properly (does not turn on and off). Units that cannot be controlled by the switch are unsafe, cannot operate, and must be repaired.
b) Unplug the unit before making adjustments, changing accessories, or putting it away. This precaution reduces the risk of accidental start-up.
c) Keep unused product out of the reach of children and anyone unfamiliar with the device or this manual. Products are dangerous when used by inexperienced users.
d) Keep the product in good working order. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, have the device repaired before use.
e) Keep the product out of the reach of children.
f) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
g) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws.
h) When transporting or moving the unit from storage to the place of use, observe the health and safety rules for manual handling applicable in the country where the unit is used.
i) Do not move, shift, or rotate the machine while in operation.
j) Clean the device regularly to prevent permanent dirt build-up.
k) Do not obstruct the air inlet or outlet.
I) The product is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
m) Do not tamper with the device to alter its performance or design.
n) Keep the unit away from sources of fire and heat.
o) Do not overload the device.
p) Do not allow persons with impaired sense of smell to operate the unit.
q) Make sure there is enough space around the device before it is turned on
r) Directly inhaling the ozone discharged from the unit's outlets is STRICTLY FORBIDDEN. Short-term inhalation of high ozone concentrations and long-
term inhalation of low ozone concentrations can be dangerous to health and even life!
CAUTION! Although the product has been designed to be safe and has adequate safeguards and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the product. Caution and common sense are advised when using the product.
3. Instructions for use
The device is used to generate ozone from the surrounding air and is used for disinfecting rooms.
The user is responsible for any damage resulting from misuse.

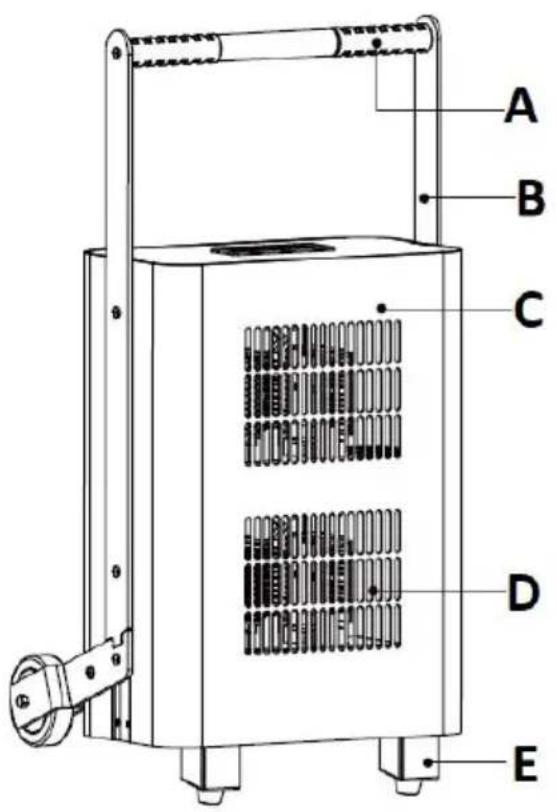

3.1. Product overview
A. Transport handle
B. Crossbar connecting the handle to the housing
C. Casing
D. Outlets
E. Foot
F. Control panel with display
G. Inlet opening
H. Castor
I. Pocket for power cord + fuse holder (inside)
J. Remote control (photo below)
3.2. Preparation for operation
POSITIONING OF THE UNIT
The ambient temperature must not exceed 40^ and ambient humidity should not exceed 85% . Place the unit in the middle of the room in a way that ensures good air circulation. Maintain a minimum clearance of 10cm from any wall of the unit. Keep the unit away from any hot surfaces. Always operate the unit on a level, stable, clean, fireproof and dry surface and out of the reach of children and persons of impaired mental, sensory and intellectual functions. Place the unit in such a way that the mains plug can be reached at any time. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

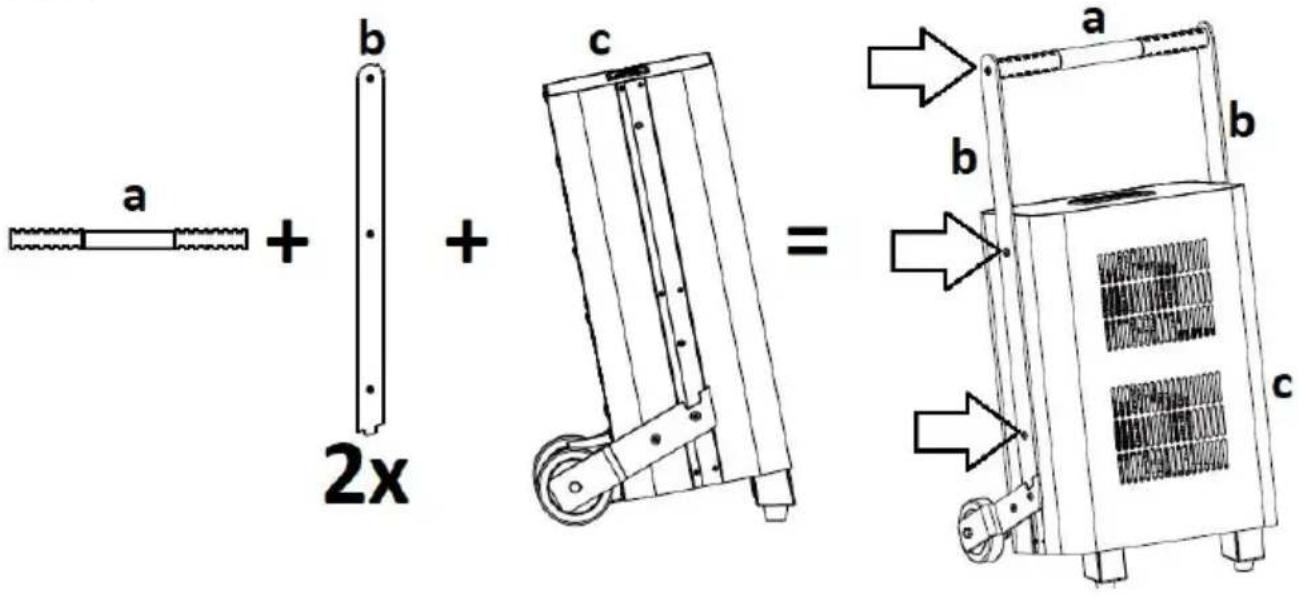

ASSEMBLY OF THE UNIT

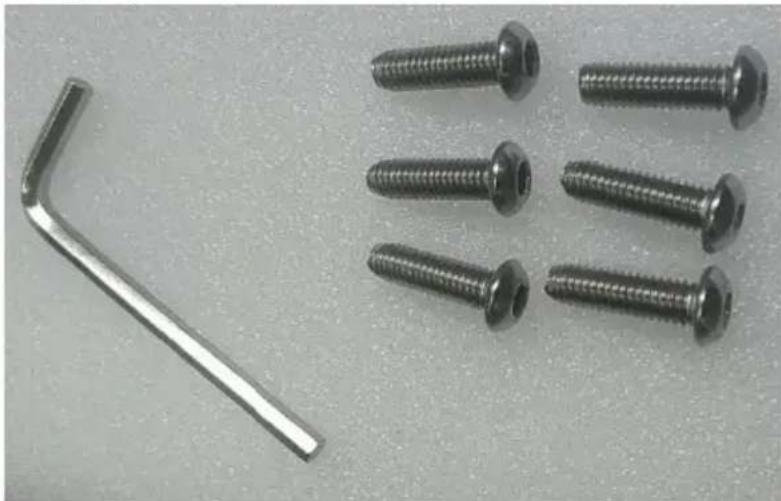

Using the 6 screws and the Allen key (picture above), attach the transport handle (a) with both crossbars (b) to the housing of the device (c) as shown in the diagram below:
3.3. Working with the device

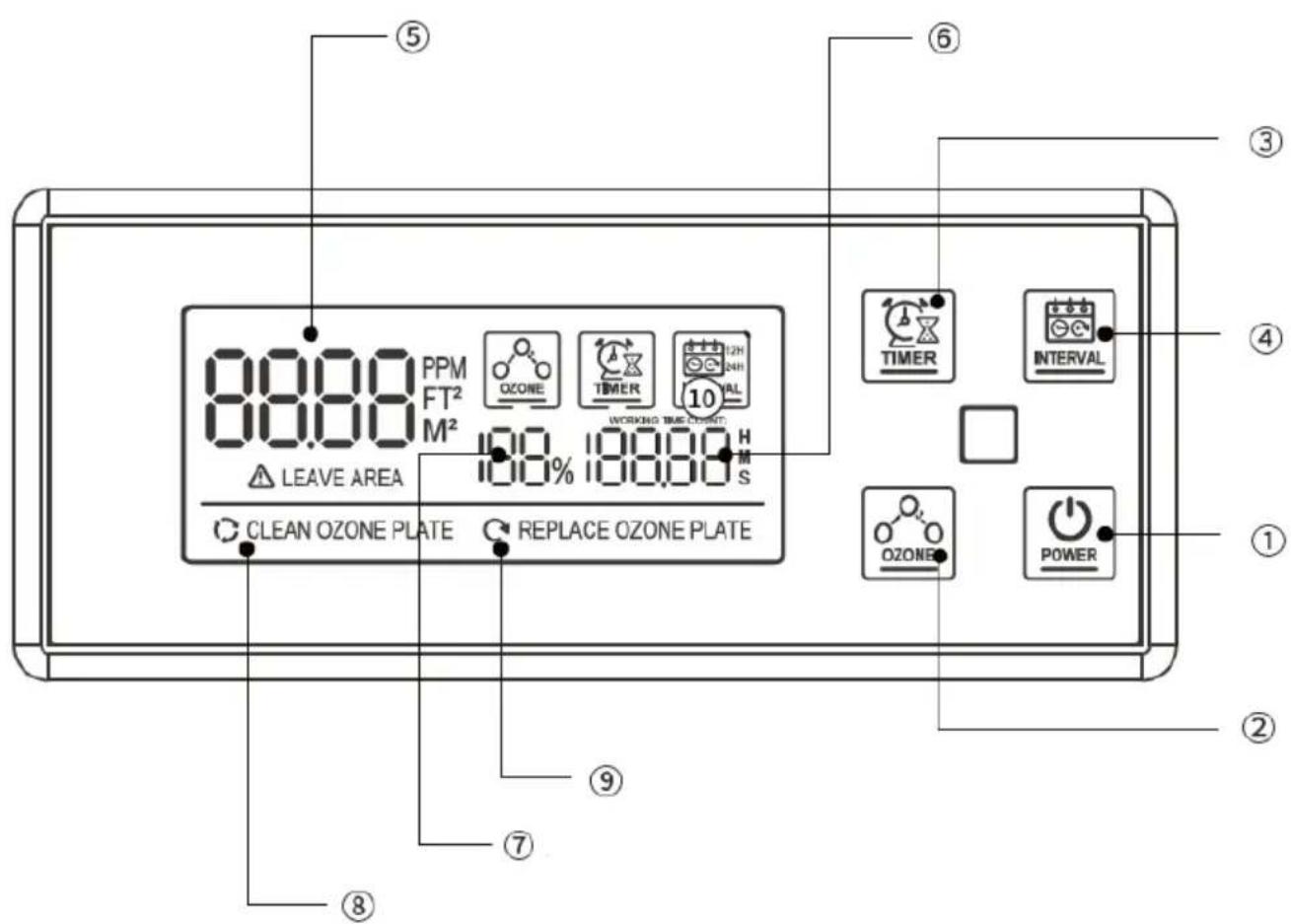

Control panel / remote control:
No. in
the Button name Function
1 POWER
OZONE /
2 OZONE^ or OZONE
Turning the device on/off (when turned on, the device works with the default settings: time to start ozone production: 1 minute; when turned off, the fans run with a 1-minute delay).
Choosing one of the four levels of ozonation efficiency per hour: 25% (10g), 50% (20g), 75% (30g), 100% (40g).
Setting the working time between 15 minutes (MIN)
3 TIMER
- 240 minutes (MAX). Each press of the button increases the operating time by 15 minutes.
4 INTERVAL
Selecting the work cycle to launch at equal intervals, every 12 or 24 hours (the selected work cycle is displayed on the screen - see number 10 in the picture above).
On the display:
No. in
the Name Function
5 Work area
Setting the area of the room for ozonation: 75- 1200m^2
6 Working time
15-240 min.
7 ozone
25% (10g/h), 50% (20g/h), 75% (30g/h), 100% (40g/h).
production
8 you to clean
An indicator
light to remind
you to clean
the ceramic
plates
A light
reminding you
to replace the ceramic plates
Clean the ceramic plates when the message "CLEAN OZONE PLATE" appears on the display.
After cleaning, delete the message with the "OZONE" button.
Replace the ceramic plates when the message "REPLACE OZONE PLATE" appears on the display.
After cleaning, delete the message with the "OZONE" button.
STARTING THE WORK
ATTENTION: before starting the device, make sure that there are no people, animals and plants in the ozonated room.
IMPORTANT: before putting the unit into operation, seal the ozonated room well to prevent ozone from entering adjacent rooms during operation.
- Place the device in its location and then connect its plug to a power outlet. The screen on the control panel will light up.
- Press the "POWER" button (on the device or the remote control) and the device will turn on with the default settings, i.e. 15 minutes and 100% ozone production.
- Press the "OZONE" button to set the desired ozone percentage per hour (see below).
- Press the "TIMER" button to set the operating time of the unit depending on the area of the room (see the table below). Each press of the button increases the operating time by 15 minutes.
- Press the "INTERVAL" button to select a 12 or 24-hour working interval.
After 40-60 minutes from the end of the operation, you can enter the room and open the doors and windows to ventilate it.
| Capacity | 10 g/h | 20 g/h | 30 g/h | 40 g/h |
| Room area [m2] | Working time [min] | Working time [min] | Working time [min] | Working time [min] |
| 75 | 60 | 30 | 20 | 15 |
| 150 | 120 | 60 | 40 | 30 |
| 300 | 240 | 120 | 80 | 60 |
| 450 | - | 180 | 120 | 90 |
| 600 | - | 240 | 160 | 120 |
| 750 | - | - | 200 | 150 |
| 900 | - | - | 240 | 180 |
| 1200 | - | - | - | 240 |
3.4. Cleaning and maintenance
a) Before cleaning, adjustment or replacement of accessories, and when the appliance is not in use, unplug the power cord from the mains and wait for the rotating parts come to a stop.
b) Use only non-corrosive cleaning agents for cleaning the surfaces.
c) Store the unit in a dry and cool place protected from moisture and direct sunlight.
d) Do not spray the unit with a stream of water or immerse it in water.
e) Make sure that no water enters through the ventilation openings in the casing.
f) The ventilation holes and the ceramic plate (its radiator) should be cleaned with a brush and compressed air of a lower pressure.
g) Use a soft cloth for cleaning.
h) Do not use sharp and/or metal objects (e.g. wire brush or metal spatula) for cleaning as they may damage the surface of the appliance material.
i) Do not clean the device with acidic substances, medical products, thinners, fuel, oil or other chemicals as this may damage the device.
3.4.1 REPLACEMENT OF THE CERAMIC PLATE
IMPORTANT: The service life of a single ceramic plate is 6000+ hours of operation. After this time, it is recommended to replace it in order to maintain the best performance of the device. Accessing the ceramic plate in case it needs cleaning is also described below.
a) Unplug the device horizontally on the back wall of the housing, e.g. when placed on a desk, and then unscrew the 8 screws (from A1 to A4) holding the crossbars of the transport handle and the wheels - 4 on each side - as marked in the picture below:

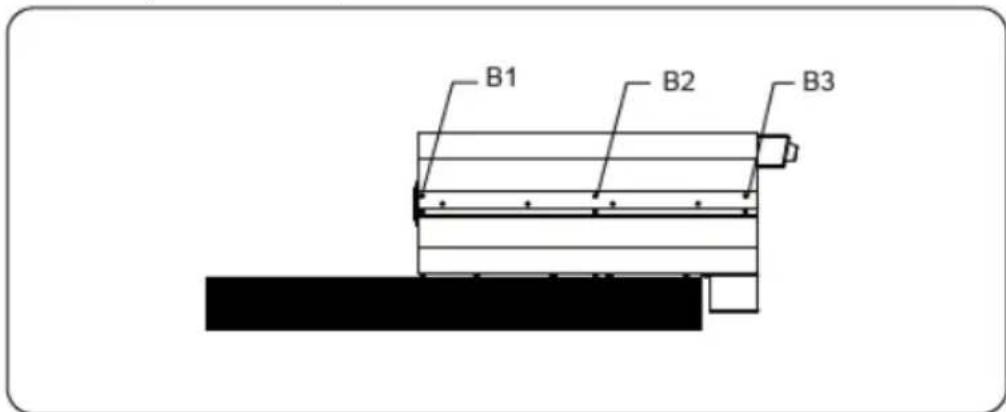

b) Unscrew the screws B1, B2 and B3 (see the picture below) - 3 pcs. on each side, a total of 6 pcs.

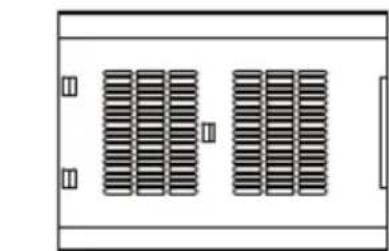

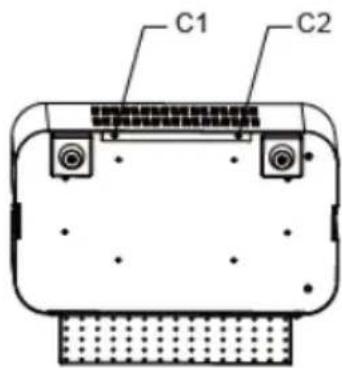

c) At the bottom of the unit, unscrew the screws C1 and C2 and then slide the front panel of the housing downwards and unclip the buckle to remove it completely.

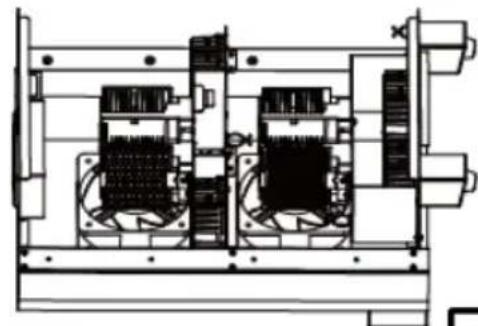

d) After removing the housing panel, locate the ceramic plate inside.

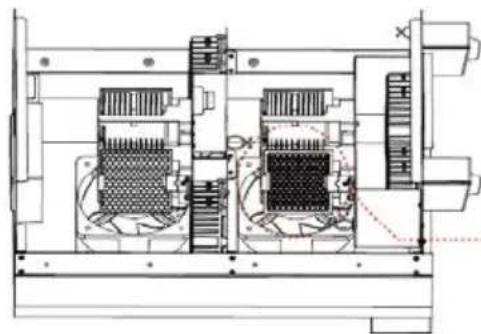

e) Gently move the fixed ceramic plate right and left and it will loosen in the holder, pull it upwards, and attach a new one in its place by pressing it into the socket, rocking it slightly to the right-left until it fully snaps into its holder.
X-radiator
Y - ceramic plate
Z - mounting socket
f) The rest of the assembly is in the reverse order.

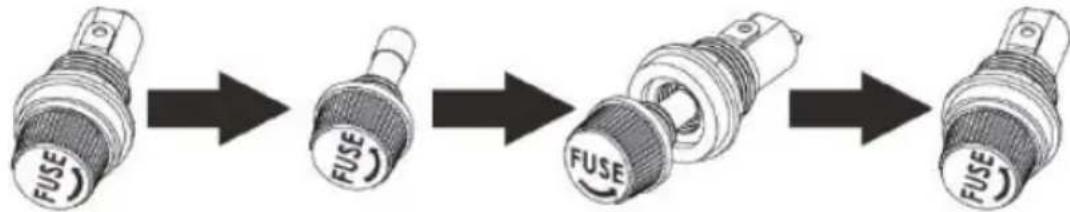

3.4.2 REPLACING THE FUSE
The fuse is located on the back of the device housing in the pocket. To replace the fuse, turn its holder ("FUSE") counterclockwise and remove it with the fuse inside it. Then insert a new one in its place, screw in the whole thing back into its original place in the housing (by turning it clockwise).
3.4.2 TROUBLESHOOTING
| Problem | Possible cause | Solution |
| The device does not start up | The power cord is connected incorrectly or no power in the socket | Check the connection of the power cord and, if necessary, electricity in the power socket |
| Blown fuse | Replace the fuse with a good one. | |
| The unit starts up but produces little ozone | Contaminated ceramic plate(s) | Clean or replace the ceramic plate(s). |
| The unit starts up but produces no ozone. | Worn ceramic plate(s). | Replace the ceramic plate(s). |
INSTRUCTIONS FOR THE SAFE DISPOSAL OF BATTERIES.
A CR2032 3V battery is installed in the remote control. Remove the used battery from the device in the same way as you insert it.
Return the batteries to a unit responsible for their disposal.
DISPOSAL OF WASTE APPLIANCES
At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions or packaging. The materials used in this appliance are recyclable according to their marking. By reuse, recycling or applying other forms of use of waste machines, you make a significant contribution to the protection of our environment.
Your local administration will provide you with information about the appropriate disposal point for used appliances.
Characteristicas techniques
25% (10 g/h), 50% (20 g/h), 75% (30 g/h), 100% (40 g/h).
APPARATETS PLACERING
For the disposal of the device please consider and act according to the national and local rules and regulations.
