USER MANUAL LCLEAN MINI XS Ulsonix

MINI WASHING MACHINE

DE	Produktname	MINI WASCHMASCHINE
EN	Product name	MINI WASHING MACHINE
PL	Nazwa produktu	MINI PRALKA
CZ	Název výrobku	MINIPRAČKA
FR	Nom du produit	MINI MACHINE A LAVER
IT	Nome del prodotto	MINI LAVATRICE
ES	Nombre del producto	LAVADORA PORTÁTIL
HU	Termék neve	MINI MOSÓGÉP
DA	Produktnavn	MINI-VASKEMASKINE
FI	Tuotteen nimi	MINIPESUKONE
NL	Productnaam	MINI WASMACHINE
NO	Produktnavn	MINI VASKEMASKIN
SE	Produktnamn	PORTABEL TVÄTTMASKIN
PT	Nome do produto	MINI MÁQUINA DE LAVAR
SK	Názov produktu	MINI PRÁČKA
DE	Modell	LCLEAN MINI XS
EN	Product model
PL	Model produktu
CZ	Model výrobku
FR	Modèle
IT	Modello
ES	Modelo
HU	Modell
DA	Model
FI	Tuotteen malli
NL	Productmodel
NO	Produktmodell
SE	Produktmodell
PT	Modelo do produto
SK	Model
DE	Hersteller	expondo Polska sp. z o.o. sp. k.
EN	Manufacturer
PL	Producent
CZ	Výrobce
FR	Fabricant
IT	Produttore
ES	Fabricante
HU	Termelő
DA	Producent
FI	Valmistaja
NL	Producent
NO	Produsent
SE	Tillverkare
PT	Fabricante
SK	Výrobca
DE	Anschrift des Herstellers	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
EN	Manufacturer Address
PL	Adres producenta
CZ	Adresa výrobce
FR	Adresse du fabricant
IT	Indirizzo del produttore
ES	Dirección del fabricante
HU	A gyártó címe
DA	Producentens adresse
FI	Valmistajan osoite
NL	Adres producent
NO	Produsentens adresse
SE	Tillverkarens adress
PT	Endereço do fabricante
SK	Adresa výrobcu

Labeled diagram of a portable device with numbered parts for identification

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Mini washing machine
Model	LCLEAN MINI XS
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	280
Capacity [kg]	4.5
Protection rating IP	IPX4
Dimensions [width x depth x height; mm]	355 x 330 x 680
Weight [kg]	7.5

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

CE !

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)

ATTENTION! Electric shock warning!

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Mini washing machine

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
c) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
d) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
e) Do not use in very humid environments or in the direct vicinity of water tanks.

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust. The device generates sparks which may ignite dust or fumes.
c) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.
d) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
e) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
f) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced.
g) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
h) Keep packaging elements and small assembly parts in a place not available to children.
i) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The machine may be operated by physically fit persons who are able to handle the machine, are properly trained, who have reviewed this operating manual and have received training in occupational health and safety.
c) The machine is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the machine.
d) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.4. Safe device use

a) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
b) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
c) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
d) Keep the device out of the reach of children.
e) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
f) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
g) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
h) Do not move, adjust or rotate the device in the course of work.
i) Do not leave this appliance unattended while it is in use.
j) Clean the device regularly to prevent stubborn grime from accumulating.
k) The specified vibrations emission was measured using standard measurement methods. Vibrations emissions may change if the device is used in different surroundings.
I) If you notice a leak from the device or hoses, immediately disconnect the supply and resolve the defects.
m) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
n) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
o) Keep the device away from sources of fire and heat.
p) Do not overload the device.
q) Do not cover the ventilation openings!

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The product is a small and light device that allows you to do laundry quickly and easily in almost any place.

The product is intended for home use only.

The user is liable for any damage resulting from unintended use of the device.

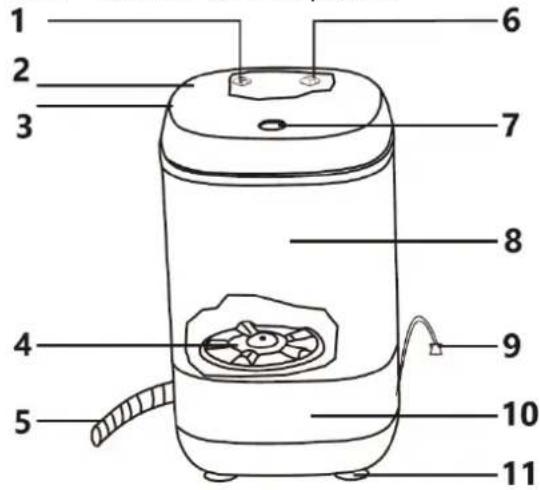

3.1. Device description

Labeled diagram of a portable device with numbered parts for identification

1 - Wash / Drain Switch
2-Lid
3 - Water inlet
4-Pulsator
5 - Drain hose
6 - Timer (Wash/Spin) Switch
7 - Opening lid button
8 - Washing machine body
9 - Power Cord
10 - Base
11 - Feet

3.2. Preparing for use

APPLIANCE LOCATION

The washing machine should be installed in a firm and flat place with a maximum allowable inclination angle of 2^ . The washing machine should be placed at least 5cm away from the wall to prevent noise during operation.

CAUTIONS

Unplug the power cord and turn off the tap when machine is moved, not used, or cleaned. Don't pull the plug with wet hand. Cut off the power when the machine is not being used.

Do not excessively bend, stretch, twist, tie, or modify the power cord. If the power wire is damaged, please replace it by the special one supplied by manufacturer or service office. Clean the dirty on the plug.

Do not install in a humid place. Do not place the wet clothes on the top of the washing machine.

The water temperature shall not exceed 50^ C when washing with warm water.

When the washing machine is installed on a carpeted floor, the carpet should not block the ventilation holes.

Do not wash raincoats, bicycle covers, down products and other waterproof clothing.

Do not reach into the appliance if the wash is operating. Do not leave children unsupervised near the washing machine. Do not let the children to climb the machine.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Do not place any hot or heavy things on the top of washing machine.

Do not disassemble, repair, or modify any parts of the appliance. The screws that fasten the back cover of the washing machine cannot be removed by yourself.

Do not allow direct sunlight to shine on the washing machine, and do not approach heat sources such as heaters.

Do not wash clothes stained with volatile substances (olefin materials, gasoline, etc.)

3.3. Device use

3.3.1. Preparation before washing

1. Connect the filling hose (The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused).
2. Insert the power cord plug into the socket and ensure that the power socket is reliably grounded.
3. Put down the drain hose. The length of the extended drain hose cannot exceed 2 m, and the height difference must be less than 15cm.

Note: The water temperature shall not exceed 50^ C when washing with warm water.

3.3.2. Notes before washing

• Clean up pockets, take out coins, sand, hairpins, etc.
• Knot the long strap, fasten the buttons.
• Do not wash too much, shake the clothes loose before washing.

• Put thin clothes, woollen clothes that are easy to wear into the mesh bag.

• Check if the clothes are suitable for washing in the washing machine.

• To avoid staining, do not wash clothes that easily lose colour with other clothes, especially light-coloured clothes.
• Please put the clothes that are not easy to absorb water into the water by hand.
• The clothes with more mud and dirt should be removed first, and the particularly dirty area can be stained with detergent first, so that it is easier to remove the dirt on the part.
• Do not put chemically contaminated clothing directly into the washing machine.
• Small pieces and easy-winding clothes, easy-to-wear clothes should be washed in a mesh bag.
• It is recommended to use low-foaming detergent.

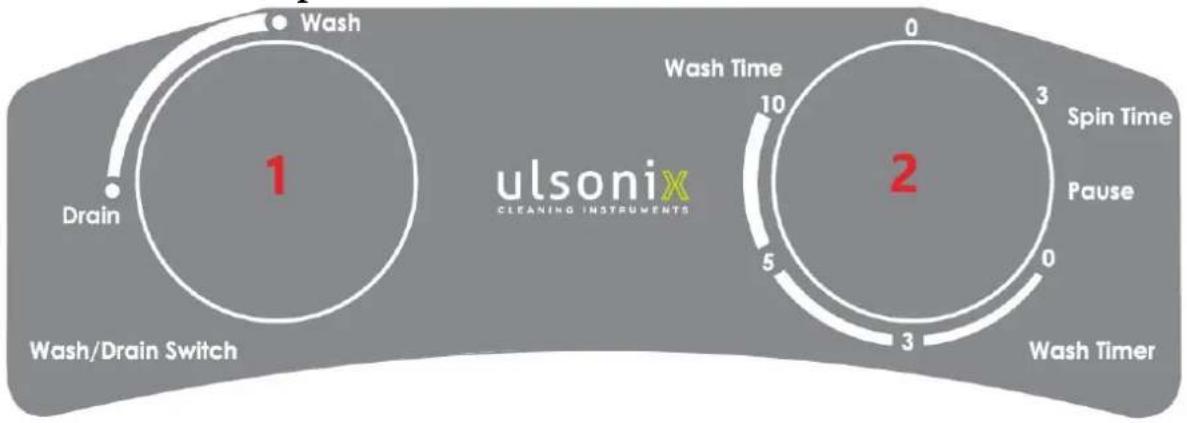

3.3.3. Control panel

Wash 1 Drain Wash/Drain Switch Wash Time 10 2 3 Spin Time Pause 5 0 3 Wash Timer ulsonix CLEANING INSTRUMENTS

1 - Wash / Drain Switch
2 - Timer (Wash/Spin) Switch

3.3.4. Operation method

1. Connect the filling hose.
2. Put down the drain hose.
3. Put in detergent according to how dirty the clothes are, then inject a small amount of water, turn the washing timer knob to stir the detergent evenly.
4. Put in the clothes and fill with water to the required water level (note, do not exceed the maximum water level).
5. Wash: Turn the Wash switch to "Wash" position. Choose the washing time according to the degree of soiling. Close the cover.
6. Drain: Open the cover and turn the drain switch to "Drain" position.
7. Rinse: Repeat the third step (do not put in detergent) and the fifth step.
8. After Washing: Unplug the power cord (do not use wet hands), then hang the drainpipe. Remove the debris in the cylinder, wipe dry the water stains, and open the upper cover to release the internal moisture.

Washing time reference standard

Washing capacity	Water flow	Water level	Washing items	Washing time
2.4 kg or more	Normal	High (36 l)	Synthetics	About 4-6 Min
			Cotton, Blended fabrics, linen	About 8-11 Min
			Heavy pollution laundry	About 12-15 Min
			Large laundry such as bed sheets	About 9-13 Min
Below 2.4 kg		Middle (30 l)Low (26 l)	Synthetics	About 3-4 Min
			Synthetics	About 4-6 Min
			Cotton, Blended fabrics, linen	About 9-11 Min

Please choose the correct detergent according to the type of laundry. Please do not use excessive detergent to avoid waste and affect the rinsing effect.

Use of detergent for wool

1. Please refer to the table above for right amount of detergent to be used.
2. How to use: Please use it correctly according to the washing method of soft items.
3. When washing all woollen fabrics, please use special woollen fabric detergent.

Use of washing powder

Method for directly dissolving washing powder in washing machine.

1. Add detergent when the water level is low.
2. Turn on the washing machine and stir for one minute.
3. After the washing powder is dissolved, put the clothes into the washing machine, then fill in the water to the required water level, and choose the washing time correctly.

Washing method of wool

Do not wash the worsted wool fabrics, rabbit hair, pure wool and other all-wool products directly in the washing machine.

1. Put in warm water of about 30^ C.
2. Put in detergent: In order not to damage all wool fabric fibres, please use medium detergent without enzymatic synthesis.
3. Woollen fabrics should be put in a mesh bag and turned over to wash.
4. Washing: Wash for two minutes, rinse in water for two minutes. You should flat and dry in a cool place, do not expose to the sun.

How to wash blankets

It is strictly forbidden to wash pure woollen blankets and electric blankets.

1. Fold the blanket in half in the longitudinal direction, then roll it up and put it in the blanket bag.
2. Put the blanket into the washing machine, press it with your hand to make it fully absorb water, and sink it under the water surface.
3. Close the upper cover and choose the washing time for washing.
4. After draining, take out the blanket from the bag and put it evenly in the spinning barrel for drying.

3.4. Cleaning and maintenance

Unplug the power cord from the socket before maintenance.

1. After washing, tidy and clean the washing machine (if necessary, remove the water inlet pipe).
2. Do not leave the water in the washing tub for a long time and drain the water immediately after each use.
3. Hook up the power cord and drainpipe.
4. Wipe clean the surface of the washing machine and the water drops in the washing machine drum with a clean soft cloth. Do not use chemicals such as detergents and volatile agents to prevent damage to the plastic parts and the surface of the shell. Open the top cover for a while (about one hour) and then close the cover.

If there is a possibility of water freezing

In winter, if the remaining water freezes, the washing machine may malfunction when it is running. Please remove the water inlet pipe after use and completely drain the remaining water in the pipe and drum.

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.

- Wait for the rotating elements to stop.

b) Use only non-corrosive cleaners to clean the surface.

c) After cleaning the device, all parts should be dried completely before using it again.

d) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.

e) Do not spray the device with a water jet or submerge it in water.

f) Do not allow water to get inside the device through vents in the housing of the device.

g) Clean the vents with a brush and compressed air.

h) The device must be regularly inspected to check its technical efficiency and spot any damage.

i) Use a soft, damp cloth for cleaning.

j) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.

k) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

Labeled diagram of a portable device with numbered parts for identification

Labeled diagram of a portable device with numbered parts for identification

Labeled diagram of a portable device with numbered parts for identification

Labeled diagram of a portable device with numbered parts for identification

Labeled diagram of a portable device with numbered parts for identification

Labeled diagram of a portable device with numbered parts for identification

APPARATETS PLACERING

PLAATS VAN HET APPARAAT

1 – Bryter for vask/tømming

2 - Lokk

3 – Vanninntak

4 – Pulsator

5 - Avløpsslange

6 - Timer (vask/sentrifugering) bryter

Three identical cartoon illustrations of a smiling book with eyes and a crossed-out X, each holding a flat object (no text or symbols)

FORSIKTIG

Labeled diagram of a portable device with numbered parts for identification

APPARATENS PLACERING

Labeled diagram of a portable device with numbered parts for identification

Labeled diagram of a portable device with numbered parts for identification

1 – Prepínač umývania/vypúštania
2 - Veko
3 – Prívod vody
4 – Pulzátor
5 – Odtoková hadica
6 – Spínač časovača (pranie/odstredovanie).
7 – Tlačidlo otvárania veka
8 – Telo práčky
9 – Napájací kábel
10 – Základňa
11 - Nohy

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
