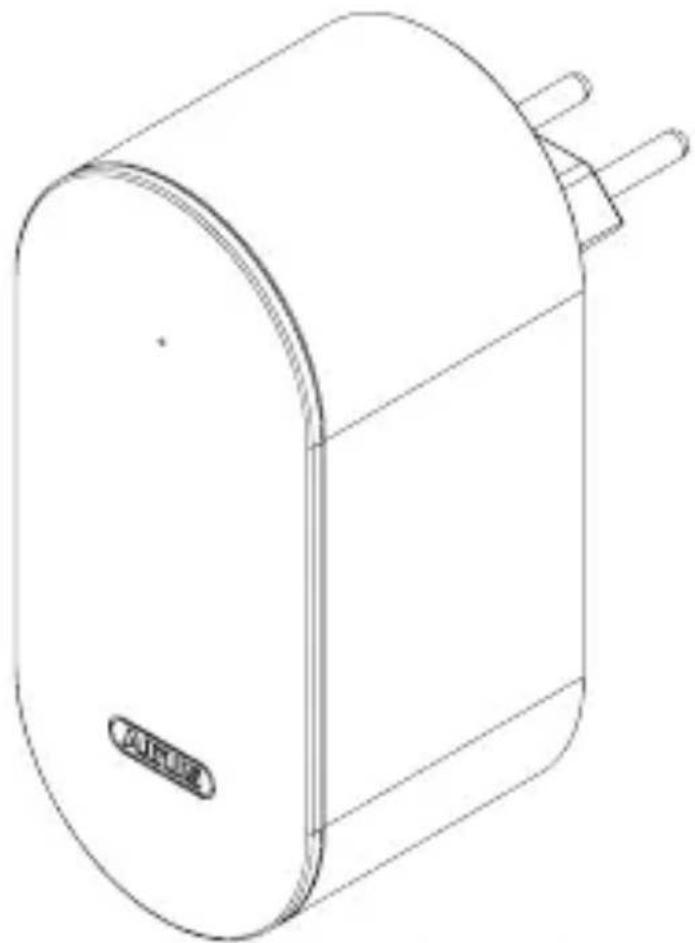

GB Thank you for choosing this ABUS product!

Please read these instructions carefully before assembly and use. Keep them and provide all users with instruction on how to use the product.

The product may only be used for its intended purpose. Any modification to the product is prohibited.

Keep packaging material away from children: Danger of suffocation!

To set up your Wi-Fi Bridge for the first time, you will need a Bluetooth®-enabled smartphone (Bluetooth® 4.0 LE or higher), a currently supported iOS (13.0 or higher) or Android (8.0 or higher) software version and the free ABUS One app for iOS or Android. QR-Codes for download see page 17.

The contents of this installation and operating manual reflect the current status at the time of printing. The printed manual may be outdated at the time of the product's entry into service due to updates and further developments.

We therefore ask you to visit our website www.abus.com and enter „BRIDGE One“ into the search bar. You’ll always find the current and complete version of the installation and operating instructions on the product page under the „Downloads“ column.

Warnings and safety instructions

Please read and follow these safety instructions. Non-observance of these instructions could lead to fire, injury to persons and/or device damage!

Symbol	Signal word	Remark
	Warning	Security note indicating a risk of injury or health hazards.Failure to observe these warnings can lead to death or serious injury.
	Caution	Security note indicating a risk of injury or health hazards.Failure to observe these warnings can lead to injury.
	Attention	Warning about possible damage to the device. Failure to observe these warnings can lead to material damage or malfunctions.
	Notice	Informative note

Never plug the product into a socket if there is damage to the product! Danger to life due to electric shock!

Do not use or store the product in areas where the temperature could reach below 0°C or above +40°C. Do not expose the product to direct sunlight for long periods of time!

The product may only be used for its intended purpose. Any modification to the product is prohibited.

ABUS One App

QR code with a central circular icon containing the letter 'i'

iOS

QR code with a central circular icon containing the letter 'i'

Android

• Download the ABUS One app and enable Bluetooth® on your smartphone.
• Start the app and follow the instructions in the app.
• Pay attention to the assignment of the different Keycards to the products, and always scan the correct Keycard.
• To program the Wi-Fi bridge, start with the button „Add new ABUS lock“.
• It is imperative to keep the ABUS Keycard in a secure place even after completing the setup! The Keycard serves as proof of ownership for your Wi-Fi bridge. Do not give the Keycard to third parties.

To guarantee proper function, we expressly recommend performing updates in the app and software/firmware updates for the components in a timely manner. The app will provide information on this. You can also perform the respective update in the component's settings.

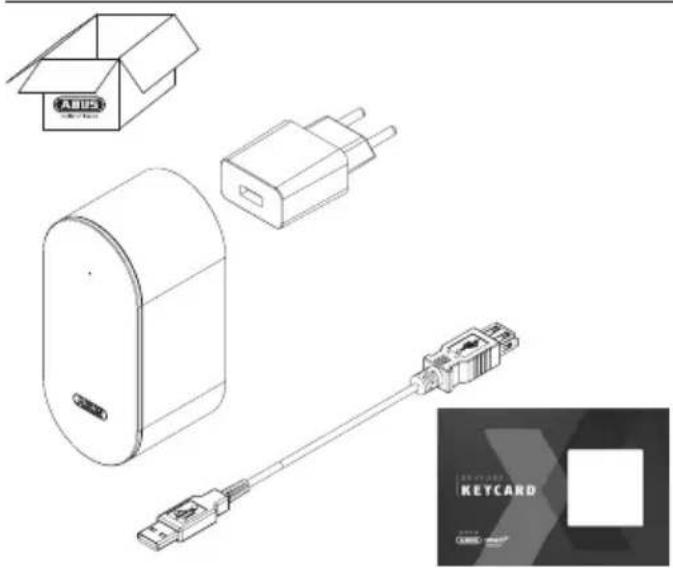

Installation and LED-signalling

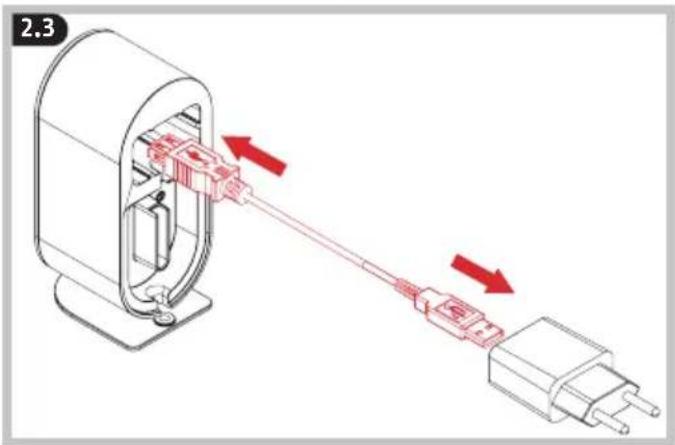

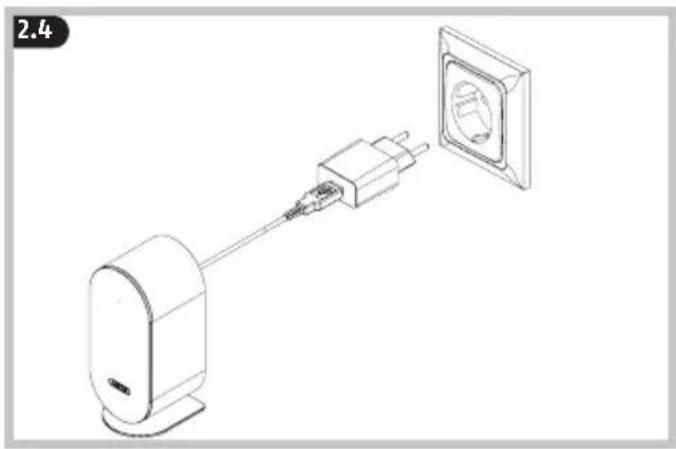

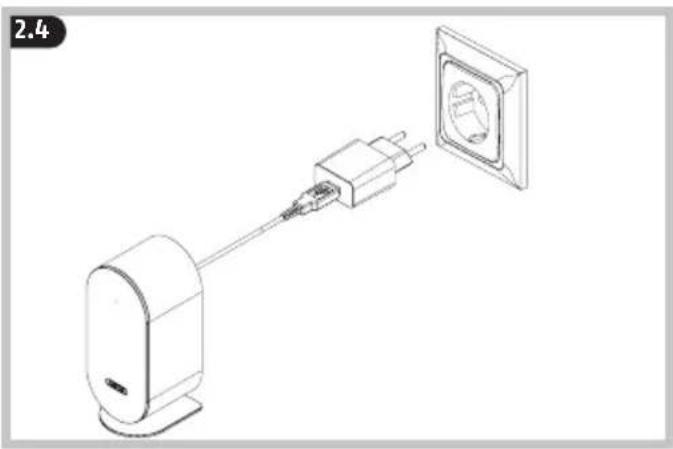

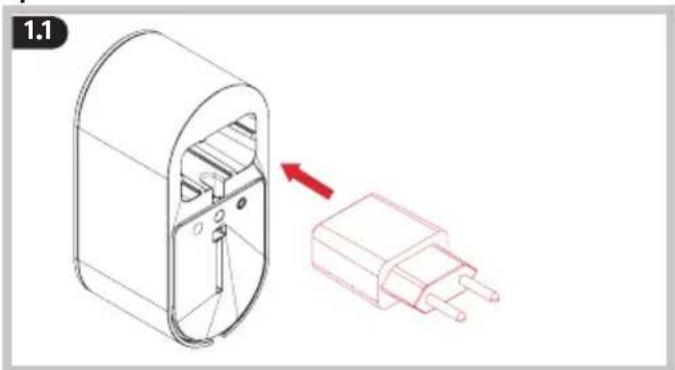

Plug the Wi-Fi bridge into a free socket (230 V) within a maximum distance of 5 metres from the ABUS One product.

Option 1:

Technical illustration of a device housing with an arrow indicating assembly direction (no text or symbols)

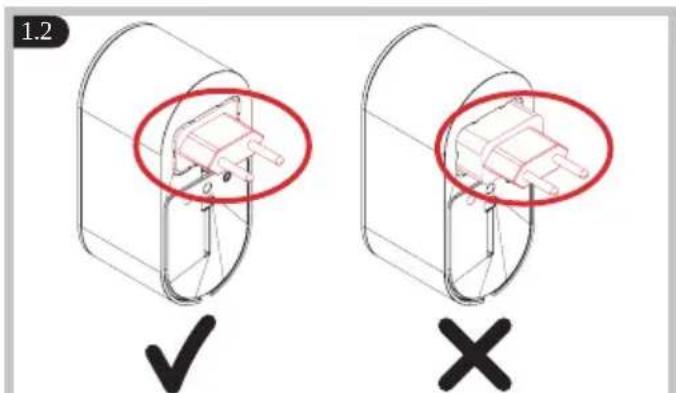

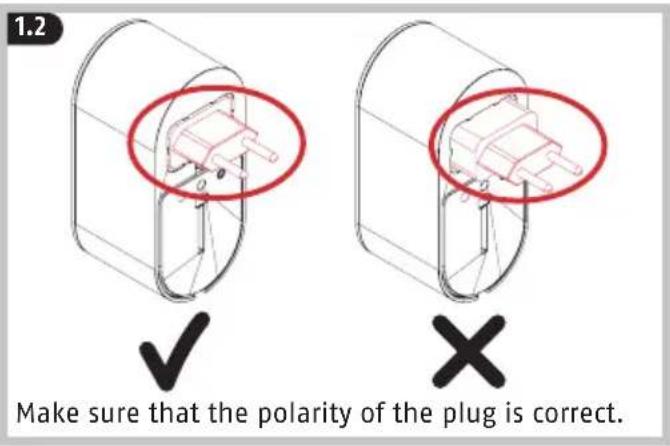

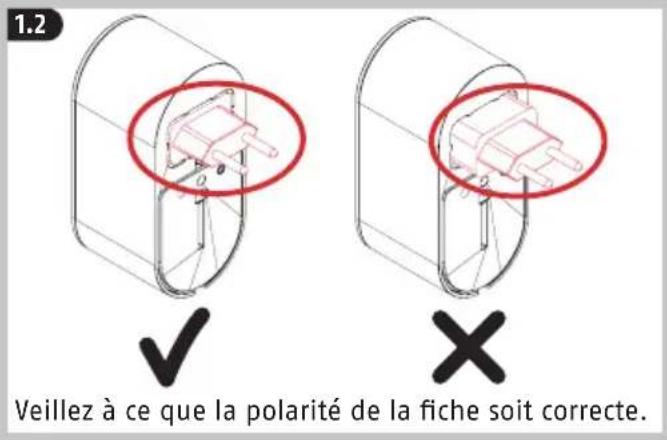

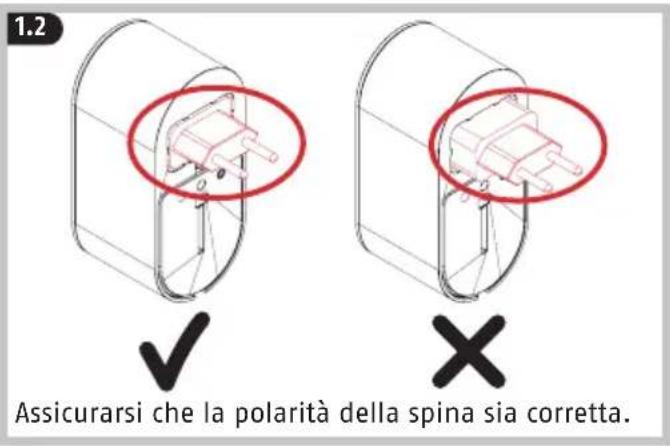

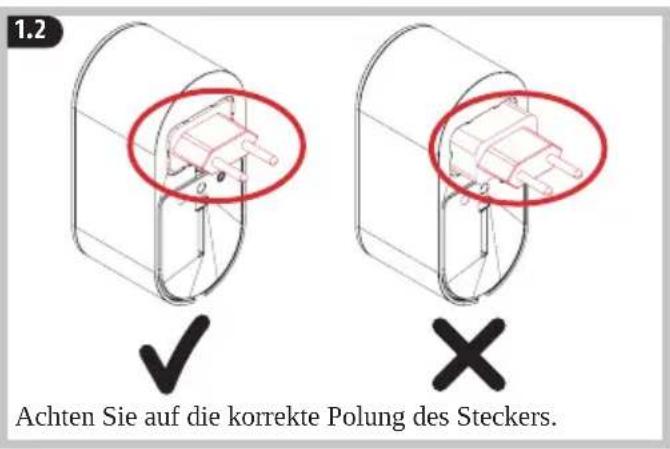

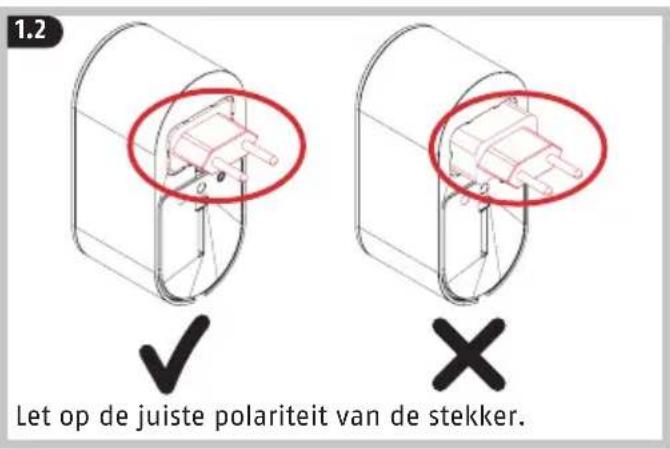

1.2 Make sure that the polarity of the plug is correct.

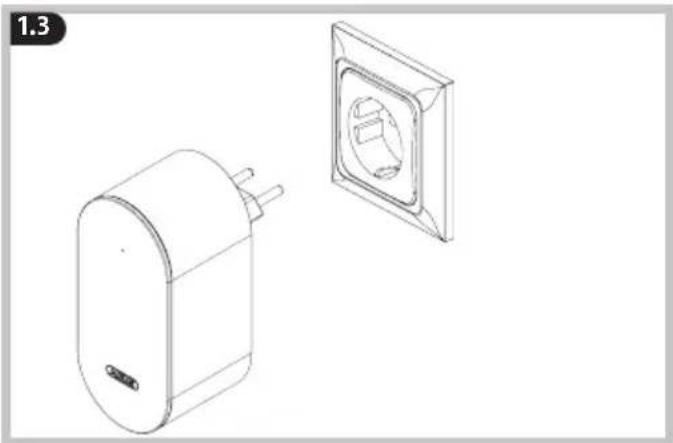

Technical line drawing of a wall-mounted power plug and its corresponding electrical socket (no text or symbols)

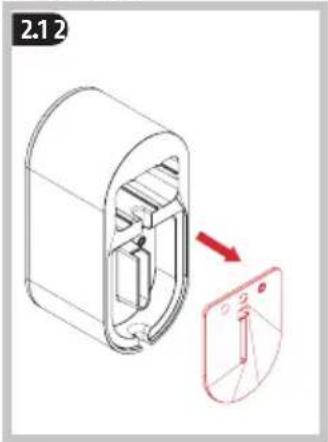

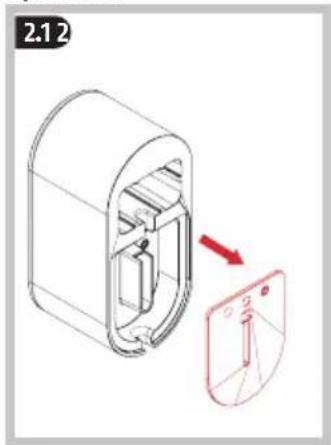

Option 2:

Technical line drawing of a mechanical component with an arrow indicating assembly or adjustment (no text or symbols present)

Diagram of a device with a lid and a base, showing an upward arrow indicating motion (no text or symbols present)

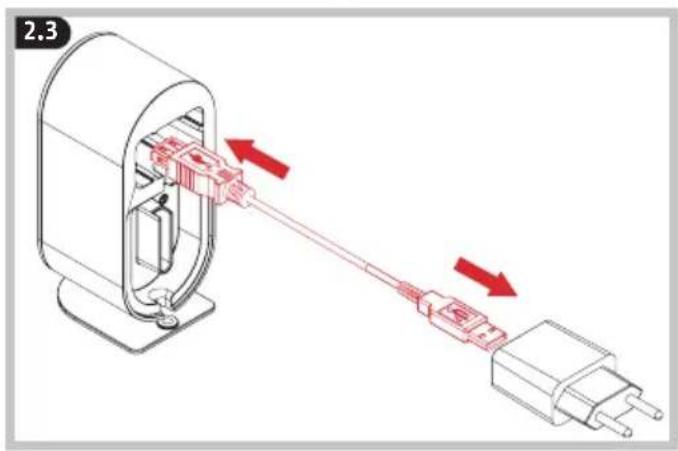

2.3

Technical line drawing of a mechanical assembly with a connector and a circular component (no text or symbols)

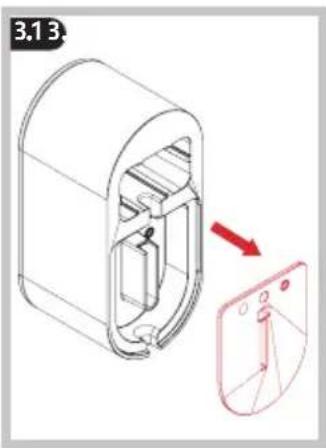

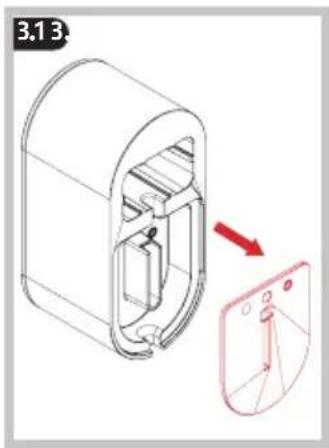

Option 3:

Technical illustration of a mechanical component with an arrow indicating assembly or transformation (no text or symbols present)

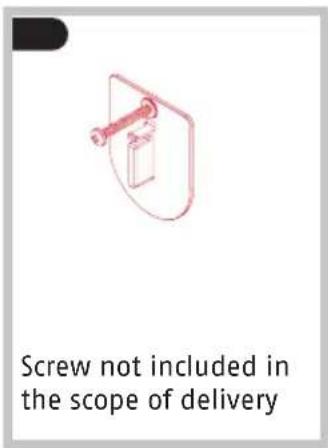

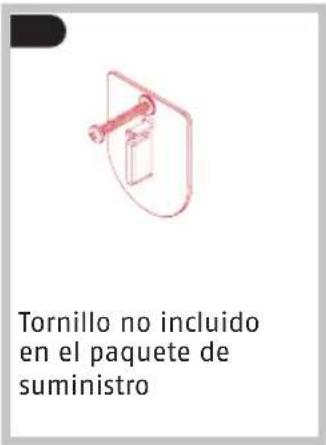

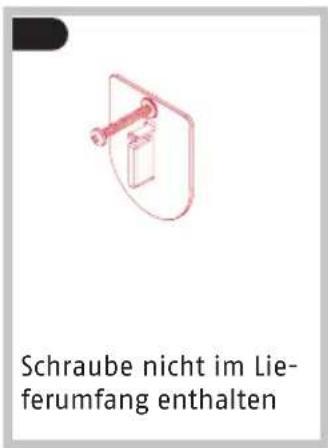

Screw not included in the scope of delivery

The LED of the Wi-Fi bridge signals the following:

LED LED status Description

colour

shining normal operating status

flashing installation process / boot process

3x flashing No Wi-Fi connection possible every 60 // cMAP Cloudserver cannot be sec. reached

5x flashing every 60 sec. Connected ABUS One device cannot be reached via Bluetooth

white, blue Firmware update is being flashing performed

flashing ABUS One device is being connected via Bluetooth

Cleaning and care

Clean BRIDGE One only with a damp cloth, do not use aggressive cleaning agents.

Perform a factory reset:

To reset the Wi-Fi bridge to the factory settings, you must remove it from the socket and then plug it back in again. Please repeat this twice more. The Wi-Fi bridge must be plugged into the socket and unplugged during the boot process (this can be recognised by the flashing white LED on the Wi-Fi bridge).

Tecnical data

Dimensions (housing part without plug)	55 x 118 x 52 mm
Dimensions (incl. Euro plug)	55 x 118 x 92 mm
Weight approx. 140 grams
Operating temperature range	0°C to +40°C
Radio frequency 2,4 GHz + 5	GHz
Max. radiated transmission power	Bluetooth < 10dBm eirpWLAN < 20dBm eirp
Encryption AES-128 bit

EU Declaration of Conformity

Hereby, ABUS August Bremicker Söhne KG declares that the radio equipment type BRIDGE One is in compliance with Directives 2014/53/EU and 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: docs.abus.com

UK Declaration of Conformity

Hereby, ABUS August Bremicker Söhne KG declares that the radio equipment type BRIDGE One is in compliance with the Radio Equipment Regulations 2017 and the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. The full text of the UK declaration of conformity is available at the following internet address: docs.abus.com

Disposal

It is your responsibility to delete all stored personal data prior to disposal of the product. This product contains valuable raw materials. At the end of its service life, dispose of the product in accordance with the applicable legal requirements.

Electrical appliances, rechargeable batteries and batteries must not be disposed of with household waste. Disposal must be carried out in accordance with Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), or Directive 2006/66/EC on batteries and accumulators and waste batteries and accumulators. Batteries must be removed from electrical appliances and disposed of separately before disposal. Dispose of the packaging according to type. Separate the cardboard, foil and plastic elements for recycling. Please contact the local authority responsible for disposal if you have any queries. You can obtain information on collection points for your old appliances, for example, from the local municipal or city administration, the local waste disposal companies, or your specialist dealer.

Warranty

ABUS products are designed, manufactured and tested in accordance with applicable regulations with great care. The warranty exclusively covers faults that are caused by material or manufacturing defects. If a material or manufacturing defect can be proven, the product will be repaired or replaced at the discretion of the warrantor. In such cases, the warranty ends with the termination of the original warranty period. Any

further claims are expressly excluded. ABUS assumes no liability for defects or damage that has been caused by external influences (e.g. transport, external forces), improper use, normal wear and tear or non-compliance with this operating and installation instructions document. If a warranty claim is asserted, the product must be returned with the original receipt with date of purchase and a brief written description of the fault.

Licence texts

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by ABUS is under license. Other trademarks and trade names are those of their respective owners.

Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries and regions. App Store is a service mark of Apple Inc. Google Play and the Google Play logo are trademarks of Google LLC.

This product was manufactured and is sold under a licence granted to ABUS August Bremicker Söhne KG by Vectis One Ltd. for patents on Wi-Fi technology and owned by Wi-Fi One, LLC ("Licence"). The licence is limited to the finished electronics for end-use. It does not extend to any third party equipment or processes used or sold combined with this product.

OSS licence information

Link: https://abus.info/abus-bridge-one-oss You will also nd the OSS licence information in the ABUS One app: Settings -> Legal notes.

Subject to technical alterations. No liability for mistakes and printing errors.
