| Product Type | Wi-Fi Gateway for HomeTec Pro Bluetooth Lock System |
| Brand | ABUS |
| Model | CFW3100 |
| Dimensions (housing without plug) | 55 x 55 x 56 mm |
| Dimensions (with Euro plug) | 55 x 55 x 93 mm |
| Weight | 112 g |
| Power supply | 230 V via power outlet (Euro plug) |
| Operating temperature | 0 °C to +40 °C |
| Radio frequency | 2.402 GHz - 2.480 GHz |
| Max. transmission power | < 10 dBm EIRP |
| Encryption | AES 128-bit |
| Main functions | Connect the HomeTec Pro lock to the Wi-Fi network, remote control via the ABUS HomeTec Pro app, user management via Keycards |
| Bluetooth compatibility | Bluetooth 4.0 LE and higher |
| Smartphone compatibility | iOS and Android with the free ABUS HomeTec Pro app |
| LED indicator | Indicates operating status, network search, updates and errors |
| Security | Assignment via Keycards, reset possible via QR code, regular updates recommended |
| Maintenance and cleaning | Keep dry, do not expose to direct sunlight, temperature 0-40 °C, periodic updates via the app |
| Spare parts and repairability | No specific spare parts; in case of defect, repair or replacement under warranty |
| General information | Compliant with directives 2014/53/EU and 2011/65/EU, Bluetooth® trademark under license, declaration of conformity at docs.abus.com |
Frequently Asked Questions - CFW3100 ABUS
User questions about CFW3100 ABUS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Security and Access Control System in PDF format for free! Find your manual CFW3100 - ABUS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CFW3100 by ABUS.
USER MANUAL CFW3100 ABUS


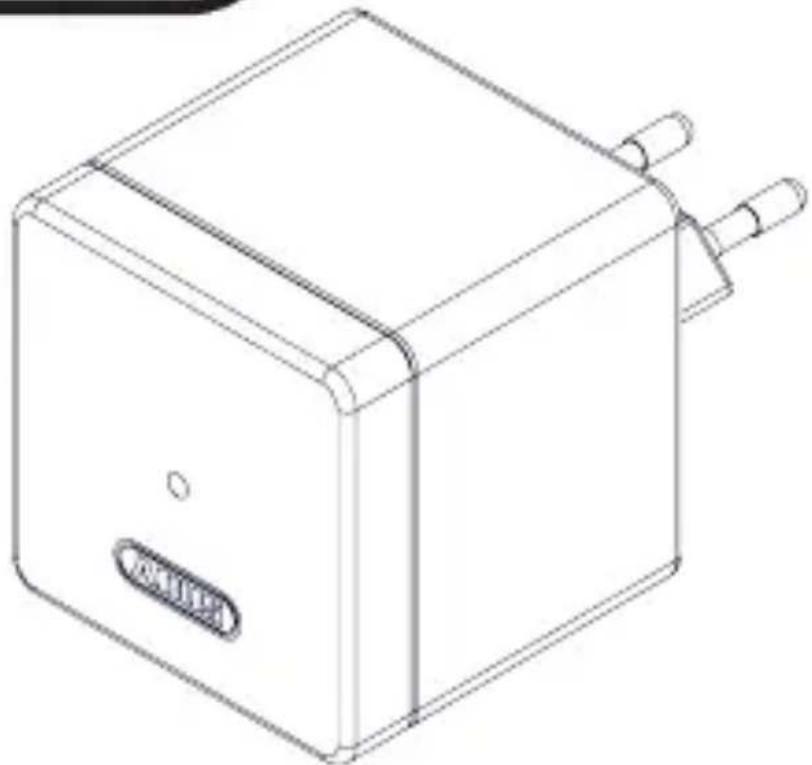

Line drawing of a rectangular electronic device with a button and two protruding pins (no text or symbols)
DE Bedienungsanleitung 3 - 10
GB Operating instructions 11 - 18
FR Instructions d'utilisation 19 - 27
NL Gebruikshandleiding 28 - 35
IT Istruzioni d'uso 36 - 43
ES Instrucciones de funcionamiento ..... 44 - 51
Technical line drawing of two electronic components: a rectangular box with a USB port and a square enclosure with a circular component (no text or symbols)GB Thank you for choosing this ABUS product!
Please read this guide carefully before use. Keep these instructions and provide all users with instruction on how to use it.
To set up your HomeTec Pro Bluetooth ^® door lock drive for the first time, you will need a Bluetooth ^® -enabled smartphone (Bluetooth ^® 4.0 LE or higher), a currently supported iOS or Android software version and the free ABUS HomeTec Pro app for iOS or Android.
The drive can be operated with either a smartphone (Bluetooth® and the ABUS HomeTec Pro app) and this Wi-Fi bridge or with the other HomeTec Pro components.
The contents of this installation and operating manual reflect the current status at the time of printing. The printed manual may be outdated at the time of the product's entry into service due to updates and further developments.
We therefore ask you to visit our website
www.abus.com and enter „CFW3100“ into the search bar. You’ll always find the current and complete version of the installation and operating instructions on the product page under the „Downloads“ column.

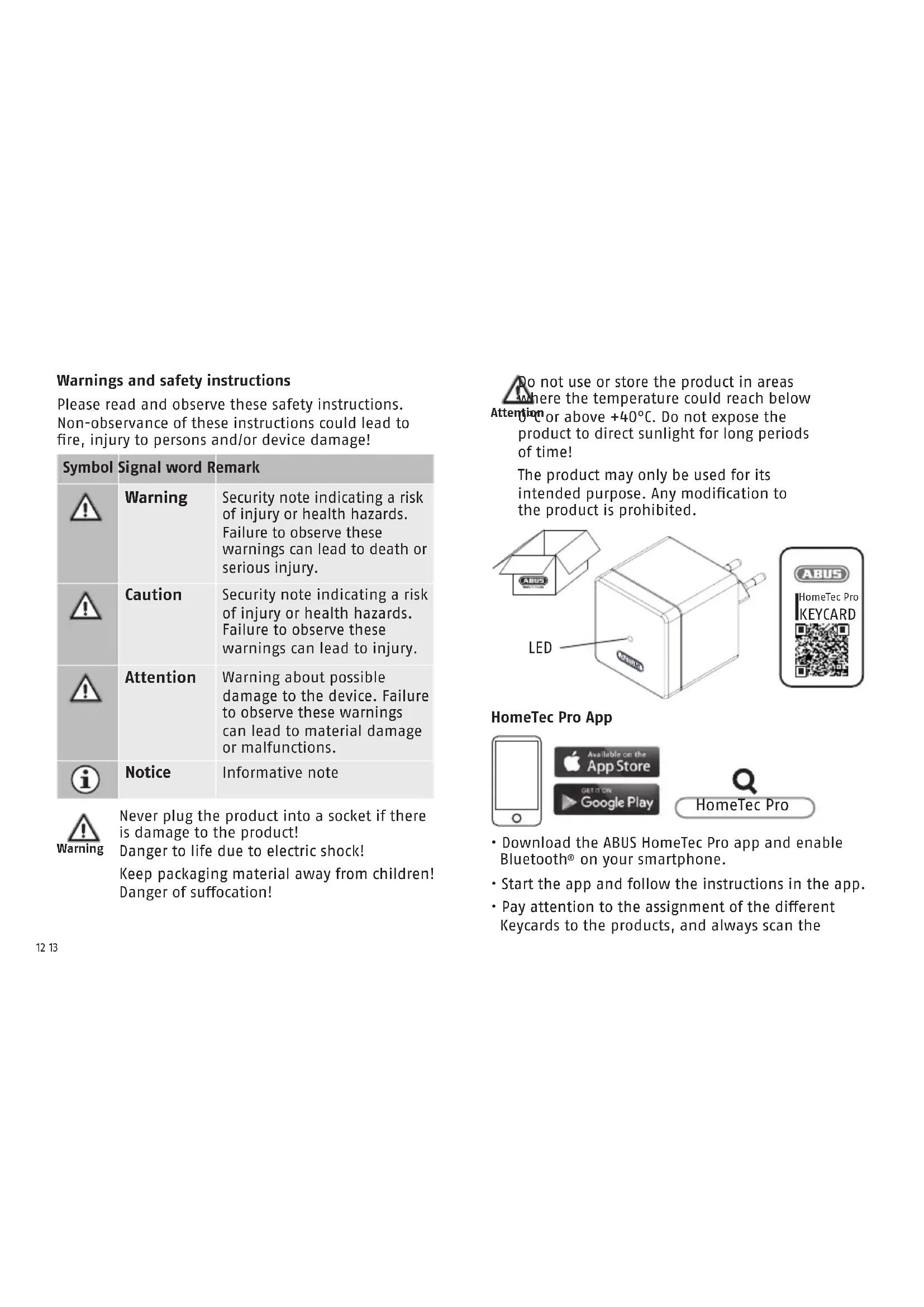

Warnings and safety instructions
Please read and observe these safety instructions. Non-observance of these instructions could lead to fire, injury to persons and/or device damage!
| Symbol | Signal word | Remark |
 | Warning | Security note indicating a risk of injury or health hazards.Failure to observe these warnings can lead to death or serious injury. |
 | Caution | Security note indicating a risk of injury or health hazards.Failure to observe these warnings can lead to injury. |
 | Attention | Warning about possible damage to the device. Failure to observe these warnings can lead to material damage or malfunctions. |
 | Notice | Informative note |
Never plug the product into a socket if there is damage to the product!
Danger to life due to electric shock!
Keep packaging material away from children! Danger of suffocation!
Do not use or store the product in areas where the temperature could reach below 0°C or above +40°C. Do not expose the product to direct sunlight for long periods of time!
The product may only be used for its intended purpose. Any modification to the product is prohibited.
- Start the app and follow the instructions in the app.
- Pay attention to the assignment of the different Keycards to the products, and always scan the
correct Keycard.
- To program the Wi-Fi Bridge, start by pressing the button „Add HomeTec Pro / component“.
- It is imperative to keep the ABUS Keycard(s) in a secure place even after completing the setup! If you forget your password, you can reset and reassign it by scanning the QR code. Do not give the Keycard to third parties.
To guarantee proper function, we expressly recommend performing updates in the app and software/firmware updates for HomeTec Pro components in a timely manner. The app will provide information on this. You can also perform the respective update in the component's settings.
Installation and LED signalling
Plug the Wi-Fi
bridge into a free
socket (230 V)
within a
maximum
distance of
5 metres from the HomeTec Pro door lock drive CFA3100.
| LED colour | LED status | Description |
 | shining Normal operating status | |
| flashing - | ||
 | shining Boot process (further steps pending) | |
| flashing Boot process (in action) | ||
 | shining Search process for updates/licences | |
| flashing Installation of updates/licences | ||
 | shining Network (Wi-Fi) search | |
| flashing Ready for network (Wi-Fi) configuration | ||
 | shining - | |
| flashing Error/problem is present or factory reset* has been started | ||
* Perform a factory reset: Press the recessed button on the underside of the Wi-Fi bridge with a pointed object for approx. 10 seconds.
Tecnical data
| Dimensions (housing part without plug) | 55 x 55 x 56 mm |
| Dimensions (incl. Euro plug) | 55 x 55 x 93 mm |
| Weight approx. 112 grams | |
| Operating temperature range | 0°C to +40°C |
| Radio frequency 2,402 GHz | -2,480 GHz |
| Max. radiated transmission power | < 10dBm eirp |
| Encryption AES-128 bit |
EU Declaration of Conformity
Hereby, ABUS August Bremicker Söhne KG declares that the radio equipment type HomeTec Pro is in compliance with Directives 2014/53/EU and 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: docs.abus.com
UK Declaration of Conformity
Hereby, ABUS August Bremicker Söhne KG declares that the radio equipment type HomeTec Pro is in compliance with the Radio Equipment Regulations 2017 and the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. The full text of the UK declaration of conformity is available at the following internet address: docs.abus.com
Disposal
It is your responsibility to delete all stored personal data prior to disposal of the product. This product contains valuable raw materials. At the end of its service life, dispose of the product in accordance with the applicable legal requirements.
Electrical appliances, rechargeable batteries and batteries must not be disposed of with household waste. Disposal must be carried out in accordance with Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), or Directive 2006/66/EC on batteries and accumulators and waste batteries and accumulators. Batteries must be removed from electrical appliances and disposed of separately before disposal.
Dispose of the packaging according to type. Separate the cardboard, foil and plastic elements for recycling. Please contact the local authority responsible for disposal if you have any queries. You can obtain information on collection points for your old appliances, for example, from the local municipal or city administration, the local waste disposal companies,
or your specialist dealer.
ABUS products are designed, manufactured and tested in accordance with applicable regulations with great care. The warranty exclusively covers faults that are caused by material or manufacturing defects. If a material or manufacturing defect can be proven, the product will be repaired or replaced at the discretion
of the warrantor. In such cases, the warranty ends with the termination of the original warranty period. Any further claims are expressly excluded.
ABUS assumes no liability for defects or damage that has been caused by external influences (e.g. transport, external forces), improper use, normal wear and tear or non-compliance with this operating and installation instructions document. If a warranty claim is asserted, the product must be returned with the original receipt with date of purchase and a brief written description of the fault.
Licence texts
The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by ABUS is under license. Other trademarks and trade names are those of their respective owners.
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries and regions. App Store is a service mark of Apple Inc. Google Play and the Google Play logo are trademarks of Google LLC.
This product was manufactured and is sold under a licence granted to ABUS August Bremicker Söhne KG by Vectis One Ltd. for patents on Wi-Fi technology and owned by Wi-Fi One, LLC ("Licence"). The licence is limited to the finished electronics for end-use. It does not extend to any third party equipment or processes used or sold combined with this product.
Subject to technical alterations. No liability for mistakes and printing errors.
Technical line drawing of a two-port electrical outlet with a separate 3D view showing internal components (no text or symbols)text_image
Available on the App Store GET IT ON Google Play HomeTec Pronatural_image
Technical line drawing of a two-port electrical outlet with a side view showing internal components (no text or symbols)text_image
Available on the App Store GET IT ON Google Play HomeTec Pronatural_image
Technical line drawing of a two-port electrical outlet with a side view showing internal components (no text or symbols)text_image
Available on the App Store GET IT ON Google Play HomeTec Pronatural_image
Technical line drawing of two electronic components: a small box labeled '0' and a square enclosure with internal circular opening (no text or symbols)ABUS August Bremicker Söhne KG
DE-58292 Wetter
Tel.: +49 (0) 23 35 63 40
www.abus.com | info@abus.de
