Product Type	Fingerprint scanner for access control
Brand	ABUS
Model	CFS3100
Dimensions	143 x 67 x 29 (34.5) mm
Weight (without batteries)	117 grams
Power supply	3 LR6 1.5 V Alkaline batteries
Battery life	Not specified, replace all batteries at the same time
Operating temperature	-10°C to +55°C
Protection rating	IP54 (protected against dust and water splashes)
UV resistance	Yes, very resistant
Radio frequency	2.402 GHz - 2.480 GHz
Max. emission power	< 10 dBm eirp
Encryption	AES 128-bit
Bluetooth	Bluetooth 4.0 LE and higher
Compatibility	iOS/Android smartphone with ABUS HomeTec Pro app
Usage	Alternative to smartphone to unlock the HomeTec Pro lock
Protective cover	Sliding cover to protect the sensor from weather
Mounting	Screwed or glued with silicone on an outdoor surface
Maintenance and cleaning	Do not use detergents or microfiber cloth
Warranty	Manufacturer's warranty according to legal conditions (see manual)
Package contents	Fingerprint scanner, keycard(s), batteries, manual

Frequently Asked Questions - CFS3100 ABUS

How to install the CFS3100 fingerprint scanner?

Mount the scanner outdoors, near the door, at an accessible height. Screw or glue with silicone on a suitable wall. Test the wireless connection before final fixing.

Which batteries to use and how to change them?

Use 3 LR6 1.5 V alkaline batteries. Replace all batteries at the same time. Open the compartment, remove the old ones, insert new ones respecting polarity.

How to pair the scanner with my smartphone?

Download the ABUS HomeTec Pro app, enable Bluetooth. Follow the instructions in the app. You will need the Keycard for programming.

Is the scanner rain resistant?

Yes, it is IP54 certified, therefore protected against dust and water splashes. However, close the protective cover when not in use for better longevity.

How to clean the fingerprint sensor?

Do not use detergents or microfiber cloth. Gently wipe with a soft, dry cloth. Avoid liquids.

What to do if the Bluetooth connection does not work?

Make sure your smartphone's Bluetooth is enabled (version 4.0 LE minimum) and you are nearby. Check the scanner batteries. Reset the app if necessary.

Can I use the scanner without a smartphone?

No, the first setup requires a smartphone with the ABUS HomeTec Pro app. Once programmed, you can unlock with fingerprint without the smartphone.

How to update the scanner firmware?

Updates are done via the ABUS HomeTec Pro app. Go to the component settings and follow the instructions. A Keycard is required for the update.

What to do in case of loss of smartphone?

You can still use the fingerprint scanner or the Keycard to unlock. Keep the Keycard in a safe place. To add a new smartphone, follow the procedure in the app.

How many fingerprints can be registered?

The exact number is not specified in this manual, but generally ABUS HomeTec Pro scanners can register several dozen fingerprints. Check the app for more details.

USER MANUAL CFS3100 ABUS

Warning symbol with exclamation mark and document icon, commonly used to indicate error or hazard

Line drawing of an ASIS phone case with a closed lid and internal panel (no text or symbols)

CE

DE Bedienungsanleitung 3 - 10
GB Operating instructions 11 - 18
FR Instructions d'utilisation 19 - 26
NL Gebruikshandleiding 27 - 34
IT Istruzioni d'uso 35 - 42
ES Instrucciones de funcionamiento 43 - 50

A B 3 x S6 D SW 2.5 C 3 x + - S1 3 x 4 x 35 mm

Technical line drawing of a drill bit with a 6 mm scale indicator (no text or symbols on the diagram itself)

Line drawings of three different tools or components: a pen, a screwdriver, and a hammer (no text or symbols present)

Diagram of a battery pack with three batteries and an open casing, showing internal components and wiring (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

B. POTATO

Line drawing of a handheld electronic device with a screen and control panel (no text or symbols)

Technical illustration of a battery pack assembly with three cylindrical batteries and internal components (no text or symbols)

IV. VANERA CF83100 >ABS

GB Thank you for choosing this ABUS product!

Please read this guide carefully before installation and use. Keep these instructions and provide all users with instruction on how to use it.

To set up your HomeTec Pro Bluetooth® door lock drive for the first time, you will need a Bluetooth®-enabled smartphone (Bluetooth® 4.0 LE or higher), a currently supported iOS or Android software version and the free ABUS HomeTec Pro app for iOS or Android.

The drive can be operated with either a smartphone (Bluetooth® and the ABUS HomeTec Pro app) or with this finger scanner and the other HomeTec Pro components.

The finger scanner serves as an alternative to using a smartphone. The finger scanner is dust-proof and splash-proof (IP54 rating) with extremely high UV resistance.

The contents of this installation and operating manual reflect the current status at the time of printing. The printed manual may be outdated at the time of the product's entry into service due to updates and further developments.

We therefore ask you to visit our website www.abus.com

enter „CFS3100“ into the search bar. You'll always find the current and complete version of the installation and operating instructions on the product page under the „Downloads“ column.

Installation instructions

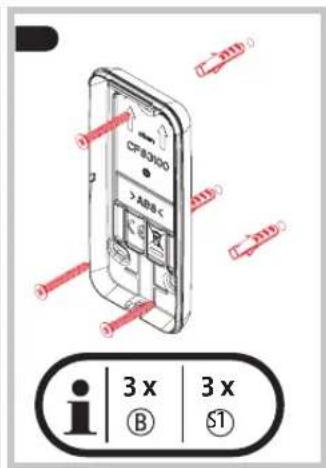

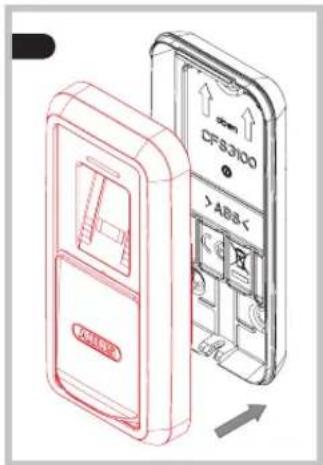

Select a suitable place to install the finger scanner. This should be outside your home close to the door it controls and be easily accessible to all users regardless of their height. Make sure that you can scan your finger at a comfortable angle and that you do not have to extend your finger too much. Test the radio connection to your drive before installation.

Installation should be carried out professionally and adapted to suit the widely differing characteristics of external walls. Depending on the surface in question, the finger scanner may also be affixed with an adhesive such as silicone in addition to screws.

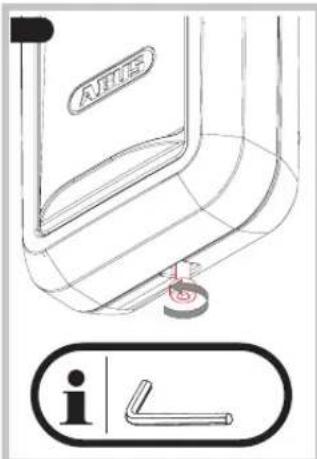

1.2 SW 2,5 max. 80%!

CF83100 >AB8-

Diagram of a battery pack with three batteries and an open casing, showing internal components and wiring (no text or symbols)

不充电器 CF83100 >ABS-

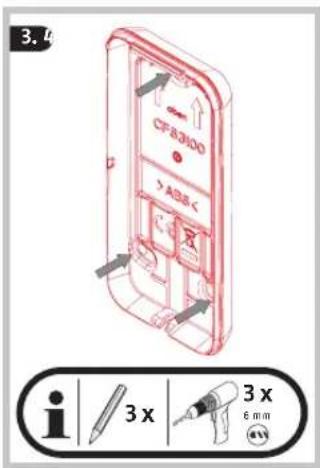

3.4 CF8300 ABS i 3x 3x 6 mm

CP8300 >ABB< i | 3 x | 3 x ® B | S1

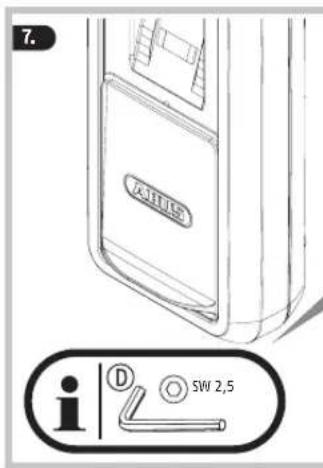

7. SW 2,5 D SW 2,5 i

Technical line drawing of a car door with a sensor attached (no text or symbols)

B. POTATO

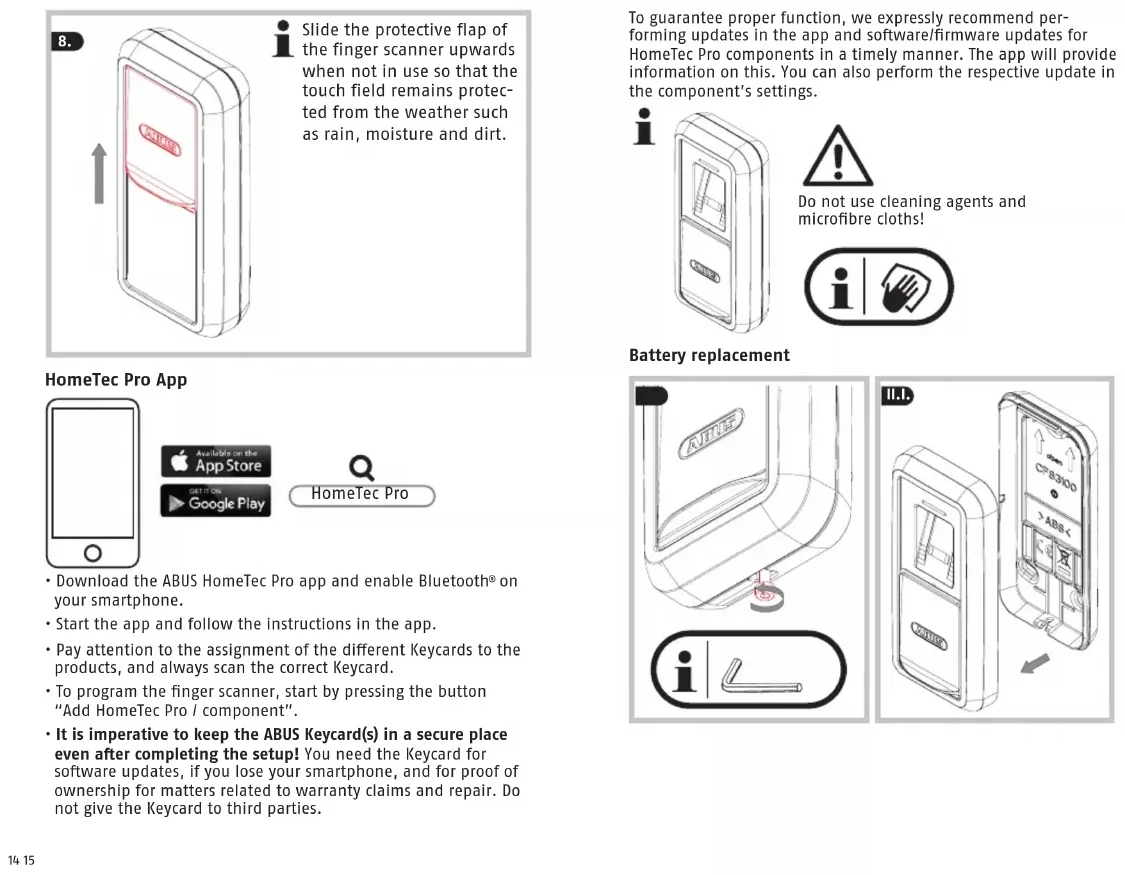

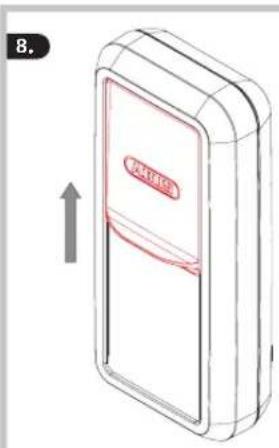

i Slide the protective flap of the finger scanner upwards when not in use so that the touch field remains protected from the weather such as rain, moisture and dirt.

HomeTec Pro App

• Download the ABUS HomeTec Pro app and enable Bluetooth® on your smartphone.
• Start the app and follow the instructions in the app.
• Pay attention to the assignment of the different Keycards to the products, and always scan the correct Keycard.
• To program the finger scanner, start by pressing the button "Add HomeTec Pro / component".
• It is imperative to keep the ABUS Keycard(s) in a secure place even after completing the setup! You need the Keycard for software updates, if you lose your smartphone, and for proof of ownership for matters related to warranty claims and repair. Do not give the Keycard to third parties.

To guarantee proper function, we expressly recommend performing updates in the app and software/firmware updates for HomeTec Pro components in a timely manner. The app will provide information on this. You can also perform the respective update in the component's settings.

i

Line drawing of a handheld electronic device with a screen and control panel (no text or symbols)

Do not use cleaning agents and microfibre cloths!

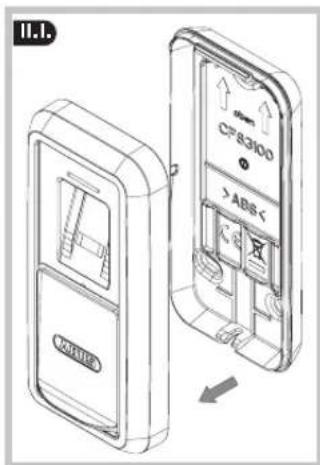

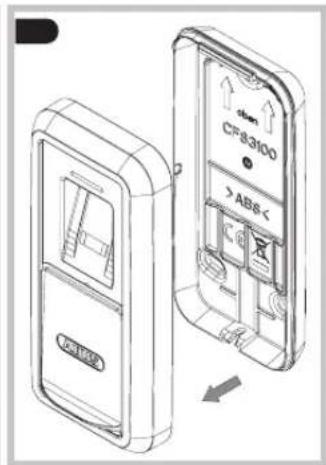

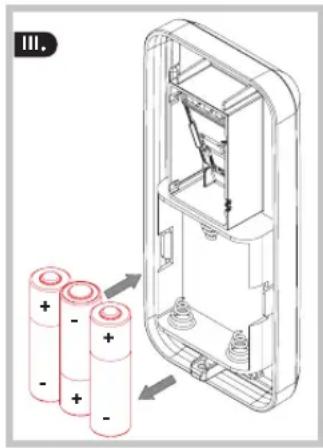

Battery replacement

A#155 i L

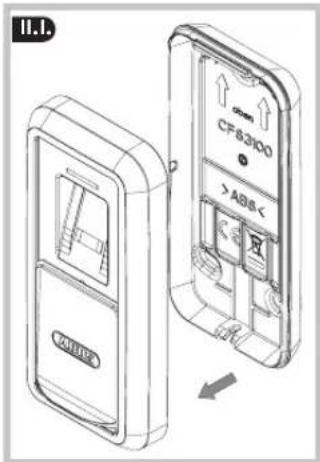

II.1. CP83100 ABS

Diagram of a battery pack with three cylindrical batteries and an open casing, showing internal components and polarity indicators (no text or symbols)

IV. CF83100 >ABS

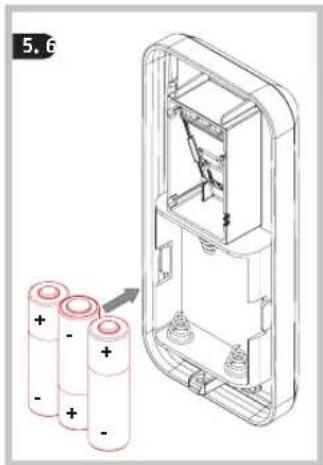

Replace all the batteries! Remove the three batteries first and then insert the three new batteries.

Tecnical data

Dimensions 143 x 67 x 29 (34,5) mm
Weight (without batteries) 117 grams
Battery type 3 * LR6 1,5 V alkaline
Operating temperature range -10°C to +55°C
Radio frequency 2,402 GHz - 2,480 GHz
Max. radiated transmission power	< 10dBm eirp
Encryption AES-128-Bit

Legal information

Battery instructions

• This product contains three LR6 1,5 V alkaline batteries.
• Keep batteries out of the reach of children. Children may put batteries in their mouths and swallow them. This can cause serious harm to their health. Seek immediate medical attention

in this event!

• Batteries must be inserted with the correct polarity (+ and -).
• Empty batteries must be removed or replaced immediately.
• Different battery types, or new and used batteries, must not be mixed.
• The battery terminals must not be short-circuited.
• Risk of burns from contact with leaking or damaged batteries! In these cases, use suitable protective gloves and clean the battery compartment with a dry cloth.
• Batteries must not be dismantled, punctured, damaged, short-circuited, heated, charged or thrown into an open fire (risk of explosion!).
• Do not use or store the product in areas where the temperature could reach below 0^ or above +40^ . Do not expose the product to direct sunlight for long periods of time.

EU Declaration of Conformity

Hereby, ABUS August Bremicker Söhne KG declares that the radio equipment type HomeTec Pro is in compliance with Directives 2014/53/EU and 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: docs.abus.com

UK Declaration of Conformity

Hereby, ABUS August Bremicker Söhne KG declares that the radio equipment type HomeTec Pro is in compliance with the Radio Equipment Regulations 2017 and the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. The full text of the UK declaration of conformity is available at the following internet address: docs.abus.com

Disposal

It is your responsibility to delete all stored personal data prior to disposal of the product. This product contains valuable raw materials. At the end of its service life, dispose of the product in accordance with the applicable legal requirements. Electrical appliances, rechargeable batteries and batteries must not be disposed of with household waste. Disposal must be carried out in accordance with Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), or Directive 2006/66/EC on batteries and accumulators and waste batteries and accumulators. Batteries must be removed from electrical appliances and disposed of separately before disposal. Dispose of the packaging according to type. Separate the cardboard, foil and plastic elements for recycling. Please contact the local authority responsible for disposal if you have any queries. You can obtain information on collection points

for your old appliances, for example, from the local municipal or city administration, the local waste disposal companies, or your specialist dealer.

ABUS products are designed, manufactured and tested in accordance with applicable regulations with great care. The warranty exclusively covers faults that are caused by material or manufacturing defects. If a material or manufacturing defect can be proven, the HomeTec Pro will be repaired or replaced at the discretion of the warrantor. In such cases, the warranty ends with the termination of the original warranty period. Any further claims are expressly excluded.

ABUS assumes no liability for defects or damage that has been caused by external influences (e.g. transport, external forces), improper use, normal wear and tear or non-compliance with this operating and installation instructions document. The included batteries are not covered by the warranty. If a warranty claim is asserted, the product must be returned with the original receipt with date of purchase and a brief written description of the fault.

Licence text

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by ABUS August Bremicker Söhne KG is under license. Other trademarks and brand names are those of their respective owners.

Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries and regions. App Store is a service mark of Apple Inc.

Google Play and the Google Play logo are trademarks of Google LLC. Subject to technical alterations. No liability for mistakes and printing errors.

Diagram of a battery pack with three batteries and an open casing, showing internal components and wiring (no text or symbols)

DF83100 >ABS-

3.4 CF8300 >ABS

CPB300 >ABB< i | 3 x | 3 x ® B | S1

7. 大门 SW 2,5 i D

Technical line drawing of a mechanical component with no visible text or symbols

1.

手机连接

i

Application HomeTec Pro

Line drawing of a handheld electronic device with a screen and label (no readable text or symbols)

Aris i | L

II.1. CF83100 >ABS

Technical illustration of a battery pack assembly with three cylindrical batteries and an open casing, showing internal components and polarity indicators (no text or symbols)

IV. CF83100 >ABS

Diagram of a battery pack with three batteries and an open casing, showing internal components and wiring (no text or symbols)

DF83100 >ABS-

3.4 CF8300 ABS i 3x 3x 6 mm

CPB3100 >ABB< i | 3 x | 3 x ® B | S1

7. 大红灯 SW 2,5 i D

Technical line drawing of a mechanical component with no visible text or symbols

1.

移动电话

Line drawing of a handheld electronic device with a screen and label (no readable text or symbols)

Diagram of a battery pack with three cylindrical batteries and an open casing, showing internal components and polarity indicators (no text or symbols)

IV. CF83100 >AB8

Diagram of a battery pack with three batteries and an open casing, showing internal components and wiring (no text or symbols)

DF83100 >ABS-

3.4 CF8300 ABS i 3x 3x 6 mm

CPB3100 >ABB< i | 3 x | 3 x ® B | S1

7. 大红灯 SW 2,5 i D

Technical line drawing of a mechanical component with no visible text or symbols

1.

手机连接

i

Line drawing of a handheld electronic device with a screen and control panel (no text or symbols)

Technical illustration of a battery pack assembly with three cylindrical batteries and an open casing, showing internal components and polarity indicators (no text or symbols)

IV. ABS CP83100 ABS-

Diagram of a battery pack with three batteries and an open casing, showing internal components and wiring (no text or symbols)

DF83100 >ABS-

3.4 CF8300 ABS i 3x 3x 6 mm

CPB3100 >ABB< i | 3 x | 3 x ® B | S1

7. 大红灯 SW 2,5 i D

Technical line drawing of a mechanical component with no visible text or symbols

1.

Line drawing of a rectangular device with a red label and upward arrow, no readable text or symbols present.

i

Line drawing of a handheld electronic device with a screen and buttons (no text or symbols)

Technical illustration of a battery pack assembly with three cylindrical batteries and an open casing, showing internal components and polarity indicators (no text or symbols)

IV. CF83100 >ABS
