USER MANUAL Zoomi 3 i-Size COSATTO

clever stuff for happy babies

R129/03 76 – 105cm ≤20kg

100 - 150cm

The ABCs

Zoomi 3 i-Size

i-Size Car Seat

(EN) Instruction 1 - 56

(FR) Instruction, (DE) Gebrauchsanleitung, (IT) Istruzioni, (PT) Instrução, (RU) Инструкция, (ZH) 说明, (ES) Instrucciones

(EN) Part list diagram

57

(FR) Schéma de nomenclature, (DE) Teilelisteabbildung, (IT) Diagramma della lista delle parti, (PT) Diagrama de lista de peças, (RU) Схема к спецификации деталей, (ZH) 零件清单图, (ES) Diagrama de lista de piezas

(EN) Spare part list diagram

58

(FR) Schéma de pièces détachées, (DE) Ersatzteillisteabbildung, (IT) Diagramma della lista delle parti di ricambio, (PT) Diagrama de lista de peças sobresselentes, (RU) Схема к спецификации запчастей, (ZH) 备件清单图, (ES) Diagrama de lista de piezas de repuesto

(EN) Instruction diagram 59 - 71

(FR) Schéma d'instructions, (DE) Anleitungsdiagramm, (IT) Diagramma di istruzioni, (PT) Diagrama de instruções, (RU) Схема к инструкции, (ZH) 说明图, (ES) Diagrama de instrucciones

Important: Keep these instructions for future reference.

Important safety Information

The instruction manual should be kept safely with child car seat for its life period:

There is a compartment at the side of the child car seat for storage of the instruction manual.

It is recommended to check that the child restraint is compatible with the intended vehicle at the time of purchase.

Please refer to the vehicle list, fit checker app (http://cosat.to/fitchecker) or the vehicle list section on the website (http://cosat.to/zoomi3isizevl).

Seat positions in other vehicles may also be suitable to accept the child restraint. If in doubt, consult either Cosatto or the retailer.

Child age and weight:

- When used in forward facing mode, the car seat is suitable from 15 months, height between 76 and 105cm , up to maximum weight of 20kg .

• IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS.

- When used in booster mode, the car seat is suitable for height between 100 and 150~cm .

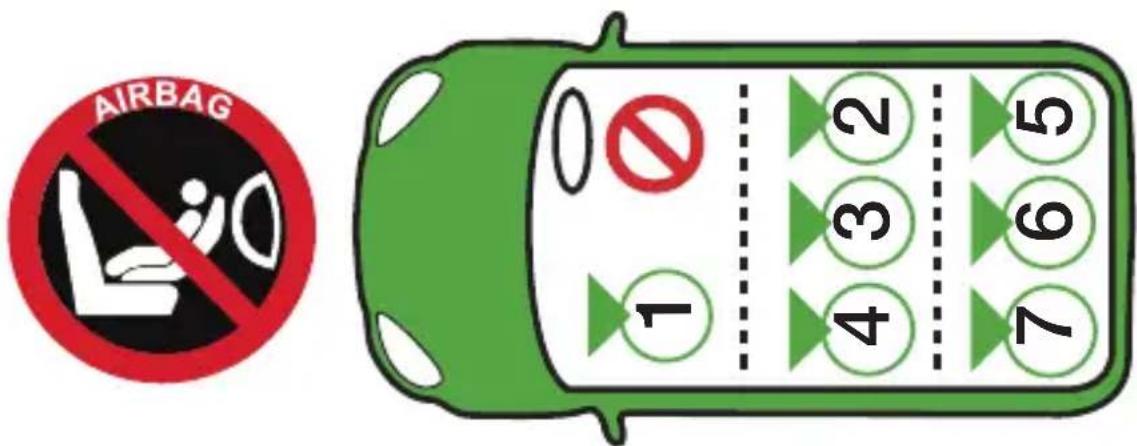

Location:

- Refer to the vehicle list for information of where the child car seat base will fit in your vehicle.

- Never use the child car seat on a seat where an airbag is fitted and active. Refer to your vehicle user manual for information on de-activating the airbag.

- If the vehicle seat backrest has a recline function, place the vehicle seat in the most upright position when using the child car seat.

- Do not use the child car seat in the home. It has not been designed for home use and should only be used in your car.

AIRBAG Lio 0 2 5 3 6 4 7

Safety - Please read carefully:

- NEVER use this child car seat with its side facing the vehicle seat.

- Any rigid items and plastic parts of the child car seat must be so located and installed that they are not liable, during everyday use of the vehicle, to become trapped by a movable seat or in a door of vehicle.

- If any load bearing points other than those described in the instructions are used, this can significantly reduce the protection factor of the child car seat.

- ALWAYS secure your child with the safety harness when using this child car seat.

- Never leave your child unattended.

- Do not attempt to dismantle, modify or add to any part of the child car seat or change the way your vehicle seat belts are made or used.

- After an accident the child car seat should be replaced and the vehicle seat belts. Although they may look undamaged, they may not protect your child as well as they should.

- Do not place anything such as a towel or cushion under the child car seat. This could affect the performance of the child restraint system in an accident.

- Any vehicle seat belt holding the child car seat to the vehicle should be tight, and that belt should not be twisted.

- Always make sure that the vehicle seat belt is correctly tensioned to ensure maximum protection for your child.

- Prevent harness/ vehicle seat belt from getting trapped between car doors or rubbing against sharp parts of the seat or body.

- If the harness/vehicle belts becomes cut or frayed, replace it before travelling.

- Never use replacement parts other than those approved by Cosatto.

- Cosatto advise that child car seat should not be bought or sold second-hand. Many child car seat acquired this way have been found to be dangerous.

- NOTE: The child car seat can mark vehicle seat upholstery. Cosatto cannot be held responsible for damage or marking to vehicle seat upholstery.

- Security is only guaranteed if the child car seat is fitted in accordance with these instructions.

- Safely secure any luggage or other objects that might cause injuries to the occupant of the child car seat in the event of a collision.

- Failure to comply with the instructions would be dangerous, and will automatically void the warranty and exempt Cosatto from any liability.

- The harness buckle has been designed to be released quickly in an emergency. IT IS NOT CHILD PROOF. More inquisitive children may learn to undo the buckle. Children should be told never to play with the harness buckle or any other part of the child car seat.

- It is important that the lap harness is worn low down, so that the pelvis of the child is firmly engaged.

- In booster seat mode, the lap vehicle seat belt must be worn in such a way as to properly secure the pelvis of the child.

- Never use the child car seat without its fabric cover because the fabric cover constitutes as an integral part of the child car seat performance. The fabric cover should not be replaced with any other than the ones recommended by Cosatto.

- Cover the child car seat if it is left in direct sun light for prolonged period as the child car seat base surfaces may get very hot. Check the child car seat surface before placing your child in the seat.

Notice:

1. (76 - 105cm) This is an i-Size Enhanced Child Restraint System. It is approved according to Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual.
2. (100 - 150cm) This is an i-Size booster seat Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use primarily in" i-Size seating positions" as indicated by vehicle manufacturers in the vehicle user's manual.
3. Never use this child car seat on passenger seat fitted with an active airbag is installed.
4. If in doubt, consult either the child restraint manufacturer or retailer.

Care & Maintenance:

• Your child restraint system has been designed to meet safety standards and with correct use and maintenance will give many years of trouble free performance.
• Store your child restraint system in a dry, safe place.
• Storing a damp child restraint system will encourage mildew to form, so after exposure to damp conditions, dry off with a soft cloth and allow to dry thoroughly before storing.
• Avoid leaving the child restraint system in sunlight for prolonged periods as this may cause fabrics to fade.
• Inspect the child restraint system regularly for signs of damage- stop using the product if damage is found.
• DO NOT take apart, or attempt to take apart the child restraint system when cleaning. It is unnecessary and dangerous to do so.
• Plastic and metal parts may be sponged clean with warm water and a mild detergent.
  • Refer to the wash care on soft goods for cleaning instruction.
• Remove insert from seat cover/seat liner prior to cleaning.
• Never clean with abrasive, ammonia based, bleach based or spirit type cleaners.
• Remove all packaging & protective materials on the product before using.

Visual language Key:

XX	Refer to warning XX
√	Correct action
×	Incorrect action
CLICK!	Audible sound

	Repeat action x times
	General action arrow
	Lock
	Unlock

	Press and hold
	Check
Cont.XX	Continue to step XX
	Repeat on other side

Part List:

Please refer to diagrams:

P1: Headrest P7: Harness

P2: Backrest P8: Buckle

P3: Seat P9: Seat Liner

P4: ISOFIX arm P10: Drink holder

P5: ISOFIX guide (x2) P11: Top-tether strap

P6: Storage compartment

Replacement Parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order through our website: http://www.cosatto.com/service-centre/spares For customer outside UK & Ireland, contact information for your local distributor can be found on http://www.cosatto.com/stockists If you require any further assistance, please contact us at [e-mail]

S1: Headrest fabric cover S6: Backrest insert (Set)

S2: Seat fabric cover S7: ISOFIX guide (x2)

S3: Drink holder S8: Chest pad (Set)

S4: Headrest centre insert S9: Crotch pad

S5: Headrest side wing insert (Set) S10: Seat liner

Fitting & Operation Information:

Please refer to the following diagrams:

Drink Holder

1- Fitting:

Removal is a reversal of this procedure.

Location

2- IMPORTANT: Never use the child car seat on a seat where an airbag is fitted and active. Refer to your vehicle user manual for information on de-activating the airbag.

WARNING: Your child car seat can only be installed forward facing using a three point lap and diagonal vehicle belt in the front or rear passenger seats of the car.

ISOFIX arm

3- Location:

The two ISOFIX low anchorage anchor points are usually located between the vehicle seat base and back (a).

Some vehicles have ISOFIX indicator near the ISOFIX low anchorage anchor points (b).

4- Fitting the ISOFIX guides (Optional):

The ISOFIX guides can help identify the vehicle ISOFIX anchor points and make installation easier. They can also help with the protection of your vehicle seat.

Top-tether strap

5- Fitting:

Press and hold ISOFIX arm adjustment buttons and extended the arms fully (a).

Engage the ISOFIX arms (b) and ensure that the ISOFIX arm security indicators are green (c).

Push the base back until it rests firmly against the vehicle seat backrest (d).

Removal is a reversal of this procedure.

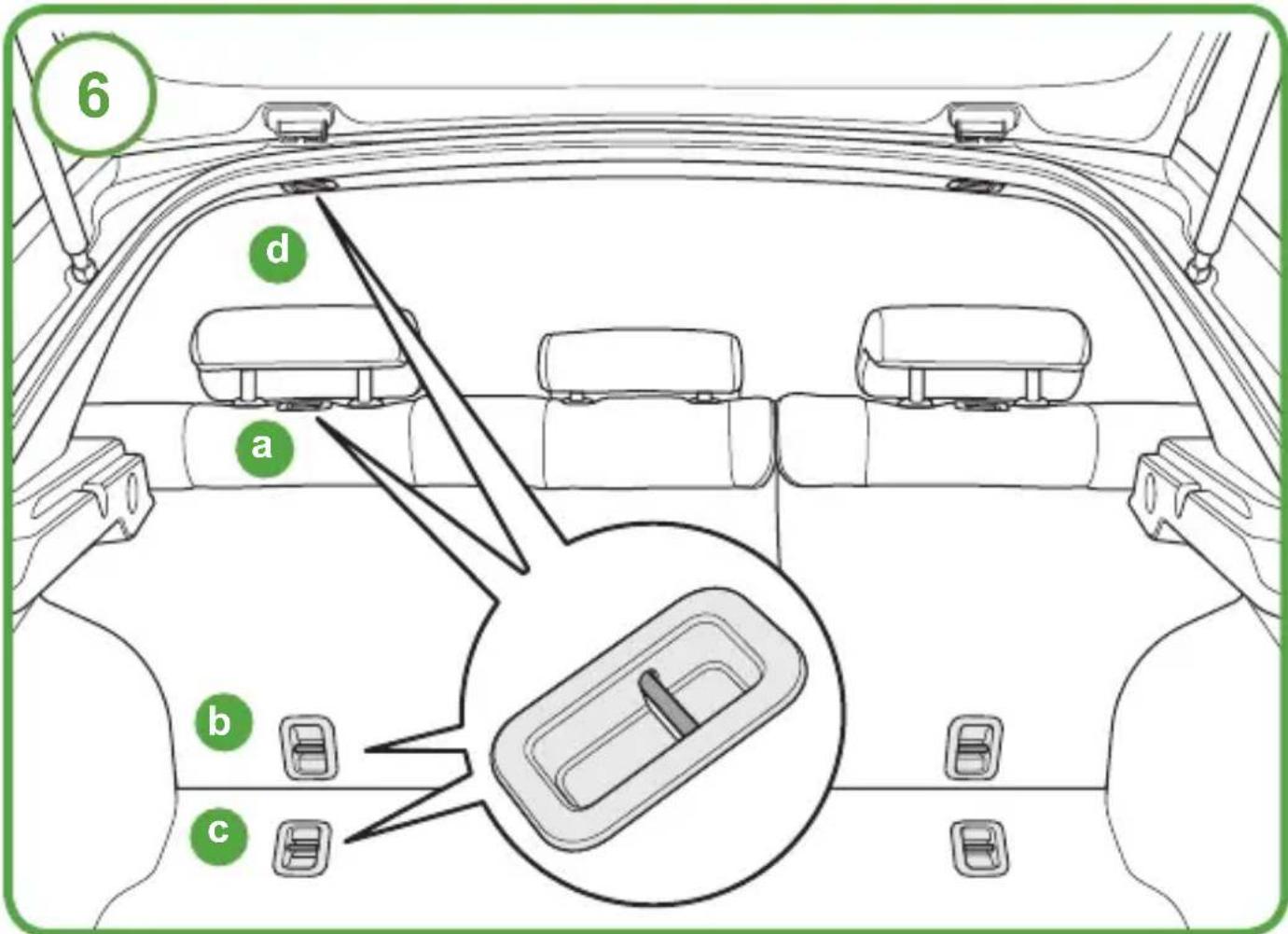

6- Location:

The ISOFIX top-tether strap anchor point is located at either the top of the seat (saloon) (a), the rear of the seat (b), the vehicle floor (c) or the vehicle ceiling (d). If in doubt, please consult the vehicle handbook.

Fitting:

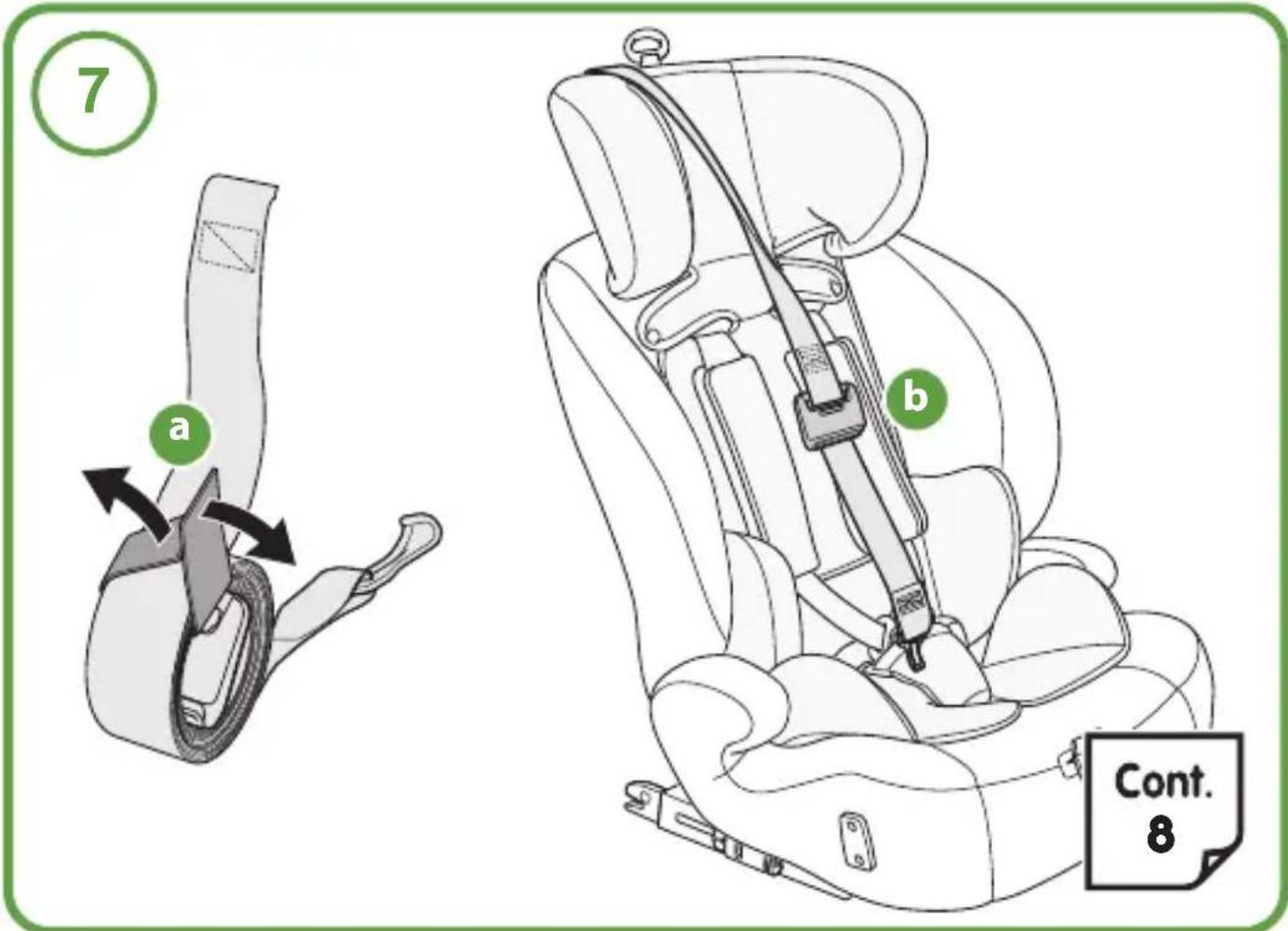

7- Unfasten the top-tether strap (a) and bring it over the child car seat (b).

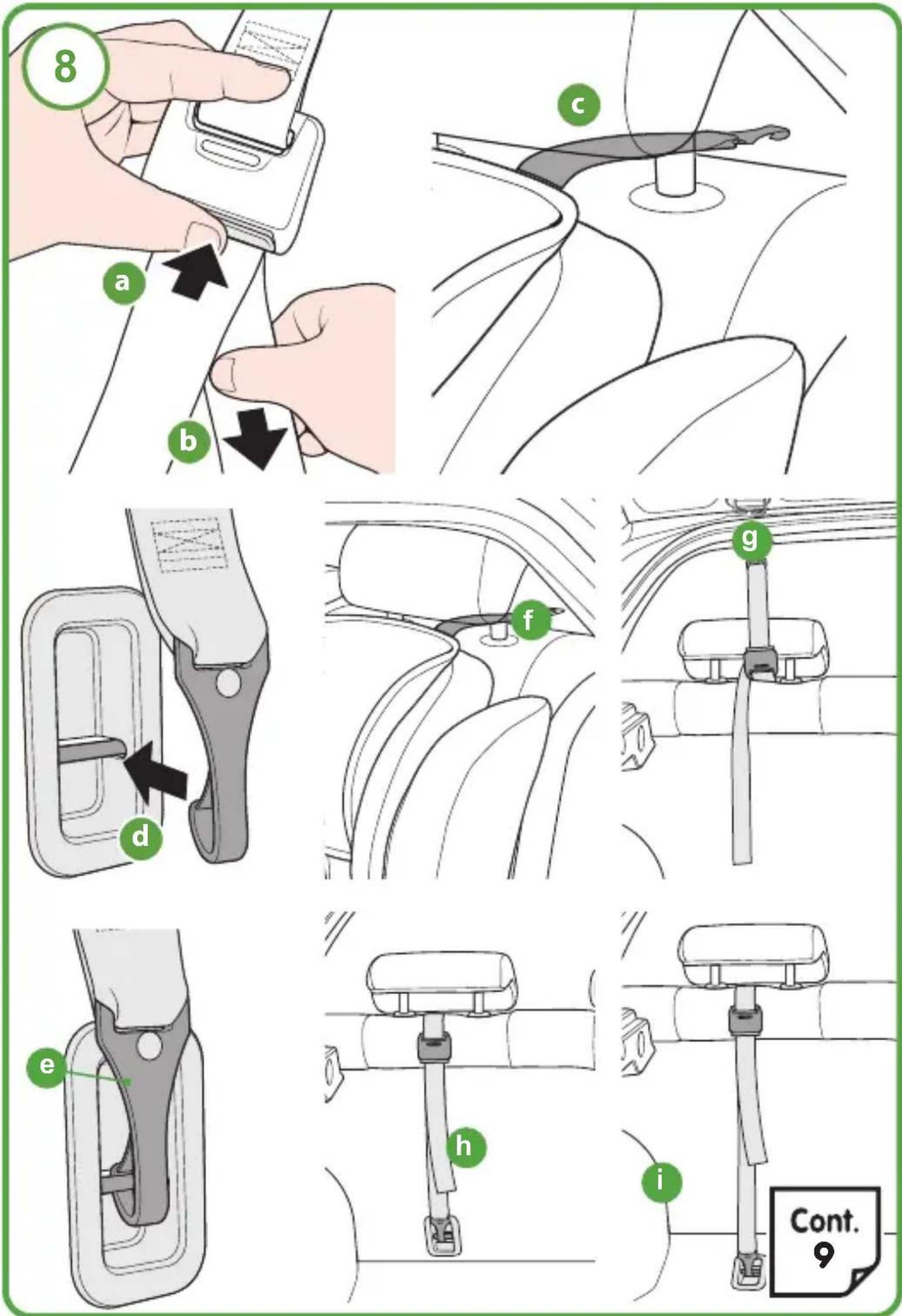

8- The top-tether strap may need to be lengthened to reach the ISOFIX anchor point. To lengthen the top-tether strap squeeze the release adjuster (a) and pull the strap out (b).

For hatchback and estate vehicles, remove the parcel shelf (consult the vehicle handbook for instruction).

Pass the top-tether strap under the vehicle headrest (c). Remove the headrest if it interferes with the strap (consult the vehicle handbook for instruction).

Attach the ISOFIX top-tether strap clip (d & e) to the anchor point (f, g, h or i).

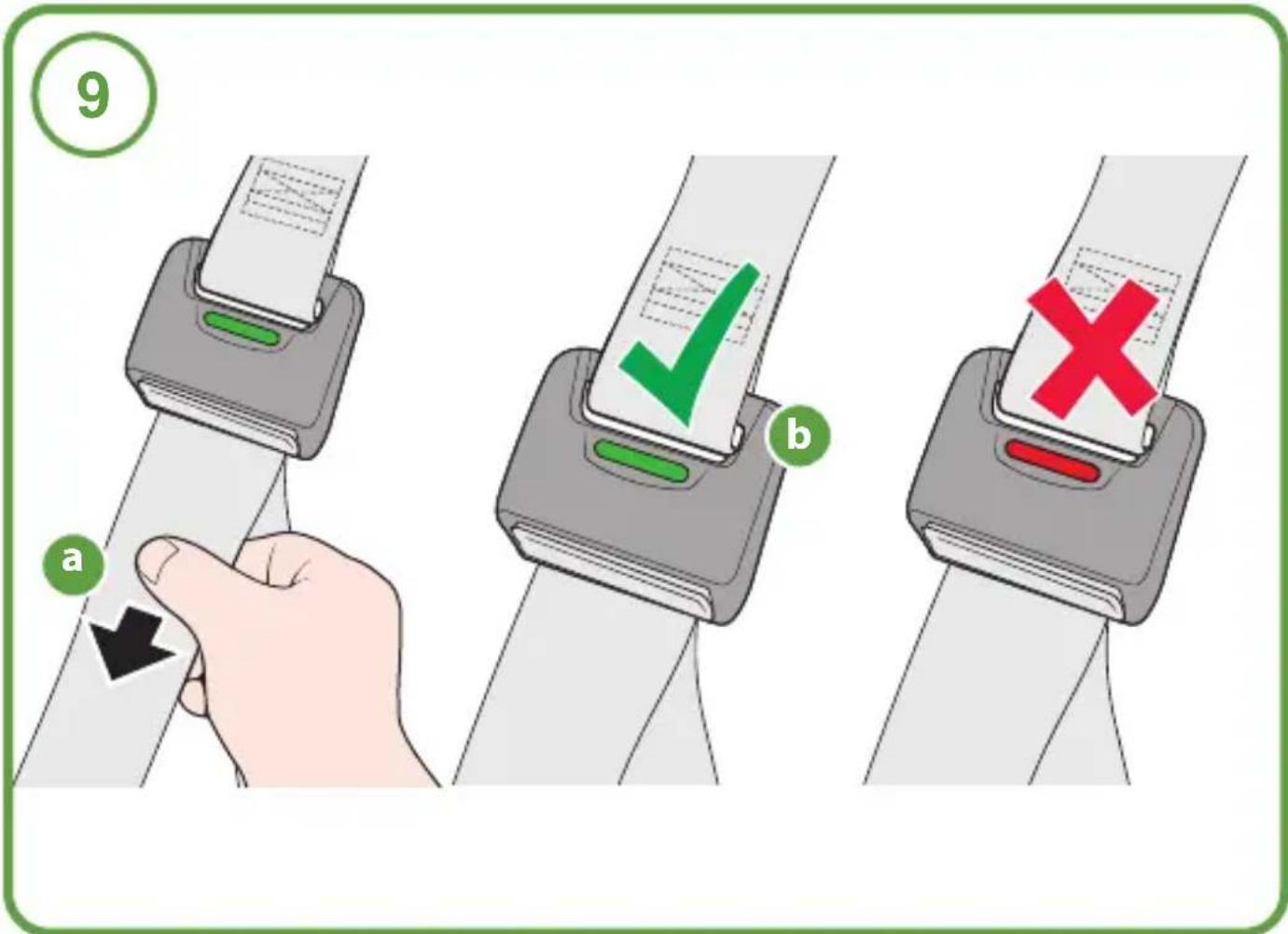

9- Pull the top-tether strap (a) until the tension indicator is green (b). The strap is now adequately tensioned.

Removal is a reversal of this procedure.

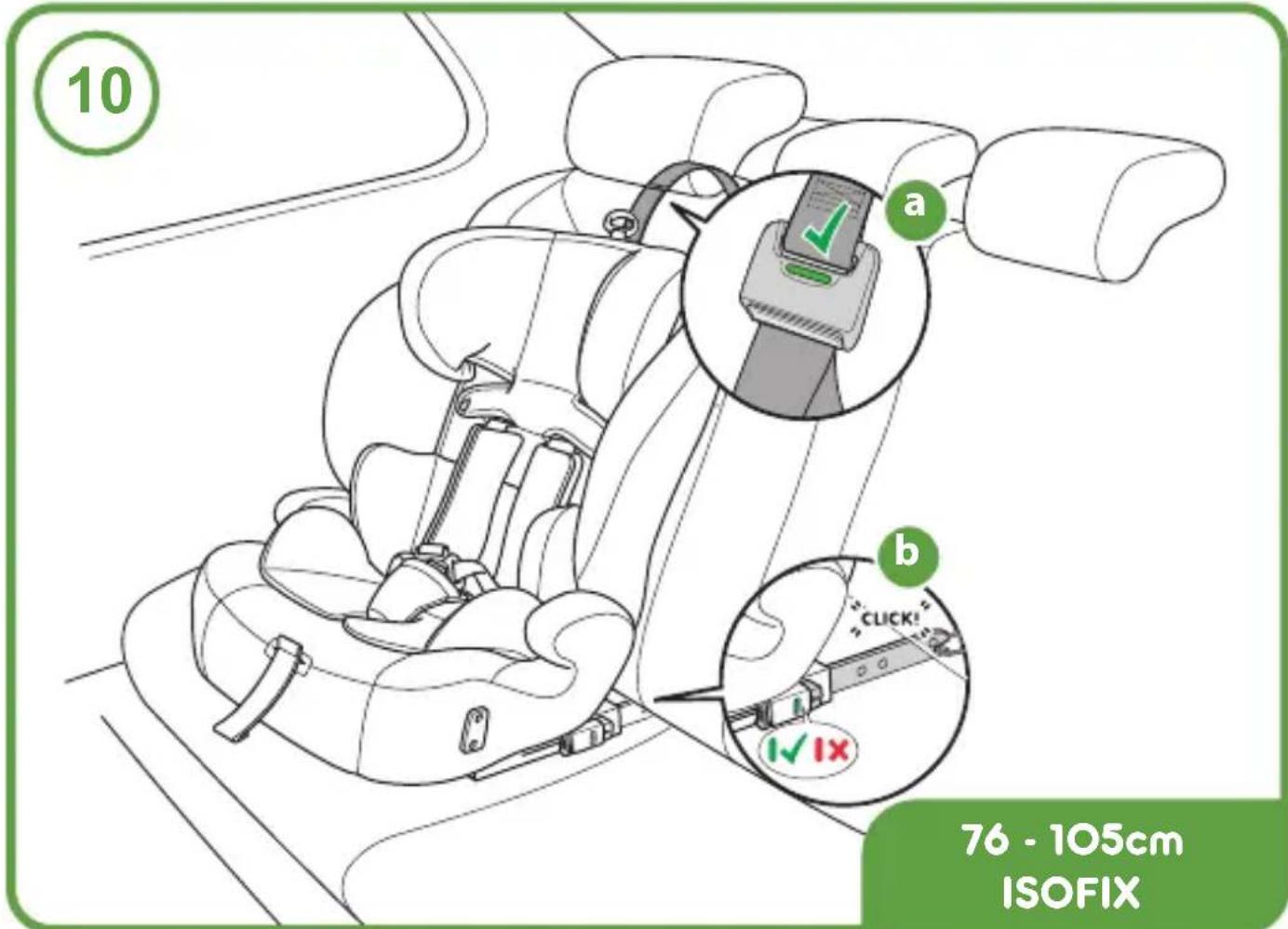

Fitting:

10- Position the child car seat on the vehicle seat, forward facing.

Attach the ISOFIX arms to the anchor points (refer to step 5) (a).

Attach the ISOFIX top-tether strap clip to the anchor point (refer to step 7 -9) (b).

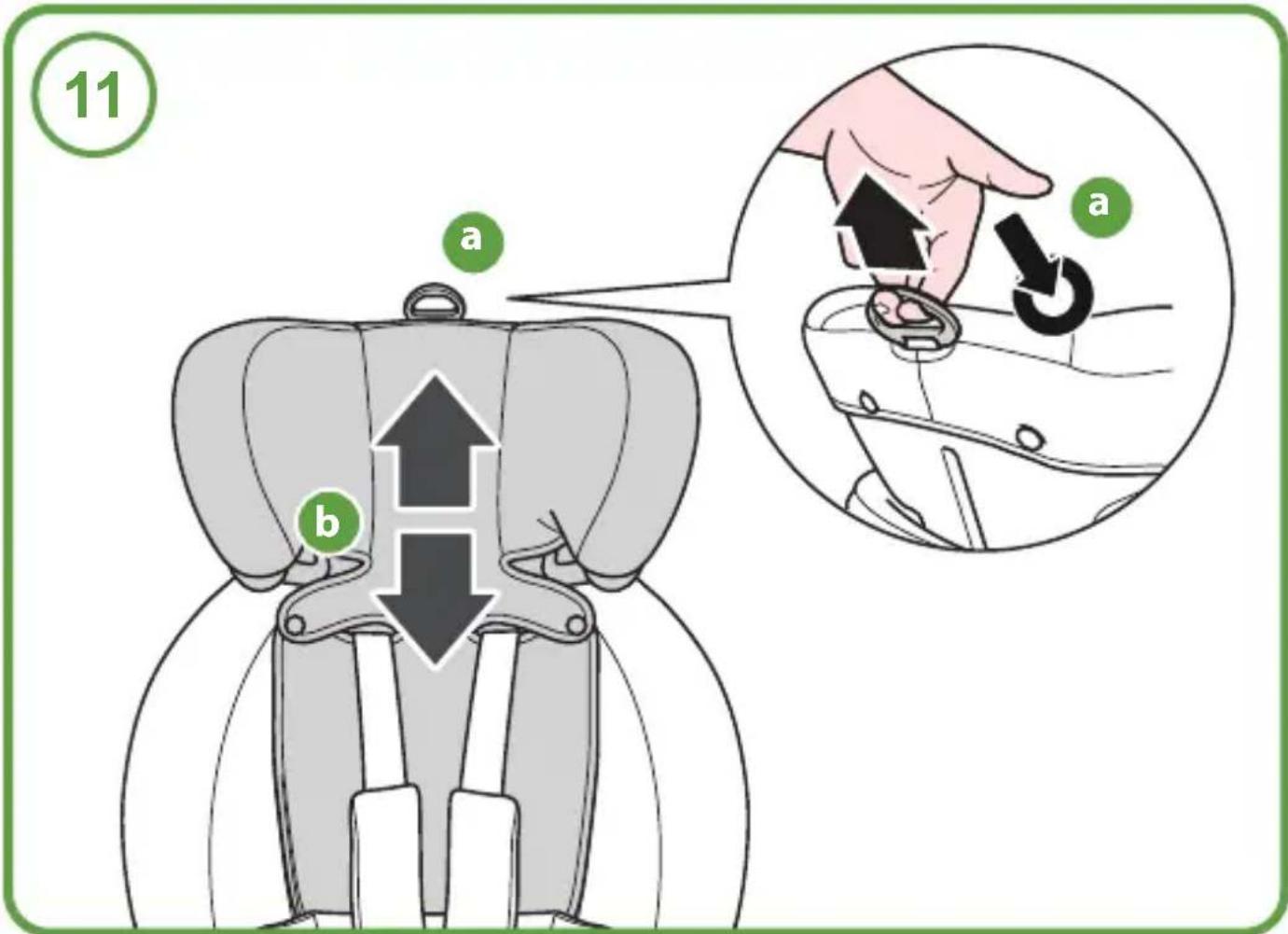

Headrest 11-Adjusting:

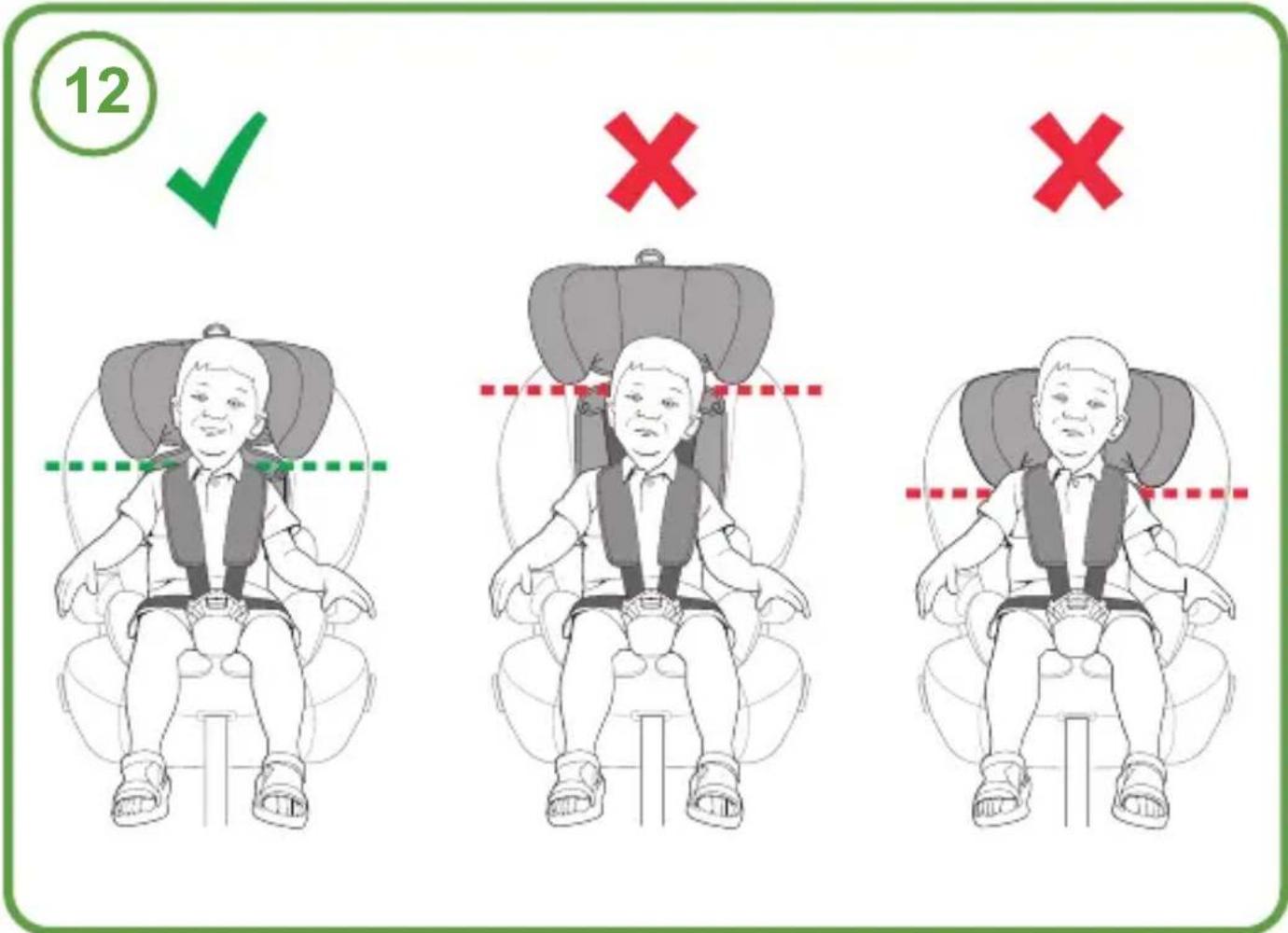

12- Satisfactory headrest position:

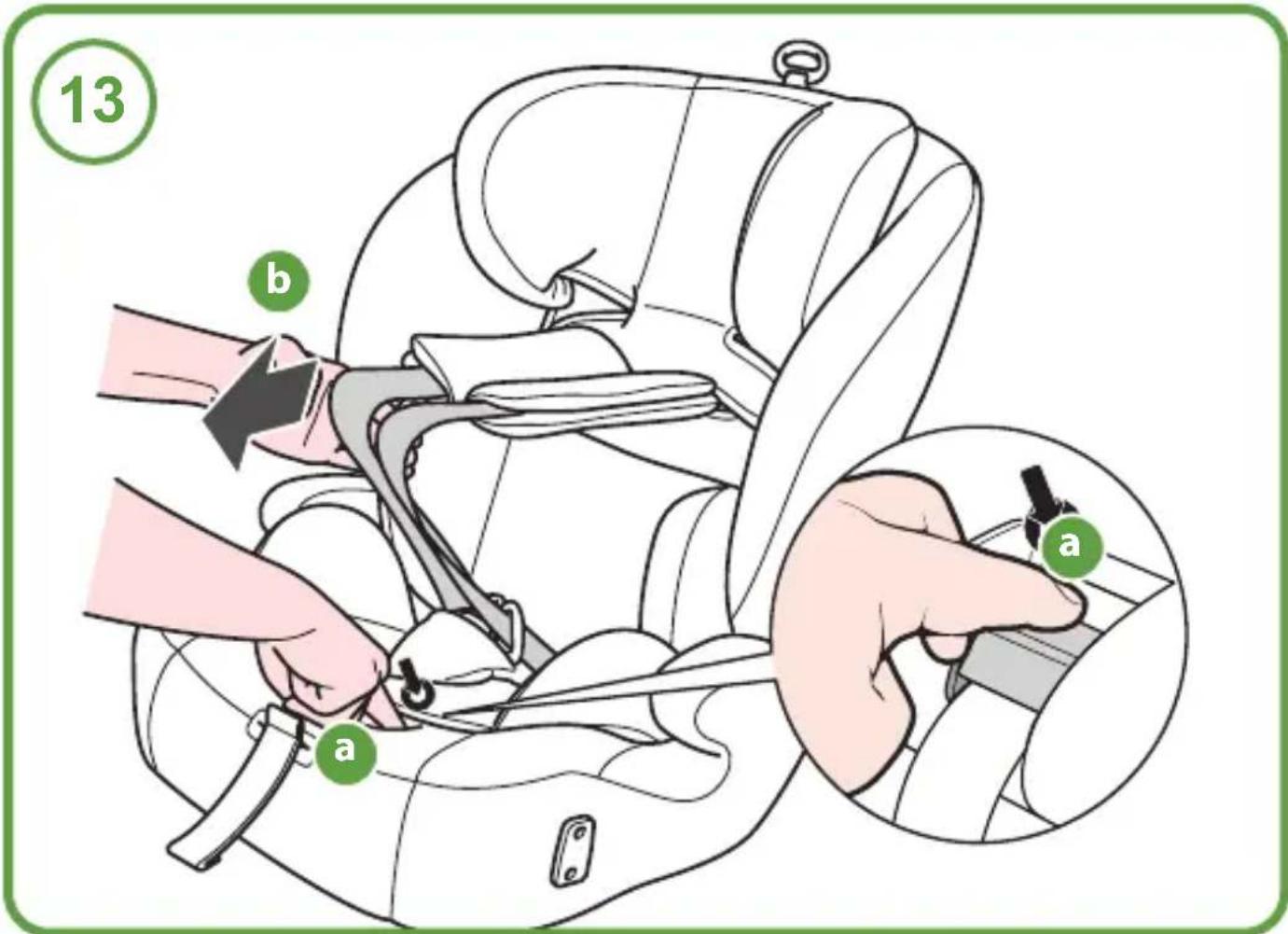

Harness 13- Loosening:

NOTE: Pull only the harness straps.

14- Tightening:

15- NOTE: The harness must be reasonably tight. It should restrain but not make the child uncomfortable.

Check that the straps are not twisted while the child is seated.

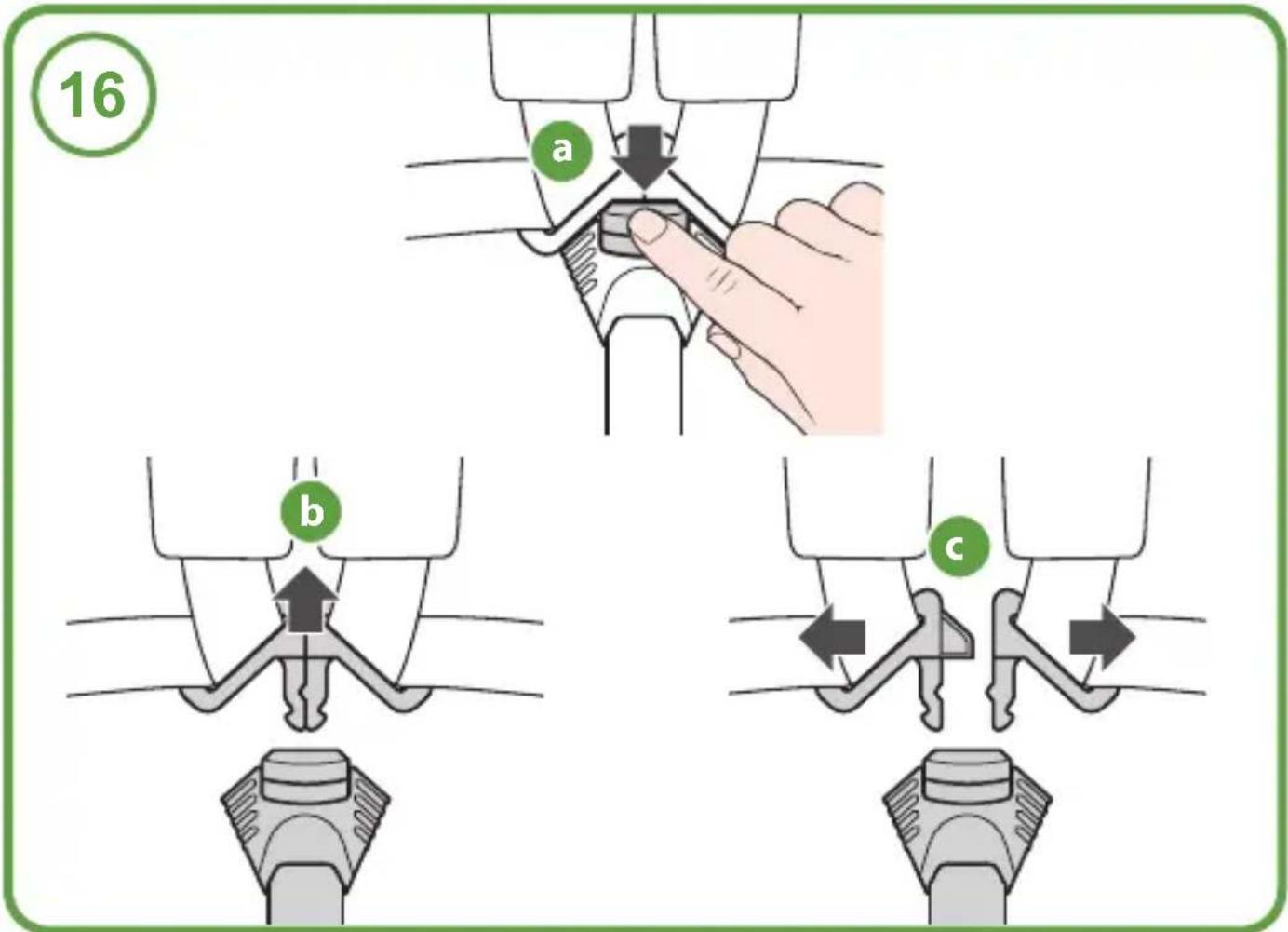

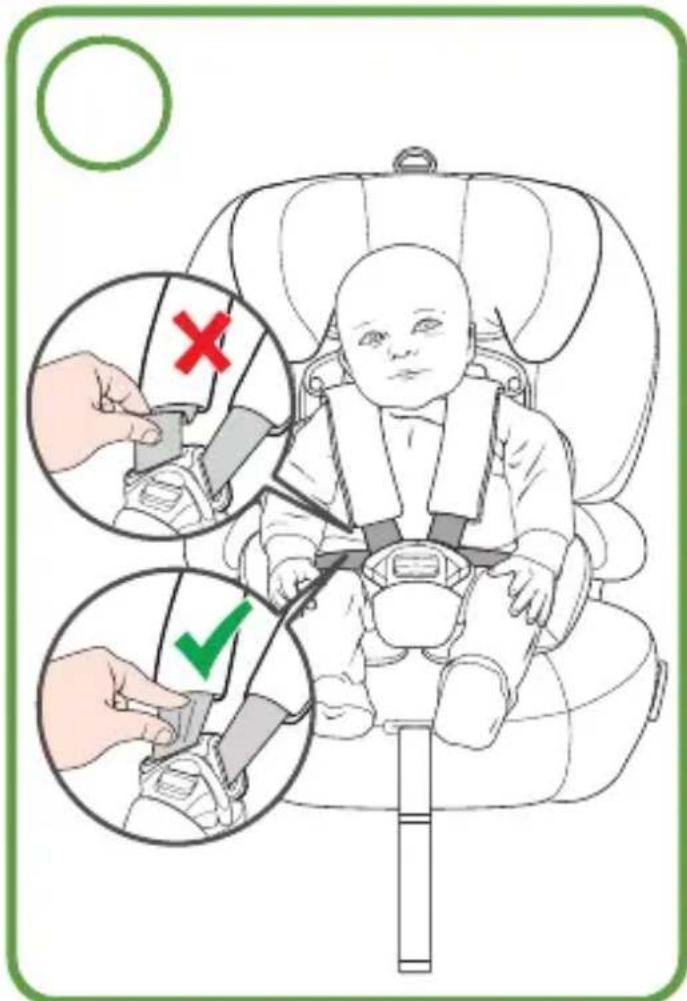

16- Opening:

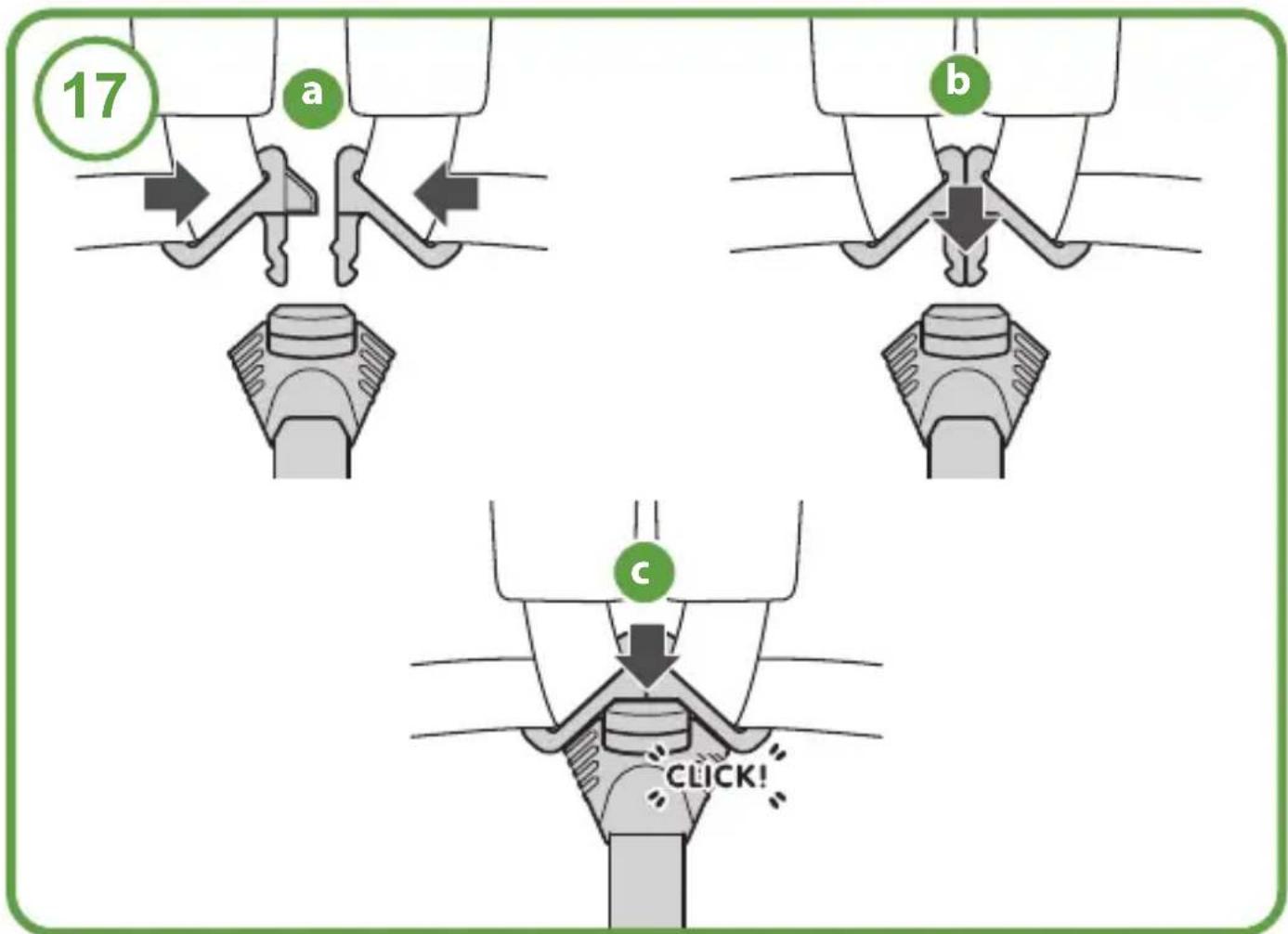

17- Closing:

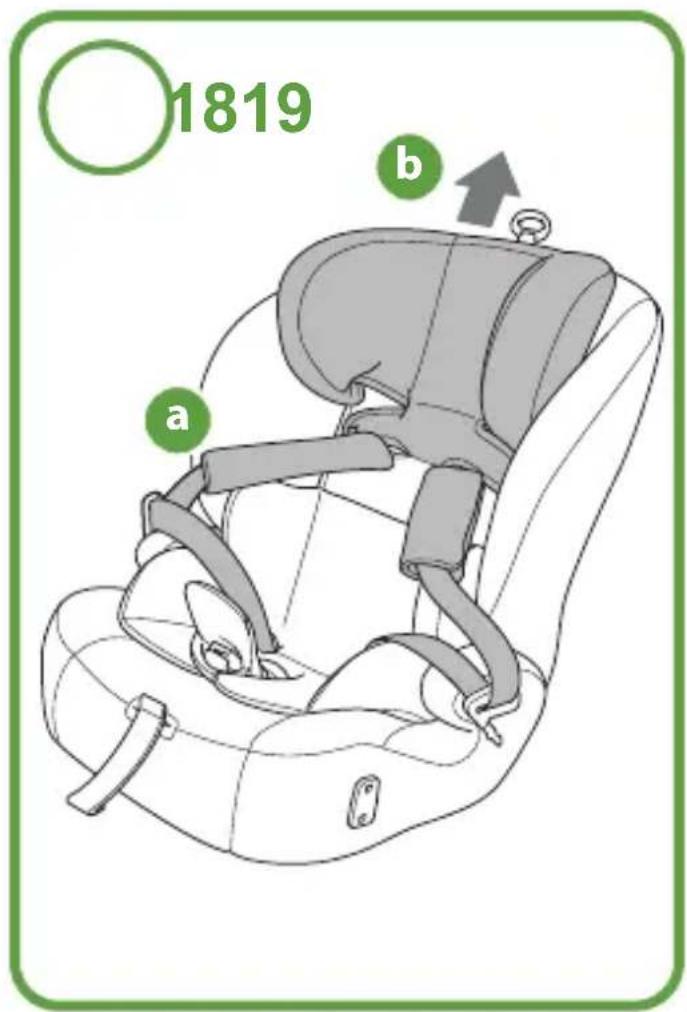

Securing your child in the child car seat:

18- Open the harness (refer to step 16) (a). Raise the headrest (refer to step 11) (b).

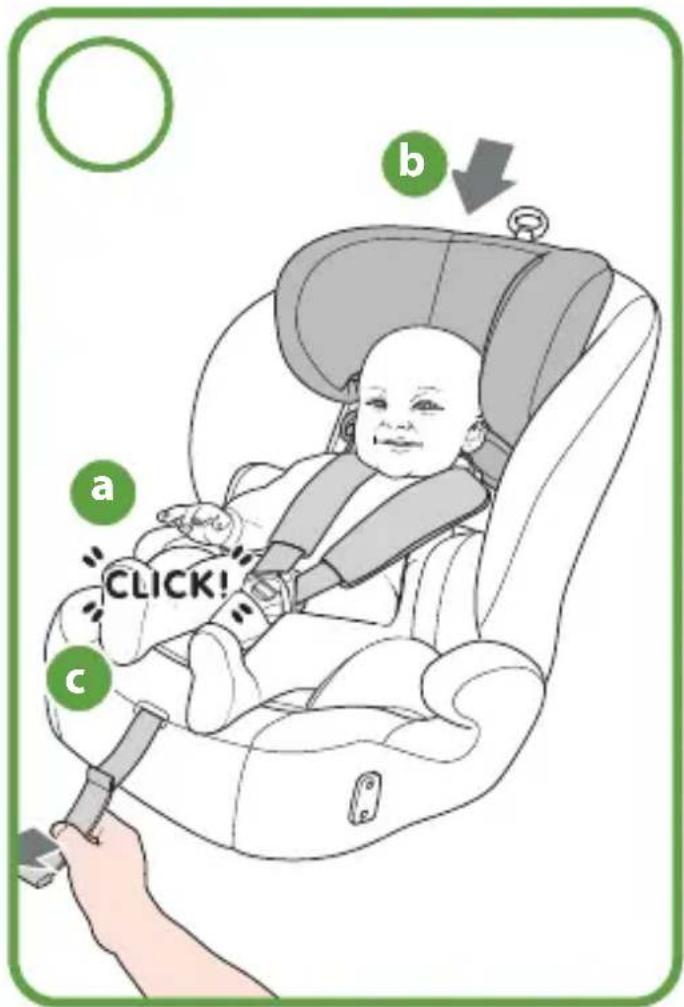

19- Place your child in the child car seat. Close the harness (refer to step 17) (a). Adjust the headrest (refer to step 11) (b). Tighten the harness (refer to step 14) (c).

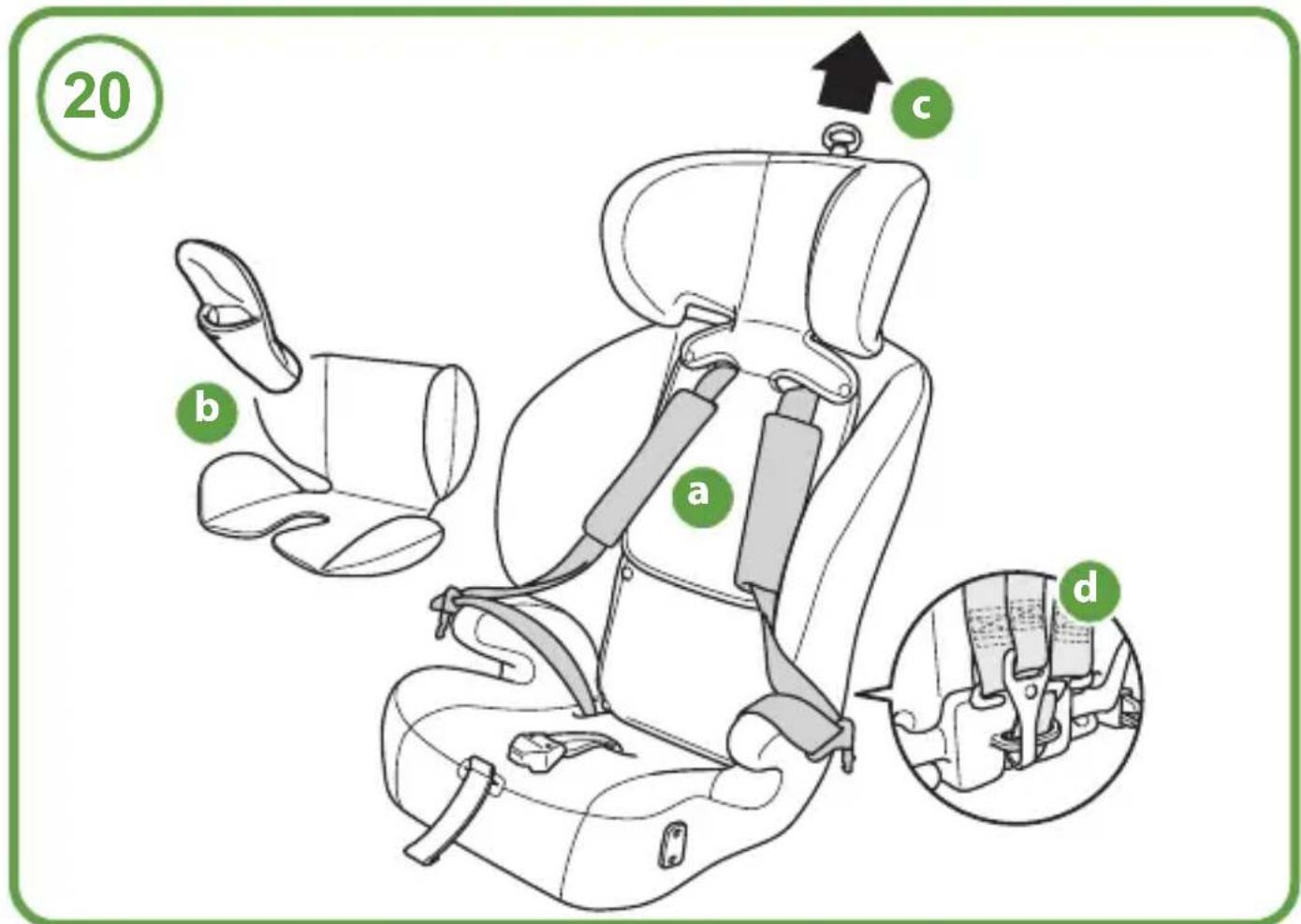

Car seat Converting to the booster seat mode (100 - 150cm):

20- Loosen the harness and open the harness (a). Remove the crotch pad & seat liner (b). Raise the headrest to its highest position (c, refer to step 10). Connect top-tether strap to the rear of the car seat (d).

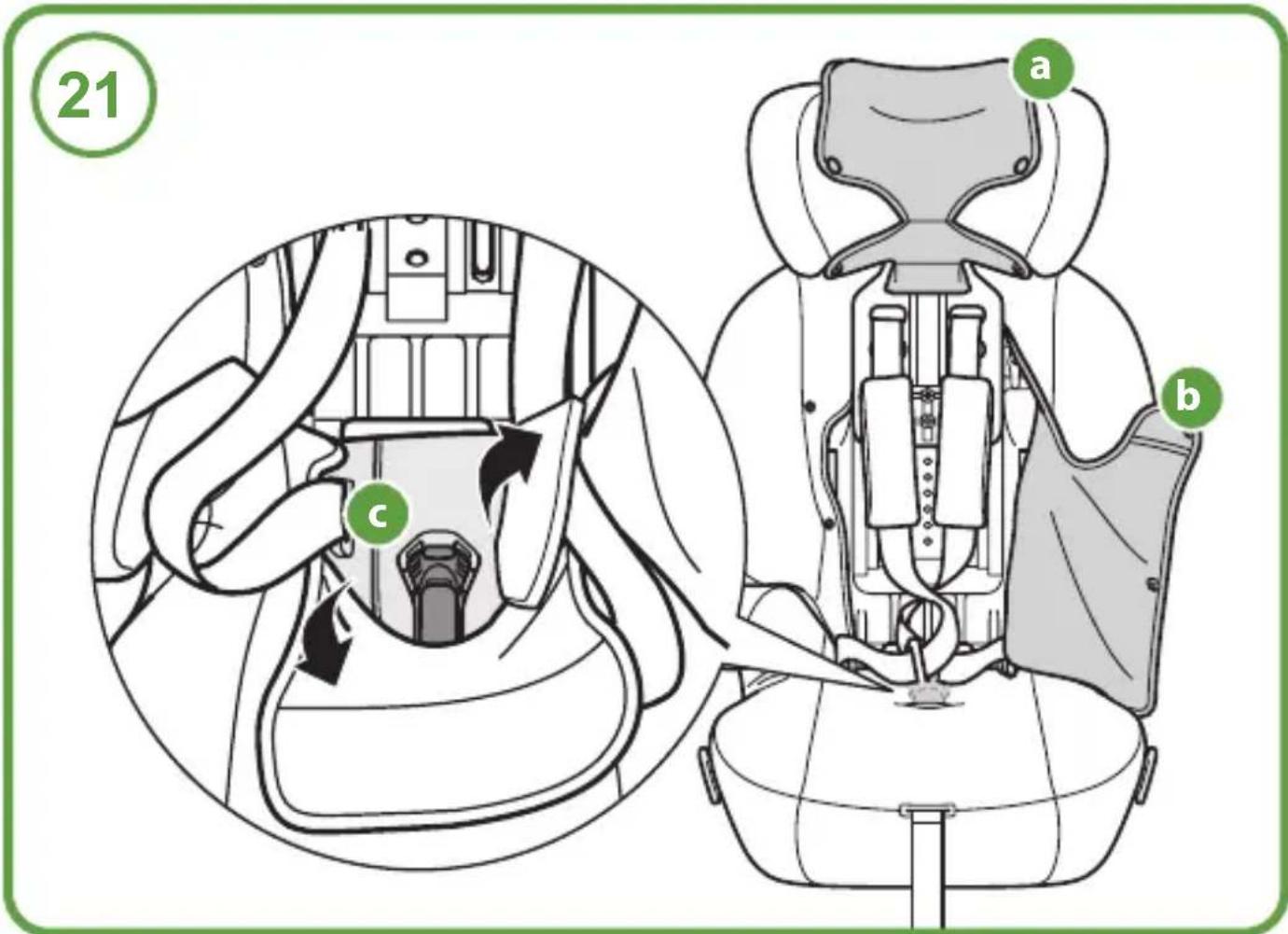

21- Disconnect the poppers and lift up the headrest cover tongue (a). Disconnect the poppers and open the backrest cover flap (b). Store the buckle in the buckle storage compartment (c).

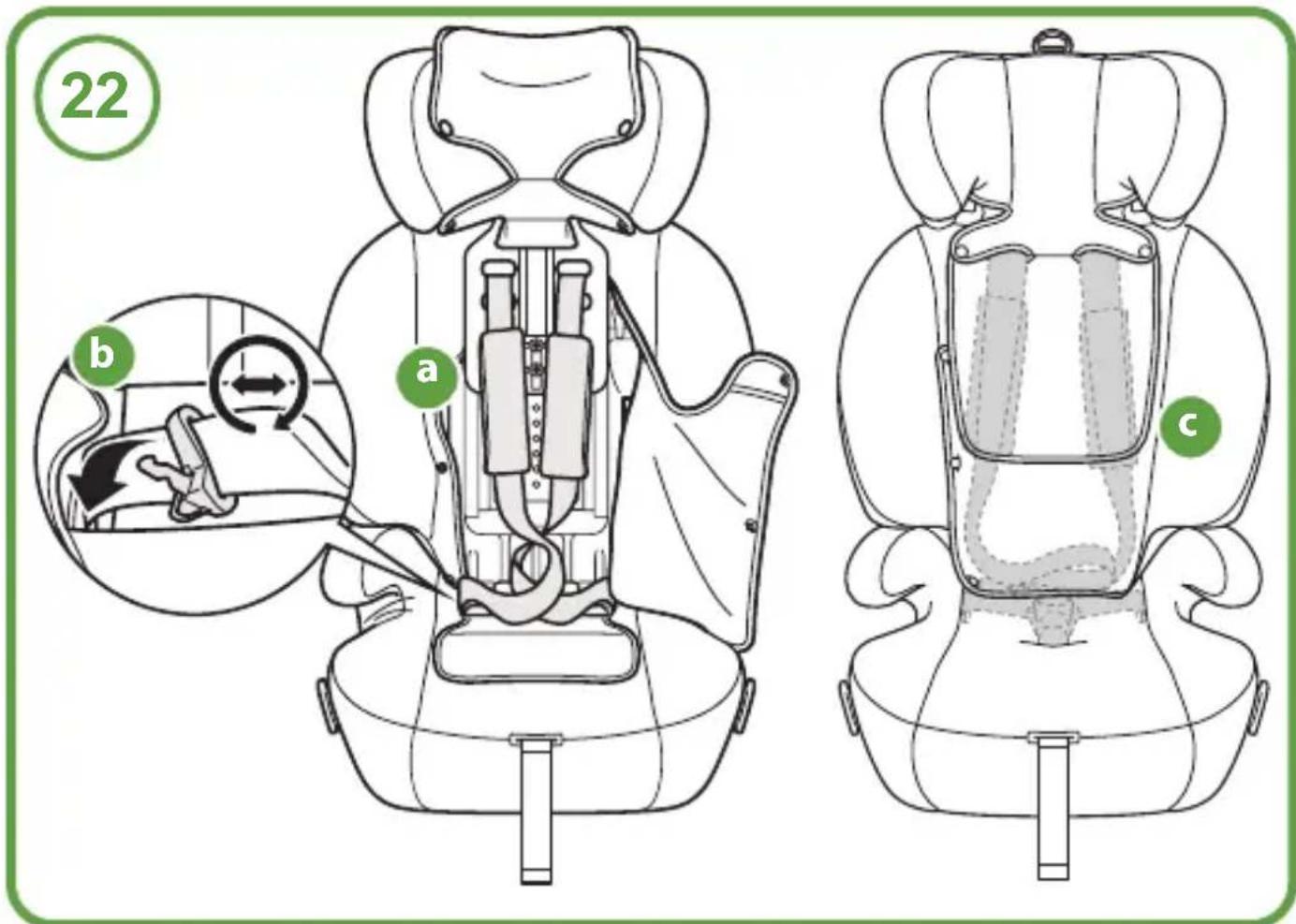

22- Store the harness behind the backrest fabric cover (a). Store the harness clip in the waist harness slot (b). Refit the seat fabric cover, backrest fabric cover flap and headrest fabric cover tongue (c). The buckle must be stored lowdown in the storage compartment.

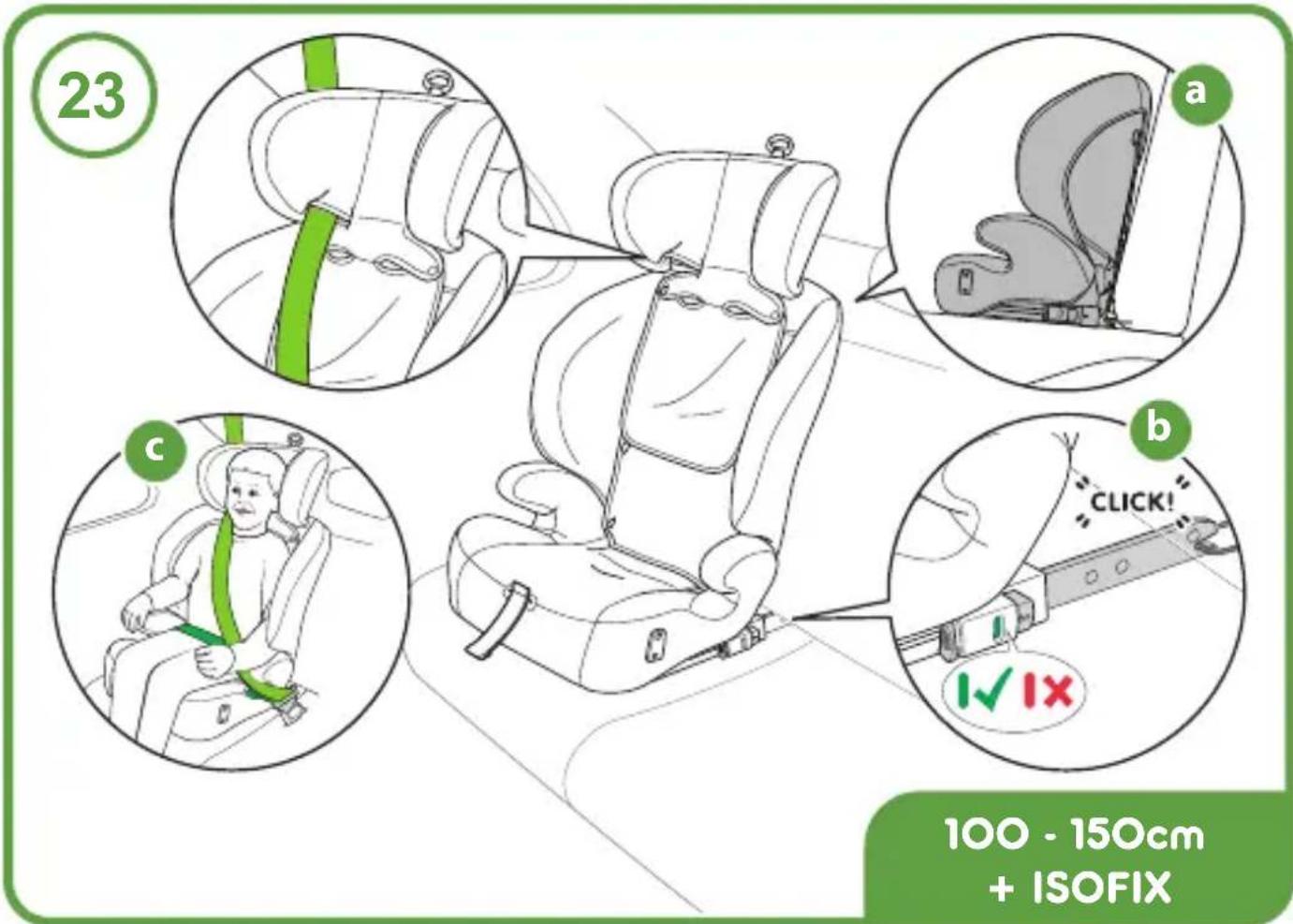

Belted with ISOFIX arms only

23- Fitting:

Position the child car seat on the vehicle seat, forward facing (a). Attach the ISOFIX arms to the anchor points (refer to step 5) (b). Secure your child with vehicle belt (refer to step 24 - 25) (c). Removal is a reversal of this procedure.

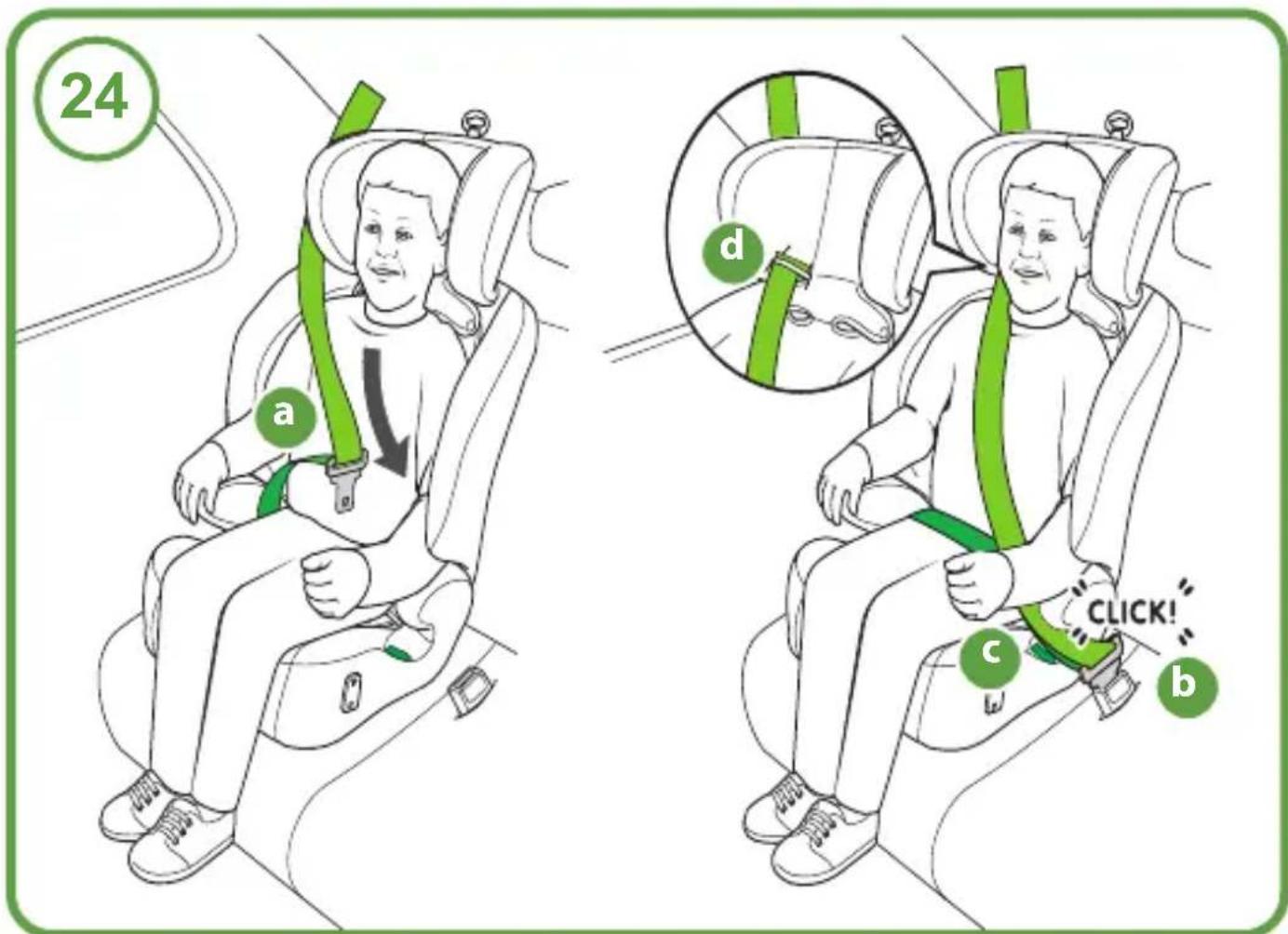

Vehicle belt 24- Place your child into the child car seat.

Pull the vehicle belt out and around the child (a) and fasten the buckle (b). The lap vehicle belt should be threaded through lap vehicle belt guides (c) under the armrests. Fit the diagonal vehicle belt through the headrest diagonal vehicle belt guide (d).

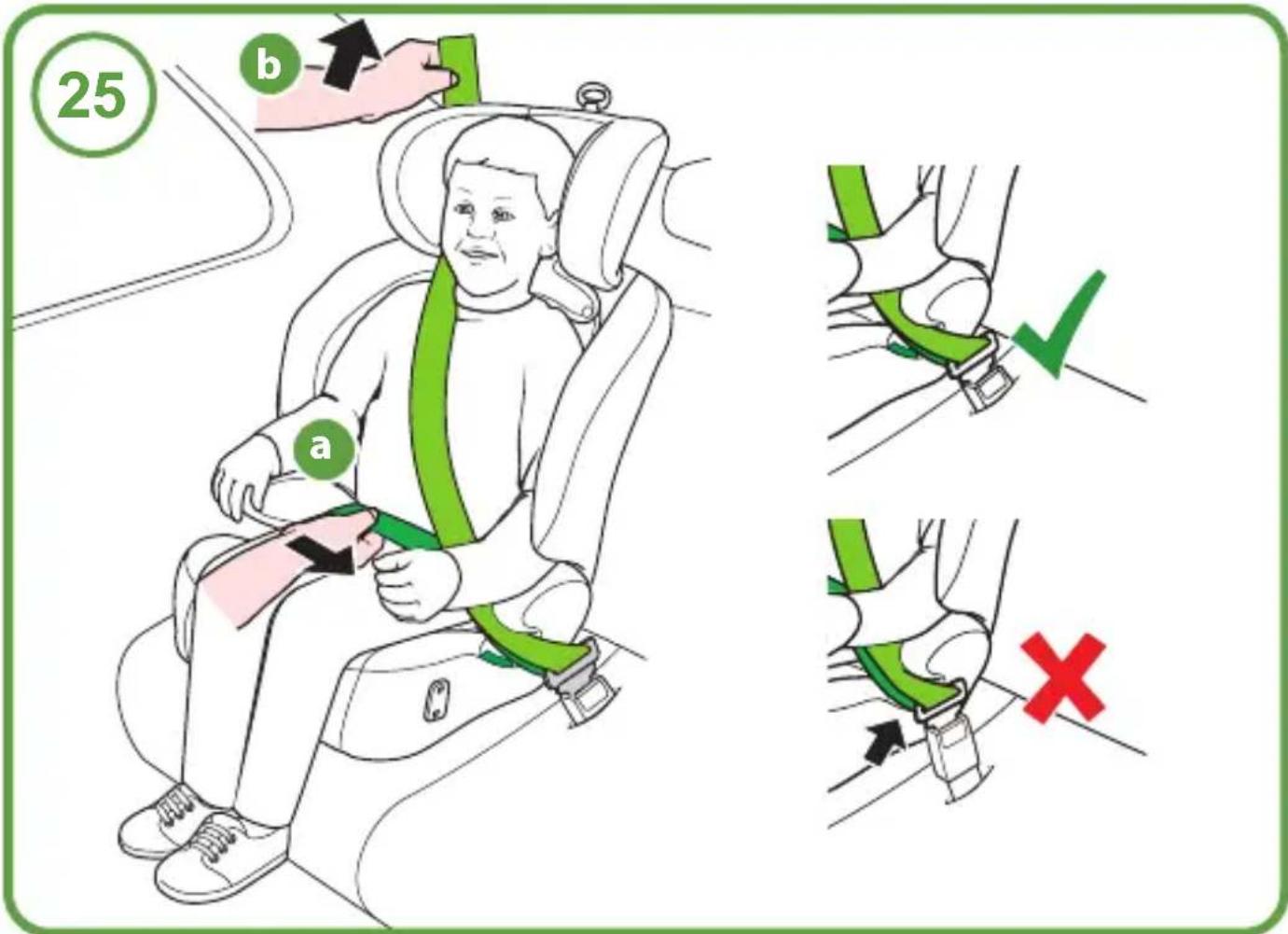

25- Tension the vehicle belt (a & b). IMPORTANT: The position of the vehicle belt buckle can affect the stability of the child restraint system. In an accident this could stop the child restraint system from protecting your child as well as it should. After tightening the vehicle belt, if the buckle lies in the position marked (X) then try fitting the child restraint system in another seating position in your vehicle. Removal is a reversal of this procedure.

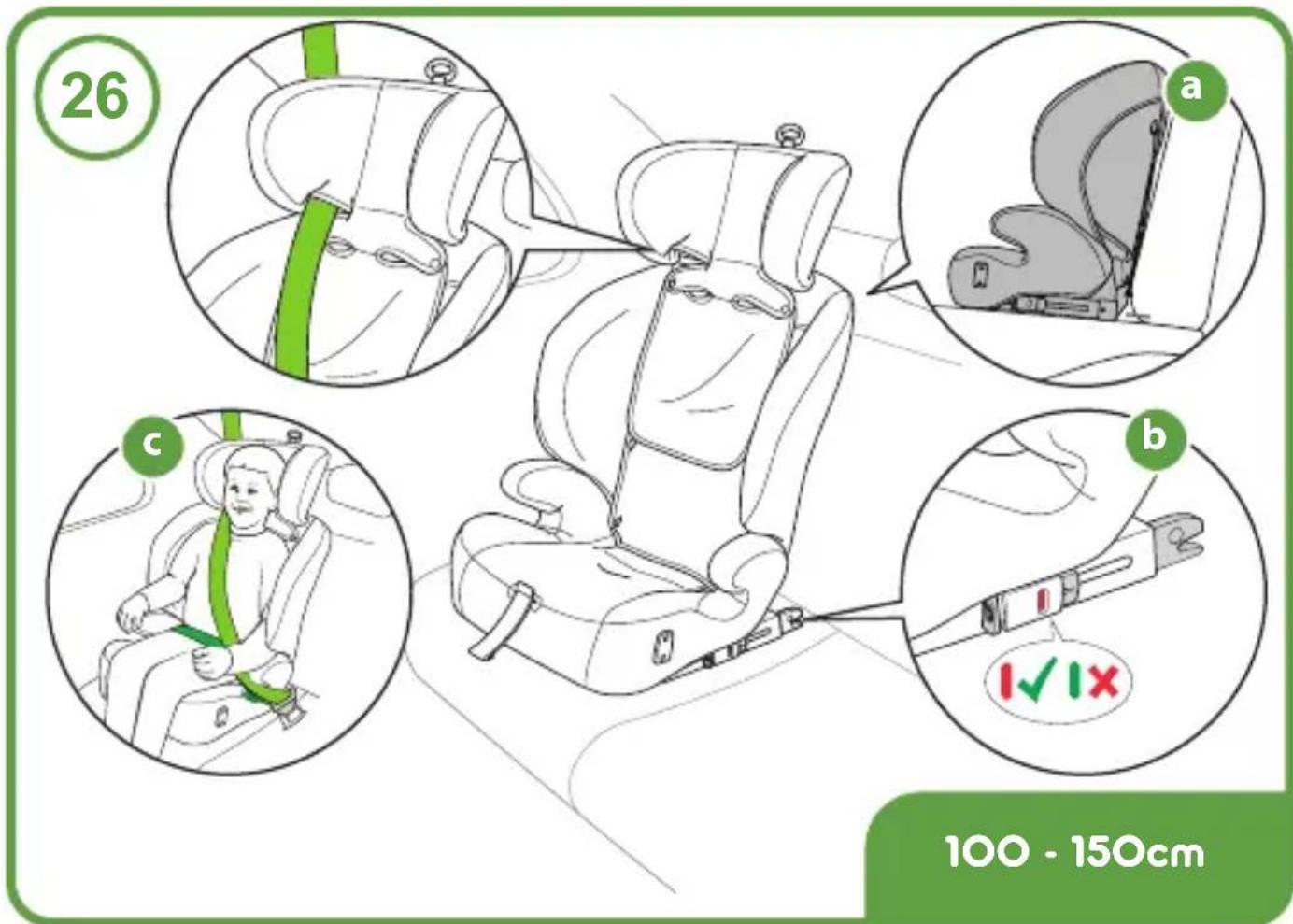

Belted only 26- Fitting:

Position the child car seat on the vehicle seat, forward facing (a). Retract the ISOFIX arms (refer to step 5) (b). Secure your child with vehicle belt (refer to step 24 - 25) (c). Removal is a reversal of this procedure.

Softgoods Removing:

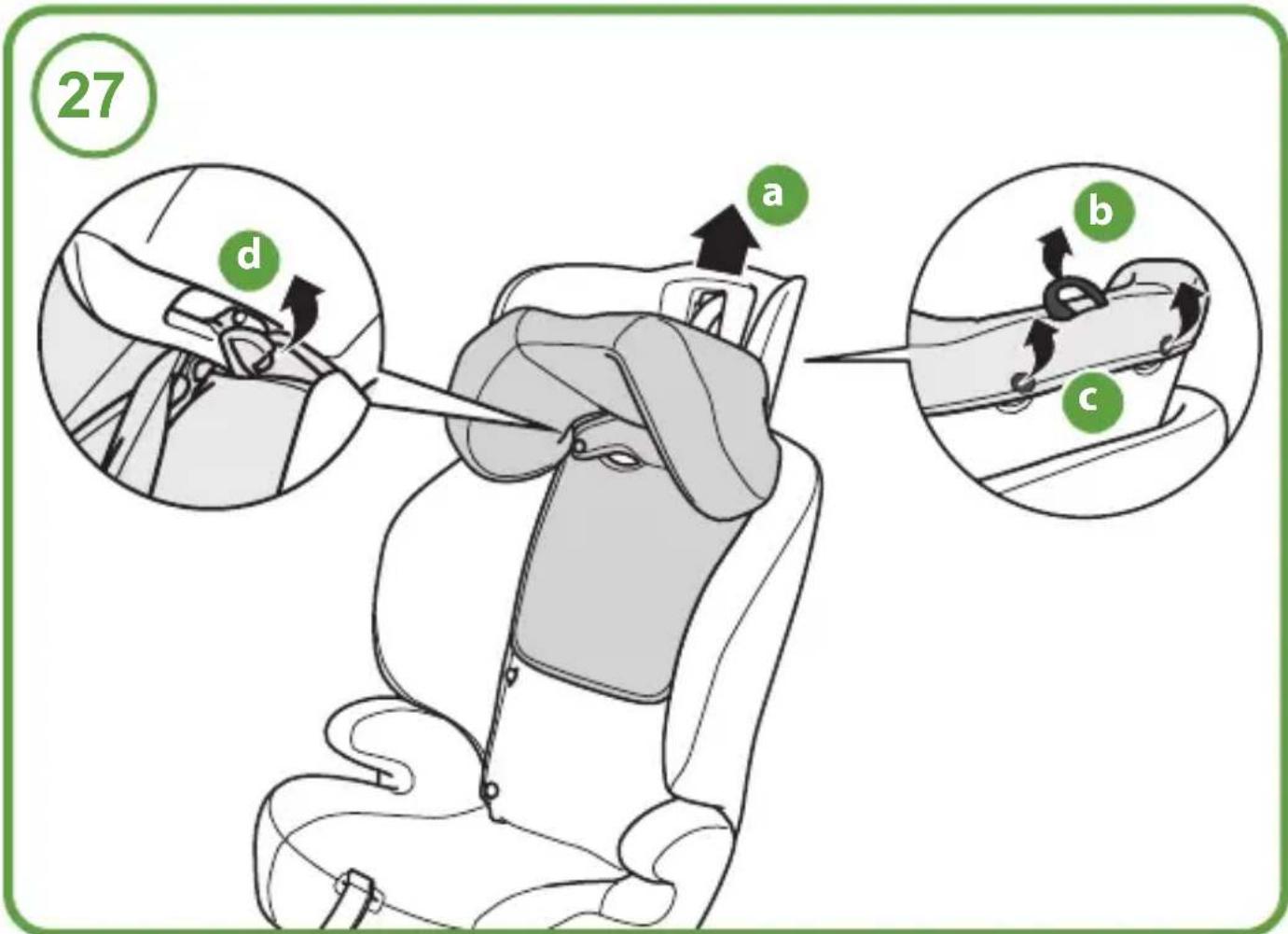

27- Raise the headrest to its highest position (a, refer to step 10).
Unfasten the headrest adjustor strap (b) and poppers (c) at the rear of the headrest fabric cover.
Release the headrest fabric cover from the headrest diagonal vehicle belt guides (d) and remove the fabric cover.

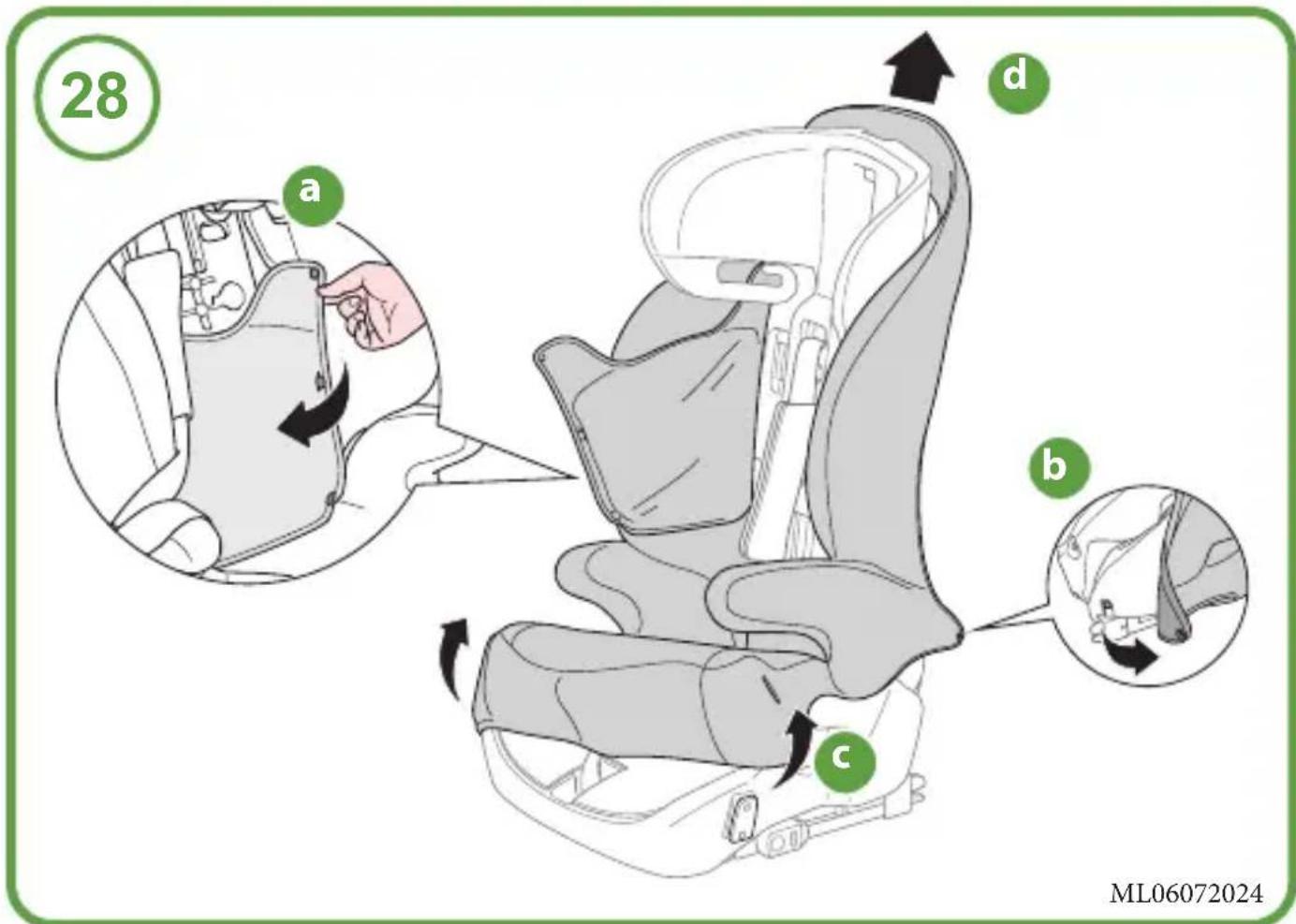

28- Disconnect the poppers and open the backrest cover flap (a).
Disconnect the poppers at the rear of base (b).
Release the fabric around the drinks holder attachment point (c). Remove the seat fabric cover (d).
Reverse the procedures above to refit the softgoods.

Checklist:

• Have you check the compatibility of the child car seat with the intended vehicle?
• If applicable, is the air-bag de-activated?
  • Is your child car seat correctly fitted to the vehicle seat?
• Have you check the safety indicators on ISOFIX arms?
  • Is your child correctly secure in the child car seat?
  • Is harness adequately tensioned and not twisted?

http://www.cosatto.com/service-centre/spares

http://www.cosatto.com/service-centre/spares

http://www.cosatto.com/service-centre/spares

http://www.cosatto.com/stockists

Diagram of a car seatbelt with directional arrows and label 'd', showing mechanical components and movement direction.

6 d a b c

7 a b Cont. 8

8 a b c d e f g h i Cont. 9

9 a b c

10 a b 76 - 105cm ISOFIX

11 a b a

12 ✓ × ×

13 b a a

1415

Illustration of a baby in a baby car seat with safety instructions and checkmarks for using the seatbelt.

16 a b c

1819 a b

a a c CLICK!

20 a b c d

21 a b c

22 a b c

23 a b c CLICK! ✓ I X 100 - 150cm + ISOFIX

24 a d c CLICK! b

25 b a

26 a b c ✓ 1x 100 - 150cm

27 a b c d

28 a b c d ML06072024

Right by your Side

Landline: Go freephone fabulous on 0800 014 9252*

Mobile: Ring 0333 323 1729 International: [phone]

* calls from BT landlines are free but calls from mobiles and other networks may vary.

Email: [e-mail]

Letter: Cosatto Limited, Bentinck Mill, Bentinck Street, Farnworth, Bolton, Lancs, BL4 7EP, England.

All the design and trademarks contained herein are the property of Cosatto Limited. No part of this document may be reproduced without the permission of Cosatto Limited.

www.cosatto.com

(EN) Notice:

(76 - 105cm) This is an i-Size Enhanced Child Restraint System. It is approved according to Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual. (100 - 150cm) This is an i-Size booster seat Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use primarily in" i-Size seating positions" as indicated by vehicle manufacturers in the vehicle user's manual. Please refer to the vehicle list, fit checker app (http://cosat.to/fitchecker) or the vehicle list section on the website (http://cosat.to/zoomi3isizevl). Never use this child restraint system in seating positions where an active frontal airbag is installed. Important - Do not use forward facing before the child's age exceeds 15 months (refer to instructions). If in doubt, consult either the child restraint manufacturer or retailer.
