USER MANUAL All in All Extra i-Size 360 COSATTO

clever stuff for happy babies

The ABCs

R129/04 40 - 105cm ≤20kg 100 - 150cm

All in All Extra i-Size 360

i-Size Car Seat

(EN) Instruction 1 - 32

(FR) Instruction, (DE) Gebrauchsanleitung, (IT) Istruzioni,

(EN) Part list diagram 33

(FR) Schéma de nomenclature, (DE) Teilelisteabbildung,

(EN) Spare part list diagram 34

Important: Keep these instructions for future reference.

Important safety Information

The instruction manual should be kept safely with child car seat for its life period:

There is a fabric compartment at the rear of the headrest fabric cover for storage of the instruction manual.

It is recommended to check that the child restraint is compatible with the intended vehicle at the time of purchase.

Please refer to the vehicle list, Cosatto fit checker app (http://cosat.to/fitchecker) or the vehicle fitting list section on the website (http://cosat.to/allinallextravl).

Seat positions in other vehicles may also be suitable to accept the child restraint. If in doubt, consult either Cosatto or the retailer.

Child age and weight:

- When used in rearward facing mode, the car seat is suitable from birth, height between 40 and 105cm , up to maximum weight of 20kg .

• IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS.

- When used in forward facing mode, the car seat is suitable from 15 months, height between 76 and 105 ~cm , up to maximum weight of 20 ~kg .

- When used in booster mode, the car seat is suitable for height between 100 and 150cm .

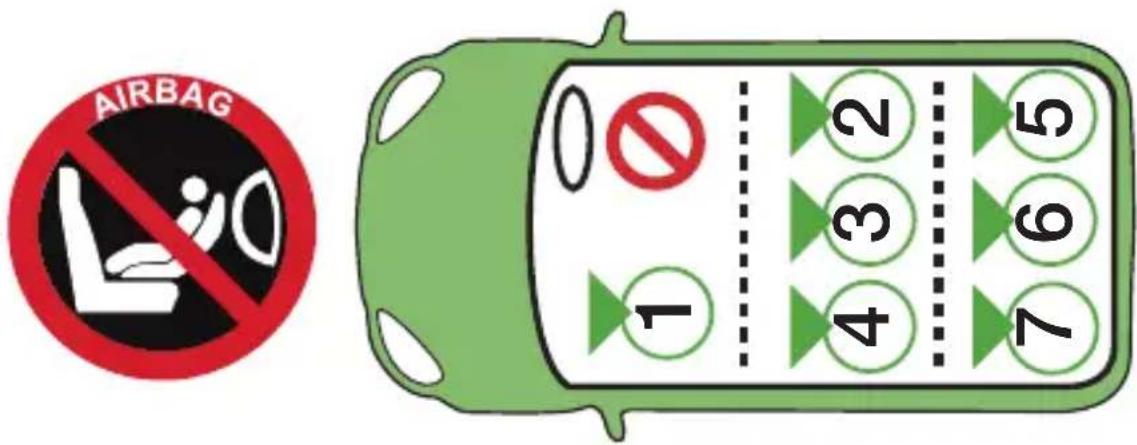

Location:

- Refer to the vehicle list for information of where the child car seat base will fit in your vehicle.

- Never use the child car seat on a seat where an airbag is fitted and active. Refer to your vehicle user manual for information on de-activating the airbag.

- If the vehicle seat backrest has a recline function, place the vehicle seat in the most upright position when using the child car seat.

- Do not use the child car seat in the home. It has not been designed for home use and should only be used in your car.

AIRBAG 0 1 2 3 4 5 6 7

Safety - Please read carefully:

- NEVER use this child car seat with its side facing the vehicle seat.

- Any rigid items and plastic parts of the child car seat must be so located and installed that they are not liable, during everyday use of the vehicle, to become trapped by a movable seat or in a door of vehicle.

- If any load bearing points other than those described in the instructions are used, this can significantly reduce the protection factor of the child car seat.

- ALWAYS secure your child with the safety harness when using this child car seat.

- Never leave your child unattended.

- Do not attempt to dismantle, modify or add to any part of the child car seat or change the way your vehicle seat belts are made or used.

- After an accident the child car seat should be replaced and the vehicle seat belts. Although they may look undamaged, they may not protect your child as well as they should.

- Do not place anything such as a towel or cushion under the child car seat. This could affect the performance of the child restraint system in an accident.

- Any vehicle seat belt holding the child car seat to the vehicle should be tight, and that belt should not be twisted.

- Always make sure that the child car seat harness and vehicle seat belt are correctly tensioned to ensure maximum protection for your child.

- Prevent harness/ vehicle seat belt from getting trapped between car doors or rubbing against sharp parts of the seat or body.

- If the harness/vehicle belts becomes cut or frayed, replace it before travelling.

- Never use replacement parts other than those approved by Cosatto.

- Cosatto advise that child car seat should not be bought or sold second-hand. Many child car seat acquired this way have been found to be dangerous.

- NOTE: The child car seat can mark vehicle seat upholstery. Cosatto cannot be held responsible for damage or marking to vehicle seat upholstery.

- Security is only guaranteed if the child car seat is fitted in accordance with these instructions.

- Safely secure any luggage or other objects that might cause injuries to the occupant of the child car seat in the event of a collision.

- Failure to comply with the instructions would be dangerous, and will automatically void the warranty and exempt Cosatto from any liability.

- The harness buckle has been designed to be released quickly in an emergency. IT IS NOT CHILD PROOF. More inquisitive children may learn to undo the buckle. Children should be told never to play with the harness buckle or any other part of the child car seat.

- It is important that the lap harness is worn low down, so that the pelvis of the child is firmly engaged.

- In booster seat mode, the lap vehicle seat belt must be worn in such a way as to properly secure the pelvis of the child.

- Never use the child car seat without its fabric cover because the fabric cover constitutes as an integral part of the child car seat performance. The fabric cover should not be replaced with any other than the ones recommended by Cosatto.

- Cover the child car seat if it is left in direct sun light for prolonged period as the child car seat base surfaces may get very hot. Check the child car seat surface before placing your child in the seat.

Notice:

1. (40 - 105cm) This is an i-Size Enhanced Child Restraint System. It is approved according to Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual.
2. (100 - 150cm) This is an i-Size booster seat Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use primarily in" i-Size seating positions" as indicated by vehicle manufacturers in the vehicle user's manual.
3. Never use this child car seat on passenger seat fitted with an active airbag is installed.
4. If in doubt, consult either the child restraint manufacturer or retailer.

Care & Maintenance:

• Your child restraint system has been designed to meet safety standards and with correct use and maintenance will give many years of trouble free performance.
• Store your child restraint system in a dry, safe place.
• Storing a damp child restraint system will encourage mildew to form, so after exposure to damp conditions, dry off with a soft cloth and allow to dry thoroughly before storing.
• Avoid leaving the child restraint system in sunlight for prolonged periods as this may cause fabrics to fade.
• Inspect the child restraint system regularly for signs of damage- stop using the product if damage is found.
• DO NOT take apart, or attempt to take apart the child restraint system when cleaning. It is unnecessary and dangerous to do so.
• Plastic and metal parts may be sponged clean with warm water and a mild detergent.
  • Refer to the wash care on soft goods for cleaning instruction.
• Remove insert from seat cover/seat liner prior to cleaning.
• Never clean with abrasive, ammonia based, bleach based or spirit type cleaners.
• Remove all packaging & protective materials on the product before using.

Visual language Key:

XX	Refer to warning XX
√	Correct action
×	Incorrect action
CLICK!	Audible sound

	Repeat action x times
	General action arrow
	Lock
	Unlock

	Press and hold
	Check
	Continue to step XX
	Repeat on other side

Part List:

Please refer to diagrams:

P1: Headrest P7: Crotch pad

P2: Seat liner head section P8: ISOFIX arm

P3: Seat liner P9: Side impact protection block

P4: Seat liner side wing section P10: Support-leg

P5: Chest pads (pair) P11: ISOFIX guide (x2)

P6: Harness P12: Tuck in tool

Replacement Parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order through our website: http://www.cosatto.com/service-centre/spares For customer outside UK & Ireland, contact information for your local distributor can be found on http://www.cosatto.com/stockists

If you require any further assistance, please contact us at [e-mail]

S1: Seat liner S5: Seat cover

S2: Crotch pad S6: ISOFIX guide (set)

S3: Chest pads (pair) S7: Tuck-in tool

S4: Headrest cover

Fitting & Operation Information:

Please refer to the following diagrams:

Location 1- IMPORTANT: Never use the child car seat on a seat where an airbag is fitted and active. Refer to your vehicle user manual for information on de-activating the airbag.

Backrest 2-Adjusting:

recline

Important: Only use the specified recline position(s) for each mode:

Rearward facing mode (40 -105cm): 5, 6, 7, 8

Forward facing mode (76 -105cm): 1, 2, 3, 4

Booster seat mode (100 - 150cm): 1

Headrest 3-Adjusting:

4- Satisfactory headrest position:

Harness 5- Loosening:

NOTE: Pull only the harness straps.

6- Tightening:

NOTE: The harness must be reasonably tight. It should restrain but not make the child uncomfortable.

Check that the straps are not twisted while the child is seated.

7- Opening:

8- Closing:

Child car seat

Securing your child in the child car seat:

9- Open the harness (refer to step 7) (a).
Raise the headrest (refer to step 3) (b).
10- Place your child in the child car seat.
Close the harness (refer to step 8) (a).
Adjust the headrest (refer to step 3) (b).
Tighten the harness (refer to step 6) (c).

11- Adjusting the seat unit's orientation:

Push and hold the seat rotate adjustment button (a) then rotate the seat (b).

12- Seat positions:

b, c: Sideward facing position:

The sideward facing position allow access for placing or removing a child from the seat unit after the car seat is tted.

WARNING: Do Not travel with the seat unit in this position.

d: Rearward facing position:

When use as a rearward facing child car seat, the car seat is suitable from birth, height between 40 and 105 cm, up to maximum weight of 20 kg.

IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS.

a: Forward facing position :

When use as a forward facing child car seat, the car seat is suitable from 15 months, height between 76 and 150 cm.

ISOFIX arm 13- Location:

The two ISOFIX low anchorage anchor points are usually located between the vehicle seat base and back (a).

Some vehicles have ISOFIX indicator near the ISOFIX low anchorage anchor points (b).

14- Fitting the ISOFIX guides (Optional):

The ISOFIX guides can help identify the vehicle ISOFIX anchor points and make installation easier. They can also help with the protection of your vehicle seat.

15- Fitting:

Press and hold ISOFIX arm adjustment buttons and extended the arms fully (a).

Engage the ISOFIX arms (b) and ensure that the ISOFIX arm security indicators are green (c).

Push the base back until it rests rmly against the vehicle seat backrest (d).

Removal is a reversal of this procedure.

Support-leg 16- Fitting:

Open (a) the support-leg fully.

Adjust the support-leg (b) until it makes firm contact with vehicle floor (c) and the support-leg contact indicator is green (d).

Rearward facing mode (40 - 105cm):

17- Fitting:

Convert the seat unit to rearward facing orientation (refer to step 12).

Recline the backrest to rearward facing positions (refer to step 2) (a).

Position the child car seat on the vehicle seat, rearward facing.

Attach the ISOFIX arms to the anchor points (refer to step 13 - 15) (b).

Engage the support-leg (Refer to step 16) (c).

Removal is a reversal of this procedure.

Seat liners

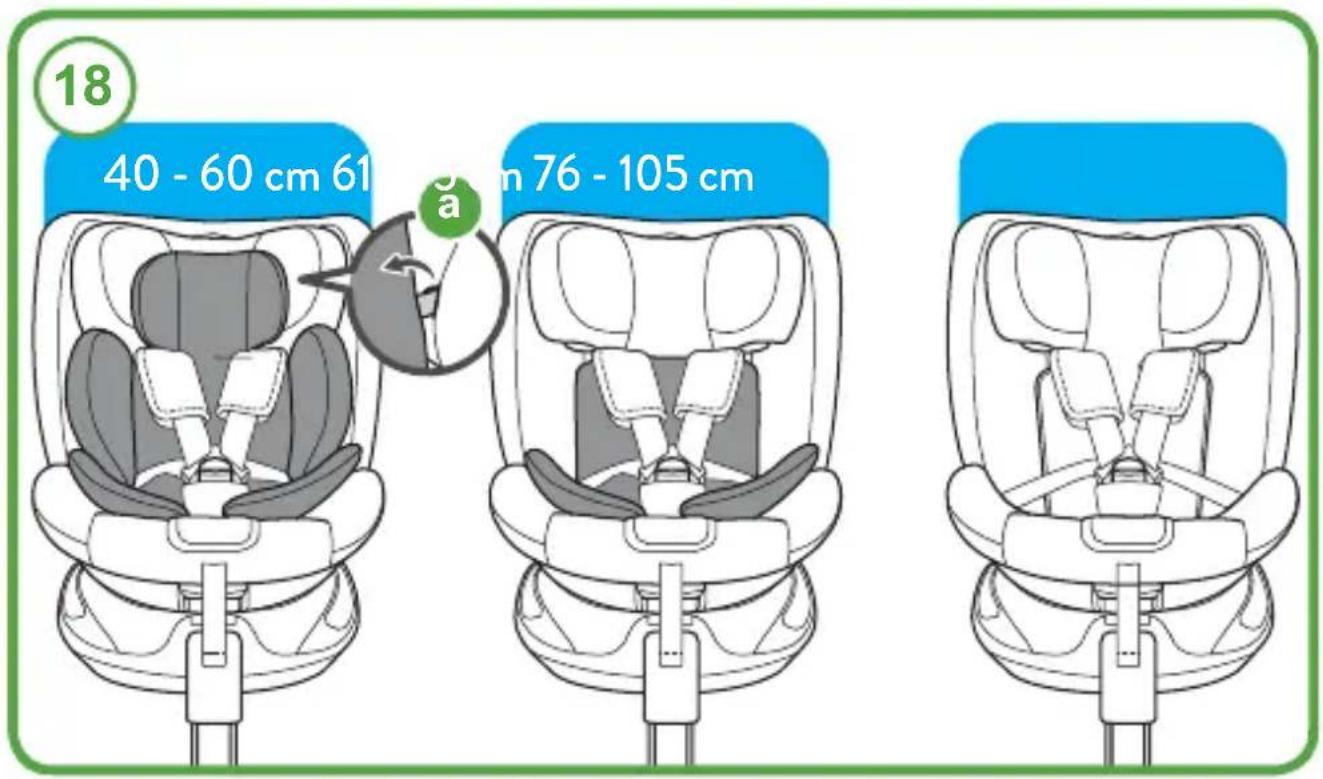

18- When your child's height is 60 cm or below, the child car seat must be used WITH the seat liner, head & side wing sections.

When your child's height is between 61 and 75cm , the child car seat must be used with the seat liner section only, WITHOUT the head & side wing sections.

When your child's height 76 cm or above, the child car seat must be used WITHOUT the seat liner, head & side wing sections.

Forward facing mode (76 - 105cm):

IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS.

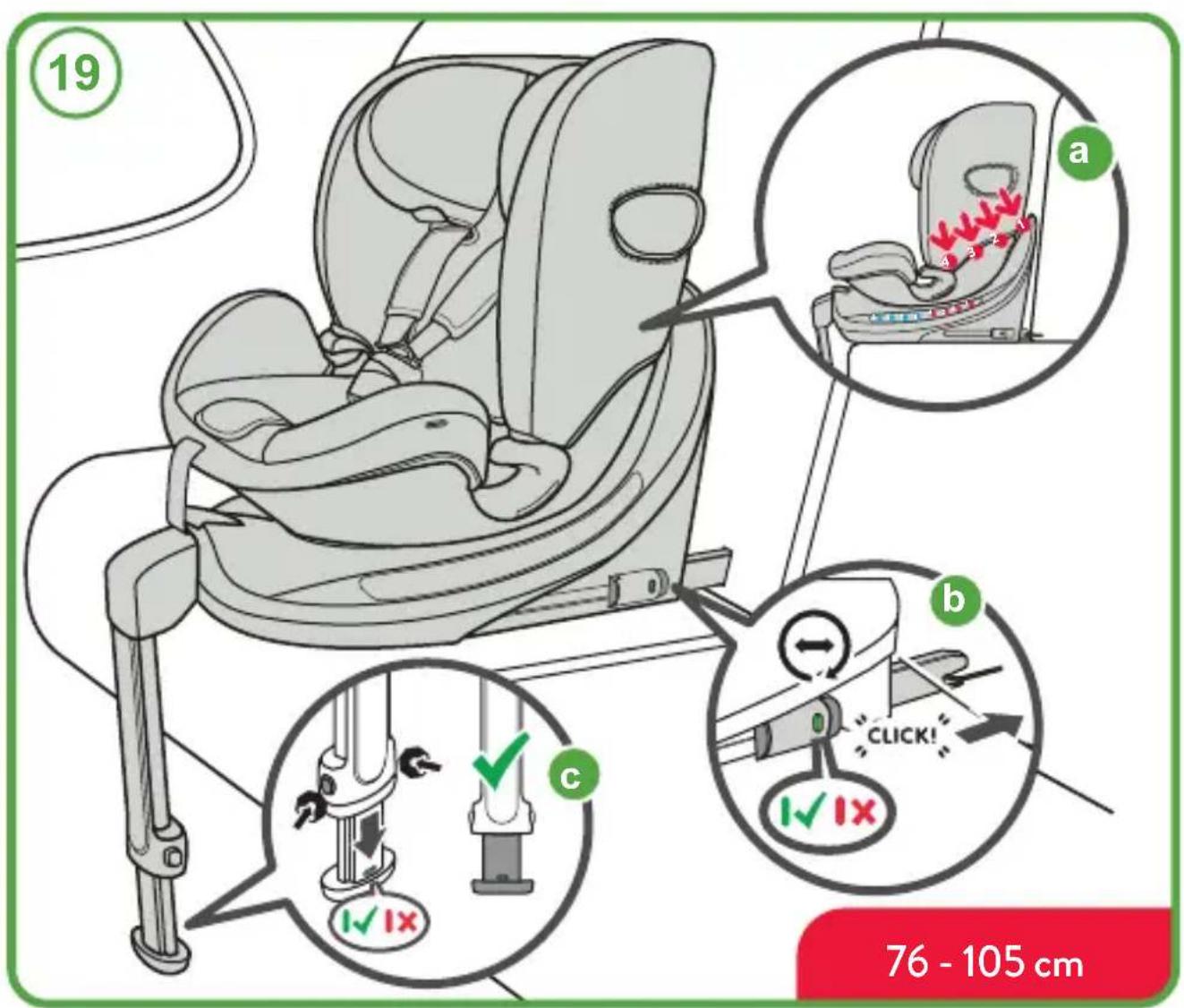

19- Fitting:

Convert the seat unit to forward facing orientation (refer to step 12).

Recline the backrest to forward facing positions (refer to step 2) (a).

Position the child car seat on the vehicle seat, forward facing.

Attach the ISOFIX arms to the anchor points (refer to step 13 - 15) (b).

Engage the support-leg (Refer to step 16) (c).

Removal is a reversal of this procedure.

Booster seat mode (100- 150cm):

Converting to booster seat mode:

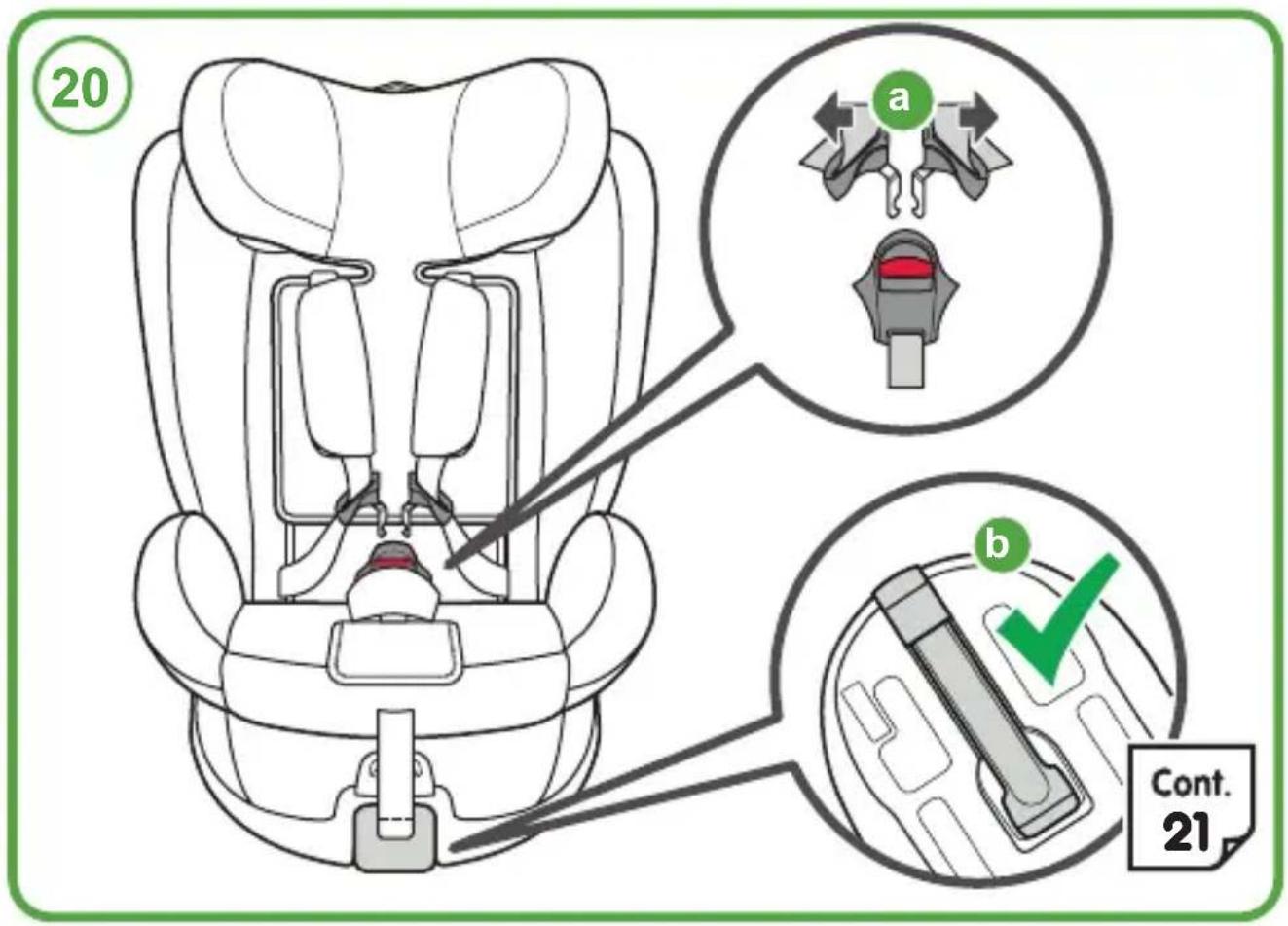

20- Convert the seat unit to forward facing orientation (refer to step 12).

Open the harness (a, refer to step 5).

Retract the support-leg (b, refer to step 16).

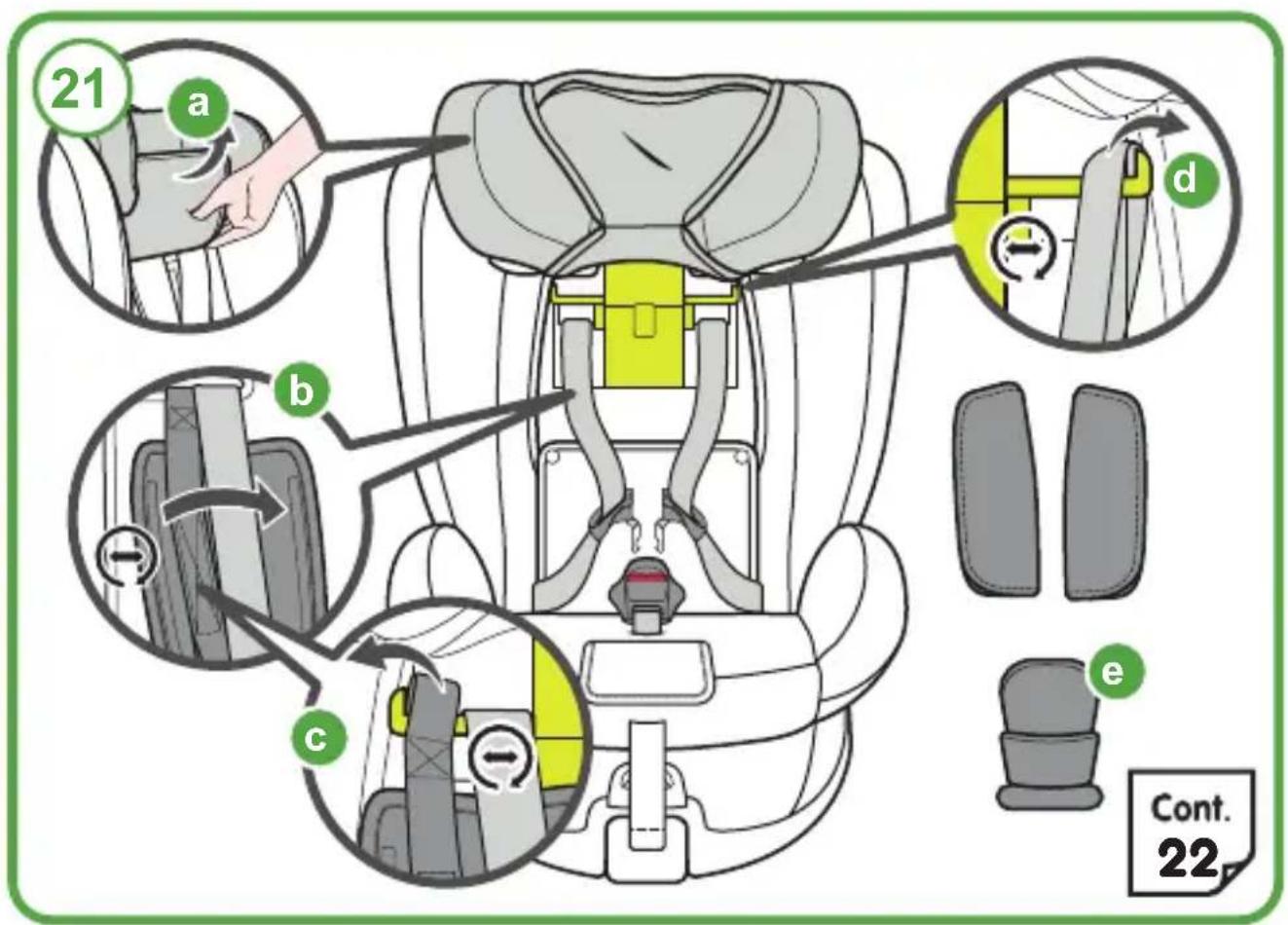

21- Lift up the headrest cover tongue (a).

Open the chest pads (b) and disconnect them from the retainer hooks (c).

Unfasten the shoulder straps from the retainer hooks (d).

Remove the crotch pad (e).

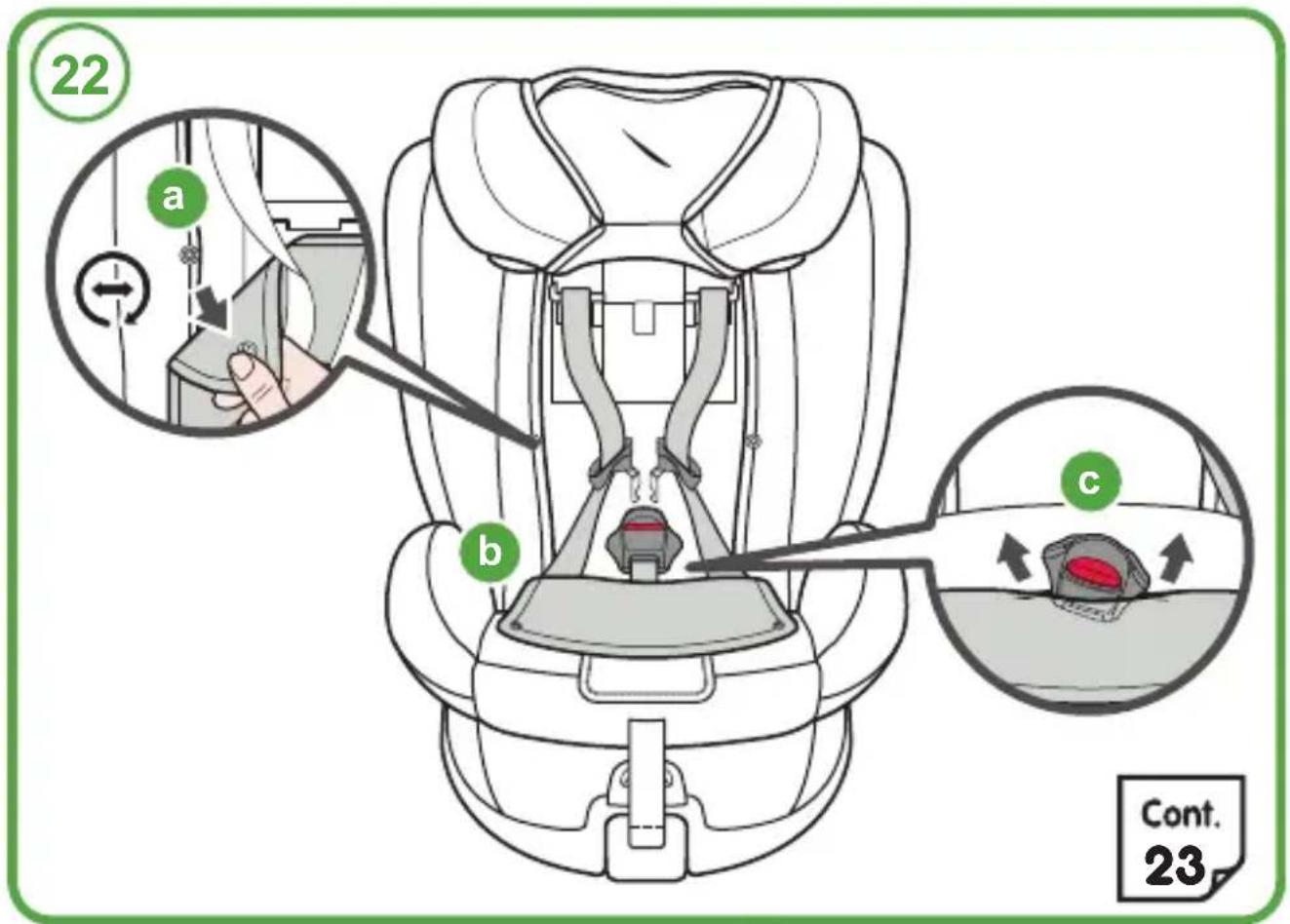

22- Disconnect the poppers (a) and open the seat cover flap to gain access to buckle storage compartment (b).

Push the buckle under seat cover (c).

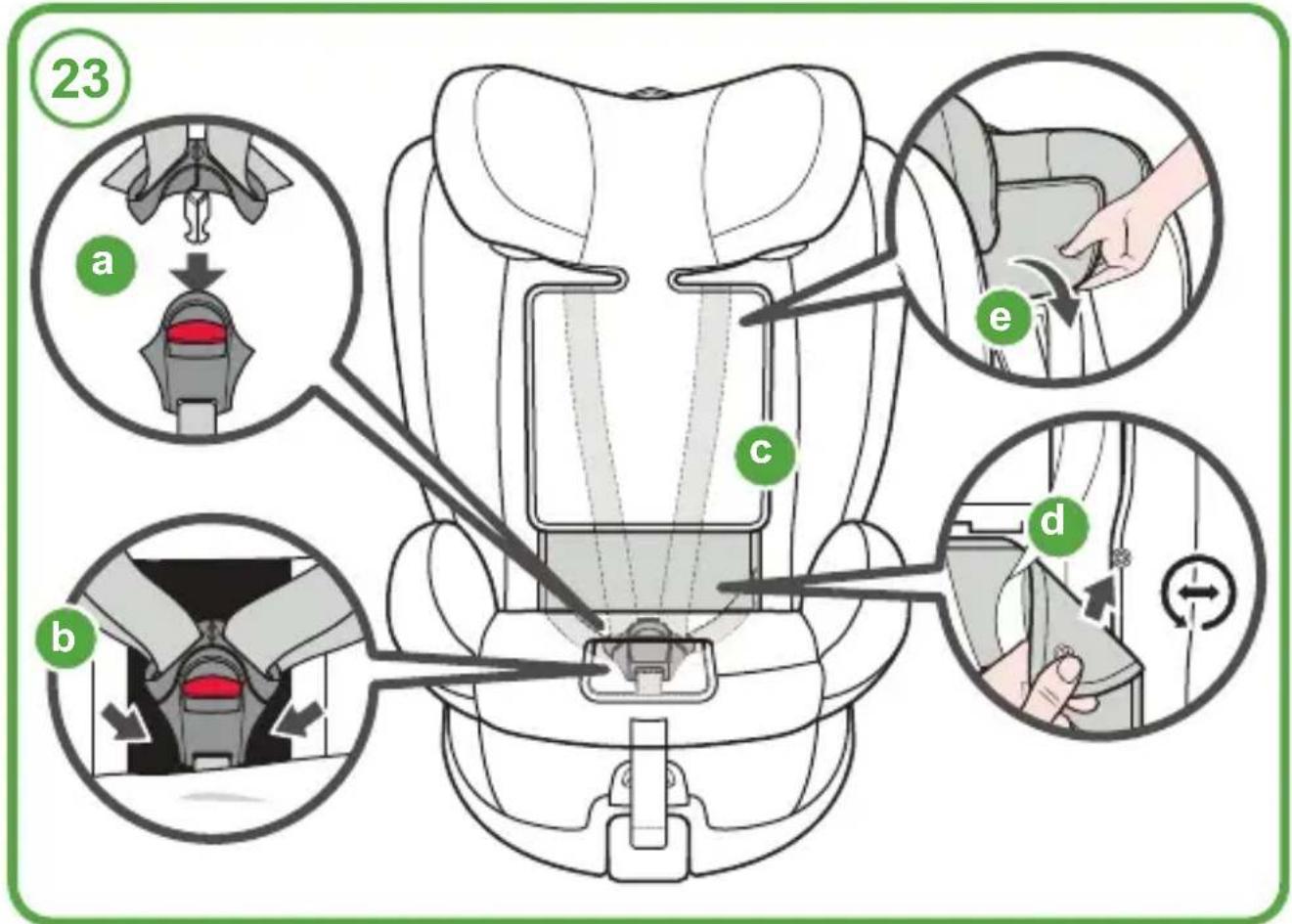

23- Close the buckle (a) and store it in the storage compartment (b).

Store the harness behind the seat cover flap (c).

Refit the seat cover flap (d) & headrest cover flap (e).

Note: The buckle must be stored lowdown in the storage compartment.

Belted only:

Fitting:

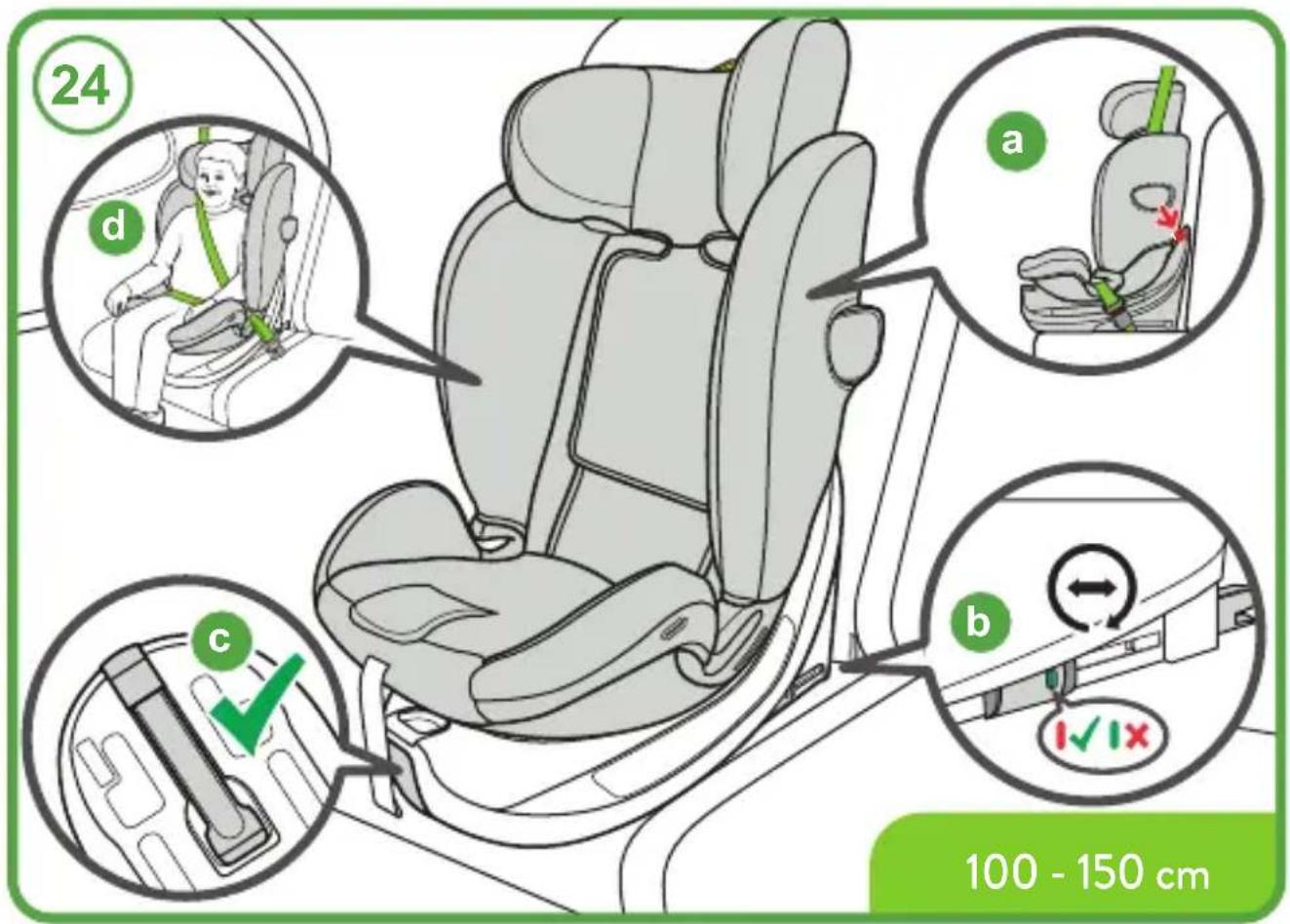

24- Convert the seat unit to forward facing orientation (refer to step 12).

Recline the backrest to position 1 (Refer to step 2) (a).

Position the child car seat on the vehicle seat, forward facing.

Retract the ISOFIX arms (refer to step 15) (b).

Retract the support-leg (Refer to step 16) (c).

Secure your child with vehicle belt (refer to step 25 - 26) (d).

Removal is a reversal of this procedure.

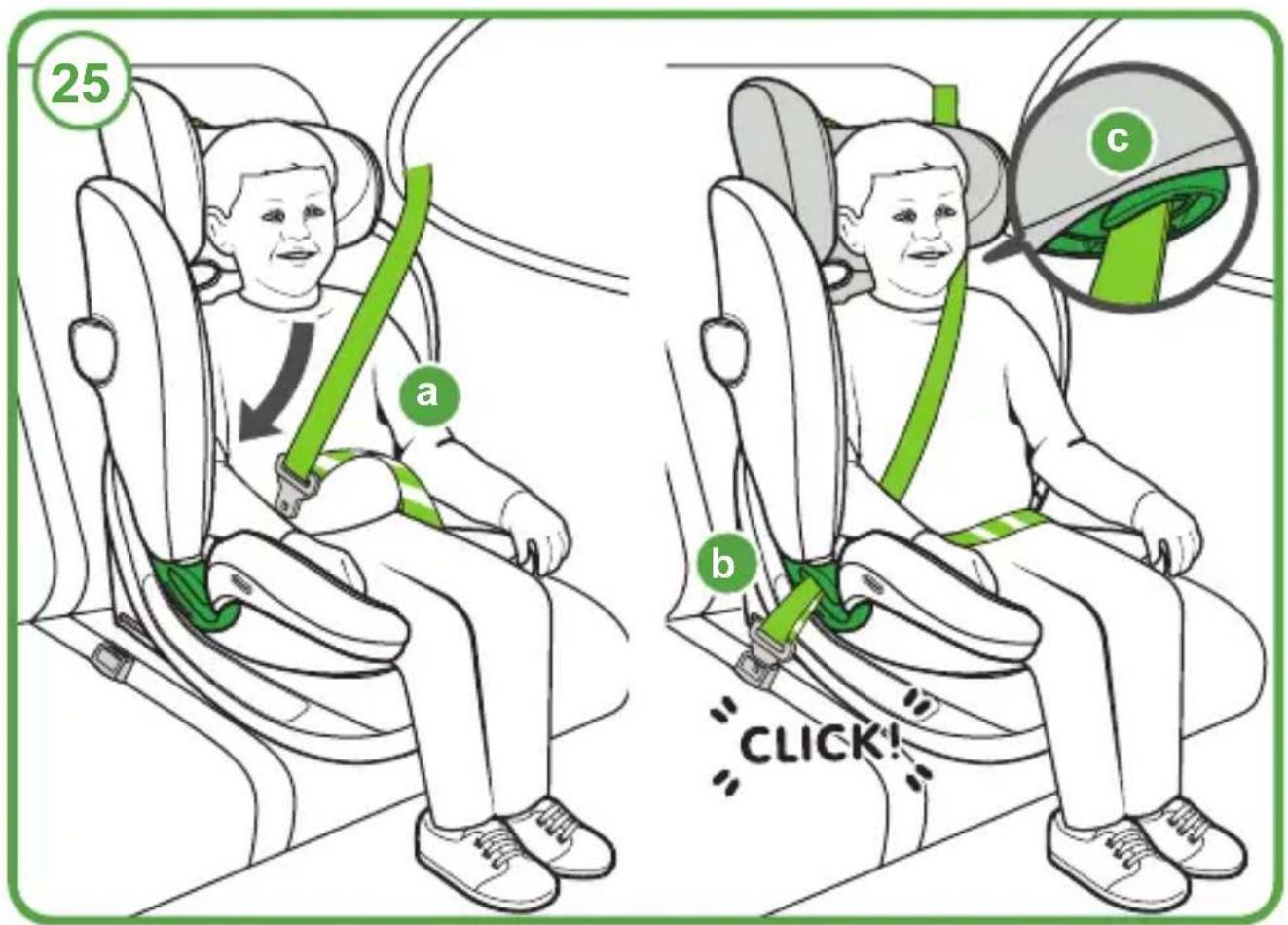

Vehicle belt 25- Place your child into the child car seat.

Pull the vehicle belt out and around the child (a) and fasten the buckle (b).

Fit the diagonal vehicle belt through the headrest diagonal vehicle belt guide (c).

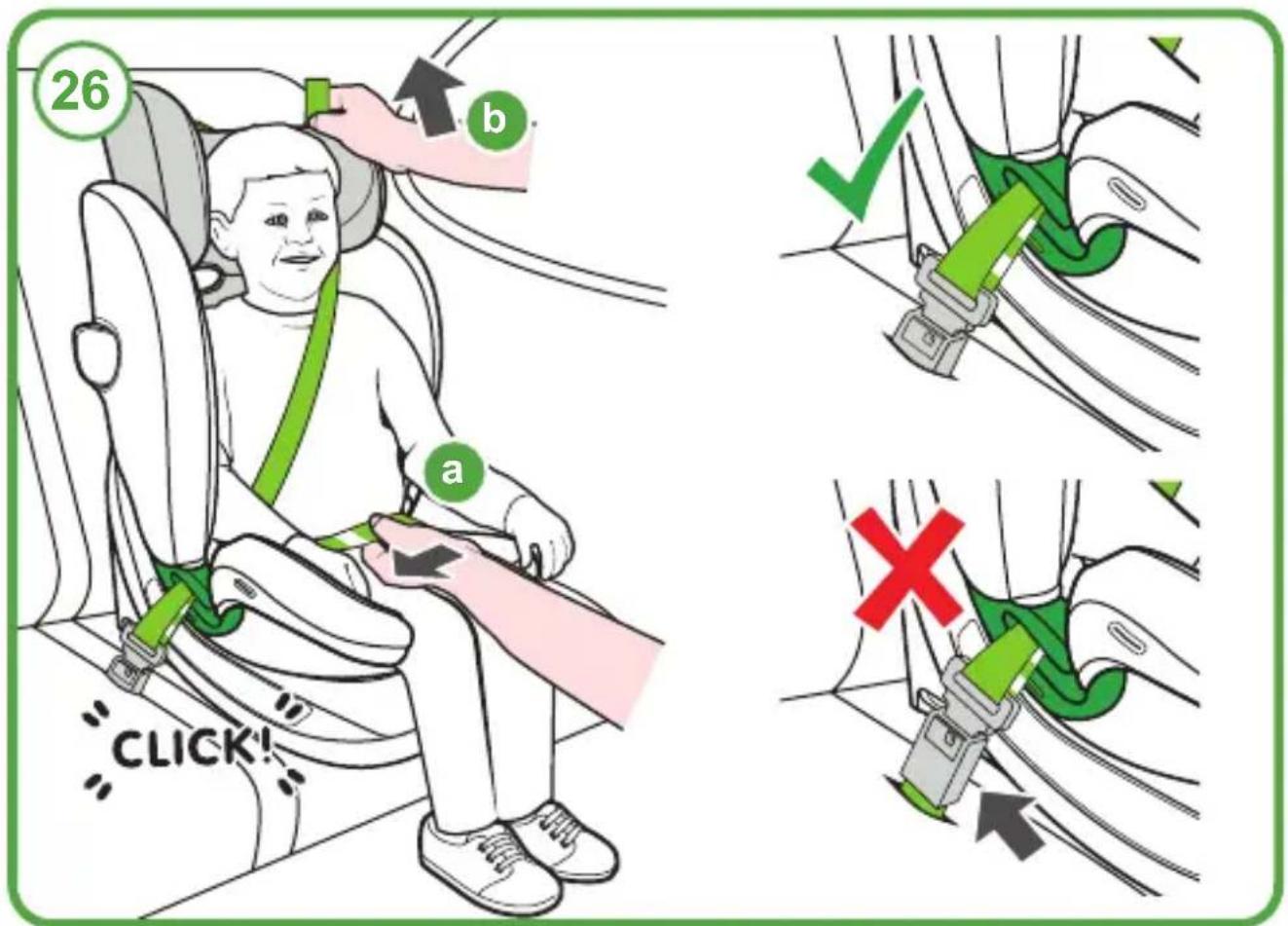

26- Tension the vehicle belt (a & b).

IMPORTANT: The position of the vehicle belt buckle can affect the stability of the child restraint system. In an accident this could stop the child restraint system from protecting your child as well as it should. After tightening the vehicle belt, if the buckle lies in the position marked (X) then try fitting the child restraint system in another seating position in your vehicle.

Removal is a reversal of this procedure.

Belted with ISOFIX arms only:

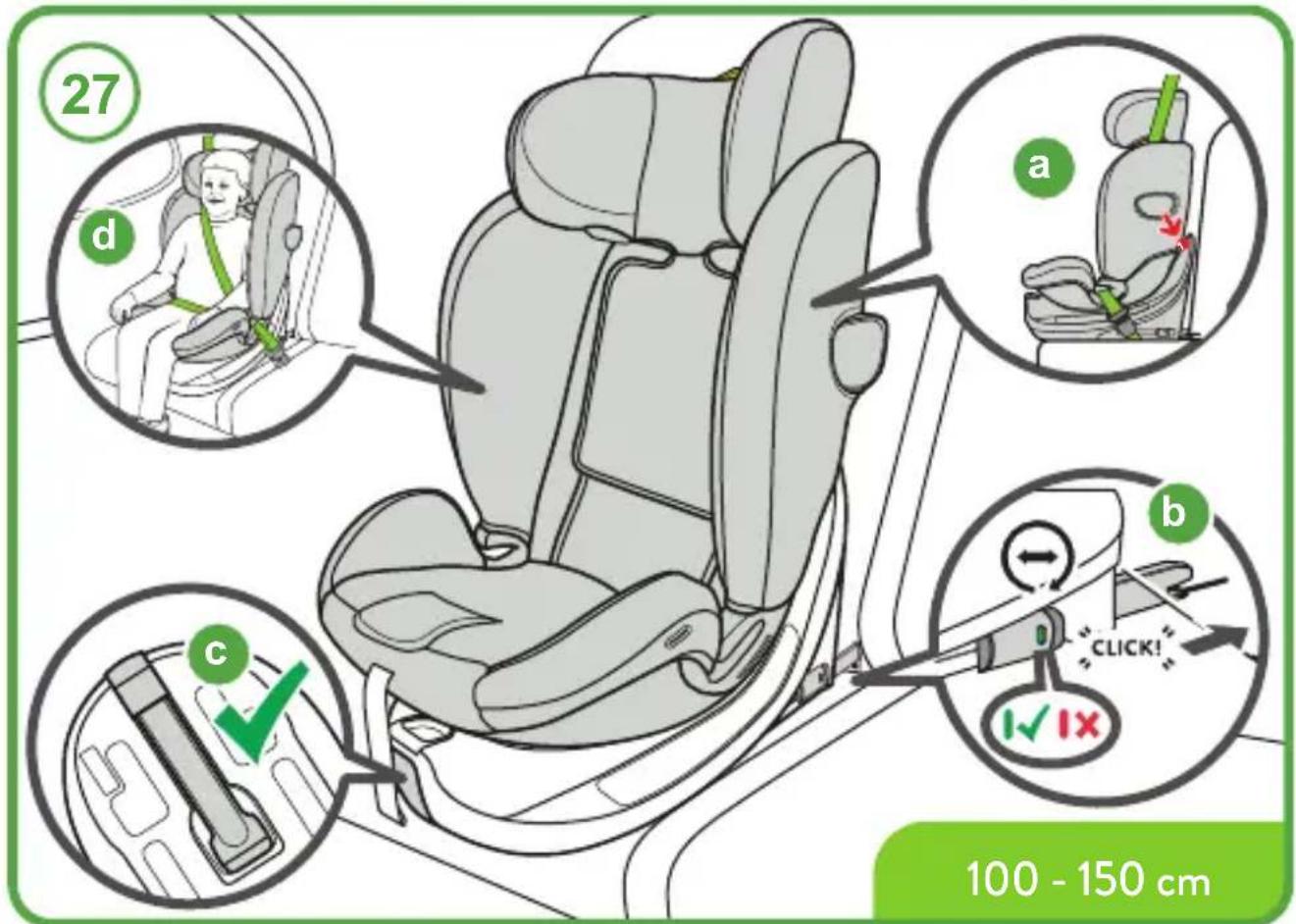

27- Fitting:

Convert the seat unit to forward facing orientation (refer to step 12).

Recline the backrest to position 1 (Refer to step 2) (a).

Position the child car seat on the vehicle seat, forward facing.

Attach the ISOFIX arms to the anchor points (refer to step 13 - 15) (b).

Retract the support-leg (Refer to step 16) (c).

Secure your child with vehicle belt (refer to step 25 - 26) (d).

Removal is a reversal of this procedure.

Softgoods Removing:

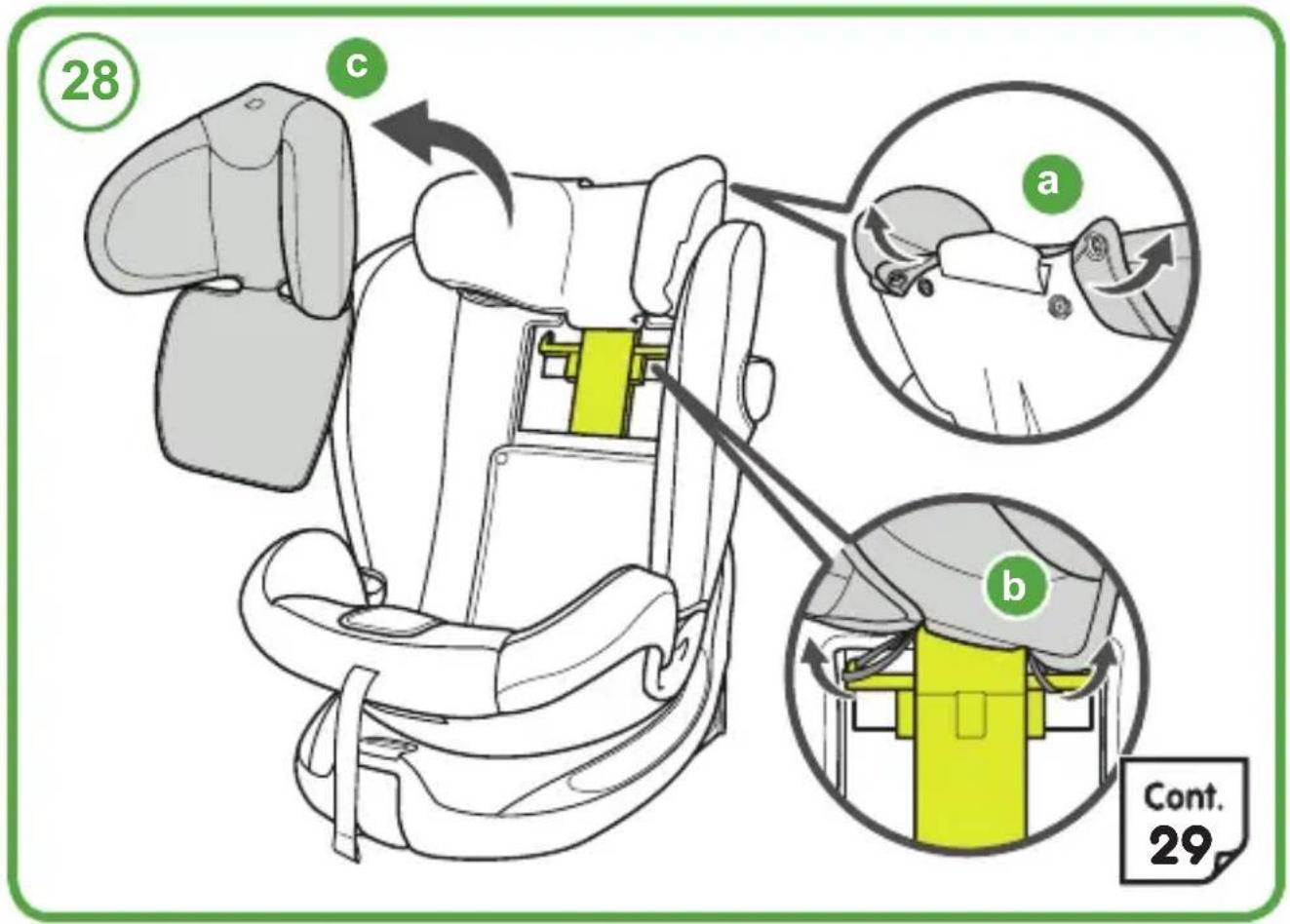

28- Convert the car seat to booster seat mode (refer to step 20 - 23). Unfasten the headrest cover poppers (a) and the elastic loops (b) then remove the headrest cover (c).

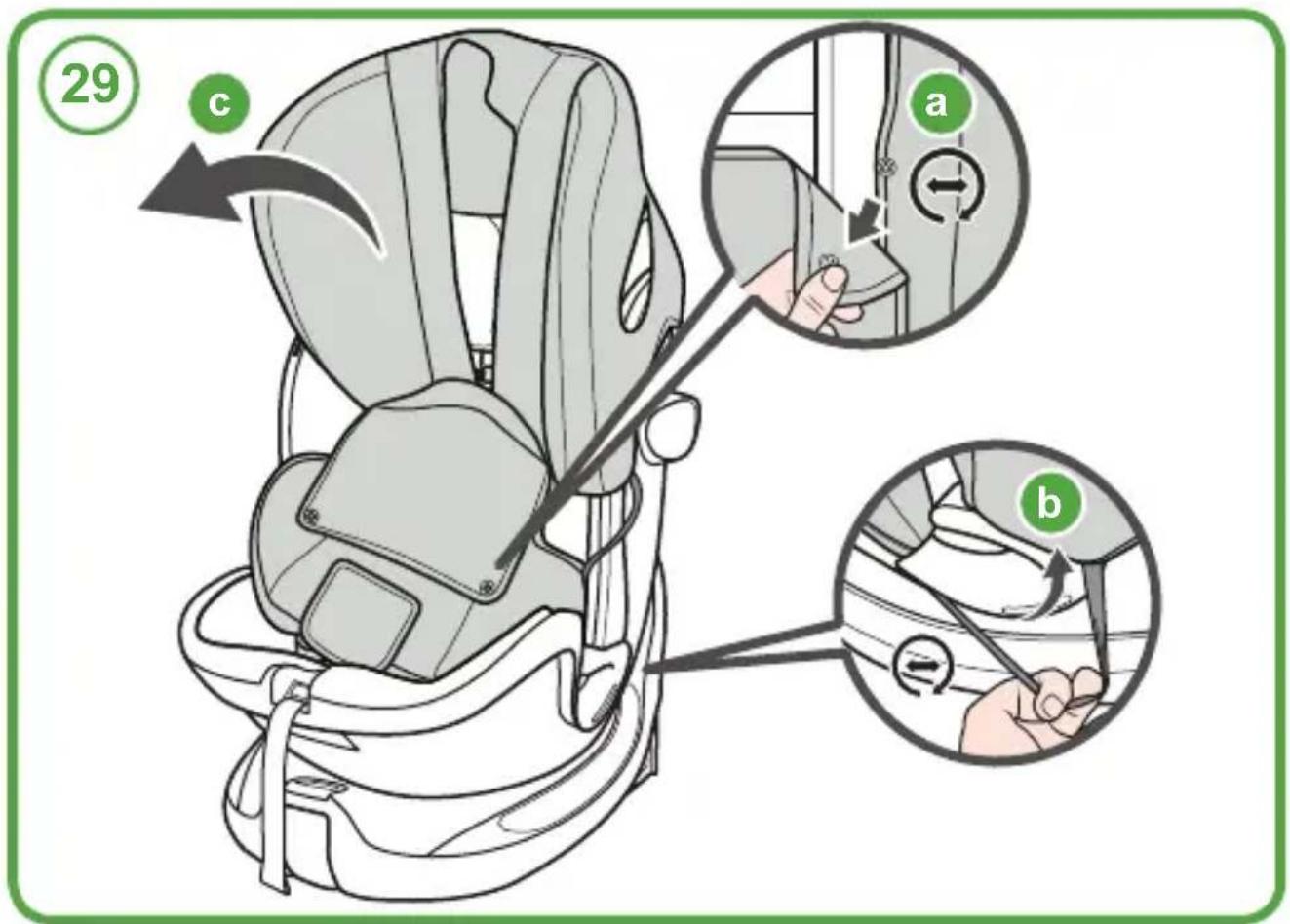

29- Disconnect the poppers and open the seat cover flap (a). Unfasten the elastic loops on the waist belt guides (b) then remove the seat cover (c). Reverse the procedures above to refit the softgoods.

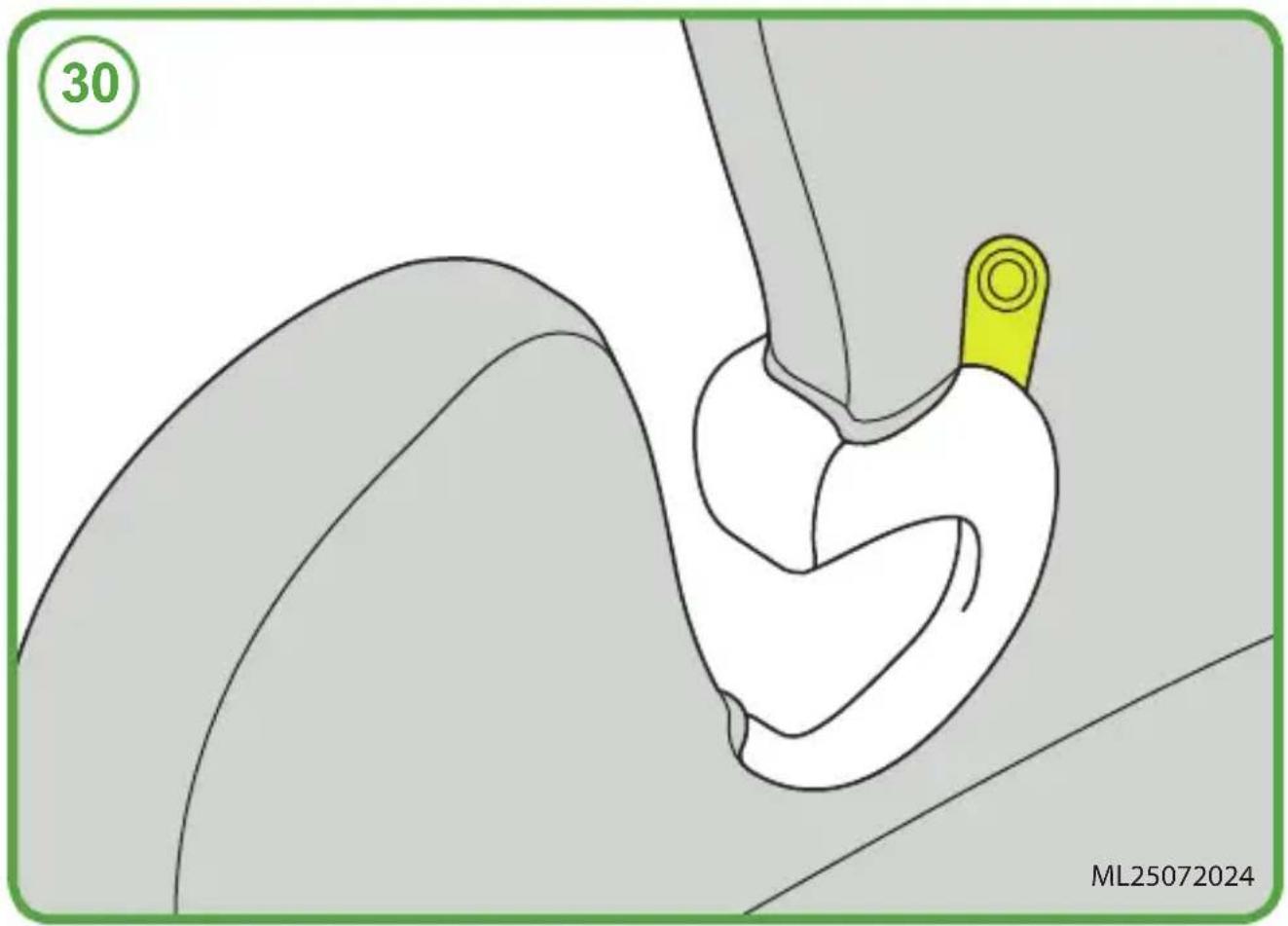

Tuck in tool 30- Using the tuck in tool:

Checklist:

- Have you check the compatibility of the child car seat with the intended vehicle?

- If applicable, is the air-bag de-activated?

- Is your child car seat correctly fitted to the vehicle seat?

- Have you check the safety indicators on ISOFIX arms, ISOFIX support-leg?

• Is your child correctly secure in the child car seat?

• Is harness adequately tensioned and not twisted?

http://www.cosatto.com/service-centre/spares

http://www.cosatto.com/service-centre/spares

CLICK! b c ✓ I X d

16

17

18 40 - 60 cm 61 76 - 105 cm

19 a a b c ✓ 1x ✓ 1x CLICK! 76 - 105 cm

20 a b Cont. 21

21 a b c d e Cont. 22

22 a b c Cont. 23

23 a e c b d

24 a d c b 100 - 150 cm

25 a b c CLICK!

26 a b CLICK!

27 d a b c 100 - 150 cm

28 c a b Cont. 29

29 c a b

Medical illustration showing a surgical procedure on a joint, with no visible text or symbols

Right by your Side

Telephone: [phone]*

Email: [e-mail]

Letter: Cosatto Limited, Bentinck Mill, Bentinck Street, Farnworth, Bolton, Lancs, BL4 7EP, England.

*This is a local rate chargeable number, prices may vary Please check with your provider.

All the design and trademarks contained herein are the property of Cosatto Limited. No part of this document may be reproduced without the permission of Cosatto Limited.

www.cosatto.com

(EN) NOTICE:

(40 - 105CM) THIS IS AN I-SIZE ENHANCED CHILD RESTRAINT SYSTEM. IT IS APPROVED ACCORDING TO REGULATION NO.129, FOR USE IN, I-SIZE COMPATIBLE VEHICLE SEATING POSITIONS AS INDICATED BY VEHICLE MANUFACTURERS IN THE VEHICLE USERS' MANUAL. (100 - 150CM) THIS IS AN I-SIZE BOOSTER SEAT ENHANCED CHILD RESTRAINT SYSTEM. IT IS APPROVED ACCORDING TO UN REGULATION NO.129, FOR USE PRIMARILY IN" I-SIZE SEATING POSITIONS" AS INDICATED BY VEHICLE MANUFACTURERS IN THE VEHICLE USER'S MANUAL. FOR COMPATIBILITY OF NON I-SIZE VEHICLE, PLEASE REFER TO THE FIT CHECKER APP (HTTP://COSAT.TO/FITCHECKER) OR THE COMPATIBILITY LIST ON THE WEBSITE (HTTP://COSAT.TO/ALLINALLEXTRAVL). NEVER USE THIS CHILD RESTRAINT SYSTEM IN SEATING POSITIONS WHERE AN ACTIVE FRONTAL AIRBAG IS INSTALLED. IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS (REFER TO INSTRUCTIONS). IF IN DOUBT, CONSULT EITHER THE CHILD RESTRAINT MANUFACTURER OR RETAILER.
