USER MANUAL Ninja i-Go R129 COSATTO

clever stuff for happy babies

(EN) Instruction 1 - 55

(EN) Spare part list diagram

57

(FR) Schéma de pieces détachées, (DE) Ersatzteillisteabbildung,
(IT) Diagramma della lista delle parti di ricambio,
(PT) Diagrama de lista de peças sobresselentes,
(RU) Cxema K cneuФиkauzn 3anuaTei, (ZH) 备件清单图
(ES) Diagrama de lista de piezas de repuestos

(EN) Instruction diagram 58-65

(FR) Schéma d'instructions, (DE) Anleitungsdiagramm,
(IT) Diagramma di istruzioni, (PT) Diagrama de instruções,
(RU) Cxema K nHCTpyKuIN, (ZH) 说明图, (ES) Diagrama de instrucciones

(EN) Forward facig mode (100 - 150 cm) - ISOFIT option 66 - 94

(FR) Position face à la route (100 - 150 cm) - Option ISOFIT,
(DE) Vorwärtsrichtung (100 - 150 cm) - ISOFIT-Option,
(IT) Modalità rivolta in avanti (100 - 150 cm) - Opzione ISOFIT,
(PT) Modo virado para a frente (100 - 150 cm) - Opcao ISOFIT,
(RU)Лицом noхудьбжени (100-150cm)-Onця ISOFIT,
(ZH) 前向安装模式 (100 - 150 公分) - ISOFIT 选择
(ES) Modo en sentido de la marcha (100 - 150 cm) - Opcion ISOFIT

(EN) Forward facig mode (100 - 150 cm) - Belted option 95 - 123

(FR) Position face à la route (100 - 150 cm) - Mode ceinture,
(DE) Vorwärtsrichtung (100 - 150 cm) - Gegurtete Option,
(IT) Modalità rivolta in avanti (100 - 150 cm) - Opzione cinture di sicurezza,
(PT) Modo virado para a freste (100 - 150 cm) - Opcao de cinto,
(RU)Лицом no xody DBIxkeHn (100-150 cm)-BapnaHT co wTaTHbIM pemHem 6e3OpacHOCTn,
(ZH) 前向安装模式 (100 - 150 公分) - 安全带选择
(ES) Modo en sentido de la marcha (100 - 150 cm) - Opcion de cinturon

Important: Keep these instructions for future reference.

Important safety Information

The instruction manual should be kept safely with child car seat for its life period:

There is a fabric compartment at the rear of the backrest fabric cover for storage of the instruction manual.

It is recommended to check that the child restraint is compatible with the intended vehicle at the time of purchase.

Please refer to the vehicle list, fit checker app (http://cosat.to/fitchecker) or the vehicle list section on the website (http://cosat.to/ninjaigovl).

Seat positions in other vehicles may also be suitable to accept the child restraint. If in doubt, consult either Cosatto or the retailer.

Child age and weight:

• The car seat is suitable for height between 100 and 150 cm ,up to maximum weight of 36 kg .
• IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS.

Location:

• Refer to the vehicle list for information of where the child car seat base will fit in your vehicle.
• Never use the child car seat on a seat where an airbag is fitted and active. Refer to your vehicle user manual for information on de-activating the airbag.
• If the vehicle seat backrest has a recline function, place the vehicle seat in the most upright position when using the child car seat.
• Do not use the child car seat in the home. It has not been designed for home use and should only be used in your car.

Safety - Please read carefully:

• NEVER use this child car seat with its side facing the vehicle seat.
• Any rigid items and plastic parts of the child car seat must be so located and installed that they are not liable, during everyday use of the vehicle, to become trapped by a movable seat or in a door of vehicle.
• If any load bearing points other than those described in the instructions are used, this can significantly reduce the protection factor of the child car seat.
  ALWAYS secure your child with the safety harness when using this child car seat.
• Never leave your child unattended.
• Do not attempt to dismantle, modify or add to any part of the child car seat or change the way your vehicle seat belts are made or used.
• After an accident the child car seat should be replaced and the vehicle seat belts. Although they may look undamaged, they may not protect your child as well as they should.
• Do not place anything such as a towel or cushion under the child car seat. This could affect the performance of the child restraint system in an accident.
• Any vehicle seat belt holding the child car seat to the vehicle should be tight, and that belt should not be twisted.
• Always make sure that the vehicle seat belt is correctly tensioned to ensure maximum protection for your child.
• Prevent vehicle seat belt from getting trapped between car doors or rubbing against sharp parts of the seat or body.
• If the vehicle belt becomes cut or frayed, replace it before travelling.
• Never use replacement parts other than those approved by Cosatto.
• Cosatto advise that child car seat should not be bought or sold second-hand. Many child car seat acquired this way have been found to be dangerous.
• NOTE: The child car seat can mark vehicle seat upholstery. Cosatto cannot be held responsible for damage or marking to vehicle seat upholstery.
• Security is only guaranteed if the child car seat is fitted in accordance with these instructions.
• Safely secure any luggage or other objects that might cause injuries to the occupant of the child car seat in the event of a collision.
• Failure to comply with the instructions would be dangerous, and will automatically void the warranty and exempt Cosatto from any liability.
• The harness buckle has been designed to be released quickly in an emergency. IT IS NOT CHILD PROOF. More inquisitive children may learn to undo the buckle. Children should be told never to play with the harness buckle or any other part of the child car seat.
• The lap vehicle seat belt must be worn in such a way as to properly secure the pelvis of the child.
• Never use the child car seat without its fabric cover because the fabric cover constitutes as an integral part of the child car seat performance. The fabric cover should not be replaced with any other than the ones recommended by Cosatto.
• Cover the child car seat if it is left in direct sun light for prolonged period as the child car seat base surfaces may get very hot. Check the child car seat surface before placing your child in the seat.

Notice:

1. This is a specific vehicle belted Enhanced Child Restraint System. It is approved according to UN Regulation No. 129, for use in the specific vehicle indicated in the applicable vehicle list.
2. Never use this child car seat on passenger seat fitted with an active airbag is installed.
3. If in doubt, consult either the child restraint manufacturer or retailer.

Care & Maintenance:

• Your child restraint system has been designed to meet safety standards and with correct use and maintenance will give many years of trouble free performance.
• Store your child restraint system in a dry, safe place.
• Storing a damp child restraint system will encourage mildew to form, so after exposure to damp conditions, dry off with a soft cloth and allow to dry thoroughly before storing.
• Avoid leaving the child restraint system in sunlight for prolonged periods as this may cause fabrics to fade.
• Inspect the child restraint system regularly for signs of damage- stop using the product if damage is found.
• DO NOT take apart, or attempt to take apart the child restraint system when cleaning. It is unnecessary and dangerous to do so.
• Plastic and metal parts may be sponged clean with warm water and a mild detergent.
  Refer to the wash care on soft goods for cleaning instruction.
• Remove insert from seat cover/seat liner prior to cleaning.
• Never clean with abrasive, ammonia based, bleach based or spirit type cleaners.
• Remove all packaging & protective materials on the product before using.

Visual language Key:

XX	Refer to warning XX	XX	Repeat action x times	G	Press and hold
✓	Correct action		General action arrow		Check
X	Incorrect action		Lock	Cont.xx	Continue to step XX
CLICK!	Audible sound		Unlock		Repeat on other side

Part List:

Please refer to diagrams:

P1: Headrest P4: ISOFIX arm
P2: Backrest P5: ISOFIX guide (x2)
P3: Seat P6: Carrying bag

Replacement Parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order through our website: http://www.cosatto.com/service-centre/spares For customer outside UK & Ireland, contact information for your local distributor can be found on http://www.cosatto.com/stockists If you require any further assistance, please contact us at [e-mail]

S1: Headrest fabric cover S4: ISOFIX guide (set)
S2: Backrest fabric cover S5: Carrying Bag
S3: Seat fabric cover

Fitting & Operation Information:

Please refer to the following diagrams:

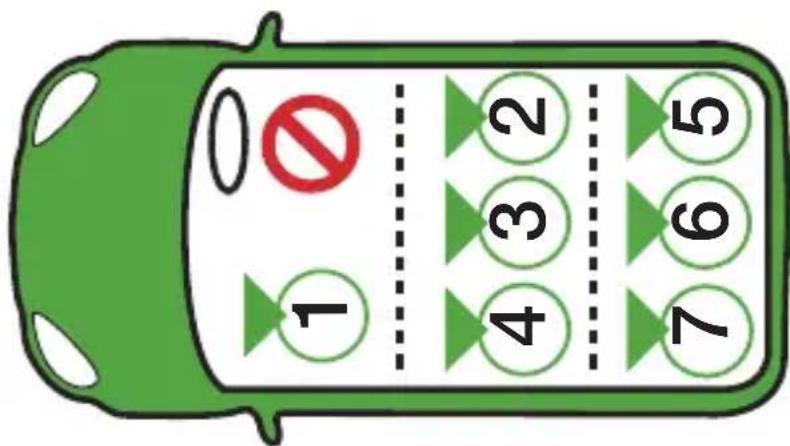

Location 1- IMPORTANT: Never use the child car seat on a seat where an airbag is fitted and active. Refer to your vehicle user manual for information on de-activating the airbag.

WARNING: Your child car seat can only be installed forward facing using a three point lap and diagonal vehicle belt in the front or rear passenger seats of the car.

Car seat Preparation:

2- Open the carrying bag (a) and take out the car seat (b).
3- Open the car seat (a).

Headrest

4- Adjusting:
5-Satisfactory headrest position:

ISOFIXarm

6- Location:

The two ISOFIX low anchorage anchor points are usually located between the vehicle seat base and back (a).

Some vehicles have ISOFIX indicator near the ISOFIX low anchorage anchor points (b).

7-Fitting the ISOFIX guides (Optional):

The ISOFIX guides can help identify the vehicle ISOFIX anchor points and make installation easier. They can also help with the protection of your vehicle seat.

8-Fitting:

Unfold the ISOFIX arms (a).

Engage the ISOFIX arms (b) and ensure that the ISOFIX arm security indicators are green (c).

Removal is a reversal of this procedure.

9-Fitting:

Position the child car seat on the vehicle seat, forward facing (a). Attach the ISOFIX arms to the anchor points (refer to step 6) (b). Secure your child with vehicle belt (refer to step 10 - 11) (c). Removal is a reversal of this procedure.

Vehicle belt 10- Place your child into the child car seat.

Pull the vehicle belt out and around the child (a) and fasten the buckle (b).

The lap vehicle belt should be threaded through lap vehicle belt guides (c) under the armrests.

Fit the diagonal vehicle belt through the headrest diagonal vehicle belt guide (d).

11-Tension the vehicle belt (a & b).

IMPORTANT: The position of the vehicle belt buckle can affect the stability of the child restraint system. In an accident this could stop the child restraint system from protecting your child as well as it should. After tightening the vehicle belt, if the buckle lies in the position marked (X) then try fitting the child restraint system in another seating position in your vehicle.

Removal is a reversal of this procedure.

Belted only 12-Fitting:

Position the child car seat on the vehicle seat, forward facing (a). Retract the ISOFIX arms (refer to step 6) (b).

Secure your child with vehicle belt (refer to step 10 - 11) (c).

Removal is a reversal of this procedure.

Softgoods Removing:

13- Adjust the headrest to its highest position (refer to step 4) (a). Unfasten the poppers (b) and elastic loops (c & d) and remove the headrest fabric cover (e).
14- Unfasten the poppers (a) then remove the backrest fabric cover (b).
15- Unfasten the poppers at the rear (a). release the fabric from the corners (b) then remove the seat fabric cover (c).

Car seat

Closing:

16- Adjust the headrest to its lowest position (refer to step 4) (a).

Pull the release lever (b) and fold the backrest forward (c).

17- Using the carrying bag:

Checklist:

• Have you check the compatibility of the child car seat with the intended vehicle?
• If applicable, is the air-bag de-activated?
• Is your child car seat correctly fitted to the vehicle seat?
• Have you check the safety indicators on ISOFIX arms?
• Is your child correctly secure in the child car seat?

• Is harness adequately tensioned and not twisted?

• For seating positions for other fitting options, please refer to the Cosatto fit checker app (http://cosat.to/fitchecker) or the vehicle fitting list section on the website (http://cosat.to/ninjaigovl).

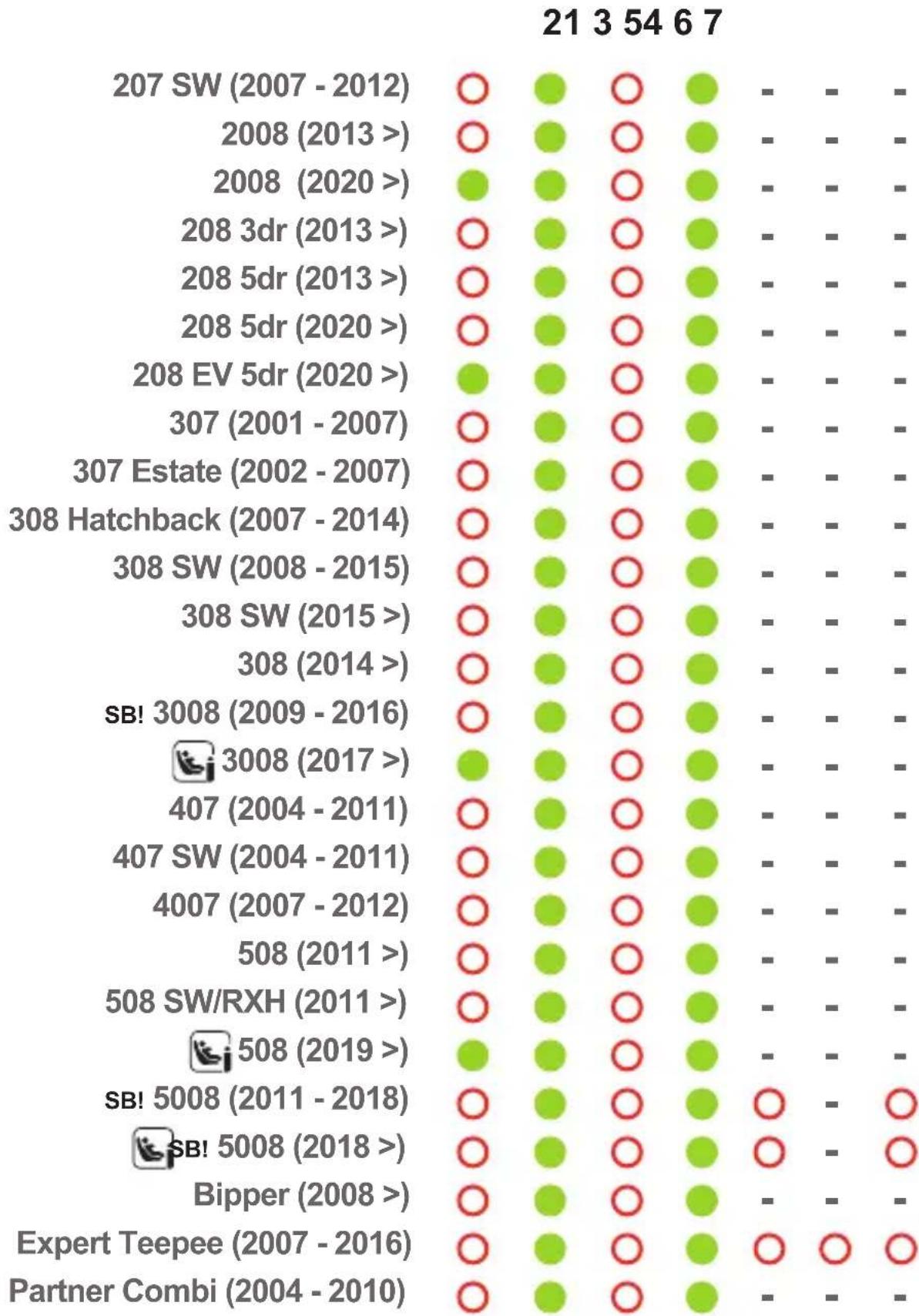

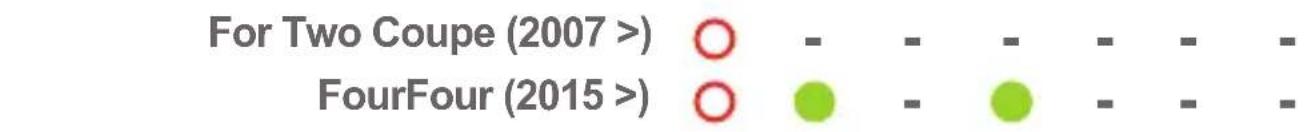

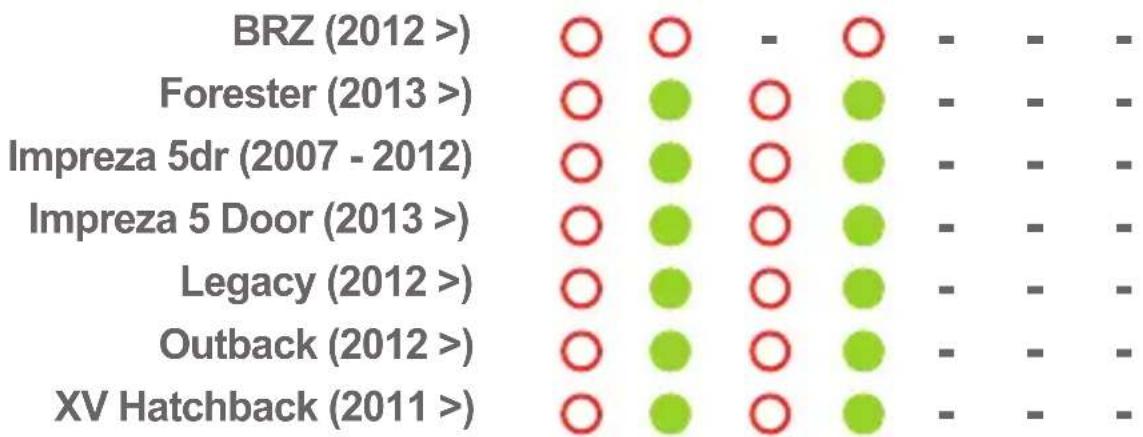

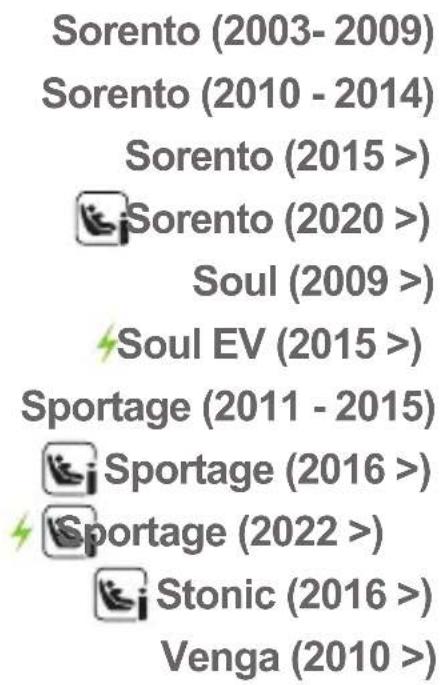

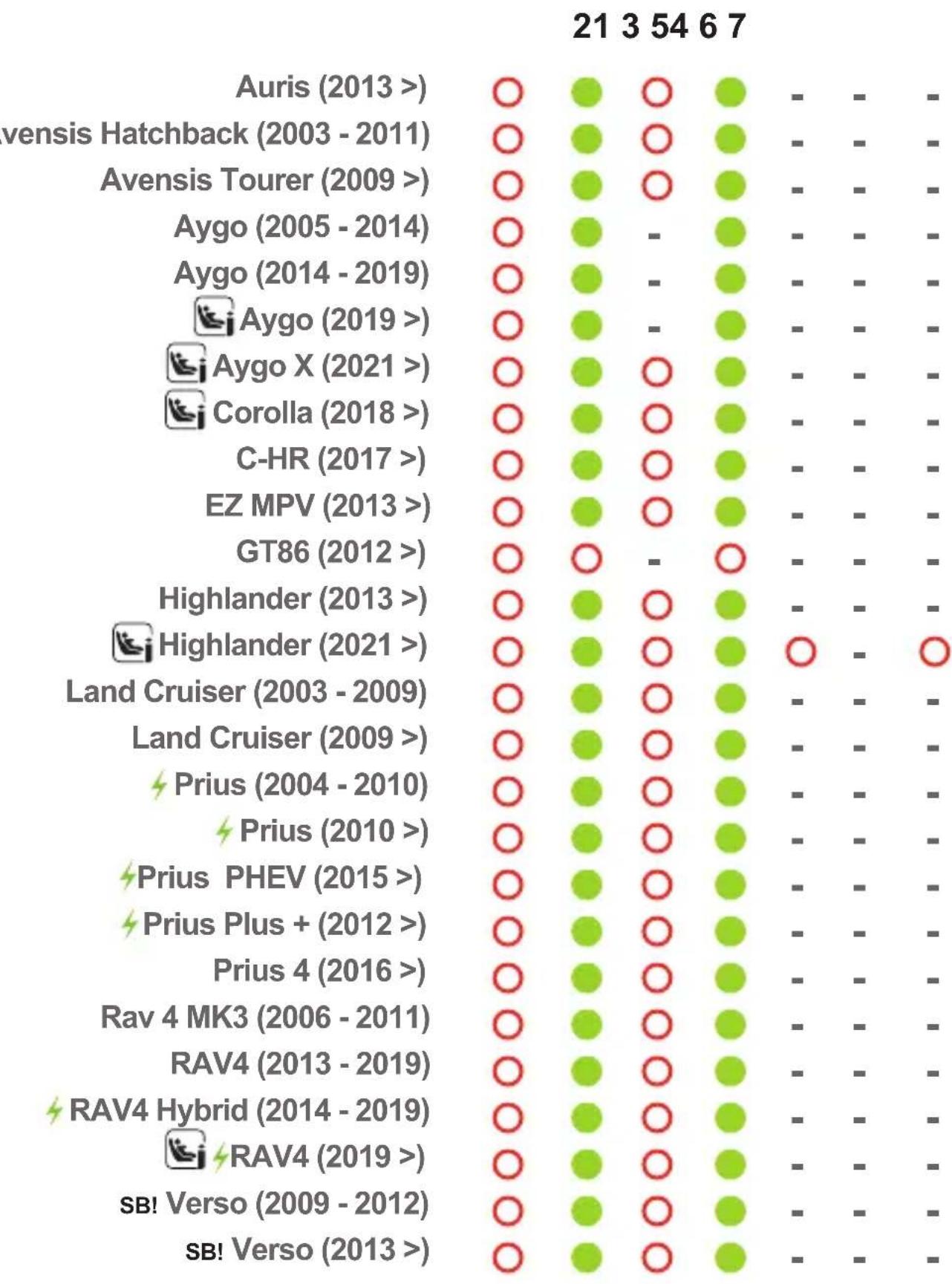

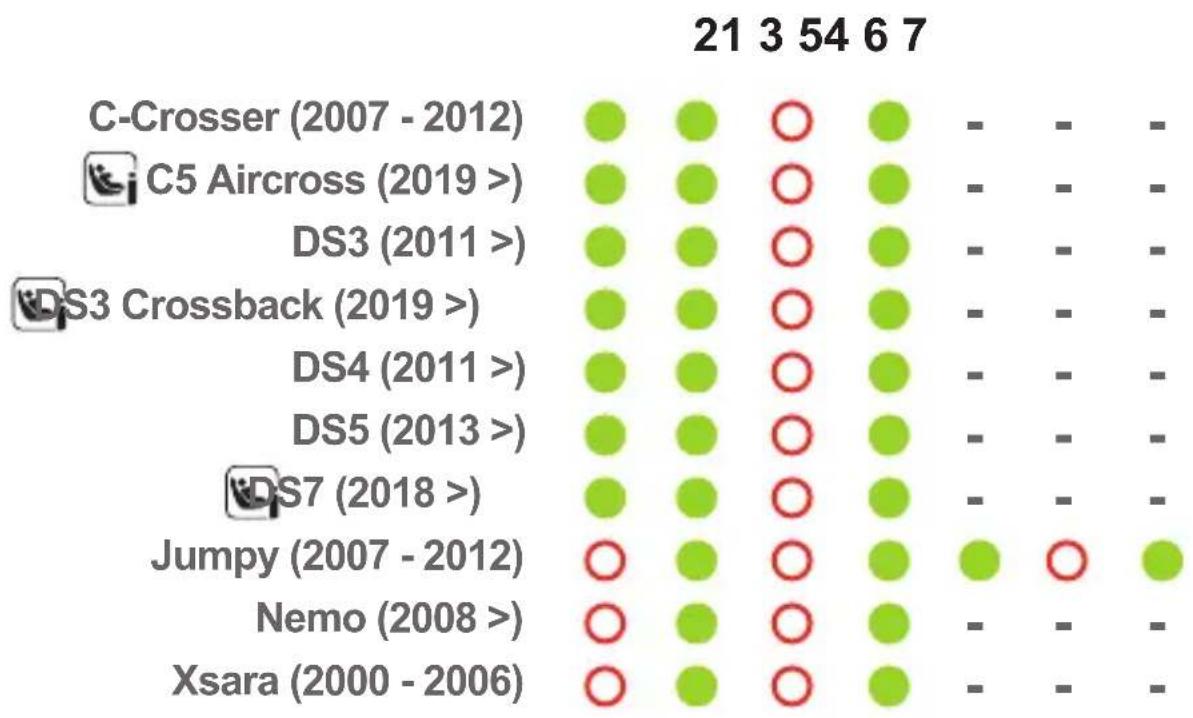

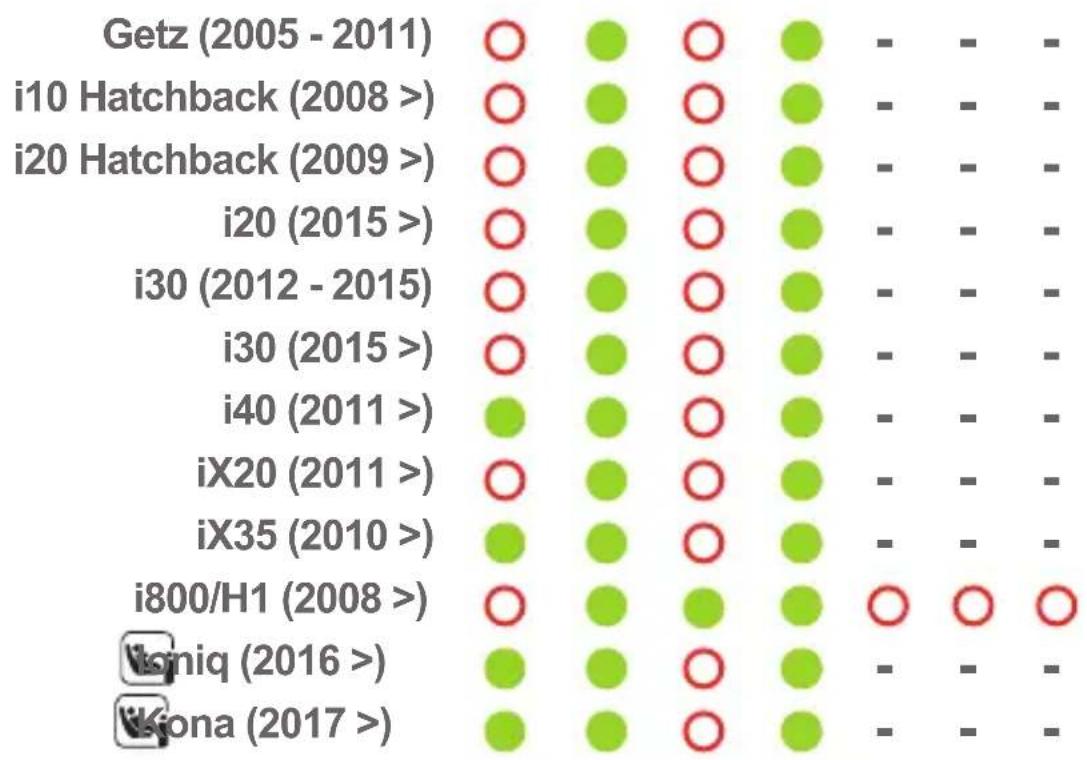

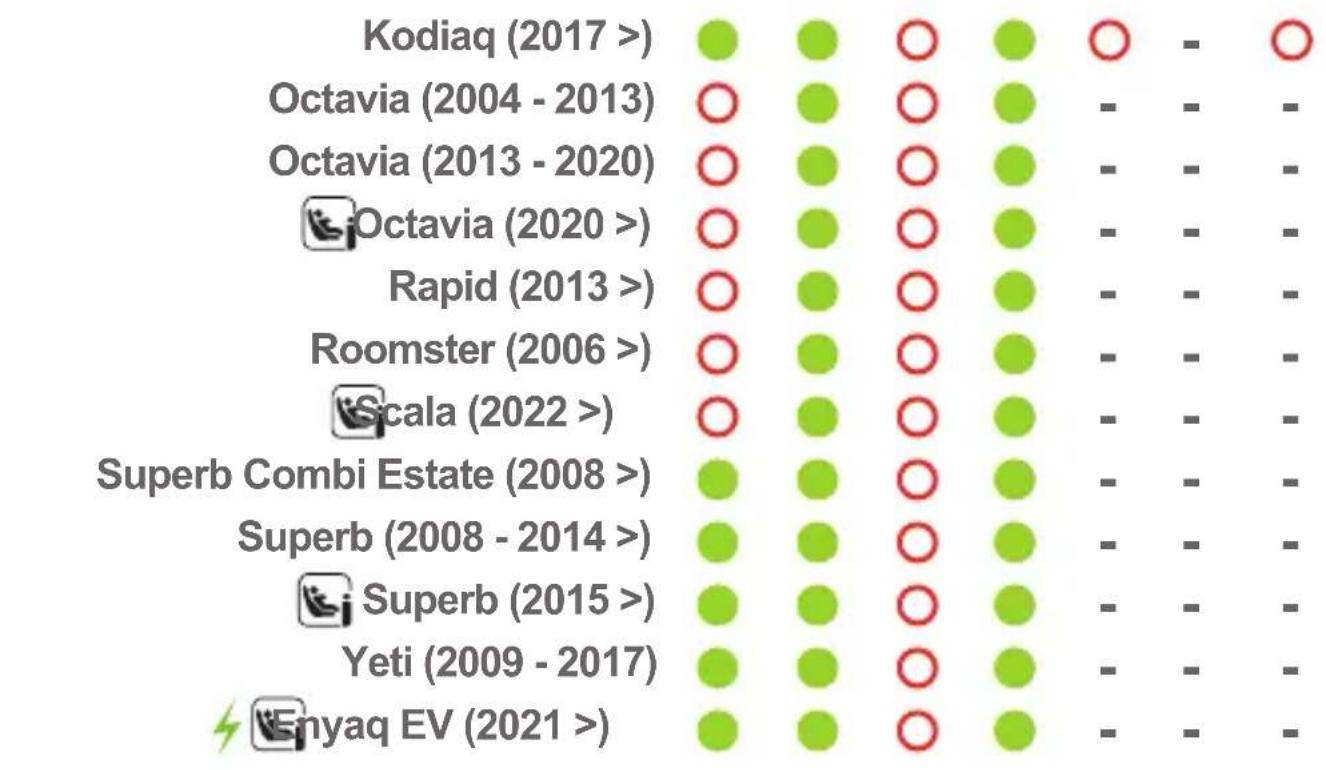

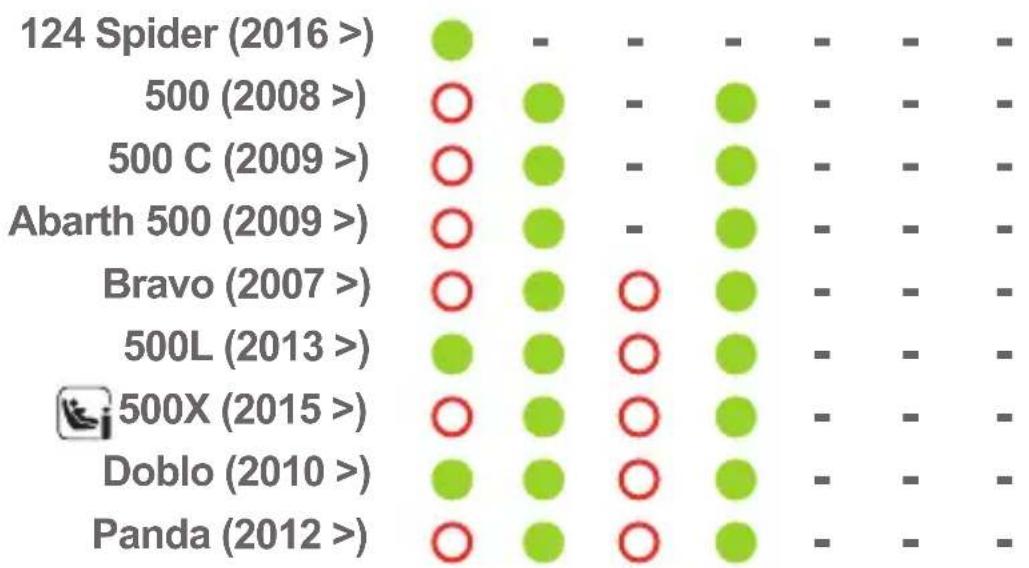

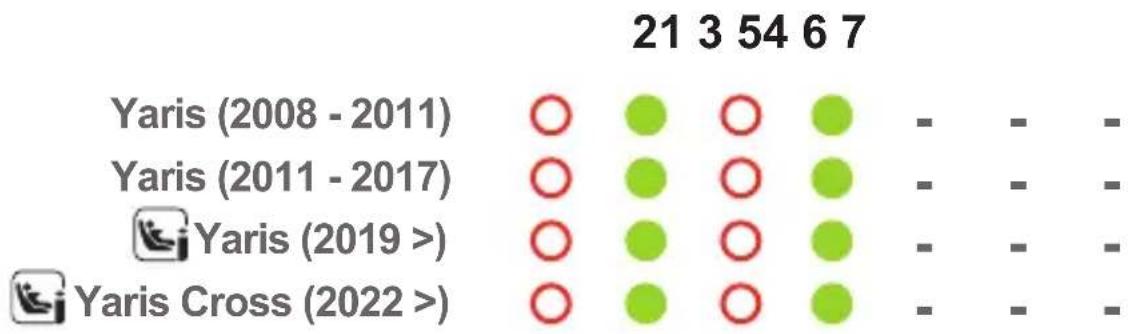

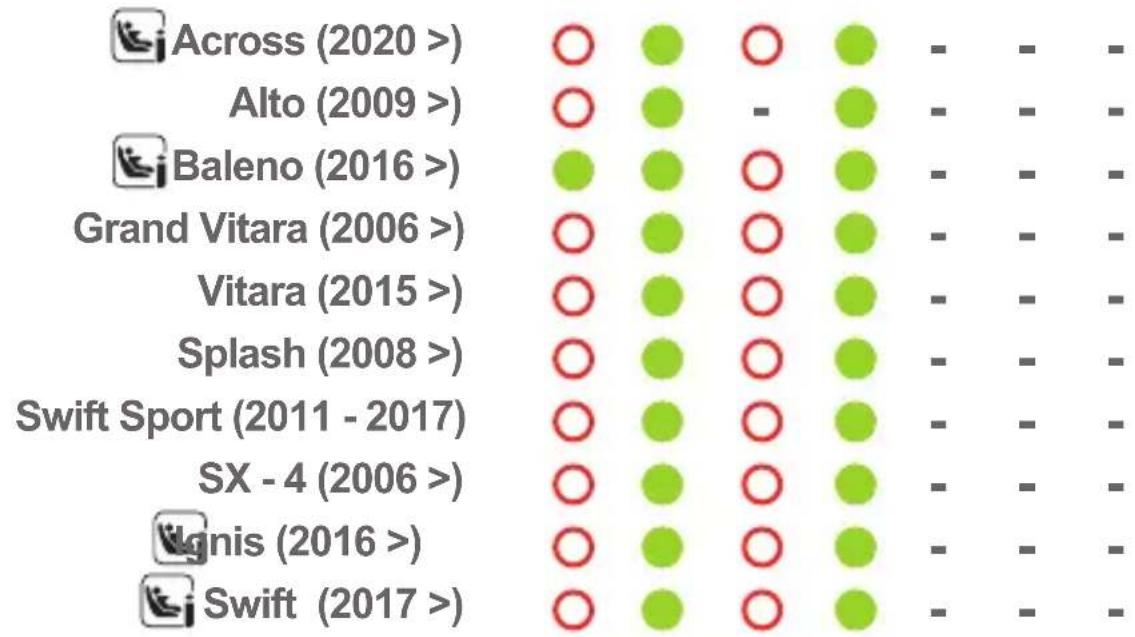

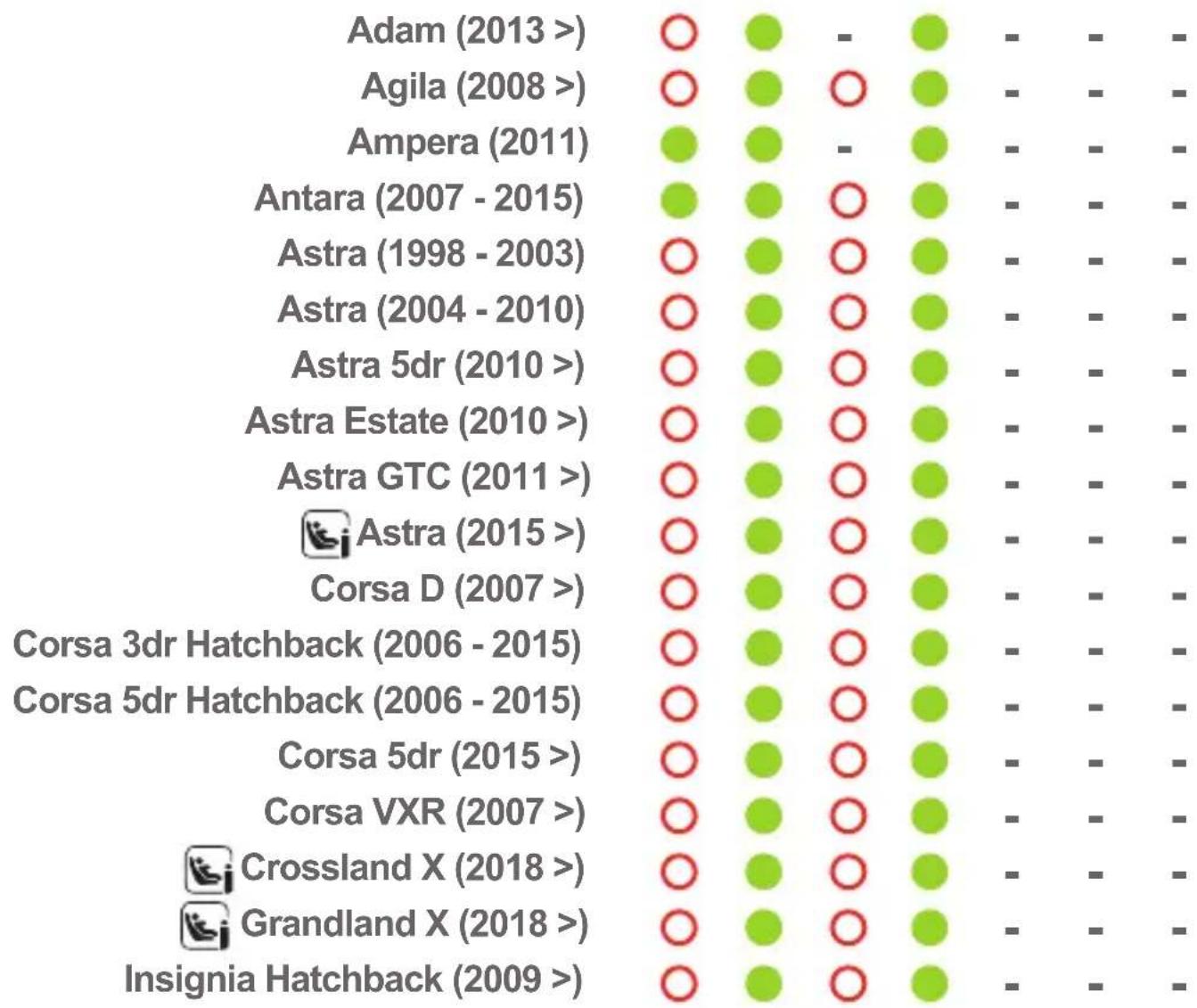

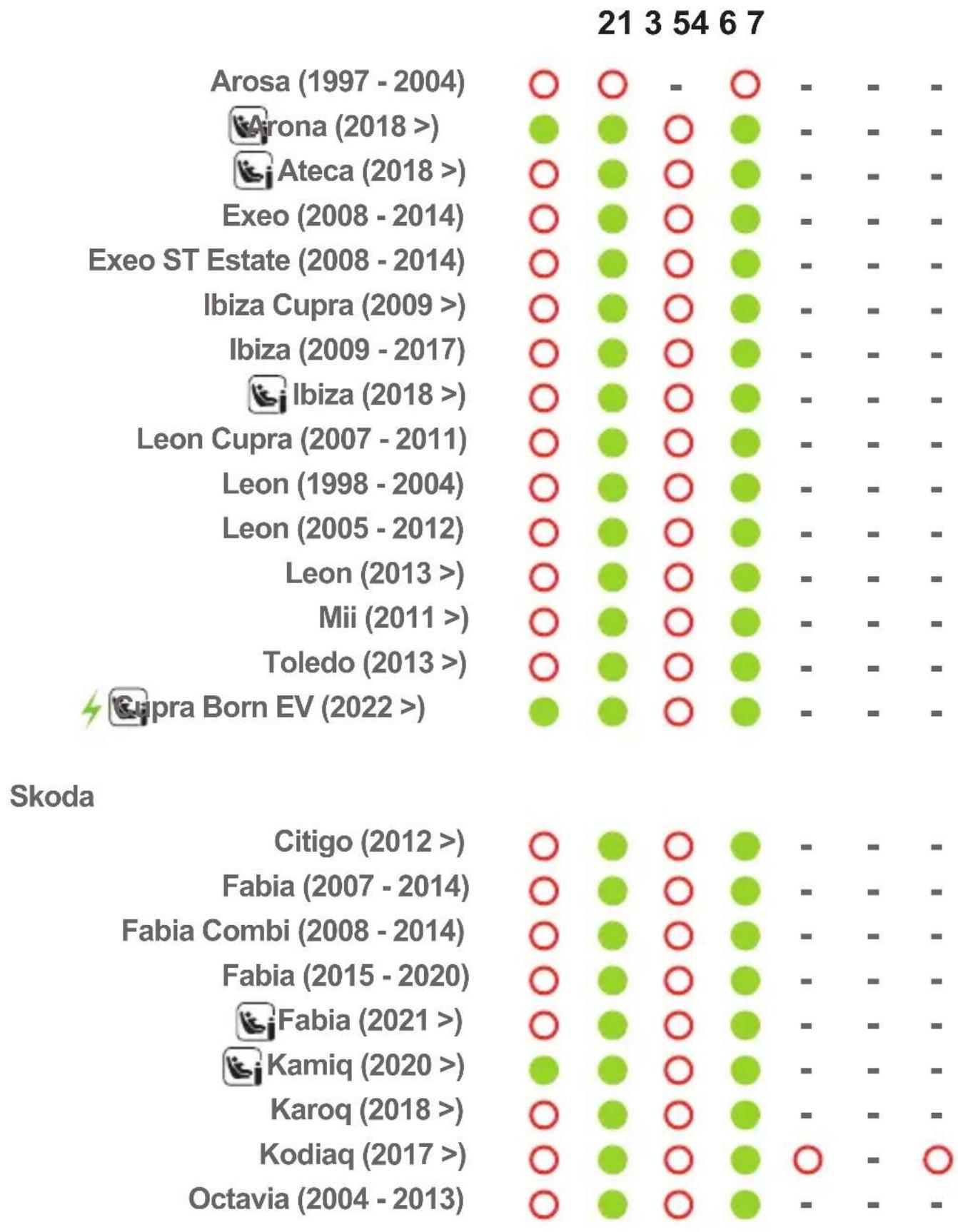

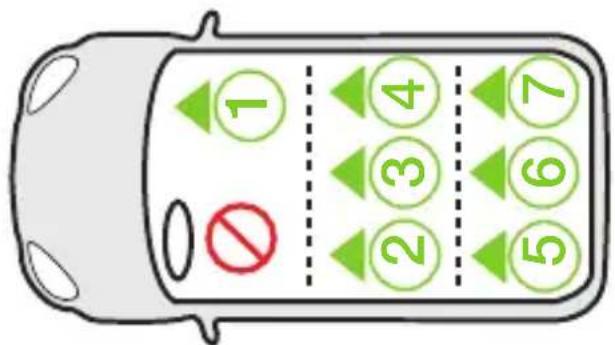

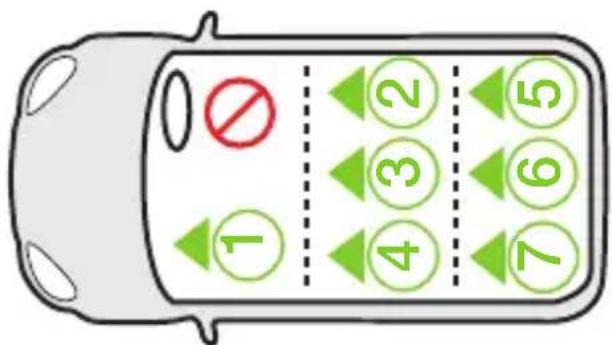

• The numbers in the vehicle diagram below correspond with the seat positions listed in the vehicle fitting list.

• If the child restraint can be fitted, the suitable seat position(s) is marked with
• If the child restraint cannot be fitted, the suitable seat position(s) is marked with
  Electric or hybrid vehicles are marked with
• i-Size vehicles are marked with
• Vehicles with under-floor storage compartment(s) is marked with SB! - Please consult the vehicle's handbook prior to fitting this child restraint in these vehicles.
• Vehicles with a cabin roof height which could restrict the child restraint from being installed forward facing are marked with!
• If your vehicle is not listed in this list or it is not marked with either a or then please refer to the vehicle's handbook or contact Cosatto or retailer for further information.
• Seat positions in other vehicles may also be suitable to accept the child restraint. If in doubt, consult either Cosatto or the retailer.

Prior to purchase the vehicle, check that it is equipped with the appropriate anchorages.

ALWAYS give priority to the rear vehicle seats.

DO NOT fit the child restraint onto a vehicle seat fitted with an airbag, unless it can be, and is deactivated. Death or serious injuries can be caused by an activated AIRBAG system.

• This vehicle fitting list was carefully prepared using scientific data collected from both vehicle and child restraint. Cosatto accepts no liability whatsoever with regards to any inaccuracies of the list, which is intended for guidance purposes only.
• It is recommended to check that the child restraint is compatible with the intended vehicle at the time of purchase.

http://www.cosatto.com/service-centre/spares

http://www.cosatto.com/service-centre/spares

Para os cliente do Reino Unido e Irlanda, a informacao de contacto para o seu distribuidor

Ocbo6oJnte TkaHb n3 yrnoB (b), 3aTeM cHmnte TkaHeBbI yexoI cnDeHbI (c).

abTOKpeCNo:

3aKpbIbAHne:

16- YcTaHOBInTe NOIroNoBnK B KpaHHee HnxHHee noLoXeHne (cm. 4) (a).

Notaryte 3a pbuarg fukcaTopa (b) u cnoxnte cnnHky Bpepe (c).

http://www.cosatto.com/service-centre/spares

http://www.cosatto.com/stockists

Web: http://www.cosatto.com/service-centre/spares

21 3 54 6 7
Continental GTC (2006 - 2012)		○	-	○	-	-
Mulsanne (2010 >)	○		○		-	-
BMW
1-Series (2004 - 2011)	○		○		-	-
1 Series Convertible (2008 - 2015)			-		-	-
1 Series Coupe (2008 - 2015)			-		-	-
1 Series F20 (2011 >)	○		○		-	-
2 Series Active Tourer (2015 >)			○		-	-
2 Series Coupe (2014 >)			-		-	-
3 Series (2002 - 2005)	○		○		-	-
3 Series (2005 - 2011)	○		○		-	-
3 Series Coupe (2007 - 2014)			-		-	-
3 Series F30 (2012 >)	○		○		-	-
4 Series GC (2014 >)	○		○		-	-
5 Series Saloon (2003 - 2008)	○		○		-	-
5 Series Touring (2003 - 2008)	○		○		-	-
5 Series (2008 - 2010)	○		○		-	-
5 Series Touring (2011 -2018)	○		○		-	-
5 Series Saloon (2011 - 2018)	○		○		-	-
5 Series (2011 - 2018)	○		○		-	-
5 Series (2018 >)	○		○		-	-
6 Series Coupe (2011 >)	○		-		-	-
6 Series Convertible (2011 >)	○		-		-	-
6 Series Gran Coupe (2011 >)	○		○		-	-
7 Series (2010 - 2016)	○		○		-	-
7 Series (2016 >)	○		○		-	-
i3 (2014 >)	○		○		-	-
i8 (2014 >)	○	○	-	○	-	-
X1 (2010 - 2015)	○	●	○	●	-	-
X1 (2016 >)	●	●	○	●	-	-
X3 F25 (2011 - 2018)	○	●	○	●	-	-
X3 G01 (2018 >)	○	●	○	●	-	-
X3 (2022 >)	○	●	○	●	-	-
X3 (2021 >)	○	●	○	●	-	-
X4 (2014 >)	○	●	○	●	-	-
X5 (2007 - 2014)	○	●	○	●	○	-
X5 (2015 >)	○	●	○	●	○	-
X6 (2008 >)	○	●	○	●	-	-
X6 (2015 >)	○	●	○	●	-	-
3-GT (2013 >)	○	●	○	●	-	-
5-GT (2010 >)	○	●	○	●	-	-
BYD
YD Atto EV (2023 >)	○	●	○	●	-	-
Cadillac
BLS Saloon (2006 - 2011)	○	●	○	●	-	-
Chevrolet
Aveo (2012 >)	○	○	○	○	-	-
Captive (2007 >)	○	●	○	●	○	-
Cruze (2009 >)	○	●	○	●	-	-
Spark (2012 >)	○	○	○	○	-	-
Volt (2011 >)	○	●	-	●	-	-

Chrysler	21	3	54	6	7
	Orlando (2011 >)	○		○	○
	Traxx (2013 >)	○		○	-
	Grand Voyager (2008 >)	○		-	○
	300 C (2012 >)	○		○	-
	Delta (2011 >)	○		○	-
	Ypsilon (2011 >)	○		○	-
Citroen	SB! Citroen Berlingo II (2008 >)	○		○	-
	SB! Berlingo Multispace (2007 >)	○		○	○
	C1 (2006 - 2015)	○		-	-
	C1 (2015 >)	○		-	-
	C3 (2005 - 2009)	○		○	-
	C3 5 Door (2009 >)	○		○	-
	SB! C3 Picasso (2009 >)	○		○	-
	C3 (2017 >)	○		○	-
	C3 Aircross (2017 >)	○		○	-
	C4 (2010 >)	○		○	-
	SB! C4 Picasso (2007 - 2014)	○		○	○
	SB! C4 Picasso (2014 >)	○			○
	SB! C4 G-Picasso (2007 - 2013)	○		○	○
	C5 (2006 - 2008)	○		○	-
	C5 Saloon (2008 >)	○		○	-
	C5 Tourer (2008 >)	○		○	-
	C4-Cactus (2015 >)	○		○	-
	C-Crosser (2007 - 2012)	○		○	-
	C5 Aircross (2019 >)			○	-

EX (2009 >)	○	●	○	●	-	-	-
FX (2009 >)	○	●	○	●	-	-	-
G Coupe (2009 >)	○	○	○	○	-	-	-
G Saloon (2009 >)	○	●	○	●	-	-	-
M (2010 >)	○	●	○	●	-	-	-

Jaguar

E-Pace (2018 >)	○	●	○	●	-	-	-
F - Pace (2016 >)	○	●	○	●	-	-	-
F-Type Coupe (2014 >)	○	-	-	-	-	-	-
Pace (2018 >)	○	●	○	●	-	-	-
X-Type (2001 - 2010)	○	○	○	○	-	-	-
X-Type Estate (2004 - 2010)	○	○	○	○	-	-	-
XE (2015 >)	○	●	○	●	-	-	-
XF (2008 - 2014)	○	●	○	●	-	-	-
XF (2015 >)	○	●	○	●	-	-	-
XF R (2009 - 2015)	○	●	○	●	-	-	-
XF Sportbrake (2013 >)	○	●	○	●	-	-	-
XJ (2010 >)	○	●	○	●	-	-	-
XK (2006 - 2016)	○	●	-	●	-	-	-
! XK Coupe (2006 - 2016)	○	○	-	○	-	-	-

	21	3	54	6	7
XK Convertible (2006 - 2016)	○	○	-	○	-	-	-	-
XK R (2006 - 2016)	○	○	-	○	-	-	-	-

Jeep

Grand Cherokee (2011 >)	○	●	○	●	-	-	-
Compass (2011 >)	○	●	○	●	-	-	-
Cherokee (2014 >)	○	●	○	●	-	-	-
Renegade (2015 >)	○	●	○	●	-	-	-
Wrangler 5dr (2007 >)	○	●	○	●	-	-	-

Kia

6 Saloon (2007 - 2009)

6 (2013 - 2017)

6 (2018 >)

MX-5 (2015 >)

Mercedes-Benz

A Class (2005 - 2012)

A Class (2013 >)

A Class (2019 >)

A Class Saloon (2020 >)

B Class (2012 >)

B Class EV (2015 >)

C Class (2008 - 2015)

C Class Estate (2008 - 2015)

C Class Coupe (2011 >)

C Class (2015 >)

CLA (2013 >)

CLA (2020 >)

CLA Shooting Brake (2015 >)

CLS Shooting Brake (2012 >)

CLS Coupe (2011 >)

E Class (2006 - 2009)

E Class Saloon (2009 - 2012)

E Class Coupe (2009 >)

E Class (2013 - 2018)

E Class (2018 >)

2135467

EQA (2021 >)
EQC (2021 >)

GLA (2021 >)

GLA (2014 - 2020)

GLC (2016 >)

GLC Coupe (2019 >)

GL Class (2006 - 2012)

GL/GLS Class (2012>)

GLE (2015 - 2020)

GLE (2020 >)

M/ML Class (2005 - 2012)

M/ML Class (2012 >)

R Class (2006 - 2012)

S Class (2006 - 2013)

S Class (2015 >)

SL Class (2012 >)

SLK (2011 >)

V Class (2015 >)

Oo
Oo - -
Oo - -
Oo - -
Oo - -
Oo - -
Oo -
Oo -
Oo
OoOo - O
Oo - -
Oo - -
OoOo - O
Oo - -
Oo
Oo
Oo
Oo

MG Rover

25 / Streetwise (1999 - 2005)

GS (2016 >)

MG3 (2013 - 2015)

MG3 (2016 >)

MG6 (2011 - 2016)

MG5 EV (2020 >)

MG HS PHEV (2021 >)

Juke (2010 >)	○	●	○	●	-	-	-
Leaf (2011 >)	○	●	○	●	-	-	-
Micra (2011 >)	○	○	○	○	-	-	-
Murano (2016 >)	○	●	○	●	-	-	-
Note (2006 - 2013)	○	○	○	○	-	-	-
Note (2014 >)	○	●	○	●	-	-	-
Qashqai+2 (2008 - 2015)	○	●	○	●	○	-	○
Qashqai (2007 - 2013)	○	●	○	●	-	-	-
Qashqai (2014 >)	○	●	○	●	-	-	-
Quest MPV (2012 >)	○	●	-	●	○	-	○
Pulsar (2015 >)	○	●	○	●	-	-	-
X-Trail (2007 - 2015)	○	●	○	●	-	-	-
X-Trail (2015 >)	○	●	○	●	○	-	○

Opel

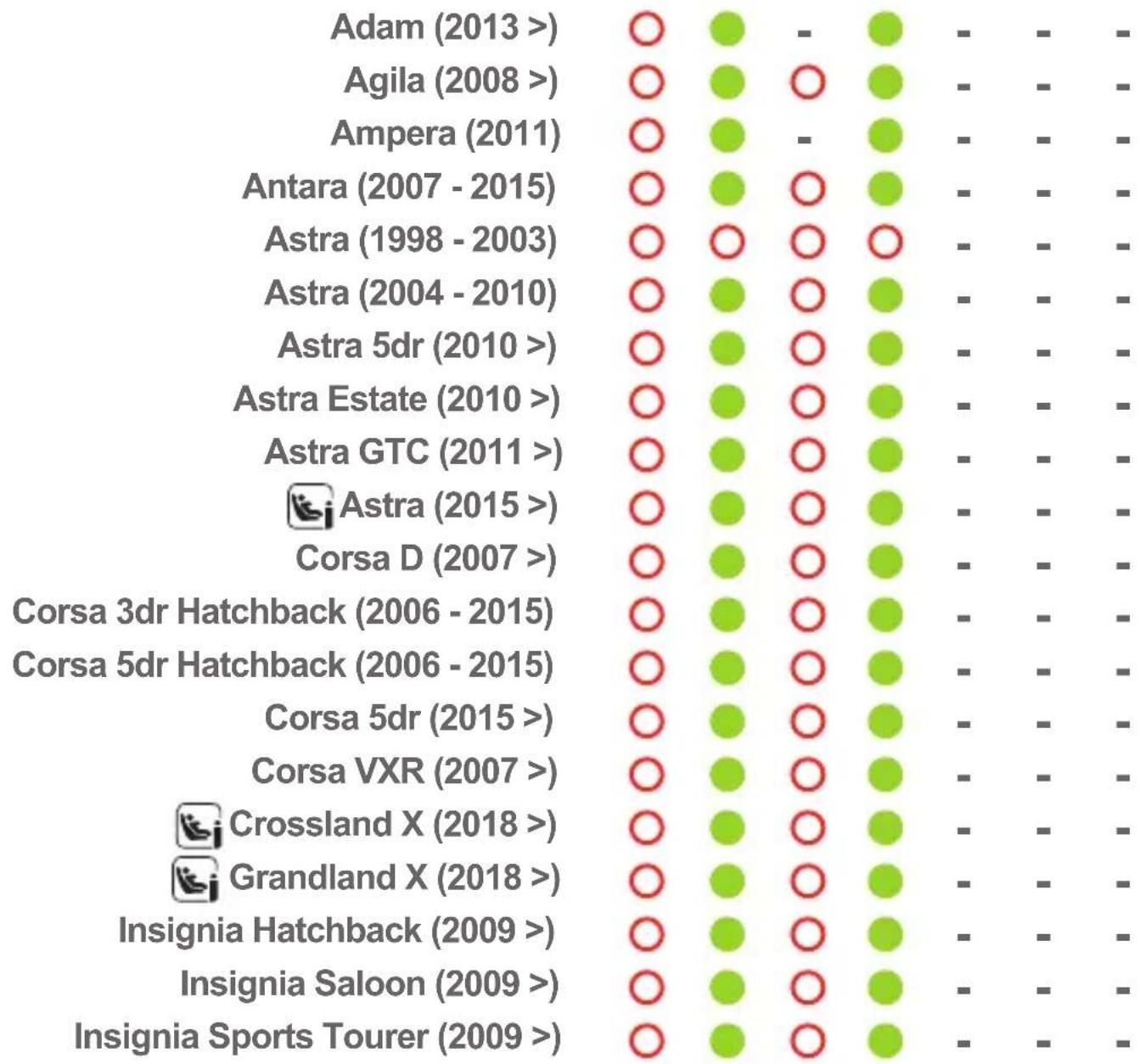

Adam (2013 >)	○	●	-	●	-	-	-
Agila (2008 >)	○	●	○	●	-	-	-
Ampera (2011 >)	○	●	-	●	-	-	-
Antara (2007 - 2015)	○	●	○	●	-	-	-
Astra (1998 - 2003)	○	○	○	○	-	-	-
Astra (2004 - 2010)	○	●	○	●	-	-	-
Astra 5dr (2010 >)	○	●	○	●	-	-	-
Astra Estate (2010 >)	○	●	○	●	-	-	-
Astra GTC (2011 >)	○	●	○	●	-	-	-

Astra (2015 >)	○	●	○	●	-	-	-
Corsa D (2007 >)	○	●	○	●	-	-	-
Corsa 3dr Hatchback (2006 - 2015)	○	●	○	●	-	-	-
Corsa 5dr Hatchback (2006 - 2015)	○	●	○	●	-	-	-
Corsa 5dr(2015 >)	○	●	○	●	-	-	-
Corsa VXR (2007 >)	○	●	○	●	-	-	-
Crossland X (2018 >)	○	●	○	●	-	-	-
Grandland X (2018 >)	○	●	○	●	-	-	-
Insignia Hatchback (2009 >)	○	●	○	●	-	-	-
Insignia Saloon (2009 >)	○	●	○	●	-	-	-
Insignia Sports Tourer (2009 >)	○	●	○	●	-	-	-
Insignia (2018 >)	○	●	○	●	-	-	-
Karl (2015 >)	○	●	○	●	-	-	-
Meriva (2010 >)	○	●	○	●	-	-	-
Mokka (2013 >)	○	●	○	●	-	-	-
Vectra (2005 - 2008)	○	●	○	●	-	-	-
Zafira (2005 - 2014)	○	●	○	●	○	-	○
Zafira Tourer (2014 >)	○	●	○	●	○	-	○

Peugeot

107 (2005 - 2014)	○	●	-	●	-	-	-
108 (2015 >)	○	●	-	●	-	-	-
206 3dr (2004 - 2009)	○	●	○	●	-	-	-
207 3dr (2006 - 2012)	○	●	○	●	-	-	-
207 5dr (2006 - 2012)	○	●	○	●	-	-	-

21 3 54 6 7
Partner Teepee (2008 >)	○	○	○	○	-	-	-
RCZ (2011 >)	○	○	-	○	-	-	-
Traveller (2016 >)	○	●	○	●	●	●	●
Polestar Polestar (2020 >)	●	●	○	●	-	-	-
Porsche Cayenne (2011 - 2017)	○	●	○	●	-	-	-
Cayenne E-Hybrid (2015 >)	○	●	○	●	-	-	-
Cayenne (2017>)	○	●	○	●	-	-	-
Panamera (2011 >)	○	●	-	●	-	-	-
Panamera E-Hybrid (2015 >)	○	●	-	●	-	-	-
Renault Captur (2015 >)	●	●	○	●	-	-	-
Captur (2022 >)	●	●	○	●	-	-	-
Clio (2005 - 2012)	○	●	○	●	-	-	-
Clio Renault Sport (2006 - 2012)	○	●	○	●	-	-	-
Clio Sport Tourer (2007 - 2012)	○	●	○	●	-	-	-
Clio (2013 >)	○	●	○	●	-	-	-
Espace (2003 - 2012)	○	●	●	●	○	-	○
Grand Espace (2003 - 2012)	○	●	●	●	○	-	○
Kadjar (2015 >)	○	●	○	●	-	-	-
●oleos (2018 >)	○	●	○	●	-	-	-
Laguna (2008 - 2012)	○	●	○	●	-	-	-

Laguna Sport Tourer (2008 - 2012)

Megane (2007)

Megane Hatchback (2002 - 2009)

SB! Megane Hatchback (2008-16)

Megane Sport Tourer (2009 - 2016)

2135467

Megane (2016 >)

Modus (2004 - 2012)

Grand Modus (2008 - 2012)

SB! Scenic (2003 - 2009)

SB! Scenic (2009 - 2016)

Seat

Scenic (2017 >)

Twingo (2007 - 2014)

Twingo (2015 >)

Saab

9-3 (2002 - 2012)

9-3 Sport Wagon (2005 - 2012)

9-3 X (2009 - 2012)

9-5 Estate (2005 - 2010)

9-5 (2011-2012)

SB! Alhambra (2010 >)

Altea (2004 - 2011)

Altea XL (2007 - 2011)

Altea Freetrack4 (2007 - 2009)

•••
•••
Oo
•••
Oo - -
•••
Oo
•••
= 0
Oo - -

Oo
Oo
Oo - -
Oo - -
Oo - -

=
•••
Oo - -
•••

21 3 54 6 7
Octavia (2013 - 2020)	○	●	○	●	-	-
Octavia (2020 >)	○	●	○	●	-	-
Rapid (2013 >)	○	●	○	●	-	-
Roomster (2006 >)	○	●	○	●	-	-
Scala (2022 >)	○	●	○	●	-	-
Superb Combi Estate (2008 >)	○	●	○	●	-	-
Superb (2008 - 2014 >)	○	●	○	●	-	-
Superb (2015 >)	○	●	○	●	-	-
Yeti (2009 - 2017)	○	●	○	●	-	-
Enyaq EV (2021 >)	●	●	○	●	-	-
Smart
For Two Coupe (2007 >)	○	-	-	-	-	-
FourFour (2015 >)	○	●	-	●	-	-
Ssangyong

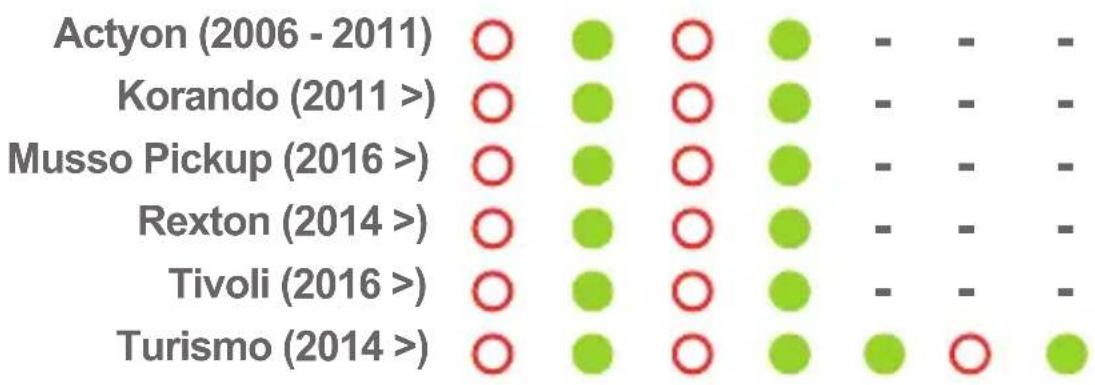

Actyon (2006 - 2011)	○	●	○	●	-	-
Korando (2011 >)	○	●	○	●	-	-
Musso Pickup (2016 >)	○	●	○	●	-	-
Rexton (2014 >)	○	●	○	●	-	-
Tivoli (2016 >)	○	●	○	●	-	-
Turismo (2014 >)	○	●	○	●	○	○
Suzuki
Across (2020 >)	○	●	○	●	-	-
Alto (2009 >)	○	●	-	●	-	-
Baleno (2016 >)	○	○	○	○	-	-
Grand Vitara (2006 >)	○	○	○	○	-	-
Vitara (2015 >)	○	○	○	○	-	-
Splash (2008 >)	○	○	○	○	-	-
Swift Sport (2011 - 2017)	○	○	○	○	-	-
SX - 4 (2006 >)	○	○	○	○	-	-
Ignis (2016 >)	○	○	○	○	-	-
Swift (2017 >)	○	○	○	○	-	-
Subaru
BRZ (2012 >)	○	○	-	○	-	-
Forester (2013 >)	○	○	○	○	-	-
Impreza 5dr (2007 - 2012)	○	○	○	○	-	-
Impreza 5 Door (2013 >)	○	○	○	○	-	-
Legacy (2012 >)	○	○	○	○	-	-
Outback (2012 >)	○	○	○	○	-	-
XV Hatchback (2011 >)	○	○	○	○	-	-
Tesla

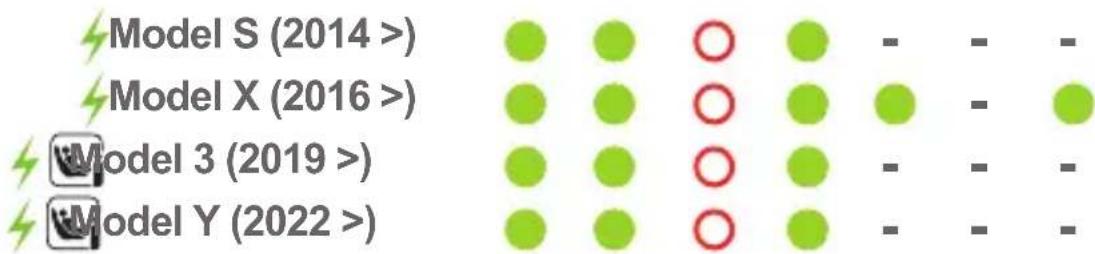

Model S (2014 >)	○	○	○	○	-	-
Model X (2016 >)	○	○	○	○	-	-
Model 3 (2019 >)	○	○	○	○	-	-
Model Y (2022 >)	○	○	○	○	-	-
Toyota

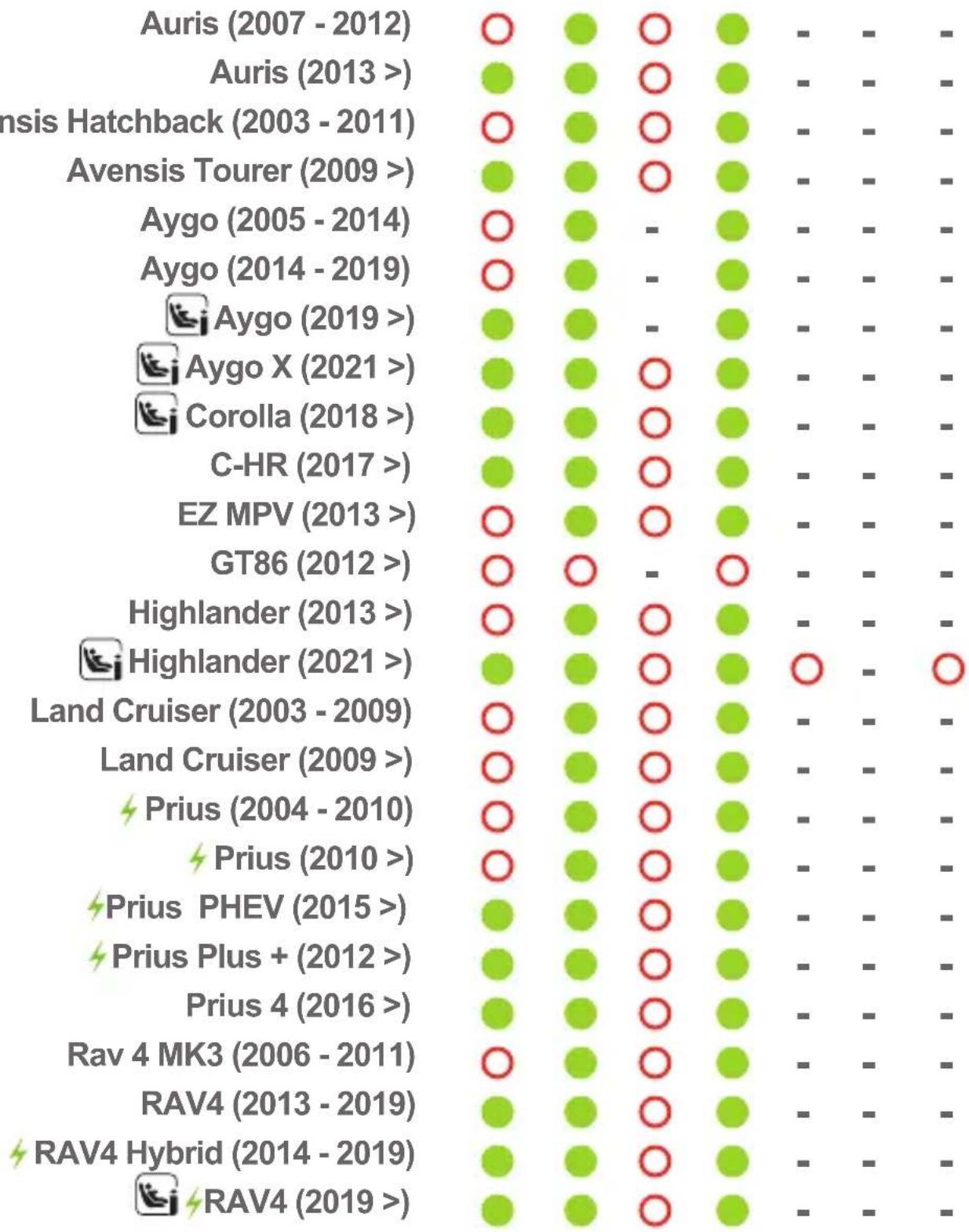

Auris (2007 - 2012)	○	○	○	○	-	-

Vauxhall

21 3 54 6 7
Insignia (2018 >)	○	●	○	●	-	-
Meriva (2010 >)	○	●	○	●	-	-
Mokka (2013 >)	○	●	○	●	-	-
Vectra (2005 - 2008)	○	●	○	●	-	-
Viva (2015 >)	○	●	○	●	-	-
Zafira (2005 - 2014)	○	●	○	●	○	-
Zafira Tourer (2012 >)	○	●	○	●	○	-

Volkswagen

Amarok Double-Cab (2022 >)

Arteon (2017 >)

Beetle (1999 - 2005)

Beetle (2012 >)

Caddy (2010 >)

Caddy Maxilife (2010 - 2015)

Multivan Caravelle (2008 >)

Golf Mk5 (2004 - 2009

Golf Cabriolet (2009 - 2014)

Golf Plus (2009 - 2012)

Golf Mk6 (2008 - 2012)

Golf Mk7 (2012 >)

3 EV (2020 >)
4 ID4 EV (2021 >)
JD5 EV (2022 >)

Jetta (2011 >)

Lupo (1999 - 2005)

C30 (2007 - 2013)	○	●	○	●	-	-	-
S40 (2004 - 2012)	○	●	○	●	-	-	-
S60 (2010 >)	○	●	○	●	-	-	-
S80 (2007 >)	○	●	○	●	-	-	-
S90 (2016 >)	○	●	○	●	-	-	-
V40 (2012 >)	○	●	○	●	-	-	-
V40 Cross Country (2013 >)	○	●	○	●	-	-	-
V50 (2004 - 2012)	○	●	○	●	-	-	-
V60 (2011 - 2017)	○	●	○	●	-	-	-
V60 PHEV (2015 - 2018)	○	●	○	●	-	-	-
V60 (2018 >)	○	●	○	●	-	-	-
V70 (2008 >)	○	●	○	●	-	-	-
V90 (2016 >)	○	●	○	●	-	-	-
XC40 (2018 >)	○	●	○	●	-	-	-
XC60 (2008 - 2017)	○	●	○	●	-	-	-
XC60 (2017 >)	○	●	○	●	-	-	-
XC70 (2008 >)	○	●	○	●	-	-	-
XC90 (2003 - 2014)	○	●	○	●	○	-	○
XC90 (2016 >)	○	●	○	●	○	-	○

2135467

Alfa Romeo

Guiletta (2010 >)	○	●	○	●	-	-	-
Giulia (2017 >)	●	●	○	●	-	-	-
Mito (2009 >)	○	●	-	●	-	-	-
Stelvio (2017 >)	○	●	○	●	-	-	-

Audi

A1 (2011 - 2019)
A1 Sportback (2012 - 2019)
A1 (2019 >)
A3 Hatchback (2012 >)
A3 (1996 - 2003)
A3 (2004 - 2011)
A3/S3 (2012 >)
A3 e-Tron Sportback (2015 >)
A3 Saloon (2014 >)
A4 (2005 - 2008)
A4 (2016 >)
A4 Avant (2016 >)
Audi A4 (2022 >)
A4 Allroad (2008 - 2016)
A4/S4 Avant (2008 - 2016)
A4/S4 Saloon (2008 - 2016)
A5/S5 Coupe (2016 >)
A5/S5 Coupe (2006 - 2016)
A5/S5 Sportback (2009 - 2016)
A5/S5 Sportback (2017 >)

Audi A5/S5 Cabriolet (2017 >)

A6 Allroad (2011 - 2016)

A6/S6 Avant (2011 - 2016)

A6/S6 (2011 - 2016)

A6/S6 (2016 >)

A6 Allroad (2016 >)

A7 Sportback (2011 - 2015)

A7/S7 Sportback (2016 - 2018)

A7/S7 Sportback (2018 >)

A8/S8 (2018 >)

A8/S8 (2011 - 2017)

Q2 (2016 >)

Q3/SQ3 (2013 - 2018)

Q3/SQ3 (2019 >)

Q4 e-Tron (2021 >)

Q5/SQ5 (2008 - 2012)

Q5/SQ5 (2012 - 2016)

Q5/SQ5 (2017 >)

Q7 (2006 - 2014)

Q7/SQ7 (2015 >)

Q8 (2018 >)

21 3 54 6 7
Continental GTC (2006 - 2012)		○	-	○	-	-
Mulsanne (2010 >)			○		-	-
BMW
1-Series (2004 - 2011)	○		○		-	-
1 Series Convertible (2008 - 2015)			-		-	-
1 Series Coupe (2008 - 2015)			-		-	-
1 Series F20 (2011 >)			○		-	-
2 Series Active Tourer (2015 >)			○		-	-
2 Series Coupe (2014 >)			-		-	-
3 Series (2002 - 2005)	○		○		-	-
3 Series (2005 - 2011)	○		○		-	-
3 Series Coupe (2007 - 2014)			-		-	-
3 Series F30 (2012 >)			○		-	-
4 Series GC (2014 >)			○		-	-
5 Series Saloon (2003 - 2008)	○		○		-	-
5 Series Touring (2003 - 2008)	○		○		-	-
5 Series (2008 - 2010)			○		-	-
5 Series Touring (2011 -2018)			○		-	-
5 Series Saloon (2011 - 2018)			○		-	-
5 Series (2011 - 2018)			○		-	-
5 Series (2018 >)			○		-	-
6 Series Coupe (2011 >)			-		-	-
6 Series Convertible (2011 >)			-		-	-
6 Series Gran Coupe (2011 >)			○		-	-
7 Series (2010 - 2016)			○		-	-
7 Series (2016 >)			○		-	-
i3 (2014 >)			○		-	-

Orlando (2011 >)	●	●	○	●	○	-	○
Traxx (2013 >)	●	●	○	●	-	-	-
Chrysler
Grand Voyager (2008 >)	●	●	-	●	○	○	○
300 C (2012 >)	○	●	○	●	-	-	-
Delta (2011 >)	○	●	○	●	-	-	-
Ypsilonon (2011 >)	○	●	○	●	-	-	-
Citroen
SB! Citroen Berlingo II (2008 >)	●	●	○	●	-	-	-
SB! Berlingo Multispace (2007 >)	●	●	○	●	○	-	○
C1 (2006 - 2015)	●	●	-	●	-	-	-
C1 (2015 >)	●	●	-	●	-	-	-
C3 (2005 - 2009)	●	●	○	●	-	-	-
C3 5 Door (2009 >)	●	●	○	●	-	-	-
SB! C3 Picasso (2009 >)	●	●	○	●	-	-	-
C3 (2017 >)	●	●	○	●	-	-	-
C3 Aircross (2017 >)	●	●	○	●	-	-	-
C4 (2010 >)	●	●	○	●	-	-	-
SB! C4 Picasso (2007 - 2014)	●	●	○	●	○	-	○
SB! C4 Picasso (2014 >)	●	●	●	●	○	-	○
SB! C4 G-Picasso (2007 - 2013)	●	●	○	●	○	-	○
C5 (2006 - 2008)	○	●	○	●	-	-	-
C5 Saloon (2008 >)	○	●	○	●	-	-	-
C5 Tourer (2008 >)	○	●	○	●	-	-	-
C4-Cactus (2015 >)	●	●	○	●	-	-	-

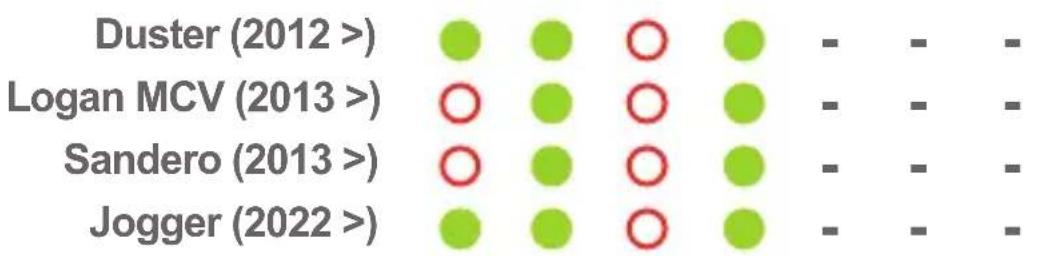

Dacia

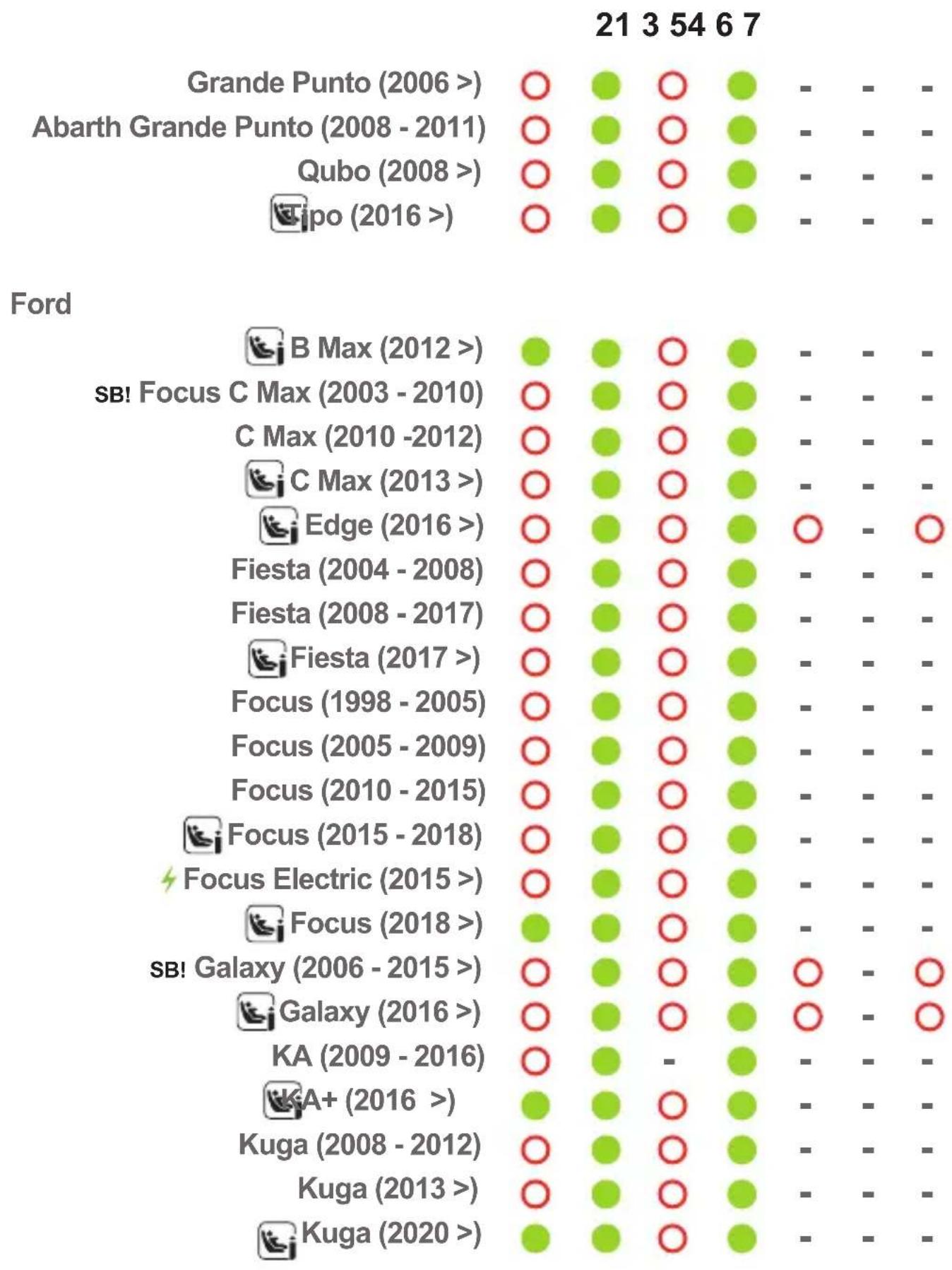

Fiat

2135467

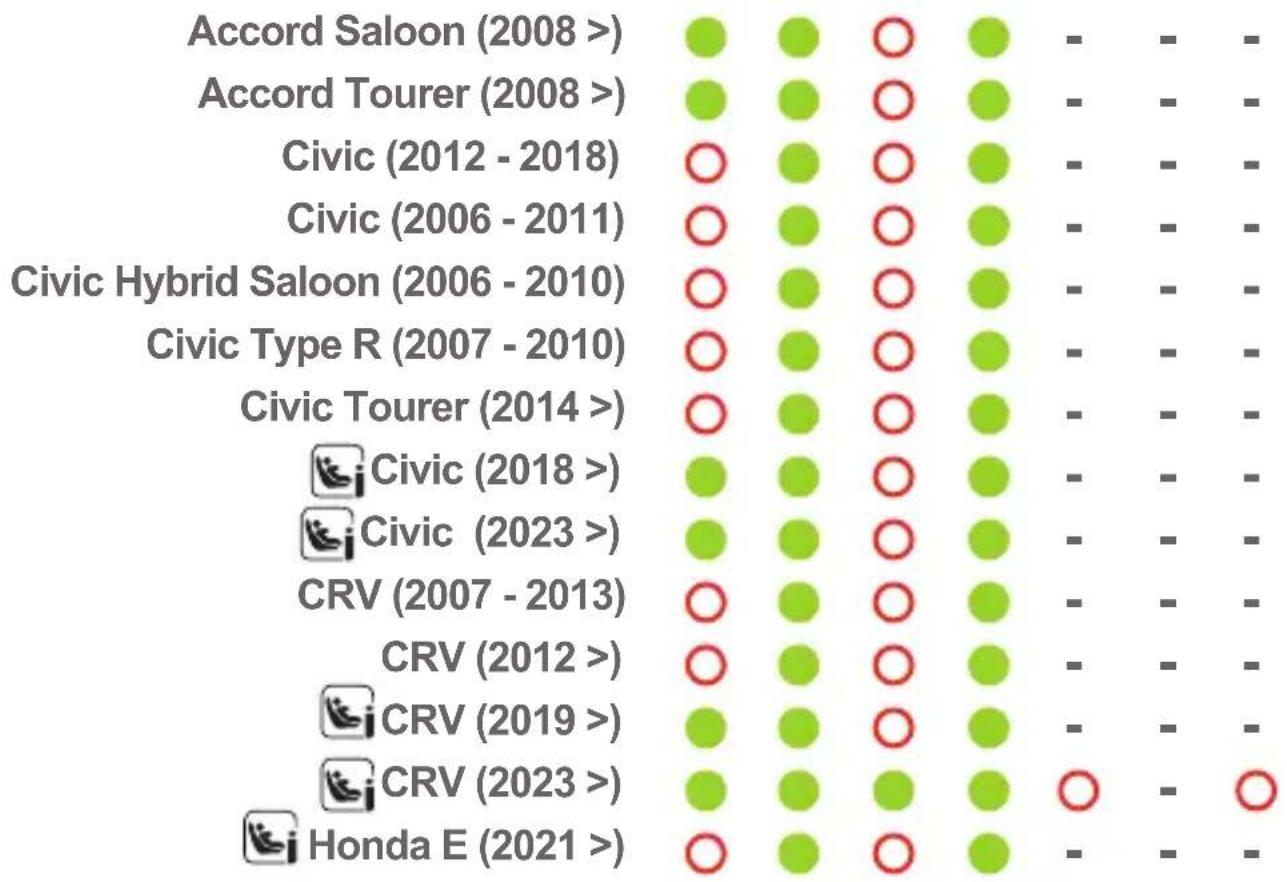

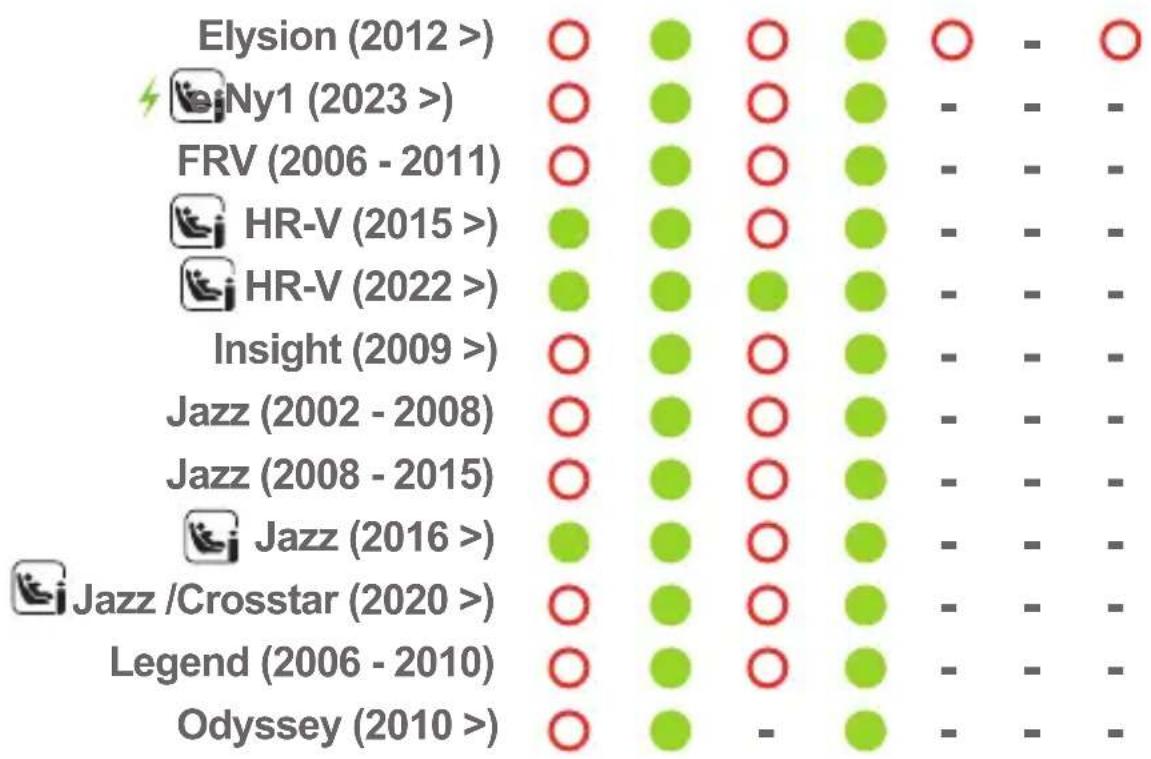

Honda

2135467

Hyundai

21 3 54 6 7
Santa Fe (2007 - 2012)	○	●	○	●	○	-
Santa Fe (2012 >)	●	●	○	●	○	-
Tucson (2010 >)	○	●	○	●	-	-
Tucson (2015 >)	●	●	○	●	-	-
Veloster (2012 >)	○	○	-	○	-	-
Genesis G80 (2021>)	●	●	○	●	-	-
Genesis GV80 (2021>)	●	●	○	●	○	-
Infiniti
EX (2009 >)	○	●	○	●	-	-
FX (2009 >)	○	●	○	●	-	-
G Coupe (2009 >)	○	○	○	○	-	-
G Saloon (2009 >)	○	●	○	●	-	-
M (2010 >)	○	●	○	●	-	-
Jaguar
E-Pace (2018 >)	○	●	○	●	-	-
F - Pace (2016 >)	○	●	○	●	-	-
F-Type Coupe (2014 >)	○	-	-	-	-	-
Pace (2018 >)	○	●	○	●	-	-
X-Type (2001 - 2010)	○	●	○	●	-	-
X-Type Estate (2004 - 2010)	○	●	○	●	-	-
XE (2015 >)	●	●	○	●	-	-
XF (2008 - 2014)	○	●	○	●	-	-
F (2015 >)	●	●	○	●	-	-
XF R (2009 - 2015)	○	●	○	●	-	-
XF Sportbrake (2013 >)	○	●	○	●	-	-
XJ (2010 >)	○	●	○	●	-	-
XK (2006 - 2016)	○	○	-	○	-	-
! XK Coupe (2006 - 2016)	○	○	-	○	-	-
XK Convertible (2006 - 2016)	○	○	-	○	-	-
XK R (2006 - 2016 )	○	○	-	○	-	-
Jeep
Grand Cherokee (2011 >)	○	○	○	○	-	-
Compass (2011 >)	○	○	○	○	-	-
Cherokee (2014 >)	○	○	○	○	-	-
Renegade (2015 >)	○	○	○	○	-	-
Wrangler 5dr (2007 >)	○	○	○	○	-	-
Kia
SB! Carens (2013 >)	○	○	○	○	○	○
Ceed Hatchback (2012 >)	○	○	○	○	-	-
Cceed/XCEED (2020 >)	○	○	○	○	-	-
ProCEED (2020 >)	○	○	○	○	-	-
V6 (2022 >)	○	○	○	○	-	-
Niro (2017 >)	○	○	○	○	-	-
Hybrid (2022 >)	○	○	○	○	-	-
Optima (2011 - 2015)	○	○	○	○	-	-
Optima (2016 >)	○	○	○	○	-	-
Picanto (2008 - 2011)	○	○	○	○	-	-
Picanto (2011 - 2017)	○	○	○	○	-	-
Picanto (2018 >)	○	○	○	○	-	-
Rio (2012 - 2017)	○	○	○	○	-	-
Rio (2017 >)	○	○	○	○	-	-

2135467

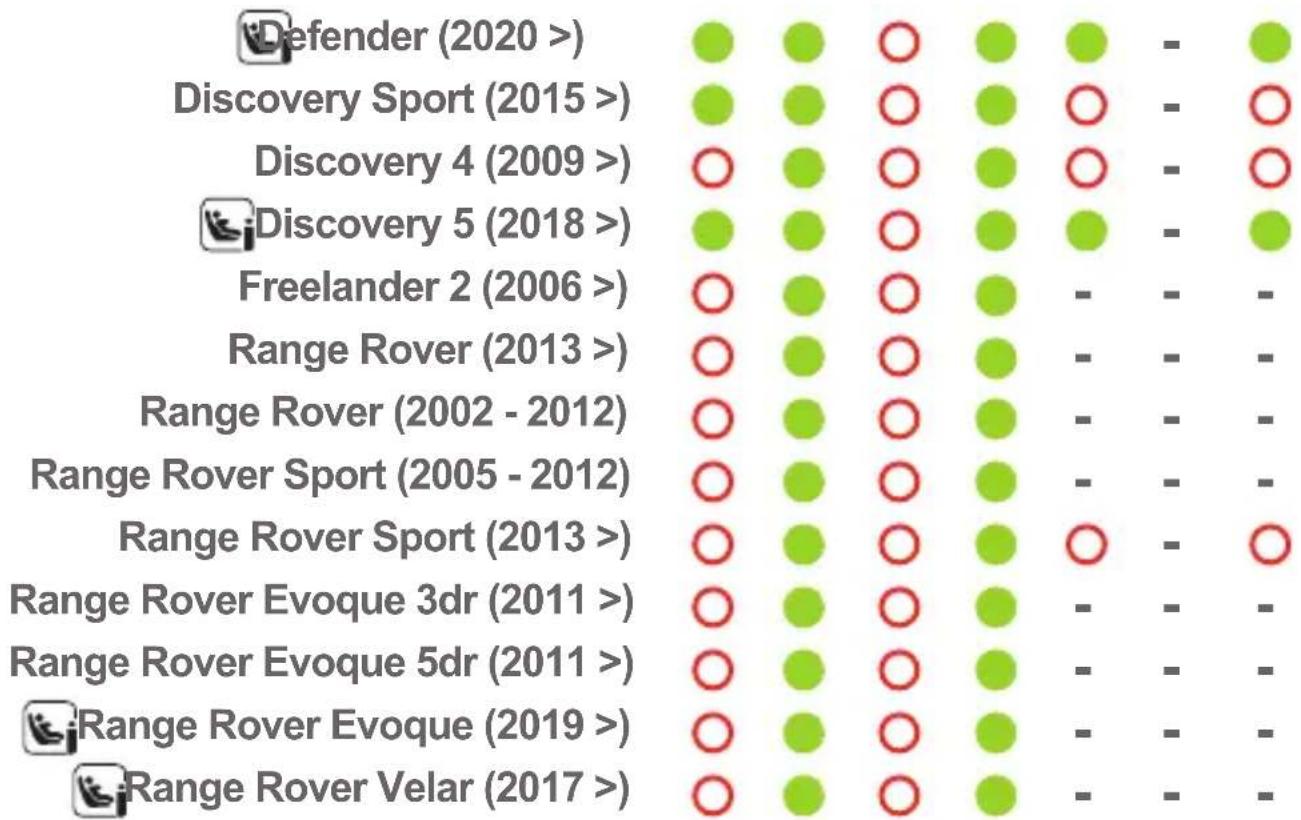

Land Rover

2135467

Lancia

Thema (2012 >)

0

0

Voyager (2010 >)

0

0

0

Delta (2011 >)

0

0

Ypsilon (2012 >)

0

0

Lexus

CT (2011 >)

GS (2013 >)

GSh (2013 >)

O

IS Saloon (2005 - 2012)

BX (2023 >)

NX (2014 >)

0

Hybrid (2019 >)

UX (2019 >)

RX (2010 - 2018)

RX (2018 >)

O

=

O

O

O

O

Mazda

CX-3 (2015 >)

CX-5 (2011 >)

0

O

CX-7 (2007 - 2011)

Mazda 2 (2009 - 2015)

azda 2 (2015 >)

3 Hatchback (2009 - 2013)

3 Saloon (2009 - 2013)

0

0

0

0

O

O

=

0

O

0

0

2135467

3 Hatchback (2014 >)

5 (2005 - 2010)

6 Estate (2008 - 2012)

6 Hatchback (2007 - 2012)

6 Saloon (2007 - 2009)

6 (2013 - 2017)

6 (2018 >)

MX-5 (2015 >)

Oo - -

Oo - -

Oo - -

Oo - -

Oo - -

Oo - -

Oo - -

Mercedes-Benz

A Class (2005 - 2012)

A Class (2013 >)

A Class (2019 >)

A Class Saloon (2020 >)

B Class (2012 >)

B Class EV (2015 >)

C Class (2008 - 2015)

C Class Estate (2008 - 2015)

C Class Coupe (2011 >)

C Class (2015 >)

CLA (2013 >)

CLA (2020 >)

CLA Shooting Brake (2015 >)

CLS Shooting Brake (2012 >)

CLS Coupe (2011 >)

E Class (2006 - 2009)

E Class Saloon (2009 - 2012)

Oo - -

Oo - -

Oo - -

Oo - -

Oo - -

Oo - -

Oo

Oo - -

Oo - - -

Oo - -

Oo - -

Oo - -

Oo - -

Oo

Oo - -

Oo - -

Oo

2135467

E Class Coupe (2009 >)

E Class (2013 - 2018)

MG Rover

E Class (2018 >)

EQA (2021 >)
EQC (2021 >)

GLA (2021 >)

GLA (2014 - 2020)

GLC (2016 >)

GLC Coupe (2019 >)

GL Class (2006 - 2012)

GL/GLS Class (2012>)

GLE (2015 - 2020)

GLE (2020 >)

M/ML Class (2005 - 2012)

M/ML Class (2012 >)

R Class (2006 - 2012)

S Class (2006 - 2013)

S Class (2015 >)

SL Class (2012 >)

SLK (2011 >)

V Class (2015 >)

Oo - - -
Oo - -
Oo - -
Oo - -
Oo - -
Oo - -
Oo - -
Oo - -
Oo - -
OoOo - O
Oo
Oo
Oo
Oo
Oo
OoOo - O
Oo
Oo - -
Oo
Oo
Oo

25 / Streetwise (1999 - 2005)

GS (2016 >)

MG3 (2013 - 2015)

MG3 (2016 >)

21 3 54 6 7
Astra (2004 - 2010)	○	●	○	●	-	-
Astra 5dr (2010 >)	○	●	○	●	-	-
Astra Estate (2010 >)	○	●	○	●	-	-
Astra GTC (2011 >)	○	●	○	●	-	-
Astra (2015 >)	○	●	○	●	-	-
Corsa D (2007 >)	○	●	○	●	-	-
Corsa 3dr Hatchback (2006 - 2015)	○	●	○	●	-	-
Corsa 5dr Hatchback (2006 - 2015)	○	●	○	●	-	-
Corsa 5dr(2015 >)	○	●	○	●	-	-
Corsa VXR (2007 >)	○	●	○	●	-	-
Crossland X (2018 >)	○	●	○	●	-	-
Grandland X (2018 >)	○	●	○	●	-	-
Insignia Hatchback (2009 >)	○	●	○	●	-	-
Insignia Saloon (2009 >)	○	●	○	●	-	-
Insignia Sports Tourer (2009 >)	○	●	○	●	-	-
Insignia (2018 >)	○	●	○	●	-	-
Karl (2015 >)	○	●	○	●	-	-
Meriva (2010 >)	●	●	○	●	-	-
Mokka (2013 >)	●	●	○	●	-	-
Vectra (2005 - 2008)	○	●	○	●	-	-
Zafira (2005 - 2014)	○	●	○	●	○	-
Zafira Tourer (2014 >)	●	●	○	●	○	-
Peugeot
107 (2005 - 2014)	○	●	-	●	-	-
108 (2015 >)	○	●	-	●	-	-

21 3 54 6 7
Altea XL (2007 - 2011)	○	●	○	●	-	-
Altea Freetrack4 (2007 - 2009)	○	●	○	●	-	-
Arosa (1997 - 2004)	○	●	-	●	-	-
Arona (2018 >)	●	●	○	●	-	-
Ateca (2018 >)	●	●	○	●	-	-
Exeo (2008 - 2014)	○	●	○	●	-	-
Exeo ST Estate (2008 - 2014)	○	●	○	●	-	-
Ibiza Cupra (2009 >)	○	●	○	●	-	-
Ibiza (2009 - 2017)	○	●	○	●	-	-
Ibiza (2018 >)	●	●	○	●	-	-
Leon Cupra (2007 - 2011)	○	●	○	●	-	-
Leon (1998 - 2004)	○	●	○	●	-	-
Leon (2005 - 2012)	○	●	○	●	-	-
Leon (2013 >)	○	●	○	●	-	-
Mii (2011 >)	○	●	○	●	-	-
Toledo (2013 >)	○	●	○	●	-	-

Skoda

Citigo (2012 >)	○	●	○	●	-	-	-
Fabia (2007 - 2014)	○	●	○	●	-	-	-
Fabia Combi (2008 - 2014)	○	●	○	●	-	-	-
Fabia (2015 - 2020)	○	●	○	●	-	-	-
Fabia (2021 >)	○	●	○	●	-	-	-
Kamiq (2020 >)	●	●	○	●	-	-	-
Karoq (2018 >)	●	●	○	●	-	-	-

2135467

Smart

Ssangyong

2135467

Suzuki

Subaru

Tesla

2135467

Toyota

Vauxhall

C30 (2007 - 2013)	●	●	-	●	-	-	-
S40 (2004 - 2012)	●	●	○	●	-	-	-
S60 (2010 >)	○	●	○	●	-	-	-
S80 (2007 >)	●	●	○	●	-	-	-
S90 (2016 >)	●	●	○	●	-	-	-
V40 (2012 >)	○	●	○	●	-	-	-
V40 Cross Country (2013 >)	○	●	○	●	-	-	-
V50 (2004 - 2012)	●	●	○	●	-	-	-
V60 (2011 - 2017)	○	●	○	●	-	-	-
V60 PHEV (2015 - 2018)	○	●	○	●	-	-	-
V60 (2018 >)	●	●	○	●	-	-	-
V70 (2008 >)	●	●	○	●	-	-	-
V90 (2016 >)	●	●	○	●	-	-	-
XC40 (2018 >)	●	●	○	●	-	-	-
XC60 (2008 - 2017)	○	●	○	●	-	-	-
XC60 (2017 >)	●	●	○	●	-	-	-
XC70 (2008 >)	●	●	○	●	-	-	-
XC90 (2003 - 2014)	●	●	○	●	○	-	○
XC90 (2016 >)	●	●	○	●	○	-	○

Right by your Side

Landline: Go freephone fabulous on 0800 014 9252*
Mobile: Ring 0333 323 1729 International: [phone]

*calls from BT landlines are free but calls from mobiles and other networks may vary.

Email: [e-mail]

Letter: Cosatto Limited, Bentinck Mill, Bentinck Street, Farnworth, Bolton, Lancs, BL4 7EP, England.

All the design and trademarks contained herein are the property of Cosatto Limited. No part of this document may be reproduced without the permission of Cosatto Limited.

www.cosatto.com

(EN) Notice:

This is a specific vehicle belted Enhanced Child Restraint System. It is approved according to UN Regulation No. 129, for use in the specific vehicle indicated in the applicable vehicle list.

Please refer to the vehicle list, fit checker app (http://cosat.to/fitchecker) or the vehicle list section on the website (http://cosat.to/ninjaigovl).

Never use this child restraint system in seating positions where an active frontal airbag is installed.

Important - Do not use forward facing before the child's age exceeds 15 months (refer to instructions).

If in doubt, consult either the child restraint manufacturer or retailer.
