Sicherheitshinweise

Read this instruction manual carefully before using the appliance. Familiarise yourself with the operation, adjustments and functions of switches. Internalise and follow the safety and operation instructions in order to avoid possible risks and hazards.

• This product can be used by children aged from 8 years and above if they are supervised or have received instructions concerning use of the product in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children unless they are older than 8 and supervised. Keep the product and its cord out of reach of children aged less than 8 years.
• This product can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a possible hazard.
• The product is not suitable for continuous operation. Do not operate the product longer than 15 seconds. Let the product cool down before next use.
  • Always disconnect the product from the supply if it is left unattended and before assembling, disassembling or cleaning.

English

Safety Instructions

• Switch off the product and disconnect it from the power supply before changing accessories or approaching parts that move in use. Do not use the product if the rotating sieve or the protecting cover is damaged or has visible cracks.
• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards and cause injuries.
• The product is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
• Clean the product and all other accessories after each use.
• Follow the instructions in the chapter Cleaning and care.

Safety Instructions

1. Read this manual thoroughly before first use. It contains important information for your safety as well as for the use and maintenance of the equipment.
2. Keep this manual for future reference and pass it on with the product.
3. Pay particular attention to the warnings on the product and in this manual.
4. Use the product only for its intended purpose. Improper use may lead to hazards.
5. In the event of improper use or wrong operation, we do not accept any liability for resulting damages.
6. The use of accessories and components not expressly recommended by the manufacturer may result in injuries or damages and voids the warranty.
7. Never leave the product unsupervised while it is switched on.
8. Do not place any objects on top of the product.
9. Never immerse electrical parts of the product in water or any other fluid during cleaning or operation. Never hold the product under running water.
10. Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
11. The mains voltage must match the information on the rating label of the product.
12. The power plug is used as the disconnect device. Please be sure that the power plug is in operable condition.
13. Only unplugging from the power socket can separate the product completely from the mains.
14. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

15. Keep this product including its power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing devices/objects.

16. Only unplug from the power socket by the plug itself. Do not pull on the cord.

17. Unplug the product ...

18. when the product is not being used,
19. in case of malfunctions,
20. before attaching / detaching accessories and

21. before cleaning the product.

22. If the power cord or the casing of the product have been damaged or if the product has been dropped, the product may not be used before it has been examined by an authorised service agent.

23. Use this product in dry indoor areas only and never outdoors.

English

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This appliance is exclusively designed for squeezing citrus fruits – such as oranges, lemons, grapefruits, limes, etc. Any other use can lead to damage to the device or injuries. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first use

Carefully take the product and its accessories out of the original packaging. Retain the original packaging in case you would like to store the product away or transport it at a later date. If you choose to dispose of the original packaging, then do so according to the applicable legal regulations. Check the packaging contents for completeness and damages. Should the contents in the packaging not be complete or damaged, do not use the product. Return it to your retail outlet immediately. After unpacking, please refer to chapter Cleaning and care.

Disposal

Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 × Lid
2 x Juicing cone
1 x Juice sieve
1 x Juice collector with spout
1 x Motor base
1 x User manual
1 x Warranty card

Technical data

Rated voltage : 220 - 240 V\~ Rated frequency : 50/60 Hz Rated power : 130 W Protection class : II Capacity : 500 ml Short operation time : 15 sec. on/ 15 sec. off Max. operation cycles : 10x, than let it cool down to room temperature

Controls and components

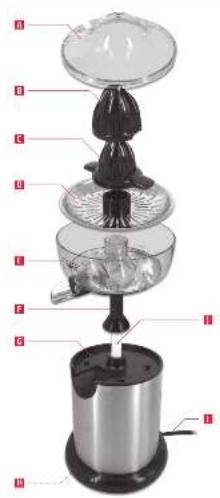

A Lid
B Large juicing cone
c Small juicing cone
D Juice sieve
€ Juice collector with spout
F Drive shaft attachment
G Motor unit
H Cord storage (underneath the base)
Power cord with plug
Drive shaft

Assembly

Warning

Always ensure the appliance is disconnected from the power supply before it is fully and correctly assembled.

Fig. 1 Place the motor base on a flat surface. Place the juice collector on the motor base with its spout fitting with the groove. Place the juice sieve on the juice collector. Place the juicing cone on the sieve.

Note:

Use the small cone for smaller fruits and add the large cone for larger fruits. Place the lid over the juicing cone.

The appliance is now ready for use.

Preparing fruits

• Carefully clean citrus fruits before juicing.
• Cut the fruits into halves.

Operation

Fig. 2 Unwind the power cord from the cord storage underneath the base. Run the power cord through the recess on the bottom of the motor base.
Fig. 3 Place the base on a level, stable and dry surface.
Fig. 4 Connect the power plug to a suitable electrical outlet.
Fig. 5 Remove the lid and press the fruit halve with one hand gently over the juicing cone. Stabilise the appliance by holding the base with the other hand. When the pressing cone is pressed down, the appliance switches on automatically and the juicing cone starts to move and extracts the juice. Make sure the spout is closed, or a glass is placed beneath it.
Fig. 6 Place the glass/container under the spout. Press the spout down - the juice now starts to run into the glass/container while skin, fruit bits and pips are collected in the juice sieve.
Fig. 7 Once you have the desired amount of juice, lift the spout to avoid the juice being spilled.
Fig. 8 Unplug the appliance and let it cool down before cleaning and storage.

Tips:

• Empty the juice sieve regularly to avoid jamming.
- Ensure the juice collector does not overflow during use.
- During use, do not press the juicing cone too strong.

English

Cleaning and care

• Before cleaning, always ensure to switch the appliance off, unplug it and let it cool completely.
• Never immerse the base or power cord in water or any other liquid.
• For cleaning, never use strong or abrasive cleaning products or sharp edged objects.
• Clean the base with a slightly damp cloth.

- Rinse all the accessories under running water.

Fig. 9 Wind the power cord around the cord storage underneath the base.

Store the appliance in a cool, dry and clean place, out of the reach of children and pets.

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible causes Solution
Product does not work • Interrupted	power supply	• Check the power supply
The motor stops while juicing or it turns noticeably slow	• The sieve is blocked• Max. usage time exceeded	• Switch off the product and unplug. Clean the sieve• Let product cool down
During the processing, the juice is running down the product base	• The sieve or the spout is blocked• Juice collector is full and overflowing	• Clean the sieve and spout• Let out some juice
