KCP856 - Juicer Koenic - Free user manual and instructions

Product type	Electric citrus juicer
Brand	Koenic
Model	KCP856
Rated power	85 W
Rated frequency	50 Hz
Electrical class	II (double insulation)
Juice container capacity	Approx. 0.5 L
Dimensions (L x W x H)	Approx. 15 x 13 x 25 cm
Weight	Approx. 1 kg
Main function	Juice citrus fruits (oranges, lemons, grapefruits)
Included accessories	Small juicing cone, large juicing cone, pulp filter, juice container, lid
Pour spout	Pour spout with anti-drip device
Control type	Start by pressing fruit onto cone
Cleaning	Base unit: damp cloth; accessories: warm water and mild detergent, filter dishwasher safe
Maintenance	Unplug before cleaning, do not immerse base unit
Safety instructions	Do not use if rotating filter is damaged; do not immerse in water; supervise children
Intended use	Household, for citrus fruits only
Power cord length	Approx. 0.8 m
Warranty	2 years

Frequently Asked Questions - KCP856 Koenic

How to use the KCP856 citrus juicer?

Place the juice container on the base unit, then the pulp filter and the appropriate cone. Cut the fruit in half, push a half onto the cone to start extraction. Release to stop. Use the pour spout to dispense juice.

How to clean the pulp filter?

The pulp filter can be washed in the dishwasher or with warm water and mild detergent. Make sure to rinse it thoroughly.

Can I press fruits other than citrus?

No, this appliance is strictly intended for juicing citrus fruits (oranges, lemons, grapefruits). Using other fruits may damage the appliance.

What to do if the appliance does not turn on?

Check that the power outlet works and the cord is not damaged. The appliance only starts when you apply pressure to the cone. If the problem persists, contact customer service.

How to assemble the different parts?

Place the juice container on the base unit, insert the pulp filter, then the small cone (or large cone on top if needed). The pour spout can be raised or lowered depending on whether you want to keep the juice in the container or pour it.

The pour spout does not close, what to do?

The pour spout is equipped with an anti-drip device. Push it up to close, down to open. If it remains stuck, clean it with a damp cloth.

Is the appliance compatible with all citrus fruits?

Yes, the two provided cones allow juicing citrus fruits of different sizes: the small cone for lemons and limes, the large cone for oranges and grapefruits.

How to descale the appliance?

Do not use aggressive descaling products. For deep cleaning, you can use a cotton swab soaked in diluted white vinegar on hard-to-reach areas, then rinse with clean water.

Can I wash the juice container in the dishwasher?

Yes, the juice container can be washed in the dishwasher. However, the base unit must never be immersed in water.

What to do in case of abnormal noise?

Unplug the appliance immediately. Check that the parts are correctly assembled and the rotating filter is not damaged. If the noise persists, contact customer service.

USER MANUAL KCP856 Koenic

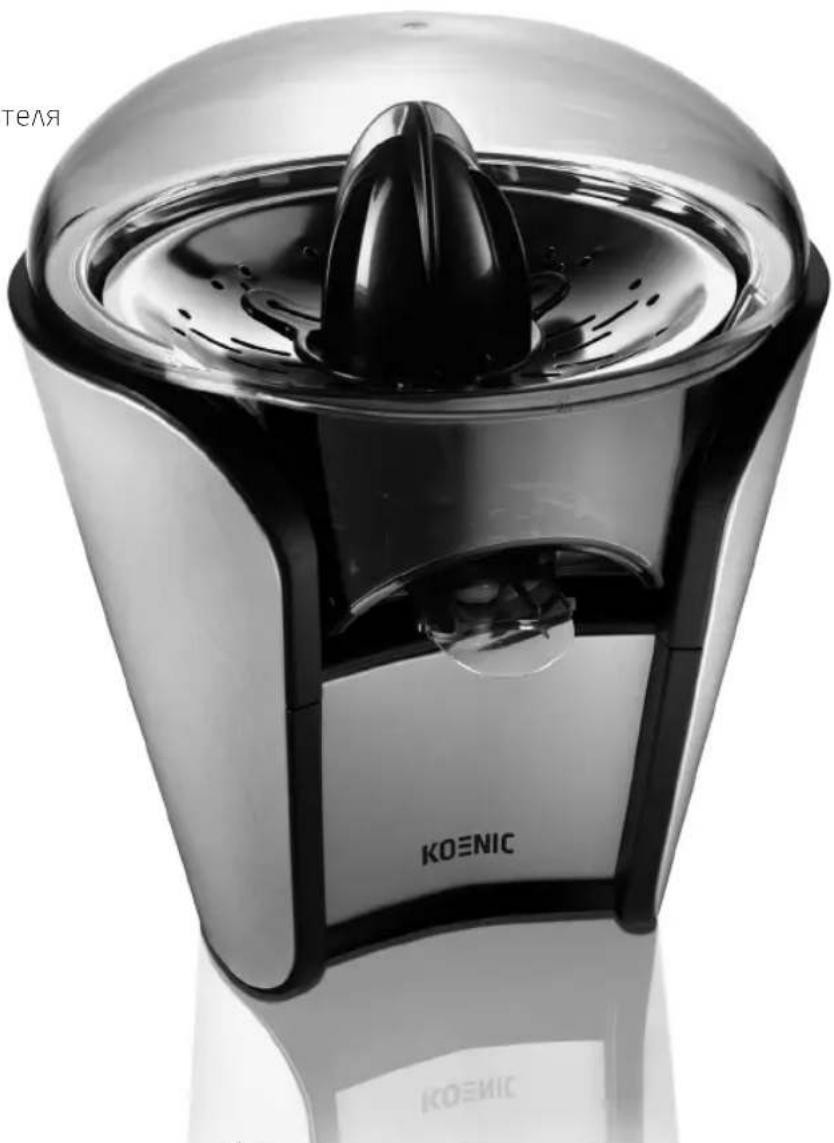

Citrus Press Professional Aluminium Edition

KCP856

DE Gebrauchsanweisung
EL Oonyiec xpang
EN User Manual
ES Manual de instrucciones
FR Mode d'emploi
HU Kezelesileiras
IT Manuale dell'utente
NL Gebruiksaanwijzing
PL Instrukcja obslugi
PT Instruções de utilização
RU PykoBOOCTBO NOABoTeA
SV Bruksanvising
TR Kullanim Kilavuzu
ZH 用户手册

Deutsch	4-7
Еληνικά	8-11
English	12-15
Espanol	16-19
François	20-23
Magyar	24-27
Italiano	28-31
Nederland	32-35
Polski	36-39
Portugues	40-43
Yüccský	44-47
Svenska	48-51
Türkce	52-55
汉语	56-59

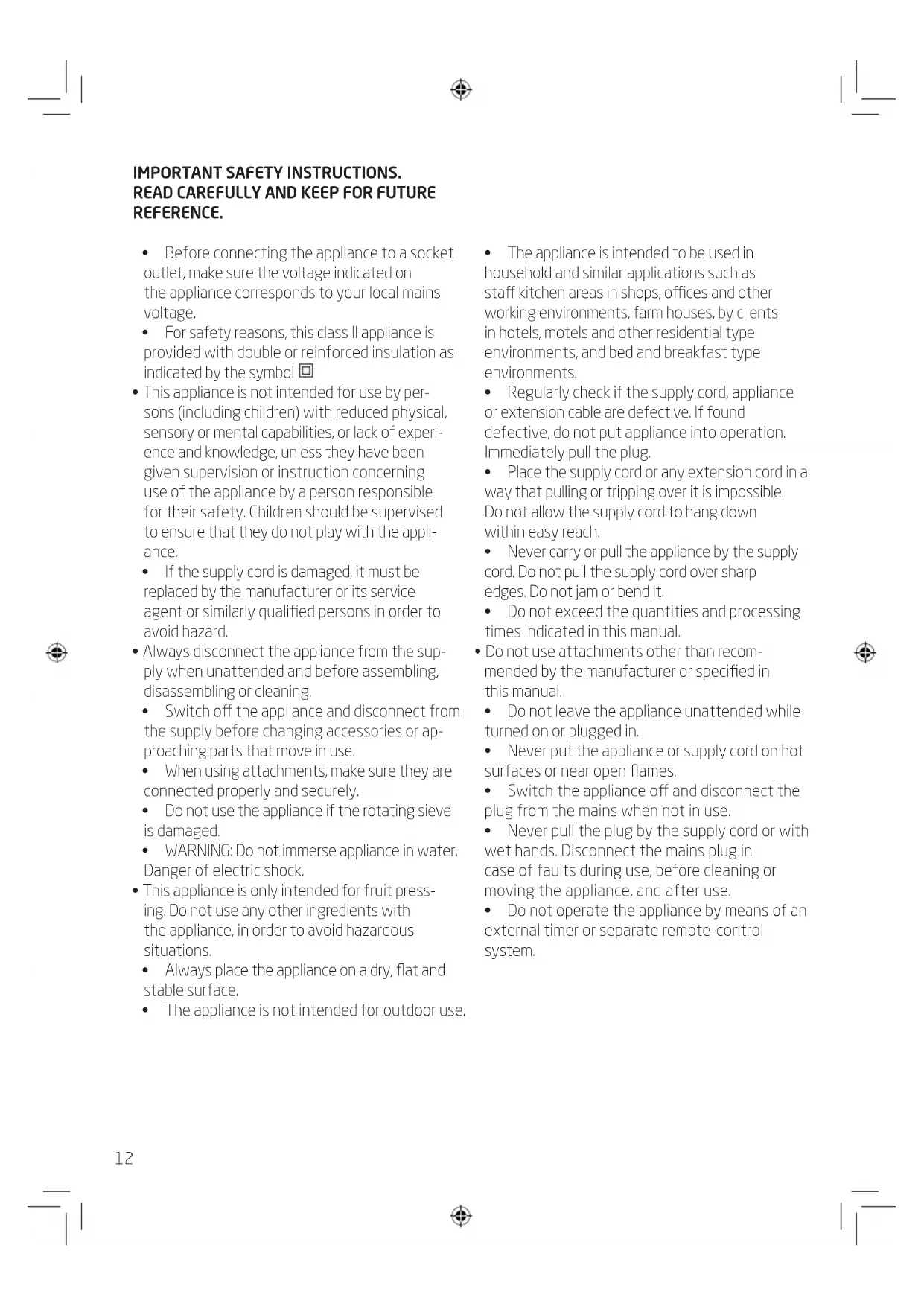

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

• Before connecting the appliance to a socket outlet, make sure the voltage indicated on the appliance corresponds to your local mains voltage.
• For safety reasons, this class II appliance is provided with double or reinforced insulation as indicated by the symbol l
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified persons in order to avoid hazard.
  Always disconnect the appliance from the supply when unattended and before assembling, disassembling or cleaning.
• Switch off the appliance and disconnect from the supply before changing accessories or approaching parts that move in use.
• When using attachments, make sure they are connected properly and securely.
• Do not use the appliance if the rotating sieve is damaged.
  WARNING: Do not immerse appliance in water. Danger of electric shock.

• This appliance is only intended for fruit pressing. Do not use any other ingredients with the appliance, in order to avoid hazardous situations.
  Always place the appliance on a dry, flat and stable surface.
  The appliance is not intended for outdoor use.

• The appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments, farm houses, by clients in hotels, motels and other residential type environments, and bed and breakfast type environments.

• Regularly check if the supply cord, appliance or extension cable are defective. If found defective, do not put appliance into operation. Immediately pull the plug.
• Place the supply cord or any extension cord in a way that pulling or tripping over it is impossible. Do not allow the supply cord to hang down within easy reach.
• Never carry or pull the appliance by the supply cord. Do not pull the supply cord over sharp edges. Do not jam or bend it.

• Do not exceed the quantities and processing times indicated in this manual.

• Do not use attachments other than recommended by the manufacturer or specified in this manual.

• Do not leave the appliance unattended while turned on or plugged in.

• Never put the appliance or supply cord on hot surfaces or near open flames.
• Switch the appliance off and disconnect the plug from the mains when not in use.
• Never pull the plug by the supply cord or with wet hands. Disconnect the mains plug in case of faults during use, before cleaning or moving the appliance, and after use.
• Do not operate the appliance by means of an external timer or separate remote-control system.

Intended use

This appliance is only intended for juicing citrus fruits. Only use according to these instructions. Improper use is dangerous and will void any warranty claim. Observe the safety instructions.

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment

(WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

English

Congratulations

Thanks for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Before first time use

Before using the juicer, it must be cleaned as described in Cleaning and care.

Juicing

1. Attach juice container to the drive shaft of the base unit.
2. Place the pulp sieve on the juice container.
3. Fit the small juicer cone onto the drive shaft. If necessary, fit the large juicer cone on top of the small cone.
4. Push the spout upwards to keep extracted juice in the container. Push downwards to collect juice into an external container.
5. Cut fruit in half and lightly press them onto the juicer cone; drive shaft will start rotating. Release pressure to stop.
6. If the appliance is not use, clean it, remove plug and attach the cover to the base unit.

Cleaning and care

1. Unplug the appliance from the mains supply.
2. Clean the base unit with a slightly damp, lint-free cloth. Do not immerse in water.
3. Clean the attachments thoroughly using warm water and a mild detergent. The pulp sieve may also be cleaned in a dishwasher.

Place the juice container onto the base unit.

Place the pulp sieve on the juice container.

Fit desired juicer cone to the drive shaft.

Plug in the appliance.

Extract to juice container.

Extract to external container.

After use unplug the appliance.

Attach cover after use.

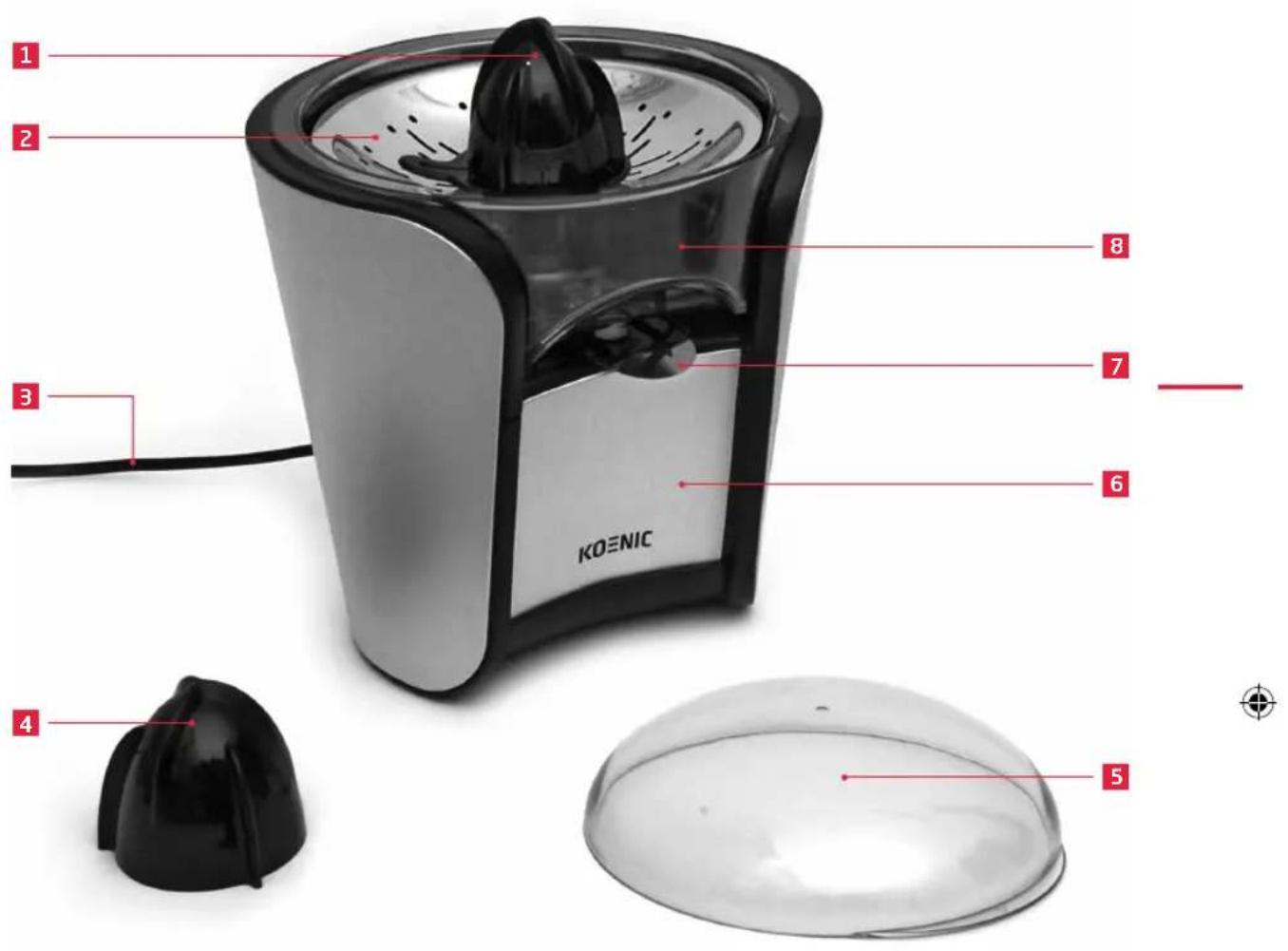

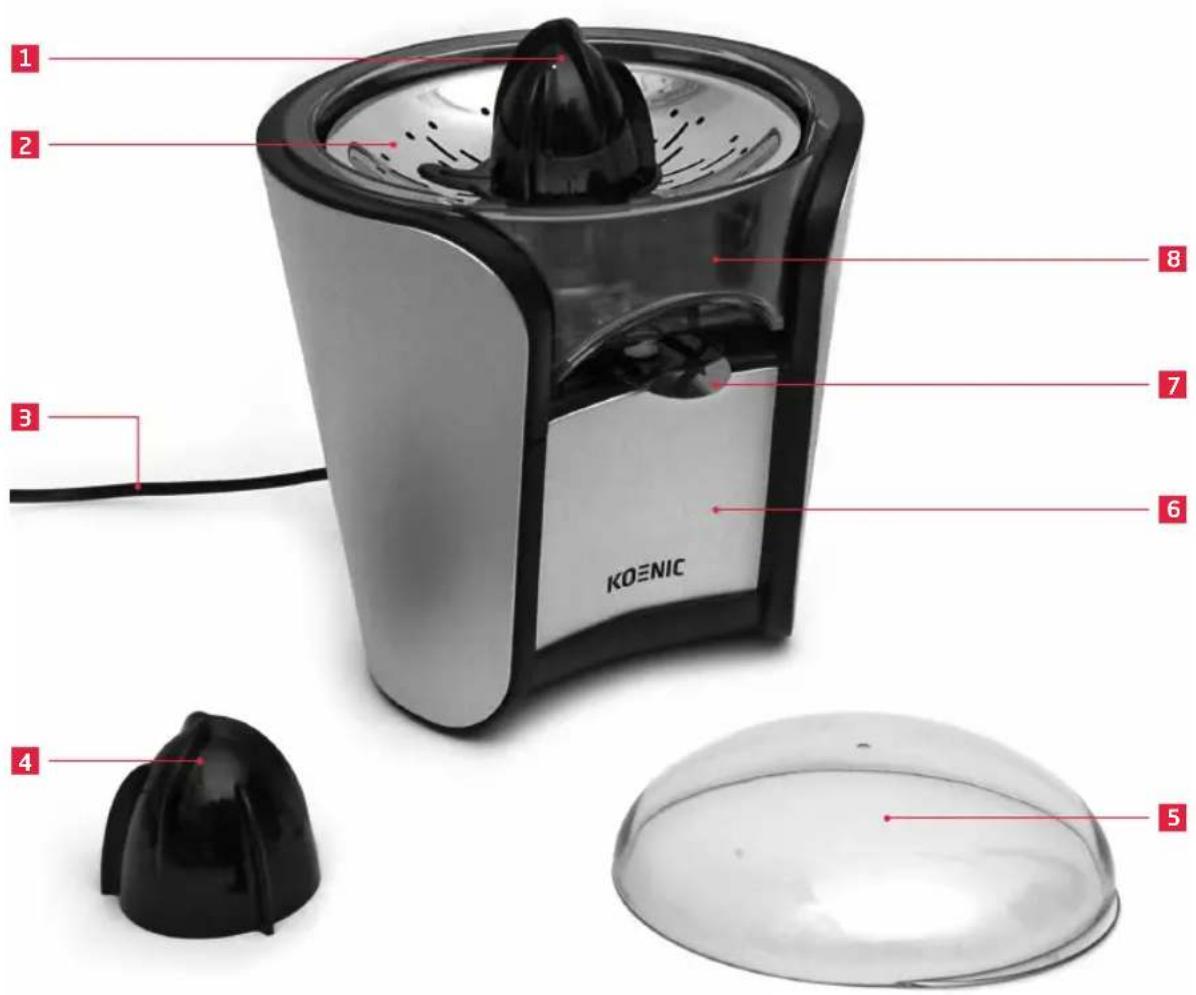

1 Small juicer cone
2 Pulp sieve
Supply cord
Large juicer cone

5 Cover
6 Base unit
Spout with drip-stop
8 Juice container

Technical Data

Rated voltage: 220-240 V

Rated power input: 85 W

Rated frequency: 50 Hz

Sap in sapreservoir Sap in glas etc.

OTXMM BO BHEUHHOEOMKOCTb.

OTKAHOHTe BNAky npnbopa n3 cetn noCae NcnoB3OBaHna.

3akpoTe KpbIshKoNocAe NcNoAb30BaHnA.

RU

Maibiy KOHyC COKOBbIXMAmAkn
2 CITO AIA MAKOTI
3 WHyp 3AekTpOnnTaHn
4 BoaBwoi KoHyc cokOBbIXmAmKn

KpbiUka
6 BaOByI 6AOK
7 Hocnk c npotnbokanaeBoi cnCTeMoDripStop
EMKoCTbAaCOKa

TexHnueckne daHHbIe

HomHaBHoE HanpJxKeHHe: 220-240 B

HomHaBna noTppe6AeMa MaocHocTb:85BT

HomHaBbHaa yactota:50r

VIKTIGA SAKERHETSINSTRUKTIONER. LAs NOGA OCH SPARA FOR FRAMTIDA BEHOV.
