Sicherheitshinweise

Risk of burning! Do not touch the product's hot surfaces. Heat rises from the product during use.

• Caution! Hot surface!
• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be made by children unless they are supervised.
• The iron must not be left unattended while it is connected to the supply mains.
• Pull the power plug before filling iron with water or emptying.
• The product must be used on a stable, resistant surface.
• Even once you place the iron in its stand base, make sure that the surface upon which the iron is standing is stable and resistant.
• Do not use the product if the power plug, power cord or the product itself is damaged or if the product has fallen or if liquid escapes from the product.
• Keep the iron and its power cord out of reach of children less than 8 years of age when it is energized or cooling down.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
• The Anti-calc rinsing cap must not be opened during use.

English

Safety instructions

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
• Never leave the product unsupervised while it is switched on.
• Do not place heavy objects on top of the product.
• Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt (e.g. damage in power cord, product is dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
• The mains voltage must match the information on the rating label of the product.
• Only unplug from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.
• Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.

• Use this product in dry indoor areas only and never outdoors.

• Place the product on a flat, sturdy and slip-resistant surface.

• Never use, expose or put the product near to: - direct sunlight and dust;
• fire (fireplace, grill, candles), water (water splashes, vases, ponds, bath tube) or heavy moisture.
• This product is not suitable for commercial use. It is designed for household use only.
• Operate this product under supervision only. Even when leaving the room briefly, always pull the plug and put the device in its stand base.
• When operating the product, high temperatures develop on the housing and soleplate which could lead to burns if you come into contact with them. Possible hazards could also occur from escaping steam or hot water. Do not point the steam toward people.
  • Use the handle only for handling.
• Do not iron or freshen up garments with steam while they are being worn.
• The cord must not come into contact with hot parts of the product and must not be wrapped around the product.
• Do not put the product on hot surfaces (e.g. stove hot plates and so on) or near open gas flames.
  • Fill the water tank with water only.
• Do not remove the Anti-calc rinsing cap from the product when the pressurized steam iron is still hot or under pressure.
• If steam or hot water droplets escape from the rinsing cap knob during the product heating up, switch off the product and tighten the Anti-calc rinsing cap. If steam continuously escape when heating up, switch off the product and contact an authorized customer service.

Congratulations!

Thanks for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is suitable for ironing garments and textiles only. Any other use may result in damage to product or injuries.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Remove any protective foils and stickers from the soleplate.

Note: In order to remove all residues before initial use, please pass the iron a few times over an old clean cloth.

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 x Steam station with iron
1 x User manual
1 x Warranty Card

Technical Data

Rated voltage: 220 - 240 V\~
Rated input power: 2000 - 2400 W
Rated frequency : 50/60 Hz
Protection : Class I
Steam rate : max. 100 g/min.
Water tank capacity : max. 1.7 L
Pressure : max. 5 Bar

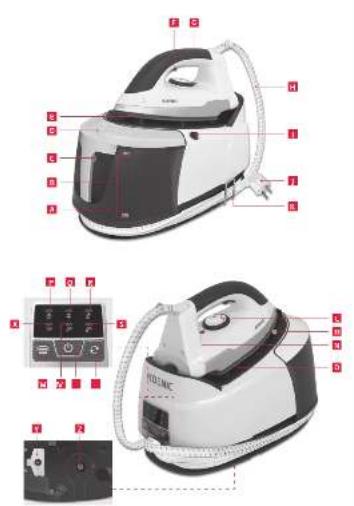

Control elements

Detachable water tank

Max/Min-marking

Water tank release lever

Filling cap

Soleplate

Steam button

Handle

Steam supply hose

Transport unlock lever

Power cord with plug

Steam hose winder

Temperature knob

Transport lock

Iron heating indicator

Iron stand

Operation indicator

Descaling indicator

Low water alarm indicator

Indicator for high steam amount

Reset button

On/Off button

Indicator for medium steam amount

Steam level button

Indicator for low steam amount

Key for Anti-calc rinsing valve

Anti-calc rinsing valve with cap

English

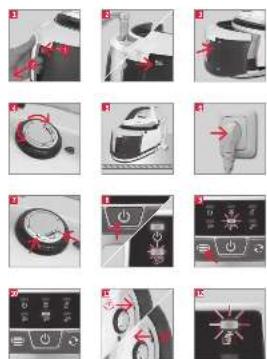

Fill in water

Caution

Do not put any fragrances, vinegar, laundry starches, decalcifying agents, ironing aids or other chemicals in the water tank.

Note

If the tap water in your area is very hard, using equal parts of tap water and distilled water is recommended; but do not use distilled water only.

1 Press the release lever under the grip and remove the water tank.
2 Open the fill in opening and fill the water tank with water. Caution! Do not fill the water tank above the MAX mark.
3 Put the water tank back to the steam station.

Dry Ironing

4 Set the desired temperature on the temperature control dial. The status-light at the steam iron turns off if the preset temperature is reached.

For temperature setting see reference table below.

Care symbol of clothing	Corresponding setting at iron	Material/Remark
	Synthetic
	Silk, wool
	Cotton
MAX Linen
	— Do not iron!

Steam Ironing

Note

Steam ironing and steam jet function are only available at a higher temperature setting (● and above). If the temperature setting on the iron is too low, water drops will come out during steam ironing and steam jet function.

Caution

Always iron on a heat-resistant surface only. Ensure the Anti-calc rinsing cap is tightened before use.

5 Place the steam station as desired on a stable surface.
6 Unwrap the power cord from the storage and connect the power plug to a suitable power outlet.
7 Set a temperature between ● to MAX with the temperature knob for steam ironing.
8 Press the ON/OFF button to switch on the steam station. The operation indicator lights on and the "Low steam" indicator flashes.
9 Set the desired steam amount with the steam level button:

Press Button	Indicator	Function
0 x		Low steam
1 x		Medium steam
2 x		High steam
3 x		Low steam

10 When the boiler has reached the set temperature for steam ironing, the related indicator will turn on steady.
11 You can turn on the steam permanent on the iron by pressing the steam button. To stop release the steam button.

Caution

Never directly point the steam boost into the direction of people or animals!

Refilling the water tank

12 The water tank can be re-filled any time during operation. If the water level is low the "no water alarm" will alert and the tank needs to be re-filled. Follow the steps under chapter Fill in water. Press the RESET button to turn off the "no water alarm" indicator. Steam function can be used again.

Overheat protection

If the water level is low the "no water alarm" will alert and the tank needs to be re-filled. For safety reason, the overheat protection will turn off the steam function for few minutes. Dry ironing function is still available. After cooling down the indicator lights off and the steam function can be used again.

After use

13 Put the iron back on the steam station after use. If the steam function is not being used for 10 minutes, the steam station will be turned off automatically. Alternative press 📊 to switch off the steam station. Unplug and let the product cool down for at least 3 hours.

Note

Empty the water tank and boiler system completely after each use.

Transport

For transportation purpose, the iron can be locked on the steam station.

14 To lock the iron for transportation purposes slide it in place on the steam station until locks in. To unlock the iron, e.g. as for normal use slide out the iron from the steam station while pressing and hold the unlock button.

English

Cleaning and care

Warning

• Unplug the product and let it cool down completely before cleaning. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).

15 Rinse out the water tank regularly with clear water and then empty it.

16 Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly. Make sure that no water enters the product interior (for example, through the switch). Rinse off the calcium particles and other deposits from the soleplate with a damp cloth and some detergent.

Note

In order to keep the soleplate smooth, it should not come into contact with metal objects.

Caution

Do not use any abrasive sponges, vinegar or other chemicals to clean the soleplate.

- Store the product at a cool, dry and clean place and out of reach of children and animals.

Descaling

The product must be descaled regularly depending on the water hardness of your tap water.

17 When the descaling indicator lights on, switch of the steam station and let it cool down completely.
18 Remove the anti-calc rinsing cap and open the anti-calc rinsing valve with the delivered key. Pour out remaining water into a sink.

Warning

Do not open the anti-calc rinsing valve when the boiler is still heating or under pressure. In order to ensure safety, let the product cool down completely before open the valve.

19 Fill the boiler system with 150 ml. vinegar and close the anti-calc rinsing valve. Shake the boiler system gently for 10 - 15 seconds and pour out the vinegar immediately. Repeat this process 2-3 times. Rinse the boiler system with tap water for several times and close the anti-calc rinsing valve.
20 If the descaling indicator still lights on, press the Reset button for 3 seconds to turn off the indicator.

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible causes Solution
The steam station does not work	Interrupted power supplyCheck the power cord, plug and the socket outlet (if necessary)
	The steam station is switch off	Use the power buttonto turn on the steam station
	Auto-shut off function has been activated, due to iron resting on the station for 10 minutes without any steam operation.	Press the power buttonto turn on the steam station.
The iron does not produce steam	Water tank contains insufficient water or is empty	Fill in water
	No sufficient heat generated, (heating process is not yet complete)	Wait until the steam level indicator light turns on
Water droplets escape from the soleplate	After stopping steam ironing condensed water drops can be ejected when continuing steam ironing	It is not a malfunctionTo avoid droplets when continuing steam ironing, do not hold the soleplate over the garment until regular steam escapes.
	Ironing temperature is too low	Steam ironing and steam jet function are only available at a higher temperature setting (●● and above).Adjust to a suitable temperature or switch off the steam function
Wet spots on clothing during ironing	Possibly caused by steam condensed on the ironing board	Dry ironing of concerning spotsIf necessary rub down the ironing board with cloth
Dirt spots, e.g. limescale on clothing during ironing	Impurities accumulated at the soleplate or steam outlets	Rinse off the soleplate with a damp cloth
	Minerals or limescale accumulated in the steam system	Clean the steam system, following the instructions of chapter Descaling and cleaning soleplate with wet cloth afterwards
