USER MANUAL Bolero Dresscode 8300 Inverter Maxx A CECOTEC

Front view of a white C800.6C washing machine with black inner casing and digital display (no visible text or symbols on the device body)

bolero

Safety instructions 9

1. Parts and components 72

2. Before use 72

3. Product installation 73

4. Operation

5. Cleaning and maintenance

6. Troubleshooting

7. Technical specifications

8. Disposal of old electrical

and electronic appliances

1. Technical support and warranty

2. Copyright

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• Ensure that the mains voltage matches the voltage specified on the device rating label and that the plug is earthed.
• The installation of an earthed socket must be carried out by a qualified electrician. Make sure that the electrical installation complies with current regulations.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service or by a similarly qualified person to prevent hazards.
• If the product is damaged, it must not be used. Contact the official Cecotec Technical Support Service. Risk of electric shock!
• Do not use an extension cord or multiple sockets.
• Do not use external switching devices such as timers.
• This appliance is for indoor use only.
• Make sure the device is installed in places where the temperature is above 5°C. Lower temperatures may cause damage to internal components. If the device should freeze, be sure to drain the water completely to avoid further damage.
• In case of leaks or splashes of water, dry the device as soon as possible.
• The device is not designed for built-in installation.
• Use the hose set supplied with the appliance. Do not reuse old hoses.

• Check the hose connections and the tap to avoid problems due to pressure changes. If the connections loosen or leak, turn off the water tap. Do not operate the washer before the hoses have been properly installed.

• Do not remove the filter from the drain pump while there is water left in the machine. Hot water spillage may occur.

• Before carrying out any maintenance in the device, unplug the appliance from the mains.
• As a safety measure, we advise you to unplug the appliance and cut the water supply after every use. Maximum water-inlet pressure: 1 MPa. Minimum water-inlet pressure: 0.05 MPa.
• Use the new hoses supplied with the equipment.
• Never unplug the appliance with wet hands.
• Unplug the power cord before cleaning or repairing the product.
• For safety reasons, the appliance must be properly earthed.
• Water channelling and electrical devices must be connected by a qualified technician in accordance with the local and national safety regulations specified by the manufacturer.
• The glass door may reach high temperatures during operation. Keep children and pets away from the glass door.
• Do not use the device in rooms where water, moisture, explosives, or caustic gases are present.
• If the room where the washing machine is located has any type of device that generates fumes from the burning of fuels, make sure that there is proper ventilation, as the accumulation of these fumes may cause a fire hazard.
• Do not wash items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes, and wax removers.
• Items such as foam rubber, shower caps, waterproof textiles, rubber backed articles, and clothes, or pillows fitted with foam rubber pads should not be washed in the machine.

• Fabric softeners or similar products should be used as specified by manufacturer.

• Do not wash articles that have been cleaned in, washed in, soaked in, or stained with flammable or explosive substances, like wax, oil, paint, petrol, degreasers, dry-cleaning solvents, kerosene, etc., which may result in fire or explosion.

• When washing fabrics that contain vegetable or cooking oil or have been contaminated by haircare products, they should first be washed in hot water with extra detergent. This will reduce, but not eliminate, the hazard.
• The air openings must not be obstructed by a carpet.
• Appliances with a single inlet valve can only be connected to a cold-water supply.
• The plug must be accessible after installation.
• The appliance must not be installed behind a lockable door, a sliding door, or a door with a hinge on the opposite side to that of the device.
• The appliance shall not be installed in a humid place.
• The product is exclusive for household use and is only designed for the textiles suitable for machine washing.
• Do not use it for commercial purposes.
• This appliance is designed for indoor use.
• Do not stand or sit on the appliance.
• Do not lean against appliance door.
• Flammable and explosive or toxic solvents are forbidden. Do not use detergents containing petrol, alcohol, etc. Use only detergents suitable for machine washing, especially those which are dosed directly in the drum.
• Do not stop the device before ending the washing cycle. In any case, if this should happen, remove the garments with caution, as they may reach high temperatures.
• Once the washing cycle has finished, we recommend removing the laundry as soon as possible to prevent creases.
• This appliance can be used by children aged 8 and above

and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Do not allow children to play with the device. The cleaning and maintenance of the appliance should not be carried out by children without supervision.

• Children should be supervised to make sure that they do not play with the device.
• Children under 3 years old must stay away from the washing machine, unless they are constantly supervised.
• Make sure that children and animals do not climb on the washing machine while it is in operation.
• All cleaning, washing or similar products must be stored in a safe place, out of the reach of children.
• Do not place heavy objects on top of the washer.

Cautions during the handling of the machine.

• If you wish to change the location of the washing machine, make sure you install the transport bolts again in the device, as they will ensure the interior of the product is not damaged during transport.
• Water accumulated inside the appliance must be drained out.
• Handle the machine carefully. Never hold each protruded part on the machine while lifting. Do not use the door of the device as a handle during transport.
• The device is heavy. Transport it with care.
• Secure the drain and water-supply hose correctly.

• Do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are put in or distributed well.

• Never try to force the door open. The door will unlock shortly after the end of a cycle.

• It is forbidden to wash carpets.
• Never pour water manually during washing.

INSTRUCTIONS DE SÉCURITÉ

1. Top cover
2. Control panel
3. Power cable
4. Juice collector
5. Service filter
6. Drain hose
7. Door
8. Detergent tank
9. Water supply hose

Accessories

Fig. 2.

1. Transport screw hole plug (x4)
2. Cold water supply hose
3. Instruction manual
4. Acoustic sponges

Note:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• Unpack the appliance and keep the original packaging and materials in a safe place. It will help prevent any damage if the appliance needs to be transported in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and accessories are present and in good conditions. If there is any piece missing or not in good condition, immediately contact the Technical Support Service of Cecotec.
• Keep all packaging materials away from children.

Note

• Before using the wash machine, the product shall be calibrated.
• Before washing the clothes for the first time, the product shall be operated in one round of the whole procedures without the clothes inside.

- Make sure that all pockets are empty. Sharp and rigid items such as coins, brooches, nails, screws or stones may cause serious damage to this machine.

3. PRODUCT INSTALLATION

1. Place the device on a flat, stable and dry surface. Make sure the product does not stand on the power cord. Fig. 3
2. Avoid exposure to direct sunlight and heat sources. Ensure good ventilation.
3. Remove the cardboard box and Styrofoam packing.
4. Lift the washing machine and remove the base packing. Make sure the small triangle foam is removed with the bottom one together. If not, lay the unit down with on the side surface, then remove the small foam from the unit bottom manually. Fig. 4
5. Remove the tape securing the power supply cord and drain hose.
6. Remove the water supply hose from the drum.

Removing the transport bolts

• The transport bolts must be removed from the backside of the device before using it.
• The transport bolts will be necessary again when moving the product, so make sure they are kept in a safe place.
• This appliance is heavy. Transport it with care. Do not hold any protruding parts when lifting. Do not use the door to lift the appliance.

In order to remove the bolts

Fig. 5

1. Loosen the 4 bolts with a spanner and then remove them.
2. Stop the holes with transport hole plugs.
3. Keep the transport bolts properly for future use.

Levelling the washing machine. Fig. 5

Warning

The lock nuts on all four feet must be screwed tightly against the housing.

1. Check if the legs are closely attached to the cabinet. If not, please turn them to their original position and tighten the nuts.
2. Loosen the lock nut to turn the feet until they are in contact with the floor.
3. Adjust the feet and tighten the washers with a spanner. Make sure the machine is steady.

Water supply hose connection

Warning

• Do not kink, crush, modify or repair the water supply hose.
• Make the connection manually, do not use tools. Check the connection is optimal.

ESPAÑOL

ENGLISH

Connection between the washing machine connector and the water supply hose.

• Align the curved part of the hose and the washer connector (inlet valve) on the back of the product as shown in figure 7.
• Tighten the compression nut by turning clockwise.

Connection between a screw tap and the water supply hose

• Screw tap and water supply hose.
• Align the other end of the water supply hose and the threaded tap and tighten the compression nut tightly by turning clockwise. Check figure B for reference.

Drain hose.

Note

• Do not kink or protract the drain hose.
• Position the drain hose properly, at 60–90 cm from the floor.

There are two ways to place the end of the drain hose:

1. In a drainpipe. It is recommended to use a vertical tube. Fig. 9
2. In a sink's drainpipe, over the trap. Fig. 10

If the washing machine has a drain hose bracket (depending on the model), it can also be installed on a sink or a tank, as indicated next.

Warning

When installing the drain hose, fix it properly with a rope or a clamp. If drain hose is too long, do not force it into washing machine as it will cause abnormal noises.

Acoustic sponges (depending on model)

Warning

Be sure to assemble the acoustic sponges, as they can reduce the noise caused by the washing machine while it is running.

1. Place a soft material, such as foam or towels, between the base of the washing machine and the floor for protection.
2. Gently lift the washing machine on one side and stick the longer sponges on the longer bottom edges of the washing machine on its base. Do the same to adhere the shorter sponges to the shorter bottom edges. Fig. 25

4. OPERATION

Note

• Please make sure the appliance is properly installed before operation.
• Before washing the clothes for the first time, the product shall be operated in one round of the whole procedures without the clothes inside.
• All washing machines are thoroughly checked before leaving the factory and undergo quality control. There may be a small amount of residual water in the drum. To remove it, as well as to neutralise possible odours, it is recommended to clean the drum before the first use. You can run a 'Cotton' programme at 90°C without laundry and detergent.

Calibration

• It is advisable to calibrate the washing machine before its first use in order to get the best performance from it.
• The device is able to detect the amount of laundry in the drum. Calibration optimises product performance by minimising water and energy consumption.
• To perform the calibration, follow the steps below:
• Remove any objects from the drum and close the door.
• Plug the power cord into the outlet.
• Switch on the machine and press the 'Delayed Start' and 'Temperature' buttons simultaneously for about 10 seconds until the control panel displays 't19'.
• Next, to start the washing machine, press the Start/Pause button. The drum will start to rotate slowly, and the display will show different numbers, when it shows a steady figure the washing machine is calibrated, you can turn the device off.

Start of washing

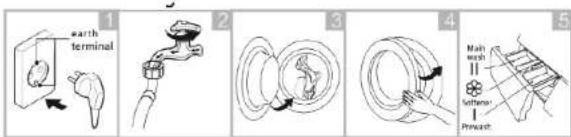

Before washing, Fig. 11

1. Plug the appliance into a power supply.
2. Open the water supply tap.
3. Load the washing machine with the laundry.
4. Close the door.
5. Add detergent (and softener if necessary).

Note

• Detergent must be added in case I only after selecting pre-washing for machines with this function.
• Make sure that the washing machine is properly installed before use.

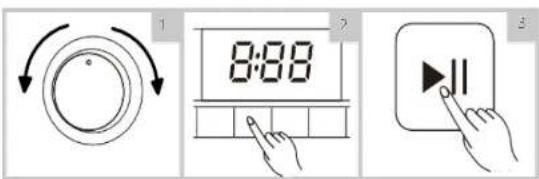

Washing. Fig. 12

1. Turn the knob to select the desired programme.
2. Select function or use the default one.
3. Press Start.

ENGLISHENGLISH

After washing.

When the wash cycle is completed, a beep will sound, and the word 'END' will be displayed on the control panel.

Using the washing machine

Before each washing

• The washing machine should be operated within a temperature range of 5-40 °C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is placed or operated in rooms at 0 °C or below, it should be transferred to normal room temperature to ensure the water supply hose and drain hose are not frozen before use.
• Check the care labels and the product instructions when using detergent before washing. Use non-foaming or less-foaming detergent suitable for machine washing.
• Check the label. Fig. 13.
• Empty the pockets of the clothes to be washed. Fig. 14.
• Knot the long strips, close zips or tighten button. Fig. 15.
• Place small items in washing bags. Fig. 16.
• Turn easy-pilling and long-pile fabrics inside out. Fig. 17.
• Separate clothes with different textures.

Note

Washing loose laundry can cause imbalances in the washing machine. It is advisable to add more laundry to ensure optimum performance (maximum 34 parts of the drum).

Detergent tank

Fig. 18

1. Pre-wash detergent
2. Main wash detergent
3. Softener
4. Press and pull the detergent dispenser tank to remove it.

Washing programme	I	II
Cotton	○	●	○
Steam	○	●	○
Synthetic	○	●	○
Mix	○	●	○
Jeans	○	●	○

ECO 40-50		●	○
20°C		●	○
Spin Only
Quick 15'		●	○
Rapid 45'	○	●	○
Sportswear	○	●	○
Wool		●	○
Baby Care	○	●	○
Bulky/Beclinen	○	●	○
Rinse&Spin			○
Drum Clean

Necessary

Optional

Note

• When using agglomerated, ropy detergent or additives, before they are poured into the detergent box, it is suggested to use some water for dilution to prevent the inlet of detergent box from being blocked and overflowing while filling water.
• Use a detergent suitable for machine washing at different temperatures for best results and minimum water and energy consumption.
• To obtain the best washing results it is important to use a correct detergent dose.
• Use a small amount of detergent with a small load of laundry.
• Always adjust the detergent amount to the water hardness, if tap water is soft, use less detergent.
• Dose detergent according to the degree of soiling of the laundry.
• The highly concentrated compact detergent requires particularly precise dosing.
• Excessive dosing of detergent can lead to foaming and poor washing and rinsing results.
• Insufficient detergent dosage can lead to limescale build-up and discolouration of the laundry.
• Detergent should be added to the compartment only after selecting the prewash function.

ENGLISHENGLISH

Recommended detergent	Wash cycles Washing temperature (°C)	Type of laundry and textile
Heavy-duty detergent with bleaching agents and optical brighteners	Cotton.ECO 40-60.	*40-60 White laundry made from boil-proof cotton or linen.
Colour detergent without bleaching agents and optical brighteners	Cotton. 20/40 Coloured laundry	made from cotton or linen.
Colour or mild detergent without optical brighteners.	Cotton.Synthetic.	20/40 Coloured laundry made from easy care fibres or synthetic materials.
Mild washing detergent.	Synthetic. 20 Delicate textiles, silk,	viscose.
Special wool detergent	Wool 20/40 Wool

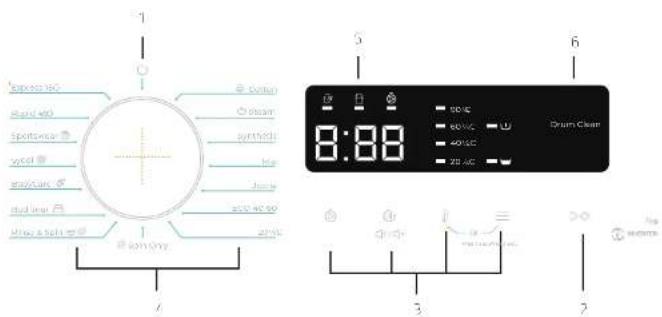

Control panel

Fig. 19

OFF (Switched-off) (1)

Turn the selector switch to the OFF position to switch off the device.

Start/Pause (2)

Press the button to start or pause the washing cycle.

Option (3)

Select an additional function, the light indicator will light when selected.

Programmes (4)

Select the appropriate programme for different types of laundry.

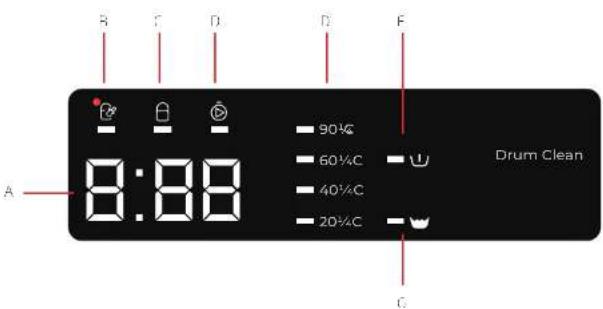

Display (5)

The display shows the settings, estimated time remaining, options, and status messages of the washing machine. The display will remain on through the cycle.

Drum Clean (6)

Special function that cleans the drum and internal ducts.

Washing programmes

Washing programme Load (kg)	temperature (°C)			display time (h: min)
	7.0	8.0	9.0	Default	7.0	8.0	9.0
Cotton	7.0	8.0	9.0	40	3:39	3:39	3:39
Steam	3.5	4.0	4.4	40	1:48	1:48	1:48
Synthetic	3.5	4.0	4.4	40	3:18	3:18	3:18
Mix	7.0	8.0	9.0	40	1:20	1:20	1:20
Jeans	7.0	8.0	9.0	60	1:45	1:45	1:45
ECO 40-60	7.0	8.0	9.0	60	3:28	3:38	3:48
20°C	3.5	4.0	4.5	20	1:01	1:01	1:01
Spin Only	7.0	8.0	9.0	-	0:12	0:12	0:12
Quick 15'	2.0	2.0	2.0	Cold	0:15	0:15	0:15
Rapid 45'	2.0	2.0	2.0	20	0:45	0:45	0:45
Sportswear	3.5	4.0	4.5	20	0:47	0:47	0:47
Wool	2.0	2.0	2.0	40	1:07	1:07	1:07
Baby Care	7.0	8.0	9.0	60	1:42	1:42	1:42
Bulky/Beollinen	3.0	4.0	4.5	40	1:48	1:48	1:48
Rinse&Spin	7.0	8.0	9.0	-	0:20	0:20	0:20
Drum Clean	-	-	-	90	1:18	1:18	1:18

Note

The parameters on the table are just a reference for the user. Actual parameters may vary from those shown here.

ENGLISHENGLISH

	02792_Bolero DressCode 8300 Inverter Max A
Cycle Normal capacity (kg) Selectable temperature			Cycle time (h: min) Energy consumption (kWh/ cycle)	cycle)	Water consumption (l/ cycle)	Highest temperature (°C) 1	Residual moisture (%/rpm) 2
Cotton (60°C)	8.0 60 3:44 1:498 71 60 53%/1400
20°C 4.0 20	1:01 0.183	44	20 65%/1000
ECO 40-603	8.0	-	3:38	0.760	61	45	53.9%/1350
	4.0	-	2:48	0.412	45	33	53.9%/1350
	2.0	-	2:48	0.208	36	28	53.9%/1350
Mix	8.0	40	1:20	0.754	71	40	65%/1000
Synthetic	4.0	40	3:18	0.727	44	40	60%/1200
Quick 15'	2.0	Cold	0:15	0.030	31	Cold	70%/800

- The parameters in this table are for reference only. Actual parameters may vary from those shown here due to different conditions of use. - Data for programmes other than ECO 40-60 are indicative only.

- With regard to EN 60456.2016+A11:2020 With (EU) 2019/2014. (EU) 2019/2023, (EU) 2021/340, (EU) 2021/341.

The new EU energy efficiency class is A.

- Energy test programme: ECO 40 60

- Speed: the highest.

- For 8.0 kg capacity washing machines: half load (4.0 kg) and quarter load (2.0 kg).

1. The highest temperature reached by the laundry in a washing cycle for at least 5 minutes.

2. Residual moisture after the wash cycle in percentage of water content and the spin speed at which it was reached.

3. The ECO 40-60 programme is able to wash cotton laundry with normal soiling declared washable at 40°C or 60°C, together in the same cycle. This programme is used to assess compliance with Regulation (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU) 2021/341.

ENGLISHENGLISH

	02794_Bolero DressCode 9300 Inverter Max A
Cycle Normal capacity (kg)		Selectable temperature	Cycle time (h: min)	Energy consumption (kWh/cycle)	Water consumption (l/cycle)	Highest temperature (°C)	Residual moisture (%/rpm) 2
Cotton (60°C)	9.0 60 3:44	1.603 78 60 53%/1400
20°C	4.5	20	1:01	0.189	48	20	65%/1000
ECO 40-603	9.0	-	3:48	0.842	63	43	53.9%/1350
	4.5	-	2:54	0.475	49	33	53.9%/1350
	2.5	-	2:54	0.211	39	23	53.9%/1350
Mix	9.0	40	1:20	0.813	78	40	65%/1000
Synthetic	4.5	40	3:18	0.756	48	40	60%/1200
Quick 15'	2.0	Cold	0.15	0.030	31	Cold	70%/800

• The parameters in this table are for reference only. Actual parameters may vary from those shown here due to different conditions of use.
• Data for programmes other than ECO 40-60 are indicative only.
• With regard to EN 50456.2016+A11:2020 With (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU) 2021/341.
• The new EU energy efficiency class is A.
• Energy test programme: ECO 40-60
• Speed: the highest.
• For 9.0 kg capacity washing machines: half load (4.5 kg) and quarter load (2.5 kg).
• The highest temperature reached by the laundry in a washing cycle for at least 5 minutes.
• Residual moisture after the wash cycle in percentage of water content and the spin speed at which it was reached.
• The ECO 40-60 programme is able to wash cotton laundry with normal soiling declared washable at 40°C or 60°C, together in the same cycle. This programme is used to assess compliance with Regulation (EU) 2019/2014. (EU) 2019/2023. (EU) 2021/340. (EU) 2021/341.
• The most efficient programmes in terms of energy consumption are generally those that are carried out at lower temperatures and longer length.
• Loading the washing machine up to the recommended capacity for the respective programmes will contribute to saving energy and water.
• Noise and residual moisture content are influenced by the spin speed: the higher the spin speed, the higher the noise and the lower the residual moisture content.

Attention

If there is a power failure while the machine is running, the internal memory stores the selected programme. The unit will resume the programme when power supply is restored.

ENGLISHENGLISH

There are different programmes suitable for different types of laundry.

Programmes
Synthetic	Wash synthetic articles, for example shirts, coats, mix. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
Baby Care	Useful programme for delicate fabrics such as baby clothes. Performs deeper cleansing and better rinsing to protect babies' skin.
Drum Clean Applies	high temperature sterilisation of 90°C for deeper cleaning of laundry. When this procedure is performed, laundry cannot be added to the wash cycle. If an adequate amount of chlorine bleaching agent is added, the cleaning effect of the drum will be better.This programme should be used regularly depending on the use of the device.
Rapid 45°	Quickly cleans lightly soiled garments.
Spin Only	Centrifuging the laundry and draining the water from the drum
Rinse&Spin	Centrifuging the laundry and draining the water from the drum
ECO 40-60	The default temperature of this programme is 40°C and cannot be modified. It is suitable to wash cotton laundry declared as washable at 40°C or 60°C, together in the same cycle.
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Mix	For washing hard, time-consuming garments. Everyday cotton clothing such as sheets, pillowcases, bathrobes, underwear, etc.
Jeans Special programme to wash jeans or denim garments.
20°C	For washing lightly soiled cotton garments at a temperature of 20°C.
Quick 15° Extra short programme suitable for a small amount of lightly soiled garments
Wool	For hand or machine washable woollen fabrics. Especially gentle washing programme to prevent shrinkage. The programme takes longer wash pauses.
Steam	Applicable for daily washing of cotton and synthetic garments.Steam can penetrate deep into the flores, effectively sterilising and eliminating germs and bacteria, preventing unpleasant odours and protecting health.

Sportswear Special programme for washing sportswear

Bulky/Beollinen Specially designed programme for washing bed linen.

Options

PROGRAMME TEMPERATUREDEFAULT (°C)		SPIN SPEEDDEFAULT (rpm)		ADDITIONALFUNCTIONS
		1200 1400
Cotton 40 1200	400 Delayed Start/			Prewash/Extra Rinse
Steam 40 1000	1000 Delayed Start/			Prewash/Extra Rinse
Synthetic 40 1200	1200 Delayed Start/			Prewash/Extra Rinse
Mix 40 1000 1000	Delayed Start/			Prewash/Extra Rinse
Jeans 60	1000 1000	Delayed Start/		Prewash/Extra Rinse
ECO 40-60	60	1200 1400 Delayed Start/		Prewash/Extra Rinse
20°C	20	1000 1000 Delay Start
Spin Only -	1000	1000 Extra rinse and		delayed start.
Quick 15'	Cold	800	800 Delayed Start/	Prewash/Extra Rinse
Rapid 45' 20	800	800 Extra rinse and		delayed start.
Sportswear	20	800	800 Delayed Start/	Prewash/Extra Rinse
Wool	40 600	600	Delayed Start/	Prewash/Extra Rinse
Baby Care	60	1000 1000 Delayed Start/		Prewash/Extra Rinse

ENGLISHENGLISH

Bulky/Bedlinen +0 1000 1000 Extra rinse and			delayed start.
Rinse&Spin - 1000 1000 Delay Start
Drum Clean	90	-	Delayed Start/Prewash/Extra Rinse

Please note:

- The table shows the cycles' options and how they can be adjusted.

- It also shows if some settings are not compatible with some cycles.

Selectable options

Fig. 20

A. Display

B. Child Lock Icon

C. Door Lock icon

D. Delay Start icon

E. Temperature icons (Temp)

F. PreWash Icons (Prewash)

G. Extra Rinse icon (Extra Rinse)

OPTIONS

Delay Start

- To set the Delay start function:

1. Select a programme.

2. Press the Delay button to choose the time (the delaying time is 0-24 H.)

3. Press Start/Pause to activate the delay operation.

- To cancel the 'Delayed Start' function, press the button before starting the programme until the display shows OH. If the programme has already started, switch the device off and on again and select a new programme.

Extra rinse

1. Select a programme.

2. Press 'Function' button and select 'Extra Rinse' to make the machine perform an extra final rinse ('Extra Rinse' icon will light up).

Spin speed

1. Select a programme.

2. Press this 'Speed' button to select the desired speed, following the next cycle per press:

- 1200:0 400 600 800 1000 1200

- 1400:0-400-600-800-1000-1200-1400

Pre-Wash

1. Select a programme.

2. Press "Function" button and select "Prewash" to make the appliance perform an additional wash before the main wash cycle starts, to increase the washing performance ("Prewash" icon will light up).

Note: detergent must be added to compartment I.

Cleaning the drum

- After the machine runs a preset period of wash cycles, the Drum Clean light will flash at the end of the last programme. reminding you to run the programme as follows:

1. Empty the drum and close the door.

2. Press 'Drum Clean'.

3. Press "Start/Pause".

- The number of wash cycles will count back from 0 when the drum cleaning programme is finished.

- If you want to remove the drum cleaning warning;

- Press and hold the "Drum Clean" button for about 3 seconds, the warning will be cancelled, and the wash cycles will restart counting from 0.

Temperature (5)

When necessary, the wash temperature can be adjusted by pressing the button and following the sequence below: Cold 20°C 40°C 60°C 90°C.

Mute Mode

1. Select a programme.

2. Press and hold the Speed button for approx. 3 seconds. No beeps shall be heard.

3. To reactivate the sound, press the Speed button again for about 3 seconds.

Note: the setting will be saved until next restart.

Child Lock function

- Press the Temp and Function buttons at the same time for about 3 seconds.

Please note.

- When the child lock is activated and the washing programme starts, the display will alternately show "CL" and the remaining time of the washing cycle.

- Pressing any button will cause the indicator to flash.

- When the wash cycle is finished, 'CL' and 'END' alternate on the display.

- Press and hold the two buttons Temp and Function to unlock the function.

- This function locks all buttons except the Start/Pause button and the child lock button itself.

- Deactivate the child lock function before selecting a programme and starting washing.

ENGLISHENGLISH

Usage counter

• Unplug the equipment for 10 seconds and plug it in again.
• Switch on the machine and wait for 10 seconds, press "Delay" and "Drum Clean" on the control panel simultaneously and continuously for about 5 seconds until the display shows digits, the value indicates the usage times of the machine.
• Repeat step 1 again to resume normal operation.

Tips for use

• After a programme is completed, wait for two minutes before opening the door.
• Check whether the water inside the drum has been drained before opening its door. Do not open the door if there is any water.
• Do not wash only one piece of clothes or garment, as these could cause great unbalance. Always introduce at least 3 or 4 clothes so that draining can be done smoothly.
• The information given for the programmes different to the eco 40-60 programme are just indicative.
• The eco 40-60 programme can clean normally soiled cotton clothes declared as washable at 40°C or 60°C, together in the same cycle. This programme is used to assess compliance with EU eco-design legislation.
• The times indicated for each programme match the length with standard loads and temperatures. Other loads and temperatures will need different programme length.
• The most efficient programmes in terms of energy consumption are generally those that are carried out at lower temperatures and longer length.
• Load the washing machine to the quantity estimated for each programme, this will help you save energy and water.
• The length, and energy and water consumption of each programme may vary according to the weight and type of laundry, the additional functions active, water, and ambient temperature.
• It is recommended the use of liquid detergent for washing programmes at low temperature. You can vary the quantity of detergent according to the quantity of laundry and its soiling level. Follow the detergent manufacturer recommendations for the quantity of detergent you must use.
• You can find more information on this model by scanning the QR code of the reference of your product (you will also find the energy label).

Product Bolera DressCode 8300Inverter Max A		Bolera DressCode 9300Inverter Max A
Reference: 02792		02794
QR code

5. CLEANING AND MAINTENANCE

Warning

- Before cleaning or repair tasks, unplug the appliance from the mains and close the water tap.

• Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive, neutral detergents if necessary. If there is any water overflow, use a cloth to wipe it off immediately.
• Do not use abrasive cleaners or scouring pads to clean the device.

Cleaning the drum

• The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents.
• Do not use steel wool.

Note

Do not put laundry in the washing machine during the drum cleaning.

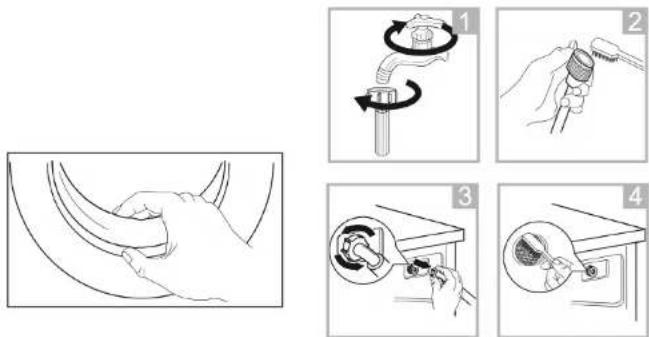

Cleaning the door seals and glass

• Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leaks. Fig. 21
• Remove any coins, buttons and other objects from the seal after each wash.

Cleaning the inlet filter

Note

The inlet filter must be cleaned when there is little water.

Washing the tap filter. Fig. 22

1. Close the water suppl
2. Remove the water supply hose from the tap.
3. Clean the filter with a soft brush.

ENGLISHENGLISH

1. Loosen the water supply hose from the rear part of the washing machine. Remove the filter with a pair of fine-tipped clippers, taking care not to damage it.
2. Use a soft brush to clean the filter.
3. Return the filter to its original position and connect the hose.
4. Clean the filter every 3 months to guarantee optimum functioning.

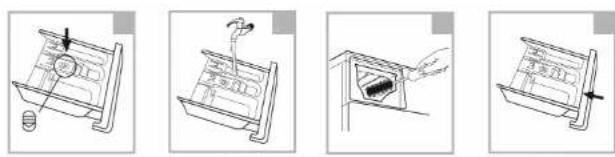

Cleaning the detergent dispenser tank Fig. 23

1. Remove the detergent dispenser tank.
2. Press down the arrow on the softener cover inside the dispenser drawer.
3. Lift the clip up and take out the softener cover and wash all grooves with water.
4. Place the softener cover again and push it gently to introduce it in the detergent dispenser in place.

Warning

• Do not use alcohol, solvents or chemical products to clean the detergent dispenser.
• Clean the tank about every 3 months.

Cleaning the drain pump filter Fig. 24

Warning

• Be careful with the hot water!
• Allow any possible water remains to cool down.
• Unplug the machine to avoid electrical shock before washing.
• The drain pump filter can filter the yarns and small foreign matters from the washing.
• Clean the filter periodically to ensure proper operation of the washing machine.
• Open the lower cover cap.
• Remove the filter by turning it counter clockwise.
• Be careful, empty the water with a suitable container.
• Remove dust, dirt and other substances or objects.
• Place the filter again in its original position by turning it in the other sense.
• Open the lower cover cap.

Warning

• Make sure that the filter is reinstalled correctly.
• Rotate the lower cover cap (filter) so water runs directly into a suitable container.
• When the appliance is in use and depending on the programme selected there can be hot water in the pump. Do not remove the lower cover during the wash cycle, always wait until the appliance has finished the cycle and is empty.

• When replacing the cover, ensure it is securely re-tightened.

• TROUBLESHOOTING

Problem Cause Solution
The washing machine does not turn on	The door is not closed properly. It is not connected to a power outlet	Restart after the door is closed.Check if there are clothes stuck.Plug it to a mains socket.Check that the control and protection elements of the electrical installation are activated.
The door does not open The safety lock system is activated		Unplug it and restart the product.
Water leakage Bad connection between pipes and water supply hose or drainpipe.		Check and fasten the water pipes and hoses correctly.Clean the hoses ensuring they are not blocked.
Detergent residues in the box Detergent is dampened or agglomerated		Clean and wipe the detergent box
Indicator or display does not light	The PCB is disconnected, or the system connector has connection problems	Check for power supply.If the problem persists, contact the official Technical Support Service of Cecotec.
Abnormal noise. Check if the fixing bolts have		been removed.Make sure the appliance is installed on a solid, level floor.Level the washing machine adjusting its feet.

Errors

Error Cause Solution
E30 The door is not closed	properly	Restart after the door is closed.Check if there is laundry or dirt stuck.

ENGLISHENGLISH

E10 Water injecting problem while washing	Check if the water pressure is too low. Stretch the water supply hose. Check if the inlet valve filter is blocked. Clean the filters.
E21 Overtime water draining Check if the drainpipe is	blocked. Remove any type of object or dirt which may block the water outlet. Check there are no blockages in the water supply and/or drain hoses.
E12 Water overflow Restart the appliance.
EXX Other models Contact the official Technical	Support Service of Cecotec.

7. TECHNICAL SPECIFICATIONS

You can find more information on this model by scanning the QR code on the energy label.

Product Bolero	DressCode 8300 Inverter Max A	Bolero DressCode 9300 Inverter Max A
Reference:	02792 02794
QR code
Rated capacity	8.0 kg 9.0 kg
Voltage	220-240 V-
Rated power	1950 W
Rated frequency	50 Hz

Water pressure	0.05 MPa-1 MPa
Maximum power	10 A
Protection rating	IPX4

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording, or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAISFRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1.

3. INSTALLATION DU PRODUIT

Kinderslot (Child Lock)

3. INSTALACE PRODUKTU

Technical diagram of a washing machine with numbered parts labeled for identification.

Fig. / Img. / Rys. / Obr. 1

1 2 3 4

Fig. / Img. / Rys. / Obr. 2

W W≥ 20mm

Fig. / Img. / Rys. / Obr. 3

Diagram of a box with an arrow pointing upward, and a magnified inset showing a small mechanical component labeled 'a' (no text or symbols present)

Fig. /Img. / Rys. / Obr. 4

Fig. / Img. / Rys. / Obr. 5

Fig. / Img. / Rys. / Obr. 6 Fig. / Img. / Rys. / Obr. 7

Fig. / Img. / Rys. / Obr. 8

Water trough Max 100cm Min 60cm

Fig. / Img. / Rys. / Obr. 9

Max 186cm Max 100cm Min 600cm

Fig. / Img. / Rys. / Obr. 10

1 wath terminal 2 3 4 Main wash Softener Prinace 5

Fig. / Img. / Rys. / Obr. 11

Three-step diagram showing a clock, a digital timer, and a play button with directional arrows.

Fig. / Img. / Rys. / Obr. 12

Technical diagram of a mechanical component with labeled parts and cross-sectional views

Fig./Img./Rys./Obr.18

Three separate line drawings showing different clothing and accessory items: jacket, shorts, and bags (no text or symbols)

Fig. / Img. / Rys. / Obr. 13 Fig. / Img. / Rys. / Obr. 14 Fig. / Img. / Rys. / Obr. 15

Two line drawings of clothing items: a mesh bag and a patterned shirt (no text or symbols)

Fig. / Img. / Rys. / Obr. 16 Fig. / Img. / Rys. / Obr. 17

1 2 3 4 5 6 7 8:88 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Fig. / Img. / Rys. / Obr. 19

B C D E 90°C 60% C 40% C 20% C Drum Clean A 8:88 C

Fig. / Img. / Rys. / Obr. 19

Four-step line drawings showing a kitchen sink, faucet, door lock, and drawer with arrows indicating motion (no text or symbols)

Fig. / Img. / Rys. / Obr. 24

Illustration showing a hand holding a curved pipe with four steps: rotation, tool use, cleaning, and mounting.

Fig. / Img. / Rys. / Obr. 21 Fig. / Img. / Rys. / Obr. 22

Illustration of a washing machine and its screen with motion arrows, no text or symbols present

Fig. / Img. / Rys. / Obr. 25

www.cecotec.es
