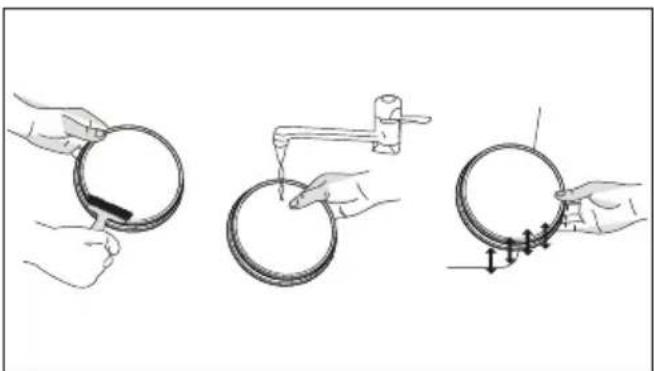

Abb. 9 - MIF-Filter reinigen

Technical line drawing of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

Technical line drawing of a vacuum cleaner with internal components and directional arrows indicating motion (no text or symbols)

Line drawing of a vacuum cleaner with rotating fan and mesh cover (no text or symbols)

Three-step illustration showing hands using a tool to adjust a circular component, with arrows indicating the process (no text or symbols present)

Abb. 13 – HEPA-Filter reinigen

Technical line drawing of a vacuum cleaner with internal components and airflow indicators (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Line drawing of a hand holding a flexible hose with a clip attached (no text or symbols)

Technical line drawing of a vacuum cleaner with coiled hose and internal components (no text or symbols)

Technical line drawing of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols)

Diagram showing two stages of a waste disposal or recycling process, with no visible text or symbols.

Three-step illustration showing hands holding a circular ring, with a tool inserted and a separate ring being adjusted (no text or symbols)

Technical line drawing of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

Technical line drawing of a vacuum cleaner with internal structure and airflow indicators (no text or symbols)

Line drawing of a vacuum cleaner with rotating fan and mesh cover (no text or symbols)

Three-step illustration showing hands holding circular components with a tool, no text or symbols present

Technical line drawing of a vacuum cleaner with internal components and directional arrows indicating motion (no text or symbols)

QR code image containing encoded data, no visible human-readable text

WAARSCHUWING! Explosiegevaar!

Line drawing of a hand holding a flexible hose with a clip attached (no text or symbols)

Line drawing of a vacuum cleaner with attached hose and ventilation slots (no text or symbols)

Line drawing of a mechanical device with a curved arrow indicating rotation or change (no text or symbols)

Diagram showing two stages of a waste disposal or recycling process, with no visible text or symbols.

Three-step illustration showing hands holding a circular ring, with a tool inserted and a separate ring being adjusted (no text or symbols)

Afb. 9 - MIF-filter reinigen

Technical line drawing of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

Technical line drawing of a vacuum cleaner with internal structure and airflow indicators (no text or symbols)

Line drawing of a vacuum cleaner with rotating fan and mesh cover (no text or symbols)

Three-step illustration showing hands using a tool to adjust a circular component, with no visible text or symbols.

Afb. 13 - HEPA-filter reinigen

Technical line drawing of a vacuum cleaner with internal components and directional arrows indicating motion (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Line drawing of a hand holding a flexible hose with a clip attached (no text or symbols)

Line drawing of a vacuum cleaner with attached hose and mesh casing (no text or symbols)

Line drawing of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols)

Technical line drawing showing two stages of a waste disposal or recycling process, with no visible text or symbols.

Three-step illustration showing hands holding a circular object with a tool, then adjusting a ring and rotating around it (no text or symbols)

Fig. 9 - Limpieza del filtro MIF

Technical line drawing of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

Line drawing of a vacuum cleaner with rotating fan and mesh cover (no text or symbols)

Three-step illustration showing hands using a tool to adjust a circular component, with no visible text or symbols.

Technical line drawing of a vacuum cleaner with internal components and directional arrows indicating motion (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Line drawing of a hand holding a flexible hose with a clip attached (no text or symbols)

Line drawing of a vacuum cleaner with coiled hose and mesh head (no text or symbols)

Line drawing of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols)

Diagram showing two stages of a waste disposal or recycling process, with no visible text or symbols.

Three-step illustration showing hands holding a circular object with a tool, then adjusting the ring (no text or symbols present)

Technical line drawing of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

Technical line drawing of a vacuum cleaner with internal structure and airflow indicators (no text or symbols)

Line drawing of a vacuum cleaner with internal components and airflow direction arrow (no text or symbols)

Three-step illustration showing hands using a tool to adjust a circular component, with no visible text or symbols.

Fig. 13 - Pulizia del filtro HEPA

Technical line drawing of a vacuum cleaner with rotating components and directional arrows indicating motion (no text or symbols)

QR code image containing encoded data, no visible human-readable text

1. Information about this user manual .... 109
   1.1. Explanation of symbols ......109 FR
2. Proper use 109
3. Safety instructions ....110-
4. Package contents 113
5. Appliance overview ...... ESI14
6. Preparing the vacuum cleaner 117
7. Vacuuming IT8
   7.1. After vacuuming 118
8. Cleaning and care....119

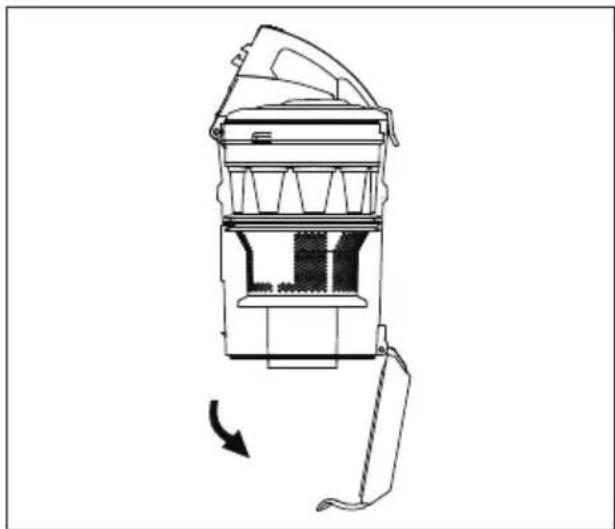

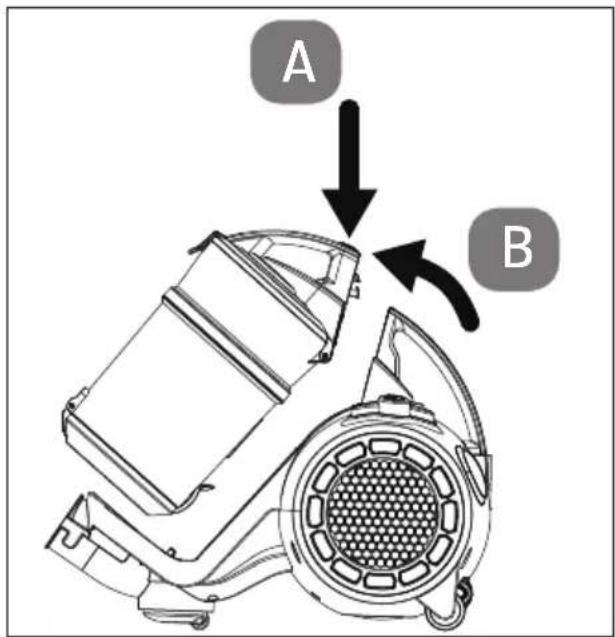

   8.1. Emptying the dust container .....119

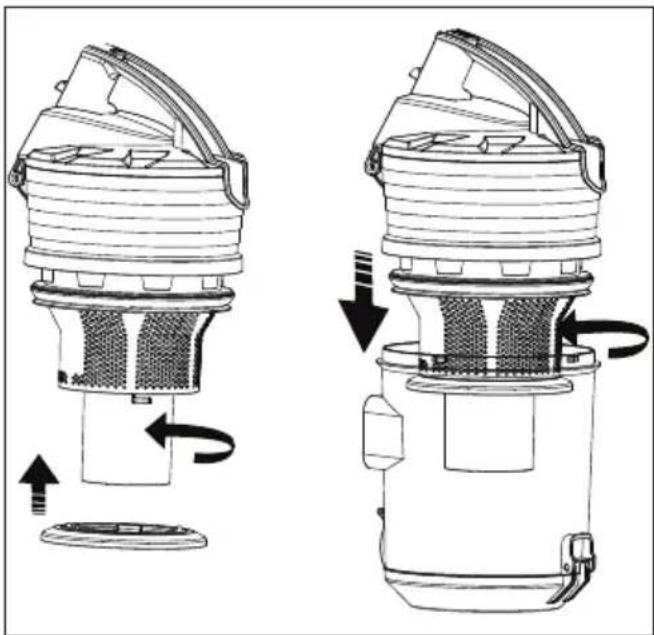

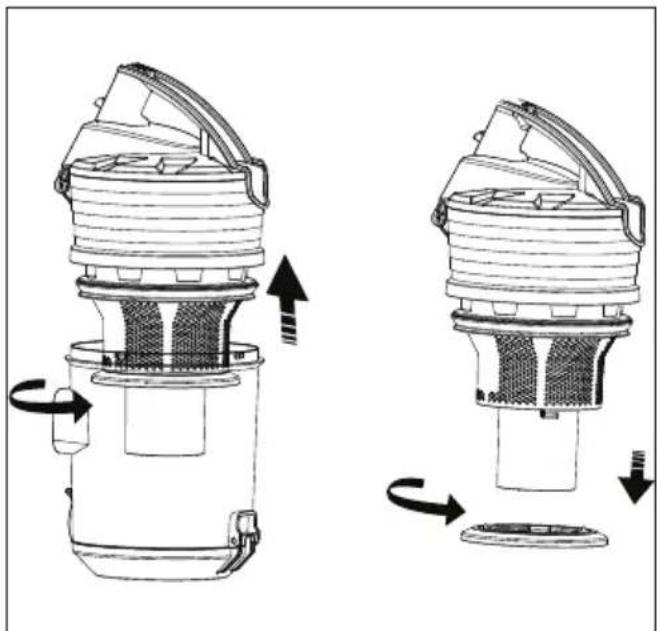

   8.2. Cleaning the dust filter....120

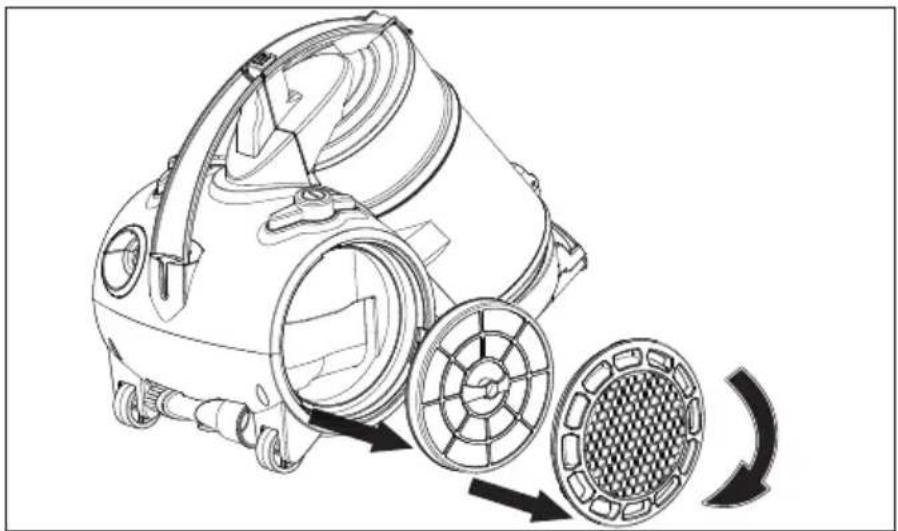

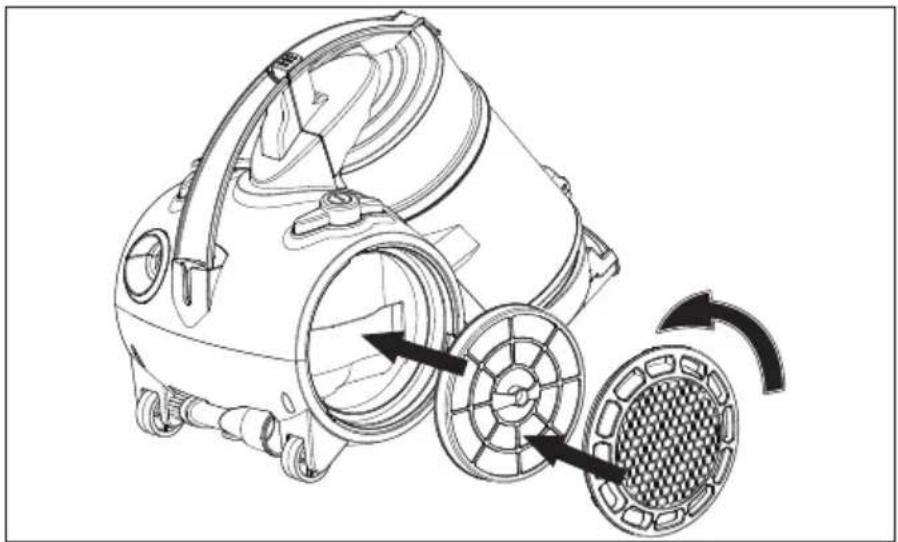

   8.3. Cleaning the exhaust air/motor filter 122
9. Troubleshooting 124
10. Disposal 124
11. Technical specifications....125
12. EU – Declaration of Conformity ......125
13. Service information....125
14. Legal Notice ....126
    EN

1. Information about this user manual

Thank you for choosing our product. We hope you enjoy using this appli-ance.

Please read the safety instructions and the user manual carefully before using the appliance for the first time. Note the warnings on the appliance and in the user manual.

Always keep the user manual close to hand. If you sell the appliance or give it away, please ensure that you also pass on this user manual. It is an essential component of the product.

1.1. Explanation of symbols

If a block of text is marked with one of the warning symbols listed below, the hazard described in that text must be avoided to prevent the potential consequences described there from occurring.

DANGER!

Warning: risk of fatal injury!

WARNING!

Warning: risk of possible fatal injury and/or serious irreversible injuries!

CAUTION!

Warning: risk of minor and/or moderate injuries!

WARNING!

Warning: risk of electric shock!

NOTICE!

Follow these instructions to prevent damage to the appliance!

More detailed information about using the appliance!

Follow the instructions in the user manual!

Symbol for protection class II

Symbol for alternating current (AC)

Indoor use

Appliances with this symbol are intended exclusively for use indoors.

2. Proper use

The vacuum cleaner is intended for vacuuming dry dirt such as dust, crumbs or fluff from flat floors, carpets and upholstery indoors (or in cars). It is not suitable for vacuuming liquids.

This appliance is designed for use in private households. The appliance is not intended for commercial use.

Please note that we shall not be liable in cases of improper use:

▶ Do not modify the appliance without our consent and do not use any auxiliary equipment that we have not approved or supplied.
▶ Only use replacement parts or accessories that we have supplied or approved.
Comply with all the information in this user manual, especially the safety instructions. Any other use is considered improper and can cause personal injury or property damage.

3. Safety instructions

WARNING! Risk of injury!

Risk of injury due to improper use.

• Keep the appliance and its accessories out of the reach of children.
  ■ This appliance can be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or by those without experience and/or knowledge, if they are supervised or have been instructed in the safe use of the appliance and have understood the dangers that result from it.
  ■ Children must not be allowed to play with the appliance.
  ■ Cleaning and user maintenance must not be carried out by children.
  ■ Children younger than 8 should be kept away from the appliance and the connection cable.

WARNING! Risk of electric shock/ short circuit!

There is a risk of electric shock/short circuit from live parts.

■ Only connect the appliance to a properly installed and easily accessible power socket. The local mains voltage must correspond to the technical specifications for the appliance.
■ The socket must be easily accessible so that you can unplug the appliance from the mains quickly if necessary.
■ Unplug the appliance from the socket:

• when you are cleaning the appliance
  – when the appliance is un-attended
  – the appliance is damp or wet
• when you are no longer using the appliance

■ Always hold the plug to pull it out and never pull the mains cable.
■ Do not allow the power cord to come into contact with

hot objects or surfaces (e.g. cooker hob).

■ Do not use if the appliance or the power cord is visibly damaged or if the appliance has been dropped.
■ Appliances connected to the mains during a thunderstorm may be damaged by power surges. You should therefore always unplug the mains plug during thunderstorms.

■ Check the appliance and thedo not use it.

mains cable for damage before using the appliance for the first time and after each use.

■ Completely unwind the mains cable.
■ Do not kink or crush the mains cable.
■ Do not use the appliance if you notice that it, or its mains cable, is damaged.
■ Contact our Service team without delay if the appliance has been damaged during transport.
■ Do not, under any circumstances, make any unauthorised modifications to the appliance or try to open a

component and/or repair it yourself.

■ To avoid risks, the mains carble should only be repaired by an authorised repair workshop. Alternatively, contact our customer service team.
■ If the appliance produces smoke, gives off a burnt smell or makes unusual noises, switch it off immediately, unplug the mains plug and
aR
NL
ES
IT
EN

The appliance must not be submerged in water or other liquids, nor exposed to running water or used in damp environments, as this may result in an electric shock.

■ Do not let the appliance come into contact with water or other liquids.
- Keep the appliance, the mains cable and the mains plug away from wash basins, sinks and similar.
■ Never expose the appliance to water drops or water spray.
■ Never touch the appliance or the mains cable with wet hands.

DE

■ Use the appliance indoors only.
■ Unplug the plug from the socket before emptying the dust container or cleaning the filter. Do not use the appliance without the filter elements.

WARNING!

Risk of explosion!

There is a risk of fire or explosion when vacuuming up flammable liquids or certain solid materials.

■ Never use the appliance near highly flammable materials. Do not vacuum up sharp-edged or highly flammable objects such as matches or hot ashes and do not vacuum up liquids.
■ Do not vacuum up toner dust (carbon black from laser printers, photocopiers) under any circumstances.

CAUTION!

Risk of injury/risk of damage to the appli- ance!

There is a risk of injury or damage to the appliance due to improper use.

■ Never use the vacuum cleaner to vacuum people or animals.
■ Never leave the vacuum cleaner unattended while switched on.
■ Never use the vacuum cleaner on damp surfaces or to vacuum up liquids. Before vacuuming a freshly shampooed carpet, wait until the cleaning agent is completely dry. The motor could otherwise be damaged.
■ Do not use the vacuum cleaner on uneven surfaces and ensure that the vacuum cleaner cannot fall (e.g. when cleaning stairs).
■ Do not use the appliance to collect small parts.
- Keep hair and loose items of clothing away from the suction opening.
■ Always use the vacuum cleaner with the filters and dust container inserted.
■ Do not tread on the suction hose.
■ Do not place any objects on the vacuum cleaner.
■ Do not cover the suction and exhaust openings.

4. Package contents

DANGER!

Risk of choking and suffocation!

There is a risk of choking and suffocation due to swallowing or inhaling small parts or plastic wrap.

- Keep the plastic packaging out of the reach of children.

Remove the product from the packaging and remove all packaging material.
▶ Check whether all the items in the delivery are present. Contact us within 14 days after purchase if any items are missing.

The following items are supplied with your product:

• Vacuum cleaner
  • Universal floor nozzle
• Crevice/brush nozzle
• Upholstery nozzle
• Telescopic tube
• Short manual

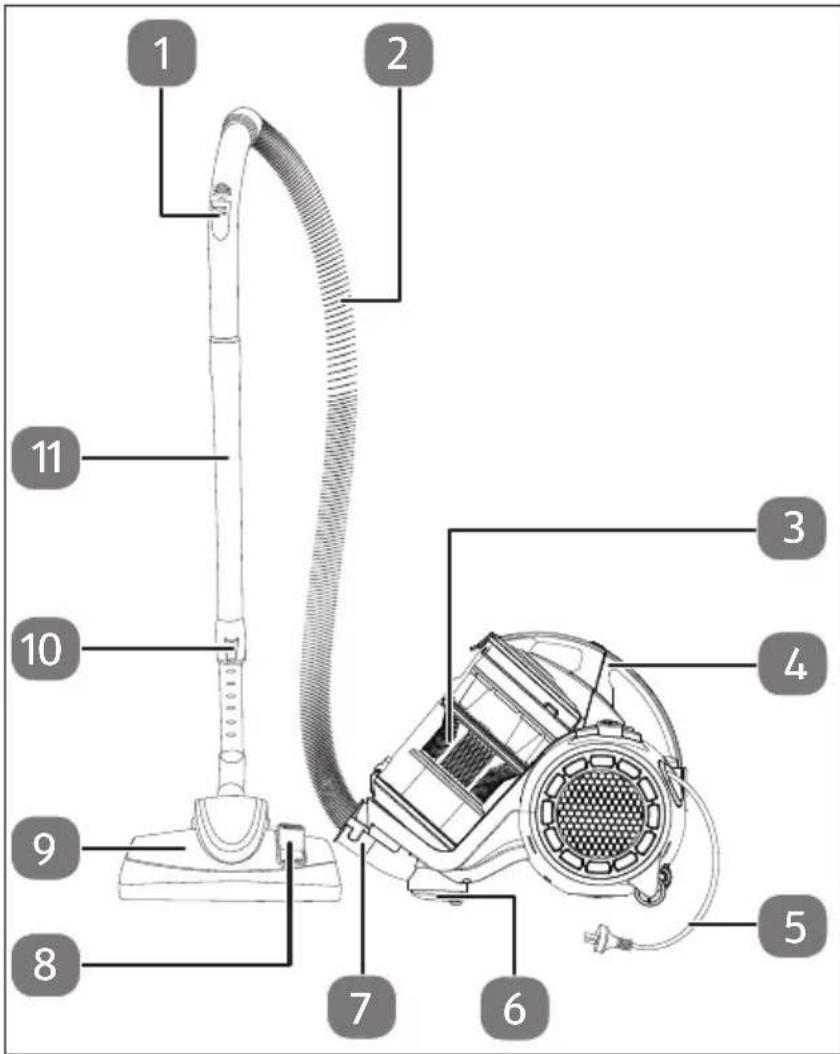

5. Appliance overview

1 2 3 4 5 6 7 8 9 10 11

Fig. 1 – Appliance overview

1. Suction piece with air inlet valve
2. Vacuum hose
3. Dust container with filter system
4. Handle
5. Mains cable with mains plug
6. Swivel castor
7. Suction hose opening
8. Foot lever for adjusting the universal floor nozzle: with brush/without brush
9. Universal floor nozzle
10. Locking button for suction pipe extension
11. Telescopic tube

17 16 15 14 13 12

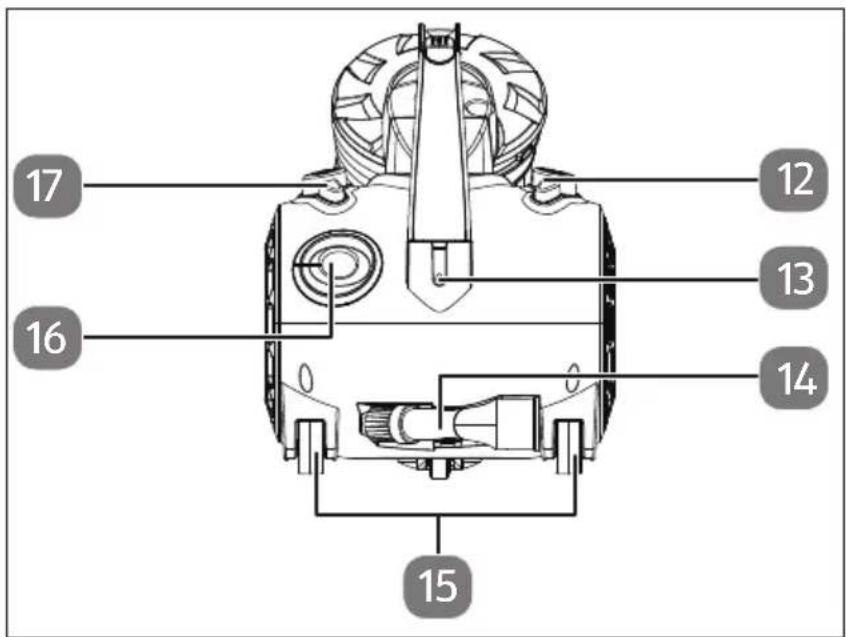

Fig. 2 - Back

1. Foot switch①: Switch on/off
2. Suction pipe holder
3. Holder for crevice/brush nozzle (nozzle already fitted)
4. Rollers
5. Cable winding duct
6. Foot switch: wind up cable

18 19 20 21 22 23 24 25 26 27

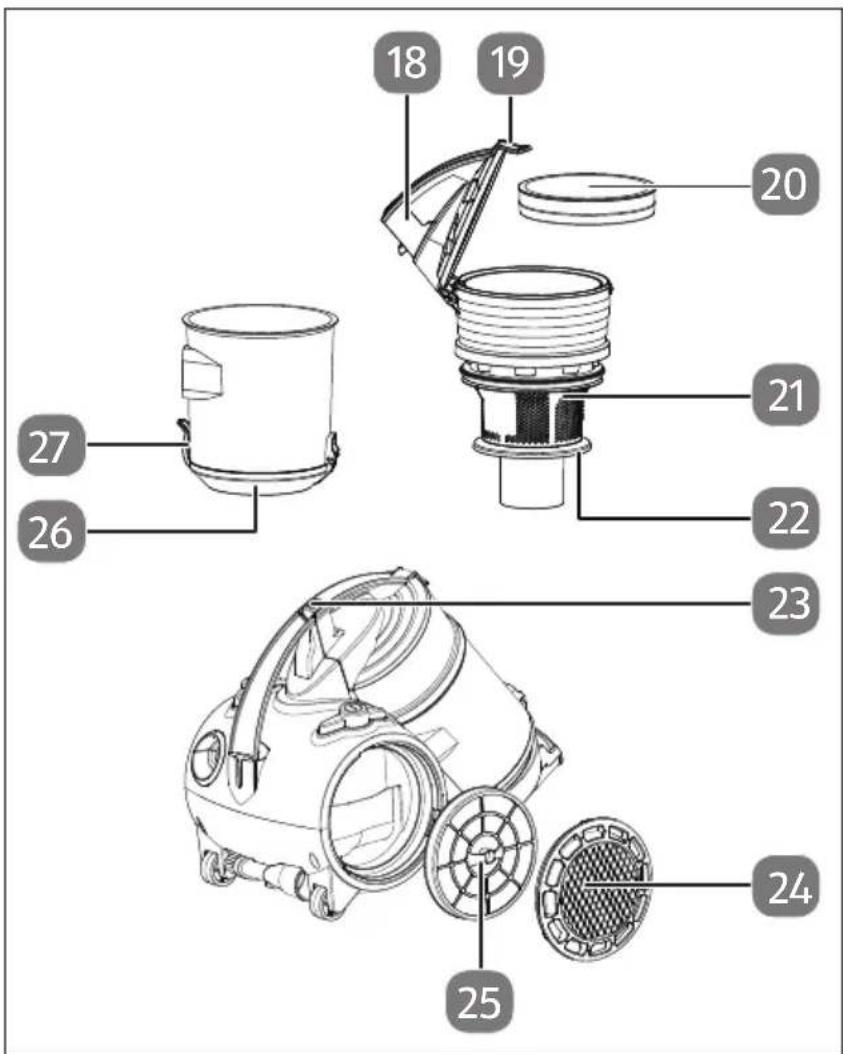

Fig. 3 - Filter systems

1. Upper dust container/filter system cover
2. Lock for the upper dust container/filter system cover
3. MIF filter for the intake air
4. Intake air filter
5. Coarse particle collector
6. Release button for the dust container
7. Cover for motor filter
8. HEPA 13 exhaust air filter
9. Lower dust container cover
10. Lock for lower dust container cover

6. Preparing the vacuum cleaner

Insert the suction hose into the suction piece.
- Connect the suction piece and the telescopic extension together.
Adjust the telescopic extension to your height by pressing the locking button and extending or retracting the tube.
Insert the bayonet connection of the suction hose into the opening beneath the dust container and secure the suction hose by turning it clockwise.
▶ To remove the suction hose, turn the bayonet catch anti-clockwise.
▶ Attach a suitable suction nozzle to the telescopic extension:

Suction nozzle Application
Universal floor nozzle • Pressed foot switch: short pile carpet and smooth floors• Foot switch up: high pile carpets
Brush nozzle Vacuuming	sensitive objects such as books, picture frames etc.
Crevice nozzle Vacuuming	corners and places the floor nozzle cannot reach,folds in fabric etc.
Upholstery nozzle Vacuuming	upholstery or mattresses

▶ Make sure that the dust container is inserted correctly.
▶ Unwind the mains cable to the yellow mark by pulling the handle of the mains plug. When the red mark is visible, the cable is fully unwound and further pulling can damage the cable drum. You should therefore unwind the cable carefully and slowly as soon as the yellow mark is visible.
▶ Plug the mains plug into a properly installed earthed power socket.

Your vacuum cleaner is now ready for use.

7. Vacuuming

▶ Press the foot switch Ⓘ to switch the vacuum cleaner on.
▶ To vacuum, push or pull the nozzle over the area to be cleaned.

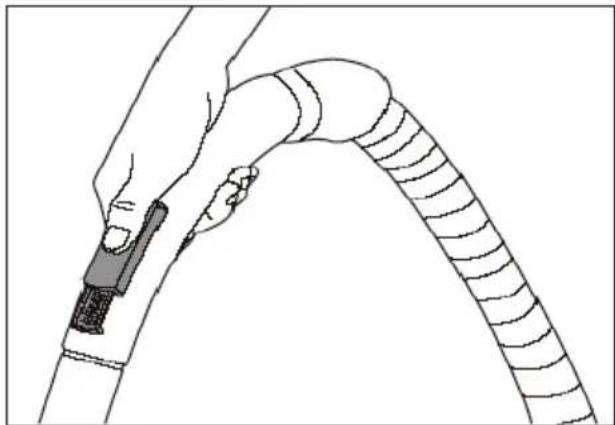

To reduce the suction power if necessary, e.g. when vacuuming curtains, move the cover of the air inlet valve. The further you open the valve, the lower the suction power at the bottom of the nozzle.

Line drawing of a hand holding a flexible hose with a clip attached (no text or symbols)

Fig. 4 - Regulating the suction power

7.1. After vacuuming

▶ Press the foot switch Ⓘ to switch off the vacuum cleaner.
▶ Unplug the mains plug from the socket, do not pull on the cable, but pull the plug instead.
▶ Press the foot switch to wind up the cable.

CAUTION!

Risk of injury!

There is a risk of injury from the cable swinging wildly.

■ Hold the cable firmly to prevent the cable from swinging back and forth.

▶ Push the fixture on the nozzle onto the suction pipe holder on the appliance.

Line drawing of a vacuum cleaner with coiled hose and internal components (no text or symbols)

Fig. 5 - Suction pipe holder

To store the vacuum cleaner, place it in a dry place without exposure to direct sunlight.

8. Cleaning and care

Empty the dust container and clean the filter regularly.

WARNING!

Risk of electric shock!

There is a risk of electric shock due to live parts.

■ Always unplug the mains plug from the socket before cleaning the vacuum cleaner, do not pull on the cable, but pull the plug instead.

NOTICE!

Possibility of damage to the appliance!

The wrong cleaning agents can damage the surfaces or the printing on them.

■ Never use acidic, abrasive or granular, acetic-acid-, soda- or solvent-based cleaning agents. These may damage the appliance surfaces or the printing on it.

8.1. Emptying the dust container

▶ Press the release button on the dust container (A) and pull the dust container (B) upwards by the handle.

A B

Fig. 6 - Removing the dust container

▶ Open the latch for the lower dust container cover.

Line drawing of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols)

Fig. 7 - Opening the dust container

CAUTION!

Harmful to health!

If you inhale the dust when emptying the vacuum cleaner, this can be hazardous to health or trigger allergies.

■ Empty the dust container outdoors, directly over a dustbin.
■ Empty the dust container regularly.
■ Clean the dust filter regularly.

8.2. Cleaning the dust fi Iter

The vacuum cleaner has an MIF filter. Clean this regularly to ensure fault-free operation.

CAUTION!

Harmful to health!

If you inhale the dust, this can be hazardous to health or trigger allergies.

■ Do not operate the vacuum cleaner with a damaged filter or without a filter! Vacuumed dust can get into the air in the room. Replace a damaged filter without delay.

Remove the dust container from the appliance as described in the previous section.

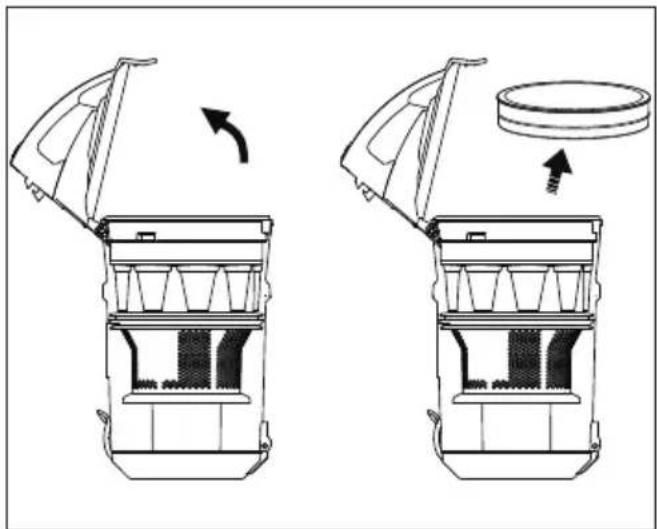

▶ Open the upper filter cover and remove the MIF filter from the dust container by pulling it upwards.

Diagram showing two stages of a waste disposal or recycling process, with no visible text or symbols.

Fig. 8 - Removing the dust filter

Tap or brush light soiling out of the MIF filter.
▶ If the MIF filter is heavily soiled, wash it under lukewarm water.
▶ Then allow the MIF filter to dry completely for at least 24 hours.

Three-step illustration showing hands holding a circular object with a tool, connected by a tool to a ring (no text or symbols present)

Fig. 9 - Cleaning the MIF filter

To clean the dust filter, you can remove the entire filter insert and rinse it out under lukewarm water.

To do this, turn the upper part of the dust container clockwise. The marking ▼ on the upper part points to the marking △ on the dust container. Lift the dust filter out of the dust container.
To make cleaning easier, the coarse particle collector can also be un-screwed, turn the ring clockwise then pull it downwards and remove.
▶ Rinse out the dust filter under lukewarm water.
Leave it to dry completely for at least 24 hours.

Technical line drawing of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

Fig. 10 - Removing/cleaning the dust filter

To reassemble the dust filter, proceed in reverse order:

Place the coarse particle collector on the dust filter so that the spring on the dust filter engages in the groove of the coarse particle collector. Turn it to the left until it clicks into place.
Insert the dust filter into the dust container so that the springs of the dust container engage in the grooves of the upper part of the dust container.

Make sure that the marking ▼ on the upper part points to the marking △ on the dust container.

▶ Turn the upper part of the dust container anti-clockwise until it audibly clicks into place and the markings ▼ and ▲ are aligned.

Technical line drawing of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

Fig. 11 - Inserting the dust filter

Any discolouration that may remain will not affect the filter function.

- Close the dust container cover and insert it back into the appliance until it clicks into place.

8.3. Cleaning the exhaust air/motor fi Iter

The vacuum cleaner has an exhaust air/motor filter. Clean this regularly every 6–12 months to ensure fault-free operation.

NOTICE!

Damage to the appliance!

Vacuumed up dust can get inside the appliance and damage the motor.

■ Do not operate the vacuum cleaner with a damaged filter or without a filter! Replace a damaged filter without delay.
▶ Turn the right-hand motor cover anti-clockwise from the rear so that the marking ▲ on the filter cover points to the marking ▽ on the top of the appliance. Remove the cover.

▶ Hold the motor filter by the handle and remove it from the appliance.

Line drawing of a vacuum cleaner with rotating fan and mesh cover (no text or symbols)

Fig. 12 - Removing motor filter

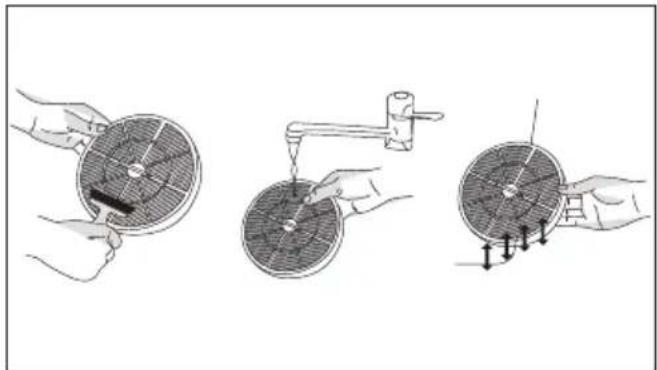

▶ Tap or brush light soiling out of the HEPA filter.
▶ If the HEPA filter is heavily soiled, wash it under lukewarm water.
Then allow the HEPA filter to dry completely for at least 24 hours.

Three-step illustration showing hands using a tool to adjust circular components, with no visible text or symbols.

Fig. 13 - Cleaning the HEPA filter

▶ Hold the motor filter by the handle and insert it back into the appliance.
▶ Replace the motor cover and turn the cover clockwise so that the marking ▲ on the filter cover points to the marking ▼ on the top of the appliance and audibly clicks into place.

Technical line drawing of a vacuum cleaner with internal components and directional arrows indicating motion (no text or symbols)

Fig. 14 - Inserting the motor filter

9. Troubleshooting

If the appliance stops working properly, please refer to the troubleshooting table shown below to see if you can resolve the problem yourself.

Never attempt to repair the appliance yourself. If a repair is necessary, please contact our Service Centre or a suitable authorised repair workshop.

Problem Solution
The vacuum cleaner is not working.	▸ Check the mains plug/socket.▸ Press the foot switch.
The suction power is reduced.	Suction pipe, hose, or nozzle is blocked.▸ Unplug the mains plug and remove the blockage.Dust filter is dirty.▸ Unplug the mains plug and clean the filters.
The vacuum cleaner makes unusual noises during operation.	▸ Switch off the vacuum cleaner immediately.▸ Unplug the mains plug.▸ Check whether there is a blockage or the filters are dirty.▸ If necessary, clean the filters and/or remove the blockage.

10. Disposal

PACKAGING

Your appliance has been packaged to protect it from damage in transit. The packaging is made of materials that can be recycled in an environmentally friendly manner.

Observe the following labels on the packaging materials regarding waste separation with the abbreviations (a) and numbers (b):

1–7: plastics/20–22: paper and cardboard/80–98: composite materials

(France only)

The “Triman” symbol tells the consumer that the product can be recycled, is covered by an extended system of manufacturer’s responsibility and must be sorted by material type in France.

APPLIANCE

All old appliances marked with the symbol shown must not be disposed of in normal household waste.

In accordance with Directive 2012/19/EU, the appliance must be properly disposed of at the end of its service life.

This involves separating the materials in the appliance for the purpose of recycling as well as minimising the environmental impact and negative effects on human health.

Take old appliances to an electrical scrap collection point or a recycling centre.

Contact your local waste disposal company or your local authority for more information on this subject.

11. Technical specifications

Output:

700

Input: 220–240 V\~ 50/60 Hz

Noise level: 72 dB ± 5 dB

Vacuum power: 155 W ± 10 % – 21.5 kPa

Dust capacity (net/gross): 1 l / 2 l

Cable length: approx. 5.2 m

Weight net/gross: approx. 5.4 kg

Dimensions: approx. 43 x 23.5 x 32 cm

Aluminium telescopic extension approx. 86 cm

Filter system Washable MIF and HEPA 13 filter

DE

FR

NL

ES

IT

EN

12. EU – Declaration of Conformity

MEDION AG hereby declares that this appliance complies with the fundamental requirements and the other relevant provisions of:

• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• Ecodesign Directive 2009/125/EC
• RoHS Directive 2011/65/EU

13. Service information

Please contact our Customer Service team if your device ever stops working the way you want or expect it to. There are several ways for you to contact us:

• In our Service-Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there.
  You will find our Service-Community at community.medion.com.
  • Alternatively, use our contact form at www.medion.com/contact.
  • You can also contact our Service team via our hotline or by post.

Opening times Hotline number UK
Mon – Fri: 08.00 – 20.00Sat – Sun: 10.00 – 16.00	0333 3213106
Service address
MEDION Electronics Ltd.120 Faraday Park, Faraday Road, DorcanSwindon SN3 5JF, WiltshireUnited Kingdom

QR code image containing encoded data, no visible human-readable text

You can download this and many other sets of operating instructions from our service portal at www.medionservice.com.

We have stopped providing printed copies of our warranty terms and conditions as part of our commitment to sustainability, but you can access the warranty terms and conditions on our service portal.

You can also scan the QR code on the side of the screen, to download the operating instructions onto your mobile device from the service portal.

14. Legal Notice

Copyright 2024

Date: 05. June 2024

All rights reserved.

These operating instructions are protected by copyright.

Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer.

Copyright is owned by the company:

MEDION AG

Am Zehnthof 77

45307 Essen

Germany

Please note that you cannot use the address above for returns. Please always contact our Customer Service team first.

DE

FR

NL

ES

IT

EN
